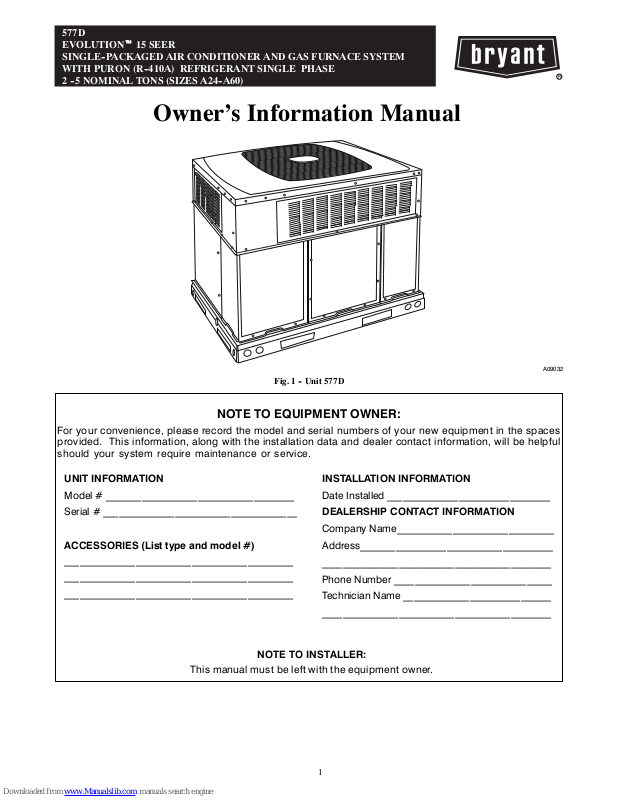

577D EVOLUTIONt 15 SEER SINGLE--PACKAGED AIR CONDITIONER AND GAS FURNACE SYSTEM WITH PURON (R--410A) REFRIGERANT SINGLE PHASE 2 --5 NOMINAL TONS (SIZES A24--A60)

Owner’s Information Manual

A09032

Fig. 1 -- Unit 577D

NOTE TO EQUIPMENT OWNER:

For your convenience, please record the model a nd serial numbers of your new equipment in the spaces provided. This information, along with the installation data and dealer contact information, will be helpful should your system require maintenance or service.

UNIT INFORMATION

Model # _____________________________________

Serial # ______________________________________

ACCESSORIES (List type and model #)

_____________________________________________

NOTE TO INSTALLER:

This manual must be left with the equipment owner.

INSTALLATION INFORMATION

Date Installed ________________________________

DEALERSHIP CONTACT INFORMATION

Company Name_______________________________

Address______________________________________

_____________________________________________

Phone Number _______________________________

Technician Name _____________________________

_____________________________________________

Page 2

SAFETY CONSIDERATIONS

Improper installation, adjustment, alteration, service maintenance, or use can cause explosion, fire, electrical shock, or other conditions which may cause death, personal injury, or property damage. Consult a qualified installer, service agency, or your distributor or branch for information or assistance. The qualified installer or agency must use factory--authorized kits or accessories when modifying this product. Refer to the individual instructions packaged with the kits or accessories when installing.

Follow all safety codes. Wear safety glasses, protective clothing, and work gloves. Have a fire extinguisher available. Read these instructions thoroughly and follow all warnings or cautions included in literature and attached to the unit. consult local building codes, the current editions of the National Fuel Gas Code (NFGC) NFPA 54/ANSI Z223.1, and the National Electrical Code (NEC) NFPA 70.

In Canada refer to the current editions of the National Standards of Canada CAN/CSA--B149.1 and .2 Natural Gas and Propane Installation codes, and Canadian Electrical Code CSA C22.1

Recognize safety information. This is the safety--alert symbol When you see this symbol on the unit and in instructions or manuals, be alert to the potential for personal injury. Understand these signal wo rds: DANGER, WARNING, and CAUTION. These words are used with the safety--alert symbol. DANGER identifies the most serious hazards which will result in severe personal injury or death. WARNING signifies hazards which could result in personal injury or death. CAUTION is used to identify unsafe practices which may result in minor personal injury or product and property damage. NOTE is used to highlight suggestions which will result in enhanced installation, reliability, or operation. Note: Installer: This manual should be left with the equipment user.

WARNING

FIRE, EXPLOSION, ELECTRICAL SHOCK HAZARD

Failure to follow this warning could result in personal injury, death or property damage.

Installation and servicing of this equipment can be hazardous due to mechanical and electrical components. Only trained and qualified personnel should install, repair, or service this equipment.

CAUTION

FORYOURSAFETY

Failure to follow this caution may result in personal injury.

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

FIRE AND EXPLOSION HAZARD

What to do if you smell gas:

1. Do not try to light any appliance.

2. Do not touch any electrical switch; do not use any phone in your building.

3. Leave the building immediately.

4. Immediately call your gas supplier from a nearby phone. Follow the gas supplier’s instructions.

5. If you cannot reach your gas supplier, call the fire department.

ELECTRICAL SHOCK HAZARD

Failure to follow this warning could result in personal injury and/or death.

Before performing recommended maintenance, be sure the main power switch to unit is turned off and lock--out tag is installed.

FIRE,EXPLOSION, ELECTRICAL SHOCK HAZARD

Failure to follow this warning could result in personal injury, death and/or property damage.

1. Do not turn off the electrical power to unit without first turning off the gas supply.

2. Before attempting to start the gas heating section, familiarize yourself with all the procedures that must be followed.

FIRE, EXPLOSION HAZARD

Failure to follow this warning could resultin personal injury, death, and/or property damage.

Do not attempt to light by hand.

WARNING

FIRE,EXPLOSION, ELECTRICAL SHOCK HAZARD

Failure to follow this warning could result in personal injury, death or property damage.

Do not use this unit if any part has been underwater. Immediately call a qualified service technician to inspect the unit and to replace any part of the control system which has been underwater.

WARNING

CUT HAZARD

Failure to follow this caution may result in personal injury.

When removing access panels or performing maintenance functions insideyour unit, be aware of sharp sheetmetal parts and screws. Although special care is taken to reduce sharp edges to a minimum, be extremely careful when handling parts or reaching into the unit.

CAUTION

Page 3

UNIT INTRODUCTION

This 577D unit is a small packaged gas heat/electriccoolingsystem that can utilize the comfort of gas heating packaged along with efficient electric air conditioning. This unit uses Puron mentally friendly refrigerant, for cooling.

OPERATING YOUR UNIT

The operationof your unit is controlled by the Evolutiont User Interface (UI). You simply program the UI and it maintains the indoor temperature at the level you select. See UI manual for detailed instructions.

To better protect your investment and to eliminate unnecessary service calls, familiarize yourself with the following facts:

To start unit gas heat:

Refer to Fig. 2 for location of unit front access panel. Refer to Fig. 3 for location of gas valve. Refer to Fig. 4 while proceeding with the following steps.

1. Set the temperature selector on UI to the lowesttemperature setting and set system switch to HEAT.

2. Close the external manual gas shutoff valve.

3. Turn off the electrical supply to the unit.

4. Remove the front access panel with a 5/16--in. nut driver.

5. Move the selector switch on the internalgas valve to theOFF position and wait 5 minutes.

6. Move the selector switch on the internalgas valve to the ON position.

7. Replace the front access panel.

8. Turn on the electrical supply to unit.

9. Open the external manual gas shutoff valve.

10. Set the temperature selector on UI slightly above room temperature to start unit. The induced--draft combustion air fan will start. Main gasvalve will open and main burnersshould ignitewithin 5 seconds. If the burner does not light within 5 seconds, the ignition module will go into a Retry Mode after a period of approximately 22 seconds (following the 5--second ignition period). If the burners do not light within 15 minutes of the initial call for heat, there is a lockout.

11. Set the temperature selector on UI to desired setting.

Filter Access Panel For Accessory Filter Rack

Access Panels

Fig. 2 -- Accessory Filter Rack Access Panel

, the environ-

A09045

Flue Hood

Burners

Fig. 3 -- Gas Heating/Electric Cooling Unit with Access Panel

Removed (Standard unit shown. Actual appearance is shown

WARNING

FIRE AND EXPLOSION HAZARD

Failure to follow this warning could resultin personal injury, death, and/or property damage.

1. If the main burners fail to light, or the blower fails to start, shutdown gas heatingsection and call your dealer for service.

2. Never attempt to manually light the main burners on unit with a match, lighter, or any other flame. If the electric sparking device fails to light the main burners, refer to the following shutdown procedures, then call your dealer as soon as possible.

To shut off unit gas heat:

FIRE, EXPLOSION, ELECTRICAL SHOCK HAZARD

Failure to follow this warning could resultin personal injury, death, and/or property damage.

Do not turn off the electrical power to unit without first turning off the gas supply.

Note:If the unit is being shut down because of a malfunction, call your dealer as soon as possible.

Should overheating occuror the gas supply fail to shut off, shut off the external manual gas valve to the unit before shutting off the electrical supply. Do not use this unit if any part has been under water. Immediately call a qualified service technician to inspect the unit and to replace any part of the control system and any gas control which has been under water.

Refer to Fig. 4 while proceeding with the following steps.

1. Set the temperature selector on UI to lowest temperature setting and set system SWITCH to OFF.

2. Close the external manual shutoff valve.

3. Turn off the electrical power supply to the unit.

4. Remove the front access panel.

5. Movethe selectorswitch on the internalgas valve to theOFF position.

To start unit electric cooling:

Refer to Fig. 5 while proceeding with the following steps.

1. Set the temperature selector on UI to highest temperature setting and set system SWITCH to OFF.

2. Close the external manual shutoff valve.

3. Turn off the electrical power supply to the unit.

WARNING

Gas Valve

in Fig. 2.)

A09043

Page 4

4. Remove the front access panel.

5. Move the selector switch on the internalgas valve to theOFF position.

6. Replace the front access panel

7. Restore electrical power to the unit and set system switch to COOL.

8. Set the temperature selector on UI slightly below the room temperature to start unit.

To shut off unit electric cooling:

Refer to Fig. 6 while proceeding with the following steps.

1. Set the temperature selector on UI to highest temperaturesetting and set system SWITCH to OFF.

2. Close the external manual shutoff valve.

3. Turn off the electrical power supply to the unit.

MAIN

OFF

STEP 1 STEP 2

STEP 4

STEP 3

STEP 5

STEP 6

MAIN

OFF

STEP 8

STEP 9

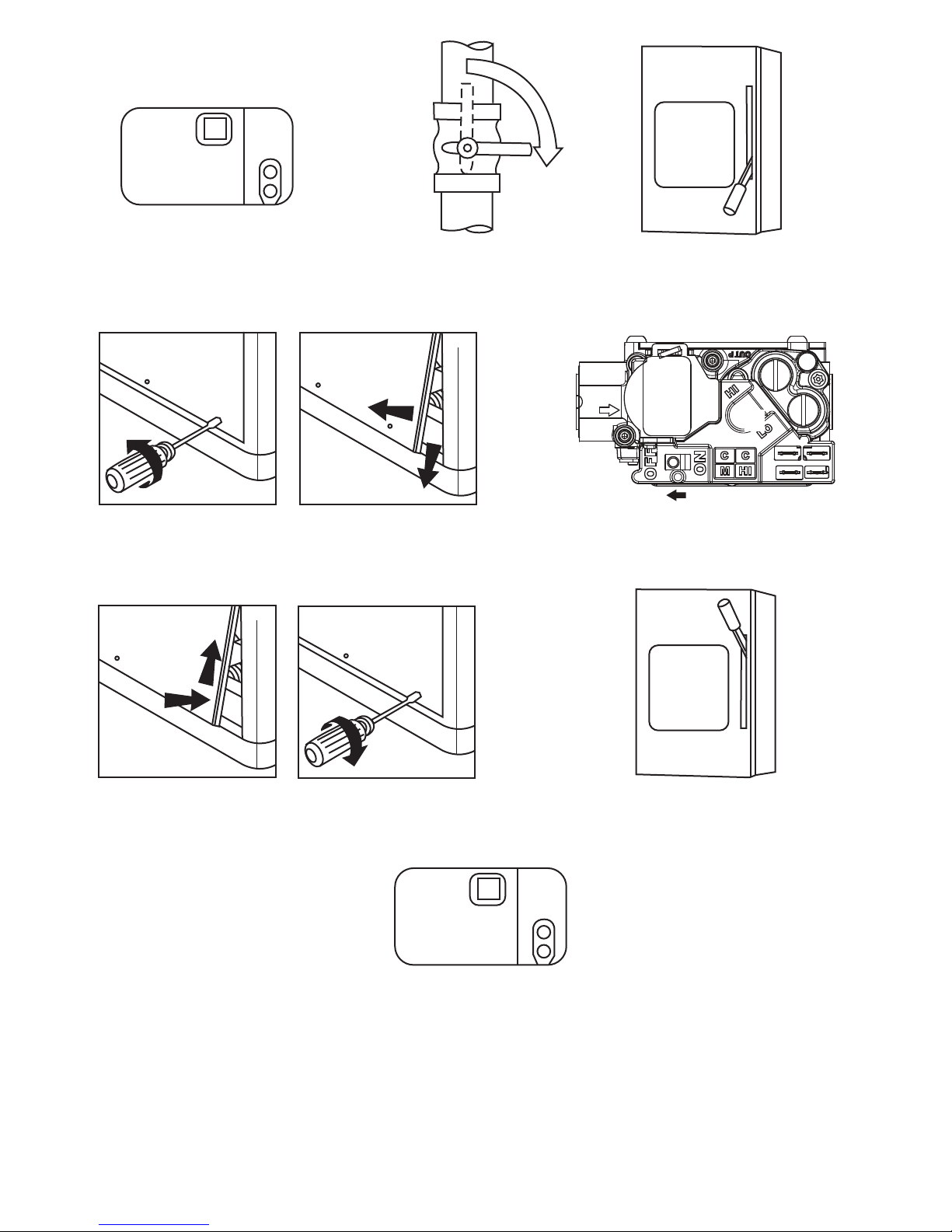

Fig. 4 -- To Start Unit Gas Heat

STEP 7

STEP 10

A09133

Page 5

MAIN

OFF

STEP 1

STEP 4

STEP 2

STEP 3

STEP 5

STEP 6

Cooling Mode

With the SYSTEM or MODE control set to COOL, your unit will run in cooling mode until the indoor temperature is lowered to the level you have selected. On extremely hot days, your unit will run for longer periods at a time and have shorter “off” periods than on moderate days.

Gas Heating Mode

With the SYSTEM or MODE control set to HEAT, your unit will run in heating mode until the room temperature is raised to the level you have selected. Of course, your unit will run for longer periods to maintain a comfortable environment on cooler days and nights than on moderate ones.

A09134

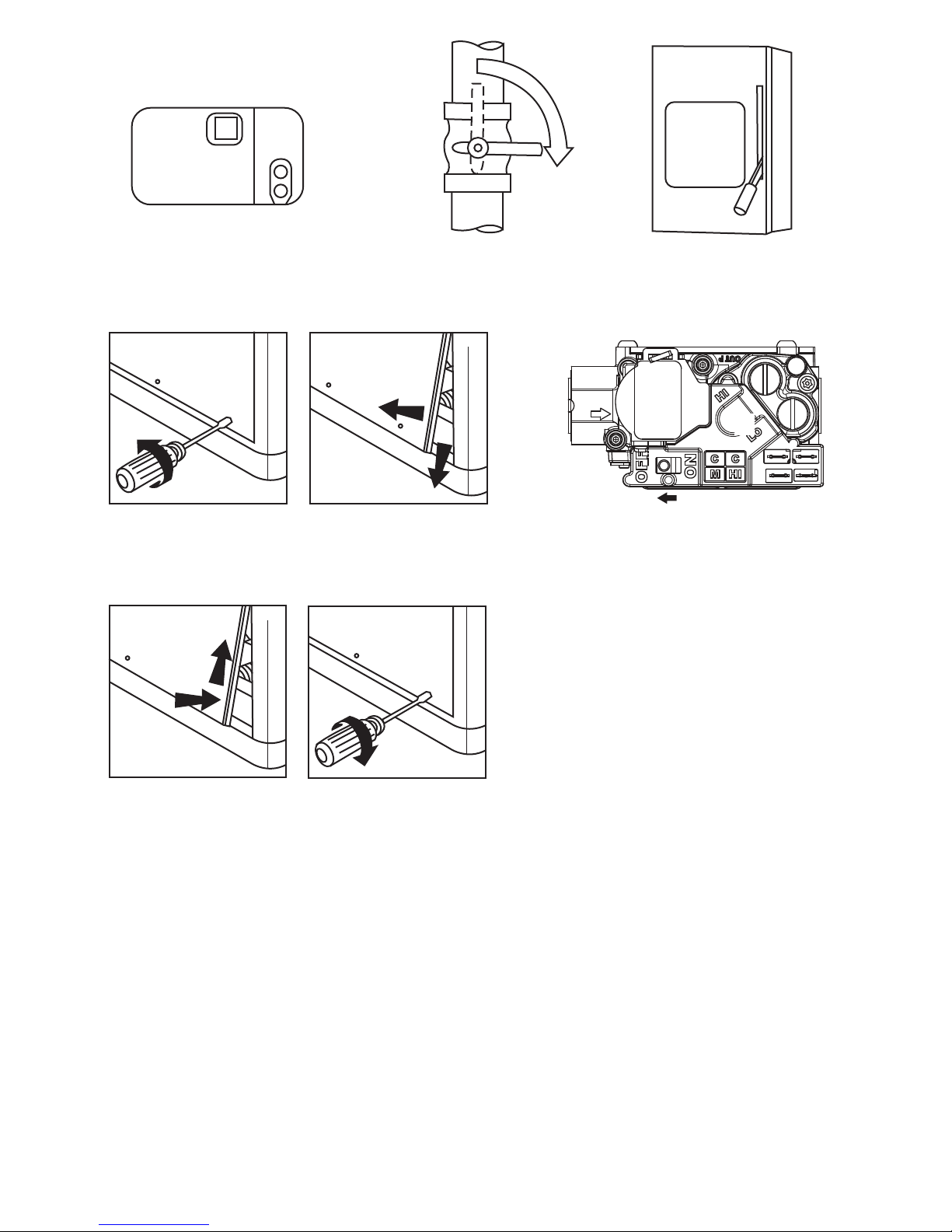

Fig. 5 -- To Shut--off Unit Gas Heat

MAINTENANCE AND SERVICE

This section discusses maintenance that should be performed on your system. Most maintenance should be performed by your dealer. You, as the owner, may wish to handle some minor maintenance for your new unit.

Routine Maintenance

All routine maintenance should be handled by skilled, experienced personnel. Your dealer can help you establish a standard procedure.

To assure proper functioning of the unit, flow of condenser airmust not be obstructed from reaching the unit. Clearance from the top of the unit is 48 in. (1219 mm) Clearance of at least 36 in. (914 mm) is required on sides except the power entry side (42 in. [1067 mm] clearance) and the duct side (12 in. [305 mm] minimum clearance).

Page 6

MAIN

OFF

STEP 1

STEP 4

STEP 2

STEP 3

STEP 5

MAIN

STEP 6

OFF

STEP 7

STEP 8

A09135

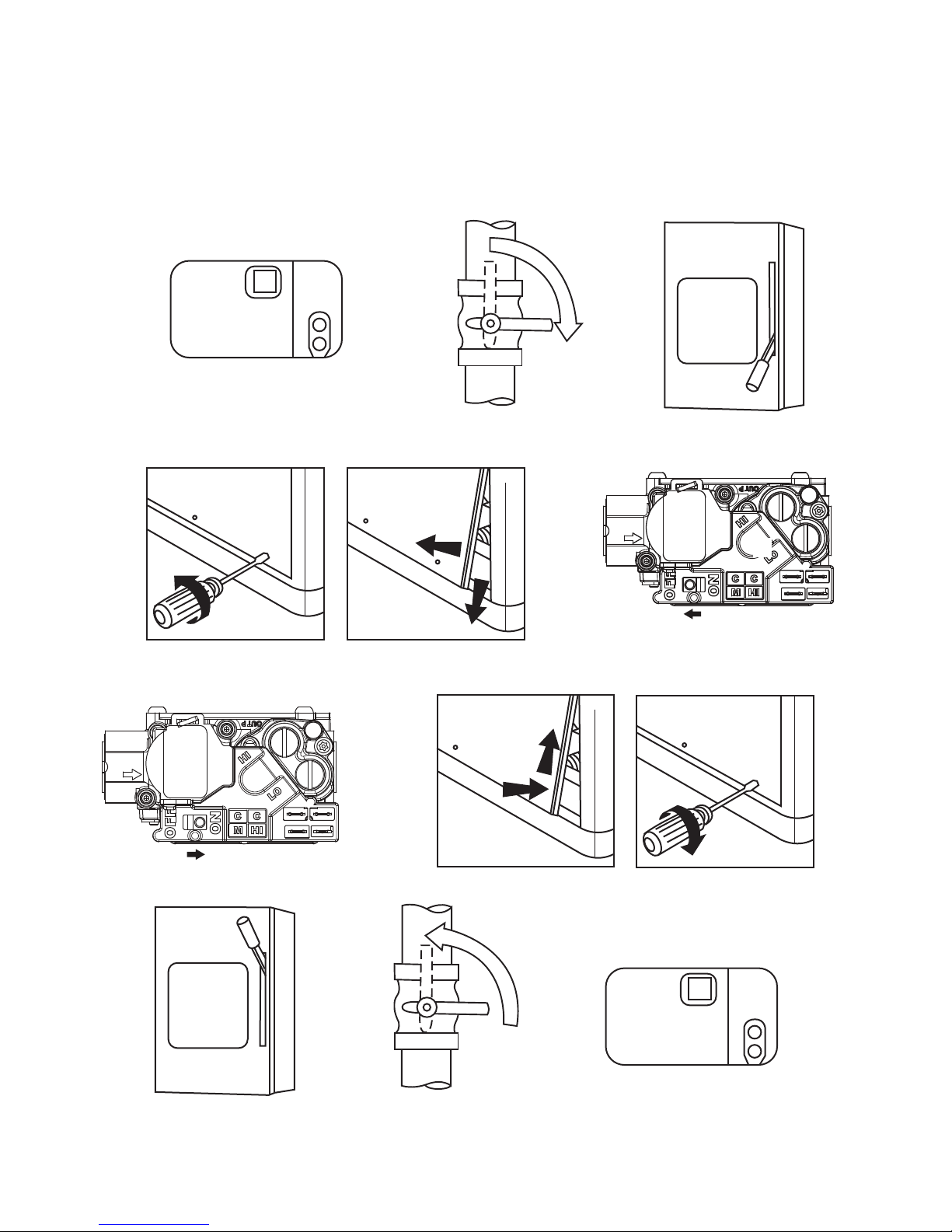

Fig. 6 -- To Start Unit Electric Cooling

Page 7

MAIN

OFF

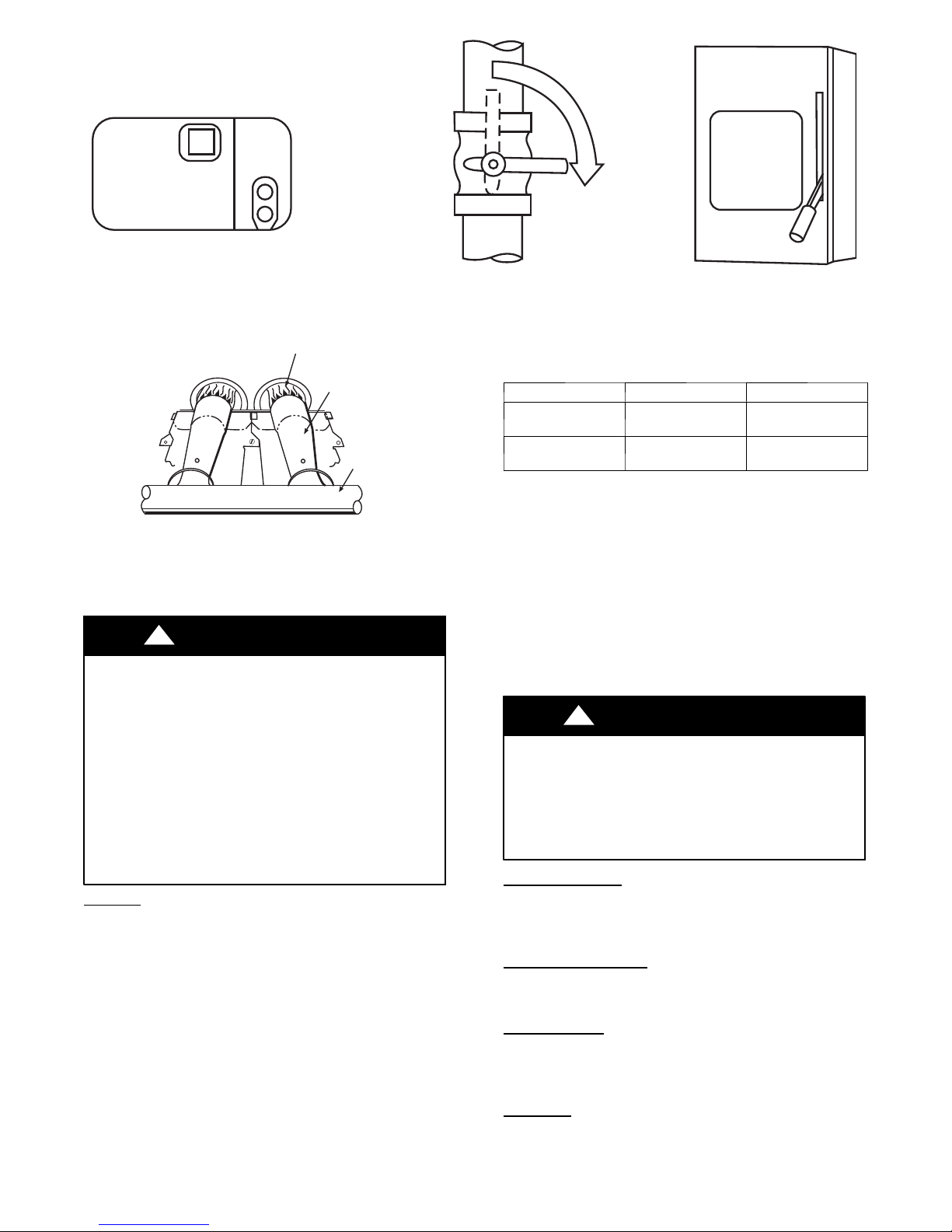

STEP 1

Fig. 7 -- To Shut--off Unit Electric Cooling

BURNER FLAME

BURNER

MANIFOLD

C99021

Fig. 8 -- Monoport Burner

Maintenance and Care for the Equipment Owner

Before proceeding with those things you might want to maintain yourself, please carefully consider the following:

FIRE, EXPLOSION, ELECTRICAL SHOCK AND CUT HAZARD

Failure to follow this warning could result in personal injury, death or property damage.

1. TURN OFF ELECTRICAL POWER TO YOUR UNIT BEFORE SERVICING OR PERFORMING MAINTENANCE.

2. When removing access panels or performing maintenance functions inside your unit, be aware of sharp sheet metal parts and screws. Although special care is taken to reduce sharp edges to a minimum, be extremely careful when handling parts or reaching into the unit.

Air Filters

The air filter(s) should be checked every 3 or 4 weeks and changed or cleaned whenever it becomes dirty. Dirty filters produce excessive stress on the blower motor and can cause the motor to overheat and shut down.

This unit must have air filters in place before it can be operated. These filters can be located in one of at least two places. In many applications, the installer will provide return air filter grilles mounted on the wall or ceiling of the conditioned structure. In the instance of filter grilles, the filters can simply be removed from the grille and replaced.

The other typical application is an accessory filter rack installed inside the unit itself. The following information is given to assist in changing filters used in these internal filter racks.

Table 1 indicates the correct filter size for your unit. Refer to Fig. 2 to access filters installed in the accessory filter rack.

WARNING

STEP 2

Table 1—Air Filters Located Inside Unit

(For Replacement Purposes)

Unit Size Quantity Filter Size in. (mm)

A24--- A30 2

A36--- A60 3

To replace or inspect filters in accessory filter rack (See Fig. 2):

1. Remove the filter access panel using a 5/16--in. nut driver.

2. Remove the filter(s) by pulling it out of the unit. If the filter(s) is dirty, clean or replace with a new one.

When installing the new filter(s), note the direction of the airflow arrows on the filter frame.

If you have difficulty locating your air filter(s) or have questions concerning proper filter maintenance, contact your dealer for instructions. When replacing filters, always use the same size and type of filter that was supplied originally by the installer.

FIRE AND UNIT OPERATION HAZARD

Failure to follow this warning could result in personal injury, death or property damage.

Never operate your unit without filters in place. An accumulation of dust and lint on internal parts of your unit can cause loss of efficiency.

Fans and Fan Motors

Periodically check the condition of fan wheels and housings and fan--motor shaft bearings. Contact your dealer for the required annual maintenance.

Indoor and Outdoor

Cleaning of the coils should only be done by qualified service personnel. Contact your dealer for the required annual maintenance.

Condensate

The drain pan and condensate drain line should be checked and cleaned at the same time the cooling coilsare checkedby your dealer.

Compressor

Allcompressors arefactory shippedwith a normal chargeof thecorrect type of refrigeration grade oil. A compressor should rarely require additional oil.

Drain

WARNING

Coils

STEP 3

(305x508x25)

(305x610x25)

A07797

12x20x1

12x24x1

Page 8

Condenser

PERSONAL INJURY AND UNIT DAMAGE HAZARD

Failure to follow this warning could result in personal injury, death or property damage.

Do not poke sticks, screwdrivers, or any other object into revolving fan blades.

The fan must be kept free of all obstructions to ensure proper cooling. Contact your dealer for any required service.

Electrical Controls and W

Electricalcontrolsaredifficult to checkwithoutproperinstrumentation. If there are any discrepancies in the operating cycle, contact your local dealer and request service.

Refrigerant

Therefrigerantcircuitis difficult to checkfor leakswithouttheproper equipment. If inadequate cooling is suspected, contact your local dealer for service.

EXPLOSION, BURN AND ENVIRONMENTAL HAZARD

Failure to follow this warning could result in personal injury, death or property damage.

System under pressure. Relieve pressure and recover all refrigerant before system repair or final unit disposal. Use all service ports and open all flow--control devices, including solenoid valves.

Unit Panels

Afterperforming any maintenance or serviceon the unit, be sure all panels are fastened securely in place to prevent rain from entering unit cabinet and to prevent disruptionof the correct unit airflowpattern.

Regular Dealer Maintenance

In addition to the type of routine maintenance you might be willing to perform, your unit should be inspected regularly by a properly trained service technician. An inspection (preferably each year, but at least every other year) should include the following:

Fan

Circuit

1. Inspection and, if required, cleaning of the outdoor and indoor coils.

2. Inspection and, if required, cleaning of the indoor coil drain pan.

WARNING

iring

WARNING

3. Inspection and cleaningof blower wheel housing andmotor.

4. Inspection of all supply--air and return--air ducts for leaks, obstructions, and insulation integrity. Any problems found should be resolved at this time.

5. Inspection of the unit base to ensurethat no cracks, gaps,etc., exist which may cause a hazardous condition.

6. Inspection of the unit casing for signs of deterioration.

7. Inspection of all electrical wiring and components to assure proper connection.

8. Inspection for leaks in the refrigerant circuit. Pressure check to determine appropriate refrigerant charge.

9. Operational check of the unit to determine working conditions.Repairor adjustmentshouldbe made at this time.

Your servicing dealer may offer an economical service contract that covers seasonal inspections. Ask for further details.

Completeservice instructions can be found in the unit Installation, Start--up and Service Instructions.

Warranty Certificate

Your 577D unit has a limited warranty. Be sure to read the warranty carefully to determine the coverage for your unit.

Before you call for service...

...check for several easily--solved problems.

If insufficient heating or cooling is suspected:

( ) Check for sufficient airflow. Check the air filter for dirt. Check for blocked return--air or supply--air grilles. Be sure they are open and unobstructed. If these checks do not reveal the cause, call your servicing dealer.

If your unit is not operating at all, check the following list for easy solutions:

( ) Check to be sure that the temperature specified by your UI is set below the indoor temperature during the cooling season or above the indoor temperature during heating season. Be sure the UI is set to COOL or HEAT and not OFF.

( ) If your unit still fails to operate, call your servicing dealer for troubleshooting and repairs. Specify the model and serial numbers of your unit. (Record them in this manual in the space provided.) If the dealer knows exactly which unit you have, he may be able to offer suggestions over the phone, or save valuable time through knowledgeable preparation for the service call.

In Case of Trouble

If you perform the stepsabove and unit performance is still unsatisfactory, shut off the unit and call your dealer.

Heating&CoolingSystems

TO OBTAIN INFORMATION ON PARTS: Consult your installing dealer or classified section of your local telephone directory under the

“Heating Equipment” or “Air Conditioning Contractors & Systems” heading for dealer listing by brand name.

Have available the Model No., Series Letter, & Serial No. of your equipment to ensure correct replacement part.

Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.

Printed i n the U.S.A.

Edition Date: 03/09

Catalog No:OM577D--- 01

R e p l a c e s : O M 1 0 --- 2 4
