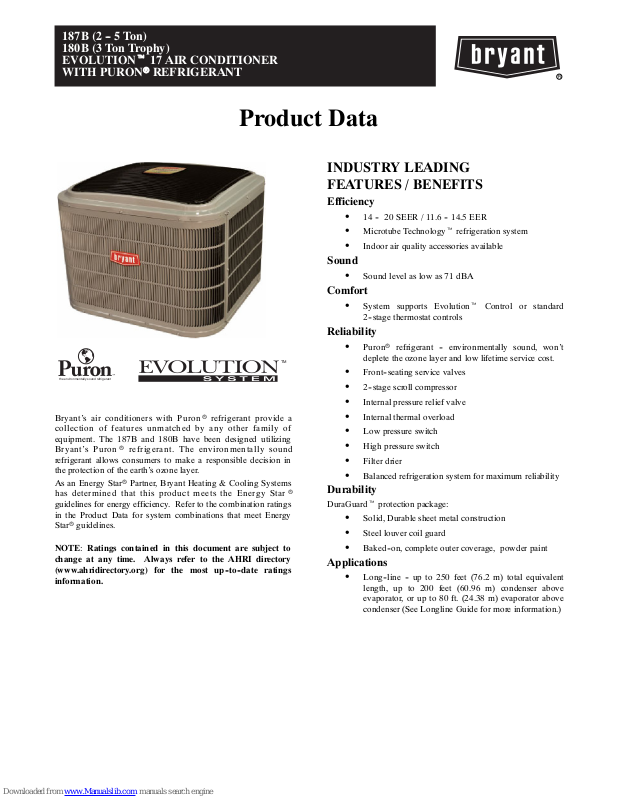

Bryant EVOLUTION 187B, EVOLUTION 180B Product Data

187B (2 -- 5 Ton) 180B (3 Ton Trophy) EVOLUTIONt 17 AIR CONDITIONER WITH PURONr REFRIGERANT

Product Data

the environmentally sound refrigerant

Bryant’s air conditioners with Puronr refrigerant provide a collection of features unmatched by any other family of equipment. The 187B and 180B have been designed utilizing Bryant’s Puron r refrigerant. The environmentally sound refrigerant allows consumers to make a responsible decision in the protection of the earth’s ozone layer.

As an Energy Starr Partner, Bryant Heating & Cooling Systems has determined that this product meets the Energy Starr guidelines for energy efficiency. Refer to the combination ratings in the Product Data for system combinations that meet Energy Starr guidelines.

NOTE: Ratings contained in this document are subject to change at any time. Always refer to the AHRI directory (www.ahridirectory.org) for the most up--to--date ratings information.

INDUSTRY LEADING FEATURES / BENEFITS

Efficiency

14 -- 20 SEER / 11.6 -- 14.5 EER

S S Microtube Technologyt refrigeration system S Indoor air quality accessories available

Sound

Sound level as low as 71 dBA

Comfort

System supports Evolutiont Control or standard

2--stage thermostat controls

Reliability

Puronr refrigerant -- environmentally sound, won’t deplete the ozone layer and low lifetime service cost.

S Front--seating service valves S 2--stage scroll compressor S Internal pressure relief valve S Internal thermal overload S Low pressure switch S High pressure switch S Filter drier S Balanced refrigeration system for maximum reliability

Durability

DuraGuardt protection package:

S Solid, Durable sheet metal construction S Steel louver coil guard S Baked--on, complete outer coverage, powder paint

Applications

Long--line -- up to 250 feet (76.2 m) total equivalent length, up to 200 feet (60.96 m) condenser above evaporator, or up to 80 ft. (24.38 m) evaporator above condenser (See Longline Guide for more information.)

MODEL NUMBER NOMENCLATURE

1234 5 678910111214

NNNAA/NNNNNA/NA/NNA

187B N A036000A

Product

Famil y

1=AC 8=

the environmentally sound refrigerant

187B / 180B

Tier SEER Major

7, 0 =17

Evolution

Series

SEER

Nominal

Use of the AHRI Certified TM Mark indicates a manufacturer’s participation in the program For verification of certification for individual products, go to www.ahridirectory.org.

Series

Voltage Variation s Coolin g Capacity Open Open Open Minor

B=Puron N=

208--- 230--- 1

Standard

ISO 9001:2000

REGISTERED

0=Not

Defined0=Not

Defined

This product has been designed and manu factured to meet En ergy St ar® criteria for energy efficiency when matched with appropriate coi l components. However, proper refrigerant charge and pr oper air flow are c ritical to achieve rated capacity and efficiency. Installation of this product should f ollow all manufacturing refrigerant charging and air flow instructions. Failure to confirm

proper charge an d air flow may reduce energy efficiency and shorten equipment life.

Defined

STANDARD FEATURES

MODEL

FEATURES

024---A 036---A 048 -- -A 060 --- A 036 --- A

Puron Refrigerant X X X X X

Maximum SEER Rating 17.0 18.0 17.5 17.0 20.0

2---Stage Scroll Compressor X X X X X

Crankcase Heater w/Temperature Switch X X X X X

Long line Capability X X X X X

Low Ambient Capability to 0_F ( --- 1 7 .8_C) w/Evolution Control X X X X X

Advanced Diagnostics with Evolution Control X X X X X

Utility Interface C onnection X X X X X

Louvered Coil Guard X X X X X

FieldInstalledFilterDrier X X X X X

Fron t Sea ting S ervice Valves X X X X X

Internal Pressure Relief Valve X X X X X

Internal Thermal Overload X X X X X

Long Line capability X X X X X

Low Pressure Switch X X X X X

High Pressure Switch X X X X X

Sound Blanket X X X X X

* With approved combinations X=Standard

UNIT SIZE --- SERIES

187BNA 180BNA

Not

Series

Original

Series

REFRIGERANT PIPING LENGTH LIMITATIONS

Liquid Line Sizing and Maximum Total Equivalent Lengths

The maximum allowable length of a residential split system depends on the liquid line diameter and vertical separation between indoor and outdoor units.

See Table below for liquid line sizing and maximum lengths :

Maximum Total Equivalent Length Outdoor Unit BELOW Indoor Unit

Liquid

Size

024

AC with

Puron

036

AC with

Puron

048

AC with

Puron

060

AC with

Puron

* Maximum actual length not to exceed 200 ft (61 m) { Total equivalent length accounts for losses due to elbows or fitting. See the Long Line Guideline for details.

--- --- = o u t s i d e a c c e p t a b l e r a n g e

Size

024

AC with

Puron

036

AC with

Puron

048

AC with

Puron

060

AC with

Puron

* Maximum actual length not to exceed 200 ft (61 m) { Total equivalent length accounts for losses due to elbows or fitting. See the Long Line Guideline for details.

Liquid Line

Connection

3/8

3/8 3/8 250* 250* 250* 250* 250* 250* 230 160 --- ---

3/8 3/8 250* 250* 250* 225* 190 150 110 --- --- --- ---

Liquid Line

Connection

3/8

3/8 3/8 250* 250* 250* 250* 250* 250* 250* 250*

Line

Diam.

w/TXV

1/4 75 75 75 50 50 --- --- --- --- --- --- --- ---

5/16 250* 250* 250* 250* 250* 225* 175 125 100

3/8 250* 250* 250* 250* 250* 250* 250* 250* 250*

5/16 175 150 150 100 100 100 75 --- --- --- ---

3//8 250* 250* 250* 250* 250* 250* 250* 250* 250*

Liquid

Diam.

w/TXV

(0--- 1.5)

Line

1/4 100 125 175 200 225* 250* 250* 250*

5/16 250* 250* 250* 250* 250* 250* 250* 250*

3/8 250* 250* 250* 250* 250* 250* 250* 250*

5/16 225* 250* 250* 250* 250* 250* 250* 250*

3/8 250* 250* 250* 250* 250* 250* 250* 250*

AC with Puron Refrigerant Maximum Total Equivalent Length{: Outdoor unit BELOW Indoor

0 --- 5

6 --- 1 0

(1.8--- 3.0)

11--- 20

(3.4--- 6.1)

Maximum Total Equivalent Length

Outdoor Unit ABOVE IndoorUnit

AC with Puron Refrigerant Maximum Total Equivalent Length{: Outdoor unit ABOVE Indoor

(7.6)

26--- 50

(7.9--- 15.2)

{

for Cooling Only Systems with Puronr Refrigerant:

Vertical Separation ft (m)

21--- 30

(6.4--- 9.1)

51--- 75

(15.5--- 22.9)

31--- 40

(9.4--- 12.2)

Vertical Separation ft (m)

76--- 100

(23.2--- 30.5)

41--- 50

(12.5--- 15.2)

101--- 125

(30.8--- 38.1)

51--- 60

(15.5--- 18.3)

126--- 150

(38.4--- 45.7)

61--- 70

(18.6--- 21.3)

151--- 175

(46.0--- 53.3)

71--- 80

(21.6--- 24.4)

176--- 200

(53.6--- 61.0)

187B / 180B

Liquid Line Size Puron Charge oz/ft (g/m)

3/8

5/16 0.40 (11.83)

1/4 0.27 (7.98)

Units are factory charged for 15 ft (4.6 m) of 3/8” liquid line. The factory charge for 3/8” lineset 9 oz.(266.16 g). When using other length or diameter liquid lines, charge adjustments are required per the chart above.

Charging

Formula:

[(Lineset oz/ft x total length) – (factory charge for lineset)] = charge adjustment Example 1: System has 15 ft of line set using existing 1/4“ liquid line. What charge adjustment is required?

Formula: (.27 oz/ft x 15ft) – (9 oz) = (-4.95) oz. Net result is to remove 4.95 oz of refrigerant from the system

Example 2: System has 45 ft of existing 5/16” liquid line. What is the charge adjustment?

Formula: (.40 oz/ft. x 45ft) – (9 oz.) = 9 oz. Net result is to add 9 oz of refrigerant to the system

REFRIGERANT CHARGE ADJUSTMENTS

0.60 (17.74)

(Factory charge for lineset = 9 oz / 266.16 g)

LONG LINE APPLICATIONS

An application is considered Long Line, when the refrigerant level in the system requires the use of accessories to maintain acceptable refrigerant management for systems reliability. See Accessory Usage Guideline table for required accessories. Defining a system as long line depends on the liquid line diameter, actual length of the tubing, and vertical separation between the indoor and outdoor units.

For Air Conditioner systems, the chart below shows when an application is considered Long Line.

AC WITH PURONr REFRIGERANT LONG LINE DESCRIPTION ft (m)

Beyond these lengths, long line accessories are required

Liquid Line Size Units On Same Level Outdoor Below Indoor Outdoor Above Indoor

1/4

5/16 120 (36.6) 50 (15.2) vertical or 120 (36.6) total 120 (36.6)

3/8 80 (24.4) 35 (10.7) vertical or 80 24.4) total 80 (24.4)

Note: SeeLongLineGuidelinefordetails

No accessories needed within allowed lengths

175 (53.3)

VAPOR LINE SIZING AND COOLING CAPACITY LOSS

Acceptable vapor line diameters provide adequate oil return to the compressor while avoiding excessive capacity loss. The suction line diameters shown in the chart below are acceptable for AC systems with Puron refrigerant:

187B / 180B

Nominal

Size (Btuh)

2 --- S t a g e

Puron

2 --- S t a g e

Puron

2 --- S t a g e

Puron

2 --- S t a g e

Puron

Applications in this area may be long line and may have height restriction s. See the Residential Piping and Long Line Guideline. — Applications in this area are n ot recommended due to insufficient oil return

Vapor Line Sizing and Cooling Capacity Losses — Puronr Refrigerant 2--Stage Air Conditioner Applications

Unit

024

036

048

060

Maximum

Liquid

Line

Diameters

(In. OD)

3/8

Vapo r Line

Diameters

(In.) OD

5/8 0 1 1 2 3 3 4 4 5

3/4 0 0 0 0 1 1 1 1 1

5/8 1 2 4 5 6 7 9 10 11

3/4 0 0 1 1 2 2 3 3 4

7/8 0 0 0 0 1 1 1 1 2

3/4 1 2 2 3 4 5 6 7 7

7/8 0 1 1 2 2 2 3 3 3

1 --- 1 / 8 0 0 — — — — — — —

3/4 1 2 4 5 6 7 9 10 11

7/8 0 1 2 2 3 4 4 5 5

1 --- 1 / 8 0 0 0 1 1 1 1 1 1

26---50

(7.9--- 15.2)

51---80

(15.5--- 24.4)

81---100

(24.7--- 30.5)

Cooling Capacity Loss (%)

Total Equivalent Line Length ft. (m)

101---125

(30.8--- 38.1)

126---150

(38.4--- 45.7)

151---175

(46.0--- 50.3)

176---200

(53.6--- 60.0)

201---225

(61.3--- 68.6)

PHYSICAL DATA

Model 187BNA 180BNA

Unit Size --- Series 024--- A 036---A 048 --- A 060---A 036 --- A Operating Weight lb (kg) 222 (101) 224 (102) 324 (147) 334 (152) 306 (139) Shipping Weight lb (kg) 261 (118) 263 (119) 381 (173) 391 (177) 372 (169) Compressor Type 2 --- S t a g e Sc r o l l REFRIGERANT Puron (R--- 410A)

Control TXV (Puron Hard Shutoff) Charge lb (kg) 6.63 (3.01) 6.88 (3.12) 11.63 (5.27) 15.13 (6.86) 13.37 (6.06)

COND FAN Propeller Type, Direct Drive

Air Discharge Vertical Air Qty (CFM) 3100 3400 4300 4450 3100 / 3600 Motor HP 1/10 1/5 1/4 1/4 1/5 Motor RPM 800 800 800 800 582 / 690

COND COIL

Face Area (Sq ft) 21.56 21.56 25.15 30.18 25.15 Fins per In. 25 25 20 20 20 Rows 1 1 2 2 2

Circuits 4 4 7 8 7

VALVECONNECT.(In.ID)

Vapor 3/4 7/8 7/8 7/8 7/8 Liquid 3/8 3/8

REFRIGERANT TUBES (In. OD)

Rated Vapor* 3/4 7/8 1 --- 1 / 8 1 --- 1 / 8 7/8 Liquid 3/8 3/8

*Units are rated with 25 ft (7.6 m) of lineset length. See Vapor Line Sizing and Cooling Capacity Loss table when using other sizes and lengths of lineset.

226---250

(68.9--- 76.2)

ELECTRICAL DATA

UNIT

MODEL

187BNA

180BNA 036 --- A 208/230---1---60 253 197 82.0 16.70 2.4 23.3 14.00 14.00 45 (13.7) 44 (13.4) 35

* Permissible limits of the voltage range at which the u nit will operate satisfactorily { If wire is applied at ambien t greater than 30_C, consult table 310---16 of the NEC (NFPA 70). The ampacity of non ---metallic---sheathed cable (NM), trade

name ROMEX, shall be that of 60_C conditions, per the NEC (NFPA 70) Article 336 --- 26. If other than uncoated (no ---plated), 60 or 75_C insulation, copper wire (solid wire for 10 AWG or smaller, stranded wire for larger than 10 AWG) is used, consult applicable tables of the NEC (NFPA 70).

} Length shown is as measured one way along wire path between unit and service panel for voltage drop not to exceed 2%. * * T i m e --- D e l a y f u s e .

FLA --- F u l l L o a d A m p s LRA --- L o c k e d Roto r A m p s MCA --- Minimum Circuit Amps RLA ---RatedLoadAmps NOTE: Control circuit is 24 ---V on all units and requires external power source. Copper wire must be used from service disconnect to unit.

Complies with 2007 requirements of ASHRAE Standards 90.1

S I Z E ---

SERIES

024---A 208/230---1---60

036---A 208/230---1---60 82.0 16.70 1.2 22.1 14.00 14.00 45 (13.7) 44 (13.4) 35

048---A 208/230---1---60 96.0 21.20 1.3 27.8 12.00 12.00 51 (15.5) 49 (14.9) 40

060---A 208/230---1---60 118.0 23.00 1.3 30.1 8.00 10.00 93 (28.3) 57 (17.4) 50

All motors/compressors contain internal overload protection.

V --- P H --- H z

OPER

VOLTS*

MAX MIN LRA RLA FLA 60°C 75°C 60°C 75°C

253 197

COMPR FA N

MCA

52.0 10.30 0.7 13.6 14.00 14.00 60 (18.3) 57 (17.4) 20

MIN

WIRE

SIZE{

MIN

WIRE

SIZE{

MAX

LENGTH

ft (m)}

MAX

LENGTH

ft (m)}

MAX

FUSE*

*or CKT BRK

AMPS

A--WEIGHTED SOUND POWER (dBA)

UNIT SIZE

187BNA024

187BNA036

187BNA048

187BNA060

180BNA036

NOTE: Tested in accordance with AHRI Standard 270 ---08. (Not listed with AHRI).

STANDARD

RATING (dBA)

* 7 1 --- l o w sta g e 53.0 62.0 64.5 66.5 63.0 60.5 52.5

7 2 --- h i g h st a g e 54.0 61.5 66.5 66.5 63.5 60.5 55.5

* 7 2 --- l o w sta g e 54.0 61.5 66.5 68.0 63.5 60.5 53.5

7 2 --- h i g h st a g e 54.5 61.5 67.5 68.0 62.0 59.5 54.5

* 7 2 --- l o w sta g e 54.5 63.0 67.0 67.0 64.5 61.0 56.5

7 3 --- h i g h st a g e 55.0 63.0 68.0 67.5 63.5 62.0 57.5

* 7 3 --- l o w sta g e 56.5 62.0 67.5 69.5 64.5 60.0 53.5

7 3 --- h i g h st a g e 55.0 62.0 67.0 68.5 64.5 60.0 53.5

* 7 2 --- l o w sta g e 55.5 58.5 64.0 67.0 64.5 59.5 53.5

7 2 --- h i g h st a g e 56.5 60.0 66.0 66.0 60.0 56.5 53.0

125 250 500 1000 2000 4000 8000

TYPICAL OCTAVE BAND SPECTRUM (dBA, without tone adjustment)

CHARGING SUBCOOLING (TXV--TYPE EXPANSION DEVICE)

UNIT SIZE --- SERIES

187BNA024 ---A

187BNA036 ---A

187BNA048 ---A

187BNA060 ---A

180BNA036 ---A

REQUIRED SUBCOOLING _F(_C)

10 (5.6) 10 (5.6) 10 (5.6) 10 (5.6) 10 (5.6)

187B / 180B

ACCESSORIES

KIT NUMBER KIT NAME 024---A 036 --- A 048---A 060 -- -A

KSAHS2301AAA HARD START KIT X

KSAHS2401AAA HARD START KIT X

KSAHS2501AAA HARD START KIT X

KSAHS2601AAA HARD START KIT X

KSASF0101AAA SUPPORT FEET X X X X

KSATX0201PUR TXV X

KSATX0301PUR TXV X

KSATX0401PUR TXV X

KSATX0501PUR TXV X

x = Accessory

CONTROLS

CONTRIL DESCRIPTION

SYSTXBBUID01 --- B* Evolution Control Deluxe 7 --- Day Programmable (Wall---mounted system control.)

SYSTXBBUIZ01 --- B* Evolution Control Deluxe Zoning 7---Day Programmable (Wall---mounted control for a multi---zone system.)

SYSTXBB4ZC01 Evolution 4 --- Zone Damper Control Module (Wall--- mounted control for a four ---zone system.)

SYSTXBBSMS01 Evolution Smart Sensor (Optional wall control used to monitor temperature and/or fan control in an individual zone.)

SYSTXBBRRS01 E volution Remote Room Sensor (Monitor s temperature in an individual zone.)

SYSTXBBSAM01 Evolution System Access Module (Hardware for wireless access and control via phone or internet.)

SYSTXBBNIM01 Evolution Network Interface Module (Connects Heat Recovery and Energy Recovery Ventilators on non---zoning applications.)

187B / 180B

SYSTXXXBPU01 Decorative Back Plate for Evolution Control (Decorative wall plate.)

*These Evolution series units must use “---A” revision or later to operate properly.

THERMOSTATS

THERMOSTAT / SUBBASE

PKG.

T 6 --- P R H 0 1 --- A Programmable Thermidistat

T 6 --- N R H 0 1 --- A Non ---programmable Thermidistat

T 6 --- P A C 0 1 Preferred Series Programmable AC Stat

T 6 --- N A C 0 1 Preferred Series Non---programmable AC Stat

TSTATBBSEN01--- B Outdoor Air Temperature Sensor

TSTATXXBBP01 Backplate for Bu ilder’s Thermostat

TSTATXXNBP01 Backplate for Non --- Programmable Thermostat

TSTATXXPBP01 Backplate for Programmable Thermostat

TSTATXXCNV10 Thermostat Conversion Kit (4 to 5 wires) --- 10 Pack

DESCRIPTION

ACCESSORY USAGE GUIDELINE

ACCESSORY

Compressor Start Assist Capacitor and Relay Ye s No

Crankcase Heater Standard Standard

Evaporator Freeze Protection No No

Liquid--- Line Solenoid Valve No No

Low--- Ambient Control No No

Puron Refrigerant Balance Port Hard ---ShutOff TXV Ye s{

Support Feet No Recommended

Winter Start Control No No

* For tubing line sets between 80 and 200 ft. (24.38 and 60.96 m) and/or 20 ft. (6.09 m) vertical differential, refer to Residential Piping and Longline Guideline. { Required on all indoor units. Standard on all new Puron refrigerant fan coils and furnace coils.

REQUIRED FOR LONG LINE

APPLICATIONS*

REQUIRED FOR SEA COAST APPLICA-

TIONS (Within 2 miles/3.22 km)

Ye s{

Accessory Description and Usage (Listed Alphabetically)

1. Compressor Start Assist -- Capacitor and Relay

Start capacitor and relay gives a ”hard” boost to compressor motor at each start up.

Usage Guideline: Required for reciprocating compressors in the

following applications:

Long line Hard shut off expansion valve on indoor coil Liquid line solenoid on indoor coil

Required for single--phase scroll compressors in the following applications:

Long line

Suggested for all compressors in areas with a history of low voltage problems.

2. Crankcase Heater

An electric resistance heater which mounts to the base of the compressor to keep the lubricant warm during off cycles. Improves compressor lubrication on restart and minimizes the chance of liquid slugging.

Usage Guideline:

Required in low ambient cooling applications. Required in long line applications. Suggested in all commercial applications.

3. Evaporator Freeze Thermostat

An SPST temperature--actuated switch that stops unit operation when evaporator reaches freeze--up conditions.

Usage Guideline:

Required when low ambient kit has been added.

4. Outdoor Air Temperature Sensor

Designed for use with Bryant Thermostats listed in this publication. This device enables the thermostat to display the outdoor temperature. This device also

is required to enable special thermostat features such as auxiliary heat lock out.

Usage Guideline:

Suggested for all Bryant thermostats listed in this publication.

5. Support Feet

Four stick--on plastic feet that raise the unit 4 in. (101.6 mm) above the mounting pad. This allows sand, dirt, and other debris to be flushed from the unit base, minimizing corrosion.

Usage Guideline: Suggested in the following applications: Coastal installations. Windy areas or where debris is normally circulating. Rooftop installations. For improved sound ratings.

6. Thermostatic Expansion Valve (TXV)

A modulating flow--control valve which meters refrigerant liquid flow rate into the evaporator in response to the superheat of the refrigerant gas leaving the evaporator.

Kit includes valve, adapter tubes, and external equalizer tube. Hard shut off types are available.

NOTE: When using a hard shut off TXV with single phase reciprocating compressors, a Compressor Start Assist Capacitor and Relay is required.

Usage Guideline:

Required to achieve AHRI ratings in certain equipment combinations. Refer to combination ratings.

Hard shut off TXV or LLS required in air conditioner long line applications.

Required for use on all zoning systems.

7. Winter Start Control

This control is designed to alleviate nuisance opening of the low--pressure switch by bypassing it for the first 3 minutes of operation.

187B / 180B

SHIPPING

AIR IN

DIMENSIONS (L x W x H)

AIR

DISCHARGE

WEIGHT (lbs)

187B / 180B

OPERATING

WEIGHT (lbs)

AIR IN

3/8" TIEDOWN HOLE

(2) PLACES

AIR IN

5/16"

17/8"

ABCDEFGKLMNP

X = YES

O=NO

460-3-60

208/230-3-60

230-1-60

ELECTRICAL

208-230-1-60

CHARACTERISTICS

UNIT SERIES

187B024 A X O O O 31 3/16" 38 15/16" 3 3/4" 3/4" 6 9/16" 24 11/16" 9 1/8" 2 13/16" 1/2" 14 1/4" 17 1/4" 19 1/2" 222 261 32 15/16" X 35 1/2" X 46 1/8"

187B036 A X O 0 0 31 3/16" 38 15/16" 3 7/8" 7/8" 6 9/16" 24 11/16" 9 1/8" 2 15/16" 5/8" 14 1/4" 17 1/4" 19 1/2" 224 263 32 15/16" X 35 1/2" X 46 1/8"

187B048 A X O 0 0 35" 40 1/4" 3 7/8" 7/8" 6 9/16" 28 7/16" 9 1/8" 2 15/16" 5/8" 18" 17 1/2" 20" 324 381 36 1/8" X 39 1/4" X 46 1/8"

187B060 A X O 0 0 35" 47 1/16" 3 7/8" 7/8" 6 9/16" 28 7/16" 9 1/8" 2 15/16" 5/8" 17 7/8" 18 5/8" 21" 334 391 36 1/8" X 39 1/4" X50 13/16"

DIMENSIONS -- 187BNA 2--5 TON (ENGLISH)

SQ.

AIR DISCHARGE

LIQUID LINE CONN.

31/2"

MINIMUM

DIMENSIONS

MOUNTING PAD

VAPOR LINE CONN.

- 26" X 26" 24,36 31 1/2" X 31 1/2"

48,60 35" X 35"

3/8"

7/8" HOLE

SUPPLY CONN.

FIELD CONTROL

CONN. 7/8 " HOLE

FIELD POWER SUPPLY

WITH 1 1/8" KNOCKOUT

UNIT SIZE

SHIPPING

AIR IN

AIR

DISCHARGE

WEIGHT (Kgs)

OPERATING

WEIGHT (Kgs)

AIR IN

187B / 180B

8.0

AIR IN

76.2

46.7

ABCDEFGKLMNP

X = YES

O=NO

460-3-60

208/230-3-60

230-1-60

ELECTRICAL

CHARACTERISTICS

UNIT SERIES

187B024 A X O O O 792.5 988.3 95.6 19.1 166.1 626.3 231.3 70.9 12.8 362.0 438.2 495.3 100.7 118.4

187B036 A X O 0 0 792.5 988.3 97.9 22.2 166.1 626.3 231.3 74.5 16.3 362.0 438.2 495.3 101.6 119.3

187B048 A X O 0 0 889.0 1022.9 97.9 22.2 166.1 722.8 231.3 74.5 16.3 457.2 444.5 508.0 147.0 172.8

187B060 A X O 0 0 889.0 1195.7 97.9 22.2 166.1 722.8 231.3 74.5 16.3 454.0 473.1 533.4 151.5 177.4

DIMENSIONS -- 187BNA 2--5 TON (SI)

SQ.

AIR DISCHARGE

88.9

22.23 HOLE

SUPPLY CONN.

FIELD CONTROL

28.58 KNOCKOUT

CONN.

- 660.4 X 660.4 24,36

48,60

187B / 180B

SHIPPING

OPERATING

AIR IN

DIMENSIONS (L x W x H)

AIR

DISCHARGE

WEIGHT (lbs)

AIR IN

3/8" TIEDOWN HOLE

(2) PLACES

AIR IN

5/16"

DIMENSIONS -- 180BNA 3 TON TROPHY (ENGLISH)

ABCDEFGKLMNP

ELECTRICAL

CHARACTERISTICS

UNIT SERIES

180B036 A X O 0 0 35" 40 1/4" 3 7/8" 7/8" 6 9/16" 28 7/16" 9 1/8" 2 15/16" 5/8" 16" 16 1/2" 17 1/4" 306 372 36 1/8" X 39 1/4" X 46 1/8"

17/8"

SQ.

AIR DISCHARGE

X = YES

O=NO

460-3-60

208/230-3-60

230-1-60

208-230-1-60

3/8"

7/8" HOLE

SUPPLY CONN.

FIELD CONTROL

CONN. 7/8 " HOLE

FIELD POWER SUPPLY

WITH 1 1/8" KNOCKOUT

LIQUID LINE CONN.

31/2"

VAPOR LINE CONN.

MINIMUM

MOUNTING PAD

DIMENSIONS

- 26" X 26"

- 31 1/2" X 31 1/2"

36 35" X 35"

UNIT SIZE

SHIPPING

OPERATING

WEIGHT (Kgs)

AIR IN

AIR

DISCHARGE

AIR IN

187B / 180B

ABCDEFGKLMNP

X = YES

8.0

AIR IN

76.2

46.7

SQ.

AIR DISCHARGE

O=NO

ELECTRICAL

CHARACTERISTICS

UNIT SERIES

180B036 A X O 0 0 889.0 1022.9 97.9 22.2 166.1 722.8 231.3 74.5 16.3 406.4 419.1 438.2 139 169

DIMENSIONS -- 180BNA 3 TON TROPHY (SI)

22.23 HOLE

SUPPLY CONN.

FIELD CONTROL

CONN.

FIELD POWER SUPPLY

28.58 KNOCKOUT

88.9

Wall

6”

A07833

(152.4)

187B / 180B

24”

Wall

Clearances (various examples)

Service

12”

(304.8)

6”

Wall

(152.4 mm)

12”

(304.8)

12”

(304.8)

12”

(304.8)

Wall

24”

(609.6)

24”

(609.6)

24”

(609.6)

Service

24”

(609.6)

Service

24”

(609.6)

Service

24”

CLEARANCES

(609.6)

Service

24”

(609.6)

Note: Numbers in ( ) = mm

IMPORTANT: When installing multiple units in an alcove, roof well, or partially enclosed area, ensure there is adequate ventilation to prevent re--circulation of discharge air.

COMBINATION RATINGS

AHRI Ref.

No.

3747088 187BNA024****A †CNPV*4217A** 313*AV024045 25,200 21,000 13.2 16.0 715 585

3747089 187BNA024****A CAP**2414A**+TDR 24,200 20,000 11.8 14.0 700 560

3747187 187BNA024****A CAP**2417A** 353AAV036040 25,200 21,200 13.3 16.5 765 655

3747200 187BNA024****A CAP**2417A** 368RAN036105 24,800 20,600 13.2 16.5 715 585

3747199 187BNA024****A CAP**2417A** 374RAN036105 24,600 20,200 13.0 16.0 660 520

3747090 187BNA024****A CAP**2417A**+TDR 24,200 20,000 11.8 14.0 700 560

3747092 187BNA024****A CAP**2417A**+UI 315(A,J)AV048090 24,600 20,400 13.2 16.0 670 535

3747091 187BNA024****A CAP**2417A**+UI 355(A,C)AV042060 24,800 20,600 13.2 16.0 725 580

3747468 187BNA024****A CAP**2417A**+UI 355BAV042060 24,800 20,600 13.2 16.0 725 580

3747095 187BNA024****A CAP**3014A** 313*AV024045 25,000 20,600 13.0 16.0 720 585

3747093 187BNA024****A CAP**3014A**+TDR 24,400 20,000 11.9 14.0 700 560

3747094 187BNA024****A CAP**3014A**+UI 315(A,J)AV036070 24,600 20,200 13.1 16.0 660 530

3747188 187BNA024****A CAP**3017A** 353AAV036040 25,400 21,200 13.5 16.5 785 680

3747202 187BNA024****A CAP**3017A** 368RAN036105 25,000 20,600 13.0 16.5 715 585

3747201 187BNA024****A CAP**3017A** 374RAN036105 24,600 20,200 13.0 16.0 660 520

3747096 187BNA024****A CAP**3017A**+TDR 24,400 20,000 11.9 14.0 700 560

3747098 187BNA024****A CAP**3017A**+UI 315(A,J)AV048090 24,800 20,400 13.3 16.0 670 535

3747097 187BNA024****A CAP**3017A**+UI 355(A,C)AV042060 25,000 20,600 13.3 16.5 725 580

3747469 187BNA024****A CAP**3017A**+UI 355BAV042060 25,000 20,600 13.3 16.5 725 580

3747101 187BNA024****A CAP**3614A** 313*AV024045 25,000 20,800 13.1 16.0 725 590

3747099 187BNA024****A CAP**3614A**+TDR 24,400 20,200 11.9 14.0 700 560

3747100 187BNA024****A CAP**3614A**+UI 315(A,J)AV036070 24,800 20,400 13.1 16.0 660 530

3747190 187BNA024****A CAP**3617A** 353AAV036040 25,400 21,400 13.5 17.0 790 695

3747102 187BNA024****A CAP**3617A**+TDR 24,400 20,200 11.9 14.0 700 560

3747104 187BNA024****A CAP**3617A**+UI 315(A,J)AV048090 24,800 20,400 13.3 16.5 670 535

3747103 187BNA024****A CAP**3617A**+UI 355(A,C)AV042060 25,200 20,800 13.4 16.5 725 580

3747470 187BNA024****A CAP**3617A**+UI 355BAV042060 25,200 20,800 13.4 16.5 725 580

3747185 187BNA024****A CAP**3619A** 359BAV036040 25,000 20,600 13.0 16.0 765 595

3747186 187BNA024****A CAP**3619A** 359BAV036060 25,000 21,000 13.0 16.0 820 640

3747184 187BNA024****A CAP**3619A**+TDR 24,000 20,000 11.8 14.0 700 560

3747105 187BNA024****A CAP**3621A**+TDR 24,400 20,200 11.9 14.0 700 560

3747109 187BNA024****A CAP**3621A**+UI 315(A,J)AV060110 24,800 20,400 13.3 16.5 675 540

3747106 187BNA024****A CAP**3621A**+UI 355(A,C)AV042080 24,800 20,400 13.3 16.5 660 530

3747107 187BNA024****A CAP**3621A**+UI 355(A,C)AV060080 24,600 20,200 13.2 16.0 630 505

3747108 187BNA024****A CAP**3621A**+UI 355(A,C)AV060100 24,800 20,400 13.3 16.5 665 530

3747471 187BNA024****A CAP**3621A**+UI 355BAV042080 24,800 20,400 13.3 16.5 660 530

3747472 187BNA024****A CAP**3621A**+UI 355BAV060080 24,600 20,200 13.2 16.0 630 505

3747473 187BNA024****A CAP**3621A**+UI 355BAV060100 24,800 20,400 13.3 16.5 665 530

3747136 187BNA024****A CNPH*2417A** 313*AV024045 24,600 20,600 12.9 16.0 695 565

3747194 187BNA024****A CNPH*2417A** 353AAV036040 25,000 21,000 13.2 16.5 725 610

3747130 187BNA024****A CNPH*2417A**+TDR 24,200 20,200 11.8 14.0 700 560

3747134 187BNA024****A CNPH*2417A**+UI 315(A,J)AV036070 24,400 20,200 13.0 16.0 660 530

3747135 187BNA024****A CNPH*2417A**+UI 315(A,J)AV048090 24,600 20,400 13.1 16.0 670 535

3747132 187BNA024****A CNPH*2417A**+UI 355(A,C)AV042060 24,800 20,600 13.1 16.0 725 580

3747133 187BNA024****A CNPH*2417A**+UI 355(A,C)AV042080 24,600 20,400 13.0 16.0 660 530

3747131 187BNA024****A CNPH*2417A**+UI 355AAV042040 24,600 20,400 12.9 16.0 675 540

3747143 187BNA024****A CNPH*3017A** 313*AV024045 25,000 20,800 13.1 16.0 730 595

3747195 187BNA024****A CNPH*3017A** 353AAV036040 25,400 21,200 13.4 16.5 775 675

3747137 187BNA024****A CNPH*3017A**+TDR 24,400 20,000 11.9 14.0 700 560

3747141 187BNA024****A CNPH*3017A**+UI 315(A,J)AV036070 24,600 20,200 13.1 16.0 660 530

3747142 187BNA024****A CNPH*3017A**+UI 315(A,J)AV048090 24,800 20,400 13.3 16.5 670 535

3747139 187BNA024****A CNPH*3017A**+UI 355(A,C)AV042060 25,000 20,600 13.3 16.5 725 580

3747140 187BNA024****A CNPH*3017A**+UI 355(A,C)AV042080 24,600 20,200 13.2 16.0 660 530

3747138 187BNA024****A CNPH*3017A**+UI 355AAV042040 24,800 20,400 13.1 16.0 675 540

3747152 187BNA024****A CNPH*3617A** 313*AV024045 25,000 20,800 13.1 16.0 730 595

3747146 187BNA024****A CNPH*3617A**+TDR 24,400 20,000 11.9 14.0 700 560

3747150 187BNA024****A CNPH*3617A**+UI 315(A,J)AV036070 24,600 20,200 13.1 16.0 660 530

3747151 187BNA024****A CNPH*3617A**+UI 315(A,J)AV048090 24,800 20,400 13.3 16.5 670 535

3747148 187BNA024****A CNPH*3617A**+UI 355(A,C)AV042060 25,000 20,600 13.3 16.5 725 580

3747149 187BNA024****A CNPH*3617A**+UI 355(A,C)AV042080 24,600 20,200 13.2 16.0 660 530

See notes on page 26

Outdoor Model

Number

Indoor Coil

Model Number

Furnace Model

Capacity

High Low High Low

EER SEER

ID CFM

187B / 180B

COMBINATION RATINGS CONTINUED

AHRI Ref.

No.

3747147 187BNA024****A CNPH*3617A**+UI 355AAV042040 24,800 20,400 13.1 16.0 675 540

3747112 187BNA024****A CNPV*2414A** 313*AV024045 24,600 20,600 12.9 16.0 695 565

3747110 187BNA024****A CNPV*2414A**+TDR 24,200 20,200 11.8 14.0 700 560

3747111 187BNA024****A CNPV*2414A**+UI 315(A,J)AV036070 24,400 20,200 13.0 16.0 660 530

3747191 187BNA024****A CNPV*2417A** 353AAV036040 25,000 21,000 13.2 16.5 725 610

3747204 187BNA024****A CNPV*2417A** 368RAN036105 24,800 20,800 13.0 16.5 715 585

3747203 187BNA024****A CNPV*2417A** 374RAN036105 24,400 20,200 12.8 16.0 660 520

3747113 187BNA024****A CNPV*2417A**+TDR 24,200 20,200 11.8 14.0 700 560

3747115 187BNA024****A CNPV*2417A**+UI 315(A,J)AV048090 24,600 20,400 13.1 16.0 670 535

3747114 187BNA024****A CNPV*2417A**+UI 355(A,C)AV042060 24,800 20,600 13.0 16.0 725 580

3747474 187BNA024****A CNPV*2417A**+UI 355BAV042060 24,800 20,600 13.0 16.0 725 580

3747118 187BNA024****A CNPV*3014A** 313*AV024045 24,800 20,600 13.0 16.0 705 580

3747116 187BNA024****A CNPV*3014A**+TDR 24,400 20,000 11.9 14.0 700 560

3747117 187BNA024****A CNPV*3014A**+UI 315(A,J)AV036070 24,600 20,200 13.1 16.0 660 530

3747206 187BNA024****A CNPV*3017A** 368RAN036105 25,000 20,800 13.0 16.5 715 585

3747205 187BNA024****A CNPV*3017A** 374RAN036105 24,600 20,200 13.0 16.0 660 520

3747119 187BNA024****A CNPV*3017A**+TDR 24,400 20,000 11.9 14.0 700 560

3747121 187BNA024****A CNPV*3017A**+UI 315(A,J)AV048090 24,800 20,400 13.3 16.5 670 535

3747120 187BNA024****A CNPV*3017A**+UI 355(A,C)AV042060 25,000 20,600 13.3 16.5 725 580

187B / 180B

3747475 187BNA024****A CNPV*3017A**+UI 355BAV042060 25,000 20,600 13.3 16.5 725 580

3747192 187BNA024****A CNPV*3117A** 353(A,B)AV036060 25,600 21,600 13.7 17.0 800 655

3747208 187BNA024****A CNPV*3117A** 368RAN036105 25,600 21,200 13.5 16.5 715 585

3747207 187BNA024****A CNPV*3117A** 374RAN036105 25,200 20,600 13.0 16.5 660 520

3747711 187BNA024****A CNPV*3117A** 24,800 20,600 12.1 14.5 700 560

3747123 187BNA024****A CNPV*3117A**+UI 315(A,J)AV048090 25,200 20,800 13.5 16.5 670 535

3747122 187BNA024****A CNPV*3117A**+UI 355(A,C)AV042060 25,600 21,200 13.6 16.5 725 580

3747863 187BNA024****A CNPV*3117A**+UI 355BAV042060 25,600 21,200 13.6 16.5 725 580

3747210 187BNA024****A CNPV*3617A** 368RAN036105 25,000 20,800 13.0 16.5 715 585

3747209 187BNA024****A CNPV*3617A** 374RAN036105 24,600 20,200 13.0 16.0 660 520

3747124 187BNA024****A CNPV*3617A**+TDR 24,400 20,000 11.9 14.0 700 560

3747126 187BNA024****A CNPV*3617A**+UI 315(A,J)AV048090 24,800 20,400 13.3 16.5 670 535

3747125 187BNA024****A CNPV*3617A**+UI 355(A,C)AV042060 25,000 20,600 13.3 16.5 725 580

3747476 187BNA024****A CNPV*3617A**+UI 355BAV042060 25,000 20,600 13.3 16.5 725 580

3747193 187BNA024****A CNPV*3621A** 353AAV036040 25,400 21,400 13.5 16.5 780 680

3747212 187BNA024****A CNPV*3717A** 368RAN036105 25,800 21,400 13.5 16.5 715 585

3747211 187BNA024****A CNPV*3717A** 374RAN036105 25,400 20,800 13.5 16.5 660 520

3747127 187BNA024****A CNPV*3717A**+TDR 25,200 20,800 12.2 14.5 700 560

3747129 187BNA024****A CNPV*3717A**+UI 315(A,J)AV048090 25,400 21,000 13.6 16.5 670 535

3747128 187BNA024****A CNPV*3717A**+UI 355(A,C)AV042060 25,800 21,400 13.7 17.0 725 580

3747477 187BNA024****A CNPV*3717A**+UI 355BAV042060 25,800 21,400 13.7 17.0 725 580

3747160 187BNA024****A CSPH*2412A** 313*AV024045 24,800 20,600 13.0 16.0 685 555

3747196 187BNA024****A CSPH*2412A** 353AAV036040 25,200 21,000 13.3 16.5 710 585

3747161 187BNA024****A CSPH*2412A** 359BAV036040 24,800 20,600 12.7 16.0 705 540

3747162 187BNA024****A CSPH*2412A** 359BAV036060 25,000 20,800 12.8 16.0 735 565

3747213 187BNA024****A CSPH*2412A** 374RAN036105 24,800 20,400 13.0 16.0 660 520

3747155 187BNA024****A CSPH*2412A**+TDR 24,600 20,400 12.0 14.5 700 560

3747158 187BNA024****A CSPH*2412A**+UI 315(A,J)AV036070 24,800 20,400 13.0 16.0 660 530

3747159 187BNA024****A CSPH*2412A**+UI 315(A,J)AV048090 24,800 20,600 13.2 16.0 670 535

3747157 187BNA024****A CSPH*2412A**+UI 355(A,C)AV042060 25,200 20,800 13.1 16.0 725 580

3747156 187BNA024****A CSPH*2412A**+UI 355AAV042040 24,800 20,600 13.0 16.0 675 540

3747168 187BNA024****A CSPH*3012A** 313*AV024045 25,000 20,800 13.1 16.0 715 580

3747197 187BNA024****A CSPH*3012A** 353AAV036040 25,400 21,200 13.4 16.5 750 640

3747169 187BNA024****A CSPH*3012A** 359BAV036040 25,000 20,600 12.8 16.0 735 570

3747170 187BNA024****A CSPH*3012A** 359BAV036060 25,200 20,800 12.9 16.0 780 605

3747214 187BNA024****A CSPH*3012A** 374RAN036105 24,800 20,200 13.0 16.0 660 520

3747163 187BNA024****A CSPH*3012A**+TDR 24,600 20,200 11.9 14.0 700 560

3747166 187BNA024****A CSPH*3012A**+UI 315(A,J)AV036070 24,800 20,400 13.1 16.0 660 530

3747167 187BNA024****A CSPH*3012A**+UI 315(A,J)AV048090 24,800 20,400 13.3 16.0 670 535

3747165 187BNA024****A CSPH*3012A**+UI 355(A,C)AV042060 25,200 20,800 13.3 16.5 725 580

3747164 187BNA024****A CSPH*3012A**+UI 355AAV042040 24,800 20,400 13.1 16.0 675 540

See notes on page 26

Outdoor Model

Number

Indoor Coil

Model Number

Furnace Model

Capacity

High Low High Low

EER SEER

ID CFM

+ 30 hidden pages

Bryant EVOLUTION 187B, EVOLUTION 180B Product Data

Specifications and Main Features

Frequently Asked Questions

User Manual
