Bryant 926TA, 926TA30040V14, 926TA36040V17, 926TA36060V14, 926TA42060V17 Product Data

...

Page 1

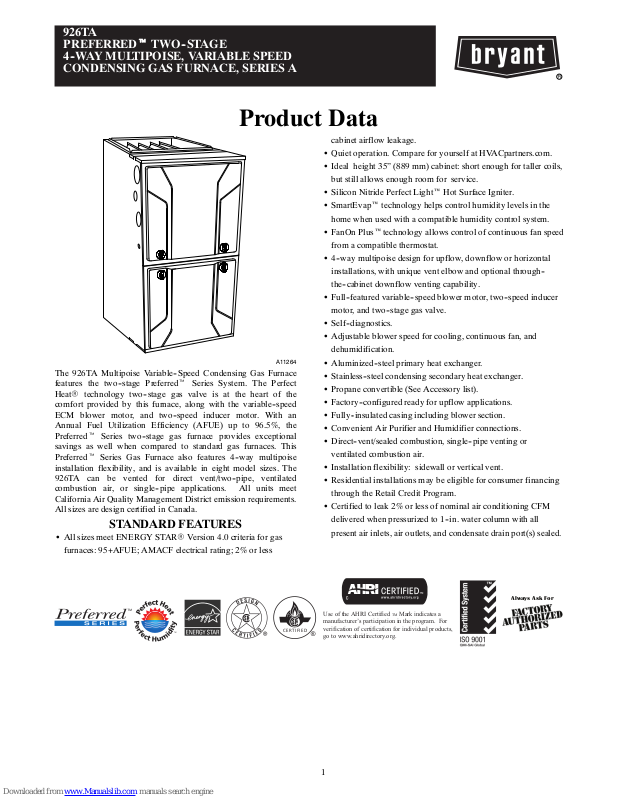

926TA PREFERREDt TWO--STAGE 4--WAY MULTIPOISE, VARIABLE SPEED CONDENSING GAS FURNACE, SERIES A

Product Data

A11264

The 926TA Multipoise Variable--Speed Condensing Gas Furnace features the two--stage Preferredt Series System. The Perfect HeatR technology two--stage gas valve is at the heart of the comfort provided by this furnace, along with the variable--speed ECM blower motor, and two--speed inducer motor. With an Annual Fuel Utilization Efficiency (AFUE) up to 96.5%, the Preferredt Series two--stage gas furnace provides exceptional savings as well when compared to standard gas furnaces. This Preferredt Series Gas Furnace also features 4--way multipoise installation flexibility, and is available in eight model sizes. The 926TA can be vented for direct vent/two--pipe, ventilated combustion air, or single--pipe applications. All units meet California Air Quality Management District emission requirements. All sizes are design certified in Canada.

STANDARD FEATURES

S All sizes meet ENERGY STARR Version 4.0 criteria for gas

furnaces: 95+AFUE; AMACF electrical rating; 2% or less

cabinet airflow leakage.

S Quiet operation. Compare for yourself at HVACpartners.com. S Ideal height 35” (889 mm) cabinet: short enough for taller coils,

but still allows enough room for service.

S Silicon Nitride Perfect Light Hot Surface Igniter. S SmartEvap technology helps control humidity levels in the

home when used with a compatible humidity control system.

S FanOn Plus technology allows control of continuous fan speed

from a compatible thermostat.

S 4--way multipoise design for upflow, downflow or horizontal

installations, with unique vent elbow and optional through-the--cabinet downflow venting capability.

S Full--featured variable--speed blower motor, two--speed inducer

motor, and two--stage gas valve.

S Self--diagnostics. S Adjustable blower speed for cooling, continuous fan, and

dehumidification.

S Aluminized--steel primary heat exchanger. S Stainless--steel condensing secondary heat exchanger. S Propane convertible (See Accessory list). S Factory--configured ready for upflow applications. S Fully--insulated casing including blower section. S Convenient Air Purifier and Humidifier connections. S Direct--vent/sealed combustion, single--pipe venting or

ventilated combustion air.

S Installation flexibility: sidewall or vertical vent. S Residential installations may be eligible for consumer financing

through the Retail Credit Program.

S Certified to leak 2% or less of nominal air conditioning CFM

delivered when pressurized to 1--in. water column with all present air inlets, air outlets, and condensate drain port(s) sealed.

CERTIFIED

Use of the AHRI Certified TM Mark indicates a manufacturer’s participation in the program. For verification of certification for individual products, go to www.ahridirectory.org.

Always Ask For

Page 2

CASING

SAP ORDERING

NO.

926TA30040V14 35 29.5 14.2 39,000 25,000 96.5% 815 660 0.10 905 1/2 926TA36040V17 35 29.5 17.5 39,000 25,000 96.0% 860 660 0.10 1065 1/2 926TA36060V14 35 29.5 14.2 58,000 38,000 95.0% 1120 910 0.12 1065 1/2 926TA42060V17 35 29.5 17.5 58,000 38,000 96.3% 1135 860 0.12 1475 3/4 926TA48080V17 35 29.5 17.5 78,000 50,000 96.2% 1505 1160 0.15 1610 3/4 926TA60080V21 35 29.5 21.0 78,000 51,000 96.5% 1555 1200 0.15 2005 1 926TA60100V21 35 29.5 21.0 97,000 63,000 96.1% 1865 1435 0.20 2005 1 926TA66120V24 35 29.5 24.0 117,000 76,000 96.5% 2375 1675 0.20 2115 1

{Capacity in accordance with DOE test procedures. Ratings are position dependent. See rating plate.

‡Minimum h eat CFM when low ---heat rise adjustment switch (SW 1 - -- 3) and comfort/efficiency adjustment switch (SW1 ---4) on control center are OFF.

ESP --- External Static Pressure

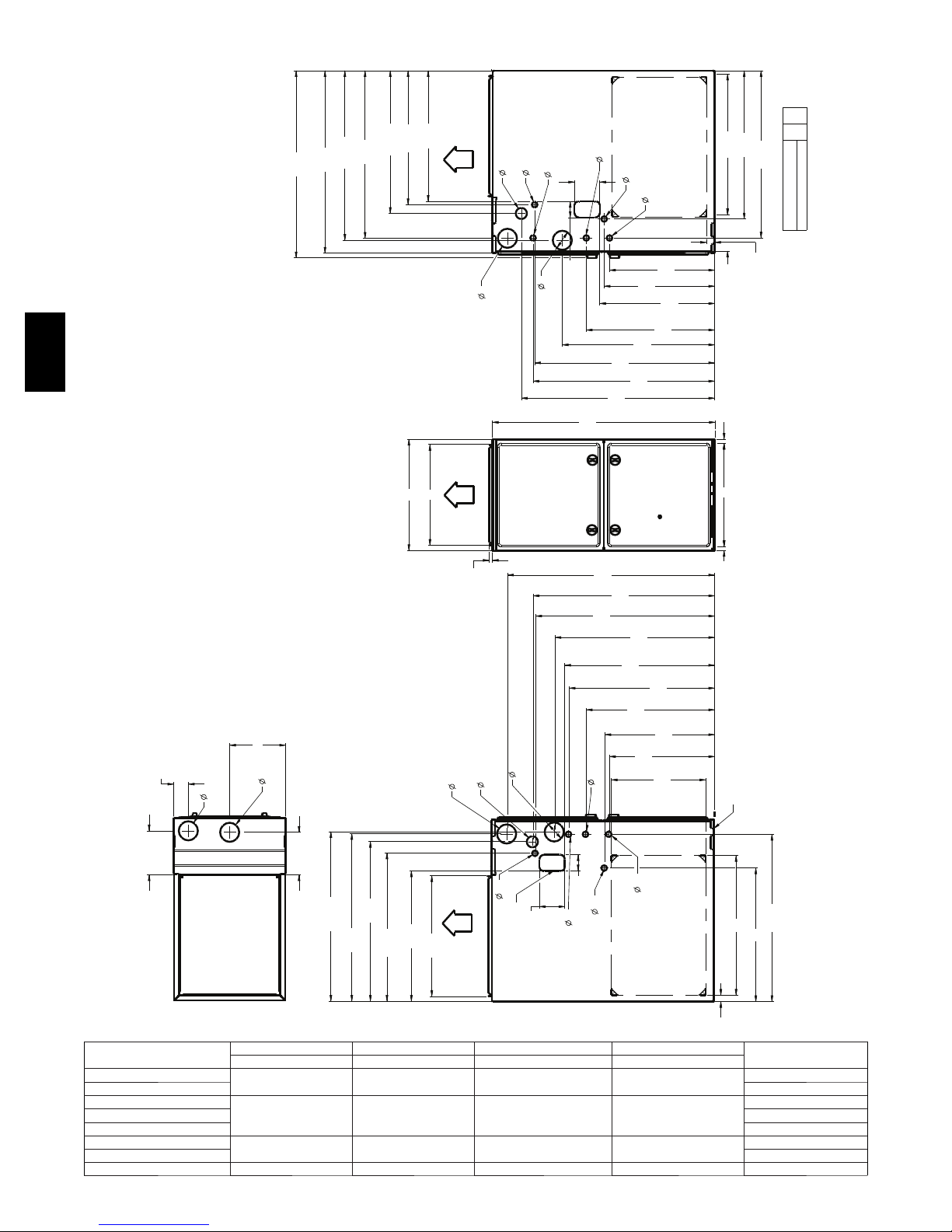

DIMENSIONS

(IN.)

H D W High Low AFUE

RATED HEATING OUTPUT†

(BTUH)

HEATING AIRFLOW

CFM‡ (High

Heating

CFM (Low

Heating)

High Heating

ESP

(in. W.C.)

COOLING

CFM @ 0.5

(in. W.C.)

FEATURES AND BENEFITS

Perfect HeatR Technology — This feature with Adaptive Control

is a proprietary function that promotes homeowner comfort

926TA

through two stages of heating. This Bryant furnace offers a patented algorithm that continually monitors and adjusts furnace operation by looking at both current and past conditions to determine the most effective stage of heating and the amount of time to run each stage, every cycle.

SmartEvapt Technology — When paired with a compatible thermostat, this dehumidification feature overrides the cooling blower off-delay when there is a call for dehumidification. By deactivating the blower off-delay, SmartEvap technology prevents condensate that remains on the coil after a dehumidification cycle from re-humidifying throughout the home. This results in reduced humidity and a more comfortable indoor environment for the homeowner.

Unlike competitive systems, SmartEvap technology only overrides the cooling blower off delay when humidity control is needed. Once humidity is back in control, SmartEvap re-enables the energy-saving cooling blower off-delay.

FanOnPlust Technology — Sometimes the constant fan setting on a standard furnace system can actually reduce homeowner comfort by providing too much or too little air! Fan On Plus technology improves comfort all year long by allowing the homeowner to select the continuous fan speed of their choice using a compatible thermostat.

HYBRID HEATR Dual Fuel system — This system can provide more control over your monthly energy bills by automatically selecting the most economical method of heating. With HYBRID HEAT, our system automatically switches between the gas furnace and the electric heat pump as outside temperatures change to maintain greater efficiency and comfort than with any traditional single-source heating system. The heat pump also delivers high-efficiency cooling in the summer.

Power Heatt Igniter — Bryant’s unique SiN igniter is not only physically robust but it is also electrically robust. It is capable of running at line voltage and does not require complex voltage regulators as do other brands. This unique feature further enhances the gas furnace reliability and continues Bryant’s tradition of technology leadership and innovation in providing a reliable and durable product.

Full-Featured, Variable Speed Motors — Our variable--speed ECM (Electronically Commutated Motor) optimizes comfort levels in the home year round; features such as passive/active dehumidification, ramping profiles, and quiet operation. They can provide cooling match enhancements to increase the effective SEER of select Bryant air conditioner or heat pump system. This motor does not report back RPM and static pressure to enablestatic pressure reporting to the UI or zoning system, which is required for zoning, active filter monitoring and system static pressure reporting.

Reliable Heat Exchanger Design — The aluminized steel, clam shell primary heat exchanger was re--engineered to achieve greater efficiency out of a smaller size. The first two passes of the heat exchanger are based on the current 80% product, a design with more than ten years of field-proven performance and success. These innovations, paired with the continuation of a crimped, no-weld seam create an efficient, robust design for this essential component.

The condensing heat exchanger, a stainless steel fin and tube design, is positioned in the furnace to extract additional heat. Stainless steel coupling box componentry between heat exchangers has exceptional corrosion resistance in both natural gas and propane applications.

Optional Media Filter Cabinet — Enhanced indoor air quality in the home is made easier with our media filter cabinet When installed as a part of the system, this cabinet allows for easy and convenient addition of a Bryant high efficiency air filter.

4-Way Multipoise Design — One model for all applications – there is no need to stock special downflow or horizontal models when one unit will do it all. The new heat exchanger design allows these units to achieve the certified AFUE in all positions.

Direct or Single-pipe Venting, or Optional Ventilated Combustion Air — This furnace can be installed as a 2-pipe

(Direct Vent) furnace, in an optional ventilated combustion air application, or in single-pipe, non-direct vent applications. This provides added flexibility to meet diverse installation needs.

Sealed Combustion System — This furnace brings in combustion air from outside the furnace, which results in especially quiet operation. By sealing the entire combustion vestibule, the entire furnace can be made quieter, not just the burners.

Insulated Casing — Foil-faced insulation in heat exchanger section of the casing minimizes heat loss. The acoustical insulation in the blower compartment reduces air and motor noise for quiet operation.

Monoport Burners — The burners are specially designed and finely tuned for smooth, quiet combustion and economical operation.

Bottom Closure — Factory--installed for side return; easily removable for bottom return. The multi-use bottom closure can also serve for roll-out protection in horizontal applications, and act as the bottom closure for the optional return air base accessory.

Certifications — This furnace is CSA (AGA and CGA) design certified for use with natural and propane gases. The furnace is factory--shipped for use with natural gas. A CSA listed gas conversion kit is required to convert furnace for use with propane gas. The efficiency is AHRI efficiency rating certified. This furnace meets California Air Quality Management District emission requirements.

ESP

MOTOR H P -

SPEED

(VARIABLE

SPEED)

Page 3

1 - 2

Family/Tier

91 - Legacy 92 - Preferred 98 - Evolution

Base Eff.

0 - +90 AFUE 2 - +92 AFUE 3 - +93 AFUE 5 - +95 AFUE 6 - +96 AFUE 7 - +97 AFUE

Htg. Stages

S - Single Stage T - Two Stage M - Modulating

MODEL NUMBER NOMENCLATURE

Example of a Model Number

Major Series

6 - 7

Clg. Cap.

24 - 800 CFM 30 - 1000 CFM 36 - 1200 CFM 42 - 1400 CFM 48 - 1600 CFM 54 - 1800 CFM 60 - 2000 CFM 66 - 2200 CFM (@ 0.5” ESP)

Not all familes have these models.

8 - 10

Htg. Cap.

040

040= 40,000 BTU 060= 60,000 BTU 080= 80,000 BTU

100=100,000 BTU

120=120,000 BTU 140=140,000 BTU

Motor

S - Standard E - Energy Efficient V - Variable Speed

14 - 14.2” 17 - 17.5” 21 - 21.0” 24 - 24.5”

12 - 13

Width

Voltage

Features

L - Low NOx

Minor Series

FLAME SENSOR

MANUAL RESET ROLLOUT SWITCH

GAS VALVE

OPERATING INSTRUCTIONS NOT SHOWN (LOCATED ON MAIN FURNACE DOOR, SEE OPERATING INSTRUCTIONS INSIDE DOOR FIGURE).

ELECTRICAL JUNCTION BOX (IF REQUIRED, LOCATION MAY VARY)

BLOWER DOOR SAFETY SWITCH

FURNACE CONTROL BOARD

FURNACE COMPONENTS

HOT SURFACE IGNITER

GAS BURNER

MANUAL RESET ROLLOUT SWITCH

MAIN LIMIT SWITCH

(BEHIND GAS VALVE)

INDUCER MOTOR ASSEMBLY

MEDIA CABINET

BLOWER AND MOTOR

A14367

926TA

RATING PLATE NOT SHOWN

(LOCATED ON BLOWER DOOR)

REPRESENTATIVE DRAWING ONLY, SOME MODELS MAY VARY IN APPEARANCE.

CAPACITOR/ POWER CHOKE (IF USED)

A11408

Page 4

SPECIFICATIONS

Heating Capacity and Efficiency 30040 36040 36060 42060 48080 60080 60100 66120

Input

Output

Certified Temperature Rise Range ºF (ºC)

Airflow Capacity and Blower Data 30040 36040 36060 42060 48080 60080 60100 66120

Rated External Static Pressure (in. w.c.)

Airflow Delivery @ Rated ESP (CFM)

Cooling Capacity (tons) @ 400, 350 CFM/ton

Direct-Drive Motor Type Electronically Communicated Motor (ECM)

926TA

Direct-Drive Motor HP 1/2 1/2 1/2 /4 3/4 1 1 1 Motor Full Load Amps 6.8 6.8 6.8 8.4 8.4 10.9 10.9 10.9 RPM Range 600 - 1200 Speed Selections Variable (PWM) Blower Wheel Dia x Width in. 11 x 7 11 x 8 11 x 7 11 x 8 11 x 8 11 x 10 11 x 10 11 x 11

Air Filtration System

Filter Used for Certified Watt Data KGAWF1506UFR

High Heat (BTUH) 40,000 40,000 60,000 60,000 80,000 80,000 100,000 120,000 Low Heat (BTUH) 26,000 26,000 39,000 39,000 52,000 52,000 65,000 78,000 High Heat (BTUH) 39,000 39,000 58,000 58,000 78,000 78,000 97,000 117,000 Low Heat (BTUH) 25,000 25,000 38,000 38,000 50,000 51,000 63,000 76,000

High Heat

Low Heat

Heating 0.10 0.10 0.12 0.12 0.15 0.15 0.20 0.20 Cooling 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5

High Heat 815 860 1120 1135 1505 1555 1865 2375

Low Heat 660 660 910 860 1160 1200 1435 1675

Cooling 905 1065 1065 1475 1610 2005 2005 2115 400 CFM/ton 2 2.5 2.5 3.5 4 5 5 5 350 CFM/ton 2.5 3 3 4 4.5 5.5 5.5 6

40 - 70

(22 - 39)

30 - 60

(17 - 33)

40 - 70

(22 - 39)

30 - 60

(17 - 33)

40 - 70

(22 - 39)

30 - 60

(17 - 33)

40 - 70

(22 - 39)

30 - 60

(17 - 33)

Optional Media Cabinet

Field Supplied Filter

40 - 70

(22 - 39)

30 - 60

(17 - 33)

40 - 70

(22 - 39)

30 - 60

(17 - 33)

40 - 70

(22 - 39)

30 - 60

(17 - 33)

40 - 70

(22 - 39)

30 - 60

(17 - 33)

Electrical Data 30040 36040 36060 42060 48080 60080 60100 66120

Input Voltage Volts-Hertz-Phase 115-60-1 Operating Voltage Range Min-Max 104-127 Maximum Input Amps Amps 7.5 7.5 7.6 9.2 9.2 11.7 11.8 11.8 Unit Ampacity Amps 10.3 10.2 10.3 12.4 12.4 15.5 15.6 15.6 Minimum Wire Size AWG 14 14 14 14 14 12 12 12 Maximum Wire Length

@ Minimum Wire Size Maximum Fuse/Ckt Bkr

(Time-Delay Type Recommended) Transformer Capacity (24vac output) VA External Control Power

Available

Controls 30040 36040 36060 42060 48080 60080 60100 66120

Gas Connection Size 1/2" - NPT Burners (Monoport) 2 2 3 3 4 4 5 6 Gas Valve (Redundant) Manufacturer White Rodgers

Minimum Inlet Gas pressure (in. wc) 4.5

Maximum Inlet Gas pressure (in. wc) 13.6 Manufactured (Mobile) Home Kit not approved for MH use Ignition Device Silicon Nitride Limit Control 165 180 165 180 170 200 180 160 Heating Blower Control (Heating Off-Delay) Adjustable: 90, 120, 150, 180 seconds Cooling Blower Control (Time Delay Relay) 90 seconds Communication System None Thermostat Connections R, W/W1, W2 Y/Y2, Y1, G, Com 24V, DHUM Accessory Connections EAC (115vac); HUM (24vac); 1-stg AC (via Y/Y2)

Feet 36 36 36 29 29 37 36 36

(M) (11.0) (11.0) (11.0) (8.8) (8.8) (11.3) (11.0) (11.0)

Amps 15 15 15 15 15 20 20 20

Heating .3 VA Cooling .6 VA

* See Accessory List for part numbers available.

Page 5

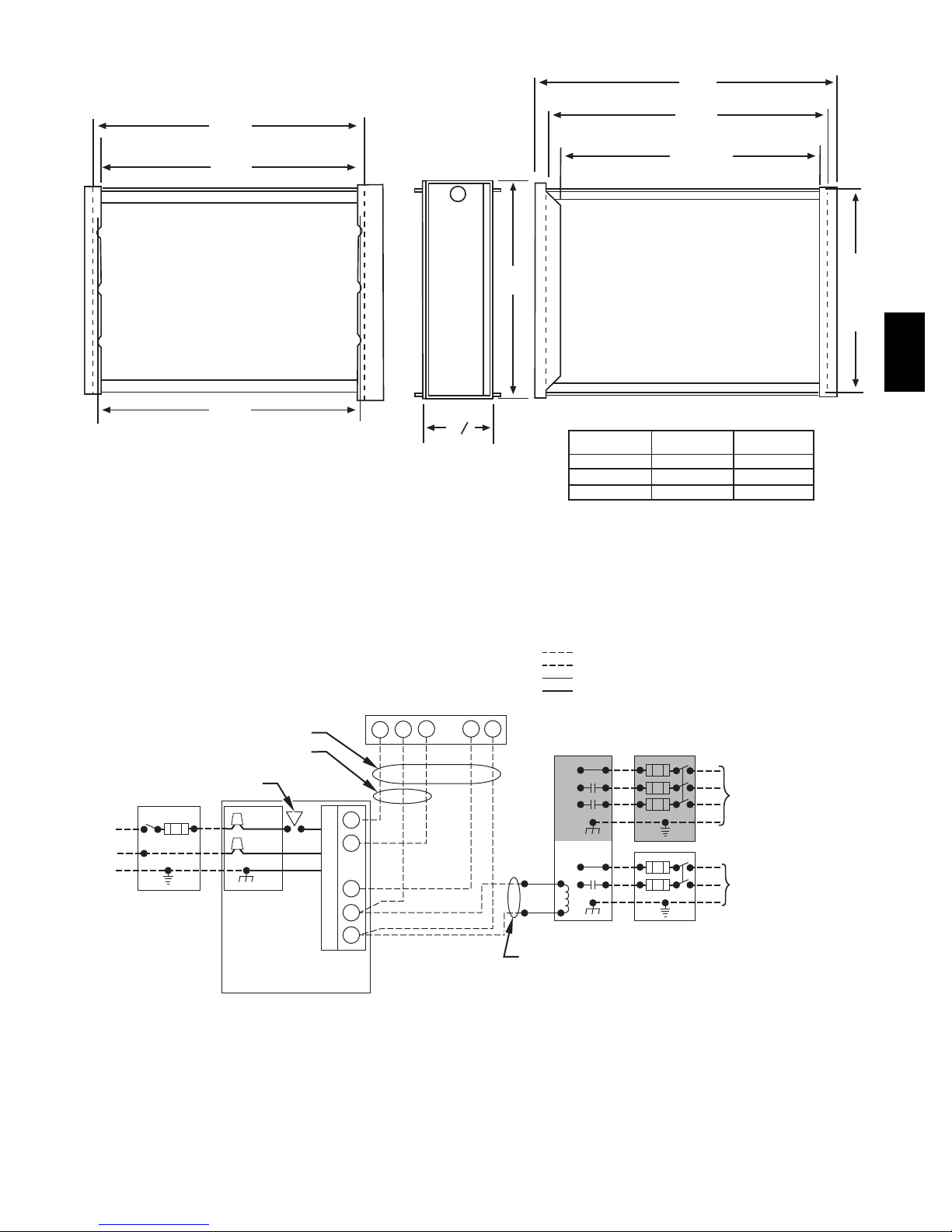

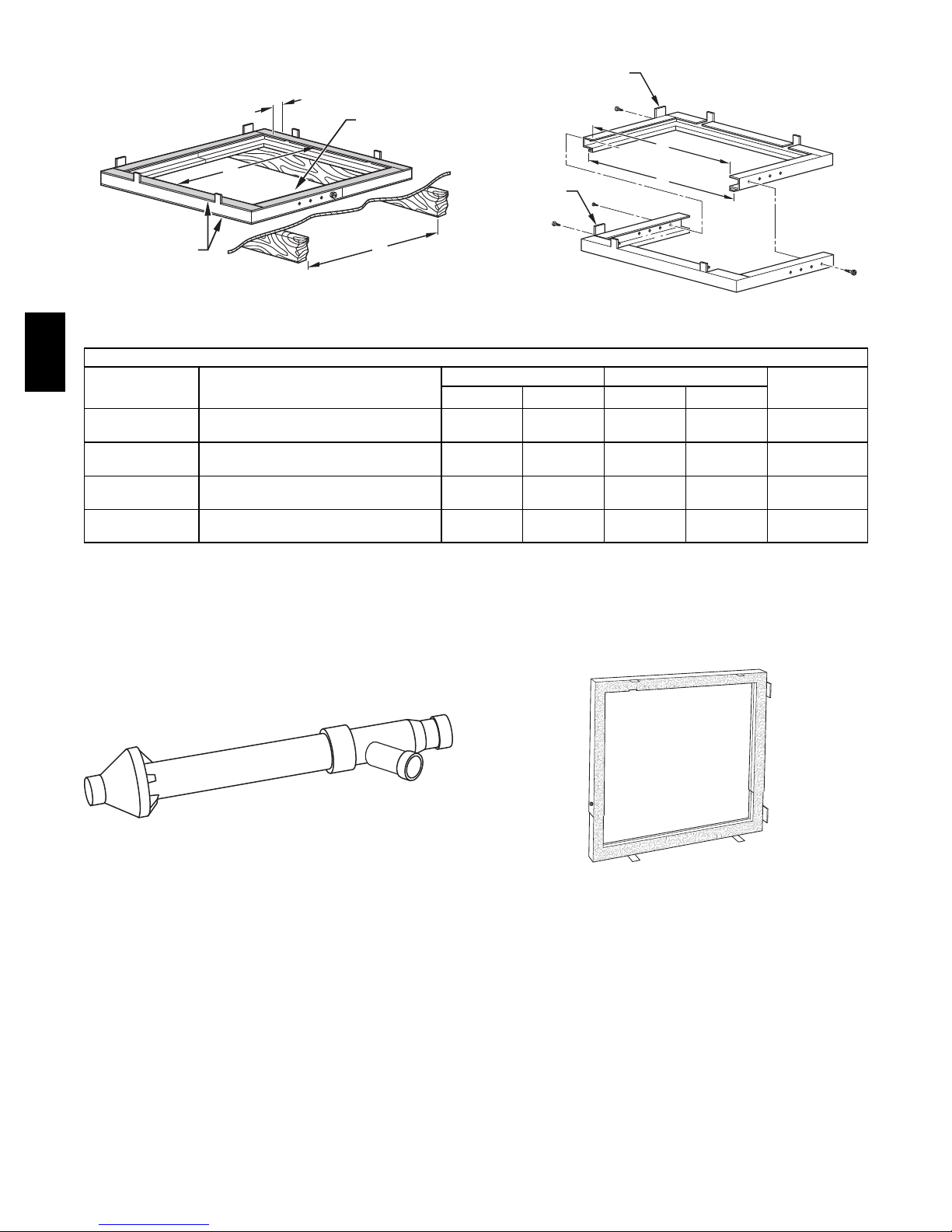

ACCESSORIES

Venting Accessories

Vent Kit - Through the Cabinet KGADC0101BVC D D D D D D D D Vent Terminal - Concentric - 2” (51 mm) KGAVT0701CVT Vent Terminal - Concentric - 3” (76 mm) KGAVT0801CVT Vent Terminal Bracket - 2” (51 mm) KGAVT0101BRA Vent Terminal Bracket - 3” (76 mm) KGAVT0201BRA Vent Kit --- Rubber Coupling KGAAC0101RVC See Venting Tables

Condensate Drainage Accessories

Freeze Protect Kit - Heat Tape KGAHT0101CFP D D D D D D D D CPVC to PVC Drain Adapters - 1/2” CPVC to 3/4” PVC KGAAD0110PVC D D D D D D D D Horizontal Trap Grommet - Direct Vent KGACK0101HCK All DV Horizontal Condensate Neutralizer Kit P908---0001 D D D D D D D D External Trap Kit KGAET0201ETK D D D D D D D D

Ductwork Adapter Accessories

Furnace Base Kit for Combustible Floors KGASB0201ALL D D D D D D D D Coil Adapter Kits - -- No Offset KGADA0101ALL D D D D D D D D Coil Adapter Kits - -- Single Offset KGADA0201ALL D D D D D D D D Coil Adapter Kits - -- Double Offset KGADA0301ALL D D D D D D D D Return Air Base (Upflow Applications) 14.0 --- in. wide KGARP0301B14 D D Return Air Base (Upflow Applications) 17.5 --- in. wide KGARP0301B17 D D D Return Air Base (Upflow Applications) 21.0 --- in. wide KGARP0301B21 D D Return Air Base (Upflow Applications) 24.5 --- in. wide KGARP0301B24 D IAQ Device Duct Adapters 20.0 --- in. IAQ to 16 in. Side Return IAQ Device Duct Adapters 24.0 --- in. IAQ to 16 in. Side Return

Gas Conversion Accessories

Gas Conversion Kit - Nat to LP; Var-speed Products KGCNP5201VSP D D D D D D D D Gas Conversion Kit - LP to Nat; Var-speed Products KGCPN4401VSP D D D D D D D D GasOrificeKit-#42(NatGas) LH32DB207 D D D D D D D D GasOrificeKit-#43(NatGas) LH32DB202 D D D D D D D D GasOrificeKit-#44(NatGas) LH32DB200 D D D D D D D D GasOrificeKit-#45(NatGas) LH32DB205 D D D D D D D D GasOrificeKit-#46(NatGas) LH32DB208 D D D D D D D D GasOrificeKit-#47(NatGas) LH32DB078 D D D D D D D D GasOrificeKit-#48(NatGas) LH32DB076 D D D D D D D D Gas Orifice Kit - #54 (LP) LH32DB203 D D D D D D D D Gas Orifice Kit - #55 (LP) LH32DB201 D D D D D D D D Gas Orifice Kit - #56 (LP) LH32DB206 D D D D D D D D Gas Orifice Kit - 1.25mm (LP) LH32DB209 D D D D D D D D Gas Orifice Kit - 1.30mm (LP) LH32DB210 D D D D D D D D

Control Accessories

Advanced Product Monitor - APM KGASD0301APM D D D D D D D D Preferred™ Series Thermidistat T 6 --- P R H D D D D D D D D Twinning Kit KGATW0801HSI D D D D

IAQ Accessories

Filter Pack (6 pack) --- Washable - 16x25x1 (406x635x25 mm)

Filter Pack (6 pack) --- Washable - 24x25x1 (610x635x25 mm)

EZ-Flex Filter - 16” (406 mm) EXPXXFIL0016 Use with EZXCAB---1016 EZ-Flex Filter - 20” (508 mm) EXPXXFIL0020 Use with EZXCAB---1020 EZ-Flex Filter - 24” (610 mm) EXPXXFIL0024 Use with EZXCAB---1024 EZ-Flex Filter with End Caps - 16” (406 mm) EXPXXUNV0016 Use with EZXCAB ---1016 EZ-Flex Filter with End Caps - 20” (508 mm) EXPXXUNV0020 Use with EZXCAB ---1020 EZ-Flex Filter with End Caps - 24” (610 mm) EXPXXUNV0024 Use with EZXCAB ---1024 Cartridge Media Filter - 16” (406 mm) FILXXCAR0016 Use with FILCABXL ---1016 Cartridge Media Filter - 20” (508 mm) FILXXCAR0020 Use with FILCABXL ---1020 Cartridge Media Filter - 24” (610 mm) FILXXCAR0024 Use with FILCABXL ---1024 Bryant Perfect Air Purifier - 16x25 (406x635 mm) GAPAAXBB1625-A08 Up to 1600 CFM Bryant Perfect Air Purifier - 20x25 (508x635 mm) GAPAAXBB2025-A08 Up to 2000 CFM Bryant Perfect Air Purifier Repl. Filter- 16x25 (406x635 mm) Bryant Perfect Air Purifier Repl. Filter- 20x25 (508x635 mm) Bryant Preferred Air Purifier - 16x25 (508x635 mm) PGAPXX1625 Up to 1600 C FM Bryant Preferred Air Purifier - 20x25 (508x635 mm) PGAPXX2025 Up to 2000 C FM Bryant Preferred Air Purifier Repl Filter - 16x25 (406x635 mm) Bryant Preferred Air Purifier Repl. Filter - 20x25 (508x635 mm)

D = Used with the model furnace

DESCRIPTION PAR T NU M BER 30040 36040 36060 42060 48080 60080 60100 66120

See Venting Tables

KGAAD0101MEC 20”x25” IAQ Devices

KGAAD0201MEC 24”x25” IAQ Devices

KGAWF1306UFR D D D D D D D D

KGAWF1506UFR D D D D D D D D

GAPABBCAR1625-A05 Use with GAPAAXBB1625

GAPABBCAR2025-A05 Use with GAPAAXBB2025

PGAPAXXCAR1625 Use with PGAPXX1625

PGAPAXXCAR2025 Use with PGAPXX2025

926TA

Page 6

AIR DELIVERY -- CFM

Unit Size

Cooling Switch Settings External Static Pre ssure (ESP)

SW2-8 SW2-7 SW2-6 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.030

30040

Clg Default: OFF OFF OFF 1125 1080 1020 970 905 855 805 755 700 635

OFF OFF ON 615 555 510 475 440 395 355 270 230 note 8

OFF ON OFF 785 740 695 665 630 590 565 520 485 450

OFF ON ON 990 950 910 875 850 815 770 720 670 615

(SW1-5 and SW2 --- 2 set to OFF, except as indicated. See notes 1 and 2)

926TA

Cooling (SW2)

ON OFF OFF 1125 1080 1020 970 905 855 805 755 700 635

ON OFF ON 1125 1080 1020 970 905 855 805 755 700 635

ON ON OFF 1125 1080 1020 970 905 855 805 755 700 635

ON ON ON 1125 1080 1020 970 905 855 805 755 700 635

Clg SW2: Maximum Clg Airflow

High Heat Airflow

Heating

(SW1)

Low Heat Airflow

1125 1080 1020 970 905 855 805 755 700 635

815 770 725 695 660 625 595 550 510 475

660 605 560 530 495 450 415 340 300 Note 7

36040

Clg Default: OFF OFF OFF 1250 1210 1165 1115 1065 1015 965 915 860 810

OFF OFF ON 575 540 490 435 385 Seenote4

OFF ON OFF 770 725 685 640 600 560 515 480 Seenote4

OFF ON ON 945 910 875 835 800 770 735 695 665 635

Cooling (SW2)

ON OFF OFF 1140 1105 1075 1040 1005 970 930 885 835 790

ON OFF ON 1250 1210 1165 1115 1065 1015 965 915 860 810

ON ON OFF 1250 1210 1165 1115 1065 1015 965 915 860 810

ON ON ON 1250 1210 1165 1115 1065 1015 965 915 860 810

Clg SW2: Maximum Clg Airflow

High Heat Airflow

Heating

(SW1)

Low Heat Airflow

1250 1210 1165 1115 1065 1015 965 915 860 810

860 825 785 745 705 670 630 595 565 525

650 595 545 500 460 415 365 320 275 note 7

36060

Clg Default: OFF OFF OFF 1250 1210 1165 1115 1065 1015 955 895 815 745

OFF OFF ON 605 565 510 455 420 Seenote4

OFF ON OFF 785 750 705 675 630 585 Seenote4

OFF ON ON 955 920 895 860 825 785 755 720 685 650

Cooling (SW2)

ON OFF OFF 1135 1110 1080 1055 1020 990 935 880 825 745

ON OFF ON 1250 1210 1165 1115 1065 1015 955 895 815 745

ON ON OFF 1250 1210 1165 1115 1065 1015 955 895 815 745

ON ON ON 1250 1210 1165 1115 1065 1015 955 895 815 745

Clg SW2: Maximum Clg Airflow

High Heat Airflow

Heating

(SW1)

Low Heat Airflow

1250 1210 1165 1115 1065 1015 955 895 815 745

1125 1100 1070 1045 1010 980 925 875 820 740

900 865 835 800 760 720 690 650 610 580

Page 7

AIR DELIVERY -- CFM (CONTINUED)

Unit Size

42060

Clg Default: OFF OFF OFF 1330 1295 1260 1220 1190 1150 1110 1075 1045 1005

Cooling Switch Settings External Static Pressure (ESP)

SW2-8 SW2-7 SW2-6 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0

OFF OFF ON 725 660 600 520 435 Seenote4

OFF ON OFF 780 725 660 615 540 Seenote4

OFF ON ON 975 925 875 835 785 750 690 655 610 570

Cooling (SW2)

ON OFF OFF 1160 1120 1090 1045 1010 970 920 885 840 800

ON OFF ON 1330 1295 1260 1220 1190 1150 1110 1075 1045 1005

ON ON OFF 1705 1650 1595 1545 1475 1415 1340 1275 1200 1105

ON ON ON 1705 1650 1595 1545 1475 1415 1340 1275 1200 1105

Clg SW2: Maximum Clg Airflow

High Heat Airflow

Heating

(SW1)

Low Heat Airflow

1705 1650 1595 1545 1475 1415 1340 1275 1200 1105

1145 1105 1075 1030 995 955 905 870 825 785

870 820 760 720 655 620 560 525 470 435

48080

Clg Default: OFF OFF OFF 1805 1765 1720 1665 1610 1540 1475 1400 1315 1235

OFF OFF ON 775 635 455 230 Seenote8

OFF ON OFF 840 740 675 625 555 Seenote4

OFF ON ON 995 955 910 860 815 770 720 660 620 585

Cooling (SW2)

ON OFF OFF 1175 1140 1090 1060 1025 980 940 905 855 815

ON OFF ON 1325 1280 1245 1210 1180 1140 1105 1070 1025 990

ON ON OFF 1545 1515 1480 1445 1410 1380 1350 1315 1245 1175

ON ON ON 1805 1765 1720 1665 1610 1540 1475 1400 1315 1235

Clg SW2: Maximum Clg Airflow

High Heat Airflow

Heating

(SW1)

Low Heat Airflow

1805 1765 1720 1665 1610 1540 1475 1400 1315 1235

1520 1490 1455 1420 1385 1355 1320 1285 1220 1155

1180 1145 1095 1065 1030 985 945 910 860 820

60080

Clg Default: OFF OFF OFF 1905 1870 1825 1785 1750 1700 1665 1625 1560 1460

926TA

OFF OFF ON 950 770 620 515 440 365 See note 4

OFF ON OFF 1015 935 880 825 765 690 625 580 See note 4

OFF ON ON 1155 1105 1040 990 920 875 815 755 710 645

Cooling (SW2)

ON OFF OFF 1335 1290 1245 1190 1145 1085 1040 990 930 890

ON OFF ON 1520 1485 1435 1390 1340 1300 1255 1200 1160 1115

ON ON OFF 1905 1870 1825 1785 1750 1700 1665 1625 1560 1460

ON ON ON 2290 2230 2160 2085 2005 1915 1820 1730 1640 1525

Clg SW2: Maximum Clg Airflow

High Heat Airflow

Heating

(SW1)

NOTE: See notes at end of table.

Low Heat Airflow

2290 2230 2160 2085 2005 1915 1820 1730 1640 1525

1575 1535 1485 1445 1400 1350 1310 1260 1215 1170

1230 1170 1125 1065 1015 955 900 855 795 755

Page 8

AIR DELIVERY -- CFM (CONTINUED)

Unit Size

60100

Clg Default: OFF OFF OFF 1890 1845 1800 1755 1700 1655 1610 1560 1510 1460

Cooling Switch Settings External Static Pressure (ESP)

SW2-8 SW2-7 SW2-6 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0

OFF OFF ON 1015 825 630 485 405 325 See note 4

OFF ON OFF 1080 895 815 740 690 615 555 475 See note 4

OFF ON ON 1155 1080 1020 940 890 825 785 710 660 590

Cooling (SW2)

ON OFF OFF 1310 1260 1195 1140 1075 1025 970 925 875 810

ON OFF ON 1520 1475 1425 1365 1315 1255 1210 1155 111 0 1055

ON ON OFF 1890 1845 1800 1755 1700 1655 1610 1560 1510 1460

ON ON ON 2290 2230 2160 2085 2005 1915 1820 1730 1640 1525

Clg SW2: Maximum Clg Airflow

926TA

High Heat Airflow

Heating

(SW1)

Low Heat Airflow

2290 2230 2160 2085 2005 1915 1820 1730 1640 1525

1905 1865 1825 1775 1730 1685 1640 1590 1545 1490

1480 1435 1375 1330 1265 1215 1160 1115 1060 1005

66120

Clg Default: OFF OFF OFF 2010 1960 1910 1850 1800 1750 1690 1645 1565 1480

OFF OFF ON 1015 805 645 550 480 See note 4

OFF ON OFF 1075 975 915 835 765 See note 4

OFF ON ON 1205 1135 1055 1000 935 See note 4

Cooling (SW2)

ON OFF OFF 1400 1330 1260 1190 1145 1080 1035 970 905 845

ON OFF ON 1615 1550 1500 1435 1370 1325 1265 1215 1160 1110

ON ON OFF 2010 1960 1910 1850 1800 1750 1690 1645 1565 1480

ON ON ON note 8 2375 2300 2205 2115 2010 1890 1750 1645 1550

Clg SW2: Maximum Clg Airflow

High Heat Airflow

Heating

(SW1)

1. Nominal 350 CFM/ton cooling airflow is delivered with SW1 ---5 and SW2 - -- 2 set to OFF. S e t b o t h S W 1 --- 5 a n d S W 2 --- 2 t o O N f o r + 7 % a i r f l o w ( n o m i n a l 3 7 0 C F M / t o n ) . Set SW1---5 to ON and SW2--- 2 to OFF for +15% airflow (nominal 400 CFM/ton). S e t S W 2 --- 2 t o O N a n d S W 1 --- 5 t o O F F f o r --- 7 % a i r f l o w ( n o m i n a l 3 2 5 C F M / t o n ) . The above adjustments in airflow are subject to motor horsepower range/capacity.

2 . M a x i m u m c o o l i n g a i r f l o w i s a c h i e v e d w h e n s w i tc h e s S W 2 --- 6 , S W2 --- 7 , S W 2 --- 8 a n d S W 1 --- 5 a r e s e t t o O N , a n d S W 2 --- 2 i s s e t t o O F F.

3. All heating CFM’s are when low heat rise adjustment switch (SW1 --- 3) and comfort/efficiency adjustment switch (SW1 --- 4) are both set to OFF.

4. Ductwork must be sized for high - --heating CFM within the operational range of ESP. Operation within the blank areas of the chart is not recommended because high ---heat operation will be above 1.0 ESP.

5. All airflows of 1880 CFM or less on 21” and 24.5” casing size furnaces are 5% less on side return only installations.

6. Return air above 1800 CFM on 24.5” casing requires two sides, one side and bottom, or bottom only to allow sufficient airflow to the furnace.

7. For upflow applications, air entering from one side into both the side of the furnace and a return air base counts as a side and bottom return.

8. Airflow not stable at this ESP.

Low Heat Airflow

note 8 2375 2300 2205 2115 2010 1890 1750 1645 1550

1735 1675 1625 1560 1500 1455 1395 1345 1285 1225

Page 9

MAXIMUM EQUIVALENT VENT LENGTH -- FT. (M)

NOTE: Maximum Equivalent Vent Length (MEVL) includes standard and concentric vent termination and does NOT include elbows.

Use Table 2 - Deductions from Maximum Equivalent Vent Length to determine allowable vent length for each application.

Table 1 – Maximum Equivalent Vent Length -- Ft. (M)

0 to 4500 Ft. (0 to 1370 M) Altitude

Altitude

FT (M)

0 to 2000 (0 to 610)

2001 to 3000

(610 to 914)

3001 to 4000

(914 to 1219)

4001 to 4500

(1219 to 1370)

NOTES: See notes at end of venting tables.

See Table 3 for altitudes over 4500 ft. (1370 M)

Unit Size

BTU/Hr

40,000

60,000 30 (9.1) 135 (41.1) 235 (71.6) 265 (80.8) NA

80,000 20 (6.1) 70 (21.3) 175 (53.3) 235 (71.6) 265 (80.8) 100,000 NA 25 (7.6) 110 (33.5) 235 (71.6) 265 (80.8) 120,000 NA NA 15 (4.6) 100 (30.5) 250 (76.2)

140,000

40,000 45 (13.7) 198 (60.4) 232 (70.7) NA NA

60,000 27 (8.2) 127 (38.7) 222 (67.7) 250 (76.2) NA

80,000 17 (5.2) 64 (19.5) 165 (50.3) 222 (67.7) 249 (75.9) 100,000 NA 22 (6.7) 104 (31.7) 223 (68.0) 250 (76.2) 120,000 NA NA 11 (3.4) 93 (28.3) 237 (72.2)

140,000

40,000 39 (11.9) 184 (56.1) 214 (65.2) NA NA

60,000 23 (7.0) 119 (36.3) 210 (64.0) 235 (71.6) NA

80,000 15 (4.6) 59 (18.0) 155 (47.2) 210 (64.0) 232 (70.7) 100,000 NA 19 (5.8) 98 (29.9) 211 (64.3) 236 (71.9) 120,000 NA NA 8 (2.4) 86 (26.2) 224 (68.3)

140,000

40,000 36 (11.0) 177 (53.9) 205 (62.5) NA NA

60,000 21 (6.4) 115 (35.1) 204 (62.2) 228 (69.5) NA

80,000 14 (4.3) 56 (17.1) 150 (45.7) 202 (61.6) 224 (68.3) 100,000 NA 17 (5.2) 94 (28.7) 205 (62.5) 229 (69.8) 120,000 NA NA NA 83 (25.3) 217 (66.1)

140,000

1-1/2 2 2-1/2 3 4

50 (15.2) 210 (64.0) 250 (76.2) NA

NA NA 10 (3.0) 90 (27.4) 210 (64.0)

NA NA NA 80 (24.4) 185 (56.4)

NA NA NA 79 (24.1) 158 (48.2)

NA NA NA 69 (21.0) 146 (44.5)

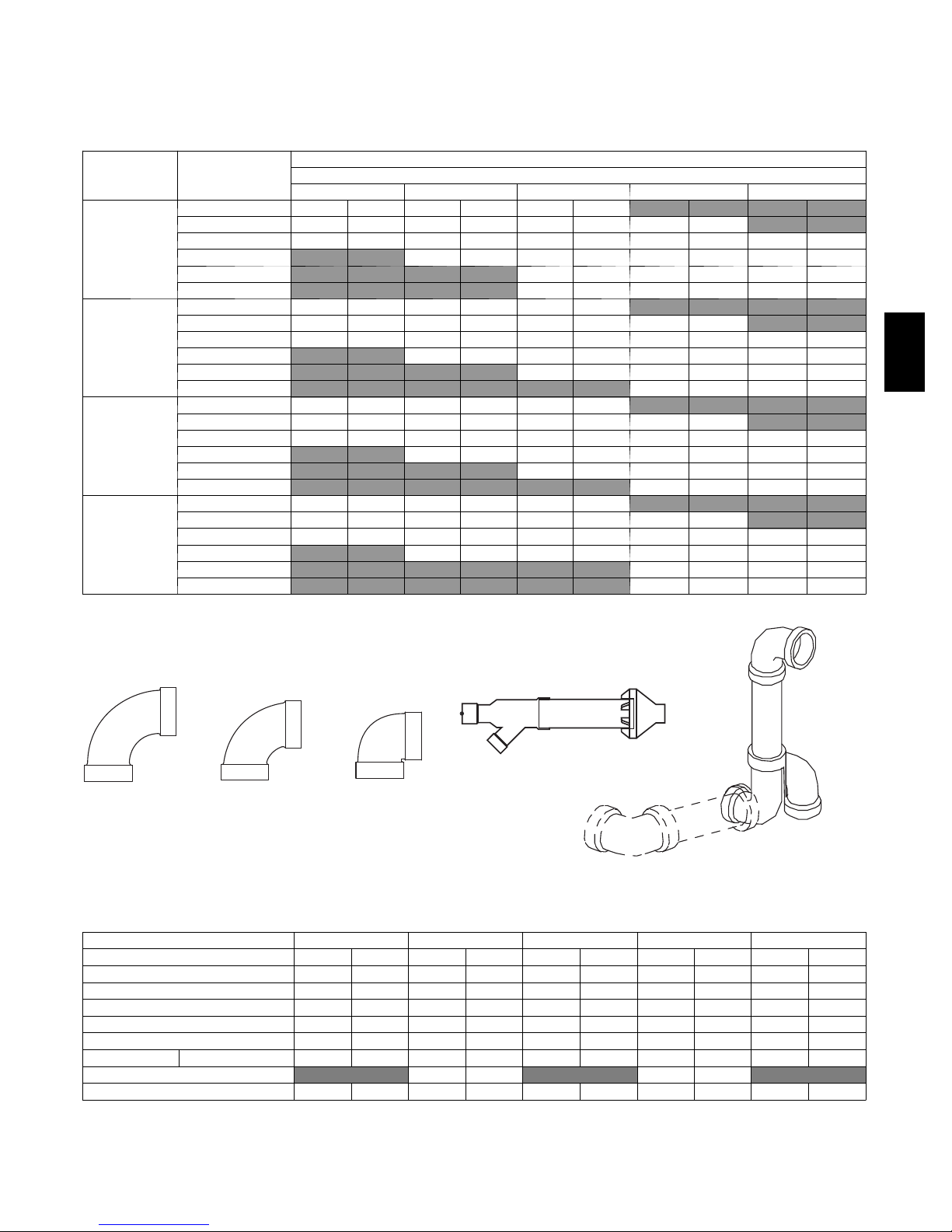

DIRECT VENT (2-PIPE) AND NON-DIRECT VENT (1-PIPE)

Vent Pipe Diameter (in.)

926TA

ELBOW CONFIGURATIONS

VENT TERMINAL CONFIGURATIONS

Concentric

Long

Medium

Mitered

Standard 2-in., 3-in., or optional 4-in. termination.

A13110

Table 2 – Deductions from Maximum Equivalent Vent Length -- Ft. (M)

Pipe Diameter (in): 1-1/2 2 2-1/2 3 4 Mitered 90º Elbow 8 (2.4) 8 (2.4) 8 (2.4) 8 (2.4) 8 (2.4) Medium Radius 90º Elbow 5 (1.5) 5 (1.5) 5 (1.5) 5 (1.5) 5 (1.5) Long Radius 90º Elbow 3 (0.9) 3 (0.9) 3 (0.9) 3 (0.9) 3 (0.9) Mitered 45º Elbow 4 (1.2) 4 (1.2) 4 (1.2) 4 (1.2) 4 (1.2) Medium Radius 45º Elbow 2.5 (0.8) 2.5 (0.8) 2.5 (0.8) 2.5 (0.8) 2.5 (0.8) Long Radius 45º Elbow 1.5 (0.5) 1.5 (0.5) 1.5 (0.5) 1.5 (0.5) 1.5 (0.5) Tee 16 (4.9) 16 (4.9) 16 (4.9) 16 (4.9) 16 (4.9) Concentric Vent Termination NA 0 (0.0) NA 0 (0.0) NA Standard Vent Termination 0 (0.0) 0 (0.0) 0 (0.0) 0 (0.0) 0 (0.0)

Page 10

Venting System Length Calculations

The Total Equivalent Vent Length (TEVL) for EACH combustion air or vent pipe equals the length of the venting system, plus the equivalent length of elbows used in the venting system from Table 2.

Standard vent terminations or factory accessory concentric vent terminations count for zero deduction. See vent system manufacturer’s data for equivalent lengths of flexible vent pipe or other termination systems. DO NOT ASSUME that one

foot of flexible vent pipe equals one foot of straight PVC/ABS DWV vent pipe. Compare the Total Equivalent Vent Length to the Maximum Equivalent Vent Lengths in Tables 1 and 3.

Example 1

A direct--vent 60,000 Btuh furnace installed at 2100 ft. (640 M). Venting system includes, FOR EACH PIPE, 100 feet (30 M) of vent pipe, 95 feet (28 M) of combustion air inlet pipe, (3) 90_ long radius elbows, (2) 45_ long radius elbows and a factory accessory concentric vent kit.

Can this application use 2--in. (50 mm ND) PVC/ABS DWV vent piping?

Measure the required linear length of air inlet and vent pipe; insert the longest of the two here:

Add equiv length of (3) 90º long-radius elbows (use the highest number of elbows for either the vent or inlet pipe)

926TA

Add equiv length of (2) 45º long-radius elbows (use the highest number of elbows for either the vent or inlet pipe)

Add equiv length of vent termination 0ft. From Table 2

Add correction for flexible vent pipe, if any 0ft.

Total Equivalent Vent Length (TEVL) 112 ft. Add all of the above lines

Maximum Equivalent Vent Length (MEVL) 127 ft. For 2” pip e f rom Table 1

Is TEVL less than MEVL? YES Therefore, 2” pipe may be used

3 x 3ft = 9ft. From Table 2

2 x 1.5 ft = 3ft. From Table 2

100 ft

Use length of the longer of the vent

or air inlet piping system

From Vent Manufacturer’s instructions;

zero for PVC/ABS DWV

Example 2

A direct--vent 60,000 Btuh furnace installed at 2100 ft. (640 M) Venting system includes, FOR EACH PIPE, 100 feet (30 M) of vent pipe, 95 feet (28 M) of combustion air inlet pipe, (3) 90_ long radius elbows, and a polypropylene concentric vent kit. Also includes 20 feet (6 M) of flexible polypropylene vent pipe, included within the 100 feet (30 M) of vent pipe.

Assume that one meter of flexible 60 mm or 80 mm polypropylene pipe equals 1.8 meters of PVC/ABS pipe. VERIFY FROM VENT

MANUFACTURER’S INSTRUCTIONS.

Can this application use 60 mm (O.D.) polypropylene vent piping? If not what size piping can be used?

Measure the required linear length of air inlet and vent pipe; insert the longest of the two here:

Add equiv length of (3) 90º long-radius elbows (use the highest number of elbows for either the vent or inlet pipe)

Add equiv length of (2) 45º long-radius elbows (use the highest number of elbows for either the vent or inlet pipe)

Add equiv length of vent termination 9M x 3ft/M = 18 ft. From Vent Manufacturer’s instructions Add correction for flexible vent pipe, if any 1.8 x 20 ft = 36 ft. From Vent Manufacturer’s instructions Total Equivalent Vent Length (TEVL) 163 ft. Add all of the above lines

3 x 3ft = 9ft. From Vent Manufacturer’s instructions

0 x = 0ft. From Vent Manufacturer’s instructions

100 ft

Use length of the longer of the vent

or air inlet piping system

Maximum Equivalent Vent Length (MEVL) 127 ft. For 2” pip e f rom Table 1

Is TEVL less than MEVL? NO

Maximum Equivalent Vent Length (MEVL) 250 ft. For 3” pip e f rom Table 1

Is TEVL less than MEVL? YES Therefore, 80 mm pipe may be used

Therefore, 60mm pipe may NOT be used;

try 80 mm

Page 11

MAXIMUM EQUIVALENT VENT LENGTH -- FT. (M) (CONTINUED)

NOTE: Maximum Equivalent Vent Length (MEVL) includes standard and concentric vent termination and does NOT include elbows.

Use Table 2 - Deductions from Maximum Equivalent Vent Length to determine allowable vent length for each application.

Table 3 – Maximum Equivalent Vent Length -- Ft. (M)

4501 to 10,000 Ft. (1371 to 3048 M) Altitude

Altitude

FT (M)

Unit Size

1-1/2 2 2-1/2 3 4

40,000 33 (10.1) 171 (52.1) 196 (59.7)

60,000 20 (6.1) 111 (33.8) 198 (60.4) 221 (67.4) NA

4501 to 5000

(1370 to 1524)

80,000 13 (4.0) 54 (16.5) 146 (44.5) 195 (59.4) 216 (65.8) 100,000 NA 16 (4.9) 91 (27.7) 200 (61.0) 222 (67.7) 120,000 NA NA NA 80 (24.4) 211 (64.3)

140,000

NA NA NA 60 (18.3) 134 (40.8) 40,000 27 (8.2) 158 (48.2) 179 (54.6) NA NA 60,000 16 (4.9) 103 (31.4) 186 (56.7) 207 (63.1) NA

5001 to 6000

(1524 to 1829)

80,000 11 (3.4) 49 (14.9) 137 (41.8) 183 (55.8) 200 (61.0)

100,000 NA 12 (3.7) 85 (25.9) 188 (57.3) 208 (63.4) 120,000 NA NA NA 74 (22.6) 199 (60.7)

140,000

NA NA NA 50 (15.2) 109 (33.2) 40,000 21 (6.4) 145 (44.2) 162 (49.4) NA NA 60,000 13 (4.0) 96 (29.3) 174 (53.0) 194 (59.1) NA

6001 to 7000

(1829 to 2134)

80,000 NA 44 (13.4) 120 (36.6) 171 (52.1) 185 (56.4)

100,000 NA 10 (3.0) 79 (24.1) 178 (54.3) 195 (59.4) 120,000 NA NA NA 68 (20.7) 187 (57.0)

140,000

NA NA NA 41 (12.5) 87 (26.5) 40,000 15 (4.6) 133 (40.5) 146 (44.5) NA NA 60,000 10 (3.0) 89 (27.1) 163 (49.7) 181 (55.2) NA

7001 to 8000

(2134 to 2438)

80,000 NA 40 (12.2) 120 (36.6) 159 (48.5) 170 (51.8)

100,000 NA NA 73 (22.3) 167 (50.9) 182 (55.5) 120,000 NA NA NA 62 (18.9) 175 (53.3)

140,000

NA NA NA 32 (9.8) 63 (19.2) 40,000 10 (3.0) 121 (36.9) 130 (39.6) NA NA 60,000 7 (2.1) 82 (25.0) 152 (46.3) 168 (51.2) NA

8001 to 9000

(2438 to 2743)

80,000 NA 35 (10.7) 111 (33.8) 148 (45.1) 156 (47.5)

100,000 NA NA 67 (20.4) 157 (47.9) 170 (51.8) 120,000 NA NA NA 56 (17.1) 164 (50.0)

140,000

NA NA NA 23 (7.0) 42 (12.8) 40,000 5 (1.5) 110 (33.5) 115 (35.1) NA NA 60,000 NA 76 (23.2) 142 (43.3) 156 (47.5) NA

9001 to 10,000 (2743 to 3048)

80,000 NA 31 (9.4) 103 (31.4) 137 (41.8) 142 (43.3)

100,000 NA NA 62 (18.9) 147 (44.8) 157 (47.9) 120,000 NA NA NA 51 (15.5) 153 (46.6)

140,000

NOTES:

1. Use only the vent pipe sizes shown for each furnace. It is NOT necessary to choose the smallest diameter pipe possible for venting.

2. NA --- Not allowed. Pressure switch will not close, or flame disturbance may result.

3. Total equivalent vent lengths under 10’ for 40,000 BTUH furnaces from 0 to 2000 ft. (0 to 610 M) above sea level require use o f an outlet choke plate .

Failure to use an outlet choke when required may result in flame disturbance or flame sense lockout.

4. Not a ll furnace families include 140,000 BTUH input models.

5. Vent sizing for Canadian installations over 4500 ft (1370 M) above sea level are subject to acceptance by local authorities having jurisdiction.

6. Size both the combustion air and vent pipe independently, then use the larger size for both pipes.

7. Assume the two 45_ elbows equal one 90_ elbow. Wide radius elbows are desirable and may be required in some cases.

8. Elbow and pipe sections within the furnace casing and at the vent termination should not be included in vent length or elbow count.

9. The minimu m pipe length is 5 ft. (2 M) lin ear feet (meters) for all applications.

10. Use 3 --- in. (76 mm) diameter vent termination kit for installations requiring 4 --- in. (102 mm) diameter pipe.

NA NA NA 16 (4.9) 20 (6.1)

DIRECT VENT (2-PIPE) AND SINGLE-PIPE

Vent Pipe Diameter (in.)

926TA

Page 12

MAXIMUM ALLOWABLE EXPOSED VENT LENGTHS INSULATION TABLE -- FT. (M)

Two Stag e

Furnace Hi gh

Heat Input

40000*

Winter Design

Te m p ° F ( ° C )

20 (-10)

0 (-20)

-20 (-30)

-40 (-40)

Pipe

Length in

Ft. & M

Ft. 40.0 35.0 35.0 N/A N/A 50.0 104.0 94.0 N/ A N/A 50.0 122.0 110.0 N/A N/A

M 12.2 10.7 10.7 N/A N/A 15.2 31.7 28.7 N/A N/A 15.2 37.2 33.5 N/A N/A

Ft. 19.0 14.0 12.0 N/A N/A 50.0 61.0 54.0 N/A N/A 50.0 74.0 65.0 N/A N/A

M 5.8 4.3 3.7 N/A N/A 15.2 18.6 16.5 N/A N/A 15.2 22.6 19.8 N/A N/A

Ft. 9.0 3.0 1.0 N/A N/ A 50.0 41.0 35.0 N/A N/A 50.0 51.0 43.0 N/A N/A

M 2.7 0.9 0.3 N/A N/A 15.2 12.5 10.7 N/A N/A 15.2 15.5 13.1 N/A N/A

Ft. 3.0 0.0 0.0 N/A N/ A 39.0 29.0 23.0 N/A N/A 48.0 37.0 30.0 N/A N/A

M 0.9 0.0 0.0 N/A N/A 11.9 8.8 7.0 N/A N/A 14.6 11.3 9.1 N/A N/A

No Insulation 3/8-in. (9.5 mm) 1/2-in. (12.7 mm)

Pipe Diameter-inches (mm) Pipe Diameter-inches (mm) Pipe Diameter-inches (mm)

1.5 2.0 2.5 3.0 4.0 1.5 2.0 2.5 3.0 4.0 1.5 2.0 2.5 3.0 4.0

(38) (51) (64) (76) (102) (38) (51) (64) (76) (102) (38) (51) (64) (76) (102)

20 (-10)

0 (-20)

926TA

60000

-20 (-30)

-40 (-40)

20 (-10)

0 (-20)

80000

-20 (-30)

-40 (-40)

20 (-10)

0 (-20)

100000

-20 (-30)

-40 (-40)

Ft. 30.0 51.0 51.0 45.0 N/A 30.0 135.0 138.0 120.0 N/A 30.0 135.0 162.0 141.0 N/A

M 9.1 15.5 15.5 13.7 N/A 9.1 41.1 42.1 36.6 N/A 9.1 41.1 49.4 43.0 N/ A

Ft. 30.0 24.0 23.0 16.0 N/A 30.0 93.0 82.0 69.0 N/A 30.0 111.0 98.0 83.0 N/A

M 9.1 7.3 7.0 4.9 N/A 9.1 28.3 25.0 21.0 N/A 9.1 33.8 29.9 25.3 N/A

Ft. 18.0 11.0 9.0 1.0 N/A 30.0 65.0 56.0 44.0 N/A 30.0 79.0 68.0 55.0 N/A

M 5.5 3.4 2.7 0.3 N/A 9.1 19.8 17.1 13.4 N/A 9.1 24.1 20.7 16.8 N/A

Ft. 10.0 3.0 0.0 0.0 N/A 30.0 48.0 40.0 29.0 N/A 30.0 59.0 50.0 38.0 N/A

M 3.0 0.9 0.0 0.0 N/A 9.1 14.6 12.2 8.8 N/A 9.1 18.0 15.2 11.6 N/A

Ft. 20.0 64.0 64.0 56.0 47.0 20.0 70.0 173.0 150.0 125.0 20.0 70.0 175.0 177.0 147.0

M 6.1 19.5 19.5 17.1 14.3 6.1 21.3 52.7 45.7 38.1 6.1 21.3 53.3 53.9 44.8

Ft. 20.0 32.0 30.0 22.0 11.0 20.0 70.0 104.0 87.0 67.0 20.0 70.0 124.0 104.0 82.0

M 6.1 9.8 9.1 6.7 3.4 6.1 21.3 31.7 26.5 20.4 6.1 21.3 37.8 31.7 25.0

Ft. 20.0 17.0 14.0 6.0 0.0 20.0 70.0 71.0 57.0 40.0 20.0 70.0 86.0 71.0 52.0

M 6.1 5.2 4.3 1.8 0.0 6.1 21.3 21.6 17.4 12.2 6.1 21.3 26.2 21.6 15.8

Ft. 15.0 7.0 5.0 0.0 0.0 20.0 61.0 52.0 40.0 24.0 20.0 70.0 64.0 50.0 33.0

M 4.6 2.1 1.5 0.0 0.0 6.1 18.6 15.8 12.2 7.3 6.1 21.3 19.5 15.2 10.1

Ft. N/A 25.0 79.0 70.0 59.0 N/A 25.0 110.0 186.0 155.0 25.0 110.0 219.0 182.0

M N/A 7.6 24.1 21.3 18.0 N/A 7.6 33.5 56.7 47.2 7.6 33.5 66.8 55.5

Ft. N/A 25.0 40.0 31.0 19.0 N/A 25.0 110.0 109.0 86.0 25.0 110.0 131.0 104.0

M N/A 7.6 12.2 9.4 5.8 N/A 7.6 33.5 33.2 26.2 7.6 33.5 39.9 31.7

Ft. N/A 23.0 21.0 13.0 0.0 N/A 25.0 91.0 74.0 54.0 25.0 110.0 90.0 68.0

M N/A 7.0 6.4 4.0 0.0 N/A 7.6 27.7 22.6 16.5 7.6 33.5 27.4 20.7

Ft. N/A 13.0 10.0 1.0 0.0 N/A 25.0 68.0 53.0 35.0 25.0 83.0 66.0 46.0

M N/A 4.0 3.0 0.3 0.0 N/A 7.6 20.7 16.2 10.7 7.6 25.3 20.1 14.0

20 (-10)

0 (-20)

120000

-20 (-30)

-40 (-40)

* Not all families have these models. * Pipe l ength (ft) specified for maximum pipe lengths located in un conditioned spaces. Pipes located in unconditioned space cannot exceed total allowable pipe

length calculated from Table 1 or 3.

† Insulation thickness based on R value of 3.5 per in.

Ft. N/A N/A 15.0 85.0 73.0 N/A N/A 15.0 100.0 190.0 N/A N/A 15.0 100.0 224.0

M N/A N/A 4.6 25.9 22.3 N/A N/A 4.6 30.5 57.9 N/A N/A 4.6 30.5 68.3

Ft. N/A N/A 15.0 41.0 29.0 N/A N/A 15.0 100.0 109.0 N/A N/A 15.0 100.0 131.0

M N/A N/A 4.6 12.5 8.8 N/A N/A 4.6 30.5 33.2 N/A N/A 4.6 30.5 39.9

Ft. N/A N/A 15.0 20.0 7.0 N/A N/A 15.0 94.0 71.0 N/A N/A 15.0 114.0 88.0

M N/A N/A 4.6 6.1 2.1 N/A N/A 4.6 28.7 21.6 N/A N/A 4.6 34.7 26.8

Ft. N/A N/A 15.0 7.0 0.0 N/A N/A 15.0 69.0 48.0 N/A N/A 15.0 85.0 62.0

M N/A N/A 4.6 2.1 0.0 N/A N/A 4.6 21.0 14.6 N/A N/A 4.6 25.9 18.9

Page 13

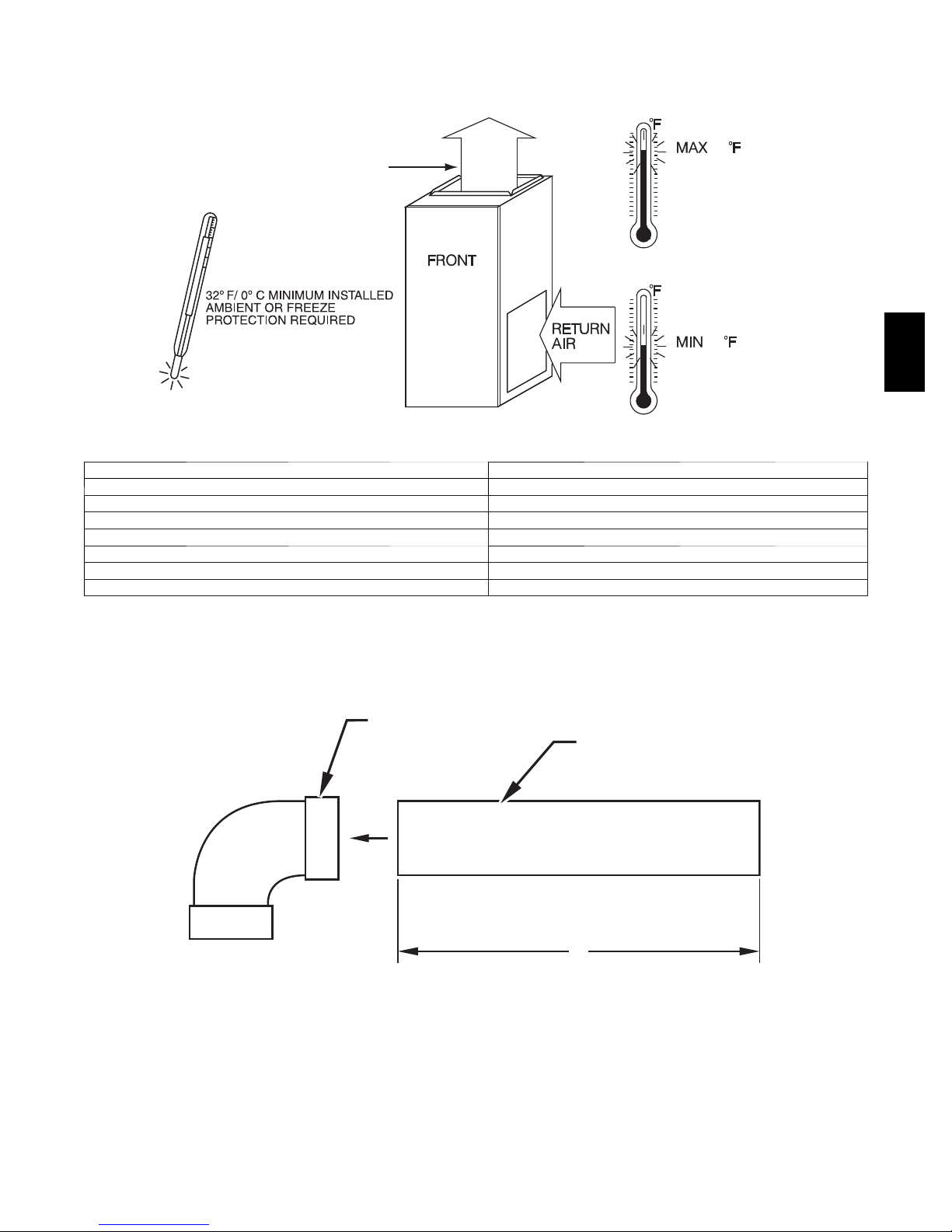

RETURN AIR TEMPERATURE

This furnace is designed for continuous return--air minimum temperature of 60_F(15_C) db or intermittent operation down to 55_F(13_C) db such as when used with a night setback thermometer. Return--air temperature must not exceed 80_F(27_C) db. Failure to follow these return air limits may affect reliability of heat exchangers, motors and controls.

80 / 27˚C

SUPPLY AIR

/ 16˚C

A10490

MINIMUM CLEARANCES TO COMBUSTIBLE MATERIALS

POSITION CLEARANCE

Rear 0(0mm)

Front (Combustion air openings in furnace and in structure) 1in.(25mm)

Required for service** 24 in. (610 mm)*

All Sides of Supply Plenum** 1in.(25mm)

Sides 0(0mm)

Ve n t 0(0mm)

* Recommended **Consult your local building codes

Top of Furnace 1in. (25mm)

926TA

COMBUSTION--AIR PIPE FOR NON--DIRECT (1--PIPE) VENT APPLICATION

FIELD-SUPPLIED 2-IN. (51 mm) DIA. MITERED RADIUS PVC 90° ELBOW

12” (300 mm) MINIMUM

NOTE: See Installation Instructions for specific venting configurations.

FIELD-SUPPLIED 2-IN. (51 mm) DIA. PVC PIPE

A12376

Page 14

DOWNFLOW SUBBASE

LOCATING

TAB

11/

4-IN. TYP

PLENUM OPENING

LOCATING

TAB

FACTORY-SUPPLIED

FIELD-INSTALLED

INSULATION

A97427

Assembled

926TA

FURNACE

CASING WIDTH

14--- 3/16 (360)

17--- 1/2 (445)

21 (533)

24--- 1/2 (622)

*The plenum should be constructed 1/4 --- in. (6 mm) smaller in width and depth than the plenum dimensions shown above.

FURNACE IN DOWNFLOW

APPLICATION

Furnace with or without Cased Coil

Assembly or Coil Box

Furnace with or without Cased Coil

Assembly or Coil Box

Furnace with or without Cased Coil

Assembly or Coil Box

Furnace with or without Cased Coil

Assembly or Coil Box

DIMENSIONS (IN. / MM)

PLENUM OPENING* FLOOR OPENING

A B C D

11--- 3/16

(322)

15--- 1/8

(384)

18--- 5/8

(396)

22--- 1/8

(562)

19 (483)

13--- 7/16

(341)

16--- 3/4

(426)

20--- 1/4

(514)

23--- 3/4

(603)

Disassembled

20--- 5/8

(600)

20--- 5/8

(600)

20--- 5/8

(600)

20--- 5/8

(600)

A88207

HOLE NO. FOR

WIDTH

ADJUSTMENT

Concentric Vent Kit

A concentric vent kit allows vent and combustion--air pipes to terminate through a single exit in a roof or side wall. One pipe runs inside the other allowing venting through the inner pipe and combustion air to be drawn in through the outer pipe.

A93086

Downflow Subbase

A88202

One base fits all furnace sizes. The base is designed to be installed between the furnace and a combustible floor when no coil box is used or when a coil box other than a Bryant cased coil is used. It is CSA design certified for use with Bryant branded furnaces when installed in downflow applications.

Page 15

23-5/8"

(600mm)

23-3/8”

(594mm)

OPTIONAL MEDIA FILTER CABINET

Opening with Flanges Bent

25-5/8"

(651mm)

24-1/4”

(616mm)

23-1/8”

(588mm)

Opening

B Opening

Furnace Side

Duct Side

23-3/4”

(603mm)

Centerline Screw Slots

(146mm)

Media Filter

Cabinet

16" (406mm)

20" (508mm) 24" (610mm)

A 17" (432mm) 21" (533mm) 25" (635mm)

NOTE: Media cabinet is matched to the bottom opening on furnace. May also be used for side return.

TYPICAL WIRING SCHEMATIC

FIELD 24-V WIRING FIELD 115-, 208/230-, 460-V WIRING FACTORY 24-V WIRING FACTORY 115-V WIRING

FIVE WIRE

THREE-WIRE

HEATING-ONLY

BLOWER DOOR SWITCH

BLK

WHT

115-V FIELD-

SUPPLIED

BLK

WHT

GND

AUXILIARY J-BOX

DISCONNECT

GND

FURNACE

NOTE 2

O N T

R O

COM

24-V

TERMINAL

BLOCK

WCR GY

NOTE 1

NOTES: Connect Y-terminal in furnace as shown for proper blower operation.

1. Some thermostats require a "C" terminal connection as shown.

2. If any of the original wire, as supplied, must be replaced, use

3. same type or equivalent wire.

THERMOSTAT TERMINALS

CONDENSING UNIT

TWO WIRE

FIELD-SUPPLIED DISCONNECT

GND

B 16" (406mm) 20" (508mm)

24" (610mm)

208/230- OR 460-V THREE PHASE

208/230-V SINGLE PHASE

926TA

A12428

A11387

Page 16

DIMENSIONAL DRAWING

REV

SHT

20 5/8

[522.7]

21 1/16

[535.8]

[557.4]

21 15/16

26 3/8

[669.9]

[678.1]

29 1/2

[749.3]

28 3/4

[730.5]

26 11/16

AIR FLOW

[76.2]

1 3/4

[44.5]

AIR INTAKE

7/8

GAS CONN

[22.2]

7/8

[76.2 ]

926TA

[22.2]

2 1/2

[63.5]

7/8

[101.6]

[889.0]

[22.2] POWER CONN

SIDE INLET

7/8

[22.2]

7/8

[442.3]

17 7/16

[609.7]

28 3/8

[720.4]

28 5/8

[726.9]

[757]

29 13/16

[22.2]

THERMOSTAT ENTRY

[420.9]

16 9/16

[458.6]

18 1/16

20 1/4

[513.9]

23 3/8

21 5/8

[549.5]

BOTTOM INLET

6 1/16

[154.0]

11/16

[17.5]

[592.0]

1 5/16

[668.8]

26 5/16

[33.3]

SD5024-4

PART NUMBER

NEXT SHEET

NOTES:

1. Doors may vary by model.

2. Minimum return-air openings at furnace, based on metal duct. If ex duct is used,

see ex duct manufacturer's recommendations for equivalent diameters.

a. For 800 CFM-16-in. (406 mm) round or 14 1/2 x 12-in. (368 x 305 mm) rectangle.

b. For 1200 CFM-20-in. (508 mm) round or 14 1/2 x 19 1/2-in. (368 x 495 mm) rectangle.

c. For 1600 CFM-22-in. (559 mm) round or 14 1/2 x 22 1/16-in. (368 x 560mm) rectangle.

d. Return air above 1800 CFM at 0.5 in. w.c. ESP on 24.5" casing, requires one of the following

congurations: 2 sides, 1 side and a bottom or bottom only. See Air Delivery table in this

document for specic use to allow for sucient airow to the furnace.

3. Vent and Combustion air pipes through blower compartment must

use accessory “Vent Kit - Through the Cabinet”. See accessory list for

current part number.

[58.4]

6 15/16

[176.1]

2 3/10

[76.2]

VENT

[76.2]

AIR INTAKE

[170.1]

6 11/16

TOP VIEW

[678.1]

26 11/16

26 3/8

[670.0]

25 1/8

[638.7]

23 5/16

[592.9]

20 5/8

[522.7]

19 1/8

OUTLET WIDTH

[76.2]

AIR INTAKE

[485.8]

AIR FLOW

5/8

[15.8]

1 3/4

AIR FLOW

[44.5]

GAS CONN

[76.2]

VENT

7/8

[22.2]

[101.6]

CONDENSATE DRAIN TRAP

LOCATION

2 1/2

7/8

[22.2]

32 5/8

[829.5]

28 5/8

[715.9]

28 3/16

7/8

[22.2] POWER CONN

[63.5]

7/8

[22.2]

[726.4]

25 3/16

[595.6]

23 7/16

20 1/4

[513.9]

16 9/16

7/8

SIDE INLET

[639.1]

[581.9]

22 15/16

[439.2]

17 5/16

[420.9]

[376.3]

14 13/16

[22.2]

THERMOSTAT ENTRY

WIDTH

BOTTOM RETURN

NOTE: ALL DIMENSIONS IN INCH [MM]

11/16

[17.5]

SEE NOTE #3

[668.8]

26 5/16

[534.0]

[558.3] (BOTH SIDES)

[25.4]

1 (BOTH SIDES)

926TA

FURNACE SIZE

30040 36040 130.5 (59.2)

A B C D

CABINET WIDTH OUTLET WIDTH BOTTOM INLET WIDTH AIR I NTAKE

14--- 3/16 (361) 12--- 1/2 (319) 12--- 9/16 (322) 7--- 1/8 (181)

36060 42060 142.0 (64.4)

17--- 1/2 (445) 15 ---7/8 (403) 16 (406) 8--- 3/4 (222) 48080 152.0 (68.9) 60080 60100 166.0 (75.3)

21 (533) 19--- 3/8 (492) 19 --- 1/2 (495) 10--- 1/2 (267)

66120 24 --- 1/2 (622) 22--- 7/8 (581) 23 (584) 12--- 1/4 (311) 190.0 (86.2)

SHIP WT.

LB (KG)

121.0 (55.0)

131.5 (59.6)

156.0 (70.8)

A12267

Page 17

GUIDE SPECIFICATIONS

General

System Description

Furnish a ______________________ 4--way multipoise gas--fired condensing furnace for use with natural gas or propane (factory-authorized conversion kit required for propane); furnish external media cabinet for use with accessory media filter or standard filter.

Quality Assurance

Unit will be designed, tested and constructed to the current ANSI Z

21.47/CSA 2.3 design standard for gas--fired central furnaces. Unit will be third party certified by CSA to the current ANSI Z

21.47/CSA 2.3 design standard for gas--fired central furnaces. Unit will carry the CSA Blue StarR and Blue FlameR labels. Unit efficiency testing will be performed per the current DOE test procedure as listed in the Federal Register.

Unit will be certified for capacity and efficiency and listed in the latest AHRI Consumer’s Directory of Certified Efficiency Ratings.

Unit will carry the current Federal Trade Commission Energy Guide efficiency label.

Delivery, Storage, and Handling

Unit will be shipped as single package only and is stored and handled per unit manufacturer’s recommendations.

Warranty (for inclusion by specifying engineer)

U.S. and Canada only. Warranty certificate available upon request.

Equipment

Blower Wheel and ECM Blower Motor Galvanized blower wheel shall be centrifugal type, statically and

dynamically balanced. Blower motor of ECM type shall be permanently lubricated with sealed ball bearings, of _______hp, and have infinitely variable speed from 600--1200 RPM operating only when motor inputs are provided. Blower motor shall be direct drive and soft mounted to the blower housing to reduce vibration transmission.

Filters Furnace shall have reusable--type filters. Filter shall be ______ in.

(mm) X ________ in. (mm). An accessory highly efficient Media Filter is available as an option. _____________ Media Filter.

Casing Casing shall be of .030 in. thickness minimum, pre--painted steel. Draft Inducer Motor Draft inducer motor shall be two--speed PSC design.

Primary Heat Primary heat exchangers shall be 3--Pass corrosion--resistant

aluminized steel of fold--and--crimp sectional design and applied operating under negative pressure.

Secondary Heat Secondary heat exchangers shall be of a stainless steel

flow--through of fin--and--tube design and applied operating under negative pressure.

Controls Controls shall include a micro--processor--based integrated

electronic control board with at least 16 service troubleshooting codes displayed via diagnostic flashing LED light on the control, a self--test feature that checks all major functions of the furnace, and a replaceable automotive--type circuit protection fuse. Multiple operational settings available, including separate blower speeds for low heat, high heat, low cooling, high cooling and continuous fan. Continuous fan speed may be adjusted from the thermostat. Cooling airflow will be selectable between 325 to 400 CFM per ton of air conditioning. Features will also include temporary reduced airflow in the cooling mode for improved dehumidification when a T6--PRH is selected as the thermostat.

Exchangers

Operating Characteristics

Heating capacity shall be _________________ Btuh input; ______________ Btuh output capacity.

Fuel Gas Efficiency shall be________ AFUE. Air delivery shall be ________________ cfm minimum at 0.50 in.

W.C. external static pressure. Dimensions shall be: depth_________in. (mm); width

__________in. (mm); height___________in. (mm) (casing only). Height shall be _________in. (mm) with A/C coil and _________________in. (mm) overall with plenum.

Electrical Requirements

Electrical supply shall be 115 volts, 60 Hz, single--phase (nominal). Minimum wire size shall be ________AWG; maximum fuse size of HACR--type designated circuit breaker shall be _________ amps.

Special Features

Refer to section of the product data identifying accessories and descriptions for specific features and available enhancements.

926TA

Page 18

926TA

E2014 Bryant Heating & Cooling Systems D 7310 W. Morris St. D Indianapolis, IN 46231 Edition Date: 09/14

Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.

Catalog No. PDS926TA--- 0 3

Replaces: PDS926TA--- 02
