Bryant 925TA, 925TA030040, 925TA042060, 925TA048080, 925TA048100 Product Data

...

Page 1

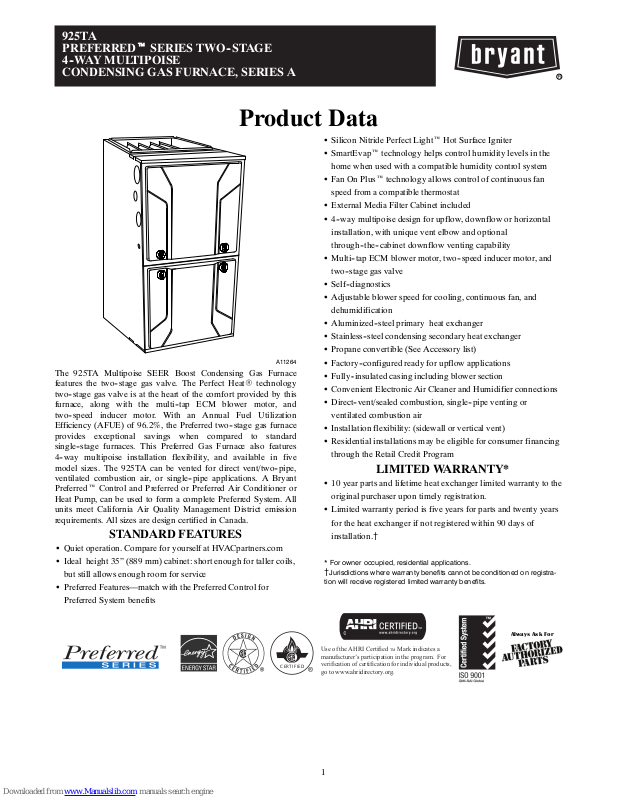

925TA PREFERREDt SERIES TWO--STAGE 4--WAY MULTIPOISE CONDENSING GAS FURNACE, SERIES A

Product Data

A11264

The 925TA Multipoise SEER Boost Condensing Gas Furnace features the two--stage gas valve. The Perfect HeatR technology two--stage gas valve is at the heart of the comfort provided by this furnace, along with the multi--tap ECM blower motor, and two--speed inducer motor. With an Annual Fuel Utilization Efficiency (AFUE) of 96.2%, the Preferred two--stage gas furnace provides exceptional savings when compared to standard single--stage furnaces. This Preferred Gas Furnace also features 4--way multipoise installation flexibility, and available in five model sizes. The 925TA can be vented for direct vent/two--pipe, ventilated combustion air, or single--pipe applications. A Bryant Preferred™ Control and Preferred or Preferred Air Conditioner or Heat Pump, can be used to form a complete Preferred System. All units meet California Air Quality Management District emission requirements. All sizes are design certified in Canada.

STANDARD FEATURES

S Quiet operation. Compare for yourself at HVACpartners.com S Ideal height 35” (889 mm) cabinet: short enough for taller coils,

but still allows enough room for service

S Preferred Features—match with the Preferred Control for

Preferred System benefits

S Silicon Nitride Perfect Light™ Hot Surface Igniter S SmartEvap™ technology helps control humidity levels in the

home when used with a compatible humidity control system

S FanOnPlus™ technology allows control of continuous fan

speed from a compatible thermostat

S External Media Filter Cabinet included S 4--way multipoise design for upflow, downflow or horizontal

installation, with unique vent elbow and optional through--the--cabinet downflow venting capability

S Multi--tap ECM blower motor, two--speed inducer motor, and

two--stage gas valve

S Self--diagnostics S Adjustable blower speed for cooling, continuous fan, and

dehumidification

S Aluminized--steel primary heat exchanger S Stainless--steel condensing secondary heat exchanger S Propane convertible (See Accessory list) S Factory--configured ready for upflow applications S Fully--insulated casing including blower section S Convenient Electronic Air Cleaner and Humidifier connections S Direct--vent/sealed combustion, single--pipe venting or

ventilated combustion air

S Installation flexibility: (sidewall or vertical vent) S Residential installations may be eligible for consumer financing

through the Retail Credit Program

LIMITED WARRANTY*

S 10 year parts and lifetime heat exchanger limited warranty to the

original purchaser upon timely registration.

S Limited warranty period is five years for parts and twenty years

for the heat exchanger if not registered within 90 days of installation.{

* For owner occupied, residential applications.

{Jurisdictions where warranty benefits cannot be conditioned on registra-

tion will receive registered limited warr anty benefits.

CERTIFIED

Use of the AHRI Certified TM Mark indicates a manufacturer’s participation in the program. For verification of certification for individual products, go to www.ahridirectory.org.

Always Ask For

Page 2

SPECIFICATIONS

Heating Capacity and Efficiency 030040 042060 048080 048100 066120

Input

Output

Efficiency AFUE % (ICS) 96.2 96.2 96.2 96.2 96.2

Certified Temperature Rise Range ºF (ºC)

Airflow Capacity and Blower Data 030040 042060 048080 048100 066120

Certified External Static Pressure (in. w.c.)

Airflow Delivery @RatedESP(CFM)

Cooling Capacity (tons) @ 400, 350 CFM/ton Direct-Drive Motor Type Electronically Commutated Motor (ECM) Direct-Drive Motor HP 1/2 3/4 3/4 1 1 Motor Full Load Amps 6.8 8.4 8.4 10.9 10.9 RPM Range 600 - 1200 Speed Selections 5 Blower Wheel Dia x Width in. 11x7 11x8 11x8 11x10 11 x 11

Air Filtration System

Filter Used for Certified Watt Data

Electrical Data 030040 042060 048080 048100 066120

Input Voltage Volts-Hertz-Pha se 115-60-1 Operating Voltage Range Min-Max 104-127 Maximum Input Amps Amps 8.2 9.8 9.8 12.3 12.3 Unit Ampacity Amps 11.0 13.0 13.0 16.1 16.1 Minimum Wire Size AWG 14 14 14 12 12 Maximum Wire Length @ Minimum Wire Size Maximum Fuse/Ckt Bkr (Time-Delay Type Recommended) Transformer Capacity (24vac output) 40 VA External Control Power

vailable

Controls 030040 042060 048080 048100 066120

Gas Connection Size 1/2” - NPT Burners (Monoport) 2 3 4 5 6

Gas Valve (Redundant)

Gas Conversion Kit - Natural to Propane KGANP51012SP Gas Conversion Kit - Propane to Natural KGAPN43012SP Manufactured (Mobile) Home Kit not approved for MH use Ignition Device Silicon Nitride Limit Control 165 180 170 160 160 Heating Blower Control (Heating Off-Delay) Adjustable: 90, 120, 150, 180 seconds Cooling Blower Control (Time Delay Relay) 90 seconds Communication System none Thermostat Connections W2,Y1,DHUM,GCW/W1,Y/Y2,R Accessory Connections EAC (115vac); HUM (24vac); 1-stg AC (via Y/Y2)

High Heat (BTUH) 40,000 60,000 80,000 100,000 120,000 Low Heat (BTUH) 26,000 39,000 52,000 65,000 78,000 High Heat (BTUH) 39,000 58,000 78,000 98,000 117,000 Low Heat (BTUH) 25,000 38,000 52,000 63,000 76,000

High Heat

Low Heat

Heating 0.10 0.12 0.15 0.20 0.20 Cooling 0.5 0.5 0.5 0.5 0.5

High Heat 695 1000 1360 1730 2125

Low Heat 585 780 1100 1380 1610

Cooling 925 1505 1610 1720 2055 400 CFM/ton 2 3.5 4 4 5 350 CFM/ton 2.5 4 4.5 5 6

Feet 33 28 28 35 35

(M) (10.1) (8.5) (8.5) (10.7) (10.7)

Amps 15 15 15 20 20

Heating 24.3 VA

Cooling 34.6 VA

Manufacturer White Rogers™ Minimum Inlet Gas pressure (in. W.C.)

Maximum Inlet Gas

pressure (in. W.C.)

40 - 70 (21-38) 30 - 60 (17-33)

KGAWF1606UFR KGAWF1306UFR KGAWF1406UFR KGAWF1506UFR KGAWF1506UFR

35 - 65 (19-36) 30 - 60 (17-33)

Factory Supplied Media Cabinet

40 - 70 (21-38) 30 - 60 (17-33)

Field Supplied Filter

4.5

13.6

45 - 75 (25-41) 30 - 60 (17-33)

Page 3

MODEL NUMBER NOMENCLATURE

1 - 2

Family/Tier

91 - Legacy 92 - Preferred 98 - Evolution

Base Eff.

0 --- 90 AFUE 3 --- 93 AFUE 5 --- 95 AFUE 6 --- 96 AFUE 7 --- 97 AFUE

MANUAL RESET ROLLOUT SWITCH

Htg. Stages

S - Single Stage T - Two Stage M - Modulating

FLAME SENSOR

GAS VALVE

OPERATING INSTRUCTIONS NOT SHOWN (LOCATED ON MAIN FURNACE DOOR, SEE OPERATING INSTRUCTIONS INSIDE DOOR FIGURE).

ELECTRICAL JUNCTION BOX (IF REQUIRED, LOCATION MAY VARY)

Major Series

6 - 7

Clg. Cap.

24 - 800 CFM 30 - 1000 CFM 36 - 1200 CFM 42 - 1400 CFM 48 - 1600 CFM 54 - 1800 CFM 60 - 2000 CFM 66 - 2200 CFM (@ 0.5” ESP)

Not all familes have these models.

8 - 10

Htg. Cap.

040

040=40,000 BTU 060=60,000 BTU 080=80,000 BTU 100=100,000 BTU 120=120,000 BTU

Motor

S - Standard E - Energy Efficient V - Variable Speed

FURNACE COMPONENTS

HOT SURFACE

GAS BURNER

IGNITER

MANUAL RESET ROLLOUT SWITCH

12 - 13

Width

14 - 14.2” 17 - 17.5” 21 - 21.0” 24 - 24.5”

Voltage

L - Low NOx

MAIN LIMIT SWITCH

(BEHIND GAS VALVE)

INDUCER MOTOR ASSEMBLY

Features

Minor Series

A11164

BLOWER DOOR SAFETY SWITCH

FURNACE CONTROL BOARD

RATING PLATE NOT SHOWN

(LOCATED ON BLOWER DOOR)

REPRESENTATIVE DRAWING ONLY, SOME MODELS MAY VARY IN APPEARANCE.

MEDIA CABINET

BLOWER AND MOTOR

CAPACITOR/ POWER CHOKE (IF USED)

A11408

Page 4

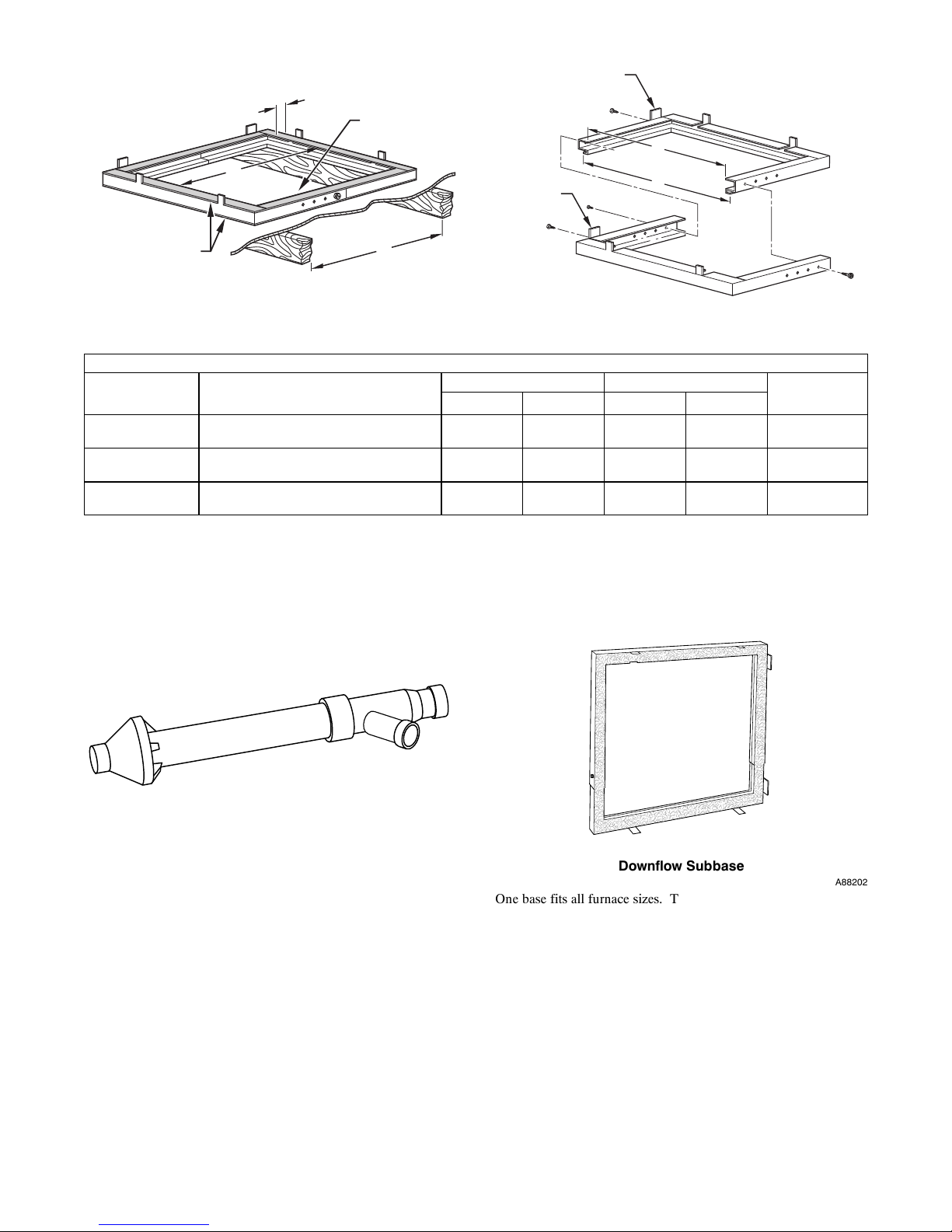

ACCESSORIES

DESCRIPTION PAR T NUMBER 030040 042060 048080 048100 066120

Venting, Drainage and Installation

Vent Kit - Through the Cabinet KGADC0101BVC X X X X X Vent Terminal - Concentric - 2” (51 mm) KGAVT0701CVT X X X X N/A Vent Terminal - Concentric - 3” (76 mm) KGAVT0801CVT N/A X X X X Vent Terminal Bracket - 2” (51 mm) KGAVT0101BRA X X X X N/A Vent Terminal Bracket - 3” (76 mm) KGAVT0201BRA N/A X X X X CPVC to PVC Drain Adapters - 1/2” CPVC to 3/4” PVC KGAAD0110PVC X X X X X Horizontal Trap Grommet - Direct Vent KGACK0101HCK X X X X X Freeze Protect Kit - Heat Patch for Drain Trap KGAHT0201CFP X X X X X Freeze Protect Kit - Heat Tape KGAHT0101CFP X X X X X Furnace Base Kit for Combustible Floors KGASB0201ALL X X X X X

Gas Conversion

GasCnvKit-NattoLP;Two-stage KGANP51012SP X X X X X Gas Cnv Kit - LP to Nat; Two-stage KGAPN43012SP X X X X X GasOrificeKit-#42(NatGas) KGAHA0150N42 X X X X X GasOrificeKit-#43(NatGas) KGAHA0250N43 X X X X X GasOrificeKit-#44(NatGas) KGAHA0350N44 X X X X X GasOrificeKit-#45(NatGas) KGAHA0450N45 X X X X X GasOrificeKit-#46(NatGas) KGAHA0550N46 X X X X X GasOrificeKit-#47(NatGas) KGAHA1550N47 X X X X X GasOrificeKit-#48(NatGas) KGAHA1650N48 X X X X X Gas Orifice Kit - #54 (LP) KGAHA0650P54 X X X X X Gas Orifice Kit - #55 (LP) KGAHA0750P55 X X X X X Gas Orifice Kit - #56 (LP) KGAHA0850P56 X X X X X Gas Orifice Kit - 1.25mm (LP) KGAHA5750125 X X X X X Gas Orifice Kit - 1.30mm (LP) KGAHA5750130 X X X X X

Indoor Air Quality

Bryant Perfect Air Purifier - 16x25 (406x635 mm) GAPAAXBB1625-A08 X X X X X Bryant Perfect Air Purifier - 20x25 (508x635 mm) GAPAAXBB2025-A08 X X X X X Bryant Perfect Air Purifier Repl. Filter- 16x25 (406x635 mm) GAPABBCAR1625-A05 X X X X X Bryant Perfect Air Purifier Repl. Filter- 20x25 (508x635 mm) GAPABBCAR1625-A05 X X X X X EZ Flex Cabinet 16” (406 mm) EZXCABBB1016-A20 X X X X X EZ Flex Cabinet 20” (508 mm) EZXCABBB1020-A20 X X X X X Cartridge Media Filter - 16” (406 mm) FILXXCAR0016 X X X X X Cartridge Media Filter - 20” (508 mm) FILXXCAR0020 X X X X X Cartridge Media Filter - 24” (610 mm) FILXXCAR0024 N/A X X X X EZ-Flex Filter - 16” (406 mm) EXPXXFIL0016 X X X X X EZ-Flex Filter - 20” (508 mm) EXPXXFIL0020 X X X X X EZ-Flex Filter - 24” (610 mm) EXPXXFIL0024 N/A X X X X EZ-Flex Filter with End Caps - 16” (406 mm) EXPXXUNV0016 X X X X X EZ-Flex Filter with End Caps - 20” (508 mm) EXPXXUNV0020 X X X X X EZ-Flex Filter with End Caps - 24” (610 mm) EXPXXUNV0024 N/A X X X X Filter Pack (6 pack) - Washable - 16x25x1 (406x635x25 mm) KGAWF1306UFR X X X X X Filter Pack (6 pack) - Washable - 24x25x1 (610x635x25 mm) KGAWF1506UFR N/A X X X X

Controls

Programmable Relative Humidity Thermostat T6-PRH01-A X X X X X Programmable Thermostat (HP or AC) T6-PHP01 X X X X X Programmable Thermostat (AC only) T6-PAC01 X X X X X Non-Programmable Relative Humidity Thermostat T6-NRH01 X X X X X Non-Programmable Thermostat (HP or AC) T6-NHP01 X X X X X Non-Programmable Thermostat (AC only) T6-NAC01 X X X X X

X = Used with this model furnace N/A = Not used with this model furnace

Page 5

AIR DELIVERY -- CFM (BOTTOM RETURN WITH FILTER)

INPUT

BTUH

40000 SIDE/BOTTOM

60000 SIDE/BOTTOM

80000 SIDE/BOTTOM

100000 SIDE/BOTTOM

120000

NOTE: A filter is required for each return---air inlet. Airflow performan ce included 3/4--- in. (19 mm) washable filter media such as contained in factory --- a u t h o r ized

RETURN-AIR

SUPPLY

BOTTOM OR

TWO SIDES

accessory filter rack. To determine airflow performance without this filter, assume an additional 0.1 in. W.C. available external static pressure.

--- Indicates unstable operating conditions.

SPEED

5(Gry) 1120 1080 1030 980 925 875 820 760 690 630

4(Yel) 880 845 810 780 740 710 680 640 615 570

3(Blu) 695 665 620 575 535 495 455 420 370 280

2(Org) 640 595 540 495 460 420 370 310 260 230

1(Red) 570 525 475 425 385 330 255 220 - -

5(Gry) 1720 1670 1620 1565 1505 1440 1375 1295 1220 1135

4(Yel) 1325 1285 1255 1220 1185 1145 1115 1075 1040 1000

3(Blu) 1010 970 925 875 835 785 745 690 660 620

2(Org) 1160 1115 1080 1045 1000 960 920 875 840 785

1(Red) 785 715 655 595 530 490 435 385 340 285

5(Gry) 1810 1770 1720 1665 1610 1540 1475 1400 1315 1235

4(Yel) 1535 1500 1475 1435 1405 1370 1340 1310 1245 1160

3(Blu) 1380 1340 1305 1270 1240 1200 1165 1130 1090 1050

2(Org) 1180 1130 1095 1060 1015 975 935 895 850 800

1(Red) 1100 1045 1010 970 920 885 845 790 745 690

5(Gry) 2040 1970 1885 1795 1720 1635 1540 1450 1360 1230

4(Yel) 1550 1505 1460 1415 1365 1325 1280 1230 1180 1135

3(Blu) 1780 1730 1690 1645 1610 1555 1481 1400 1310 1210

2(Org) 1345 1295 1250 1195 1155 1105 1055 1000 955 915

1(Red) 1390 1350 1295 1260 1200 1160 1105 1050 1010 965

5(Gry) 2275 2230 2185 2130 2055 1950 1825 1710 1610 1500

4(Yel) 1875 1820 1770 1720 1660 1600 1550 1505 1450 1390

3(Blu) 2170 2125 2075 2025 1975 1900 1790 1695 1590 1470

2(Org) 1475 1420 1350 1280 1215 1165 1105 1050 995 930

1(Red) 1625 1565 1505 1445 1385 1325 1275 1225 1170 1130

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1

EXTERNAL STATIC PRESSURE (IN. W.C.)

Page 6

MAXIMUM EQUIVALENT VENT LENGTH -- FT. (M)

NOTE: Maximum Equivalent Vent Length (MEVL) does NOT include elbows or terminations. Use Table 2 - Deductions from

Maximum Equivalent Vent Length to determine allowable vent length for each application.

Table 1 – Maximum Equivalent Vent Length -- Ft. (M)

0 to 4500 Ft. (0 to 1370 M) Altitude

Altitude

FT (M)

0 to 2000 (0 to 610)

2001 to 3000

(610 to 914)

3001 to 4000

(914 to 1219)

4001 to 4500

(1219 to

1370)

* Not al l families have these models. NOTE: See notes at end of venting tables.

NOTE: See Table 3 for altitudes over 4500 ft. (1370 M)

Unit Size

BTU/Hr

40,000*

60,000 30 (9.1) 135 (41.1) 235 (71.6) 265 (80.8) NA

80,000 20 (6.1) 70 (21.3) 175 (53.3) 235 (71.6) 265 (80.8)

100,000 NA 25 (7.6) 110 (33.5) 235 (71.6) 265 (80.8)

120,000 NA NA 15 (4.6) 100 (30.5) 250 (76.2)

40,000* 45 (13.7) 198 (60.4) 232 (70.7) NA NA

60,000 27 (8.2) 127 (38.7) 222 (67.7) 250 (76.2) NA

80,000 17 (5.2) 64 (19.5) 165 (50.3) 222 (67.7) 249 (75.9)

100,000 NA 22 (6.7) 104 (31.7) 223 (68.0) 250 (76.2)

120,000 NA NA 11 (3.4) 93 (28.3) 237 (72.2)

40,000* 39 (11.9) 184 (56.1) 214 (65.2) NA NA

60,000 23 (7.0) 119 (36.3) 210 (64.0) 235 (71.6) NA

80,000 15 (4.6) 59 (18.0) 155 (47.2) 210 (64.0) 232 (70.7)

100,000 NA 19 (5.8) 98 (29.9) 211 (64.3) 236 (71.9)

120,000 NA NA 8 (2.4) 86 (26.2) 224 (68.3)

40,000* 36 (11.0) 177 (53.9) 205 (62.5) NA NA

60,000 21 (6.4) 115 (35.1) 204 (62.2) 228 (69.5) NA

80,000 14 (4.3) 56 (17.1) 150 (45.7) 202 (61.6) 224 (68.3)

100,000 NA 17 (5.2) 94 (28.7) 205 (62.5) 229 (69.8)

120,000 NA NA NA 83 (25.3) 217 (66.1)

1-1/2 2 2-1/2 3 4

50 (15.2) 210 (64.0) 250 (76.2) NA NA

DIRECT VENT (2 -PIPE) AND NON --- DIRECT VENT (1--- PIPE)

Vent Pipe Diameter (in.)

Table 2 – Deductions from Maximum Equivalent Vent Length -- Ft. (M)

Pipe Diameter (in): 1-1/2 2 2-1/2 3* 4*

Mitered 90º Elbow 8 (2.4) 8 (2.4) 8 (2.4) NA NA NA NA

Medium Radius 90º Elbow 5 (1.5) 5 (1.5) 5 (1.5) NA NA NA NA

Long Radius 90º Elbow 3 (0.9) 3 (0.9) 3 (0.9) 3 (0.9) 3 (0.9)

Mitered 45º Elbow 4 (1.2) 4 (1.2) 4 (1.2) NA NA NA NA

Medium Radius 45º Elbow 2.5 (0.8) 2.5 (0.8) 2.5 (0.8) NA NA NA NA

Long Radius 45º Elbow 1.5 (0.5) 1.5 (0.5) 1.5 (0.5) 1.5 (0.5) 1.5 (0.5)

Tee 16 (4.9) 16 (4.9) 16 (4.9) 16 (4.9) 16 (4.9)

*Note: 3 --- and 4---in. Vent pipe systems require long radius elbows.

Venting System Length Calculations

The maximum length for each vent pipe (inlet or exhaust) equals the Maximum Equivalent Vent Length (MEVL) from Table 1 or Table 3 minus the number of elbows multiplied by the deduction for each elbow in Table 2.

Standard vent terminations and concentric vent terminations count for zero deductions.

Example

A direct--vent 60,000 Btuh furnace installed at 2100 ft. (640 M ) with 2--in. (51 mm) vent piping. Venting system includes, FOR EACH PIPE, (3) 90_ long radius elbows, (2) 45_ long radius elbows and a concentric vent kit.

Maximum Equivalent Vent Length = 127 ft. (From Table 1)

Deduct (3) 90 long radius 3 x 3 ft. = - 9 ft. (From Table 2) Deduct (2) 45 long radius 2 x 1.5 ft. = - 3 ft. (From Table 2)

Maximum Vent Length = 115 ft. For EACH vent or inlet pipe

Page 7

MAXIMUM EQUIVALENT VENT LENGTH -- FT. (M)

Table 3 – Maximum Equivalent Vent Length -- Ft. (M)

4501 to 10,000 Ft. (0 to 1370 M) Altitude

NOTE: Maximum Equivalent Vent Length (MEVL) does NOT include elbows or terminations. Use Table 2 - Deductions from

Maximum Equivalent Vent Length to determine allowable vent length for each application.

Altitude

FT (M)

Unit Size

1-1/2 2 2-1/2 3 4

40,000* 33 (10.1) 171 (52.1) 196 (59.7) NA NA

4501 to 5000

(1370 to

1524)

60,000 20 (6.1) 111 (33.8) 198 (60.4) 221 (67.4) NA

80,000 13 (4.0) 54 (16.5) 146 (44.5) 195 (59.4) 216 (65.8)

100,000 NA 16 (4.9) 91 (27.7) 200 (61.0) 222 (67.7)

120,000 NA NA NA 80 (24.4) 211 (64.3)

40,000* 27 (8.2) 158 (48.2) 179 (54.6) NA NA

5001 to 6000

(1524 to

1829)

60,000 16 (4.9) 103 (31.4) 186 (56.7) 207 (63.1) NA

80,000 11 (3.4) 49 (14.9) 137 (41.8) 183 (55.8) 200 (61.0)

100,000 NA 12 (3.7) 85 (25.9) 188 (57.3) 208 (63.4)

120,000 NA NA NA 74 (22.6) 199 (60.7)

40,000* 21 (6.4) 145 (44.2) 162 (49.4) NA NA

6001 to 7000

(1829 to

2134)

60,000 13 (4.0) 96 (29.3) 174 (53.0) 194 (59.1) NA

80,000 NA 44 (13.4) 120 (36.6) 171 (52.1) 185 (56.4)

100,000 NA 10 (3.0) 79 (24.1) 178 (54.3) 195 (59.4)

120,000 NA NA NA 68 (20.7) 187 (57.0)

40,000* 15 (4.6) 133 (40.5) 146 (44.5) NA NA

7001 to 8000

(2134 to

2438)

60,000 10 (3.0) 89 (27.1) 163 (49.7) 181 (55.2) NA

80,000 NA 40 (12.2) 120 (36.6) 159 (48.5) 170 (51.8)

100,000 NA NA 73 (22.3) 167 (50.9) 182 (55.5)

120,000 NA NA NA 62 (18.9) 175 (53.3)

40,000* 10 (3.0) 121 (36.9) 130 (39.6) NA NA

8001 to 9000

(2438 to

2743)

60,000 7 (2.1) 82 (25.0) 152 (46.3) 168 (51.2) NA

80,000 NA 35 (10.7) 111 (33.8) 148 (45.1) 156 (47.5)

100,000 NA NA 67 (20.4) 157 (47.9) 170 (51.8)

120,000 NA NA NA 56 (17.1) 164 (50.0)

40,000* 5 (1.5) 110 (33.5) 115 (35.1) NA NA

9001 to

10,000

(2743 to

3048)

60,000 NA 76 (23.2) 142 (43.3) 156 (47.5) NA

80,000 NA 31 (9.4) 103 (31.4) 137 (41.8) 142 (43.3)

100,000 NA NA 62 (18.9) 147 (44.8) 157 (47.9)

120,000 NA NA NA 51 (15.5) 153 (46.6)

*Not all families have these models.

Notes:

1. 3 -- - and 4 --- in. Vent pipe systems r equire long radius elbows.

2. Total equivalent vent lengths under 10’ for 40,000 require the use of an outlet choke plate at altitude 0 to 2,000 ft (0 to 610M).

Failure to use an outlet choke when required may result in flame disturbance or flame sense lockout.

3. Vent sizing f o r Canadian installations over 4500 ft (1370m) above sea level are subject to acceptance by the local authorities having jurisdiction.

4. NA --- Not allowed; pressure switch will not close, or fl ame disturbance may result.

5. Do not use pipe size greater than those specified in table or incomplete combustion, flame disturbance, or flame sense lockout may occur.

6. Size both the combustion--- air and vent pipe independently, then use the larger diameter for both pipes.

7. Assume the two 45_ elbows equal one 90_ elbow. Wide radius elbows are desirable and may be required in some cases.

8. Elbows and pipe sections within the furnace casing and at the vent termination should not be included in vent length or elbow count.

9. The minimum pipe length is 5 ft. (1.5 M) for all applications.

10. Use 3 ---in. (76 mm) diameter vent termination kit for install ations requiring 4 --- in. (102 mm) diameter pipe.

DIRECT VENT (2 -PIPE) AND NON --- DIRECT VENT (1--- PIPE)

Vent Pipe Diameter

Page 8

MAXIMUM ALLOWABLE EXPOSED VENT LENGTHS INSULATION TABLE -- FT. (M)

Maximum Length of Uninsulated and Insulated Vent Pipe-Ft (M)

Two

Stage

Furnace

High Heat

Input

40000*

Winter

Design

Temp °F

(°C)

20 (-10)

0 (-20)

-20 (-30)

-40 (-40)

Pipe

Length in

Ft. & M

Ft. 40.0 35.0 35.0 N/A N/A 50.0 104.0 94.0 N/A N/A 50.0 122.0 110.0 N/A N/A

M 12.2 10.7 10.7 N/A N/A 15.2 31.7 28.7 N/A N/A 15.2 37.2 33.5 N/A N/A

Ft. 19.0 14.0 12.0 N/A N/A 50.0 61.0 54.0 N/A N/A 50.0 74.0 65.0 N/A N/A

M 5.8 4.3 3.7 N/A N/A 15.2 18.6 16.5 N/A N/A 15.2 22.6 19.8 N/A N/A

Ft. 9.0 3.0 1.0 N/A N/A 50.0 41.0 35.0 N/A N/A 50.0 51.0 43.0 N/A N/A

M 2.7 0.9 0.3 N/A N/A 15.2 12.5 10.7 N/A N/A 15.2 15.5 13.1 N/A N/A

Ft. 3.0 0.0 0.0 N/A N/A 39.0 29.0 23.0 N/A N/A 48.0 37.0 30.0 N/A N/A

M 0.9 0.0 0.0 N/A N/A 11.9 8.8 7.0 N/A N/A 14.6 11.3 9.1 N/A N/A

No Insulation 3/8-in. (9.5 mm) 1/2-in. (12.7 mm)

Pipe Diameter-in. (mm) Pipe Diameter-in. (mm) Pipe Diameter-in. (mm)

1.5 2.0 2.5 3.0 4.0 1.5 2.0 2.5 3.0 4.0 1.5 2.0 2.5 3.0 4.0

(38) (51) (64) (76) (102) (38) (51) (64) (76) (102) (38) (51) (64) (76) (102)

60000

80000

100000

20 (-10)

0 (-20)

-20 (-30)

-40 (-40)

20 (-10)

0 (-20)

-20 (-30)

-40 (-40)

20 (-10)

0 (-20)

-20 (-30)

-40 (-40)

Ft. 30.0 51.0 51.0 45.0 N/A 30.0 135.0 138.0 120.0 N/A 30.0 135.0 162.0 141.0 N/A

M 9.1 15.5 15.5 13.7 N/A 9.1 41.1 42.1 36.6 N/A 9.1 41.1 49.4 43.0 N/A

Ft. 30.0 24.0 23.0 16.0 N/A 30.0 93.0 82.0 69.0 N/A 30.0 111.0 98.0 83.0 N/A

M 9.1 7.3 7.0 4.9 N/A 9.1 28.3 25.0 21.0 N/ A 9.1 33.8 29.9 25.3 N/A

Ft. 18.0 11.0 9.0 1.0 N/A 30.0 65.0 56.0 44.0 N/A 30.0 79.0 68.0 55.0 N/A

M 5.5 3.4 2.7 0.3 N/A 9.1 19.8 17.1 13.4 N/ A 9.1 24.1 20.7 16.8 N/A

Ft. 10.0 3.0 0.0 0.0 N/A 30.0 48.0 40.0 29.0 N/A 30.0 59.0 50.0 38.0 N/A

M 3.0 0.9 0.0 0.0 N/A 9.1 14.6 12.2 8.8 N/A 9.1 18.0 15.2 11.6 N/A

Ft. 20.0 64.0 64.0 56.0 47.0 20.0 70.0 173.0 150.0 125.0 20.0 70.0 175.0 177.0 147.0

M 6.1 19.5 19.5 17.1 14.3 6.1 21.3 52.7 45.7 38.1 6.1 21.3 53.3 53.9 44.8

Ft. 20.0 32.0 30.0 22.0 11.0 20.0 70.0 104.0 87.0 67.0 20.0 70.0 124.0 104.0 82.0

M 6.1 9.8 9.1 6.7 3.4 6.1 21.3 31.7 26.5 20.4 6.1 21.3 37.8 31.7 25.0

Ft. 20.0 17.0 14.0 6.0 0.0 20.0 70.0 71.0 57.0 40.0 20.0 70.0 86.0 71.0 52.0

M 6.1 5.2 4.3 1.8 0.0 6.1 21.3 21.6 17.4 12.2 6.1 21.3 26.2 21.6 15.8

Ft. 15.0 7.0 5.0 0.0 0.0 20.0 61.0 52.0 40.0 24.0 20.0 70.0 64.0 50.0 33.0

M 4.6 2.1 1.5 0.0 0.0 6.1 18.6 15.8 12.2 7.3 6.1 21.3 19.5 15.2 10.1

Ft. N/A 25.0 79.0 70.0 59.0 N/A 25.0 110.0 186.0 155.0 N/A 25.0 110.0 219.0 182.0

M N/A 7.6 24.1 21.3 18.0 N/A 7.6 33.5 56.7 47.2 N/A 7.6 33.5 66.8 55.5

Ft. N/A 25.0 40.0 31.0 19.0 N/A 25.0 110.0 109.0 86.0 N/A 25.0 110.0 131.0 104.0

M N/A 7.6 12.2 9.4 5.8 N/A 7.6 33.5 33.2 26.2 N/A 7.6 33.5 39.9 31.7

Ft. N/A 23.0 21.0 13.0 0.0 N/A 25.0 91.0 74.0 54.0 N/A 25.0 110.0 90.0 68.0

M N/A 7.0 6.4 4.0 0.0 N/A 7.6 27.7 22.6 16.5 N/A 7.6 33.5 27.4 20.7

Ft. N/A 13.0 10.0 1.0 0.0 N/ A 25.0 68.0 53.0 35.0 N/A 25.0 83.0 66.0 46.0

M N/A 4.0 3.0 0.3 0.0 N/A 7.6 20.7 16.2 10.7 N/A 7.6 25.3 20.1 14.0

20 (-10)

0 (-20)

120000

-20 (-30)

-40 (-40)

* Not al l families have these models. † Insulation thickness based on R value of 3.5 per in.

Ft. N/A N/A 15.0 85.0 73.0 N/A N/A 15.0 100.0 190.0 N/A N/A 15.0 100.0 224.0

M N/A N/A 4.6 25.9 22.3 N/A N/A 4.6 30.5 57.9 N/A N/A 4.6 30.5 68.3

Ft. N/A N/A 15.0 41.0 29.0 N/A N/A 15.0 100.0 109.0 N/A N/A 15.0 100.0 131.0

M N/A N/A 4.6 12.5 8.8 N/A N/A 4.6 30.5 33.2 N/A N/A 4.6 30.5 39.9

Ft. N/A N/A 15.0 20.0 7.0 N/A N/A 15.0 94.0 71.0 N/A N/A 15.0 114.0 88.0

M N/A N/A 4.6 6.1 2.1 N/A N/A 4.6 28.7 21.6 N/A N/A 4.6 34.7 26.8

Ft. N/A N/A 15.0 7.0 0.0 N/A N/A 15.0 69.0 48.0 N/A N/A 15.0 85.0 62.0

M N/A N/A 4.6 2.1 0.0 N/A N/A 4.6 21.0 14.6 N/A N/A 4.6 25.9 18.9

Page 9

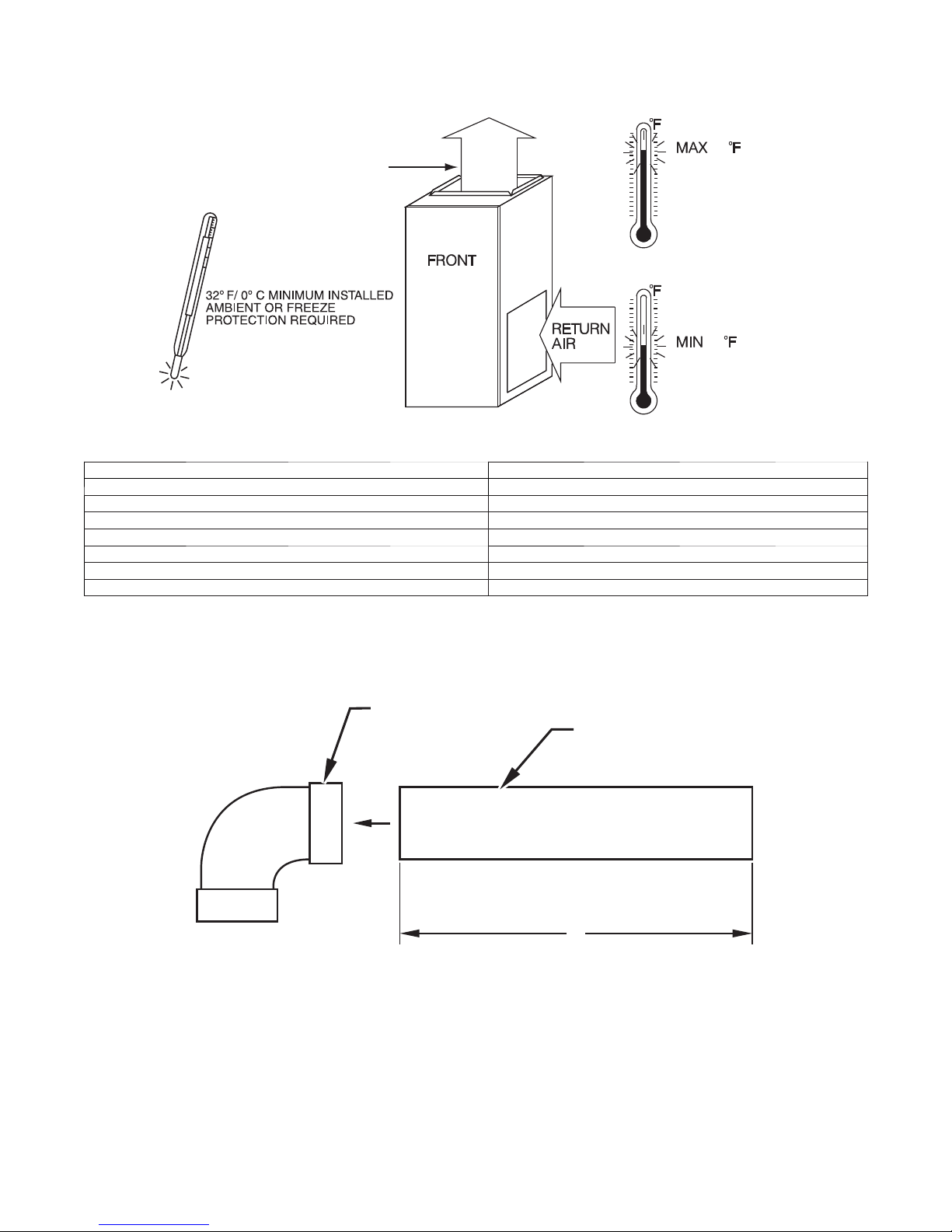

RETURN AIR TEMPERATURE

This furnace is designed for continuous return--air minimum temperature of 60_F(15_C) db or intermittent operation down to 55_F(13_C) db such as when used with a night setback thermometer. Return--air temperature must not exceed 80_F(27_C) db. Failure to follow these return air limits may affect reliability of heat exchangers, motors and controls.

80 / 27˚C

SUPPLY AIR

/ 16˚C

A10490

MINIMUM CLEARANCES TO COMBUSTIBLE MATERIALS

POSITION CLEARANCE

Rear 0(0mm)

Front (Combustion air openings in furnace and in structure) 1in.(25mm)

Required for service *24 in. (610 mm)

All Sides of Supply Plenum 1in.(25mm)

Sides 0(0mm)

Ve n t 0(0mm)

* Recommended

Top of Furnace 1in. (25mm)

COMBUSTION--AIR PIPE FOR NON--DIRECT (1--PIPE) VENT APPLICATION

FIELD-SUPPLIED 2-IN. (51 mm) DIA. TIGHT RADIUS PVC 90° ELBOW

FIELD-SUPPLIED 2-IN. (51 mm) DIA. PVC PIPE

12” (300 mm) Minimum

A11487

Page 10

DOWNFLOW SUBBASE

LOCATING

11/

″ TYP

PLENUM OPENING

LOCATING

TAB

FACTORY-SUPPLIED

FIELD-INSTALLED

INSULATION

Assembled

A97427

Disassembled

DIMENSIONS (IN. / MM)

FURNACE

CASING WIDTH

17--- 1/2 (444.5)

21 (533.4)

24--- 1/2 (622.3)

*The plenum should be constructed 1/4---in. (6 mm) smaller in width and depth than the plenum dimensions shown above.

FURNACE IN DOWNFLOW

APPLICATION

Furnace with or without Cased Coil

Assembly or Coil Box

Furnace with or without Cased Coil

Assembly or Coil Box

Furnace with or without Cased Coil

Assembly or Coil Box

PLENUM OPENING* FLOOR OPENING

A B C D

15--- 1/8

(384.2)

18--- 5/8

(396.4)

22--- 1/8

(562.0)

19 (482.6)

16--- 3/4 (425.5)

20--- 1/4 (514.4)

23--- 3/4 (603.3)

20--- 3/8

(517.5)

20--- 3/8

(517.5)

20--- 3/8

(517.5)

A88207

HOLE NO. FOR

WIDTH

ADJUSTMENT

Concentric Vent Kit

A concentric vent kit allows vent and combustion--air pipes to terminate through a single exit in a roof or side wall. One pipe runs inside the other allowing venting through the inner pipe and combustion air to be drawn in through the outer pipe.

A93086

Downflow Subbase

A88202

One base fits all furnace sizes. The base is designed to be installed between the furnace and a combustible floor when no coil box is used or when a coil box other than a Bryant cased coil is used. It is CSA design certified for use with Bryant branded furnaces when installed in downflow applications.

Page 11

23-5/8"

(600mm)

23-3/8”

(594mm)

MEDIA FILTER CABINET

25-5/8"

(651mm)

24-1/4”

(616mm)

Opening with Flanges Bent

23-1/8”

(588mm)

Opening

B Opening

Furnace Side

Duct Side

23-3/4”

(603mm)

Centerline Screw Slots

(146mm)

DIMENSIONS (IN. / MM)

MEDIA FILTER CABINET A B SHIPPED WITH SIZES

16 (406.4) 17 (432.8) 16 (406.4)

040--- 08, 040--- 12, 060--- 08,

060--- 12, 080--- 12, 080--- 16

20 (508.0) 21 (533.4) 20 (508) 080--- 20, 100--- 16, 100--- 20

24 (609.6) 25 (635.0) 24 (609.6) 120--- 20, 140--- 20

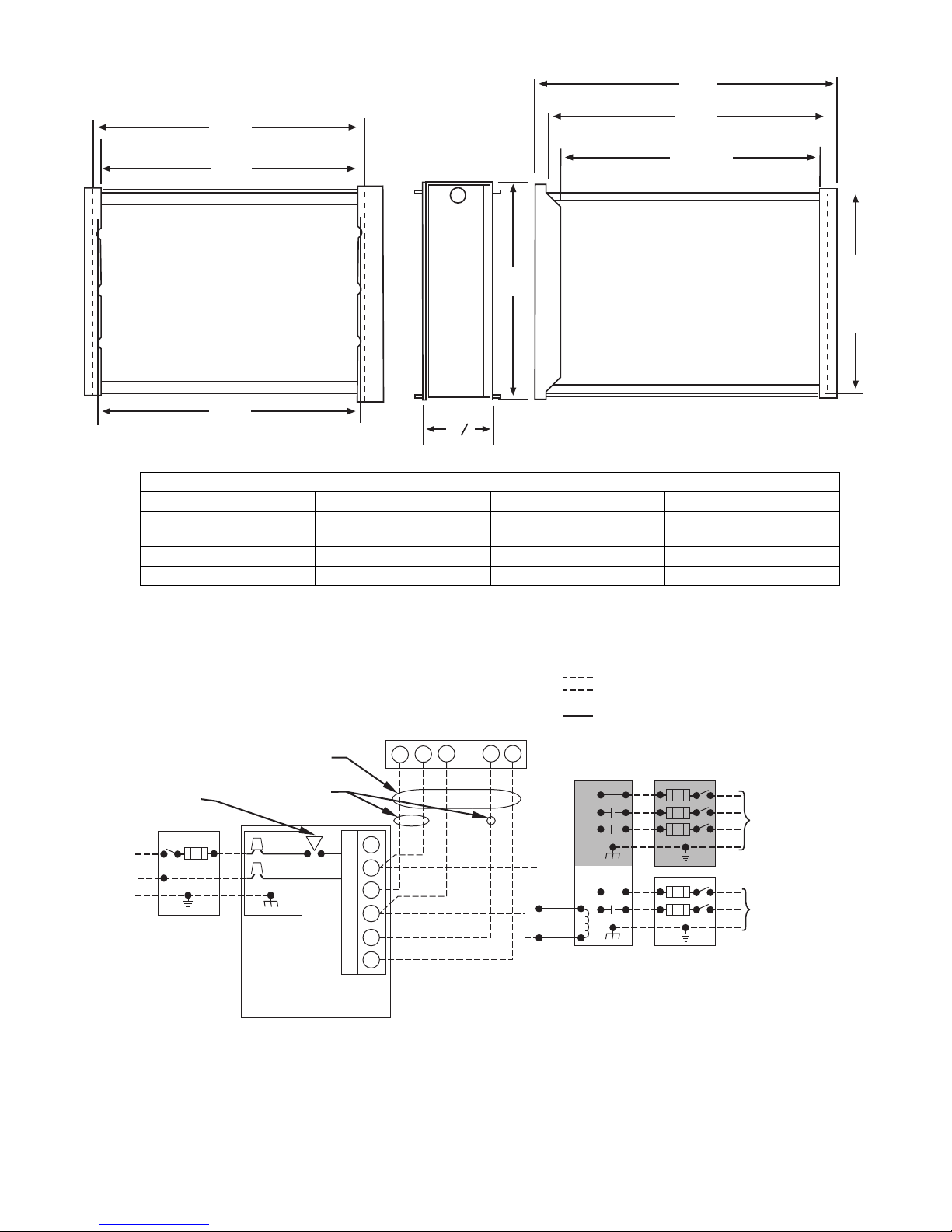

TYPICAL WIRING SCHEMATIC

FIELD 24-VOLT WIRING FIELD 115-, 208/230-, 460-VOLT WIRING FACTORY 24-VOLT WIRING FACTORY 115-VOLT WIRING

BLOWER

DOOR

SWITCH

BLK

WHT

GND

115-VOLT FIELD-

SUPPLIED

FUSED

DISCONNECT

BLK

WHT

JUNCTION BOX

FIVE

WIRE

THREE-WIRE

HEATING-

ONLY

FURNACE

COM

O N

W/W1

Y/Y2

R O

24-VOLT

TERMINAL

BLOCK

NOTE 2

WCY RG

NOTE 1

NOTES: 1.

Connect Y/Y2-terminal as shown for proper operation. Some thermostats require a "C" terminal connection as shown.

2. If any of the original wire, as supplied, must be replaced, use

3. same type or equivalent wire.

1-STAGE THERMOSTAT TERMINALS

CONDENSING

UNIT

FIELD-SUPPLIED

FUSED DISCONNECT

GND

208/230- OR 460-VOLT THREE PHASE

208/230VOLT SINGLE PHASE

A11456A

A11401

Page 12

29 1/2

DIMENSIONAL DRAWING

21 1/16

[535.8]

22 7/16

[670.0]

26 3/8

[370.0]

[678.1]

26 11/16

[749.3]

28 3/4

[730.5]

AIR FLOW

[76.2]

1 3/4

[44.5]

GAS CONN

AIR INTAKE

7/8

[22.2]

7/8

[22.2]

THERMOSTAT ENTRY

[76.2 ]

7/8

[22.2]

7/8

[22.2] POWER CONN

28 3/8

[773.7]

30 7/16

[889.0]

SIDE INLET

7/8

17 7/16

[720.4]

28 5/8

[22.2]

[442.3]

[609.7]

[726.9]

[420.9]

16 9/16

20 1/4

[513.9]

[25.4]

11/16

23 3/8

1 5/16

[17.5]

[592.0]

[33.3]

[668.8]

26 5/16

SD5024-4

NONE

PART NUMBER

NEXT SHEET

6 15/16

[176.1]

[58.4]

2 3/10

925TA

030040

042060

[76.2]

VENT

048080

048100

066120

[76.2]

AIR INTAKE

[170.1]

6 11/16

[678.1]

26 11/16

26 3/8

[670.0]

25 1/8

[638.7]

23 5/16

[592.9]

19 1/8

[485.8]

OUTLET WIDTH

[76.2]

AIR INTAKE

AIR FLOW

5/8

[15.8]

1 3/4

AIR FLOW

[44.5]

GAS CONN

[76.2]

VENT

7/8

[22.2]

CONDENSATE DRAIN TRAP

LOCATION

32 5/8

28 3/16

7/8

[22.2] POWER CONN

7/8

[22.2]

THERMOSTAT ENTRY

[829.5]

[715.9]

28 5/8

[726.4]

7/8

SIDE INLET

25 3/16

20 1/4

[22.2]

[639.1]

[513.9]

16 9/16

[581.9]

22 15/16

17 5/16

[420.9]

14 13/16

[439.2]

[376.3]

WIDTH

BOTTOM RETURN

11/16

[17.5]

[558.3]

[25.4]

of1sideandthebottom,orthebottomonlyreturnairopeningsmayberequiredforairflowrequirementsabove1800CFMat0.5in.W.C.E.S.P.

c. For 1600 CFM ---22---in. (559 mm) round or 14 1/2 x 22 1/16 ---in. (368 x 560mm) rectangle.

a. For 800 CFM ---16 ---in. (406 mm) round or 14 1/2 x 12 ---in. (368 x 305 mm) rectangle.

b. For 1200 CFM ---20 ---in. (508 mm) round or 14 1/2 x 19 1/2 ---in. (368 x 495 mm) rectangle.

d. For airflow requirements above 1800 CFM, see Air Delivery table in these installation instructions for specific use of single side inlets. The use of both side inlets, a combination

NOTE: Doors may vary by model.

[668.8]

26 5/16

[534.0]

A11523

Page 13

GUIDE SPECIFICATIONS

General

System Description

Furnish a ______________________ 4--way multipoise gas--fired condensing furnace for use with natural gas or propane (factory-authorized conversion kit required for propane); furnish cold air return plenum; furnish external media cabinet for use with accessory media filter or standard filter.

Quality Assurance

Unit will be designed, tested and constructed to the current ANSI Z

21.47/CSA 2.3 design standard for gas--fired central furnaces. Unit will be third party certified by CSA to the current ANSI Z

21.47/CSA 2.3 design standard for gas--fired central furnaces. Unit will carry the CSA Blue StarR and Blue FlameR labels. Unit efficiency testing will be performed per the current DOE test procedure as listed in the Federal Register.

Unit will be certified for capacity and efficiency and listed in the latest AHRI Consumer’s Directory of Certified Efficiency Ratings.

Unit will carry the current Federal Trade Commission Energy Guide efficiency label.

Delivery, Storage, and Handling

Unit will be shipped as single package only and is stored and handled per unit manufacturer’s recommendations.

Warranty (for inclusion by specifying engineer)

U.S. and Canada only. Warranty certificate available upon request.

Equipment

Blower Wheel and ECM Blower Motor Galvanized blower wheel shall be centrifugal type, statically and

dynamically balanced. Blower motor of ECM type shall be permanently lubricated with sealed ball bearings, of _______hp, and have multiple speeds from 600--1200 RPM operating only when 24--VAC motor inputs are provided. Blower motor shall be direct drive and soft mounted to the blower scroll to reduce vibration transmission.

Filters Furnace shall have reusable--type filters. Filter shall be ______ in.

(mm) X ________ in. (mm). An accessory highly efficient Media Filter is available as an option. _____________ Media Filter.

Casing Casing shall be of .030 in. thickness minimum, pre--painted

galvanized steel. Draft Inducer Draft inducer motor shall be two--speed design.

Motor

Primary Heat Primary heat exchangers shall be 3--Pass corrosion--resistant

aluminized steel of fold--and--crimp sectional design and applied operating under negative pressure.

Secondary Heat Secondary heat exchangers shall be of a stainless steel

flow--through of fin--and--tube design and applied operating under negative pressure.

Controls Controls shall include a micro--processor--based integrated

electronic control board with at least 16 service troubleshooting codes displayed via diagnostic flashing LED light on the control, a self--test feature that checks all major functions of the furnace, and a replaceable automotive--type circuit protection fuse. Multiple operational settings available, including blower speeds for low heat, high heat, low cooling, high cooling and continuous fan. Continuous fan speed may be adjusted from the thermostat. Cooling airflow will be selectable between 325 and 400 CFM per ton of air conditioning. Features will also include temporary reduced airflow in the cooling mode for improved dehumidification when a T6--PRH is selected as the thermostat.

Exchangers

Operating Characteristics

Heating capacity shall be _________________ Btuh input; ______________ Btuh output capacity.

Fuel Gas Efficiency shall be __________ AFUE. Air delivery shall be ________________ cfm minimum at 0.50 in.

wc. external static pressure. Dimensions shall be: depth_________in. (mm); width

__________in. (mm); height___________in. (mm) (casing only). Height shall be _________in. (mm) with A/C coil and _________________in. (mm) overall with plenum.

Electrical Requirements

Electrical supply shall be 115 volts, 60 Hz, single--phase (nominal). Minimum wire size shall be ________AWG; maximum fuse size of HACR--type designated circuit breaker shall be _________ amps.

Special Features

Refer to section of the product data identifying accessories and descriptions for specific features and available enhancements.

Page 14

E2011 Bryant Heating & Coo li ng Systems D 7310 W. Morris St. D Indianapolis, IN 46231 Printed in U.S.A. Edition Date: 10/11

Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.

Catalog No. PDS925TA--- 0 2

Replaces: PDS925TA--- 01
