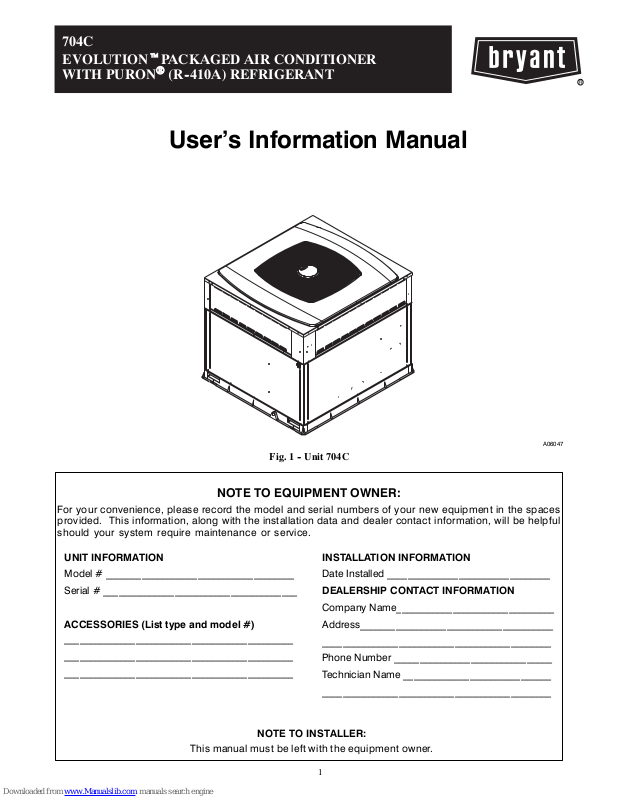

Page 1

704C EVOLUTIONtPACKAGED AIR CONDITIONER

WITH PURON

(R--410A) REFRIGERANT

User’s Information Manual

A06047

Fig. 1 -- Unit 704C

NOTE TO EQUIPMENT OWNER:

For your convenience, please record the model and serial numbers of your new equipment in the spaces provided. This information, along with the installation data and dealer contact information, will be helpful should your system require maintenance or service.

UNIT INFORMATION

Model # _____________________________________

Serial # ______________________________________

ACCESSORIES (List type and model #)

_____________________________________________

NOTE TO INSTALLER:

This manual must be left with the equipment owner.

INSTALLATION INFORMATION

Date Installed ________________________________

DEALERSHIP CONTACT INFORMATION

Company Name_______________________________

Address______________________________________

_____________________________________________

Phone Number _______________________________

Technician Name _____________________________

_____________________________________________

Page 2

SAFETY CONSIDERATIONS

STARTING OR SHUTTING UNIT OFF

Installation and servicing of this equipment can be hazardous due to mechanical and electrical components. Only trained and qualified personnel should install, repair, or service this equipment.

Untrained personnel can perform basicmaintenance functionssuch as cleaning and replacing air filters. All other operations must be performed by trained service personnel. When working on this equipment, observe precautions in the literature, on tags, and on labels attached to or shipped with the unit and other safety precautions that may apply.

Follow all safety codes. Installation must be in compliance with local and national building codes. Wear safety glasses, protective clothing, and work gloves. Have fire extinguisher available. Read these instructions thoroughly and follow all warnings or cautions included in literature and attached to the unit.

Recognize safety information. This is the safety--alert symbol Whenyou seethissymbol on theunit and ininstructions or manuals, be alert to the potential for personal injury.

Understand these signal words: DANGER, WARNING, and CAUTION. These words are used with the safety--alert symbol. DANGER identifies the most serious hazards which will result in severe personal injury or death. WARNING signifies hazards which could result in personal injury or death.CAUTION is used to identify unsafe practices which ma y result in minor personal injury or product and property damage. NOTE isused tohighlightsuggestionswhich

will result in enhanced installation, reliability, or operation.

Note: Installer: This manualshould be left withthe equipmentuser.

CAUTION

FORYOURSAFETY

Failure to follow this caution may result in personal injury.

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

FIRE,EXPLOSION, ELECTRICAL SHOCK HAZARD

Failure to follow this warning could result in personal injury, death or property damage.

Do not use this unit if any part has been under water. Immediately call a qualified service technician to inspect the unit and to replace any part of the control system which has been under water.

WARNING

To start the unit:

1. Turn on the electrical power supply to unit.

2. Set MODE control to desired mode and the User Interface for automatic control.

To shut unit off: Note: If the unit is being shut down because of a malfunction, call

your dealer as soon as possible.

1. Set system MODE control to OFF.

2. Turn off the electrical power supply to unit.

OPERATING YOUR UNIT

The operation of your packaged cooling system iscontrolled by the Evolutiont User Interface (UI). You may adjust the temperature manually through the UI or program the UI for automatic control.

See UI manual for detailed instructions.

Step 1—Cooling Mode

With theUI control set to COOL, your unitwill runin coolingmode until the indoor temperature is lowered to the level you have selected. On extremely hot days, your unit will run for longer periods at a time and have shorter “off” periods than on moderate days.

Step 2—Heating Mode (if installed with optional electric heat)

Your system may also be equipped with an electric heating source. On cold days and nights, place your UI control to HEAT and your system will automatically turn on the electric heat in order to maintain the level of comfort you have selected.

Step 3—Emergency Heating Mode

In the event of UI failure, the emergency heat mode allows your electric heating source to keep your home or office warm until your UI can be serviced. Contact your dealer for more information.

Step 4—Emergency Cooling Mode

In the event of UI failure,the emergency cooling mode allowsyour unit to keep your home or office cool until your UI can be serviced. Contact your dealer for more information.

MAINTENANCE AND SERVICE

This section discusses maintenance that should be performed by your dealer and care you, as the owner, maywish to handle for your new unit.

Routine Maintenance

All routine maintenance should be handledby skilled, experienced personnel. Yourdealercan help you establish a standardprocedure.

CAUTION

FORYOURSAFETY

Failure to follow this caution may result in personal injury.

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

ELECTRICAL SHOCK HAZARD

Failure to follow this warning could result in personal injury, or death.

Before performing recommended maintenance, be sure the main power switch to unit is turned off.

WARNING

To assure properfunctioning of the unit, flow of condenserairmust not be obstructed from reaching the unit. Clearance from the top of the unit is 48 in. Clearance of at least 36 in. is required on sides except the power entry side (42 in. clearance) and the duct side (12 in. minimum clearance).

Maintenance and Care for the Equipment Owner

Before proceeding with those things you might want to maintain yourself, please carefully consider the following:

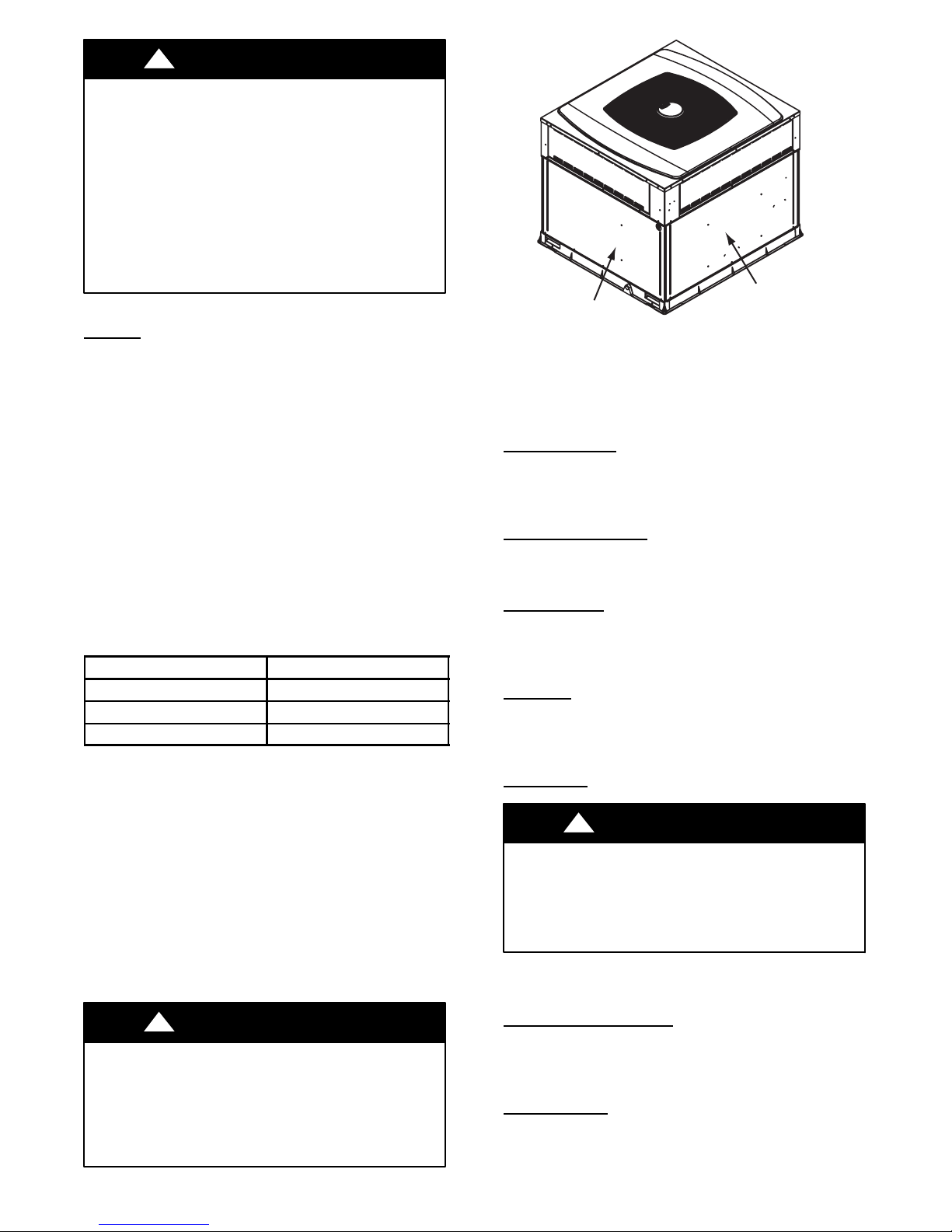

Page 3

FIRE,EXPLOSION, ELECTRICAL SHOCK HAZARD

Failure to follow this warning could result in personal injury, death or property damage.

1. TURN OFF ELECTRICAL POWER TO YOUR UNIT BEFORE SERVICING OR PERFORMING MAINTENANCE.

2. When removing access panels or performing maintenance functions inside your unit, be aware of sharp sheet metal parts and screws. Although special care is taken to reduce sharp edges to a minimum, be extremely careful when handling parts or reaching into the unit.

Air Filters

The air filter(s) should be checked at least every 3 months and changed or cleanedwhenever it becomesdirty.Dirty filtersproduce excessive stress on the blower motor and can cause the motor to overheat and shut down.

This unit must have an air filter in place before it can be operated. These filters should be locatedin at least one of two places. In many applications, the installer will provide return air filter grilles mounted on the wall or ceiling of the conditioned structure. In the instance of filter grilles, the filters can simply be removed from the grille and replaced.

The other typical application is an accessory filter rack installed inside the unit itself. The following information is given to assist in changing filters used in these internal filter racks.

Table 1 indicates the correct filter size for your unit.

Unit Size Filter Size

704C024 --- 030 20x24x1

704C036 24x30x1

704C042 --- 060 24x36x1

To replace or inspect filters in accessory filter rack:

1. Remove the filter access panel (See Fig. 2) using a 5/16--in. nut driver.

2. Remove the filter(s) by pulling it out of the unit. If the filter(s) is dirty, clean or replace with a new one.

When installing the new filter(s), note the direction of the airflow arrows on the filter frame.

If you have difficulty locating your air filter(s) or have questions concerning proper filter maintenance, contact your dealer for instructions. When replacing filters, always use the same size and type of filter that was supplied originally by the installer.

WARNING

Table 1—Indoor Air Filter Data

ACCESS PANEL

FILTER ACCESS PANEL*

*For accessory filter rack

A06116

Fig. 2 -- Accessory Filter Rack Access Panel

Fans and Fan Motor

Periodically check the condition of fan wheels and housings and fan--motorshaft bearings.Contactyour dealer for therequiredannual maintenance.

Drain

Coils

WARNING

Indoor and Outdoor

Cleaning of the coils should only be done by qualified service personnel. Contact your dealer for the required annual maintenance.

Condensate

The drain pan and condensate drain line should be checked and cleaned at the same time the cooling coils are checked by your dealer.

Compressor

Allcompressorsare factoryshippedwith a normalchargeof the correct type of refrigeration grade oil. A compressor should rarely require additional oil.

Condenser

PERSONAL INJURY AND UNIT DAMAGE HAZARD

Failure to follow this warning could result in personal injury, death or property damage.

Do not poke sticks, screwdrivers, or any other object into revolving fan blades.

The fan must be kept free of all obstructions to ensure proper cooling. Contact your dealer for any required service.

Fan

FIRE AND UNIT OPERATION HAZARD

Failure to follow this warning could result in personal injury, death or property damage.

Never operate your unit without filters in place. An accumulation of dust and lint on internal parts of your unitcan cause loss of efficiency.

WARNING

Electrical Controls and Wiring

Electricalcontrolsare difficultto check without properinstrumentation. If there are any discrepancies in the operating cycle, contact your local dealer and request service.

Refrigerant

Therefrigerantcircuitis difficult to checkfor leakswithout the proper equipment. If inadequate cooling is suspected, contact your local dealer for service.

Circuit

Page 4

WARNING

EXPLOSION AND BURN HAZARD

Failure to follow this warning could result in personal injury, death or property damage.

System under pressure. Relieve pressure and recover all refrigerant before system repair or final unit disposal. Use all service ports and open all flow--control devices, including solenoid valves.

Unit Panels

Afterperforming any maintenance or serviceon the unit, be sure all panels are fastened securely in place to prevent rain from entering unit cabinet and to prevent disruptionof the correctunit airflowpattern.

Regular Dealer Maintenance

In addition to the type of routine maintenance you might be willing to perform, your unit should be inspected regularly by a properly trained service technician. An inspection (preferably each year, but at least every other year) should include the following:

1. Inspection and, if required, cleaning of the outdoor and indoor coils.

2. Inspection and, if required, cleaning of the indoor coildrain pan.

3. Inspection and cleaning of blower wheelhousing andmotor.

4. Inspection of all supply and return air ducts for leaks, obstructions, and insulation integrity. Any problems found should be resolved at this time.

5. Inspection of theunit baseto ensurethat no cracks, gaps, etc., exist which may cause a hazardous condition.

6. Inspection of the unit casing for signs of deterioration.

7. Inspection of all electrical wiring and components to assure proper connection.

8. Inspection for leaks in the refrigerant circuit. Pressure check to determine appropriate refrigerant charge.

9. Inspection of compressor oil level by service person to ensureproper oillevelis maintained in the compressor when it is installed and running.

10. Operational check of the unit to determine working conditions. Repairor adjustmentshould be madeat this time.

Your servicingdealermay offer an economicalservice contract that covers seasonal inspections. Ask for further details.

Completeservice instructions can be found in the unit Installation, Start-- up and Service Instructions.

Warranty Certificate

Unit 704C has a limited warranty.Be sure to read the warranty carefully to determine the coverage for your unit.

Before you call for service...

...check for several easily solved problems.

If insufficient heating or cooling is suspected:

( ) Check for sufficient airflow. Check the air filter for dirt. Check for blocked returnor supply air grilles.Be sure they are open and unobstructed. If these checks do not reveal the cause, call your servicing dealer.

If your unit is not operating at all, check the following list for easy solutions:

( ) Check to be sure that the temperature specified by your User Interface is set below the indoor temperatureduring thecooling season or above the indoor temperature during heating season (if equipped with electric heater). Be sure the User Interface is set to COOL o r HEAT and no t OFF.

( ) If your unit still fails to operate, call your servicing dealer for troubleshooting and repairs. Specify the model and serial numbers of your unit. (Recordthem in this manual in the space provided.) If the dealer knows exactly whichunit you have, he may be able to offer suggestions over the phone, or save valuable time through knowledgeable preparation for the service call.

In Case of Trouble

If you perform the steps above and unit performanceis stillunsatisfactory, shut off the unit and call your dealer.

TO OBTAIN INFORMATION ON PARTS: Consult your installing dealer or classified section of your local telephone directory under the

“Heating Equipment” or “Air Conditioning Contractors & Systems” heading for dealer listing by brand name.

Have available the Model No., Series Letter, & Serial No. of your equipment to ensure correct replacement part.

Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.

Printed in the U.S.A.

Heating & Cooling Systems

03/06

Catalog No: OM01 --- 70

Replaces: New
