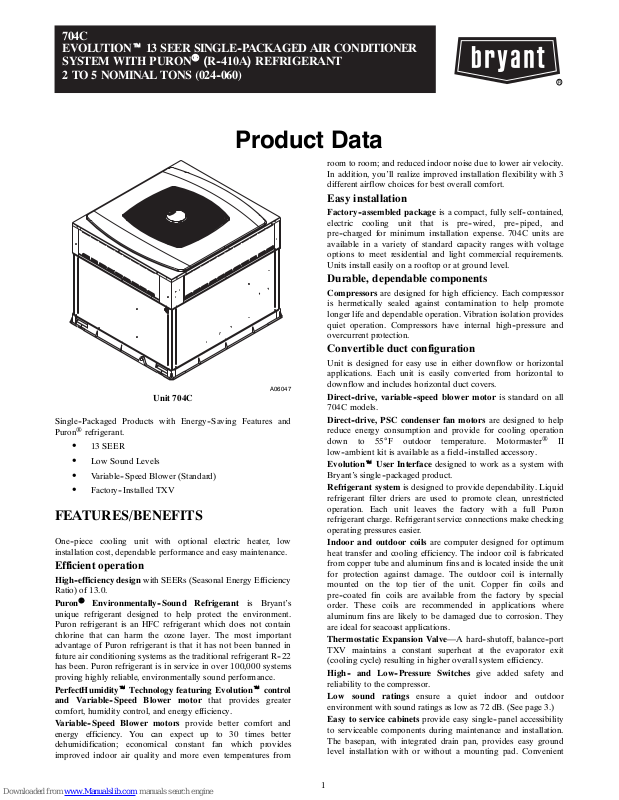

Bryant 704C, 704C024 Evolution, 704C030 Evolution, 704C036 Evolution, 704C042 Evolution Product Data
...
704C
EVOLUTIONt 13 SEER SINGLE--PACKAGED AIR CONDITIONER
SYSTEM WITH PURON®(R--410A) REFRIGERANT
2 TO 5 NOMINAL TONS (024--060)
Product Data
room to room; and reduced indoor noise due to lower air velocity.
In addition, you’ll realize improved installation flexibility with 3
different airflow choices for best overall comfort.
Easy installation
Factory--assembled package is a compact, fully self--contained,
electric cooling unit that is pre--wired, pre--piped, and
pre--charged for minimum installation expense. 704C units are
available in a variety of standard capacity ranges with voltage
options to meet residential and light commercial requirements.
Units install easily on a rooftop or at ground level.
Durable, dependable components
Compressors are designed for high efficiency. Each compressor
is hermetically sealed against contamination to help promote
longer life and dependable operation. Vibration isolation provides
quiet operation. Compressors have internal high--pressure and
overcurrent protection.
Convertible duct configuration
Unit is designed for easy use in either downflow or horizontal
applications. Each unit is easily converted from horizontal to
A06047
Unit 704C
Single--Packaged Products with Energy--Saving Features and
®
refrigerant.
Puron
S
13 SEER
S
Low Sound Levels
S
Variable--Speed Blower (Standard)
S
Factory--Installed TXV
FEATURES/BENEFITS
One--piece cooling unit with optional electric heater, low
installation cost, dependable performance and easy maintenance.
Efficient operation
High--efficiency design with SEERs (Seasonal Energy Efficiency
Ratio) of 13.0.
®
Puron
unique refrigerant designed to help protect the environment.
Puron refrigerant is an HFC refrigerant which does not contain
chlorine that can harm the ozone layer. The most important
advantage of Puron refrigerant is that it has not been banned in
future air conditioning systems as the traditional refrigerant R--22
has been. Puron refrigerant is in service in over 100,000 systems
proving highly reliable, environmentally sound performance.
PerfectHumidityt Technology featuring Evolutiont control
and Variable--Speed Blower motor that provides greater
comfort, humidity control, and energy efficiency.
Variable--Speed Blower motors provide better comfort and
energy efficiency. You can expect up to 30 times better
dehumidification; economical constant fan which provides
improved indoor air quality and more even temperatures from
Environmentally--Sound Refrigerant is Bryant’s
downflow and includes horizontal duct covers.
Direct--drive, variable--speed blower motor is standard on all
704C models.
Direct--drive, PSC condenser fan motors are designed to help
reduce energy consumption and provide for cooling operation
down to 55°F outdoor temperature. Motormaster
low--ambient kit is available as a field --installed accessory.
Evolutiont User Interface designed to work as a system with
Bryant’s single--packaged product.
Refrigerant system is designed to provide dependability. Liquid
refrigerant filter driers are used to promote clean, unrestricted
operation. Each unit leaves the factory with a full Puron
refrigerant charge. Refrigerant service connections make checking
operating pressures easier.
Indoor and outdoor coils are computer designed for optimum
heat transfer and cooling efficiency. The indoor coil is fabricated
from copper tube and aluminum fins and is located inside the unit
for protection against damage. The outdoor coil is internally
mounted on the top tier of the unit. Copper fin coils and
pre--coated fin coils are available from the factory by special
order. These coils are recommended in applications where
aluminum fins are likely to be damaged due to corrosion. They
are ideal for seacoast applications.
Thermostatic Expansion Valve—A hard--shutoff, balance--port
TXV maintains a constant superheat at the evaporator exit
(cooling cycle) resulting in higher overall system efficiency.
High-- and Low--Pressure Switches give added safety and
reliability to the compressor.
Low sound ratings ensure a quiet indoor and outdoor
environment with sound ratings as low as 72 dB. (See page 3.)
Easy to service cabinets provide easy single--panel accessibility
to serviceable components during maintenance and installation.
The basepan, with integrated drain pan, provides easy ground
level installation with or without a mounting pad. Convenient
®
II
1
handholds are provided to manipulate the unit on the job site. A
nesting feature ensures a positive basepan to roof curb seal when
the unit is roof mounted. A convenient 3/4--in. wide perimeter
flange makes frame mounting on a rooftop easy.
Louvered grille provides hail and vandalism protection for the
coil.
Downflow operation is easily provided in the field to allow
vertical ductwork connections. The basepan utilizes knockout
style seals on the bottom openings to ensure a positive seal in the
horizontal airflow mode.
Cabinets are constructed of heavy--duty, phosphated,
zinc--coated, pre--painted steel capable of withstanding 500 hrs of
salt spray. Interior surfaces of the evaporator and electric heater
compartments are insulated with cleanable semi--rigid insulation
board, which keeps the conditioned air from being affected by the
outdoor ambient temperature and provides improved indoor air
quality. (Conforms to American Society of Heating, Refrigeration
and Air Conditioning Engineers No. 62P.) The sloped drain pan
minimizes standing water in the drain, which is provided with an
external drain.
Standard metal duct covers with insulation come with the unit
and cover the horizontal duct openings. These can be left in place
if the units are converted to downflow.
Limited Warranty—Standard 5--year limited warranty on all
parts, 10--year limited warranty on compressor.
TABLE OF CONTENTS
FEATURES/BENEFITS 1--2.......................................................................................
MODEL NUMBER NOMENCLATURE 3...........................................................................
704C
ARI CAPACITIES 3.............................................................................................
PHYSICAL DATA 4.............................................................................................
OPTIONS AND ACCESSORIES 5--6...............................................................................
BASE UNIT DIMENSIONS 7--8...................................................................................

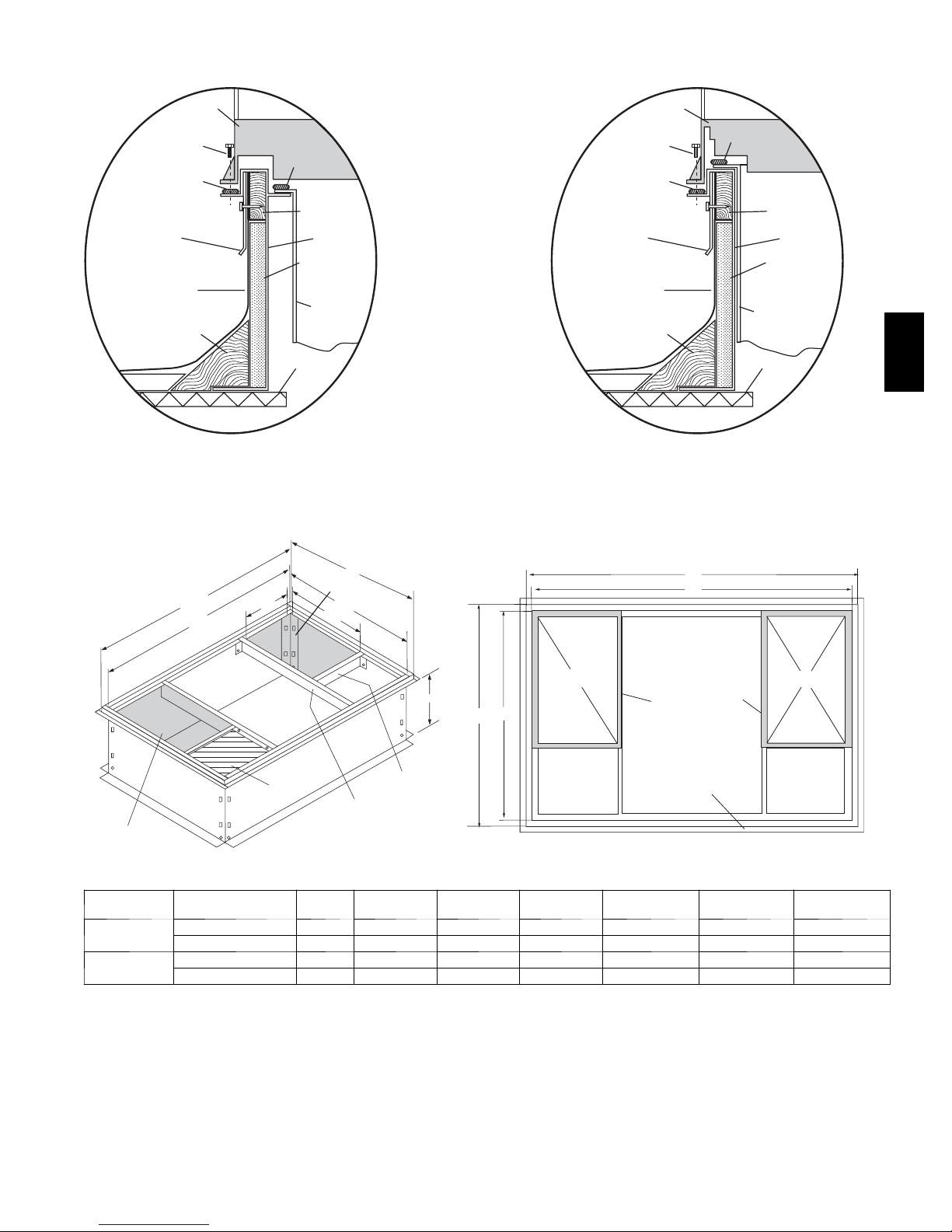

ACCESSORY DIMENSIONS 9....................................................................................

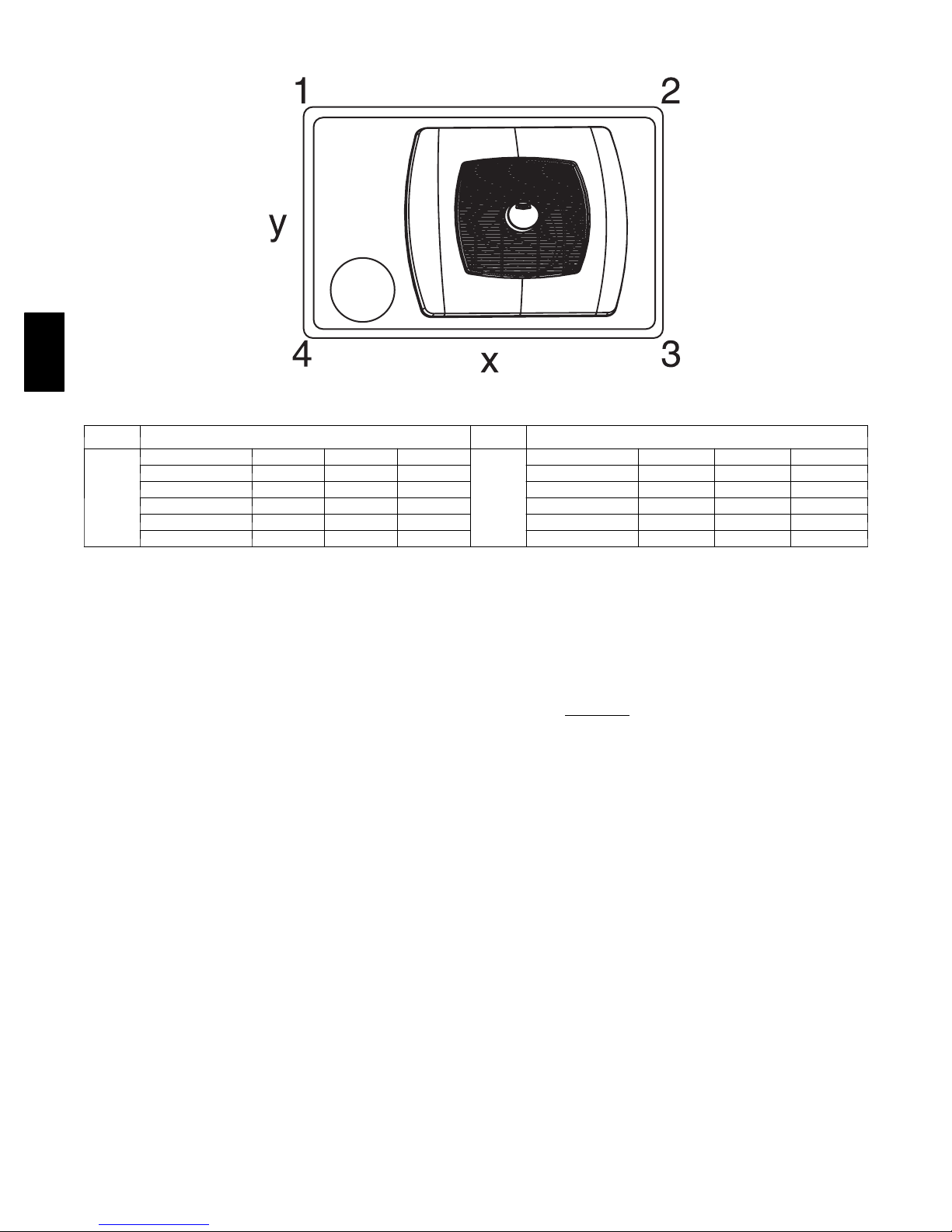

CORNER WEIGHTS 10..........................................................................................
SELECTION PROCEDURE 10....................................................................................
PERFORMANCE DATA 11--14....................................................................................

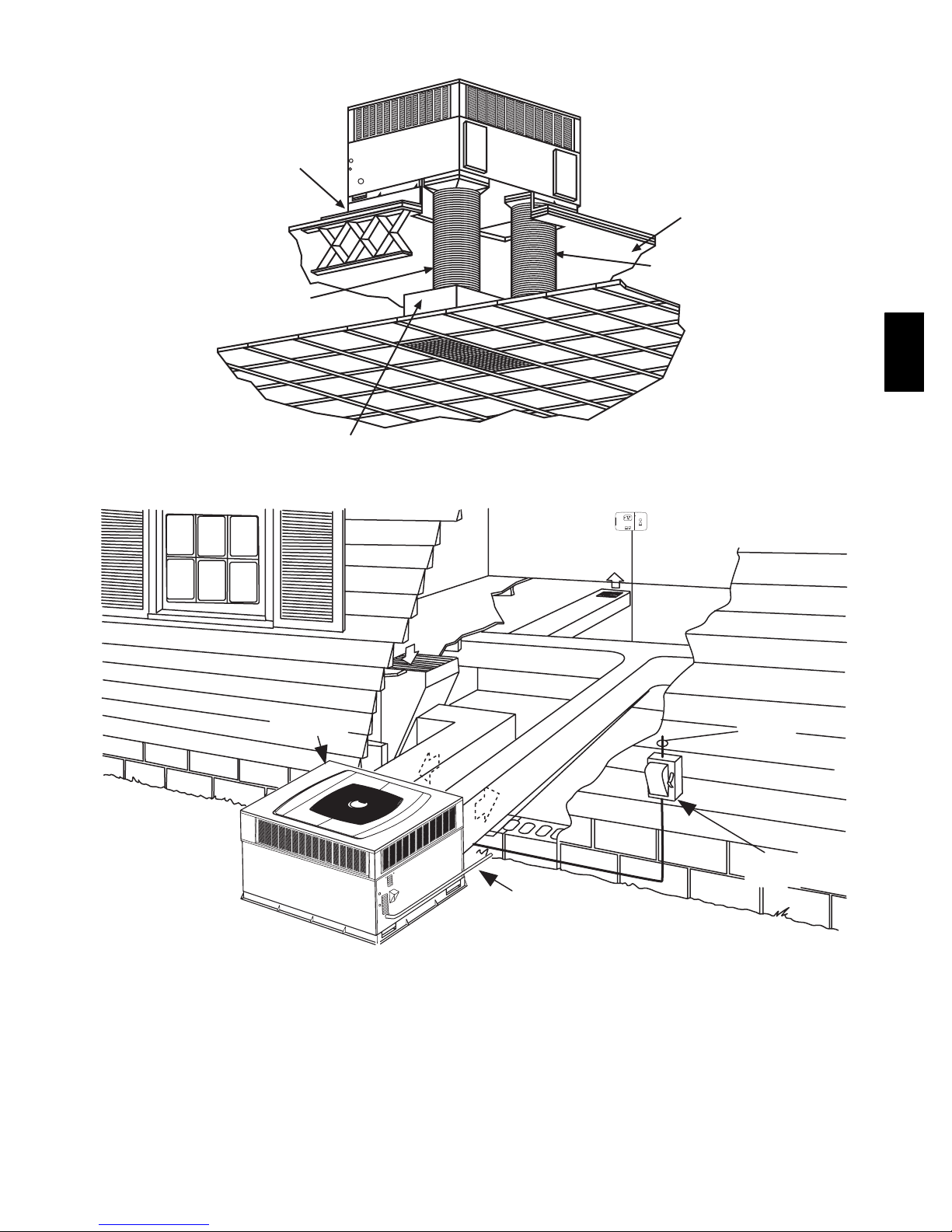

TYPICAL PIPING AND WIRING 15...............................................................................
APPLICATION DATA 16.........................................................................................
ELECTRICAL DATA 17--18......................................................................................

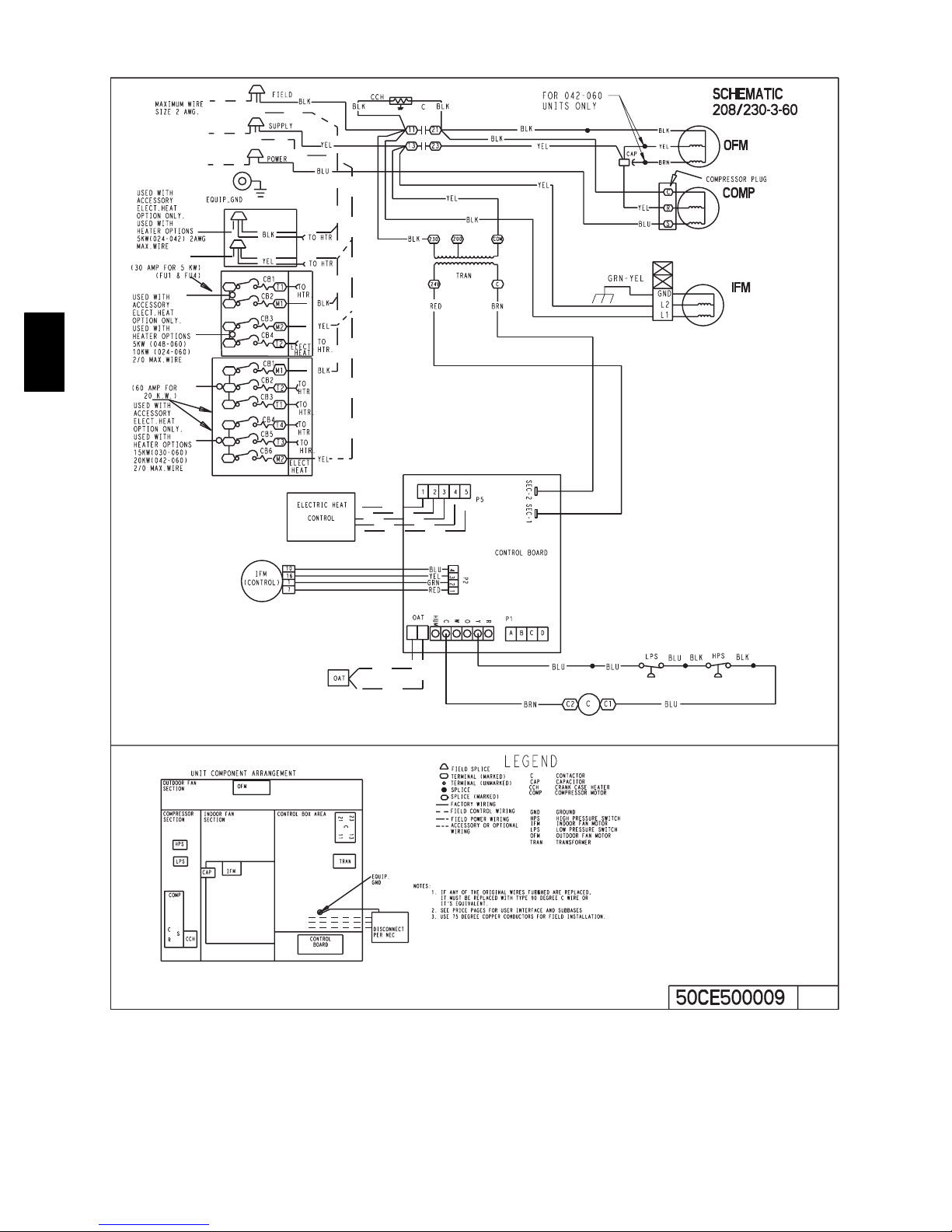

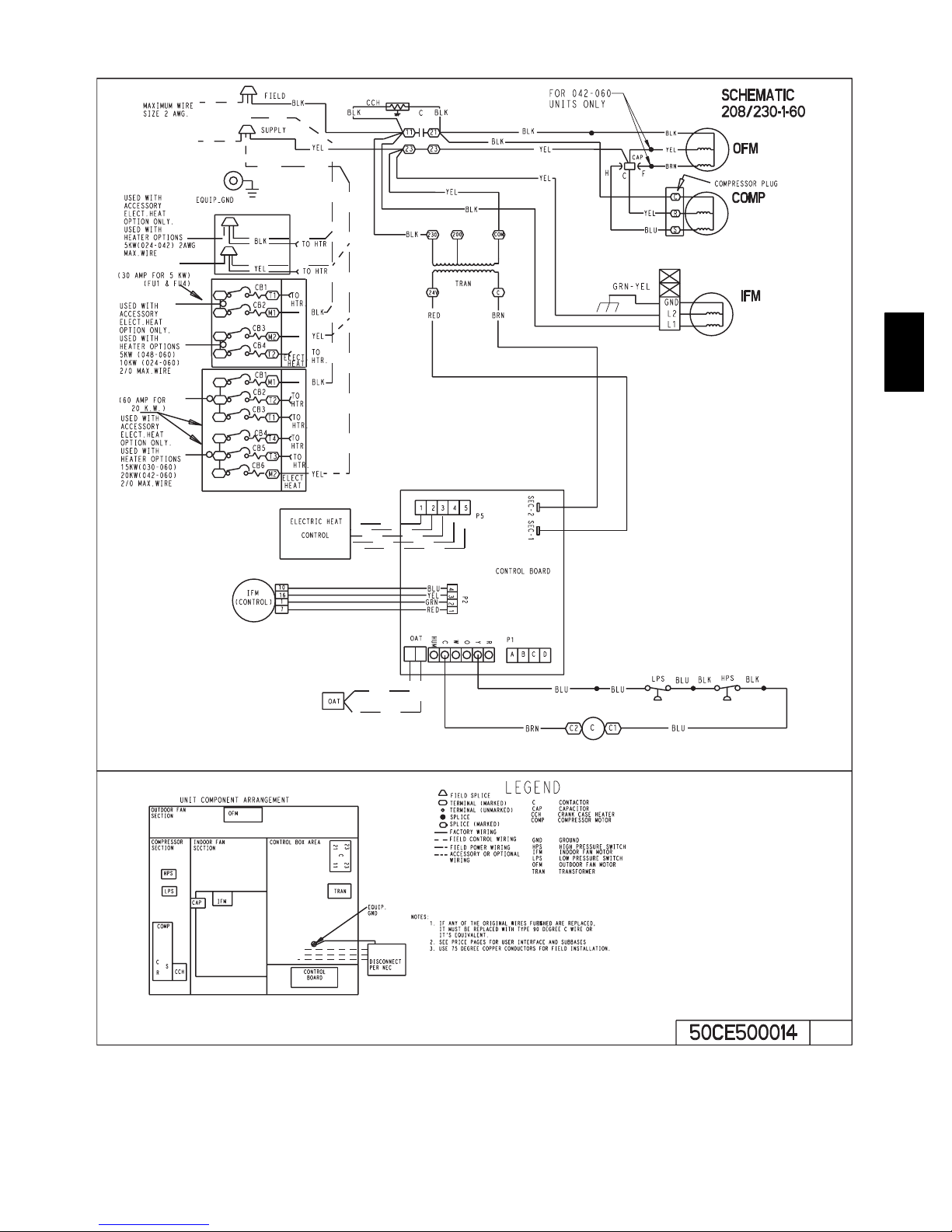

TYPICAL WIRING SCHEMATICS 19--20...........................................................................
CONTROLS 21.................................................................................................
GUIDE SPECIFICATIONS 22--23..................................................................................
2
MODEL NUMBER NOMENCLATURE
704C N X 024
Model No.
704C – Single Pa c kaged
Air Conditioner
Electrical Supply
N – 208/230-1-60
P – 208/230-3-60
A A
000 BT
Options
BT - AL evap, vinyl condenser
CC - AL evap, CU condenser
CU - CU evap & condenser
TP - Base unit with tin plated indoor coil hairpins
TV - TP with vinyl coating on outdoor coil
TC - TP with AL indoor coil & CU/CU outdoor coil
Only used if ordering an option
N/A
Series
A – Original
Nominal Cooling Capacity
024 – 2.0 Tons
030 – 2.5 Tons
Brand Name
A – Common Unit
036 – 3.0 Tons
042 – 3.5 Tons
048 – 4.0 Tons
060 – 5.0 Tons
N/A
LEGEND
AL — Aluminum
CU — Copper
ARI* CAPACITIES
Cooling Capacities, Efficiencies and Sound Ratings
Unit 704C Nominal Tons Standard CFM
024 2 800 24,000 11 13.0 72
030 2--1/2 1000 28,800 11 13.0 72
036 3 1200 36,000 11 13.0 74
042 3--1/2 1400 41,000 11 13.0 74
048 4 1600 45,000 11 13.0 78
060 5 1750 57,000 11 13.0 78
* Air Conditioning & Refriger ation Institute.
** ”A” conditions--- 80°F indoor db/67°F indoor wb & 95°F outdoor db. { Rated in accordance with U.S. Government DOE (Department of Energy) test
procedures and/or ARI Standards 210/240 ---94.
} Tested in accordance with ARI Standard 270---95 (not listed in ARI).
NOTES
1. Ratings are net values, reflecting the effects of circulating fan heat. Ratings are based on:
Cooling Standard: 80°F db, 67°Fwb indoor entering --- air temperature and 95°F db outdoor entering---air temperature.
2. Before purchasing this appliance, read important energy cost and efficiency information available from your retailer.
LEGEND
dBA—Sound Levels (decibels)
db—Dry Bulb
SEER—Seasonal Energy Efficiency Ratio
wb—Wet Bulb
Net Cooling
Capacities (Btuh)
EER
@A**
SEER†
Sound Ratings‡
704C
(dBA)
3
PHYSICAL DATA
UNIT SIZE 024 030 036 042 048 060
NOMINAL CAPACITY (ton) 2 2--1/2 3 3--1/2 4 5
OPERATING WEIGHT (lb.) 350 350 373 440 463 499
COMPRESSOR Scroll
REFRIGERANT (R-- 410A) Quantity (lb.) 7.5 8 9.5 10.8 11. 5 14.0
REFRIGERANT METERING DEVICE TXV
ORIFICE OD (in.) 0.035 (2) 0.035 (2) 0.038 (2) 0.038 (2)
OUTDOOR COIL
Rows…Fins/in. 2…21 2…21 2…21 2…21 2…21 2…21
Face Area (sq. ft.) 12.3 12.3 13.6 15.4 17.2 19.4
OUTDOOR FAN
Nominal Cfm 2700 2700 2800 2800 3300 3300
Diameter 22 22 22 22 22 22
Motor HP (RPM) 1/8 (825) 1/8 (825) 1/8 (825) 1/8 (825) 1/4 (1100) 1/4 (1100)
INDOOR COIL
Rows…Fins/in. 3…15 3…15 4…15 3…15 4…15 4…17
Face Area (sq. ft.) 3.7 3.7 3.7 4.7 4.7 5.7
INDOOR BLOWER
Nominal Airflow (Cfm)
704C
Size (in.) 10x10 10x10 11x1 0 11x1 0 11x 1 0 11x 1 0
Motor HP (RPM) 1/2 1/2 3/4 3/4 3/4 1
HIGH-- PRESSURE SWITCH (psig)
Cutout
Reset (Auto)
LOSS-- OF--CHARGE SWITCH
(Liquid Line) (psig)
Cutout
Reset (Auto)
RETURN-- AIR FILTERS (IN.)*
Throwaway
*Required filter sizes shown are based on the larger of the ARI (Air Conditioning and Refrigeration Institute) rated cooling airflow or the heating airflow velocity
of 300 ft/minute for throwaway type or 450 f t/minute for high---capacity type. Air filter pressure drop for n on ---standard filters must not exceed 0.08 in. wg.
ISO 9001:2000
Comfort Variable based on Comfort Rollback (see User Interface instructions for more information).
Efficiency 700 875 1050 1225 1400 1750
Max 800 1000 1200 1400 1600 2000
20x24x1 20x24x1 24x30x1 24x36x1 24x36x1 24x36x1
0.038 (Left OD Coil)
0.046 (Right OD Coil)
650 ± 15
420 ± 25
20 ± 5
45 ± 10
0.042 (Left OD Coil)
0.052 (Right OD Coil)
REGISTERED
Outdoor Sound: Octave Band Data—Decibels (dBA)
MODEL NO. 704C
Frequency (Hz) 024 030 036 042 048 060
125 58.8 58.8 60.7 56.7 62.4 63.5
250 63.5 63.5 63.3 62.8 69.9 67.6
500 67.2 67.2 66.8 67.8 71.3 71.8
1000 66.9 66.9 66.5 67.4 73.4 75.5
2000 63.7 63.7 64.2 63.7 70.0 71.0
4000 58.3 58.3 60.3 57.7 66.3 68.1
8000 50.0 50.0 53.0 50.8 60.1 59.9
4
OPTIONS AND ACCESSORIES
Factory--installed options
Coil options include tin--plated* indoor hairpins, copper/copper
and vinyl--coated construction for refrigerant coils. Units are
shipped standard with copper tube/aluminum fin construction.
See model number nomenclature for coil options.
*Tin--plated indoor coils are built with special hairpins that are
designed to resist both general pitting corrosion and excessive
indoor corrosion (Formicary Corrosion).
Field-- installed accessories
Manual Air Damper (25% open)
Electric Heaters
Filter Rack
Flat Roof Curbs (8--in. and 14--in.)
Square--to--Round Duct Transition Kit
Evolutiont User Interface
Crankcase Heater
Low--Ambient Kit (Motormaster II Control)
Lifting Kit
Compressor Hard Start Kit
Manual outside air damper includes hood and filter rack with
adjustable damper blade for up to 25% outdoor air.
Electric heaters provide additional heat in the unit when
required. Each package has a heater module that slides into the
controls compartment. Heater sizes range from 5.0 to 20.0 kW.
The electric heater design allows the use of a single--point power
supply for the entire unit, resulting in lower installed costs.
Flat roof curbs in both 8 in. and 14 in. sizes are available for
roof mounted applications.
Square--to--round duct transition kit enables 024-- 048 size
units to be fitted to 14 in. round ductwork.
Evolution User Interface coupled with the system’s
variable--speed indoor blower delivers Bryant’s patented
PerfectHumidity technology that allows for even greater humidity
control. Along with more precisely controlling temperature and
humidity, the Evolution User Interface offers full seven--day
programmability allowing you to further customize your comfort
and energy savings.
Lifting kit includes 4 metal brackets that are available to assist in
lifting this product onto a roof application.
Crankcase heater provides anti--floodback protection for
low--load cooling applications.
®
Low--ambient kit (Motormaster
II control) allows the use of
mechanical cooling down to outdoor temperatures as low as 0°F.
Filter rack features easy installation, serviceability, and
high--filtering performance for vertical or horizontal applications.
Compressor hard start kit assists compressor start--up by
providing additional starting torque on single--phase units and
prolongs compressor motor life.
704C
Electric Heaters
ODS Catalog
Ordering No. (kW) Fused Stages 24 30 36 42 48 60
CPHEATER080A00 3.8 / 5.0 NO 1 X X X X X X
CPHEATER082A00 5.4 / 7.2 NO 1 X X X X X X
CPHEATER084A00 7.5 / 10.0 NO 1 X X X X X X
CPHEATER086A00 11.3 / 15.0 YES 2 X X X X X
CPHEATER088A00 15.0 / 20.0 YES 2 X X X X
CPHEATER090A00 3.8 / 5.0 NO 1 X X X X
CPHEATER091A00 7.5 / 10.0 NO 1 X X X X
CPHEATER093A00 11.3 / 15.0 NO 2 X X X X
CPHEATER095A00 15.0 / 20.0 YES 2 X X X
NOTE
Electric heaters are r ated at 240v. Refer to Multiplication Factors table for other voltages.
LEGEND
ODS—Order D istribution System
Nominal
Capacity
Used With Sizes
208/230 —SINGLE PHASE —60 Hz
208/230 -- THREE PHASE -- 60 Hz
5
FILTER RACK
MANUAL OUTSIDE AIR DAMPER
704C
EVAPORATOR
COIL
BEND FLANGE AT 90°-SCREW TO
DIVIDER WITH 1-IN. SCREW
TOP FILTER RACK
BOTTOM FILTER
RACK
REPLACEMENT
PANEL
MANUAL OUTSIDE
AIR HOOD
DAMPER
BLADE
6
A06120
704C
704C024--036 Unit Dimensions
7
704C
A06121
704C042--060 Unit Dimensions
8
Loading...
