Bryant 551A, 558F, 551B User Manual

COMMERCIAL
SINGLE PACKAGE ROOFTOP
ELECTRIC COOLING UNITS

551B036-072
558F036-073

551B090-150
551A155,180
558F180-210
559F180-216

558F090-150

551A, 551B, 558F, 559F

Pac

and

Plus Series

Sizes 036-300

3 to 25 Tons

Dura

Dura

Pac

558F240
559F240-300

FEATURES/BENEFITS

• Efficient cooling using hermetic compressors.

• Full range of electric heat sizes available — exactly the right
size for your needs.

• Accessory hydronic glycol heating coils are available for unit
sizes 155-300.

• High reliability — non-corrosive condensate pans (036-150),
prepainted cabinets and primed interior panels, and all units
are fully protected by internal safeties.

• Quietest operation in the industry — all compressors
mounted on independent vibration isolators. Standard
belt-driven evaporator fan motors on all units (except
558F036-060).

• Ease of maintenance achieved by standard size filters, tool­less filter access, simple compressor access, permanently
lubricated fan motors, optional disconnect switch, optional
115-v convenience outlet, and optional hinged access
panels.

• Perfect Humidity™ dehumidification package (not available
on 558F036-150 units). This factory-installed option im­proves the dehumidification capability of the rooftop unit and
helps control humidity levels in the conditioned space.

BRYANT MEANS TOP QUALITY AND RELIABILITY —

component utilized in these units is designed and tested for a
minimum of 15 years operation under the harshest conditions.

Every unit is thoroughly run tested at the factory in each oper­ating mode and evacuated prior to final charging. Every coil is
leak-tested with helium particles. Automated run testing allows
accurate impartial tests and measurements which are second
to none in the industry.

Each

558F300

Each unit contains a factory printout indicating tested
pressures, amperages, dates, and inspectors, providing certifi­cation of the unit’s status at the time of manufacture.

Units are equipped with valuable safety controls designed to
monitor and protect the unit for life. The standard safeties
include:

• low-pressure/loss-of-charge switch

• high-pressure switch

• freeze-protection thermostat

• internal compressor overload

• exclusive Cycle-LOC™ circuit board that provides compres­sor anti-cycling (except 558F036-150)

• refrigerant filter drier

The cabinet is constructed of galvanized steel, bonderized and
coated with a prepainted baked enamel finish. The paint finish
is a non-chalking type, and is capable of exceeding Federal
Test Method Standard No. 141 (Method 6061) 500-Hour Salt
Spray Test. In addition, all internal cabinet panel surfaces are
primed, allowing the entire unit to have a longer life and more
attractive appearance.

EASY MAINTENANCE AND INSTALLATION
All Units are Factory Shipped in the Vertical Discharge

Configuration

sory curb fits sizes 036-072; accessory curbs fit sizes 090-150
and 155-300.) The contractor can order and install the roof
curbs early in the construction stage, before decisions on size
requirements have been made.

All Units Feature Roll-Formed Baserail

slots on 3 sides of the unit and rigging holes for easier maneu­vering and installation. Stretch-wrap packaging protects the
unit during shipment and storage.

for fit-up to standard roof curbs. (One acces-

design with forklift

Form No. PDS 558F.36.2

Units are Easily Converted

tions to make retrofit and add-on jobs easier. To convert
from vertical to horizontal discharge, simply relocate 2 panels
(036-150).

The same basic unit can be used for a variety of applications
and can be quickly modified at the jobsite. Standard high­performance, belt-driven, evaporator-fan motors enable the
551B036-150 units to operate in most ductwork configurations.

Ductwork Connections are Simplified

aspect ratio. On vertical discharge units, ductwork attaches
directly to the roof curb.

Thru-the-Bottom Service Connection

and control wiring to be routed through the unit basepan and
roof curb (if installed), thereby minimizing roof penetrations (to
prevent water leaks). Both power and control connections are
made on the same side of the unit to simplify installation.

The Non-Corrosive, Sloped, Condensate Drain Pan

conformance with ASHRAE (American Society of Heating,
Refrigeration, and Air Conditioning Engineers) Standard 62 to
meet many Indoor-Air Quality (IAQ) specifications. The conden­sate drain pan offers both bottom and end drain capability to
minimize roof penetrations. The bottom drain can be used in
conjunction with the thru-the-bottom connections. An external
trap must be field supplied (035-150).

Standard 2-in. Throwaway Filters

through a removable filter access panel located directly above
the air intake hood; no tools are required to change the filters.

All Units are Designed with a Single Continuous Top Piece

to eliminate leaking at the seams or gasketing (036-150).

Belt-Driven Evaporator-Fan Motors on All Sizes

mum on-site flexibility without changing motors or drives (except
558F036-060).

Low-Voltage Wiring Connections

terminal board which is conveniently located for quick simple
access.

Single-Point Electrical Power Connections

wire estimating and connections.

Field-Installed Accessory Electric Heaters

wide range of capacities. Single-point wiring kit makes installa­tion simple.

QUIET, EFFICIENT OPERATION AND DEPENDABLE
PERFORMANCE

All Units are Equipped with Compressors

metic with internal vibration isolators for extremely quiet and
highly efficient operation. Compressors are mounted on an
independent plate for additional sound integrity and structural
support. Efficient condenser fan and motor design permits
operation at low sound levels.

Totally Enclosed Condenser Fan Motors

lubricated bearings provide additional dependability.

All Coils Use State-of-the-Art Internally Enhanced Copper
Tubing.

factory. Condenser coils have louvered, aluminum lanced fins to
provide maximum heat transfer for optimum efficiency and easy
cleaning.

Refrigerant Circuit Protection

have standard:

Coils are thoroughly leak and pressure tested at the

1. Loss-of-charge/low-pressure protection switch which allows
operation at lower ambient conditions while protecting
against low-charge operation.

2. Freeze-protection thermostat, which protects against evap­orator coil frost build-up.

3. High-pressure switch, which protects against above normal
operating pressure.

from vertical to horizontal applica-

by the logical 2 to 1

capability allows power

is in

are easily accessed

allow maxi-

are easily made due to the

permit easier

are available in a

that are fully her-

and permanently

ensures dependability. All units

4. Filter driers, which trap moisture and debris in the refrigera­tion system.

5. A fixed orifice metering system precisely controls refrigerant
flow (sizes 036-150), preventing slugging and floodback,
while maintaining optimum unit performance by meter­ing the circuits individually. TXV meeting system on
sizes 155-300.

Two Independent Compressor Circuits

units) provide pinpoint comfort control, improved efficiency, and
back-up capability.

BRYANT CONTROLS ADD RELIABILITY, EFFICIENCY, AND
SIMPLIFICATION

The Standard Control System

ventional and programmable thermostats.

Patented Cycle-LOC™ Protection System

tion against compressor cycling by monitoring compressor cur­rent (except 558F036-150). When a lack of compressor current
exists, the Cycle-LOC circuit board locks out the compressors.
Cycle-LOC may be manually reset by simply switching the ther­mostat to OFF, and back to the Cooling or AUTO modes. No use
of the unit power disconnect switch is required.

INDOOR-AIR QUALITY (IAQ)

Bryant rooftop units utilize certain key features that assist in
improving the quality of the building air. Sloped condensate
pans eliminate possible biological growth in the rooftop unit. A
face-split indoor coil design (all 090-300 size units) proves
effective in additional moisture removal from the supply air.
Two-in. filters are standard in all rooftop units with an optional
filter status sensor available.

Another Optional Indoor-Air Quality (IAQ) Feature

Perfect Humidity™ dehumidification package (except 558F036-

150). This is a factory-installed option that provides increased
dehumidification by cooling the hot liquid refrigerant leaving the
condenser coil. The Perfect Humidity option consists of a sub­cooling coil located on the leaving-air side of the evaporator coil.
The location of this coil in the indoor airstream enhances the
latent capacity of the units by as much as 40%. Many buildings
suffer from humidity damage or poor indoor air quality due to
humid conditions. The improved latent capacity provided by the
Perfect Humidity option reduces the building’s humidity, elimi­nating potential property damage and making the space more
comfor table.

The Perfect Humidity option makes units ideal IAQ rooftops for
hot and humid regions. The operation of the Perfect Humidity
package can be controlled by a field-installed, wall-mounted
humidistat, or light commercial thermidistat. The circuit acti­vates only when needed (using the accessory humidistat) as
opposed to some dehumidification systems that operate contin­uously. The humidistat can be set for any humidity level
between 20% and 80% relative humidity.

SERVICEABILITY
Servicing a Rooftop Unit has Never Been Easier

new factory-installed Hinged Panel Option (except 558F036-

150). This option includes hinged access panels for the filter,
compressor, evaporator-fan motor, and control box areas.
These panels provide quick and simple access to the major
components by simply unlocking and swinging open the differ­ent panels. Each hinged access panel is permanently attached
to the rooftop unit, eliminating the problem of access panels
being dropped and creating a hole in the roof (potentially caus­ing a water leak). This type of damage could void any warranty
offered for a new roof.

Standardized Components

are found in all safety devices, condenser-fan motors, and con­trol boards. This allows for greater inventory control, familiarity,
and fewer stocked parts.

is readily adaptable to all con-

for the complete line of products

(all 090-300 size

provides protec-

is the

with the

2

Easily Accessible Refrigerant Access Ports

charge, suction, and liquid lines permit easy and accurate
measurements.

Resettable 24-V Circuit Breaker (Sizes 090-150)

for error without replacing transformers or fuses.

Single-Side Utility Connections

form any necessary service.

provide easy access to per-

on all dis-

allows room

TABLE OF CONTENTS

Page

Features/Benefits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Options and Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10

Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-13

Typical Wiring Schematic . . . . . . . . . . . . . . . . . . . . . . . . . 14-18

Typical Piping and Wiring . . . . . . . . . . . . . . . . . . . . . . . . . .19,20

Application Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21-25

558F036-150

Model Number Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . 26

ARI Capacity Ratings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Physical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27,28

Base Unit Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . 29-32

Accessory Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . .33,34

Selection Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Performance Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36-64

Electrical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65-70

551B036-150

Model Number Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . 71

ARI Capacity Ratings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Physical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72,73

Base Unit Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . .74,75

Accessory Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . .76,77

Selection Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Performance Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79-97

Electrical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98-105

Guide Specifications — Sizes 036-150
559F180-300

Model Number Nomenclature . . . . . . . . . . . . . . . . . . . . . . . 109

. . . . . . . . . . . 106-108

Color-Coded Wires
Indoor Fan Motors

door to facilitate servicing and adjusting after installation.

Compressors and Safety Switches are Easily Accessible

troubleshooting and system analysis.

ARI Capacity Ratings. . . . . . . . . . . . . . . . . . . . . . . . . . .109,110

Physical Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111,112

Base Unit Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . 113,114

Accessory Dimensions . . . . . . . . . . . . . . . . . . . . . . . . .115-117

Selection Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

Performance Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . .119-126

Electrical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .127,128

558F180-300

Model Number Nomenclature . . . . . . . . . . . . . . . . . . . . . . . 129

ARI Capacity Ratings. . . . . . . . . . . . . . . . . . . . . . . . . . .129,130

Physical Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131,132

Base Unit Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . .133-135

Accessory Dimensions . . . . . . . . . . . . . . . . . . . . . . . . .136-138

Selection Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

Performance Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . .140-147

Electrical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .147,148

551A155-180

Model Number Nomenclature . . . . . . . . . . . . . . . . . . . . . . . 149

ARI Capacity Ratings. . . . . . . . . . . . . . . . . . . . . . . . . . .149,150

Physical Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151,152

Base Unit Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153

Accessory Dimensions . . . . . . . . . . . . . . . . . . . . . . . . .154-156

Selection Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157

Performance Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . .158-163

Electrical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164

Guide Specifications — Sizes 155-300

permit easy tracing and diagnostics.

are accessible through a single access

for

Page

. . . . . . . . . . .165-168

3

OPTIONS AND ACCESSORIES

100% Open Two-Position Damper (036-150)
25% Open Two-Position Damper (036-150)
Barometric Relief Damper (150-300)

(Not for use with horizontal roof curb)
Condenser Coil Grille (036-150)
Condenser Coil Hail Guard Assembly (036-300)
Convenience Outlet
Copper Fins Indoor and Outdoor Coil
Copper Fins Outdoor Coil
Double Wall in Unit Airstream (155-300)
Durablade Integrated Economizer (036-150)
E-Coat Outdoor Coil (Aluminum)
EconoMi$er
Electronic Programmable Thermostat
Enthalpy or Differential Enthalpy Sensor
Fan/Filter Status
Flue Discharge Deflector (036-150)
Flue Shield (036-150)
Head Pressure Controls
High-Static Motor and Drive (except 208/230 v, 1 phase)
Hinged Access Panels (except for 558F036-150)
Horizontal Adapter Curb (155-300)
Hot Gas Bypass (155-300)
Indoor Air Quality (CO

(EconoMi$er Only)
Johnson METASYS Control
Light Commercial Thermidistat

(for use with Perfect Humidity™ package)
Low Ambient Kit
Low NO
LP (Liquid Propane) Conversion Kit
Manual Outdoor-Air Damper
Perfect Humidity Dehumidification Package

(except for 558F036-150)
Motormaster® I, II, III, IV Head Pressure

Control (Cycle Control)
Novar Control
Power Exhaust (no barometric relief 150-300)
Power Exhaust Transformer for 575 v (036-150)
Pre-coat Aluminum Fins on Outdoor Coil
Return Air Temperature Sensor

(EconoMi$er Only)
Roof Curbs
Smoke Detectors
Thermidistat
Thermostats and Subbases
Thru-the-Bottom Utility Connections (036-150)
Time Guard® II Control Circuit
Unit-Mounted Non-Fused Disconnect
UVC Lamps
Winter Start Time Delay (155-300)

*Factory-installed.

†Field-installed.

**Design Enhancement Center (DEC) special order only.

NOTES:

1. Refer to unit price pages or contact your local representative for accessory and option package information.

2. Some options may increase product lead times.

(036-060)

X

ITEM OPTION* ACCESSORY†

X
X
X
X

X
XX

X
X

) Sensor

2

X**

X**

X

X

X

X

X** X

X
X** X

X
X

X

X
X

X

X
X
X
X
X
X

X

X

X

X

X
X

X

X
X

X

X

X
X
X
X

X

4

OPTIONS AND ACCESSORIES (cont)

LOW AMBIENT CONTROLS

Standard units are designed to operate in cooling at outdoor temperatures down to 25 F for size 036-150 units, 40 F for size 150-300 units. With
accessory Motormaster® control (condenser-fan cycling) units can operate at outdoor temperatures down to –20 F. The head pressure controls,
which mount in the condenser section, control the condenser-fan motor to maintain correct condensing temperature.

MOTORMASTER II CONTROL

(CONDENSER FAN CYCLING)

MOTORMASTER IV CONTROL

(CONDENSER FAN CYCLING)

MOTORMASTER I, III CONTROL

(CONDENSER FAN SPEED MODULATOR)

BAROMETRIC RELIEF/POWER EXHAUST

When used with accessory/optional economizer, the baro­metric relief or power exhaust accessory helps to relieve
building overpressurization.

NOTE:

curb.

(155-300 Shown)

This is not available with horizontal supply adapter

5

OPTIONS AND ACCESSORIES (cont)

DURA-SHIELD

Condenser coil options are available to match coil construction to site conditions for the best corrosion durability. Pre-coated coils provide pro­tections in mild coastal environments. All copper coils are best suited for moderate coastal applications, while E-coated coils provide superior
protection in severe coastal and industrial applications.

CONDENSER COIL OPTIONS

CONDENSER COIL PROTECTION APPLICATIONS

DESCRIPTION

Dura-Shield

(

Standard, Al/Cu
Pre-Coated Al/Cu
Cu/Cu
E-Coated Al/Cu
E-Coated Cu/Cu

Al/Cu —
Cu/Cu —

Dura-Shield

E-Coated —
Pre-Coated —

—

Option)

LEGEND

Aluminum Fin with Copper Tube Coil
Copper Fin with Copper Tube Coil
Family of Coil Protection Options
Extremely Flexible and Durable Epoxy Coating Uniformly Applied to the Coil Surfaces.
Epoxy Coating Applied to Fin Stock Material

Standard,

Non-Corrosive

X

Mild

Coastal

X

ENVIRONMENT

Moderate

Coastal

X

Severe

Coastal

XX

Industrial

X

Combined Coastal

and Industrial

Perfect Humidity™ DEHUMIDIFICATION PACKAGE

(036-150)

The Perfect Humidity dehumidification package is a factory-installed option that provides increased dehumidification by cooling the hot liquid refrig­erant leaving the condenser coil. The Perfect Humidity package consists of a subcooling coil located on the leaving-air side of the evaporator coil.
The location of this coil in the indoor airstream enhances the latent capacity of the units by as much as 40%. The Perfect Humidity package includes
the subcooling coil and low-pressure switches, and operation can be controlled by a field-installed, wall-mounted humidistat or thermidistat.

STANDARD INDOOR COIL

DEHUMIDIFICATION COIL

(155-300)

6

OPTIONS AND ACCESSORIES (cont)

CONTROLLER

BAROMETRIC
RELIEF DAMPERS

OUTDOOR AIR
TEMPERATURE
SENSOR

GEAR-DRIVEN
DAMPER

ACTUATOR

ECONOMI$ER
PLUG

LIGHT COMMERCIAL THERMIDISTAT

Field-installed, wall-mounted device combines temperature and
humidity control in one device. The dehumidifier output is used to
control the Perfect Humidity dehumidification package. The occu­pied space humidity has a set point range between 50% and 90%
relative humidity and provides constant fan operation in occupied
mode.

TIME GUARD® CONTROL

Time Guard II Control automatically prevents compressor from
restarting for at least 5 minutes after a shutdown. Accessory pre­vents short cycling of compressor if thermostat is changed rapidly.
Time Guard II control mounts in the control compar tment of unit.

DURABLADE ECONOMIZER

BRYANT COMMERCIAL THERMOSTAT

Designed specifically for use with Bryant commercial systems, this
Bryant programmable thermostat features LED occupied/
unoccupied displays and setback mode which can override continu­ous fan operation.

ECONOMI$ER (036-150)

Exclusive Durablade economizer damper design saves energy while
providing economical and reliable cooling. A sliding plate on the face
of the economizer controls the amount of outdoor air entering the
system. When the sliding plate is closed, it provides a leakproof seal
which prevents ambient air from seeping in or conditioned air from
seeping out. It can be easily adjusted for 100% outdoor air or any
proportions of mixed air. Design includes standard dry-bulb control
and 30% barometric relief capability.

Factory-installed EconoMi$er utilizes a microprocessor-based con­trol, gear drive damper system, low pressure drop characteristics,
built-in spring return (for close upon power loss), and an integral
barometric damper.

EconoMi$er is available for vertical ductwork applications

NOTE:

factory installed.
A vertical EconoMi$er, 2-stage power exhaust and dedicated hori-

zontal EconoMi$er are available for field installation.

7

OPTIONS AND ACCESSORIES (cont)

UNIT-MOUNTED DISCONNECT (Sizes 036-150)

Factory-installed, internally-mounted, NEC (National Electri­cal Code) and UL (Underwriters’ Laboratories) approved
non-fused switch provides unit power shutoff with disconnect
lockout protection capability. The switch is accessible from
outside the unit.

CONVENIENCE OUTLET

UNIT-MOUNTED DISCONNECT (Sizes 150-300)

Factory-installed, internally mounted and externally accessible
115-v female receptacle. Includes 15-amp GFI (Ground Fault Inter­rupter) receptacle with independent fuse protection. Voltage
required to operate convenience outlet is provided by a field­installed transformer.

Factory-installed, internally-mounted, NEC (National Electri­cal Code) and UL (Underwriters’ Laboratories) approved
non-fused switch provides unit power shutoff with disconnect
lockout protection capability. The control box access door is
interlocked with the non-fused disconnect. The non-fused
disconnect must be in the OFF position to open this door.
The switch is accessible from outside the unit.

8

OPTIONS AND ACCESSORIES (cont)

HAIL GUARD COIL GUARD GRILLE (036-150 Only)

Condenser coil hail guard accessory (field installed) protects coils
against damage from hail and other flying debris.

CONTROL BOX HINGED PANEL OPTION*,

581B036-072 UNITS

COMPRESSOR HINGED PANEL OPTION*,

581B090-150 UNITS SHOWN

Coil guard grille protects coils against large objects and
vandalism.

CONTROL BOX HINGED PANEL OPTION*,

581B090-150 UNITS SHOWN

COMPRESSOR HINGED PANEL OPTION*,

581B036-072 UNITS SHOWN

*Hinged access panels not available on 580F models.

9

OPTIONS AND ACCESSORIES (cont)

EVAPORATOR-FAN HINGED PANEL OPTION*

581B036-072

This is included as a factory-installed option. It per­mits quick and simple evaporator-fan access.

FILTER HINGED PANEL OPTION*

This is included as a factory-installed option. It permits tool-less
filter access.

*Hinged panels not available on 580F models.

LP CONVERSION KIT

BURNER SPUDS
(ORIFICES)

LP conversion kit allows the unit to utilize a liquid
propane fuel supply in areas where natural gas is
not available. (Kit shown is for sizes 036-072.)

10

CONTROLS

OPERATING SEQUENCE — SIZE 036-073 UNITS
Cooling, Units Without Economizer —

calls for cooling, terminals G and Y1 are energized. The indoor
(evaporator) fan contactor (IFC), and compressor contactor
no. 1 (C1) are energized and the indoor (evaporator) fan motor
(IFM), compressor no. 1, and condenser fan start. The outdoor
(condenser) fan motor (OFM) runs continuously while unit is
cooling.

Cooling, Units With EconoMi$er —

temperature (OAT) is above the ECON SP set point and the
room thermostat calls for Stage 1 cooling (R to G + Y1), the
indoor (evaporator) fan motor (IFM) is energized and the
EconoMi$er damper modulates to minimum position. The com­pressor contactor is energized to start the compressor and out­door (condenser) fan motor (OFM). After the thermostat is
satisfied, the damper modulates to the fully closed position
when the IFM is deenergized.

When the OAT is below the ECON SP setting and the room
thermostat calls for Stage 1 cooling (R to G + Y1), the
EconoMi$er modulates to the minimum position when the IFM
is energized. The EconoMi$er provides Stage 1 of cooling by
modulating the return and outdoor air dampers to maintain a
55 F supply air set point. If the supply-air temperature (SAT) is
greater than 57 F, the EconoMi$er modulates open, allowing a
greater amount of outdoor air to enter the unit. If the SAT drops
below 53 F, the outdoor air damper modulates closed to reduce
the amount of outdoor air. When the SAT is between 53 and
57 F, the EconoMi$er maintains its position.

If outdoor air alone cannot satisfy the cooling requirements of
the conditioned space, and the OAT is above the MECH CLG
LOCKOUT set point, the EconoMi$er integrates free cooling
with mechanical cooling. This is accomplished by the strategies
below.

Compressor has a 2-minute Minimum On, Minimum Off,

NOTE:

and Interstage delay timer.

1. If Y1 is energized, and the room thermostat calls for Y2
(2-stage thermostat), the compressor and OFM are ener­gized. The position of the EconoMi$er damper is main­tained at its current value.

2. If Y1 is energized for more than 20 minutes, and Y2 is not
energized (whether or not a 2-stage thermostat is used),
the compressor and OFM are energized. The position of the
EconoMi$er damper is maintained at its current value.

3. If Y1 is energized, and the compressor is already energized
(see Step 2) and the room thermostat calls for Y2, the com­pressor continues to operate.

4. If the compressor is energized and the thermostat is satis­fied, the compressor, the OFM, and IFM are deenergized
and the EconoMi$er modulates closed.

When the OAT is below the MECH CLG LOCKOUT set point,
the compressors remain off.

Heating, Units Without Economizer —

through W1, indoor (evaporator) fan contactor (IFC) and heater
contactor no. 1 (HC1) are energized. On units equipped for
2 stages of heat, when additional heat is needed, heater con­tactor no. 2 is energized through W2.

Heating, Units With Economizer —

ture calls for heat through terminal W1, the indoor (evaporator)
fan contactor (IFC) and heater contactor no. 1 (HC1) are ener­gized. On units equipped for 2 stages of heat, when additional
heat is needed, heater contactor no. 2 is energized through W2.
The economizer damper moves to the minimum position. When
the thermostat is satisfied, the damper moves to the fully closed
position.

When the thermostat

When the outdoor-air

Upon a call for heating

When the room tempera-

OPERATING SEQUENCE — SIZE 090-150 UNITS
Cooling, Units Without Economizer —

calls for cooling, terminals G and Y1 are energized. The indoor
(evaporator) fan contactor (IFC), compressor contactor no. 1
(C1) and outdoor fan contactor (OFC) are energized and the
indoor (evaporator) fan motor (IFM), compressor no. 1, and con­denser fans start. The outdoor (condenser) fan motors (OFM)
run continuously while unit is cooling. If the thermostat calls for
a second stage of cooling by energizing Y2, compressor con­tactor no. 2 (C2) is energized and compressor no. 2 starts.

Cooling, Units With EconoMi$er —

temperature (OAT) is above the ECON SP set point and the
room thermostat calls for Stage 1 cooling (R to G + Y1), the
indoor (evaporator) fan motor (IFM) is energized and the
EconoMi$er damper modulates to minimum position. The com­pressor contactor is energized to start the compressor and out­door (condenser) fan motor (OFM). After the thermostat is
satisfied, the damper modulates to the fully closed position
when the IFM is deenergized.

When the OAT is below the ECON SP setting and the room
thermostat calls for Stage 1 cooling (R to G + Y1), the
EconoMi$er modulates to the minimum position when the IFM
is energized. The EconoMi$er provides Stage 1 of cooling by
modulating the return and outdoor air dampers to maintain a
55 F supply air set point. If the supply-air temperature (SAT) is
greater than 57 F, the EconoMi$er modulates open, allowing a
greater amount of outdoor air to enter the unit. If the SAT drops
below 53 F, the outdoor air damper modulates closed to reduce
the amount of outdoor air. When the SAT is between 53 and
57 F, the EconoMi$er maintains its position.

If outdoor air alone cannot satisfy the cooling requirements of
the conditioned space, and the OAT is above the MECH CLG
LOCKOUT set point, the EconoMi$er integrates free cooling
with mechanical cooling. This is accomplished by the strategies
below.

Compressor has a two-minute Minimum On, Minimum

NOTE:

Off, and Interstage delay timer.

1. If Y1 is energized, and the room thermostat calls for Y2
(2-stage thermostat), compressor no. 1 and OFM are ener­gized. The position of the EconoMi$er damper is main­tained at its current value.

2. If Y1 is energized for more than 20 minutes, and Y2 is not
energized (whether or not a 2-stage thermostat is used),
compressor no. 1 and OFM are energized. The position of
the EconoMi$er damper is maintained at its current value.

3. If Y1 is energized, and compressor no. 1 is already ener­gized (see Step 2) and the room thermostat calls for Y2, the
compressor continues to operate. If Y2 remains energized
for more than 20 minutes, compressor no. 2 is energized.

Compressor no. 2 cannot be energized unless there is a

NOTE:

signal for Y2 from the space thermostat.

4. If compressor no. 2 is energized, and the Y2 signal from the
thermostat is satisfied, compressors 1 and 2 are deener­gized. Reasserting Y2 will start compressor no. 1 and (after
a 20-minute interstage delay) compressor no. 2.

5. If compressor no. 1 is energized and the thermostat is satis­fied, compressor no. 1, the OFM, and IFM are deenergized
and the EconoMi$er modulates closed.

When the OAT is below the MECH CLG LOCKOUT set point,
the compressors remain off.

When the thermostat

When the outdoor-air

11

CONTROLS (cont)

Heating, Units Without Economizer —

through terminal W1, indoor (evaporator) fan contactor (IFC)
and heater contactor no. 1 (HC1) are energized. On units
equipped for 2 stages of heat, when additional heat is needed,
HC2 is energized through W2.

Heating, Units With Economizer —

stat calls for heat through terminal W1, the indoor (evaporator)
fan contactor (IFC) and heater contactor no. 1 (HC1) are ener­gized. On units equipped for 2 stages of heat, when additional
heat is needed, HC2 is energized through W2. The economizer
damper moves to the minimum position. When the thermostat is
satisfied, the damper moves to the fully closed position.

SEQUENCE OF OPERATION SIZES 155-300
Cooling, Units Without EconoMi$er —

for cooling, terminals G and Y1 are energized. The indoor
(evaporator) fan contactor (IFC) and compressor contactor no. 1
(C1) are energized and evaporator-fan motor, compressor no. 1,
and condenser fans start. The condenser-fan motors run con­tinuously while unit is cooling. If the thermostat calls for a sec­ond stage of cooling by energizing Y2, compressor contactor
no. 2 (C2) is energized and compressor no. 2 starts.

Heating, Units Without EconoMi$er (If Accessory Heater is
Installed) —

and heater contactor no. 1 (HC1) are energized. On units
equipped for 2 stages of heat, when additional heat is needed,
HC2 is energized through W2.

Cooling, Units With EconoMi$er —

the ECON SP set point and the room thermostat calls for
Stage 1 cooling (R to G + Y1), the indoor-fan motors (IFM) are
energized and the EconoMi$er damper modulates to minimum
position. The compressor contactor and OFC are energized to
start the compressor and outdoor-fan motor (OFM). After the
thermostat is satisfied, the damper modulates to the fully closed
position when the IFM is deenergized.

When the OAT is below the ECON SP setting and the room
thermostat calls for Stage 1 cooling (R to G + Y1), the
EconoMi$er modulates to the minimum position when the IFM
is energized. The EconoMi$er provides Stage 1 of cooling by
modulating the return and outdoor-air dampers to maintain a
55 F supply-air set point. If the supply-air temperature (SAT) is
greater than 57 F, the EconoMi$er modulates open, allowing a
greater amount of outdoor air to enter the unit. If the SAT drops
below 53 F, the outdoor-air damper modulates closed to reduce
the amount of outdoor air. When the SAT is between 53 and
57 F, the EconoMi$er maintains its position.

If outdoor air alone cannot satisfy the cooling requirements of
the conditioned space, and the OAT is above the MECH CLG
LOCKOUT set point, the EconoMi$er integrates free cooling
with mechanical cooling. This is accomplished by the strategies
below.

NOTE:

mum Off.

1. If Y1 is energized, and the room thermostat calls for Y2
(2-stage thermostat), the compressor and OFC are ener­gized. The position of the EconoMi$er damper is main­tained at its current value.

2. If Y1 is energized for more than 20 minutes, and Y2 is not
energized (whether or not a 2-stage thermostat is used),
the compressor and OFC are energized. The position of the
EconoMi$er damper is maintained at its current value.

3. If Y1 is energized, and compressor no. 1 is already ener­gized (see Step 2) and the room thermostat calls for Y2,

Upon a call for heating through terminal W1, IFC

Compressors have a two-minute Minimum On and Mini-

Upon a call for heating

When the room thermo-

When thermostat calls

When the OAT is above

compressor no. 1 continues to operate. If Y2 remains
energized for more than 20 minutes, compressor no. 2 is
energized.

Compressor no. 2 cannot be energized unless there is a

NOTE:

signal for Y2 from the space thermostat.

4. If compressor no. 2 is energized, and the Y2 signal from the
thermostat is satisfied, compressors 1 and 2 are deener­gized. Re-asserting Y2 will start compressor no. 1 and
(after a 20-minute interstage delay) compressor no. 2.

5. If compressor no. 1 is energized and the thermostat is satis­fied, compressor no. 1, the OFM, and IFM are deenergized
and the EconoMi$er modulates closed.

When the OAT is below the MECH CLG LOCKOUT set point,
the compressors remain off.

Freeze Protection Thermostat(s) —

mostat (FPT) is located on the top and bottom of the evaporator
coil. It detects frost build-up and turns off the compressor, allow­ing the coil to clear. Once frost has melted, the compressor can
be reenergized by resetting the compressor lockout.

Heating, Units With EconoMi$er (If Accessory Heater is
Installed) —

ing controls are energized as described in the Heating, Units
Without EconoMi$er section. The IFM is energized and the
EconoMi$er damper modulates to the minimum position. When
the thermostat is satisfied, the damper modulates closed.

Units With Perfect Humidity™ Dehumidification Package —

When thermostat calls for cooling, terminals G and Y1 and/or
Y2 and the compressor contactor C1 and/or C2 are energized.
The indoor (evaporator) fan motor (IFM), compressors, and out­door (condenser) fan motors (OFM) start. The OFMs run
continuously while the unit is in cooling. As shipped from the
factory, both Perfect Humidity dehumidification circuits are
always energized.

If Perfect Humidity circuit modulation is desired, a field-installed,
wall-mounted light-commercial thermidistat (with field-supplied
relay) is required. If the thermidistat is installed and calls for the
Perfect Humidity subcooler coil to operate, the relay switch
closes. This energizes the 3-way liquid line solenoid valve coils
(LLSV1 for circuit 1 and LLSV2 for circuit 2) of the Perfect
Humidity circuits, forcing the warm liquid refrigerant of the liquid
line to enter the subcooler coils.

As the warm liquid passes through the subcooler coils, it is
exposed to the cold supply airflow coming off the evaporator
coils and the liquid is further cooled to a temperature approach­ing the evaporator coil leaving-air temperature. The state of the
refrigerant leaving the subcooler coils is a highly subcooled
liquid refrigerant. The liquid then enters a thermostatic expan­sion valve (TXV) where the liquid is dropped to the evaporator
pressure. The TXVs can throttle the pressure drop of the liquid
refrigerant and maintain proper conditions at the compressor
suction valves over a wide range of operating conditions.
The liquid proceeds to the evaporator coils at a temperature
lower than normal cooling operation. This lower temperature is
what increases the latent and sensible capacity of the evapora­tor coils.

The 2-phase refrigerant passes through the evaporators and is
changed into a vapor. The air passing over the evaporator coils
will become colder than during normal operation as a result of
the colder refrigerant temperatures. However, as it passes over
the subcooler coils, the air will be warmed, decreasing the sen­sible capacity and reducing the sensible heat of the rooftop unit.

When the room thermostat calls for heat, the heat-

A freeze protection ther-

12

CONTROLS (cont)

As the refrigerant leaves the evaporator, the refrigerant passes
a subcooler control low-pressure switch (S-LPS1 for circuit 1 or
S-LPS2 for circuit 2) in the suction line. This low-pressure
switch will deactivate the Perfect Humidity™ package when the
suction pressure reaches 60 psig. The subcooler control low­pressure switch is an added safety device to protect against
evaporator coil freeze-up during low ambient operation. The
subcooler control low-pressure will only deactivate the 3-way
liquid line solenoid valve in the Perfect Humidity circuit. The
compressors will continue to run as long as there is a call for
cooling, regardless of the position of the subcooler control low­pressure switch. The 3-way solenoid valve and the Perfect
Humidity package will be reactivated only when the call for cool­ing has been satisfied, the subcooler control low-pressure
switch has closed above 80 psig, and a new call for cooling
exists. The crankcase heaters on the scroll compressors
provide additional protection for the compressors due to the
additional refrigerant charge in the subcooler.

When the thermidistat is satisfied, the relay internal switch
opens, cutting power to and deenergizing the LLSVs. The
refrigerant is routed back through the evaporators and the
subcooler coils are removed from the refrigerant loops. When
the thermostat is satisfied, C1 and C2 are deenergized and
the compressors, IFM, and OFMs shut off. If the thermostat
fan selector switch is in the ON position, the IFM will run
continuously.

Perfect Humidity™ Dehumidification Option

13

TYPICAL WIRING SCHEMATIC (Single Fan Units, Sizes 036-073)

14

TYPICAL WIRING SCHEMATIC (Two-Fan Units, Size 090-150)

ACTUATOR

50DK509044

WHT/GRY

1

BLK/GRY

3-PIN

2

MOLEX

BRN

3

CONNECTOR CABLE

NOT USED

WHT/YEL
BLK/YEL

24VAC

RED

24COM

BRN

GND

GRN

CL01

GRY

CL02

ORN

DRIVE

STEPPER

B1

Y1

BLU

Y2

YEL

G

BLK

AO

COM

AD-DME1711-1

50DK508232

EconoMi$er

CONFIG

20

10º

STATUS

OAT

TAN

COM

VIO

OAH

WHT

+15V

RED

RAT

TAN

COM

MIN

POS (X)

SP

CO2 (COM)

ECON

LOCKOUT

MECH CLG

(PPM)

CO SP

RAM

+15V

CO2 +

DAT

COM

REM POT

COM

LED

COM

VIO

WHT

RED

VIO

PNK

60

40

80

0

100

C

B

A

D

30º

20º

40º

50º

OFF

1000

1200

800

1400

FIELD INSTALLED
OPTION

OAT

RAT

USED FORMOUTDOOR

AIR ENTHALPY

VIO
WHT
RED

CONNECTOR

RED

BLU

BLK

BRN

GRY

VIO

PNK

YEL

ORN

12-PIN

FEMALE

12

11

10

9

MOLEX

1

2

3

4

5

6

7

8

9

10

11

12

PL6

8

4

7

3

6

2

1

5

15

50DK508234

TYPICAL WIRING SCHEMATIC (Sizes 155-300)

16

AHA —
AWG —
BRK W/AT —
C—
CAP —
CB —
CC —
CH —
CLO —
COMP —
CR —
CT —
DAT —
DM —
DU —
EC —
EQUIP —
ER —
EPS —

FL —
FLA —
FPT —

Adjustable Heat Anticipator
American Wire Gage
Breaks with Amp Turns
Contactor, Compressor
Capacitor
Circuit Breaker
Cooling Compensator
Crankcase Heater
Compressor Lockout
Compressor Motor
Control Relay
Current Transformer
Discharge Air Thermistor
Damper Motor
Dummy Terminal
Enthalpy Control
Equipment
EconoMi$er Relay
Emergency Power Supply
(9 volt)
Fuse Link
Full Load Amps
Freeze Protection Thermostat

TYPICAL WIRING SCHEMATIC (Sizes 155-300)

LEGEND

FSS —
FU —
GND —
HC —
HPS —
HTR —
IFC —
IFCB —
IFM —
IFR —
L—
LOR —
LPS —
LS —
LSM —
OAT —
OFC —
OFM —
OP —
PL —
PRI —
QT —
SAT —

Filter Status Switch
Fuse
Ground
Heater Contactor
High-Pressure Switch
Heater
Indoor-Fan Contactor
Indoor-Fan Circuit Breaker
Indoor-Fan Motor
Indoor-Fan Relay
Light
Lockout Relay
Low-Pressure Switch
Limit Switch
Limit Switch (Manual Reset)
Outdoor-Air Thermostat
Outdoor-Fan Contactor
Outdoor-Fan Motor
Overcurrent Protection
Plug Assembly
Primary
Quadruple Terminal
Supply Air Thermostat

SW —
TB —
TC —
TH —
TRAN —

Switch
Terminal Block
Thermostat Cooling
Thermostat Heating
Transformer

Terminal (Marked)

Terminal (Unmarked)

Terminal Block

Splice

Factory Wiring
Field Wiring
Option/Accessory Wiring
To indicate common potential

only; not to represent wiring.

NOTES:

1. Compressor and/or fan motor(s) thermally protected; 3-phase motors protected
against primary single-phasing conditions.

2. If any of the original wire furnished must be replaced, it must be replaced with
type 90° C wire or its equivalent.

3. Jumpers are omitted when unit is equipped with EconoMi$er.

5. IFCB must trip amps is equal to or less than 140% FLA.

6. The CLO locks out the compressor to prevent short cycling on compressor over­load and safety devices. Before replacing CLO, check these devices.

7. Number(s) indicates the line location of used contacts. A bracket over (2) num­bers signifies a single-pole, double-throw contact. An underlined number signi­fies a normally closed contact. Plain (no line) number signifies a normally open
contact.

17

TYPICAL WIRING SCHEMATIC (cont)

OAT —

LEGEND

Outdoor-Air Thermostat

EconoMi$er Wiring

NOTES:

1. If the Non-Fused Disconnect Option is ordered, the Non-Fused Disconnect will be factory-installed.

2. The Disconnect takes the place of TB-1 as shown on the unit wiring diagram label and the component arrangement label.

Non-Fused Disconnect (Optional)

18

TYPICAL PIPING AND WIRING — SIZES 036-150

Vertical Discharge Ducting

LEGEND

National Electrical Code

NEC —

*Factory-supplied, internally mounted disconnect

available as an option.

Horizontal Discharge Ducting

19

TYPICAL PIPING AND WIRING — SIZES 155-300

LEGEND

NEC —

NOTES:

1. Illustration shown is a general guide only and is not intended to include all details for any specific installation.

2. Installation must comply with all applicable codes.

3. A 90-degree elbow

National Electrical Code

be installed on the supply duct connection for units equipped with electric heat.

must

20

1.

6'-2 3/8'' MAX.

5'-9 3/16'' MAX.

5 3/16''

B

A

BAFFLE

A

B

24'' MIN.

1'-0 3/16''

1'-7 15/16''

4'-6 13/16''

1'-0 3/16''

1'-10 11/16''
MAX.

CONDENSATE DRAIN PAN —

A sloped condensate drain
pan is supplied on all units. The condensate drain pan must
be externally trapped. Condensate drains are located on
both the bottom and end of the unit. The bottom drain can
be used for thru-the-curb connections.

2.

DUCTWORK —

All ductwork must be attached to flanges. If
no flanges are present, they must be field supplied. Secure
vertical discharge ductwork to roof curb. For horizontal dis­charge applications, attach ductwork to flanges. Field­supplied flanges can be attached to horizontal discharge
openings and all ductwork attached to flanges.

3.

THRU-THE-BOTTOM SERVICE CONNECTIONS —

the-bottom connections allow field power wires and control
wires to enter through the basepan.

4.

THERMOSTAT —

Use of 2-stage cooling thermostat is

recommended for all units equipped with economizer.

5.

HEATING-TO-COOLING CHANGEOVER —

All units are
automatic changeover from heating to cooling when auto­matic changeover thermostat and subbase are used.

6.

AIRFLOW —

Units are draw-thru on cooling and blow-thru

on heating.

7.

MAXIMUM AIRFLOW —

To minimize possibility of conden­sate blow-off from evaporator, airflow through units should
not exceed 500 cfm/ton.

8.

MINIMUM AIRFLOW —

Minimum airflow for cooling is

300 cfm/ton for unit sizes 036-240, 280 cfm/ton for size 300.

9.

MINIMUM AMBIENT OPERATING TEMPERATURE —

Minimum operating temperature for standard 036-150 units
is 25 F, for standard 155-300 units is 40 F. With accessory
Motormaster® or Motormaster IV control, units can operate
at outdoor temperatures down to –20 F.

10.

MAXIMUM OPERATING OUTDOOR-AIR TEMPERATURE

Maximum outdoor-air operating temperature for cooling

—

is 125 F (115 F for 558F036-150 units).

APPLICATION DATA

11.

MOTOR DATA —

thru over the motor), air path, and specially designed
motors, the full horsepower (maximum continuous bhp)
listed in the Physical Data table and in each Fan Perfor­mance table can be utilized with extreme confidence.

Using Bryant motors to the values listed in the Physical
Data, Fan Performance, and Evaporator-Fan Motor Data
tables
failure. In addition, the unit warranty will not be affected.

12.

PERFECT HUMIDITY™ DEHUMIDIFICATION PACKAGE

Thru-

—

subcooling the hot liquid refrigerant leaving the condenser
coil. The Perfect Humidity package consists of a subcooling
coil located on the leaving-air side of the evaporator coil.
The location of the coil in the indoor airstream enhances the
latent capacity of the rooftop units by up to 40%.

Many buildings suffer damage or have poor indoor-air qual­ity due to overly humid conditions. Building humidity must
be controlled for the following reasons:

a.

b.

Due to Bryant’s internal unit design (draw-

result in nuisance tripping or premature motor

will not

This option provides greater dehumidification by further

INDOOR-AIR QUALITY —

Humidity is a major factor in
the growth and propagation of mold and mildew in a
building. The mold and mildew can spread quickly and
grow in carpets and ductwork and on walls, and often
causes cases of sick building syndrome. This syndrome
can lead to employee absenteeism due to illness, lower
worker productivity, and increased health care costs. The
American Society of Heating, Refrigeration, and Air Con­ditioning Engineers (ASHRAE) recommends that relative
humidity levels in buildings be maintained below 70%.

COMFORT LEVELS —

High humidity levels cause the
occupied space to become uncomfortable, because
humidity interferes with the body’s natural cooling pro-
cess (evaporation at the skin surface).

NOTE:

1. Do not drill in this area, damage to basepan may result in
water leak.

2. A 90-degree elbow must be provided in the supply ductwork
to comply with UL (Underwriters’ Laboratories) codes for use
with electric heat.

Concentric Duct Distribution —

Unit Sizes 155-300

Shaded area indicates block-off panels.

Dimensions A, A′ and B, B′ are obtained from field-supplied

NOTE:

ceiling diffuser.

CAUTION:

without electric heat. Personal injury or unit damage may result.

Concentric ducts may only be installed on units

Concentric Duct Details — Unit Sizes 155-300

21

APPLICATION DATA (cont)

c.

HUMIDITY DAMAGE —

damage, such as stained wallpaper and ceiling tiles.
Humidity can also damage books and artwork, and cre­ate strong odors in carpets. In addition, humidity can
contribute to unacceptable product quality in industrial
processes.

d.

IMPROPER VENTILATION —

humid geographical areas cannot be properly ventilated
due to high humidity levels outdoors, resulting in poor
indoor-air quality.

e.

EQUIPMENT INEFFICIENCY —

inefficient operation of refrigerators and freezers.

f.

INCREASED ENERGY COSTS —

humidity levels and less comfortable conditions, thermo­stat set points are lowered to force the HVAC (heating,
ventilation, and air conditioning) equipment to run longer
and work harder to lower the humidity levels. Also, in an
attempt to control humidity, system designers typically
oversize HVAC equipment and add reheat capability to
get the desired latent capacity. This results in higher ini­tial equipment costs, as well as increased energy
expenses throughout the life of the unit.

Applications

There are many different rooftop unit applications that are
susceptible to problems caused by high humidity levels.
Some common applications include:

a.

RESTAURANTS —

have many humidity-producing activities, such as dish
washing and cooking.

b.

SUPERMARKETS —

ciency in operation of refrigeration and freezer systems.

c.

MUSEUMS AND LIBRARIES —

books and artwork.

d.

GYMNASIUMS, LOCKER ROOMS, AND HEALTH
CLUBS —

uncomfortable occupied space conditions.

e.

HOT AND HUMID CLIMATES —

United States is a good example of this application. The
Perfect Humidity dehumidification package becomes
particularly useful when increased amounts of the hot
and humid outdoor air need to be brought into the build­ing for proper ventilation.

13.

PERFECT HUMIDITY DEHUMIDIFICATION PACKAGE
DESIGN EFFECTS —

the Perfect Humidity dehumidification package, refer to the
pressure enthalpy curve, and analyze the Perfect Humidity
package effects on the refrigerant in the rooftop unit. The
pressure enthalpy curve shows the refrigerant cycle for a

rooftop unit.
Standard Unit Refrigerant Cycle
At point no. 1 in the pressure enthalpy curve, vapor leaving the

compressor at a high pressure and a high temperature enters
the condenser. The condenser removes heat from the refriger­ant, lowers its temperature, and changes it to a liquid. At point
no. 2, the liquid leaves the condenser and enters a fixed expan­sion device that lowers the pressure of the refrigerant. At point
no. 3, the liquid enters the evaporator coil, where the refrigerant
increases in temperature and changes back to a vapor. At point
no. 4, the vapor leaves the evaporator and reenters the
compressor.

Shower areas and human perspiration cause

Humidity causes property

Buildings in hot and

Humidity can cause

Because of high

The kitchen areas of restaurants

High humidity levels cause ineffi-

Humidity can damage

The southeastern

To fully understand the operation of

Refrigerant Cycle Using Perfect Humidity™ Dehumidification
Package

When a subcooler coil is added to the rooftop unit, the refriger­ant is affected in such a way that the unit latent capacity is
increased. The refrigerant cycle follows the same path from
point no. 1 to point no. 2 as the standard refrigerant cycle with­out a subcooler (see the pressure enthalpy curve). However, at
point no. 2, the liquid refrigerant enters the subcooler coil where
the temperature is lowered further. At point no. 2A, this sub­cooled liquid enters the TXV, which drops the pressure of the
liquid. At point no. 2B, the liquid enters the fixed orifice metering
device. The refrigerant leaves this device as a saturated vapor
and enters the evaporator at point no. 2C. The improved refrig­eration effect can now be seen between point no. 2C and point
no. 3. The increase in the total refrigeration effect is the addi­tional enthalpy gained from point no. 2C to point no. 3. However,
the subcooler coil rejects this added refrigeration effect to the
air downstream of the evaporator coil, thus maximizing the over­all latent effect. This improved latent effect is a direct result of
the addition of the Perfect Humidity subcooler coil to the refrig­erant cycle.

Latent Capacity Effects
Refer to the psychrometric chart to see how the sensible heat

factor decreases when the optional Perfect Humidity dehumidifi­cation package is installed. This chart contains data for the
5-ton unit operation, both with and without the Perfect Humidity
package, at 1750 cfm. Point no. 1 on the chart represents the
return-air dry bulb (80 F) and wet bulb (67 F) conditions. Point
no. 2 represents the supply-air conditions for a standard rooftop
unit without the Perfect Humidity dehumidification package.
Point no. 3 represents the supply-air conditions for a rooftop unit
with the Perfect Humidity package. By connecting point no. 1
and point no. 2 on the chart and finding the intersection on the
sensible heat factor scale, the sensible heat factor is 0.73. Con­nect point no. 1 and point no. 3, and see that the sensible heat
factor is 0.58. This is a 17.5% increase in latent capacity for the
given conditions. This increase in latent capacity allows the
rooftop units to remove more moisture from the conditioned
space; thus lowering the humidity levels.

Dehumidification Effects
Further evidence of dehumidification can be seen by analyzing

the pounds of water per pound of dry air found in the supply air.
At point no. 2 in the psychrometric chart, there are 65 grains
(0.0092 lb) of moisture per pound of dry air. At point no. 3, there
are 58 grains (0.0083 lb) of moisture per pound of dry air. This
is a 12.1% decrease in the amount of water in the supply air.

14.

PERFECT HUMIDITY DEHUMIDIFICATION PACKAGE
OPERATING PERFORMANCE —

midification package operation does not affect the electrical
data. The electrical data remains the same either with or
without the Perfect Humidity package.

The operating and shipping weights will be slightly
increased with the addition of the Perfect Humidity sub­cooler. See the Physical Data table for added base unit
weight with this option.

Refer to cooling performance data, both with and without
the Perfect Humidity dehumidification package. Note the
greatly improved latent capacity with the Perfect Humidity
dehumidification package.

Static pressure is also slightly affected by the addition of the
Perfect Humidity dehumidification package. See Static
Pressure Drop table on page 94 when using this option.

Perfect Humidity dehu-

22

APPLICATION DATA (cont)

15. PERFECT HUMIDITY DEHUMIDIFICATION PACKAGE
FEATURES AND BENEFITS

• The Perfect Humidity dehumidification package can improve

the humidity control of your rooftop equipment by up to 40%.
This greatly reduces the risk of sick building syndrome by
reducing biological growth in both ductwork and the rest of
the building.

• The Perfect Humidity dehumidification package improves

comfort levels in the building by better controlling the humid­ity. This improved comfort level allows building tenants to
raise the cooling set point on the thermostats for accumu­lated energy savings.

• Better humidity control lowers the risk of humidity-induced

property damage.

• The Perfect Humidity dehumidification package permits build-

ing refrigerators and freezers to operate more efficiently due
to lower relative humidity levels. This is the perfect solution for
supermarket applications.

• The Perfect Humidity subcooling circuit can be operated by a

humidity sensor. If the sensor is used, the Perfect Humidity
circuit will then only operate when needed. If the humidity lev­els in the occupied space are acceptable (such as in the
spring and fall seasons), the Perfect Humidity circuit will not
operate. The rooftop unit is then able to operate to its full sen­sible potential, which provides more efficient performance
and energy savings.

• At lower outdoor temperatures, rooftop units with dehumidifi-

cation devices are subject to low suction pressure conditions.
The Perfect Humidity dehumidification package contains a
low-pressure switch that deactivates the Perfect Humidity
dehumidification package under low suction pressure condi­tions without deactivating the compressors.

• Improved humidity control allows increased outdoor-air venti­lation in hot and humid geographical areas. Humidity control
also helps to improve the indoor-air quality of the building.

• The Perfect Humidity dehumidification package is factory
installed. There are no additional field installation costs.
There is also no need to purchase a roof curb from another
manufacturer, as standard Bryant roof curbs will accommo­date the rooftop units which have the Perfect Humidity dehu­midification package option installed.

• The Perfect Humidity dehumidification package is engineered
and manufactured by Bryant for Bryant rooftop units. All
application support, service, and warranty issues can there­fore be handled through one company.

• The slightly lower sensible capacities obtained when using
the Perfect Humidity dehumidification package allow the unit
to operate for an extended period of time. The more the unit
operates, the more air is exposed to the subcooling coil. This
rooftop unit increased latent capacity results in lower relative
humidity levels in the occupied space.

• It is no longer necessary to oversize equipment and add
reheat devices to properly dehumidify your building. In a typi­cal scenario, a building owner may need 39,000 Btuh of sen­sible capacity and 23,000 Btuh of latent capacity (62,000 total
Btuh). To accomplish this without the Perfect Humidity dehu­midification package, a 7

1

/2-ton unit with a reheat device
would be necessary to attain the higher latent capacity
required. This results in a large up-front expense to oversize
the equipment from a standard 5-ton to a 7

1

/2-ton unit.

The building owner can now purchase a 5-ton unit with the
Perfect Humidity dehumidification package for a small addi­tional up-front charge, and no reheat device will be necessary
to satisfy the cooling requirements. This reduces both installa­tion costs and operating costs throughout the life of the
product.

23

APPLICATION DATA (cont)

Pressure Enthalpy Curve

Numbers 1 through 4 indicate point numbers referred to in Perfect Humidity™ Dehumidification Package Design Effects section.

NOTE:

24

APPLICATION DATA (cont)

Entering Air (F) 80 db/67 wb

Point 1 —

Leaving Air (F) 58.9 db/56.4 wb

(Without Subcooler)

Point 2 —

Leaving Air (F) 63.0 db/56.8 wb

(With Subcooler)

Point 3 —

Psychrometric Chart (551B072 Shown)

Dry Bulb

Wet Bulb

LEGEND

db —

wb—

25

MODEL NUMBER NOMENCLATURE — 558F

a

558F E X 090 000 KB

558F – Packaged Rooftop

Standard Efficiency
Electric Cooling Unit

558F036-150
0TFQ004-012

Voltage Designation
J – 208/230-1-60
P – 208/230-3-60
E – 460-3-60
T – 575-3-60

X – No Heat Installed

(Field-installed electric heaters available)

Nominal Tons
036 – 3
048 – 4
060 – 5
072 – 6
073 – 6*

091 – 7 1/2*
102 – 8 1/2
120 – 10
121 – 10*
150 – 12 1/2

090 – 7 1/2

*558F073,091,121 units are rated as mid-efficiency units.

The example model number 558FEX090000KB designates a 7

NOTE:

with EconoMi$er and alternate drive.

UNIT

558F

036
048
060

NOMINAL

TONS

STANDARD

CFM

3 1200 35,000 4.0 10.0 9.7 81
4 1600 47,000 5.5 10.0 9.7 81
5 2000 57,000 6.7 10.0 9.7 81

1

/2 ton 460-3-60 volt electric cooling rooftop unit

ARI* CAPACITY RATINGS

NET COOLING

CAPACITY

(Btuh)

TOTAL

kW

Factory-Installed

Option Codes

Electric Heaters
000 – No factory-installed electric he

SEER† SOUND

Belt Drive Direct Drive

RATING

(dB)

UNIT
558F

072**
073
090**

091
102**
120**
121
150**

NOMINAL

TONS

STANDARD

CFM

6 2100 72,000 8.0 9.0 81 ††
6 2400 71,000 6.9 10.3 81 N/A

1

/

7

2

1

/

7

2

1

/

8

2

2800 85,000 9.6 8.9 87 9.40
3000 89,000 8.4 10.3 87 10.6

3000 98,000 11.0 9.0 87 9.00
10 4000 117,000 13.0 9.0 88 9.40
10 4000 115,000 11.1 10.3 88 10.6

1

12

/

2

4500 144,000 15.8 9.2 87 9.20

NET COOLING

CAPACITY

(Btuh)

LEGEND

dB —
db —
EER —
IPLV —
SEER —
wb —

*Air Conditioning and Refrigeration Institute.

†Applies only to units with capacity of 65,000 Btuh or less.

Sound Levels (decibels)
dry bulb
Energy Efficiency Ratio
Integrated Part-Load Values
Seasonal Energy Efficiency Ratio
wet bulb

**Not ASHRAE 90.1 compliant.

††The IPLV applies only to 2-stage cooling units.

NOTES:

1. Rated in accordance with ARI Standards 210/240-94 (036-121) or
340/360-93 (150) and 270-95.

2. Ratings are net values, reflecting the effects of circulating fan heat.

TOTAL

kW

3. Ratings are based on:

Cooling Standard:

ture and 95 F db air entering outdoor unit.

IPLV Standard:

and 80 F db outdoor entering-air temperature.

4 All 558036-060, 073, 091, 121 units are in compliance with ASHRAE

EER

80 F db, 67 F wb indoor entering-air tempera-

80 F db, 67 F wb indoor entering-air temperature

SOUND
RATING

(dB)

IPLV

90.1-1999 Energy Standard for minimum SEER and EER require­ments. Refer to state and local codes or visit the following website:
http://solstice.crest.org/efficiency/bcap

to determine if compliance
with this standard pertains to a given geographical area of the United
States.

California, Maryland, Washington, Wyoming, Massachusetts and
various local and state building codes adopted the ASHRAE 90.1-99
efficiency standard on October 29, 2001.

26

PHYSICAL DATA — 558F036-073

UNIT SIZE 558F 036 048 060 072 073
NOMINAL CAPACITY (tons)

OPERATING WEIGHT (lb)

Unit

Al/Al*
Al/Cu*
Cu/Cu*
EconoMi$er

Roof Curb†

COMPRESSOR

Quantity
No. Cylinders (per circuit)
Oil (oz)

REFRIGERANT TYPE

Operating Charge (lb-oz)

Circuit 1
Circuit 2

CONDENSER COIL

Rows...Fins/in.
Total Face Area (sq ft)

CONDENSER FAN

Nominal Cfm
Quantity...Diameter (in.)
Motor Hp...Rpm
Watts Input (Total)

EVAPORATOR COIL

Expansion Device
Rows...Fins/in.
Total Face Area (sq ft)

EVAPORATOR FAN

Quantity...Size (in.) Std

Type Drive Std

Nominal Cfm
Maximum Continuous Bhp Std

Motor Frame Size Std

Nominal Rpm High/Low Std

Fan Rpm Range Std

Motor Bearing Type
Maximum Allowable Rpm
Motor Pulley Pitch Diameter Min/Max (in.) Std

Nominal Motor Shaft Diameter (in.) Std

Fan Pulley Pitch Diameter (in.) Std

Belt, Quantity...Type...Length (in.) Std

Pulley Center Line Distance (in.) Std

Speed Change per Full Turn of

Movable Pulley Flange (rpm) Std

Movable Pulley Maximum Full Turns

From Closed Position Std

Factory Setting Std

Factory Speed Setting (rpm) Std

Fan Shaft Diameter at Pulley (in.)

HIGH-PRESSURE SWITCH (psig)

Standard Compressor Internal Relief (Differential)
Cutout
Reset (Auto.)

LOW-PRESSURE SWITCH (psig)

Cutout
Reset (Auto.)

FREEZE-PROTECTION THERMOSTAT (F)

Opens
Closes

Alt
High-Static

Alt
High-Static

Alt
High-Static

Alt
High-Static

Alt
High-Static

Alt

High-Static

Alt
High-Static

Alt
High-Static

Alt
High-Static

Alt
High-Static

Alt
High-Static

Alt
High-Static

Alt
High-Static

Alt
High-Static

Alt
High-Static

OUTDOOR-AIR INLET SCREENS

Quantity...Size (in.)

RETURN-AIR FILTERS

Quantity...Size (in.)

LEGEND

Aluminum

Al —

Brake Horsepower

Bhp —

Copper

Cu —

*Evaporator coil fin material/condenser coil fin material. Contact your local representative for

details about coated fins.

†Weight of 14-in. roof curb.

**Single phase/three phase.

The 558F036-150 units have a loss-of-charge switch located in the liquid line..

NOTE:

34566

365 375 395 470 520
370 381 402 479 530
373 387 410 490 540

47 47 47 47 47

115 115 115 115 115

Reciprocating

11111
22222

50 50 50 54 54

Reciprocating Reciprocating Scroll Scroll

R

R-22

4-4 6-6 6-14 9-0 5-0

—————

1...17 2...17 2...17 2...17 2...17

8.36 8.36 10.42 10.42 10.42

3500 4000 4000 4000 4000

1...22.0 1...22.0 1...22.0 1...22.0 2...22

1

/4...1100

325 325 325 325 325

2...15 2...15 3...15 4...15 4...15

4.17 5.5 5.5 5.5 5.5

1...10 x 10 1...10 x 10 1...11 x 10 1...10 x 10 1...11 x 10

1...10 x 10 1...10 x 10 1...10 x 10 — 1...10 x 10

1...10 x 10 1...10 x 10 1...10 x 10 1...10 x 10 1...10 x 10
Direct Direct Direct Belt D irect

Belt Belt Belt — Belt
Belt Belt Belt Belt Belt

1200 1600 2000 2400 2000

.34 .75 1.20 2.40 1.20

1.00 1.00 1.30/2.40** — 1.30/2.40**

2.40 2.40 2.90 2.90 2.90
48 48 48 56 48
48 48 56 — 56
56 56 56 56 56

860/800 1075/970 1075/970 — 1075/970

1620 1620 1725 — 1725
1725 1725 1725 1725 1725

———1070-1460 —

760-1000 835-1185 900-1300 — 1070-1460

1075-1455 1075-1455 1300-1685 1300-1685 1300-1685

Ball Ball Ball Ball Ball

2100 2100 2100 2100 2100

———2.8/3.8 —

1.9/2.9 1.9/2.9 2.4/3.4 — 2.4/3.4

2.8/3.8 2.8/3.8 3.4/4.4 3.4/4.4 3.4/4.4

1

/

2

1

/

2

5

/

8

———4.5 —

4.5 4.0 4.5 — 4.5

4.5 4.5 4.5 4.5 4.5
———1...A...40 —

1...A...34 1...A...34 1...A...39 — 1...A...39

1...A...39 1...A...39 1...A...40 1...A...40 1...A...40
———14.7-15.5 —

10.0-12.4 10.0-12.4 14.7-15.5 — 14.7-15.5

10.0-12.4 10.0-12.4 14.7-15.5 14.7-15.5 14.7-15.5

Enhanced Copper Tubes, Aluminum Lanced Fins

Propeller Type

1

/4...1100

Enhanced Copper Tubes, Aluminum Double-Wavy Fins

1

/4...1100

Acutrol™ Metering Device

1

/4...1100

Centrifugal Type

1

/

2

1

/

2

5

/

8

1

/

2

5

/

8

7

/

8

5

/

—

7

/

1

/4...1100

8

8

———80 —
48 70 80 — 80

65 65 60 60 60
——— 5 —

555— 5
66555

——— 3 —

333— 3

1

/

3

2

———1225 —
856 975 1060 — 1060

1233 1233 1396 1396 1396

5

/

8

31/

2

5

/

8

450 ± 50 500 ± 50 450 ± 50

428 428 428
320 320 320

1...20 x 24 x 1

2...16 x 25 x 2 4...16 x 20 x 2

31/

2

5

/

8

7 ± 3

22 ± 7

30 ± 5
45 ± 5

Cleanable

Throwaway

31/

2

5

/

8

1...20 x 25 x 1

1...16 x 25 x 1

0TFQ004-012
558F036-150

1

/

2

5

/

8

5

/

8

31/

2

5

/

8

27

PHYSICAL DATA — 558F090-150

UNIT SIZE 558F 090 091 102 120 121 150
NOMINAL CAPACITY (tons)

OPERATING WEIGHT (lb)

Unit

Al/Al*
Al/Cu*

Cu/Cu*
EconoMi$er
Roof Curb†

558F036-150

COMPRESSOR

Quantity

0TFQ004-012

No. Cylinders (per circuit)
Oil (oz)

REFRIGERANT TYPE

Operating Charge (lb-oz)

Circuit 1

Circuit 2

CONDENSER COIL

Rows...Fins/in.
Total Face Area (sq ft)

CONDENSER FAN

Nominal Cfm
Quantity...Diameter (in.)
Motor Hp...Rpm
Watts Input (Total)

EVAPORATOR COIL

Rows...Fins/in.
Total Face Area (sq ft)

EVAPORATOR FAN

Quantity...Size (in.) Std

Type Drive Std

Nominal Cfm
Maximum Continuous Bhp Std

Motor Frame Size Std

Nominal Rpm High/Low Std

Fan Rpm Range Std

Motor Bearing Type
Maximum Allowable Rpm
Motor Pulley Pitch Diameter Min/Max (in.) Std

Nominal Motor Shaft Diameter (in.) Std

Fan Pulley Pitch Diameter (in.) Std

Belt, Quantity...Type...Length (in.) Std

Pulley Center Line Distance (in.) Std

Speed Change per Full Turn of

Movable Pulley Flange (rpm) Std

Movable Pulley Maximum Full Turns

From Closed Position Std

Factory Setting Std

Factory Speed Setting (rpm) Std

Fan Shaft Diameter at Pulley (in.)

HIGH-PRESSURE SWITCH (psig)

Standard Compressor Internal Relief (Differential)
Cutout
Reset (Auto.)

LOW-PRESSURE SWITCH (psig)

Cutout
Reset (Auto.)

FREEZE-PROTECTION THERMOSTAT (F)

Opens
Closes

OUTDOOR-AIR INLET SCREENS

Quantity...Size (in.)

RETURN-AIR FILTERS

Quantity...Size (in.)

LEGEND

Aluminum

Al —

Brake Horsepower

Bhp —

Copper

Cu —

*Evaporator coil fin material/condenser coil fin material. Contact your local representative for

details about coated fins.

†Weight of 14-in. roof curb.

NOTES:

1. The 558F036-150 units have a loss-of-charge switch located in the liquid line.

2. High-static motor not available on size 150 units.

Alt
High-Static

Alt
High-Static

Alt
High-Static

Alt
High-Static

Alt
High-Static

Alt
High-Static

Alt
High-Static

Alt
High-Static

Alt
High-Static

Alt
High-Static

Alt
High-Static

Alt
High-Static

Alt
High-Static

Alt
High-Static

Alt
High-Static

1

7

/

2

755
766 766 776 937 937 957
778 778 787 960 960 980

62 62 62 62 62 62

143 143 143 143 143 143

Reciprocating Reciprocating Reciprocating Reciprocating Reciprocating Scroll

222212
222222

42 ea 42 ea 65 ea 54 ea 50 54 ea

71/

755

2

81/

2

760 915

10 121/

915

R-22

4-13 7-10 6-14 7- 3 7- 3 8-10
4-14 8- 2 9- 2 7-13 7-13 8- 6

1...17 1...17 2...17 2...17 2...17 2...17

20.50 20.50 18.00 20.47 20.47 25.00

6400 6400 6400 7000 7000 7000

2...22 2...22 2...22 2...22 2...22 2...22

1

/4...1100

600 600 600 600 600 600

3...15 3...15 3...15 3...15 3...15 4...15

8.0 8.0 8.0 10.0 10.0 11.1

1...15 x 15 1...15 x 15 1...15 x 15 1...15 x 15 1...15 x 15 1...15 x 15

1...15 x 15 1...15 x 15 — 1...15 x 15 1...15 x 15 1...15 x 15

1...15 x 15 1...15 x 15 1...15 x 15 1...15 x 15 1...15 x 15 —
Belt Belt Belt Belt Belt Belt
Belt Belt — Belt Belt Belt
Belt Belt Belt Belt Belt —

3000 3000 3100 4000 4000 5000

2.40 2.40 2.40 2.40 2.40 3.70

2.40 2.40 — 2.90 2.90 5.25

3.70 3.70 3.70 5.25 5.25 —

1725 1725 1725 1725 1725 1725
590- 840 590- 840 685- 935 685- 935 685- 935 860-1080
685- 935 685- 935 — 835-1085 835-1085 900-1260
860-1080 860-1080 860-1080 830-1130 830-1130 —

Ball Ball Ball Ball Ball Ball

2100 2100 2100 2100 2100 2100

2.4/3.4 2.4/3.4 2.8/3.8 2.8/3.8 2.8/3.8 4.0/5.0

2.8/3.8 2.8/3.8 — 3.4/4.4 3.4/4.4 3.1/4.1

4.0/5.0 4.0/5.0 4.0/5.0 2.8/3.8 2.8/3.8 —

7.0 7.0 7.0 7.0 7.0 8.0

7.0 7.0 — 7.0 7.0 5.9

8.0 8.0 8.0 5.8 5.8 —

1...A...49 1...A...49 1...A...49 1...A...49 1...A...49 1...A...52

1...A...49 1...A...49 — 1...A...49 1...A...49 1...BX...46

1...A...55 1...A...55 1...A...55 1...BX...46 1...BX...46 —

16.75-19.25 16.75-19.25 16.75-19.25 15.85-17.50 15.85-17.50 15.85-17.50

15.75-19.25 15.75-19.25 — 15.85-17.50 15.85-17.50 15.85-17.50

15.75-19.25 15.75-19.25 16.75-19.25 15.85-17.50 15.85-17.50 —

590 590 685 685 685 860
685 685 — 835 835 960
860 860 860 887 887 —

Enhanced Copper Tubes, Aluminum Double-Wavy Fins, Acutrol™ Metering Device

56 56 56 56 56 56
56 56 — 56 56 56
56 56 56 56 56 —

——————
——————

5

/

8

5

/

8

7

/

8

50 50 50 50 50 44
50 50 — 50 50 50
60 60 60 60 60 —

555555
55— 556
55566—
555555
55— 555
55555—

111111

4...16 x 20 x 2 4...16 x 20 x 2 4...16 x 20 x 2 4...20 x 20 x 2 4...20 x 20 x 2 4...20 x 20 x 2

Enhanced Copper Tubes, Aluminum Lanced Fins

Propeller Type

1

/4...1100

1

/4...1100

Centrifugal Type

5

/

8

5

/

8

7

/

8

5

/

8

—

7

/

8

450 ± 50 500

428 428
320 320

7 ± 3

22 ± 7

30 ± 5
45 ± 5

Cleanable

1...20 x 25 x 1

1...16 x 25 x 1

Throwaway

1

/4...1100

5

/

7

/

7

/

1

/4...1100

5

8
8
8

/

8

7

/

8

7

/

8

930

1

/4...1100

7

/

7

/

—

±

2

8
8

50

28

BASE UNIT DIMENSIONS — 558F036-072

0TFQ004-012
558F036-150

29

BASE UNIT DIMENSIONS — 558F073

558F036-150
0TFQ004-012

30

BASE UNIT DIMENSIONS — 558F090,102,120,150

0TFQ004-012
558F036-150

31

BASE UNIT DIMENSIONS — 558F091,121

558F036-150
0TFQ004-012

32

ROOF CURB

ACCESSORY
CRRFCURB001A00
CRRFCURB002A00

“A”

1′-2″ [356]
2′-0″ [610]

UNIT SIZE

558F

036-073

ACCESSORY DIMENSIONS

BC

11

″

1′-4

/

1′-9

16

[551]

[406]

NOTES:

1. Roof curb accessory is shipped
disassembled.

2. Insulated panels.

3. Dimensions in [ ] are in millimeters.

4. Roof curb: galvanized steel.

5. Attach ductwork to curb (flanges of duct
rest on curb).

″

D

ALT DRAIN HOLE

3

″

1

/

4

[44.5]

“E”

GAS

3

″

/

4

[19] NPT

1

″

/

2

[12.7] NPT

3

″

/

4

[19] NPT

“F”

POWER

3

″

[19] NPT

/

4

1

″

1

[31.7] NPT CRBTMPWR002A00

/

4

3

″

[19] NPT

/

4

1

″

1

[31.7] NPT CRBTMPWR004A00

/

4

“G”

CONTROL

1

″

/

2

[12.7]

1

″

/

2

[12.7]

CONNECTOR

PKG. ACCY.

CRBTMPWR001A00

CRBTMPWR003A00

6. Service clearance 4 ft on each side.

7. Direction of airflow.

8. Connector packages CRBTMPWR001A00
and 002A00 are for thru-the-curb connec­tions. Packages CRBTMP003A00 and
004A00 are for thru-the-bottom connections.

0TFQ004-012
558F036-150

33

ACCESSORY DIMENSIONS (cont)

CONNECTOR

PACKAGE

ACCESSORY

CRBTMPWR001A00

CRBTMPWR003A00

15

/

″

16

3

“D” ALT

DRAIN

HOLE

3

″

1

/

4

[44.5]

/4 lb density.

“E”

GAS

3

″

/

4

[19] NPT

1

″

/

2

[12.7] NPT

3

″

/

4

[19] NPT

“F”

POWER

3

″

[19] NPT

/

4

1

″

1

[31.7] NPT CRBTMPWR002A00

/

4

3

″

[19] NPT

/

4

1

″

1

[31.7] NPT CRBTMPWR004A00

/

4

“G”

CONTROL

1

″

[12.7]

/

2

NPT

1

″

[12.7]

/

2

NPT

6. Ser vice clearance 4 ft on each side.

7. Direction of airflow.

8. Connector packages CRBTMPWR001A00 and
002A00 are for thru-the-curb connections.
Packages CRBTMP003A00 and 004A00 are
for thru-the-bottom connections.

ROOF CURB

ACCESSORY
CRRFCURB003A00
CRRFCURB004A00

1′-2″ [356]
2′-0″ [610]

558F036-150

“A”

UNIT SIZE

558F

090-150

“B”“C”

7

″

2′-8

[827]

1′-10

/

16

[583]

0TFQ004-012

NOTES:

1. Roof curb accessory is shipped
disassembled.

2. Insulated panels, 1″ thick polyurethane
foam, 1

3. Dimensions in [ ] are in millimeters.

4. Roof curb: 16 gage steel.

5. Attach ductwork to curb (flanges of duct
rest on curb).

34

SELECTION PROCEDURE (with 558F048 example)

I DETERMINE COOLING AND HEATING REQUIRE-

MENTS AT DESIGN CONDITIONS:

Given:

Cooling Capacity Required . . . . . . . . . . . . . . 44,000 Btuh

Sensible Heat Capacity . . . . . . . . . . . . . . . . . 32,000 Btuh

Required Heating Load . . . . . . . . . . . . . . . . . 50,000 Btuh

Condenser Entering-Air

Temperature . . . . . . . . . . . . . . . . . . .95 F Edb/78 F Ewb

Evaporator Entering-Air

Temperature . . . . . . . . . . . . . . . . . . .80 F Edb/67 F Ewb

Evaporator Air Quantity . . . . . . . . . . . . . . . . . . . .1600 cfm

External Static Pressure . . . . . . . . . . . . . . . . . 0.75 in. wg

Heating Capacity . . . . . . . . . . . . . . . . . . . . . . 50,000 Btuh

Power Supply (V-Ph-Hz) . . . . . . . . . . . . . . . . . . .230-3-60

Edb — Entering dry bulb
Ewb — Entering wet bulb

II SELECT UNIT BASED ON REQUIRED COOLING

CAPACITY.

Enter cooling capacity table for 558F048 on page 36 at
condenser entering dry bulb temperature 95 F, air entering
evaporator at 1600 cfm, 80 F edb and 67 F ewb. The
558F048 unit will provide a total cooling capacity
of 50,500 Btuh, and a sensible heating capacity of
35,600 Btuh. For evaporator-air temperatures other than
80 F edb, calculate sensible heat capacity correction as
required using the formula in the notes following the Cool­ing Capacities tables.

Unit ratings are gross capacities and do not

NOTE:

include the effect of evaporator-fan motor heat. To calcu­late net capacities, see Step V.

III SELECT ELECTRIC HEAT.

Heating load required is 50,000 Btuh.

50,000 Btuh

3.412 Btu/W

Enter the Electric Heating Capacities table on page 64 for
the 558F048 at 230-3-60. The 16.0 kW electric heater
most closely satisfies the heat required.

To calculate kW at 230 v, use the multiplication factors
table on page 64.

16.0 x .918 = 14.7 kW

16.0 x .918 x 3.413 = 50,115 Btuh gross capacity

= 14,654 Watts of heat required

= 14.7 kW

IV DETERMINE FAN SPEED AND MOTOR HORSEPOWER

REQUIREMENTS AT DESIGN CONDITIONS.

Enter Accessory/FIOP Static Pressure table on page 61 at
selected unit size and heater kW.

Find that at given air quantity (1600 cfm), pressure loss is

0.09 in. wg.
Before entering the Fan Performance tables, calculate the

total static pressure required based on unit components.
From the given find:

External static pressure 0.75 in. wg
16 kW Heater static pressure 0.09 in. wg

Total static pressure 0.84 in. wg

Enter Fan Performance table for the alternate motor verti­cal discharge unit 558F048 on page 41. At 1600 cfm and

0.84 in. wg external static pressure, the fan speed is
1038 rpm and the watts are 877. (Interpolation is neces­sary.) The alternate motor and drive is suitable.

V DETERMINE NET COOLING CAPACITY.

Cooling capacities are gross capacities and do not include
indoor (evaporator) fan motor (IFM) heat. Use the watts
input power to the motor calculated in “Section IV” above.

IFM watts = 877
Determine net cooling capacity using the following

formula:

Net capacity = Gross capacity – IFM heat

= 50,500 Btuh – 877 Watts (3.413

= 50,500 Btuh – 2992 Btuh
= 47,508 Btuh

Net sensible capacity = 35,600 Btuh – 2992 Btuh

= 32,608 Btuh

As demonstrated above, the 558F048 with the 16.0 kW
electric heater and an alternate motor meets the cooling
capacity, sensible heating capacity, and heating capacity
requirements.

Btuh

Watt

0TFQ004-012
558F036-150

)

35

558F036 (3 TONS)

Tem p (F)

Air Entering

Condenser

(Edb)

558F036-150

75

0TFQ004-012

85

95

105

115

558F048 (4 TONS)

Tem p (F)

Air Entering

Condenser

(Edb)

75

85

95

105

115

Air Entering Evaporator — Cfm/BF

900/0.11 1200/0.14 1500/0.17

72 67 62 72 67 62 72 67 62

42.8 38.9 35.0 44.8 40.8 37.0 45.8 41.9 38.2

TC

20.0 24.5 28.7 21.8 27.5 32.8 23.0 30.0 36.0

SHC

2.91 2.81 2.70 2.99 2.88 2.78 3.02 2.92 2.82

kW

40.8 36.9 33.3 42.5 38.7 35.0 43.6 39.9 36.1

TC

19.4 23.7 27.9 21.0 26.8 31.8 22.6 29.7 35.1

SHC

3.14 3.01 2.90 3.20 3.08 2.97 3.24 3.14 3.02

kW

38.7 34.9 31.4 40.4

TC

18.6 22.9 27.0 20.3 26.0 30.9 22.0 28.8 34.0

SHC

3.35 3.21 3.09 3.42 3.29 3.16 3.47 3.35 3.22

kW

36.5 32.8 29.2 38.1 34.3 30.9 39.0 35.2 32.4

TC

17.8 22.1 25.9 19.6 25.2 29.8 21.2 28.0 32.3

SHC

3.55 3.41 3.27 3.63 3.49 3.35 3.68 3.54 3.43

kW

34.3 30.7 26.9 35.7 32.1 28.8 36.5 32.9 30.6

TC

17.0 21.3 24.8 19.0 24.4 28.8 20.5 27.1 30.6

SHC

3.76 3.60 3.45 3.84 3.68 3.54 3.88 3.74 3.64

kW

72 67 62 72 67 62 72 67 62

57.9 53.1 48.3 60.4 55.9 51.3 62.2 57.3 52.9

TC

27.2 33.3 39.2 29.4 37.2 44.8 31.4 40.3 49.1

SHC

4.07 3.93 3.79 4.17 4.03 3.90 4.24 4.08 3.96

kW

55.7 50.8 45.3 57.7 53.4 48.5 59.4 55.0 50.2

TC

26.4 32.5 37.8 28.4 36.7 43.6 30.5 40.3 47.9

SHC

4.40 4.24 4.08 4.47 4.35 4.20 4.54 4.42 4.25

kW

52.9 48.1 42.5 55.2

TC

25.5 31.5 36.4 27.6 35.6 42.2 29.7 39.2 46.7

SHC

4.70 4.54 4.36 4.78 4.63 4.47 4.87 4.70 4.56

kW

50.1 45.3 39.8 52.3 47.6 42.8 53.6 48.9 44.9

TC

24.4 30.3 35.1 26.7 34.5 40.7 28.8 38.1 44.6

SHC

5.00 4.81 4.62 5.10 4.91 4.73 5.17 4.99 4.84

kW

47.3 42.6 37.2 49.3 44.6 40.0 50.5 45.9 42.4

TC

23.4 29.2 33.7 25.9 33.3 39.3 27.8 37.1 42.4

SHC

5.30 5.07 4.88 5.42 5.19 4.99 5.48 5.28 5.12

kW

Air Entering Evaporator — Ewb (F)

36.6 33.0 41.4 37.6 34.1

Air Entering Evaporator — Cfm/BF

1200/0.12 1600/0.15 2000/0.18

Air Entering Evaporator — Ewb (F)

50.5 45.7 56.7 52.0 47.4

PERFORMANCE DATA

COOLING CAPACITIES

Standard Ratings

BF —
Edb —
Ewb —
kW —
Ldb —
Lwb —
SHC —
TC —

NOTES:

1. Direct interpolation is permissible. Do not extrapolate.

2. The following formulas may be used:

=t

t

ldb

= Wet-bulb temperature corresponding to enthalpy of air leaving evapora-

t

lwb

tor coil (h

h

=h

lwb

Where: h

3. The SHC is based on 80 F edb temperature of air entering evaporator coil.
Below 80 F edb, subtract (corr factor x cfm) from SHC.

Above 80 F edb, add (corr factor x cfm) to SHC.

BYPASS
FAC TO R

(BF)

.05
.10
.20
.30

Interpolation is permissible.
Correction Factor = 1.10 x (1 - BF) x (edb - 80).

LEGEND

Bypass Factor
Entering Dry-Bulb
Entering Wet-Bulb
Compressor Motor Power Input
Leaving Dry-Bulb
Leaving Wet-Bulb
Sensible Heat Capacity (1000 Btuh) Gross
Total Capacity (1000 Btuh) Gross

sensible capacity (Btuh)

–

ewb

edb

–

ewb

1.10 x cfm

)

lwb

total capacity (Btuh)

4.5 x cfm

= Enthalpy of air entering evaporator coil

ENTERING AIR DRY-BULB TEMP (F)

79 78 77 76 75 under 75

81 82 83 84 85 over 85

1.04 2.07 3.11 4.14 5.18
.98 1.96 2.94 3.92 4.90
.87 1.74 2.62 3.49 4.36
.76 1.53 2.29 3.05 3.82

Correction Factor

Use formula

shown below.

558F060 (5 TONS)

Tem p (F)

Air Entering

Condenser

(Edb)

71.0 63.8 55.4 74.5 67.2 59.2 76.5 69.7 62.1

TC

75

85

95

105

115

33.9 41.5 47.9 37.4 47.4 55.8 40.6 52.8 61.8

SHC

5.04 4.82 4.62 5.20 4.97 4.76 5.29 5.06 4.87

kW

69.2 61.0 54.2 72.9 65.6 57.2 75.2 68.1 61.5

TC

33.4 40.5 47.3 37.0 46.9 54.9 40.1 52.3 61.3

SHC

5.50 5.27 5.02 5.66 5.41 5.18 5.75 5.50 5.29

kW

65.5 56.6 50.4 69.4

TC

32.1 38.8 45.6 35.8

SHC

5.88 5.62 5.37 6.01 5.76 5.53 6.12 5.87 5.67

kW

61.9 53.1 47.1 65.4 56.6 50.5 67.1 58.8 54.5

TC

30.8 37.5 44.1 34.5 43.7 50.2 37.9 49.3 54.5

SHC

6.25 5.99 5.72 6.38 6.13 5.91 6.50 6.23 6.06

kW

58.2 49.7 43.7 61.4 52.3 47.8 63.0 54.3 51.2

TC

29.5 36.1 42.5 33.2 42.1 47.8 36.7 47.6 51.2

SHC

6.63 6.35 6.08 6.75 6.49 6.29 6.88 6.59 6.46

kW

Air Entering Evaporator — Cfm/BF

1500/0.07 2000/0.09 2500/0.12

72 67 62 72 67 62 72 67 62

Air Entering Evaporator — Ewb (F)

60.9 53.1 71.2 63.3 57.8

45.3 52.6 39.1 50.9 57.8

36

PERFORMANCE DATA (cont)

COOLING CAPACITIES (cont)

0TFQ004-012
558F036-150

558F072 (6 TONS)

Tem p (F)

Air Entering

Condenser

(Edb)

TC

75

SHC
kW

TC

85

SHC
kW

TC
SHC

95

kW

105

115

558F073 (6 TONS)

105

115

TC
SHC
kW

TC
SHC
kW

Tem p (F)

Air Entering

Condenser

(Edb)

TC

75

SHC
kW

TC

85

SHC
kW

TC
SHC

95

kW
TC

SHC
kW

TC
SHC
kW

Air Entering Evaporator — Cfm/BF

1800/0.06 2100/0.08 2400/0.09 3000/0.11

72 67 62 72 67 62 72 67 62 72 67 62

86.6 80.0 73.6 87.8 80.3 73.2 90.8 84.1 77.2 93.2 86.6 79.7

42.2 52.3 62.2 43.0 53.9 65.5 46.5 59.6 71.6 50.1 66.4 78.7

5.48 5.33 5.21 5.69 5.50 5.32 5.59 5.44 5.29 5.66 5.51 5.35

84.1 77.4 71.0 84.0 77.2 69.5 87.8 81.2 74.5 90.1 83.5 77.3

41.4 51.3 61.1 41.7 53.1 64.0 45.5 58.6 70.3 49.4 65.4 76.7

6.17 6.00 5.85 6.21 6.04 5.83 6.27 6.11 5.94 6.35 6.19 6.02

81.6 74.7 68.5 81.0

40.6 50.3 60.0 40.8 51.8 62.8 44.6 57.6 69.1 48.7 64.5 74.7

6.86 6.67 6.49 6.78 6.54 6.33 6.95 6.77 6.59 7.03 6.86 6.69

78.4 71.8 65.6 76.8 69.7 62.5 81.6 74.9 68.9 83.3 76.9 72.1

39.4 49.2 58.7 39.4 50.3 61.1 43.5 56.4 67.4 47.4 63.1 72.0

7.60 7.39 7.20 7.30 7.05 6.80 7.72 7.50 7.31 7.77 7.59 7.41

75.1 68.7 62.5 72.5 65.5 58.7 78.0 71.5 66.1 79.5 73.3 69.3

38.1 47.9 57.2 37.9 48.7 58.7 42.3 55.1 65.5 46.3 61.6 69.2

8.36 8.14 7.93 7.81 7.53 7.27 8.49 8.25 8.06 8.55 8.33 8.18

1800/0.06 2100/0.07 2400/0.09 3000/0.11

72 67 62 72 67 62 72 67 62 72 67 62

81.3 77.8 71.3 82.7 78.7 72.9 84.2 79.7 74.6 85.3 82.5 76.7

38.2 51.3 61.6 40.2 54.2 65.9 42.3 57.1 70.2 43.7 64 76.4

4.69 4.63 4.52 4.73 4.65 4.56 4.77 4.67 4.6 4.8 4.75 4.63

78.8 75.6 69 81.1 77.1 70.7 83.3 78.6 72.3 85 80.5 75

37.7 50.4 60.5 40 53.9 64.9 42.2 57.5 69.2 44.3 63.6 74.9

5.21 5.16 5.05 5.27 5.2 5.09 5.34 5.24 5.13 5.39 5.29 5.17

77.1 73.3 66.9 79.2
37 49.9 59.7 39.4 53.3 64 41.8 56.8 68.3 43.5 63.4 73.2

5.8 5.78 5.65 5.87 5.81 5.7 5.94 5.85 5.74 5.95 5.88 5.8

75.4 70.7 62.9 76.6 72.1 64.8 77.9 73.4 66.7 79.7 74.9 70.9

36.7 48.7 58.2 38.6 52.3 62.2 40.6 55.9 66.3 43 62.4 70.9

6.49 6.45 6.26 6.53 6.48 6.32 6.56 6.51 6.38 6.61 6.53 6.46

72.1 67.9 59 73.6 69 61.1 75.2 70.1 63.3 76.7 71.9 68.1

35.3 47.5 57.2 37.6 51.2 60.2 39.9 54.8 63.3 42.2 61.5 68.1

7.2 7.17 6.94 7.25 7.18 7.01 7.29 7.2 7.08 7.35 7.26 7.15

Air Entering Evaporator — Ewb (F)

73.5 66.3 84.8 78.2 71.8 87.0 80.4 74.8

Air Entering Evaporator — Cfm/BF

Air Entering Evaporator — Ewb (F)

74.8 68.5 81.3 76.2 70.1 82 78 73.3

558F090 (7

Tem p (F)

Air Entering

Condenser

(Edb)

75

85

95

105

115

1

/2 TONS)

TC
SHC
kW

TC
SHC
kW

TC
SHC
kW

TC
SHC
kW

TC
SHC
kW

Air Entering Evaporator — Cfm/BF

2250/0.07 2800/0.09 3000/0.10 3750/0.12

72 67 62 72 67 62 72 67 62 72 67 62

102.8 94.8 86.2 105.8 98.2 90.0 106.4 99.0 90.8 109.2 101.6 93.6

49.4 61.8 73.2 52.6 67.8 81.6 53.6 69.8 84.0 58.2 77.4 92.2

7.14 6.82 6.50 7.28 6.98 6.68 7.32 7.04 6.72 7.46 7.18 6.86

98.2 90.2 81.6 101.8 93.6 85.2 102.6 94.4 86.0 104.6 96.8 89.6

48.0 60.2 71.2 51.6 66.4 79.6 52.8 68.6 82.0 56.8 76.0 89.4

7.66 7.34 7.00 7.82 7.50 7.18 7.86 7.54 7.22 7.98 7.68 7.40

93.8 85.2 76.6 97.0

46.4 58.2 68.8 50.2 64.6 77.2 51.4 66.8 79.0 55.6 74.4 85.2

8.18 7.84 7.48 8.36 8.00 7.64 8.40 8.04 7.70 8.50 8.16 7.92

88.4 79.8 70.8 91.0 82.8 74.6 91.6 83.4 76.0 93.8 85.4 80.6

44.6 56.2 66.0 48.2 62.6 74.2 49.4 64.8 75.6 54.2 72.4 80.6

8.68 8.30 7.98 8.80 8.46 8.14 8.86 8.50 8.20 8.98 8.64 8.42

82.8 73.8 66.0 85.2 76.8 69.6 85.6 77.4 71.0 87.6 79.4 76.0

42.6 53.8 63.2 46.4 60.4 69.6 47.8 62.6 71.0 52.8 70.4 75.8

9.16 8.78 8.42 9.30 8.92 8.64 9.34 8.96 8.72 9.48 9.10 8.94

Air Entering Evaporator — Ewb (F)

88.4 80.0 97.6 89.0 81.2 99.4 91.2 85.2

37

558F091 (71/2 TONS)

Tem p (F)

Air Entering

Condenser

558F036-150
0TFQ004-012

(Edb)

75

85

95

105

115

558F102 (8

Tem p (F)

Air Entering

Condenser

(Edb)

75

85

95

105

115

TC
SHC
kW

TC
SHC
kW

TC
SHC
kW

TC
SHC
kW

TC
SHC
kW

1

/2 TONS)

TC
SHC
kW

TC
SHC
kW

TC
SHC
kW

TC
SHC
kW

TC
SHC
kW

PERFORMANCE DATA (cont

COOLING CAPACITIES (cont))

2250/0.10 2800/0.11 3000/0.11 3750/0.14

72 67 62 72 67 62 72 67 62 72 67 62

104.8 96.6 87.9 107.8 100.1 91.7 108.4 100.9 92.5 111.3 103.6 95.4

50.4 63 74.6 53.6 69.1 83.2 54.6 71.1 85.6 59.3 78.9 94

6.34 6.05 5.77 6.46 6.19 5.93 6.5 6.25 5.96 6.62 6.37 6.09

100.1 91.9 83.2 103.8 95.4 86.8 104.6 96.2 87.7 106.6 98.7 91.3

48.9 61.4 72.6 52.6 67.7 81.1 53.8 69.9 83.6 57.9 77.5 91.1

6.8 6.51 6.21 6.94 6.66 6.37 6.98 6.69 6.41 7.08 6.82 6.57

95.6 86.8 78.1 98.9 90.1 81.5 99.5

47.3 59.3 70.1 51.2 65.8 78.7 52.4

7.26 6.96 6.64 7.42 7.1 6.78 7.46 7.14 6.83 7.54 7.24 7.03

90.1 81.3 72.2 92.8 84.4 76 93.4 85 77.5 95.6 87 82.2

45.5 57.3 67.3 49.1 63.8 75.6 50.4 66 77.1 55.2 73.8 82.2

7.7 7.37 7.08 7.81 7.51 7.22 7.86 7.54 7.28 7.97 7.67 7.47

84.4 75.2 67.3 86.8 78.3 70.9 87.2 78.9 72.4 89.3 80.9 77.5

43.4 54.8 64.4 47.3 61.6 70.9 48.7 63.8 72.4 53.8 71.8 77.3

8.13 7.79 7.47 8.25 7.92 7.67 8.29 7.95 7.74 8.41 8.08 7.93

2550/0.08 3000/0.10 3400/0.11 4250/0.135

72 67 62 72 67 62 72 67 62 72 67 62

116.6 108.4 99.0 119.2 111.3 101.8 120.1 112.8 103.6 122.3 114.8 106.3

71.9 61.9 75.9 75.2 65.1 81.4 80.5 68.0 85.6 32.7 73.9 94.4

7.77 7.57 7.38 7.86 10.68 7.44 7.89 6.72 7.51 7.97 7.80 7.60

113.3 104.2 94.0 115.7 106.9 97.0 117.2 108.7 98.8 120.1 111.0 101.8

54.0 67.7 80.4 56.3 72.5 87.1 58.2 76.4 92.5 62.9 84.2 101.0

8.46 8.22 7.96 5.54 8.31 8.04 8.60 8.38 8.12 8.72 8.48 8.23

109.1 99.3 87.3 111.2

52.6 65.9 77.4 55.0

8.90 8.97 8.68 8.99 9.06 8.79 9.06 9.12 8.86 4.76 9.24 9.00

103.3 94.0 81.4 105.9 96.3 84.6 107.4 97.7 87.9 109.4 99.9 92.8

50.5 54.0 74.5 53.5 69.1 81.4 55.8 73.1 86.6 60.4 81.4 92.8

9.74 9.43 9.08 9.85 9.54 9.21 9.92 9.60 9.29 10.03 9.72 9.48

97.7 87.9 75.9 99.9 90.4 78.8 101.3 91.8 82.4 102.9 93.8 88.3

48.7 61.7 71.9 51.8 66.9 78.1 54.0 71.2 82.3 58.5 79.4 88.2

10.33 9.97 9.61 10.46 10.10 9.75 10.54 10.18 9.88 10.61 10.30 10.10

Air Entering Evaporator — Cfm/BF

Air Entering Evaporator — Ewb (F)

90.7 82.8 101.3 93 86.8

68.1 80.5 56.7 75.8 86.8

Air Entering Evaporator — Cfm/BF

Air Entering Evaporator — Ewb (F)

102.0 91.4 112.5 103.6 93.7 115.3 105.8 107.4

70.9 84.9 57.1 75.1 90.3 62.2 83.2 97.3

558F120 (10 TONS)

Tem p (F)

Air Entering

Condenser

(Edb)

TC

75

SHC
kW

TC

85

SHC
kW

TC
SHC

95

kW

105

115

TC
SHC
kW

TC
SHC
kW

3000/0.095 4000/0.125 5000/0.15

72 67 62 72 67 62 72 67 62

135.8 124.8 112.0 142.4 130.6 119.8 146.5 134.2 123.7

66.8 82.6 97.4 73.2 93.4 112.7 79.7 104.4 123.1

9.76 9.41 9.10 10.00 9.61 9.27 10.17 9.75 9.41

130.0 119.6 104.0 136.0 125.0 114.5 140.0 127.9 118.8

64.3 80.5 93.8 71.1 91.7 110.2 77.5 101.8 118.7

10.41 10.07 9.74 10.67 10.28 9.94 10.84 10.41 10.09

124.1 113.7 96.7 129.5

62.2 78.4 90.0 69.1 89.8 105.9 74.9 100.1 114.0

11.13 10.78 10.40 11.38

118.1 104.6 87.9 122.7 111.8 98.5 126.0 115.1 108.0

60.4 74.9 85.2 66.9 87.7 98.5 73.1 98.3 108.0

11.93 11.52 11.10 12.13 11.74 11.41 12.27 11.89 11.65

115.0 98.0 84.2 120.0 103.8 93.4 122.6 109.8 102.8

59.4 72.4 83.4 66.4 84.8 93.4 72.8 96.6 102.8

12.26 11.82 11.40 12.48 12.06 11.78 12.60 12.20 12.00

Air Entering Evaporator — Cfm/BF

Air Entering Evaporator — Ewb (F)

118.9 106.9 132.8 122.0 114.1

10.99 10.63 11.52 11.14 10.83

38

558F121 (10 TONS)

Tem p (F)

Air Entering

Condenser

(Edb)

TC

75

SHC
kW

TC

85

SHC
kW

TC

95

SHC
kW

Tem p (F

(Edb)

TC
SHC
kW

TC
SHC
kW

1

/2 TONS )

TC
SHC
kW

TC
SHC
kW

TC
SHC
kW

TC
SHC
kW

TC
SHC
kW

105

115

558F150 (12

Air Entering

Condenser

75

85

95

105

115

PERFORMANCE DATA (cont)

COOLING CAPACITIES (cont)

3000/0.095 4000/0.125 5000/0.15

72 67 62 72 67 62 72 67 62

136.6 125.5 112.7 143.2 131.4 120.5 147.4 135 124.4

67.2 83.1 98 73.6 93.9 113.4 80.2 105 123.8

8.12 7.83 7.57 8.32 8 7.71 8.46 8.11 7.83

130.8 120.3 104.6 136.8 125.7 115.2 140.8 128.7 119.5

64.7 81 94.4 71.5 92.2 110.8 78 102.4 119.4

8.66 8.38 8.1 8.88 8.55 8.27 9.02 8.66 8.4

124.8 114.4 97.3 130.3 119.6 107.5 133.6 122.7 114.8

62.6 78.9 90.5 69.5 90.3 106.5 75.3 100.7 114.7

9.26 8.97 8.65 9.47 9.15 8.85 9.59 9.27 9.01

118.8 105.2 88.4 123.4 112.5 99.1 126.7 115.8 108.6

60.8 75.3 85.7 67.3 88.2 99.1 73.5 98.9 108.6

9.93 9.59 9.24 10.09 9.77 9.49 10.21 9.89 9.69

115.7 98.6 84.7 120.7 104.4 93.9 123.3 110.4 103.4

59.7 72.8 83.9 66.8 85.3 93.9 73.2 97.5 103.4

10.2 9.84 9.49 10.38 10.04 9.8 10.48 10.15 9.99

3750/0.08 4500/0.09 5000/0.10 6250/0.12

72 67 62 72 67 62 72 67 62 72 67 62

175.6 162.2 149.2 181.0 167.5 154.2 182.9 170.2 156.4 187.2 174.7 161.8

85.7 107.3 128.0 91.4 116.2 140.3 94.2 122.2 146.5 102.1 135.3 160.7

11.16 10.85 10.57 11.32 11.00 10.69 11.37 11.07 10.73 11.49 11.19 10.87

169.3 155.7 140.6 174.2 160.7 147.0 176.9 163.0 149.7 181.5 167.3 155.8

83.9 104.8 124.0 89.6 113.9 137.0 92.7 119.7 143.6 100.9 133.4 155.6

12.15 11.78 11.42 12.31 11.94 11.58 12.39 12.01 11.63 12.53 12.14 11.82

161.9 148.9 132.0 166.8

81.4 102.0 119.8 87.0 111.1 133.2 90.7 117.3 140.2 98.3 130.8 149.6

13.12 12.72 12.28 13.30

154.9 141.3 123.0 158.8 145.4 130.2 160.9 147.6 135.0 165.3 151.2 143.2

79.0 99.2 115.5 84.5 108.2 128.1 87.8 114.3 134.9 96.6 127.8 143.1

14.16 13.66 13.17 14.31 13.82 13.35 14.38 13.91 13.48 14.58 14.07 13.77

146.2 132.2 113.1 150.5 137.0 122.4 152.3 139.4 127.8 155.2 142.7 136.0

76.1 95.7 110.3 81.7 105.2 122.3 85.0 111.6 127.7 92.9 125.0 135.8

15.09 14.57 14.07 15.30 14.76 14.25 15.37 14.87 14.43 15.49 15.02 14.73

Air Entering Evaporator — Cfm/BF

Air Entering Evaporator — Ewb (F)

Air Entering Evaporator — Cfm/BF

Air Entering Evaporator — Ewb (F)

153.5 139.1 169.5 155.7 142.8 173.2 159.5 149.6

12.89 12.46 13.40 12.97 12.56 13.54 13.11 12.78

0TFQ004-012
558F036-150

Standard Ratings

LEGEND

BF —
Edb —
Ewb —
kW —
Ldb —
Lwb —
SHC —
TC —

NOTES:

1. Direct interpolation is permissible. Do not extrapolate.

2. The following formulas may be used:

Bypass Factor
Entering Dry-Bulb
Entering Wet-Bulb
Compressor Motor Power Input
Leaving Dry-Bulb
Leaving Wet-Bulb
Sensible Heat Capacity (1000 Btuh) Gross
Total Capacity (1000 Btuh) Gross

=t

t

ldb

t

= Wet-bulb temperature corresponding to enthalpy of air leaving evapora-

lwb

=h

h

lwb

Where: h

sensible capacity (Btuh)

–

edb

tor coil (h

–

ewb

ewb

1.10 x cfm

)

lwb

total capacity (Btuh)

4.5 x cfm

= Enthalpy of air entering evaporator coil

3. The SHC is based on 80 F edb temperature of air entering evaporator coil.
Below 80 F edb, subtract (corr factor x cfm) from SHC.

Above 80 F edb, add (corr factor x cfm) to SHC.

BYPASS
FAC TO R

(BF)

.05
.10
.20
.30

Interpolation is permissible.
Correction Factor = 1.10 x (1 - BF) x (edb - 80).

ENTERING AIR DRY-BULB TEMP (F)

79 78 77 76 75 under 75

81 82 83 84 85 over 85

1.04 2.07 3.11 4.14 5.18
.98 1.96 2.94 3.92 4.90
.87 1.74 2.62 3.49 4.36
.76 1.53 2.29 3.05 3.82

Correction Factor

Use formula

shown below.

39

558F036 (3 TONS) — STANDARD MOTOR (DIRECT DRIVE)

558F036-150
0TFQ004-012

Airflow

(Cfm)

Bhp —
ESP —
Watts —

ESP Bhp Watts ESP Bhp Watts ESP Bhp Watts ESP Bhp Watts

900
1000
1100
1200
1300
1400
1500

Brake Horsepower Input to Fan
External Static Pressure (in. wg)
Input Watts to Motor

0.67 0.21 253 0.68 0.23 277 0.69 0.26 307 0.69 0.31 363

0.60 0.23 270 0.61 0.25 292 0.61 0.27 321 0.63 0.32 374

0.55 0.24 287 0.56 0.26 307 0.57 0.28 335 0.58 0.33 385

0.51 0.26 304 0.51 0.27 323 0.52 0.29 349 0.53 0.34 397

0.45 0.27 321 0.46 0.29 338 0.46 0.31 364 0.47 0.34 408

0.38 0.29 338 0.41 0.30 354 0.43 0.32 378 ———

0.34 0.30 355 0.36 0.31 369 0.38 0.33 392 — ——

LEGEND

208 v 230, 460, 575 v 208 v 230, 460, 575 v

PERFORMANCE DATA (cont)

FAN PERFORMANCE — VERTICAL DISCHARGE UNITS

Low Speed High Speed

See page 60 for general fan performance notes.

NOTE:

558F036 (3 TONS) — ALTERNATE MOTOR (BELT DRIVE)*

Airflow

(Cfm)

900 581 0.12 119 673 0.18 179 736 0.22 219
1000 644 0.19 189 709 0.22 219
1100 687 0.22 219 746 0.26 259
1200 733 0.26 259
1300 754 0.29 288
1400
1500

558F036 (3 TONS) — ALTERNATE MOTOR (BELT DRIVE)* (cont)

Airflow

(Cfm)

900
1000
1100 1013 0.49 487 1068 0.55 547 1090 0.58 577 1109 0.61 607 1127 0.64 637 1145 0.67 666
1200 1045 0.56 557 1090 0.64 637 1109 0.64 647 1156 0.68 676 1203 0.71 706 1250 0.74 736
1300 1075 0.64 637 1122 0.70 696 1152 0.72 716 1190 0.76 756 1228 0.80 796 1266 0.84 836
1400 1110 0.73 726 1160 0.84 766 1181 0.81 806 1237 0.85 845 1293 0.89 885 1349 0.93 925
1500 1150 0.82 816 1190 1.00 855 1225 0.90 895 1271 0.95 945 1317 1.00 995

LEGEND

Bhp —
Watts —

*Motor drive range: 760 to 1000 rpm. All other rpms require field-supplied drive.

Brake Horsepower Input to Fan
Input Watts to Motor

558F036 (3 TONS) — HIGH-STATIC MOTOR (BELT DRIVE)*

Airflow

(Cfm)

900 673 0.18 179 805 0.25 249 911 0.34 338 988 0.43 428 1061 0.47 487
1000 709 0.22 219 835 0.30 298 937 0.38 378 1039 0.49 487
1100 746 0.26 259 867 0.35 348 964 0.40 398 1068 0.55 547
1200 785 0.32 318 903 0.41 408 994 0.50 497
1300 826 0.38 378 942 0.48 477 1047 0.60 597
1400 868 0.45 448 984 0.57 567 1067 0.67 666
1500 911 0.53 527 1029 0.66 656

0.1 0.2 0.3 0.4 0.5 0.6

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

785 0.32 318 843 0.35 348 903 0.41 408 960 0.47 467 994 0.50 497

810 0.35 348 868 0.45 448 937 0.51 507 984 0.57 567
841 0.42 418 911 0.53 527 985 0.61 607

0.7 0.8 0.9 1.0 1.1 1.2

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

957 0.39 388 988 0.43 428
992 0.44 438

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

0.2 0.4 0.6 0.8 1.0

826 0.38 378 891 0.43 428 942 0.48 477 991 0.53 527

1039 0.49 487 1061 0.51 507 1086 0.55 547 1111 0.59 587 1136 0.63 627

External Static Pressure (in. wg)

782 0.28 279 835 0.30 298 900 0.35 348 937 0.38 378
806 0.30 298 867 0.35 348 929 0.40 398 964 0.40 398

External Static Pressure (in. wg)

1039 0.45 448 1061 0.47 487 1083 0.53 527 1105 0.57 567

External Static Pressure (in. wg)

1109 0.77 766 1190 1.00 855 1271 0.95 945

805 0.25 249 865 0.29 288 911 0.34 338

1029 0.66 656 1073 0.72 716 1109 0.77 766

NOTES:

1.

2. indicates field-supplied motor and drive are required.

3. Maximum usable watts input is 1000 and maximum continuous bhp is 1.00.

4. See page 60 for general fan performance notes.

indicates field-supplied drive is required.

Boldface

1032 0.62 617 1067 0.67 666

1090 0.64 637 1156 0.68 676
1122 0.70 696 1190 0.76 756
1160 0.84 766 1237 0.85 845

1047 0.60 597

1363 1.05 1044

1086 0.55 547
1109 0.61 607

558F036 (3 TONS) — HIGH-STATIC MOTOR (BELT DRIVE)* (cont)

Airflow

(Cfm)

900
1000
1100
1200
1300
1400
1500

Bhp —
Watts —

*Motor drive range: 1075 to 1455 rpm. All other rpms require field-supplied drive.

Brake Horsepower Input to Fan
Input Watts to Motor

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

1105 0.57 567 1140 0.63 622 1170 0.68 674 1198 0.73 723 1224 0.77 771
1136 0.63 627 1172 0.69 688 1203 0.75 745 1232 0.80 799 1258 0.86 852
1145 0.67 666 1181 0.73 731 1213 0.80 792 1242 0.85 850 1268 0.91 906
1210 0.74 736 1248 0.81 808 1282 0.88 875 1312 0.94 939 1340 1.01 1000
1266 0.84 836 1306 0.92 917 1341 1.00 993 1373 1.07 1066 1402 1.14 1136
1349 0.93 925 1391 1.02 1015 1429 1.11 1100
1383 1.05 1044 1426 1.15 1146

LEGEND

1.2 1.4 1.6 1.8 2.0

External Static Pressure (in. wg)

1465 1.25 1242 1500 1.34 1332 1532 1.43 1419

NOTES:

1.

Boldface

2. Maximum continuous bhp is 2.4, and the maximum continuous watts are 2120.

3. See page 60 for general fan performance notes.

1463 1.19 1180 1494 1.26 1257

indicates field-supplied drive is required.

40

FAN PERFORMANCE — VERTICAL DISCHARGE UNITS (cont)

558F048 (4 TONS) — STANDARD MOTOR (DIRECT DRIVE)

Airflow

Bhp —
ESP —
Watts —

(Cfm)

1200
1300
1400
1500
1600
1700
1800
1900
2000

Brake Horsepower Input to Fan
External Static Pressure (in. wg)
Input Watts to Motor

ESP Bhp Watts ESP Bhp Watts ESP Bhp Watts ESP Bhp Watts

0.93 0.41 458 0.94 0.45 506 0.94 0.51 572 0.99 0.56 632

0.86 0.42 471 0.87 0.46 521 0.87 0.52 589 0.92 0.58 651

0.78 0.45 503 0.79 0.49 556 0.79 0.54 616 0.87 0.60 681

0.70 0.47 536 0.73 0.52 593 0.73 0.56 631 0.80 0.62 698

0.61 0.49 557 0.64 0.54 616 0.66 0.58 654 0.76 0.64 723

0.51 0.52 584 0.54 0.57 646 0.58 0.60 678 0.68 0.66 750

0.40 0.54 610 0.44 0.60 674 0.51 0.62 698 0.63 0.68 772

0.29 0.56 629 0.37 0.62 696 0.46 0.64 720 0.56 0.70 796

0.25 0.58 651 0.30 0.64 720 0.39 0.66 744 0.50 0.73 823

LEGEND

208 v 230, 460, 575 v 208 v 230, 460, 575 v

PERFORMANCE DATA (cont)

Low Speed High Speed

See page 60 for general fan performance notes.

NOTE:

0TFQ004-012
558F036-150

558F048 (4 TONS) — ALTERNATE MOTOR (BELT DRIVE)*

Airflow

(Cfm)

1200 542 0.16 168 616 0.21 221 678 0.27 278 739 0.32 336
1300 576 0.20 210 644 0.25 263 704 0.31 326 764 0.37 389
1400 610 0.24 252 673 0.30 315 732 0.36 378 791 0.42 441
1500 646 0.28 294 704 0.35 368 761 0.42 436 818 0.48 504
1600 681 0.33 347 735 0.40 420 790 0.47 494
1700 718 0.39 410 768 0.46 483
1800 754 0.45 473 801 0.53 557
1900 791 0.52 546
2000 828 0.60 630

558F048 (4 TONS) — ALTERNATE MOTOR (BELT DRIVE)* (cont)

Airflow

(Cfm)

1200
1300
1400
1500
1600
1700
1800
1900
2000

Bhp —
Watts —

*Motor drive range: 835 to 1185 rpm. All other rpms require field-supplied drive.

Brake Horsepower Input to Fan
Input Watts to Motor

558F048 (4 TONS) — HIGH-STATIC MOTOR (BELT DRIVE)*

Airflow

(Cfm)

1200 665 0.25 263 779 0.36 378 872 0.48 504 957 0.60 630 1028 0.69 725
1300 699 0.30 315 809 0.42 441 902 0.55 578 984 0.67 704 1058 0.80 841
1400 735 0.36 378 840 0.48 504 933 0.62 651 1011 0.75 788
1500 770 0.42 441 873 0.55 578 963 0.69 725 1041 0.84 858
1600 835 0.49 515 907 0.63 662 993 0.77 787 1072 0.93 950
1700 873 0.57 599 941 0.72 757 1024 0.87 889
1800 881 0.66 693 976 0.81 851 1057 0.97 991
1900 919 0.75 788 1011 0.92 967
2000 958 0.86 904 1046 1.03 1082

0.1 0.2 0.3 0.4 0.6 0.7 0.8

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

836 0.54 562 873 0.61 641 965 0.76 777 1005 0.84 853 1045 0.91 930

836 0.60 630 832 0.69 720 828 0.77 809 1019 0.93 950 1058 1.02 1037 1097 1.10 1124
870 0.68 714 864 0.77 809 858 0.86 904 1046 1.03 1053 1085 1.12 1139 1124 1.21 1237

1.0 1.1 1.2 1.4 1.6 1.8

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

1008 0.67 704 1052 0.73 762 1096 0.78 820 1134 0.89 835
1029 0.75 788 1065 0.81 846 1101 0.86 904 1174 1.01 1040 1229 1.15 1100 1277 1.27 1029
1052 0.83 826 1087 0.90 890 1121 0.96 918 1183 1.09 1042 1255 1.22 1167 1305 1.38 1190
1076 0.91 905 1111 0.99 980 1145 1.06 1014 1208 1.20 1138 1274 1.33 1272 1337 1.47 1350
1100 1.00 995 1134 1.08 1069 1168 1.15 1100 1232 1.31 1253 1291 1.46 1396 1350 1.60 1558
1124 1.09 1084 1158 1.17 1164 1192 1.25 1196 1255 1.42 1358 1314 1.58 1511 1370 1.77 1738
1147 1.18 1174 1182 1.27 1263 1217 1.36 1301 1279 1.54 1473 1381 1.71 1635 1393 1.89 1907
1169 1.27 1263 1205 1.37 1363 1240 1.47 1406 1303 1.66 1588 1408 1.85 1769 1417 2.03 2068
1194 1.38 1373 1228 1.48 1472 1262 1.58 1511 1327 1.78 1702 1436 1.98 1894 1440 2.18 2229

LEGEND

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

0.20.40.60.81.0

851 0.61 641 900 0.69 725 992 0.84 858 1032 0.92 940 1071 1.00 1022

External Static Pressure (in. wg)

External Static Pressure (in. wg)

842 0.44 462 886 0.50 525 929 0.56 588
867 0.50 525 910 0.56 588 952 0.62 651
889 0.55 578 933 0.62 651 976 0.69 725

845 0.54 567 920 0.68 695 931 0.76 772 1023 0.83 848

NOTES:

1.

2. indicates field-supplied motor and drive are required.

3. Maximum usable watts input is 1000 and maximum continuous bhp is 1.00.

4. See page 60 for general fan performance notes.

External Static Pressure (in. wg)

1091 1.08 1104 1162 1.25 1277 1232 1.45 1442
1125 1.21 1237 1195 1.38 1410 1262 1.58 1572

912 0.61 641 957 0.69 720 1001 0.76 777

1203 1.00 885

indicates field-supplied motor drive is required.

Boldface

1103 1.04 1063 1171 1.20 1194
1132 1.14 1165 1202 1.32 1313

—— —

1086 0.89 885
1113 0.99 985
1141 1.09 1084

558F048 (4 TONS) — HIGH-STATIC MOTOR (BELT DRIVE)* (cont)

Airflow

(Cfm)

1200
1300
1400
1500
1600
1700
1800
1900
2000

Bhp —
Watts —

*Motor drive range: 1075 to 1455 rpm. All other rpms require field-supplied drive.

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

1083 0.74 778 1134 0.80 935 1185 0.88 965 1331 0.99 1000 1374 1.09 1083
1121 0.89 935 1171 0.94 988 1219 1.00 999 1268 1.10 1029 1309 1.21 1203
1153 1.00 976 1210 1.12 1071 1257 1.17 1105 1307 1.25 1190 1349 1.37 1367
1180 1.13 1081 1241 1.27 1215 1295 1.37 1294 1339 1.43 1350 1382 1.57 1564
1207 1.25 1196 1269 1.40 1339 1326 1.54 1454 1376 1.65 1558 1420 1.81 1805
1235 1.37 1310 1296 1.53 1463 1354 1.70 1605 1407 1.84 1738 1452 2.02 2013
1263 1.49 1425 1323 1.57 1597 1381 1.85 1757 1436 2.02 1907
1294 1.63 1559 1351 1.81 1731 1408 2.00 1889
1325 1.78 1702 1362 1.97 1884 1436 2.16 2040

LEGEND

Brake Horsepower Input to Fan
Input Watts to Motor

1.21.41.61.82.0

External Static Pressure (in. wg)

NOTES:

1.

2. Maximum continuous bhp is 2.4 and the maximum continuous watts are 2120.

3. See page 60 for general fan performance notes.

indicates field-supplied drive is required.

Boldface

41

1463 2.19 2068
1489 2.36 2229

1482 2.22 2210

—— —
—— —

558F060 (5 TONS) — STANDARD MOTOR (DIRECT DRIVE)

558F036-150
0TFQ004-012

Airflow

(Cfm)

1500
1600
1700
1800
1900
2000
2100
2200
2300
2400
2500

LEGEND

Brake Horsepower Input to Fan

Bhp —

External Static Pressure (in. wg)

ESP —

Input Watts to Motor

Watts —

208 v 230, 460, 575 v 208 v 230, 460, 575 v 208 v 230, 460, 575 v

ESP Bhp Watts ESP Bhp Watts ESP Bhp Watts ESP Bhp Watts ESP Bhp Watts ESP Bhp Watts

0.88 0.67 750 1.20 0.71 791 1.19 0.70 782 1.36 0.76 845 1.38 0.79 875 1.44 0.85 949

0.68 0.70 780 1.04 0.74 824 1.04 0.74 821 1.22 0.79 883 1.25 0.82 913 1.33 0.89 988

0.51 0.73 810 0.89 0.77 857 0.89 0.77 861 1.09 0.83 921 1.13 0.85 950 1.22 0.92 1027

0.35 0.75 839 0.73 0.80 891 0.74 0.81 900 0.96 0.86 959 1.00 0.89 988 1.11 0.96 1066

0.26 0.78 873 0.58 0.83 924 0.59 0.84 940 0.86 0.90 997 0.88 0.92 1025 1.00 0.99 1105

0.18 0.81 905 0.42 0.86 957 0.44 0.88 979 0.73 0.93 1035 0.78 0.95 1063 0.92 1.03 1144

0.08 0.84 940 0.27 0.89 990 0.29 0.91 1018 0.59 0.96 1073 0.63 0.99 1101 0.81 1.06 1183

———0.19 0.92 1023 0.19 0.93 1035 0.46 1.00 1111 0.49 1.02 1138 0.69 1.10 1222
———0.11 0.95 1056 0.11 0.97 1076 0.34 1.03 1149 0.41 1.06 1176 0.59 1.13 1261
———0.03 0.98 1096 0.04 1.00 1113 0.19 1.07 1187 0.22 1.09 1213 0.43 1.17 1300
——————— ——0.09 1.10 1225 0.12 1.12 1251 0.34 1.20 1340

Low Speed Medium Speed High Speed

PERFORMANCE DATA (cont)

FAN PERFORMANCE — VERTICAL DISCHARGE UNITS (cont)

See page 60 for general fan performance notes.

NOTE:

558F060 (5 TONS) — ALTERNATE MOTOR (BELT DRIVE)*

Airflow

(Cfm)

1500 730 0.34 347 789 0.40 409 896 0.53 542
1600 770 0.40 409 826 0.46 470
1700 811 0.47 480 865 0.54 552
1800 852 0.55 562
1900 894 0.54 552
2000
2100
2200
2300
2400
2500

558F060 (5 TONS) — ALTERNATE MOTOR (BELT DRIVE)* (cont)

Airflow

(Cfm)

1500
1600
1700
1800
1900
2000
2100 1327 1.66 1696 1393 1.80 1911 1452 2.08 2126 1510 2.31 2361
2200 1359 1.80 1850 1423 2.02 2064 1483 2.24 2289
2300 1392 1.97 2013 1454 2.18 2228
2400 1426 2.15 2197 1485 2.36 2412
2500 1461 2.34 2391

Bhp —
Watts —

*Motor drive range: 900 to 1300 rpm. All other rpms require field-supplied drive.

558F060 (5 TONS) — HIGH-STATIC MOTOR (BELT DRIVE)*

Airflow

(Cfm)

1500 808 0.42 429 914 0.56 572 1001 0.69 705 1084 0.85 869 1168 1.01 1032
1600 846 0.49 501 950 0.64 645 1034 0.78 797 1111 0.94 961 1194 1.11 1134
1700 884 0.57 582 983 0.72 736 1068 0.88 899 1145 1.03 1053 1218 1.21 1237
1800 924 0.66 674 1018 0.82 838 1105 0.98 1001 1179 1.13 1155 1246 1.32 1349
1900 965 0.76 777 1057 0.92 940 1143 1.10 1124 1212 1.26 1288 1280 1.43 1461
2000 1008 0.87 889 1096 1.04 1063 1177 1.22 1247 1247 1.40 1431
2100 1051 0.99 1012 1136 1.17 1196 1210 1.35 1380 1284 1.54 1574
2200 1095 1.12 1145 1173 1.30 1328 1245 1.49 1523
2300 1140 1.26 1288 1210 1.47 1502 1284 1.65 1686
2400 1185 1.41 1441 1249 1.61 1645
2500 1231 1.57 1604 1289 1.78 1819

558F060 (5 TONS) — HIGH-STATIC MOTOR (BELT DRIVE)* (cont)

Airflow

(Cfm)

1500 1199 1.19 1216 1126 1.46 1492 1250 1.69 1757
1600 1263 1.28 1308 1275 1.49 1523 1299 1.78 1800
1700 1295 1.39 1420
1800
1900
2000
2100
2200
2300
2400
2500

Bhp —
Watts —

*Motor drive range: 1300 to 1685 rpm. All other rpms require field-supplied drive.

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

936 0.74 756 984 0.82 838 1072 0.98 1001 1154 1.16 1185 1226 1.33 1359

978 0.85 869 1024 0.93 950 1108 1.10 1124 1192 1.29 1318 1259 1.47 1502
1021 0.97 991 1064 1.05 1073 1145 1.22 1247 1225 1.43 1461 1294 1.62 1656
1064 1.10 1124 1104 1.18 1206 1183 1.36 1390 1260 1.57 1604
1107 1.24 1267 1145 1.32 1349 1222 1.45 1482 1296 1.73 1768
1150 1.39 1420 1186 1.48 1512 1262 1.68 1717

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

1153 1.00 1022 1221 1.17 1196 1256 1.30 1328 1280 1.32 1349
1178 1.09 1114 1252 1.27 1298
1205 1.18 1206 1278 1.37 1400
1235 1.29 1318
1266 1.40 1431
1297 1.53 1564

LEGEND

Brake Horsepower Input to Fan
Input Watts to Motor

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

1319 1.52 1553 1389 1.71 1747 1435 1.91 1952 1494 2.15 2197 1548 2.40 2446
1343 1.64 1676 1415 1.80 1891 1478 2.05 2095 1538 2.31 2358 1594 2.57 2625
1374 1.77 1809 1438 1.99 2034 1505 2.21 2258 1566 2.49 2542 1624 2.77 2830
1409 1.91 1952 1465 2.14 2167 1533 2.45 2501 1596 2.77 2821
1442 2.08 2126 1498 2.30 2350 1568 2.64 2688 1632 2.97 3031 1691 3.31 3375
1475 2.26 2310 1554 2.64 2698
1565 2.47 2524 1649 2.89 2948
1596 2.95 3010 1682 3.45 3522 1760 3.96 4036 ——————

LEGEND

Brake Horsepower Input to Fan
Input Watts to Motor

0.1 0.2 0.4 0.6 0.8

905 0.62 634 1002 0.78 797 1084 0.93 950 1163 1.10 1124
945 0.72 736 1037 0.88 899 1119 1.04 1063 1194 1.21 1237

1.0 1.2 1.4 1.6 1.8

1303 1.48 1512 1371 1.69 1727 1433 1.90 1942 1480 2.09 2136
1330 1.59 1625 1396 1.80 1850 1460 2.03 2074 1517 2.25 2299
1362 1.73 1768 1422 1.94 1983 1485 2.16 2207 1544 2.40 2453

1518 2.55 2606 1575 2.78 2841 1631 3.03 3096 1684 3.28 3352

0.2 0.4 0.6 0.8 1.0

1.2 1.4 1.6 1.8 2.0

1351 1.58 1615 1352 1.80 1850 1407 2.03 2070 1459 2.26 2305

External Static Pressure (in. wg)

931 0.61 623 1020 0.75 766 1101 0.91 930
966 0.69 705 1051 0.84 858 1133 1.01 1032

External Static Pressure (in. wg)

1311 1.45 1482 1340 1.58 1615 1380 1.61 1645
1345 1.57 1604 1397 1.76 1799 1424 1.89 1931

1515 2.41 2463 1569 2.64 2698 1622 2.88 2943
1544 2.59 2647 1601 2.84 2902 1652 3.07 3137

NOTES:

1.

Boldface

2. indicates field-supplied motor and drive are required.

3. Maximum usable watts input is 2120 and maximum continuous bhp is 1.30 for single­phase units and 2.40 for 3-phase units.

4. See page 60 for general fan performance notes.

External Static Pressure (in. wg)

1323 1.80 1860 1389 2.03 2074 1456 2.26 2310
1363 2.00 2044 1424 2.22 2269 1500 2.45 2504

External Static Pressure (in. wg)

1627 3.03 3091 1693 3.42 3486 1755 3.81 3881
1726 3.31 3379 ——————

NOTES:

1.

Boldface

2. indicates field-supplied motor and drive are required.

3. Maximum continuous bhp is 2.9 and the maximum continuous watts are 2562.

4. See page 60 for general fan performance notes.

990 0.67 685 1072 0.83 848

1330 1.78 1819

1331 1.80 1921 1400 2.12 2166

1538 2.46 2514 1595 2.71 2769

indicates field-supplied drive is required.

1322 1.70 1737 1380 1.89 1931
1356 1.80 1901 1418 2.07 2115

1301 1.91 1944 1349 2.12 2164
1352 2.01 2047 1401 2.23 2280

indicates field-supplied drive is required.

1365 1.94 1983

1320 1.22 1400

1569 2.55 2606

1300 1.57 1604
1347 1.72 1758

1654 3.08 3141

42

PERFORMANCE DATA (cont)

FAN PERFORMANCE — VERTICAL DISCHARGE UNITS (cont)

558F072,073 (6 TONS)* — STANDARD MOTOR (BELT DRIVE)

Airflow

(Cfm)

1800 852 0.55 562 905 0.62 615 1002 0.78 739
1900 894 0.64 630 945 0.72 692 1037 0.88 818
2000 936 0.74 708 984 0.82 771
2100 978 0.85 795 1024 0.93 859
2200 1021 0.97 891 1064 1.05 956
2300 1064 1.10 998
2400
2500
2600
2700
2800
2900
3000

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

1107 1.24 1114 1145 1.32 1182 1222 1.52 1353 1296 1.73 1534 1365 1.94 1718
1150 1.39 1241 1186 1.48 1318 1262 1.68 1491 1331 1.89 1674 1400 2.12 1875
1193 1.56 1387 1228 1.65 1465 1301 1.86 1648 1367 2.07 1831 1435 2.31 2041
1237 1.74 1543 1269 1.83 1621 1341 2.05 1814 1404 2.26 1997
1280 1.94 1718 1311 2.03 1796 1381 2.25 1989
1324 2.15 1901 1354 2.24 1980 1420 2.47 2180 1481 2.69 2369 1542 2.94 2579
1368 2.37 2093

0.1 0.2 0.4 0.6 0.8

1104 1.18 1064 1183 1.36 1216 1260 1.57 1396 1330 1.78 1578

1396 2.46 2171 1460 2.69 2369 1521 2.93 2571 ———

External Static Pressure (in. wg)

1072 0.98 899 1154 1.16 1047 1226 1.33 1190
1108 1.10 998 1190 1.29 1156 1259 1.47 1310
1145 1.22 1097 1225 1.43 1275 1294 1.62 1439

1084 0.93 859 1163 1.10 998
1119 1.04 948 1194 1.21 1089

1442 2.47 2180 1506 2.72 2394

1471 2.51 2214

0TFQ004-012
558F036-150

558F072,073 (6 TONS)* — STANDARD MOTOR (BELT DRIVE) (cont)

Airflow

(Cfm)

1800
1900
2000
2100
2200
2300
2400
2500 1461 2.34 2067
2600
2700
2800
2900
3000

Bhp —
Watts —

*Motor drive range: 1070 to 1460 rpm. All other rpms require field-supplied drive.

558F072,073 (6 TONS) — HIGH-STATIC MOTOR (BELT DRIVE)*

Airflow

(Cfm)

1800 978 0.66 700 1063 0.82 771 1147 0.97 891 1248 1.20 1081
1900 1023 0.78 779 1097 0.91 843 1175 1.11 1006 1266 1.29 1158
2000 1068 0.90 867 1132 1.01 924 1218 1.23 1106
2100 1115 1.00 998 1180 1.17 1056 1261 1.35 1207
2200 1159 1.15 1081 1214 1.28 1148
2300 1202 1.29 1140 1248 1.38 1233
2400 1237 1.41 1224 1292 1.55 1378
2500 1272 1.53 1335
2600
2700
2800
2900
3000

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

1235 1.29 1156 1303 1.48 1318 1371 1.69 1499 1433 1.90 1638
1266 1.40 1250 1330 1.59 1413 1396 1.81 1604
1297 1.53 1361 1362 1.73 1534 1422 1.94 1718
1327 1.66 1473 1393 1.87 1656 1452 2.08 1840
1359 1.81 1604 1423 2.02 1779
1392 1.97 1744 1454 2.18 1927 1515 2.41 2128 1569 2.64 2326
1426 2.15 1901

1497 2.54 2240 1552 2.76 2428 ——————
1532 2.75 2420 —————————

————————————
————————————
————————————

LEGEND

Brake Horsepower Input to Fan
Input Watts to Motor

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

1320 1.68 1482 1368 1.81 1604 1458 2.06 1823 1562 2.42 2136 1620 2.59 2283
1361 1.82 1595 1400 1.91 1691 1490 2.19 1936 1602 2.64 2326 1666 2.85 2504
1402 1.95 1639 1439 2.08 1840 1543 2.43 2145 1642 2.86 2512
1446 2.16 1814 1477 2.16 1989 1585 2.65 2335 1753 3.58 3262 ———
1489 2.36 2032 1529 2.52 2223 1598 2.73 2444

1.0 1.2 1.4 1.6

1485 2.36 2084

1518 2.55 2249 1575 2.78 2445 ———

0.2 0.4 0.6 0.8 1.0

1335 1.71 1517 1427 1.94 1718 1518 2.16 1910 1575 2.35 2076

External Static Pressure (in. wg)

1483 2.24 1980

1544 2.59 2283 1601 2.84 2459

External Static Pressure (in. wg)

1310 1.52 1353 1375 1.63 1447 1459 1.80 1595
1358 1.69 1499 1410 1.72 1526 1488 1.93 1709
1392 1.81 1604 1460 1.90 1683 1532 2.14 1892

1460 2.03 1796
1485 2.16 1910
1510 2.31 2041

1538 2.46 2171

NOTES:

1.

2. indicates field-supplied motor and drive are required.

3. Maximum usable watts input is 2120 and maximum continuous bhp is 2.40.

4. See page 60 for general fan performance notes.

indicates field-supplied drive is required.

Boldface

1303 1.41 1258 1397 1.52 1353
1340 1.53 1361 1428 1.66 1473

1767 3.69 3360 ———

1322 1.33 1190
1356 1.47 1310

1775 3.62 3290

558F072,073 (6 TONS) — HIGH-STATIC MOTOR (BELT DRIVE)* (cont)

Airflow

(Cfm)

1800
1900
2000
2100
2200
2300
2400
2500
2600
2700
2800
2900
3000

Bhp —
Watts —

*Motor drive range: 1300 to 1685 rpm. All other rpms require field-supplied drive.

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

1395 1.46 1301 1475 1.56 1387 1542 1.71 1517 1607 1.94 1761 1667 2.16 1967
1430 1.58 1404 1504 1.69 1499 1556 1.82 1613 1621 2.06 1874 1682 2.30 2093
1459 1.67 1482 1532 1.82 1613 1588 1.97 1744 1655 2.23 2029
1489 1.80 1595 1567 1.99 1761 1626 2.16 1910
1528 1.95 1726 1603 2.17 1919 1666 2.37 2093
1561 2.13 1884 1637 2.35 2076
1584 2.28 2015 1671 2.55 2249
1633 2.53 2232
1675 2.77 2436
1775 3.45 3141 ————————————

———————————————
———————————————
———————————————

LEGEND

Brake Horsepower Input to Fan
Input Watts to Motor

0.2 0.4 0.6 0.8 1.0

1698 2.72 2405

1768 3.26 2964 —————————

External Static Pressure (in. wg)

1694 2.44 2224 1758 2.73 2485

1710 2.54 2272 1782 2.87 2616
1756 2.70 2467

1779 3.13 2848 ——————

NOTES:

1.

Boldface

2. indicates field-supplied motor and drive are required.

3. Maximum continuous bhp is 2.9 and the maximum continuous watts are 2562.

4. See page 60 for general fan performance note.

1736 2.68 2441

——————

indicates field-supplied drive is required.

1717 2.49 2266

———
———

43

PERFORMANCE DATA (cont)

FAN PERFORMANCE — VERTICAL DISCHARGE UNITS (cont)

558F090,091 (71/2 TONS )* — STANDARD MOTOR AND DRIVE AND ALTERNATE DRIVE (BELT DRIVE)

Airflow

(Cfm)

2250 511 0.52 539
2300 518 0.55 562

558F036-150

2400 534 0.61 607

0TFQ004-012

2500 549 0.67 653
2550 557 0.71 684
2600 565 0.74 708
2700 581 0.81 763
2800
2900
3000
3100
3200
3300
3400
3500
3600
3700
3750

0.2 0.4 0.6 0.8 1.0 1.2

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

597 0.89 827 665 1.12 1014 733 1.40 1250 786 1.66 1473 839 1.93 1709 889 2.23 1971
613 0.97 891 679 1.20 1081 745 1.50 1335 799 1.76 1560 850 2.04 1805 900 2.34 2067
629 1.06 965 694 1.29 1156 759 1.59 1413 812 1.88 1665 862 2.15 1901 911 2.46 2171
646 1.15 1039 709 1.39 1241 772 1.70 1508 825 1.99 1761 875 2.28 2015 923 2.58 2275
662 1.25 1123 724 1.50 1335 785 1.80 1595 840 2.11 1866
679 1.35 1207 740 1.61 1430 798 1.91 1691 854 2.24 1980
696 1.46 1301 756 1.73 1534 811 2.02 1788 868 2.37 2093 914 2.69 2369 959 3.00 2629
712 1.57 1396 771 1.85 1639 824 2.14 1892
729 1.69 1499 787 1.98 1753 839 2.21 2006
746 1.85 1613 803 2.12 1875 854 2.42 2136 907 2.78 2445 956 3.15 2751 997 3.49 3017
755 1.89 1674 811 2.20 1945

592 0.74 708 659 0.95 875 722 1.19 1072 778 1.43 1275 829 1.68 1491
599 0.77 731 665 0.98 899 727 1.22 1097 783 1.47 1310 834 1.72 1526
613 0.84 787 677 1.06 965 738 1.30 1165 794 1.55 1378 844 1.81 1604
627 0.90 835 690 1.14 1031 750 1.38 1233 805 1.64 1456 855 1.91 1691
633 0.94 867 697 1.18 1064 756 1.42 1267 811 1.69 1499 861 1.96 1735
639 0.97 891 703 1.22 1097 761 1.46 1301 816 1.74 1543 866 2.01 1779
652 1.04 948 717 1.31 1173 773 1.55 1378 827 1.83 1621 878 2.12 1875

External Static Pressure (in. wg)

862 2.49 2197 914 2.85 2504 963 3.23 2815 —— —

887 2.41 2128 934 2.71 2386
900 2.54 2240 946 2.85 2504

881 2.50 2206 928 2.84 2495 971 3.16 2759
894 2.64 2326 942 2.99 2620 984 3.22 2886

558F090,091 (7

Airflow

Bhp —
Watts —

*Standard motor drive range: 590 to 840 rpm. Alternate motor drive range: 685 to 935 rpm. All

other rpms require field-supplied drive.

1

/2 TONS )* — STANDARD MOTOR AND DRIVE AND ALTERNATE DRIVE ( BELT DRIVE) (con t)

(Cfm)

2250
2300
2400
2500
2550
2600
2700
2800
2900
3000
3100
3200
3300
3400
3500
3600
3700
3750

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

884 1.97 1744
885 2.00 1770
892 2.08 1840
902 2.18 1927 949 2.48 2188 1002 2.84 2495 1041 3.25 2831
908 2.24 1980 953 2.53 2232 1003 2.87 2521 1045 3.28 2854
913 2.29 2023 957 2.58 2275 1004 2.91 2554 1050 3.31 2878
924 2.40 2120 967 2.70 2377 1010 3.01 2637 1056 3.37 2925
935 2.52 2223 978 2.62 2479 1019 3.13 2735 1061 3.47 3002
946 2.65 2335 989 2.96 2595 1030 3.27 2847 —— —
957 2.78 2445 1000 3.09 2702 1040 3.41 2956 —— —
968 2.91 2554 1011 3.24 2832 —— — —— —
980 3.04 2661 1022 3.38 2933 —— — —— —

991 3.18 2775 —— — —— — —— —
1003 3.32 2886 —— — —— — —— —
1014 3.48 3009 —— — —— — —— —

—— — —— ——— ——— —
—— — —— ——— ——— —
—— — —— ——— ——— —

LEGEND

Brake Horsepower Input to Fan
Input Watts to Motor

1.4 1.6 1.8 2.0

External Static Pressure (in. wg)

937 2.33 2058
939 2.36 2084
944 2.40 2119

947 2.66 2343 1022 3.10 2710
979 2.69 2369 1025 3.12 2727
987 2.76 2428 1039 3.20 2791

NOTES:

1.

2. indicates field-supplied motor and drive are required.

3. Maximum usable watts input is 2120 and maximum continuous bhp is 2.40.

4. See page 60 for general fan performance notes.

indicates field-supplied drive is required.

Boldface

44

PERFORMANCE DATA (cont)

FAN PERFORMANCE — VERTICAL DISCHARGE UNITS (cont)

558F090,091 (71/2 TONS ) — HIGH-STATIC MOTOR (BELT DRIVE)*

Airflow

(Cfm)

2250 514 0.55 562 593 0.76 723 662 0.99 907 724 1.22 1097 781 1.48 1318
2300 521 0.57 577 600 0.79 747 668 1.02 932 730 1.26 1131 786 1.50 1335
2400 536 0.63 623 613 0.85 795 680 1.09 989 741 1.34 1199 796 1.59 1413
2500 551 0.69 669 626 0.93 859 693 1.17 1056 753 1.43 1275 808 1.69 1499
2550 559 0.72 692 634 0.97 891 700 1.21 1089 759 1.48 1318 814 1.74 1543
2600 567 0.75 716 641 1.00 916 706 1.25 1123 764 1.52 1353 819 1.79 1587
2700 582 0.83 779 655 1.08 981 719 1.34 1199 776 1.61 1430 831 1.89 1674
2800 598 0.90 835 670 1.17 1056 732 1.43 1275 789 1.71 1617 842 2.00 1770
2900 614 0.98 899 684 1.25 1123 745 1.53 1361 802 1.81 1604 854 2.11 1866
3000 630 1.07 973 699 1.35 1207 759 1.63 1147 815 1.92 1700
3100 646 1.16 1047 714 1.45 1292 773 1.74 1543 828 2.04 1805
3200 662 1.28 1131 729 1.55 1378 787 1.86 1648 841 2.16 1910
3300 679 1.36 1216 744 1.66 1473 801 1.98 1753 854 2.29 2023
3400 695 1.47 1310 759 1.78 1578 816 2.10 1868
3500 712 1.59 1413 774 1.90 1683 830 2.23 1971
3600 729 1.71 1617 790 2.03 1796 845 2.37 2093
3700 745 1.84 1630 805 2.17 1919 860 2.52 2223
3750 754 1.91 1691 813 2.24 1980

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

0.2 0.4 0.6 0.8 1.0

External Static Pressure (in. wg)

866 2.23 1971
878 2.35 2076
891 2.48 2188

867 2.42 2136 917 2.75 2420
881 2.56 2257 930 2.90 2546
895 2.71 2386 943 3.05 2670

868 2.59 2283 917 2.95 2587 963 3.30 2870

909 2.87 2521 956 3.22 2807

904 2.61 2300

0TFQ004-012
558F036-150

558F090,091 (71/2 TONS ) — HIGH-STATIC MOTOR (BELT DRIVE)* (cont)

Airflow

(Cfm)

2250 841 1.81 1604
2300 843 1.83 1621
2400 848 1.88 1665
2500 859 1.96 1735
2550
2600
2700
2800
2900
3000
3100
3200
3300
3400
3500
3600
3700
3750

Bhp —
Watts —

*Motor drive range: 860 to 1080 rpm. All other rpms require field-supplied drive.

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

864 2.01 1779 915 2.34 2067 968 2.81 2479 1009 3.18 2798 1047 3.55 3126
869 2.06 1823 918 2.37 2093 973 2.81 2487 1014 3.18 2798 1052 3.55 3126
880 2.17 1919 927 2.47 2180 976 2.84 2495 1017 3.21 2828 1055 3.59 3159
892 2.29 2023 938 2.58 2275 983 2.92 2562 1024 3.30 2908 1063 3.69 3248
903 2.42 2136 949 2.71 2386 993 3.03 2653 1035 3.43 3017 1074 3.83 3370
915 2.54 2240 961 2.85 2504 1003 3.17 2767 1045 3.59 3157 1084 4.01 3526
926 2.67 2352 972 3.00 2629 1015 3.32 2886 1058 3.76 3306 1097 4.20 3693
938 2.81 2470 983 3.14 2743 1026 3.47 3002 1069 3.93 3456 —— —
950 2.95 2587 995 3.30 2870 1043 3.8 0 3341 —— — —— —
963 3.10 2710 1007 3.45 2987 1055 3.97 3493 —— — —— —
976 3.25 2831 1030 3.82 3362 —— — —— — —— —

988 3.41 2956 1043 4.01 3528 —— — —— — —— —
1019 3.90 3431 —— — —— — —— — —— —
1026 4.00 3517 —— — —— — —— — —— —

LEGEND

Brake Horsepower Input to Fan
Input Watts to Motor

0.2 0.4 0.6 0.8 1.0

902 2.25 1989 939 2.60 2292 979 2.94 2589 1015 3.29 2892
905 2.28 2015 943 2.52 2309 983 2.96 2609 1020 3.31 2914
910 2.31 2041 952 2.74 2411 992 3.10 2729 1029 3.46 3048
912 2.31 2050 963 2.81 2470 1004 3.18 2798 1041 3.55 3126

External Static Pressure (in. wg)

NOTES:

1.

2. indicates field-supplied motor and drive are required.

3. Maximum continuous bhp is 3.7 and the maximum continuous watts are 3313.

4. See page 60 for general fan performance notes.

indicates field-supplied drive is required.

Boldface

45

FAN PERFORMANCE — VERTICAL DISCHARGE UNITS (cont)

558F102 (8 TONS)* — STANDARD MOTOR (BELT DRIVE)

Airflow

(Cfm)

2550 557 0.71 684 633 0.94 867
2600 565 0.74 708 639 0.97 891

558F036-150

2700 581 0.81 763 652 1.04 948

0TFQ004-012

2800 597 0.89 827 665 1.12 1014
2900 613 0.97 891 679 1.20 1081
3000 629 1.06 965
3100 646 1.15 1039
3200 662 1.25 1123
3300 679 1.35 1207
3400
3500
3600
3700
3750
3800
3900
4000
4100
4200
4250

0.2 0.4 0.6 0.8 1.0 1.2

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

694 1.29 1156 759 1.59 1413 812 1.88 1665 862 2.15 1901 911 2.46 2171
709 1.39 1241 772 1.70 1508 825 1.99 1761 875 2.28 2015
724 1.50 1335 785 1.80 1595 840 2.11 1866

696 1.46 1301 756 1.73 1534 811 2.02 1788 868 2.37 2093
712 1.57 1396 771 1.85 1639 824 2.14 1892
729 1.69 1499 787 1.98 1753 839 2.27 2006 894 2.64 2326 942 2.99 2620 984 3.32 2886
746 1.82 1613 803 2.12 1875
755 1.89 1674 811 2.20 1945
763 1.95 1726 819 2.27 2006 869 2.56 2257 920 2.92 2562 970 3.31 2878 —— —
780 2.09 1849
796 2.23 1971
813 2.39 2110 867 2.74 2411 915 3.06 2678 960 3.40 2948 ——————
830 2.55 2249 883 2.91 2554 931 3.24 2823 —— — —— — —— —
839 2.63 2317 892 3.00 2629 939 3.34 2902 —— — —— — —— —

740 1.61 1430 798 1.91 1691 854 2.24 1980 900 2.54 2240 946 2.85 2504

835 2.42 2136 884 2.72 2394 933 3.07 2686 983 3.48 3009 —— —
851 2.56 2257 900 2.89 2537 946 3.23 2815 ——————

PERFORMANCE DATA (cont)

External Static Pressure (in. wg)

697 1.18 1064 756 1.42 1267 811 1.69 1499 861 1.96 1735
703 1.22 1097 761 1.46 1301 816 1.74 1543 866 2.01 1779
717 1.31 1173 773 1.55 1378 827 1.83 1621 878 2.12 1875
733 1.40 1250 786 1.66 1473 839 1.93 1709 889 2.23 1971
745 1.50 1335 799 1.76 1560 850 2.04 1805 900 2.34 2067

887 2.41 2128 934 2.71 2386

881 2.50 2206 928 2.84 2495 971 3.16 2759

854 2.42 2136 907 2.78 2445 956 3.15 2751 997 3.49 3017
862 2.49 2197 914 2.85 2504 963 3.23 2815 —— —

914 2.69 2369 959 3.00 2629

923 2.58 2275

558F102 (8 TONS)* — STANDARD MOTOR (BELT DRIVE) (cont)

Airflow

(Cfm)

2550
2600
2700
2800
2900
3000
3100
3200
3300
3400
3500
3600
3700
3750
3800
3900
4000
4100
4200
4250

LEGEND

Bhp —
Watts —

*Motor drive range: 685 to 935 rpm. All other rpms require field-supplied drive.

Brake Horsepower Input to Fan
Input Watts to Motor

1.4 1.6 1.8 2.0

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

908 2.24 1980 953 2.53 2232 1003 2.87 2521 1045 3.28 2854
913 2.29 2023 957 2.58 2275 1004 2.91 2554 1050 3.31 2878
924 2.40 2120 967 2.70 2377 1010 3.01 2637 1056 3.37 2925
935 2.52 2223 978 2.62 2479 1019 3.13 2735 1061 3.41 3002
946 2.65 2335 989 2.96 2595 1030 3.27 2847 —— —
957 2.78 2445 1000 3.09 2702 1040 3.41 2956 —— —
968 2.91 2554 1011 3.24 2832 ——————
980 3.04 2661 1022 3.38 2933 ——————

991 3.18 2775 —————————
1003 3.52 2886 —————————
1014 3.48 3009 —————————

————————————

————————————

————————————

————————————

————————————

————————————

————————————

————————————

————————————

External Static Pressure (in. wg)

NOTES:

1.

2. indicates field-supplied motor and drive are required.

3. Maximum usable watts input is 2120 and maximum continuous bhp is 2.40.

4. See page 60 for general fan performance notes.

indicates field-supplied drive is required.

Boldface

46

PERFORMANCE DATA (cont)

FAN PERFORMANCE — VERTICAL DISCHARGE UNITS (cont)

558F102 (81/2 TONS ) — HIGH-STATIC MOTOR (BELT DRIVE)*

Airflow

(Cfm)

2550 559 0.72 692 634 0.97 891 700 1.21 1089 759 1.48 1318 814 1.74 1543
2600 567 0.76 716 641 1.00 916 706 1.25 1123 764 1.52 1353 819 1.79 1587
2700 582 0.83 779 655 1.08 981 719 1.34 1199 776 1.61 1430 831 1.89 1674
2800 598 0.90 835 670 1.17 1056 732 1.43 1275 789 1.71 1517 842 2.00 1770
2900 614 0.98 899 684 1.25 1123 745 1.53 1361 802 1.81 1604 854 2.11 1866
3000 630 1.07 973 690 1.35 1207 759 1.63 1147 816 1.92 1700
3100 646 1.16 1047 714 1.45 1292 773 1.74 1543 828 2.04 1805
3200 662 1.26 1131 729 1.55 1378 787 1.86 1648 841 2.16 1910
3300 679 1.36 1216 744 1.66 1473 801 1.98 1753 854 2.29 2023
3400 695 1.47 1310 759 1.78 1578 816 2.10 1958
3500 712 1.59 1413 774 1.90 1683 830 2.23 1971
3600 729 1.71 1517 790 2.03 1796 845 2.37 2093
3700 745 1.84 1630 805 2.17 1919 860 2.52 2223
3750 754 1.91 1691 813 2.24 1980
3800 762 1.98 1753 821 2.31 2041
3900 779 2.12 1875 836 2.46 2171
4000 796 2.27 2006 852 2.61 2300
4100 813 2.42 2136
4200 830 2.59 2283
4250 839 2.68 2360

558F102 (81/2 TONS ) — HIGH-STATIC MOTOR (BELT DRIVE)* (cont)

Airflow

(Cfm)

2550
2600
2700
2800
2900
3000
3100
3200
3300
3400
3500
3600
3700
3750
3800
3900
4000
4100
4200
4250

Bhp —
Watts —

*Motor drive range: 860 to 1080 rpm. All other rpms require field-supplied drive.

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

864 2.01 1779 915 2.34 2067 968 2.81 2479 991 3.02 2654 1012 3.21 2827
869 2.06 1823 918 2.37 2093 973 2.81 2487 996 3.02 2654 1017 3.21 2827
880 2.17 1919 927 2.47 2180 976 2.84 2495 999 3.05 2682 1021 3.25 2857
892 2.29 2023 938 2.58 2275 983 2.92 2562 1006 3.13 2758 1028 3.34 2938
903 2.42 2136 949 2.71 2386 993 3.03 2653 1017 3.25 2862 1038 3.46 3048
915 2.54 2240 961 2.85 2504 1003 3.17 2767 1027 3.40 2994 1049 3.62 3189
926 2.67 2352 972 3.00 2629 1016 3.32 2886 1040 3.56 3136 1062 3.80 3340
938 2.81 2470 983 3.14 2743 1026 3.47 3002 1050 3.72 3277 1073 3.97 3491
950 2.95 2587 995 3.30 2870 1022 3.58 3146 1046 3.84 3377 1069 4.09 3597
963 3.10 2710 1007 3.45 2987 1034 3.74 3289 1059 4.01 3530 ———
976 3.25 2831 1007 3.56 3137 1034 3.85 3399 1058 4.15 3648 ———
988 3.41 2956 1019 3.74 3292 1047 4.05 3566 ——————
992 3.59 3161 1023 3.94 3467 —————————

999 3.68 3240 1030 4.04 3554 —————————
1006 3.77 3318 1038 4.14 3640 —————————
1017 4.07 3580 ————————————

———————————————

———————————————

———————————————

———————————————

LEGEND

Brake Horsepower Input to Fan
Input Watts to Motor

0.2 0.4 0.6 0.8 1.0

868 2.78 2445 920 3.15 2751
884 2.95 2587 935 3.33 2894
890 3.04 2661 965 3.88 3412 ——————

1.2 1.4 1.6 1.8 2.0

External Static Pressure (in. wg)

866 2.23 1971
878 2.35 2076
891 2.48 2188

867 2.42 2136 917 2.75 2420
881 2.56 2257 930 2.90 2546
895 2.71 2386 943 3.05 2670

868 2.59 2283 917 2.95 2587 963 3.30 2870
875 2.66 2343 924 3.03 2653 970 3.38 2933
890 2.82 2479 938 3.19 2783 981 3.65 3209
905 2.98 2612 953 3.37 2925 996 3.85 3390

External Static Pressure (in. wg)

NOTES:

1.

Boldface

2. indicates field-supplied motor and drive are required.

3. Maximum continuous bhp is 3.7 and the maximum continuous watts are 3313.

4. See page 60 for general fan performance notes.

909 2.87 2521 956 3.22 2807

974 3.74 3294 ———
990 3.96 3482 ———

indicates field-supplied drive is required.

904 2.61 2300

0TFQ004-012
558F036-150

47

558F120,121 (10 TONS)*

Airflow

(Cfm

3000
3100

558F036-150

3200
3300

0TFQ004-012

3400
3500
3600
3700
3800
3900
4000
4100
4200
4300
4400
4500
4600
4700
4800
4900
5000

PERFORMANCE DATA (cont)

FAN PERFORMANCE — VERTICAL DISCHARGE UNITS (cont)

0.2 0.4 0.6 0.8 1.0 1.2

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

532 0.64 630 605 0.81 763 670 0.97 891 725 1.12 1014 778 1.28 1148 825 1.43 1275
544 0.70 677 616 0.86 803 680 1.03 940 735 1.20 1081 787 1.36 1216 835 1.52 1353
557 0.75 716 628 0.93 859 690 1.10 998 746 1.28 1148 796 1.44 1284 844 1.61 1430
570 0.81 763 639 0.99 907 700 1.18 1064 757 1.36 1216 805 1.52 1353 854 1.70 1508
583 0.88 818 651 1.06 965 711 1.25 1123 767 1.44 1284 815 1.61 1430 863 1.79 1587
596 0.94 867 663 1.14 1031 721 1.33 1190 777 1.52 1353 826 1.71 1517 871 1.88 1665
609 1.01 924 674 1.22 1097 732 1.42 1267 787 1.61 1430 836 1.80 1595 880 1.98 1753
622 1.09 989 686 1.30 1165 744 1.50 1335 797 1.70 1508 847 1.91 1691 890 2.09 1849
635 1.16 1047 698 1.39 1241 755 1.59 1413 808 1.80 1595 857 2.01 1779 901 2.20 1945
649 1.25 1123 713 1.48 1318 767 1.68 1491 818 1.90 1683 867 2.11 1866 912 2.32 2050
662 1.33 1190 722 1.57 1396 778 1.78 1578 829 2.01 1779 878 2.22 1962 922 2.44 2203
675 1.42 1267 734 1.67 1482 790 1.89 1674 839 2.12 1875 888 2.33 2058 933 2.56 2309
689 1.52 1353 746 1.77 1569 801 1.99 1761 851 2.23 1971 898 2.45 2212 943 2.69 2424
702 1.61 1430 759 1.88 1665 813 2.11 1866 862 2.34 2067 908 2.58 2326 953 2.81 2533
715 1.72 1526 772 1.99 1761 825 2.22 1962 873 2.46 2221 919 2.71 2442
729 1.83 1621 785 2.10 1858 837 2.35 2076 885 2.59 2335 929 2.85 2569
742 1.94 1718 797 2.22 1962 848 2.48 2238 896 2.72 2451
756 2.06 1823 810 2.34 2067 860 2.61 2353 908 2.86 2578
770 2.18 1927 823 2.46 2221 872 2.75 2505
783 2.31 2041 836 2.60 2344 884 2.89 2605
797 2.44 2203 849 2.73 2460

External Static Pressure (in. wg)

963 2.94 2651

940 2.98 2688 984 3.22 2914

919 3.00 2707 963 3.27 2847 1003 3.43 3202

897 3.04 2661 943 3.30 2870 984 3.44 3211 1023 3.75 3501

931 3.14 2838 974 3.41 2956 1013 3.59 3349

951 3.12 2727 994 3.38 3068

973 3.08 2782

558F120,121 (10 TONS)* (cont)

Airflow

(Cfm)

3000
3100
3200
3300
3400
3500
3600
3700
3800
3900
4000
4100
4200 983 2.91 2624 1021 3.11 2810 1060 3.34 3029 1090 3.51 3276
4300 994 3.05 2754 1031 3.25 2943 1068 3.48 3166 1097 3.70 3453
4400 1004 3.19 2885 1042 3.41 3097 1080 3.63 3388 1105 3.91 3642
4500 1015 3.33 2020 1051 3.45 3218 1090 3.75 3493 1112 4.12 3843
4600 1025 3.48 3166 1060 3.61 3369 1100 3.92 3655 1119 4.35 4057
4700 1037 3.58 3335 1070 3.84 3325 1111 4.10 3822 1126 4.59 4284
4800 1048 3.75 3494 1080 3.95 3686 1121 4.28 3995 1133 4.85 4523
4900 1060 3.92 3659 1089 4.13 3854 1132 4.48 4174 1140 5.12 4775
5000 1072 4.11 3830 1099 4.32 4027 1144 4.67 4359

Bhp —
Watts —

*Standard motor drive range: 685 to 935 rpm. Alternate motor drive range: 835 to 1085 rpm.

High-static motor drive range is 830 to 1130 rpm. All other rpms require field-supplied drive.

Brake Horsepower Input to Fan
Input Watts to Motor

1.4 1.6 1.8 2.0

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

874 1.60 1422 926 1.82 1613 974 2.11 1920 1012 2.41 2134
880 1.68 1491 933 1.87 1656 983 2.16 1963 1017 2.44 2177
888 1.77 1569 934 1.94 1718 988 2.18 1980 1025 2.47 2230
897 1.86 1648 940 2.03 1853 989 2.24 2031 1032 2.53 2282
907 1.97 1744 947 2.14 1946 991 2.32 2099 1038 2.57 2318
916 2.07 1831 956 2.25 2039 997 2.43 2195 1043 2.64 2380
926 2.18 1927 966 2.41 2134 1004 2.54 2291 1045 2.74 2478
934 2.28 2015 976 2.48 2238 1013 2.66 2397 1051 2.85 2569
943 2.41 2160 985 2.60 2334 1023 2.79 2514
952 2.51 2265 994 2.72 2451
962 2.63 2371 1003 2.84 2560
973 2.77 2496

LEGEND

External Static Pressure (in. wg)

1032 2.92 2633 1068 3.12 2819

1011 2.97 2679 1051 3.20 2895 1087 3.41 3097

1042 3.06 2763 1078 3.26 2952

1059 2.98 2688

———

NOTES:

1.

2. Maximum usable watts input is 2120 with standard motor, 2615 with alternate motor, and

3. See page 60 for general fan performance notes.

indicates high-static motor and drive are required.

Boldface

4400 for the high-static motor. Maximum continuous bhp is 2.40 with standard motor,

2.90 with alternate motor, and 5.25 for the high-static motor.

48

PERFORMANCE DATA (cont)

FAN PERFORMANCE — VERTICAL DISCHARGE UNITS (cont)

558F150 (12 TONS)*

Airflow

(Cfm)

3700
3800
3900
4000
4100
4200
4300
4400
4500
4600
4700
4800
4900
5000
5100
5200
5300
5400
5500
5600
5700
5800 963 3.83 3433 1006 4.14 3720 1046 4.50 4055 1085 4.79 4326 1123 5.07 4586
5900 978 4.00 3590 1021 4.34 3906 1060 4.69 4232 1098 5.01 4531
6000 993 4.22 3795 1035 4.54 4093 1074 4.91 4419 1112 5.23 4735
6100 1008 4.42 3981 1050 4.75 4288 1089 5.10 4616
6200 1023 4.63 4176 1065 4.96 4484
6300 1038 4.85 4382 1079 5.19 4698

0.2 0.4 0.6 0.8 1.0 1.2

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

654 1.12 1065 714 1.31 1218 767 1.50 1373 815 1.67 1514 861 1.85 1666 906 2.08 1862
668 1.20 1129 727 1.40 1291 780 1.60 1456 827 1.77 1598 873 1.95 1751 916 2.18 1948
683 1.28 1194 741 1.49 1365 793 1.70 1540 839 1.88 1691 884 2.05 1836 927 2.28 2035
697 1.37 1267 754 1.59 1448 806 1.80 1624 851 1.99 1785 895 2.16 1931 938 2.38 2123
711 1.46 1340 767 1.69 1531 819 1.90 1708 864 2.10 1879 907 2.28 2035 949 2.49 2219
726 1.56 1423 780 1.80 1624 832 2.01 1802 877 2.22 1983 919 2.41 2149 960 2.60 2316
741 1.66 1506 794 1.91 1717 845 2.12 1897 889 2.35 2096 931 2.54 2263 971 2.72 2433
755 1.77 1598 808 2.03 1819 858 2.24 2000 902 2.48 2210 943 2.68 2387 983 2.86 2548
770 1.89 1700 821 2.15 1923 871 2.37 2114 915 2.61 2325 955 2.82 2512 995 3.01 2683
784 2.00 1794 835 2.27 2027 884 2.49 2219 928 2.75 2450 968 2.96 2638 1006 3.17 2828
799 2.13 1905 849 2.40 2140 897 2.63 2343 941 2.88 2566 981 3.11 2773 1018 3.32 2964
814 2.25 2009 863 2.53 2254 910 2.77 2468 954 3.02 2692 993 3.27 2919 1030 3.48 3111
829 2.39 2131 877 2.67 2378 923 2.92 2602 967 3.17 2828 1006 3.43 3065 1043 3.65 3267
843 2.52 2246 892 2.81 2503 937 3.08 2746 980 3.32 2964 1019 3.60 3221
858 2.67 2378 906 2.95 2629 950 3.24 2891 993 3.48 3111
873 2.82 2512 920 3.10 2764 963 3.40 3037 1006 3.65 3267
888 2.97 2647 934 3.26 2910 977 3.57 3193
903 3.13 2792 949 3.43 3065
918 3.30 2946 963 3.59 3212
933 3.47 3101
948 3.65 3267

978 3.77 3377 1018 4.11 3692 1058 4.38 3943 1097 4.66 4204 1132 4.97 4493
992 3.95 3544 1032 4.30 3869 1072 4.58 4130 1110 4.86 4391 1145 5.18 4689

External Static Pressure (in. wg)

1032 3.76 3368 1068 4.00 3590

991 3.75 3359 1032 4.00 3590 1071 4.29 3860 1106 4.57 4120

1004 3.92 3516 1045 4.18 3757 1084 4.47 4027 1119 4.77 4307

————————————
————————————

1019 3.82 3424 1058 4.11 3692 1094 4.38 3943

—————————

1045 3.93 3525 1081 4.19 3767

——————
——————

0TFQ004-012
558F036-150

1055 3.82 3424

—— —

558F150 (12 TONS)* (cont)

Airflow

(Cfm)

3700
3800
3900
4000
4100
4200
4300
4400
4500
4600
4700
4800
4900 1079 3.87 3470 1114 4.09 3674 1149 4.37 3934 1182 4.68 4223
5000 1091 4.05 3637 1126 4.25 3822 1160 4.53 4083 1193 4.85 4382
5100 1103 4.23 3804 1137 4.45 4009 1171 4.70 4242 1204 5.01 4531
5200 1115 4.42 3981 1149 4.65 4195 1182 4.91 4409 1215 5.18 4689
5300 1127 4.62 4167 1161 4.85 4382 1194 5.07 4586
5400 1139 4.82 4354 1173 5.06 4577
5500 1152 5.03 4549
5600 1165 5.24 4746
5700
5800
5900
6000
6100
6200
6300

Bhp —
Watts —

*Standard motor drive range: 860 to 1080 rpm. Alternate motor drive range: 900 to 1260 rpm.

All other rpms require field-supplied drive.

Brake Horsepower Input to Fan
Input Watts to Motor

1.4 1.6 1.8 2.0

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

950 2.27 2027 991 2.47 2202 1030 2.65 2361 1064 2.82 2512
959 2.38 2123 1001 2.58 2299 1040 2.78 2476 1075 2.96 2638
969 2.50 2228 1010 2.70 2405 1049 2.91 2593 1085 3.11 2773
979 2.62 2334 1020 2.83 2521 1059 3.04 2710 1095 3.25 2901

989 2.74 2441 1029 2.96 2638 1068 3.18 2837 1105 3.39 3028
1000 2.86 2548 1039 3.10 2764 1077 3.31 2955 1114 3.54 3166
1011 2.97 2647 1049 3.23 2882 1087 3.46 3092 1124 3.69 3304
1022 3.10 2764 1059 3.37 3010 1097 3.61 3230
1033 3.23 2882 1070 3.51 3138
1044 3.37 3010 1081 3.64 3258
1056 3.52 3147
1057 3.69 3304

————————————

————————————

————————————

————————————

————————————

————————————

————————————

LEGEND

External Static Pressure (in. wg)

1107 3.76 3368 1143 4.00 3590

1092 3.78 3387 1127 4.07 3655 1162 4.33 3897
1103 3.93 3525 1138 4.23 3804 1172 4.50 4055

—————————
—————————

1117 3.92 3516 1152 4.17 3748

——————

1133 3.84 3442

—— —

NOTES:

1.

2. Maximum usable watts input is 3313 with standard motor and 4400 with alternate motor.

3. See page 60 for general fan performance data notes.

indicates alternate motor and drive are required.

Boldface

Maximum continuous bhp is 3.70 with standard motor and 5.25 with alternate motor.

49

558F036 (3 TONS) — STANDARD MOTOR (DIRECT DRIVE)

558F036-150
0TFQ004-012

Airflow

(Cfm)

900
1000
1100
1200
1300
1400
1500

Bhp —
ESP —
Watts —

ESP Bhp Watts ESP Bhp Watts ESP Bhp Watts ESP Bhp Watts

0.72 0.21 253 0.75 0.23 277 0.73 0.26 307 0.76 0.31 363

0.67 0.23 270 0.69 0.25 292 0.70 0.27 321 0.71 0.32 374

0.61 0.24 287 0.63 0.26 307 0.64 0.28 335 0.65 0.33 385

0.57 0.26 304 0.58 0.27 323 0.56 0.29 349 0.59 0.34 397

0.51 0.27 321 0.53 0.29 338 0.53 0.31 364 0.54 0.34 408

0.44 0.29 338 0.46 0.30 354 0.47 0.32 378 ———

0.39 0.30 355 0.41 0.31 369 0.43 0.33 392 ———

LEGEND NOTE:

Brake Horsepower Input to Fan
External Static Pressure (in. wg)
Input Watts to Motor

208 v 230, 460, 575 v 208 v 230, 460, 575 v

PERFORMANCE DATA (cont)

FAN PERFORMANCE — HORIZONTAL DISCHARGE UNITS

Low Speed High Speed

See page 60 for general fan performance notes.

558F036 (3 TONS) — ALTERNATE MOTOR (BELT DRIVE)*

Airflow

(Cfm)

900 526 0.06 70 584 0.08 99 656 0.12 139 734 0.22 219
1000 570 0.09 109 627 0.13 149 738 0.19 189
1100 614 0.13 149 670 0.16 189 758 0.23 229
1200 658 0.16 189 710 0.23 229
1300 703 0.20 239 752 0.27 269
1400 725 0.29 288
1500 755 0.33 328

558F036 (3 TONS) — ALTERNATE MOTOR (BELT DRIVE)* (cont)

Airflow

(Cfm)

900
1000
1100
1200
1300 1012 0.51 507 1061 0.56 557 1090 0.61 607 1172 0.65 647 1239 0.72 716 1306 0.79 786
1400 1027 0.56 557 1071 0.60 597 1108 0.67 666 1208 0.70 706 1278 0.79 786 1347 0.87 865
1500 1056 0.63 627 1097 0.68 676 1117 0.70 696 1245 0.74 776 1315 0.87 865 1385 0.96 955

Bhp —
Watts —

*Motor drive range: 760 to 1000 rpm. All other rpms require field-supplied drive.

Brake Horsepower Input to Fan
Input Watts to Motor

558F036 (3 TONS) — HIGH-STATIC MOTOR (BELT DRIVE)*

Airflow

(Cfm)

900 584 0.08 99 734 0.22 219 875 0.27 269 953 0.35 348 1028 0.42 438
1000 627 0.13 149 800 0.26 259 895 0.31 308 977 0.39 388 1064 0.48 477
1100 670 0.16 189 812 0.29 288 914 0.35 348 1005 0.43 428
1200 710 0.23 229 840 0.32 318 938 0.40 398 1038 0.50 497
1300 752 0.27 269 868 0.37 368 963 0.45 448 1061 0.56 557
1400 776 0.31 308 891 0.42 418 983 0.51 507 1071 0.60 597
1500 816 0.38 378 924 0.48 477 1014 0.58 577

0.1 0.2 0.3 0.4 0.5 0.6

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

776 0.31 308 845 0.38 378 891 0.42 418 937 0.47 467 983 0.51 507
816 0.38 378 870 0.43 428 924 0.48 477 969 0.53 527

0.7 0.8 0.9 1.0 1.1 1.2

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

924 0.32 308 953 0.35 348 989 0.38 388
936 0.35 348 977 0.39 388
960 0.39 388
960 0.45 388

LEGEND

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

0.2 0.4 0.6 0.8 1.0

1005 0.43 428 1052 0.49 487 1100 0.52 527 1163 0.59 587 1225 0.65 647
1038 0.50 497 1076 0.53 527 1136 0.59 577 1201 0.65 647 1266 0.72 716

1020 0.44 438 1064 0.48 477 1124 0.54 537 1185 0.60 597

External Static Pressure (in. wg)

800 0.26 259 848 0.29 288 895 0.31 308

780 0.28 279 840 0.32 318 889 0.36 358 938 0.40 398
808 0.32 318 868 0.37 368 916 0.41 408 963 0.45 448

External Static Pressure (in. wg)

External Static Pressure (in. wg)

812 0.29 288 863 0.32 308 914 0.35 348

1028 0.42 438 1074 0.49 487 1120 0.54 537

NOTES:

1.

2. Maximum usable watts input is 1000 and maximum continuous bhp is 1.00.

3. See page 60 for general fan performance notes.

indicates field-supplied drive is required.

Boldface

1097 0.68 676 1245 0.74 776

818 0.25 269 875 0.27 289

1014 0.58 577

1100 0.52 527
1136 0.59 577
1172 0.65 647
1208 0.70 706

558F036 (3 TONS) — HIGH-STATIC MOTOR (BELT DRIVE)* (cont)

Airflow

(Cfm)

900
1000
1100
1200
1300
1400
1500

Bhp —
Watts —

*Motor drive range: 1075 to 1455 rpm. All other rpms require field-supplied drive.

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

1120 0.54 537 1155 0.59 589 1186 0.64 639 1215 0.69 685 1240 0.73 730
1185 0.60 597 1222 0.66 655 1255 0.71 709 1285 0.77 761 1312 0.82 811
1225 0.65 647 1263 0.71 709 1298 0.77 769 1328 0.83 825 1357 0.88 879
1266 0.72 716 1306 0.79 786 1341 0.86 851 1373 0.92 914 1402 0.98 973
1306 0.79 786 1347 0.87 862 1383 0.94 934 1416 1.01 1003 1446 1.07 1068
1347 0.87 865 1389 0.95 950 1427 1.03 1029
1385 0.96 955 1428 1.05 1048

Brake Horsepower Input to Fan
Input Watts to Motor

1.2 1.4 1.6 1.8 2.0

LEGEND

External Static Pressure (in. wg)

1467 1.14 1135 1502 1.22 1218 1534 1.30 1298

NOTES:

1.

Boldface

2. Maximum continuous bhp is 2.4 and the maximum continuous watts are 2120.

3. See page 60 for general fan performance notes.

1461 1.11 1104 1492 1.18 1176

indicates field-supplied drive is required.

50

FAN PERFORMANCE — HORIZONTAL DISCHARGE UNITS (cont)

558F048 (4 TONS) — STANDARD MOTOR (DIRECT DRIVE)

Airflow

(Cfm)

1200
1300
1400
1500
1600
1700
1800
1900
2000

Bhp —
ESP —
Watts —

ESP Bhp Watts ESP Bhp Watts ESP Bhp Watts ESP Bhp Watts

0.93 0.41 458 0.97 0.45 506 1.04 0.51 572 1.09 0.56 632

0.86 0.42 471 0.90 0.46 521 0.96 0.52 589 1.02 0.58 651

0.78 0.45 503 0.84 0.49 556 0.90 0.54 616 0.96 0.60 681

0.73 0.47 536 0.76 0.52 593 0.83 0.56 631 0.89 0.62 698

0.67 0.49 557 0.70 0.54 616 0.75 0.58 654 0.82 0.64 723

0.60 0.52 584 0.63 0.57 646 0.67 0.60 678 0.74 0.66 750

0.51 0.54 610 0.54 0.60 674 0.62 0.62 698 0.69 0.68 772

0.40 0.56 629 0.45 0.62 696 0.54 0.64 720 0.62 0.70 796

0.32 0.58 661 0.33 0.65 731 0.47 0.66 744 0.54 0.73 823

LEGEND NOTE:

Brake Horsepower Input to Fan
External Static Pressure (in. wg)
Input Watts to Motor

208 v 230, 460, 575 v 208 v 230, 460, 575 v

Low Speed High Speed

PERFORMANCE DATA (cont)

See page 60 for general fan performance notes.

0TFQ004-012
558F036-150

558F048 (4 TONS) — ALTERNATE MOTOR (BELT DRIVE)*

Airflow

(Cfm)

1200 514 0.15 158 590 0.20 210 657 0.25 263 723 0.30 315 828 0.42 441
1300 545 0.18 189 615 0.23 242 680 0.29 305 744 0.35 368
1400 577 0.21 221 642 0.27 284 704 0.33 347 766 0.39 410
1500 609 0.26 273 670 0.31 326 729 0.38 394 788 0.44 462
1600 642 0.30 315 699 0.36 378 755 0.43 447 811 0.49 515
1700 675 0.36 378 728 0.42 441 782 0.49 510
1800 709 0.41 431 759 0.48 504 810 0.55 578
1900 743 0.48 504 790 0.55 578
2000 778 0.55 578

558F048 (4 TONS) — ALTERNATE MOTOR (BELT DRIVE)* (cont)

Airflow

(Cfm)

1200
1300
1400
1500
1600
1700
1800
1900
2000

Bhp —
Watts —

*Motor drive range: 835 to 1185 rpm. All other rpms require field-supplied drive.

Bhp —
Watts —

*Motor drive range: 1075 to 1455 rpm. All other rpms require field-supplied drive.

Brake Horsepower Input to Fan
Input Watts to Motor

558F048 (4 TONS) — HIGH-STATIC MOTOR (BELT DRIVE)*

Airflow

(Cfm)

1200 641 0.23 242 761 0.34 357 859 0.46 483 943 0.58 609 1030 0.70 695
1300 673 0.28 294 788 0.39 410 887 0.52 546 968 0.65 683 1044 0.77 736
1400 705 0.33 347 817 0.45 473 914 0.59 620 996 0.72 757 1069 0.86 838
1500 738 0.38 399 847 0.51 536 940 0.65 683 1024 0.81 851
1600 772 0.44 462 877 0.58 609 967 0.73 767 1051 0.89 935
1700 806 0.51 536 908 0.66 693 997 0.81 851
1800 841 0.59 620 939 0.75 788 1026 0.91 956
1900 876 0.68 714 971 0.84 883 1056 1.01 1061
2000 912 0.77 809 1004 0.94 988

558F048 (4 TONS) — HIGH-STATIC MOTOR (BELT DRIVE)* (cont)

Airflow

(Cfm)

1200
1300
1400
1500
1600
1700
1800
1900
2000

Brake Horsepower Input to Fan
Input Watts to Motor

0.1 0.2 0.3 0.4 0.6 0.7 0.8

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

836 0.62 651 875 0.70 730 913 0.77 809 1004 0.94 988 1046 1.03 1082 1088 1.12 1177

1.0 1.1 1.2 1.4 1.6 1.8

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

999 0.66 674 1018 0.67 685 1036 0.68 695 1073 0.71 756 1109 0.75 794 1138 0.79 851
1025 0.74 756 1058 0.79 807 1090 0.84 858 1121 0.87 832 1159 0.90 918
1042 0.81 828 1080 0.88 899 1118 0.95 971 1175 1.06 1014 1206 1.09 1042 1244 1.12 1138
1060 0.88 899 1098 0.96 981 1136 1.04 1063 1205 1.19 1138 1258 1.30 1243 1289 1.34 1282
1080 0.95 971 1117 1.04 1058 1153 1.12 1140 1224 1.29 1234 1287 1.45 1387 1337 1.56 1492
1101 1.03 1053 1137 1.12 1139 1172 1.20 1226 1241 1.38 1320 1307 1.56 1492 1366 1.73 1655
1122 1.11 1134 1157 1.20 1226 1192 1.29 1318 1258 1.48 1415 1323 1.67 1597 1385 1.86 1779
1143 1.21 1237 1179 1.30 1328 1214 1.39 1420 1279 1.58 1511 1341 1.78 1702 1402 1.98 1894
1165 1.31 1339 1200 1.40 1431 1235 1.49 1523 1300 1.69 1616 1361 1.90 1817 1419 2.10 2008

LEGEND

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

1106 0.87 889 1134 0.98 998 1189 1.12 1138 1245 1.21 1358 1292 1.35 1345
1128 0.91 930 1183 1.10 1052 1226 1.23 1215 1297 1.35 1406 1346 1.51 1500
1139 1.01 1012 1218 1.14 1090 1286 1.34 1282 1320 1.48 1463 1370 1.65 1645
1162 1.09 1114 1228 1.24 1186 1303 1.40 1339 1343 1.60 1530 1393 1.79 1778
1185 1.20 1226 1250 1.35 1291 1319 1.51 1444 1382 1.68 1607 1434 1.88 1867
1215 1.31 1339 1276 1.48 1415 1334 1.64 1569 1398 1.80 1722 1451 2.01 2001
1243 1.43 1461 1303 1.61 1540 1359 1.78 1702 1418 1.95 1865
1271 1.56 1594 1330 1.74 1664 1386 1.93 1846 1439 2.11 2018
1298 1.69 1727 1358 1.89 1808 1413 2.08 1989

LEGEND

0.2 0.4 0.6 0.8 1.0

1.2 1.4 1.6 1.8 2.0

838 0.62 651 886 0.69 725 980 0.86 904 1023 0.95 993 1066 1.03 1082

External Static Pressure (in. wg)

External Static Pressure (in. wg)

849 0.47 494 895 0.54 562 940 0.60 630
870 0.52 546 915 0.59 620 959 0.66 693
892 0.58 609 936 0.65 683 980 0.72 757

836 0.55 578 935 0.71 746 979 0.79 825 1023 0.86 904
860 0.62 651 957 0.78 820 1001 0.86 904 1044 0.94 988

NOTES:

1.

Boldface

2. indicates field-supplied motor and drive are required.

3. Maximum usable watts input is 1000 and maximum continuous bhp is 1.00.

4. See page 60 for general fan performance notes.

External Static Pressure (in. wg)

1087 1.12 1177 1162 1.30 1366 1231 1.48 1604

External Static Pressure (in. wg)

NOTES:

1.

Boldface

2. Maximum continuous bhp is 2.4 and the maximum continuous watts are 2120.

3. See page 60 for general fan performance notes.

913 0.64 672 957 0.72 751 1001 0.79 830

indicates field-supplied drive is required.

1077 1.01 1030 1151 1.15 1185
1104 1.07 1124 1178 1.26 1318
1132 1.18 1240 1204 1.37 1502

1466 2.27 2171

indicates field-supplied drive is required.

876 0.49 510 924 0.55 578

1193 0.95 976

1095 0.95 930
1123 1.05 1073

1471 2.18 2167
1493 2.36 2345

———

51

FAN PERFORMANCE — HORIZONTAL DISCHARGE UNITS (cont)

558F060 (5 TONS) — STANDARD MOTOR (DIRECT DRIVE)

558F036-150
0TFQ004-012

Airflow

(Cfm)

1500
1600
1700
1800
1900
2000
2100
2200
2300
2400
2500

Brake Horsepower Input to Fan

Bhp —

Extern al Static P ressure (in. wg)

ESP —

Input Watts to Motor

Watts —

208 v 230, 460, 575 v 208 v 230, 460, 575 v 208 v 230, 460, 575 v

ESP Bhp Watts ESP Bhp Watts ESP Bhp Watts ESP Bhp Watts ESP Bhp Watts ESP Bhp Watts

1.01 0.67 750 1.25 0.71 791 1.26 0.70 782 1.46 0.76 845 1.46 0.79 875 1.52 0.85 949

0.82 0.70 780 1.09 0.74 824 1.11 0.74 821 1.32 0.79 883 1.33 0.82 913 1.41 0.89 988

0.64 0.73 810 0.97 0.77 857 0.99 0.77 861 1.22 0.83 921 1.24 0.85 950 1.33 0.92 1027

0.44 0.75 839 0.81 0.80 891 0.84 0.80 900 1.09 0.86 959 1.11 0.89 988 1.22 0.96 1066

0.32 0.78 869 0.66 0.83 924 0.69 0.83 940 0.96 0.90 997 0.99 0.92 1025 1.11 0.99 1105

0.21 0.81 899 0.47 0.86 957 0.51 0.86 979 0.80 0.93 1035 0.83 0.95 1063 0.97 1.03 1144

0.13 0.83 929 0.32 0.89 990 0.36 0.89 1018 0.64 0.96 1073 0.71 0.99 1101 0.86 1.06 1183

0.05 0.86 959 0.19 0.92 1023 0.21 0.92 1058 0.50 1.00 1111 0.58 1.02 1138 0.75 1.10 1222

—— — 0.08 0.95 1057 0.08 0.95 1097 0.34 1.03 1149 0.39 1.06 1176 0.57 1.13 1261
—————————0.24 1.07 1187 0.29 1.09 1213 0.49 1.17 1300
—————————0.15 1.10 1225 0.15 1.12 1251 0.34 1.20 1340

LEGEND

Low Speed Medium Speed High Speed

PERFORMANCE DATA (cont)

See page 60 for general fan performance notes.

NOTE:

558F060 (5 TONS) — ALTERNATE MOTOR (BELT DRIVE)*

Airflow

(Cfm)

1500 658 0.27 276 722 0.33 337 840 0.46 470
1600 693 0.32 327 754 0.38 388 867 0.52 531
1700 729 0.38 388 787 0.44 450 895 0.58 593
1800 765 0.45 460 821 0.51 521
1900 802 0.52 531 854 0.58 593
2000 840 0.60 613 900 0.66 674
2100 878 0.69 705
2200
2300
2400
2500

558F060 (5 TONS) — ALTERNATE MOTOR (BELT DRIVE)* (cont)

Airflow

(Cfm)

1500
1600
1700
1800
1900
2000
2100
2200
2300 1309 1.71 1747 1372 1.91 1952 1434 2.11 2156 1496 2.34 2391
2400 1336 1.80 1891 1400 2.06 2105 1459 2.26 2310
2500 1363 2.00 2044 1428 2.22 2269

Bhp —
Watts —

*Motor drive range: 900 to 1300 rpm. All other rpms require field-supplied drive.

558F060 (5 TONS) — HIGH-STATIC MOTOR (BELT DRIVE)*

Airflow

(Cfm)

1500 789 0.40 420 896 0.53 557 990 0.67 704 1072 0.83 872 1153 1.00 1051
1600 826 0.46 483 931 0.61 641 1020 0.75 788 1101 0.91 956 1178 1.09 1145
1700 865 0.54 567 966 0.69 725 1051 0.84 883 1133 1.01 1061 1205 1.18 1240
1800 905 0.62 661 1002 0.78 820 1084 0.93 977 1163 1.10 1156 1235 1.29 1355
1900 945 0.72 757 1037 0.88 925 1119 1.04 1093 1194 1.21 1271 1266 1.40 1471
2000 984 0.82 862 1072 0.98 1030 1154 1.16 1219 1226 1.33 1397 1297 1.53 1608
2100 1024 0.93 977 1108 1.10 1156 1192 1.29 1355 1259 1.47 1545
2200 1064 1.05 1103 1145 1.22 1282 1225 1.43 1503 1294 1.62 1702
2300 1104 1.18 1240 1183 1.36 1429 1260 1.57 1650
2400 1145 1.32 1387 1222 1.45 1524 1296 1.73 1818
2500 1186 1.48 1555 1262 1.68 1765

558F060 (5 TONS) — HIGH-STATIC MOTOR (BELT DRIVE)* (cont)

Airflow

(Cfm)

1500 1221 1.17 1229 1256 1.30 1366 1283 1.32 1387
1600 1252 1.27 1334
1700 1278 1.37 1439
1800
1900
2000
2100
2200
2300
2400
2500

Bhp —
FIOP —
Watts —

*Motor drive range: 1300 to 1685 rpm. All other rpms require field-supplied drive.

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

1031 1.13 1155 1066 1.20 1226 1145 1.39 1420 1220 1.57 1604 1292 1.77 1809

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

1108 0.90 920 1186 1.08 1104 1263 1.30 1328

1130 0.97 991 1205 1.15 1175 1278 1.35 1380

1154 1.06 1083 1226 1.23 1257 1296 1.42 1451

1178 1.14 1165 1249 1.32 1349

1201 1.23 1257 1274 1.43 1461

1226 1.33 1359 1297 1.53 1564

1252 1.45 1482

1280 1.58 1615

LEGEND

Brake Horsepower Input to Fan
Input Watts to Motor

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

1303 1.48 1555 1371 1.69 1776 1433 1.90 1996 1480 2.09 2196 1528 2.30 2381

1330 1.59 1671 1396 1.80 1902 1460 2.03 2133 1517 2.25 2364 1566 2.47 2563

1362 1.73 1818 1422 1.94 2038 1485 2.16 2270 1544 2.40 2522 1594 2.64 2734

1393 1.87 1965 1452 2.08 2185 1510 2.31 2427 1570 2.55 2674 1620 2.80 2905

1423 2.02 2122 1483 2.24 2354 1538 2.46 2585 1594 2.71 2821 1645 2.98 3087

1454 2.18 2291 1515 2.41 2532 1571 2.64 2758 1623 2.88 2976

1485 2.36 2480 1544 2.59 2721 1604 2.84 2947 1657 3.07 3152 1710 3.38 3497

1518 2.55 2679 1574 2.78 2905

LEGEND

Brake Horsepower Input to Fan
Factory-Installed Option
Input Watts to Motor

0.1 0.2 0.4 0.6 0.8

916 0.78 797 958 0.85 869 1046 1.01 1032 1129 1.19 1216 1209 1.39 1420
954 0.89 910 993 0.96 981 1079 1.13 1155 1160 1.31 1339 1237 1.51 1543
993 1.00 1022 1029 1.07 1093 1112 1.25 1277 1190 1.43 1461 1264 1.63 1666

1.0 1.2 1.4 1.6 1.8

0.2 0.4 0.6 0.8 1.0

1.2 1.4 1.6 1.8 2.0

923 0.75 766 1015 0.91 930 1101 1.08 1104 1182 1.27 1298

1320 1.64 1676 1388 1.80 1891 1448 2.07 2115 1505 2.29 2340
1345 1.77 1809 1410 1.97 2013 1473 2.20 2248

1311 1.45 1524 1340 1.58 1660 1330 1.61 1692 1373 1.77 1834
1345 1.57 1650 1397 1.76 1849 1424 1.89 1986 1470 2.08 2153

External Static Pressure (in. wg)

937 0.59 603 1027 0.74 756
963 0.65 664 1052 0.81 828

923 0.65 664 1019 0.81 828 1099 0.96 981
953 0.73 746 1046 0.90 920 1126 1.06 1083
984 0.82 838 1073 0.99 1012 1154 1.16 1185

External Static Pressure (in. wg)

1316 1.52 1553 1382 1.72 1758 1447 1.95 1993
1338 1.62 1656 1402 1.80 1870 1464 2.05 2095
1363 1.73 1768 1424 1.94 1983 1484 2.16 2207

1486 2.43 2483 1543 2.65 2708 1600 2.89 2953

NOTES:

1.

2. indicates field-supplied motor and drive are required.

3. Maximum usable watts input is 2120 and maximum continuous bhp is 1.30 for single-

4. See page 60 for general fan performance notes.

External Static Pressure (in. wg)

1331 1.89 1986 1400 2.12 2227 1461 2.34 2459

External Static Pressure (in. wg)

1633 3.03 3134 1692 3.28 3345 1746 3.61 3736

NOTES:

1.

2. indicates field-supplied motor and drive are required.

3. Maximum continuous bhp is 2.9 and the maximum continuous watts are 2562.

4. See page 60 for general fan performance notes.

indicates field-supplied drive is required.

Boldface

phase units and 2.40 for 3-phase units.

indicates field-supplied drive is required.

Boldface

991 0.73 746 1075 0.88 899

1343 1.58 1615 1431 1.79 1829
1350 1.61 1645 1424 1.80 1921
1364 1.64 1676 1432 1.89 1931

1529 2.43 2483

1519 2.48 2534 1578 2.76 2820

1330 1.78 1870 1392 1.97 2070
1365 1.94 2038 1426 2.15 2259

1303 1.22 1282 1345 1.34 1390

1554 2.58 2637

1327 1.66 1744
1359 1.80 1902

1675 3.17 3280

52

PERFORMANCE DATA (cont)

FAN PERFORMANCE — HORIZONTAL DISCHARGE UNITS (cont)

558F072,073 (6 TONS) — STANDARD MOTOR (BELT DRIVE)*

Airflow

(Cfm)

1800 765 0.45 487 821 0.51 532 923 0.65 638 1019 0.81 843
1900 802 0.45 539 854 0.58 585 953 0.73 700 1046 0.90 835
2000 840 0.60 600 888 0.66 646 984 0.82 771
2100 878 0.69 669 923 0.75 716 1015 0.91 843
2200 916 0.78 739 958 0.85 795 1046 1.01 924
2300 954 0.89 827 993 0.96 883
2400 993 1.00 916 1029 1.07 973
2500 1031 1.13 1022 1066 1.20 1081
2600 1070 1.26 1131
2700
2800
2900
3000

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

1109 1.41 1258 1140 1.48 1318 1212 1.67 1482 1283 1.87 1656 1352 2.09 1849
1148 1.57 1396 1177 1.64 1456 1246 1.83 1621 1316 2.04 1805 1383 2.26 1997
1188 1.74 1543 1215 1.81 1604 1281 2.00 1770 1349 2.22 1962 1413 2.44 2154
1227 1.92 1700 1253 2.00 1770 1316 2.19 1936

0.1 0.2 0.4 0.6 0.8

1103 1.34 1199 1179 1.52 1353 1251 1.71 1517 1322 1.92 1700

External Static Pressure (in. wg)

1073 0.99 907 1154 1.16 1047
1101 1.08 981 1182 1.27 1140

1079 1.13 1022 1160 1.31 1173 1237 1.51 1344
1112 1.25 1123 1190 1.43 1275 1264 1.63 1447
1145 1.39 1241 1220 1.57 1396 1292 1.77 1569

1129 1.19 1072 1209 1.39 1241

1382 2.42 2136 1444 2.63 2317

1099 0.96 883
1126 1.06 965

0TFQ004-012
558F036-150

558F072,073 (6 TONS) — STANDARD MOTOR (BELT DRIVE)* (cont)

Airflow

(Cfm)

1800
1900
2000
2100
2200
2300
2400
2500
2600
2700
2800
2900
3000

Bhp —
Watts —

*Motor drive range: 1070 to 1460 rpm. All other rpms require field-supplied drive.

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

1178 1.14 1031 1249 1.32 1182 1316 1.52 1353 1382 1.72 1526
1201 1.23 1106 1274 1.43 1275 1338 1.62 1439 1402 1.83 1621
1226 1.33 1990 1297 1.53 1361 1363 1.73 1534 1424 1.94 1718
1252 1.45 1292 1320 1.64 1456 1388 1.85 1639 1448 2.07 1831
1280 1.58 1404 1345 1.77 1569 1410 1.97 1744
1309 1.71 1517 1372 1.91 1691 1434 2.11 1866
1336 1.85 1639 1400 2.06 1823 1459 2.26 1997 1519 2.48 2188
1363 2.00 1770 1428 2.22 1962 1486 2.43 2145 1543 2.65 2335
1390 2.15 1901 1456 2.38 2102 1514 2.61 2300 1569 2.83 2487
1418 2.31 2041 1483 2.56 2257 1543 2.80 2462 ———
1446 2.48 2188 1510 2.73 2403 ——————
1476 2.67 2352 1537 2.92 2562 ——————
1506 2.88 2529 —————————

LEGEND

Brake Horsepower Input to Fan
Input Watts to Motor

1.0 1.2 1.4 1.6

External Static Pressure (in. wg)

1473 2.20 1945
1496 2.34 2067

NOTES:

1.

2. indicates field-supplied motor and drive are required.

3. Maximum usable watts input is 2120 and maximum continuous bhp is 2.40.

4. See page 60 for general fan performance notes.

indicates field-supplied drive is required.

Boldface

53

PERFORMANCE DATA (cont)

FAN PERFORMANCE — HORIZONTAL DISCHARGE UNITS (cont))

558F072,073 (6 TONS) — HIGH-STATIC MOTOR (BELT DRIVE)*

Airflow

(Cfm)

1800 942 0.73 700 1047 0.90 835 1139 1.05 956 1193 1.14 1031 1276 1.30 1165
1900 982 0.83 779 1084 1.02 932 1160 1.11 1006 1223 1.24 1114

558F036-150

2000 1022 0.94 867 1121 1.12 1014 1188 1.22 1097 1254 1.36 1216

0TFQ004-012

2100 1063 1.10 998 1140 1.18 1064 1196 1.27 1140 1272 1.45 1292
2200 1104 1.20 1081 1159 1.23 1106 1229 1.41 1258
2300 1130 1.27 1140 1196 1.37 1224 1264 1.56 1387
2400 1174 1.37 1224 1245 1.57 1396
2500 1201 1.50 1335 1284 1.65 1465
2600 1246 1.67 1482
2700 1285 1.80 1595
2800
2900
3000

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

1304 1.85 1639 1374 2.12 1875 1459 2.25 1989 1514 2.42 2136 1570 2.66 2343

1345 2.05 1814 1412 2.32 2050 1496 2.54 2240 1529 2.61 2300 1603 2.87 2521

1378 2.30 2032 1451 2.40 2119 1534 2.66 2343 1560 2.81 2470

0.2 0.4 0.6 0.8 1.0

1312 1.76 1560 1366 1.96 1735 1435 2.10 1858 1494 2.19 1936
1354 1.95 1726 1403 2.14 1892 1474 2.21 1954 1536 2.46 2171

External Static Pressure (in. wg)

1301 1.38 1233
1329 1.44 1284

1306 1.53 1361 1363 1.70 1508

1305 1.63 1447 1373 1.84 1630 1440 1.95 1726
1338 1.75 1552 1402 1.99 1761 1469 2.04 1805

1340 1.66 1473 1397 1.86 1648

1354 1.58 1404

1611 3.01 2648

558F072,073 (6 TONS) — HIGH-STATIC MOTOR (BELT DRIVE)* (cont)

Airflow

(Cfm)

1800
1900
2000
2100
2200
2300
2400
2500
2600
2700
2800
2900
3000

Bhp —
Watts —

*Motor drive range: 1300 to 1685 rpm. All other rpms require field-supplied drive.

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

1341 1.40 1250 1413 1.55 1378 1474 1.58 1404 1522 1.74 1564 1566 1.89 1704

1374 1.53 1361 1437 1.62 1439 1490 1.67 1482 1538 1.84 1653 1583 2.00 1801

1396 1.66 1473 1460 1.68 1491 1509 1.77 1569 1558 1.95 1752 1603 2.12 1909

1413 1.75 1552 1475 1.73 1534 1529 1.92 1700 1578 2.11 1901 1624 2.30 2070

1434 1.81 1604 1487 1.85 1639 1554 2.07 1831 1604 2.28 2049 1651 2.48 2232

1459 1.88 1665 1520 2.07 1831 1576 2.24 1980 1627 2.46 2218 1674 2.68 2415

1502 2.06 1823 1552 2.24 1980 1604 2.42 2136 1656 2.66 2396

1524 2.24 1980 1585 2.42 2136 1638 2.60 2292

1552 2.40 2119 1616 2.63 2317 1671 2.80 2462 1725 3.08 2772 1775 3.35 3019

1584 2.61 2300 1646 2.83 2487 1706 2.97 2653 1761 3.27 2941 —— —

1624 2.85 2504 1677 2.99 2661 1739 3.33 2998 1795 3.67 3299 —— —

1671 3.03 2725 1742 3.43 3090 —— — —— — —— —

1692 3.49 3140 1764 3.95 3558 —— — —— — —— —

LEGEND

Brake Horsepower Input to Fan
Input Watts to Motor

1.2 1.4 1.6 1.8 2.0

External Static Pressure (in. wg)

NOTES:

1.

2. indicates field-supplied motor and drive are required.

3. Maximum continuous bhp is 2.9 and the maximum continuous watts are 2562.

4. See page 60 for general fan performance notes.

indicates field-supplied drive is required.

Boldface

1691 2.86 2574

1704 2.90 2609

1740 3.12 2804

54

PERFORMANCE DATA (cont)

FAN PERFORMANCE — HORIZONTAL DISCHARGE UNITS (cont)

558F090,091 (71/2 TONS ) — STANDARD MOTOR AND DRIVE AND ALTERNATE DRIVE (BELT DRIVE)*

Airflow

(Cfm)

2250 465 0.43 473 554 0.64 630
2300 471 0.45 487 559 0.66 646
2400 482 0.50 524 569 0.71 684
2500 494 0.54 554 581 0.76 723
2550 501 0.57 577 587 0.79 747
2660 507 0.59 592
2700 520 0.65 638
2800 533 0.71 684
2900 546 0.77 731
3000 559 0.83 779
3100 572 0.90 835
3200 585 0.96 883
3300
3400
3500
3600
3700
3750

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

598 1.03 940 671 1.32 1182 739 1.62 1439 795 1.91 1691 851 2.26 1997
610 1.10 998 682 1.41 1258 750 1.72 1526 806 2.01 1779 860 2.36 2084
623 1.17 1056 694 1.50 1335 761 1.82 1613 817 2.11 1866
636 1.25 1123 707 1.60 1422 772 1.93 1709 828 2.23 1971
649 1.33 1190 720 1.71 1517 783 2.03 1796 840 2.35 2076 890 2.69 2369
655 1.37 1224 727 1.77 1569 789 2.09 1849

0.2 0.4 0.6 0.8 1.0

592 0.82 771 663 1.08 981 727 1.32 1182 784 1.58 1404
604 0.89 827 672 1.14 1031 737 1.40 1250 793 1.66 1473
615 0.95 875 683 1.20 1081 747 1.49 1327 802 1.75 1552
626 1.02 932 693 1.27 1140 756 1.57 1396 813 1.84 1630
637 1.09 989 704 1.35 1207 765 1.66 1473 823 1.94 1718
648 1.17 1056 715 1.43 1275 775 1.74 1543 832 2.05 1814
660 1.24 1114 727 1.52 1353 785 1.83 1321 841 2.15 1901

External Static Pressure (in. wg)

630 0.86 803 695 1.09 989 757 1.34 1199
635 0.89 827 699 1.12 1014 760 1.37 1224
645 0.95 875 708 1.18 1064 768 1.44 1284
654 1.01 924 717 1.25 1123 776 1.51 1344
659 1.05 956 722 1.29 1156 780 1.55 1378

870 2.47 2180
880 2.57 2266

846 2.42 2136 896 2.75 2420

0TFQ004-012
558F036-150

558F090,091 (71/2 TONS — STANDARD MOTOR AND DRIVE AND ALTERNATE DRIVE (BELT DRIVE)* (cont)

Airflow

(Cfm)

2250
2300
2400
2500
2550
2660
2700
2800
2900
3000
3100
3200
3300
3400
3500
3600
3700
3750

Bhp —
Watts —

*Motor drive range: 590 to 840 rpm. Alternate motor drive range: 685 to 935 rpm. All other rpms

require field-supplied drive.

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

810 1.62 1439 850 1.91 1691 873 2.20 1945 883 2.50 2206 895 2.78 2445
816 1.65 1465 859 1.94 1718 888 2.24 1980 903 2.55 2249 911 2.85 2504
824 1.72 1526 872 2.01 1779 909 2.32 2050 931 2.64 2326 935 2.96 2595
832 1.79 1587 882 2.09 1849 925 2.40 2119 955 2.72 2394 972 3.06 2678
836 1.83 1621 887 2.13 1884 931 2.45 2162 964 2.77 2436 986 3.11 2718
839 1.87 1656 891 2.17 1919 936 2.49 2197 973 2.82 2479 999 3.16 2759
846 1.95 1726 898 2.26 1997 946 2.58 2275 987 2.91 2554 1019 3.26 2839
855 2.04 1805 906 2.35 2076 954 2.67 2352 997 3.01 2637 1034 3.36 2917
863 2.13 1884 913 2.44 2154 961 2.7 7 2436 1006 3.12 2727 —— —
872 2.22 1962 921 2.54 2240 969 2.8 8 2529 1014 3.22 2807 —— —
882 2.33 2058 930 2.65 2335 976 2.9 9 2620 1021 3.34 2902 —— —
892 2.45 2162 939 2.76 2428 984 3.10 2710 —— — —— —
902 2.57 2266 948 2.88 2529 993 3.21 2799 —— — —— —
912 2.69 2369 958 3.01 2637 1002 3.34 2902 —— — —— —
921 2.82 2479 968 3.15 2751 —— — —— — —— —
930 2.95 2587 978 3.29 2862 —— — —— — —— —
940 3.07 2686 —— — —— — —— — —— —
945 3.14 2743 —— — —— — —— — —— —

LEGEND

Brake Horsepower Input to Fan
Input Watts to Motor

1.2 1.4 1.6 1.8 2.0

External Static Pressure (in. wg)

NOTES:

1.

2. indicates high-static motor and drive are required.

3. Maximum usable watts input is 2120 and maximum continuous bhp is 2.40.

4. See page 60 for general fan performance notes.

indicates field-supplied drive is required.

Boldface

55

PERFORMANCE DATA (cont)

FAN PERFORMANCE — HORIZONTAL DISCHARGE UNITS (cont)

558F090,091 (71/2 TONS ) — HIGH-STATIC MOTOR (BELT DRIVE)*

Airflow

(Cfm)

2250 507 0.53 547 586 0.73 700 658 0.97 891 722 1.22 1097 783 1.46 1301
2300 513 0.55 562 592 0.76 723 663 1.00 916 727 1.26 1131 786 1.49 1327

558F036-150

2400 528 0.60 600 606 0.83 779 674 1.06 965 738 1.34 1199 795 1.58 1404
2500 542 0.68 648 619 0.90 835 686 1.13 1022 748 1.41 1258 806 1.68 1491

0TFQ004-012

2550 550 0.69 669 627 0.94 867 692 1.17 1056 754 1.45 1292 812 1.74 1543
2660 557 0.72 692 634 0.97 891 698 1.21 1089 759 1.49 1327 816 1.79 1587
2700 573 0.79 747 648 1.05 956 711 1.29 1156 770 1.58 1404 827 1.88 1665
2800 588 0.86 803 662 1.13 1022 723 1.38 1233 782 1.66 1473 837 1.98 1763
2900 604 0.94 867 676 1.21 1089 737 1.48 1318 794 1.76 1560 849 2.08 1840
3000 620 1.02 932 690 1.30 1165 750 1.58 1404 806 1.86 1648 849 2.18 1927
3100 636 1.11 1006 704 1.39 1241 764 1.69 1499 818 1.97 1744
3200 652 1.21 1089 718 1.49 1327 778 1.90 1595 831 2.09 1849
3300 668 1.31 1173 732 1.59 1413 793 1.92 1700 844 2.21 1954
3400 684 1.41 1258 747 1.70 1508 807 2.04 1805 857 2.35 2076
3500 701 1.53 1361 762 1.82 1613 821 2.16 1010
3600 717 1.65 1465 777 1.94 1718 835 2.29 2023
3700 733 1.77 1569 792 2.07 1831 849 2.42 2136
3750 742 1.84 1630 800 2.14 1892 856 2.49 2197

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

0.2 0.4 0.6 0.8 1.0

External Static Pressure (in. wg)

870 2.29 2023
882 2.40 2119
894 2.53 2232

871 2.48 2188 919 2.80 2462
885 2.63 2317 932 2.95 2587
899 2.78 2445 945 3.11 2718
907 2.86 2512 952 3.20 2719

907 2.66 2343

558F090,091 (71/2 TONS — HIGH-STATIC MOTOR (BELT DRIVE)* (con t)

Airflow

(Cfm)

2250 843 1.81 1604
2300 846 1.84 1630
2400 853 1.88 1665
2500 859 1.94 1718
2550
2660
2700
2800
2900
3000
3100
3200
3300
3400
3500
3600
3700
3750

Bhp —
Watts —

*Motor drive range: 860 to 1080 rpm. All other rpms require field-supplied drive.

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

864 1.99 1761 920 2.39 2110 974 2.76 2428 1010 3.08 2710 1044 3.40 2989
868 2.04 1805 921 2.41 2136 976 2.78 2445 1012 3.10 2730 1046 3.42 3011
878 2.16 1910 928 2.45 2162 983 2.88 2529 1020 3.21 2828 1053 3.54 3119
889 2.29 2023 937 2.57 2266 986 2.91 2554 1023 3.25 2857 1057 3.58 3181
900 2.41 2128 947 2.70 2377 993 3.01 2637 1030 3.36 2955 1064 3.70 3260
910 2.52 2223 958 2.85 2504 1002 3.15 2751 1039 3.51 3093 1074 3.88 3411
920 2.64 2326 968 2.99 2620 1012 3.30 2870 1050 3.68 3240 1084 4.06 3574
931 2.76 2428 979 3.13 2735 1023 3.47 3002 1061 3.87 3407 —— —
942 2.89 2537 989 3.26 2839 1034 3.63 3121 1072 4.05 3564 —— —
954 3.02 2645 1000 3.40 2948 1044 3.79 3237 —— — —— —
966 3.15 2751 1011 3.55 3062 1054 3.94 3340 —— — —— —
978 3.30 2870 1022 3.69 3165 1065 4.10 3445 —— — —— —
990 3.45 2987 1034 3.84 3272 —— — —— — —— —
997 3.54 3055 1040 3.93 3333 —— — —— — —— —

LEGEND

Brake Horsepower Input to Fan
Input Watts to Motor

1.2 1.4 1.6 1.8 2.0

908 2.25 1989 955 2.59 2283 991 2.89 2543 1023 3.19 2805
910 2.25 2015 959 2.61 2300 995 2.91 2563 1028 3.21 2827
912 2.31 2041 967 2.68 2360 1003 2.99 2631 1036 3.30 2902
919 2.37 2093 971 2.73 2403 1007 3.05 2681 1041 3.36 2956

External Static Pressure (in. wg)

NOTES:

1.

2. indicates field-supplied motor and drive are required.

3. Maximum continuous bhp is 3.7 and the maximum continuous watts are 3313.

4. See page 60 for general fan performance notes.

indicates field-supplied drive is required.

Boldface

56

PERFORMANCE DATA (cont)

FAN PERFORMANCE — HORIZONTAL DISCHARGE UNITS (cont)

558F102 (81/2 TONS ) — STANDARD MOTOR (BELT DRIVE)*

Airflow

(Cfm)

2550 501 0.57 577 587 0.79 747 659 1.05 956
2660 507 0.59 592 592 0.82 771 663 1.08 981
2700 520 0.65 638 604 0.89 827 672 1.14 1031
2800 533 0.71 684 615 0.95 875 683 1.20 1081
2900 546 0.77 731 626 1.02 932
3000 559 0.83 779 637 1.09 989
3100 572 0.90 835 648 1.17 1056
3200 585 0.96 883 660 1.24 1114
3300 598 1.03 940 671 1.32 1182
3400 610 1.10 998 682 1.41 1258
3500 623 1.17 1056
3600 636 1.25 1123
3700 649 1.33 1190
3750 655 1.37 1224
3800 661 1.41 1258
3900 674 1.49 1327
4000
4100
4200
4250

558F102 (81/2 TONS ) — STANDARD MOTOR (BELT DRIVE)* (cont)

Airflow

(Cfm)

2550
2660
2700
2800
2900
3000
3100
3200
3300
3400
3500
3600
3700
3750
3800
3900
4000
4100
4200
4250

Bhp —
Watts —

*Motor drive range: 685 to 935 rpm. All other rpms require field-supplied drive.

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

687 1.57 1396 759 2.05 1814 817 2.38 2102 874 2.75 2420 923 3.08 2694
699 1.60 1473 772 2.17 1919
712 1.75 1552 785 2.30 2032
719 1.80 1595 792 2.37 2093 846 2.71 2386 903 3.10 2710 —— —

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

836 1.83 1621 887 2.13 1884 931 2.45 2162 964 2.77 2436 986 3.11 2718
839 1.87 1656 891 2.17 1919 936 2.49 2197 973 2.82 2479 999 3.16 2759
846 1.95 1726 898 2.26 1997 946 2.58 2275 987 2.91 2554 1019 3.26 2839
855 2.04 1805 906 2.35 2076 954 2.67 2352 997 3.01 2637 1034 3.36 2917
863 2.13 1884 913 2.44 2154 961 2.7 7 2436 1006 3.12 2727 —— —
872 2.22 1962 921 2.54 2240 969 2.8 8 2529 1014 3.22 2807 —— —
882 2.33 2058 930 2.65 2335 976 2.9 9 2620 1021 3.34 2902 —— —
892 2.45 2162 939 2.76 2428 984 3.10 2710 —— — —— —
902 2.57 2266 948 2.88 2529 993 3.21 2799 —— — —— —
912 2.69 2369 958 3.01 2637 1002 3.34 2902 —— — —— —
921 2.82 2479 968 3.15 2751 —— — —— — —— —
930 2.95 2587 978 3.29 2862 —— — —— — —— —
940 3.07 2686 —— — —— — —— — —— —
945 3.14 2743 —— — —— — —— — —— —
949 3.20 2781 —— — —— — —— — —— —
959 3.33 2894 —— — —— — —— — —— —

—— — —— — —— — —— — —— —
—— — —— — —— — —— — —— —
—— — —— — —— — —— — —— —
—— — —— — —— — —— — —— —

LEGEND

Brake Horsepower Input to Fan
Input Watts to Motor

0.2 0.4 0.6 0.8 1.0

694 1.50 1335 761 1.82 1613 817 2.11 1866 870 2.47 2180
707 1.60 1422 772 1.93 1709 828 2.23 1971
720 1.71 1517 783 2.03 1796 840 2.35 2076
727 1.77 1569 789 2.09 1849 846 2.42 2136 896 2.75 2420
733 1.82 1613 795 2.15 1901
746 1.93 1709 806 2.26 1997

1.2 1.4 1.6 1.8 2.0

External Static Pressure (in. wg)

693 1.27 1140 756 1.57 1396 813 1.84 1630
704 1.35 1207 765 1.66 1473 823 1.94 1718
715 1.43 1275 775 1.74 1543 832 2.05 1814
727 1.52 1353 785 1.83 1321 841 2.15 1901
739 1.62 1439 795 1.91 1691 851 2.26 1997
750 1.72 1526 806 2.01 1779 860 2.36 2084

828 2.50 2206 885 2.88 2529 935 3.23 2815
840 2.64 2326 897 3.03 2653 947 3.39 2940

External Static Pressure (in. wg)

NOTES:

1.

2. indicates field-supplied motor and drive are required.

3. Maximum usable watts input is 2120 and maximum continuous bhp is 2.40.

4. See page 60 for general fan performance.

722 1.29 1156 780 1.55 1378
727 1.32 1182 784 1.58 1404
737 1.40 1250 793 1.66 1473
747 1.49 1327 802 1.75 1552

852 2.48 2188 901 2.80 2462
863 2.61 2300 912 2.93 2571

indicates field-supplied drive is required.

Boldface

880 2.57 2266
890 2.69 2369

0TFQ004-012
558F036-150

57

PERFORMANCE DATA (cont)

FAN PERFORMANCE — HORIZONTAL DISCHARGE UNITS (cont)

558F102 (81/2 TONS ) — HIGH-STATIC MOTOR (BELT DRIVE)*

Airflow

(Cfm)

2550 550 0.69 669 627 0.94 867 692 1.17 1056 754 1.45 1292 812 1.74 1543
2660 557 0.72 692 634 0.97 891 698 1.21 1089 759 1.49 1327 816 1.79 1587

558F036-150

2700 573 0.79 747 648 1.05 956 711 1.29 1156 770 1.58 1404 827 1.88 1665

0TFQ004-012

2800 588 0.86 803 662 1.13 1022 723 1.38 1233 782 1.66 1473 837 1.98 1753
2900 604 0.94 867 676 1.21 1089 737 1.48 1318 794 1.76 1560 848 2.08 1840
3000 620 1.02 932 690 1.30 1165 750 1.58 1404 806 1.86 1648 849 2.18 1927
3100 636 1.11 1006 704 1.39 1241 764 1.69 1499 818 1.97 1744
3200 652 1.21 1089 718 1.49 1327 778 1.80 1595 831 2.09 1849
3300 668 1.31 1173 732 1.59 1413 793 1.92 1700 844 2.21 1954
3400 684 1.41 1258 747 1.70 1508 807 2.04 1805 857 2.35 2076
3500 701 1.53 1361 762 1.82 1613 821 2.16 1910
3600 717 1.65 1465 777 1.94 1718 835 2.29 2023
3700 733 1.77 1569 792 2.07 1831 849 2.42 2136
3750 742 1.84 1630 800 2.14 1892 856 2.49 2197
3800 750 1.90 1683 807 2.21 1954
3900 767 2.04 1805 822 2.35 2076
4000 783 2.18 1927 838 2.50 2206
4100 800 2.34 2067 854 2.66 2343
4200 817 2.49 2197
4250 826 2.58 2275

558F102 (81/2 TONS ) — HIGH-STATIC MOTOR (BELT DRIVE)* (cont)

Airflow

(Cfm)

2550
2660
2700
2800
2900
3000
3100
3200
3300
3400
3500
3600
3700
3750
3800
3900
4000
4100
4200
4250

Bhp —
Watts —

*Motor drive range: 860 to 1080 rpm. All other rpms require field-supplied drive.

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

864 1.99 1761 920 2.39 2110 974 2.76 2428 1005 3.04 2672 1034 3.31 2910
868 2.04 1805 921 2.41 2136 976 2.78 2445 1008 3.06 2691 1037 3.33 2931
878 2.16 1910 928 2.45 2162 983 2.88 2529 1015 3.17 2788 1044 3.45 3036
889 2.29 2023 937 2.57 2266 986 2.91 2554 1018 3.20 2817 1047 3.49 3068
900 2.41 2128 947 2.70 2377 993 3.01 2637 1025 3.31 2914 1055 3.61 3174
910 2.52 2223 958 2.85 2504 1002 3.15 2751 1034 3.47 3049 1064 3.77 3321
920 2.64 2326 968 2.99 2620 1012 3.30 2870 1045 3.63 3195 1075 3.95 3479
931 2.76 2428 979 3.13 2735 1023 3.47 3002 1056 3.82 3359 1087 4.16 3659
942 2.89 2537 989 3.26 2839 1034 3.63 3121 1067 3.99 3514 —— —
954 3.02 2645 1000 3.40 2948 1044 3.79 3237 1078 4.17 3669 —— —
966 3.15 2751 1011 3.55 3062 1054 3.94 3340 —— — —— —
978 3.30 2870 1022 3.69 3165 1065 4.10 3445 —— — —— —
990 3.45 2987 1034 3.84 3272 —— — —— — —— —

997 3.54 3055 1040 3.93 3333 —— — —— — —— —
1003 3.62 3114 1045 4.01 3387 —— — —— — —— —
1015 3.80 3244 1057 4.18 3495 —— — —— — —— —
1028 3.99 3373 —— — —— — —— — —— —
1042 4.18 3495 —— — —— — —— — —— —

—— — —— — —— — —— — —— —
—— — —— — —— — —— — —— —

LEGEND

Brake Horsepower Input to Fan
Input Watts to Motor

0.2 0.4 0.6 0.8 1.0

869 2.82 2479 920 3.19 2783 970 3.60 3099
877 2.91 2554 928 3.28 2854 977 3.69 3165 1022 4.10 3445

1.2 1.4 1.6 1.8 2.0

External Static Pressure (in. wg)

870 2.29 2023
882 2.40 2119
894 2.53 2232

871 2.48 2188 919 2.80 2462
885 2.63 2317 932 2.95 2587
899 2.78 2445 945 3.11 2718

863 2.56 2257 914 2.93 2571 958 3.28 2854
877 2.71 2386 928 3.09 2702 972 3.45 2987
891 2.86 2512 942 3.26 2839 986 3.63 3121
905 3.02 2645 956 3.43 2971

External Static Pressure (in. wg)

NOTES:

1.

Boldface

2. indicates field-supplied motor and drive are required.

3. Maximum continuous bhp is 3.7 and the maximum continuous watts are 3313.

4. See page 60 for general fan performance notes.

907 2.86 2512 952 3.20 2719

indicates field-supplied drive is required.

907 2.66 2343

1000 3.81 3251
1015 4.00 3380

58

PERFORMANCE DATA (cont)

FAN PERFORMANCE — HORIZONTAL DISCHARGE UNITS (cont)

558F120,121 (10 TONS)*

Airflow

(Cfm)

3000 484 0.55 562 560 0.70 677 631 0.87 810
3100 495 0.61 607 570 0.76 723 638 0.92 851
3200 505 0.66 646 579 0.81 763 646 0.98 899
3300 516 0.72 692 589 0.87 810 655 1.05 956
3400 527 0.78 739 599 0.93 859 664 1.11 1006
3500 537 0.85 795 609 0.99 907 672 1.18 1064
3600 548 0.92 851 619 1.05 956 680 1.24 1114
3700 560 1.00 916 629 1.12 1014
3800 571 1.08 981 639 1.19 1072
3900 582 1.16 1047 649 1.27 1140
4000 593 1.25 1123 659 1.35 1207
4100 605 1.35 1207 670 1.44 1284
4200 616 1.45 1292 680 1.53 1361
4300 628 1.56 1387
4400 639 1.67 1482
4500 651 1.78 1578
4600 662 1.91 1691
4700 674 2.03 1796
4800
4900
5000

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

686 2.17 1919 744 2.20 1945 797 2.36 2084 846 2.62 2362 891 2.85 2569
698 2.31 2041 755 2.33 2058 808 2.48 2238 856 2.73 2460 900 2.99 2698
710 2.45 2212 766 2.47 2230 818 2.61 2353 866 2.86 2578 910 3.12 2819

0.2 0.4 0.6 0.8 1.0

690 1.63 1447 747 1.83 1621 798 2.05 1814 849 2.30 2032
701 1.73 1534 757 1.92 1700 807 2.16 1910 858 2.41 2177
712 1.84 1630 767 2.02 1788 817 2.27 2006 866 2.51 2265
722 1.95 1726 777 2.13 1884 827 2.38 2102 874 2.62 2362
733 2.07 1831 787 2.24 1980 836 2.50 2256 882 2.73 2460

External Static Pressure (in. wg)

688 1.31 1173 747 1.51 1344 802 1.73 1534
698 1.39 1241 756 1.60 1422 810 1.81 1604
708 1.47 1310 764 1.69 1499 816 1.89 1674
717 1.56 1387 773 1.78 1578 823 1.98 1753
727 1.65 1465 781 1.86 1648 832 2.08 1840
737 1.74 1543 789 1.95 1726 841 2.18 1927

690 1.03 940 747 1.20 1081
699 1.10 998 755 1.27 1140
708 1.16 1047 761 1.34 1199
717 1.23 1106 767 1.40 1250
724 1.30 1165 775 1.48 1318
731 1.36 1216 784 1.56 1387
738 1.43 1275 794 1.64 1456

0TFQ004-012
558F036-150

558F120,121 (10 TONS)* (cont)

Airflow

(Cfm)

3000
3100
3200
3300
3400
3500
3600
3700
3800
3900
4000
4100
4200
4300
4400
4500
4600
4700
4800
4900
5000

Bhp —
Watts —

*Standard motor drive range: 685 to 935 rpm. Alternate motor drive range: 835 to 1085 rpm.

High static motor drive range: 830 to 1130 rpm. All other rpms require field-supplied drive.

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

800 1.38 1233 850 1.52 1353 879 1.38 1233 925 1.81 1604 964 1.92 1761
805 1.44 1284 857 1.63 1447 896 1.66 1473 935 1.93 1709 975 1.98 1811
812 1.51 1344 862 1.71 1517 908 1.85 1639 944 2.01 1836 984 2.09 1903
819 1.59 1413 867 1.78 1578 915 1.98 1753 952 2.11 1920 993 2.22 2014
827 1.67 1482 873 1.85 1639 920 2.07 1831 963 2.21 2005 1001 2.31 2091
833 1.75 1552 880 1.94 1718 926 2.15 1901 970 2.41 2134 1007 2.46 2221
840 1.83 1621 888 2.04 1805 931 2.23 1971 976 2.47 2230 1017 2.62 2362
847 1.92 1700 895 2.13 1884 938 2.33 2108 981 2.56 2309 1024 2.77 2496
856 2.02 1788 901 2.23 1971 945 2.44 2203 986 2.65 2389 1029 2.89 2605
865 2.12 1875 908 2.32 2050 953 2.55 2300 993 2.75 2478 1034 3.00 2707
875 2.22 1962 915 2.42 2186 960 2.65 2389 1000 2.87 2587 1039 3.10 2800
883 2.32 2050 924 2.54 2291 966 2.76 2487 1008 2.99 2698 1046 3.21 2904
889 2.41 2177 934 2.65 2389 972 2.87 2587 1015 3.12 2819 1053 3.34 3029
896 2.51 2265 943 2.77 2406 980 2.99 2698 1021 3.23 2923 1061 3.48 3166
903 2.62 2362 951 2.89 2603 990 3.12 2819 1028 3.36 3049 1068 3.61 3241
912 2.74 2469 958 3.00 2707 999 3.2 6 2982 1035 3.51 3161 1074 3.74 3346
921 2.87 2587 965 3.11 2810 1008 3.39 3078 1041 3.68 3295 1081 3.90 3450
930 3.00 2707 972 3.23 2923 1017 3.45 3224 1048 3.80 3436 1088 4.13 3552
938 3.14 2838 980 3.37 3058 1025 3.55 3362 1055 3.85 3584 1095 4.30 3653
946 3.27 2962 990 3.51 3149 1034 3.71 3505 1062 3.98 3741 1101 4.45 3753
954 3.39 3078 998 3.62 3271 1042 3.85 3654 1068 4.08 3907 1108 4.59 3851

LEGEND

Brake Horsepower Input to Fan
Input Watts to Motor

1.2 1.4 1.6 1.8 2.0

External Static Pressure (in. wg)

NOTES:

1.

2. indicates high-static motor and drive are required.

3. Maximum usable watts input is 2120 with standard motor, 2615 with alternate motor, and

4. See page 60 for general fan performance notes.

indicates field-supplied drive is required.

Boldface

4400 for the high-static motor. Maximum continuous bhp is 2.40 with standard motor, 2.90
with alternate motor and 5.25 with high-static motor.

59

PERFORMANCE DATA (cont)

FAN PERFORMANCE — HORIZONTAL DISCHARGE UNITS (cont)

558F150 (121/2 TONS )*

Airflow

(Cfm)

3700 607 0.97 947 670 1.18 1113 732 1.37 1267 782 1.56 1423 833 1.73 1565
3800 621 1.05 1010 681 1.25 1170 742 1.45 1332 795 1.66 1506 842 1.82 1641

558F036-150

3900 636 1.13 1073 693 1.32 1226 751 1.53 1398 808 1.76 1590 851 1.92 1725

0TFQ004-012

4000 650 1.21 1137 705 1.40 1291 761 1.61 1464 819 1.86 1674
4100 665 1.30 1210 717 1.48 1357 772 1.71 1548 830 1.96 1759
4200 680 1.39 1283 728 1.57 1431 783 1.81 1632 839 2.05 1836
4300 696 1.49 1365 739 1.66 1506 794 1.91 1717 848 2.14 1914
4400 711 1.60 1456 750 1.75 1582 805 2.02 1811 857 2.24 2000
4500 727 1.70 1540 762 1.85 1666 817 2.12 1897
4600 742 1.82 1641 774 1.96 1759 828 2.23 1992
4700 758 1.94 1742 786 2.07 1854 840 2.34 2088
4800 773 2.06 1845 799 2.18 1948 852 2.46 2193
4900 789 2.19 1957 812 2.30 2053
5000 805 2.32 2070 826 2.43 2166
5100 821 2.47 2202 840 2.57 2290
5200 837 2.61 2325 854 2.71 2414
5300 853 2.76 2459
5400
5500
5600
5700
5800
5900
6000
6100
6200
6300

558F150 (121/2 TONS)* (cont)

Airflow

(Cfm)

3700
3800
3900
4000
4100
4200
4300
4400
4500
4600
4700
4800
4900
5000
5100
5200
5300
5400
5500
5600
5700
5800
5900
6000
6100
6200
6300

Bhp —
Watts —

*Standard motor drive range: 860 to 1080 rpm. Alternate motor drive range: 900 to 1260 rpm.

All other rpms require field-supplied drive.

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

869 2.92 2602 882 3.01 2683 920 3.24 2891 967 3.57 3193
885 3.09 2755 897 3.17 2828 932 3.38 3019
901 3.26 2910 911 3.33 2973 943 3.54 3166 990 3.87 3470 1031 4.20 3775
917 3.44 3074 926 3.50 3129 956 3.70 3313
933 3.62 3239 941 3.68 3294
949 3.81 3414 956 3.87 3470 981 4.05 3637 1025 4.37 3934 1065 4.74 4279
965 4.01 3600 972 4.06 3646 995 4.23 3804 1037 4.55 4102 1076 4.92 4447
981 4.21 3785 987 4.26 3832 1008 4.42 3981 1042 4.73 4270 1088 5.10 4614
997 4.42 3981 1002 4.46 4018 1022 4.62 4167 1058 4.9 1 4437 —— —

1014 4.64 4186 1018 4.68 4223 1036 4.83 4363 1070 5.11 4624 —— —

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

879 1.95 1751 927 2.17 1940 973 2.38 2123 1013 2.57 2290 1046 2.73 2432
889 2.03 1819 934 2.26 2018 980 2.48 2210 1022 2.69 2396 1058 2.87 2557
898 2.12 1897 942 2.36 2105 987 2.59 2307 1030 2.81 2503 1068 3.01 2683
908 2.21 1974 950 2.46 2193 994 2.70 2405 1037 2.92 2602 1077 3.14 2801
917 2.32 2070 960 2.55 2272 1001 2.81 2503 1045 3.04 2710 1085 3.21 2919
925 2.44 2175 969 2.65 2370 1009 2.92 2602 1051 3.17 2828 1092 3.40 3037
935 2.56 2281 979 2.77 2468 1018 3.03 2701 1058 3.29 2937 1100 3.53 3157
945 2.68 2387 988 2.89 2575 1028 3.14 2801 1066 3.41 3047 1106 3.67 3285
955 2.82 2512 996 3.02 2692 1037 3.25 2901 1074 3.54 3166 1113 3.81 3414
967 2.96 2638 1005 3.16 2819 1046 3.38 3019 1084 3.66 3276 1121 3.95 3544
980 3.11 2773 1015 3.30 2946 1056 3.52 3147 1093 3.79 3396 1129 4.09 3674

992 3.26 2910 1025 3.45 3083 1064 3.67 3285 1103 3.92 3516 1137 4.22 3795
1003 3.41 3047 1036 3.61 3230 1073 3.83 3433 1112 4.07 3655 1147 4.36 3925
1014 3.56 3184 1049 3.79 3396 1083 4.00 3590 1121 4.23 3804 1157 4.50 4055
1024 3.71 3322 1061 3.96 3553 1093 4.17 3748 1129 4.40 3962 1166 4.66 4202
1033 3.84 3442 1073 4.14 3720 1103 4.34 3906 1138 4.58 4130 1175 4.82 4354
1042 3.98 3572 1084 4.31 3878 1115 4.53 4157 1148 4.76 4326 1184 5.01 4531
1051 4.14 3720 1095 4.49 4046 1128 4.74 4279 1158 4.95 4475 1193 5.20 4707
1061 4.30 3818 1105 4.66 4204 1140 4.94 4465 1168 5.15 4661 —— —
1071 4.46 4018 1114 4.81 4344 1152 5.14 4652 —— — —— —
1081 4.64 4186 1123 4.98 4503 —— — —— — —— —
1092 4.84 4372 1132 5.15 4661 —— — —— — —— —
1103 5.04 4558 —— — —— — —— — —— —
1114 5.24 4745 —— — —— — —— — —— —

—— — —— — —— — —— — —— —

—— — —— — —— — —— — —— —

—— — —— — —— — —— — —— —

LEGEND

Brake Horsepower Input to Fan
Input Watts to Motor

0.2 0.4 0. 6 0.8 1.0

868 2.85 2539 909 3.09 2755 955 3.42 3056 998 3.69 3304

1.2 1.4 1. 6 1.8 2.0

External Static Pressure (in. wg)

861 2 .02 181 1
871 2 .13 190 5
883 2 .25 200 9
896 2 .38 212 3

867 2.35 2096 919 2.63 2343
877 2.46 2193 929 2.75 2450
888 2.59 2307 938 2.87 2557

863 2.57 2290 910 2.86 2548 957 3.11 2773
875 2.70 2405 921 2.99 2665 966 3.24 2891
887 2.83 2521 932 3.13 2792 976 3.38 3019
898 2.96 2638 943 3.28 2928 987 3.53 3157

968 3.87 3470 1013 4.20 3775 1053 4.56 4111

External Static Pressure (in. wg)

NOTES:

1.

2. indicates alternate motor and drive are required.

3. Maximum usable watts input is 3313 with standard motor and 4400 with alternate motor.

4. See below for general fan performance notes.

indicates field-supplied drive is required.

Boldface

Maximum continuous bhp is 3.70 with standard motor and 5.25 with alternate motor.

899 2.72 2423 947 2.98 2656

978 3.72 3331 1029 4.03 3618

1002 4.03 3618 1042 4.38 3943

908 2 .51 223 7

1009 3.86 3461

GENERAL FAN PERFORMANCE NOTES

NOTES:

1. Values include losses for filters, unit casing, and wet coils. See
page 61 for accessory/factory-installed option static pressure
information.

2. Extensive motor and electrical testing on these units ensures that
the full range of the motor can be utilized with confidence. Using
your fan motors up to the wattage ratings shown will not result in

nuisance tripping or premature motor failure. Unit warranty will not
be affected. See Evaporator-Fan Motor Performance table on
page 63 for additional information.

3. Use of a field-supplied motor may affect wire sizing. Contact your
Bryant representative for details.

4. Interpolation is permissible. Do not extrapolate.

60

PERFORMANCE DATA (cont)

ACCESSORY/FIOP STATIC PRESSURE (in. wg) — 558F036-073

0TFQ004-012
558F036-150

COMPONENT

1 Heater Module
2 Heater Modules
EconoMi$er

900 1200 1400 1600 1800 2000 2200 2400 2600 3000

0.05 0.07 0.09 0.09 0.10 0.11 0.11 0.12 0.13 0.15

0.15 0.16 0.16 0.16 0.17 0.17 0.17 0.18 0.18 0.19

0.05 0.09 0.13 0.17 0.22 0.27 0.32 0.39 0.45 0.53

CFM

LEGEND

FIOP —

*The static pressure must be added to external static pressure. The sum and the evaporator

Factory-Installed Option

entering-air cfm should then be used in conjunction with the Fan Performance tables to deter­mine blower rpm and watts.

ACCESSORY/FIOP STATIC PRESSURE* (in. wg) — 558F090-150

COMPONENT

1 Heater Module
2 Heater Modules
EconoMi$er

2250 2500 3000 3500 4000 4500 5000 5500 6000 6250

0.02 0.03 0.05 0.07 0.08 0.10 0.12 0.14 0.16 0.17

0.03 0.05 0.07 0.09 0.12 0.14 0.16 0.19 0.21 0.20

0.07 0.09 0.13 0.18 0.23 0.30 0.36 ———

LEGEND

FIOP —

Factory-Installed Option

*The static pressure must be added to external static pressure. The sum and the evaporator

entering-air cfm should then be used in conjunction with the Fan Performance tables to deter­mine blower rpm and watts.

CFM

FAN RPM AT MOTOR PULLEY SETTINGS*

UNIT 558F

036†
036**
048†
048**
060†
060**
072,073††
072,073**
090,091††
090,091***
090,091**
102††
102**
120,121††
120,121†
120,121**
150††
150†

0

1000 976 952 928 904 880 856 832 808 784 760 ——
1455 1423 1392 1360 1328 1297 1265 1233 1202 1170 1138 1107 1075
1185 1150 1115 1080 1045 1010 975 940 905 870 835 ——
1455 1423 1392 1360 1328 1297 1265 1233 1202 1170 1138 1107 1075
1300 1260 1220 1180 1140 1100 1060 1020 980 940 900 ——
1685 1589 1557 1525 1493 1460 1428 1396 1364 1332 1300 ——
1460 1420 1380 1345 1305 1265 1225 1185 1150 1110 1070 ——
1685 1589 1557 1525 1493 1460 1428 1396 1364 1332 1300 ——

840 815 790 765 740 715 690 665 635 615 590 ——
935 910 885 860 835 810 785 760 735 710 685 ——

1080 1025 1007 988 970 952 933 915 897 878 860 ——

935 910 885 860 835 810 785 760 735 710 685 ——

1080 1025 1007 988 970 952 933 915 897 878 860 ——

935 910 885 860 835 810 785 760 735 710 685 ——
1085 1060 1035 1010 985 960 935 910 885 860 835 ——
1130 1112 1087 1062 1037 1012 987 962 937 912 887 862 830
1080 1060 1035 1015 990 970 950 925 905 880 860 ——
1260 1220 1185 1155 1130 1100 1075 1045 1015 990 960 930 900

1

/

2

11

*Approximate fan rpm shown.

†Indicates alternate motor and drive package.

**Indicates high-static motor and drive package.
††Indicates standard motor and drive package.
***Indicates alternate drive package only.

1

/

2

22

1

/

2

33

1

/

2

44

1

/

2

55

1

/

2

6

MOTOR PULLEY TURNS OPEN

61

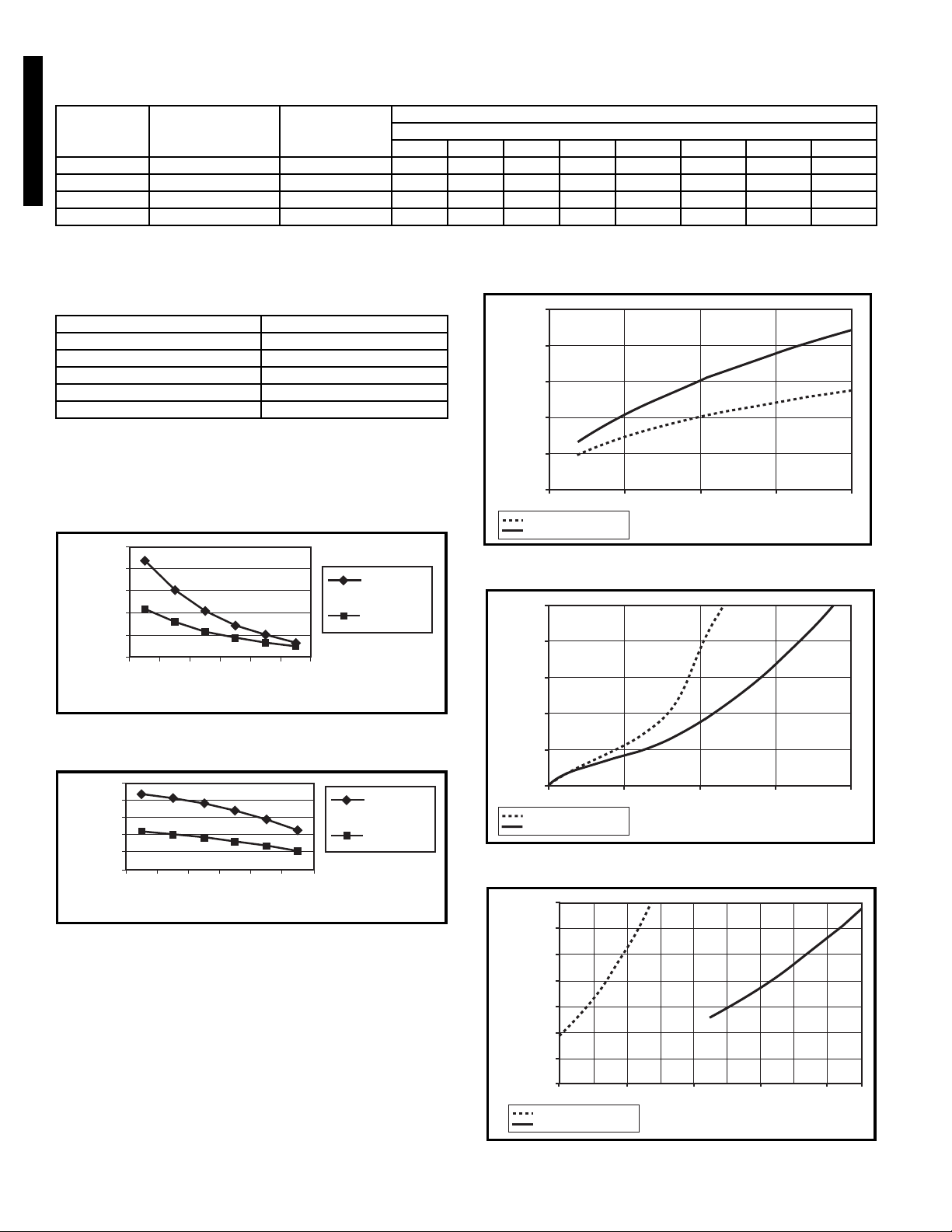

PERFORMANCE DATA (cont)

50

40

30

20

10

0

0

0.25

0.5

0.75 1

FLOW (CFM)

STATIC PRESSURE (in. wg)

3 TO 6 TON
7 1/2 TO 12 1/2 TON

0.25

0.20

0.15

0.10

0.05

0.00
0

500

1000

1500 2000

FLOW (CFM)

STATIC PRESSURE (in. wg)

3 TO 6 TON
7 1/2 TO 12 1/2 TON

0.25

0.20

0.15

0.10

0.05

0.00

1200

2000

2800

3600 4400

FLOW (CFM)

STATIC PRESSURE (in. wg)

3 TO 6 TON

7 1/2 TO 12 1/2 TON

0.35

0.30

OUTDOOR SOUND DATA (Total Unit)

UNIT

558F

036-073
090-102

558F036-150

120,121

0TFQ004-012

150

SOUND RATING

(dB)

A-WEIGHTED

(dB)

81 80.5 56.8 75.8 72.4 72.9 74.8 75.4 71.3 69.1
87 86.4 83.2 87.4 83.5 82.8 83.0 77.7 71.8 67.0
88 87.6 97.6 90.4 85.7 84.8 83.9 77.5 71.3 65.8
87 86.4 83.7 87.2 83.4 82.8 83.0 77.7 71.8 67.0

LEGEND

Sound Levels (decibels)

dB —

EVAPORATOR-FAN MOTOR EFFICIENCY

UNIT 558F MOTOR EFFICIENCY (%)

036,048

060
072,073
090-121

150

*Single-phase/three-phase.

All indoor fan motors 5 Hp and larger meet the minimum effi-

NOTE:

ciency requirements as established by the Energy Policy Act of 1992
(EPACT) effective October 24, 1997.

2500

2000

1500

1000

FLOW (cfm)

500

0

0.2

0.3

0.4

0.5

0.1

0

STATIC PRESSURE (in. wg)

75

74/84*

84
80
87

2 FANS
OPERATING

1 FAN
OPERATING

SOUND POWER

Octave Bands

63 125 250 500 1000 2000 4000 8000

EconoMi$er Outdoor-Air Leakage

EconoMi$er Power Exhaust Performance

5000

4000
3000

2000

FLOW (cfm)

1000

0

EconoMi$er Power Exhaust Performance

(558F036-073)

0.1

0

0.2

STATIC PRESSURE (in. wg)

(558F090-150)

0.3

0.5

0.4

2 FANS
OPERATING

1 FAN
OPERATING

EconoMi$er Barometric Flow

EconoMi$er Return-Air Pressure Drop

62

PERFORMANCE DATA (cont)

EVAPORATOR-FAN MOTOR PERFORMANCE

UNIT
558F

036

048

060

072,073

090,091

102

120,121

150

LEGEND

Brake Horsepower

Bhp —

*Extensive motor and electrical testing on these units ensures that the full horse-

power range of the motors can be utilized with confidence. Using your fan motors
up to the horsepower ratings shown in this table will not result in nuisance trip­ping or premature motor failure. Unit warranty will not be affected.

†Single-phase/three-phase.

EVAPORATOR-FAN

MOTOR

Standard

Alternate

High Static

Standard

Alternate

High Static

Standard

Alternate

High Static

Standard

High Static

Standard,

Alternate

High Static

Standard

High Static

Standard

Alternate

High Static

Standard

Alternate

UNIT

VOLTAGE

208/230

460 1.3
575 1.3

208/230

460 2.1
575 2.1

208/230

460 3.0
575 3.0

208/230

460 1.8
575 1.8

208/230

460 2.1
575 2.1

208/230

460 3.0
575 3.0

208/230

460 3.2
575 3.2

208/230

460 3.0
575 3.0

208/230

460 3.9
575 3.9

208/230

460 3.0
575 3.0

208/230

460 3.9
575 3.9

208/230

460 3.0
575 3.0

208/230

460 5.5
575 5.5

208/230

460 3.0
575 3.0

208/230

460 5.5
575 5.5

208/230

460 3.0
575 3.0

208/230

460 3.9
575 3.9

208/230

460 8.5
575 8.5

208/230

460 5.5
575 5.5

208/230

460 8.5
575 8.5

MAXIMUM ACCEPTABLE

CONTINUOUS BHP*

0.34 440

1.00 1000

2.40 2120

0.75 850

1.00 1000

2.40 2120

1.20 1340

1.30/2.40† 2120

2.90 2562

2.40 2120

2.90 2562

2.40 2120

3.70 3313

2.40 2120

3.70 3313

2.40 2120

2.90 2615

5.25 4400

3.70 3313

5.25 4400

NOTES:

1. All indoor-fan motors 5 hp and larger meet the minimum efficiency require­ments as established by the Energy Policy Act of 1992 (EPACT) effective
October 24, 1997.

2. High-static motor not available on single-phase units.

MAXIMUM ACCEPTABLE

OPERATING WATTS

MAXIMUM

AMP DRAW

2.8

4.9

6.0

3.5

4.9

6.0

5.9

10.1/6.7†

8.6

6.7

8.6

6.7

12.2

6.7

12.2

6.7

8.6

17.3

12.2

17.3

0TFQ004-012
558F036-150

63

PERFORMANCE DATA (cont)

ELECTRIC HEATING CAPACITIES

UNIT

VOLTAGE

558F

(60 Hz)

208/230

036

(single

phase)

208/230

(3 phase)

558F036-150
0TFQ004-012

(3 phase)

208/230

(single

phase)

208/230

048

(3 phase)

(3 phase)

208/230

(single

phase)

208/230

060

(3 phase)

(3 phase)

208/230

(3 phase)

072

(3 phase)

460

460

460

460

ACCESSORY

kW

4.4 101 —

6.5 102 —

8.7 103 —

10.5 104 —

13.0* 102* 004

4.4 101 —

6.5 102 —

8.7 103 —

10.5 104 —

16.0 105 —

6.0 106 —

8.8 107 —

11.5 108 —

14.0 109 —

4.4 101 —

8.7 103 —

13.0* 102* 004

17.4* 103* 004

21.0* 104* 004

6.5 102 —

8.7 103 —

16.0 105 —

21.0* 104* 002

6.0 106 —

11.5 108 —

14.0 109 —

23.0* 108* —

6.5 102 —

8.7 103 —

13.0* 102* 004

17.4* 103* 004

21.0* 104* 004

6.5 102 —

10.5 104 —

16.0 105 —

21.0* 104* 002

26.5* 105,104 002

6.0 106 —

11.5 108 —

14.0 109 —

23.0* 108* —

25.5* 109,108 —

6.5 102 —

10.5 104 —

16.0 105 —

21.0* 104* 002

26.5* 105,104 002

6.0 106 —

11.5 108 —

14.0 109 —

23.0* 108* —

25.5* 109,108 —

ACCESSORY

HEATER

PART NUMBER

CRHEATER---A00

ACCESSORY

SINGLE POINT BOX

PART NO .

CRSINGLE---A00

UNIT

VOLTAGE

558F

(60 Hz)

208/230

(3 phase)

090,

102

120,

150

*Two heater packages required to provide kW indicated.

†009 for 558F102 units.

**On units with factory-installed outlet, use CRSINGLE014A00.

NOTES:

1. The kW ratings shown above are at 240, 480, and 600 v. Use the Multiplica-

460

(3 phase)

575

(3 phase)

208/230

(3 phase)

460

(3 phase)

575

(3 phase)

tion Factors table below to determine heater capacity for your particular
voltage.

ACCESSORY

kW

10.5 117 006

16.0 110 006

24.8 111 007

32.0 112 007

42.4* 112,117 007†

14.0 116 006

16.5 113 006

27.8 114 006

33.0 115 006

41.7* 114,116 008

17.0 118 006

34.0 119 006

10.5 117 012

16.0 110 012

32.0 112 012

42.4* 112,117 015

50.0* 112,110 015

16.5 113 011

27.8 114 011

33.0 115 011**

41.7* 114,116 014

50.0* 115,113 014

17.0 118 011

34.0 119 011

51.0* 119,118 014

ACCESSORY

HEATER

PART NUMBER

CRHEATER---A00

ACCESSORY

SINGLE POINT BOX

PART NO.

CRSINGLE---A00

MULTIPLICATION FACTORS

HEATER kW

RATING

240

480

600

Example: 32.0 kW (at 240 v) heater on 208 v

2. Heaters are not available for size 036-072 575-v units.

VOLTAGE DISTRIBUTION

V/3/60

200
208
230
240

440
460
480

550
575
600

= 32.0 (.75 mult factor)
= 24.0 kW capacity at 208 v

MULTIPLICATION

FAC TO R

.69
.75
.92

1.00
.84

.92

1.00
.84

.92

1.00

64

UNIT
558F

NOMINAL

V-Ph -H z

IFM

TYPE

Std

208/230-1-60

Alt 4.9

Std

208/230-3-60

Alt 4.9

036

High 5.2

Std

460-3-60

Alt 2.1

High 2.6

Std

575-3-60

Alt 2.1 —— 7.5 15 8 39

High 2.6 —— 8.0 15 8 63

Std

208/230-1-60

Alt 4.9

048

208/230-3-60

Std

Alt 4.9

High 5.2

See Legend and Notes on page 70.

ELECTRICAL DATA — 558F036-073

VOLTAGE

RANGE

Min Max RLA LRA Qty Hp FLA

187 254 16.2 96.0 1

187 254 10.2 75.0 1

414 508 4.4 40.0 1

518 632 3.7 31.0 1

187 254 23.3 118.0 1

187 254 15.4 90.0 1

COMPRESSOR

(ea)

OFM

(ea)

1

/41.4

1

/41.4

1

/40.8

1

/40.8

1

/41.4

1

/41.4

ELECTRIC

IFM
FLA

3.5

3.5

1.3

HEAT*

Nominal

kW**

——25.2/25.2 30/30 24/24

3.3/ 4.4 15.9/18.3 25.2/27.3 30/30 24/25

4.9/ 6.5 23.5/27.1 33.1/38.2 35/40 31/35

6.5/ 8.7 31.4/36.3 43.6/49.7 45/50 40/46

7.9/10.5 37.9/43.8 51.5/59.1 60/60 48/54

9.8/13.0 46.9/54.2 63.0/72.1 70/80|| 58/66
——26.6/26.6 35/35 26/26

3.3/ 4.4 15.9/18.3 26.6/29.0 35/35 26/27

4.9/ 6.5 23.5/27.1 35.5/40.0 40/40 33/37

6.5/ 8.7 31.4/36.3 45.4/51.4 50/60 42/47

7.9/10.5 37.9/43.8 53.5/60.8 60/70|| 49/56

9.8/13.0 46.9/54.2 64.8/73.8 70/80|| 60/68
——17.7/17.7 25/25 17/17

3.3/ 4.4 9.2/10.6 17.7/17.7 25/25 17/17

4.9/ 6.5 13.6/15.6 21.3/23.9 25/25 20/22

6.5/ 8.7 18.1/20.9 27.0/30.5 30/35 25/28

7.9/10.5 21.9/25.3 31.7/35.9 35/40 29/33

12.0/16.0 33.4/38.5 46.1/52.5 50/60 42/48
——19.1/19.1 25/25 19/19

3.3/ 4.4 9.2/10.6 19.1/19.4 25/25 19/19

4.9/ 6.5 13.6/15.6 23.1/25.7 25/30 21/24

6.5/ 8.7 18.1/20.9 28.8/32.3 30/35 26/30

7.9/10.5 21.9/25.3 33.5/37.7 35/40 31/35

12.0/16.0 33.4/38.5 46.1/52.5 50/60 42/48
——19.4/19.4 25/25 19/19

3.3/ 4.4 9.2/10.6 19.4/19.7 25/25 19/19

4.9/ 6.5 13.6/15.6 23.4/26.0 30/30 22/24

6.5/ 8.7 18.1/20.9 29.2/32.7 30/35 27/30

7.9/10.5 21.9/25.3 33.9/38.1 35/40 31/35

12.0/16.0 33.4/38.5 48.2/54.6 50/60 44/50
—— 7.6 15 7

6.0 7.2 10.6 15 10

8.8 10.6 14.9 15 14

11.5 14.0 18.9 20 17

14.0 17.0 22.7 25 21
—— 8.4 15 8

6.0 7.2 11.6 15 11

8.8 10.6 15.9 20 15

11.5 14.0 19.9 20 18

14.0 17.0 23.7 25 22
—— 8.9 15 9

6.0 7.0 12.3 15 11

8.8 11.0 16.5 20 15

11.5 14.0 20.5 25 19

14.0 17.0 24.3 25 22

FLA MCA MOCP†† FLA LRA

POWER

SUPPLY

DISCONNECT

SIZE†

106/106

111/111

85/85

90/90

109/109

44/44

48/48

57/57

1.3 —— 6.7 15 7 35

——34.0/ 34.0 40/ 40 32/ 32

3.3/ 4.4 15.9/18.3 34.0/ 34.0 40/ 40 32/ 32

6.5/ 8.7 31.4/36.3 43.6/ 49.7 45/ 50 40/ 46

3.5

9.8/13.0 46.9/54.2 63.0/ 72.1 70/ 80|| 58/ 66

13.1/17.4 62.8/72.5 82.9/ 95.0 90/100|| 76/ 87

16.0/21.0 75.8/87.5 99.2/113.8 100/125|| 91/105
——35.4/ 35.4 45/ 45 34/ 34

3.3/ 4.4 15.9/18.3 35.4/ 35.4 45/ 45 34/ 34

6.5/ 8.7 31.4/36.3 45.4/ 51.4 50/ 60 42/ 47

9.8/13.0 46.9/54.2 64.8/ 73.8 70/ 80|| 60/ 68

13.1/17.4 62.8/72.5 84.7/ 96.8 90/100|| 78/ 89

16.0/21.0 75.8/87.5 100.9/115.5 110/125|| 93/106
——24.2/24.2 30/30 23/23

4.9/ 6.5 13.6/15.6 24.2/24.2 30/30 23/23

3.5

6.5/ 8.7 18.1/20.9 27.0/30.5 30/35 25/28

12.0/16.0 33.4/38.5 46.1/52.5 50/60 42/48

16.0/21.0 43.8/50.5 59.1/67.5 60/70|| 54/62
——25.6/25.6 30/30 25/25

4.9/ 6.5 13.6/15.6 25.6/25.7 30/30 26/26

6.5/ 8.7 18.1/20.9 28.8/32.3 30/35 26/30

12.0/16.0 33.4/38.5 47.8/54.2 50/60 44/50

16.0/21.0 43.8/50.5 60.8/69.3 70/70|| 56/64
——25.9/25.9 30/30 25/25

4.9/ 6.5 13.6/15.6 25.9/26.0 30/30 25/25

6.5/ 8.7 18.1/20.9 29.2/32.7 30/35 27/30

12.0/16.0 33.4/38.5 48.2/54.6 50/60 44/50

16.0/21.0 43.8/50.5 61.2/69.6 70/70|| 56/64

129/129

133/133

101/101

105/105

124/124

0TFQ004-012
558F036-150

65

ELECTRICAL DATA — 558F036-073 (cont)

UNIT
558F

NOMINAL

V-Ph -H z

TYPE

558F036-150
0TFQ004-012

460-3-60

048

575-3-60

208/230-1-60

208/230-3-60

060

460-3-60

575-3-60

See Legend and Notes on page 70.

VOLTAGE

RANGE

IFM

Min Max RLA LRA Qty Hp FLA

Std

414 508 8.3 45.0 1

Alt 2.1

High 2.6

Std

518 632 6.4 36.0 1

Alt 2.1 ——10.3 15 11 44

COMPRESSOR

(ea)

OFM

(ea)

1

/40.8

1

/40.8

ELECTRIC

IFM
FLA

1.8

HEAT*

Nominal

kW**

——13.0 20 13

6.0 7.0 13.0 20 13

11.5 14.0 19.5 20 18

14.0 17.0 23.3 25 21

23.0 27.7 36.8 40 34
——13.3 20 13

6.0 7.2 13.3 20 13

11.5 14.0 19.9 20 18

14.0 16.8 23.7 25 22

23.0 27.7 37.2 40 34
——13.8 20 13

6.0 7.0 13.8 20 13

11.5 14.0 20.5 25 19

14.0 17.0 24.3 25 22

23.0 28.0 36.8 40 34

FLA MCA MOCP†† FLA LRA

POWER
SUPPLY

DISCONNECT

SIZE†

1.8 ——10.1 15 10 42

51

53

62

High 2.6 ——11.4 15 11 53

——43.3/ 43.3 60/ 60 42/ 42

4.9/ 6.5 23.5/27.1 43.3/ 43.3 60/ 60 42/ 42

Std

187 254 28.8 147 1

1

/41.4

Alt 6.6

Std

187 254 16.0 114 1

Alt 5.2

1

/41.4

High 7.5

Std

414 508 7.4 64 1

Alt 2.6

1

/40.8

High 3.4

Std

518 632 6.2 52 1

Alt 2.6 ——11.2 15 11 69

1

/40.8

6.5/ 8.7 31.4/36.3 46.6/ 52.7 50/ 60 43/ 48

5.9

9.8/13.0 46.9/54.2 66.0/ 75.1 70/ 80|| 61/ 69

13.1/17.4 62.8/72.5 85.9/ 98.0 90/100|| 79/ 90

16.0/21.0 75.8/87.5 102.2/116.8 110/125|| 97/107
——44.0/ 44.0 60/ 60 42/ 42

4.9/ 6.5 23.5/27.1 44.0/ 44.0 60/ 60 42/ 42

6.5/ 8.7 31.4/36.3 47.5/ 53.6 50/ 60 44/ 49

9.8/13.0 46.9/54.2 66.9/ 76.0 70/ 80|| 62/ 70

13.1/17.4 62.8/72.5 86.8/ 98.9 90/110|| 80/ 91

16.0/21.0 75.8/87.5 103.0/117.6 110/125|| 95/108
——27.3/27.3 35/35 29/29

4.9/ 6.5 13.6/15.6 27.3/27.3 35/35 29/29

7.9/10.5 21.9/25.3 34.7/38.9 40/40 32/36

5.9

12.0/16.0 33.4/38.5 49.1/55.5 50/60 45/51

16.0/21.0 43.8/50.5 62.1/70.5 70/80|| 57/65

20.0/26.5 55.2/63.8 76.4/87.1 80/90|| 70/80
——26.6/26.6 35/35 26/26

4.9/ 6.5 13.6/15.6 26.6/26.6 35/35 26/26

7.9/10.5 21.9/25.3 33.9/38.1 35/40 31/35

12.0/16.0 33.4/38.5 48.2/54.6 50/60 44/50

16.0/21.0 43.8/50.5 61.2/69.6 70/70|| 56/64

20.0/26.5 55.2/63.8 75.6/86.2 80/90|| 70/79
——28.9/28.9 35/35 29/29

4.9/ 6.5 13.6/15.6 28.9/28.9 35/35 29/29

7.9/10.5 21.9/25.3 36.7/40.9 40/45 34/38

12.0/16.0 33.4/38.5 51.1/57.5 60/60 47/53

16.0/21.0 43.8/50.5 64.1/72.5 70/80|| 59/67

20.0/26.5 55.2/63.8 78.4/89.1 80/90|| 72/82
——13.2 20 13

6.0 7.0 13.2 20 13

11.5 14.6 21.2 25 19

3.1

14.0 17.0 24.9 25 23

23.0 28.0 38.5 40 35

25.5 30.0 41.5 45 38
——12.7 15 12

6.0 7.0 12.7 15 12

11.5 14.6 20.5 25 19

14.0 17.0 24.3 25 23

23.0 28.0 37.8 40 35

25.5 30.0 40.8 45 38
——13.5 20 13

6.0 7.0 13.5 20 13

11.5 14.0 21.5 25 20

14.0 17.0 25.3 30 23

23.0 28.0 38.8 40 36

25.5 30.0 41.8 45 38

161/161

184/184

128/128

148/148

174/174

72

81

94

3.1 ——11.7 15 12 59

High 3.4 ——12.0 15 12 81

66

UNIT

558F

072,

073

See Legend and Notes on page 70.

NOMINAL

V-P h- Hz

208/230-3-60

460-3-60

575-3-60

IFM

TYPE

Std

High 7.5

Std

High 3.4

Std

High 3.4 ——13.8 20 14 88

ELECTRICAL DATA — 558F036-073 (cont)

VOLTAGE

RANGE

Min Max RLA LRA Qty Hp FLA

187 254 20.6 146 1

414 508 9.5 73 1

518 632 7.6 58.4 1

COMPRESSOR

(ea)

OFM

(ea)

1

/41.4

1

/40.9

1

/40.9

ELECTRIC

IFM

FLA

5.2

2.6

2.6 ——13.0 15 13 75

HEAT*

Nominal

kW**

——32.4/32.4 40/40 31/31

4.9/ 6.5 13.6/15.6 32.4/32.4 40/40 31/31

7.9/10.5 21.9/25.3 33.9/38.1 35/40 31/35

12.0/16.0 33.4/38.5 48.2/54.6 50/60 44/50

15.8/21.0 43.8/50.5 61.2/69.6 70/70|| 56/64

19.9/26.5 55.2/63.8 75.6/86.2 80/90|| 70/79
——34.7/34.7 40/40 34/34

4.9/ 6.5 13.6/15.6 34.7/34.7 40/40 34/34

7.9/10.5 21.9/25.3 36.7/40.9 40/45 34/38

12.0/16.0 33.4/38.5 51.1/57.5 60/60 47/53

15.8/21.0 43.8/50.5 64.1/72.5 70/80|| 59/67

19.9/26.5 55.2/63.8 78.4/89.1 80/90|| 72/82
——15.4 20 15

6.0 7.0 15.4 20 15

11.5 14.0 20.5 25 19

14.0 17.0 24.3 25 22

23.0 28.0 37.8 40 35

25.5 31.0 41.6 45 38
——16.2 20 16

6.0 7.0 16.2 20 16

11.5 14.0 21.5 25 20

14.0 17.0 25.3 30 23

23.0 28.0 38.8 40 36

25.5 31.0 42.6 45 39

FLA MCA MOCP†† FLA LRA

POWER
SUPPLY

DISCONNECT

SIZE†

180/180

205/205

0TFQ004-012
558F036-150

90

103

67

ELECTRICAL DATA — 558F090-150

UNIT
558F

NOMINAL

V-Ph -H z

TYPE

558F036-150
0TFQ004-012

090,091

120,121

See Legend and Notes on page 70.

208/230-3-60

460-3-60

575-3-60

208/230-3-60

102

460-3-60

575-3-60

208/230-3-60

VOLTAGE

RANGE

IFM

Min Max RLA LRA Qty Hp FLA

Std

and

Alt

187 254 14.0 91.0 2

COMPRESSOR

(ea)

OFM

(ea)

1

/41.4

IFM
FLA

5.8

High 10.6

Std

and

Alt

414 508 6.4 42.0 2

1

/40.7

2.6

High 4.8

Std

and

Alt

518 632 5.2 39.0 2

1

/40.7

2.6

High 4.8

Std

187 254 16.0 137.0 2

1

/41.4

5.8

High 10.6

Std

414 508 8.3 69.0 2

1

/40.7

2.6

High 4.8

Std

518 632 6.4 58.0 2

1

/40.7

2.6

High 4.8

Std

1

Alt 7.5

187 254 15.8 130.0 2

/41.4

5.8

High 15.0

ELECTRIC

HEAT*

Nominal

kW**

——40.1/ 40.1 45/ 45 42/ 42

7.8/10.4 21.7/ 25.0 40.1/ 40.1 45/ 45 42/ 42

12.0/16.0 33.4/ 38.5 48.9/ 55.4 50/ 60 45/ 51

18.6/24.8 51.7/ 59.7 71.9/ 81.8 80/ 90|| 66/ 75

24.0/32.0 66.7/ 77.0 90.6/103.5 100/110|| 83/ 95

31.9/42.4 88.4/102.0 117.7/134.8 125/150|| 108/124
——44.9/ 44.9 50/ 50 48/ 48

7.8/10.4 21.7/ 25.0 44.9/ 44.9 50/ 50 48/ 48

12.0/16.0 33.4/ 38.5 54.9/ 61.4 60/ 70|| 51/ 56

18.6/24.8 51.7/ 59.7 77.9/ 87.8 80/ 90|| 72/ 81

24.0/32.0 66.7/ 77.0 96.6/109.5 100/110|| 89/101

31.9/42.4 88.4/102.0 123.7/140.8 125/150|| 114/129
——18.4 20 19

13.9 16.7 24.1 25 25

16.5 19.8 28.1 30 26

27.8 33.4 45.0 50 41

33.0 39.7 52.9 60 49

41.7 50.2 65.9 70|| 61
——20.6 25 22

13.9 16.7 26.9 30 25

16.5 19.8 30.8 35 28

27.8 33.4 47.8 50 44

33.0 39.7 55.6 60 51

41.7 50.2 68.7 70|| 63

FLA MCA MOCP†† FLA LRA

POWER

SUPPLY

DISCONNECT

——14.9 20 16

34.0 34.1 45.3 50 42
——16.7 20 18

34.0 34.1 47.5 50 44
——44.6/ 44.6 50/ 50 47/ 47

7.8/10.4 21.7/ 25.0 44.6/ 44.6 50/ 50 47/ 47

12.0/16.0 33.4/ 38.5 48.9/ 55.4 50/ 60 47/ 51

18.6/24.8 51.7/ 59.7 71.9/ 81.8 80/ 90|| 66/ 75

24.0/32.0 66.7/ 77.0 90.6/103.5 100/110|| 83/ 95

31.9/42.4 88.4/102.0 117.7/134.8 125/150|| 108/124
——49.4/ 49.4 60/ 60 52/ 52

7.8/10.4 21.7/ 25.0 49.4/ 49.4 60/ 60 52/ 52

12.0/16.0 33.4/ 38.5 54.9/ 61.4 60/ 70|| 52/ 56

18.6/24.8 51.7/ 59.7 77.9/ 87.8 80/ 90|| 72/ 81

24.0/32.0 66.7/ 77.0 96.6/109.5 100/110|| 89/101

31.9/42.4 88.4/102.0 123.7/140.8 125/150|| 114/129
——22.7 25 24

13.9 16.7 24.1 25 24

16.5 19.8 28.1 30 26

27.8 33.4 45.0 50 41

33.0 39.7 52.9 60 49

41.7 50.2 65.9 70|| 61
——24.9 30 26

13.9 16.7 26.9 30 26

16.5 19.8 30.8 35 28

27.8 33.4 47.8 50 44

33.0 39.7 55.6 60 51

41.7 50.2 68.7 70|| 63
——17.6 20 18

34.0 34.1 45.3 50 42
——19.4 25 20

34.0 34.1 47.5 50 44
——43.1/ 43.1 50/ 50 45/ 45

7.8/10.4 21.7/ 25.0 43.1/ 43.1 50/ 50 45/ 45

12.0/16.0 33.4/ 38.5 48.9/ 55.4 60/ 60 45/ 51

24.0/32.0 66.7/ 77.0 90.6/103.5 100/110 83/ 95

31.9/42.4 88.4/102.0 117.7/134.8 125/150 108/124

37.5/50.0 104.2/120.3 137.5/127.5 150/150 127/147
——44.8/ 44.8 50/ 50 48/ 48

7.8/10.4 21.7/ 25.0 44.8/ 44.8 50/ 50 47/ 47

12.0/16.0 33.4/ 38.5 51.1/ 57.5 60/ 60 47/ 53

24.0/32.0 66.7/ 77.0 92.8/105.6 100/110 85/ 97

31.9/42.4 88.4/102.0 119.9/136.9 125/150 110/126

37.5/50.0 104.2/120.3 139.7/139.7 150/150 128/147
——52.3/ 52.3 60/ 60 56/ 56

7.8/10.4 21.7/ 25.0 52.3/ 52.3 60/ 60 56/ 56

12.0/16.0 33.4/ 38.5 60.4/ 66.9 60/ 80 56/ 62

24.0/32.0 66.7/ 77.0 102.1/115.0 110/125 94/106

31.9/42.4 88.4/102.0 129.2/146.3 150/150 119/135

37.5/50.0 104.2/120.3 149.0/139.0 150/175 137/156

SIZE†

229/229

273/273

108

130

9717.0 17.1 23.9 25 22

11417.0 17.1 26.1 30 24

321/321

365/365

162

184

13517.0 17.1 23.9 25 22

15217.0 17.1 26.1 30 24

307/307

326/326

374/374

68

UNIT
558F

NOMINAL

V-Ph -H z

IFM

TYPE

Min Max RLA LRA Qty Hp FLA

Std

VOLTAGE

460-3-60

120,121

Alt

414 508 7.9 64.0 2

High

Std

575-3-60

518 632 6.6 52.0 2

Alt 3.4

High 7.4

Std

208/230-3-60

187 254 23.0 146.0 2

Alt 15.0

150

460-3-60

Std

414 508 10.4 73.0 2

Alt 7.4

Std

575-3-60

518 632 8.3 58.4 2

Alt 7.4

See Legend and Notes on page 70.

RANGE

ELECTRICAL DATA — 558F090-150 (cont)

COMPRESSOR

(ea)

OFM

(ea)

1

/40.7

1

/40.7

1

/41.4

1

/40.7

1

/40.7

ELECTRIC

IFM

FLA

2.6

3.4

7.4

2.6

10.6

4.8

4.8

HEAT*

Nominal

kW**

——21.0 25 22

16.5 19.8 28.1 30 26

27.8 33.4 45.0 50 41

33.0 39.7 52.9 60 49

41.7 50.2 65.9 70 61

50.0 60.1 63.4 70 72
——21.8 25 23

16.5 19.8 29.1 30 27

27.8 33.4 46.0 50 42

33.0 39.7 53.9 60 50

41.7 50.2 66.9 70 62

50.0 60.1 64.4 70 73
——25.8 30 27

16.5 19.8 34.1 35 31

27.8 33.4 51.0 60 47

33.0 39.7 58.9 60 54

41.7 50.2 71.9 80 66

50.0 60.1 69.4 80 78
——17.9 20 19

17.0 17.1 23.9 25 22

34.0 34.1 45.3 50 42

51.0 51.2 53.8 60 61
——18.5 25 19

17.0 17.1 24.7 25 23

34.0 34.1 46.1 50 42

51.0 51.2 54.6 60 62
——21.7 25 23

17.0 18.0 28.7 35 26

34.0 36.0 50.1 60 46

51.0 51.2 58.6 70 66
——65.2/ 65.2 70/ 70 68/ 68

7.8/10.4 21.7/ 25.0 65.2/ 65.2 70/ 70 68/ 68

12.0/16.0 33.4/ 38.5 65.2/ 65.2 80/ 80 68/ 68

24.0/32.0 66.7/ 77.0 96.6/109.5 100/110 89/101

31.9/42.4 88.4/102.0 123.7/140.8 125/150 114/129

37.5/50.0 104.2/120.3 143.5/133.5 150/150 132/151
——69.6/ 69.6 80/ 80 73/ 73

7.8/10.4 21.7/ 25.0 69.6/ 69.6 80/ 80 73/ 73

12.0/16.0 33.4/ 38.5 69.6/ 69.6 80/ 80 73/ 73

24.0/32.0 66.7/ 77.0 102.1/115.0 110/125 94/106

31.9/42.4 88.4/102.0 129.2/146.3 150/150 119/135

37.5/50.0 104.2/120.3 149.0/139.0 150/175 137/156
——29.6 40 31

16.5 19.8 30.8 40 31

27.8 33.4 47.8 50 44

33.0 39.7 55.6 60 51

41.7 50.2 68.7 70 63

50.0 60.1 66.1 80 75
——32.2 45 34

16.5 19.8 34.1 45 34

27.8 33.4 51.0 60 47

33.0 39.7 58.9 60 54

41.7 50.2 71.9 80 66

50.0 60.1 69.4 80 78
——23.6 30 25

17.0 17.1 26.1 30 25

34.0 34.1 47.5 50 44

51.0 51.2 56.0 60 63
——25.7 30 27

17.0 17.1 28.7 35 27

34.0 34.1 50.1 60 46

51.0 51.2 58.6 70 66

POWER

SUPPLY

DISCONNECT

SIZE†

FLA MCA MOCP†† FLA LRA

152

191

185

115

147

142

383/383

406/406

192

203

154

163

0TFQ004-012
558F036-150

69

LEGEND AND NOTES FOR ELECTRICAL DATA TABLES PAGES 65-69

LEGEND

FLA —
HACR—
IFM —
LRA —
MCA —
MOCP—
NEC —

558F036-150

OFM —

0TFQ004-012

RLA —

*Heater capacity (kW) is based on heater voltage of 208 v, 240 v,

†Used to determine minimum disconnect size per NEC.

**Heaters are field installed only.

††Fuse or HACR circuit breaker.

||Fusing in single point box provides the required branch circuit

NOTES:

1. In compliance with NEC requirements for multimotor and combina-

2.

Full Load Amps
Heating, Air Conditioning and Refrigeration
Indoor (Evaporator) Fan Motor
Locked Rotor Amps
Minimum Circuit Amps
Maximum Overcurrent Protection
National Electrical Code
Outdoor (Condenser) Fan Motor
Rated Load Amps

480 v, and 600 v. Heaters are rated at 240 v, 480 v, or 600 v. If power
distribution voltage to unit varies from rated heater voltage, heater kW
will vary accordingly. To determine heater capacity at actual unit volt­age, multiply 240 v, 480 v, or 600 v capacity by multipliers found in
table on page 64.

protection.

tion load equipment (refer to NEC Articles 430 and 440), the overcur­rent protective device for the unit shall be fuse or HACR breaker. The
Canadian units may be fuse or circuit breaker.

Unbalanced 3-Phase Supply Voltage

Never operate a motor where a phase imbalance in supply voltage is
greater than 2%.

of voltage imbalance.
% Voltage Imbalance

= 100 x

Use the following formula to determine the percent

max voltage deviation from average voltage

average voltage

Example: Supply voltage is 460-3-60.

AB = 452 v
BC = 464 v
AC = 455 v

Average Voltage =

Determine maximum deviation from average voltage.

(AB) 457 – 452 = 5 v
(BC) 464 – 457 = 7 v
(AC) 457 – 455 = 2 v

Maximum deviation is 7 v.

Determine percent of voltage imbalance.

% Voltage Imbalance = 100 x

= 1.53%

This amount of phase imbalance is satisfactory as it is below the
maximum allowable 2%.

IMPORTANT:

2%, contact your local electric utility company immediately.

If the supply voltage phase imbalance is more than

452 + 464 + 455

1371

=

3

= 457

7
457

3

70

551B – Packaged Rooftop

High Efficiency Electric

Voltage Designation
J – 208/230-1-60
P – 208/230-3-60
E – 460-3-60
T – 575-3-60

X – No Heat Installed

(Field-installed electric heaters available)

Nominal Tons
036 – 3
048 – 4
060 – 5
072 – 6
090 – 7 1/2
102 – 8 1/2
120 – 10
150 – 12 1/2

MODEL NUMBER NOMENCLATURE — 551B

551B E X 090 000 DA

Factory-Installed Option Code

Electric Heaters
000 – No factory-installed electric heaters

0TFQ004-012
551B036-150

The example model number 551BEX090000DA designates a 7

NOTE:

ARI* CAPACITY RATINGS

UNIT
551B

036
048
060

UNIT
551B

072
090

102

120
150

dB —
EER —
IPLV —
SEER —

*Air-Conditioning & Refrigeration Institute.

†Applies only to units with capacity of 65,000 Btuh or less.

**IPLV is not applicable to single-compressor units.

NOTES:

1. Rated in accordance with ARI Standard 210/240 (036-120 units) or 360
(150 units) and 270 (036-120 units).

2. Ratings are net values, reflecting the effects of circulating fan heat. Ratings
are based on:

Cooling Standard:

95 F db outdoor entering-air temperature.

IPLV Standard:

80 F db outdoor entering-air temperature.

NOMINAL

TONS

3 1200 36,000 3.21 13.00 11.20 76
4 1450 46,000 4.25 13.00 11.05 76
5 1750 61,000 5.55 13.00 11.00 80

NOMINAL

TONS

6 2100 74,000 6.70 11.00 80 **

1

/

7

2

1

8

/

2

10 3200 120,000 10.91 11.00 84 11.4

1

/

12

2

LEGEND

Sound Levels
Energy Efficiency Ratio
Integrated Part-Load Value
Seasonal Energy Efficiency Ratio

80 F db, 67 wb indoor entering-air temperature and

80 F db, 67 F wb indoor entering-air temperature and

STANDARD

CFM

STANDARD

CFM

3000 90,000 8.18 11.00 82 11.6

3000 102,000 9.44 10.80 82 10.9

4300 138,000 14.04 9.80 86 9.9

NET COOLING CAP

(Btuh)

NET COOLING CAP

(Btuh)

1

/2 ton 460-3-60 volt electric cooling rooftop unit with an EconoMi$er.

TOTAL

kW

TOTAL

kW

551B036-120

Units Only

3. All 551B036-150 units are in compliance with ASHRAE 90.1-1999 Energy
Standard for minimum SEER and EER requirements. Refer to state and
local codes or visit the following website: http://solstice.crest.org/efficiency/
bcap to determine if compliance with this standard pertains to a given geo­graphical area of the United States.

California, Maryland, Washington, Wyoming, Massachusetts and various
local and state building codes adopted the ASHRAE 90.1-99 efficiency
standard on October 29, 2001.

SEER† EER

EER

SOUND
RATING

(dB)

RATING

551B150

Units Only

SOUND

(dB)

IPLV

71

PHYSICAL DATA — 551B036-072

UNIT 551B 036 048 060 072
NOMINAL CAPACITY (tons)

OPERATING WEIGHT (lb)

Unit
EconoMi$er
Perfect Humidity™ Dehumidification Package
Roof Curb

COMPRESSOR

Quantity
Oil (oz)

REFRIGERANT TYPE

Operating Charge (lb-oz)
Standard Unit
Unit With Perfect Humidity Dehumidification Package

CONDENSER FAN

Quantity...Diameter (in.)
Nominal Cfm
Motor Hp...Rpm
Watts Input (Total)

CONDENSER COIL

551B036-150

Standard Unit

0TFQ004-012

Rows...Fins/in.
Total Face Area (sq ft)

Unit With Perfect Humidity Dehumidification Package

Rows...Fins/in.
Total Face Area (sq ft)

EVAPORATOR FAN

Quantity...Size (in.)
Nominal Cfm
Maximum Continuous Bhp

Standard
High Static

Motor Frame

Standard
High Static

Fan Rpm Range

Standard

High Static
Motor Bearing Type
Maximum Fan Rpm
Motor Pulley Pitch Diameter A/B (in.)

Standard

High Static
Nominal Motor Shaft Diameter (in.)

Standard

High Static
Fan Pulley Pitch Diameter (in.)

Standard

High Static
Belt — Quantity...Type...Length (in.)

Standard

High Static
Pulley Center Line Distance (in.)
Speed Change per Full Turn of
Movable Pulley Flange (rpm)

Standard

High Static
Movable Pulley Maximum Full Turns
From Closed Position

Standard

High Static
Factory Setting — Full Turns Open

Standard

High Static
Factory Speed Setting (rpm)

Standard

High Static
Fan Shaft Diameter at Pulley (in.)

EVAPORATOR COIL

Rows...Fins/in.
Total Face Area (sq ft)

HIGH-PRESSURE SWITCH (psig)

Standard Compressor Internal Relief (Differential)
Cutout
Reset (Auto.)

LOSS-OF-CHARGE/LOW-PRESSURE
SWITCH (Liquid Line) (psig)

Cutout
Reset (Auto.)

3456

435 445 465 520

47 47 47 47
18 18 18 18

115 115 115 115

1111

42 53 50 60

Scroll

R-22

5- 8 8-6 10- 0 9-10
8-13 11-2 12-13 13- 6

1...22 1...22 1...22 1...22
3500 3500 4100 4100

1

/8...825

180 180 320 320

1

/8...825

Propeller Type

1

/4...1100

High-Efficiency Enhanced Copper Tubes, Lanced Aluminum Fins

1...17 2...17 2...17 2...17

14.6 16.5 16.5 16.5

1...17 1...17 1...17 1...17

3.9 3.9 3.9 3.9

1...10 x 10 1...10 x 10 1...10 x 10 1...10 x 10
1200 1600 2000 2400

1.20 1.20 1.30/2.40* 2.40

2.40 2.40 2.90 2.90

48 48 56 56
56 56 56 56

760-1090 840-1185 1020-1460/1120-1585* 1120-1585

1075-1455 1075-1455 1300-1685 1300-1685

Ball Ball Ball Ball

2100 2100 2100 2100

1.9/2.9 1.9/2.9 2.4/3.4 2.4/3.4

2.8/3.8 2.8/3.8 3.4/4.4 3.4/4.4

1

/

2

5

/

8

4.5 4.0 4.0 4.0

4.5 4.0 4.5 4.5

1...A...33 1...A...36 1...A...40 1...A...38

1...A...39 1...A...39 1...A...40 1...A...40

10.0-12.4 10.0-12.4 14.7-15.5 14.7-15.5

65 70 75 95
65 65 60 60

5565
6655

3333

1

/

3

2

890 980 1240 1304

1233 1233 1396 1396

5

/

8

Centrifugal Type, Belt Drive

1

/

2

5

/

8

31/

2

5

/

8

5

/

8

7

/

8

31/

2

5

/

8

High Efficiency Enhanced Copper Tubes, Aluminum Double-Wavy Fins, Acutrol™ Metering Device

2...15 2...15 4...15 4...15

5.5 5.5 5.5 5.5

450 ± 50

428
320

7 ± 3

22 ± 5

FREEZE-PROTECTION THERMOSTAT

Opens (F)
Closes (F)

OUTDOOR-AIR INLET SCREENS

Quantity...Size (in.)

RETURN-AIR FILTERS

Quantity...Size (in.)

30
45

Cleanable

1...20 x 24 x 1

Throwaway

2...16 x 25 x 2

LEGEND

Brake Horsepower

Bhp —

*Single-phase/three-phase.

1

/4...1100

5

/

8

7

/

8

31/

5

/

8

2

72

PHYSICAL DATA — 551B090-150

UNIT 551B 090 102 120 150
NOMINAL CAPACITY (tons)

/

2

81/

2

10 121/

1

7

OPERATING WEIGHT (lb)

Unit
EconoMi$er
Perfect Humidity™ Dehumidification Package
Roof Curb

COMPRESSOR

Quantity
Oil (oz) (each compressor)

REFRIGERANT TYPE

Operating Charge (lb-oz)
Standard Unit

Circuit 1
Circuit 2

Unit With Perfect Humidity Dehumidification Package

Circuit 1
Circuit 2

CONDENSER FAN

Quantity...Diameter (in.)
Nominal Cfm
Motor Hp...Rpm
Watts Input (Total)

CONDENSER COIL

Standard Unit
Rows...Fins/in.
Total Face Area (sq ft)
Unit with Perfect Humidity Dehumidification Package
Rows...Fins/in.
Total Face Area (sq ft)

EVAPORATOR FAN

Size (in.)
Nominal Cfm — Standard
Maximum Continuous Bhp

Standard

High Static
Motor Frame
Fan Rpm Range

Standard

High Static
Motor Bearing Type
Maximum Fan Rpm
Motor Pulley Pitch Diameter A/B (in.)

Standard

High Static
Nominal Motor Shaft Diameter (in.)
Fan Pulley Pitch Diameter (in.)

Standard

High Static
Belt — Quantity...Type...Length (in.)

Standard

High Static
Pulley Center Line Distance (in.)
Speed Change per Full Turn of
Movable Pulley Flange (rpm)

Standard

High Static
Movable Pulley Maximum Full Turns
From Closed Position

Standard

High Static
Factory Setting — Full Turns Open
Factory Speed Setting (rpm)

Standard

High Static
Fan Shaft Diameter at Pulley (in.)

EVAPORATOR COIL

Rows...Fins/in.
Total Face Area (sq ft)

755 760 915 930

62 62 62 62
29 29 33 33

143 143 143 143

Scroll

2222

53 53 50 60

R-22

7-10 7-14 9-3 9-8
8- 2 8- 5 10-3 9-5

10-10 10-11 12- 8 12-6
12- 8 10-10 12-14 12-2

Propeller Type

2...22 2...22 2...22 2...22
6500 6500 7000 7000

1

/4...1100

650 650 650 650

1

/4...1100

1

/4...1100

1

/4...1100

High-Efficiency Enhanced Copper Tubes, Lanced Aluminum Fins

2...17 2...17 2...17 2...17

20.5 20.5 25.0 25.0

1...17 1...17 1...17 1...17

6.3 6.3 8.4 8.4

Centrifugal Type, Belt Drive

15 x 15 15 x 15 15 x 15 15 x 15

3000 3400 4000 5000

2.90 2.90 3.70 5.25

4.20 4.20 5.25 —
56 56 56 56

840-1085 840-1085 860-1080 900-1260
860-1080 860-1080 830-1130 —

Ball Ball Ball Ball

2100 2100 2100 2100

3.4/4.4 3.4/4.4 4.0/5.0 2.8/3.8

4.0/5.0 4.0/5.0 2.8/3.8 —

7

/

8

7.0 7.0 8.0 5.8

8.0 8.0 5.8 —

1...A...51 1...A...51 1...A...51 1...BX...46

1...A...55 1...A...55 1...BX...46 —

16.75-19.25 16.75-19.25 15.85-17.50 15.85-17.50

50 50 45 60
60 60 60 —

5556
556—
5555

840 840 860 960
860 860 890 —

1111

High Efficiency Enhanced Copper Tubes, Aluminum Double-Wavy Fins,

3...15 3...15 4...15 4...15

8.9 8.9 11.1 11.1

7

/

8

Acutrol™ Metering Device

7

/

8

HIGH-PRESSURE SWITCH (psig)

Standard Compressor Internal Relief (Differential)
Cutout
Reset (Auto.)

LOSS-OF-CHARGE/LOW-PRESSURE
SWITCH (Liquid Line) (psig)

Cutout
Reset (Auto.)

FREEZE-PROTECTION THERMOSTAT

Opens (F)
Closes (F)

OUTDOOR-AIR INLET SCREENS

Quantity...Size (in.)

RETURN-AIR FILTERS

Quantity...Size (in.)

4...16 x 20 x 2 4...16 x 20 x 2 4...20 x 20 x 2 4...20 x 20 x 2

450 ± 50

428
320

7 ± 3

22 ± 5

30 ± 5
45 ± 5

Cleanable

1...20 x 25 x 1

1...16 x 25 x 1

Throwaway

LEGEND

Brake Horsepower

Bhp —

2

0TFQ004-012
551B036-150

7

/

8

73

551B036-150
0TFQ004-012

BASE UNIT DIMENSIONS — 551B036-072

74

BASE UNIT DIMENSIONS — 551B090-150

0TFQ004-012
551B036-150

75

ACCESSORY DIMENSIONS — 551B036-072

CRRFCURB001A00
CRRFCURB002A00

551B036-150
0TFQ004-012

ROOF CURB

ACCESSORY

“A”

1′-2″ [356]
2′-0″ [610]

UNIT SIZE

551B

036-072

BC

11

″

″

1′-4

/

1′-9

16

[551]

[406]

NOTES:

1. Roof curb accessory is shipped
disassembled.

2. Insulated panels.

3. Dimensions in [ ] are in millimeters.

4. Roof curb: galvanized steel.

5. Attach ductwork to curb (flanges of duct
rest on curb).

D

ALT DRAIN HOLE

3

″

1

/

4

[44.5]

“E”

GAS

3

″

/

4

[19] NPT

1

″

/

2

[12.7] NPT

3

″

/

4

[19] NPT

“F”

POWER

3

″

[19] NPT

/

4

1

″

1

[31.7] NPT CRBTMPWR002A00

/

4

3

″

[19] NPT

/

4

1

″

1

[31.7] NPT CRBTMPWR004A00

/

4

“G”

CONTROL

1

″

/

2

[12.7]

1

″

/

2

[12.7]

CONNECTOR

PKG. ACCY.

CRBTMPWR001A00

CRBTMPWR003A00

6. Service clearance 4 ft on each side.

7. Direction of airflow.

8. Connector packages CRBTMPWR001A00
and 002A00 are for thru-the-curb connec­tions. Packages CRBTMP003A00 and
004A00 are for thru-the-bottom connections.

76

ACCESSORY DIMENSIONS — 551B090-150

ROOF CURB

ACCESSORY
CRRFCURB003A00
CRRFCURB004A00

“A”

1′-2″ [356]
2′-0″ [610]

UNIT SIZE

551B

090-150

“B”“C”

7

″

2′-8

/

16

[827]

NOTES:

“D” ALT

DRAIN

HOLE

15

1′-10

/

[583]

1. Roof curb accessory is shipped
disassembled.

2. Insulated panels, 1″ thick polyurethane
foam, 1

3. Dimensions in [ ] are in millimeters.

4. Roof curb: 16 gage steel.

5. Attach ductwork to curb (flanges of duct
rest on curb).

″

16

3

3

″

1

/

4

[44.5]

/4 lb density.

“E”

GAS

3

″

/

4

[19] NPT

1

″

/

2

[12.7] NPT

3

″

/

4

[19] NPT

“F”

POWER

3

″

[19] NPT

/

4

1

″

/

[31.7] NPT CRBTMPWR002A00

1

4

3

″

[19] NPT

/

4

1

″

/

1

[31.7] NPT CRBTMPWR004A00

4

“G”

CONTROL

1

″

[12.7]

/

2

NPT

1

″

[12.7]

/

2

NPT

CONNECTOR

PACKAGE

ACCESSORY

CRBTMPWR001A00

CRBTMPWR003A00

6. Ser vice clearance 4 ft on each side.

7. Direction of airflow.

8. Connector packages CRBTMPWR001A00 and
002A00 are for thru-the-curb connections.
Packages CRBTMP003A00 and 004A00 are
for thru-the-bottom connections.

0TFQ004-012
551B036-150

77

SELECTION PROCEDURE (With 551B048 Example)

I DETERMINE COOLING AND HEATING REQUIRE-

MENTS AT DESIGN CONDITIONS.

Given:

Required Cooling Capacity (TC). . . . . . . . . . . 44,000 Btuh

Sensible Heat Capacity (SHC) . . . . . . . . . . . . 32,000 Btuh

Required Heating Capacity. . . . . . . . . . . . . . . 50,000 Btuh

Condenser Entering-Air Temperature . . . . . . . . . . . . .95 F

Evaporator Entering-Air Temperature . . . . . . . . . 82 F edb,

Evaporator Air Quantity . . . . . . . . . . . . . . . . . . . 1600 cfm

External Static Pressure (ESP) . . . . . . . . . . . . 0.75 in. wg

Electrical Characteristics (V-Ph-Hz) . . . . . . . . . . 230-3-60

II SELECT UNIT BASED ON REQUIRED COOLING

CAPACITY.

551B036-150
0TFQ004-012

Enter the Cooling Capacities table on page 79 at con­denser entering temperature of 95 F, evaporator-air enter­ing at 1600 cfm and 80 F db and 67 F wb. The 551B048
unit will provide cooling capacity of 48,900 Btuh and a
sensible heat capacity of 34,700 Btuh. For evaporator-air
temperature other than 80 F edb, calculate sensible heat
capacity correction, as required, using the formula found in
the notes following the Cooling Capacities tables.

For this example:
Correction factor = 1.1 x (1 – .21) x (82 – 80)

= 1.738

Multiply the correction factor by 1600 cfm (a total of 2781).
From the Gross Cooling Capacities tables find that the
sensible heat capacity at 80 F is 34.7 MBtuh (equivalent to
34,700 Btuh). Add 34,700 and 2781 to get the corrected
sensible heat capacity of 37.48 MBtuh (37,481 Btuh).

Unit ratings are gross capacities and do not

NOTE:

include the effect of evaporator-fan motor heat. To calcu­late net capacities, see Step V.

III SELECT ELECTRIC HEAT.

Heating load required is 50,000 Btuh.

50,000

3.413 Btuh/kW

Enter the electric Heating Capacities table on page 97 for
551B048 at 208/230 (3 phase). The accessory 16.0 kW
heater at 240 v most closely satisfies the heating required.
To calculate kW at 230 v, use the Multiplication Factors
table on page 97.

16.0 x .92 = 14.7 kW

16.0 x .92 x 3413 = 50,240 Btuh gross capacity

= 14.6 kW of heat required

67 F ewb

IV DETERMINE FAN SPEED AND POWER REQUIRE-

MENTS AT DESIGN CONDITIONS.

Before entering the Fan Performance tables, calculate the
total static pressure required based on unit components.
From the given and the Pressure Drop tables on page 94,
find:

External static pressure .75 in. wg
Electric heat .09 in. wg

Total static pressure .84 in. wg

Enter the Fan Performance table for 551B048 vertical dis­charge unit on page 85. At 1600 cfm, the standard motor
will deliver 1.20 in. wg static pressure and 1.15 Bhp. This
will adequately handle the job requirements.

V DETERMINE NET CAPACITIES.

Capacities are gross and do not include the effect of
indoor (evaporator) fan motor (IFM) heat. To determine
input power to the motor, convert bhp to watts using the
Evaporator-Fan Motor Efficiency table on page 94.

IFM Watts =

Determine net cooling capacity as follows:
Net capacity = gross capacity – IFM heat

Net sensible capacity = 37,481 Btuh – 3904 Btuh

Determine net heating capacity as follows:

Net capacity = gross capacity + IFM heat

Bhp x 746 Watts/Bhp

Motor Efficiency

1.15 x 746

=

=1144

.75

= 48,900 Btuh – (1144 Watts

x 3.413

= 48,900 Btuh – 3904 Btuh
= 44,996 Btuh

= 33,577 Btuh

= 50,240 + 3904

= 54,144 Btuh

Btuh

Watts

)

78

551B036 (3 TONS)

Tem p ( F)

Air Ent

Condenser

(Edb)

TC

75

SHC
kW

TC

85

SHC
kW

TC

95

SHC
kW

TC

105

SHC
kW

TC

115

SHC
kW

TC

125

SHC
kW

PERFORMANCE DATA

COOLING CAPACITIES, STANDARD UNITS

900/0.14 1200/0.17 1500/0.20

78 72 67 62 78 72 67 62 78 72 67 62

45.6 41.9 38.7 35.7 46.8 43.5 40.8 37.7 48.1 44.8 41.8 39.0

14.5 20.4 25.2 29.7 14.7 21.8 28.2 33.8 14.8 23.3 30.7 37.0

2.24 2.19 2.16 2.12 2.26 2.21 2.18 2.15 2.28 2.23 2.19 2.16

44.4 40.7 37.5 34.5 45.7 42.1 39.3 36.4 47.0 43.5 40.4 37.6

14.1 19.9 24.7 29.2 14.4 21.5 27.7 33.2 14.8 23.2 30.3 36.4

2.51 2.46 2.42 2.39 2.53 2.47 2.44 2.41 2.54 2.50 2.45 2.42

42.9 39.3 36.1 33.1 44.6 40.8 37.8 34.9 42.0 38.9 36.1

13.6 19.5 24.1 28.4 14.0 21.1 27.2 32.5 22.8 29.9 35.6

2.80 2.75 2.71 2.66 2.83 2.77 2.73 2.69 2.79 2.74 2.71

41.3 37.7 34.6 31.7 39.3 36.2 33.4 40.1 37.2 34.7

13.0 18.8 23.5 27.8 20.7 26.6 31.8 22.1 29.3 34.7

3.11 3.06 3.02 2.98 3.09 3.04 3.01 3.10 3.06 3.03

36.0 33.0 29.7 37.4 34.5 31.5 38.1 35.5 33.2

18.3 22.9 26.7 19.9 26.1 30.9 21.3 28.7 33.2

3.41 3.36 3.31 3.43 3.39 3.34 3.44 3.41 3.37

34.2 31.3 27.8 35.6 32.7 29.4 36.3 33.6 31.9

17.6 22.2 25.8 19.4 25.4 29.4 20.8 28.0 31.8

3.78 3.73 3.66 3.80 3.76 3.71 3.81 3.78 3.75

Temp (F) Air Entering Evaporator — CFM/BF

Temp (F) Air Entering Evaporator — Ewb

0TFQ004-012
551B036-150

551B048 (4 TONS)

Tem p ( F)

Air Ent

Condenser

(Edb)

TC

75

SHC
kW

TC

85

SHC
kW

TC

95

SHC
kW

TC

105

SHC
kW

TC

115

SHC
kW

TC

125

SHC
kW

551B072 (5 TONS)

Tem p ( F)

Air Ent

Condenser

(Edb)

TC

75

SHC
kW

TC

85

SHC
kW

TC

95

SHC
kW

TC

105

SHC
kW

TC

115

SHC
kW

TC

125

SHC
kW

Do not operate at these conditions.

LEGEND

Bypass Factor

BF —

Entering Dry Bulb

Edb —

Entering Wet Bulb

Ewb —

Compressor Motor Power Input

kW —

Sensible Heat Capacity (1000 Btuh) Gross

SHC —

Total Capacity (1000 Btuh) Gross

TC —

78 72 67 62 78 72 67 62 78 72 67 62 78 72 67 62

58.6 54.0 50.7 44.2 59.6 55.9 52.2 47.7 59.9 56.4 52.8 49.1 61.5 58.1 54.5 50.6

18.3 26.1 32.7 37.5 18.7 27.6 35.1 41.8 18.7 28.2 36.2 43.8 19.2 30.2 39.5 47.5

2.80 2.80 2.80 2.80 2.90 2.80 2.80 2.80 2.90 2.80 2.80 2.80 2.90 2.80 2.80 2.80

56.4 52.2 48.9 41.9 57.3 54.1 50.4 45.9 58.1 54.5 51.0 47.2 59.5 55.3 52.3 48.7

17.6 25.4 32.0 36.4 17.9 26.9 34.5 40.8 18.2 27.5 35.7 42.8 18.5 28.6 38.5 46.6

3.30 3.20 3.20 3.20 3.30 3.20 3.20 3.20 3.30 3.20 3.20 3.20 3.30 3.20 3.20 3.20

54.2 50.7 46.9 39.5 55.0 51.9 48.4 43.5 56.3 52.5 48.9 45.2 57.5 53.9 50.1 46.7

16.9 24.9 31.1 35.0 17.2 26.1 33.6 39.6 17.6 26.8 34.7 41.8 17.8 28.8 37.5 45.6

3.70 3.60 3.60 3.60 3.70 3.70 3.60 3.60 3.70 3.70 3.60 3.60 3.70 3.70 3.60 3.60

52.0 48.8 44.5 36.7 52.7 49.8 46.2 40.7 53.8 50.2 46.7 42.1 54.7 51.5 48.2 44.7

16.2 24.3 30.2 33.6 16.5 25.3 32.8 38.2 16.8 26.0 33.9 40.3 17.1 27.9 37.4 44.4

4.20 4.10 4.10 4.00 4.20 4.10 4.10 4.10 4.20 4.10 4.10 4.10 4.20 4.10 4.10 4.10

49.9 46.5 41.1 34.3 50.4 47.7 43.3 37.0 41.3 48.0 44.4 38.5 51.9 48.9 45.7 42.0

15.5 23.4 28.9 32.4 15.8 24.9 31.8 36.3 16.0 25.4 33.4 38.3 16.3 27.1 36.9 42.0

4.70 4.60 4.60 4.50 4.70 4.70 4.60 4.60 4.70 4.60 4.60 4.60 4.70 4.70 4.60 4.60

47.5 43.8 37.5 32.4 45.1 39.0 33.8 45.3 40.1 35.4 46.3 42.6 38.8

15.0 22.5 27.4 31.5 24.1 30.2 33.7 24.7 31.9 35.4 26.5 35.9 38.8

5.20 5.20 5.10 5.10 5.20 5.20 5.10 5.20 5.20 5.10 5.20 5.20 5.20

78 72 67 62 78 72 67 62 78 72 67 62 78 72 67 62

80.4 70.8 65.4 58.5 82.5 72.5 67.3 61.1 83.7 73.0 68.4 62.8 74.870.364.8

25.6 34.1 42.7 49.9 26.1 35.7 45.5 54.2 26.3 36.8 48.0 57.8 39.653.063.4

3.65 3.53 3.49 3.44 3.68 3.55 3.50 3.46 3.70 3.55 3.51 3.47 3.57 3.54 3.48

78.5 68.9 63.2 55.3 70.5 65.1 57.9 72.2 66.4 60.2 73.268.162.9

25.1 33.5 41.8 48.4 35.0 44.8 52.8 37.0 47.6 56.8 39.352.562.4

4.20 3.98 3.94 3.87 4.00 3.96 3.90 4.03 3.97 3.92 4.04 3.99 3.94

1200/0.17 1450/0.19 1600/0.21 2000/0.24

1500/0.08 1750/0.09 2000/0.11 2500/0.13

66.8 60.6 52.4 68.3 62.5 54.3 69.3 63.8 56.6 71.265.660.6

32.8 40.7 47.0 34.5 43.8 51.1 36.0 46.7 55.0 39.151.860.5

4.48 4.43 4.35 4.50 4.45 4.37 4.51 4.46 4.40 4.55 4.48 4.44

64.3 57.7 49.9 65.9 59.8 51.7 66.9 61.1 54.1 68.462.858.4

32.0 39.6 45.8 33.7 42.8 49.7 35.3 45.7 53.5 38.451.058.4

5.03 4.96 4.87 5.05 4.99 4.90 5.06 5.00 4.93 5.08 5.02 4.98

61.5 54.8 47.3 62.8 56.7 49.1 64.0 58.2 51.6 65.459.956.1

31.0 38.4 44.5 32.5 41.6 48.2 34.4 44.6 51.6 37.450.056.1

5.61 5.55 5.46 5.62 5.58 5.49 5.65 5.60 5.52 5.67 5.61 5.57

58.7 51.6 44.5 59.9 53.4 46.2 60.8 54.9 49.0 62.256.853.5

30.0 37.2 43.1 31.7 40.4 46.2 33.3 43.4 48.9 36.448.953.4

6.27 6.19 6.09 6.28 6.21 6.13 6.29 6.24 6.17 6.31 6.27 6.22

Temp (F) Air Entering Evaporator — CFM/BF

Temp (F) Air Entering Evaporator — Ewb

Temp (F) Air Entering Evaporator — CFM/BF

Temp (F) Air Entering Evaporator — Ewb

NOTES:

1. Direct interpolation is permissible. Do not extrapolate.

2. The following formulas may be used:

t

=t

ldb

t

= wet-bulb temperature corresponding to enthalpy of

lwb

h

=h

lwb

where h

3. The SHC is based on 80 F edb temperature of air entering evaporator coil.
Below 80 F db, subtract (corr factor x cfm) from SHC.

Above 80 F db, add (corr factor x cfm) to SHC

Correction Factor = 1.10 x (1 – BF) x (db – 80)

sensible heat capacity (Btuh)

–

edb

air leaving indoor coil (h

total capacity (Btuh)

–

ewb

ewb

4.5 x cfm

= enthalpy of air entering indoor coil

1.1 x cfm

lwb

)

.

79

551B080 (6 TONS)

Tem p ( F)

Air Ent

Condenser

(Edb)

75

85

95

105

115

551B036-150
0TFQ004-012

125

551B090 (7

Tem p ( F)

Air Ent

Condenser

(Edb)

75

85

95

105

115

125

551B102 (81/2 TONS )

Tem p ( F)

Air Ent

Condenser

(Edb)

75

85

95

105

115

125

Do not operate at these conditions.

BF —
Edb —
Ewb —
kW —
SHC —
TC —

1800/0.05 2100/0.06 2400/0.06 3000/0.08

78 72 67 62 78 72 67 62 78 72 67 62 78 72 67 62

TC
SHC
kW

TC
SHC
kW

TC
SHC
kW

TC
SHC
kW

TC
SHC
kW

TC
SHC
kW

1

/2 TONS )

TC
SHC
kW

TC
SHC
kw

TC
SHC
kW

TC
SHC
kW

TC
SHC
kW

TC
SHC
kW

TC
SHC
kW

TC
SHC
kW

TC
SHC
kW

TC
SHC
kW

TC
SHC
kW

TC
SHC
kW

Bypass Factor
Entering Dry Bulb
Entering Wet Bulb
Compressor Motor Power Input
Sensible Heat Capacity (1000 Btuh) Gross
Total Capacity (1000 Btuh) Gross

93.5 86.7 80.7 74.4 95.3 88.8 82.7 76.6 97.3 90.5 84.4 78.2 92.6 86.3 81.0

29.9 43.0 53.7 63.8 30.1 45.0 57.4 68.9 30.7 47.2 61.2 73.6 51.2 67.4 80.7

4.73 4.58 4.46 4.33 4.77 4.63 4.50 4.38 4.82 4.67 4.55 4.41

91.3 84.1 78.2 72.0 93.0 86.4 80.3 74.1 88.2 81.7 75.7 90.2 84.0 78.8

29.2 42.0 52.6 62.7 29.6 44.5 56.6 68.0 46.8 60.2 72.5 50.6 67.4 78.7

5.29 5.10 4.97 4.85 5.34 5.16 5.03 4.90 5.21 5.06 4.93 5.26 5.12 4.99

89.0 81.3 75.3 69.2 83.4 77.3 71.3 85.1 78.9 72.9 87.2 80.6 76.2

28.4 41.0 51.4 61.4 43.4 55.3 66.6 45.8 59.2 71.2 50.2 65.8 76.2

5.85 5.65 5.52 5.39 5.71 5.57 5.44 5.77 5.62 5.48 5.83 5.66 5.55

111.9 105.5 96.9 87.6 113.3 107.3 99.6 90.7 114.7 110.3 101.9 93.8

5.15 5.15 5.07 5.04 5.42 5.16 5.11 5.06 5.68 5.20 5.13 5.07

108.8 102.5 93.6 83.6 111.9 105.1 96.5 87.5 114.1 107.7 99.0 90.6

5.86 5.86 5.79 5.73 6.15 5.89 5.82 5.77 6.43 5.93 5.86 5.78

107.4 98.9 90.1 79.3 109.3 101.6 92.9 83.5 110.8 103.8 95.3 87.4

6.69 6.65 6.58 6.49 6.94 6.69 6.61 6.53 7.21 6.72 6.64 6.57

103.4 95.3 86.2 75.7 97.6 88.8 79.6 100.0 91.0 84.1

7.52 7.51 7.44 7.31 7.55 7.48 7.36 7.59 7.50 7.41

128.1 119.5 105.7 94.8 129.8 123.1 109.1 98.7 130.3 124.8 110.7 100.2 131.3 126.3 112.8 103.4

5.92 5.92 5.84 5.77 6.11 5.95 5.88 5.81 6.24 5.96 5.89 5.83 6.56 5.99 5.91 5.85

124.9 115.5 101.9 90.6 127.1 119.7 105.4 94.8 128.1 121.4 106.9 96.1 130.1 124.0 109.1 98.7

6.78 6.77 6.69 6.61 6.99 6.83 6.74 6.67 7.13 6.85 6.76 6.67 7.46 6.88 6.79 6.71

121.5 111.3 97.7 86.6 123.5 115.0 101.2 90.6 124.3 117.2 102.6 91.7 120.1 104.8 94.5

7.75 7.71 7.62 7.52 7.96 7.76 7.68 7.59 8.09 7.80 7.69 7.58 7.84 7.74 7.66

117.0 107.2 93.5 82.5 110.5 96.7 85.9 112.1 97.9 87.6 114.9 99.9 90.5

8.78 8.75 8.64 8.54 8.80 8.70 8.61 8.82 8.71 8.62 8.86 8.75 8.67

LEGEND

77.9 72.0 66.1 80.0 73.8 68.0 81.6 75.3 69.6 83.4 77.1 73.2

39.7 50.2 60.0 42.2 54.0 65.2 44.6 57.8 69.3 49.0 64.5 73.2

6.22 6.08 5.94 6.29 6.13 6.00 6.34 6.17 6.04 6.40 6.22 6.12

74.7 68.4 61.8 75.9 70.0 64.1 77.6 71.3 66.5 78.7 73.0 70.1

38.7 48.8 58.1 40.8 52.6 63.2 43.3 56.4 66.4 46.9 63.2 70.0

6.84 6.68 6.49 6.87 6.71 6.56 6.93 6.75 6.63 6.96 6.80 6.72

70.3 63.6 57.2 71.8 65.5 59.1 72.9 66.8 61.9 74.0 68.6 66.4

37.2 47.0 55.8 39.5 51.0 59.1 41.7 55.0 61.9 45.4 61.8 66.3

7.43 7.25 7.03 7.48 7.30 7.13 7.51 7.35 7.22 7.54 7.41 7.33

2250/0.095 3000/0.110 3750/0.135

78 72 67 62 78 72 67 62 78 72 67 62

35.4 50.6 63.6 75.7 35.9 53.3 69.2 83.7 38.8 58.0 76.6 92.2

34.4 49.7 62.4 73.9 35.3 52.8 68.4 82.2 35.7 57.3 75.9 90.0

34.0 48.5 61.2 71.9 34.3 51.9 67.2 80.2 34.9 56.2 74.9 87.3

32.6 47.3 59.6 70.2 50.7 65.9 78.0 55.3 73.6 84.1

91.0 82.0 71.6 93.2 84.5 75.4 95.6 86.6 80.7

45.9 58.0 68.1 49.3 64.2 75.3 54.2 72.1 80.7

8.43 8.33 8.20 8.46 8.37 8.27 8.52 8.42 8.34

86.2 77.8 68.1 88.3 80.0 71.9 90.0 81.9 77.2

44.1 56.4 66.3 47.5 62.6 71.8 52.1 70.1 77.2

9.38 9.29 9.14 9.43 9.34 9.24 9.47 9.38 9.32

2550/0.075 3000/0.09 3400/0.105 4250/0.125

78 72 67 62 78 72 67 62 78 72 67 62 78 72 67 62

37.4 56.5 65.7 77.8 37.8 60.2 71.7 86.3 37.9 62.2 75.8 92.8 41.0 67.8 83.3 101.2

36.5 55.1 64.3 76.1 36.8 58.9 70.5 85.1 36.8 61.3 74.5 90.5 39.7 66.2 82.9 98.5

35.5 53.7 62.8 74.2 36.0 57.4 68.9 82.9 36.1 60.0 73.0 88.6

33.5 52.2 61.3 72.7 56.0 67.4 81.2 58.4 71.4 86.6 63.5 79.5 90.5

101.9 89.2 78.0 104.7 91.8 81.5 106.7 93.1 83.3 109.2 94.9 86.3

50.2 59.5 70.7 53.7 65.7 79.5 56.6 69.5 83.1 61.5 77.8 86.3

8.80 9.73 9.64 9.86 9.79 9.72 9.90 9.79 9.71 9.95 9.84 9.75

97.3 84.3 73.1 100.0 86.8 76.0 101.3 87.9 78.7 102.9 89.5 81.9

48.7 57.7 68.5 52.4 63.9 76.0 54.8 67.9 78.7 59.1 75.7 81.9

11.03 10.90 10.70 11.08 10.96 10.81 11.11 10.99 10.88 11.14 11.03 10.93

PERFORMANCE DATA (cont)

COOLING CAPACITIES, STANDARD UNITS (cont)

Temp (F) Air Entering Evaporator — CFM/BF

Temp (F) Air Entering Evaporator — Ewb

Temp (F) Air Entering Evaporator — CFM/BF

Temp (F) Air Entering Evaporator — Ewb

Temp (F) Air Entering E vaporator — CFM/BF

Temp (F) Air Entering E vaporator — Ewb

NOTES:

1. Direct interpolation is permissible. Do not extrapolate.

2. The following formulas may be used:

t

=t

ldb

t

= wet-bulb temperature corresponding to enthalpy of

lwb

h

=h

lwb

where h

3. The SHC is based on 80 F edb temperature of air entering evaporator coil.
Below 80 F db, subtract (corr factor x cfm) from SHC.

Above 80 F db, add (corr factor x cfm) to SHC

Correction Factor = 1.10 x (1 – BF) x (db – 80)

sensible heat capacity (Btuh)

–

edb

air leaving indoor coil (h

–

ewb

= enthalpy of air entering indoor coil

ewb

1.1 x cfm

total capacity (Btuh)

4.5 x cfm

4.72 4.58 4.47

65.0 81.5 94.5

)

lwb

.

80

551B120 (10 TONS)

Tem p ( F)

Air Ent

Condenser

(Edb)

TC

75

SHC
kW

TC

85

SHC
kW

TC

95

SHC
kW

TC

105

SHC
kW

TC

115

SHC
kW

TC

125

SHC

551B150 (12

BF —
Edb —
Ewb —
kW —
SHC —
TC —

kW

1

/2 TONS )

Tem p ( F)

Air Ent

Condenser

(Edb)

TC

75

SHC
kW

TC

85

SHC
kW

TC

95

SHC
kW

TC

105

SHC
kW

TC

115

SHC
kW

TC

125

SHC
kW

Do not operate at these conditions.

Bypass Factor
Entering Dry Bulb
Entering Wet Bulb
Compressor Motor Power Input
Sensible Heat Capacity (1000 Btuh) Gross
Total Capacity (1000 Btuh) Gross

78 72 67 62 78 72 67 62 78 72 67 62 78 72 67 62

152.7 140.3 129.4 115.0 153.1 141.2 130.4 118.1 154.9 145.2 134.0 122.1 158.1 147.5 136.6 125.3

46.7 65.6 82.2 97.4 47.3 66.7 84.4 101.5 49.8 71.3 93.1 113.5 51.0 77.9 103.7 124.7

7.34 7.35 7.21 7.12 7.54 7.37 7.23 7.13 7.71 7.46 7.31 7.17 8.10 7.51 7.37 7.22

150.5 137.7 125.3 110.0 151.5 138.9 126.6 113.6 142.6 130.6 117.7 144.6 133.3 122.3

44.7 65.0 81.2 95.2 44.9 66.3 83.6 99.7 71.0 92.8 112.0 76.9 103.1 122.2

8.28 8.29 8.13 8.02 8.51 8.32 8.16 8.03 8.40 8.24 8.09 8.45 8.31 8.16

147.7 133.8 120.7 103.0 135.1 121.9 107.2 138.8 125.8 112.8 141.7 128.5 118.5

43.9 63.9 79.6 92.2 65.2 82.0 97.0 70.6 91.5 109.7 76.9 102.5 118.4

9.33 9.33 9.16 8.98 9.35 9.18 9.00 9.44 9.27 9.07 9.51 9.33 9.19

72 67 62 72 67 62 72 67 62 72 67 62

167.1 154.3 142.0 169.8 157.7 144.8 173.5 160.6 148.4 176.5 164.5 153.3

82.5 103.5 123.6 85.8 109.7 132.0 90.3 117.7 141.9 98.2 130.7 153.1

9.44 9.18 8.95 9.50 9.26 9.01 9.60 9.33 9.07 9.68 9.43 9.17

162.3 149.3 135.6 165.1 152.5 139.6 168.8 155.3 143.5 172.1 159.2 149.3

80.9 101.4 120.9 84.4 107.9 129.9 89.6 115.8 139.8 97.6 129.3 149.1

10.49 10.18 9.97 10.55 10.27 10.02 10.67 10.32 10.11 10.75 10.43 10.21

156.5 143.7 126.3 159.6 146.8 131.3 162.3 149.8 136.5 166.5 153.2 144.5

79.1 99.5 116.5 83.0 106.1 126.0 87.6 114.2 135.8 95.8 127.7 144.4

11.60 11.30 11.01 11.69 11.39 11.10 11.75 11.47 11.20 11.87 11.56 11.35

150.0 136.2 115.7 153.0 139.3 120.9 155.6 142.5 128.5 158.8 145.9 138.8

76.5 96.7 111.2 80.8 103.5 120.0 85.7 112.3 128.4 93.6 125.9 138.7

12.76 12.42 12.09 12.83 12.52 12.20 12.91 12.62 12.32 12.96 12.72 12.52

141.8 122.2 104.4 144.3 126.1 110.8 147.7 129.4 118.9 150.7 135.2 130.1

73.6 91.2 104.2 77.9 98.5 110.8 83.4 107.3 118.4 91.8 121.9 129.9

13.85 13.55 13.22 13.94 13.64 13.35 14.05 13.73 13.50 14.14 13.86 13.70

132.5 108.6 93.9 134.8 111.4 100.7 137.6 114.4 106.6 140.3 122.9 120.1

70.9 85.7 93.8 74.9 92.9 100.7 80.2 101.4 106.5 89.0 116.3 120.1

15.04 14.66 14.44 15.14 14.75 14.55 15.23 14.85 14.72 15.29 14.94 14.84

LEGEND

PERFORMANCE DATA (cont)

COOLING CAPACITIES, STANDARD UNITS (cont)

3000/0.31 3200/0.34 4000/0.46 5000/0.61

128.7 115.4 96.5 129.8 116.6 99.7 133.7 120.3 107.1 136.7 122.8 114.5

62.3 77.6 89.4 63.6 80.2 93.5 69.4 89.6 106.8 76.0 100.6 114.3

10.46 10.28 10.00 10.47 10.30 10.07 10.57 10.38 10.21 10.66 10.43 10.31

123.2 109.1 90.8 124.3 110.3 92.2 127.9 114.4 100.8 130.9 116.8 110.1

60.4 75.1 86.6 61.9 77.8 90.0 67.6 87.6 100.7 74.6 98.7 109.9

11.66 11.47 11.20 11.68 11.51 11.25 11.77 11.60 11.41 11.89 11.66 11.58

117.5 101.8 86.2 118.5 103.0 87.4 121.6 107.1 96.0 124.1 110.3 104.8

58.5 72.5 84.5 60.0 75.0 87.3 65.8 85.1 96.0 72.5 96.9 104.8

12.99 12.77 12.50 13.02 12.81 12.55 13.10 12.92 12.74 13.19 13.01 12.91

3750/0.08 4300/0.09 5000/0.11 6250/0.13

Temp (F) Air Entering Evaporator — CFM/BF

Temp (F) Air Entering Evaporator — Ewb

Temp (F) Air Entering Evaporator — CFM/BF

Temp (F) Air Entering Evaporator — Ewb

NOTES:

1. Direct interpolation is permissible. Do not extrapolate.

2. The following formulas may be used:

t

=t

ldb

t

= wet-bulb temperature corresponding to enthalpy of

lwb

h

=h

lwb

where h

3. The SHC is based on 80 F edb temperature of air entering evaporator coil.
Below 80 F db, subtract (corr factor x cfm) from SHC.

Above 80 F db, add (corr factor x cfm) to SHC

Correction Factor = 1.10 x (1 – BF) x (db – 80)

sensible heat capacity (Btuh)

–

edb

air leaving indoor coil (h

total capacity (Btuh)

–

ewb

ewb

4.5 x cfm

= enthalpy of air entering indoor coil

1.1 x cfm

lwb

)

.

0TFQ004-012
551B036-150

81

551B036 (3 TONS)

Tem p ( F)

Air Entering

Condenser

75

85

95

105

115

551B036-150
0TFQ004-012

125

551B048 (4 TONS)

Tem p ( F)

Air Entering

Condenser

75

85

95

105

115

125

551B060 (5 TONS)

Air Entering

Condenser

75

85

95

105

115

125

BF —
Edb —
Ewb —
kW —
SHC —
TC —

900/0.14 1200/0.17 1500/0.20

(Edb)

TC
SHC
kW

TC
SHC
kw

TC
SHC
kW

TC
SHC
kW

TC
SHC
kW

TC
SHC
kW

(Edb)

TC
SHC
kW

TC
SHC
kW

TC
SHC
kW

TC
SHC
kW

TC
SHC
kW

TC
SHC
kW

Tem p ( F)

(Edb)

TC
SHC
kW

TC
SHC
kW

TC
SHC
kW

TC
SHC
kW

TC
SHC
kW

TC
SHC
kW

Do not operate at these conditions.

LEGEND

Bypass Factor
Entering Dry Bulb
Entering Wet Bulb
Compressor Motor Power Input
Sensible Heat Capacity (1000 Btuh) Gross
Total Capacity (1000 Btuh) Gross

78 72 67 62 78 72 67 62 78 72 67 62

44.9 41.3 37.3 34.3 46.8 43.5 39.2 35.9 48.8 45.5 41.6 38.3

12.5 17.5 22.4 26.7 13.2 19.6 25.5 31.2 13.7 21.5 28.5 35.2

2.26 2.19 2.14 2.10 2.28 2.21 2.16 2.14 2.31 2.24 2.19 2.16

42.1 38.6 34.4 31.6 44.8 41.3 37.5 33.3 47.0 43.5 38.6 35.5

10.8 15.2 20.1 25.1 11.4 17.1 23.3 29.0 12.0 18.9 26.3 32.9

2.53 2.46 2.40 2.37 2.55 2.47 2.43 2.40 2.58 2.51 2.45 2.42

39.2 35.9 31.4 28.8 44.6 39.2 35.9 30.6 47.0 41.3 35.7 32.9

9.1 13.0 17.9 23.3 14.0 14.5 21.1 26.9 14.8 16.1 24.2 30.6

2.82 2.74 2.68 2.63 2.83 2.76 2.74 2.67 2.54 2.80 2.75 2.71

37.1 33.8 29.7 27.4 36.3 32.2 28.7 38.1 32.8 30.4

7.5 10.9 15.8 21.0 12.5 18.9 24.6 14.0 21.7 28.1

3.13 3.05 3.00 2.97 3.09 3.04 2.99 3.12 3.07 3.03

31.8 28.0 25.5 33.2 28.7 26.5 34.9 30.0 27.9

9.0 13.7 18.4 10.3 16.8 22.3 11.2 19.3 25.2

3.40 3.36 3.31 3.45 3.38 3.32 3.48 3.41 3.37

28.7 26.3 23.4 29.7 25.5 22.9 31.3 27.1 25.5

6.9 12.2 17.3 7.9 14.5 20.6 9.2 17.3 22.3

3.78 3.73 3.66 3.84 3.77 3.71 3.87 3.79 3.75

1200/0.17 1450/0.19 1600/0.21 2000/0.24

78 72 67 62 78 72 67 62 78 72 67 62 78 72 67 62

57.5 52.9 47.5 41.5 59.4 55.7 50.9 47.5 60.5 57.0 51.7 48.1 64.1 60.5 55.6 52.1

15.9 22.7 28.4 33.4 17.6 26.1 34.1 38.9 17.2 25.9 33.7 41.6 18.7 29.4 39.1 47.5

2.93 2.87 2.86 2.82 2.94 2.89 2.87 2.84 2.94 2.89 2.86 2.85 2.96 2.90 2.88 2.85

53.1 49.2 43.8 37.1 55.2 52.1 47.2 43.6 56.4 52.9 47.9 43.7 59.5 55.4 51.4 47.0

13.8 19.8 25.5 30.4 14.8 22.2 29.5 35.8 14.9 22.5 30.9 38.8 15.7 24.2 36.0 44.3

3.35 3.26 3.25 3.21 3.36 3.28 3.26 3.23 3.37 3.28 3.26 3.24 3.39 3.28 3.26 3.24

49.0 45.8 40.1 32.8 51.0 48.2 43.6 39.4 52.3 48.8 44.0 39.3 55.2 51.7 47.4 43.0

11.7 17.2 22.5 27.3 12.2 18.4 24.8 32.6 12.5 19.0 28.1 35.9 12.8 20.7 33.0 41.0

3.77 3.71 3.68 3.64 3.78 3.72 3.69 3.67 3.80 3.72 3.69 3.67 3.82 3.74 3.70 3.68

44.4 41.6 37.0 29.7 45.7 43.2 38.9 35.4 47.1 43.9 39.7 34.7 49.3 46.5 41.4 37.5

9.0 13.5 19.5 23.9 9.6 14.7 21.7 29.2 9.8 15.1 23.9 30.7 10.0 16.4 27.8 35.1

4.29 4.20 4.17 4.11 4.29 4.20 4.17 4.14 4.31 4.20 4.17 4.15 4.32 4.22 4.19 4.16

40.0 37.2 33.2 27.1 40.6 38.4 34.0 30.8 42.1 39.4 35.5 30.0 43.8 41.3 35.2 31.9

6.5 9.9 16.4 20.7 7.2 11.3 18.5 25.6 7.0 11.2 19.7 25.4 7.4 12.4 22.4 28.6

4.80 4.73 4.68 4.62 4.80 4.74 4.71 4.64 4.82 4.73 4.72 4.65 4.82 4.74 4.72 4.69

35.1 32.4 28.1 24.9

4.8 7.2 12.9 18.3 8.4 14.5 21.9 16.8 21.1 21.2 9.5 18.3 24.1

5.36 5.29 5.23 5.15 5.30 5.25 5.19 5.29 5.27 5.21 5.30 5.29 5.25

1500/0.08 1750/0.09 2000/0.11 2500/0.13

78 72 67 62 78 72 67 62 78 72 67 62 78 72 67 62

79.4 69.9 62.7 56.2 85.0 74.7 67.3 61.0 90.0 78.5 71.2 64.8 81.7 75.5 69.3

21.8 29.0 36.9 43.9 23.2 31.7 40.5 51.2 24.7 34.5 44.2 55.4 37.8 52.0 62.8

3.77 3.61 3.55 3.51 3.81 3.64 3.58 3.49 3.84 3.65 3.60 3.51

75.1 65.9 59.1 51.7 70.6 63.2 56.3 75.5 66.8 60.7 78.1 70.8 65.1

18.9 25.3 34.0 41.9 27.5 37.6 48.0 30.7 41.6 52.0 33.8 47.4 58.0

4.31 4.05 3.97 3.91 4.07 4.01 3.92 4.11 4.00 3.95 4.08 4.02 3.96

75.6 61.9 55.2 47.7 66.5 58.8 51.3 70.4 61.9 55.7 74.2 65.9 60.6

24.1 21.6 31.1 40.0 23.5 34.5 44.6 26.0 38.6 47.9 30.0 42.8 52.6

4.62 4.53 4.43 4.35 4.55 4.47 4.37 4.56 4.42 4.41 4.58 4.49 4.44

57.7 51.1 44.9 61.8 54.5 47.7 65.1 57.2 50.8 68.4 60.3 56.1

18.1 27.8 35.7 20.0 31.2 40.1 22.1 34.3 43.5 26.1 38.9 48.5

5.05 4.93 4.84 5.09 4.97 4.88 5.11 4.96 4.92 5.11 5.03 4.98

53.4 47.2 42.0 56.6 50.0 44.2 59.6 52.5 46.2 62.6 54.9 51.6

14.7 24.6 31.5 16.5 27.8 35.7 18.2 30.0 39.0 22.1 34.9 44.3

5.60 5.49 5.40 5.64 5.52 5.45 5.69 5.55 5.48 5.69 5.61 5.57

48.7 42.0 36.9 51.3 45.0 39.0 54.1 46.8 40.9 56.9 49.2 45.9

10.9 19.6 28.0 12.5 22.2 31.5 13.5 24.0 34.0 16.5 28.0 38.8

6.26 6.12 6.02 6.28 6.18 6.09 6.33 6.18 6.13 6.33 6.27 6.22

PERFORMANCE DATA (cont)

COOLING CAPACITIES, UNITS WITH PERFECT HUMIDITY™ OPTION

Temp (F) Air Entering Evaporator — CFM/BF

Temp (F) Air Entering Evaporator — Ewb

Temp (F) Air Entering Evaporator — CFM/BF

Temp (F) Air Entering Evaporator — Ewb

33.8 2 8.1 27.4 35.3 30.5 26.6 36.1 32.0 28.7

Temp (F) Air Entering Evaporator — CFM/BF

Temp (F) Air Entering Evaporator — Ewb

NOTES:

1. Direct interpolation is permissible. Do not extrapolate.

2. The following formulas may be used:

t

=t

ldb

t

= wet-bulb temperature corresponding to

lwb

=h

h

lwb

where h

3. The SHC is based on 80 F edb temperature of air entering evaporator coil.
Below 80 F db, subtract (corr factor x cfm) from SHC.

Above 80 F db, add (corr factor x cfm) to SHC

Correction Factor = 1.10 x (1 – BF) x (db – 80)

sensible heat capacity (Btuh)

–

edb

enthalpy of air leaving indoor coil (h

–

ewb

= enthalpy of air entering indoor coil

ewb

1.1 x cfm

total capacity (Btuh)

4.5 x cfm

lwb

3.62 3.58 3.51

)

.

82

551B072 (6 TONS)

Tem p ( F)

Air Entering

Condenser

(Edb)

TC

75

SHC
kW

TC

85

SHC
kW

TC

95

SHC
kW

TC

105

SHC
kW

TC

115

SHC
kW

TC

125

SHC
kW

551B090 (7

Tem p ( F)

Air Entering

Condenser

(Edb)

75

85

95

105

115

125

551B102 (81/2 TONS )

Tem p ( F)

Air Entering

Condenser

(Edb)

TC

75

SHC
kW

TC

85

SHC
kW

TC

95

SHC
kW

TC

105

SHC
kW

TC

115

SHC
kW

TC

125

SHC
kW

Do not operate at these conditions.

BF —
Edb —
Ewb —
kW —
SHC —
TC —

78 72 67 62 78 72 67 62 78 72 67 62 78 72 67 62

89.0 82.6 75.6 68.5 91.1 84.9 78.0 70.9 92.4 85.9 79.5 73.5 89.1 82.7 77.0

25.0 36.0 44.8 55.4 25.1 37.5 49.1 59.7 25.2 38.8 51.1 64.0 41.8 58.1 70.2

4.80 4.60 4.52 4.36 4.86 4.67 4.57 4.46 4.89 4.70 4.57 4.45

84.9 78.2 71.6 64.5 87.0 80.9 73.4 65.8 82.0 74.4 67.9 85.8 78.2 72.3

21.8 31.4 41.2 41.7 21.9 33.0 44.7 55.8 34.7 47.4 60.1 37.6 54.3 66.7

5.40 5.16 5.03 4.89 5.46 5.22 5.11 4.96 5.26 5.09 4.97 5.32 5.17 5.04

80.7 73.8 67.4 60.2 76.3 68.3 60.5 77.5 69.3 62.3 82.0 72.8 67.5

18.7 27.0 37.6 47.9 28.2 40.1 51.6 30.2 43.7 56.2 33.6 49.2 62.9

6.01 5.75 5.60 5.44 5.80 5.66 5.48 5.84 5.68 5.53 5.90 5.73 5.60

1

/2 TONS )

78 72 67 62 78 72 67 62 78 72 67 62

104.4 98.4 91.1 81.1 109.5 103.7 97.9 91.8 110.0 105.8 101.3 94.1

TC
SHC
kW

TC
SHC
kw

TC
SHC
kW

TC
SHC
kW

TC
SHC
kW

TC
SHC
kW

Bypass Factor
Entering Dry Bulb
Entering Wet Bulb
Compressor Motor Power Input
Sensible Heat Capacity (1000 Btuh) Gross
Total Capacity (1000 Btuh) Gross

31.1 44.5 55.4 67.0 34.0 50.4 65.4 80.5 36.5 54.5 72.4 89.5

5.10 5.05 4.96 4.87 5.40 5.09 5.04 4.97 5.69 5.16 5.04 4.99

99.9 94.2 85.8 76.9 106.8 100.3 92.4 85.2 109.6 103.5 96.8 89.0

27.4 39.7 51.3 62.7 30.9 46.2 58.3 75.7 31.5 50.6 68.2 84.3

5.79 5.74 5.65 5.55 6.12 5.81 5.75 5.64 6.45 5.89 5.74 5.70

97.6 89.9 80.5 72.6 104.2 96.9 86.8 78.6 107.9 101.1 92.2 83.8

24.4 34.8 47.2 58.3 27.7 41.9 51.2 71.0 28.9 46.6 63.9 79.1

6.53 6.42 6.33 6.22 6.83 6.52 6.45 6.31 7.17 6.62 6.43 6.40

91.7 84.6 75.3 68.0 91.6 81.3 73.4 94.5 86.3 78.4

20.7 30.0 42.5 53.9 36.9 49.3 66.4 41.4 59.2 73.8

7.34 7.26 7.16 7.05 7.36 7.25 7.15 7.46 7.29 7.23

78 72 67 62 78 72 67 62 78 72 67 62 78 72 67 62

120.5 112.4 102.2 92.6 121.5 115.2 106.4 96.4 124.9 119.6 110.3 101.3 132.7 127.6 117.6 108.0

32.5 49.1 62.4 75.0 33.2 52.9 68.5 82.3 34.2 56.2 73.3 89.5 38.0 62.8 83.3 101.7

6.16 6.10 5.96 5.86 6.41 6.18 6.05 5.95 6.53 6.18 6.05 5.95 6.83 6.18 6.10 6.00

114.2 105.7 95.7 86.5 116.7 110.0 100.6 91.0 120.3 114.0 103.7 94.6 124.0 120.3 110.9 101.2

28.8 43.6 57.1 69.9 29.9 47.8 62.8 76.9 30.4 50.7 67.9 82.8 44.8 58.5 77.7 98.4

6.99 6.92 6.78 6.63 7.20 6.97 6.90 6.75 7.37 7.01 6.85 6.75 7.68 7.01 6.91 6.80

108.0 98.9 89.1 80.4 112.4 104.7 94.8 85.5 115.0 108.4 97.0 87.9 113.0 104.1 94.3

25.1 38.0 51.7 64.8 26.8 42.7 57.0 71.4 27.2 45.2 62.4 76.2

7.85 7.73 7.59 7.40 8.03 7.75 7.75 7.56 8.21 7.84 7.65 7.54 7.84 7.71 7.60

100.2 91.8 82.3 73.8 97.3 87.6 78.6 100.4 89.8 80.8 105.1 95.3 85.8

20.9 32.6 46.3 59.5 37.0 51.9 66.8 39.3 56.7 70.0 47.1 65.5 80.9

8.91 8.80 8.64 8.47 8.80 8.76 8.58 8.89 8.69 8.59 8.93 8.77 8.67

LEGEND

PERFORMANCE DATA (cont)

COOLING CAPACITIES, UNITS WITH PERFECT HUMIDITY™ OPTION (cont)

1800/0.05 2100/0.06 2400/0.06 3000/0.08

68.4 62.6 55.9 71.4 64.3 56.2 72.1 64.6 58.3 75.7 67.0 62.4

22.3 33.5 43.5 23.4 36.5 48.0 25.4 38.4 50.2 29.1 45.2 56.2

6.37 6.22 6.06 6.45 6.27 6.10 6.46 6.29 6.16 6.53 6.36 6.24

63.4 57.8 50.7 66.0 60.1 51.5 66.4 59.6 54.5 68.8 60.8 57.5

18.1 29.5 38.9 18.8 32.9 44.1 20.7 33.3 43.8 24.3 41.4 49.7

7.04 6.89 6.68 7.10 6.91 6.74 7.12 6.95 6.83 7.16 7.01 6.92

55.5 49.6 45.8 58.4 52.4 46.1 57.6 52.1 49.5 59.2 52.8 53.1

15.3 24.0 35.2 15.7 27.5 39.0 17.5 27.5 38.4 20.9 34.6 44.4

7.80 7.61 7.38 7.83 7.67 7.49 7.89 7.72 7.58 7.92 7.78 7.70

2250/0.095 3000/0.110 3750/0.135

79.2 70.1 63.3 86.2 75.8 68.1 87.9 80.3 72.9

25.2 37.8 49.4 31.9 47.4 61.9 36.1 54.4 68.5

8.10 7.99 7.87 8.20 8.05 7.98 8.30 8.14 8.05

72.8 64.5 57.2 78.0 69.8 62.3 81.6 73.2 69.2

20.1 33.4 44.1 25.4 42.5 56.5 31.1 48.9 64.7

9.10 8.94 8.83 9.23 9.05 8.95 9.26 9.10 8.99

2550/0.075 3000/0.09 3400/0.105 4250/0.125

84.7 75.5 67.3 89.8 80.5 71.7 82.5 82.5 73.8 97.2 86.6 77.4

27.2 40.9 54.2 31.4 46.9 62.2 33.4 51.0 63.8 39.9 59.1 73.9

9.86 9.69 9.53 9.86 9.77 9.61 9.95 9.74 9.65 10.01 9.84 9.75

77.6 68.7 60.7 82.4 73.3 64.8 84.5 75.3 66.7 89.3 77.8 68.9

21.8 35.5 48.9 25.7 41.8 57.6 27.5 45.3 57.6 32.7 52.6 66.9

10.93 10.74 10.60 10.91 10.78 10.64 11.00 10.78 10.70 11.10 10.90 10.82

Temp (F) Air Entering Evaporator — CFM/BF

Temp (F) Air Entering Evaporator — Ewb

Temp (F) Air Entering Evaporator — CFM/BF

Temp (F) Air Entering Evaporator — Ewb

Temp (F) Air Entering Evaporator — CFM/BF

Temp (F) Air Entering Evaporator — Ewb

NOTES:

1. Direct interpolation is permissible. Do not extrapolate.

2. The following formulas may be used:

t

=t

ldb

t

= wet-bulb temperature corresponding to

lwb

h

=h

lwb

where h

3. The SHC is based on 80 F edb temperature of air entering evaporator coil.
Below 80 F db, subtract (corr factor x cfm) from SHC.

Above 80 F db, add (corr factor x cfm) to SHC

Correction Factor = 1.10 x (1 – BF) x (db – 80)

sensible heat capacity (Btuh)

–

edb

enthalpy of air leaving indoor coil (h

–

ewb

= enthalpy of air entering indoor coil

ewb

1.1 x cfm

total capacity (Btuh)

4.5 x cfm

lwb

4.77 4.61 4.51

54.3 72.0 87.9

)

.

0TFQ004-012
551B036-150

83

551B120 (10 TONS)

Tem p ( F)

Air Entering

Condenser

(Edb)

75

85

95

105

115

551B036-150
0TFQ004-012

125

551B150 (12

Tem p ( F)

Air Entering

Condenser

(Edb)

75

85

95

105

115

125

BF —
Edb —
Ewb —
kW —
SHC —
TC —

COOLING CAPACITIES, UNITS WITH PERFECT HUMIDITY™ OPTION (cont)

3000/0.025 3200/0.03 4000/0.035 5000/0.04

78 72 67 62 78 72 67 62 78 72 67 62 78 72 67 62

146.2 134.3 122.5 111.4 147.2 135.8 124.3 113.0 147.6 138.4 129.5 123.5 153.6 143.3 136.5 130.2

TC
SHC
kW

TC
SHC
kW

TC
SHC
kW

TC
SHC
kW

TC
SHC
kW

TC
SHC
kW

1

TC
SHC
kW

TC
SHC
kW

TC
SHC
kW

TC
SHC
kW

TC
SHC
kW

TC
SHC
kW

Do not operate at these conditions.

Bypass Factor
Entering Dry Bulb
Entering Wet Bulb
Compressor Motor Power Input
Sensible Heat Capacity (1000 Btuh) Gross
Total Capacity (1000 Btuh) Gross

42.7 60.0 76.1 93.7 43.5 61.3 79.1 97.4 47.5 68.0 89.5 109.4 49.2 75.2 100.9 123.3

7.09 7.03 6.84 6.72 7.25 7.01 6.89 6.77 7.42 7.10 6.92 6.77 7.79 7.15 7.03 6.88

139.5 127.6 115.4 104.6 140.5 128.9 118.1 107.0 132.5 121.5 116.6 137.2 128.0 122.9

35.4 51.5 68.8 87.2 36.5 53.9 72.0 91.2 61.0 82.7 102.4 68.6 93.6 115.9

8.03 7.96 7.86 7.59 8.20 7.94 7.78 7.51 8.02 7.84 7.69 8.02 7.94 7.79

133.5 120.9 108.3 97.8 121.9 111.8 101.0 126.5 113.4 109.7 131.1 119.4 115.5

29.5 43.0 61.5 80.6 46.5 64.8 84.9 53.9 75.9 95.4 62.0 86.2 108.4

8.97 8.88 8.87 8.46 8.86 8.66 8.26 8.94 8.76 8.60 8.89 8.85 8.69

112.0 99.9 90.4 113.1 103.2 93.4 117.2 105.0 100.7 122.1 110.5 105.9

36.1 54.1 73.8 38.8 57.8 78.9 45.6 68.2 86.8 53.0 78.3 99.7

10.04 9.96 9.62 10.03 9.82 9.48 10.12 9.93 9.82 10.10 10.00 9.90

103.0 91.5 83.1 104.3 94.6 85.9 107.8 96.7 91.7 113.0 101.6 96.4

29.2 46.7 66.9 31.2 50.7 72.9 37.3 60.6 78.3 44.0 70.3 90.9

11.19 11.06 10.78 11.21 10.97 10.70 11.30 11.10 11.03 11.30 11.20 11.10

94.1 83.1 75.7 95.5 86.0 78.3 98.5 88.3 82.7 104.0 92.7 86.8

22.3 39.3 60.1 23.5 43.7 66.8 29.0 52,8 69.7 35.0 62.4 82.2

12.35 12.15 11.94 12.38 12.13 11.92 12.48 12.27 12.25 12.53 12.30 12.28

/2 TONS )

3750/0.08 4300/0.09 5000/0.11 6250/0.13

78 72 67 62 78 72 67 62 78 72 67 62 78 72 67 62

172.0 156.3 144.2 132.3 174.3 160.0 148.4 136.2 177.4 162.8 150.6 138.2 183.6 169.0 157.5 145.6

41.4 66.6 87.6 112.1 43.2 72.5 94.8 121.3 43.6 76.9 99.6 127.5 65.5 87.0 115.5 142.7

9.75 9.28 8.98 8.59 9.78 9.35 9.08 8.80 9.85 9.40 9.18 8.90 9.87 9.43 9.18 8.93

164.0 147.6 136.2 123.7 165.4 150.7 140.1 127.2 154.1 140.8 127.9 161.1 148.0 135.4

41.9 58.7 80.0 103.8 43.2 63.5 86.5 112.2 68.7 91.0 118.1 77.7 107.8 133.2

10.84 10.29 9.93 9.58 11.13 10.36 10.08 9.77 10.40 10.34 10.03 10.45 10.18 9.88

155.5 138.9 128.2 115.1 141.4 131.8 118.3 145.3 131.0 117.6 153.1 138.4 125.1

35.1 50.8 72.3 95.5 54.4 78.1 103.2 60.5 82.3 108.7 68.5 100.0 123.7

12.02 11.29 10.87 10.57 11.37 11.08 10.74 11.40 11.50 11.15 11.4 6 11.17 10.83

129.1 117.8 105.8 131.7 121.0 108.7 134.8 119.9 107.7 140.9 126.9 115.9

42.1 63.5 86.5 45.4 69.0 93.9 51.2 74.2 101.3 57.7 90.2 113.6

12.59 12.14 11.82 12.67 12.34 11.96 12.70 12.67 12.28 12.79 12.46 12.08

119.2 107.3 96.4 122.1 110.2 99.0 124.2 108.8 97.8 128.7 115.3 106.7

33.5 54.8 77.5 36.4 59.8 84.7 41.9 66.1 93.8 46.8 80.5 103.5

13.90 13.40 13.08 13.98 13.59 13.18 14.0 13.83 13.41 14.11 13.75 13.33

109.4 96.9 87.1 112.4 99.4 89.3 113.7 97.7 87.8 116.5 103.8 97.5

24.8 46.0 68.5 27.4 50.7 75.5 32.6 58.0 86.4 36.0 70.7 93.5

15.20 14.67 14.33 15.28 14.85 14.40 15.30 15.00 14.54 15.44 15.04 14.58

LEGEND

PERFORMANCE DATA (CONT)

Temp (F) Air Entering Evaporator — CFM/BF

Temp (F) Air Entering Evaporator — Ewb

Temp (F) Air Entering Evaporator — CFM/BF

Temp (F) Air Entering Evaporator — Ewb

NOTES:

1. Direct interpolation is permissible. Do not extrapolate.

2. The following formulas may be used:

t

=t

–

ldb

edb

t

= wet-bulb temperature corresponding to

lwb

enthalpy of air leaving indoor coil (h

h

=h

lwb

where h

3. The SHC is based on 80 F edb temperature of air entering evaporator coil.
Below 80 F db, subtract (corr factor x cfm) from SHC.

Above 80 F db, add (corr factor x cfm) to SHC

Correction Factor = 1.10 x (1 – BF) x (db – 80)

–

ewb

= enthalpy of air entering indoor coil

ewb

sensible heat capacity (Btuh)

1.1 x cfm

total capacity (Btuh)

4.5 x cfm

lwb

)

.

84

PERFORMANCE DATA (cont)

FAN PERFORMANCE — VERTICAL DISCHARGE UNITS

551B036 (3 TONS) — STANDARD MOTOR (BELT DRIVE)

Airflow

(Cfm)

900 581 0.12 673 0.18 736 0.22
1000 644 0.19 709 0.22
1100 687 0.22 746 0.26
1200 733 0.26
1300 754 0.29
1400
1500

0.1 0.2 0.3 0.4 0.5 0.6

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

782 0.28 835 0.30 900 0.35 937 0.38

785 0.32 843 0.35 903 0.41 960 0.47 994 0.50

810 0.35 868 0.45 937 0.51 984 0.57 1032 0.62 1067 0.67
841 0.42 911 0.53 985 0.61 1029 0.66 1073 0.72

826 0.38 891 0.43 942 0.48 991 0.53 1047 0.60

806 0.30 867 0.35 929 0.40 964 0.40

External Static Pressure (in. wg)

805 0.25 865 0.29 911 0.34

1109 0.77

0TFQ004-012
551B036-150

551B036 (3 TONS) — STANDARD MOTOR (BELT DRIVE) (cont)

Airflow

(Cfm)

900
1000
1100
1200
1300
1400 1110 0.73 1160 0.84 1181 0.81 1237 0.85 1293 0.89 1349 0.93
1500 1150 0.82 1190 1.00 1225 0.90 1271 0.95 1317 1.00 1363 1.05

551B036 (3 TONS) — HIGH-STATIC MOTOR (BELT DRIVE)

Airflow

(Cfm)

900 673 0.18 805 0.25 911 0.34 988 0.43 1061 0.47
1000 709 0.22 836 0.30 937 0.38 1039 0.49
1100 746 0.28 867 0.35 964 0.40 1068 0.55
1200 785 0.32 903 0.41 984 0.50
1300 826 0.38 942 0.48 1047 0.60
1400 868 0.45 984 0.57
1500 911 0.53 1029 0.66

551B036 (3 TONS) — HIGH-STATIC MOTOR (BELT DRIVE) (cont)

Airflow

(Cfm)

900
1000
1100
1200
1300
1400
1500

LEGEND

Brake Horsepower Input to Fan

Bhp —

NOTES:

1.

2. Maximum continuous bhp is 1.20 for standard motors; 2.40 for high-static motors.

indicates a field-supplied drive is required. (See Note 3.)

Boldface

0.7 0.8 0.9 1.0 1.1 1.2

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

957 0.39 988 0.43 1039 0.45 1061 0.47 1083 0.53

992 0.44 1039 0.49 1061 0.51 1086 0.55
1013 0.49 1068 0.55 1090 0.58
1045 0.56 1090 0.64
1075 0.64

0.2 0.4 0.6 0.8 1.0

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

1.2 1.4 1.6 1.8 2.0

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

1105 0.57 1140 0.63 1170 0.68 1198 0.73 1224 0.77
1136 0.63 1172 0.69 1203 0.75 1232 0.80 1258 0.86
1145 0.67 1181 0.73 1213 0.80 1242 0.85 1268 0.91
1210 0.74 1248 0.81 1282 0.88 1312 0.94 1340 1.01
1266 0.84 1306 0.92 1341 1.00 1373 1.07 1402 1.14
1349 0.93 1391 1.02 1429 1.11
1363 1.05 1406 1.15 1444 1.25

1122 0.70 1152 0.72 1190 0.76 1228 0.80 1266 0.84

External Static Pressure (in. wg)

1109 0.64 1156 0.68 1203 0.71 1250 0.74

External Static Pressure (in. wg)

1087 0.67 1160 0.84 1237 0.85
1109 0.77 1190 1.00 1271 0.95

External Static Pressure (in. wg)

1109 0.61 1127 0.64 1145 0.67

3. Motor drive range: 760 to 1090 rpm for standard motors; 1075 to 1455 rpm for high-static
motors. All other rpms require field-supplied drive.

4. See page 93 for general fan performance notes.

1111 0.59 1136 0.63

1090 0.64 1156 0.68
1122 0.70 1190 0.76

1463 1.19 1494 1.26
1478 1.34 1510 1.43

1105 0.57

1086 0.55
1109 0.61

551B048 (4 TONS) — STANDARD MOTOR (BELT DRIVE)

Airflow

(Cfm)

1200 542 0.16 616 0.21 678 0.27 739 0.32
1300 576 0.20 644 0.25 704 0.31 764 0.37
1400 610 0.24 673 0.30 732 0.36 791 0.42
1500 646 0.28 704 0.35 761 0.42 818 0.48
1600 681 0.33 735 0.40 790 0.47
1700 718 0.39 768 0.46 836 0.54
1800 754 0.45 801 0.53
1900 791 0.52 836 0.60
2000 828 0.60

551B048 (4 TONS) — STANDARD MOTOR (BELT DRIVE) (cont)

Airflow

(Cfm)

1200
1300
1400
1500
1600
1700
1800
1900
2000

LEGEND

Brake Horsepower Input to Fan

Bhp —

NOTES:

1.

Boldface

2. indicates field-supplied motor and drive are required.

0.1 0.2 0.3 0.4 0.6 0.7 0.8

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

851 0.61 900 0.69 992 0.84 1032 0.92 1071 1.00

870 0.68 864 0.77 858 0.86 1046 1.03 1085 1.12 1124 1.21

1.0 1.1 1.2 1.4 1.6 1.8

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

1008 0.67 1052 0.73 1096 0.78 1134 0.89
1029 0.75 1065 0.81 1101 0.86 1174 1.01
1052 0.83 1087 0.90 1121 0.96 1183 1.09
1076 0.91 1111 0.99 1145 1.06 1208 1.20 1274 1.33 1337 1.47
1100 1.00 1134 1.08 1168 1.15 1232 1.31 1291 1.46 1350 1.60
1124 1.09 1158 1.17 1192 1.25 1255 1.42 1314 1.58 1370 1.77
1147 1.18 1182 1.27 1217 1.36 1279 1.54 1381 1.71 1393 1.89
1169 1.27 1205 1.37 1240 1.47 1303 1.66 1408 1.85 1417 2.03
1194 1.38 1228 1.48 1262 1.58 1327 1.78 1436 1.98 1440 2.18

indicates a field-supplied drive is required. (See Note 4.)

832 0.69 828 0.77 1019 0.93 1058 1.02 1097 1.10

External Static Pressure (in. wg)

External Static Pressure (in. wg)

845 0.54 920 0.68 931 0.76 1023 0.83
873 0.61 965 0.76 1005 0.84 1045 0.91

85

842 0.44 886 0.50 929 0.56
867 0.50 910 0.56 952 0.62
889 0.55 933 0.62 976 0.69
912 0.61 957 0.69 1001 0.76

1203 1.00
1229 1.15

1255 1.22 1305 1.38

3. Maximum continuous bhp is 1.20 for standard motors; 2.40 for high-static motors.

4. Motor drive range: 840 to 1185 rpm for standard motors; 1075 to 1455 rpm for high-static
motors. All other rpms require field-supplied drive.

5. See page 93 for general fan performance notes.

——

1277 1.27

PERFORMANCE DATA (cont)

FAN PERFORMANCE — VERTICAL DISCHARGE UNITS (cont)

551B048 (4 TONS) — HIGH-STATIC MOTOR (BELT DRIVE)

Airflow

(Cfm)

1200 618 0.21 739 0.32 842 0.44 928 0.56 1008 0.67
1300 644 0.25 764 0.37 867 0.50 952 0.62 1029 0.75
1400 673 0.30 791 0.42 889 0.55 976 0.69 1052 0.83
1500 704 0.35 818 0.48 912 0.61 1001 0.76
1600 736 0.40 845 0.54 920 0.68 1023 0.83
1700 768 0.46 873 0.81 965 0.76 1045 0.91
1800 801 0.52 900 0.69 892 0.84 1071 1.00
1900 836 0.60 928 0.77 1019 0.93
2000 870 0.68 968 0.86 1046 1.03

0.2 0.4 0.6 0.8 1.0

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

External Static Pressure (in. wg)

1076 0.91
1100 1.00
1124 1.09

1097 1.10 1169 1.27
1124 1.21 1194 1.38

1147 1.18

551B048 (4 TONS) — HIGH-STATIC MOTOR (BELT DRIVE) (cont)

Airflow

(Cfm)

551B036-150

1200
1300

0TFQ004-012

1400
1500
1600
1700
1800
1900
2000

LEGEND

Brake Horsepower Input to Fan

Bhp —

NOTES:

1.

2. indicates field-supplied motor and drive are required.

551B060 (5 TONS) — STANDARD MOTOR (BELT DRIVE) — SINGLE-PHASE UNITS

Airflow

(Cfm)

1500 711 0.33 769 0.39 878 0.51 971 0.64
1600 751 0.39 806 0.45 906 0.53
1700 791 0.46 846 0.53 941 0.66
1800 852 0.55 905 0.62 1002 0.78
1900 894 0.64 945 0.72
2000 936 0.74 984 0.82
2100 978 0.85
2200
2300
2400
2500

551B060 (5 TONS) — STANDARD MOTOR (BELT DRIVE) — THREE-PHASE UNITS

Airflow

(Cfm)

1500 711 0.33 769 0.39 878 0.51 971 0.64 1052 0.78
1600 751 0.39 806 0.45 906 0.53 1024 0.73 1087 0.88
1700 791 0.46 846 0.53 941 0.66 1030 0.80 1112 0.96
1800 852 0.55 905 0.62 1002 0.78 1084 0.93
1900 894 0.64 945 0.72 1037 0.88 1119 1.04
2000 936 0.74 984 0.82 1072 0.98
2100 978 0.85 1024 0.93 1108 1.10
2200 1021 0.97 1064 1.05
2300 1064 1.10 1104 1.18
2400 1107 1.24
2500

indicates a field-supplied drive is required. (See Note 4.)

Boldface

0.1 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

1021 0.97 1064 1.05 1145 1.22 1225 1.43 1294 1.62 1359 1.81 1423 2.02 1483 2.24 1538 2.46
1064 1.10 1104 1.18 1183 1.36 1260 1.57 1330 1.78 1392 1.97 1454 2.18 1515 2.41 1569 2.64
1107 1.24 1145 1.32 1222 1.52 1296 1.73 1365 1.94 1426 2.15 1485 2.36 1544 2.59 1601 2.84
1150 1.39 1186 1.48 1262 1.68 1331 1.89 1400 2.12 1461 2.34 1518 2.55 1575 2.78 ——

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

1150 1.39 1186 1.48 1262 1.68 1331 1.89 1400 2.12 1461 2.34 1518 2.55 1575 2.78 ——

1.2 1.4 1.6 1.8 2.0

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

1096 0.78 1134 0.89 1203 1.00 1232 1.07 1258 1.14
1101 0.86 1174 1.01 1229 1.15 1277 1.27 1304 1.35
1121 0.96 1183 1.09 1255 1.22 1305 1.38 1333 1.47
1145 1.06 1208 1.20 1274 1.33 1337 1.47 1365 1.57
1168 1.15 1232 1.31 1291 1.46 1350 1.60 1379 1.70
1192 1.25 1255 1.42 1314 1.58 1370 1.77 1399 1.89
1217 1.36 1279 1.54 1381 1.71 1383 1.89 1423 2.01
1240 1.47 1303 1.66 1408 1.85 1417 2.03 1447 2.16
1262 1.58 1327 1.78 1436 1.98 1440 2.18

1024 0.73 1087 0.88 1159 1.02 1231 1.20 1311 1.39 1395 1.59
1030 0.80 1112 0.96 1184 1.12 1258 1.30 1322 1.49 1403 1.69

1037 0.88 1119 1.04 1194 1.21 1266 1.40 1330 1.59 1396 1.81 1460 2.03

1024 0.93 1108 1.10 1190 1.29 1259 1.47 1327 1.66 1393 1.87 1452 2.08 1510 2.31

0.1 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6

1145 1.32 1222 1.52 1296 1.73 1365 1.94 1426 2.15 1485 2.36 1544 2.59 1601 2.84

1072 0.98 1154 1.16 1226 1.33 1297 1.53 1362 1.73 1422 1.94 1485 2.16

1145 1.22 1225 1.43 1294 1.62 1359 1.81 1423 2.02 1483 2.24
1183 1.36 1260 1.57 1330 1.78 1392 1.97 1454 2.18 1515 2.41 1569 2.64

1084 0.93 1163 1.10 1235 1.29 1303 1.48 1371 1.69 1433 1.90

External Static Pressure (in. wg)

External Static Pressure (in. wg)

External Static Pressure (in. wg)

1154 1.16 1226 1.33 1297 1.53 1362 1.73 1422 1.94 1485 2.16
1190 1.29 1259 1.47 1327 1.66 1393 1.87 1452 2.08 1510 2.31

1471 2.32

3. Maximum continuous bhp is 1.20 for standard motors; 2.40 for high-static motors.

4. Motor drive range: 840 to 1185 rpm for standard motors; 1075 to 1455 rpm for high-static
motors. All other rpms require field-supplied drive.

5. See page 93 for general fan performance notes.

1052 0.78 1134 0.95 1213 1.11 1276 1.38 1331 1.49

1134 0.95 1213 1.11 1276 1.38 1331 1.49
1159 1.02 1231 1.20 1311 1.39 1395 1.59

1163 1.10 1235 1.29 1303 1.48 1371 1.69 1433 1.90
1194 1.21 1266 1.40 1330 1.59 1396 1.81 1460 2.03

1184 1.12 1258 1.30 1322 1.49 1403 1.69

1538 2.46

551B060 (5 TONS) — HIGH-STATIC MOTOR (BELT DRIVE)

Airflow

(Cfm)

1500 789 0.40 896 0.53 990 0.67 1072 0.83 1153 1.00 1221 1.17 1256 1.30 1280 1.32
1600 826 0.46 931 0.61 1020 0.75 1101 0.91 1178 1.09 1252 1.27
1700 865 0.54 966 0.69 1051 0.84 1133 1.01 1206 1.18 1278 1.37
1800 905 0.62 1002 0.78 1084 0.93 1163 1.10 1235 1.29
1900 946 0.72 1037 0.88 1119 1.04 1194 1.21 1266 1.40
2000 984 0.82 1072 0.98 1154 1.16 1226 1.33 1297 1.53
2100 1024 0.93 1108 1.10 1192 1.29 1259 1.47
2200 1064 1.05 1145 1.22 1225 1.43 1294 1.62
2300 1104 1.18 1183 1.36 1260 1.57
2400 1145 1.32 1222 1.45 1296 1.73
2500 1186 1.48 1262 1.68

Bhp —

NOTES:

1.

Boldface

2. indicates field-supplied motor and drive are required.

0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

1330 1.78 1392 1.97 1454 2.18 1515 2.41 1569 2.64 1622 2.88 1671 3.15

1331 1.80 1400 2.12 1461 2.34 1518 2.55 1575 2.78 1631 3.03 1684 3.28 1734 3.6 0

LEGEND

Brake Horsepower Input to Fan

indicates a field-supplied drive is required. (See Note 4.)

1365 1.94 1426 2.15 1485 2.36 1544 2.59 1601 2.84 1652 3.07 1701 3.35

External Static Pressure (in. wg)

1311 1.45 1340 1.58 1380 1.61 1421 1.76

1303 1.48 1371 1.69 1433 1.90 1480 2.09 1524 2.28
1330 1.59 1396 1.80 1460 2.03 1517 2.25 1562 2.46

1327 1.66 1393 1.80 1452 2.08 1510 2.31 1569 2.55 1616 2.79
1359 1.80 1423 2.02 1483 2.24 1538 2.46 1595 2.71

1362 1.73 1422 1.94 1485 2.16 1544 2.40 1590 2.62

3. Maximum continuous bhp is 1.30 for single-phase standard motors; 2.40 for 3-phase
standard motors; and 2.90 for high-static motors.

4. Motor drive range: 1020 to 1460 rpm for single-phase standard motors; 1120 to 1585 for
3-phase standard motors; and 1300 to 1685 for high-static motors. All other rpms require
field-supplied drive.

5. See page 93 for general fan performance notes.

1345 1.57 1397 1.76 1424 1.89 1467 2.06

86

1320 1.22 1360 1.33

1643 2.96

PERFORMANCE DATA (cont)

FAN PERFORMANCE — VERTICAL DISCHARGE UNITS (cont)

551B072 (6 TONS) — STANDARD MOTOR (BELT DRIVE)

Airflow

(Cfm)

1800 852 0.55 905 0.62 1002 0.78 1084 0.93
1900 894 0.64 945 0.72 1037 0.88 1119 1.04
2000 936 0.74 984 0.82 1072 0.98
2100 978 0.85 1024 0.93 1108 1.10
2200 1021 0.97 1064 1.05
2300 1064 1.10 1104 1.18
2400 1107 1.24
2500
2600
2700
2800
2900
3000

551B072 (6 TONS) — HIGH-STATIC MOTOR (BELT DRIVE)

Airflow

(Cfm)

1800 906 0.62 1002 0.78 1084 0.93 1163 1.10 1235 1.29
1900 945 0.72 1037 0.88 1119 1.04 1194 1.21 1266 1.40
2000 984 0.82 1072 0.98 1154 1.16 1226 1.33 1297 1.63
2100 1024 0.93 1108 1.10 1190 1.29 1259 1.47
2200 1064 1.05 1145 1.22 1225 1.43 1294 1.62
2300 1104 1.18 1183 1.36 1260 1.57
2400 1145 1.32 1222 1.52 1296 1.73
2500 1186 1.48 1262 1.68
2600 1228 1.66
2700 1269 1.83
2800
2900
3000

Bhp —

NOTES:

1.

Boldface

0.1 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

1154 1.16 1226 1.33 1297 1.53 1362 1.73 1422 1.94 1485 2.16

1145 1.22 1225 1.43 1294 1.62 1359 1.81 1423 2.02 1483 2.24 1538 2.46

1150 1.39 1186 1.48 1262 1.68 1331 1.89 1400 2.12 1461 2.34 1518 2.55 1575 2.78 ——
1193 1.56 1228 1.65 1301 1.86 1367 2.07 1435 2.31 1497 2.54 1552 2.76 ————
1237 1.74 1269 1.83 1341 2.05 1404 2.26 1471 2.51 1532 2.75 ——————
1280 1.94 1311 2.03 1381 2.25 1442 2.47 1506 2.72 ————————
1324 2.15 1354 2.24 1420 2.47 1481 2.69 1542 2.94 ————————
1368 2.37 1396 2.46 1460 2.69 1521 2.93 ——————————

0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

1311 2.03 1381 2.25 1442 2.47 1506 2.72 1603 3.28 1687 3.82 1761 4.36 ——————
1354 2.24 1420 2.47 1481 2.69 1542 2.94 1641 3.55 1727 4.13 ————————
1396 2.46 1460 2.69 1521 2.93 1649 3.73 1755 4.50 ——————————

LEGEND

Brake Horsepower Input to Fan

indicates a field-supplied drive is required. (See Note 4.)

1145 1.32 1222 1.52 1296 1.73 1365 1.94 1426 2.15 1485 2.36 1544 2.59 1601 2.84

1301 1.86 1367 2.07 1435 2.31 1497 2.54 1552 2.76 1620 3.14 1662 3.51 1739 3.88 1791 4.24
1341 2.05 1404 2.26 1471 2.51 1532 2.75 1612 3.21 1683 3.65 1747 4.08 ————

1183 1.36 1260 1.57 1330 1.78 1392 1.97 1454 2.18 1515 2.41 1569 2.64

1331 1.89 1400 2.12 1461 2.34 1518 2.55 1575 2.78 1635 3.11 1690 3.43 1740 3.75

1190 1.29 1259 1.47 1327 1.66 1393 1.87 1452 2.08 1510 2.31

1330 1.78 1392 1.97 1454 2.18 1515 2.41 1569 2.64 1622 2.91 1670 3.18
1365 1.94 1426 2.15 1485 2.36 1544 2.59 1601 2.84 1655 3.14 1704 3.43

External Static Pressure (in. wg)

External Static Pressure (in. wg)

1327 1.66 1393 1.87 1452 2.08 1510 2.31 1561 2.65 1607 2.79
1359 1.81 1423 2.02 1483 2.24 1538 2.46 1590 2.72 1637 2.97

1163 1.10 1235 1.29 1303 1.48 1371 1.69 1433 1.90
1194 1.21 1266 1.40 1330 1.59 1396 1.81 1460 2.03

1303 1.48 1371 1.69 1433 1.90 1481 2.10 1525 2.29
1330 1.59 1396 1.81 1460 2.03 1509 2.24 1554 2.45
1362 1.73 1422 1.94 1485 2.16 1535 2.38 1581 2.61

2. indicates field-supplied motor and drive are required.

3. Maximum continuous bhp is 2.40 for standard motors; 2.90 for high-static motors.

4. Motor drive range: 1120 to 1585 rpm for standard motors; 1300 to 1685 rpm for high­static motors. All other rpms require field-supplied drive.

5. See page 93 for general fan performance notes.

0TFQ004-012
551B036-150

551B090 (71/2 TONS ) — STANDARD AND HIGH-STATIC MOTOR (BELT DRIVE)

Airflow

(Cfm)

2250 511 0.52 592 0.74 659 0.95 722 1.19 778 1.43 829 1.68
2300 518 0.55 599 0.77 665 0.98 727 1.22 783 1.47 834 1.72
2400 534 0.61 613 0.84 677 1.06 738 1.30 794 1.55
2500 549 0.67 627 0.90 690 1.14 750 1.38 805 1.64
2550 557 0.71 633 0.94 697 1.18 756 1.42 811 1.69
2600 565 0.74 639 0.97 703 1.22 761 1.46 816 1.74
2700 581 0.81 652 1.04 717 1.31 773 1.55 827 1.83
2800 597 0.89 665 1.12 733 1.40 786 1.66 839 1.93
2900 613 0.97 679 1.20 745 1.50 799 1.76
3000 629 1.06 694 1.29 759 1.59 812 1.88
3100 646 1.15 709 1.39 772 1.70 825 1.99
3200 662 1.25 724 1.50 785 1.80
3300 679 1.35 740 1.61 798 1.91
3400 696 1.46 756 1.73 811 2.02
3500 712 1.57 771 1.85 824 2.14
3600 729 1.69 787 1.98 839 2.21
3700 746 1.85 803 2.12
3750 755 1.89 811 2.20

Bhp —

NOTES:

1.

Boldface

551B102 (81/2 TONS ) — STANDARD AND HIGH-STATIC MOTOR (BELT DRIVE)

Airflow

(Cfm)

2550 557 0.71 633 0.94 697 1.18 756 1.42 811 1.69
2600 565 0.74 639 0.97 703 1.22 761 1.46 816 1.74
2700 581 0.81 652 1.04 717 1.31 773 1.55 827 1.83
2800 597 0.89 665 1.12 733 1.40 786 1.66 839 1.93
2900 613 0.97 679 1.20 745 1.50 799 1.76
3000 629 1.06 694 1.29 759 1.59 812 1.88
3100 646 1.15 709 1.39 772 1.70 825 1.99
3200 662 1.25 724 1.50 785 1.80
3300 679 1.35 740 1.61 798 1.91
3400 696 1.46 756 1.73 811 2.02
3500 712 1.57 771 1.85 824 2.14
3600 729 1.69 787 1.98 839 2.27
3700 746 1.82 803 2.12
3750 755 1.89 811 2.20
3800 763 1.95 819 2.27
3900 780 2.09 835 2.42
4000 796 2.23
4100 813 2.39
4200 830 2.55
4250 839 2.63

Bhp —

NOTES:

1.

Boldface

0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

840 2.11 887 2.41 934 2.71 980 3.04 1022 3.38 ————
854 2.24 900 2.54 946 2.85 991 3.18 ——————
868 2.37 914 2. 69 959 3.00 1003 3.32 ——————
881 2.50 928 2. 84 971 3.16 1014 3.48 ——————

8542.429072.78956 3.15 997 3.49 ————————

8622.499142.85

LEGEND

Brake Horsepower Input to Fan

indicates a field-supplied drive is required. (See Note 6.)

0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

854 2.42 907 2.78 956 3.15 997 3.49 ————————
862 2.49 914 2.85 963 3.23 ——————— ———
869 2.56 920 2.92 970 3.31 ——————— ———

851 2.56 900 2.89 946 3.23 ————————————
867 2.74 915 3.06 960 3.40 ————————————
883 2.91 931 3.24 ——————————————
892 3.00 939 3.34 ——————————————

LEGEND

Brake Horsepower Input to Fan

indicates a field-supplied drive is required. (See Note 4.)

884 2.72 933 3.07 983 3.48 ——————— ———

894 2.64 942 2. 99 984 3.22 ————————

840 2.11 887 2.41 934 2.71 980 3.04 1022 3.38 ————
854 2.24 900 2.54 946 2.85 991 3.18 ——————
868 2.37 914 2.69 959 3.00 1003 3.52 ——————
881 2.50 928 2.84 971 3.16 1014 3.48 ——————
894 2.64 942 2.99 984 3.32 ————————

External Static Pressure (in. wg)

844 1.81 892 2.08 944 2.40 987 2.76 1039 3.20
855 1.91 902 2.18 949 2.48 1002 2.84 1041 3.25
861 1.96 908 2.24 953 2.53 1003 2.87 1045 3.28
866 2.01 913 2.29 957 2.58 1004 2.91 1050 3.31
878 2.12 924 2.40 967 2.70 1010 3.01 1056 3.37

850 2.04 900 2.34 946 2.65 989 2.96 1030 3.27 ——
862 2.15 911 2.46 957 2.78 1000 3.09 1040 3.41 ——
875 2.28 923 2.58 968 2.91 1011 3.24 ————

963 3.23 ——————————

External Static Pressure (in. wg)

850 2.04 900 2.34 946 2.65 989 2.96 1030 3.27 ——
862 2.15 911 2.46 957 2.78 1000 3.09 1040 3.41 ——

8752.289232.58 968 2.91 1011 3.24 ————

889 2.23 935 2.52 978 2.62 1019 3.13 1061 3.47

2. indicates a high-static motor and drive is required.

3. Maximum continuous bhp is 2.90 for standard motors; 4.20 for high-static motors.

4. Standard motor drive range: 840 to 1085 rpm. High-static motor drive range is 860 to
1080 rpm. All other rpms require field-supplied drive.

5. See page 93 for general fan performance notes.

861 1.96 908 2.24 953 2.53 1003 2.87
866 2.01 913 2.29 957 2.58 1004 2.91 1050 3.31
878 2.12 924 2.40 967 2.70 1010 3.01 1056 3.37
889 2.23 935 2.52 978 2.62 1019 3.13 1061 3.41

2. indicates a high-static motor and drive is required.

3. Maximum continuous bhp is 2.90 for standard motors; 4.20 for high-static motors.

4. Standard motor drive range: 840 to 1085 rpm. High-static motor drive range is 860 to
1080 rpm. All other rpms require field-supplied drive.

5. See page 93 for general fan performance notes.

884 1.97 937 2.33 947 2.66 1022 3.10
885 2.00 939 2.36 979 2.69 1025 3.12

1045 3.28

87

PERFORMANCE DATA (cont)

FAN PERFORMANCE — VERTICAL DISCHARGE UNITS (cont)

551B120 (10 TONS) — STANDARD AND HIGH-STATIC MOTOR (BELT DRIVE)

Airflow

(Cfm)

3000 459 0.46 625 0.85 691 1.01 734 1.10 787 1.30 829 1.50
3100 478 0.57 637 0.90 702 1.08 744 1.16 796 1.36 837 1.56
3200 500 0.62 647 0.97 712 1.16 753 1.23 805 1.43 845 1.63
3300 519 0.69 658 1.03 721 1.23 762 1.30 814 1.50 853 1.71
3400 537 0.77 669 1.10 731 1.30 773 1.38 823 1.57
3500 561 0.86 680 1.17 741 1.37 784 1.47 832 1.65
3600 592 0.98 692 1.24 751 1.45 796 1.57 841 1.72
3700 654 1.12 714 1.31 767 1.50 815 1.67
3800 668 1.20 727 1.40 780 1.60 827 1.77
3900 683 1.28 741 1.49 793 1.70 839 1.88
4000 697 1.37 754 1.59 806 1.80 851 1.99
4100 711 1.46 767 1.69 819 1.90
4200 726 1.56 780 1.80 832 2.01
4300 741 1.66 794 1.91 845 2.12
4400 755 1.77 808 2.03
4500 770 1.89 821 2.15
4600 784 2.00 835 2.27
4700 799 2.13 849 2.40

551B036-150

4800 814 2.25
4900 829 2.39

0TFQ004-012

5000 843 2.52

Bhp —
FIOP —

NOTES:

1.

Boldface

0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

864 2.10 907 2.28 949 2.49 989 2.74 1029 2.96 1068 3.18 1105 3.39
877 2.22 919 2.41 960 2.60 1000 2.86 1039 3.10 1077 3.31 1114 3.54

858 2.24 902 2.48 943 2.68 983 2.86 1022 3.10 1059 3.37 1097 3.61
871 2.37 915 2.61 955 2.82 995 3.01 1033 3.23 1070 3.51
884 2.49 928 2.75 968 2.96 1006 3.17 1044 3.37 1081 3.64 1117 3.92

863 2.53 910 2.77 954 3.02 993 3.27 1030 3.48 1057 3.69 1103 3.93
877 2.67 923 2.92 967 3.17 1006 3.43 1043 3.65 1079 3.87 1114 4.09
892 2.81 937 3.08 980 3.32 1019 3.60 1055 3.82 1091 4.05 1126 4.25

LEGEND

Brake Horsepower Input to Fan
Factory-Installed Option

indicates a field-supplied drive is required. (See Note 4.)

897 2.63 941 2.88 981 3.11 1018 3.32 1056 3.52 1092 3.78 1127 4.07

889 2.35 931 2.54 971 2.72 1011 2.97 1049 3.23 1087 3.46 1124 3.69

External Static Pressure (in. wg)

861 1.85 906 2.08 950 2.27 991 2.47 1030 2.65 1064 2.82
873 1.95 916 2.18 959 2.38 1001 2.58 1040 2.78 1075 2.96
884 2.05 927 2.28 969 2.50 1010 2.70 1049 2.91 1085 3.11
895 2.16 938 2.38 979 2.62 1020 2.83 1059 3.04 1095 3.25

886 1.73 943 1.88 988 1.91 995 1.95
892 1.78 947 2.00 995 2.05 1008 2.07
899 1.85 951 2.06 1000 2.17 1021 2.20

862 1.78 915 2.01 966 2.17 1009 2.46 1043 2.47
871 1.86 924 2.09 974 2.24 1015 2.51 1054 2.59
880 1.95 933 2.18 983 2.32 1023 2.58 1058 2.70

2. indicates a high-static motor and drive is required.

3. Maximum continuous bhp is 3.70 for standard motors; 5.25 for high-static motors.

4. Standard motor drive range: 860 to 1080 rpm. High-static motor drive range: 830 to

1130. All other rpms require field-supplied drive.

5. See page 93 for general fan performance notes.

907 1.93 959 2.10 1004 2.33 1036 2.36

1107 3.76

1138 4.23 1172 4.50
1149 4.37 1182 4.68
1160 4.53 1193 4.85

1133 3.84
1143 4.00
1152 4.17
1162 4.33

551B150 (121/2 TONS ) — STANDARD MOTORS (BELT DRIVE)

Airflow

(Cfm)

3700
3800
3900
4000
4100
4200
4300
4400
4500
4600
4700
4800
4900
5000
5100
5200 873 2.82
5300 888 2.97
5400
5500
5600
5700
5800
5900
6000
6100
6200
6300

Bhp —

NOTES:

1.

Boldface

2. Maximum continuous bhp is 5.25.

0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

————————
————————
————————
————————
——————
——————
——————
——————902 2.48 943 2.68 983 2.86 1022 3.10 1059 3.37 1097 3.61 1133 3.84
————
————
————
——
——
——
——906 2.95 950 3.24 993 3.48 1032 3.76 1068 4.00 1103 4.23 1137 4.45 1171 4.70 1204 5.01

903 3.13 949 3.43 991 3.75 1032 4.00 1071 4.29 1106 4.57 1139 4.82 1173 5.06 ————
918 3.30 963 3.59 1004 3.92 1045 4.18 1084 4.47 1119 4.77 1152 5.03 ——————
933 3.47 978 3.77 1018 4.11 1058 4.38 1097 4.66 1132 4.97 1165 5.24 ——————
948 3.65 992 3.95 1032 4.30 1072 4.58 1110 4.86 1145 5.18 ————————
963 3.83 1006 4.14 1046 4.50 1085 4.79 1123 5.07 ——————————
978 4.00 1021 4.34 1060 4.69 1098 5.01 ————————————

993 4.22 1035 4.54 1074 4.91 1112 5.23 ————————————
1008 4.42 1050 4.75 1089 5.10 ——————————————
1023 4.63 1065 4.96 ————————————————
1038 4.85 1079 5.19 ————————————————

LEGEND

Brake Horsepower Input to Fan

indicates field-supplied drive is required. (See Note 3.)

863 2.53
877 2.67
892 2.81

920 3.10 963 3.40 1006 3.65 1045 3.93 1081 4.19 1115 4.42 1149 4.65 1182 4.91 1215 5.18
934 3.26 977 3.57 1019 3.82 1058 4.11 1094 4.38 1127 4.62 1161 4.85 1194 5.07 ——

871 2.37
884 2.49
897 2.63

910 2.77 954 3.02 993 3.27 1030 3.48 1057 3.69 1103 3.93 1138 4.23 1172 4.50
923 2.92 967 3.17 1006 3.43 1043 3.65 1079 3.87 1114 4.09 1149 4.37 1182 4.68
937 3.08 980 3.32 1019 3.60 1055 3.82 1091 4.05 1126 4.25 1160 4.53 1193 4.85

External Static Pressure (in. wg)

861 1.85
873 1.95
884 2.05

895 2.16
864 2.10
877 2.22
889 2.35

915 2.61 955 2.82 995 3.01 1033 3.23 1070 3.51 1107 3.76 1143 4.00
928 2.75 968 2.96 1006 3.17 1044 3.37 1081 3.64 1117 3.92 1152 4.17
941 2.88 981 3.11 1018 3.32 1056 3.52 1092 3.78 1127 4.07 1162 4.33

907 2.28 949 2.49 989 2.74 1029 2.96 1068 3.18 1105 3.39

919 2.41 960 2.60 1000 2.86 1039 3.10 1077 3.31 1114 3.54

931 2.54 971 2.72 1011 2.97 1049 3.23 1087 3.46 1124 3.69

906 2.08 950 2.27 991 2.47 1030 2.65 1064 2.82
916 2.18 959 2.38 1001 2.58 1040 2.78 1075 2.96
927 2.28 969 2.50 1010 2.70 1049 2.91 1085 3.11
938 2.38 979 2.62 1020 2.83 1059 3.04 1095 3.25

3. Standard motor drive range: 900 to 1260 rpm.

4. See page 93 for general fan performance notes.

88

PERFORMANCE DATA (cont)

FAN PERFORMANCE — HORIZONTAL DISCHARGE UNITS

551B036 (3 TONS) — STANDARD MOTOR (BELT DRIVE)

Airflow

(Cfm)

900 526 0.06 584 0.08 656 0.12 734 0.22
1000 570 0.09 627 0.13 738 0.19
1100 614 0.13 670 0.16 758 0.23
1200 658 0.16 710 0.23
1300 703 0.20 752 0.27
1400 725 0.29
1500 755 0.33

0.1 0.2 0.3 0.4 0.5 0.6

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

776 0.31 845 0.38 891 0.42 937 0.47 983 0.51
816 0.38 870 0.43 924 0.48 969 0.53 1014 0.58

External Static Pressure (in. wg)

780 0.28 840 0.32 889 0.36 938 0.40
808 0.32 868 0.37 916 0.41 963 0.45

800 0.26 848 0.29 895 0.31
812 0.29 863 0.32 914 0.35

818 0.25 875 0.27

0TFQ004-012
551B036-150

551B036 (3 TONS) — STANDARD MOTOR (BELT DRIVE) (cont)

Airflow

(Cfm)

900
1000
1100
1200
1300
1400
1500

LEGEND

Brake Horsepower Input to Fan

Bhp —

Factory-Installed Option

FIOP —

NOTES:

1.

551B036 (3 TONS) — HIGH-STATIC MOTOR (BELT DRIVE)

551B036 (3 TONS) — HIGH-STATIC MOTOR (BELT DRIVE) (cont)

Bhp —
FIOP —

NOTES:

1.

indicates a field-supplied drive is required. (See Note 3.)

Boldface

Airflow

(Cfm)

900 584 0.08 734 0.22 875 0.27 953 0.35 1028 0.42
1000 627 0.13 800 0.26 895 0.31 977 0.39 1064 0.48
1100 670 0.16 812 0.29 914 0.35 1005 0.43
1200 710 0.23 840 0.32 936 0.40 1038 0.50
1300 752 0.27 868 0.37 963 0.45 1061 0.56
1400 776 0.31 891 0.42 983 0.51 1071 0.60
1500 816 0.38 924 0.48 1014 0.58

Airflow

(Cfm)

900
1000
1100
1200
1300
1400
1500

LEGEND

Brake Horsepower Input to Fan

Factory-Installed Option

indicates a field-supplied drive is required. (See Note 3.)

Boldface

0.7 0.8 0.9 1.0 1.1 1.2

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

924 0.32 953 0.35 989 0.38 1028 0.42 1074 0.49
936 0.35 977 0.39 1020 0.44 1064 0.48
960 0.39 1005 0.43 1052 0.49

960 0.45 1038 0.50 1076 0.53
1012 0.51 1061 0.56 1090 0.61
1027 0.56 1071 0.60
1056 0.63

0.2 0.4 0.6 0.8 1.0

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

1.2 1.4 1.6 1.8 2.0

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

1120 0.54 1155 0.59 1186 0.64 1215 0.69 1240 0.73
1185 0.60 1222 0.66 1255 0.71 1285 0.77 1312 0.82
1225 0.65 1263 0.71 1298 0.77 1328 0.83 1357 0.88
1266 0.72 1306 0.79 1341 0.86 1373 0.92 1402 0.98
1306 0.79 1347 0.87 1383 0.94 1416 1.01 1446 1.07
1347 0.87 1389 0.95 1427 1.03
1385 0.96 1428 1.05

1097 0.68 1117 0.70 1245 0.74 1315 0.87 1385 0.96

External Static Pressure (in. wg)

1100 0.52 1163 0.59 1225 0.65
1136 0.59 1201 0.65 1266 0.72

1108 0.67 1208 0.70 1278 0.79 1347 0.87

External Static Pressure (in. wg)

External Static Pressure (in. wg)

1467 1.14 1502 1.22 1534 1.30

1172 0.65 1239 0.72 1306 0.79

2. Maximum continuous bhp is 1.20 for standard motors; 2.40 for high-static motors.

3. Motor drive range: 760 to 1090 rpm for standard motors; 1075 to 1455 rpm for high-static
motors. All other rpms require field-supplied drive.

4. See page 93 for general fan performance notes.

2. Maximum continuous bhp is 1.20 for standard motors; 2.40 for high-static motors.

3. Motor drive range: 760 to 1090 rpm for standard motors; 1075 to 1455 rpm for high-static
motors. All other rpms require field- supplied drive.

4. See page 93 for general fan performance notes.

1124 0.54 1185 0.60

1097 0.68 1245 0.74

1461 1.11 1492 1.18

1120 0.54

1100 0.52
1136 0.59
1172 0.65
1208 0.70

551B048 (4 TONS) — STANDARD MOTOR (BELT DRIVE)

Airflow

(Cfm)

1200 514 0.15 590 0.20 657 0.25 723 0.30 828 0.42
1300 545 0.18 615 0.23 680 0.29 744 0.35
1400 577 0.21 642 0.27 704 0.33 766 0.39
1500 609 0.26 670 0.31 729 0.38 788 0.44
1600 642 0.30 699 0.36 755 0.43 811 0.49
1700 675 0.36 728 0.42 782 0.49 836 0.55
1800 709 0.41 759 0.48 810 0.55
1900 743 0.48 790 0.55 838 0.62
2000 778 0.55 836 0.62

551B048 (4 TONS) — STANDARD MOTOR (BELT DRIVE) (cont)

Airflow

(Cfm)

1200
1300
1400
1500
1600
1700
1800
1900
2000

LEGEND

Bhp —
FIOP —

NOTES:

Brake Horsepower Input to Fan
Factory-Installed Option

1.

indicates a field-supplied drive is required.

Boldface

0.10.20.30.40.60.70.8

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

875 0.70 913 0.77 1004 0.94 1046 1.03 1088 1.12

1.0 1.1 1.2 1.4 1.6 1.8

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

999 0.66 1018 0.67 1036 0.68 1073 0.71 1109 0.75 1138 0.79
1025 0.74 1058 0.79 1090 0.84 1121 0.87 1159 0.90
1042 0.81 1080 0.88 1118 0.95 1175 1.06
1060 0.88 1098 0.96 1136 1.04
1080 0.95 1117 1.04 1153 1.12 1224 1.29 1287 1.45 1337 1.56
1101 1.03 1137 1.12 1172 1.20 1241 1.38 1307 1.56 1366 1.73
1122 1.11 1157 1.20 1192 1.29 1258 1.48 1323 1.67 1385 1.86
1143 1.21 1179 1.30 1214 1.39 1279 1.58 1341 1.78 1402 1.98
1165 1.31 1200 1.40 1235 1.49 1300 1.69 1361 1.90 1419 2.10

External Static Pressure (in. wg)

849 0.47 895 0.54 940 0.60
870 0.52 915 0.59 959 0.66
892 0.58 936 0.65 980 0.72
913 0.64 957 0.72 1001 0.79

860 0.62 957 0.78 1001 0.86 1044 0.94
886 0.69 980 0.86 1023 0.95 1066 1.03

External Static Pressure (in. wg)

1205 1.19

2. indicates field-supplied motor and drive are required.

3. Maximum continuous bhp is 1.20 for standard motors; 2.40 for high-static motors.

4. Motor drive range: 840 to 1185 rpm for standard motors; 1075 to 1455 rpm for high-static
motors. All other rpms require field-supplied drive.

5. See page 93 for general fan performance notes.

935 0.71 979 0.79 1023 0.86

89

876 0.49 924 0.55

1206 1.09 1244 1.12

1258 1.30 1289 1.34

1193 0.95

PERFORMANCE DATA (cont)

FAN PERFORMANCE — HORIZONTAL DISCHARGE UNITS (cont)

551B048 (4 TONS) — HIGH-STATIC MOTOR (BELT DRIVE)

Airflow

(Cfm)

1200 590 0.20 723 0.30 828 0.42 924 0.55 999 0.66 1036 0.68 1073 0.71
1300 615 0.23 744 0.35 849 0.47 940 0.60 1025 0.74
1400 642 0.27 766 0.39 870 0.52 959 0.66 1042 0.81
1500 670 0.31 788 0.44 892 0.58 980 0.72 1060 0.88
1600 699 0.36 811 0.49 913 0.64 1001 0.79
1700 728 0.42 836 0.55 935 0.71 1023 0.86
1800 759 0.48 860 0.62 957 0.78 1044 0.94
1900 790 0.55 886 0.69 980 0.86 1066 1.03
2000 836 0.62 913 0.77 1004 0.94

Bhp —

NOTES:

1.

Boldface

2. indicates field-supplied motor and drive are required.

0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

1088 1.12 1165 1.31 1235 1.49 1300 1.69 1361 1.90 1419 2.10 1449 2.24

LEGEND

Brake Horsepower Input to Fan

indicates a field-supplied drive is required.

External Static Pressure (in. wg)

1090 0.84 1121 0.87 1159 0.90 1193 0.95 1218 1.01
1118 0.95 1175 1.06 1206 1.09 1244 1.12 1270 1.19

1080 0.95 1153 1.12 1224 1.29 1287 1.45 1337 1.56 1365 1.66
1101 1.03 1172 1.20 1241 1.38 1307 1.56 1366 1.73 1395 1.84
1122 1.11 1192 1.29 1258 1.48 1323 1.67 1385 1.86 1414 1.98
1143 1.21 1214 1.39 1279 1.58 1341 1.78 1402 1.98 1432 2.11

1136 1.04 1205 1.19 1258 1.30 1289 1.34 1316 1.43

3. Maximum continuous bhp is 1.20 for standard motors; 2.40 for high-static motors.

4. Motor drive range: 840 to 1185 rpm for standard motors; 1075 to 1455 rpm for high-static
motors. All other rpms require field-supplied drive.

5. See page 93 for general fan performance notes.

551B036-150
0TFQ004-012

551B060 (5 TONS) STANDARD MOTOR (BELT DRIVE) — SINGLE-PHASE UNITS

Airflow

(Cfm)

1500 665 0.31 729 0.35 843 0.47 940 0.60
1600 703 0.36 763 0.40 872 0.53 965 0.66
1700 741 0.40 801 0.47 902 0.60 993 0.75
1800 765 0.45 821 0.51 923 0.65 1019 0.81
1900 802 0.45 854 0.58 953 0.73
2000 840 0.60 888 0.66 984 0.82
2100 878 0.69 923 0.75 1015 0.91
2200 916 0.78 958 0.85
2300 954 0.89 993 0.96
2400 993 1.00
2500

Brake Horsepower Input to Fan

Bhp —

NOTES:

1.

Boldface

2. indicates field-supplied motor and drive are required.

0.1 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

1046 1.01 1129 1.19 1209 1.39 1280 1.58 1345 1.77 1410 1.97 1473 2.20

1031 1.13 1066 1.20 1145 1.39 1220 1.57 1292 1.77 1363 2.00 1428 2.22 1486 2.43 1543 2.65

LEGEND

indicates a field-supplied drive is required.

1029 1.07 1112 1.25 1190 1.43 1264 1.63 1336 1.85 1400 2.06 1459 2.26 1519 2.48

1079 1.13 1160 1.31 1237 1.51 1309 1.71 1372 1.91 1434 2.11 1496 2.34

External Static Pressure (in. wg)

1026 0.74 1108 0.89 1187 1.06 1202 1.18 1079 1.10
1049 0.81 1130 0.97 1206 1.14 1275 1.32 1281 1.44
1077 0.89 1152 1.05 1226 1.23 1298 1.41 1359 1.60

1046 0.90 1126 1.06 1201 1.23 1274 1.43 1338 1.62 1402 1.83
1073 0.99 1154 1.16 1226 1.33 1297 1.53 1363 1.73 1424 1.94
1101 1.08 1182 1.27 1252 1.45 1320 1.64 1388 1.85 1448 2.07

1099 0.96 1178 1.14 1249 1.32 1316 1.52 1382 1.72

3. Maximum continuous bhp is 1.30 for single-phase standard motors; 2.40 for 3-phase
standard motors; and 2.90 for high-static motors.

4. Motor drive range: 1020 to 1460 rpm for single-phase standard motors; 1120 to
1585 rpm for 3-phase standard motors, and 1300 to 1685 rpm for high-static motors. All
other rpms require field-supplied drive.

5. See page 93 for general fan performance notes.

2.0

1109 0.75 1138 0.79 1162 0.84

551B060 (5 TONS) STANDARD MOTOR (BELT DRIVE) — THREE-PHASE UNITS

Airflow

(Cfm)

1500 665 0.31 729 0.35 843 0.47 940 0.60 1026 0.74 1108 0.89
1600 703 0.36 763 0.40 872 0.53 965 0.66 1049 0.81
1700 741 0.40 801 0.47 902 0.60 993 0.75 1077 0.89
1800 765 0.45 821 0.51 923 0.65 1019 0.81 1099 0.96
1900 802 0.45 854 0.58 953 0.73 1046 0.90
2000 840 0.60 888 0.66 984 0.82 1073 0.99
2100 878 0.69 923 0.75 1015 0.91 1101 1.08
2200 916 0.78 958 0.85 1046 1.01
2300 954 0.89 993 0.96 1079 1.13
2400 993 1.00 1029 1.07 1112 1.25
2500 1031 1.13 1066 1.20

Bhp —

NOTES:

Bhp —

NOTES:

Brake Horsepower Input to Fan

1.

Boldface

2. indicates field-supplied motor and drive are required.

551B060 (5 TONS) HIGH-STATIC MOTOR (BELT DRIVE)

Airflow

(Cfm)

1500 722 0.33 840 0.46 937 0.59 1027 0.74 1108 0.90 1186 1.08 1263 1.30
1600 754 0.38 867 0.52 963 0.65 1052 0.81 1130 0.97 1205 1.15 1278 1.35
1700 787 0.44 895 0.58 991 0.73 1075 0.88 1154 1.06 1228 1.23 1296 1.42
1800 821 0.51 923 0.65 1019 0.81 1099 0.96 1178 1.14 1249 1.32
1900 854 0.58 953 0.73 1046 0.90 1126 1.06 1201 1.23 1274 1.43
2000 900 0.66 984 0.82 1073 0.99 1154 1.16 1226 1.33 1297 1.53
2100 923 0.75 1015 0.91 1101 1.08 1182 1.27 1252 1.45
2200 958 0.85 1046 1.01 1129 1.19 1209 1.39 1280 1.58
2300 993 0.96 1079 1.13 1160 1.31 1237 1.51
2400 1029 1.07 1112 1.25 1190 1.43 1264 1.63
2500 1066 1.20 1145 1.39 1220 1.57 1292 1.77

Brake Horsepower Input to Fan

1.

Boldface

2. indicates field-supplied motor and drive are required.

0.1 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

1145 1.39 1220 1.57 1292 1.77 1363 2.00 1428 2.22 1486 2.43 1543 2.65

LEGEND

indicates a field-supplied drive is required. (See Note 4.)

0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

LEGEND

indicates a field-supplied drive is required.

External Static Pressure (in. wg)

1130 0.97 1206 1.14 1275 1.32 1281 1.44
1152 1.05 1226 1.23 1298 1.41 1359 1.60

1126 1.06 1201 1.23 1274 1.43 1338 1.62 1402 1.83
1154 1.16 1226 1.33 1297 1.53 1363 1.73 1424 1.94

1129 1.19 1209 1.39 1280 1.58 1345 1.77 1410 1.97 1473 2.20
1160 1.31 1237 1.51 1309 1.71 1372 1.91 1434 2.11 1496 2.34
1190 1.43 1264 1.63 1336 1.85 1400 2.06 1459 2.26

External Static Pressure (in. wg)

1182 1.27 1252 1.45 1320 1.64 1388 1.85 1448 2.07

3. Maximum continuous bhp is 1.30 for single-phase standard motors; 2.40 for 3-phase

4. Motor drive range: 1020 to 1460 rpm for single-phase standard motors; 1120 to

5. See page 93 for general fan performance notes.

1309 1.71 1372 1.91 1434 2.11 1496 2.34 1554 2.58 1607 2.85
1339 1.80 1400 2.06 1459 2.26 1519 2.48 1578 2.76 1632 3.05
1363 2.00 1428 2.22 1486 2.43 1543 2.65 1600 2.89 1655 3.20

3. Maximum continuous bhp is 1.30 for single-phase standard motors; 2.40 for 3-phase

4. Motor drive range: 1020 to 1460 rpm for single-phase standard motors; 1120 to 1585 for

5. See page 93 for general fan performance notes.

1178 1.14 1249 1.32 1316 1.52 1382 1.72

standard motors; and 2.90 for high-static motors.

1585 rpm for 3-phase standard motors; and 1300 to 1685 rpm for high-static motors. All
other rpms require field-supplied drive.

1316 1.52 1382 1.72 1447 1.95 1497 2.16
1338 1.62 1402 1.80 1464 2.05 1514 2.27

1320 1.64 1388 1.80 1448 2.07 1505 2.29 1557 2.53
1345 1.77 1410 1.97 1473 2.20 1529 2.43 1581 2.69

standard motors; and 2.90 for high-static motors.

3-phase standard motors; and 1300 to 1685 rpm for high-static motors. All other rpms
require field-supplied drive.

1363 1.73 1424 1.94 1484 2.16 1535 2.39

1187 1.06 1202 1.18 1079 1.10

1519 2.48

2.0

1343 1.58 1431 1.79 1480 1.98
1350 1.61 1424 1.80 1473 1.99
1364 1.64 1432 1.89 1481 2.09

90

PERFORMANCE DATA (cont)

FAN PERFORMANCE — HORIZONTAL DISCHARGE UNITS (cont)

551B072 (6 TONS) STANDARD MOTOR (BELT DRIVE)

Airflow

(Cfm)

1800 765 0.45 821 0.51 923 0.65 1019 0.81 1099 0.96
1900 802 0.45 854 0.58 953 0.73 1046 0.90
2000 840 0.60 888 0.66 984 0.82 1073 0.99
2100 878 0.69 923 0.75 1015 0.91 1101 1.08
2200 916 0.78 958 0.85 1046 1.01
2300 954 0.89 993 0.96 1079 1.13
2400 993 1.00 1029 1.07 1112 1.25
2500 1031 1.13 1066 1.20
2600 1070 1.26 1103 1.34
2700 1109 1.41
2800
2900
3000

LEGEND

Brake Horsepower Input to Fan

Bhp —

NOTES:

1.

Boldface

2. indicates field-supplied motor and drive are required.

0.1 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

1145 1.39 1220 1.57 1292 1.77 1363 2.00 1428 2.22 1486 2.43 1543 2.65

1148 1.57 1177 1.64 1246 1.83 1316 2.04 1383 2.26 1446 2.48 1510 2.73 — ———
1188 1.74 1215 1.81 1281 2.00 1349 2.22 1413 2.44 1476 2.67 1537 2.92 — ———
1227 1.92 1253 2.00 1316 2.19 1382 2.42 1444 2.63 1506 2.88 ——————

indicates a field-supplied drive is required.

1140 1.48 1212 1.67 1283 1.87 1352 2.09 1418 2.31 1483 2.56 1543 2.80 ——

1179 1.52 1251 1.71 1322 1.92 1390 2.15 1456 2.38 1514 2.61 1569 2.83

External Static Pressure (in. wg)

1126 1.06 1201 1.23 1274 1.43 1338 1.62 1402 1.83
1154 1.16 1226 1.33 1297 1.53 1363 1.73 1424 1.94

1129 1.19 1209 1.39 1280 1.58 1345 1.77 1410 1.97 1473 2.20
1160 1.31 1237 1.51 1309 1.71 1372 1.91 1434 2.11 1496 2.34
1190 1.43 1264 1.63 1336 1.85 1400 2.06 1459 2.26 1519 2.48

1182 1.27 1252 1.45 1320 1.64 1388 1.85 1448 2.07

1178 1.14 1249 1.32 1316 1.52 1382 1.72

3. Maximum continuous bhp is 2.40 for standard motors; 2.90 for high-static motors.

4. Motor drive range: 1120 to 1585 rpm for standard motors; 1300 to 1685 rpm for high-static
motors. All other rpms require field-supplied drive.

5. See page 93 for general fan performance notes.

0TFQ004-012
551B036-150

551B072 (6 TONS) HIGH-STATIC MOTOR (BELT DRIVE)

Airflow

(Cfm)

1800 821 0.51 923 0.65 1019 0.81 1099 0.96 1178 1.14 1249 1.32
1900 854 0.58 953 0.73 1046 0.90 1126 1.06 1201 1.23 1274 1.43
2000 888 0.66 984 0.82 1073 0.99 1154 1.16 1226 1.33 1297 1.53
2100 923 0.75 1015 0.91 1101 1.08 1182 1.27 1252 1.45
2200 958 0.85 1046 1.01 1129 1.19 1209 1.39 1280 1.58
2300 993 0.96 1079 1.13 1160 1.31 1237 1.51
2400 1029 1.07 1112 1.25 1190 1.43 1264 1.63
2500 1066 1.20 1145 1.39 1220 1.57 1292 1.77
2600 1103 1.34 1179 1.52 1251 1.71
2700 1140 1.48 1212 1.67 1283 1.87
2800 1177 1.64 1246 1.83
2900 1215 1.81 1281 2.00
3000 1253 2.00

Bhp —

NOTES:

1.

Boldface

2. indicates field-supplied motor and drive are required.

551B090 (71/2 TONS ) — STANDARD AND HIGH-STATIC MOTOR (BELT DRIVE)

Airflow

(Cfm)

2250 465 0.43 554 0.64 630 0.86 695 1.09 757 1.34 810 1.62
2300 471 0.45 559 0.66 635 0.89 699 1.12 760 1.37 816 1.65
2400 482 0.50 569 0.71 645 0.95 708 1.18 768 1.44 824 1.72
2500 494 0.54 581 0.76 654 1.01 717 1.25 776 1.51 832 1.79
2550 501 0.57 587 0.79 659 1.05 722 1.29 780 1.55 836 1.83
2660 507 0.59 592 0.82 663 1.08 727 1.32 784 1.58 839 1.87
2700 520 0.65 604 0.89 672 1.14 737 1.40 793 1.66
2800 533 0.71 615 0.95 683 1.20 747 1.49 802 1.75
2900 546 0.77 626 1.02 693 1.27 756 1.57 813 1.84
3000 559 0.83 637 1.09 704 1.35 765 1.66 823 1.94
3100 572 0.90 648 1.17 715 1.43 775 1.74 832 2.05
3200 585 0.96 660 1.24 727 1.52 785 1.83
3300 598 1.03 671 1.32 739 1.62 795 1.91
3400 610 1.10 682 1.41 750 1.72 806 2.01
3500 623 1.17 694 1.50 761 1.82 817 2.11
3600 636 1.25 707 1.60 772 1.93 828 2.23
3700 649 1.33 720 1.71 783 2.03
3750 655 1.37 727 1.77 789 2.09

Bhp —

NOTES:

1.

Boldface

2. indicates a high-static motor and drive are required.

0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

1322 1.92 1390 2.15 1456 2.38 1514 2.61 1569 2.83 1620 3.11 1666 3.39

1316 2.04 1383 2.26 1446 2.48 1510 2.73 1574 3.09 1632 3.45 1685 3.79 1733 4.13

1316 2.19 1382 2.42 1444 2.63 1506 2.88 1582 3.34 1649 3.78 1710 4.21 1765 4.64 ——

LEGEND

Brake Horsepower Input to Fan

indicates a field-supplied drive is required.

0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

LEGEND

Brake Horsepower Input to Fan

indicates a field-supplied drive is required.

1349 2.22 1413 2.44 1476 2.67 1537 2.92 1602 3.31 1661 3.69 1715 4.0 6 1764 4.42

1352 2.09 1418 2.31 1483 2.56 1543 2.80 1600 3.12 1651 3.43 1699 3.74

840 2.35 890 2.69 940 3.07 ————————
846 2.42 896 2.75 945 3.14 ————————

External Static Pressure (in. wg)

1320 1.64 1388 1.85 1448 2.07 1495 2.28 1538 2.48

1309 1.71 1372 1.91 1434 2.11 1496 2.34 1544 2.57 1589 2.80
1336 1.85 1400 2.06 1459 2.26 1519 2.48 1568 2.73 1613 2.97
1363 2.00 1428 2.22 1486 2.43 1543 2.65 1593 2.92 1639 3.17

External Static Pressure (in. wg)

841 2.15 892 2.45 939 2.76 984 3.10 ————
851 2.26 902 2.57 948 2.88

8602.369122.69958 3.01 1002 3.34 ————

8702.479212.82968 3.15 ——————
880 2.57 930 2.95 978 3.29 ——————

1345 1.77 1410 1.97 1473 2.20 1621 2.42 1564 2.64

3. Maximum continuous bhp is 2.40 for standard motors; 2.90 for high-static motors.

4. Motor drive range: 1120 to 1585 rpm for standard motors; 1300 to 1685 rpm for high-static
motors. All other rpms require field-supplied drive.

5. See page 93 for general fan performance notes.

846 1.95 898 2.26 946 2.58 987 2.91 1019 3.26
855 2.04 906 2.35 954 2.67 997 3.01 1034 3.36
863 2.13 913 2.44 961 2.77 1006 3.12 ——
872 2.22 921 2.54 969 2.88 1014 3.22 ——
882 2.33 930 2.65 976 2.99 1021 3.34 ——

3. Maximum continuous bhp is 2.90 for standard motors; 4.20 for high-static motors.

4. Standard motor drive range: 840 to 1085 rpm. High-static motor drive range: 860 to 1060
rpm. All other rpms require field-supplied drive.

5. See page 93 for general fan performance notes.

1316 1.52 1382 1.72 1427 1.89 1468 2.06
1338 1.62 1402 1.83 1447 2.01 1489 2.19
1363 1.73 1424 1.94 1470 2.13 1512 2.32

850 1.91 873 2.20 863 2.50 855 2.78
859 1.94 888 2.24 897 2.55 887 2.85
872 2.01 909 2.32 931 2.64 935 2.96
882 2.09 925 2.40 955 2.72 972 3.06
887 2.13 931 2.45 964 2.77 986 3.11
891 2.17 936 2.49 973 2.82 999 3.16

993 3.2 1 ————

91

PERFORMANCE DATA (cont)

FAN PERFORMANCE — HORIZONTAL DISCHARGE UNITS (cont)

551B102 (81/2 TONS ) — STANDARD AND HIGH-STATIC MOTOR (BELT DRIVE)

Airflow

(Cfm)

2550 501 0.57 587 0.79 659 1.05 722 1.29 780 1.55 836 1.83
2660 507 0.59 592 0.82 663 1.08 727 1.32 784 1.58 839 1.87
2700 520 0.65 604 0.89 672 1.14 737 1.40 793 1.66
2800 533 0.71 615 0.95 683 1.20 747 1.49 802 1.75
2900 546 0.77 626 1.02 693 1.27 756 1.57 813 1.84
3000 559 0.83 637 1.09 704 1.35 765 1.66 823 1.94
3100 572 0.90 648 1.17 715 1.43 775 1.74 832 2.05
3200 585 0.96 660 1.24 727 1.52 785 1.83
3300 598 1.03 671 1.32 739 1.62 795 1.91
3400 610 1.10 682 1.41 750 1.72 806 2.01
3500 623 1.17 694 1.50 761 1.82 817 2.11
3600 636 1.25 707 1.60 772 1.93 828 2.23
3700 649 1.33 720 1.71 783 2.03
3750 655 1.37 727 1.77 789 2.09
3800 661 1.41 733 1.82 795 2.15
3900 674 1.49 746 1.93 806 2.26
4000 687 1.57 759 2.05 817 2.38
4100 699 1.60 772 2.17 828 2.50

551B036-150

4200 712 1.75 785 2.30
4250 719 1.80 792 2.37

0TFQ004-012

Bhp —

NOTES:

1.

Boldface

2. indicates a high-static motor and drive are required.

0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

840 2.35 890 2.69 940 3.07 ————————
846 2.42 896 2.75 945 3.14 ————————
852 2.48 901 2.80 949 3.20 ————————
863 2.61 912 2.93 959 3.33 ————————
874 2.75 923 3.08 ——————————
885 2.88 935 3.23 ——————————

LEGEND

Brake Horsepower Input to Fan

indicates a field-supplied drive is required.

840 2.64 897 3.03 947 3.39 ——————— ———
846 2.71 903 3.10 ————————————

External Static Pressure (in. wg)

841 2.15 892 2.45 939 2.76 984 3.10 ————
851 2.26 902 2.57 948 2.88 993 3.21 ————

8602.369122.69958 3.01 1002 3.34 ————

8702.479212.82968 3.15 ——————
880 2.57 930 2.95 978 3.29 ——————

887 2.13 931 2.45 964 2.77 986 3.11

846 1.95 898 2.26 946 2.58 987 2.91 1019 3.26
855 2.04 906 2.35 954 2.67 997 3.01 1034 3.36
863 2.13 913 2.44 961 2.77 1006 3.12 ——
872 2.22 921 2.54 969 2.88 1014 3.22 ——
882 2.33 930 2.65 976 2.99 1021 3.34 ——

3. Maximum continuous bhp is 2.90 for standard motors; 4.20 for high-static motors.

4. Standard motor drive range: 840 to 1085 rpm. High-static motor drive range: 860 to 1060
rpm. All other rpms require field-supplied drive.

5. See page 93 for general fan performance notes.

891 2.17 936 2.49 973 2.82 999 3.16

551B120 (10 TONS) — STANDARD AND HIGH-STATIC MOTOR (BELT DRIVE)

Airflow

(Cfm)

3000 459 0.35 595 0.74 657 0.88 716 1.05 770 1.24 822 1.44
3100 478 0.46 605 0.79 667 0.94 725 1.10 779 1.30 829 1.50
3200 500 0.57 615 0.85 679 1.01 734 1.16 787 1.36
3300 519 0.62 625 0.90 691 1.08 744 1.23 796 1.43
3400 537 0.69 637 0.97 702 1.16 753 1.30 805 1.50
3500 561 0.77 647 1.03 712 1.23 762 1.38 814 1.57
3600 592 0.86 658 1.10 721 1.30 773 1.47 823 1.65
3700 607 0.97 670 1.18 732 1.37 782 1.56 833 1.73
3800 621 1.05 681 1.25 742 1.45 795 1.66 842 1.82
3900 636 1.13 693 1.32 751 1.53 808 1.76 851 1.92
4000 650 1.21 705 1.40 761 1.61 819 1.86
4100 665 1.30 717 1.48 772 1.71 830 1.96
4200 680 1.39 728 1.57 783 1.81 839 2.05
4300 696 1.49 739 1.66 794 1.91 848 2.14
4400 711 1.60 750 1.75 805 2.02 857 2.24
4500 727 1.70 762 1.85 817 2.12
4600 742 1.82 774 1.96 828 2.23
4700 758 1.94 786 2.07 840 2.34
4800 773 2.06 799 2.18 852 2.46
4900 789 2.19 812 2.30
5000 805 2.32 826 2.43

Bhp —

NOTES:

1.

Boldface

2. indicates a high-static motor and drive are required.

551B150 (121/2 TONS ) — STANDARD MOTOR (BELT DRIVE)

Airflow

(Cfm)

3700
3800
3900
4000
4100
4200
4300
4400
4500
4600
4700
4800
4900
5000
5100
5200
5300
5400 869 2.92 882 3.01
5500 885 3.09 897 3.17
5600
5700
5800
5900
6000
6100
6200
6300

Bhp —

NOTES:

1.

Boldface

0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

867 2.35 919 2.63 955 2.82 996 3.02 1037 3.25 1074 3.54 1113 3.81
877 2.46 929 2.75 967 2.96 1005 3.16 1046 3.38 1084 3.66 1121 3.95
888 2.59 938 2.87 980 3.11 1015 3.30 1056 3.52 1093 3.79 1129 4.09

863 2.57 910 2.86 957 3.11 1003 3.41 1036 3.61 1073 3.83 1112 4.07
875 2.70 921 2.99 966 3.24 1014 3.56 1049 3.79 1083 4.00 1121 4.23

LEGEND

Brake Horsepower Input to Fan

indicates a field-supplied drive is required.

0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

——————————
——————————
——————————
————————
————————
————————
————————
————————908 2.51 945 2.68 988 2.89 1028 3.14 1066 3.41 1106 3.67
——————
——————
——————
——————
————
————
————
————
——

901 3.26 911 3.33 943 3.54 990 3.87 1031 4.20 1071 4.46 1114 4.81 1152 5.14 ————
917 3.44 926 3.50 956 3.70 1002 4.03 1042 4.38 1081 4.64 1123 4.98 ——————
933 3.62 941 3.68 968 3.87 1013 4.20 1053 4.56 1092 4.84 1132 5.15 ——————
949 3.81 956 3.87 981 4.05 1025 4.37 1065 4.74 1103 5.04 ————————
965 4.01 972 4.06 995 4.23 1037 4.55 1076 4.92 1114 5.24 ————————
981 4.21 987 4.26 1008 4.42 1042 4.73 1088 5.10 ——————————
997 4.42 1002 4.46 1022 4.62 1058 4.91 ————————————

1014 4.64 1018 4.68 1036 4.83 1070 5.11 ————————————

LEGEND

Brake Horsepower Input to Fan

indicates a field-supplied drive is required.

868 2.85

863 2.57
875 2.70
887 2.83
898 2.96

909 3.09 955 3.42 998 3.69 1042 3.98 1084 4.31 1115 4.53 1148 4.76 1184 5.01
920 3.24 967 3.57 1009 3.86 1051 4.14 1095 4.49 1128 4.74 1158 4.95 1193 5.20
932 3.38 978 3.72 1029 4.03 1061 4.30 1105 4.66 1140 4.94 1168 5.15 ——

899 2.72 947 2.98 992 3.26 1025 3.45 1064 3.67 1103 3.92

867 2.35
877 2.46
888 2.59
899 2.72

910 2.86 957 3.11 1003 3.41 1036 3.61 1073 3.83 1112 4.07 1147 4.36
921 2.99 966 3.24 1014 3.56 1049 3.79 1083 4.00 1121 4.23 1157 4.50
932 3.13 976 3.38 1024 3.71 1061 3.96 1093 4.17 1129 4.40 1166 4.66
943 3.28 987 3.53 1033 3.84 1073 4.14 1103 4.34 1138 4.58 1175 4.82

External Static Pressure (in. wg)

837 1.56 886 1.78 943 2.06 978 1.91 984 2.07
845 1.63 892 1.85 947 2.10 988 2.05 995 2.20
853 1.71 899 1.93 951 2.17 995 2.17 1008 2.32
862 1.78 907 2.01 959 2.24 1000 2.33 1021 2.47
871 1.86 915 2.09 965 2.32 1005 2.46 1036 2.59
879 1.95 927 2.17 973 2.38 1013 2.57 1046 2.73
889 2.03 934 2.26 980 2.48 1022 2.69 1058 2.87

861 2.02 908 2.21 950 2.46 994 2.70 1037 2.92 1077 3.14
871 2.13 917 2.32 960 2.55 1001 2.81 1045 3.04 1085 3.21
883 2.25 925 2.44 969 2.65 1009 2.92 1051 3.17 1092 3.40
896 2.38 935 2.56 979 2.77 1018 3.03 1058 3.29 1100 3.53
908 2.51 945 2.68 988 2.89 1028 3.14 1066 3.41 1106 3.67

External Static Pressure (in. wg)

861 2.02
871 2.13
883 2.25
896 2.38

919 2.63 955 2.82 996 3.02 1037 3.25 1074 3.54 1113 3.81
929 2.75 967 2.96 1005 3.16 1046 3.38 1084 3.66 1121 3.95
938 2.87 980 3.11 1015 3.30 1056 3.52 1093 3.79 1129 4.09
947 2.98 992 3.26 1025 3.45 1064 3.67 1103 3.92 1137 4.22

898 2.12 942 2.36 987 2.59 1030 2.81 1068 3.01

3. Maximum continuous bhp is 3.70 for standard motors; 5.25 for high-static motors.

4. Standard motor drive range: 860 to 1080 rpm. High-static motor drive range: 830 to 1130
rpm. All other rpms require field-supplied drive.

5. See page 93 for general fan performance notes.

879 1.95
889 2.03
898 2.12

908 2.21 950 2.46 994 2.70 1037 2.92 1077 3.14
917 2.32 960 2.55 1001 2.81 1045 3.04 1085 3.21
925 2.44 969 2.65 1009 2.92 1051 3.17 1092 3.40
935 2.56 979 2.77 1018 3.03 1058 3.29 1100 3.53

2. Maximum continuous bhp is 5.25 with standard motor.

3. Standard motor drive range: 900 to 1260 rpm.

4. See page 93 for general fan performance notes.

872 1.69 919 1.88 950 1.70 962 1.82
882 1.73 932 2.00 965 1.80 971 1.95

1137 4.22
1147 4.36
1157 4.50

927 2.17 973 2.38 1013 2.57 1046 2.73
934 2.26 980 2.48 1022 2.69 1058 2.87
942 2.36 987 2.59 1030 2.81 1068 3.01

92

PERFORMANCE DATA (cont)

GENERAL FAN PERFORMANCE NOTES

NOTES:

1. Values include losses for filters, unit casing, and wet coils. See page 94 for
accessory/factory-installed option static pressure information.

2. Extensive motor and electrical testing on these units ensures that the full
range of the motor can be utilized with confidence. Using your fan motors up
to the wattage ratings shown will not result in nuisance tripping or premature

motor failure. Unit warranty will not be affected. See Evaporator-Fan Motor
Performance tables on pages 93 and 94 for additional information.

3. Use of a field-supplied motor may affect wire sizing. Contact your Bryant
representative for details.

4. Interpolation is permissible. Do not extrapolate.

FAN RPM AT MOTOR PULLEY SETTING*; STANDARD MOTOR/DRIVE

UNIT

551B

036
048
060

(single-phase)

060

(3-phase) and 072

090,102

120
150

1090 1055 1025 990 960 925 890 860 825 795 760 ——
1185 1150 1115 1080 1045 1015 980 945 910 875 840 ——

1460 1425 1385 1350 1315 1275 1240 1205 1165 1130 1095 1055 1020

1585 1540 1490 1445 1400 1350 1305 1260 1210 1165 1120 ——

1085 1060 1035 1010 985 960 935 910 890 865 840 ——
1080 1060 1035 1015 990 970 950 925 905 880 860 ——
1260 1220 1185 1155 1130 1100 1075 1045 1015 990 960 930 900

*Approximate fan rpm shown.

1

0

/

2

11

1

/

2

MOTOR PULLEY TURNS OPEN

22

1

/

2

33

1

/

2

44

FAN RPM AT MOTOR PULLEY SETTING*; HIGH-STATIC MOTOR/DRIVE

UNIT

551B

036
048
060
072
090
102
120

1455 1423 1392 1360 1328 1297 1265 1233 1202 1170 1138 1107 1075
1455 1423 1392 1360 1328 1297 1265 1233 1202 1170 1138 1107 1075
1685 1589 1557 1525 1493 1460 1428 1396 1364 1332 1300 ——
1685 1589 1557 1525 1493 1460 1428 1396 1364 1332 1300 ——
1080 1025 1007 988 970 952 933 915 897 878 860 ——
1080 1025 1007 988 970 952 933 915 897 878 860 ——
1130 1112 1087 1062 1037 1212 987 962 937 912 887 862 830

*Approximate fan rpm shown.

1

0

/

2

11

1

/

2

MOTOR PULLEY TURNS OPEN

22

1

/

2

33

1

/

2

44

EVAPORATOR-FAN MOTOR PERFORMANCE — STANDARD MOTOR

UNIT

551B

036

048

060

072

090,102

120

150

LEGEND

Brake Horsepower

Bhp —

*Extensive motor and electrical testing on these units ensures that the full horsepower and watts range of the motors

can be utilized with confidence. Using your fan motors up to the ratings shown in this table will not result in nuisance
tripping or premature motor failure. Unit warranty will not be affected.

UNIT

PHASE

MAXIMUM

CONTINUOUS BHP*

MAXIMUM

OPERATING WATTS*

UNIT VOLTAGE

Single 1.20 1000 208/230 4.9

Three 1.20 1000

Single 1.20 1000 208/230 4.9

Three 1.20 1000

Single 1.30 1650 208/230 10.1

Three 2.40 2120

Three 2.40 2120

Three 2.90 2615

Three 3.70 3775

Three 5.25 4400

1

/

2

1

/

2

55

55

1

/

2

1

/

2

MAXIMUM

AMP DRAW

208/230 4.9

460 2.2
575 2.2

208/230 4.9

460 2.2
575 2.2

208/230 6.7

460 3.0
575 3.0

208/230 6.7

460 3.0
575 3.0

208/230 8.6

460 3.9
575 3.9

208/230 12.2

460 5.5
575 5.5

208/230 17.3

460 8.5
575 8.5

0TFQ004-012
551B036-150

6

6

93

PERFORMANCE DATA (cont)

EVAPORATOR-FAN MOTOR PERFORMANCE — HIGH-STATIC MOTORS

UNIT

551B

036

048

060

072

551B036-150

090,102

0TFQ004-012

120

LEGEND

Brake Horsepower

Bhp —

*Extensive motor and electrical testing on these units ensures that the full horsepower and watts range of the motors

can be utilized with confidence. Using your fan motors up to the ratings shown in this table will not result in nuisance
tripping or premature motor failure. Unit warranty will not be affected.

UNIT

PHASE

Three 2.40 2120

Three 2.40 2120

Three 2.90 2615

Three 2.90 2615

Three 4.20 3775

Three 5.25 4400

MAXIMUM

CONTINUOUS BHP*

MAXIMUM

OPERATING WATTS*

UNIT VOLTAGE

208/230 6.7

460 3.0
575 3.0

208/230 6.7

460 3.0
575 3.0

208/230 8.6

460 3.9
575 3.9

208/230 8.6

460 3.9
575 3.9

208/230 12.2

460 5.5
575 5.5

208/230 17.3

460 8.5
575 8.5

MAXIMUM

AMP DRAW

ELECTRIC HEATERS STATIC PRESSURE DROP (in. wg)

ACCESSORY/FIOP ECONOMIZERS AND

551B036-072

COMPONENT

1 Heater

Module

2 Heater
Modules

EconoMi$er

LEGEND

Factory-Installed Option

FIOP —

900 1200 1400 1600 1800 2000 2200 2400 2600

0.05 0.07 0.09 0.09 0.10 0.11 0.11 0.12 0.13

0.15 0.16 0.16 0.16 0.17 0.17 0.17 0.18 0.18

0.05 0.09 0.13 0.17 0.22 0.27 0.32 0.39 0.45

CFM

ACCESSORY/FIOP ECONOMIZERS AND

ELECTRIC HEATERS STATIC PRESSURE DROP (in. wg)

551B090-150

COMPONENT

1 Heater

Module

2 Heater
Modules

EconoMi$er

LEGEND

Factory-Installed Option

FIOP —

2200 2500 3000 3500 4000 4500 5000 5500 6000

0.02 0.03 0.05 0.065 0.08 0.10 0.12 0.14 0.155

0.03 0.05 0.07 0.09 0.12 0.14 0.16 0.19 0.21

0.07 0.09 0.13 0.18 0.23 0.30 0.36 ——

CFM

EVAPORATOR-FAN MOTOR EFFICIENCY

MOTOR 551B EFFICIENCY

036,048

060
072

090,102

120
150

*Single-phase/3-phase.

Convert watts to bhp using the following formula:

NOTE:

watts input x motor efficiency

bhp =

746

74/84*

FIOP PERFECT HUMIDITY™ DEHUMIDIFICATION

PACKAGE STATIC PRESSURE DROP (in. wg)

UNIT SIZE

551B

036
048
060
072
090
102
120
150

LEGEND

Factory-Installed Option

FIOP —

UNIT NOMINAL

TONS

3 .04 .07 .09
4 .07 .12 .15
5 .09 .15 .21
6 .12 .20 .28

1

/

7

2

1

8

/

2

10 .08 .13 .18

1

/

12

2

CFM PER TON

300 400 500

.08 .13 .18
.10 .15 .22

.11 .18 .26

75

84
80
85
87

94

5000

4000
3000

2000

1000

0

0

0.1

0.2

0.3

0.4

0.5

STATIC PRESSURE (in. wg)

FLOW (cfm)

2 FANS
OPERATING

1 FAN
OPERATING

0.25

0.25

0.20

0.15

0.10

0.05

0.00
0 200 400 600 800 1000

FLOW (CFM)

3 TO 6 TON
7 1/2 TO 12 1/2 TON

STATIC PRESSURE (in. wg)

0.20

0.15

0.10

0.05

STATIC PRESSURE (in. wg)

0.00
0

3 TO 6 TON
7 1/2 TO 12 1/2 TON

500

1000

FLOW (CFM)

Vertical EconoMi$er Barometric Relief

Damper Characteristics

2500

2000

1500

1000

FLOW (cfm)

500

0

0.2

0.3

0.4

0.1

0

STATIC PRESSURE (in. wg)

EconoMi$er Power Exhaust Performance

(551B036-072)

1500 2000

0.5

PERFORMANCE DATA (cont)

Horizontal EconoMi$er Barometric Relief

2 FANS
OPERATING

1 FAN
OPERATING

EconoMi$er Power Exhaust Performance

0TFQ004-012
551B036-150

Damper Characteristics

(551B090-150)

POWER EXHAUST

3 to 6 Ton

1

/2 to 121/2 Ton

7

MOCP —

POWER REQUIREMENTS

SIZE

LEGEND

Maximum Overcurrent Protection

AMPS

(2 Fans Running)

1.40 Amps @ 60 Hz

3.04 Amps @ 60 Hz

MOCP

230 VAC 460 VAC 575 VAC

15.0 amps 15.0 amps 15.0 amps

95

PERFORMANCE DATA (cont)

0.40

0.35

0.30

0.25

0.20

0.15

0.10

0.05

0.00
0 1000 2000 3000 4000 5000

FLOW (CFM)

STATIC PRESSURE (in. wg)

3 TO 6 TON

7 1/2 TO 12 1/2 TON

551B036-150
0TFQ004-012

50

40

30

20

FLOW (CFM)

10

0

0

3 TO 6 TON
7 1/2 TO 12 1/2 TON

0.25

STATIC PRESSURE (in. wg)

0.5

Vertical EconoMi$er Outdoor-Air Leakage

80

60

40

FLOW (CFM)

20

0.75 1

0.35

0.30

0.25

0.20

0.15

0.10

STATIC PRESSURE (in. wg)

0.05

0.00
1200

3 TO 6 TON
7 1/2 TO 12 1/2 TON

2000

2800

FLOW (CFM)

3600 4400

Vertical EconoMi$er Return-Air Pressure Drop

0

0.00 0.10 0.20 0.30 0.40 0.50

3 TO 6 TON

7 1/2 TO 12 1/2 TON

STATIC PRESSURE (in. wg)

Horizontal EconoMi$er Outdoor-Air Leakage

UNIT
551B

036,048
060,072
090,102

120
150

ARI —
dB —

OUTDOOR SOUND POWER (TOTAL UNIT)

ARI RATING

(dB)

63 125 250 500 1000 2000 4000 8000

76 55.9 66.0 64.0 66.2 68.4 64.5 61.7 57.3
80 59.1 68.9 68.7 71.9 74.0 68.9 65.7 59.0
82 62.2 69.3 71.5 74.7 76.2 72.9 68.7 61.5
84 64.6 71.1 73.3 76.9 77.6 73.7 70.6 63.7
86 63.7 69.9 72.5 78.2 81.1 77.3 73.3 66.8

LEGEND

Air Conditioning and Refrigeration Institute
Sound Levels (decibels)

96

Horizontal EconoMi$er Return-Air Pressure Drop

OCTAVE BANDS

UNIT
551B

036

048

060

072

VOLTAGE

(60 Hz)

208/230

(single

phase)

208/230

(3 phase)

460

(3 phase)

208/230

(single

phase)

208/230

(3 phase)

460

(3 phase)

208/230

(single

phase)

208/230

(3 phase)

460

(3 phase)

208/230

(3 phase)

460

(3 phase)

ACCESSORY

kW

4.4 101 —

6.5 102 —

8.7 103 —

10.5 104 —

13.0* 102* 004

4.4 101 —

6.5 102 —

8.7 103 —

10.5 104 —

16.0 105 —

6.0 106 —

8.8 107 —

11.5 108 —

14.0 109 —

4.4 101 —

8.7 103 —

13.0* 102* 004

17.4* 103* 004

21.0* 104* 004

6.5 102 —

8.7 103 —

16.0 105 —

21.0* 104* 002

6.0 106 —

11.5 108 —

14.0 109 —

23.0* 108* —

6.5 102 —

8.7 103 —

13.0* 102* 004

17.4* 103* 004

21.0* 104* 004

6.5 102 —

10.5 104 —

16.0 105 —

21.0* 104* 002

26.5* 105,104 002

6.0 106 —

11.5 108 —

14.0 109 —

23.0* 108* —

25.5* 109,108 —

6.5 102 —

10.5 104 —

16.0 105 —

21.0* 104* 002

26.5* 105,104 002

6.0 106 —

11.5 108 —

14.0 109 —

23.0* 108* —

25.5* 109,108 —

ACCESSORY

HEATER

PART NUMBER

CRHEATER---A00

SINGLE POINT BOX

CRSINGLE---A00

PERFORMANCE DATA (cont)

ELECTRIC HEATING CAPACITIES

ACCESSORY

PART NO .

UNIT

VOLTAGE

551B

*Two heater packages required to provide kW indicated.

†009 for 551B102 units.

**On units with factory-installed outlet, use CRSINGLE014A00.

NOTES:

(60 Hz)

208/230

(3 phase)

090,

102

120,

150

1. The kW ratings shown above are at 240, 480, and 600 v. Use the Multiplica-

460

(3 phase)

575

(3 phase)

208/230

(3 phase)

460

(3 phase)

575

(3 phase)

tion Factors table below to determine heater capacity for your particular
voltage.

HEATER kW

RATING

240

480

600

Example: 32.0 kW (at 240 v) heater on 208 v

= 32.0 (.75 mult factor)
= 24.0 kW capacity at 208 v

2. Heaters are not available for size 036-072 575-v units.

ACCESSORY

kW

10.5 117 006

16.0 110 006

24.8 111 007

32.0 112 007

42.4* 112,117 007†

14.0 116 006

16.5 113 006

27.8 114 006

33.0 115 006

41.7* 114,116 008

17.0 118 006

34.0 119 006

10.5 117 012

16.0 110 012

32.0 112 012

42.4* 112,117 015

50.0* 112,110 015

16.5 113 011

27.8 114 011

33.0 115 011**

41.7* 114,116 014

50.0* 115,113 014

17.0 118 011

34.0 119 011

51.0* 119,118 014

ACCESSORY

HEATER

PART NUMBER

CRHEATER---A00

MULTIPLICATION FACTORS

VOLTAGE DISTRIBUTION

V/3/60

200
208
230
240

440
460
480

550
575
600

MULTIPLICATION

ACCESSORY

SINGLE POINT BOX

PART NO.

CRSINGLE---A00

FAC TO R

.69
.75
.92

1.00
.84

.92

1.00
.84

.92

1.00

0TFQ004-012
551B036-150

LEGEND AND NOTES FOR ELECTRICAL DATA TABLES

FLA —
HACR —
IFM —
LRA —
MCA —
MOCP —
NEC —
OFM —
RLA —
UL —

*Used to determine minimum disconnect per NEC.

†Heater capacity (kW) is based on heater voltage of 208 v, 240 v, 480 v or 575 v.

If power distribution voltage to unit varies form rated heater voltage, heater kW
will vary accordingly.

**Fuse or HACR circuit breaker per NEC.

††Units have 2 condenser-fan motors.

NOTES:

1. In compliance with NEC requirements for multimotor and combination load
equipment (refer to NEC Articles 430 and 440), the overcurrent protective
device for the unit shall be fuse or HACR breaker.

2.

Unbalanced 3-Phase Supply Voltage

Never operate a motor where a phase imbalance in supply voltage is
greater than 2%.

imbalance.
% Voltage ImbalanceExample: Supply voltage is 460-3-60.

= 100 x

LEGEND

Full Load Amps
Heating, Air Conditioning and Refrigeration
Indoor (Evaporator) Fan Motor
Locked Rotor Amps
Minimum Circuit Amps
Maximum Overcurrent Protection
National Electrical Code
Outdoor (Condenser) Fan Motor
Rated Load Amps
Underwriters’ Laboratories

Use the following formula to determine the percent of voltage

max voltage deviation from average voltage

average voltage

Example: Supply voltage is 460-3-60.

AB = 452 v
BC = 464 v
AC = 455 v

Average Voltage =

Determine maximum deviation from average voltage.

(AB) 457 – 452 = 5 v
(BC) 464 – 457 = 7 v
(AC) 457 – 455 = 2 v

452 + 464 + 455

1371

=

3

=

457

3

Maximum deviation is 7 v.
Determine percent of voltage imbalance.

% Voltage Imbalance = 100 x

This amount of phase imbalance is satisfactory as it is below the maximum
allowable 2%.

IMPORTANT:

your local electric utility company immediately.

3. Non-fused disconnect switch cannot be used when rooftop unit electrical
ratings exceed 80 amps.

4. 575-v units have UL, Canada approval only. Electric heaters are not avail­able for 036-072, 575-v units.

= 1.53%

If the supply voltage phase imbalance is more than 2%, contact

7
457

97

ELECTRICAL DATA

STANDARD MOTOR UNITS WITHOUT ELECTRICAL CONVENIENCE OUTLET

551B036-150
0TFQ004-012

UNIT

551B036

(3 Tons)

551B048
(4 Tons)

551B060

(5 Tons)

551B072

(6 Tons)

NOTE:

NOMINAL

VOLTAGE
(V-Ph-Hz)

208/230-1-60 187 254 16.0 88.0 0.7 4.9

208/230-3-60 187 254 10.3 77.0 0.7 4.9

460-3-60 414 508 5.1 39.0 0.4 2.2

575-3-60 518 632 4.2 31.0 0.4 2.2 ——7.3 15** 7 36

208/230-1-60 187 254 23.7 129.0 0.7 4.9

208/230-3-60 187 254 13.5 99.0 0.7 4.9

460-3-60 414 508 7.4 49.5 0.4 2.2

575-3-60 518 632 5.8 40.0 0.4 2.2 ——9.3 15** 9 45

208/230-1-60 187 254 28.8 169.0 1.5 8.8

208/230-3-60 187 254 17.3 123.0 1.5 5.8

460-3-60 414 508 9.0 62.0 0.8 2.6

575-3-60 518 632 7.1 50.0 0.8 2.6 ——11.6 15** 11 67

208/230-3-60 187 254 20.5 156.0 1.4 5.8

460-3-60 414 508 9.6 70.0 0.6 2.6

575-3-60 518 632 7.7 56.0 0.6 2.6 ——12.2 15** 13 78

See legend and notes on page 97.

VOLTAGE

RANGE

Min Max RLA LRA FLA FLA Nominal kW† FLA MCA MOCP FLA LRA

COMPRESSOR OFM IFM ELECTRIC HEAT POWER SUPPLY

—

3.3/ 4.4

4.9/ 6.5

6.5/ 8.7

7.9/10.5

8.7/13.0

—

3.3/ 4.4

4.9/ 6.5

6.5/ 8.7

7.9/10.5

12.0/16.0

—

6.0

8.8

11.5

14.0

—

3.3/ 4.4

6.5/ 8.7

8.7/13.0

13.0/17.4

15.8/21.0

—

4.9/ 6.5

6.5/ 8.7

12.0/16.0

15.8/21.0

—

6.0

11.5

14.0

23.0

—

4.9/ 6.5

6.5/ 8.7

8.7/13.0

13.0/17.4

15.8/21.0

—

4.9/ 6.5

7.9/10.5

12.0/16.0

15.8/21.0

19.9/26.5

—

6.0

11.5

14.0

23.0

25.5

—

4.9/ 6.5

7.9/10.5

12.0/16.0

15.8/21.0

19.9/26.5

—

6.0

11.5

14.0

23.0

25.5

—

15.9/18.3

23.5/27.1

31.4/36.3

37.9/43.1

46.9/54.2

—

9.2/10.6

13.6/15.6

18.1/20.9

21.9/25.3

33.5/38.6

—

7.2

10.6

13.8

16.8

—

15.9/18.3

31.4/36.3

46.9/54.2

62.8/72.5

75.8/87.5

—

13.6/15.6

18.1/20.9

33.4/38.5

43.8/50.5

—

7.2

13.8

16.6

27.7

—

23.5/27.1

31.4/36.3

46.9/54.2

62.8/72.5

75.8/87.5

—

13.6/15.6

21.9/25.3

33.4/38.5

43.8/50.5

55.2/63.8

—

7.2

13.8

16.8

27.7

30.1

—

13.6/15.6

21.9/25.3

33.4/38.5

43.8/50.5

55.2/63.8

—

7.2

13.8

16.8

27.7

30.7

25.6/25.6

26.0/29.0

35.5/40.0

45.4/51.4

53.5/60.0

64.8/73.8

18.5/18.5

18.5/19.4

23.1/25.7

28.8/32.3

33.5/37.7

47.8/54.2

9.0

11.8

16.0

20.0

23.8

35.2/ 35.2

35.2/ 35.2

45.4/ 51.4

64.8/ 73.8

84.7/ 96.8

100.9/115.5

22.5/22.5

23.1/25.7

28.8/32.3

47.8/54.2

60.8/69.3

11.9

11.9

20.0

23.8

37.3

46.3/ 46.3

46.3/ 46.3

50.3/ 56.3

69.7/ 78.7

89.5/101.6

105.8/120.4

28.9/28.9

28.9/28.9

34.6/38.8

48.9/55.4

62.0/70.4

76.3/86.9

14.7

14.7

20.5

24.3

37.8

40.8

32.8/32.8

32.8/32.8

34.6/38.8

48.9/55.4

62.0/70.4

76.3/86.9

15.2

15.2

20.5

24.3

37.8

41.6

35/35**
35/35**
40/40**
50/60**
60/60**
70/80

25/25**
25/25**
25/30**
30/35**
35/40**
50/60**

15**
15**
20**
25**
25**

45/ 45**
45/ 45**
50/ 60**
70/ 80
90/100

110/125

30/30**
30/30**
30/35**
50/60**
70/80

15**
15**
25**
25**
40**

60/ 60**
60/ 60**
60/ 60**
70/ 80
90/110

110/125

35/35**
35/35**
35/40**
50/60**
70/80
80/90

20**
20**
25**
25**
40**
45**

40/40**
40/40**
40/40**
50/60**
70/80
80/90

20**
20**
25**
25**
40**
45**

MINIMUM UNIT

DISCONNECT

SIZE*

25/25
25/27
33/37
42/47
49/55
60/68

18/18
18/18
21/24
26/30
31/35
44/50

34/ 34
34/ 34
42/ 47
60/ 68
78/ 89
93/106

22/22
22/24
26/30
44/50
56/64

45/ 45
45/ 45
46/ 52
64/ 72
82/ 93
97/111

28/28
28/28
32/36
45/51
57/65
70/80

32/32
32/32
32/36
45/51
57/65
70/80

11
15
18
22

12
12
18
22
34

14
14
19
22
35
38

15
15
19
22
35
38

101/101

90/90

9

46

142/142

112/112

57

216/216

168/168

84

200/200

92

98

ELECTRICAL DATA (cont)

STANDARD MOTOR UNITS WITHOUT ELECTRICAL CONVENIENCE OUTLET (cont)

UNIT

551B090††

1

/2 Ton s )

(7

551B102††

1

/2 Ton s )

(8

551B120††

(10 Tons)

551B150††

1

/2 Tons)

(12

See legend and notes on page 97.

NOTE:

NOMINAL
VOLTAGE
(V-Ph-Hz)

208/230-3-60 187 254 12.4 88.0 1.4 7.5

460-3-60 414 508 6.4 44.0 0.7 3.4

575-3-60 518 632 4.8 34.0 0.7 3.4

208/230-3-60 187 254 15.0 99.0 1.4 7.5

460-3-60 414 508 8.2 49.5 0.7 3.4

575-3-60 518 632 5.8 40.0 0.7 3.4

208/230-3-60 187 254 17.3 123.0 1.4 10.6

460-3-60 414 508 9.0 62.0 0.7 4.8

575-3-60 518 632 7.1 50.0 0.7 4.8

208/230-3-60 187 254 19.0 156.0 1.4 15.0

460-3-60 414 508 9.0 70.0 0.7 7.4

575-3-60 518 632 7.4 54.0 0.7 7.4

VOLTAGE

RANGE

Min Max RLA LRA FLA FLA Nominal kW† FLA MCA MOCP FLA LRA

COMPRESSOR

(each)

OFM

IFM ELECTRIC HEAT POWER SUPPLY

(each)

—

7.8/10.5

12.0/16.0

18.6/24.8

24.0/32.0

31.8/42.4

—

14.0

16.5

27.8

33.0

41.7

—

17.0

34.0

—

7.8/10.5

12.0/16.0

18.6/24.8

24.0/32.0

31.8/42.4

—

14.0

16.5

27.8

33.0

41.7

—

17.0

34.0

—

7.8/10.5

12.0/16.0

24.0/32.0

31.8/42.4

37.5/50.0

—

16.5

27.8

33.0

41.7

50.0

—

17.0

34.0

51.0

—

7.8/10.5

12.0/16.0

24.0/32.0

31.8/42.4

37.5/50.0

—

16.5

27.8

33.0

41.7

50.0

—

17.0

34.0

51.0

—

21.7/ 25.0

33.3/ 38.5

51.6/ 57.7

66.7/ 77.0

88.5/102.0

—

16.7

19.8

33.4

39.7

50.2

—

17.1

34.1

—

21.7/ 25.0

33.3/ 38.5

51.6/ 59.7

66.6/ 77.0

88.3/102.0

—

16.7

19.8

33.4

39.7

50.2

—

17.1

34.1

—

21.7/ 25.0

33.3/ 38.5

66.6/ 77.0

88.4/102.0

104.4/120.3

—

19.8

33.4

39.7

50.2

60.1

—

17.1

34.1

51.2

—

21.7/ 25.0

33.3/ 38.5

66.6/ 77.0

88.3/102.0

104.4/120.3

—

19.8

33.4

39.7

50.2

60.1

—

17.1

34.1

51.2

38.2/ 38.2

38.2/ 40.6

51.1/ 57.5

74.0/ 84.0

92.8/105.6

119.9/136.9

44.1/ 44.1

44.1/ 44.1

51.1/ 57.5

74.0/ 84.0

92.8/105.6

119.9/136.9

52.3/ 52.3

52.3/ 52.3

54.9/ 61.4

96.6/109.5

123.7/140.8

143.5/133.5

60.6/ 60.6

60.6/ 60.6

60.6/ 66.9

102.1/115.0

129.2/146.3

149.0/139.0

19.2

25.1

29.1

46.0

53.9

66.9

14.6

24.7

46.1

23.3

25.1

29.1

46.0

53.9

66.9

16.9

24.7

46.1

26.5

30.8

47.8

55.6

68.7

66.1

20.9

26.1

47.5

56.0

29.1

34.1

51.0

58.9

71.9

69.4

23.7

28.7

50.1

58.6

45/ 45**
45/ 45**
60/ 60**

80/ 90
100/110
125/150

25**
30**
30**
50**
60**
70

20**
25**
50**

50/ 50**

50/ 50**

60/ 60**

80/ 90
100/110
125/150

30**
30**
30**
50**
60**
70

20**
25**
50**

60/ 60**

60/ 60**

70/ 70
100/110
125/150
150/150

30**
35**
50**
60**
70
70

25**
30**
50**
60**

70/ 70

70/ 70

90/ 90
110/125
150/150
150/150

35**
40**
60**
60**
80
80

30**
35**
60**
70

MINIMUM UNIT

DISCONNECT

SIZE*

40/ 40
40/ 40
47/ 53

242/242

68/ 77
85/ 97

110/126

20
23
27
42
50
62

15
23
42

46/ 46
46/ 46
47/ 53
68/ 77
85/ 97

110/126

24
24
27
42
50
62

18
23
42

55/ 55
55/ 55
55/ 56

89/101
114/129
132/151

28
28
44
51
63
75

22
24
44
63

64/ 64

64/ 64

64/ 64

94/106
119/135
137/156

31
31
47
54
66
78

25
26
46
66

121

95

264/264

132

107

337/337

170

136

426/426

197

154

0TFQ004-012
551B036-150

99

ELECTRICAL DATA (cont)

STANDARD MOTOR UNITS WITH ELECTRICAL CONVENIENCE OUTLET

551B036-150
0TFQ004-012

UNIT

551B036

(3 Tons)

551B048
(4 Tons)

551B060

(5 Tons)

551B072

(6 Tons)

NOTE:

NOMINAL

VOLTAGE
(V-Ph-Hz)

208/230-1-60 187 254 16.0 88.0 0.7 4.9

208/230-3-60 187 254 10.3 77.0 0.7 4.9

460-3-60 414 508 5.1 39.0 0.4 2.2

575-3-60 518 632 4.2 31.0 0.4 2.2 ——9.5 15** 9 38

208/230-1-60 187 254 23.7 129.0 0.7 4.9

208/230-3-60 187 254 13.5 99.0 0.7 4.9

460-3-60 414 508 7.4 49.5 0.4 2.2

575-3-60 518 632 5.8 40.0 0.4 2.2 ——11.5 15** 11 47

208/230-1-60 187 254 28.8 169.0 1.5 8.8

208/230-3-60 187 254 17.3 123.0 1.5 5.8

460-3-60 414 508 9.0 62.0 0.8 2.6

575-3-60 518 632 7.1 50.0 0.8 2.6 ——13.8 20** 13 69

208/230-3-60 187 254 20.5 156.0 1.4 5.8

460-3-60 414 508 9.6 70.0 0.6 2.6

575-3-60 518 632 7.7 56.0 0.6 2.6 ——14.3 20** 15 79

See legend and notes on page 97.

VOLTAGE

RANGE

Min Max RLA LRA FLA FLA Nominal kW† FLA MCA MOCP FLA LRA

COMPRESSOR OFM IFM ELECTRIC HEAT POWER SUPPLY

—

3.3/ 4.4

4.9/ 6.5

6.5/ 8.7

7.9/10.5

8.7/13.0

—

3.3/ 4.4

4.9/ 6.5

6.5/ 8.7

7.9/10.5

12.0/16.0

—

6.0

8.8

11.5

14.0

—

3.3/ 4.4

6.5/ 8.7

8.7/13.0

13.0/17.4

15.8/21.0

—

4.9/ 6.5

6.5/ 8.7

12.0/16.0

15.8/21.0

—

6.0

11.5

14.0

23.0

—

4.9/ 6.5

6.5/ 8.7

8.7/13.0

13.0/17.4

15.8/21.0

—

4.9/ 6.5

7.9/10.5

12.0/16.0

15.8/21.0

19.9/26.5

—

6.0

11.5

14.0

23.0

25.5

—

4.9/ 6.5

7.9/10.5

12.0/16.0

15.8/21.0

19.9/26.5

—

6.0

11.5

14.0

23.0

25.5

—

15.9/18.3

23.5/27.1

31.4/36.3

37.9/43.1

46.9/54.2

—

9.2/10.6

13.6/15.6

18.1/20.9

21.9/25.3

33.5/38.6

—

7.2

10.6

13.8

16.8

—

15.9/18.3

31.4/36.3

46.9/54.2

62.8/72.5

75.8/87.5

—

13.6/15.6

18.1/20.9

33.4/38.5

43.8/50.5

—

7.2

13.8

16.6

27.7

—

23.5/27.1

31.4/36.3

46.9/54.2

62.8/72.5

75.8/87.5

—

13.6/15.6

21.9/25.3

33.4/38.5

43.8/50.5

55.2/63.8

—

7.2

13.8

16.8

27.7

30.1

—

13.6/15.6

21.9/25.3

33.4/38.5

43.8/50.5

55.2/63.8

—

7.2

13.8

16.8

27.7

30.7

31.6/31.6

31.6/34.0

40.5/45.0

50.4/56.4

58.5/65.0

69.8/78.8

24.5/24.5

24.5/24.5

28.1/30.7

33.8/37.3

38.5/42.7

52.8/59.2

11.7

14.4

18.7

22.7

26.5

41.2/ 41.2

41.2/ 41.2

50.4/ 56.4

69.8/ 78.8

89.7/101.8

105.9/120.5

28.5/28.5

28.5/30.7

33.8/37.3

52.8/59.2

65.8/74.3

14.6

15.1

22.7

26.5

40.0

52.3/ 52.3

52.3/ 52.3

55.3/ 61.3

74.7/ 83.7

94.5/106.6

110.8/125.4

34.9/34.9

34.9/34.9

39.6/43.8

53.9/60.4

67.0/75.4

81.3/91.9

17.4

17.4

23.2

27.0

40.5

43.5

38.8/38.8

38.8/38.8

39.6/43.8

53.9/60.4

67.0/75.4

81.3/91.9

17.9

17.9

23.2

27.0

40.5

44.3

40/40**
40/40**
45/45**
60/60**
60/70
70/80

30/30**
30/30**
30/35**
35/40**
40/45**
60/60**

15**
15**
20**
25**
30**

50/ 50**
50/ 50**
60/ 60**

80/ 90
100/110
110/125

35/35**
35/35**
35/40**
60/60**
70/80

20**
20**
25**
30**
45**

60/ 60**

60/ 60**

60/ 70

80/ 90
100/110
125/150

40/ 40**
40/ 40**
40/ 45**
60/ 70
70/ 80
90/100

20**
20**
25**
30**
45**
45**

45/ 45**
45/ 45**
45/ 45**
60/ 70
70/ 80
90/100

20**
20**
25**
30**
45**
45**

MINIMUM UNIT

DISCONNECT

SIZE*

30/30
30/32
38/42
47/53
55/61
65/73

24/24
24/24
27/29
32/35
36/40
50/55

39/ 39
39/ 39
47/ 53
65/ 73
83/ 95
98/112

27/27
27/29
32/35
50/55
62/69

50/ 50
50/ 50
52/ 57
70/ 78
88/ 99

103/116

34/34
34/34
37/41
51/56
63/70
76/86

37/37
37/37
37/41
51/56
63/70
76/86

11
13
17
21
24

14
14
21
24
37

17
17
21
25
37
40

17
17
21
25
37
41

106/106

95/95

48

147/147

117/117

59

221/221

173/173

87

205

94

100
