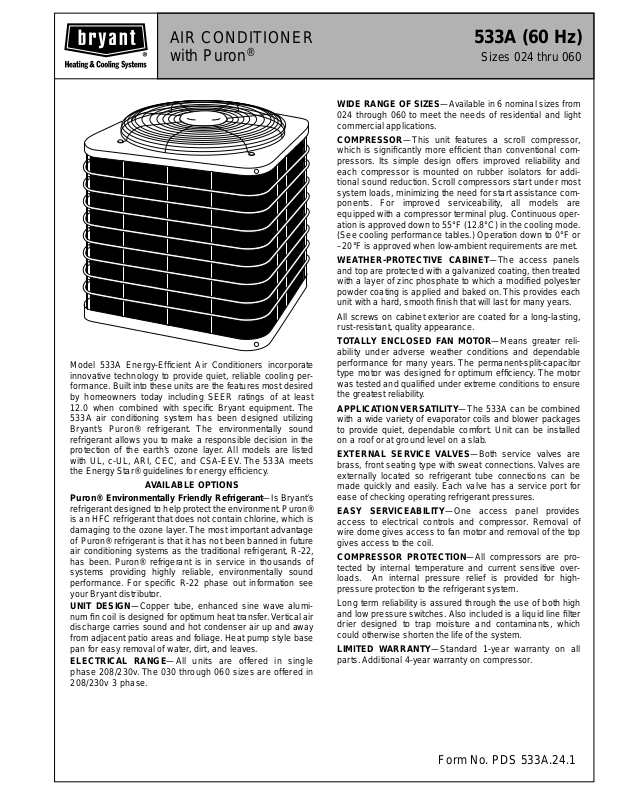

AIR CONDITIONER with Puron
Model 533A Energy-Efficient Air Conditioners incorporate innovative technology to provide quiet, reliable cooling per­formance. Built into these units are the features most desired by homeowners today including SEER ratings of at least
12.0 when combined with specific Bryant equipment. The 533A air conditioning system has been designed utilizing Bryant’s Puron® refrigerant. The environmentally sound refrigerant allows you to make a responsible decision in the protection of the earth’s ozone layer. All models are listed with UL, c-UL, ARI, CEC, and CSA-EEV. The 533A meets the Energy Star® guidelines for energy efficiency.
AVAILABLE OPTIONS
Puron® Environmentally Friendly Refrigerant —Is Bryant’s
refrigerant designed to help protect the environment. Puron® is an HFC refrigerant that does not contain chlorine, which is damaging to the ozone layer. The most important advantage of Puron® refrigerant is that it has not been banned in future air conditioning systems as the traditional refrigerant, R-22, has been. Puron® refrigerant is in service in thousands of systems providing highly reliable, environmentally sound performance. For specific R-22 phase out information see your Bryant distributor.
UNIT DESIGN —Copper tube, enhanced sine wave alumi-
num fin coil is designed for optimum heat transfer. Vertical air discharge carries sound and hot condenser air up and away from adjacent patio areas and foliage. Heat pump style base pan for easy removal of water, dirt, and leaves.
ELECTRICAL RANGE —All units are offered in single
phase 208/230v. The 030 through 060 sizes are offered in 208/230v 3 phase.
®
533A (60 Hz)
Sizes 024 thru 060
WIDE RANGE OF SIZES —Available in 6 nominal sizes from
024 through 060 to meet the needs of residential and light commercial applications.
COMPRESSOR —This unit features a scroll compressor,
which is significantly more efficient than conventional com­pressors. Its simple design offers improved reliability and each compressor is mounted on rubber isolators for addi­tional sound reduction. Scroll compressors start under most system loads, minimizing the need for start assistance com­ponents. For improved serviceability, all models are equipped with a compressor terminal plug. Continuous oper­ation is approved down to 55°F (12.8°C) in the cooling mode. (See cooling performance tables.) Operation down to 0°F or –20°F is approved when low-ambient requirements are met.
WEATHER-PROTECTIVE CABINET —The access panels
and top are protected with a galvanized coating, then treated with a layer of zinc phosphate to which a modified polyester powder coating is applied and baked on. This provides each unit with a hard, smooth finish that will last for many years.
All screws on cabinet exterior are coated for a long-lasting, rust-resistant, quality appearance.
TOTALLY ENCLOSED FAN MOTOR —Means greater reli-
ability under adverse weather conditions and dependable performance for many years. The permanent-split-capacitor type motor was designed for optimum efficiency. The motor was tested and qualified under extreme conditions to ensure the greatest reliability.
APPLICA TION VERSATILITY —The 533A can be combined
with a wide variety of evaporator coils and blower packages to provide quiet, dependable comfort. Unit can be installed on a roof or at ground level on a slab.
EXTERNAL SERVICE VALVES —Both service valves are
brass, front seating type with sweat connections. Valves are externally located so refrigerant tube connections can be made quickly and easily. Each valve has a service port for ease of checking operating refrigerant pressures.
EASY SERVICEABILITY —One access panel provides
access to electrical controls and compressor. Removal of wire dome gives access to fan motor and removal of the top gives access to the coil.
COMPRESSOR PROTECTION —All compressors are pro-
tected by internal temperature and current sensitive over­loads. An internal pressure relief is provided for high­pressure protection to the refrigerant system.
Long term reliability is assured through the use of both high and low pressure switches. Also included is a liquid line filter drier designed to trap moisture and contaminants, which could otherwise shorten the life of the system.
LIMITED WARRANTY —Standard 1-year warranty on all
parts. Additional 4-year warranty on compressor.
Form No. PDS 533A.24.1
DIMENSIONS
PAD
MOUNTING
DIMENSIONSABCDEFGHJKLMN P
A00015
-IN. DIA
8 
/
-IN. DIA KNOCKOUT
-IN. DIA HOLE WITH
8 
/
1
8 
/
FIELD POWER SUPPLY CONN
7
-IN. DIA
8 
/
3
AND 1 
KNOCKOUT
FIELD CONTROL SUPPLY
7
CONN 
HOLE
-IN. DIA LIQUID
8 
/
3
LINE CONN
C
/8"
7
2
/4"
1
1
SQ
A
AIR DISCHARGE
AIR DISCHARGE
AIR IN
M
D DIA VAPOR LINE CONN
P
B
AIR IN
UNIT DIMENSIONS MINIMUM
DIMENSIONS (IN.)
L
NOTES:
1. ALLOW 30" CLEARANCE TO SERVICE SIDE OF UNIT, 48" ABOVE UNIT, 6" ON ONE
SIDE, 12" ON REMAINING SIDE, AND 24" BETWEEN UNITS FOR PROPER AIRFLOW.
2. MINIMUM OUTDOOR OPERATING AMBIENT IN COOLING MODE IS 55°F, MAX. 125°F.
3. SERIES DESIGNATION IS THE 14TH POSITION OF THE UNIT MODEL NUMBER.
K
4. CENTER OF GRAVITY .
J
AIR IN
H
G
F
E
N
AIR IN
3
/8-IN. DIA
TIEDOWN
(2) PLACES
KNOCKOUTS
AIR DISCHARGE
—2—
024 A 22-1/2 31-15/16 3-3/16 5/8 3-11/16 18-1/8 19-3/4 22-1/4 14-3/8 19-9/16 22-1/16 10-1/4 9-1/2 11-5/8 22-1/2 x 22-1/2
SIZE SERIES
UNIT
030 A 22-1/2 29-15/16 3-3/16 3/4 3-11/16 18-1/8 19-3/4 22-1/4 14-3/8 19-9/16 22-1/16 10-1/4 9-1/2 11-1/2 22-1/2 x 22-1/2
036 A 22-1/2 33-15/16 3-3/16 3/4 3-11/16 18-1/8 19-3/4 22-1/4 14-3/8 19-9/16 22-1/16 10-1/4 9-1/2 15-1/2 22-1/2 x 22-1/2
042 A 30 27-15/16 3-1/4 7/8 6-1/2 23-1/2 27-1/4 29-3/4 20 27-1/16 29-9/16 15 13 14-1/2 30 x 30
048 A 30 27-15/16 3-1/4 7/8 6-1/2 23-1/2 27-1/4 29-3/4 20 27-1/16 29-9/16 15 13 14-1/2 30 x 30
060 A 30 39-15/16 3-1/4 7/8 6-1/2 23-1/2 27-1/4 29-3/4 20 27-1/16 29-9/16 15-1/2 14-3/4 14-1/2 30 x 30
RECOMMENDED TUBE DIAMETERS
Liquid Tube Diameter (In.) Vapor Tube Diameter (In.)
UNIT SIZE
0 to 50 Ft
Tube Length Long-Line Applications*
0 to 50 Ft
Tube Length
024 030, 036 3/4 7/8 042, 048 7/8 1-1/8
3/8 3/8
060 1-1/8 1-1/8
* For tube sets greater than 50 ft, consult Residential Split System Application Guideline and Service Manual.
CHECK-FLO-RATER® PISTON
UNIT SIZE–SERIES
024-A 61 030-A 63 036-A 70 042-A 76 048-A 76 060-A 90
* Piston listed is for any approved non-capillary tube coil combination. Piston is shipped
with outdoor unit and must be installed in an approved indoor coil.
PISTON*
IDENTIFICATION NO.
Long-Line Applications*
(Maximum Diameter)
5/8 3/4
CHARGING SUBCOOLING (TXV-TYPE EXPANSION DEVICE*)
UNIT SIZE–SERIES REQUIRED SUBCOOLING (°F)
024-A 10 030-A 15 036-A 12 042-A 15 048-A 15 060-A 15
* Must be a Puron® approved hard shutoff TXV.
As an ENERGY STAR partner, Bryant Heating & Cooling Systems has determined that this prod­uct meets the ENERGY
®
guidelines for
STAR energy efficiency.
®
T
O
D
E
A
I
R
F
I
I
T
A
R
S
E
C
R
E
R
U
T
C
N
A
U
F
U
N
A
M
A
R
C
O
A
M
I
R
C
P
O
Y
R
A
T
I
I
S
T
L
N
D
Y
I
T
I
N
I
O
G
N
I
N
W
G
I
T
E
H
T
Q
N
U
E
I
P
M
0
1
2
D
A
R
N
A
D
CERTIFICATION APPLIES ONLY
WHEN THE COMPLETE SYSTEM
IS LISTED WITH ARI.
REGISTERED QUALITY SYSTEM
—3—
SPECIFICATIONS
UNIT SIZE-SERIES 024-A 030-A/A 036-A/A
Operating Weight (Lb) 143 138 156
ELECTRICAL
Unit Volts—Hertz—Phase 208/230—60—1 Operating Voltage Range* 187—253 Compressor— Rated Load Amps 13.5 14.7/9.6 15.4/12.2
Locked Rotor Amps 61.0 72.5/63.0 83.0/77.0 Condenser Fan Motor—Full Load Amps 0.50 0.80 1.4 Min Unit Ampacity for Wire Sizing 17.4 19.2/12.8 20.7/16.7 Min Wire Size (60°C Copper) AWG† 14 14 12/14 Min Wire Size (75°C Copper) AWG† 14 14 12/14 Max Wire Length (Ft) (60°C Copper)‡ 45 41/70 62/54 Max Wire Length (Ft) (75°C Copper)‡ 43 39/67 59/51 Max Branch Circuit Fuse or
Circuit Breaker Size (Amps) 25 30/20 30/25
COMPRESSOR & REFRIGERANT
Compressor—Type Scroll
Manufacturer Copeland
Temperature & Current Protection Internal Line Break
Refrigerant—Type Puron® (R-410A)
Amount (Lb) 5.00 5.50 5.75
CONDENSER COIL & FAN
Coil Face Area (Sq Ft) 11.59 10.77 12.42 Fins per In.—Rows—Circuits 25—1—2 25—1—2 25—1—2 Fan Motor—HP (PSC) & RPM 1/12 & 1100 1/10 & 1100 1/4 & 1100
Volts—Hertz—Phase 208/230—60—1
Condenser Airflow (CFM) 1800 2400 2400
OPTIONAL EQUIPMENT
Support Feet KSASF0101AAA Coastal Filter KAACF1001MED
Time Delay Relay KAA TD0101TDR Cycle Protector KSACY0101AAA Crankcase Heater KAACH1201AAA Sound Blanket KSASH1801COP KSASH0601COP Start Assist—Capacitor/Relay Type KSAHS1501AAA/NA Start Assist—PTC Type KAACS0201PTC/NA TXV (Hard Shutoff) KSATX0201HSZ KSA TX0301HSZ Piston Body KSAPX0101PIS Filter Drier (Suction Line) KH45LG140 (RCD) Evaporator Freeze Thermostat†† KAAFT0101AAA Liquid-Line Solenoid Valve KAALS0201LLS Winter Start Control†† KAAWS0101AAA Low-Ambient Pressure Switch KSALA0301410 Low-Ambient Controller P251-0083 (RCD) MotorMaster® Control** 32LT660004 (RCD) Ball Bearing Fan Motor HC34GE232(RCD) Thermostat—Auto Changeover,
Non-Programmable, °F/°C, 1-Stage Heat, 1-Stage Cool TSTATBBNAC01-B
Thermostat—Auto Changeover,
7-Day Programmable, °F/°C, 1-Stage Heat, 1-Stage Cool TSTATBBPAC01-B
Thermidistat™ Control—
Programmable Thermostat with Humidity Control TSTATBBPRH01-B
Builder’s Thermostat—Manual Changeover,
Non-Programmable, °F/°C, 1-Stage Heat, 1-Stage Cool TSTATBBBAC01-B
Thermostat, Manual Changeover, 5-2 Day
Programmable, °F/°C, 1-Stage heat/1-Stage Cool TSTATBBSAC01 Outdoor Air Temperature Sensor TSTATXXSEN01-B Backplate for Non-Programmable Thermostat TSTATXXNBP01 Backplate for Programmable Thermostat TSTATXXPBP01 Backplate for Builder’s Thermostat TSTATXXBBP01 Backplate for Standard Programmable
Thermostat TSTATXXSBP01 Thermostat Conversion Kit (4 to 5 wire)—10 Pack TSTATXXCNV10
See notes on page 6.
208/230—60—1/208/230—60—3 208/230—60—1/208/230—60—3
187—253/197—253 187—253/197—253
HC40GE232(RCD)
—4—
SPECIFICATIONS Continued
UNIT SIZE-SERIES 042-A/A 048-A/A 060-A/A
Operating Weight (Lb) 197 203 238
ELECTRICAL
Unit Volts—Hertz—Phase 208/230—60—1/208/230—60—3 Operating Voltage Range* 187—253/197—253 Compressor—Rated Load Amps 18.6/13.5 20.5/14.7 27.6/18.1
Locked Rotor Amps 105.0/77.0 109.0/91.0 158.0/137.0 Condenser Fan Motor—Full Load Amps 1.1 1.4 1.4 Min Unit Ampacity for Wire Sizing 24.4/18.0 27.0/19.8 35.9/24.0 Min Wire Size (60°C Copper) AWG† 10/14 10/12 8/10 Min Wire Size (75°C Copper) AWG† 10/14 10/12 8/10 Max Wire Length (Ft) (60°C Copper)‡ 81/51 74/73 86/96 Max Wire Length (Ft) (75°C Copper)‡ 77/48 70/69 82/91 Max Branch Circuit Fuse or
Circuit Breaker Size (Amps) 40/25 40/30 60/40
COMPRESSOR & REFRIGERANT
Compressor—Type Scroll
Manufacturer Copeland
Temperature & Current Protection Internal Line Break
Refrigerant—Type Puron® (R-410A)
Amount (Lb) 6.38 7.13 9.75
CONDENSER COIL & FAN
Coil Face Area (Sq Ft) 14.8 14.8 22.2 Fins per In.—Rows—Circuits 20—1—2 25—1—2 25—1—3 Fan Motor—HP (PSC) & RPM 1/5 & 825 1/4 & 1100 1/4 & 1100
Volts—Hertz—Phase 208/230—60—1
Condenser Airflow (CFM) 2800 2800 3300
OPTIONAL EQUIPMENT
Support Feet KSASF0101AAA Coastal Filter KAACF1101LRG Time Delay Relay KAA TD0101TDR Cycle Protector KSACY0101AAA Crankcase Heater KAACH1201AAA Sound Blanket KSASH0601COP Start Assist—Capacitor/Relay Type KSAHS1501AAA/NA KSAHS1601AAA/NA Start Assist—PTC Type KAACS0201PTC/NA TXV (Hard Shutoff) KSATX0301HSZ KSA TX0401HSZ KSA TX0501HSZ Piston Body KSAPX0101PIS Filter Drier (Suction Line) KH45LG141 (RCD) Evaporator Freeze Thermostat†† KAAFT0101AAA Liquid-Line Solenoid Valve KAALS0201LLS Winter Start Control†† KAAWS0101AAA Low-Ambient Pressure Switch KSALA0301410 Low-Ambient Controller P251-0083 (RCD) MotorMaster® Control** 32LT660004 (RCD) Ball Bearing Fan Motor HC38GE231 (RCD) Thermostat—Auto Changeover,
Non-Programmable, °F/°C, 1-Stage Heat, 1-Stage Cool TSTATBBNAC01-B
Thermostat—Auto Changeover,
7-Day Programmable, °F/°C, 1-Stage Heat, 1-Stage Cool TSTATBBPAC01-B
Thermidistat™ Control—
Programmable Thermostat with Humidity Control TSTATBBPRH01-B
Builder’s Thermostat—Manual Changeover,
Non-Programmable, °F/°C, 1-Stage Heat, 1-Stage Cool TSTATBBBAC01-B
Thermostat, Manual Changeover, 5-2 Day
Programmable, °F/°C, 1-Stage heat/1-Stage Cool TSTATBBSAC01 Outdoor Air Temperature Sensor TSTATXXSEN01-B Backplate for Non-Programmable Thermostat TSTATXXNBP01 Backplate for Programmable Thermostat TSTATXXPBP01 Backplate for Builder’s Thermostat TSTATXXBBP01
Backplate for Standard Programmable
Thermostat TSTATXXSBP01 Thermostat Conversion Kit (4 to 5 wire)—10 Pack TSTATXXCNV10
See notes on page 6.
KSASH2101COP
—5—
1.
* Permissible limits of the voltage range at which the unit will operate satisfactorily. Operation outside these limits may result in unit failure.
† If wire is applied at ambient greater than 30°C (86°F), consult Table 310-16 of the NEC (ANSI/NFPA 70).
The ampacity of nonmetallic-sheathed cable (NM), trade name ROMEX, shall be that of 60°C (140°F) conductors, per the NEC (ANSI/NFPA 70) Article 336-26. If other than uncoated (non-plated), 60 or 75°C (140 or 167°F) insulation, copper wire (solid wire for 10 AWG and smaller, stranded wire for larger than 10 AWG) is used, consult applicable tables of the NEC (ANSI/NFPA 70).
‡ Length shown is as measured 1 way along wire path between unit and service panel for a voltage drop not to exceed 2%.
** Fan motor with ball bearings required.
†† See low-ambient controller Installation Instructions for application.
N/A — Not Applicable.
NOTE: Copper wire must be used from service disconnect to unit. All motors/compressors contain internal overload protection.
ACCESSORY USAGE GUIDELINE
REQUIRED FOR
LOW-AMBIENT
ACCESSORY
Crankcase Heater Yes Yes No
Evaporator Freeze Thermostat Yes No No
Winter Start Control Yes† No No
Accumulator No No No
Compressor Start Assist
Capacitor and Relay
Low-Ambient Controller,
MotorMaster® Control,
Low-Ambient Pressure Switch
Liquid-Line Solenoid Valve
Ball Bearing Fan Motor Yes‡ No No
or
Wind Baffle See Low-Ambient Instructions No No
Coastal Filter No No Yes
Support Feet Recommended No Recommended
or
Hard Shutoff TXV
APPLICATIONS
(Below 55°F)
Yes Yes No
Yes No No
No
* For tubing line sets greater than 50 ft, refer to Residential Split-System Long-Line Application Guideline and Service Manual. † Only when low-pressure switch is used. ‡ Required for Low-Ambient Controller (full modulation feature) and MotorMaster® Control only.
REQUIRED FOR
LONG-LINE
APPLICATIONS*
(Over 50 Ft)
See Long-Line
Application
Guideline
REQUIRED FOR
SEA COAST APPLICATIONS (Within 2 Miles)
No
ACCESSORY DESCRIPTION AND USAGE (Listed Alphabetically)
Ball Bearing Fan Motor
A fan motor with ball bearings which permits speed reduction while maintaining bearing lubrication.
SUGGESTED USE: Required on all units where Low-Ambient Controller (full modulation feature) or MotorMaster® Control has been added.
2.
Coastal Filter
A mesh screen inserted under the top cover and inside base pan to protect the condenser coil from corrosive atmosphere without restricting airflow.
SUGGESTED USE: In geographic areas where salt damage could occur.
3.
Compressor Start Assist—Capacitor/Relay Type
Start capacitor and start relay which gives a “hard” boost to compressor motor at each start-up.
SUGGESTED USE: Installations where interconnecting tube length exceeds 50 ft.
4.
Compressor Start Assist—PTC Type
Solid-state electrical device which gives a “soft” boost to compressor motor at each start-up.
SUGGESTED USE: Installations with marginal power supply.
5.
Crankcase Heater
An electric resistance heater which mounts to the base of the compressor to keep the lubricant warm during off cycles. Improves compressor lubrication on restart and minimizes chance of refrigerant slugging. May or may not include a thermostat control.
SUGGESTED USE: When interconnecting tube length exceeds 50 ft.
6.
Cycle Protector
Solid state timing device which prevents compressor rapid recycling. Control provides an approximate 5-minute delay after power to the compressor has been interrupted for any reason, including normal room thermostat cycling.
SUGGESTED USE: Installations in areas where power interruptions are frequent.
7.
Evaporator Freeze Thermostat
An SPST temperature actuated switch which stops unit operation when evaporator reaches freeze-up conditions.
SUGGESTED USE: All units where Winter Start Control has been added.
8.
Filter Drier (Suction Line)
A device for removing contaminants from refrigerant circulating in an air conditioner: 1-direction flow.
SUGGESTED USE: All split-system air conditioners.
In areas with high pollution levels.
Installations where outdoor design temperature exceeds 105°F (40.6°C). Installations where Liquid-Line Solenoid Valve or hard shutoff TXV has been added.
When unit will be operated below 55°F (12.8°C) outdoor air temperature. Use with Low-Ambient Controller. All commercial installations.
Where user is likely to “play” with the room thermostat. All commercial installations. Installations where interconnecting tube length exceeds 50 ft. High-rise applications.
—6—
9.
ACCESSORY DESCRIPTION AND USAGE (Listed Alphabetically) Continued
Liquid-Line Solenoid Valve (LSV)
An electrically operated shutoff valve to be installed at the outdoor or indoor unit (depending on tubing configuration) and which stops and starts refrigerant liquid flow in response to compressor operation. Maintains a column of refrigerant liquid ready for action at next compressor operation cycle.
NOTE: Compressor Start Assist—Capacitor/Relay Type must also be used. Do not use with hard shutoff TXV.
SUGGESTED USE: For improved system perf ormance in air conditioners f or certain combinations of indoor and outdoor units. Refer to ARI Unitary Directory.
10.
Low-Ambient Controller
Head pressure controller is a cycle control device activated by a temperature sensor mounted on a header tube of the outdoor coil. It is designed to cycle the outdoor fan motor in order to maintain condensing temperature within normal operating limits (appro ximately100°F/37.8°C high and 60°F/15.5°C low). The control will maintain working head pressure at low-ambient temperatures down to 0°F(–17.8°C) when properly installed.
SUGGESTED USE: Cooling operation at outdoor temperatures below 55°F (12.8°C).
11.
Low-Ambient Pressure Switch
A long life pressure switch which is mounted to outdoor unit service valve. It is designed to cycle the outdoor fan motor in order to maintain head pressure within normal operating limits (approximately 200 psig to 365 psig). The control will maintain working head pressure at low-ambient temperatures down to 0°F (–17.8°C) when properly installed.
SUGGESTED USE: Cooling operation at outdoor temperatures below 55°F (12.8°C).
12.
MotorMaster® Control
A fan speed control device activated by a temperature sensor. Designed to control condenser fan motor speed in response to the saturated, condensing temperature during operation in cooling mode only. For outdoor temperatures down to –20°F (–28.9°C), it maintains condensing temperature at 100°F ± 10°F (37.8°C ± 5.6°C).
SUGGESTED USE: Cooling operation at outdoor temperatures below 55°F (12.8°C).
13.
Outdoor Air Temperature Sensor
A device that allows the temperature at a remote location (outdoors) to be displayed at the thermostat.
SUGGESTED USE: All Bryant programmable thermostats.
14.
Piston Body
This piston body is to be used as a replacement for the FK4C F an Coil R-22 thermostatic expansion v alv e when used with Puron® (R-410A) air conditioner units. Use piston and piston ring shipped with outdoor unit for installations under 50 ft.
SUGGESTED USE: All Puron® air conditioner installations matched with FK4C Fan Coils.
15.
Support Feet
Four stick-on plastic feet which raise the unit 4 in. above the mounting pad. This allows sand, dirt, and other debris to be flushed from the unit base, minimizing corrosion.
SUGGESTED USE: For improved sound ratings.
16.
Thermostatic Expansion Valve (TXV)
A modulating flow-control valve which meters refrigerant liquid flow rate into the evaporator in response to the superheat of the refrigerant gas leaving the evaporator. Kit includes valve, adapter tubes, and exter nal equalizer tube. Hard shutoff valves are available. Do not use with Liquid-Line Solenoid Valve.
NOTE: Compressor Start Assist—Capacitor/Relay Type must also be used. Do not use with Liquid Line Solenoid.
SUGGESTED USE: For improved system performance in cooling mode for certain combinations of indoor and outdoor units. Refer to ARI Unitary Directory.
17.
Time-Delay Relay
An SPST delay relay which briefly continues operation of the indoor blower motor to provide additional cooling after the compressor cycles off.
SUGGESTED USE: For improved efficiency ratings for certain combinations of indoor and outdoor units. Refer to ARI Unitary Directory.
18.
Winter Start Control
An SPST delay relay which bypasses the low-pressure switch for approximately 3 minutes to permit start-up for cooling operation under low-load conditions.
SUGGESTED USE: All air conditioners where Low-Ambient Controller has been added.
In certain long-line applications. Refer to Residential Split System Long-Line Application Guideline and Service Manual.
All commercial installations.
Coastal installations. Windy areas or where debris is normally circulating. Rooftop installations.
Required for use on all zoning systems.
Required for use on all zoning systems.
SOUND POWER (dBA)
UNIT
SIZE
024 49.0 58.5 65.0 72.0 66.4 62.0 57.5 030 49.5 62.5 68.5 72.5 67.5 62.5 56.0 036 57.5 63.5 68.0 75.0 71.0 65.5 58.5 042 54.0 67.5 68.5 72.5 71.5 64.0 60.0 048 57.0 70.5 73.5 75.5 73.0 69.5 64.0 060 70.5 72.5 72.5 75.0 69.5 65.5 61.5
Not listed in ARI; however, tested in accordance with ARI Standard 270-95.
125 250 500 1000 2000 4000 8000
OCTAVE BAND CENTER FREQUENCY (Hz)
SOUND POWER (dBA)
UNIT SIZE W/SOUND BLANKET W/O SOUND BLANKET
024 030 036 042 048 060
74 76 75 77 76 79 77 79 78 80 78 80
—7—
UNIT
SIZE-SERIES
024-A
030-A
See notes on page 13.
COMBINATION RATINGS
SEER
FACTORY-
TOT.
INDOOR
MODEL
CK5A/CK5BA030* 23,000 NONE — 12.00 12.00 10.05
CC5A/CD5AA024 23,000 NONE — 11.70 11.70 9.90
CC5A/CD5AA030 23,000 NONE — 12.00 12.00 9.95 CC5A/CD5AW024 23,000 NONE — 11.70 11.70 9.90 CC5A/CD5AW030 23,000 NONE — 12.00 12.00 9.95
CE3AA024 23,000 NONE — 11.70 11.70 10.00 CE3AA030 23,000 NONE — 12.00 12.00 10.10 CF5AA024 23,000 NONE — 11.70 11.70 9.95 CK3BA024 23,000 NONE — 11.70 11.70 10.05 CK3BA030 23,000 NONE — 12.00 12.00 10.05
CK5A/CK5BA024 23,000 NONE — 11.70 11.70 10.05 CK5A/CK5BW024 23,000 NONE — 11.70 11.70 10.05 CK5A/CK5BW030 23,000 NONE — 12.00 12.00 10.05
F(A,B)4AN(F,C)024 23,200 TDR 12.00 — 12.00 10.10 F(A,B)4AN(F,C)030 23,600 TDR 12.20 — 12.20 10.20
FC4BNF024 23,200 TDR&TXV 12.00 — — 10.05
FC4BNF030 23,600 TDR&TXV 12.20 — — 10.15 FF1(B,C,D)NA024 23,000 TDR 11.70 — 11.70 9.95 FF1(B,C,D)NA030 23,600 TDR 12.00 — 12.00 10.10
FG3AAA024 22,800 NONE — 11.70 11.70 9.80
FK4CNF001 23,400 TDR&TXV 13.00 — — 11.05
FK4CNF002 23,600 TDR&TXV 13.50 — — 11.10
FK4CNF003 23,600 TDR&TXV 13.50 — — 11.30
FV4ANF002 23,600 NONE 13.50 — 13.50 11.10
FV4ANF003 23,600 NONE 13.70 — 13.70 11.30
FX4ANF030 23,600 NONE 12.20 — 12.20 10.25
CC5A/CD5AA024 23,000 TDR 12.50 — 12.50 10.65 CC5A/CD5AA030 23,600 TDR 13.00 — 13.00 10.80
CC5A/CD5AW030 23,600 TDR 13.00 — 13.00 10.80
CK3BA024 23,000 TDR 12.50 — 12.50 10.85
CK3BA030 23,200 TDR 13.00 — 13.00 10.95 CK5A/CK5BA024 23,000 TDR 12.50 — 12.50 10.85 CK5A/CK5BA030 23,600 TDR 13.00 — 13.00 10.95
CK5A/CK5BW030 23,600 TDR 13.00 — 13.00 10.95
CC5A/CD5AW030 23,200 TDR 13.00 — 13.00 10.75 CK5A/CK5BW030 23,200 TDR 13.00 — 13.00 10.80
CC5A/CD5AW024 23,000 TDR 12.50 — 12.50 10.60 CC5A/CD5AW030 23,200 TDR 13.00 — 13.00 10.75
CK3BA024 23,000 TDR 12.50 — 12.50 10.75
CK3BA030 23,200 TDR 13.00 — 13.00 10.80
CK5A/CK5BW024 23,000 TDR 12.50 — 12.50 10.75 CK5A/CK5BW030 23,200 TDR 13.00 — 13.00 10.80
CC5A/CD5AW024 23,000 TDR 12.50 — 12.50 10.80 CC5A/CD5AW030 23,200 TDR 13.00 — 13.00 10.95 CK5A/CK5BW024 23,000 TDR 12.50 — 12.50 10.95 CK5A/CK5BW030 23,200 TDR 13.00 — 13.00 11.00
CK5A/CK5BA036* 29,000 NONE — 12.00 12.00 10.45
CC5A/CD5AA030 28,000 NONE — 11.70 11.70 10.10 CC5A/CD5AA036 29,000 NONE — 12.00 12.00 10.40
CC5A/CD5AW030 28,000 NONE — 11.70 11.70 10.10 CC5A/CD5AW036 29,000 NONE — 12.00 12.00 10.40
CE3AA030 28,000 NONE — 11.70 11.70 10.25
CE3AA036 28,200 NONE — 12.00 12.00 10.30
CF5AA036 28,800 NONE — 12.00 12.00 10.40
CK3BA030 28,000 NONE — 11.70 11.70 10.15
CK3BA036 29,000 NONE — 12.00 12.00 10.45 CK5A/CK5BA030 28,000 NONE — 11.70 11.70 10.15 CK5A/CK5BN036 28,000 NONE — 11.70 11.70 10.45 CK5A/CK5BT036 29,000 NONE — 12.00 12.00 10.45
CK5A/CK5BW030 28,000 NONE — 11.70 11.70 10.15
CK5A/CK5BW036 29,000 NONE — 12.00 12.00 10.45 F(A,B)4AN(F,C)030 27,800 TDR 11.70 — 11.70 10.30 F(A,B)4AN(F,C)036 28,000 TDR 11.70 — 11.70 10.20
FC4BNF030 27,800 TDR&TXV 11.70 — — 10.25 FC4BNF036 28,000 TDR&TXV 11.70 — — 10.10
FF1(B,C,D)NA030 28,400 TDR 11.70 — 11.70 10.15
FG3AAA036 28,400 NONE 11.70 — 11.70 10.25 FK4CNF001 28,000 TDR&TXV 13.00 — — 11.10 FK4CNF002 28,400 TDR&TXV 13.00 — — 11.20 FK4CNF003 28,400 TDR&TXV 13.50 — — 11.55 FK4CNF005 29,200 TDR&TXV 14.00 — — 11.85 FV4ANF002 28,400 NONE 13.20 — 13.20 11.25 FV4ANF003 28,800 NONE 13.70 — 13.70 11.55 FV4ANF005 29,200 NONE 14.00 — 14.00 11.85 FX4ANF030 27,800 NONE 12.00 — 12.00 10.40 FX4ANF036 28,000 NONE 11.70 — 11.70 10.20
CAP.
BTUH
COILS + 333(B,J)AV036060 VARIABLE SPEED FURNACE
COILS + 355MAV042040 VARIABLE SPEED FURNACE
COILS + 355MAV042060 VARIABLE SPEED FURNACE
COILS + 355MAV042080 VARIABLE SPEED FURNACE
SUPPLIED
ENHANCE-
MENT
Standard
Rating
Bryant Gas
Furnace or Accessory
TDR†
Accessory
TXV‡
EER
—8—
UNIT
SIZE-SERIES
030-A
036-A
See notes on page 13.
COMBINATION RATINGS Continued
SEER
FACTORY-
TOT.
INDOOR
MODEL
CC5A/CD5AA030 27,800 TDR 12.50 — 12.50 10.80 CC5A/CD5AA036 29,000 TDR 13.00 — 13.00 11.25
CC5A/CD5AW030 27,800 TDR 12.50 — 12.50 10.80
CK3BA030 27,800 TDR 12.50 — 12.50 10.90
CK3BA036 29,000 TDR 13.00 — 13.00 11.30 CK5A/CK5BA030 27,800 TDR 12.50 — 12.50 10.90 CK5A/CK5BA036 29,000 TDR 13.00 — 13.00 11.30
CK5A/CK5BW030 27,800 TDR 12.50 — 12.50 10.90
CC5A/CD5AW030 27,800 TDR 12.50 — 12.50 11.00 CC5A/CD5AW036 29,000 TDR 13.00 — 13.00 11.45
CK5A/CK5BW030 27,800 TDR 12.50 — 12.50 11.05 CK5A/CK5BW036 29,000 TDR 13.00 — 13.00 11.50
CC5A/CD5AW030 28,000 TDR 12.30 — 12.30 10.60 CC5A/CD5AW036 29,000 TDR 13.00 — 13.00 11.05
CK5A/CK5BW030 28,000 TDR 12.30 — 12.30 10.65 CK5A/CK5BW036 29,000 TDR 13.00 — 13.00 11.10
CC5A/CD5AA036 29,000 TDR 12.70 — 12.70 11.05
CC5A/CD5AW030 28,000 TDR 12.30 — 12.30 10.60
CK3BA030 28,000 TDR 12.30 — 12.30 10.65
CK3BA036 29,000 TDR 13.00 — 13.00 11.10 CK5A/CK5BA036 29,000 TDR 13.00 — 13.00 11.10
CK5A/CK5BW030 28,000 TDR 12.30 — 12.30 10.65
CC5A/CD5AW030 28,000 TDR 12.50 — 12.50 10.70 CC5A/CD5AW036 29,000 TDR 13.00 — 13.00 11.15
CK5A/CK5BW030 28,000 TDR 12.50 — 12.50 10.75 CK5A/CK5BW036 29,000 TDR 13.00 — 13.00 11.20
CC5A/CD5AW030 28,000 TDR 12.30 — 12.30 10.55 CC5A/CD5AW036 29,000 TDR 12.70 — 12.70 11.05
CK5A/CK5BW030 28,000 TDR 12.30 — 12.30 10.60 CK5A/CK5BW036 29,000 TDR 13.00 — 13.00 11.05
CC5A/CD5AW030 28,000 TDR 12.50 — 12.50 10.95 CC5A/CD5AW036 29,000 TDR 13.00 — 13.00 11.40
CK5A/CK5BW030 28,000 TDR 12.50 — 12.50 11.00 CK5A/CK5BW036 29,000 TDR 13.00 — 13.00 11.40
CC5A/CD5AW036 29,000 TDR 13.00 — 13.00 11.35
CK5A/CK5BW036 29,000 TDR 13.00 — 13.00 11.35
CK5A/CK5BA042* 35,000 NONE — 12.00 12.00 10.40
CC5A/CD5AA036 35,000 NONE — 12.00 12.00 10.40 CC5A/CD5AA042 35,000 NONE — 12.00 12.00 10.40
CC5A/CD5AW036 35,000 NONE — 12.00 12.00 10.40 CC5A/CD5AW042 34,800 NONE — 12.00 12.00 10.30
CE3AA036 34,600 NONE — 11.70 11.70 10.25
CE3AA042 35,000 NONE — 12.00 12.00 10.45
CF5AA036 34,800 NONE — 12.00 12.00 10.35
CK3BA036 35,000 NONE — 12.00 12.00 10.40
CK3BA042 35,000 NONE — 12.00 12.00 10.40 CK5A/CK5BA036 35,000 NONE — 12.00 12.00 10.40 CK5A/CK5BN042 35,000 NONE — 12.00 12.00 10.40 CK5A/CK5BT036 35,000 NONE — 12.00 12.00 10.40 CK5A/CK5BT042 35,000 NONE — 12.00 12.00 10.40
CK5A/CK5BW036 35,000 NONE — 12.00 12.00 10.40
F(A,B)4AN(F,B,C)042 35,000 TDR 12.00 — 12.00 10.35
F(A,B)4AN(F,C)036 34,000 TDR 11.50 — 11.50 10.10
FC4BN(F,B)042 35,000 TDR&TXV 12.00 — — 10.30
FC4BNF036 34,000 TDR&TXV 11.50 — — 10.05 FG3AAA036 34,000 NONE — 11.50 11.50 10.20 FK4CNB006 35,400 TDR&TXV 14.00 — — 12.00 FK4CNF001 33,800 TDR&TXV 12.50 — — 10.80 FK4CNF002 34,000 TDR&TXV 12.50 — — 10.85 FK4CNF003 34,200 TDR&TXV 13.00 — — 11.30 FK4CNF005 35,000 TDR&TXV 13.50 — — 11.75 FV4ANB006 35,800 NONE 14.00 — 14.00 12.00 FV4ANF002 34,000 NONE 12.50 — 12.50 10.85 FV4ANF003 34,200 NONE 13.00 — 13.00 11.30 FV4ANF005 35,000 NONE 13.70 — 13.70 11.75 FX4ANF042 34,000 NONE 12.10 — 12.10 10.45
CC5A/CD5AA036 34,600 TDR 12.50 — 12.50 10.90
CK3BA036 34,600 TDR 12.50 — 12.50 10.95 CK5A/CK5BA036 34,600 TDR 12.50 — 12.50 10.95
CAP.
BTUH
COILS + 333(B,J)AV036060 VARIABLE SPEED FURNACE
COILS + 333(B,J)AV048080 VARIABLE SPEED FURNACE
COILS + 355MAV042040 VARIABLE SPEED FURNACE
COILS + 355MAV042060 VARIABLE SPEED FURNACE
COILS + 355MAV042080 VARIABLE SPEED FURNACE
COILS + 355MAV060080 VARIABLE SPEED FURNACE
COILS + 355MAV060100 VARIABLE SPEED FURNACE
COILS + 355MAV060120 VARIABLE SPEED FURNACE
COILS + 333(B,J)AV036060 VARIABLE SPEED FURNACE
SUPPLIED
ENHANCE-
MENT
Standard
Rating
Bryant Gas
Furnace or Accessory
TDR†
Accessory
TXV‡
EER
—9—
UNIT
SIZE-SERIES
036-A
042-A
See notes on page 13.
COMBINATION RATINGS Continued
SEER
FACTORY-
TOT.
INDOOR
MODEL
CC5A/CD5AA042 34,600 TDR 13.00 — 13.00 11.15 CC5A/CD5AW036 34,600 TDR 12.50 — 12.50 11.05 CC5A/CD5AW042 34,600 TDR 13.00 — 13.00 11.05
CK3BA042 34,600 TDR 13.00 — 13.00 11.15
CK5A/CK5BA042 34,600 TDR 13.00 — 13.00 11.15 CK5A/CK5BW036 34,600 TDR 12.50 — 12.50 11.10
CC5A/CD5AA042 34,600 TDR 13.00 — 13.00 11.40 CC5A/CD5AW036 34,600 TDR 13.00 — 13.00 11.35
CK5A/CK5BA042 34,600 TDR 13.00 — 13.00 11.45 CK5A/CK5BW036 34,600 TDR 13.00 — 13.00 11.35
CC5A/CD5AA042 34,600 TDR 13.00 — 13.00 11.30 CC5A/CD5AW036 34,600 TDR 13.00 — 13.00 11.25
CK5A/CK5BA042 34,600 TDR 13.00 — 13.00 11.35 CK5A/CK5BW036 34,600 TDR 13.00 — 13.00 11.30
CC5A/CD5AA042 34,600 TDR 12.50 — 12.50 11.00 CC5A/CD5AW036 34,600 TDR 12.50 — 12.50 10.95
CK5A/CK5BA042 34,600 TDR 12.50 — 12.50 11.05 CK5A/CK5BW036 34,600 TDR 12.50 — 12.50 11.00
CC5A/CD5AA036 34,600 TDR 12.50 — 12.50 10.90
CK3BA036 34,600 TDR 12.50 — 12.50 10.95
CK5A/CK5BA036 34,600 TDR 12.50 — 12.50 10.95
CC5A/CD5AA042 34,600 TDR 12.50 — 12.50 11.10 CC5A/CD5AW036 34,600 TDR 12.50 — 12.50 11.00 CC5A/CD5AW042 34,600 TDR 12.50 — 12.50 11.00
CK5A/CK5BA042 34,600 TDR 12.50 — 12.50 11.15 CK5A/CK5BW036 34,600 TDR 12.50 — 12.50 11.05
CC5A/CD5AW042 34,600 TDR 12.50 — 12.50 10.90
CC5A/CD5AA042 34,600 TDR 12.50 — 12.50 11.00 CC5A/CD5AW036 34,600 TDR 12.50 — 12.50 10.90
CK5A/CK5BA042 34,600 TDR 12.50 — 12.50 11.05 CK5A/CK5BW036 34,600 TDR 12.50 — 12.50 10.95
CC5A/CD5AW042 34,600 TDR 13.00 — 13.00 11.15
CC5A/CD5AA042 34,600 TDR 13.00 — 13.00 11.25 CC5A/CD5AW036 34,600 TDR 13.00 — 13.00 11.20
CK5A/CK5BA042 34,600 TDR 13.00 — 13.00 11.30 CK5A/CK5BW036 34,600 TDR 13.00 — 13.00 11.25
CC5A/CD5AA042 34,600 TDR 13.00 — 13.00 11.20 CC5A/CD5AW036 34,600 TDR 13.00 — 13.00 11.15
CK5A/CK5BA042 34,600 TDR 13.00 — 13.00 11.25 CK5A/CK5BW036 34,600 TDR 13.00 — 13.00 11.20
CK5A/CK5BA048* 40,000 NONE — 12.00 12.00 10.45
CC5A/CD5AA042 39,500 NONE — 11.70 11.70 10.40
CC5A/CD5AC048 39,500 NONE — 11.70 11.70 10.30 CC5A/CD5AW042 39,500 NONE — 11.70 11.70 10.35 CC5A/CD5AW048 40,000 NONE — 12.00 12.00 10.40
CD5AA048 40,000 NONE — 12.00 12.00 10.45 CE3AA042 39,500 NONE — 12.00 12.00 10.45 CE3AA048 40,000 NONE — 12.00 12.00 10.50 CF5AA048 39,500 NONE — 12.00 12.00 10.45 CK3BA042 39,500 NONE — 11.70 11.70 10.40
CK3BA048 40,000 NONE — 12.00 12.00 10.45 CK5A/CK5BA042 39,500 NONE — 11.70 11.70 10.40 CK5A/CK5BN048 39,500 NONE — 12.00 12.00 10.45 CK5A/CK5BT042 39,500 NONE — 11.70 11.70 10.40 CK5A/CK5BT048 40,000 NONE — 12.00 12.00 10.45
CK5A/CK5BW048 40,000 NONE — 12.00 12.00 10.45 F(A,B)4AN(F,B,C)042 39,500 TDR 11.70 — 11.70 10.25 F(A,B)4AN(F,B,C)048 40,000 TDR 12.00 — 12.00 10.40
FC4BN(F,B)042 39,000 TDR&TXV 11.70 — — 10.10 FC4BN(F,B)048 39,500 TDR&TXV 12.00 — — 10.25
FC4BNB054 40,500 TDR&TXV 12.20 — — 10.75 FG3AAA048 40,000 NONE — 11.70 11.70 10.45 FK4CNB006 40,500 TDR&TXV 13.50 — — 11.80 FK4CNF003 38,500 TDR&TXV 12.50 — — 11.10 FK4CNF005 40,000 TDR&TXV 13.00 — — 11.45 FV4ANB006 40,500 NONE 13.70 — 13.70 11.80 FV4ANF003 38,500 NONE 12.70 — 12.70 11.10
CAP.
BTUH
COILS + 333(B,J)AV048080 VARIABLE SPEED FURNACE
COILS + 333(B,J)AV060100 VARIABLE SPEED FURNACE
COILS + 333(B,J)AV060120 VARIABLE SPEED FURNACE
COILS + 355MAV042040 VARIABLE SPEED FURNACE
COILS + 355MAV042060 VARIABLE SPEED FURNACE
COILS + 355MAV042080 VARIABLE SPEED FURNACE
COILS + 355MAV060080 VARIABLE SPEED FURNACE
COILS + 355MAV060100 VARIABLE SPEED FURNACE
COILS + 355MAV060120 VARIABLE SPEED FURNACE
SUPPLIED
ENHANCE-
MENT
Standard
Rating
Bryant Gas
Furnace or Accessory
TDR†
Accessory
TXV‡
EER
—10—
UNIT
SIZE-SERIES
042-A
048-A
See notes on page 13.
COMBINATION RATINGS Continued
SEER
FACTORY-
TOT.
INDOOR
MODEL
FV4ANF005 40,500 NONE 13.20 — 13.20 11.45 FX4ANF042 38,500 NONE 11.70 — 11.70 10.25 FX4ANF048 39,500 NONE 12.00 — 12.00 10.40
CC5A/CD5AA042 39,000 TDR 12.20 — 12.20 10.95
CD5AA048 39,500 TDR 12.50 — 12.50 11.05 CK3BA042 39,000 TDR 12.20 — 12.20 11.00
CK3BA048 39,500 TDR 12.50 — 12.50 11.10 CK5A/CK5BA042 39,000 TDR 12.20 — 12.20 11.00 CK5A/CK5BA048 39,500 TDR 12.50 — 12.50 11.15
CC5A/CD5AA042 39,000 TDR 12.50 — 12.50 11.25
CC5A/CD5AW048 39,500 TDR 13.00 — 13.00 11.30
CK5A/CK5BA042 39,000 TDR 12.50 — 12.50 11.25
CK5A/CK5BW048 39,500 TDR 13.00 — 13.00 11.35
CC5A/CD5AA042 39,000 TDR 12.50 — 12.50 11.20
CC5A/CD5AW048 39,500 TDR 13.00 — 13.00 11.30
CK5A/CK5BA042 39,000 TDR 12.50 — 12.50 11.25
CK5A/CK5BW048 39,500 TDR 13.00 — 13.00 11.35
CC5A/CD5AA042 39,000 TDR 12.20 — 12.20 10.80
CC5A/CD5AW048 39,500 TDR 12.50 — 12.50 10.90
CK5A/CK5BA042 39,000 TDR 12.20 — 12.20 10.80
CK5A/CK5BW048 39,500 TDR 12.50 — 12.50 10.95
CK3BA042 39,000 TDR 12.20 — 12.20 10.80
CC5A/CD5AA042 39,000 TDR 12.50 — 12.50 10.90
CD5AA048 39,500 TDR 12.50 — 12.50 11.00
CK3BA042 39,000 TDR 12.50 — 12.50 10.95
CK3BA048 39,500 TDR 12.50 — 12.50 11.10 CK5A/CK5BA042 39,000 TDR 12.50 — 12.50 10.95 CK5A/CK5BA048 39,500 TDR 12.50 — 12.50 11.10
CC5A/CD5AA042 39,000 TDR 12.20 — 12.20 10.80
CD5AA048 39,500 TDR 12.50 — 12.50 10.90
CK3BA042 39,000 TDR 12.20 — 12.20 10.80
CK3BA048 39,500 TDR 12.50 — 12.50 10.95 CK5A/CK5BA042 39,000 TDR 12.20 — 12.20 10.80 CK5A/CK5BA048 39,500 TDR 12.50 — 12.50 10.95
CC5A/CD5AA042 39,000 TDR 12.50 — 12.50 11.10
CD5AA048 39,500 TDR 12.50 — 12.50 11.20
CK3BA042 39,000 TDR 12.50 — 12.50 11.15 CK5A/CK5BA042 39,000 TDR 12.50 — 12.50 11.15 CK5A/CK5BA048 39,500 TDR 12.50 — 12.50 11.25
CC5A/CD5AA042 39,000 TDR 12.50 — 12.50 11.10
CC5A/CD5AW048 39,500 TDR 12.50 — 12.50 11.20
CK5A/CK5BA042 39,000 TDR 12.50 — 12.50 11.10
CK5A/CK5BW048 39,500 TDR 12.50 — 12.50 11.25
CK5A/CK5BA060* 46,000 NONE — 12.00 12.00 10.45
CC5A/CD5AA060 45,000 NONE — 11.70 11.70 10.20 CC5A/CD5AC048 44,000 NONE — 11.50 11.50 10.10
CC5A/CD5AW048 45,000 NONE — 11.70 11.70 10.20 CC5A/CD5AW060 46,500 NONE — 12.00 12.00 10.40
CD5AA048 45,000 NONE — 11.70 11.70 10.20
CE3AA048 45,000 NONE — 11.70 11.70 10.30
CE3AA060 46,000 NONE — 12.00 12.00 10.45
CF5AA048 44,000 NONE — 11.70 11.70 10.25
CK3BA048 45,000 NONE — 11.70 11.70 10.20
CK3BA060 46,000 NONE — 12.00 12.00 10.45 CK5A/CK5BA048 45,000 NONE — 11.70 11.70 10.20 CK5A/CK5BN060 45,000 NONE — 12.00 12.00 10.55 CK5A/CK5BT048 45,000 NONE — 11.70 11.70 10.20 CK5A/CK5BT060 46,000 NONE — 12.00 12.00 10.45
CK5A/CK5BW048 45,000 NONE — 11.70 11.70 10.20
CK5A/CK5BX060 46,000 NONE — 12.00 12.00 10.55
F(A,B)4AN(F,B,C)048 45,000 TDR 11.70 — 11.70 10.15 F(A,B)4AN(F,B,C)060 46,000 TDR 11.70 — 11.70 10.15
FB4ANB070 46,500 TDR 12.00 — 12.00 10.50 FC4BN(F,B)048 44,500 TDR&TXV 11.50 — — 10.05 FC4BN(F,B)060 45,000 TDR&TXV 11.50 — — 10.05
FC4BNB054 45,000 TDR&TXV 12.00 — — 10.45
FC4BNB070 46,000 TDR&TXV 12.00 — — 10.40
FG3AAA048 44,000 NONE — 11.50 11.50 10.20
CAP.
BTUH
COILS + 333(B,J)AV048080 VARIABLE SPEED FURNACE
COILS + 333(B,J)AV060100 VARIABLE SPEED FURNACE
COILS + 333(B,J)AV060120 VARIABLE SPEED FURNACE
COILS + 355MAV042040 VARIABLE SPEED FURNACE
COILS + 355MAV042060 VARIABLE SPEED FURNACE
COILS + 355MAV042080 VARIABLE SPEED FURNACE
COILS + 355MAV060080 VARIABLE SPEED FURNACE
COILS + 355MAV060100 VARIABLE SPEED FURNACE
COILS + 355MAV060120 VARIABLE SPEED FURNACE
SUPPLIED
ENHANCE-
MENT
Standard
Rating
Bryant Gas
Furnace or Accessory
TDR†
Accessory
TXV‡
EER
—11—
UNIT
SIZE-SERIES
048-A
060-A
See notes on page 13.
COMBINATION RATINGS Continued
SEER
FACTORY-
TOT.
INDOOR
MODEL
FG3AAA060 45,000 NONE — 11.70 11.70 10.30 FK4CNB006 46,000 TDR&TXV 13.20 — — 11.45 FK4CNF005 45,000 TDR&TXV 12.50 — — 11.15 FV4ANB006 46,000 NONE 13.20 — 13.20 11.45 FV4ANF005 45,000 NONE 12.70 — 12.70 11.15 FX4ANB060 45,500 NONE 12.00 — 12.00 10.40 FX4ANF048 45,000 NONE 11.70 — 11.70 10.20
CD5AA048 44,500 TDR 12.00 — 12.00 10.45 CK3BA048 44,500 TDR 12.00 — 12.00 10.50
CK5A/CK5BA048 44,500 TDR 12.00 — 12.00 10.50
CC5A/CD5AA060 45,000 TDR 12.50 — 12.50 10.95 CC5A/CD5AW048 44,500 TDR 12.50 — 12.50 10.90 CC5A/CD5AW060 45,500 TDR 13.00 — 13.00 11.25
CK3BA060 45,000 TDR 12.50 — 12.50 11.25
CK5A/CK5BA060 45,000 TDR 13.00 — 13.00 11.25 CK5A/CK5BW048 44,500 TDR 12.50 — 12.50 10.95
CK5A/CK5BX060 46,000 TDR 13.00 — 13.00 11.40
CC5A/CD5AA060 45,000 TDR 12.50 — 12.50 10.85 CC5A/CD5AW048 44,500 TDR 12.50 — 12.50 10.80 CC5A/CD5AW060 45,500 TDR 12.50 — 12.50 11.15
CK3BA060 45,000 TDR 12.50 — 12.50 11.15
CK5A/CK5BA060 45,000 TDR 12.50 — 12.50 11.15 CK5A/CK5BW048 44,500 TDR 12.50 — 12.50 10.85
CK5A/CK5BX060 46,000 TDR 13.00 — 13.00 11.30
CD5AA048 44,500 TDR 12.00 — 12.00 10.40
CK5A/CK5BA048 44,500 TDR 12.00 — 12.00 10.45
CC5A/CD5AW060 46,000 TDR 12.00 — 12.00 10.55
CK3BA048 44,500 TDR 12.00 — 12.00 10.35 CK5A/CK5BA048 44,500 TDR 12.00 — 12.00 10.35 CK5A/CK5BA060 45,000 TDR 12.00 — 12.00 10.55 CK5A/CK5BX060 45,000 TDR 12.00 — 12.00 10.70
CC5A/CD5AA060 44,500 TDR 12.00 — 12.00 10.60
CC5A/CD5AW060 45,500 TDR 12.50 — 12.50 10.85
CD5AA048 44,500 TDR 12.00 — 12.00 10.60
CK3BA048 44,500 TDR 12.00 — 12.00 10.65 CK5A/CK5BA048 44,500 TDR 12.00 — 12.00 10.65 CK5A/CK5BA060 45,000 TDR 12.00 — 12.00 10.85 CK5A/CK5BX060 46,000 TDR 12.50 — 12.50 11.05
CC5A/CD5AA060 44,500 TDR 12.00 — 12.00 10.65
CC5A/CD5AW048 45,000 TDR 12.00 — 12.00 10.65 CC5A/CD5AW060 45,500 TDR 12.50 — 12.50 10.90
CK5A/CK5BA060 45,000 TDR 12.00 — 12.00 10.90
CK5A/CK5BW048 44,500 TDR 12.00 — 12.00 10.70
CK5A/CK5BX060 46,000 TDR 12.50 — 12.50 11.05
CK5A/CK5BA060* 58,000 NONE — 12.00 12.00 10.30
CC5A/CD5AA060 55,000 NONE — 11.50 11.50 10.10
CC5A/CD5AW060 58,000 NONE — 11.70 11.70 10.30
CE3AA060 57,000 NONE — 12.00 12.00 10.40
CK3BA060 57,000 NONE — 12.00 12.00 10.30 CK5A/CK5BT060 57,000 NONE — 12.00 12.00 10.30 CK5A/CK5BX060 58,000 NONE — 12.00 12.00 10.45
F(A,B)4AN(F,B,C)060 57,000 TDR 11.50 — 11.50 10.00
FB4ANB070 58,000 TDR 12.00 — 12.00 10.40
FC4BN(F,B)060 57,000 TDR&TXV 11.50 — — 9.85
FC4BNB070 58,000 TDR&TXV 12.00 — — 10.30 FG3AAA060 56,000 NONE — 11.50 11.50 10.20 FK4CNB006 58,000 TDR&TXV 12.50 — — 10.90 FV4ANB006 58,000 NONE 12.50 — 12.50 10.85 FX4ANB060 56,000 NONE 12.00 — 12.00 10.25
CC5A/CD5AA060 56,000 TDR 12.00 — 12.00 10.30
CC5A/CD5AW060 58,000 TDR 12.00 — 12.00 10.65
CK3BA060 58,000 TDR 12.00 — 12.00 10.55 CK5A/CK5BA060 58,000 TDR 12.00 — 12.00 10.55 CK5A/CK5BX060 58,000 TDR 12.50 — 12.50 10.85
CC5A/CD5AA060 56,000 TDR 11.70 — 11.70 10.20
CC5A/CD5AW060 58,000 TDR 12.00 — 12.00 10.55
CK3BA060 58,000 TDR 12.00 — 12.00 10.45 CK5A/CK5BA060 58,000 TDR 12.00 — 12.00 10.45 CK5A/CK5BX060 58,000 TDR 12.50 — 12.50 10.75
CAP.
BTUH
COILS + 333(B,J)AV048080 VARIABLE SPEED FURNACE
COILS + 333(B,J)AV060100 VARIABLE SPEED FURNACE
COILS + 333(B,J)AV060120 VARIABLE SPEED FURNACE
COILS + 355MAV042080 VARIABLE SPEED FURNACE
COILS + 355MAV060080 VARIABLE SPEED FURNACE
COILS + 355MAV060100 VARIABLE SPEED FURNACE
COILS + 355MAV060120 VARIABLE SPEED FURNACE
COILS + 333(B,J)AV060100 VARIABLE SPEED FURNACE
COILS + 333(B,J)AV060120 VARIABLE SPEED FURNACE
SUPPLIED
ENHANCE-
MENT
Standard
Rating
Bryant Gas
Furnace or Accessory
TDR†
Accessory
TXV‡
EER
—12—
* Tested combination.
† In most cases, only 1 method should be used to achieve TDR function. Using more than 1 method in a system may cause degradation in performance. Use
either the accessory Time-Delay Relay KAATD0101TDR or a furnace equipped with TDR. Most Bryant furnaces are equipped with TDR.
‡ Based on computer simulation. TXV must be Puron® compatible and hard shutoff type.
** Ratings shown are with R-22 TXV replaced with Puron® TXV.
EER — Energy Efficiency Ratio SEER — Seasonal Energy Efficiency Ratio TDR — Time-Delay Relay TXV — Thermostatic Expansion Valve NOTES: 1. Ratings are net values reflecting the effects of circulating fan motor heat. Supplemental electric heat is not included.
2. Tested outdoor/indoor combinations have been tested in accordance with DOE test procedures for electric air conditioners. Ratings for other com­binations are determined under DOE computer simulation procedures.
3. Determine actual CFM values obtainable for your system by referring to fan performance data in fan coil or furnace coil literature.
4. Do not apply with capillary tube coils as performance and reliability are significantly affected.
—13—
DETAILED COOLING CAPACITIES*
EVAP
AIR
CFM EWB
75 85 95 105 115 125
Sys
Capacity
MBtuh†
Capacity
MBtuh†
Total Kw**
CONDENSER ENTERING AIR TEMPERATURES °F
Total
Sys
Kw**
Capacity
MBtuh†
Total Kw**
Sys
Capacity
MBtuh†
Total Kw**
Sys
Capacity
MBtuh†
Total
Sys
Kw**
Capacity
MBtuh†
533AN024-A Outdoor Section With CK5AA030 Indoor Section
72 26.7 13.0 1.84 25.7 12.6 2.06 24.6 12.2 2.29 23.3 11.8 2.56 22.0 11.3 2.85 20.4 10.8 3.17 67 25.2 16.7 1.83 24.1 16.3 2.04 22.8 15.8 2.27 21.5 15.2 2.53 19.9 14.6 2.80 17.3 13.6 3.08
700
63†† 22.4 15.9 1.80 20.9 15.2 1.99 19.3 14.4 2.21 18.3 14.0 2.46 17.3 13.6 2.74 15.3 12.8 3.02
62 21.9 19.5 1.79 20.4 18.8 1.99 18.9 18.1 2.21 18.0 17.7 2.46 17.1 17.1 2.73 15.7 15.7 3.03 57 20.6 20.6 1.77 19.3 19.3 1.97 18.6 18.6 2.20 17.9 17.9 2.45 17.0 17.0 2.73 15.9 15.9 3.04
72 26.9 13.3 1.88 26.0 13.0 2.09 24.9 12.6 2.33 23.8 12.3 2.60 22.3 11.8 2.89 20.7 11.4 3.21 67 25.4 17.4 1.86 24.3 17.1 2.08 23.2 16.7 2.31 21.9 16.2 2.57 20.2 15.6 2.84 17.6 14.6 3.12
800
63†† 23.7 17.1 1.85 22.1 16.4 2.05 20.4 15.7 2.27 19.5 15.3 2.52 17.9 14.6 2.79 15.8 13.8 3.07
62 23.2 21.3 1.84 21.7 20.6 2.04 20.2 19.8 2.26 19.3 19.3 2.52 18.5 18.5 2.80 16.6 16.6 3.09 57 22.1 22.1 1.83 20.8 20.8 2.03 20.0 20.0 2.26 19.2 19.2 2.52 18.4 18.4 2.80 16.6 16.6 3.09
72 27.5 13.8 1.92 26.4 13.5 2.14 25.3 13.2 2.38 23.9 12.7 2.64 22.5 12.3 2.93 20.9 11.9 3.26 67 25.6 18.1 1.90 24.4 17.7 2.11 23.4 17.4 2.35 22.1 17.1 2.61 20.5 16.5 2.89 18.0 15.6 3.17
900
63†† 24.4 18.1 1.89 23.1 17.6 2.10 21.5 16.9 2.32 20.5 16.5 2.58 18.3 15.6 2.83 16.3 14.8 3.12
62 24.1 22.8 1.89 22.8 22.2 2.10 21.4 21.4 2.32 20.6 20.6 2.58 19.0 19.0 2.85 17.3 17.3 3.15 57 23.4 23.4 1.88 22.0 22.0 2.08 21.3 21.3 2.32 20.4 20.4 2.58 19.0 19.0 2.85 17.1 17.1 3.15
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
CC5A/CD5AA 024 1.00 1.00 FX4ANF 030 1.03 0.98
030 1.00 1.00
CC5A/CD5AW 024 1.00 1.00 CC5A/CD5AA 024 1.00 0.92
030 1.00 1.00 030 1.03 0.92
CE3AA 024 1.00 1.00 CC5A/CD5AW 030 1.03 0.92
030 1.00 1.00 CK3BA 024 1.00 0.92 CF5AA 024 1.00 1.00 030 1.01 0.92 CK3BA 024 1.00 1.00 CK5A/CK5BA 024 1.00 0.92
030 1.00 1.00 030 1.03 0.92
CK5A/CK5BA 024 1.00 1.00 CK5A/CK5BW 030 1.03 0.92
030 1.00 1.00
CK5A/CK5BW 024 1.00 1.00 CC5A/CD5AW 030 1.01 0.94
030 1.00 1.00 CK5A/CK5BW 030 1.01 0.94
F(A,B)4AN(F,C) 024 1.01 0.99
030 1.03 0.99 CC5A/CD5AW 024 1.00 0.95
FC4BNF 024 1.01 0.98 030 1.01 0.94
030 1.03 0.98 CK3BA 024 1.00 0.95
FF1(B,C,D)NA 024 1.00 1.01 030 1.01 0.94
030 1.03 1.01 CK5A/CK5BW 024 1.00 0.95
FG3AAA 024 0.99 1.00 030 1.01 0.94 FK4CNF 001 1.02 0.91
002 1.03 0.91 CC5A/CD5AW 024 1.00 0.93
003 1.03 0.90 030 1.01 0.93
FV4ANF 002 1.03 0.91 CK5A/CK5BW 024 1.00 0.93
003 1.03 0.90 030 1.01 0.93
See notes on page 19.
Capacity Power Capacity Power
Cooling
Indoor
Section Size
COILS + 333(B,J)AV036060 VARIABLE SPEED FURNACE
COILS + 355MAV042040 VARIABLE SPEED FURNACE
COILS + 355MAV042060 VARIABLE SPEED FURNACE
COILS + 355MAV042080 VARIABLE SPEED FURNACE
Cooling
Total
Sys
Kw**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
—14—
DETAILED COOLING CAPACITIES* Continued
EVAP
AIR
CFM EWB
75 85 95 105 115 125
Capacity
MBtuh†
Total
Sys
Kw**
Capacity
MBtuh†
CONDENSER ENTERING AIR TEMPERATURES °F
Total
Sys
Kw**
Capacity
MBtuh†
Total
Sys
Kw**
Capacity
MBtuh†
Total
Sys
Kw**
Capacity
MBtuh†
Total
Sys
Kw**
Capacity
MBtuh†
533AN030-A Outdoor Section With CK5AA036 Indoor Section
72 33.8 16.9 2.24 32.6 16.5 2.49 31.2 16.0 2.76 29.5 15.5 3.07 27.7 14.9 3.41 25.3 14.1 3.78 67 31.7 22.1 2.22 30.3 21.6 2.46 28.8 21.0 2.73 27.0 20.3 3.03 24.4 19.3 3.34 21.4 18.1 3.68
1875
63†† 29.1 21.3 2.19 27.1 20.5 2.42 25.0 19.6 2.67 22.8 18.6 2.95 20.4 17.6 3.26 18.9 17.0 3.62
62 28.5 26.6 2.18 26.6 25.6 2.41 24.7 24.6 2.66 22.8 22.8 2.95 21.8 21.8 3.28 20.3 20.3 3.65 57 27.1 27.1 2.17 25.4 25.4 2.39 24.5 24.5 2.66 23.5 23.5 2.96 22.4 22.4 3.30 20.3 20.3 3.65
72 34.1 17.4 2.30 33.0 17.2 2.54 31.6 16.8 2.82 29.9 16.3 3.12 28.0 15.7 3.47 25.5 14.9 3.84 67 32.1 23.2 2.27 30.8 22.9 2.52 29.0 22.2 2.78 27.4 21.7 3.08 24.7 20.7 3.40 21.7 19.5 3.74
1000
63†† 30.2 23.0 2.25 28.2 22.1 2.48 26.0 21.2 2.74 23.7 20.2 3.02 21.3 19.2 3.32 19.5 18.5 3.68
62 30.0 28.9 2.25 28.1 27.9 2.48 26.3 26.3 2.74 24.6 24.6 3.03 23.4 23.4 3.37 21.0 21.0 3.72 57 29.1 29.1 2.24 27.3 27.3 2.47 26.4 26.4 2.74 25.3 25.3 3.05 23.3 23.3 3.37 21.0 21.0 3.72
72 34.3 18.0 2.35 33.3 17.8 2.60 31.8 17.4 2.87 30.2 17.0 3.18 28.2 16.4 3.52 25.8 15.7 3.90 67 32.4 24.4 2.32 31.0 24.0 2.56 29.3 23.5 2.83 27.7 23.0 3.14 25.2 22.1 3.46 21.9 20.8 3.80
1125
63†† 30.6 24.3 2.31 29.0 23.6 2.54 26.9 22.7 2.80 24.5 21.7 3.08 22.2 20.7 3.39 19.9 19.6 3.74
62 30.7 30.6 2.31 29.4 29.4 2.55 27.7 27.7 2.81 26.1 26.1 3.11 24.4 24.4 3.44 21.6 21.6 3.79 57 30.7 30.7 2.31 29.0 29.0 2.54 28.0 28.0 2.82 26.5 26.5 3.12 24.1 24.1 3.43 21.7 21.7 3.79
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
CC5A/CD5AA 030 0.97 0.99 CK5A/CK5BA 036 1.00 0.93
036 1.00 1.00 CK5A/CK5BW 030 0.96 0.93
CC5A/CD5AW 030 0.97 0.99
036 1.00 1.00 CC5A/CD5AW 030 0.96 0.92
CE3AA 030 0.97 1.00 036 1.00 0.91
036 0.97 1.00 CK5A/CK5BW 030 0.96 0.92 CF5AA 036 0.99 1.00 036 1.00 0.91 CK3BA 030 0.97 0.99
036 1.00 1.00 CC5A/CD5AW 030 0.97 0.96
CK5A/CK5BA 030 0.97 0.99 036 1.00 0.95
036 1.00 1.00 CK5A/CK5BW 030 0.97 0.96
CK5A/CK5BN 036 0.97 1.00 036 1.00 0.95
CK5A/CK5BT 036 1.00 1.00
CK5A/CK5BW 030 0.97 0.99 CC5A/CD5AA 036 1.00 0.96
036 1.00 1.00 CC5A/CD5AW 030 0.97 0.96
F(A,B)4AN(F,C) 030 0.96 0.99 CK3BA 030 0.97 0.96
036 0.97 1.01 036 1.00 0.96
FC4BNF 030 0.96 0.98 CK5A/CK5BA 036 1.00 0.96
036 0.97 1.00 CK5A/CK5BW 030 0.97 0.96
FF1(B,C,D)NA 030 0.98 1.01
FG3AAA 036 0.98 1.00 CC5A/CD5AW 030 0.97 0.95 FK4CNF 001 0.97 0.92 036 1.00 0.95
002 0.98 0.92 CK5A/CK5BW 030 0.97 0.95
003 0.98 0.90 036 1.00 0.95
005 1.01 0.90
FV4ANF 002 0.98 0.92 CC5A/CD5AW 030 0.97 0.96
003 0.99 0.90 036 1.00 0.96
005 1.01 0.90 CK5A/CK5BW 030 0.97 0.96
FX4ANF 030 0.96 0.98 036 1.00 0.96
036 0.97 1.00
COILS + 333(B,J)AV036060 VARIABLE SPEED FURNACE CC5A/CD5AW 030 0.97 0.94
CC5A/CD5AA 030 0.96 0.93 036 1.00 0.93
036 1.00 0.92 CK5A/CK5BW 030 0.97 0.94
CC5A/CD5AW 030 0.96 0.93 036 1.00 0.93
CK3BA 030 0.96 0.93
036 1.00 0.93 CC5A/CD5AW 036 1.00 0.94
CK5A/CK5BA 030 0.96 0.93 CK5A/CK5BW 036 1.00 0.94
See notes on page 19.
Capacity Power Capacity Power
Cooling
Indoor
Section Size
COILS + 333(B,J)AV048080 VARIABLE SPEED FURNACE
COILS + 355MAV042040 VARIABLE SPEED FURNACE
COILS + 355MAV042060 VARIABLE SPEED FURNACE
COILS + 355MAV042080 VARIABLE SPEED FURNACE
COILS + 355MAV060080 VARIABLE SPEED FURNACE
COILS + 355MAV060100 VARIABLE SPEED FURNACE
COILS + 355MAV060120 VARIABLE SPEED FURNACE
Cooling
Total
Sys
Kw**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
—15—
DETAILED COOLING CAPACITIES* Continued
EVAP
AIR
CFM EWB
75 85 95 105 115 125
Sys
Capacity
MBtuh†
Capacity
MBtuh†
Total Kw**
CONDENSER ENTERING AIR TEMPERATURES °F
Total
Sys
Kw**
Capacity
MBtuh†
Total Kw**
Sys
Capacity
MBtuh†
Total Kw**
Sys
Capacity
MBtuh†
Total
Sys
Kw**
Capacity
MBtuh†
533AN036-A Outdoor Section With CK5AA042 Indoor Section
72 40.6 20.1 2.70 39.1 19.6 3.00 37.3 19.0 3.33 35.3 18.3 3.70 33.0 17.6 4.08 30.5 16.8 4.52 67 38.2 26.3 2.68 36.3 25.5 2.98 34.5 24.8 3.30 32.4 24.0 3.66 30.2 23.2 4.04 26.5 21.9 4.43
1050
63†† 35.9 25.8 2.67 34.1 25.1 2.96 32.0 24.1 3.27 29.6 23.1 3.62 26.8 21.9 3.97 23.4 20.5 4.35
62 35.4 32.2 2.67 32.6 30.8 2.94 29.7 29.4 3.24 28.2 28.2 3.59 26.8 26.8 3.98 24.9 24.9 4.39 57 33.6 33.6 2.64 31.7 31.7 2.92 29.6 29.6 3.23 28.3 28.3 3.59 26.9 26.9 3.98 24.6 24.6 4.38
72 41.1 20.8 2.76 39.6 20.3 3.06 37.8 19.8 3.40 35.7 19.2 3.76 33.4 18.4 4.15 30.8 17.7 4.59 67 38.9 27.8 2.75 36.9 27.0 3.04 35.0 26.4 3.37 32.9 25.6 3.72 30.6 24.9 4.11 26.9 23.5 4.50
1200
63†† 36.6 27.4 2.73 34.7 26.6 3.02 32.5 25.7 3.34 30.1 24.7 3.68 27.2 23.5 4.04 23.7 22.0 4.42
62 36.2 34.5 2.73 33.4 33.0 3.00 31.7 31.7 3.32 30.2 30.2 3.68 28.7 28.7 4.07 25.9 25.9 4.47 57 35.0 35.0 2.71 33.9 33.9 3.01 31.8 31.8 3.32 30.5 30.5 3.69 29.0 29.0 4.08 25.9 25.9 4.47
72 41.4 21.4 2.82 39.9 21.0 3.13 38.1 20.5 3.46 36.0 19.9 3.82 33.7 19.2 4.22 31.0 18.6 4.65 67 39.1 29.0 2.80 37.4 28.5 3.10 35.4 27.8 3.43 33.3 27.1 3.78 31.0 26.5 4.18 27.5 25.1 4.58
1350
63†† 37.0 28.8 2.79 35.2 28.1 3.08 32.9 27.1 3.40 30.4 26.1 3.74 27.5 24.9 4.11 24.1 23.4 4.49
62 37.0 36.5 2.79 35.4 35.4 3.09 33.6 33.6 3.41 31.8 31.8 3.76 29.8 29.8 4.16 26.7 26.7 4.56 57 36.9 36.9 2.79 35.4 35.4 3.09 33.7 33.7 3.41 31.8 31.8 3.76 29.8 29.8 4.16 27.0 27.0 4.56
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
CC5A/CD5AA 036 1.00 1.00 COILS + 333(B,J)AV060100 VARIABLE SPEED FURNACE
042 1.00 1.00 CC5A/CD5AA 042 0.99 0.92
CC5A/CD5AW 036 1.00 1.00 CC5A/CD5AW 036 0.99 0.92
042 0.99 1.00 CK5A/CK5BA 042 0.99 0.92
CE3AA 036 0.99 1.00 CK5A/CK5BW 036 0.99 0.92
042 1.00 1.00 CF5AA 036 0.99 1.00 CC5A/CD5AA 042 0.99 0.92 CK3BA 036 1.00 1.00 CC5A/CD5AW 036 0.99 0.92
042 1.00 1.00 CK5A/CK5BA 042 0.99 0.92
CK5A/CK5BA 036 1.00 1.00 CK5A/CK5BW 036 0.99 0.92 CK5A/CK5BN 042 1.00 1.00 CK5A/CK5BT 036 1.00 1.00 CC5A/CD5AA 042 0.99 0.93
042 1.00 1.00 CC5A/CD5AW 036 0.99 0.94
CK5A/CK5BW 036 1.00 1.00 CK5A/CK5BA 042 0.99 0.93
F(A,B)4AN(F,B,C) 042 1.00 1.01 CK5A/CK5BW 036 0.99 0.94
F(A,B)4AN(F,C) 036 0.97 1.02
FC4BN(F,B) 042 1.00 1.00 CC5A/CD5AA 036 0.99 0.94
FCBNF 036 0.97 1.01 CK3BA 036 0.99 0.94
FG3AAA 036 0.97 1.00 CK5A/CK5BA 036 0.99 0.94 FK4CNB 006 1.01 0.90 FK4CNF 001 0.97 0.94 CC5A/CD5AA 042 0.99 0.93
002 0.97 0.94 CC5A/CD5AW 036 0.99 0.93
003 0.98 0.91 042 0.99 0.93
005 1.00 0.91 CK5A/CK5BA 042 0.99 0.93
FV4ANB 006 1.02 0.90 CK5A/CK5BW 036 0.99 0.93 FV4ANF 002 0.97 0.94
003 0.98 0.91 CC5A/CD5AA 042 0.99 0.93
005 1.00 0.91 CC5A/CD5AW 036 0.99 0.94
FX4ANF 042 0.97 1.00 042 0.99 0.93
COILS + 333(B,J)AV036060 VARIABLE SPEED FURNACE CK5A/CK5BA 042 0.99 0.94
CC5A/CD5AA 036 0.99 0.95 CK5A/CK5BW 036 0.99 0.94
CK3BA 036 0.99 0.95
CK5A/CK5BA 036 0.99 0.95 CC5A/CD5AA 042 0.99 0.92
COILS + 333(B,J)AV048080 VARIABLE SPEED FURNACE CC5A/CD5AW 036 0.99 0.92
CC5A/CD5AA 042 0.99 0.93 042 0.99 0.92
CC5A/CD5AW 036 0.99 0.94 CK5A/CK5BA 042 0.99 0.92
042 0.99 0.93 CK5A/CK5BW 036 0.99 0.92 CK3BA 042 0.99 0.93
CK5A/CK5BA 042 0.99 0.93 CC5A/CD5AA 042 0.99 0.92
CK5A/CK5BW 036 0.99 0.94 CC5A/CD5AW 036 0.99 0.92
— — — CK5A/CK5BA 042 0.99 0.92
See notes on page 19.
Capacity Power Capacity Power
Cooling
Indoor
Section Size
COILS + 333(B,J)AV060120 VARIABLE SPEED FURNACE
COILS + 355MAV042040 VARIABLE SPEED FURNACE
COILS + 355MAV042060 VARIABLE SPEED FURNACE
COILS + 355MAV042080 VARIABLE SPEED FURNACE
COILS + 355MAV060080 VARIABLE SPEED FURNACE
COILS + 355MAV060100 VARIABLE SPEED FURNACE
COILS + 355MAV060120 VARIABLE SPEED FURNACE
CK5A/CK5BW 036 0.99 0.92
Cooling
Total
Sys
Kw**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
—16—
DETAILED COOLING CAPACITIES* Continued
EVAP
AIR
CFM EWB
75 85 95 105 115 125
Capacity
MBtuh†
Total
Sys
Kw**
Capacity
MBtuh†
CONDENSER ENTERING AIR TEMPERATURES °F
Total
Sys
Kw**
Capacity
MBtuh†
Total
Sys
Kw**
Capacity
MBtuh†
Total
Sys
Kw**
Capacity
MBtuh†
Total
Sys
Kw**
Capacity
MBtuh†
533AN042-A Outdoor Section With CK5AA048 Indoor Section
72 46.5 23.0 3.09 45.1 22.7 3.44 43.0 21.9 3.81 40.7 21.2 4.23 38.1 20.3 4.69 35.2 19.4 5.20 67 44.0 30.4 3.06 41.9 29.6 3.39 39.6 28.6 3.77 37.3 27.7 4.17 34.4 26.6 4.61 30.2 25.0 5.09
1225
63†† 38.6 28.5 2.98 35.8 27.3 3.29 33.1 26.2 3.64 31.8 25.6 4.06 30.2 25.0 4.53 26.6 23.5 4.99
62 38.1 35.8 2.97 35.4 34.4 3.29 33.1 33.1 3.64 32.0 32.0 4.07 30.7 30.7 4.54 28.1 28.1 5.03 57 37.3 37.3 2.96 35.1 35.1 3.28 33.8 33.8 3.65 32.4 32.4 4.08 30.8 30.8 4.54 28.1 28.1 5.03
72 47.1 23.9 3.16 45.3 23.3 3.50 43.2 22.7 3.88 41.0 22.0 4.30 38.4 21.2 4.75 35.6 20.4 5.29 67 44.5 32.0 3.13 42.2 31.0 3.46 40.0 30.2 3.83 37.8 29.5 4.24 35.2 28.6 4.70 30.9 27.0 5.18
1400
63†† 39.7 30.5 3.07 36.8 29.3 3.38 34.4 28.3 3.74 33.1 27.7 4.16 31.2 26.9 4.61 27.6 25.4 5.08
62 39.2 38.4 3.06 37.7 37.5 3.39 35.5 35.5 3.76 34.4 34.4 4.19 32.8 32.8 4.64 29.8 29.8 5.14 57 38.9 38.9 3.05 37.6 37.6 3.39 36.2 36.2 3.77 34.8 34.8 4.20 32.4 32.4 4.64 29.6 29.6 5.14
72 47.6 24.7 3.24 45.9 24.3 3.59 43.7 23.7 3.96 41.4 23.0 4.38 38.7 22.2 4.84 35.8 21.4 5.38 67 44.9 33.4 3.20 42.5 32.5 3.53 40.4 31.9 3.90 38.1 31.1 4.31 35.6 30.4 4.78 31.6 28.8 5.26
1575
63†† 41.0 32.5 3.15 39.1 31.7 3.48 35.9 30.4 3.83 34.2 29.7 4.25 32.0 28.7 4.70 28.0 27.0 5.17
62 41.5 41.3 3.16 39.9 39.9 3.50 37.6 37.6 3.87 36.5 36.5 4.29 34.0 34.0 4.74 31.0 31.0 5.24 57 41.3 41.3 3.16 39.8 39.8 3.49 38.4 38.4 3.88 36.5 36.5 4.29 33.8 33.8 4.74 30.9 30.9 5.24
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
CC5A/CD5AA 042 0.99 1.00 CK5A/CK5BA 042 0.98 0.92 CC5A/CD5AC 048 0.99 1.00 CK5A/CK5BW 048 0.99 0.92
CC5A/CD5AW 042 0.99 1.00
048 1.00 1.00 CC5A/CD5AA 042 0.98 0.93 CD5AA 048 1.00 1.00 CC5A/CD5AW 048 0.99 0.92 CE3AA 042 0.99 1.00 CK5A/CK5BA 042 0.98 0.93
048 1.00 1.00 CK5A/CK5BW 048 0.99 0.92 CF5AA 048 0.99 1.00 CK3BA 042 0.99 1.00 CC5A/CD5AA 042 0.98 0.95
048 1.00 1.00 CC5A/CD5AW 048 0.99 0.95
CK5A/CK5BA 042 0.99 1.00 CK5A/CK5BA 042 0.98 0.95
048 1.00 1.00 CK5A/CK5BW 048 0.99 0.95
CK5A/CK5BN 048 0.99 1.00
CK5A/CK5BT 042 0.99 1.00 CK3BA 042 0.98 0.95
048 1.00 1.00
CK5A/CK5BW 048 1.00 1.00 CC5A/CD5AA 042 0.98 0.94
F(A,B)4AN(F,B,C) 042 0.99 1.01 CD5AA 048 0.99 0.94
048 1.00 1.02 CK3BA 042 0.98 0.94
FC4BN(F,B) 042 0.98 1.00 048 0.99 0.94
048 0.99 1.00 CK5A/CK5BA 042 0.98 0.94
FC4BNB 054 1.01 0.99 048 0.99 0.94 FG3AAA 048 1.00 1.00 FK4CNB 006 1.01 0.90 CC5A/CD5AA 042 0.98 0.95 FK4CNF 003 0.96 0.91 CD5AA 048 0.99 0.95
005 1.00 0.92 CK3BA 042 0.98 0.95
FV4ANB 006 1.01 0.90 048 0.99 0.95 FV4ANF 003 0.96 0.91 CK5A/CK5BA 042 0.98 0.95
005 1.01 0.92 048 0.99 0.95
FX4ANF 042 0.96 1.00
048 0.99 1.00 CC5A/CD5AA 042 0.98 0.93
COILS + 333(B,J)AV048080 VARIABLE SPEED FURNACE CD5AA 048 0.99 0.93
CC5A/CD5AA 042 0.98 0.94 CK3BA 042 0.98 0.93
CD5AA 048 0.99 0.94 CK5A/CK5BA 042 0.98 0.93 CK3BA 042 0.98 0.94 048 0.99 0.93
048 0.99 0.94
CK5A/CK5BA 042 0.98 0.94 CC5A/CD5AA 042 0.98 0.93
048 0.99 0.94 CC5A/CD5AW 048 0.99 0.93
COILS + 333(B,J)AV060100 VARIABLE SPEED FURNACE CK5A/CK5BA 042 0.98 0.93
CC5A/CD5AA 042 0.98 0.92 CK5A/CK5BW 048 0.99 0.93
CC5A/CD5AW 048 0.99 0.92 — — —
See notes on page 19.
Capacity Power Capacity Power
Cooling
Indoor
Section Size
COILS + 333(B,J)AV060120 VARIABLE SPEED FURNACE
COILS + 355MAV042040 VARIABLE SPEED FURNACE
COILS + 355MAV042060 VARIABLE SPEED FURNACE
COILS + 355MAV042080 VARIABLE SPEED FURNACE
COILS + 355MAV060080 VARIABLE SPEED FURNACE
COILS + 355MAV060100 VARIABLE SPEED FURNACE
COILS + 355MAV060120 VARIABLE SPEED FURNACE
Cooling
Total
Sys
Kw**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
—17—
DETAILED COOLING CAPACITIES* Continued
EVAP
AIR
CFM EWB
75 85 95 105 115 125
Sys
Capacity
MBtuh†
Capacity
MBtuh†
Total Kw**
CONDENSER ENTERING AIR TEMPERATURES °F
Total
Sys
Kw**
Capacity
MBtuh†
Total Kw**
Sys
Capacity
MBtuh†
Total Kw**
Sys
Capacity
MBtuh†
Total
Sys
Kw**
Capacity
MBtuh†
533AN048-A Outdoor Section With CK5AA060 Indoor Section
72 53.1 26.3 3.58 51.2 25.7 3.96 49.3 25.2 4.40 47.0 24.4 4.88 44.1 23.5 5.41 41.0 22.4 6.03 67 49.9 34.4 3.53 47.7 33.5 3.90 45.3 32.6 4.31 42.9 31.8 4.79 39.8 30.6 5.31 35.3 28.9 5.87
1400
63†† 46.8 33.8 3.49 44.6 32.9 3.85 40.8 31.2 4.24 36.7 29.5 4.68 34.0 28.3 5.18 31.0 27.1 5.76
62 46.2 42.1 3.48 42.7 40.5 3.83 39.1 38.7 4.22 37.0 37.0 4.68 34.9 34.9 5.21 32.4 32.4 5.80 57 44.7 44.7 3.46 42.3 42.3 3.82 39.7 39.7 4.23 37.0 37.0 4.68 35.3 35.3 5.21 32.2 32.2 5.80
72 53.7 27.3 3.67 51.8 26.7 4.05 50.0 26.3 4.49 47.4 25.5 4.96 44.4 24.6 5.49 41.4 23.7 6.13 67 50.5 36.2 3.61 48.3 35.4 3.98 46.0 34.8 4.41 43.5 34.0 4.88 40.3 32.8 5.41 35.8 31.1 5.97
1600
63†† 47.7 35.9 3.58 45.4 34.9 3.95 41.4 33.3 4.34 37.6 31.7 4.77 34.8 30.5 5.28 31.7 29.2 5.86
62 47.2 45.2 3.57 44.1 43.6 3.93 42.0 42.0 4.35 40.0 40.0 4.82 37.8 37.8 5.34 33.8 33.8 5.92 57 46.7 46.7 3.57 44.1 44.1 3.93 41.7 41.7 4.34 40.1 40.1 4.82 37.4 37.4 5.34 34.2 34.2 5.93
72 54.0 28.1 3.75 52.2 27.6 4.13 50.0 27.1 4.56 47.5 26.4 5.03 44.8 25.7 5.58 41.7 24.8 6.23 67 50.8 37.7 3.69 48.9 37.4 4.07 46.5 36.8 4.50 44.0 36.0 4.98 40.8 34.9 5.50 36.0 33.1 6.07
1800
63†† 48.2 37.6 3.66 46.0 36.9 4.04 43.5 35.9 4.45 40.0 34.4 4.89 35.9 32.7 5.39 32.4 31.2 5.96
62 48.1 47.7 3.66 46.2 46.2 4.04 44.2 44.2 4.46 42.0 42.0 4.94 39.3 39.3 5.46 35.0 35.0 6.04 57 47.9 47.9 3.65 46.2 46.2 4.04 44.2 44.2 4.46 42.0 42.0 4.94 39.2 39.2 5.46 35.5 35.5 6.04
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
CC5A/CD5AA 060 0.98 0.99 CC5A/CD5AW 048 0.97 0.93 CC5A/CD5AC 048 0.96 0.98 060 0.99 0.92
CC5A/CD5AW 048 0.98 0.99 CK3BA 060 0.98 0.93
060 1.01 1.00 CK5A/CK5BA 060 0.98 0.93 CD5AA 048 0.98 0.99 CK5A/CK5BW 048 0.97 0.93 CE3AA 048 0.98 1.00 CK5A/CK5BX 060 1.00 0.93
060 1.00 1.00 CF5AA 048 0.96 0.98 CC5A/CD5AA 060 0.98 0.93 CK3BA 048 0.98 0.99 CC5A/CD5AW 048 0.97 0.93
060 1.00 1.00 060 0.99 0.93
CK5A/CK5BA 048 0.98 0.99 CK3BA 060 0.98 0.94
060 1.00 1.00 CK5A/CK5BA 060 0.98 0.94
CK5A/CK5BN 060 0.98 1.00 CK5A/CK5BW 048 0.97 0.93 CK5A/CK5BT 048 0.98 0.99 CK5A/CK5BX 060 1.00 0.94
060 1.00 1.00
CK5A/CK5BW 048 0.98 0.99 CD5AA 048 0.97 0.96
CK5A/CK5BX 060 1.00 1.00 CK5A/CK5BA 048 0.97 0.96
F(A,B)4AN(F,B,C) 048 0.98 1.02
060 1.00 1.03 CC5A/CD5AW 060 1.00 0.97
FB4ANB 070 1.01 1.02 CK3BA 048 0.97 0.97
FC4BN(F,B) 048 0.97 0.99 CK5A/CK5BA 048 0.97 0.97
060 0.98 1.00 060 0.98 0.98
FC4BNB 054 0.98 0.99 CK5A/CK5BX 060 0.98 0.97
070 1.00 0.99
FG3AAA 048 0.96 0.99 CC5A/CD5AA 060 0.97 0.95
060 0.98 1.00 CC5A/CD5AW 060 0.99 0.95
FK4CNB 006 1.00 0.90 CD5AA 048 0.97 0.95 FK4CNF 005 0.98 0.91 CK3BA 048 0.97 0.95 FV4ANB 006 1.00 0.90 CK5A/CK5BA 048 0.97 0.95 FV4ANF 005 0.98 0.91 060 0.98 0.95 FX4ANB 060 0.99 0.99 CK5A/CK5BX 060 1.00 0.95 FX4ANF 048 0.98 0.99
COILS + 333(B,J)AV048080 VARIABLE SPEED FURNACE CC5A/CD5AA 060 0.97 0.94 CD5AA 048 0.97 0.96 CC5A/CD5AW 048 0.98 0.94 CK3BA 048 0.97 0.96 060 0.99 0.95
CK5A/CK5BA 048 0.97 0.96 CK5A/CK5BA 060 0.98 0.95
COILS + 333(B,J)AV060100 VARIABLE SPEED FURNACE CK5A/CK5BW 048 0.97 0.95
CC5A/CD5AA 060 0.98 0.92 CK5A/CK5BX 060 1.00 0.95
See notes on page 19.
Capacity Power Capacity Power
Cooling
Indoor
Section Size
COILS + 333(B,J)AV060120 VARIABLE SPEED FURNACE
COILS + 355MAV042080 VARIABLE SPEED FURNACE
COILS + 355MAV060080 VARIABLE SPEED FURNACE
COILS + 355MAV060100 VARIABLE SPEED FURNACE
COILS + 355MAV060120 VARIABLE SPEED FURNACE
Cooling
Total
Sys
Kw**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
—18—
DETAILED COOLING CAPACITIES* Continued
EVAP
AIR
CFM EWB
75 85 95 105 115 125
Capacity
MBtuh†
Total
Sys
Kw**
Capacity
MBtuh†
CONDENSER ENTERING AIR TEMPERATURES °F
Total
Sys
Kw**
Capacity
MBtuh†
Total
Sys
Kw**
Capacity
MBtuh†
Total
Sys
Kw**
Capacity
MBtuh†
Total
Sys
Kw**
Capacity
MBtuh†
533AN060-A Outdoor Section With CK5AA060 Indoor Section
72 67.5 32.8 4.50 64.6 31.8 4.99 61.6 30.7 5.54 58.3 29.5 6.14 54.8 28.3 6.81 50.8 26.9 7.57 67 62.8 41.9 4.44 59.7 40.6 4.91 56.7 39.4 5.45 53.3 38.0 6.06 49.9 36.7 6.71 44.2 34.5 7.42
63†† 55.5 39.5 4.32 51.6 37.8 4.77 47.6 36.0 5.27 45.3 35.1 5.88 42.7 33.9 6.55 39.1 32.5 7.28
1600
62 54.2 48.8 4.30 50.5 47.1 4.75 46.7 45.2 5.26 44.5 44.1 5.86 42.7 42.7 6.55 40.2 40.2 7.30 57 50.9 50.9 4.25 47.8 47.8 4.70 46.1 46.1 5.25 44.2 44.2 5.85 42.4 42.4 6.54 40.4 40.4 7.30
72 68.2 33.7 4.58 65.4 32.8 5.08 62.4 31.7 5.63 59.0 30.6 6.24 55.4 29.4 6.91 51.3 28.1 7.66 67 63.8 43.9 4.52 60.8 42.8 5.01 57.4 41.4 5.54 54.1 40.1 6.15 50.5 38.8 6.82 44.8 36.6 7.52
63†† 56.6 41.6 4.41 52.6 39.9 4.87 50.4 39.0 5.41 48.0 38.0 6.01 45.4 36.8 6.69 39.9 34.6 7.38
1800
62 55.5 51.9 4.40 51.8 50.1 4.85 49.7 49.1 5.39 47.7 47.7 6.01 45.8 45.8 6.70 41.7 41.7 7.43 57 52.9 52.9 4.36 51.2 51.2 4.84 49.4 49.4 5.38 47.4 47.4 6.00 45.6 45.6 6.70 41.9 41.9 7.43
72 68.8 34.6 4.67 66.0 33.7 5.16 62.9 32.7 5.72 59.5 31.7 6.33 55.8 30.5 7.00 51.7 29.2 7.75 67 64.4 45.6 4.60 61.5 44.6 5.09 58.0 43.2 5.62 54.7 42.1 6.23 51.1 40.9 6.91 45.8 38.9 7.62
63†† 57.6 43.6 4.51 53.9 42.1 4.96 52.9 41.7 5.53 50.5 40.7 6.14 45.6 38.7 6.78 40.5 36.6 7.47
2000
62 56.8 54.9 4.49 54.7 53.9 4.97 52.5 52.5 5.52 50.5 50.5 6.15 47.8 47.8 6.82 43.0 43.0 7.55 57 56.1 56.1 4.48 54.1 54.1 4.97 52.3 52.3 5.52 50.3 50.3 6.14 47.8 47.8 6.82 43.1 43.1 7.55
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
CC5A/CD5AA 060 0.95 0.98 FX4ANB 060 0.97 1.01
CC5A/CD5AW 060 1.00 1.00
CE3AA 060 0.98 1.00 CC5A/CD5AA 060 0.97 0.96
CK3BA 060 0.98 1.00 CC5A/CD5AW 060 1.00 0.96 CK5A/CK5BA 060 1.00 1.00 CK3BA 060 1.00 0.96 CK5A/CK5BT 060 0.98 1.00 CK5A/CK5BA 060 1.00 0.96 CK5A/CK5BX 060 1.00 1.00 CK5A/CK5BX 060 1.00 0.96
F(A,B)4AN(F,B,C) 060 0.98 1.04
FB4ANB 070 1.00 1.02 CC5A/CD5AA 060 0.97 0.97
FC4BN(F,B) 060 0.98 1.03 CC5A/CD5AW 060 1.00 0.96
FC4BNB 070 1.00 1.01 CK3BA 060 1.00 0.97 FG3AAA 060 0.97 1.00 CK5A/CK5BA 060 1.00 0.97 FK4CNB 006 1.00 0.95 CK5A/CK5BX 060 1.00 0.97 FV4ANB 006 1.00 0.95 — — —
* Detailed cooling capacities are based on indoor and outdoor unit at the same elevation per ARI standard 210/240-94. If additional tubing length and/or
indoor unit is located above outdoor unit, a slight variation in capacity may occur. † Total and sensible capacities are net capacities. Blower motor heat has been subtracted. ‡ Sensible capacities shown are based on 80°F (27°C) entering air at the indoor coil. For sensible capacities at other than 80°F (27°C), deduct 835 Btuh
(245 kw) per 1000 CFM (480 L/S) of indoor coil air for each degree below 80°F (27°C), or add 835 Btuh (245 kw) per 1000 CFM (480 L/S) of indoor coil air
per degree above 80°F (27°C). When the required data falls between the published data, interpolation may be performed.
** Unit kw is outdoor unit kilowatts only. †† At TVA rating indoor condition (75°F edb/63°F ewb). All other indoor air temperatures are at 80°F edb. ‡‡ Data are with FC4 and FK4 R-22 TXV replaced with Puron® TXV.
Capacity Power Capacity Power
Cooling
Indoor
Section Size
COILS + 333(B,J)AV060100 VARIABLE SPEED FURNACE
COILS + 333(B,J)AV060120 VARIABLE SPEED FURNACE
Cooling
Total
Sys
Kw**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
—19—
SST
°F
30
35
40
45
50
55
30
35
40
45
50
55
30
35
40
45
50
55
See notes on page 21.
CONDENSER ONLY RATINGS*
CONDENSER ENTERING AIR TEMPERATURES °F
55 65 75 85 95 105 115 125
533AN024-A
TCG 23.3 22.1 20.8 19.6 18.3 17.0 15.7 14.4
SDT 76.9 86.8 96.6 107. 117. 127. 136. 146.
KW 1.20 1.37 1.55 1.76 1.98 2.22 2.48 2.74
TCG 25.6 24.3 22.9 21.5 20.2 18.7 17.3 15.9
SDT 78.1 87.9 97.7 108. 117. 127. 137. 147.
KW 1.20 1.37 1.56 1.76 1.99 2.24 2.50 2.76
TCG 28.1 26.6 25.1 23.6 22.1 20.6 19.0 17.4
SDT 79.5 89.2 98.9 109. 119. 128. 138. 148.
KW 1.20 1.37 1.57 1.78 2.00 2.25 2.52 2.79
TCG 30.6 29.0 27.4 25.8 24.2 22.5 20.8 19.1
SDT 81.1 90.7 100. 110. 120. 130. 140. 149.
KW 1.20 1.38 1.58 1.79 2.02 2.27 2.55 2.82
TCG 33.4 31.6 29.9 28.2 26.4 24.6 22.7 20.8
SDT 82.8 92.4 102. 112. 121. 131. 141. 151.
KW 1.21 1.39 1.59 1.80 2.04 2.30 2.57 2.85
TCG 36.2 34.4 32.5 30.6 28.7 26.7 24.7 22.6
SDT 84.7 94.2 104. 113. 123. 133. 142. 152.
KW 1.22 1.40 1.60 1.82 2.06 2.32 2.60 2.88
533AN030-A
TCG 26.7 25.2 23.8 22.4 20.9 19.5 18.0 16.4
SDT 76.8 86.6 96.5 106. 116. 126. 136. 146.
KW 1.44 1.63 1.84 2.09 2.36 2.67 3.01 3.39
TCG 29.3 27.7 26.2 24.6 23.1 21.5 19.8 18.1
SDT 77.9 87.6 97.4 107. 117. 127. 137. 147.
KW 1.44 1.63 1.85 2.09 2.37 2.68 3.02 3.39
TCG 32.1 30.4 28.7 27.0 25.3 23.6 21.8 19.9
SDT 79.2 88.9 98.6 108. 118. 128. 138. 148.
KW 1.46 1.65 1.86 2.10 2.38 2.68 3.02 3.40
TCG 35.0 33.2 31.4 29.6 27.7 25.8 23.8 21.8
SDT 80.7 90.3 100. 110. 119. 129. 139. 149.
KW 1.47 1.66 1.88 2.12 2.39 2.70 3.04 3.42
TCG 38.2 36.2 34.2 32.2 30.2 28.2 26.0 23.7
SDT 82.4 91.9 101. 111. 121. 131. 140. 150.
KW 1.49 1.68 1.90 2.14 2.41 2.72 3.06 3.44
TCG 41.4 39.3 37.2 35.1 32.9 30.7 28.3 25.8
SDT 84.2 93.7 103. 113. 122. 132. 142. 151.
KW 1.51 1.71 1.92 2.16 2.44 2.74 3.08 3.46
533AN036-A
TCG 32.3 30.5 28.7 26.8 24.9 22.8 20.7 18.3
SDT 77.0 86.7 96.6 106. 116. 126. 136. 146.
KW 1.76 2.00 2.27 2.55 2.86 3.19 3.53 3.87
TCG 35.4 33.6 31.7 29.7 27.6 25.4 23.1 20.7
SDT 78.2 87.9 97.6 107. 117. 127. 137. 146.
KW 1.76 2.00 2.27 2.56 2.88 3.21 3.56 3.93
TCG 38.8 36.8 34.7 32.6 30.4 28.1 25.7 23.1
SDT 79.6 89.2 98.9 109. 118. 128. 138. 147.
KW 1.76 2.00 2.27 2.57 2.89 3.24 3.60 3.98
TCG 42.3 40.2 38.0 35.7 33.4 30.9 28.3 25.5
SDT 81.2 90.7 100. 110. 120. 129. 139. 148.
KW 1.77 2.01 2.28 2.58 2.91 3.26 3.63 4.03
TCG 45.9 43.7 41.4 39.0 36.5 33.9 31.1 28.1
SDT 82.9 92.4 102. 111. 121. 131. 140. 150.
KW 1.78 2.02 2.29 2.60 2.93 3.29 3.67 4.07
TCG 49.8 47.4 45.0 42.4 39.8 36.9 34.0 30.8
SDT 84.8 94.2 104. 113. 123. 132. 142. 151.
KW 1.79 2.04 2.31 2.61 2.95 3.31 3.70 4.12
—20—
CONDENSER ONLY RATINGS* Continued
SST
°F
30
35
40
45
50
55
30
35
40
45
50
55
30
35
40
45
50
55
* ARI listing applies only to systems shown in Ratings and Performance table.
KW — Total Power (Kw) SDT — Saturated Temperature Leaving Compressor (°F) SST — Saturated Temperature Entering Compressor (°F) TCG — Gross Cooling Capacity (1000 Btuh).
TCG 36.9 35.0 33.0 31.1 29.1 27.1 25.1 22.9
SDT 77.8 87.5 97.2 107. 117. 127. 136. 146.
KW 1.90 2.17 2.46 2.80 3.17 3.59 4.07 4.60
TCG 40.4 38.3 36.2 34.1 32.0 29.9 27.6 25.2
SDT 79.3 88.8 98.5 108. 118. 127. 137. 147.
KW 1.93 2.19 2.49 2.82 3.20 3.61 4.08 4.60
TCG 44.2 41.9 39.7 37.4 35.1 32.8 30.3 27.7
SDT 81.0 90.4 100.0 110. 119. 129. 138. 148.
KW 1.97 2.23 2.53 2.86 3.23 3.64 4.11 4.63
TCG 48.2 45.7 43.3 40.8 38.3 35.8 33.1 30.3
SDT 82.8 92.2 102. 111. 121. 130. 140. 149.
KW 2.01 2.27 2.57 2.90 3.27 3.68 4.14 4.66
TCG 52.4 49.7 47.1 44.4 41.7 39.0 36.1 33.0
SDT 84.9 94.1 103. 113. 122. 132. 141. 150.
KW 2.05 2.31 2.61 2.95 3.32 3.73 4.19 4.70
TCG 56.8 54.0 51.1 48.2 45.3 42.3 39.2 35.8
SDT 87.0 96.1 105. 115. 124. 133. 142. 152.
KW 2.11 2.37 2.66 3.00 3.37 3.78 4.24 4.75
TCG 42.2 40.0 37.8 35.6 33.4 31.1 28.7 26.2
SDT 76.9 86.5 96.3 106. 116. 126. 136. 146.
KW 2.23 2.53 2.87 3.26 3.69 4.17 4.72 5.32
TCG 46.3 43.9 41.5 39.1 36.7 34.3 31.7 29.0
SDT 78.2 87.7 97.4 107. 117. 127. 137. 146.
KW 2.26 2.56 2.90 3.28 3.70 4.18 4.72 5.32
TCG 50.7 48.1 45.5 42.9 40.3 37.6 34.8 31.8
SDT 79.8 89.2 98.7 108. 118. 128. 137. 147.
KW 2.30 2.59 2.93 3.31 3.73 4.21 4.74 5.33
TCG 55.2 52.5 49.7 46.9 44.0 41.1 38.1 34.9
SDT 81.5 90.8 100. 110. 119. 129. 138. 148.
KW 2.35 2.64 2.97 3.35 3.77 4.24 4.77 5.36
TCG 60.1 57.1 54.1 51.1 48.0 44.9 41.6 38.1
SDT 83.5 92.6 102. 111. 121. 130. 140. 149.
KW 2.40 2.69 3.02 3.40 3.82 4.29 4.81 5.40
TCG 65.1 62.0 58.8 55.5 52.2 48.8 45.2 41.4
SDT 85.6 94.6 104. 113. 122. 132. 141. 151.
KW 2.45 2.75 3.08 3.45 3.88 4.34 4.86 5.44
TCG 53.6 50.8 48.1 45.3 42.5 39.6 36.5 32.7
SDT 78.4 87.9 97.7 108. 117. 127. 137. 146.
KW 2.84 3.22 3.64 4.12 4.65 5.24 5.86 6.46
TCG 58.7 55.7 52.7 49.7 46.7 43.6 40.3 36.5
SDT 79.9 89.5 99.2 109. 119. 128. 138. 147.
KW 2.89 3.26 3.68 4.16 4.70 5.28 5.93 6.59
TCG 64.0 60.8 57.6 54.3 51.0 47.7 44.2 40.3
SDT 81.8 91.2 101. 110. 120. 130. 139. 149.
KW 2.94 3.31 3.74 4.22 4.75 5.34 5.99 6.69
TCG 69.7 66.3 62.8 59.2 55.6 52.0 48.2 44.0
SDT 83.7 93.1 103. 112. 122. 131. 141. 150.
KW 3.00 3.37 3.80 4.28 4.82 5.41 6.06 6.78
TCG 75.6 72.0 68.2 64.4 60.5 56.5 52.4 47.9
SDT 85.8 95.1 104. 114. 123. 133. 142. 151.
KW 3.06 3.44 3.87 4.35 4.89 5.48 6.14 6.85
TCG 81.9 78.0 74.0 69.9 65.6 61.2 56.8 51.9
SDT 88.1 97.3 107. 116. 125. 135. 144. 153.
KW 3.14 3.52 3.95 4.43 4.97 5.57 6.22 6.94
55 65 75 85 95 105 115 125
CONDENSER ENTERING AIR TEMPERATURES °F
533AN042-A
533AN048-A
533AN060-A
—21—
SYSTEM DESIGN SUMMARY
1. Intended for outdoor installation with free air inlet and outlet. Outdoor fan external static pressure available is less than 0.01-in. wc.
2. Minimum outdoor operating air temperature without low-ambient operation accessory is 55°F (12.8°C).
3. Maximum outdoor operating air temperature is 125°F (51.7°C).
4. For reliable operation, unit should be level in all horizontal planes.
5. Maximum elevation of indoor coil above or below base of outdoor unit is: Indoor coil above = 30 ft, indoor coil below = 30 ft.
6. For interconnecting refrigerant tube lengths greater than 50 ft, consult the Residential Split-System Application Guideline and Service Manual for Air Conditioners and Heat Pumps using Puron® Refrigerant availab le from equipment distrib utor.
7. If any refrigerant tubing is buried, provide a 6 in. vertical rise to the valve connections at the unit. Refrigerant tubing lengths up to 36 in. may be buried without further consideration. For buried lines longer than 3 ft, consult your local distributor.
8. Use only copper wire for electric connection at unit. Aluminum and clad aluminum are not acceptable for the type of connector provided.
9. Do not apply capillary tube indoor coils to these units.
10. F actory-supplied filter drier must be installed.
11. Do not deviate from factory specified TXV’s and Liquid Line Solenoids.
—22—
—23—
GUIDE SPECIFICATIONS
Air-Cooled, Split-System
Air Conditioner
533A
2 to 5 Tons Nominal
GENERAL
System Description
Outdoor-mounted, air-cooled, split-system air conditioner unit suitable for ground or rooftop installation. Unit consists of a her­metic compressor, an air-cooled coil, propeller-type condenser fan, and a control box. Unit will discharge supply air upward as shown on contract drawings. Unit will be used in a refrigeration circuit to match up to a packaged fan coil or coil unit.
Quality Assurance
Unit will be rated in accordance with the latest edition of ARI Standard 210.
Unit will be certified for capacity and efficiency, and listed in the lastest ARI directory.
Unit construction will comply with latest edition of ANSI/ ASHRAE and with NEC.
Unit will be constructed in accordance with UL standards and will carry the UL label of approval. Unit will ha v e c-UL appro v al.
Unit cabinet will be capable of withstanding Federal Test Method Standard No. 141 (Method 6061) 500-hr salt spray test.
Air-cooled condenser coils will be leak tested at 250 psig and pressure tested at 450 psig.
Unit constructed in ISO9001 approved facility.
Delivery, Storage, and Handling
Unit will be shipped as single package only and is stored and handled per unit manufacturer’s recommendations.
Warranty (for inclusion by specifying engineer)
U.S. and Canada only.
PRODUCTS
Equipment
Factory assembled, single piece, air-cooled air conditioner unit. Contained within the unit enclosure is all factory wiring, piping, controls, compressor, refrigerant charge Puron® (R-410A), and special features required prior to field start-up.
Refr
igerant
Refrigerant will be Puron HFC Refrigerant with zero ozone depletion potential. Puron is approved under the EPA’s Significant New Alternatives Program (SNAP).
Unit Cabinet Unit cabinet will be constructed of galvanized steel, bonderized,
and coated with a powder coat paint. F
ans
Condenser fan will be direct-drive propeller type, discharging air upward.
Fans Condenser fan will be direct-drive propeller type, discharging air
upward. Condenser fan motors will be totally enclosed, 1-phase type
with class B insulation and permanently lubricated bearings. Shafts will be corrosion resistant. Fan blades will be statically and dynamically balanced. Condenser fan openings will be equipped with PVC-coated
steel wire safety guards. Compressor Compressor will be hermetically sealed. Compressor will be mounted on rubber vibration isolators. Condenser Coil Condenser coil will be air cooled. Coil will be constructed of aluminum fins mechanically bonded
to copper tubes which are then cleaned, dehydrated, and sealed.
Refr
igeration Components
Refrigeration circuit components will include liquid-line shutoff valve with sweat connections, vapor-line shutoff valve with sweat connections, system charge of Puron® (R-410A) refrigerant, and compressor oil.
Operating Characteristics
The capacity of the unit will meet or exceed _____ Btuh at a suction temperature of _____ °F. The power consumption at full load will not exceed _____ kw.
Combination of the unit and the evaporator or fan coil unit will have a total net cooling capacity of _____ Btuh or greater at conditions of _____ CFM entering air temperature at the evapo-rator at _____ °F wet bulb and _____ °F dr y bulb, and air enter-ing the unit at _____ °F.
The system will have an SEER of _____ Btuh/watt or greater at DOE conditions.
Electrical Requirements
Nominal unit electrical characteristics will be _____ v, single phase, 60 hertz. The unit will be capable of satisfactory opera­tion within voltage limits of _____ v to _____ v.
Unit electrical power will be single point connection. Control circuit will be 24v.
Special Features
Refer to section of this literature identifying accessories and descriptions for specific features and available enhancements.
© 2000 Bryant Heating & Cooling Systems, 7310 W. Morris St. Indpls, IN 46231
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
UNIT MUST BE INSTALLED IN ACCORDANCE
WITH INSTALLATION INSTRUCTIONS
Cancels: NEW
—24— PRINTED IN U.S.A. Catalog No. 5253-300 2-00
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
