Page 1

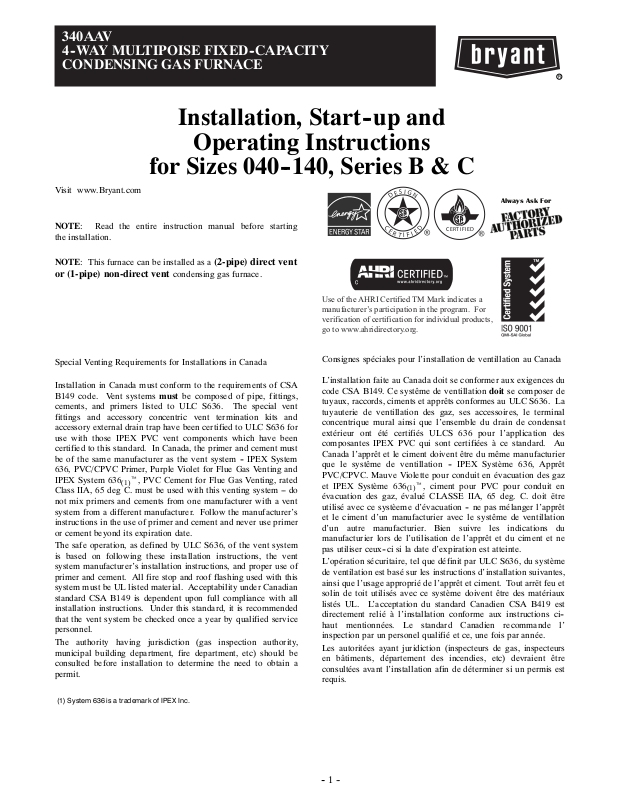

340AAV 4--WAY MULTIPOISE FIXED--CAPACITY CONDENSING GAS FURNACE

Installation, Start--up and

Operating Instructions

for Sizes 040--140, Series B & C

Visit www.Bryant.com

NOTE: Read the entire instruction manual before starting the installation.

NOTE: This furnace can be installed as a

or (1-pipe) non-direct vent

Special Venting Requirements for Installations in Canada

Installation in Canada must conform to the requirements of CSA B149 code. Vent systems must be composed of pipe, fittings, cements, and primers listed to ULC S636. The special vent fittings and accessory concentric vent termination kits and accessory external drain trap have been certified to ULC S636 for use with those IPEX PVC vent components which have been certified to this standard. In Canada, the primer and cement must be of the same manufacturer as the vent system -- IPEX System 636, PVC/CPVC Primer, Purple Violet for Flue Gas Venting and IPEX System 636 Class IIA, 65 deg C. must be used with this venting system -- do not mix primers and cements from one manufacturer with a vent system from a different manufacturer. Follow the manufacturer’s instructions in the use of primer and cement and never use primer or cement beyond its expiration date.

The safe operation, as defined by ULC S636, of the vent system is based on following these installation instructions, the vent system manufacturer’s installation instructions, and proper use of primer and cement. All fire stop and roof flashing used with this system must be UL listed material. Acceptability under Canadian standard CSA B149 is dependent upon full compliance with all installation instructions. Under this standard, it is recommended that the vent system be checked once a year by qualified service personnel.

The authority having jurisdiction (gas inspection authority, municipal building department, fire department, etc) should be consulted before installation to determine the need to obtain a permit.

t, PVC Cement for Flue Gas Venting, rated

(1)

condensing gas furnace.

(2-pipe) direct vent

Use of the AHRI Certified TM Mark indicates a manufacturer’s participation in the program. For verification of certification for individual products, go to www.ahridirectory.org.

Consignes spéciales pour l’installation de ventillation au Canada

L’installation faite au Canada doit se conformer aux exigences du code CSA B149. Ce systême de ventillation doit se composer de tuyaux, raccords, ciments et apprêts conformes au ULC S636. La tuyauterie de ventillation des gaz, ses accessoires, le terminal concentrique mural ainsi que l’ensemble du drain de condensat extérieur ont été certifiés ULCS 636 pour l’application des composantes IPEX PVC qui sont certifiées à ce standard. Au Canada l’apprêt et le ciment doivent être du même manufacturier que le systême de ventillation -- IPEX Système 636, Apprêt PVC/CPVC. Mauve Violette pour conduit en évacuation des gaz et IPEX Système 636 évacuation des gaz, évalué CLASSEIIA,65deg.C.doitëtre utilisé avec ce systèeme d’évacuation -- ne pas mélanger l’apprêt et le ciment d’un manufacturier avec le systême de ventillation d’un autre manufacturier. Bien suivre les indications du manufacturier lors de l’utilisation de l’apprêt et du ciment et ne pas utiliser ceux--ci si la date d’expiration est atteinte.

L’opération sécuritaire, tel que définit par ULC S636, du système de ventilation est basé sur les instructions d’installation suivantes, ainsi que l’usage approprié de l’apprêt et ciment. Tout arrët feu et solin de toit utilisés avec ce système doivent être des matériaux listés UL. L’acceptation du standard Canadien CSA B419 est directement relié à l’installation conforme aux instructions ci-haut mentionnées. Le standard Canadien recommande l’ inspection par un personel qualifié et ce, une fois par année.

Les autoritées ayant juridiction (inspecteurs de gas, inspecteurs en bâtiments, département des incendies, etc) devraient être consultées avant l’installation afin de déterminer si un permis est requis.

CERTIFIED

t, ciment pour PVC pour conduit en

(1)

Always Ask For

(1) System 636 is a trademark of IPEX Inc.

-- 1 --

Page 2

Required Notice for Massachusetts Installations

IMPORTANT

The Commonwealth of Massachusetts requires compliance with regulation 248 CMR as follows:

5.08: Modifications to NFPA--54, Chapter 10

2) Revise 10.8.3 by adding the following additional requirements: a. For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used

in whole or in part for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall be satisfied:

1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fueled equipment, the installing plumber or gasfitter shall observe that a hard wired carbon monoxide detector with an alarm and battery back--up is installed on the floor level where the gas equipment is to be installed. In addition, the installing plumber or gasfitter shall observe that a battery operated or hard wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure served by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the services of qualified licensed professionals for the installation of hard wired carbon monoxide detectors

a. In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard

340AAV

wired carbon monoxide detector with alarm and battery back--up may be installed on the next adjacent floor level.

b. In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner

shall have a period of thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a battery operated carbon monoxide detector with an alarm shall be installed.

2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provisions shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS certified.

3. SIGNAGE. A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight (8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or equipment. The sign shall read, in print size no less than one--half (1/2) inch in size, ”GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL OBSTRUCTIONS”.

4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR 5.08(2)(a)1 through 4.

5. EXEMPTIONS: The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:

(1.) The equipment listed in Chapter 10 entitled ”Equipment Not Required To Be Vented” in the most current edition of

NFPA 54 as adopted by the Board; and

(2.) Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from

the dwelling, building or structure used in whole or in part for residential purposes.

c. MANUFACTURER REQUIREMENTS -- GAS EQUIPMENT VENTING SYSTEM PROVIDED. When the

manufacturer of Product Approved side wall horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the instructions provided by the manufacturer for installation of the equipment and the venting system shall include:

1. Detailed instructions for the installation of the venting system design or the venting system components; and

2. A complete parts list for the venting system design or venting system.

d. MANUFACTURER REQUIREMENTS -- GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When

the manufacturer of a Product Approved side wall horizontally vented gas fueled equipment does not provide the parts for venting the flue gases, but identifies “special venting systems”, the following requirements shall be satisfied by the manufacturer:

1. The referenced “special venting system” instructions shall be included with the appliance or equipment installation instructions; and

2. The “special venting systems” shall be Product Approved by the Board, and the instructions for that system shall include a parts list and detailed installation instructions.

e. A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled

equipment, all venting instructions, all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of the installation.

For questions regarding these requirements, please contact the Commonwealth of Massachusetts Board of State Examiners of Plumbers

and Gas Fitters, 239 Causeway Street, Boston, MA 02114. 617--727--9952.

-- 2 --

Page 3

TABLE OF CONTENTS

SAFETY CONSIDERATIONS 3..........................

DIMENSIONAL DRAWING 4...........................

Clearances to Combustibles 5...........................

CODES AND STANDARDS 7...........................

ELECTROSTATIC DISCHARGE (ESD) PRECAUTIONS 8...

INTRODUCTION 8....................................

APPLICATIONS 9.....................................

General 9...........................................

Upflow Applications 9.................................

Downflow Applications 11.............................

Horizontal Left (Supply--Air Discharge) Applications 12.....

Horizontal Right (Supply--Air Discharge) Applications 13....

LOCATION 16........................................

General 16..........................................

Furnace Location Relative to Cooling Equipment 17.........

Hazardous Locations 17...............................

Furnace Location and Application 17.....................

AIR FOR COMBUSTION AND VENTILATION 18..........

INSTALLATION 21....................................

Leveling Legs (If Desired) 21...........................

Installation in Upflow or Downflow Applications 21.........

Installation in Horizontal Applications 21.................

Air Ducts 23.........................................

General 23........................................

Ductwork Acoustical Treatment 24.....................

Supply Air Connections 24...........................

Return Air Connections 25............................

Filter Arrangement 25.................................

Bottom Closure Panel 26...............................

Gas Piping 26........................................

Electrical Connections 27..............................

115--v Wiring 28....................................

24--v Wiring 28.....................................

Accessories 29.....................................

Removal of Existing Furnaces from

Common Vent Systems 29..............................

Combustion Air and Vent Pipe Systems 29.................

Condensate Drain 46..................................

General 46........................................

Application 46.....................................

Condensate Drain Protection 46........................

START-UP, ADJUSTMENT AND SAFETY CHECK 47.......

General 47..........................................

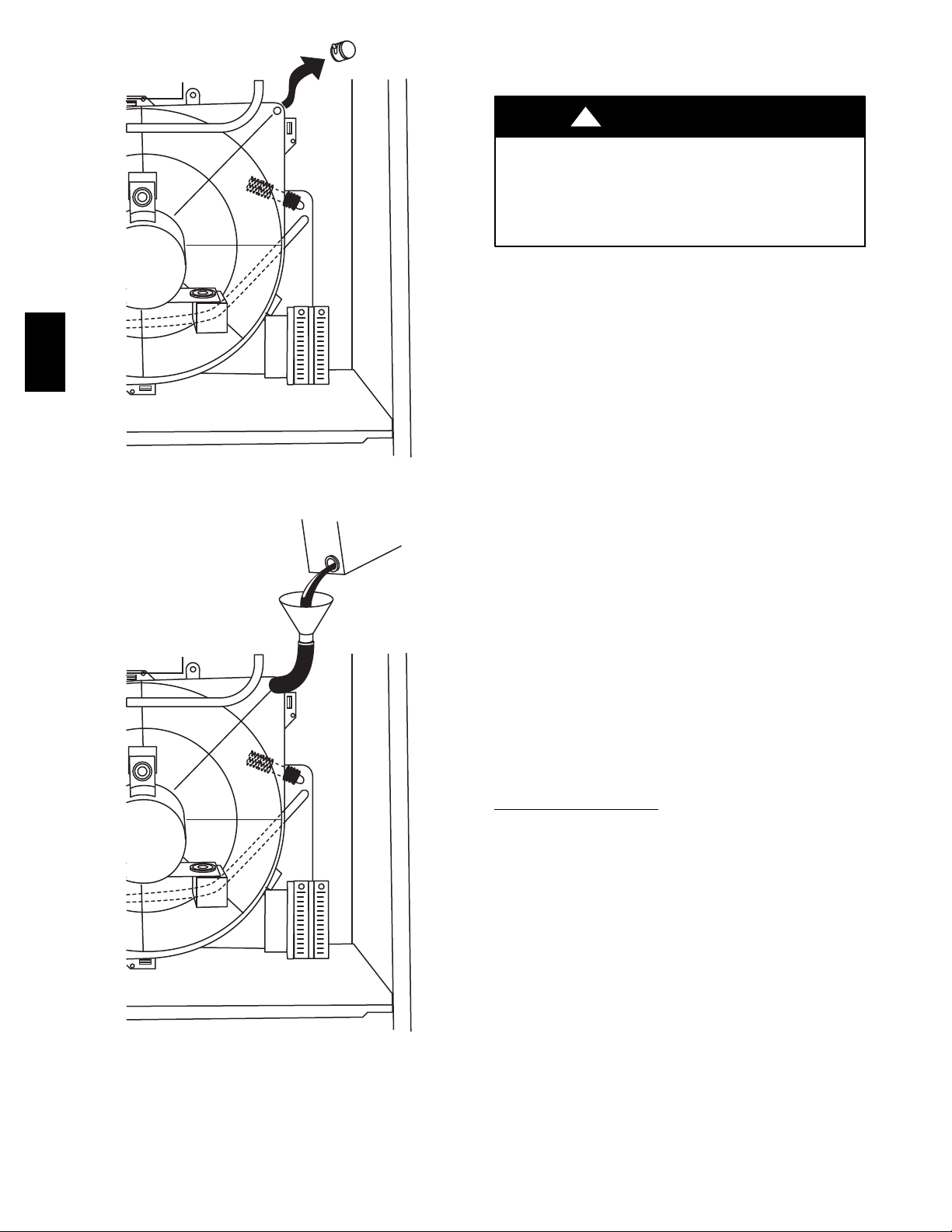

Prime Condensate Trap with Water 47....................

Purge Gas Lines 47...................................

Sequence of Operation 47..............................

Heating Mode 48...................................

Cooling Mode 48...................................

Continuous Blower Mode 48..........................

Heat Pump Mode 48.................................

Component Test 48..................................

Adjustments 49......................................

Set Gas Input Rate 49................................

Set Temperature Rise 55..............................

Adjust Blower Off Delay (Heat Mode) 56................

Set Thermostat Heat Anticipator 56.....................

Check Safety Controls 56..............................

Check Primary Limit Control 56.......................

Check Pressure Switch 56............................

CHECKLIST 57.......................................

AIRFLOW

UPFLOW

AIRFLOW

HORIZONTAL

LEFT

DOWNFLOW

AIRFLOW

HORIZONTAL

RIGHT

AIRFLOW

A93041

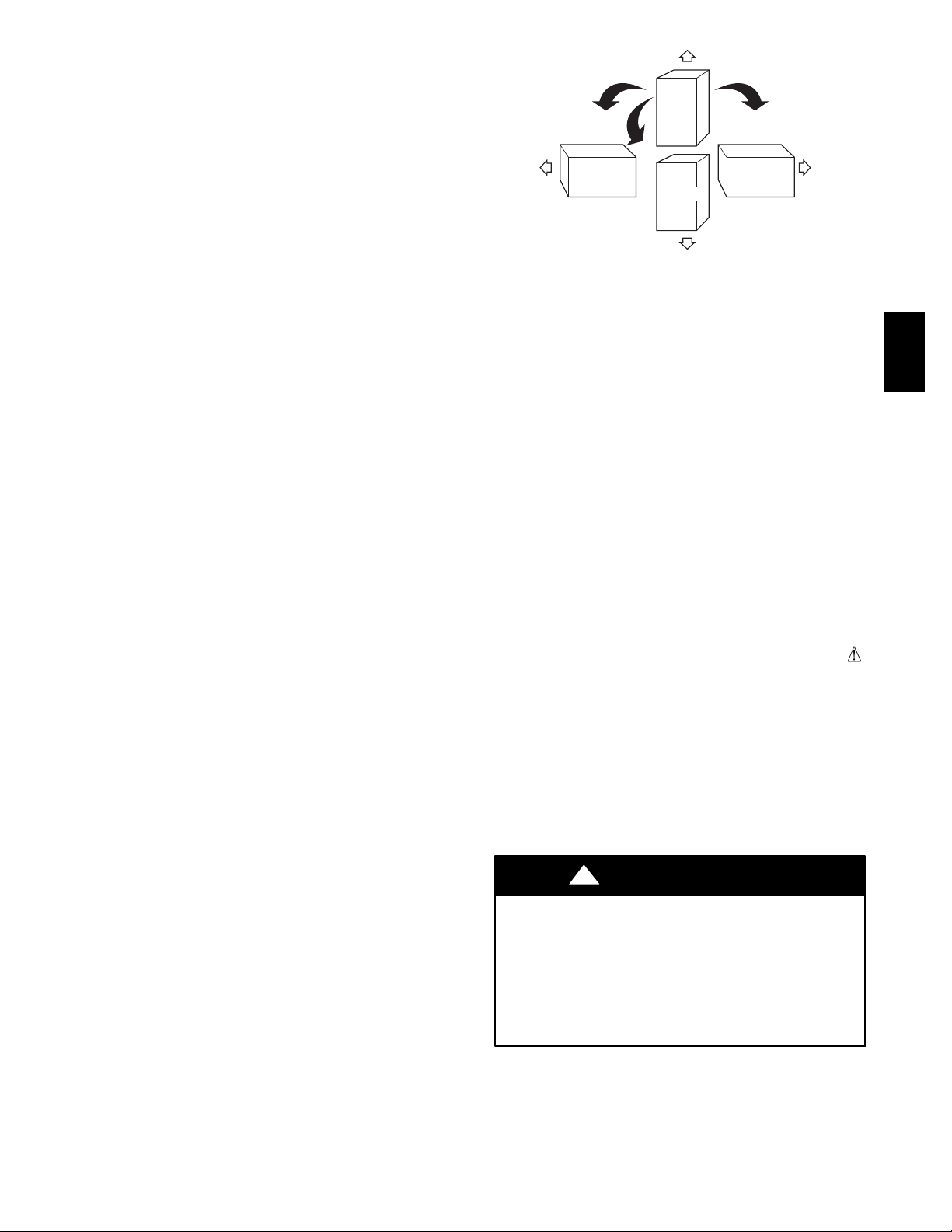

Fig. 1 -- Multipoise Orientations

SAFETY CONSIDERATIONS

Improper installation, adjustment, alteration, service, maintenance, or use can cause explosion, fire, electrical shock, or other conditions which may cause death, personal injury, or property damage. Consult a qualified installer, service agency, or your distributor or branch for information or assistance. The qualified installer or agency must use factory--authorized kits or accessories when modifying this product. Refer to the individual instructions packaged with the kits or accessories when installing.

Follow all safety codes. Wear safety glasses, protective clothing, and work gloves. Have a fire extinguisher available. Read these instructions thoroughly and follow all warnings or cautions include in literature and attached to the unit. Consult local building codes, the current editions of the National Fuel Gas Code (NFGC) NFPA 54/ANSI Z223.1 and the National Electrical Code (NEC) NFPA 70.

In Canada, refer to the current editions of the National Standards of Canada CAN/CSA--B149.1 and .2 Natural Gas and Propane Installation Codes, and Canadian Electrical Code CSA C22.1

Recognize safety information. This is the safety--alert symbol When you see this symbol on the unit and in instructions or manuals, be alert to the potential for personal injury.

Understand the signal words DANGER, WARNING,and

CAUTION. These words are used with the safety--alert symbol. DANGER identifies the most serious hazards which will result in

severe personal injury or death. WARNING signifies hazards which could result in personal injury or death. CAUTION is used to identify unsafe practices which may result in minor personal injury or product and property damage. NOTE is used to highlight suggestions which will result in enhanced installation, reliability, or operation.

CAUTION

UNIT RELIABILITY HAZARD

Improper installation or misapplication of furnace may require excessive servicing or cause premature component failure.

Application of this furnace should be indoors with special attention given to vent sizing and material, gas input rate, air temperature rise, unit leveling, and unit sizing.

340AAV

-- 3 --

Page 4

(724mm)

⁄2"

2615⁄16"

(684mm)

⁄4"

(667mm)

⁄2"

(666mm)

⁄16"

(567mm)

-IN. COMBUSTION-

AIR CONN

GAS CONN

-IN. VENT CONN

(51mm)

⁄2-IN. DIA THERMOSTAT

(13mm)

⁄2"

TYP

(368mm)

(32mm)

⁄4"

1" E

(25mm)

⁄2-IN. DIA

(13mm)

2211⁄16" (576mm)

SIDE INLET

⁄4" TYP

SIDE INLET

⁄16" TYP

(51mm)

ENTRY

(591mm)

(684mm)

340AAV

CONDENSATE DRAIN TRAP LOCATION (DOWNFLOW & HORIZONTAL LEFT)

⁄8-IN. DIA

(22mm)

POWER CONN

(22mm)

⁄8-IN. DIA

ACCESSORY POWER ENTRY

CONDENSATE DRAIN TRAP LOCATION (ALTERNATE UPFLOW)

97⁄16"

TYP

(240mm)

CONDENSATE DRAIN LOCATION (UPFLOW)

175⁄16"

(440mm)

(622mm)

NOTES: 1. Minimum return-air openings at furnace, based on metal duct. If flex duct is used,

2. Minimum return-air opening at furnace:

⁄16"

TYP

(754mm)

⁄8"

(702mm)

⁄16"

TYP

(700mm)

⁄2"

see flex duct manufacturer‘s recommendation for equivalent diameters.

a. For 800 CFM 16-in . (406mm) round or 141/ 2 (368mm) x 12-in. (305mm) rectangle. b. For 1200 CFM 20-in . (508mm) round or 14 c. For 1600 CFM 22-in .(559mm) round or 14 d. For airflow requirements above 1800 CFM, see Air Delivery table in Product Data

literature for specific use of single side inlets. The use of both side inlets, a combination of 1 side and the bottom, or the bottom only will ensure adequate return air openings for airflow requirements above 1800 CFM at 0.5“ W.C . ES P.

⁄16"

(21mm) (21mm)

⁄4"

TYP

⁄16"

(845mm)

(783mm)

⁄8"

TYP

(829mm)

⁄16"

(17mm) (17mm)

AIRFLOW

OUTLET

INLET

⁄16"

CONDENSATE DRAIN

TRAP LOCATION

(DOWNFLOW &

HORIZONTAL RIGHT)

OR ALTERNATE

⁄2-IN. DIA GAS CONN

(775mm)

DRAIN LOCATION

⁄16"

DIMPLE LOCATORS

FOR HORIZONTAL

/ 2 (368mm) x 191/ 2-in. (495mm) rectangle.

/ 2 (368mm) x 231/ 4-in.(591mm) rectangle.

(14mm)

301⁄2"

(464mm)

CONDENSATE

(UPFLOW)

HANGING

⁄16"

TYP

⁄4"

(694mm)

⁄16"

(667mm)

261⁄4"

⁄16"

(567mm)

19"

(483mm)

OUTLET

2-IN. COMBUSTIONAIR CONN

⁄2-IN. DIA

GAS CONN

⁄8-IN. DIA

POWER CONN

⁄2-IN. DIA

THERMOSTAT ENTRY

2-IN. VENT CONN

⁄16"

SIDE INLET

⁄4" TYP

(565mm)

⁄16"

BOTTOM INLET

(614mm)

A05053

(25mm)

(21mm)

⁄16"

(16mm)

⁄8"

⁄16"

(8mm)

(1013mm)

(11mm)

⁄16"

(17mm)

⁄8"

Dimensions --- IN. (mm)

UNIT SIZE

A D E 040--- 08 / 024040 17-1/2 (445) 15-7/8 (403) 16 (406) 040--- 12 / 036040 17-1/2 (445) 15-7/8 (403) 16 (406) 060--- 08 / 024060 17-1/2 (445) 15-7/8 (403) 16 (406) 060--- 12 / 036060 17-1/2 (445) 15-7/8 (403) 16 (406) 060--- 16 / 048060 17-1/2 (445) 15-7/8 (403) 16 (406) 080--- 12 / 036080 17-1/2 (445) 15-7/8 (403) 16 (406) 080--- 16 / 048080 17-1/2 (445) 15-7/8 (403) 16 (406) 080--- 20 / 060080 21 (533) 19-3/8 (492) 19-1/2 (495) 100--- 16 / 048100 21 (533) 19-3/8 (492) 19-1/2 (495) 100--- 20 / 060100 21 (533) 19-3/8 (492) 19-1/2 (495) 120--- 20 / 060120 24-1/2 (622) 19-3/8 (492) 23 (584) 140--- 20 / 060140 24-1/2 (622) 22-7/8 (581) 23 (584)

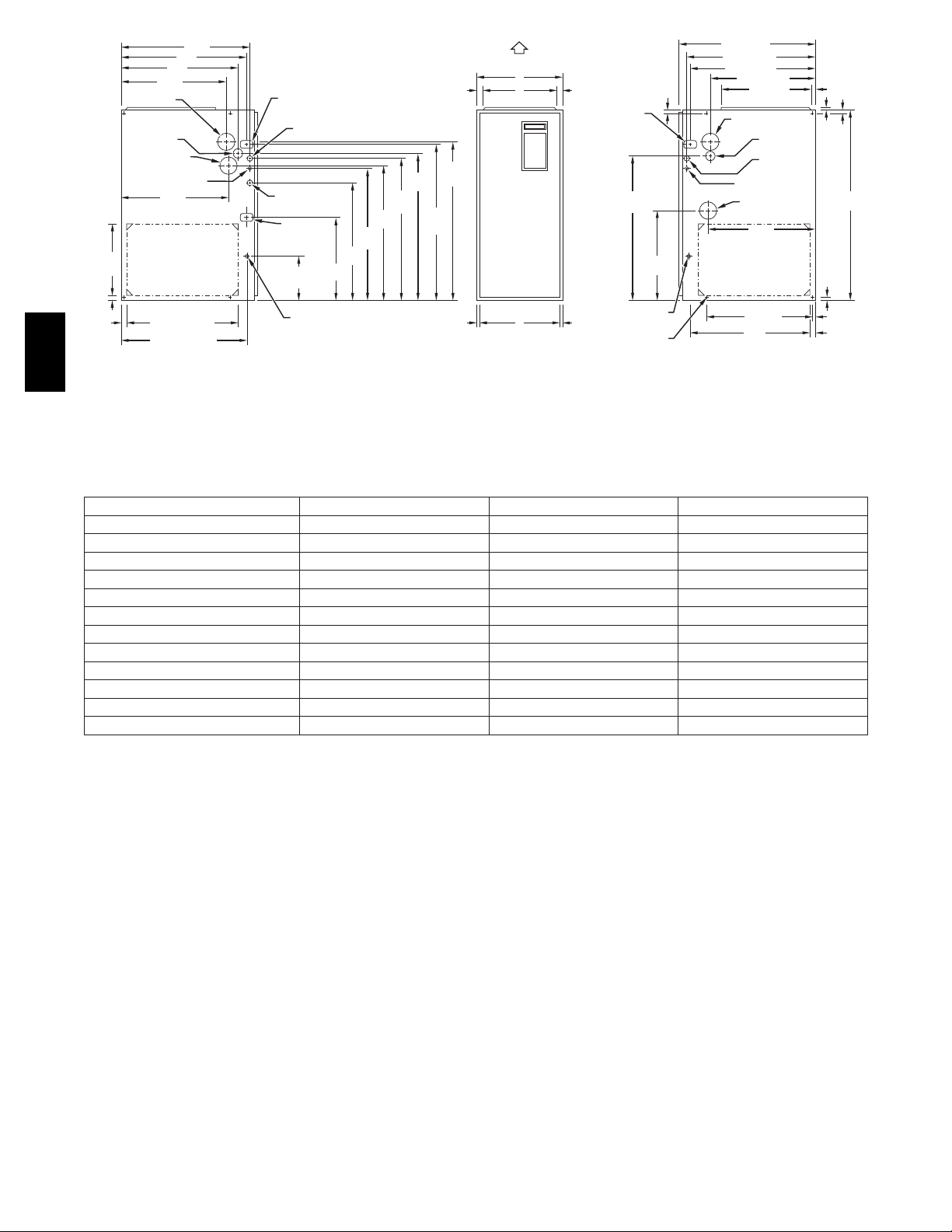

Fig. 2 -- Dimensional Drawing

-- 4 --

Page 5

335122-201 REV. B LIT TOP

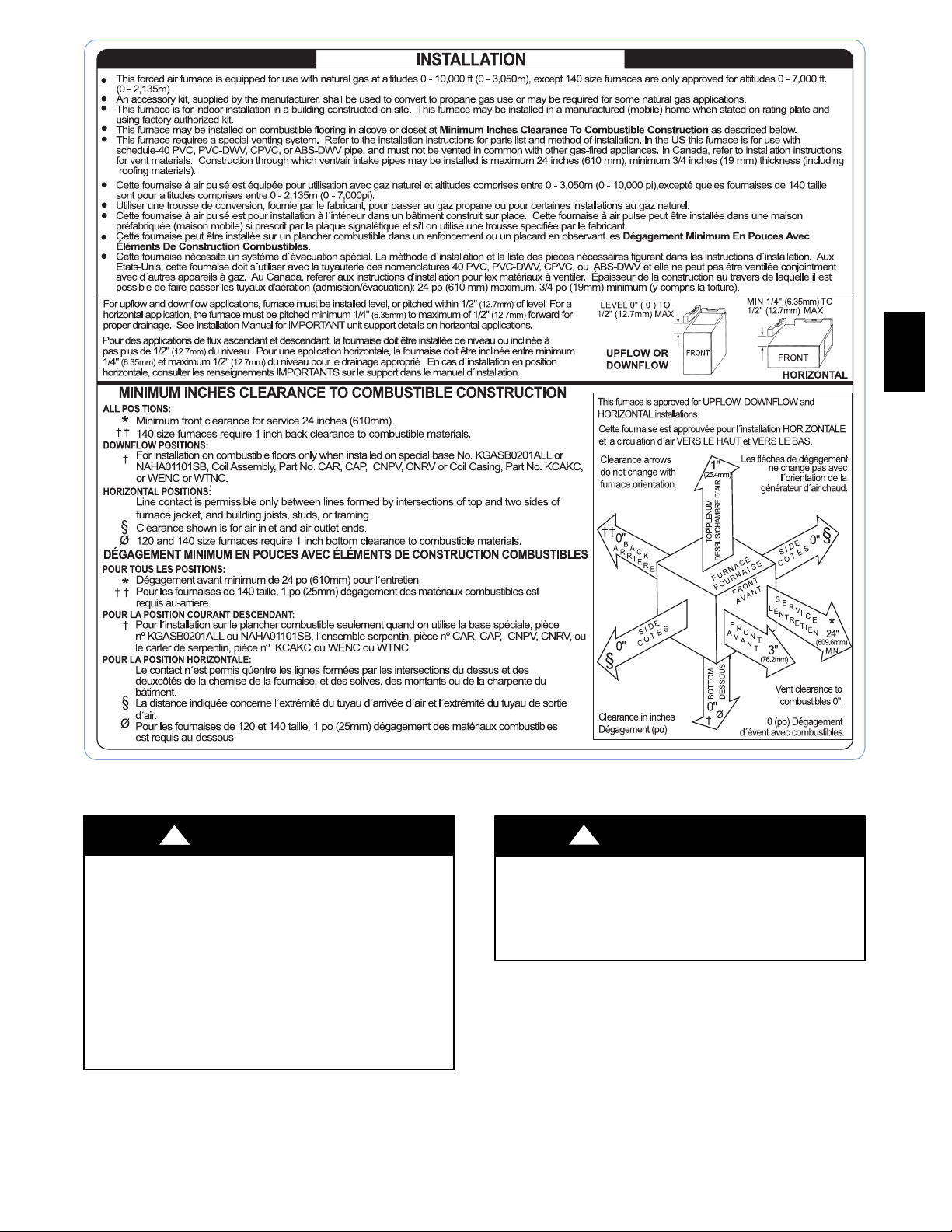

Fig. 3 -- Clearances to Combustibles

340AAV

A08435

WARNING

FIRE, EXPLOSION, ELECTRICAL SHOCK AND CARBON MONOXIDE POISONING HAZARD

Failure to follow this warning could result in electrical shock, fire, personal injury, or death.

Improper installation, adjustment, alteration, service, maintenance, or use can cause carbon monoxide poisoning, explosion, fire, electrical shock, or other conditions which may cause personal injury or property damage. Consult a qualified installer, service agency, local gas supplier, or your distributor or branch for information or assistance. The qualified installer or agency must use only factory-authorized and listed kits or accessories when modifying this product.

CUT HAZARD

Failure to follow this caution may result in personal injury. Sheet metal parts may have sharp edges or burrs. Use care and

wear appropriate protective clothing and gloves when handling parts.

The 340AAV Multipoise Condensing Gas-Fired Furnaces are CSA (formerly AGA and CGA) design-certified for natural and propane gases (see furnace rating plate) and for installation in alcoves, attics, basements, closets, utility rooms, crawlspaces, and garages. The furnace is factory-shipped for use with natural gas. A CSA listed gas conversion kit is required to convert furnace for use with propane gas.

See Fig. 3 for required clearances to combustibles. Maintain a 1-in. (25 mm) clearance from combustible materials to

supply air ductwork for a distance of 36 in. (914 mm) horizontally from the furnace. See NFPA 90B or local code for further requirements.

CAUTION

-- 5 --

Page 6

These furnaces SHALL NOT be installed directly on carpeting, tile, or any other combustible material other than wood flooring. In downflow installations, factory accessory floor base MUST be used when installed on combustible materials and wood flooring. Special base is not required when this furnace is installed on manufacturer’s Coil Assembly Part No. CNPV, CAPV, CAP or CAR or CK5, or when Coil Box Part No. KCAKC is used.

The 340AAV 040 through 120 size units are CSA (formerly AGA and CGA) design-certified for use in manufactured (mobile) homes when installed as a 2-pipe (direct vent) furnace and a factory accessory conversion kit is used. The 140 size unit is NOT design-certified for use in manufactured (mobile) homes. These furnaces are suitable for installation in a structure built on site or a manufactured building completed at final site. The design of this furnace line is NOT CSA design-certified for installation in recreation vehicles or outdoors.

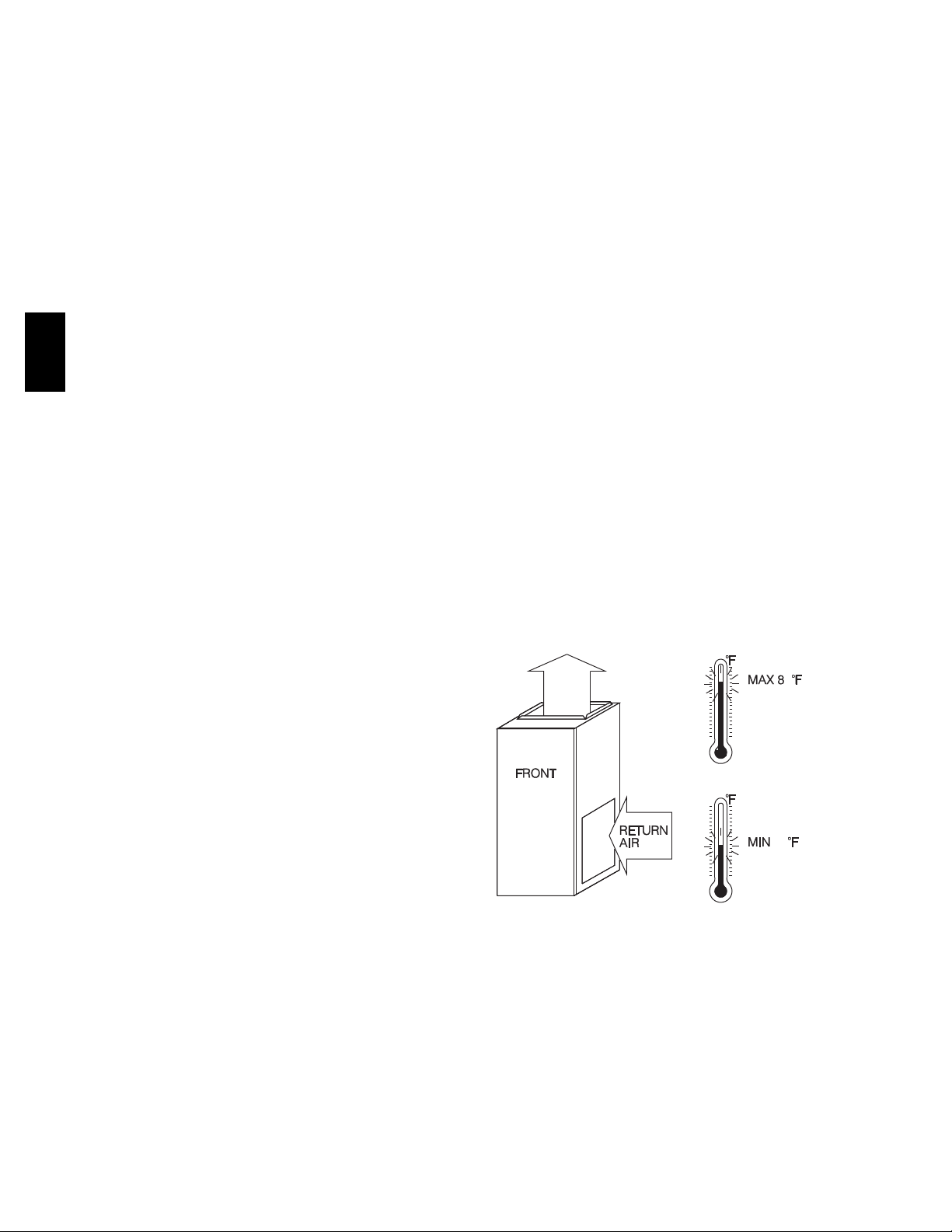

This furnace is designed for continuous return-air minimum temperature of 60°F(15°C)db or intermittent operation down to 55°F(13°C)db such as when used with a night setback thermostat. Return-air temperature must not exceed 80°F(27°C) db. Failure to follow these return-air limits may affect reliability

340AAV

of heat exchangers, motors, and controls. (See Fig. 4.) These furnaces are shipped with the drain and pressure tubes

connected for UPFLOW applications. Minor modifications are required when used in DOWNFLOW, HORIZONTAL RIGHT, or HORIZONTAL LEFT (supply-air discharge direction) applications as shown in Fig. 1. See details in Applications section.

Install this furnace only in a location and position as specified in LOCATION and INSTALLATION sections of these instructions.

Always provide adequate combustion and ventilation air as specified in section Combustion Air and Vent Pipe Systems of these instructions to the furnace.

Combustion products must be discharged outdoors. Connect this furnace to an approved vent system only, as specified in the Combustion Air and Vent piping sections of these instructions.

Never test for gas leaks with an open flame. Use a commercially available soap solution made specifically for detection of leaks to check all connections as specified in the GAS PIPING section of these instructions.

Always install the furnace to operate within the furnace’s intended rise range with a duct system which has an external static pressure within the allowable range as specified in the SET TEMPERATURE RISE section of these instructions and furnace rating plate.

When a furnace is installed so that supply ducts carry air circulated by the furnace to areas outside the space containing the furnace, the return air shall also be handled by ducts sealed to the furnace casing and terminating outside the space containing the furnace.

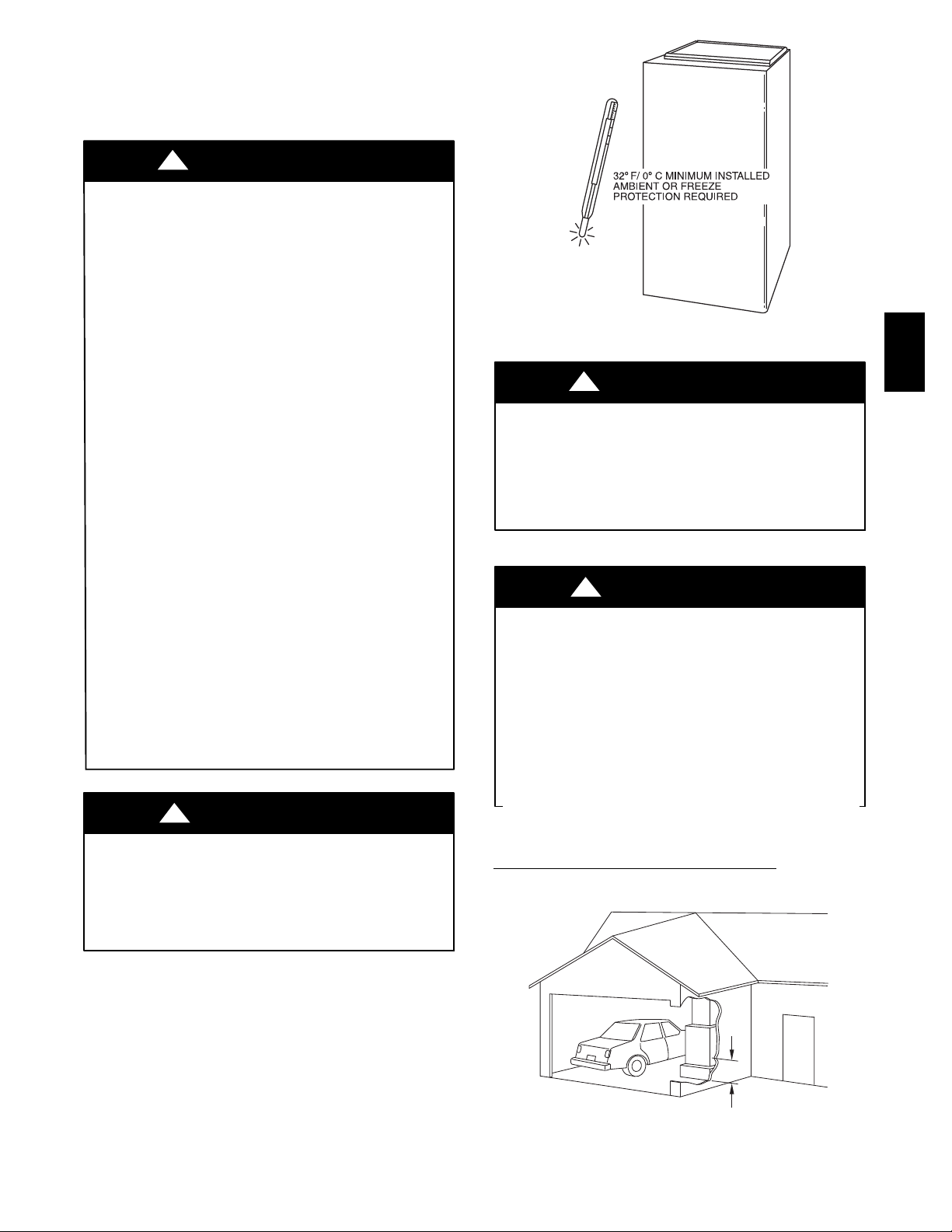

A gas-fired furnace for installation in a residential garage must be installed as specified in the Hazardous Locations section of these instructions.

The furnace may be used for construction heat provided that the furnace installation and operation complies with the first CAUTION in the LOCATION section of these instructions.

This gas furnace may be used for construction heat provided that:

S The furnace is permanently installed with all electrical wiring,

piping, air filters, venting and ducting installed according to these installation instructions. A return air duct is provided, sealed to the furnace casing, and terminated outside the space containing the furnace. This prevents a negative pressure condition as created by the circulating air blower, causing a flame rollout and/or drawing combustion products into the structure.

S The furnace is controlled by a thermostat. It may not be “hot

wired” to provide heat continuously to the structure without thermostatic control.

S Clean outside air is provided for combustion. This is to

minimize the corrosive effects of adhesives, sealers and other construction materials. It also prevents the entrainment of drywall dust into combustion air, which can cause fouling and plugging of furnace components.

S The temperature of the return air to the furnace is maintained

between 55°F(13°C) and 80°F(27°C), with no evening setback or shutdown. The use of the furnace while the structure is under construction is deemed to be intermittent operation per our installation instructions.

S The air temperature rise is within the rated rise range on the

furnace rating plate, and the firing rate has been set to the nameplate value.

S The filters used to clean the circulating air during the

construction process must be either changed or thoroughly cleaned prior to occupancy.

S The furnace, ductwork and filters are cleaned as necessary to

remove drywall dust and construction debris from all HVAC system components after construction is completed.

S After construction is complete, verify furnace operating

conditions including ignition, input rate, temperature rise and venting, according to the manufacturer’s instructions.

(27º C)

(16º C)

A05004

Fig. 4 -- Return-Air Temperature

These furnaces are shipped with the following materials to assist in proper furnace installation. These materials are shipped in the main blower compartment.

-- 6 --

Page 7

Installer Packet Includes:

Installation, Startup, and Operating Instructions Service and Maintenance Instructions User’s Information Manual Warranty Certificate

Loose Parts Bag Includes: Quantity

Pressure tube extension 1 Collector Box or condensate trap extension tube 1 Inducer housing drain tube 1 1/2--in CPVC street elbow 2 Drain tube coupling 1 Drain tube coupling grommet 1 Vent and combustion-air pipe support 2 Condensate trap hole filler plug 3 Vent and combustion-air intake hole filler plug 2 Combustion-air pipe perforated disk assembly 1

Vent Pipe Extension 1*

* ONLY supplied with some furnaces.

The furnace shall be installed so that the electrical components are protected from water.

For accessory installation details, refer to accessory installation instructions.

CODES AND STANDARDS

Follow all national and local codes and standards in addition to these instructions. The installation must comply with

regulations of the serving gas supplier, local building, heating, plumbing, and other codes. In absence of local codes, the installation must comply with the national codes listed below and all authorities having jurisdiction.

In the United States and Canada, follow all codes and standards for the following:

Step 1 -- Safety

S US: National Fuel Gas Code (NFGC) NFPA 54--2006/ANSI

Z223.1--2006 and the Installation Standards, Warm Air Heating and Air Conditioning Systems ANSI/NFPA 90B

S CANADA: National Standard of Canada, Natural Gas and

Propane Installation Code (NSCNGPIC) CSA B149.1--05.

Step 2 -- General Installation

S US: NFGC and the NFPA 90B. For copies, contact the

National Fire Protection Association Inc., Batterymarch Park, Quincy, MA 02269; or for only the NFGC contact the American Gas Association, 400 N. Capitol, N.W., Washington

DC 20001.

S A manufactured (Mobile) home installation must conform with

the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, or when this standard is not applicable, the Standard for Manufactured Home Installation

(Manufactured Home Sites, Communities, and Set-Ups), ANSI/NCS A225.1, and/or CAN/CSA--Z240, MH Series Mobile Homes

S CANADA: NSCNGPIC. For a copy, contact Standard Sales,

CSA International, 178 Rexdale Boulevard, Etobicoke (Toronto), Ontario, M9W 1R3, Canada.

Step 3 -- Combustion and Ventilation Air

S US: Section 9.3 of the NFPA54/ANSI Z223.1--2006, Air for

Combustion and Ventilation

S CANADA: Part 8 of the CAN/CSA--B149.1--05, Venting

Systems and Air Supply for Appliances

Step 4 -- Duct Systems

S US and CANADA: Air Conditioning Contractors Association

(ACCA) Manual D, Sheet Metal and Air Conditioning Contractors National Association (SMACNA), or American Society of Heating, Refrigeration, and Air Conditioning Engineers (ASHRAE) 2001 Fundamentals Handbook Chapter 34.

Step 5 -- Acoustical Lining and Fibrous Glass Duct

S US and CANADA: current edition of SMACNA, NFPA 90B as

tested by UL Standard 181 for Class I Rigid Air Ducts

Step 6 -- Gas Piping and Gas Pipe Pressure Testing

S US: NFPA 54/ANSI Z223.1--2006; chapters 5, 6, 7, and 8 and

national plumbing codes

S CANADA: NSCNGPIC Parts 4, 5, and 6 A, B, E, and H.

In the state of Massachusetts:

S This product must be installed by a licensed plumber or gas fitter. S When flexible connectors are used, the maximum length shall not

exceed 36-in. (914 mm).

S When lever types gas shutoffs are used they shall not

exceed 36-in. (914 mm).

S The use of copper tubing for gas piping is not approved by the

state of Massachusetts.

Step 7 -- Electrical Connections

S US: National Electrical Code (NEC) ANSI/NFPA 70--2008 S CANADA: Canadian Electrical Code CSA C22.1

340AAV

-- 7 --

Page 8

BLOWER SHELF

CONDENSATE TRAP (INSIDE)

ALTERNATE DRAIN TUBE LOCATION

CONDENSATE TRAP

DRAIN TUBE LOCATION

UPFLOW APPLICATIONS

FURNACE DOOR

FIELD

DRAIN

CONN

(667mm)

CONDENSATE TRAP

FURNACE

SIDE

(38mm)

SIDE VIEW FRONT VIEW END VIEW FRONT VIEW

DOWNFLOW AND ALTERNATE

EXTERNAL UPFLOW APPLICATIONS

FURNACE DOOR

(124mm)

(102mm)

FIELD

DRAIN

CONN

(667mm)

(146mm) (146mm)

HORIZONTAL

APPLICATIONS

(102mm)

FURNACE SIDE

(19mm)

340AAV

(19mm)

SLOT FOR SCREW

HORIZONTAL

APPLICATION

(OPTIONAL)

WIRE TIE GUIDES (WHEN USED)

(88mm)

(181mm)

(44mm)

(3mm)

1/4” (6mm) COLLECTOR BOX TO TRAP RELIEF PORT

1/2 (13mm) INDUCER HOUSING DRAIN CONNECTION

5/8 (16mm) COLLECTOR BOX

(57mm)

DRAIN CONNECTION

SCREW HOLE FOR UPFLOW OR DOWNFLOW APPLICATIONS (OPTIONAL)

1/2 IN. (13mm) PVC OR CPV

FRONT VIEW SIDE VIEW

A93026

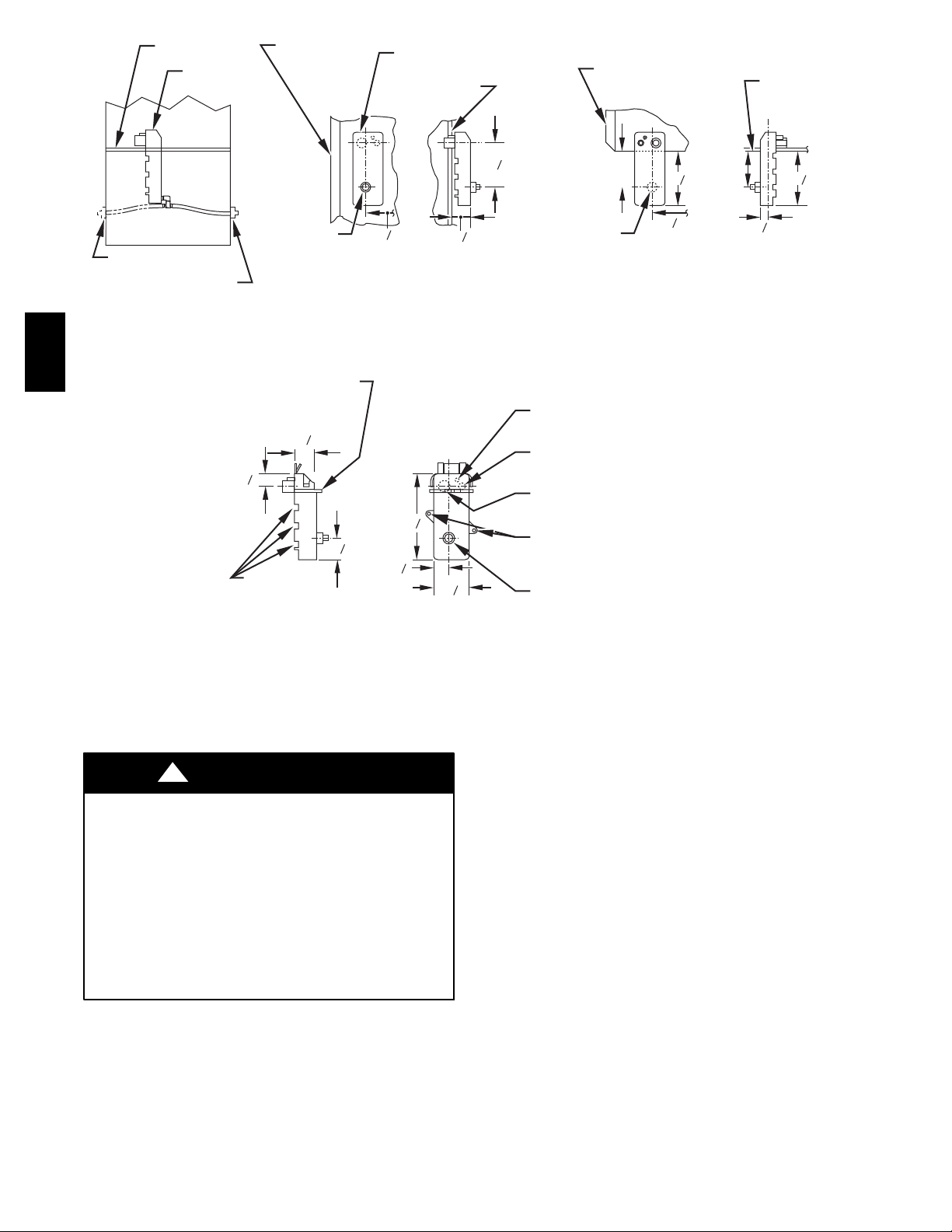

Fig. 5 -- Condensate Trap

ELECTROSTATIC DISCHARGE (ESD)

PRECAUTIONS

5. After touching the chassis, you may proceed to service the control or connecting wires as long as you do nothing that recharges your body with static electricity (for example; DO NOT move or shuffle your feet, DO NOT touch

CAUTION

ungrounded objects, etc.).

6. If you touch ungrounded objects (recharge your body with

UNIT DAMAGE HAZARD

Failure to follow this caution may damage furnace components.

Electrostatic discharge can affect electronic components. Take precautions during furnace installation and servicing to protect the furnace electronic control. Precautions will prevent electrostatic discharges from personnel and hand tools which are held during the procedure. These precautions will help to avoid exposing the control to electrostatic discharge by putting the furnace, the control, and the person at the same electrostatic potential.

static electricity), firmly touch furnace again before touching control or wires.

7. Use this procedure for installed and uninstalled (ungrounded) furnaces.

8. Before removing a new control from its container, discharge your body’s electrostatic charge to ground to protect the control from damage. If the control is to be installed in a furnace, follow items 1 through 5 before bringing the control or yourself into contact with the furnace. Put all used AND new controls into containers before touching ungrounded objects.

9. An ESD service kit (available from commercial sources)

3. Disconnect all power to the furnace. Multiple disconnects may be required. DO NOT TOUCH THE CONTROL OR ANY WIRE CONNECTED TO THE CONTROL PRIOR TO DISCHARGING YOUR BODY’S ELECTROSTATIC CHARGE TO GROUND.

4. Firmly touch a clean, unpainted, metal surface of the furnace chassis which is close to the control. Tools held in

mayalsobeusedtopreventESDdamage.

INTRODUCTION

The model 340AAV 4-way multipoise, Gas-Fired, Category IV, condensing furnace is available in model sizes ranging from input capacity of 40,000 to 138,000 Btuh as a direct vent (2-pipe) application, and in model sizes ranging from input capacity of 40,000 to 120,000 Btuh as a non-direct vent (1-pipe) application.

a person’s hand during grounding will be satisfactorily discharged.

-- 8 --

Page 9

PLUG

CAP

COLLECTOR BOX

DRAIN TUBE (BLUE

& WHITE STRIPED)

COLLECTOR BOX

TUBE (PINK)

PLUG

CAP

COLLECTOR BOX

DRAIN TUBE (BLUE

& WHITE STRIPED)

COLLECTOR BOX

TUBE (PINK)

COLLECTOR BOX

TUBE (GREEN)

INDUCER HOUSING

(MOLDED) DRAIN

TUBE (BEHIND

COLLECTOR BOX

DRAIN TUBE)

COLLECTOR BOX

DRAIN TUBE (BLUE)

FIELD-INSTALLED

FACTORY-SUPPLIED

DRAIN TUBE

COUPLING (LEFT

DRAIN OPTION)

FIELD-INSTALLED

FACTORY-SUPPLIED

DRAIN TUBE

FIELD-INSTALLED

FACTORY-SUPPLIED

⁄2-IN. CPVC STREET

ELBOWS (2) FOR

LEFT DRAIN OPTION

FIELD-INSTALLED

FACTORY-SUPPLIED

COUPLING (RIGHT

CONDENSATE TRAP

DRAIN TUBE

DRAIN OPTION)

A00288

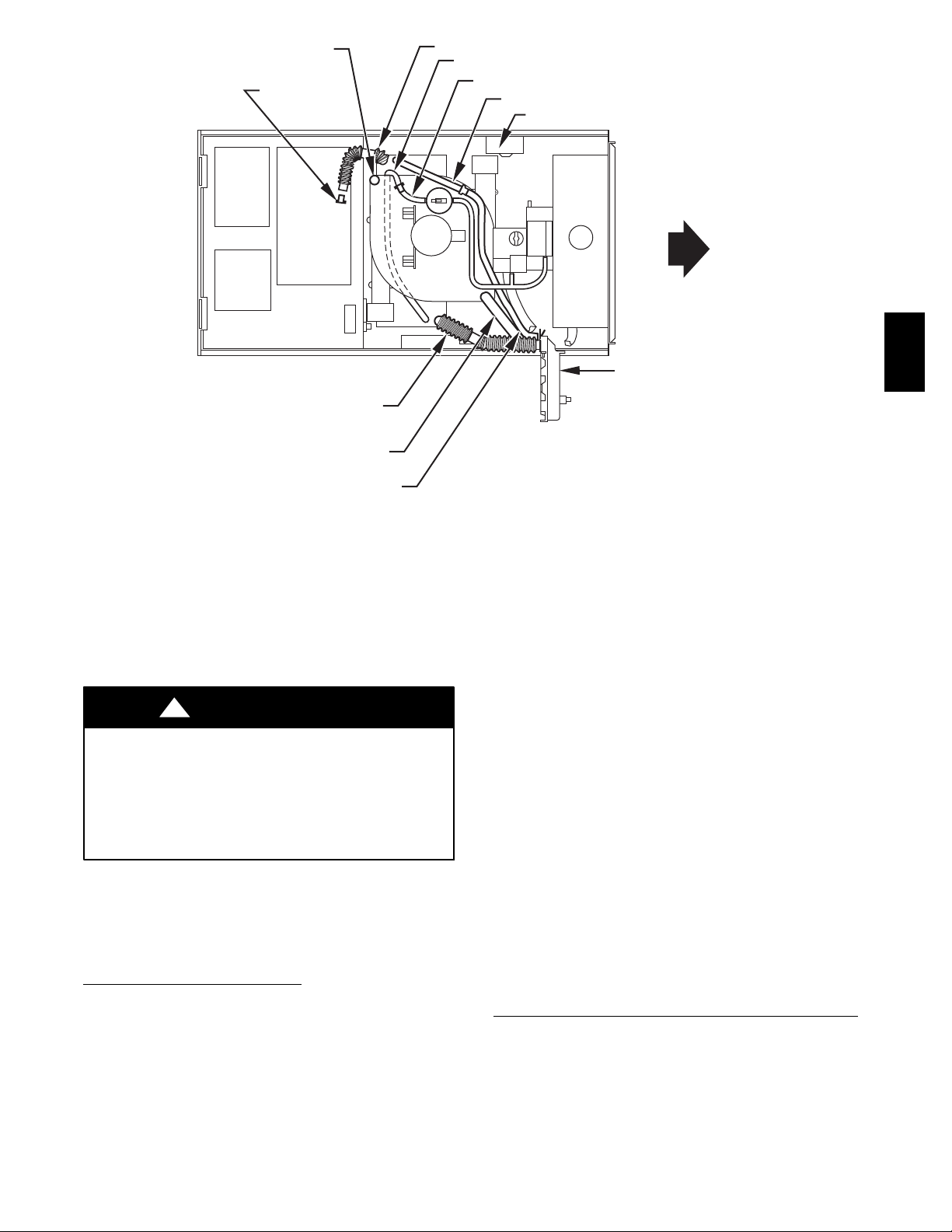

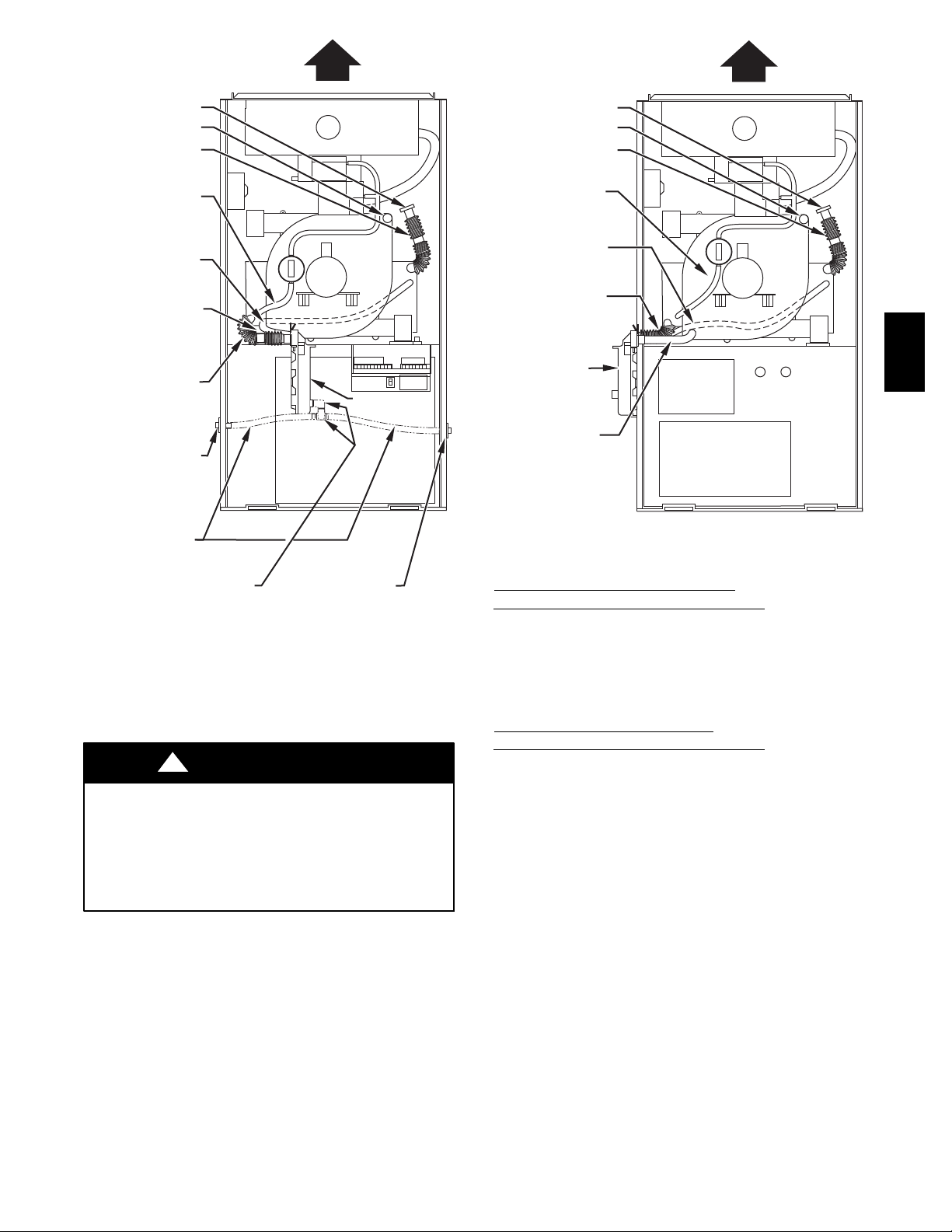

Fig. 6 -- Factory Shipped Upflow Tube Configuration (Shown

With Blower Access Panel Removed)

APPLICATIONS

MINOR PROPERTY DAMAGE

Failure to follow this caution may result in minor property damage.

Local codes may require a drain pan under entire furnace and condensate trap when a condensing furnace is used in an attic application or over a finished ceiling.

Step 1 -- General

Some assembly and modifications are required for furnaces installed in any of the 4 applications shown in Fig. 1. All drain and pressure tubes are connected as shown in Fig. 6. See appropriate application instructions for these procedures.

Step 2 -- Upflow Applications

An upflow furnace application is where furnace blower is located below combustion and controls section of furnace, and conditioned air is discharged upwards.

CAUTION

COLLECTOR BOX

TUBE (GREEN)

COLLECTOR BOX

DRAIN TUBE (BLUE)

CONDENSATE

TRAP

INDUCER

HOUSING

DRAIN TUBE

(VIOLET)

A00289

Fig. 7 -- Alternate Upflow Tube Configuration and

Trap Location

CONDENSATE TRAP LOCATION (FACTORY-SHIPPED ORIENTA

The condensate trap is factory installed in the blower shelf and factory connected for UPFLOW applications. A factory-supplied tube is used to extend the condensate trap drain connection to the desired furnace side for field drain attachment. See Condensate Trap Tubing (Factory-Shipped Orientation) section for drain tube extension details. (See Fig. 5.)

TION)

CONDENSATE TRAP TUBING (FACTORY-SHIPPED ORIENTA

NOTE: See Fig. 6 or tube routing label on main furnace door to

confirm location of these tubes.

1. Collector Box Drain, Inducer Housing Drain, Relief Port, and Pressure Switch Tubes These tubes should be factory attached to condensate trap and pressure switch ready for use in UPFLOW applications. These tubes can be identified by their connection location and also by a color label on each tube. These tubes are identified as follows: collector box drain tube (blue label), inducer housing drain tube (violet label or molded), relief port tube (green label), and pressure switch tube (pink label).

2. Condensate Trap Drain Tube The condensate trap drain connection must be extended for field attachment by doing the following:

f. Determine location of field drain connection. (See

Fig. 2 or 6.)

NOTE: If internal filter is used, drain tube should be located to opposite side of casing from return duct attachment to assist in filter removal.

g. Remove and discard casing drain hole plug button

from desired side.

TION)

340AAV

-- 9 --

Page 10

COLLECTOR BOX

DRAIN TUBE (BLUE)

CAP

PLUG

CAP

COLLECTOR BOX DRAIN TUBE (BLUE)

COLLECTOR BOX TUBE (PINK)

COLLECTOR BOX TUBE (GREEN)

COLLECTOR BOX EXTENSION TUBE

COLLECTOR BOX DRAIN TUBE (BLUE & WHITE STRIPED)

COLLECTOR BOX EXTENSION TUBE

340AAV

DRAIN TUBE COUPLING

INDUCER HOUSING DRAIN TUBE (VIOLET)

CONDENSATE TRAP

COLLECTOR BOX EXTENSION DRAIN TUBE

COLLECTOR BOX

TUBE (GREEN)

COLLECTOR BOX

EXTENSION TUBE

COLLECTOR BOX

DRAIN TUBE (BLUE

& WHITE STRIPED)

COLLECTOR BOX EXTENSION TUBE

CONDENSATE

PLUG

TUBE (PINK)

TRAP

INDUCER HOUSING

DRAIN TUBE (VIOLET)

A00296

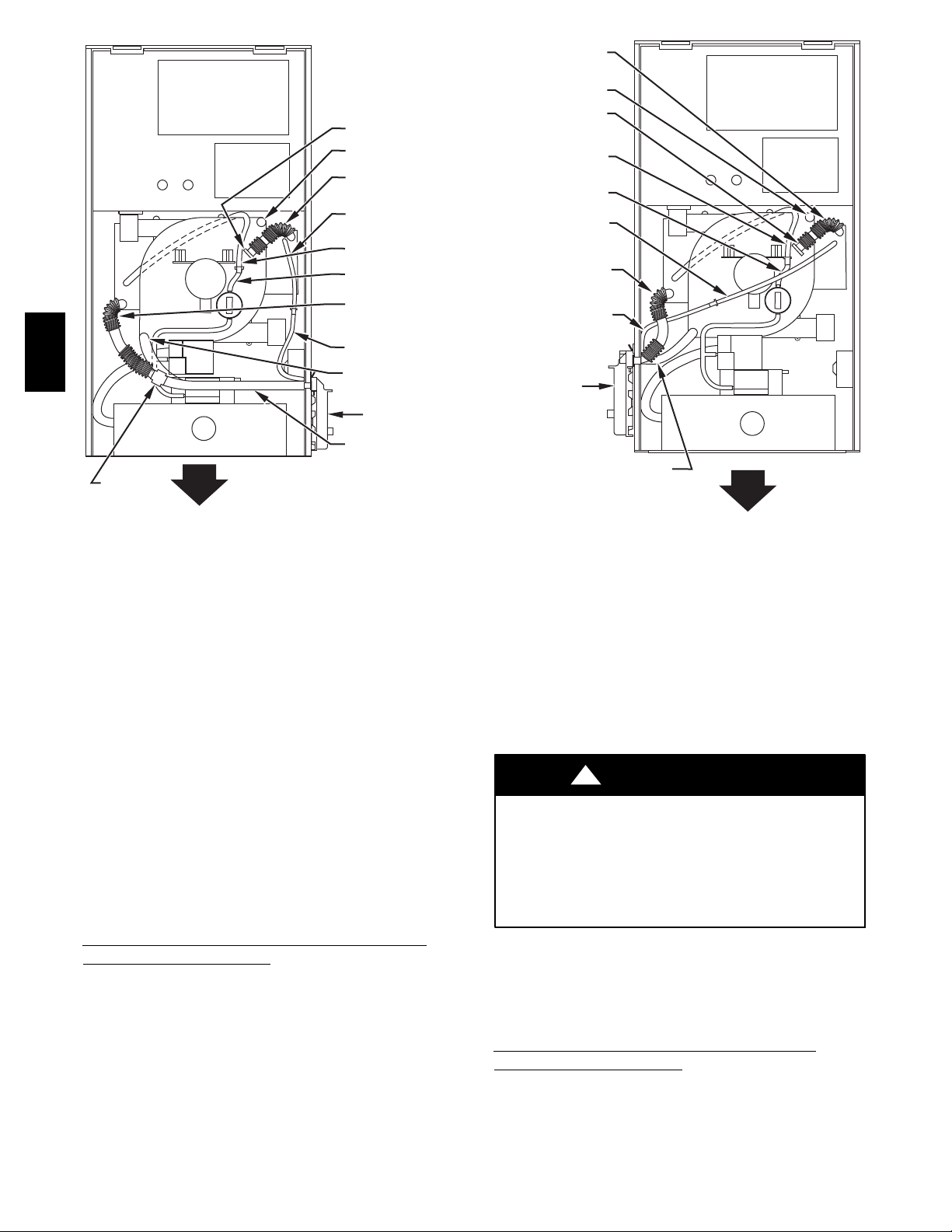

Fig. 8 -- Downflow Tube Configuration

(Right-Hand Trap Installation)

h. Install drain tube coupling grommet (factory-supplied

in loose parts bag) in selected casing hole.

i. Slide drain tube coupling (factory-supplied in loose

parts bag) through grommet ensuring long end of coupling faces blower.

j. Cement 2 factory-supplied 1/2-in. (13 mm) street

CPVC elbows to the rigid drain tube connection on the condensate trap. (See Fig. 6.) These elbows must be cemented together and cemented to condensate trap drain connection.

NOTE: Failure to use CPVC elbows may allow drain to kink and prevent draining.

k. Connect larger diameter drain tube and clamp

(factory-supplied in loose parts bag) to condensate trap and clamp securely.

l. Route tube to coupling and cut to appropriate length.

m. Attach tube to coupling and clamp securely.

CONDENSATE TRAP LOCATION (ALTERNATE UPFLOW ORIENTA

An alternate location for the condensate trap is the left-hand side of casing. (See Fig. 2 and 7.)

NOTE: If the alternate left-hand side of casing location is used, the factory-connected drain and relief port tubes must be disconnected and modified for attachment. See Condensate Trap Tubing (Alternate Upflow Orientation) section for tubing attachment.

TION)

A00262

Fig. 9 -- Downflow Tube Configuration

(Left-Hand Trap Installation)

To relocate condensate trap to the left-hand side, perform the following:

1. Remove 3 tubes connected to condensate trap.

2. Remove trap from blower shelf by gently pushing tabs inward and rotating trap.

3. Install casing hole filler cap (factory-supplied in loose parts bag) into blower shelf hole where trap was removed.

WARNING

CARBON MONOXIDE POISONING HAZARD

Failure to follow this warning could result in personal injury or death.

Casing hole filler cap must be installed in blower shelf hole when condensate trap is relocated to prevent combustion products being drawn in from appliances in the equipment room.

4. Install condensate trap into left-hand side casing hole by inserting tube connection stubs through casing hole and rotating until tabs snap into locking position.

5. Fill unused condensate trap casing holes with plastic filler caps (factory-supplied in loose parts bag).

CONDENSATE TRAP TUBING (ALTERNATE UPFLOW ORIENTA

NOTE: See Fig. 7 or tube routing label on main furnace door to

confirm location of these tubes.

1. Collector Box Drain Tube Connect collector box drain tube (blue label) to condensate trap.

TION)

-- 1 0 --

Page 11

NOTE: On 17-1/2-in. (445 mm) wide furnaces ONLY, cut tube between corrugated sections to prevent kinks from occurring.

2. Inducer Housing Drain Tube a. Remove and discard LOWER (molded) inducer

housing drain tube which was previously connected to condensate trap.

b. Use inducer housing drain extension tube (violet label

and factory-supplied in loose parts bag) to connect LOWER inducer housing drain connection to the condensate trap.

c. Determine appropriate length, cut, and connect tube.

d. Clamp tube to prevent any condensate leakage.

3. Relief Port Tube e. Connect relief port tube (green label) to

condensate trap.

f. Extend this tube (if required) by splicing to small

diameter tube (factory-supplied in loose parts bag).

g. Determine appropriate length, cut, and connect tube.

CONDENSATE TRAP FIELD DRAIN ATTACHMENT

Refer to Condensate Drain section for recommendations and procedures.

PRESSURE SWITCH TUBING

The LOWER collector box pressure tube (pink label) is factory connected to the pressure switch and should not require any modification.

NOTE: See Fig. 6 or 7 or tube routing label on main furnace door to check for proper connections.

UPPER COLLECTOR BOX AND INDUCER HOUSING (UNUSED) DRAIN

Upper Collector Box Drain Connection

Attached to the UPPER collector box drain connection is a factory-installed corrugated, plugged tube (blue and white striped label). This tube is plugged to prevent condensate leakage in this application. Ensure this tube is plugged.

NOTE: See Fig. 6 or 7 or tube routing label on main furnace door to check for proper connections.

Upper Inducer Housing Drain Connection

Attached to the UPPER (unused) inducer housing drain connection is a cap and clamp. This cap is used to prevent condensate leakage in this application. Ensure this connection is capped.

NOTE: See Fig. 6 or 7 or tube routing label on main furnace door to check for proper connections.

CONNECTIONS

CONDENSATE TRAP FREEZE PROTECTION

Refer to Condensate Drain Protection section for recommendations and procedures.

Step 3 -- Downflow Applications

A downflow furnace application is where furnace blower is located above combustion and controls section of furnace, and conditioned air is discharged downwards.

CONDENSATE TRAP LOCATION

The condensate trap must be removed from the factory-installed blower shelf location and relocated in selected application location as shown in Fig. 2, 8, or 9.

To relocate condensate trap from the blower shelf to desired location, perform the following:

1. Remove 3 tubes connected to condensate trap.

2. Remove trap from blower shelf by gently pushing tabs inward and rotating trap.

3. Install casing hole filler cap (factory-supplied in loose parts bag) into blower shelf hole where trap was removed.

WARNING

CARBON MONOXIDE POISONING HAZARD

Failure to follow this warning could result in personal injury or death.

Casing hole filler cap must be installed in blower shelf hole when condensate trap is relocated to prevent combustion products being drawn in from appliances in the equipment room.

4. Install condensate trap into desired casing hole by inserting tube connection stubs through casing hole and rotating until tabs snap into locking position.

5. Fill unused condensate trap casing holes with plastic filler caps (factory-supplied in loose parts bag).

CONDENSATE TRAP TUBING

NOTE: See Fig. 8 or 9 or tube routing label on main furnace

door to check for proper connections.

1. Collector Box Drain Tube a. Remove factory-installed plug from LOWER collector

box drain tube (blue and white striped label).

b. Install removed clamp and plug into UPPER collector

box drain tube (blue label) which was connected to condensate trap.

c. Connect LOWER collector box drain connection to

condensate trap.

(3.) Condensate Trap Located on Left Side of Casing

a. Connect LOWER collector box drain tube (blue

and white striped label) to condensate trap. Tube does not need to be cut.

b. Clamp tube to prevent any condensate leakage.

(4.) Condensate Trap Located on Right Side of Casing

a. Install drain tube coupling (factory-supplied in

loose parts bag) into collector box drain tube (blue and white striped label) which was previously plugged.

b. Connect larger diameter drain tube

(factory-supplied in loose parts bag) to drain tube coupling, extending collector box drain tube for connection to condensate trap.

c. Route extended collector box drain tube

directly from collector box drain to condensate

trap as shown in Fig. 9. d. Determine appropriate length and cut. e. Connect to condensate trap.

f. Clamp tube to prevent any condensate leakage.

2. Inducer Housing Drain Tube a. Remove factory-installed cap and clamp from LOWER

inducer housing drain connection.

b. Remove and discard UPPER (molded) inducer housing

drain tube which was previously connected to condensate trap.

c. Install cap and clamp on UPPER inducer housing drain

connection where molded drain tube was removed.

d. Use inducer housing drain tube (violet label and

factory-supplied in loose parts bag) to connect LOWER inducer housing drain connection to the condensate trap.

340AAV

-- 1 1 --

Page 12

PLUG

AUXILIARY "J" BOX

CAP

COLLECTOR BOX DRAIN TUBE (BLUE AND WHITE STRIPED)

340AAV

CONDENSATE

RELOCATE TUBE BETWEEN BLOWER SHELF AND INDUCER HOUSING FOR

TRAP

BOX EXTENSION

040, 060, AND 080 HEATING INPUT FURNACES

Fig. 10 -- Horizontal Left Tube Configuration

e. Connect inducer housing drain connection to

condensate trap.

(1.) Condensate Trap Located on Left Side of Casing

a. Determine appropriate length and cut.

b. Connect tube to condensate trap.

c. Clamp tube to prevent any condensate leakage.

(2.) Condensate Trap Located on Right Side of Casing

a. Route inducer housing drain tube (violet label)

directly from inducer housing to condensate trap as shown in Fig. 9.

b. Determine appropriate length and cut.

c. Connect tube to condensate trap.

d. Clamp tube to prevent any condensate leakage.

3. Relief Port Tube Refer to Pressure Switch Tubing section for connection procedure.

CONDENSATE TRAP FIELD DRAIN ATTACHMENT

Refer to Condensate Drain section for recommendations and procedures.

PRESSURE SWITCH TUBING

One collector box pressure tube (pink label) is factory connected to the pressure switch for use when furnace is installed in UPFLOW applications. This tube MUST be disconnected and used for the condensate trap relief port tube. The other collector box pressure tube (green label) which was factory connected to the condensate trap relief port connection MUST be connected to the pressure switch in DOWNFLOW or HORIZONTAL RIGHT applications.

NOTE: See Fig. 8 or 9 or tube routing label on main furnace door to check for proper connections.

COLLECTOR

DRAIN TUBE

COLLECTOR BOX

EXTENSION TUBE

DRAIN TUBE COUPLING

COLLECTOR BOX TUBE (PINK)

COLLECTOR BOX TUBE (GREEN)

INDUCER HOUSING DRAIN TUBE (VIOLET)

COLLECTOR BOX DRAIN TUBE (BLUE)

A00215

Relocate tubes as described below.

1. Disconnect collector box pressure tube (pink label) attached to pressure switch.

2. Extend collector box pressure tube (green label) which was previously connected to condensate trap relief port connection by splicing to small diameter tube (factory-supplied in loose parts bag).

3. Connect collector box pressure tube (green label) to pressure switch connection labeled COLLECTOR BOX.

4. Extend collector box pressure tube (pink label) which was previously connected to pressure switch by splicing to remaining small diameter tube (factory-supplied in loose parts bag).

5. Route this extended tube (pink label) to condensate trap relief port connection.

6. Determine appropriate length, cut, and connect tube.

7. Clamp tube to relief port connection.

CONDENSATE TRAP FREEZE PROTECTION

Refer to Condensate Drain Protection section for recommendations and procedures.

Step 4 -- Horizontal Left (Supply-Air Discharge) Applications

A horizontal left furnace application is where furnace blower is located to the right of combustion and controls section of furnace, and conditioned air is discharged to the left.

CONDENSATE TRAP LOCATION

The condensate trap must be removed from the factory-installed blower shelf location and relocated in selected application location as shown in Fig. 2 or 10.

-- 1 2 --

Page 13

To relocate condensate trap from the blower shelf to desired location, perform the following:

1. Remove 3 tubes connected to condensate trap.

2. Remove trap from blower shelf by gently pushing tabs inward and rotating trap.

3. Install casing hole filler cap (factory-supplied in loose parts bag) into blower shelf hole where trap was removed.

WARNING

CARBON MONOXIDE POISONING HAZARD

Failure to follow this warning could result in personal injury or death.

Casing hole filler cap must be installed in blower shelf hole when condensate trap is relocated to prevent combustion products being drawn in from appliances in the equipment room.

4. Install condensate trap into desired casing hole by inserting tube connection stubs through casing hole and rotating until tabs snap into locking position.

5. Fill unused condensate trap casing holes with plastic filler caps (factory-supplied in loose parts bag).

CONDENSATE TRAP TUBING

NOTE: See Fig. 10 or tube routing label on main furnace door to

check for proper connections.

1. Collector Box Drain Tube

a. Install drain tube coupling (factory-supplied in loose

parts bag) into collector box drain tube (blue label) which was previously connected to condensate trap.

b. Connect large diameter drain tube and clamp

(factory-supplied in loose parts bag) to drain tube coupling, extending collector box drain tube.

c. Route extended tube (blue label) to condensate trap

and cut to appropriate length.

d. Clamp tube to prevent any condensate leakage.

2. Inducer Housing Drain Tube

a. Remove and discard LOWER (molded) inducer

housing drain tube which was previously connected to condensate trap.

b. Use inducer housing drain extension tube (violet label

and factory-supplied in loose parts bag) to connect LOWER inducer housing drain connection to the condensate trap.

c. Determine appropriate length, cut, and connect tube.

d. Clamp tube to prevent any condensate leakage.

3. Relief Port Tube

a. Extend collector box tube (green label) which was

previously connected to the condensate trap by splicing to small diameter tube (factory-supplied in loose parts bag).

b. Route extended collector box pressure tube to relief

port connection on the condensate trap.

c. Determine appropriate length, cut, and connect tube.

d. Clamp tube to prevent any condensate leakage.

CONDENSATE TRAP FIELD DRAIN ATTACHMENTS

Refer to Condensate Drain section for recommendations and procedures.

PRESSURE SWITCH TUBING

The LOWER collector box pressure tube (pink label) is factory connected to the pressure switch for use when furnace is installed in UPFLOW applications. This tube MUST be disconnected, extended, rerouted, and then reconnected to the pressure switch in HORIZONTAL LEFT applications.

NOTE: See Fig. 10 or tube routing label on main furnace door to check for proper connections.

Modify tube as described below.

1. Disconnect collector box pressure tube (pink label) attached to pressure switch.

2. Use smaller diameter tube (factory-supplied in loose parts bag) to extend tube disconnected in item 1.

3. Route extended tube: a. Behind inducer housing. b. Between blower shelf and inducer housing. c. Behind inducer motor bracket. d. Between inducer motor and pressure switch.

4. Determine appropriate length, cut, and reconnect tube to pressure switch connection labeled COLLECTOR BOX.

CONDENSATE TRAP FREEZE PROTECTION

Refer to Condensate Drain Protection section for recommendations and procedures.

CONSTRUCT A WORKING PLATFORM

Construct working platform where all required furnace clearances are met. (See Fig. 3 and 11 or 12.)

UNIT MAY NOT OPERATE

Failure to follow this caution may result in intermittent unit operation.

The condensate trap MUST be installed below furnace. See Fig. 5 for dimensions. The drain connection to condensate trap must also be properly sloped to an open drain.

NOTE: Combustion-air and vent pipes are restricted to a minimum length of 5 ft. (1.5 M) (See Table 11.)

NOTE: A 12-in. (305 mm) minimum offset pipe section is recommended with short (5 to 8 ft (1.5 to 2.4 M)) vent systems. This recommendation is to reduce excessive condensate droplets from existing vent pipe. (See Fig. 11, 12 or 41.)

CAUTION

Step 5 -- Horizontal Right (Supply-Air Discharge) Applications

A horizontal right furnace application is where furnace blower is located to the left of combustion and controls section of furnace, and conditioned air is discharged to the right.

MINOR PROPERTY DAMAGE

Failure to follow this caution may result in minor property damage.

Local codes may require a drain pan under entire furnace and condensate trap when a condensing furnace is used in attic application or over a finished ceiling.

NOTE: In Canada, installations shall be in accordance with current NSCNGPIC Installation Codes and/or local codes.

NOTE: The auxiliary junction box (J-Box) MUST be relocated to opposite side of furnace casing. (See Fig. 13.) See Electrical Connection section for J-Box relocation.

CONDENSATE TRAP LOCATION

The condensate trap must be removed from the factory-installed blower shelf location and relocated in selected application location as shown in Fig. 2 or 13.

CAUTION

340AAV

-- 1 3 --

Page 14

COMBUSTION - AIR

INTAKE

/4″

(146 mm)

VENT

A 12-IN. (305 mm) MIN HORIZONTAL PIPE SECTION IS RECOMMENDED WITH SHORT (5 TO 8 FT / 1.5 TO 2.4 M) VENT SYSTEMS TO REDUCE EXCESSIVE CONDENSATE DROPLETS FROM EXITING THE VENT PIPE.

30″ (762 mm)MIN WORK AREA

340AAV

MANUAL

SHUTOFF

GAS VALVE

SEDIMENT TRAP

CONDENSATE TRAP

DRAIN

ACCESS OPENING FOR TRAP

NOTE: LOCAL CODES MAY REQUIRE A DRAIN PAN UNDER THE

FURNACE AND CONDENSATE TRAP WHEN A CONDENSING FURNACE IS INSTALLED ABOVE FINISHED CEILINGS.

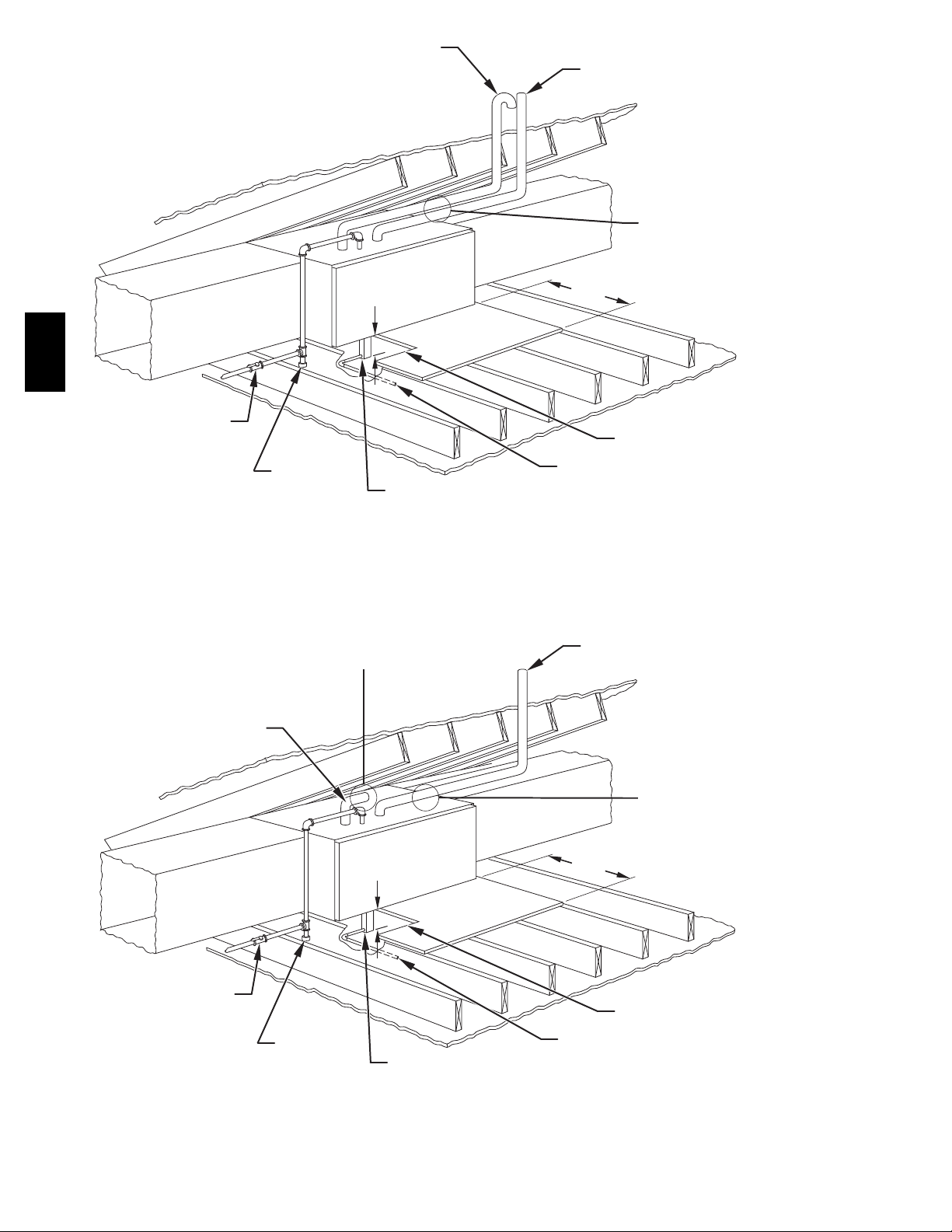

Fig. 11 -- Attic Location and Working Platform for Direct Vent (2-pipe) Application -- All Sizes

COMBUSTION AIR

INTAKE

A 3-IN.(76mm) MINIMUM CLEARANCE TO COMBUSTION-AIR INTAKE IS REQUIRED.

/4 IN. (146mm)

VENT

30-IN. (762mm) MIN WORK AREA

A 12-IN. (305mm) MIN HORIZONTAL PIPE SECTION IS RECOMMENDED WITH SHORT (5 TO 8 FT / 1.5 TO 2.4M) VENT SYSTEMS TO REDUCE EXCESSIVE CONDENSATE DROPLETS FROM EXITING THE VENT PIPE.

A93031

MANUAL

SHUTOFF

GAS VALVE

SEDIMENT TRAP

NOTE: LOCAL CODES MAY REQUIRE A DRAIN PAN UNDER THE

FURNACE AND CONDENSATE TRAP WHEN A CONDENSING FURNACE IS INSTALLED ABOVE FINISHED CEILINGS.

CONDENSATE TRAP

DRAIN

ACCESS OPENING FOR TRAP

Fig. 12 -- Attic Location and Working Platform for Non-Direct Vent (1-pipe) Applications-Sizes 040 Through 120 Only

-- 1 4 --

A96184

Page 15

PLUG

CAP

COLLECTOR BOX DRAIN TUBE (BLUE)

COLLECTOR BOX TUBE (GREEN)

COLLECTOR BOX EXTENSION TUBE

COLLECTOR BOX TUBE (PINK)

AUXILARY “J” BOX RELOCATED HERE

COLLECTOR BOX DRAIN TUBE

(BLUE AND WHITE STRIPED)

INDUCER HOUSING

DRAIN TUBE (VIOLET)

COLLECTOR BOX

EXTENSION TUBE

Fig. 13 -- Horizontal Right Tube Configuration

To relocate condensate trap from the blower shelf to desired location, perform the following:

1. Remove 3 tubes connected to condensate trap.

2. Remove trap from blower shelf by gently pushing tabs inward and rotating trap.

3. Install casing hole filler cap (factory-supplied in loose parts bag) into blower shelf hole where trap was removed.

WARNING

CARBON MONOXIDE POISONING HAZARD

Failure to follow this warning could result in personal injury or death.

Casing hole filler cap must be installed in blower shelf hole when condensate trap is relocated to prevent combustion products being drawn in from appliances in the equipment room.

4. Install condensate trap into desired casing hole by inserting tube connection stubs through casing hole and rotating until tabs snap into locking position.

5. Fill unused condensate trap casing holes with plastic filler caps (factory-supplied in loose parts bag).

CONDENSATE TRAP TUBING

NOTE: See Fig. 13 or tube routing label on main furnace door to

check for proper connections.

1. Collector Box Drain Tube

a. Remove factory-installed plug from LOWER collector

box drain tube (blue and white striped label).

CONDENSATE TRAP

A00214

b. Install removed clamp and plug into UPPER collector

box drain tube (blue label) which was previously connected to condensate trap.

c. Connect LOWER collector box drain tube (blue and

white striped label) to condensate trap. Tube does not need to be cut.

d. Clamp tube to prevent any condensate leakage.

2. Inducer Housing Drain Tube a. Remove factory-installed cap and clamp from LOWER

inducer housing drain connection.

b. Remove and discard UPPER (molded) inducer housing

drain tube which was previously connected to condensate trap.

c. Install cap and clamp on UPPER inducer housing drain

connection where molded drain tube was removed.

d. Use inducer housing drain extension tube (violet label

and factory-supplied in loose parts bag) to connect LOWER inducer housing drain connection to condensate trap.

e. Determine appropriate length, cut, and connect tube to

condensate trap.

f. Clamp tube to prevent any condensate leakage.

3. Relief Port Tube Refer to Pressure Switch Tubing section for connection procedure.

CONDENSATE TRAP FIELD DRAIN ATTACHMENT

Refer to Condensate Drain section for recommendations and procedures.

340AAV

-- 1 5 --

Page 16

LEVEL (0”)

TO 1/2” (13mm)

MAX

UPFLOW OR DOWNFLOW

FRONT FRONT

MIN 1/4” (7mm) TO 1/2” (13mm)

MAX

HORIZONTAL

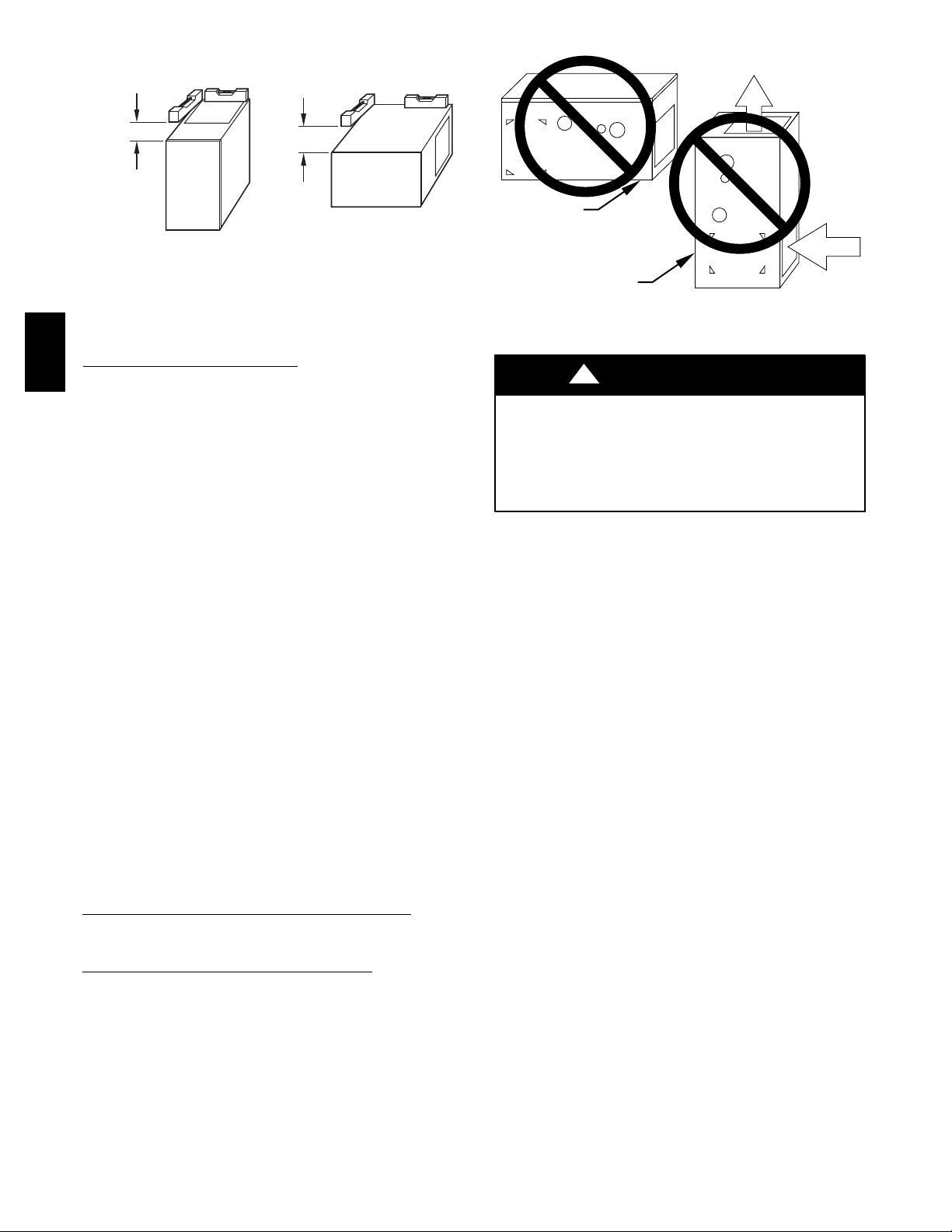

Fig. 14 -- Furnace Location for Proper Condensate Drainage

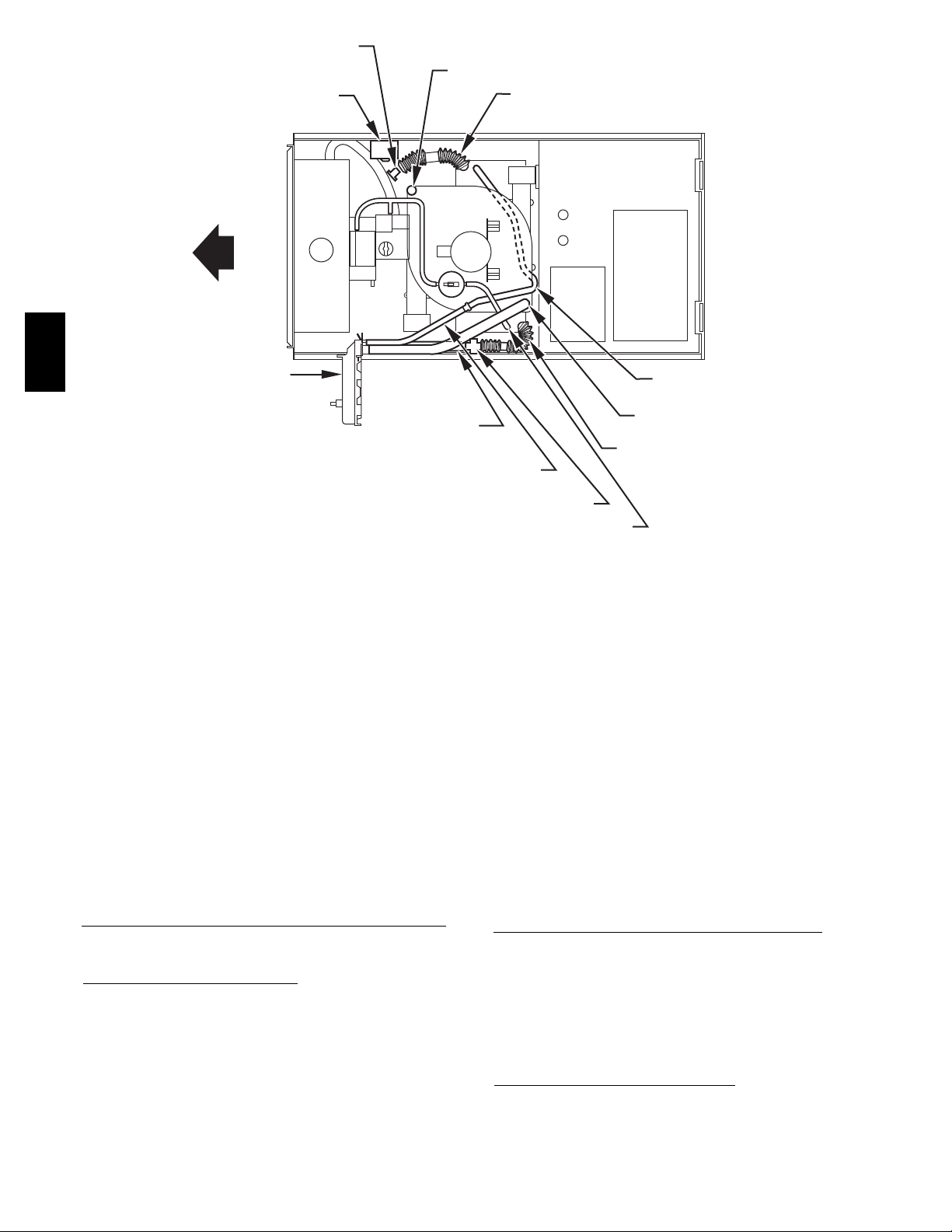

PRESSURE SWITCH TUBING

340AAV

NOTE: See Fig. 13 or tube routing label on main furnace door to check for proper connections.

Relocate tubes as described below:

1. Disconnect collector box pressure tube (pink label) attached to pressure switch.

2. Extend collector box pressure tube (green label) which was previously connected to condensate trap relief port connection by splicing to small diameter tube (factory-supplied in loose parts bag).

3. Route extended collector box pressure tube behind inducer motor bracket then between inducer motor and pressure switch.

4. Connect collector box pressure tube (green label) to pressure switch connection labeled COLLECTOR BOX.

5. Use remaining smaller diameter tube (factory-supplied in loose parts bag) to extend collector box pressure tube (pink label) which was previously connected to pressure switch.

6. Route this extended tube (pink label) to condensate trap relief port connection.

7. Determine appropriate length, cut, and connect tube.

8. Clamp tube to relief port connection.

CONDENSATE TRAP FREEZE PROTECTION

Refer to Condensate Drain Protection section for recommendations and procedures.

CONSTRUCT A WORKING PLATFORM

Construct working platform where all required furnace clearances are met. (See Fig. 3 and 11 or 12.)

A02146

FRONT

B A

C

BACK

FRONT

A93043

Fig. 15 -- Installation on Back is Prohibited

CAUTION

UNIT MAY NOT OPERATE

Failure to follow this caution may result in intermittent unit operation.

The condensate trap MUST be installed below furnace. See Fig. 5 for dimensions. The drain connection to condensate trap must also be properly sloped to an open drain.

NOTE: Vent pipe(s) and combustion-air pipe (when applicable) are restricted to a minimum length of 5 ft. (See Table 11.)

NOTE: A 12-in. (305 mm) minimum offset pipe section is recommended with short (5 to 8 ft) vent systems. This recommendation is to reduce excessive condensate droplets from existing vent pipe. (See Fig. 11, 12 or 41.)

NOTE: The 140 size unit may NOT be installed in non-direct vent (1-pipe) application.

LOCATION

Step 1 -- General

This furnace must

S be installed so the electrical components are protected

from water.

S not be installed directly on any combustible material other than

wood flooring (refer to SAFETY CONSIDERATIONS).

S be located so combustion-air and vent pipe maximum lengths

are not exceeded. Refer to Table 11.

S be located where available electric power and gas supplies

meet specifications on the furnace rating plate.

S be attached to an air distribution system and be located as close

to the center of the distribution system as possible. Refer to Air Ducts section.

S be provided with ample space for servicing and cleaning.

Always comply with minimum fire protection clearances shown on the furnace clearance to combustibles label.

NOTE: For upflow/downflow applications install furnace so that it is level or pitched forward within 1/2-in. (13 mm) for proper furnace operation. For horizontal applications pitch 1/4-in. (6 mm) minimum to 1/2-in. (13 mm)maximum forward to ensure proper condensate drainage from secondary heat exchangers. (See Fig. 14.)

-- 1 6 --

Page 17

When a furnace is installed so that supply ducts carry air circulated by the furnace to areas outside the space containing the furnace, the return air shall also be handled by duct(s) sealed to furnace casing and terminating outside the space containing the furnace to ensure there will not be a negative pressure condition within equipment room or space.

UNIT DAMAGE HAZARD

This gas furnace may be used for construction heat provided that:

--The furnace is permanently installed with all electrical wiring, piping, air filters, venting and ducting installed according to these installation instructions. A return air duct is provided, sealed to the furnace casing, and terminated outside the space containing the furnace. This prevents a negative pressure condition as created by the circulating air blower, causing a flame rollout and/or drawing combustion products into the structure.

--The furnace is controlled by a thermostat. It may not be “hot wired” to provide heat continuously to the structure without thermostatic control.

--Clean outside air is provided for combustion. This is to minimize the corrosive effects of adhesives, sealers and other construction materials. It also prevents the entrainment of drywall dust into combustion air, which can cause fouling and plugging of furnace components.

--The temperature of the return air to the furnace is maintained between 55°F(13°C) and 80°F(27°C), with no evening setback or shutdown. The use of the furnace while the structure is under construction is deemed to be intermittent operation per our installation instructions.

--The air temperature rise is within the rated rise range on the furnace rating plate, and the firing rate has been set to the nameplate value.

--The filters used to clean the circulating air during the construction process must be either changed or thoroughly cleaned prior to occupancy.

--The furnace, ductwork and filters are cleaned as necessary to remove drywall dust and construction debris from all HVAC system components after construction is completed.

--After construction is complete, verify furnace operating conditions including ignition, input rate, temperature rise and venting, according to the manufacturer’s instructions.

FIRE, INJURY OR DEATH HAZARD

Failure to follow this warning could result in fire, property damage, personal injury, or death.

Do not install furnace on its back. Safety control operation will be adversely affected. Never connect return-air ducts to back of furnace. (See Fig. 15.)

CAUTION

WARNING

A07911

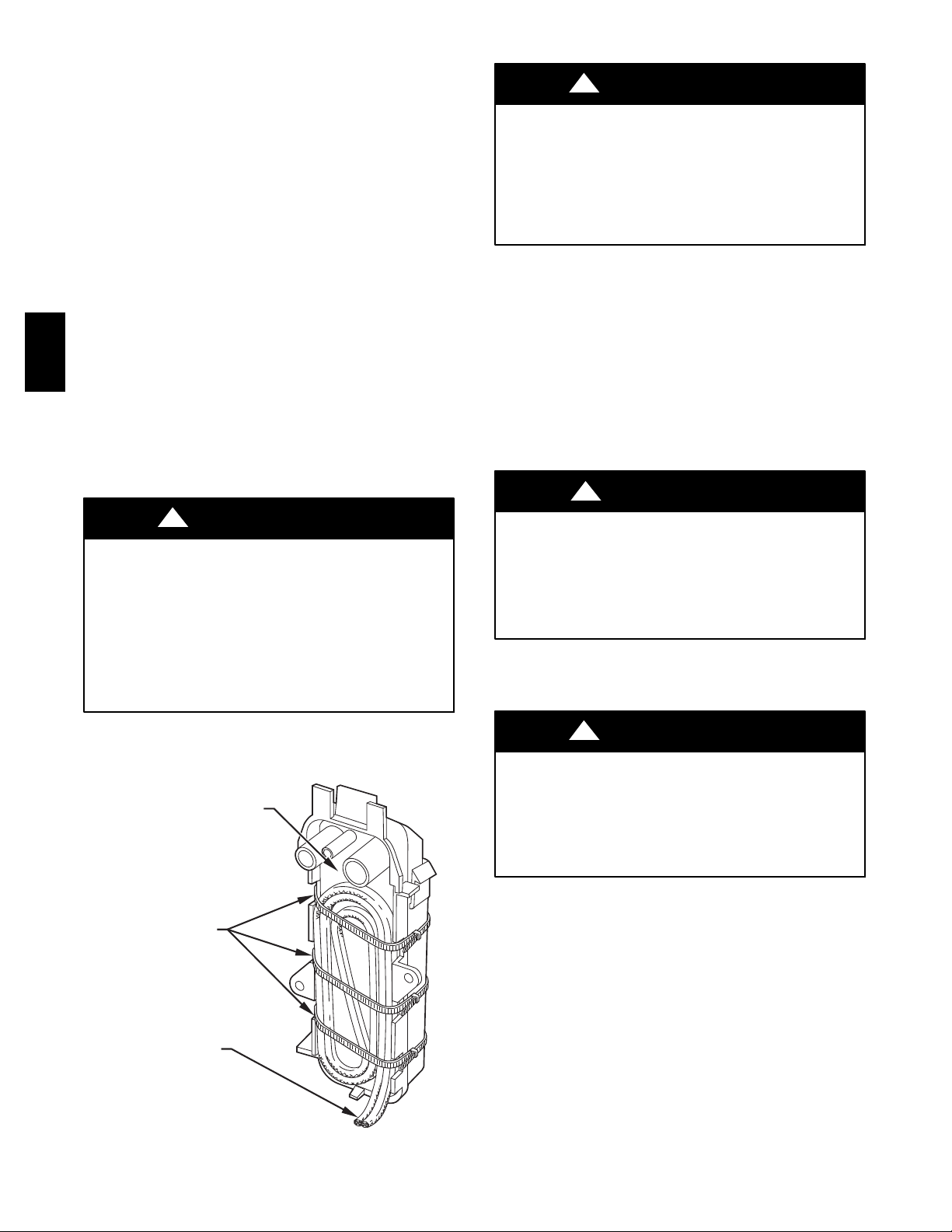

Fig. 16 -- Freeze Protection

UNIT DAMAGE HAZARD

Failure to follow this caution may result in minor property or unit damage.

If this furnace is installed in an unconditioned space where ambient temperatures may be 32°F(0°C)or lower, freeze protection measures must be taken. (See Fig. 16.)

CAUTION

Step 3 -- Hazardous Locations

WARNING

FIRE, EXPLOSION, INJURY OR DEATH HAZARD

Improper location or inadequate protection could result in fire or explosion.

When the furnace is installed in a residential garage, the burners and ignition sources must be located at least 18-in. (457 mm) above the floor. The furnace must be located or protected to avoid physical damage by vehicles. When the furnace is installed in a public garage, airplane hangar, or other building having a hazardous atmosphere, the furnace must be installed in accordance with the NFGC or NSCNGPIC. (See Fig. 17.)

Step 4 -- Furnace Location and Application

DIRECT VENT (2-PIPE) APPLICATION

Furnace may be located in a confined space without special provisions for dilution or ventilation air.

340AAV

Step 2 -- Furnace Location Relative to Cooling Equipment

The cooling coil must be installed parallel with or on downstream side of furnace to avoid condensation in heat exchanger. When installed parallel with a furnace, dampers or other means used to control flow of air shall be adequate to prevent chilled air from entering furnace. If dampers are manually operated, they must be equipped with a means to prevent operation of either unit unless damper is in full-heat or full-cool position.

-- 1 7 --

18-IN. (457.2 mm)

MINIMUM TO BURNERS

Fig. 17 -- Installation in a Garage

A93044

Page 18

Table 1 – Minimum Free Area Required for Each Combustion Air Opening or Duct to Outdoors

TWO HORIZONT AL DUCTS

FURNACE

INPUT

(BTUH)

44,000 22 (14194) 6 (152) 14.7 (9494) 5 (127) 11 (7097) 4 (102) 66,000 33 (21290) 7 (178) 22 (14193) 6 (152) 16.5 (10645) 5 (127)

88,000 44 (28387) 8 (203) 29.3 (18903) 7 (178) 22 (14193) 6 (152) 110,000 55 (35484) 9 (229) 36.7 (23677) 7 (178) 27.5 (17741) 6 (152) 132,000 66 (42581) 10 (254) 44 (28387) 8 (203) 33 (21290) 7 (198) 154,000 77 (49677) 10 (254) 51.3 (33096) 9 (229) 38.5 (24838) 8 (203)

(1 SQ. IN./2,000 BTUH) (1,100 SQ. MM/KW)

Free Area of

Opening and Duct

Sq. In. (mm)

Round Duct

Dia.

In. (mm)

SINGLE DUCT OR OPENING

(1 SQ. IN./3,000 BTUH) (734 SQ. MM/KW)

Free Area of Opening

and Duct

Sq. In (mm)

Round Duct

Dia.

In. (mm)

TWO OPENINGS OR VERTICAL DUCTS

(1 SQ. IN./4,000 BTUH) (550 SQ. MM/KW)

Free Area of Opening

and Duct

Sq. In (mm)

Round Duct

In. (mm)

EXAMPLE: Determining Free Area

FURNACE WATER HEATER TOTAL INPUT

110,000 + 30,000 = (140,000 divided by 4,000) = 35.0 Sq. In. for each two Vertical Ducts or Openings

66,000 + 40,000 = (106,000 divided by 3,000) = 35.3 Sq. In. for a Single Duct or Opening 88,000 + 30,000 = (118,000 divided by 2,000) = 59.0 Sq. In. for each of two Horizontal Ducts

Dia.

340AAV

ACH

0.60

0.50

0.40

0.30

0.20

0.10

0.00 NP NP NP NP NP NP NP NP NP

Table 2 – Minimum Space Volumes for 100% Combustion, Ventilation and Dilution Air from Outdoors

OTHER THAN FAN-ASSISTED TOTAL

(1,000’S BTUH GAS INPUT RATE)

30 40 50 44 66 88 110 132 154

1,050

(29.7)

1,260

(35.6)

1,575

(44.5)

2,100

(59.4)

3,150

(89.1)

6,300

(178.3)

1,400 (39.6)

1,680 (47.5)

2,100 (59.4)

2,800 (79.2)

4,200

(118.9)

8,400

(237.8)

1,750

(49.5)

2,100 (59.4)

2,625 (74.3)

3,500 (99.1)

5,250

(148.6)

10,500

(297.3)

NON-DIRECT VENT (1-PIPE) APPLICATION

UNIT DAMAGE HAZARD

Failure to follow this caution may result in intermittent unit operation.

Do not install furnace in a corrosive or contaminated atmosphere. Make sure all combustion and circulating air requirements are met.

Refer to the AIR FOR COMBUSTION AND VENTILATION section for details.

CAUTION

AIR FOR COMBUSTION AND

VENTILATION

Provisions for adequate combustion, ventilation, and dilution air must be provided in accordance with:

S U.S. Installations: Section 9.3 of the NFPA 54/ANSI

Z223.1--2006, Air for Combustion and Ventilation and applicable provisions of the local building codes.

S Canadian Installations: Part 8 of the CAN/CSA--B149.1--05,

Venting Systems and Air Supply for Appliances and all authorities having jurisdiction.

SpaceVolumeFt3(M3)

1,100

(31.1)

1,320

(37.3)

1,650

(46.7)

2,200

(62.2)

3,300

(93.4)

6,600

(186.8)

1,650 (46.7)

1,980 (56.0)

2,475 (70.0)

3,300 (93.4)

4,950

(140.1)

9,900

(280.3)

FURNACE CORROSION HAZARD

Failure to follow this warning could result in reduced furnace component life.

Air for combustion must not be contaminated by halogen compounds, which include fluoride, chloride, bromide, and iodide. These elements could corrode heat exchangers and shorten furnace life. Air contaminants are found in aerosol sprays, detergents, bleaches, cleaning solvents, salts, air fresheners, and other household products.

The following types of furnace installations may require OUTDOOR AIR for combustion due to chemical exposures:

S Commercial buildings S Buildings with indoor pools S Laundry rooms S Hobby or craft rooms, and S Chemical storage areas

If air is exposed to the following substances, it should not be used for combustion air, and outdoor air may be required for combustion:

S Permanent wave solutions S Chlorinated waxes and cleaners

FAN-ASSISTED TOTAL

(1,000’S BTUH GAS INPUT RATE)

2,200 (62.2)

2,640 (74.7)

3,300 (93.4)

4,400

(124.5)

6,600

(186.8)

13,200 (373.7)

2,750 (77.8)

3,300 (93.4)

4,125

(116.8)

5,500

(155.7)

8,250

(233.6)

16,500 (467.2)

WARNING

3,300

(93.4)

3,960

(112.1)

4,950

(140.1)

6,600

(186.8)

9,900

(280.3)

19,800 (560.6)

3,850

(109.0)

4,620

(130.8)

5,775

(163.5)

7,700

(218.0)

11,550 (327.0)

23,100 (654.1)

-- 1 8 --

Page 19

S Chlorine based swimming pool chemicals S Water softening chemicals S De-icing salts or chemicals S Carbon tetrachloride S Halogen type refrigerants S Cleaning solvents (such as perchloroethylene) S Printing inks, paint removers, varnishes, etc. S Hydrochloric acid

S Cements and glues S Antistatic fabric softeners for clothes dryers S Masonry acid washing materials

All fuel-burning equipment must be supplied with air for fuel combustion. Sufficient air must be provided to avoid negative pressure in the equipment room or space. A positive seal must be made between the furnace cabinet and the return-air duct to prevent pulling air from the burner area and from draft safeguard opening.

WARNING

CARBON MONOXIDE POISONING HAZARD

Failure to follow this warning could result in personal injury or death.

The operation of exhaust fans, kitchen ventilation fans, clothes dryers, attic exhaust fans or fireplaces could create a NEGATIVE PRESSURE CONDITION at the furnace. Make-up air MUST be provided for the ventilation devices, in addition to that required by the furnace. Refer to the Carbon Monoxide Poisoning Hazard warning in the venting section of these instructions to determine if an adequate amount of make-up air is available.

The requirements for combustion and ventilation air depend upon whether or not the furnace is located in a space having a volume of at least 50 cubic feet per 1,000 Btuh input rating for all gas appliances installed in the space.

S Spaces having less than 50 cubic feet per 1,000 Btuh require

the OUTDOOR COMBUSTION AIR METHOD.

S Spaces having at least 50 cubic feet per 1,000 Btuh may use

the INDOOR COMBUSTION AIR, STANDARD or

KNOWN AIR INFILTRATION METHOD.

Outdoor Combustion Air Method

1. Provide the space with sufficient air for proper combustion, ventilation, and dilution of flue gases using permanent horizontal or vertical duct(s) or opening(s) directly communicating with the outdoors or spaces that freely communicate with the outdoors.

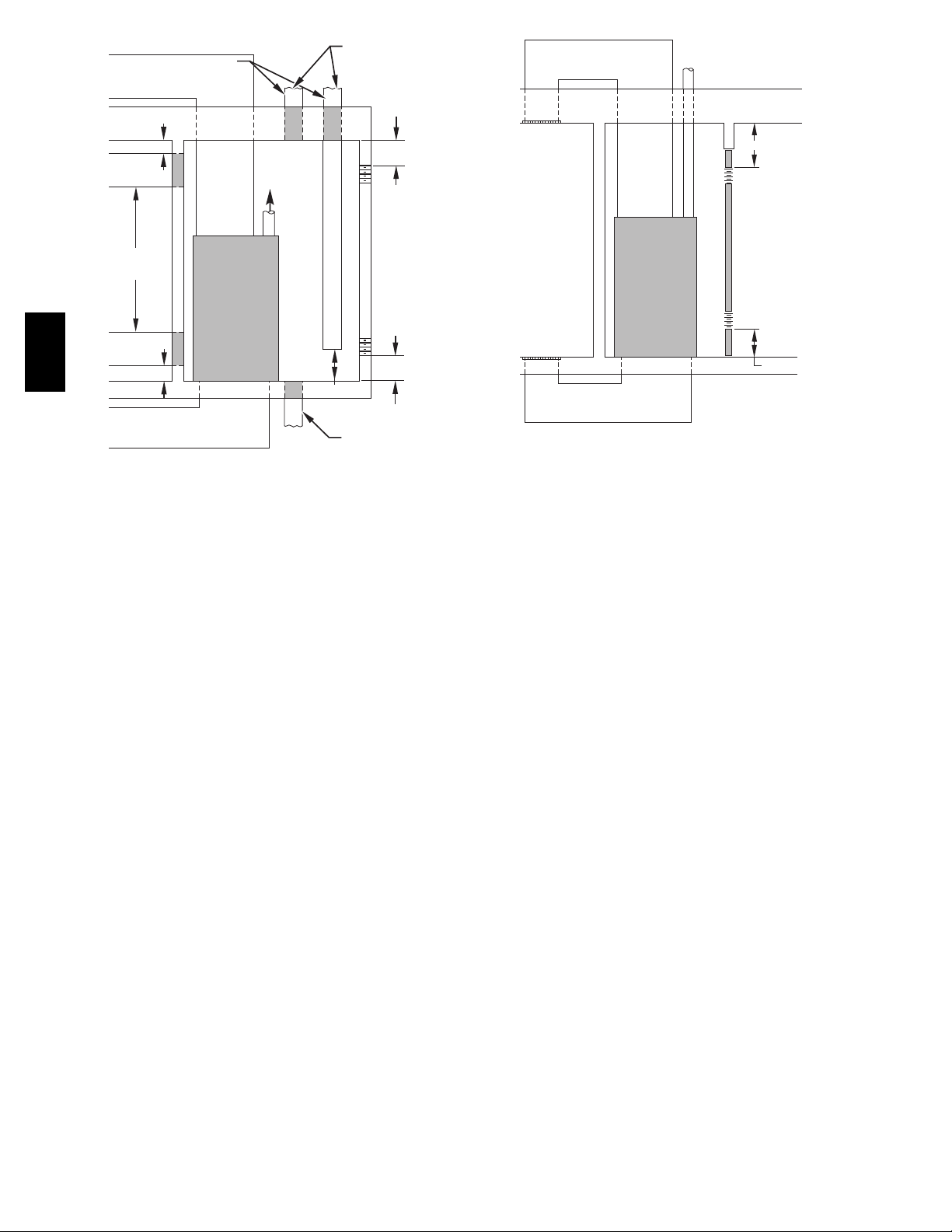

2. Fig. 18 illustrates how to provide TWO OUTDOOR OPENINGS, one inlet and one outlet combustion and ventilation air openings to the outdoors.

a. One opening MUST commence within 12-in. (305

mm) of the ceiling and the second opening MUST commence within 12-in. (305 mm) of the floor.

b. Size openings and ducts per Fig. 18 and Table 1.

c. TWO HORIZONTAL DUCTS require 1 square inch of

free area per 2,000 Btuh (1,100 mm input for all gas appliances in the space per Fig. 18 and Table 1.

d. TWO OPENINGS OR VERTICAL DUCTS require 1

square inch of free area per 4,000 Btuh (550 mm for combined input of all gas appliances in the space per Fig. 18 and Table 1.

/kW) of combined

/kW)

3. ONE OUTDOOR OPENING requires: a. 1 square inch of free area per 3,000 Btuh

(734 mm appliances in the space per Table 1 and

b. Not less than the sum of the areas of all vent connectors

in the space. The opening shall commence within 12-in. (305 mm) of the ceiling. Appliances in the space shall have clearances of at least 1-in. (25 mm) from the sides and back and 6-in. (152 mm) from the front. The opening shall directly communicate with the outdoors or shall communicate through a vertical or horizontal duct to the outdoors or spaces (crawl or attic) that freely communicate with the outdoors.

Indoor Combustion Air© NFPA & AGA Standard and Known-Air-Infiltration Rate Methods Indoor combustion air is permitted for combustion, ventilation,

and dilution, if the Standard or Known-Air-Infiltration Rate Method is used.

CARBON MONOXIDE POISONING HAZARD

Failure to supply outdoor air via grilles or ducts could result in death and/or personal injury.

Many homes require air to be supplied from outdoors for furnace combustion, ventilation, and dilution of flue gases. The furnace combustion air supply must be provided in accordance with this instruction manual.

The Standard Method:

1. The space has no less volume than 50 cubic feet per 1,000 Btuh of the maximum input ratings for all gas appliances installed in the space and

2. The air infiltration rate is not known to be less than 0.40 air changes per hour (ACH).

The Known Air Infiltration Rate Method shall be used, if the infiltration rate is known to be:

1. Less than 0.40 ACH and

2. Equal to or greater than 0.10 ACH

Infiltration rates greater than 0.60 ACH shall not be used. The minimum required volume of the space varies with the number of ACH and shall be determined per Table 2 or Equations 1 and 2. Determine the minimum required volume for each appliance in the space and add the volumes together to get the total minimum required volume for the space.

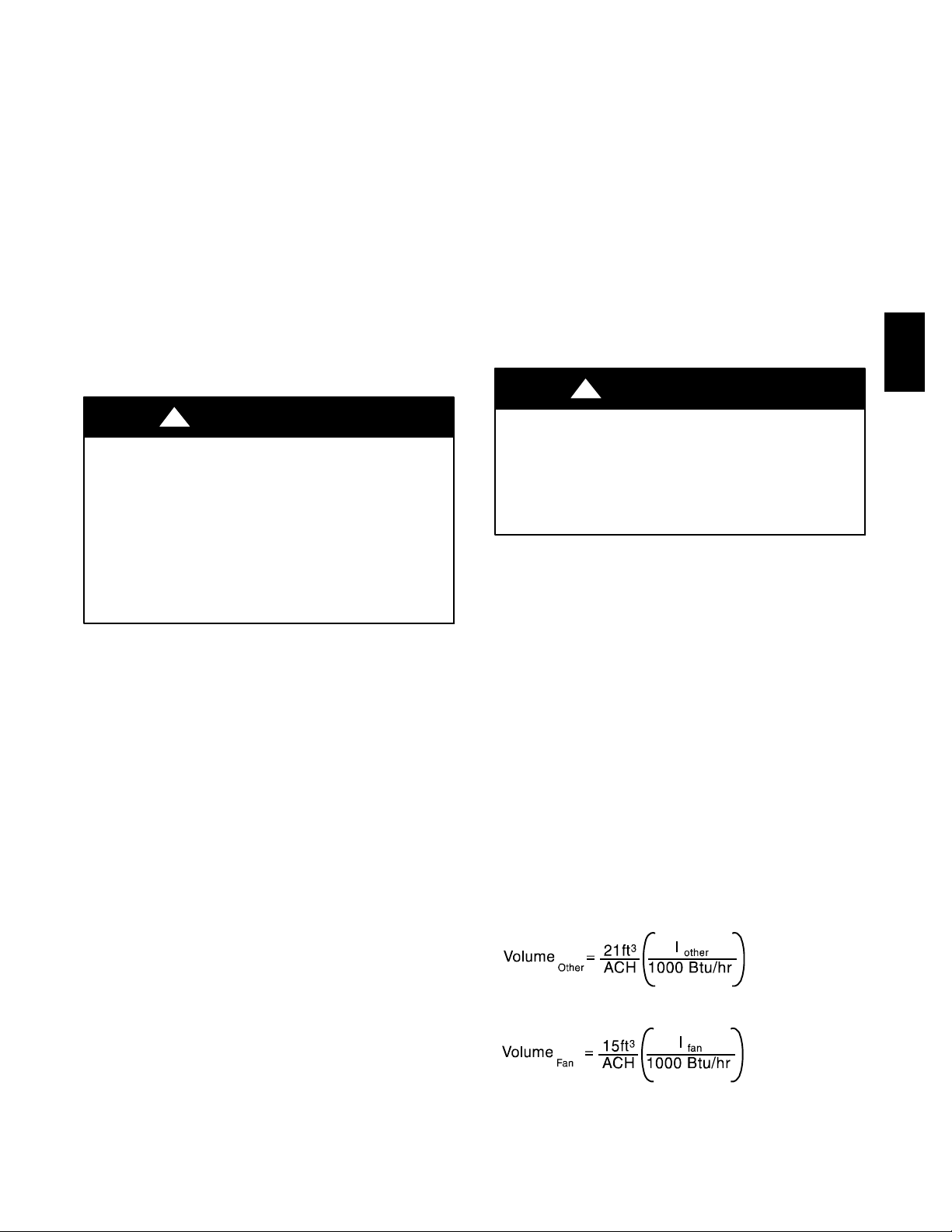

Table 2 -- Minimum Space Volumes were determined by using the following equations from the National Fuel Gas Code NFPA 54/ANSI Z223.1--2006, 9.3.2.2:

1. For other than fan-assisted appliances, such as a draft hood-equipped water heater

2. For fan-assisted appliances such as this furnace:

/kW) for combined input of all gas

WARNING

A04002

A04003

340AAV

-- 1 9 --

Page 20

DUCTS

O UTDOORS

(305mm)

12 ″ MAX

1 SQ IN. PER 2000 BTUH*

DUCT S

OUTDOORS

1 SQ IN. PER 2000 BTUH*

(305mm)

340AAV

12 ″ MAX

CIRCULA TING AIR DUCT S

*Minimum dimensions of 3 in. (76 mm).

NOTE: Use any of the following combinations of openings:

A&BC&DD&EF&G

VENT THR OUGH R OOF

AIR DUCTS

C IRCULA TING

(76mm)

AT LEAST 3 IN .

OPENINGS SHALL BE

OF COMB USTION AIR

CLEARANCE IN FRONT

DUCT

OUTDOORS

Fig. 18 -- Air for Combustion, Ventilation, and Dilution

for Outdoors

12 ″ MAX

(305mm)

1 SQ IN. PER 4000 BTUH*

1 SQ IN .

BTUH*

1 SQ IN .

BTUH*

12 ″

(305mm)

MAX

PER 4000

OUTDOORS

PER

4000

12 ″

(305mm)

MAX

A03174

CIRCULATING AIR

DUCTS

INTERIOR

HEATED

SPACE

CIRCULATING AIR DUCTS

* Minimum opening size is 100 sq in. with minimum dimensions of 3 in. (76 mm) † Minimum of 3 in. (76 mm) when type-B1 vent is used.

VENT THROUGH ROOF

12" MAX

1 SQ IN. PER 1000 BTUH* IN DOOR OR WALL

UNCONFINED SPACE

(152mm)

6" MIN (FRONT)

1 SQ IN. PER 1000 BTUH* IN DOOR

OPENINGS SHALL BE AT LEAST 3 IN.

OR WALL

CLEARANCE IN FRONT OF COMBUSTION AIR

12" MA X

(305mm)

Fig. 19 -- Air for Combustion, Ventilation, and Dilution

from Indoors

A03175

If: I

other=combined input of all other than fan-assisted appliances

in Btu/hr I

fan=combined input of all fan-assisted appliances in Btu/hr

ACH = air changes per hour (ACH shall not exceed 0.60.) The following requirements apply to the Standard Method and to

the Known Air Infiltration Rate Method.

1. Adjoining rooms can be considered part of a space if: a. There are no closable doors between rooms.

b. Combining spaces on same floor level. Each opening

shall have free area of at least 1-in. (2,000 mm2/kW) of the total input rating of all gas appliances in the space, but not less than 100-in.

/1,000 Btuh

(0.06 m2). One opening shall commence within 12 in. (305 mm) of the ceiling and the second opening shall commence within 12-in. (305 mm) of the floor. The minimum dimension of air openings shall be at least 3-in. (76 mm). (See Fig. 19.)

c. Combining space on different floor levels. The

volumes of spaces on different floor levels shall be considered as communicating spaces if connected by one or more permanent openings in doors or floors having free area of at least 2 in. (4,400 mm

/kW) of total input rating of all

/1,000 Btuh

gas appliances.

2. An attic or crawlspace may be considered a space that

freely communicates with the outdoors provided there are adequate permanent ventilation openings directly to outdoors having free area of at least 1-in.

/4,000 Btuh of

total input rating for all gas appliances in the space.

3. In spaces that use the Indoor Combustion Air Method,

infiltration should be adequate to provide air for combustion, permanent ventilation and dilution of flue gases. However, in buildings with unusually tight construction, additional air MUST be provided using the methods described in the Outdoor Combustion Air Method section. Unusually tight construction is defined as Construction with:

a. Walls and ceilings exposed to the outdoors have a

continuous, sealed vapor barrier. Openings are

gasketed or sealed and b. Doors and openable windows are weatherstripped and c. Other openings are caulked or sealed. These include

joints around window and door frames, between sole

plates and floors, between wall-ceiling joints, between

wall panels, at penetrations for plumbing, electrical

and gas lines, etc.

NOTE: In determining the free area of an opening, the blocking effect of the louvers, grilles, and screens must be considered. If the free area of a louver or grille design is unknown, it may be assumed that wood louvers have a 20 percent free area, and metal louvers or grilles have a 60 percent free area. Screens, when used, must not be smaller than 1/4-in. (6 mm) mesh. Louvers and grilles must be constructed so they cannot be closed.

When combustion air ducts are used, they must be of the same cross sectional area as the free area of the openings to which they connect. The minimum dimension of ducts must not be less than 3-in. (76 mm).

-- 2 0 --

Page 21

Combination of Indoor and Outdoor Air

1. Indoor openings shall comply with the Indoor Combustion Air Method below and,

2. Outdoor openings shall be located as required in the Outdoor Combustion Air Method mentioned previously and,

3. Outdoor openings shall be sized as follows:

a. Calculate the Ratio of all Indoor Space volume divided

by required volume for Indoor Combustion Air Method below.

b. Outdoor opening size reduction Factor is 1 minus the

Ratio in a. above.

c. Minimum size of Outdoor openings shall be the size

required in Outdoor Combustion Air Method above multiplied by reduction Factor in b. above. The minimum dimension of air openings shall be not less than 3-in. (76 mm).

INSTALLATION

NOTE: The 140 size unit may not be installed in non-direct vent

(1-pipe) applications.

Step 1 -- Leveling Legs (If Desired)

When furnace is used in upflow position with side inlet(s), leveling legs may be desired. (See Fig. 20.) Install field-supplied, corrosion-resistant 5/16-in. (8 mm) machine bolts and nuts.

NOTE: The maximum length of bolt should not exceed 1-1/2 in. (38 mm).

1. Position furnace on its back. Locate and drill a 5/16-in. (8 mm) diameter hole in each bottom corner of furnace. (See Fig. 20.) Holes in bottom closure panel may be used as guide locations.

2. For each hole, install nut on bolt and then install bolt and nut in hole. (Install flat washer if desired.)

3. Install another nut on other side of furnace base. (Install flat washer if desired.)

4. Adjust outside nut to provide desired height, and tighten inside nut to secure arrangement.

NOTE: Bottom closure must be used when leveling legs are used. See Bottom Closure Panel section.

(8mm)

(44mm)

(8mm)

16″

1 3/ 4″

/ 16″

(8mm)

16″

/ 4″

(44mm)

manufacturer) Part No. KGASB0201ALL is used. Special base is not required when this furnace is installed on manufacturer’s Coil Assembly Part No. CNPV, CAPV, CAP or CAR, or Coil Box Part No. KCAKC is used.

1. Determine application being installed from Table 3.

2. Construct hole in floor per dimensions specified in Table 3 and Fig. 21.

3. Construct plenum to dimensions specified in Table 3 and Fig. 21.

4. If downflow subbase (KGASB) is used, install as shown in Fig. 22.

If Coil Assembly Part No. CNPV, CAPV, CAP or CAR or Coil Box Part No. KCAKC is used, install as shown in Fig. 23.

NOTE: Remove furnace perforated, discharge duct flanges when they interfere with mating flanges on coil on downflow sub base. To remove furnace perforated, discharge duct flange, use wide duct pliers or duct flange tool or hand seamers to bend flange back and forth until it breaks off. Be careful of sharp edges. (See Fig. 24.)

CAUTION

UNIT MAY NOT OPERATE

Failure to follow this caution may result in intermittent unit operation.

Do not bend duct flanges inward as shown in Fig. 24. This will affect airflow across heat exchangers and may cause limit cycling or premature heat exchanger failure. Remove duct flange completely or bend it inward a minimum of 210° as shown in Fig. 24.

NOTE: For 140 size unit when installed in downflow orientation, cut the white jumper wire off between terminals PL1--7 and PL1--9. Do not cut white jumper between terminals PL1--7 and PL1--11. Refer to Fig. 31 for location of jumper. Cut jumper close to connector and remove wire to avoid a short circuit.

Step 3 -- Installation in Horizontal Applications

UNIT MAY NOT OPERATE

Failure to follow this caution may result in intermittent unit operation.

The entire length of furnace MUST be supported when furnace is used in a horizontal position to ensure proper draining. When suspended, bottom brace supports sides and center blower shelf. When unit is supported from the ground, blocks or pad should support sides and center blower shelf area.

CAUTION

340AAV

(8mm)

16″

A89014

(44mm)

4″

1 3/ 4″

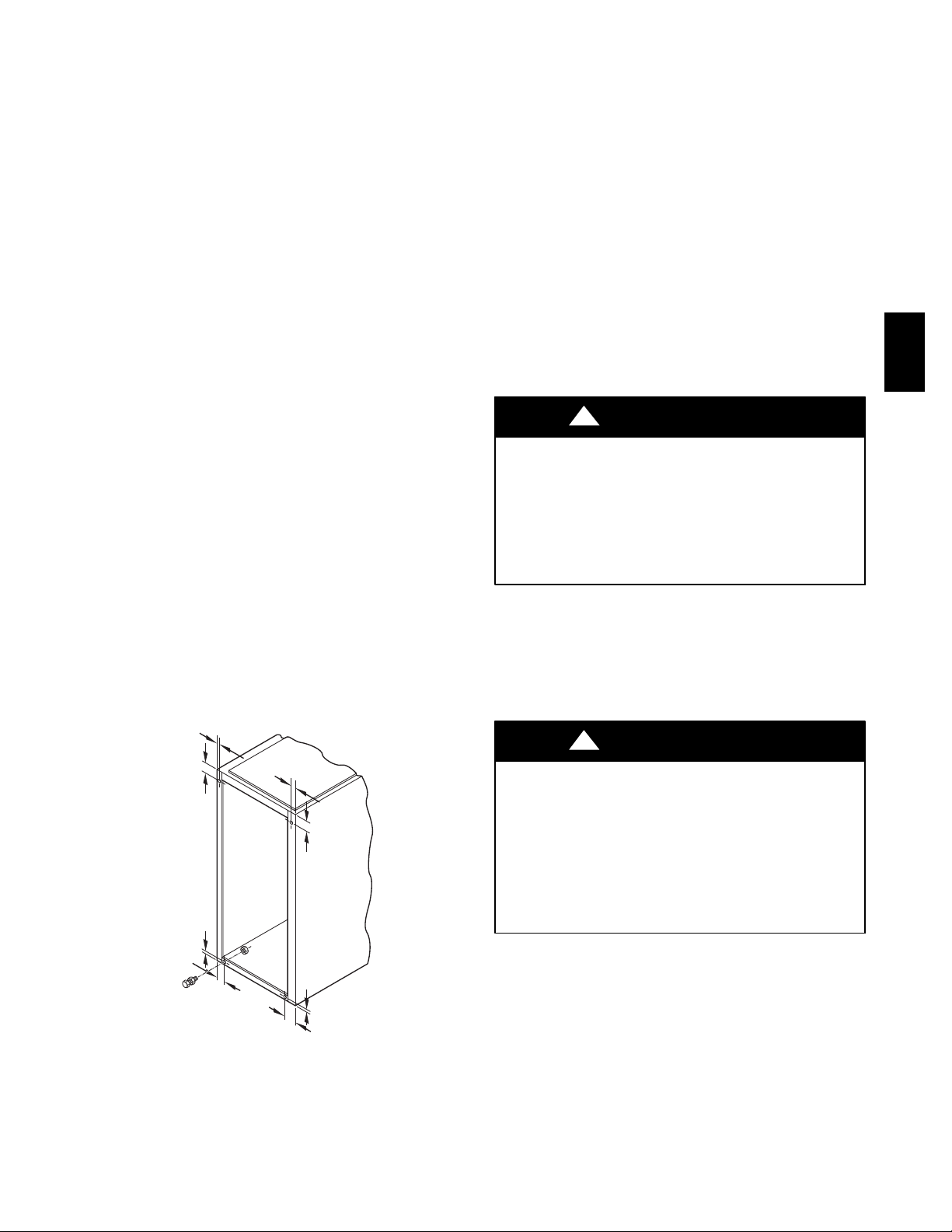

Fig. 20 -- Leveling Legs

Step 2 -- Installation in Upflow or Downflow Applications

NOTE: For downflow applications, this furnace is approved for

use on combustible flooring when special base (available from

These furnaces can be installed horizontally in either horizontal left or right discharge position. In a crawlspace, furnace can either be hung from floor joist or installed on suitable blocks or pad. Furnace can be suspended from each corner by hanger bolts and angle iron supports. (See Fig. 25.) Cut hanger bolts (4 each 3/8-in. (10 mm) all-thread rod) to desired length. Use 1 X 3/8-in. flat washers, 3/8-in. lock washers, and 3/8-in. nuts on hanger rods as shown in Fig. 25. Dimples are provided for hole locations. (See Fig. 2.)

-- 2 1 --

Page 22

FURNACE

(OR COIL CASING

WHEN USED)

PLENUM

OPENING

COMBUSTIBLE

FLOORING

B D

DOWNFLOW

SUBBASE

FLOOR

OPENING

340AAV

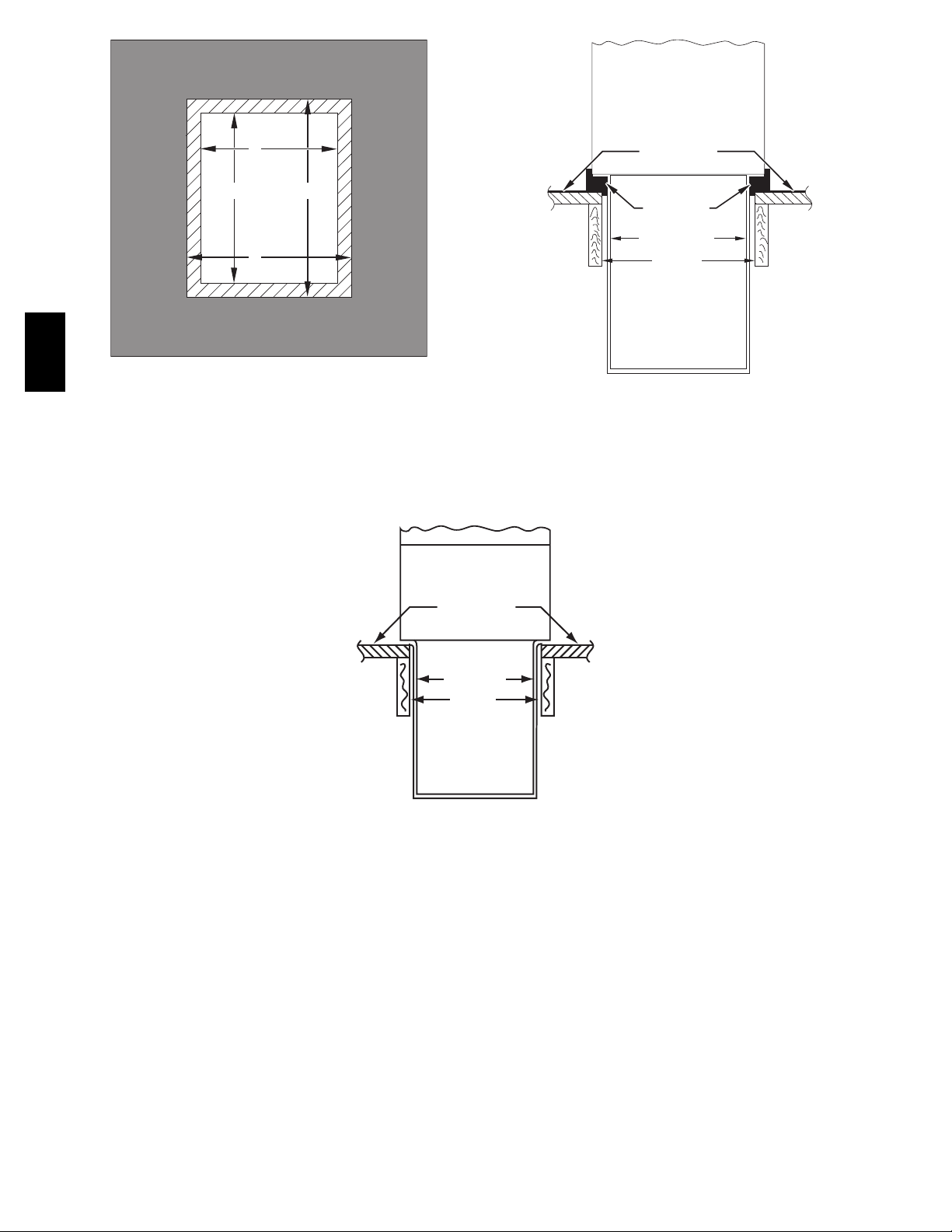

Fig. 21 -- Floor and Plenum Opening Dimensions

A96283

Fig. 22 -- Furnace, Plenum, and Subbase

SHEET METAL

PLENUM

FLOOR

OPENING

A96285

Installed on a Combustible Floor

FURNACE

FACTORY SUPPLIED

CASED COIL OR COIL BOX

COMBUSTIBLE

FLOORING

SHEET METAL

PLENUM FLOOR

OPENING

Fig. 23 -- Furnace, Plenum, and Coil Assembly or Coil Box Installed on a Combustible Floor

A07586

-- 2 2 --

Page 23

Table 3 – Opening Dimension -- In. (mm)

FURNACE

CASING

WIDTH

17-1/2

(445)

(533)

24-1/2

(622)

APPLICATION

Upflow Applications 16 (406) 24-1/8 (613) 16-5/8 (422) 24-3/4 (629)

Downflow Applications on Non-Combustible Flooring 15-7/8 (403) 19 (483) 16-1/2 (419) 19-5/8 (498)

Downflow Applications on Combustible Flooring Using KGASB Subbase

Furnace with or without CAP, CAR, CNPV, CNRV Coil Assembly or KCAKC

Downflow Applications on Combustible Flooring NOT Using KGASB

Subbase Furnace with CAP, CAR, CNPV, CNRV Coil Assembly or KCAKC Coil

Downflow Applications on Non-Combustible Flooring 19-3/8 (492) 19 (483) 20 (508) 19-5/8 (498)

Downflow Applications on Combustible Flooring Using KGASB Subbase

Furnace with or without CAP, CAR, CNPV, CNRV Coil Assembly or KCAKC

Downflow Applications on Combustible Flooring NOT Using KGASB

Subbase Furnace with CAP, CAR, CNPV, CNRV Coil Assembly or KCAKC Coil

Downflow Applications on Non-Combustible Flooring 22-7/8 (581) 19 (483) 23-1/2 (597) 19-5/8 (498)

Downflow Applications on Combustible Flooring Using KGASB Subbase

Furnace with or without CAP, CAR, CNPV, CNRV Coil Assembly or KCAKC

Downflow Applications on Combustible Flooring NOT Using KGASB

Subbase Furnace with CAP, CAR, CNPV, CNRV Coil Assembly or KCAKC Coil

PERFORATED DISCHARGE DUCT FLANGE

210 DEG.

MIN

Coil Box

Box

Upflow Applications 19-1/2 (495) 24-1/8 (613) 20-1/8 (511) 24-3/4 (629)

Coil Box

Box

Upflow Applications 23 (584) 24-1/8 (613) 23-5/8 (600) 24-3/4 (629)

Coil Box

Box

YES

A93029

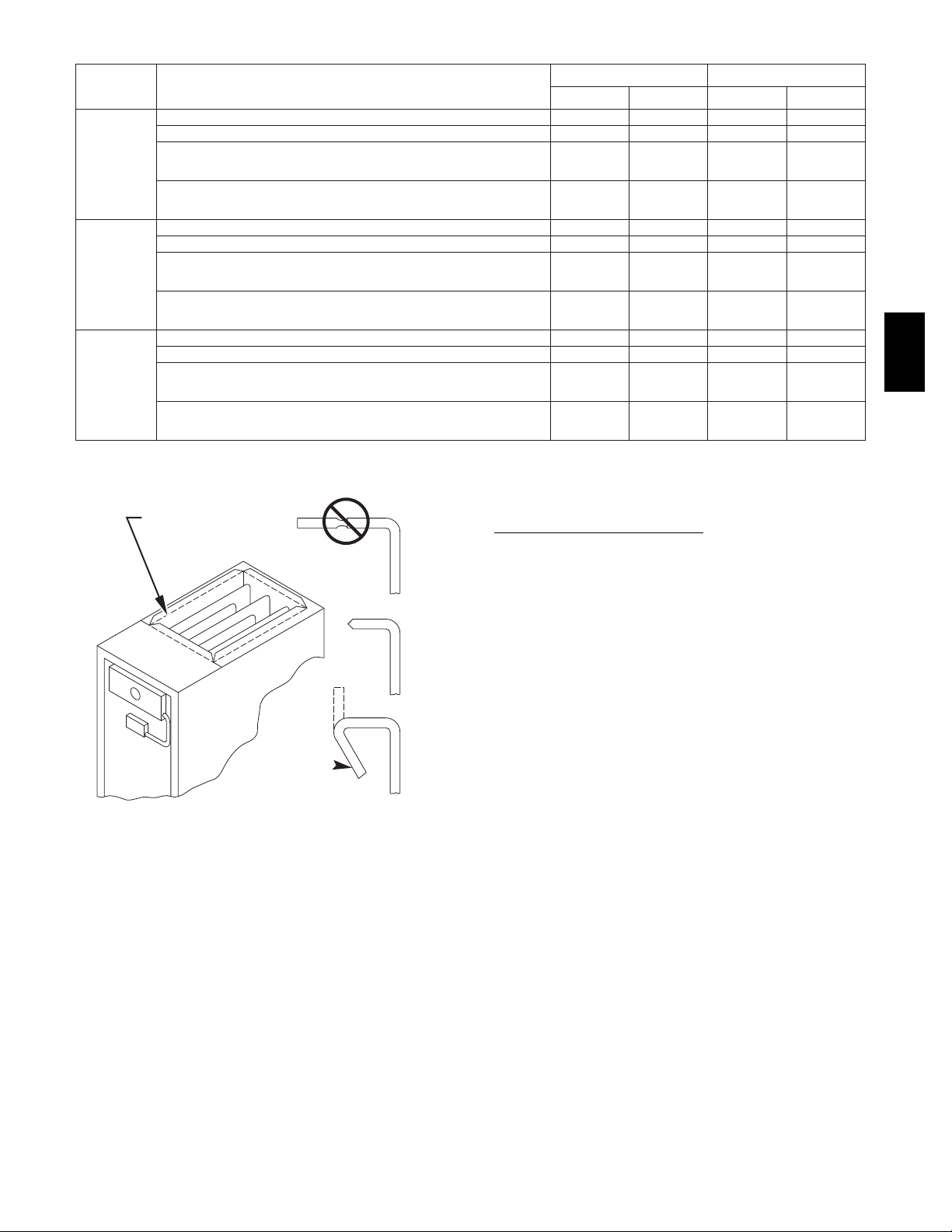

Fig. 24 -- Duct Flanges

PLENUM OPENING FLOOR OPENING

A B C D

15-1/8 (384) 19 (483) 16-3/4 (425) 20-3/8 (518)

15-1/2 (394) 19 (483) 16-1/2 (419) 20 (508)

18-5/8 (473) 19 (483) 20-1/4 (514) 20-3/8 (518)

19 (483) 19 (483) 20 (508) 20 (508)

22-1/8 (562) 19 (483) 23-3/4 (603) 20-3/8 (518)

22-1/2 (572) 19 (483) 23-1/2 (597) 20 (508)

Step 4 -- Air Ducts

GENERAL REQUIREMENTS

The duct system should be designed and sized according to accepted national standards such as those published by: Air Conditioning Contractors Association (ACCA), Sheet Metal and Air Conditioning Contractors National Association (SMACNA) or American Society of Heating, Refrigerating and Air Conditioning Engineers (ASHRAE) or consult The Air Systems Design Guidelines reference tables available from your local distributor. The duct system should be sized to handle the required system design CFM at the design static pressure.

When a furnace is installed so that the supply ducts carry air circulated by the furnace to areas outside the space containing the furnace, the return air shall also be handled by a duct(s) sealed to the furnace casing and terminating outside the space containing the furnace.

Secure ductwork with proper fasteners for type of ductwork used. Seal supply-and return-duct connections to furnace with code approved tape or duct sealer.

340AAV

-- 2 3 --

Page 24

3-IN. (76 mm) MINIMUM CLEARANCE TO COMBUSTION-AIR INTAKE IS REQUIRED (NON-DIRECT VENT/1-PIPE APPLICATION,)

COMBUSTION-AIR INTAKE (NON-DIRECT VENT/1-PIPE APPLICATION)

COMBUSTION-AIR PIPE (DIRECT VENT/2-PIPE APPLICATION,ALL SIZES)

VENT

-IN. (10 mm) ROD

ANGLE IRON OR EQUIVALENT

340AAV

(B)

(A) ROD LOCATION

USING DIMPLE LOCATORS (SEE DIMENSIONAL DWG FOR LOCATIONS)

(A) PREFERRED ROD LOCATION

(B) ALTERNATE ROD LOCATION

/8-IN. HEX NUT

& WASHER (4)

REQD PER ROD

(B)

(A)

NOTES:

(A)

1. A 1-in. (25.4 mm) clearance minimum between top of furnace and combustible material.

2. The entire length of furnace must be supported when furnace is used in horizontal position to ensure proper drainage.

3. For non-direct vent/1-pipe application, bottom side combustion-air entry cannot be used when furnace is installed with hangers as shown.

(B)

/4″

DRAIN

(146 mm)

(A)

(B)

/16-IN. (21 mm) MAX ALTERNATE SUPPORT LOCATION FROM BACK

ALTERNATE SUPPORT LOCATION 4-IN. (102 mm) MIN 8-IN. (203 mm) MAX

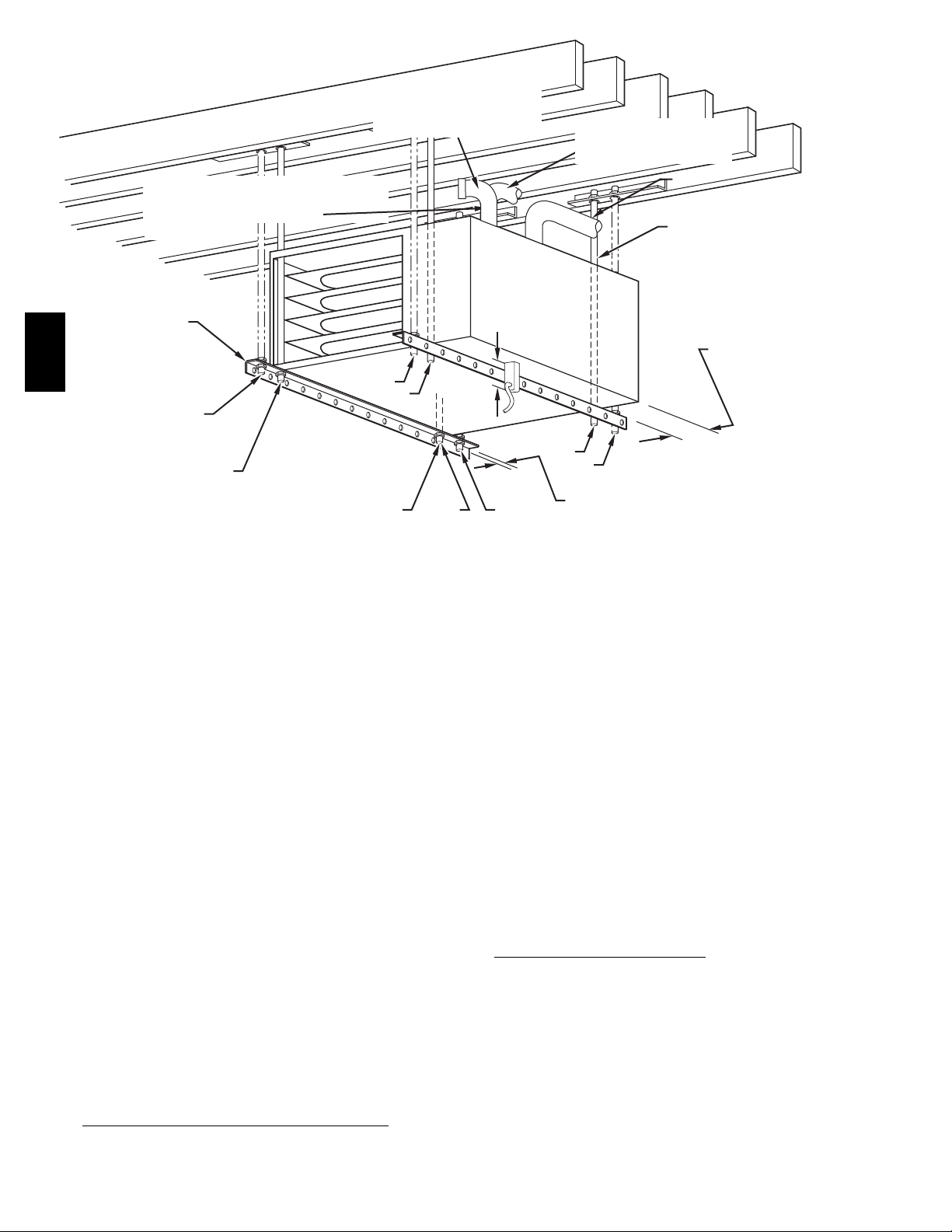

Fig. 25 -- Crawlspace Horizontal Application for Direct Vent/2-Pipe Installation (Sizes 040 Through 140) and for

Non-Direct Vent/1-Pipe Installation (Sizes 040 Through 120 Only)

Flexible connections should be used between duct work and furnace to prevent transmission of vibration. Ductwork passing through unconditioned space should be insulated to enhance system performance. When air conditioning is used, a vapor barrier is recommended.

Maintain a 1-in. (25 mm) clearance from combustible materials to supply air ductwork for a distance of 36-in. (914 mm) horizontally from the furnace. See NFPA 90B or local code for further requirements.

For a furnace not equipped with a cooling coil, the outlet duct shall be provided with a removable access panel. This opening shall be accessible when the furnace is installed and shall be of such a size that the heat exchanger can be viewed for possible openings using light assistance or a probe can be inserted for sampling the air stream. The cover attachment shall prevent leaks.

DUCTWORK ACOUSTICAL TREATMENT

Metal duct systems that do not have a 90 degree elbow and 10 ft (3.0 M) of main duct to the first branch take-off may require

A05054

internal acoustical lining. As an alternative, fibrous ductwork may be used if constructed and installed in accordance with the latest edition of SMACNA construction standard on fibrous glass ducts. Both acoustical lining and fibrous ductwork shall comply with NFPA 90B as tested by UL Standard 181 for Class 1 Rigid air ducts.

SUPPLY AIR CONNECTIONS

Upflow Furnaces

Connect supply-air duct to 3/4-in. (19 mm) flange on furnace supply-air outlet. The supply-air duct attachment must ONLY be connected to furnace supply-/outlet-air duct flanges or air conditioning coil casing (when used). DO NOT cut main furnace casing to attach supply side air duct, humidifier, or other accessories. All accessories MUST be connected external to furnace main casing.

Downflow Furnaces

Connect supply-air duct to supply-air opening on furnace. The supply-air duct attachment must ONLY be connected to furnace

-- 2 4 --

Page 25

supply/outlet or air conditioning coil casing (when used), when installed on non-combustible material. When installed on combustible material, supply-air duct attachment must ONLY be connected to an accessory sub base or factory approved air conditioning coil casing. DO NOT cut main furnace casing to attach supply side air duct, humidifier, or other accessories. All accessories MUST be connected external to furnace main casing. Supply air opening duct flanges must be modified per Fig. 24.

Horizontal Furnaces

Connect supply-air duct to supply air opening on furnace. The supply-air duct attachment must ONLY be connected to furnace supply/outlet or air conditioning coil casing (when used). DO NOT cut main furnace casing to attach supply side air duct, humidifier, or other accessories. All accessories MUST be connected external to furnace main casing.

RETURN AIR CONNECTIONS

The furnace and its return air system shall be designed and installed so that negative pressure created by the air circulating fan cannot affect another appliance’s combustion air supply or act to mix products of combustion with circulating air and the air circulating fan of the furnace, if installed in an enclosure communicating with another fuel-burning appliance not of the direct-vent type, shall be operable only when any door or panel covering an opening in the furnace fan compartment or in return air plenum on ducts is in the closed position.

Table 4 – Filter Information

AIR FILTER LOCATED IN BLOWER COMPARTMENT

FURNACE

CASING

WIDTH

IN (mm)

17–1/2

(445)

21 (533)

24–1/2

(622)

*Alternate sizes and additional filters can be ordered from your distributor or dealer.

†Upflow only. Alternate sizes and additional filters may be ordered from

your dealer.

F I LT E R S I Z E --- I N ( m m )

Side Return†* Bottom Return*

(1) 16 X 25 X 3/4 (406 X 635 X 19)

(1 or 2)16 X 25 X 3/4

(406 X 635 X 19)

(1) 16 X 25 X 3/4 (406 X 635 X 19)

1) 20 X 25 X 3/4

(508 X 635 X 19) (1) 24 X 25 X 3/4

(610 X 635 X 19)

FILTER

TYPE

Washable

Step 5 -- Filter Arrangement

WARNING

FIRE, CARBON MONOXIDE AND POISONING HAZARD

Failure to follow this warning could result in fire, personal injury, or death.

Never operate a unit without a filter or with filter access door removed.

Determine location for filter and relocate filter retaining wire if necessary. See Table 4 to determine correct filter size for desired filter location. Table 4 indicates filter size and location for this furnace. See Fig. 2 for location and size of bottom and side return-air openings.

CUT HAZARD

Failure to follow this caution may result in minor personal injury.

Use care when cutting support rods in filters to protect against flying pieces and sharp rod ends. Wear safety glasses, gloves, and appropriate protective clothing.

CAUTION

340AAV

WARNING

FIRE HAZARD

A failure to follow this warning could result in fire, personal injury, or death.

Never connect return-air ducts to the back of the furnace. Return-air duct connections on furnace side(s) permitted in upflow applications only.

Upflow Furnaces

The return-air duct must be connected to end, sides (left or right), or a combination of end and side(s) of main furnace casing as shown in Fig. 2. Bypass humidifier may be attached into unused side return air portion of the furnace casing. DO NOT connect any portion of return-air duct to back of furnace casing.

Downflow and Horizontal Furnaces

The return-air duct must be connected to end inlet opening provided as shown in Fig. 2. DO NOT cut into casing sides or back to attach any portion of return-air duct. Bypass humidifier connections should be made at ductwork or coil casing sides exterior to furnace.

A08604

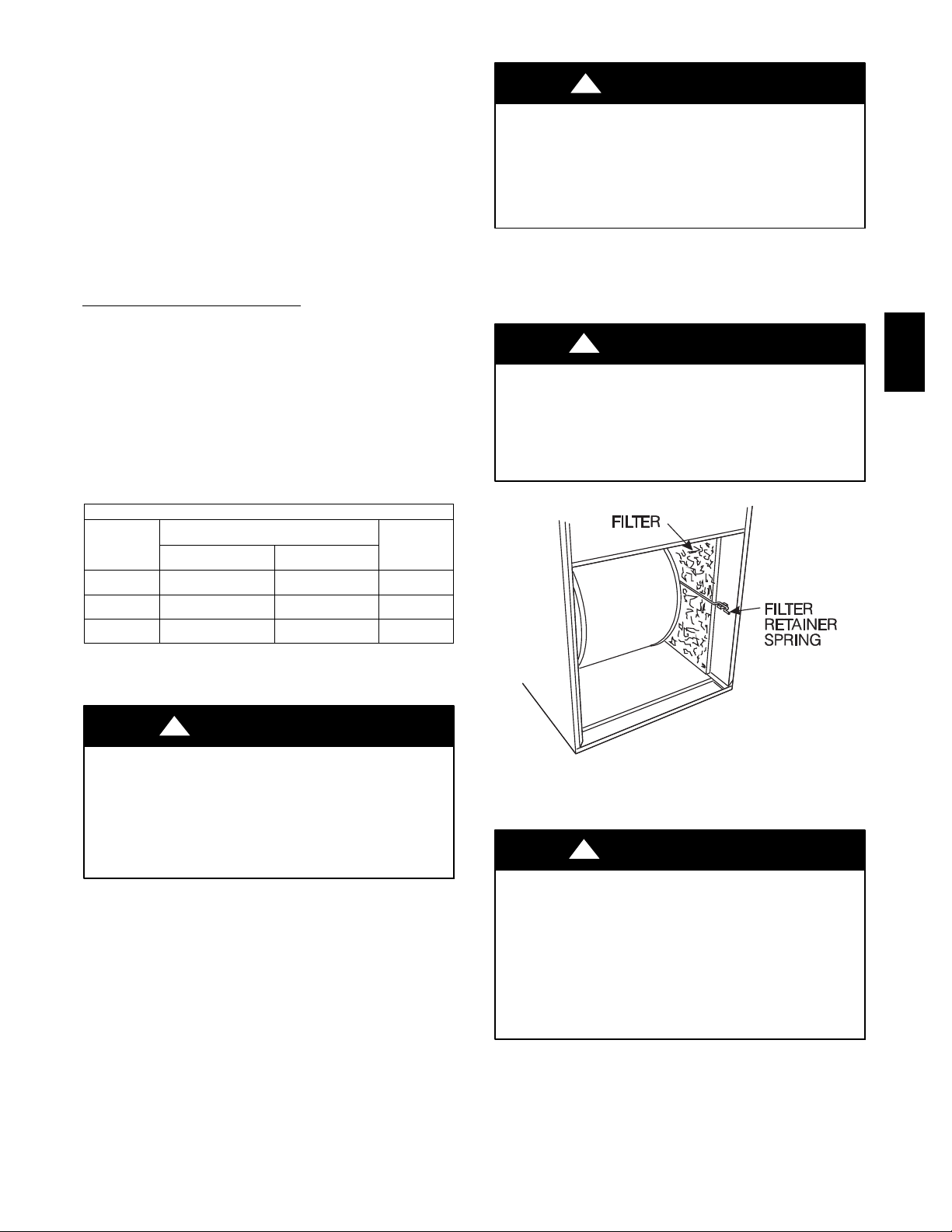

Fig. 26 -- Filter Installed for Side Inlet

CAUTION

UNIT MAY NOT OPERATE

Failure to follow this caution may result in intermittent unit operation.

For airflow requirements above 1800 CFM, see Air Delivery table in Product Data literature for specific use of single side inlets. The use of both side inlets, a combination of 1 side and the bottom, or the bottom only will ensure adequate return air openings for airflow requirements above 1800 CFM.

NOTE: Side return-air openings can ONLY be used in UPFLOW configurations. Install filter(s) as shown in Fig. 26.

Bottom return-air opening may be used with all 4 orientations. Filter may need to be cut to fit some furnace widths. Install filter as shown in Fig. 27.

-- 2 5 --

Page 26

NOTE: Remove and discard bottom closure panel when bottom inlet is used.

Step 6 -- Bottom Closure Panel

These furnaces are shipped with bottom enclosure panel installed in bottom return-air opening. This panel MUST be in place when side return air is used.

To remove bottom closure panel, perform following:

1. Tilt or raise furnace and remove 2 screws holding front filler panel. (See Fig. 28.)

2. Rotate front filler panel downward to release holding tabs.

3. Remove bottom closure panel.

4. Reinstall front filler panel and screws.

Step 7 -- Gas Piping

Gas piping must be installed in accordance with national and local codes. Refer to current edition of NFGC in the United States. Canadian installations must be made in accordance with NSCNGPIC and all authorities having jurisdiction.

Gas supply line should be a separate line running directly from

340AAV

meter to furnace, if possible. Refer to Table 5 for recommended gas pipe sizing. Risers must be used to connect to furnace and to meter. Support all gas piping with appropriate straps, hangers, etc. Use a minimum of 1 hanger every 6 ft (1.8 M). Joint compound (pipe dope) should be applied sparingly and only to male threads of joints. Pipe dope must be resistant to propane gas.

171⁄2-IN. (444mm) WIDE CASINGS ONLY:

INSTALL FIELD-SUPPLIED FILTER FILLER STRIP UNDER FILTER.

3″

(76mm)

(533mm)

/2″

1″

(25.4mm)

FILTER SUPPORT

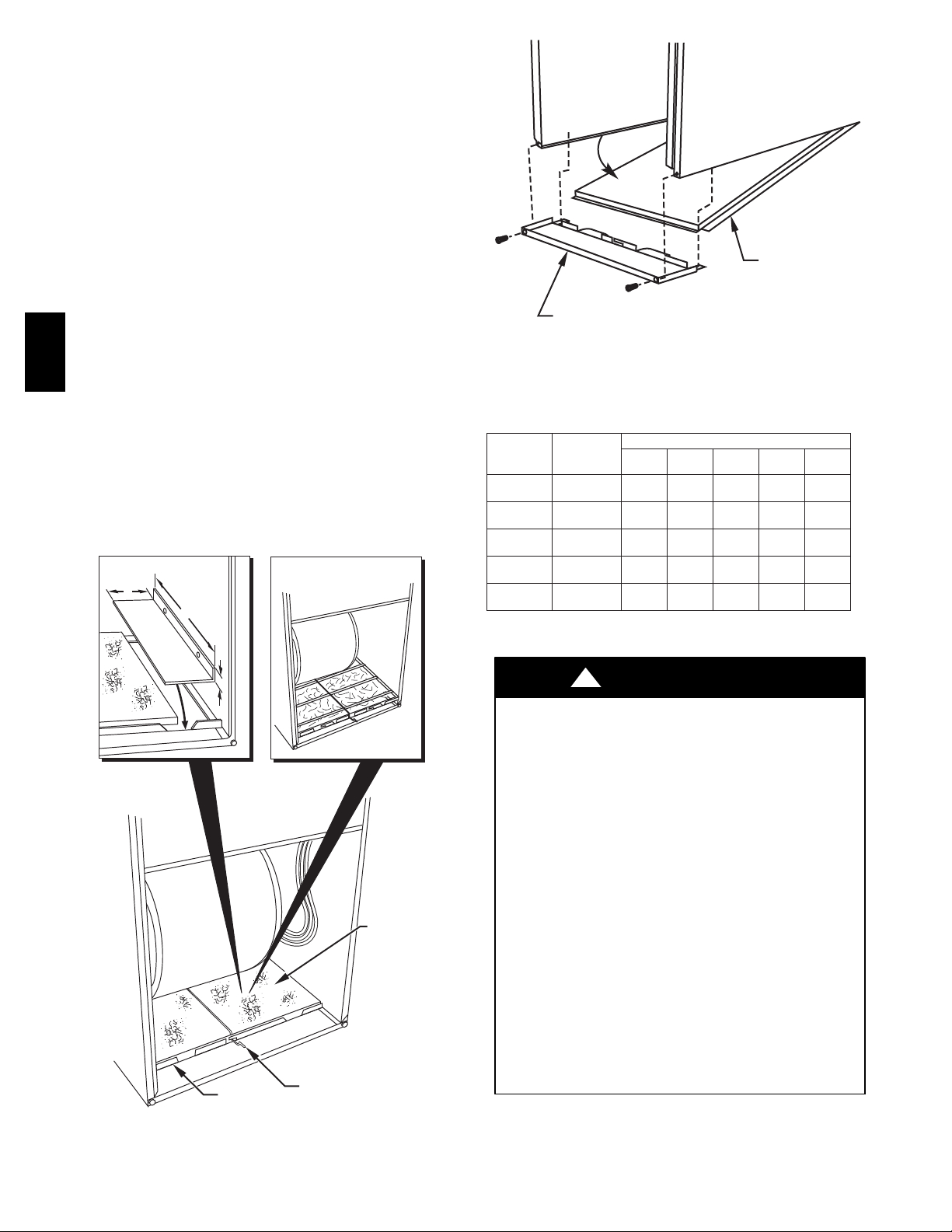

Fig. 27 -- Bottom Filter Arrangement

21-IN. (533mm) WIDE CASINGS ONLY:

SUPPORT RODS (3) EXTEND 1/4" (6mm) ON EACH SIDE OF FILTER AND REST ON CASING FLANGE

FILTER

FILTER RETAINER

A08605

BOTTOM CLOSURE PAN EL

FRONT FILLER PANEL

A93047

Fig. 28 -- Removing Bottom Closure Panel

Table 5 – Maximum Capacity of Pipe *

NOMINAL

IRON PIPE

SIZE

IN. (MM)

1/2 (12.7)

3/4 (19.0)

1 (25.4)

1-1/4

(31.8)

1-1/2

(38.1)

* Cubic ft of gas per hr for gas pressures of 0 .5 psig (14 --- in. wc) or less and a pressure drop of 0.5 ---in wc (based on a 0.60 specific gravity gas). Ref: Ta ble 9 .2 N F G C .

INTERNAL

DIA.

IN. (MM)

0.622 (158)

0.824

(20.9)

1.049

(26.6)

1.380

(35.0)

1.610

(40.9)

(3.0)20(6.0)30(9.1)40(12.1)50(15.2)

175 120 97 82 73

360 250 200 170 151

680 465 375 320 285

1400 950 770 660 580

2100 1460 1180 990 900

WARNING

LENGTH OF PIPE --- F T (M)

FIRE OR EXPLOSION HAZARD

Failure to follow this warning could result in fire, explosion, personal injury, or death.

-- Connect gas pipe to furnace using a backup wrench to

avoid damaging gas controls.

-- Gas valve shutoff switch MUST be facing forward or

tilted upward.

-- Never purge a gas line into a combustion chamber. Never test for gas leaks with an open flame. Use a commercially available soap solution made specifically for the detection of leaks to check all connections.

-- Use proper length of pipe to avoid stress on gas control manifold.

-- If a flexible connector is required or allowed by authority having jurisdiction, black iron pipe shall be installed at furnace gas valve and extend a minimum of 2--in. (51 mm) outside furnace casing.

-- Protect gas valve from water and debris. Gas valve inlet and/or inlet piping must remain capped until gas supply line is permanently installed to protect the valve from moisture and debris. Also, install a sediment trap in the gas supply piping at the inlet to the gas valve.

Install a sediment trap in riser leading to furnace. Trap can be installed by connecting a tee to riser leading to furnace so straight-through section of tee is vertical. Then connect a capped nipple into lower end of tee. Capped nipple should extend below

-- 2 6 --

Page 27

level of gas controls. Place a ground joint union between gas control manifold and manual gas shutoff valve. (See Fig. 29.)

GAS SUPPLY

MANUAL SHUTOFF VALVE (REQUIRED)

SEDIMENT TRAP

UNION

A93324

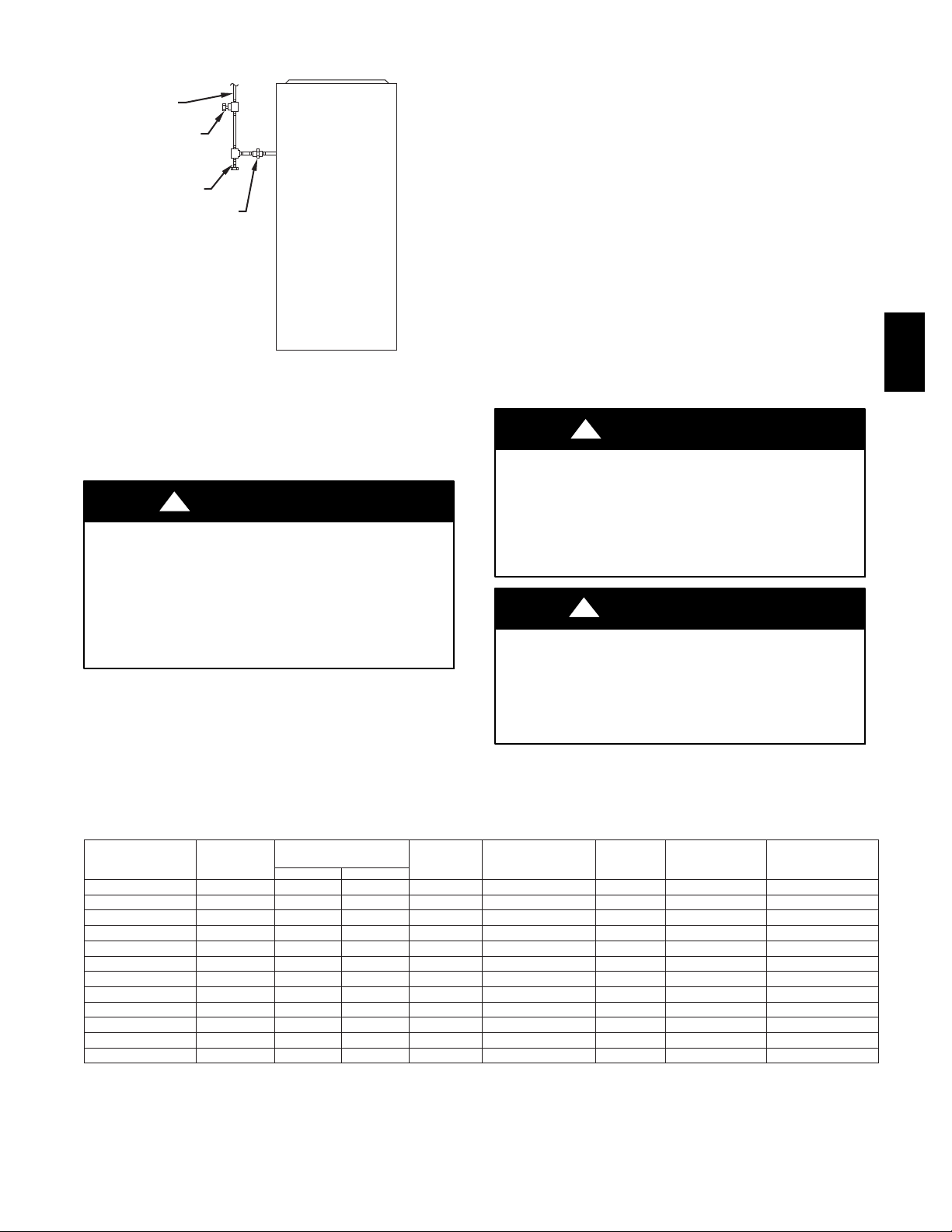

Fig. 29 -- Typical Gas Pipe Arrangement

exceed maximum 0.5 psig (14-in. wc) stated on gas valve. (See Fig. 48.)

Piping should be pressure and leak tested in accordance with NFGC in the United States or NSCNGPIC in Canada, local, and national plumbing and gas codes before the furnace has been connected. After all connections have been made, purge lines and check for leakage at furnace prior to operating furnace.

If pressure exceeds 0.5 psig (14-in. wc), gas supply pipe must be disconnected from furnace and capped before pressure test. If test pressure is equal to or less than 0.5 psig (14-in. wc), turn off electric shutoff switch located on furnace gas valve and accessible manual shutoff valve before test.

The gas supply pressure shall be within the maximum and minimum inlet supply pressures marked on the rating plate with the furnace burners ON and OFF.

Step 8 -- Electrical Connections

See Fig. 30 for field wiring diagram showing typical field 115-v and 24-v wiring. Check all factory and field electrical connections for tightness.

Field-supplied wiring shall conform with the limitations of 63°F (35°C) rise.

340AAV

If local codes allow the use of a flexible gas appliance connector,

WARNING

always use a new listed connector. Do not use a connector which has previously served another gas appliance.

ELECTRICAL SHOCK HAZARD

Failure to follow this warning could result in serious injury

WARNING

FIRE OR EXPLOSION HAZARD

Failure to follow this safety warning exactly could result in

or death. Blower access panel door switch opens 115-v power to control

center. No component operation can occur. Do not bypass or close switch with panel removed.

serious injury, death or property damage. Never test for gas leaks with an open flame. Use a

commercially available soap solution made specifically for the detection of leaks to check all connections. A fire or explosion could result causing property damage, personal injury or loss of life.

An accessible manual shutoff valve MUST be installed external to furnace casing and within 6 ft (1.8 M) of furnace. A 1/8-in. (3 mm) NPT plugged tapping, accessible for test gauge connection, MUST be installed immediately upstream of gas supply

FURNACE MAY NOT OPERATE

Failure to follow this caution may result in furnace operation stopping and water pipes freezing during cold weather.

Furnace control must be grounded for proper operation or control will lock out. Control is grounded through green/yellow wire routed to gas valve and burner box screw.

CAUTION

connection to furnace and downstream of manual shutoff valve. NOTE: The gas valve inlet pressure tap connection is suitable to

use as test gauge connection providing test pressure DOES NOT

Table 6 – Electrical Data

UNIT SIZE VOLTS-

040---08 / 024040 115—60—1 127 104 6.1 8.4 14 44 (13.4) 15 040---12 / 036040 115—60—1 127 104 7.3 10.0 14 37 (11.2) 15 060---08 / 024060 115—60—1 127 104 6.1 8.4 14 44 (13.4) 15 060---12 / 036060 115—60—1 127 104 7.1 9.8 14 38 (11.5) 15 060---16 / 048060 115—60—1 127 104 9.5 12.8 14 29 (8.8) 15 080---12 / 036080 115—60—1 127 104 7.6 10.4 14 36 (10.9) 15 080---16 / 048080 115—60—1 127 104 10.0 13.4 14 28 (8.5) 15 080---20 / 060080 115—60—1 127 104 14.1 18.4 12 31 (9.4) 20 100---16 / 048100 115—60—1 127 104 10.2 13.5 14 27 (8.2) 15 100---20 / 060100 115—60—1 127 104 14.8 19.3 12 30 (9.1) 20 120---20 / 060120 115—60—1 127 104 14.6 19.1 12 30 (9.1) 20 140---20 / 060140 115—60—1 127 104 14.3 18.8 12 30 (9.1) 20

* Permissible limits of voltage range at which unit will operate satisfactorily. † Unit ampacity = 125 percent of largest operating component’s full load amps plus 100 percent of all other potential operating components’ (EAC, humidifier,

etc.) full load amps.

‡ Length shown is as measured 1 way along wire path between unit and service panel for maximum 2 percent voltage drop.** Time-delay type is recommended

HERTZ-

PHASE

OPERATING

VOLT AGE RANGE

Max* Min*

MAX UNIT

AMPS

UNIT AMPACITY† MIN

WIRE

SIZE

MAX WIRE

LENGTH

FT (M)‡

MAX FUSE OR

CKT BKR AMPS**

-- 2 7 --

Page 28

NOTE 2

FIVE WIRE

THREE-WIRE

HEATING-ONLY

BLOWER DOOR SWITCH

BLK

WHT

115-V FIELD-

SUPPLIED

DISCONNECT

340AAV

GND

BLK

WHT

GND

AUXILIARY J-BOX

FURNACE

C O N

T R O

24-V

TERMINAL

BLOCK

WCR GY

COM

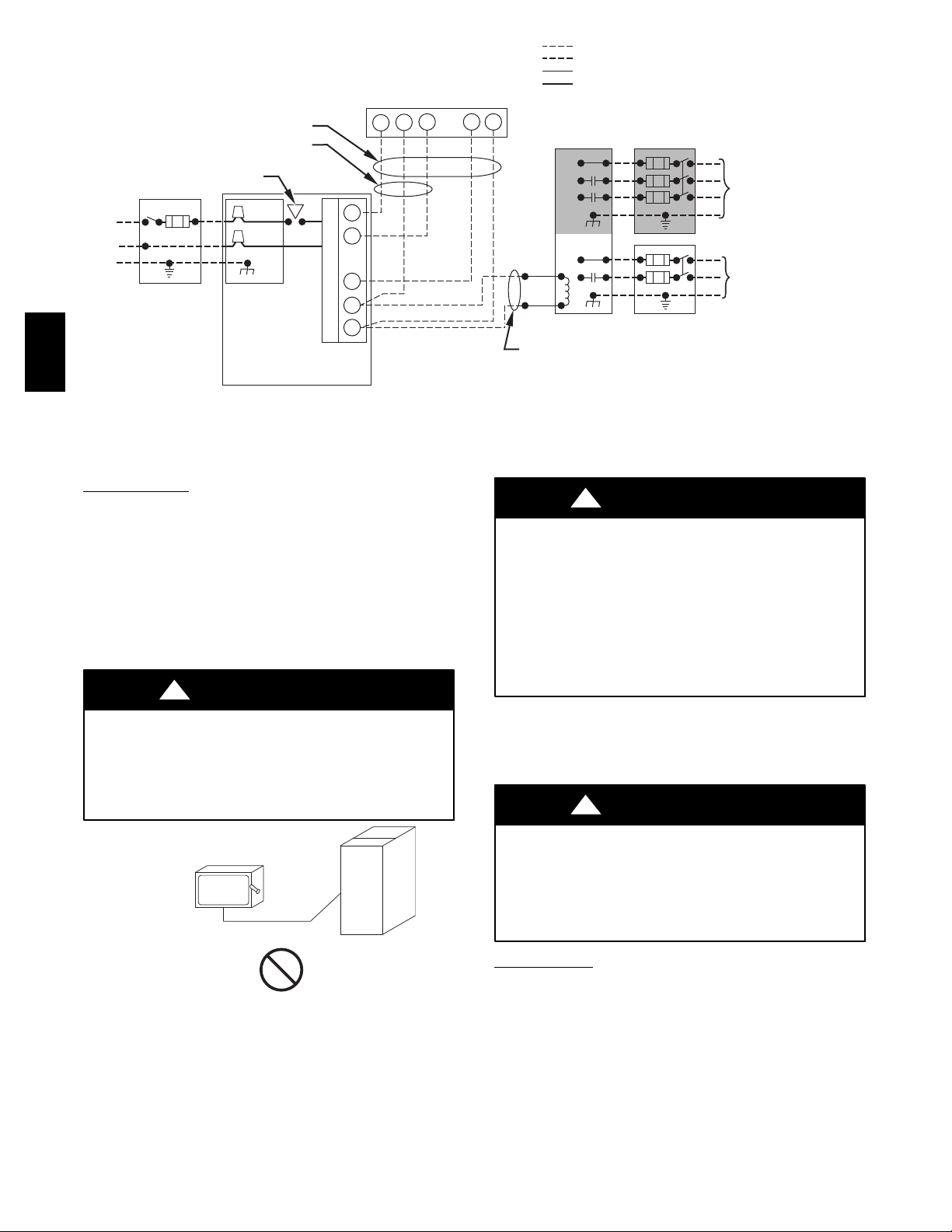

Fig. 30 -- Heating and Cooling Application Wiring Diagram

115-V WIRING

Before proceeding with electrical connections, make certain that voltage, frequency, and phase correspond to that specified on unit rating plate. Also, check to be sure that service provided by power supply is sufficient to handle load imposed by this equipment. Refer to rating plate or Table 6 for equipment electrical specifications.

The furnace must be electrically grounded in accordance with local codes; or in the absence of local codes, with the National Electric Code ANSI/NFPA 70 and/or the Canadian Electric Code, CSA C22.1, Part I, if an external electrical source is utilized.

WARNING

FIRE HAZARD

Failure to follow this warning could result in serious injury, death, or property damage.

Do not connect aluminum wire between disconnect switch and furnace. Use only copper wire. (See Fig. 31.)

ELECTRIC

DISCONNECT

SWITCH

COPPER

WIRE ONLY

FIELD 24-V WIRING FIELD 115-, 208/230-, 460-V WIRING FACTORY 24-V WIRING FACTORY 115-V WIRING

THERMOSTAT TERMINALS

NOTE 1

NOTES: Connect Y-terminal in furnace as shown for proper blower operation.

Some thermostats require a "C" terminal connection as shown.

If any of the original wire, as supplied, must be replaced, use same type or equivalent wire.

CONDENSING UNIT

TWO WIRE

FIELD-SUPPLIED DISCONNECT

208/230- OR 460-V THREE PHASE

208/230-V SINGLE PHASE

GND

WARNING

ELECTRICAL SHOCK AND FIRE HAZARD

Failure to follow this warning could result in serious injury, death, or property damage.

The cabinet MUST have an uninterrupted or unbroken ground according to NEC ANSI/NFPA 70--2008 and Canadian Electrical Code CSA C22.1 or local codes to minimize personal injury if an electrical fault should occur. This may consist of electrical wire or conduit approved for electrical ground when installed in accordance with existing electrical codes. Do not use gas piping as an electrical ground.

J-Box Relocation

1. Remove 2 screws holding auxiliary J-box. (See Fig. 32.)

2. Rotate J-box 180° and attach box to left side, using holes provided.

WARNING

ELECTRICAL SHOCK AND FIRE HAZARD

Failure to follow this warning could result in serious injury, death, or property damage.

If manual disconnect switch is to be mounted on furnace, select a location where a drill or fastener will not contact electrical or gas components.

A02174

ALUMINUM

WIRE

A93033

Fig. 31 -- Disconnect Switch and Furnace

Use a separate, fused branch electrical circuit containing a properly sized fuse or circuit breaker for this furnace. See Table 6 for wire size and fuse specifications. A disconnecting means must be located within sight from and readily accessible to furnace.

NOTE: Proper polarity must be maintained for 115-v wiring. If polarity is incorrect or the furnace is not grounded, control center LED status indicator light will flash rapidly and furnace will NOT operate.

24-V WIRING

Make field 24-v thermostat connections at 24-v terminal block on furnace control center. For proper cooling operation, Y wire from thermostat MUST be connected to Y terminal on furnace control center, as shown in Fig. 30. The 24-v terminal block is marked for easy connection of field wiring. (See Fig. 33.) The 24-v circuit contains a 3-amp, automotive-type fuse located on furnace control center. (See Fig. 34.) Any electrical shorts of 24-v wiring during installation, service, or maintenance may cause fuse to blow. If fuse replacement is required, use only a fuse of identical size (3 amp) and type. The control will flash code 24 when fuse needs replacement.

-- 2 8 --

Page 29

LT ER N ATE

FIELD

LOCATION

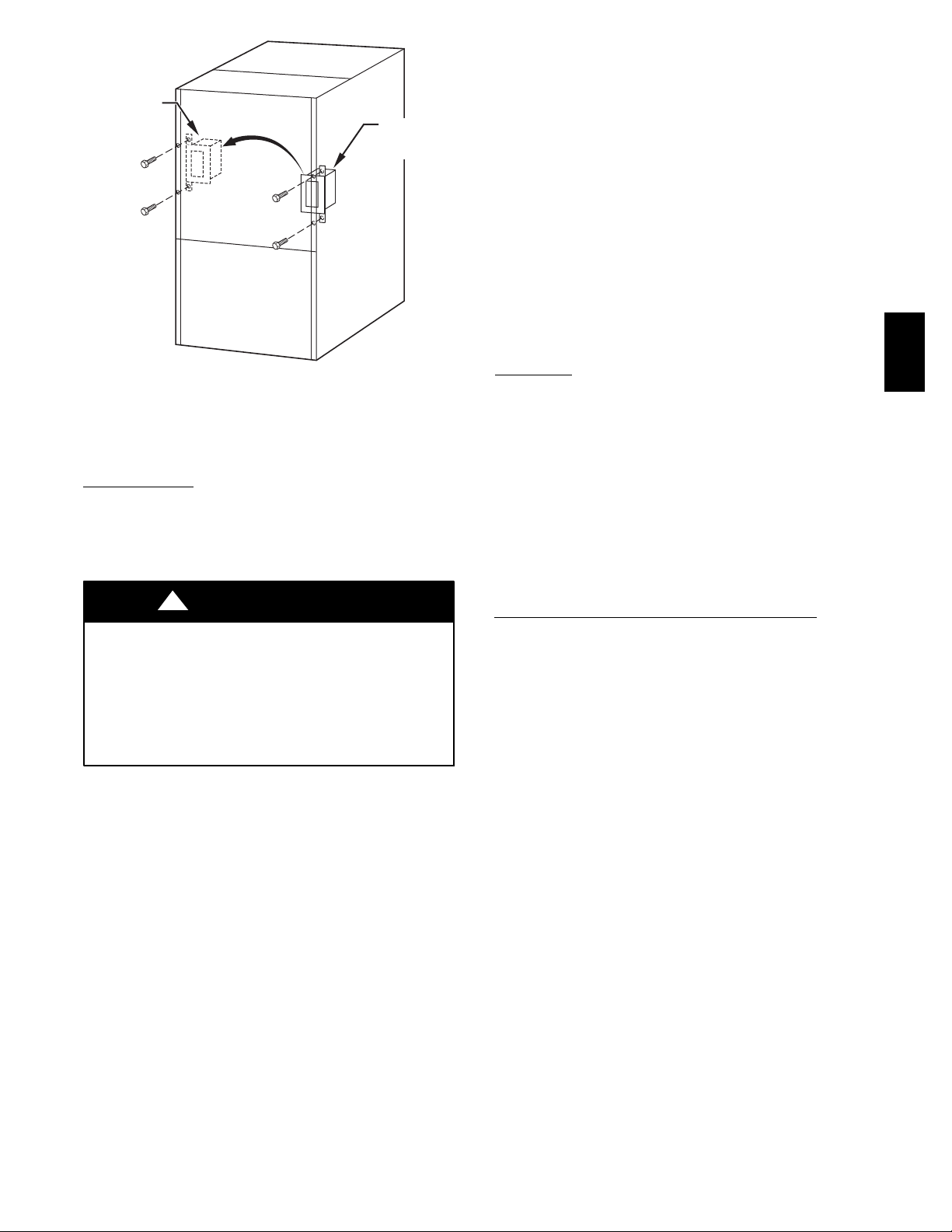

Fig. 32 -- Relocating J-Box

NOTE: Use AWG No. 18 color-coded copper thermostat wire

for lengths up to 100 ft (30.5 M). For wire lengths over 100 ft, use AWG No. 16 wire.

FAC TORY INSTALLED LOCATION

A00212

ACCESSORIES

1. Electronic Air Cleaner (EAC) Two quick-connect terminals marked EAC-1 and EAC-2 are provided for EAC connection. (See Fig. 34.) These terminals are energized with 115v (1.0-amp maximum) during blower motor operation.

UNIT DAMAGE HAZARD

Failure to follow this caution may result in unit component damage.

DO NOT connect furnace control HUM terminal to HUM (humidifier) terminal on Thermidistatt, Zone Controller or similar device. See Thermidistatt, Zone Controller, thermostat, or controller manufacturer’s instructions for proper connection.

CAUTION

2. Humidifier (HUM) A quick-connect terminal (HUM) and screw terminal (COM 24v) are provided for 24v humidifier connection. (See Fig.

34.) HUM terminal is energized with 24v (0.5-amp maximum) when gas valve is energized.

NOTE: A field-supplied, 115-v controlled relay connected to EAC terminals may be added if humidifier operation is desired during blower operation.

Step 9 -- Removal of Existing Furnaces from Common Vent Systems

When an existing Category I furnace is removed or replaced, the original venting system may no longer be sized to properly vent the remaining attached appliances. An improperly sized Category I venting system could cause the formation of condensate in the furnace and vent, leakage of condensate and combustion products, spillage of combustion products into the living space, etc.

Step 10 -- Combustion Air and Vent Pipe Systems

GENERAL

Vent system or vent connectors may need to be resized. For any other appliances when resizing vent systems or vent connectors, system or connector must be sized to approach minimum size as determined using appropriate table found in the NFGC or NSCNGPIC.

The 340AAV can be vented as either a direct vent (all sizes) or as a non-direct vent (except for 140 size) application. A direct vent system shall be installed in accordance with the direct vent (2-pipe) procedures in the following Combustion Air and Vent Pipe Systems section. For non-direct vent (1-pipe) applications, refer to the non-direct vent (1-pipe) procedures in thesamesection.

Multistory and common venting are prohibited.

DIRECT VENT/2-PIPE SYSTEM (ALL SIZES)

In a direct-vent (2-pipe) system, all air for combustion is taken directly from outdoor atmosphere, and all flue products are discharged to outdoor atmosphere. A factory accessory vent termination kit MUST be used in a direct vent (2-pipe) system.

340AAV

-- 2 9 --

Page 30

CAP-1

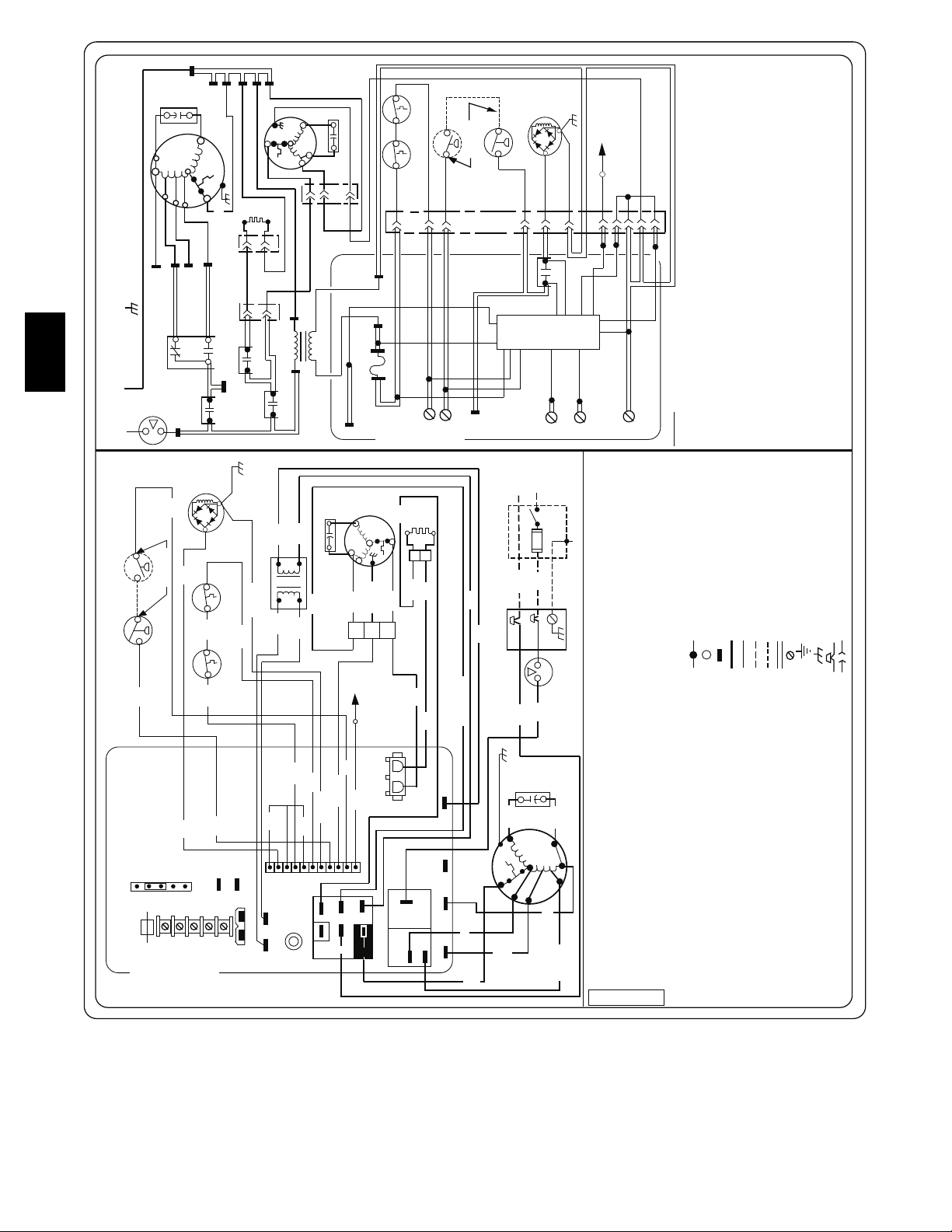

SCHEMATIC DIAGRAM

(NATURAL GAS & PROPANE)

EQUIPMENT GROUND

SPARE-2

GND

340AAV

NOTE #2

TO 115VAC FIELD DISCONNECT

ILK

EAC-2

IDM

BLWM

START

COM

MED LO

MED HI

NOTE #10

COOL

HEAT

SPARE-1

HI/L O

HSIR

EAC-1

BLWR

AUX

HSI

PL3

PL2

115VAC

PR1

IDR

PL4

24VAC

TRAN

TEST/TWI N

FRS

CAP - 2

SEC-2

SEC-1

NOTE #6

F U 1

PRINTED CIRCIUT BOARD

NOTE #3

(WHEN USED)

NOTE #11

PRS

LGPS

PL1

HUM

328150-101 REV. A

GVR-1

CPU

FSE

NOTE #5

PCB

24V

1. If any of the original equipment wire is replaced use wire rated for 105°C.

2. Use only copper wire between the disconnect switch and the furnace junction box (JB).

3. This wire must be connected to furnace sheet metal for control to prove flame.

4. Symbols are electrical representation only.

NOTES:

optimum speed selection.

auto-reset after three hours.

5. Solid lines inside PCB are printed circuit board conductors and are not included in legend.

6. Replace only with a 3 amp fuse.

7. Inducer (IDM) and blower (BLWM) motors contain internal auto-reset thermal overload switches (OL).

8. Neutral connections are interchangeable within the NEUTRAL connector block.

9. Blower motor speed selections are for average conditions, see installation instructions for details on

10. YELLOW lead not on all motors.

11. Factory connected when LGPS is not used.

90 seconds or 5 seconds when J2 is cut.

12. Ignition-lockout will occur after four consecutive unsuccessful trials-for-ignition. Control will

13. Blower-on delay: gas heating 60 seconds, cooling or heat pump 2 seconds.

14. Blower-off delay: gas heating selections are 90, 120, 150 or 180 seconds, cooling or heat pump

LGPS

(WHEN USED)

NOTE #11

PRS

ORN

PCB

120

BLOWER OFF DELAY

JUMPER SELECT

PRINTED CIRCIUT BOARD

GRN/YEL

YEL

BLU

180

150

24V

NOTE #3

FRS

GRN/YEL

RED

ORN

HUM

TEST/TWIN

FU1

NOTE #6

WHT

SEC-1

SEC-2

WHT

BLK

CAP -2

TRAN

WHT

BLU

RED

GRN/ YEL

WHT

LED 1

EAC-2

BRN

GRN/YEL

NOTE #8

WHT

PL4

YEL

12345678910

NEUTRAL

IDM

AUX

GRN/YEL

321

FSE

PL2

WHT

PL1

BLW

HSI

WHT

PL3

BLK

WHT

BLK

EAC-1

SPARE 2

BHT/CLR BLWR

COOL

HEAT

SPARE 1

FUSED OR CIRCUIT BREAKER

WHT

BLK

WHT (COM)

PR1

BLWM

BLK (HI)

WHT

(COM)

NEUTRAL

NOTE #2

FU2

BLK

WHT

DISCONNECT SWITCH (WHEN REQ’D)

GRN/YEL

BRN

YEL

(MED HI)

GND

TEMPERATURE SWITCH (N.C.)

OL AUTO-RESET INTERNAL MOTOR OVERLOAD

PCB PRINTED CIRCUIT BOARD CONTROL

PL1 11 -CIRCUIT PCB CONNECTOR

PL2 2-CIRCUIT CONNECTOR

PL3 2-CIRCUIT HSI, CONNECTOR

ILK

BLK

WHT

CAP -1

BRN

START

RED (LO)

NOTE #10

BLU

(MED LO)

BHT/CLR BLOWER MOTOR SPEED CHANGE RELAY, SPDT

BLWR BLOWER MOTOR RELAY, SPST-(N.O.)

BLWM BLOWER MOTOR, PERMANENT-SPLIT-CAPACITOR

CAP 1,2 CAPACITOR

CPU MICROPROCESSOR AND CIRCUITRY

EAC-1 ELECTRONIC AIR CLEANER CONNECTION (115 VAC 1.0 AMP MAX.)

LEGEN

PL4 3-CIRCUIT IDM EXTENSION CONNECTOR

EAC-2 ELECTRONIC AIR CLEANER CONNECTION (COMMON)

JUNCTION

UNMARKED TERMINAL

PCB CONTROL TERMINAL

FACTORY WIRING ( 115VAC)

FACTORY WIRING ( 24VAC)

FIELD WIRING (115VAC)

FIELD WIRING (24VAC)

CONDUCTOR ON CONTROL PCB

FIELD WIRING SCREW TERMINAL

FIELD EARTH GROUND

EQUIPMENT GROUND

FIELD SPLICE

PLUG RECEPTACLE

PRS PRESSURE SWITCH, SPST-(N.O.)

TEST/TWIN COMPONENT T EST & TWIN TERMINAL

TRAN TRANSFORMER-115VAC/24VAC

(FIELD INSTALLED & SUPPLIED)

FRS FLAME ROLLOUT SW. -MANUAL RESET, SPST-(N.C.)

FSE FLAME-PROVING ELECTRODE

FU 1 FUSE, 3 AMP, AUTOMOTIVE BLADE TYPE, FACTORY INSTALLED

FU 2 FUSE OR CIRCUIT BREAKER CURRENT INTERRUPT DEVICE

GND EQUIPMENT GROUND

GV GAS VALVE-REDUNDANT

GVR 1, 2 GAS VALVE RELAY, DPST-(N.O.)

HSI HOT SURFACE IGNITER (115 VAC)

HSIR HOT SURFACE IGNITER RELAY, SPST-(N.O.)

HUM 24VAC HUMIDIFIER CONNECTION (0.5 AMP . MAX.)

IDM INDUCED DRAFT MOTOR, PSC

IDR INDUCED DRAFT MOTOR RELAY, SPST-(N.O.)

ILK BLOWER ACCESS PANEL INTERLOCK SWITCH, SPST-(N.O.)

J1 BLOWER - OFF DELAY JUMPER SELECTOR

J2 COOLING - OFF DELAY JUMPER

JB JUNCTION BOX

LED LIGHT-EMITTING DIODE FOR STATUS CODES - RED

LGPS LOW GAS PRESSURE SWITCH, SPST-(N.O.)

LS LIMIT SWITCH, AUTO-RESET, SPST (N.C.)

Fig. 33 -- Wiring Diagram

-- 3 0 --

A02271

Page 31

NON-DIRECT VENT/1-PIPE SYSTEM (SIZES THROUGH 120 ONL

In a non-direct vent (1-pipe) system, all air for combustion is taken from the area adjacent to furnace, and all flue products are discharged to outdoor atmosphere. A factory-supplied perforated disk assembly (in loose parts bag) MUST be used in combustion-air pipe elbow.

CARBON MONOXIDE POISONING HAZARD

Failure to follow the steps outlined below for each appliance connected to the venting system being placed into operation could result in carbon monoxide poisoning or death.

The following steps shall be followed for each appliance connected to the venting system being placed into operation, while all other appliances connected to the venting system are not in operation:

1. Seal any unused openings in venting system.

2. Inspect the venting system for proper size and horizontal pitch, as required in the National Fuel Gas Code,

ANSI Z223.1--2006/NFPA 54--2006 or the CSA

54/

-- 0 5 , Natural Gas and Propane Installation Code

B149.1 and these instructions. Determine that there is no blockage or restriction, leakage, corrosion and other deficiencies, which could cause an unsafe condition.

3. As far as practical, close all building doors and windows and all doors between the space in which the appliance(s) connected to the venting system are located and other spaces of the building.

4. Close fireplace dampers.

5. Turn on clothes dryers and any appliance not connected to the venting system. Turn on any exhaust fans, such as range hoods and bathroom exhausts, so they are operating at maximum speed. Do not operate a summer exhaust fan.

6. Follow the lighting instructions. Place the appliance being inspected into operation. Adjust the thermostat so appliance is operating continuously.

7. Test for spillage from draft hood equipped appliances at the draft hood relief opening after 5 minutes of main burner operation. Use the flame of a match or candle.

8. If improper venting is observed during any of the above tests, the venting system must be corrected in accordance with the National Fuel Gas Code,

ANSI Z223.1-- 2006 and/or CSA B149.1-- 0 5 , Natural

54/ Gas and Propane Installation Code

9. After it has been determined that each appliance connected to the venting system properly vents when tested as outlined above, return doors, windows, exhaust fans, fireplace dampers and any other gas-fired burning appliance to their previous conditions of use.

WARNING

040

NFPA

WARNING

FIRE AND EXPLOSION HAZARD

Failure to follow this warning could result in fire, property damage, personal injury, or death.

Solvent cements are combustible. Keep away from heat, sparks, and open flame. Use only in well-ventilated areas. Avoid breathing in vapor or allowing contact with skin or eyes.

In Canada, construct all combustion-air and vent pipes for this unit of CSA or ULC listed schedule -- 40 PVC, PVC-DWV or ABSDWV pipe and pipe cement. SDR pipe is NOT approved in Canada.

In direct vent (2-pipe) systems, combustion air and vent pipes must terminate together in same atmospheric pressure zone, either through roof or sidewall (roof termination preferred), using accessory termination kit. See Table 8 for required clearances.

In non-direct vent (1-pipe) system, vent pipe termination must be installed with adequate clearances to building openings and equipment to comply with national and local codes. See Table 9 for required clearances.

WARNING

CARBON MONOXIDE POISONING HAZARD

Failure to follow this warning could result in property damage, personal injury, or death.

All combustion-air and vent pipes must be airtight and watertight. Pipes must also terminate exactly as shown in Fig. 42 for direct vent (2-pipe) system and Fig. 43 for non-direct vent (1-pipe) system.

An abandoned masonry chimney may be used as a raceway for properly insulated and supported combustion-air (when applicable) and vent pipes. Each furnace must have its own set of combustion-air and vent pipes and be terminated individually, as showninFig.42forDirectVent(2-Pipe)systemandFig.43for Non-Direct Vent (1-Pipe) system.

A furnace shall not be connected to a chimney flue serving a separate appliance designed to burn solid fuel.

Other gas appliances with their own venting system may also use the abandoned chimney as a raceway providing it is permitted by local code, the current edition of the National Fuel Gas Code and the vent or liner manufacturer’s installation instructions. Care must be taken to prevent the exhaust gases from one appliance from contaminating the combustion air of other gas appliances.

CAUTION

340AAV

MATERIALS

Combustion-air and vent pipe, fittings, primers, and solvents must conform to American National Standards Institute (ANSI) standards and American Society for Testing and Materials (ASTM) standards. See Table 7 for approved materials for use in the U.S.A.

UNIT MAY NOT OPERATE

Failure to follow this caution may result in intermittent unit operation.

When vent pipe is exposed to temperatures below freezing,such as when it passes through an unheated space or when a chimney is used as a raceway, pipe must be insulated as shown in Table 10 with Armaflex-type insulation.

Furnace combustion air and vent pipe connections are sized for 2-in. (51 mm) pipe. Any pipe size change should be made outside furnace casing in vertical pipe. The transition has to be made as close to the furnace as reasonably possible.

-- 3 1 --

Page 32

BLOWER OFF-DELAY

J2 JUMPER

24-V THERMOSTAT

TERMINALS

G Com W Y R

24V

BLOWER OFF-DELAY

90 150

120 180

TWINNING AND/OR

COMPONENT TEST

TERMINAL

HUMIDIFIER TERMINAL

(24-VAC 0.5 AMP MAX.)

3-AMP FUSE

340AAV

LED OPERATION &

DIAGNOSTIC LIGHT

115-VAC(L2)NEUTRAL

CONNECTIONS

COOL

HEAT

BLOWER SPEED

SELECTION TERMINALS

STATUS CODE LED

NUETRAL

BLW

COOL HEAT

SPARE-1

SPARE-2

TEST/TWIN

0.5 AMP@24VAC

FUSE 3-AMP

SEC-2 SEC-1

EAC-2 L2

SPARE-1 SPARE-2

HUM

PLT

PLT 1

1-AMP@

115VAC

PR-1

EAC-1

115 VAC (L1) LINE

VOLTAGE CONNECTION

EAC-1 TERMINAL

(115-VAC 1.0 AMP MAX.)

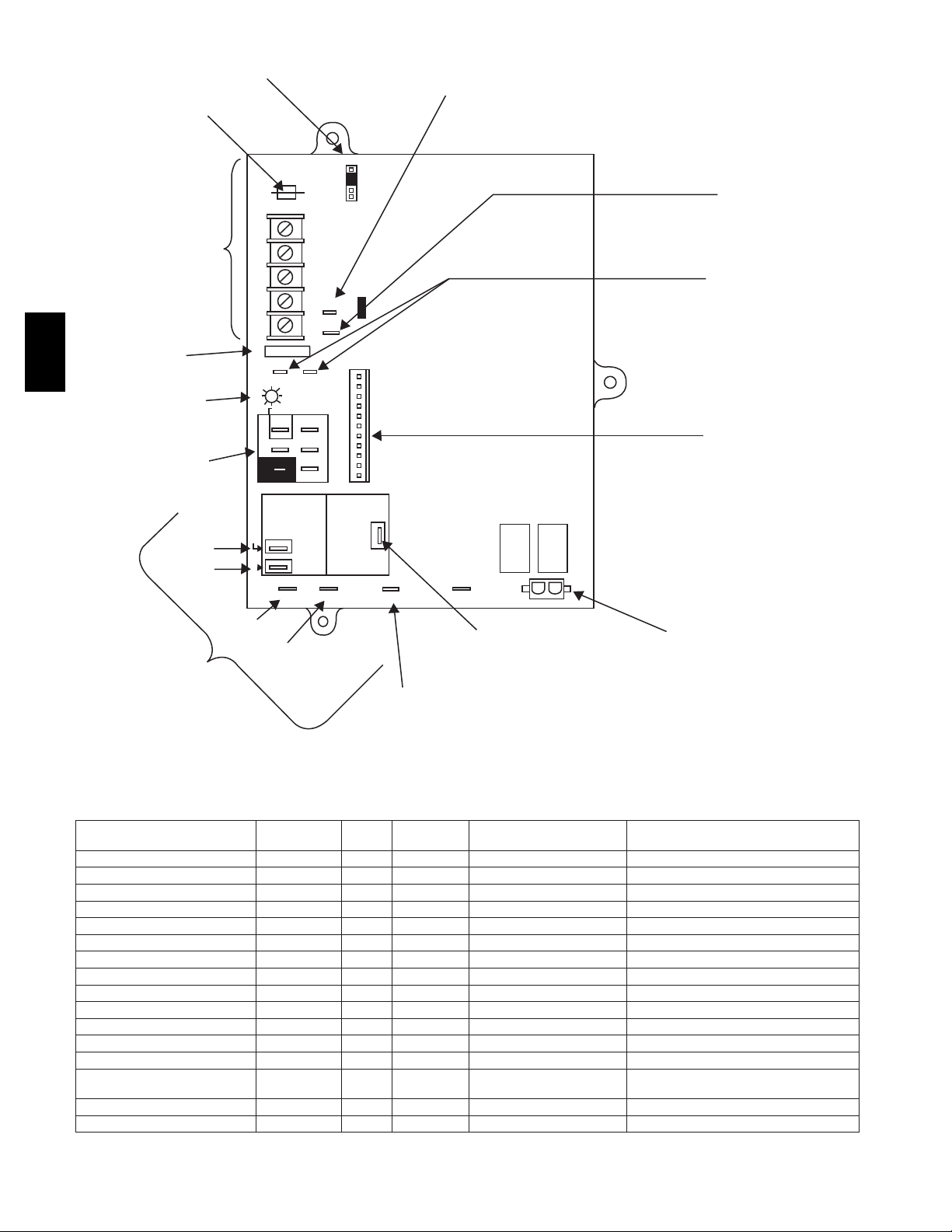

Fig. 34 -- Control Board

TRANSFORMER 24-VAC

CONNECTIONS

PL1-LOW VOLTAGE MAIN HARNESS CONNECTOR

PL2 1

PL2-HOT SURFACE

IGNITER & INDUCER

MOTOR CONNECTOR

A02100

ASTM SPECIFICATION

(MARKED ON MATERIAL)

D1527 ABS Pipe — — S c h ed u l e --- 4 0 D1785 PVC Pipe — — S c h ed u l e --- 4 0 D2235 For ABS — — Solvent Cement For ABS D2241 PVC Pipe — — SD R --- 2 1 & S DR --- 26 D2466 PVC — Fittings — S c h e d u l e --- 40 D2468 ABS — Fittings — S c h e d u le --- 40 D2564 For PVC — — Solvent Cement For PVC D2661 ABS Pipe Fittings — DWV at Schedule ---40 IPS sizes D2665 PVC Pipe Fittings — DWV

F438 CPVC — Fittings — S c h ed u l e --- 40 F441 CPVC Pipe — — S c h e d u l e --- 4 0 F442 CPVC Pipe — — SDR F493 For CPVC — — Solvent Cement For CPVC

F628 ABS Pipe — —

F656 For PVC — — Primer For PVC F891 PVC Pipe — — Cellular Core Schedule---40 & DWV

Table 7 – Approved Combustion-Air and Vent Pipe, Fitting and Cement Materials

MATERIAL PIPE FITTINGS

SOLVENT CEMENT

AND PRIMERS

DESCRIPTION

Cellular Core DWV at Schedule---40

-- 3 2 --

IPS sizes

Page 33

340AAV

12 inches (30 cm) for applieances >10,000 Btuh(3 kW)

100,000 Btuh(30kW), 36 inches (91cm) for

and < appliances > 100,000 Btuh(30kW)

A08600

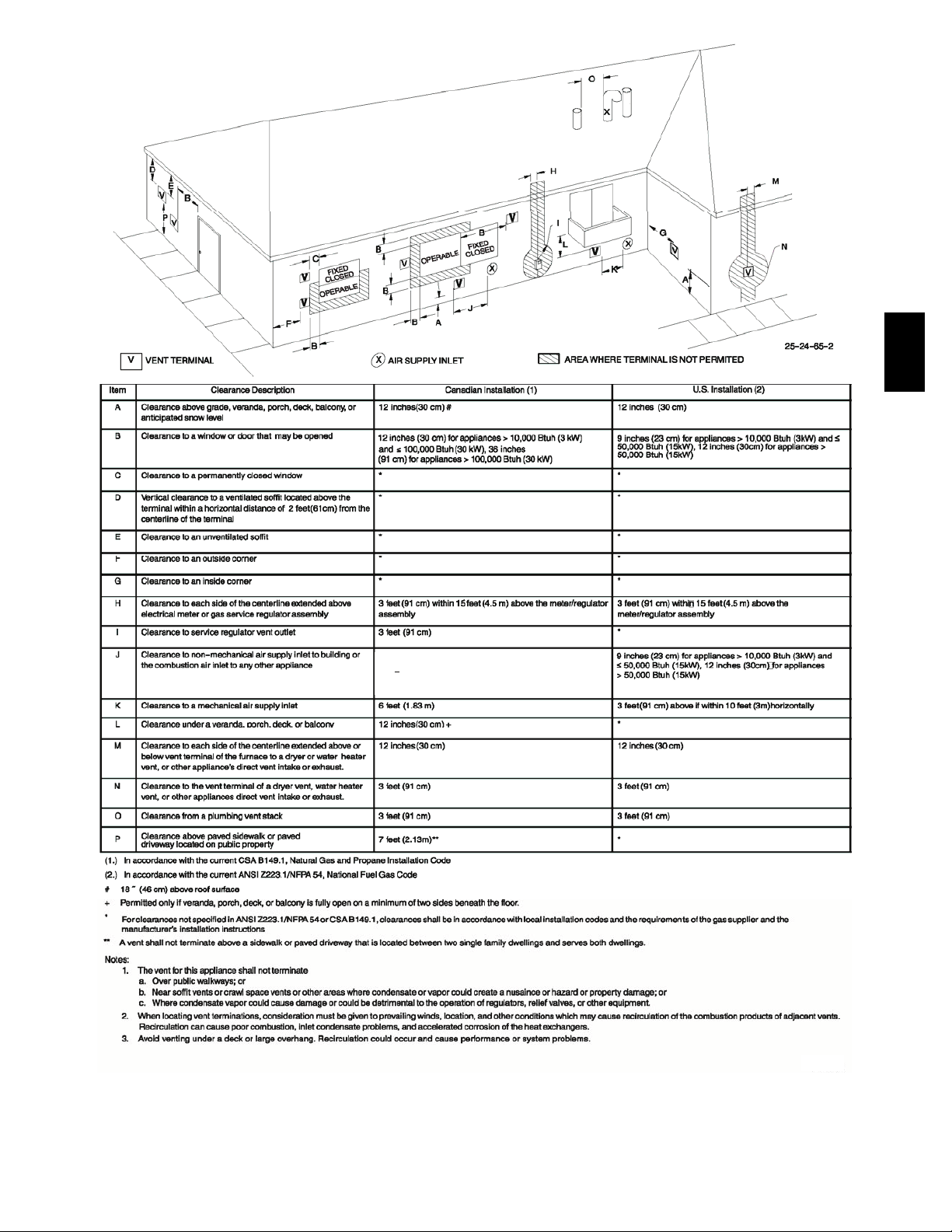

Table 8 – Direct Vent Termination Clearance

-- 3 3 --

Page 34

340AAV

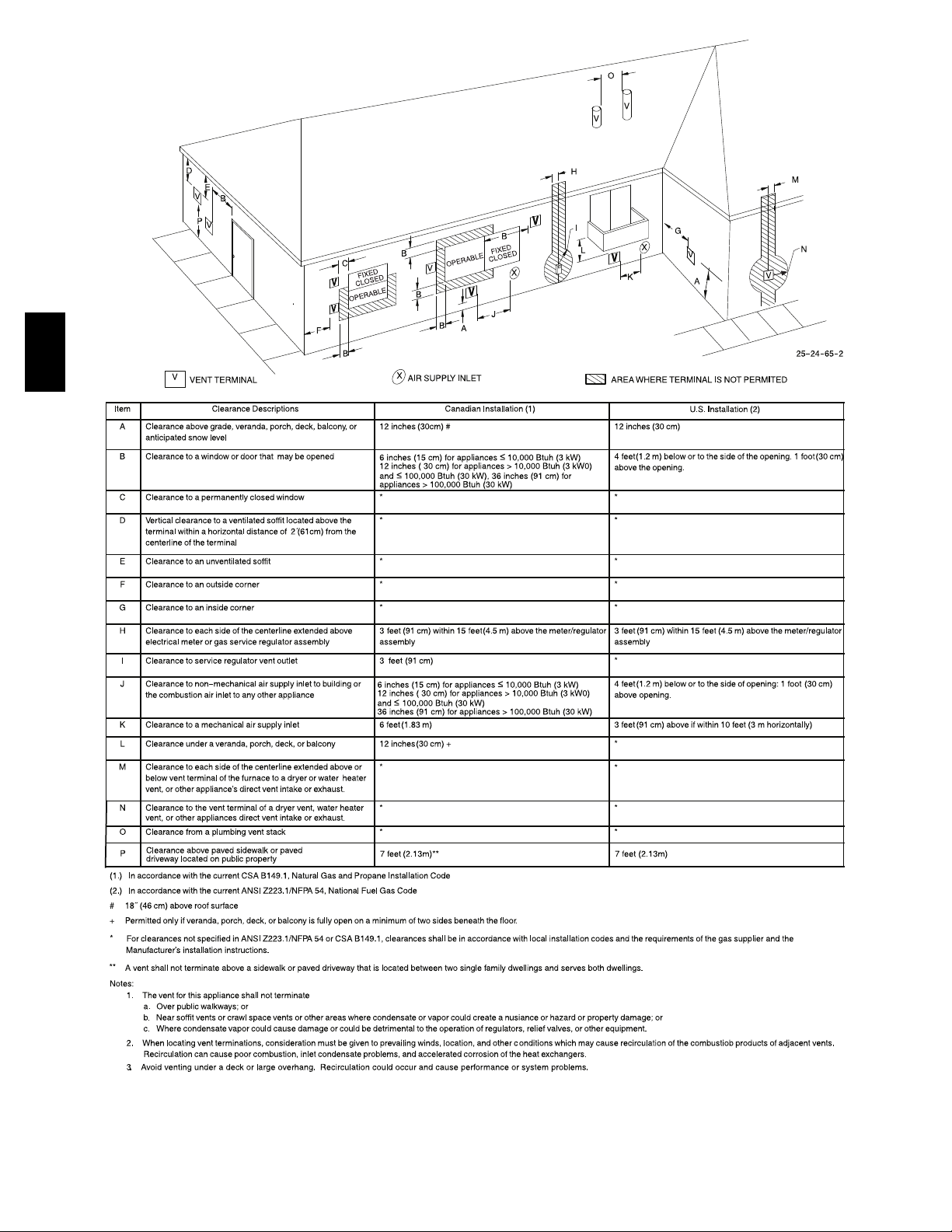

Table 9 – Other than Direct Vent Termination Clearance

-- 3 4 --

A08601

Page 35

Table 10 – Maximum Allowable Exposed Vent Pipe Length -- Ft. (M) With and Without Insulation

in Winter Design Temperature Ambient*

WINTER DESIGN

FURNACE SIZE

040

060

080

100

120

140

* Pipe length (ft) specified for maximum pipe lengths located in unconditioned spaces. Pipes located in unconditioned space cannot exceed total allowable pipe length as specified in Table 10.

† Insulation thickness based on R value of 3.5 per in.

TEMPERATURE

°F 〈°C)

20 (---7) 1.5 (38) 51 (16) 70 (21) 0 ( --- 18 ) 1.5 (38) 28 (9) 70 (21)

--- 2 0 ( --- 2 9 ) 1.5 (38) 16 (5) 70 (21) 20 (---7) 2 (51) 45 (14) 70 (21) 0 ( --- 18 ) 2 (51) 22 (7) 70 (21)

--- 2 0 ( --- 2 9 ) 2 (51) 10 (3) 58 (18) 20 (---7) 2 (51) 65 (20) 70 (21) 0 ( --- 18 ) 2 (51) 35 (11) 70 (21)

--- 2 0 ( --- 2 9 ) 2 (51) 20 (6) 70 (21) 20 (---7) 2 (51) 55 (17) 55 (17) 0 ( --- 18 ) 2 (51) 48 (15) 55 (17)

--- 2 0 ( --- 2 9 ) 2 (51) 30 (9) 55 (17) 20 (---7) 2.5 (64) 70 (21) 70 (21) 0 ( --- 18 ) 2.5 (64) 47 (14) 70 (21)

--- 2 0 ( --- 2 9 ) 2.5 (64) 28 (9) 70 (21) 20 (---7) 2.5 (64) 40 (12) 40 (12) 0 ( --- 18 ) 2.5 (64) 40 (12) 40 (12)

--- 2 0 ( --- 2 9 ) 2.5 (64) 38 (12) 40 (12) 20 (---7) 3 (76) 70 (21) 70 (21) 0 ( --- 18 ) 3 (76) 50 (15) 70 (21)

--- 2 0 ( --- 2 9 ) 3 (76) 28 (9) 70 (21) 20 (---7) 3 (76) 70 (21) 70 (21) 0 ( --- 18 ) 3 (76) 61 (19) 70 (21)

--- 2 0 ( --- 2 9 ) 3 (76) 37 (11) 70 (21) 20 (---7) 4 (102) 70 (21) 70 (21) 0 ( --- 18 ) 4 (102) 48 (15) 70 (21)

--- 2 0 ( --- 2 9 ) 4 (102) 23 (7) 70 (21) 20 (---7) 3 (76) 60 (18) 60 (18) 0 ( --- 18 ) 3 (76) 60 (18) 60 (18)

--- 2 0 ( --- 2 9 ) 3 (76) 44 (13) 60 (18) 20 (---7) 4 (102) 70 (21) 70 (21) 0 ( --- 18 ) 4 (102) 57 (17) 70 (21)

--- 2 0 ( --- 2 9 ) 4 (102) 30 (9) 70 (21)

MAX PIPE

DIAMETER

IN (mm)

WITHOUT

INSULATION

FT (M)

WITH 3/8–IN. (10 mm) OR

THICKER INSULATION†

FT (M)

COMBUSTION AIR PIPE

General

Furnace combustion-air connection must be attached as shown in Fig. 35. Combustion-air intake housing plug may need to be relocated in some applications.

For Non-Direct Vent (1-Pipe) system, combustion-air must terminate outside of furnace casing with 1 elbow. Orient elbow so that its opening faces down for upflow or downflow applications. Orient elbow so that its opening faces sideways (left or right) for horizontal left or horizontal right applications (See Fig. 35.) Maintain a 3-in minimum clearance between the opening of the combustion-air inlet pipe and any object.

UNIT CORROSION HAZARD

Excessive exposure to contaminated combustion air may result in safety and performance related problems.

Combustion air must not be taken from inside structure because inside air is frequently contaminated by halogens, which include fluorides, chlorides, bromides, and iodides. These elements are found in aerosols, detergents, bleaches, cleaning solvents, salts, air fresheners, adhesives, paint, and other household products. Locate combustion-air inlet as far as possible from swimming pool and swimming pool pump house.

pipe. Pick the larger of these 2 pipe diameters and use this diameter for both combustion-air and vent pipes.

CAUTION

340AAV

NOTE: All pipe joints must be cemented except attachment of the combustion-air pipe to the inlet housing connection, since it may be necessary to remove the pipe for servicing.

-- 3 5 --

Page 36

NOTE: Select 1 vent pipe connection and

Select 1 vent pipe connection and 1 combustion-air pipe connection.

AIR

COMBUSTION-

AIR

VENT

COMBUSTION-

AIR

340AAV

FLOW

COMBUSTION-

UPFLOW DOWNFLOW

AIR

VENT

AIR

VENT

†

NOTE:

1 combustion-air pipe connection.

VENT

COMBUSTION-

AIR

FLOW

COMBUSTION-

VENT

COMBUSTION-

AIR

FLOW

NOTE: The 60,000 model includes an inducer outlet restrictor in the loose parts bag that must be installed for certain vent system configurations. Referring to Table 12, locate the altitude for the installation. Discard the restrictor if the vent length is greater than that shown in Table 12; install the restrictor if the vent length is less than or equal. Refer to Fig. 37 for positioning of the restrictor in the inducer outlet. The restrictor is to be trapped between the vent pipe and inducer outlet. Certain installations

†

may require removal of the coupling for easier installation of the inducer outlet restrictor.

FIELD-SUPPLIED 2-IN. (51 mm) DIA. PVC 90° ELBOW

FIELD-SUPPLIED 2-IN. (51 mm) DIA. PVC PIPE

†

HORIZONTAL-LEFT DISCHARGE HORIZONTAL-RIGHT DISCHARGE

* For Non-Direct Vent (1-Pipe) system, orient elbow so that its

opening faces down.

** For Non-Direct Vent (1-Pipe) system, orient elbow so that its

opening faces sideways.

† An external trap kit (see furnace product data sheet) must be used.

† †

Bottom combustion-air not allowed for non-direct vent

†

††††

A05092

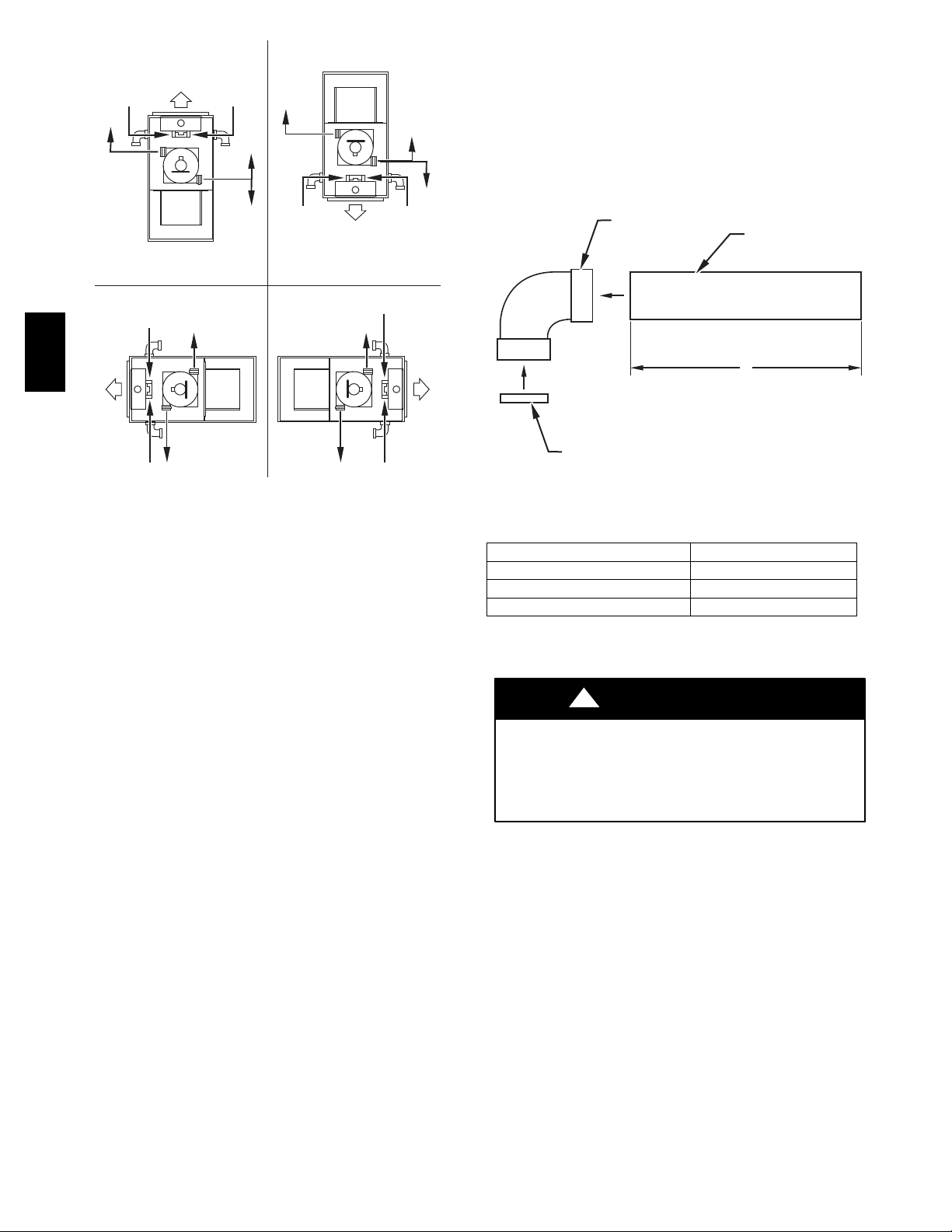

Fig. 35 -- Combustion-Air and Vent Pipe Connections

Assembly of Combustion Air Pipe (Non-Direct Vent/1-Pipe System ONLY)

1. Permanently install perforated disk assembly (factory-supplied in loose parts bag) in combustion-air elbow using RTV or by cementing, as shown in Fig. 36. For 120,000 Btuh size units only: separate the 2 halves of perforated disk assembly and use only the shouldered disk half.

2. Determine the length of straight portion of combustion-air inlet pipe from Fig. 36.

3. Cut field-supplied 2-in. (51 mm) diameter PVC pipe to length as determined per Fig. 36.

4. Permanently attach elbow/perforated disk assembly to straight portion of pipe using RTV or by cementing as shown in Fig. 36.

Assembly of Combustion Air Pipe (Direct Vent -- 2-Pipe System ONLY)

1. Using Table 11, individually determine the diameter of the combustion air and vent pipe allowed. If different, pick the larger of these two diameters and use this diameter for both combustion--air and vent pipes.

2. When installing vent systems of short pipe length, use the smallest allowable pipe diameter. Do not use pipe size greater than required or incomplete combustion, flame disturbance, or flame sense lockout may occur.

NOTE: Do not count elbows or pipe sections in terminations or within furnace (All elbows shown in Fig. 42 and Fig. 43 are not to be counted).

COMBUSTION-AIR DISC (FACTORY-SUPPLIED IN LOOSE PARTS BAG)

A96211

Length of Straight Pipe Portion of

Combustion-Air Inlet Pipe Assembly -- In. (mm)

CASING WIDTH A

17---1/2 (445) 8 --- 1/ 2 ±1/2 (216 ± 13)

21(533) 10---1/2 ±1/2 (267 ± 13)

24---1/2 (622) 12 ±1/2 (318 ± 13)

Fig. 36 -- Combustion-Air Inlet Pipe Assembly

CAUTION

UNIT MAY NOT OPERATE

Failure to follow this caution may result in incomplete combustion, flame disturbance, or flame sense lockout.

When installing combustion air and vent system of short pipe length, the smallest allowable pipe diameter must be used.

NOTE: A 2-in. (51 mm) diameter pipe must be used within furnace casing. Make all pipe diameter transitions outside furnace casing per Fig. 39.

3. If required per Table 11, insert perforated disk assembly (factory-supplied in loose parts bag) in intake housing where combustion air pipe will be connected. If half disk set is required, install only shouldered disk half.

Attachment of Combustion Air Pipe

1. Determine location of combustion air intake pipe connection to combustion air intake housing as shown in Fig. 35 for application.

2. Reposition combustion air intake housing plug fitting in appropriate unused intake housing connection.

3. Install pipe support (factory-supplied in loose parts bag) into selected furnace casing combustion-air pipe hole. Pipe support should be positioned at bottom of casing hole.

4. Insert assembled combustion air inlet pipe into intake housing as shown in Fig. 35.

-- 3 6 --

Page 37

5. Drill a 1/8-in. (3 mm) hole in 2-in. (51 mm) combustion air pipe using the hole in intake housing as a guide.

6. Install a field-supplied No. 6 or No. 8 sheet metal screw into combustion air pipe.

7. Install casing hole filler cap (factory-supplied in loose parts bag) in unused combustion air pipe casing hole.

NOTE: Do not attach combustion air intake pipe permanently to combustion air intake housings since it may be necessary to remove pipe for service of igniter or flame sensor.

COUPLING MAY BE REMOVED

FOR EASIER INSTALLATION

INDUCER OUTLET

RESTRICTOR

340AAV

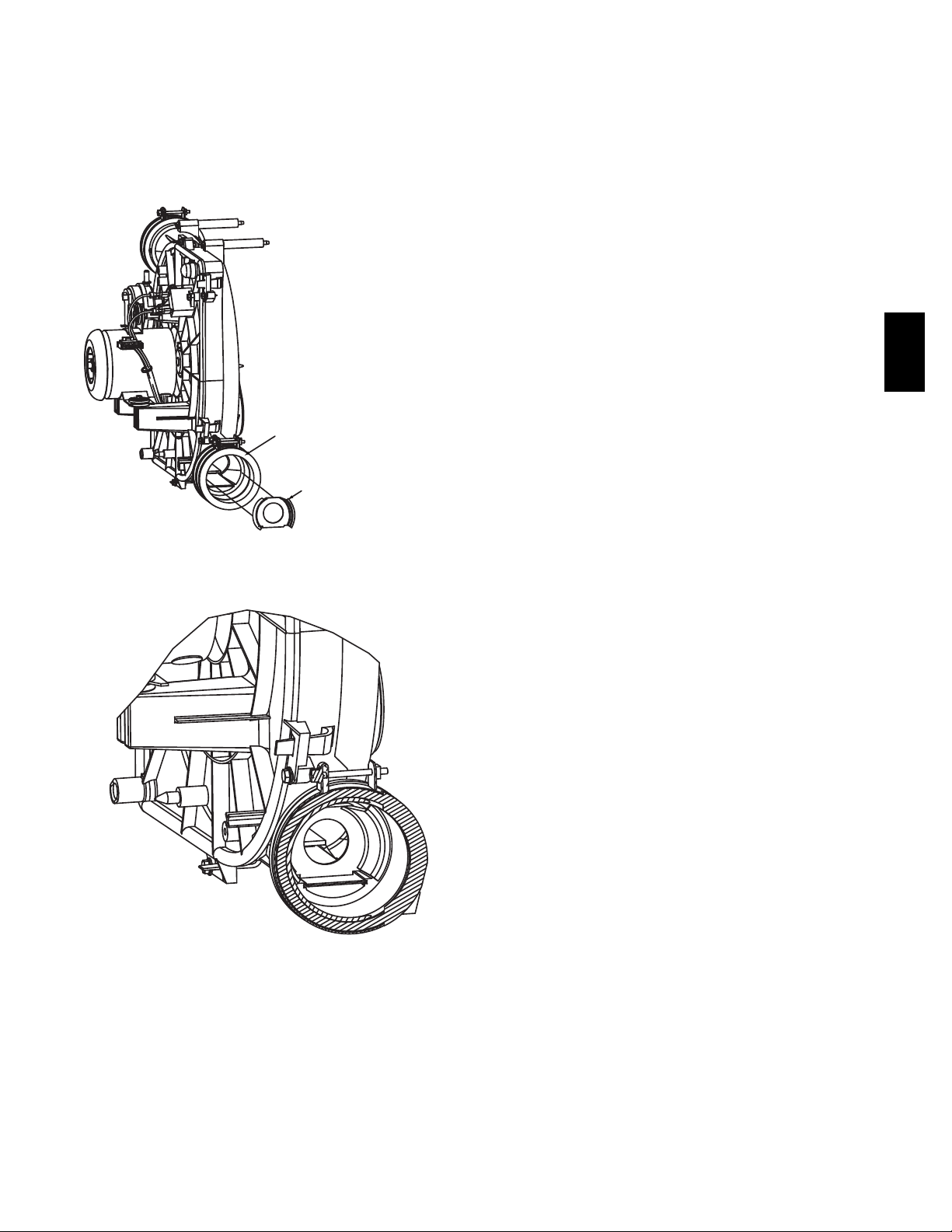

Fig. 37 -- Outlet Restrictor Installation

60,000 BTUH Models only. See Table 12.

Fig. 38 -- Illustration of an Installed Outlet Restrictor

60,000 BTUH Models only. See Table 12.

A09328

A09329

-- 3 7 --

Page 38

ALTITUDE

FT (M)

340AAV

0 to 2000 (0 to 610)

ALTITUDE

FT (M)

2001 to 3000

(610 to 914)

See notes at end of table.

UNIT SIZE

(BTUH)

40,000

60,000

80,000

100,000

120,000

140,000

UNIT SIZE

(BTUH)

40,000

60,000

80,000

100,000

120,000

140,000

Table 11 – Maximum Allowable Pipe Length -- Ft (M)

NON-DIRECT

DIRECT VENT (2-PIPE) ONLY

TERMINATION

TYPE

2Pipeor2-in

Concentric

2Pipeor2-in

Concentric

2Pipeor2-in

Concentric

2Pipeor3-in

Concentric

2Pipeor3-in.

Concentric

2Pipeor3-in.

Concentric

DIRECT VENT (2-PIPE) ONLY

TERMINATION

TYPE

2Pipeor2-in

Concentric

2Pipeor2-in

Concentric

2Pipeor2-in

Concentric

2Pipeor3-in

Concentric

2Pipeor3-in.

Concentric

2Pipeor3-in.

Concentric

PIPE DIA

IN. (mm)*

1 (25) 1 (25)

1-1/2 (38) 1-1/2 (38)

2 (51) 2 (51)

1-1/2 (38) 1-1/2 (38)

2 (51) 2 (51)

1-1/2 (38) 1-1/2 (38)

2 (51) 2 (51)

2-1/2 (64) 2-1/2 (64)

2 (51) 2 (51)

2-1/2 (64) 2-1/2 (64)

3 (76) 3 (76)

2-1/2 (64)

one disk

3 (76)† NA

3 (76) † no disk 3 (76)†

2-1/2 (64)

one disk

3 (76)† NA

3 (76) † no disk NA

4 (102) † no

PIPE DIA

IN. (mm)*

1-1/2 (38) 1-1/2 (38)

2 (51) 2 (51)

1-1/2 (38) 1-1/2 (38)

2 (51) 2 (51)

2-1/2 (64) 2-1/2 (64)

3 (76) 3 (76)

3 (76) NA

3 (76)† no disk NA

4 (102)† no

3 (76) one

disk†

3 (76)† no disk NA

4 (102)† no

disk

NA 3 (76)†

disk

VENT (1-PIPE)

ONLY

PIPE DIA

IN. (mm)*

2-1/2 (64)

NON-DIRECT

VENT (1-PIPE)

ONLY

PIPE DIA

IN. (mm)*

4 (102)† no disk

NUMBER OF 90° ELBOWS

1 2 3 4 5 6

(1.5)

(21.3)70(21.3)65(19.8)60(18.3)60(18.3)55(16.8)

(21.3)70(21.3)70(21.3)70(21.3)70(21.3)70(21.3)

(6.1)15(4.6)10(3.0)5(1.5)

(21.3)70(21.3)70(21.3)70(21.3)70(21.3)70(21.3)

(3.0)

(16.8)50(15.2)35(10.7)30(9.1)30(9.1)20(6.1)

(21.3)70(21.3)70(21.3)70(21.3)70(21.3)70(21.3)

(1.5)

(12.2)30(9.1)20(6.1)20(6.1)10(3.0)

(21.3)70(21.3)70(21.3)70(21.3)70(21.3)70(21.3)

(3.0)

(13.7)40(12.2)35(10.7)30(9.1)25(7.6)20(6.1)

(21.3)70(21.3)70(21.3)70(21.3)70(21.3)70(21.3)

(1.5)

(12.1)35(10.6)30(9.1)25(7.6)20(6.1)15(4.6)

(18.3)56(17.0)52(15.8)48(14.6)44(13.4)40(12.2)

(21.3)70(21.3)70(21.3)70(21.3)70(21.3)70(21.3)

(20.4)62(18.9)57(17.4)52(15.8)52(15.8)47(14.3)

(21.3)70(21.3)70(21.3)70(21.3)70(21.3)70(21.3)

(5.2)12(3.7)7(2.1)

(21.3)67(20.4)66(20.1)61(18.6)61(18.6)61(18.6)

(14.9)44(13.4)30(9.1)25(7.6)25(7.6)15(4.6)

(21.3)70(21.3)70(21.3)70(21.3)70(21.3)70(21.3)

(10.7)26(7.9)16(4.9)16(4.9)6(1.8)

(21.3)70(21.3)70(21.3)70(21.3)66(20.1)61(18.6)

(4.3)9(2.7)

(19.2)62(18.9)62(18.9)61(18.6)61(18.6)61(18.6)

(21.3)70(21.3)63(19.2)56(17.1)50(15.2)43(13.1)

(21.3)70(21.3)70(21.3)70(21.3)70(21.3)70(21.3)

(6.1)15(4.6)10(3.0)5(1.5)

(11.8)35(10.6)31(11.9)27(8.2)23(7.0)19(5.8)

(21.3)70(21.3)70(21.3)70(21.3)70(21.3)70(21.3)

NA NA NA NA NA

NUMBER OF 90° ELBOWS

1 2 3 4 5 6

NA NA NA NA

NA NA NA

NA NA

-- 3 8 --

Page 39

ALTITUDE

FT (M)

3001 to 4000

(914 to 1219)

ALTITUDE

FT (M)

4001 to 5000‡

(1219 to 1524)

See notes at end of table.

UNIT SIZE

(BTUH)

40,000

60,000

80,000

100,000

120,000

140,000

(BTUH)

40,000

60,000

80,000

100,000

120,000

140,000

Table 11—Maximum Allowable Pipe Length -- Ft (M) (Continued)

NON-DIRECT

DIRECT VENT (2-PIPE) ONLY

TERMINATION

TYPE

2Pipeor2-in

Concentric

2Pipeor2-in

Concentric

2Pipeor2-in

Concentric

2Pipeor3-in

Concentric

2Pipeor3-in.

Concentric

4† no disk

2Pipeor3-in.

Concentric

DIRECT VENT (2-PIPE) ONLY

TERMINATION

TYPE

2Pipeor2-in

Concentric

2Pipeor2-in

Concentric

2Pipeor2-in

Concentric

2Pipeor3-in

Concentric

2Pipeor3-in.

Concentric

2Pipeor3-in.

Concentric

PIPE DIA ---

IN (mm)*

1-1/2 (38) 1-1/2 (38)

2 (51) 2 (51)

1-1/2 (38) 1-1/2 (38)

2 (51) 2 (51)

2-1/2 (64) 2-1/2 (64)

3 (76) 3 (76)

3 (76)† no disk NA

4 (102)† no

3 (76) one

disk†

3 (76)† no disk NA

4 (102)† no

PIPE DIA

IN. (mm)*

1-1/2 (38) 1-1/2 (38)

2 (51) 2 (51)

1-1/2 (38) 1-1/2 (38)

2 (51) 2 (51)

2-1/2 (64) 2-1/2 (64)

3 (76) 3 (76)

3 (76)†

no disk

4 (102)† no

3 (76)† no disk NA

4 (102)† no

NA 3 (76)†

disk

NA 3 (76)†

disk

VENT (1-PIPE)

ONLY

PIPE DIA ---

IN (mm)*

4 (102) † no disk

NON-DIRECT

VENT (1-PIPE)

ONLY

PIPE DIA

IN. (mm)*

4 (102)† no disk

NUMBER OF 90° ELBOWS

1 2 3 4 5 6

(19.5)59(18.0)54(16.5)49(14.9)48(14.6)43(13.1)

(21.3)70(21.3)70(21.3)70(21.3)70(21.3)70(21.3)

(4.9)11(3.4)6(1.8)

(20.7)63(19.2)62(18.9)57(17.4)57(17.4)56(17.1)

(14.0)41(12.5)28(8.5)23(7.0)22(6.7)13(4.0)

(21.3)70(21.3)70(21.3)70(21.3)70(21.3)70(21.3)

(10.1)24(7.3)15(4.6)14(4.3)5(1.5)

(21.3)70(21.3)70(21.3)66(20.1)61(18.6)56(17.1)

(19.8)58(17.7)51(15.5)44(13.4)38(11.6)31(9.4)

(18.0)59(18.0)58(17.7)57(17.4)57(17.4)56(17.1)

(21.3)70(21.3)70(21.3)70(21.3)70(21.3)70(21.3)

(3.4)6(1.8)

(9.1)26(7.9)22(6.7)18(5.5)14(4.3)10(3.0)

(21.3)70(21.3)70(21.3)70(21.3)70(21.3)70(21.3)

NUMBER OF 90° ELBOWS

1 2 3 4 5 6

(18.3)55(16.8)50(15.2)45(13.7)44(13.4)39(11.9)

(21.3)70(21.3)70(21.3)70(21.3)70(21.3)70(21.3)

(4.6)10(3.0)5(1.5)

(19.5)59(18.0)58(17.7)53(16.2)52(15.8)52(15.8)

(13.4)39(11.9)26(7.9)21(6.4)20(6.1)11(3.4)

(21.3)70(21.3)70(21.3)70(21.3)70(21.3)70(21.3)

(9.4)22(6.7)13(4.0)12(3.7)

(21.3)70(21.3)67(20.4)62(18.9)57(17.4)52(15.8)

(16.2)46(14.0)40(12.2)33(10.1)26(7.9)20(6.1)

(17.1)55(16.8)54(16.5)53(16.2)52(15.8)52(15.8)

(21.3)70(21.3)70(21.3)70(21.3)70(21.3)70(21.3)

(6.4)17(5.1)13(3.9)9(2.7)5(1.5)

(21.0)64(19.5)59(17.9)54(16.4)49(15.0)44(13.4)

NA NA NA

340AAV

NA NA NA NA

NA NA NA

NA NA

-- 3 9 --

Page 40

ALTITUDE

FT (M)

5001 to 6000‡

(1524 to 1829)

340AAV

ALTITUDE

FT (M)

6001 to 7000‡

(1829 to 2134)

6001 to 7000‡

(1829 to 2134)

See notes at end of table.

UNIT SIZE

(BTUH)

40,000

60,000

80,000

100,000

120,000

140,000

UNIT SIZE

(BTUH)

40,000

60,000

80,000

100,000

120,000

140,000

Table 11—Maximum Allowable Pipe Length -- Ft (M) (Continued)

NON-DIRECT

DIRECT VENT (2-PIPE) ONLY

TERMINATION

TYPE

2Pipeor2-in

Concentric

2Pipeor2-in

Concentric

2Pipeor2-in

Concentric

2Pipeor3-in

Concentric

2Pipeor3-in.

Concentric

2Pipeor3-in.

Concentric

DIRECT VENT (2-PIPE) ONLY

TERMINATION

TYPE

2Pipeor2-in

Concentric

2Pipeor2-in

Concentric

2Pipeor2-in

Concentric

2Pipeor3-in

Concentric

2Pipeor3-in.

Concentric

2Pipeor3-in.

Concentric

PIPE DIA

IN. (mm)*

1-1/2 (38) 1-1/2 (38)

2 (51) 2 (51)

1-1/2 (38) 1-1/2 (38)

2 (51) 2 (51)

2-1/2 (64) 2-1/2 (64)

3 (76) 3 (76)

3 (76)†

no disk

4 (102)† no

3 (76)† no disk NA

4 (102)† no

PIPE DIA

IN. (mm)*

1-1/2 (38) 1-1/2 (38)

2 (51) 2 (51)

1-1/2 (38) 1-1/2 (38)

2 (51) 2 (51)

2-1/2 (64) 2-1/2 (64)

3 (76) 3 (76)

3 (76)†

no disk

4 (102)† no

NA 3 (76)†

disk

NA 3 (76)†

disk

VENT (1-PIPE)

ONLY

PIPE DIA

IN. (mm)*

4 (102)† no disk

NON-DIRECT

VENT (1-PIPE)

ONLY

PIPE DIA

IN. (mm)*

4 (102)† no disk

NUMBER OF 90° ELBOWS

1 2 3 4 5 6

(17.4)52(15.8)47(14.3)42(12.8)40(12.2)35(10.7)

(21.3)70(21.3)70(21.3)70(21.3)70(21.3)70(21.3)

(4.3)9(2.7)

(18.3)55(16.8)54(16.5)49(14.9)48(14.6)47(14.3)

(12.5)36(11.0)23(7.0)18(5.5)17(5.2)8(2.4)

(21.3)70(21.3)70(21.3)70(21.3)70(21.3)70(21.3)

(8.8)21(6.4)12(3.7)11(3.4)

(21.3)67(20.4)62(18.9)57(17.4)52(15.8)47(14.3)

(12.8)35(10.7)29(8.8)22(6.7)15(4.6)9(2.7)

(16.2)52(15.8)50(15.2)49(14.9)48(14.6)47(14.3)

(21.3)70(21.3)70(21.3)70(21.3)70(21.3)70(21.3)

(3.6)8(2.4)

(12.8)37(11.2)32(9.7)27(8.2)22(6.7)17(5.1)

NUMBER OF 90° ELBOWS

1 2 3 4 5 6

(16.2)48(14.6)43(13.138(11.6)37(11.3)32(9.8)

(21.3)70(21.3)68(20.7)67(20.4)66(20.1)64(19.5)

(4.0)8(2.4)

(17.4)52(15.8)50(15.2)45(13.7)44(13.4)43(13.1)

(11.6)33(10.1)21(6.4)16(4.9)15(4.6)6(1.8)

(21.3)70(21.3)68(20.7)67(20.4)66(20.1)64(19.5)

(8.2)19(5.8)10(3.0)9(2.7)

(20.7)63(19.2)58(17.7)53(16.2)48(14.6)43(13.1)

(9.4)24(7.3)18(5.5)11(3.4)

(14.9)48(14.6)47(14.3)45(13.7)44(13.4)43(13.1)

(21.3)70(21.3)70(21.3)70(21.3)67(20.4)62(18.8)

(5.1)12(3.6)7(2.1)

NA NA NA NA

NA NA

NA NA NA NA

NA NA

NA NA NA

-- 4 0 --

Page 41

ALTITUDE

FT (M)

7001 to 8000‡

(2134 to 2438)

ALTITUDE

FT (M)

8001 to 9000‡

(2438 to 2743)

See notes at end of table.

UNIT SIZE

Table 11—Maximum Allowable Pipe Length -- Ft (M) (Continued)

NON-DIRECT

(BTUH)

40,000

60,000

80,000

100,000

120,000

140,000 NA

(BTUH)

40,000

60,000

80,000

100,000

120,000

140,000 NA

DIRECT VENT (2-PIPE) ONLY

TERMINATION

TYPE

2Pipeor2-in

Concentric

2Pipeor2-in

Concentric

2Pipeor2-in

Concentric

2Pipeor3-in

Concentric

2Pipeor3-in.

Concentric

DIRECT VENT (2-PIPE) ONLY

TERMINATION

TYPE

2Pipeor2-in

Concentric

2Pipeor2-in

Concentric

2Pipeor2-in

Concentric

2Pipeor3-in

Concentric

2Pipeor3-in.

Concentric

PIPE DIA

IN. (mm)*

1-1/2 (38) 1-1/2 (38)

2 (51) 2 (51)

1-1/2 (38) 1-1/2 (38)

2 (51) 2 (51)

2-1/2 (64) 2-1/2 (64)

3 (76) 3 (76)

3 (76)† no disk NA

4 (102)† no

PIPE DIA

IN. (mm)*

1-1/2 (38) 1-1/2 (38)

2 (51) 2 (51)

1-1/2 (38) 1-1/2 (38)

2 (51) 2 (51)

2-1/2 (64) 2-1/2 (64)

3 (76) 3 (76)

3 (76)† no disk NA

4 (102)† no

NA 3 (76)†

disk

NA 3 (76)†

disk

VENT (1-PIPE)

ONLY

PIPE DIA

IN. (mm)*

4 (102)† no disk

NON-DIRECT

VENT (1-PIPE)

ONLY

PIPE DIA

IN. (mm)*

4† no disk

NUMBER OF 90° ELBOWS

1 2 3 4 5 6

(14.9)44(13.4)39(11.9)34(10.4)33(10.1)28(6.5)

(20.1)65(19.8)63(19.2)62(18.9)60(18.3)59(18.0)

(3.7)7(2.1)

(16.2)48(14.6)46(14.0)41(12.5)40(12.2)38(11.6)

(11.0)31(9.4)19(5.8)14(4.3)12(3.7)

(20.1)65(19.8)63(19.2)62(18.9)60(18.3)59(18.0)

(7.6)17(5.2)8(2.4)7(2.1)

(19.2)58(17.7)53(16.2)48(14.6)43(13.1)38(11.6)

(6.1)13(4.0)7(2.1)

(14.0)44(13.4)43(13.1)41(12.5)40(12.2)38(11.6)

(18.6)56(17.1)51(15.5)46(14.0)41(12.5)36(11.0)

1 2 3 4 5 6

(14.0)41(12.5)36(11.0)31(9.4)29(8.8)24(7.3)

(18.9)60(18.3)58(17.7)56(17.1)55(16.8)53(16.2)

(3.4)6(1.8)

(14.9)44(13.4)42(12.8)37(11.3)35(10.7)34(10.4)

(10.1)28(8.5)17(5.2)12(3.7)10(3.0)

(18.9)60(18.3)58(17.7)56(17.1)55(16.8)53(16.2)

(7.0)15(4.6)7(2.1)5(1.5)

(18.0)54(16.5)49(14.9)44(13.4)39(11.9)34(10.4)

(3.0)

(13.1)41(12.5)39(11.9)37(11.3)35(10.7)34(10.4)

(10.7)30(9.1)25(7.6)20(6.1)15(4.6)10(3.0)

NA NA NA NA NA

NA NA NA NA

NA NA

NA NA NA

NUMBER OF 90° ELBOWS

NA NA NA NA

NA NA

340AAV

-- 4 1 --

Page 42

Table 11—Maximum Allowable Pipe Length -- Ft (M) (Continued)

ALTITUDE

FT (M)

9001 to 10,000‡

(2743 to 3048)

340AAV

* Disk usage-Unless otherwise specified, use perforated disk assembly (factory-supplied in loose parts bag). # If one disk is stated, separate 2 halves of perforated disk assembly and use shouldered disk half. When using shouldered disk half, install screen sidetowardinletbox. † Wide radius elbow. ‡ Vent sizing for Canadian installations over 4500 ft (1370 M) above sea level are subject to acceptance by the local authorities having jurisdiction. NA-Not Allowed;

pressure switch will not make.

NOTES:

1. Do not use pipe size greater than those specified in table or incomplete combustion, flame disturbance, or flame sense lockout may occur.

2. Size both the combustion-air and vent pipe independently, then use the larger diameter for both pipes.

3. Assume two 45° elbows equal one 90° elbow. Wide radius elbows are desirableandmayberequiredinsomecases.

4. Elbows and pipe sections within the furnace casing and at the vent termination should not be included in vent length or elbow count.

5. The minimum pipe length is 5 ft (1.5 M) for all applications.

6. Use 3-in. (76 mm) diameter vent termination kit for installations requiring 4-in (102 mm) diameter pipe.

UNIT SIZE

(BTUH)

40,000

60,000

80,000

100,000

120,000

140,000 NA

DIRECT VENT (2-PIPE) ONLY

TERMINATION

TYPE

2Pipeor2-in 1-1/2 (38) 1-1/2 (38)

Concentric 2 (51) 2 (51)

2Pipeor2-in

Concentric

2Pipeor2-in

Concentric

2Pipeor3-in

Concentric

2Pipeor3-in.

Concentric

PIPE DIA

IN. (mm)*

2 (51) 2 (51)

2-1/2 (64) 2-1/2 (64)

3 (76) 3 (76)

NA 3 (76)†

4 (102)† no

disk

NON-DIRECT

VENT (1-PIPE)

ONLY

PIPE DIA

IN. (mm)*

4 (102)† no disk

NUMBER OF 90° ELBOWS

1 2 3 4 5 6

(12.8)37(11.3)32(9.8)27(8.2)25(7.6)20(6.1)

(17.4)

(13.7)40(12.2)38(11.6)33(10.1)31(9.4)29(8.8)

(17.4)55(16.8)53(16.2)51(15.5)49(14.9)47(14.3)

(16.5)49(14.9)44(13.4)39(11.9)34(10.4)29(8.8)

(11.9)37(11.3)35(10.7)33(10.1)31(9.4)29(8.8)

(16.8)

(9.1)25(7.6)14(4.3)9(2.7)7(2.1)

(6.4)13(4.0)5(1.5)

(3.0)5(1.5)

(16.2)

(15.5)

NA NA NA NA

(14.9)

NA NA NA

(14.3)

Table 12 – Vent Length for Outlet Restrictor Usage (60,000 btu model only) -- Ft (M)}

DIRECT VENT

ALTITUDE --- FT (M) UNIT SIZE

0 --- 2000 (0 --- 610)

2001 --- 3000 (610 --- 914) 2 --- i n . ( 5 1 ) 2 --- i n . ( 5 1 ) 24 (7.3) 17 (5.1) 12 (3.6) 7 (2.1)

3001 --- 4000 (914 --- 1219) 2 --- in . ( 51) 2 --- i n. ( 5 1 ) 21 (6.4) 13 (3.9) 8 (2.4) 4001 --- 5000 (1219 --- 1524) 2 --- in . (51 ) 2 --- in . (5 1 ) 17 (5.1) 10 (3) 5 (1.5) 5001 --- 6000 (1524 --- 1829) 2 --- in . (51 ) 2 --- in . (5 1 ) 14 (4.2) 6 (1.8) 6001 --- 7000 (1829 --- 2134) 2 --- in . (51 ) 2 --- in . (5 1 ) 10 (3) 7001 --- 8000 (2134 --- 2438) 2 --- in . (51 ) 2 --- in . (5 1 ) 6 (1.8) 8001 --- 9000 (2438 --- 2743) 2 --- in . (51 ) 2 --- in . (5 1 )

9001 --- 10000 (2743 --- 3048) 2 --- i n . ( 5 1 ) 2 --- in . (5 1 )

60,000

(2-- -PIPE)

PIPE DIA.

(IN / mm)

2 --- i n . ( 5 1 ) 2 --- i n . ( 5 1 ) 28 (8.5) 20 (6) 15 (4.2) 10 (3)

N O N --- DI R E C T

VENT

(1-- -PIPE ONLY)

PIPE DIA. (IN / mm)

NO. OF 90_ ELBOWS

1 2 3 4 5

}Discard outlet restrictor if vent lengths or elbows exceed the above table Discard restrictor if using 11/2--- in. (38mm) diameter pipe. See Fig. 37 and38for

proper installation.

-- 4 2 --

Page 43

FURNACE

3/8 ID TUBE

COMBUSTION – AIR INTAKE HOUSING

BURNER BOX

COMBUSTION-AIR PIPE (DIRECT VENT/2 PIPE)

NOT IN HORIZONTAL SECTION

PIPE DIAMETER

TRANSITION IN

VERTICAL SECTION

A93034

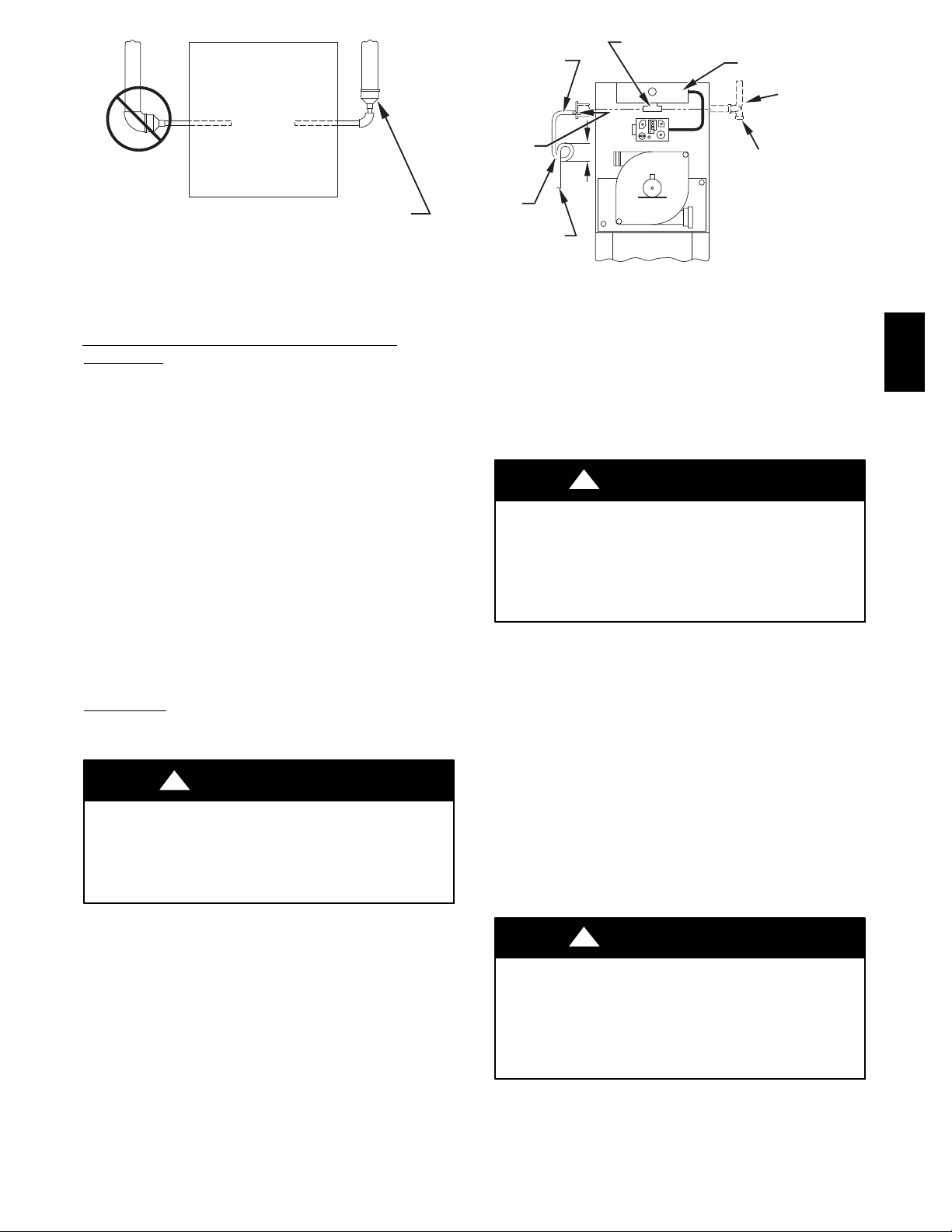

Fig. 39 -- Combustion--Air and Vent Pipe Diameter

Transition Location and Elbow Configuration

Attachment of Combustion Air Intake Housing Plug

Fitting

The combustion-air intake plug fitting must be installed in unused combustion air intake housing. This fitting must be attached by using RTV sealant, or by drilling a 1/8-in. (3 mm) hole in fitting, using hole in intake housing as a guide. Install a field-supplied No. 6 or No. 8 sheet metal screw.

NOTE: DO NOT OVERTIGHTEN SCREW. Breakage of intake housing or fitting may cause air leakage to occur.

A plugged drain connection has been provided on this fitting for use when moisture is found in combustion air intake pipe and combustion box. If use of this drain connection is desired, drill out fitting’s tap plug with 3/16-in. (5 mm)drill and connect a field-supplied 3/8-in. (10 mm) tube. This tube should be routed to open condensate drain for furnace and A/C (If used), and should be trapped, as shown in Fig. 40.

NOTE: (Direct Vent/2-Pipe System ONLY) Moisture in combustion air intake may be a result of improper termination. Ensure combustion air pipe termination is similar to those as shown in Fig. 42 so that it will not be susceptible to area where light snow or other sources of moisture could be pulled in.

VENT PIPE

General

Furnace vent connection must be attached as shown in Fig. 35.

WARNING

CARBON MONOXIDE POISONING AND PROPERTY DAMAGE HAZARD

Failure to follow this warning could result in property damage, personal injury, or death.

Vent pipes must be airtight.

NOTE: A 2-in. (51 mm) diameter pipe must be used within the furnace casing. Make all pipe diameter transitions outside furnace casing per Fig. 39.

The minimum vent pipe length for these furnaces is 5 ft. Short pipe lengths (5 -- 8 ft) may discharge condensate droplets. These condensate droplets may be undesirable. A 12-in. (305 mm) minimum offset pipe section is recommended to reduce excessive condensate droplets from exiting vent pipe outlet. (See Fig. 41)

Attachment of Vent Pipe

1. Determine vent pipe diameter and maximum pipe lengths Using Table 11.

NOTE: (Direct Vent/2-Pipe ONLY) vent pipe system has the same diameter and same length as combustion air pipe as mentioned in section “Assembly of Combustion Air Pipe (Direct Vent/2-Pipe system ONLY).”

DRILL

TRAP

3/16

TO OPEN

DRAIN

4″MIN (102 mm)

COMBUSTION-AIR PIPE (NON-DIRECT VENT/1-PIPE)

A05093

Fig. 40 -- Air Intake Housing Plug Fitting Drain

NOTE: Do not count elbows or pipe sections in terminations or

within furnace (all elbows shown in Fig. 42 and Fig. 43 are not be counted).

2. Determine location of vent pipe connection to inducer housing as shown in Fig. 35 for application.

3. Reposition elastomeric (rubber) inducer housing outlet cap and clamp to appropriate unused inducer housing connection. Tighten clamp.

CAUTION

UNIT DAMAGE HAZARD

Failure to follow this caution may result in unit component damage.

Inducer housing outlet cap must be installed and fully seated against inducer housing. Clamp must be tightened to prevent any condensate leakage.

4. Install pipe support (factory-supplied in loose parts bag) into selected furnace casing vent pipe hole. Pipe support should be positioned at bottom of casing hole.

5. Be certain that mating surfaces of inducer housing connection elastomeric (rubber) coupling, and 2-in. (51 mm) diameter vent pipe are clean and dry. Assemble the elastomeric (rubber) vent coupling (with 2 loose clamps) onto inducer housing connection. Insert the 2-in. (51 mm) diameter vent pipe through the elastomeric (rubber) coupling and fully into inducer housing connection until it touches a stop inside the inducer housing outlet. Tighten the screws on both clamps to 15-in-lb. of torque. pipe to inducer housing. Tighten the clamp screws to 15-in-lb. of torque.

NOTE: Starting at furnace, slope vent pipe a minimum of 1/4-in. (6 mm) per linear ft with no sags between hangers.

CAUTION

UNIT DAMAGE HAZARD

Failure to follow this caution may result in unit component damage.

Vent pipe must be installed and fully seated against inducer housing internal stop. Clamp must be tightened to prevent any condensate leakage.

6. Install casing hole filler cap (factory-supplied in loose parts bag) in unused vent pipe casing hole.

340AAV

-- 4 3 --

Page 44

COMBUSTION AIR

PIPE (NON-DIRECT

VENT/1-PIPE)

12″ MIN

(305 mm)

COMBUSTION AIR PIPE (DIRECT VENT /2-PIPE)

COMBUSTION AIR

PIPE (NON-DIRECT

VENT/1-PIPE)

12″ MIN

(305 mm)

340AAV

COMBUSTION AIR

PIPE (NON-DIRECT

VENT PIPE

VENT/1-PIPE)

VENT PIPE

HORIZONTAL TO ROOF HORIZONTAL TO SIDEWALL

COMBUSTION AIR PIPE (DIRECT VENT /2-PIPE)

VENT PIPE

COMBUSTION AIR

PIPE (NON-DIRECT

VENT/1-PIPE)

12″ MIN

(305 mm)

VERTICAL TO SIDEWALLVERTICAL TO ROOF

COMBUSTION AIR PIPE (DIRECT VENT/2-PIPE)

COMBUSTION AIR PIPE (DIRECT VENT /2-PIPE)

12″ MIN

(305 mm)

VENT PIPE

NOTE: A 12-in. (305 mm) minimum offset pipe section is recommended with

short (5-ft. to 8-ft (1.5 to 2.4 M)) vent systems. This recommendation is to reduce excessive condensate droplets from exiting the vent pipe.

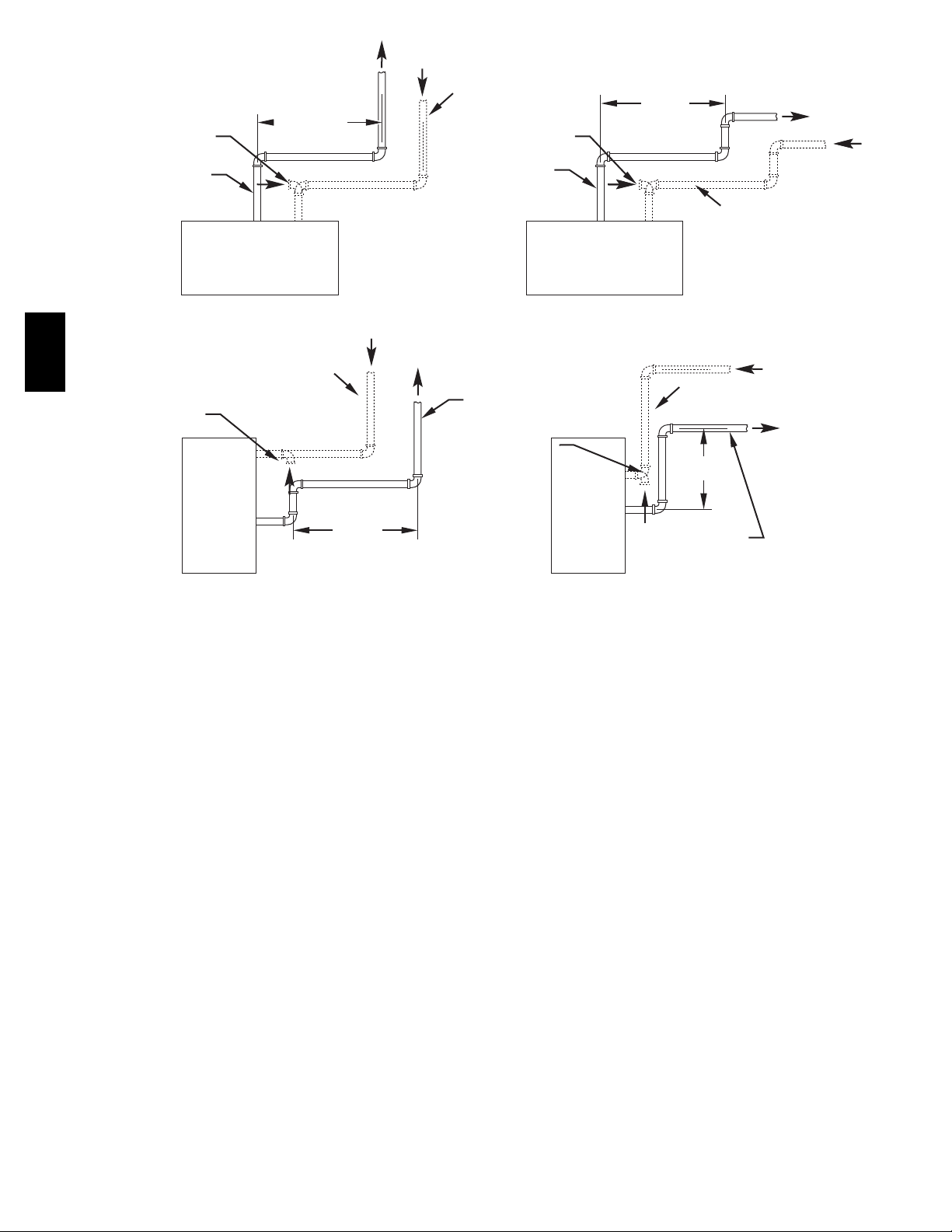

Fig. 41 -- Short Vent (5 to 8 ft) System

Attachment of Vent Extension Pipe

Furnaces with 100,000 Btuh and larger input are supplied with a PVC vent extension pipe (2-in. (51 mm) diameter by 12-in. (305 mm) long). This pipe has a built-in channel to assist vent condensate disposal. When this vent extension pipe is supplied, it MUST be used to connect the field vent pipe to furnace inducer housing on ALL upflow and downflow applications.

NOTE: See label on vent extension pipe for proper installation. This pipe may be shortened if an elbow is used to connect vent extension tube to field-installed vent pipe.

Installation GuidelinesforCombustionAirPipeand Vent Pipe

It is recommended that all pipes be cut, prepared, and pre-assembled before permanently cementing any joint.

1. Attach combustion air pipe and vent pipe per instructions in sections “Combustion Air Pipe” and “Vent Pipe.”

2. Working from furnace to outside, cut pipe to required length(s).

3. Deburr inside and outside of pipe.

4. Chamfer outside edge of pipe for better distribution of primer and cement.

5. Clean and dry all surfaces to be joined.

6. Check dry fit of pipe and mark insertion depth on pipe.

7. After pipes have been cut and preassembled, apply generous layer of cement primer to pipe fitting socket and

A05094

end of pipe to insertion mark. Quickly apply approved cement to end of pipe and fitting socket (over primer). Apply cement in a light, uniform coat on inside of socket to prevent buildup of excess cement. Apply second coat.

8. While cement is still wet, twist pipe into socket with 1/4 turn. Be sure pipe is fully inserted into fitting socket.

9. Wipe excess cement from joint. A continuous bead of cement will be visible around perimeter of a properly made joint.

10. Handle pipe joints carefully until cement sets.

11. Horizontal portions of the venting system shall be supportive to prevent sagging support. Support combustion air piping (if applicable) and vent piping a minimum of every 5 ft (1.5 M) (3 ft (0.9 M) for SDR--21 or --26 PVC) using perforated metal hanging strap.

12. Slope combustion air piping (if applicable) and vent piping downward towards furnace a minimum of 1/4--in. (6 mm) per linear ft with no sags between hangers.

13. Horizontal portions of the venting system shall be installed so as to prevent the accumulation of condensate.

14. Use appropriate methods to seal openings where combustion air pipe (if applicable) and vent pipe pass through roof or sidewall.

-- 4 4 --

Page 45

Roof Te rmination (Preferred)

At least 36 in.

Vertical separation between combustion

air and vent 8 3/4 in. (222mm)for 3 in. (76mm)kit 6 3/4 in. (172mm)for 2 in. (51mm) kit

Maintain 12 in. (305mm)min. clearance above highest anticipated snow level Maximum of 24 in.(614mm) above roof

Note: "A" denotes 0 to < 2 in. Between the first 2 vents Third vent must be > 36 in. away

18 in. maximum

90°

(457mm)

At least 36 in

(914mm)

(51mm)

(

Abandoned masonry used as raceway (per code)

(914mm)

12 in. min from

overhang or roof

(typ)

in.

(305mm)

At least 36 in.

(914mm)

in. (305mm)

separation between

bottom ofcombustion air and bottom of vent (typ)

Maintain 12 min. clearance above highest anticipated snow level or grade whichever is greater (typ)

Concentric Vent and Combustion Air Roof Termination (preferred)

(914mm)

Side wall termination

in. (305mm) above highest snow level

of less than 12

At least

36 in.

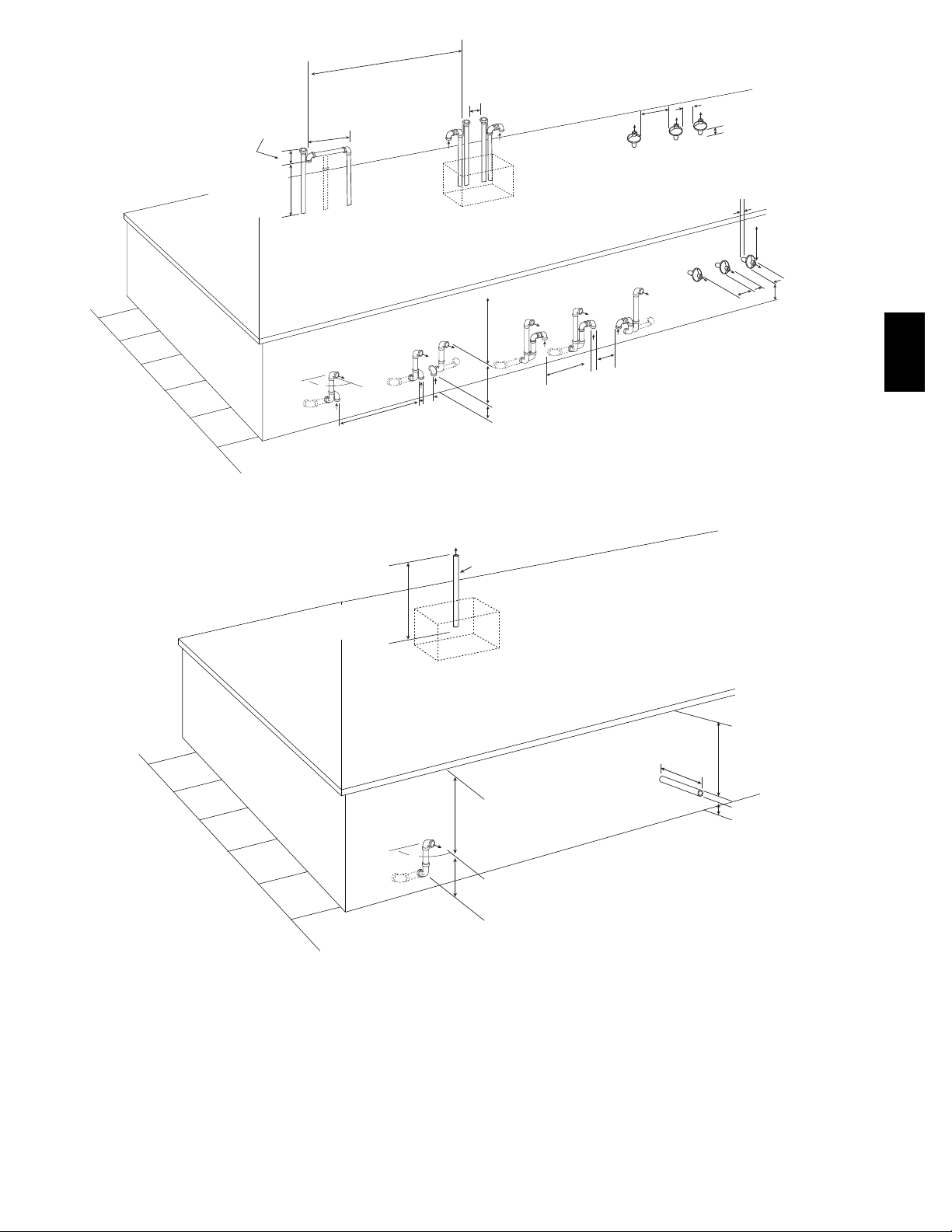

Fig. 42 -- Combustion Air and Vent Pipe Termination for Direct Vent (2-pipe) System

Maintain 12 in.

(305mm)

min. clearance above highest anticipated snow level, maximum of 24 in. above roof

in. (25mm) maximum (typ) from wall to inlet

in. (305mm) minimum from

overhang or roof

t le

Concentric Vent and Combustion - Air Side Termination

Maintain 12 in. min. clearance above highest anticipated snow level or grade whichever is greater

(305mm)

340AAV

A05090

Roof Termination (Preferred)

Ven t

(305mm)

Maintain 12 in .

minimum clearance

above highest anticipated

snow level maximum of

24 in. (610mm) above roof.

Abandoned masonry used as raceway (per code)

12 in. min. (305 mm)from

overhang or roof

Sidewall Ter mi na t io n

with Straight Pipe (preferred)

90°

Side wall termination with 2 elbows (preferred)

12 in. (305 mm) min. from

overhang or roof

Maintain 12 in. (305mm) minimum clearance above highest anticipated snow level or grade whichever is greater.

6 in. (152mm) minimum clearance

between wall and end of vent pipe.

10 in. (254mm) maximum pipe length

Fig. 43 -- Vent Pipe Termination for Non-Direct Vent (1-pipe) System

Maintain 12 in. (305mm) minimum clearance above highest anticipated snow level or grade whichever is greater

A05091

-- 4 5 --

Page 46

Table 13 – Vent Termination Kit for Direct Vent/2-Pipe System

DIRECT VENT (2-PIPE) TERMINATION KIT TERMINATION SYSTEM DIAM. OF COMBUSTION AIR AND VENT

2-in. (51 mm) Concentric Vent Kit Single Penetration of Wall or Roof 1, 1 ---1/2, 2, or 2--- 1/2 (25, 38, 51, 64 mm)

3-in. (76 mm)Concentric Vent Kit Single Penetration of Wall or Roof 2 --- 1/2, 3 or 4 (64, 76, 102 mm)

2-in. (51 mm)Termination Bracket Kit 2 ---Pipe Termination System 1, 1---1/2 or 2 (25, 38, 51mm)

3-in. (76 mm) Termination Bracket Kit 2---Pipe Termination System 2---1/2, 3 or 4 (64, 76, 102 mm)

EXAMPLE: An 080--12 size furnace located in Indianapolis, elevation

650 ft (198 M) above sea level, could be installed as either a direct vent/2-pipe system that requires 3 elbows and 32 ft (9.8 M) of vent pipe, along with 5 elbows and 34 ft (10.4 M) of combustion-air pipe OR a non-direct vent/1-pipe system that requires 3 elbows and 32 (9.8 M) ft vent pipe.

For a direct vent/2-pipe system, Table 11 indicates this application would allow a 2-in. (51 mm) diameter vent pipe, but require a 2-1/2 in. (64 mm) diameter combustion air pipe. According to Table 11, 2-in. (51 mm) diameter pipe is

340AAV

good for 35 ft (10.7 M) with 3 elbows, but only 30 ft (9.1 M) with 5 elbows. Therefore, 2-1/2 in. (64 mm) diameter pipe must be used for both vent and combustion-air pipe since larger required diameter must always be used for both pipes.

For a non-direct vent/1-pipe system, Table 11 indicates that this application would allow a 2-in. (51 mm) diameter vent pipe. If same installations were in Albuquerque, elevation 5250 ft (1600 M) above sea level:

For a direct vent/2-pipe system, Table 11 indicates that 2-1/2--in. (64 mm) diameter vent pipe and combustion-air pipe are required.

For a non-direct vent/1-pipe system, Table 11 indicates that 2-1/2-in. (64 mm) diameter vent pipe is required.

If same applications are to be installed at 5001 to 6000 ft (1524 to 1829 M) elevation:

For a direct vent/2-pipe system, 2-in. (51 mm) pipe is only good for 23 ft (7.0 M) (with 3 elbows) and 17 ft (5.2 M)(with 5 elbows). Therefore, 2-1/2 in. (51 mm) diameter combustion air and vent pipe must be used.

For a non-direct vent/1-pipe system, a 2-in. (51 mm) diameter pipe is only good for 23 ft (7.0 M) with 3 elbows. A 2-1/2-in. (64 mm) diameter vent pipe must be used.

1. Comply with all clearance requirements stated in Table 8 or Table 9 per application.

2. Termination or termination kit should be positioned where vent vapors will not damage plants/shrubs or air conditioning equipment.

3. Termination or termination kit should be positioned so that it will not be affected by wind eddy, such as inside building corners, nor by recirculation of flue gases, airborne leaves, or light snow.

4. Termination or termination kit should be positioned where it will not be damaged by or subjected to foreign objects such as stones, balls, etc.

5. Termination or termination kit should be positioned where vent vapors are not objectionable.

Extended Exposed Sidewall Pipes

Sidewall combustion air pipe termination (direct vent/2-pipe system only) and vent pipe termination may be extended beyond areashowninFig.42orinFig.43perapplicationinoutside ambient by insulating pipe as indicated in Table 10.

1. Determine combustion air pipe diameter (direct vent/2-pipe system only) and vent pipe diameter, as stated above, using total pipe length and number of elbows.

2. Using winter design temperature (used in load calculations), find appropriate temperature for your application and furnace model.

3. Determine required insulation thickness for exposed pipe length(s).

NOTE: Pipe length (ft) specified for maximum pipe lengths located in unconditioned spaces cannot exceed total allowable pipe length as specified in Table 11.

Vent Termination Kit (Direct Vent/2-Pipe System Only) NOTE: Always refer to the instructions in termination kit for the

latest version.

PIPES --- IN (mm)

Combustion air and vent pipes MUST terminate outside structure.

VENT TERMINATION

General

Combustion-air (direct vent/2-pipe system only) and vent pipe must terminate outside structure, either through sidewall or roof. For vent termination clearance, refer to Table 8 for Direct Vent/2-Pipe system and Table 9 for Non-direct Vent/1-Pipe system. For exterior piping arrangements, refer to Fig. 42 for Direct Vent/2-Pipe system and Fig. 43 for Non-Direct/ 1-Pipe system.

Roof termination is preferred since it is less susceptible to damage or contamination, and it has less visible vent vapors. Sidewall termination require sealing or shielding of building surfaces with a corrosive resistance material due to corrosive combustion products of vent system.

NOTE: (Direct Vent/2-Pipe system ONLY) A factory accessory termination kit MUST be used. See section “Vent Termination Kit (Direct Vent/2--Pipe System Only)” in this instruction.

When determining appropriate location for termination, consider the following guidelines:

A factory accessory termination kit must be installed as shown in Table 13. There are four options of vent/combustion air termination kits available as shown in Table 13.

NOTE: Combustion air pipe must have the same diameter as vent pipe.

Concentric Vent/Combustion Air Termination Kit (Direct Vent/ 2-Pipe System Only)

Determine an appropriate location for termination kit using the guidelines provided in section “Vent Termination: General” in this instruction.

1. Cut one 4-in. (102 mm) diameter hole for 2-in. (51 mm) kit, or one 5-in. (127 mm) diameter hole for 3-in. (76 mm) kit.

2. Loosely assemble concentric vent/combustion air termination components together using instructions in kit.

3. Slide assembled kit with rain shield REMOVED through hole.

NOTE: Do not allow insulation or other materials to accumulate inside of pipe assembly when installing it through hole.

-- 4 6 --

Page 47

Roof terminations -- Locate assembly through roof to appropriate height as shown in Fig. 42.

Sidewall terminations -- Locate assembly through side wall with rain shield positioned no more than 1-in. (25 mm) from wall as shown in Fig. 42.

4. Disassemble loose pipe fittings. Clean and cement using same procedures as used for system piping.

5. Check required dimensions as shown in Fig. 42.

Two-Pipe Termination Kit (Direct Vent/2-Pipe System Only

Determine an appropriate location for termination kit using the guidelines provided in section “Vent Termination: General” in this instruction.

1. Cut 2 holes, 1 for each pipe, of appropriate size for pipe size being used.

2. Loosely install elbow in bracket and place assembly on combustion-air pipe.

Roof terminations -- Loosely install pipe coupling on properly cut vent pipe. Coupling must be positioned so bracket will mount as shown in Fig. 42.

For applications using combustion-air pipe option, indicated by dashed lines in Fig. 42, install 90° street elbow into 90° elbow, making a U-fitting. A 180° U-fitting may be used.

Sidewall terminations -- Install bracket as shown in Fig. 42.

For applications using vent pipe option indicated by dashed lines in Fig. 42, rotate vent elbow 90° from position shown in Fig. 42.

3. Disassemble loose pipe fittings. Clean and cement using same procedures as used for system piping.

4. Check required dimensions as shown in Fig. 42.

Multi--venting and Vent Terminations

When 2 or more 340AAV Furnaces are vented near each other, each furnace must be individually vented. NEVER common vent or breach vent 340AAV furnaces.

(Direct Vent/2-Pipe System ONLY) -- When 2 or more 340AAV furnaces are vented near each other, 2 vent terminations may be installed as shown in Fig. 42, but next vent termination must be at least 36 in. (914 mm) away from first 2 terminations. It is important that vent terminations be made as shown in Fig. 42 to avoid recirculation of flue gases.

Step 11 -- Condensate Drain

GENERAL

Condensate trap is shipped installed in the blower shelf and factory connected for UPFLOW applications. Condensate trap must be RELOCATED for use in DOWNFLOW and HORIZONTAL applications.

Condensate trap MUST be used for all applications. An external trap is not required when connecting the field drain

to this condensate trap. The field drain connection (condensate trap or drain tube

coupling) is sized for 1/2-in. (13 mm) CPVC, 1/2-in. (13 mm) PVC, or 5/8 in. (16 mm) ID tube connection.

Drain pipe and fittings must conform to ANSI standards and ASTM D1785, D2466 or D2846. CPVC or PVC cement must conform to ASTM D2564 or F493. Primer must conform to ASTM F656. In Canada, use CSA or ULC listed schedule 40 CPVC or PVC drain pipe, fittings, and cement.

When a condensate pump is required, select a pump which is approved for condensing furnace applications. To avoid condensate spillage, select a pump with an overflow switch.

OPEN STAND

PIPE FOR

A/C OR

HUMIDIFIER

DRAIN

TEE

TO OPEN DRAIN

A94054

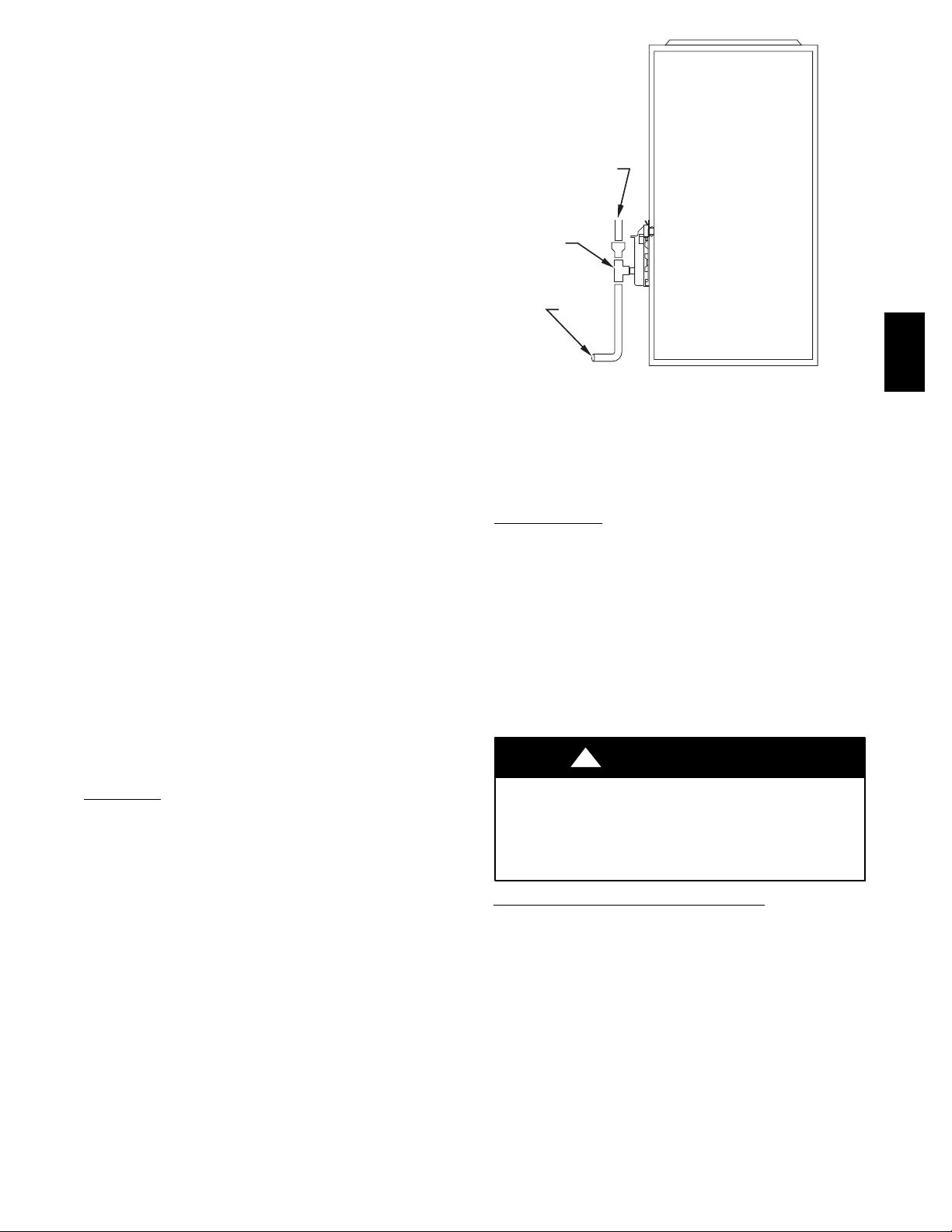

Fig. 44 -- Example of Field Drain Attachment

Furnace condensate is mildly acidic, typically in the pH range of

3.2 to 4.5. Due to corrosive nature of this condensate, a condensate pH neutralizing filter may be desired. Check with local authorities to determine if a pH neutralizer is required.

APPLICATION

The furnace, A/C, and humidifier drains may be combined and drained together. The A/C drain must have an external, fieldsupplied trap prior to the furnace drain connection. All drain connections (furnace, A/C, or humidifier) must be terminated into an open or vented drain as close to the respective equipment as possible to prevent siphoning of the equipment’s drain.

See Fig. 44 for example of possible field drain attachment using 1/2-in. (13 mm) CPVC or PVC tee for vent and A/C or humidifier drain connection.

Outdoor draining of the furnace is permissible if allowed by local codes. Caution should be taken when freezing. Ambient may freeze drain pipe and prohibit draining.

WARNING

PERSONAL INJURY HAZARD

Caution should be taken to prevent draining where slippery conditions may cause personal injuries.

Excessive condensate draining may cause saturated soil conditions which could result in damage to plants.

CONDENSATE DRAIN PROTECTION

Freezing condensate left in condensate trap and drain line may cause cracks, and possible water damage may occur. If freeze protection is required, use condensate freeze protection accessory or equivalent 3 to 6 watt per ft at 120v and 40°F(4°C) self-regulating, shielded, and waterproof heat tape. See Installation Instructions supplied with accessory or heat tape manufacturer’s recommendations.

1. Fold heat tape in half and wrap on itself 3 times.

2. Locate heat tape between sides of condensate trap back. (See Fig. 45.)

340AAV

-- 4 7 --

Page 48

3. Use wire ties to secure heat tape in place. Wire ties can be positioned in notches of condensate trap sides.

4. Wrap field drain pipe with remaining heat tape, approximately 1 wrap per ft.

5. When using field-supplied heat tape, follow heat tape manufacturer’s instructions for all other installation guidelines.

START-UP, ADJUSTMENT AND SAFETY

CHECK

Step 1 -- General

1. Furnace must have a 115-v power supply properly connected and grounded. Proper polarity must be maintained for correct operation.

NOTE: Proper polarity and proper grounding must be maintained for 115-v wiring. If polarity is incorrect, control center LED status indicator light will flash rapidly and furnace will not operate.

340AAV

2. Thermostat wire connections at terminals R, W, G, and Y must be made at 24-v terminal block on furnace control center.

3. Natural gas service pressure must not exceed 0.5 psig (14-in. wc), but must be no less than 0.16 psig (4.5-in. wc).

4. Blower access panel must be in place to complete 115-v electrical circuit to furnace.

UNIT MAY NOT OPERATE

Failure to follow this caution may result in intermittent unit operation.

These furnaces are equipped with a manual reset limit switch in burner box. This switch will open and shut power to gas valve if an overheat condition (flame rollout) occurs in burner enclosure. Correct inadequate combustion-air supply or improper venting condition and reset switch. DO NOT jumper this switch.

CAUTION

Step 2 -- Prime Condensate Trap with Water

UNIT MAY NOT OPERATE

Failure to follow this caution may result in intermittent unit operation.

Condensate trap must be PRIMED or proper draining may not occur. The condensate trap has 2 internal chambers which can ONLY be primed by pouring water into the inducer drain side of condensate trap.

1. Remove upper inducer housing drain connection cap. (See Fig. 46.)

2. Connect field-supplied 1/2-in. (13 mm) ID tube to upper inducer housing drain connection.

3. Insert field-supplied funnel into tube.

4. Pour 1 quart of water into funnel/tube. Water should run through inducer housing, overfill condensate trap, and flow into open field drain. (See Fig. 47.)

5. Remove funnel and tube from inducer housing and replace drain connection cap and clamp.

CAUTION

Step 3 -- Purge Gas Lines

WARNING

FIRE AND EXPLOSION HAZARD

Failure to follow this warning could result in a fire, explosion, personal injury, or death.

Never purge a gas line into a combustion chamber. Never test for gas leaks with an open flame. Use a commercially available soap solution made specifically for the detection of leaks to check all connections.

If not previously done, purge lines after all connections have been made and check for leaks.

Step 4 -- Sequence of Operation

Before operating furnace, check flame rollout manual reset switch for continuity. If necessary, press button to reset switch.

CONDENSATE TRAP

WIRE TIE(S)

HEAT TAPE

(3 WRAPS MINIMUM)

A93036

Fig. 45 -- Condensate Trap Heat Tape

FURNACE MAY NOT OPERATE

Failure to follow this caution may result in furnace operation stopping and water pipes freezing during cold weather.

Furnace control must be grounded for proper operation, or control will lock out. Control is grounded through green/yellow wire routed to gas valve and burner box screw.

Using schematic diagram, follow sequence of operation through different modes. (See Fig. 33.) Read and follow wiring diagram carefully.

NOTE: If a power interruption occurs during a call for heat (W), the control will start a 90-second blower-only ON period two seconds after power is restored, if the thermostat is still calling for gas heating. The red LED light will flash code 12 during the 90-second period, after which the LED will be ON continuous, as long as no faults are detected. After the 90-second period, the furnace will respond to the thermostat normally.

The blower door must be installed for power to be conducted through the blower door interlock switch ILK to the furnace control CPU, transformer TRAN, inducer motor IDM, blower motor BLWM, hot-surface igniter HSI, and gas valve GV.

CAUTION

-- 4 8 --

Page 49

HEATING

(See Fig. 30 for thermostat connections.)

MODE

The wall thermostat “calls for heat”, closing the R to W circuit. The furnace control performs a self-check, verifies the pressure switch contacts PRS are open, and starts the inducer motor IDM.

a. Inducer Prepurge Period -- As the inducer motor

IDM comes up to speed, the pressure switch contacts PRS close, 24 vac power is supplied for a field installed humidifier at the HUM terminal and the control begins a 15-second prepurge period.

b. Igniter Warm-Up -- At the end of the prepurge period,

the Hot-Surface Igniter HIS is energized for a 17-second igniter warm-up period.

c. Trial-for-Ignition Sequence -- When the igniter warm

up period is completed the main gas valve relay contacts GVR close to energize the gas valve GV, the gas valve opens. The gas valve GV permits gas flow to the burners where it is ignited by the Hot Surface Igniter HSI. Five seconds after the GVR closes, a 2-second flame period begins. The HSI igniter will remain energized until the flame is sensed or until the 2-second flame proving period begins.

d. Flame-Proving -- When the burner flame is proved at

the flame-proving sensor electrode FSE, the furnace control CPU begins the blower-ON delay period and continues to hold the gas valve GV open. If the burner flame is not proved within two seconds, the control CPU will close the gas valve GV, and the control CPU will repeat the ignition sequence for up to three more Trials-For-Ignition before going to Ignition-Lockout. Lockout will be reset automatically after three hours, by momentarily interrupting 115 vac power to the furnace, or by interrupting 24 vac power at SEC1 or SEC2 to the furnace control CPU (not at W,G,R, etc.) If flame is proved when flame should not be present, the furnace control CPU will lock out of Gas-Heating mode and operate the inducer motor IDM until flame is no longer proved.

e. Blower-On Delay -- If the burner flame is proven, the

blower motor is energized on HEAT speed 66 seconds (040 through 120 sizes) or 45 seconds (140 size) after the gas valve GV is energized. Simultaneously, the electronic air cleaner terminal EAC--1 is energized and remains energized as long as the blower motor BLWM is energized.

f. Blower-Off Delay -- When the thermostat is satisfied,

the R-to-W circuit is opened, de-energizing the gas valve GV, stopping gas flow to the burners, and de-energizing the humidifier terminal HUM. The inducer motor IDM will remain energized for a 15-second (040 through 120 sizes) or 5-second (140 size) post-purge period. The blower motor BLWM and air cleaner terminal EAC--1 will remain energized for 90, 120, 150, or 180 seconds (depending on the blower-OFF delay selection). The furnace control CPU is factory-set for a 120-second blower-OFF delay.

COOLING MODE

(See Fig. 30 for thermostat connections) The thermostat closes the R-to-G-and-Y circuits. The R-to-Y

circuit starts the outdoor unit, and the R-to-G and Y circuits start the furnace blower motor BLWM on COOL speed.

The electronic air cleaner terminal EAC--1 is energized with 115 vac when the blower motor BLWM is operating.

When the thermostat is satisfied, the R-to-G-and-Y circuits are opened. The outdoor unit will stop, and the furnace blower motor BLWM will continue operating on the COOL speed for an additional 90 seconds. Cut jumper J2 to reduce the cooling off-delay to 5 seconds.

CONTINUOUS BLOWER MODE

When the R-to-G circuit is closed by the thermostat, the blower motor BLWM will operate on continuous-blower speed (same as HEAT speed). Terminal EAC--1 is energized as long as the blower motor BLWM is energized.

During a “call for heat,” the blower BLWM will stop during igniter warm-up (17 seconds), ignition (7 seconds), and blower-ON delay (66 or 45 seconds for 040 through 120 sizes or for 140 size), allowing the furnace heat exchangers to heat up more quickly, then restarts at the end of the blower-ON delay period at HEAT speed. In heating, the furnace control CPU will continue running the blower motor BLWM at HEAT speed after the selected blower-OFF delay period is completed.

When the thermostat “calls for cooling”, the blower motor BLWM will operate at COOL speed. When the thermostat is satisfied, the blower motor BLWM will operate an additional 90 seconds on COOL speed before reverting back to HEAT speed. Jumper J2 can be cut to reduce the cooling off-delay to 5 seconds. (See Fig. 33.) When the R-to-G circuit is opened, the blower motor BLWM will continue operating for an additional 5 seconds, if no other function requires blower motor BLWM operation.

HEAT PUMP MODE

When installed with a heat pump, the furnace control automatically changes the timing sequence to avoid long blower off times during demand defrost cycles. When the R-to-W-and-Y or R-to-W-and-Y-and-G circuits are energized the furnace control CPU will continue to turn on the blower motor BLWM at HEAT speed, and begin a heating cycle. The blower motor BLWM will remain on until the end of the prepurge period, then shut off for 24 seconds then come back on at HEAT speed. When the W input signal disappears, the furnace control begins a normal inducer post-purge period and the blower switches to COOL speed after a 3 second delay. If the R-to-W-and-Y-and-G signals disappear at the same time, the blower motor BLWM will remain on for the selected blower-OFF delay period. If the R-to-W-and-Y signals disappear, leaving the G signal, the blower motor BLWM will continue running the blower motor BLWM at HEAT speed after the selected blower-OFF delay period is completed.

Control initiates a 90-sec blower only on period before starting another heat pump cycle if there is a power interruption. Anytime control senses false flame, control locks out of heating mode. This reaction occurs because control ignores W input due to false flame signal and, as a result, sees only Y input and goes into cooling mode blower off delay. All other control functions remain in standard format.

NOTE: EAC--1 terminal is energized whenever blower operates. HUM terminal is only energized when gas valve is energized.

COMPONENT TEST

NOTE: The furnace control component test allows all

components to run for a short time; except the gas valve and humidifier terminal HUM are not energized for safety reasons. The EAC--1 terminal is energized when the blower is energized. This feature helps diagnose a system problem in case of a component failure. The component test feature will not operate if any thermostat signal is present at the control and not until all time delays are completed.

340AAV

-- 4 9 --

Page 50

340AAV

Fig. 46 -- Inducer Housing Drain Tube Cap

Fig. 47 -- Filling Condensate Trap

NOTE: Record the status code BEFORE opening the blower

access door and before shutting off power to the furnace. Opening the blower access door will open the blower door switch and shut off power within the furnace. When power to the furnace

A99118

A99119

is shut off by either method, the status code will be lost because the code is not stored while power is removed for any reason.

To Begin Component Self-Test:

WARNING

ELECTRICAL SHOCK HAZARD

Failure to follow this warning could result in electrical shock, personal injury, or death.

Blower access panel door switch opens 115-v power to control center. No component operation can occur. Caution must be taken when manually closing this switch for service purposes.

1. Remove blower access door.

2. Disconnect the thermostat R lead from furnace control.

3. Manually close blower door switch.

4. For approximately 2 sec, short (jumper) the C terminal on control to the TEST/TWIN 3/16-in. (5 mm) quick-connect terminal on control until the LED goes out. Remove jumper from terminals. (See Fig. 34.)

NOTE: If TEST/TWIN and C longer than 2 sec, LED will flash rapidly and ignore component test request.

Component test sequence is as follows:

a. LED will display previous status code 4 times. b. Inducer motor starts and continues to run until Step g

of component test sequence.

c. After 7 seconds the hot surface igniter is energized for

15 sec., then off.

d. Blower motor operates on Continuous-FAN speed for

10 sec.

e. Blower motor operates on HEAT speed for 10 sec.

f. Blower motor operates on COOL speed for 10 sec.

g. Inducer motor stops.

5. Reconnect R lead to furnace control, remove tape from blower door switch, and re-install blower door.

6. Operate furnace per instruction on outer door.

7. Verify furnace shut down by lowering thermostat setting below room temperature.

8. Verify that furnace restarts by raising thermostat setting above room temperature.

OM-24v terminals are jumpered

OM-24v

Step 5 -- Adjustments

SETGASINPUTRATE

Furnace gas input rate on rating plate is for installations at altitudes up to 2000 ft. (610 M).

In the U.S.A., the input ratings for altitudes above 2000 ft (610 M) must be reduced by 2 percent for each 1000 ft (305 M) above sea level.

In Canada, the input ratings must be derated by 5 percent for altitudes of 2000 ft to 4500 ft (610 to 1372 M) above sea level.

Furnace input rate must be within ±2 percent of input on furnace rating plate adjusted for altitude.

1. Determine natural gas orifice size and manifold pressure for correct input.

a. Obtain average yearly gas heat value (at installed

altitude) from local gas supplier.

b. Obtain average yearly gas specific gravity from local

gas supplier.

c. Verify furnace model. Table 14 can only be used for

model 340AAV furnaces with heating sizes of 040 through 120. Table 15 can only be used for model 340AAV furnaces with a heating size of 140.

-- 5 0 --

Page 51

d. Find installation altitude in Table 14 or 15.

NOTE: For Canada altitudes of 2001 to 4500 ft, use U.S.A. altitudes of 2001 to 3000 ft (610 to 914 M) in Table 14 or 15.

e. Find closest natural gas heat value and specific gravity

on Table 14 or 15.

f. Follow heat value and specific gravity lines to point of

intersection to find orifice size and manifold pressure settings for proper operation.

EXAMPLE:

(0 -- 2000 ft (0 -- 610 M) altitude using Table 14) Heating value = 1050 Btu/cu ft Specific gravity = 0.62 Therefore: Orifice No. 45

Manifold pressure 3.6-in. wc

* Furnace is shipped with No. 45 orifices. In this example all main burner orifices are the correct size and do not need to be changed to obtain the proper input rate.

Check and verify burner orifice size in furnace. NEVER ASSUME ORIFICE SIZE; ALWAYS CHECK AND VERIFY.

2. Adjust manifold pressure to obtain input rate.

NOTE: Manifold pressure must always be measured with burner enclosure front REMOVED. Gas meter must always be clocked with burner enclosure front INSTALLED.

a. Remove burner enclosure front.

b. Remove cap that conceals adjustment screw for gas

valve regulator. (See Fig. 48.)

c. Jumper R and W thermostat connections on control to

start furnace.

d. Turn adjusting screw, counterclockwise (out) to

decrease manifold pressure or clockwise (in) to increase manifold pressure.

NOTE: This furnace has been approved for a manifold pressure of 3.2 in. wc to 3.8 in. wc when installed at altitudes up to 2000 ft (610 M). For altitudes above 2000 ft (610 M), the manifold pressure can be adjusted from 2.0 in. wc to 3.8 in. wc. If manifold pressure is outside this range, change burner orifices to obtain pressure in this range.

UNIT DAMAGE HAZARD

Failure to follow this caution may result in reduced furnace life.

DO NOT bottom out gas valve regulator adjusting screw. This can result in unregulated manifold pressure and result in excess overfire and heat exchanger failures.

CAUTION

UNIT DAMAGE HAZARD

Failure to follow this caution may result in component damage due to flame impingement of burners and heat exchangers.

DO NOT redrill orifices. Improper drilling (burrs, out-of-round holes, etc.) can cause excessive burner noise and misdirection of burner flames. (See Fig. 49.)

g. Look through sight glass in burner enclosure and

check burner flame. Burner flame should be clear blue, almost transparent. (See Fig. 50.)

h. Remove jumper from R and W.

3. Verify natural gas input rate by clocking gas meter.

NOTE: Be sure all pressure tubing, combustion-air and vent pipes, and burner enclosure front are in place when checking input by clocking gas meter.

a. Calculate high-altitude adjustment (if required).

UNITED STATES At altitudes above 2000 ft (610 M), this furnace has

been approved for a 2% derate for each 1000 ft (305 M) above sea level. See Table 16 for derate multiplier factor.

EXAMPLE: 100,000 BTUH INPUT FURNACE INSTALLED AT

Furnace Input Rate

at Sea Level

100,000 X 0.91 = 91,000

CANADA At installation altitudes from 2001 to 4500 ft (610 to

1372 M), this furnace must be derated 5% by an authorized Gas Conversion Station or Dealer. To determine correct input rate for altitude, see example

above and use 0.95 as derate multiplier factor. b. Reinstall burner box cover. c. Gas valve regulator seal cap MUST be on. d. Turn off all other gas appliances and pilots. e. Start furnace and let operate for 3 minutes.

f. Measure time (in sec) for gas meter test dial to

complete 1 revolution. g.RefertoTable17forcuftofgasperhr. h. Multiply gas rate (cu ft/hr) X heating value (Btu/cu ft)

using natural gas heating value from local gas

utility/supplier.

CAUTION

4300 FT.

XDerate

Multiplier

Factor

= Furnace Input

Rate at

Installation

Altitude

340AAV

NOTE: If orifice hole appears damaged or it is suspected to have been redrilled, check orifice hole with a numbered drill bit of correct size. Never redrill an orifice. A burr-free and squarely aligned orifice hole is essential for proper flame characteristics.

e. Replace gas valve regulator adjustment screw cap.

f. Replace burner enclosure front and verify adjusted gas

input rate using method outlined in item 3.

-- 5 1 --

Page 52

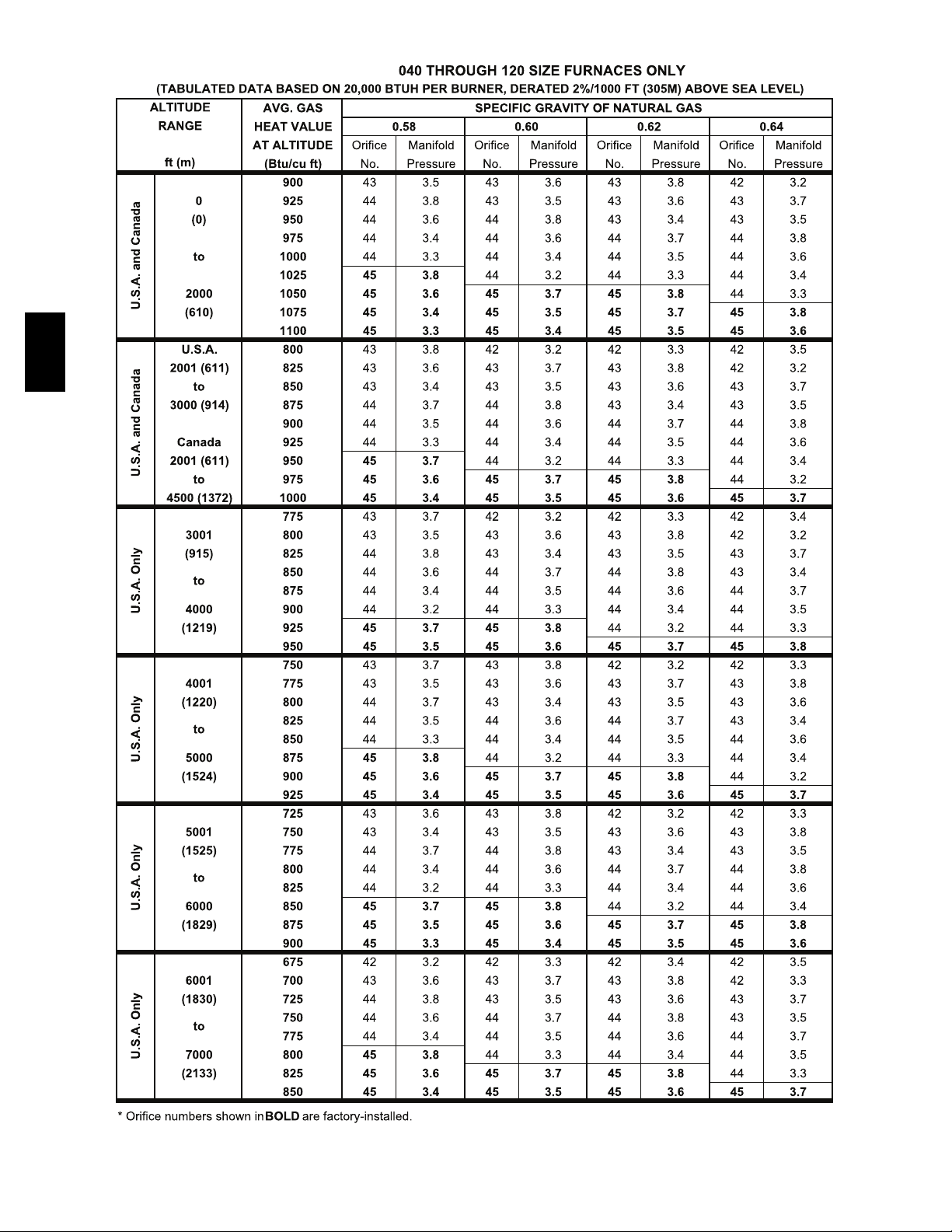

Table 14 – Model 340AAV Orifice Size and Manifold Pressure for Correct Input

FOR USE WITH

340AAV

Percents of derate are based on midpoint of U.S. altitude ranges.

A08606A

-- 5 2 --

Page 53

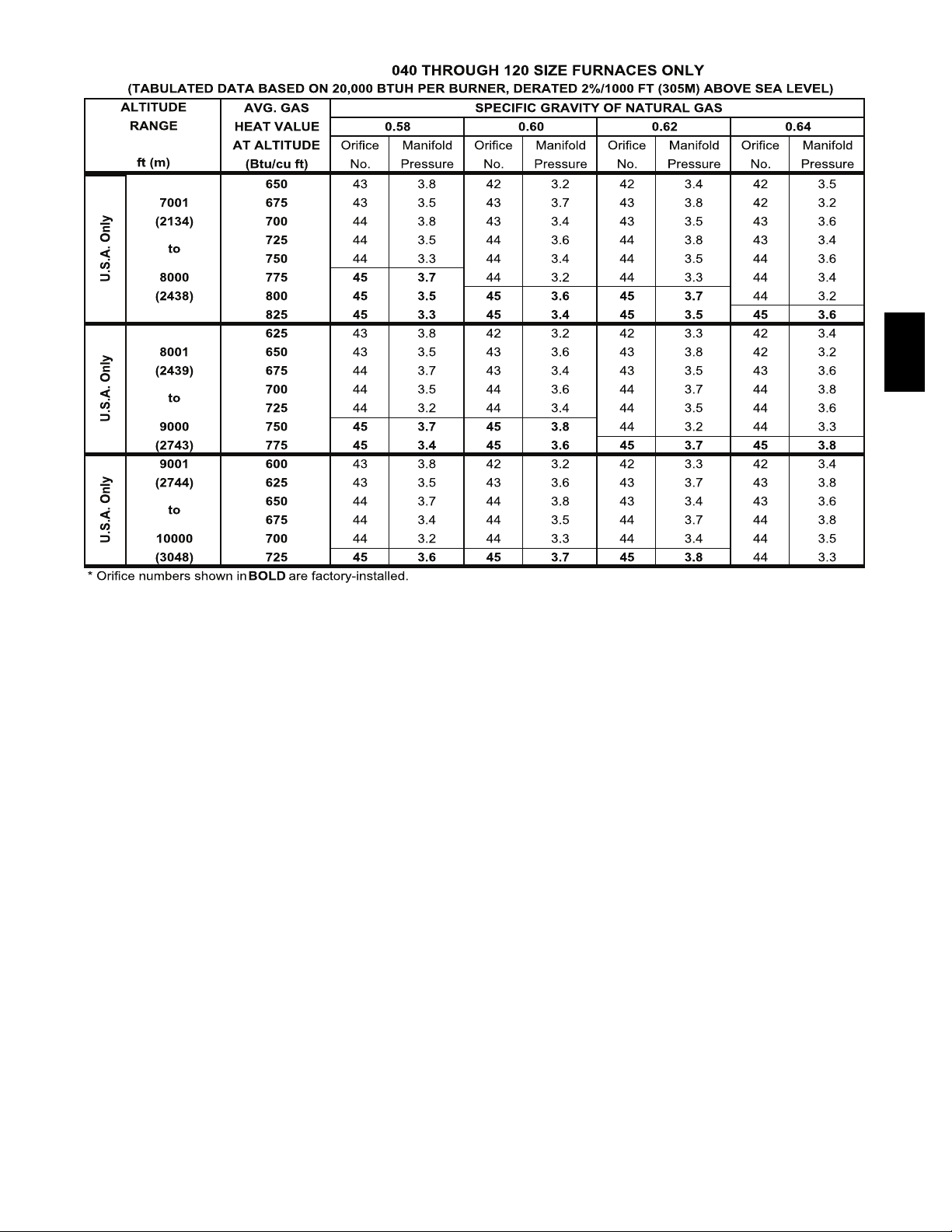

Table 14 -- Model 340AAV Orifice Size and Manifold Pressure for Correct Input (Continued)

FOR USE WITH

340AAV

Percents of derate are based on midpoint of U.S. altitude ranges.

A08606B

-- 5 3 --

Page 54

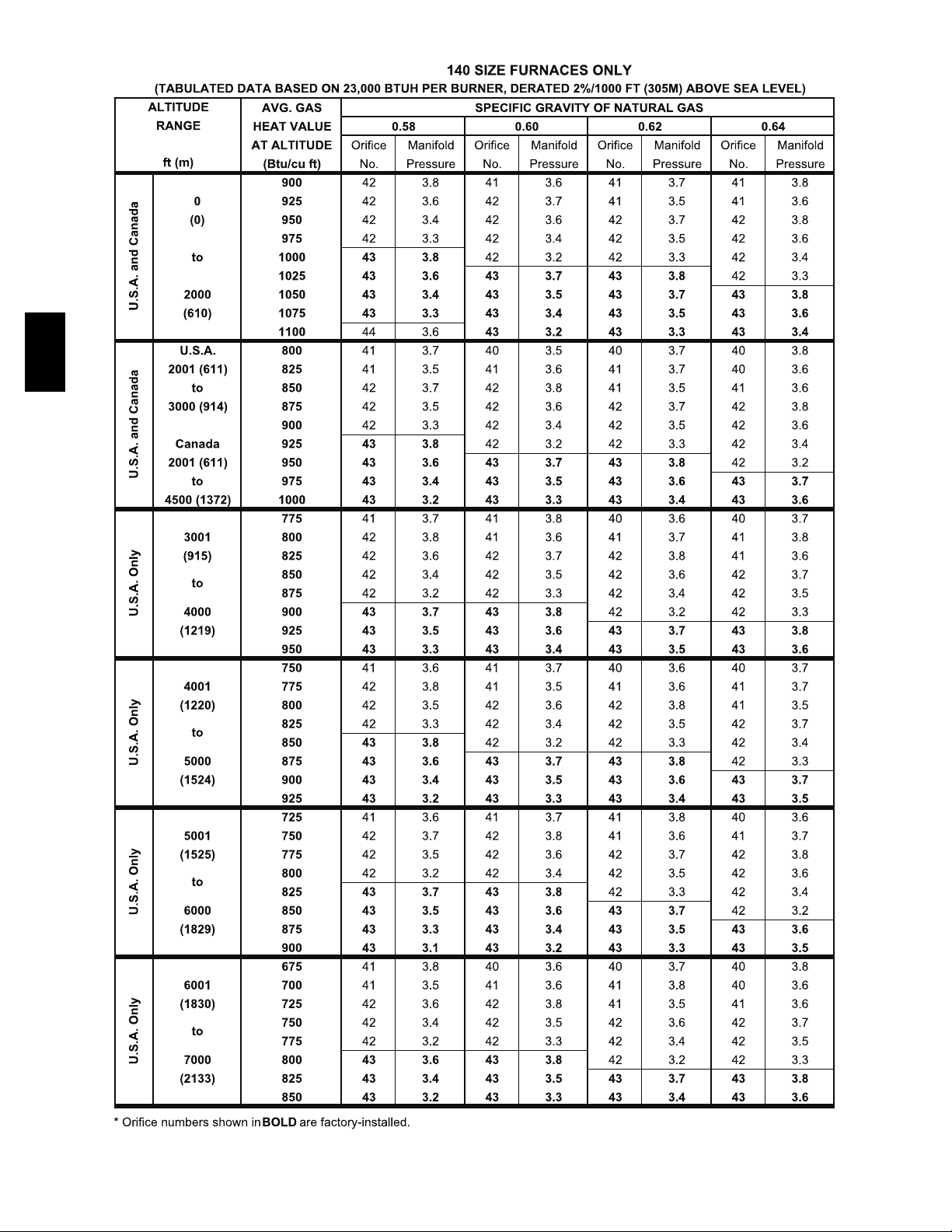

Table 15 – Model 340AAV Orifice Size and Manifold Pressure for Correct Input

FOR USE WITH

340AAV

Percents of derate are based on midpoint of U.S. altitude ranges.

A08607A

-- 5 4 --

Page 55

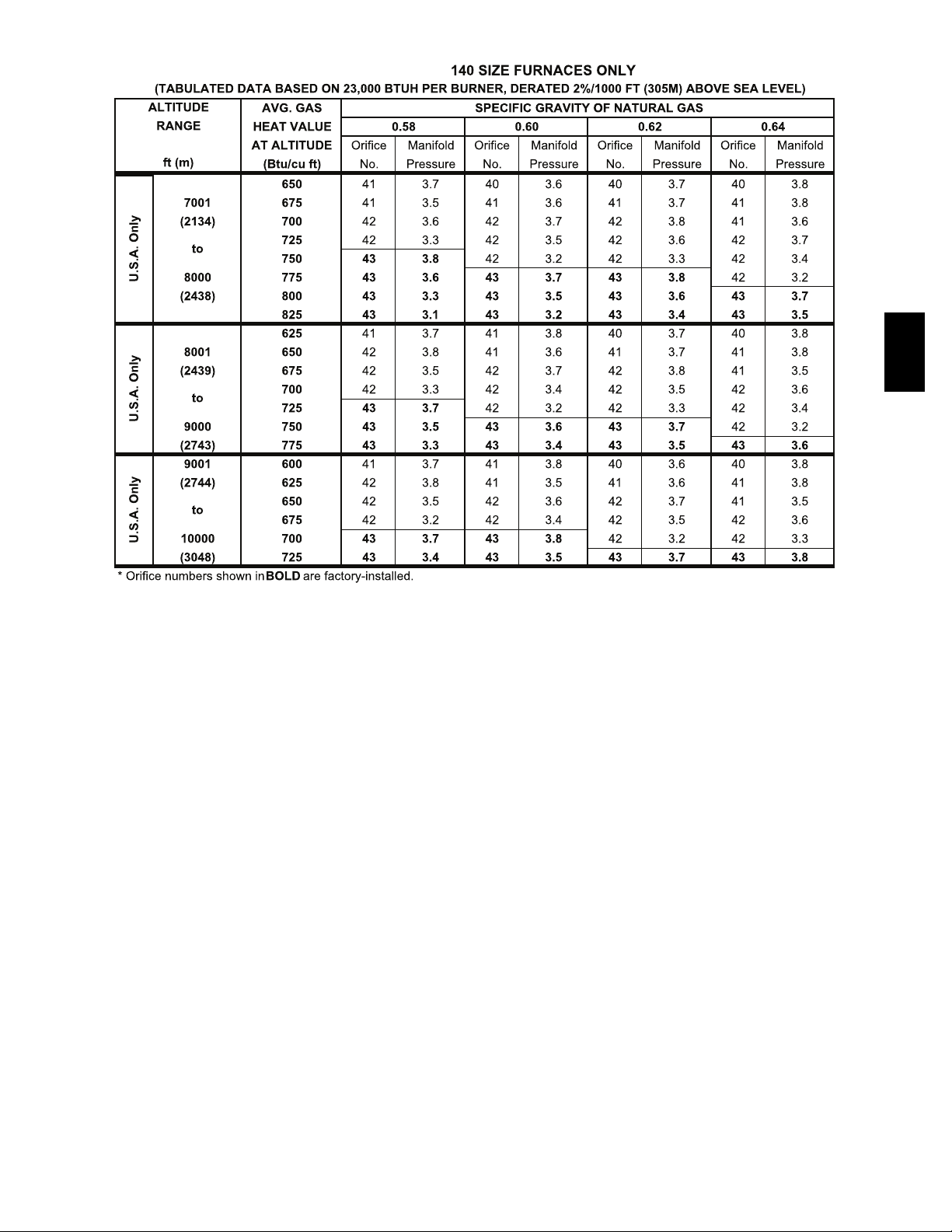

Table 15 -- Model 340AAV Orifice Size and Manifold Pressure for Correct Input (Continued)

FOR USE WITH

340AAV

Percents of derate are based on midpoint of U.S. altitude ranges.

A08607B

-- 5 5 --

Page 56

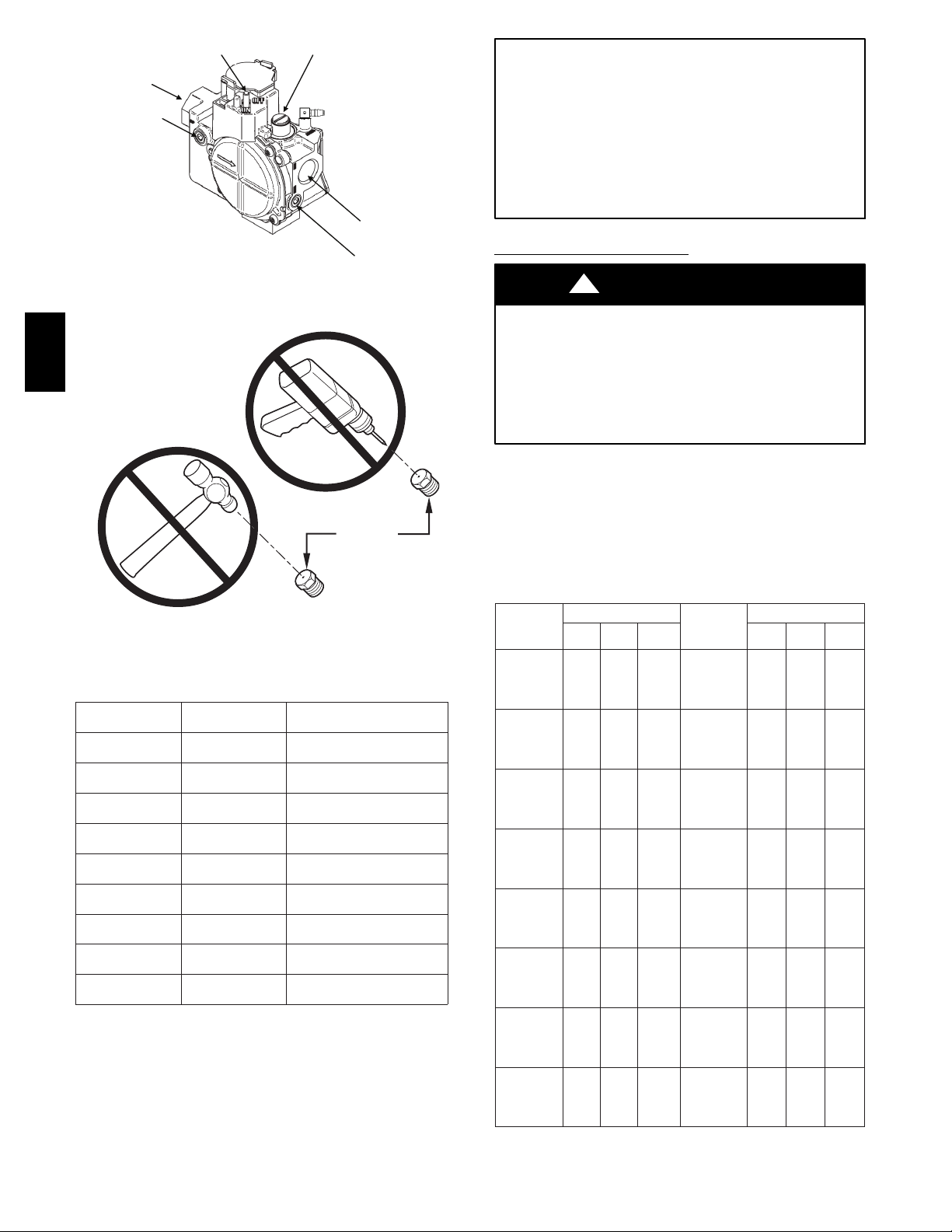

Regulator Seal Cap

Regulator Adjustment Under Cap

EXAMPLE: (0 -- 2000 ft (0 -- 610 M) altitude) Furnace input from rating plate is 100,000 Btuh. Btu heating input = Btu/cu ft X cu ft/hr Heating value of gas = 975 Btu/cu ft Time for 1 revolution of 2-cu ft dial = 70 sec

“

1/8 NPT Inlet Pressure Tap

ON/OFF Switch

Gas rate = 103 cu ft/hr (from Table 17) Btu heating input = 103 X 975 = 100,425 Btuh

In this example, the orifice size and manifold pressure

½” NPT Outlet

1/8” NPT Manifold Pressure Tap

Fig. 48 -- Redundant Automatic Gas Valve

A07536

adjustment is within ±2 percent of the furnace input rate.

SET TEMPERATURE RISE

CAUTION

UNIT DAMAGE HAZARD

Failure to follow this caution may result in overheating the heat exchangers or condensing flue gases in heat exchanger

340AAV

areas not designed for condensate. Temperature rise must be within limits specified on unit

rating plate. Recommended operation is at midpoint of rise range or slightly above.

Determine and adjust air temperature rise as follows:

1. Place thermometers in return and supply ducts as close to furnace as possible. Be sure thermometers do not see heat

BURNER

ORIFICE

exchanger so that radiant heat does not affect readings. This practice is particularly important with straight-run ducts.

A93059

Fig. 49 -- Orifice Holes

Table 16 – Altitude Derate Multiplier for U.S.A.

ALTITUDE

FT (M)

0–2000

(305--- 610) 2001–3000

(610--- 914)

3001–4000

(914--- 1219)

4001–5000

(1219--- 1524)

5001–6000

1524--- 1829)

6001–7000

(1829--- 2134)

7001–8000

2134--- 2438)

8001–9000

2438--- 2743

9001–10,000

2743--- 3048

PERCENT OF

DERATE MULTIPLIER

DERATE

0 1.00

4 --- 6 0.95

6 --- 8 0.93

8 --- 10 0.91

10---12 0.89

12---14 0.87

14---16 0.85

16---18 0.83

18---20 0.81

FACTOR*

* Derate multiplier factor is based on midpoint altitude for altitude range.

SECONDS FOR 1 REVOLUTION

10 11 12 13 14

15 16 17 18 19

20 21 22 23 24

25 26 27 28 29

30 31 32 33 34

35 36 37 38 39

40 41 42 43 44

45 46 47 48 49

Table 17 – Gas Rate (Cu Ft/Hr)

SIZE OF TEST DIAL

cu ft2cu ft5cu ft

360

720

327

655

300

600

277

555

257

514

240

480

225

450

212

424

200

400

189

379

180

360

171

343

164

327

157

313

150

300

144

288

138

277

133

267

129

257

124

248

120

240

116

232

113

225

109

218

106

212

103

206

100

200

195

189

185

180

176

172

167

164

160

157

153

150

147

1800 1636 1500 1385 1286

1200 1125 1059 1000

947

900 857 818 783 750

720 692 667 643 621

600 581 563 545 529

514 500 486 474 462

450 439 429 419 409

400 391 383 375 367

SECONDS FOR 1 REVOLUTION

50 51 52 53 54

55 56 57 58 59

60 62 64 66 68

70 72 74 76 78

80 82 84 86 88

90 92 94 96 98

100 102 104 106 108

110 112 116 120 124

SIZE OF TEST DIAL

cu ft2cu ft5cu ft

144 141 138 136 133

131 129 126 124 122

120 116 112 109 106

103 100

360 355 346 340 333

327 321 316 310 305

300 290 281 273 265

257 250

243

237

231

225

220

214

209

205

200

196

192

188

184

180

178

173

170

167

164

161

155

150

145

71 69 68 67

65 64 63 62 61

60 58 56 54 53

51 50 48 47 46

45 44 43 42 41

40 39 38 38 37

36 35 35 34 33

33 32 31 30 29

-- 5 6 --

Page 57

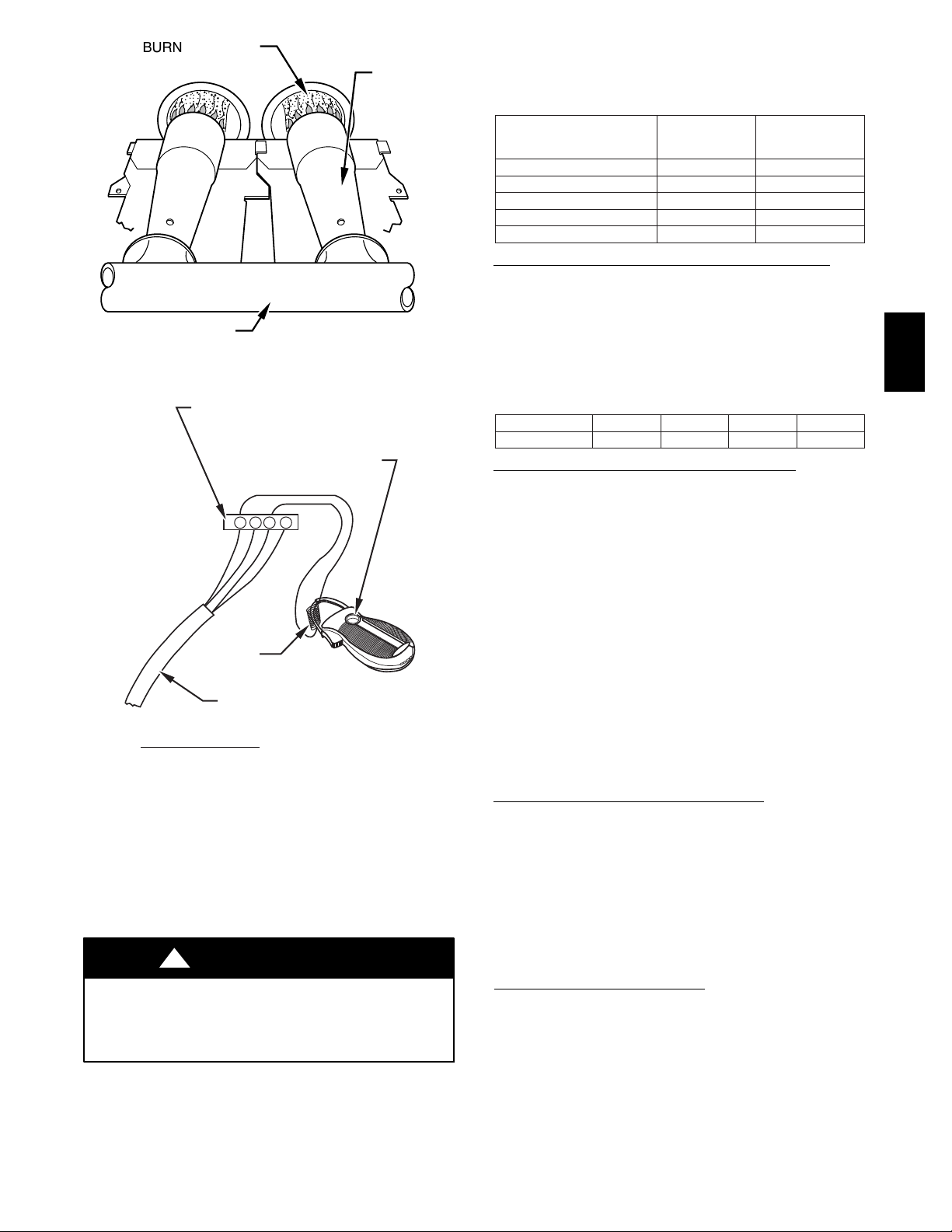

BURNER FLAME

BURNER

MANIFOLD

Fig. 50 -- Burner Flame

THERMOSTAT SUBBASE TERMINALS WITH THERMOSTAT REMOVED

HOOK-AROUND

VOLT/AMMETER

R Y W G

10 TURNS

FROM UNIT 24-VOLT TERMINAL BLOCK

EXAMPLE:

5.0 AMPS ON AMMETER 10 TURNS AROUND JAWS

= 0.5 AMPS FOR THERMOSTAT SETTING

Fig. 51 -- Amp Draw Check with Ammeter

2. When thermometer readings stabilize, subtract return-air temperature from supply-air temperature to determine air temperature rise.

3. Adjust temperature rise by adjusting blower speed. Increase blower speed to reduce temperature rise. Decrease blower speed to increase temperature rise.

WARNING

ELECTRICAL SHOCK HAZARD

Failure to follow this warning could result in personal injury or death.

Disconnect 115--v electrical power before changing speed tap.

4. To change blower motor speed selections for heating mode, remove blower motor lead from control center HEAT terminal. (See Fig. 34.) Select desired blower motor speed lead from 1 of the other motor leads and relocate it to HEAT terminal. See Table 18 for lead color identification. Reconnect original lead on SPARE terminal.

A89020

A80201

Follow this same procedure for proper selection of COOL speed selection.

Table 18 – Speed Selector

FACTORY

COLOR SPEED

Black High Cool

Yellow (When Present) Medium High Spare

Blue Medium Low Heat

Red Low Spare

White Common Com

SHIPPED

CONNECTION

ADJUST BLOWER OFF DELAY (HEAT MODE)

The blower off delay has 4 adjustable settings from 90 sec to 180 sec. (See Table 19.) The blower off delay jumpers are located on the furnace control board. (See Fig. 34.) To change the blower off delay setting, move the jumper from one set of pins on the control board to the pins used for the desired blower off delay. Factory blower off delay setting is 120 sec.

Table19–BlowerOffDelaySetupPosition

PINS 1AND2 2AND3 3AND4 4AND5

Time (in sec) 90 120 150 180

SETTHERMOSTATHEATANTICIPATOR

When using a nonelectronic thermostat, the thermostat heat anticipator must be set to match the amp draw of the electrical components in R--W circuit. Accurate amp draw readings can be obtained at thermostat subbase terminals R and W. Fig. 51 illustrates the easy method of obtaining actual amp draw. The amp reading should be taken after blower motor has started and furnace is heating. Connect ammeter wires as shown in Fig. 51. The thermostat anticipator should NOT be in the circuit while measuring current. If thermostat has no subbase, the thermostat must be disconnected from R and W wires during current measurement. See thermostat manufacturer’s instructions for adjusting heat anticipator and for varying heating cycle length.

For an electronic thermostat, set cycle rate for 3 cycles per hour.

Step 6 -- Check Safety Controls

This section covers the safety controls that must be checked before the installation is complete. The flame sensor, gas valve, and pressure switch were all checked in the Start-up procedure section as part of normal operation.

CHECK PRIMARY LIMIT CONTROL

This control shuts off gas control system and energizes air-circulating blower motor if furnace overheats. Recommended method of checking this limit control is to gradually block off return air after furnace has been operating for a period of at least 5 minutes. As soon as limit control has shut off burners, return-air opening should be unblocked to permit normal air circulation. By using this method to check limit control, it can be established that limit is functioning properly and operates if there is a restricted return-air duct or motor failure. If limit control does not function during this test, cause must be determined and corrected.

CHECK PRESSURE SWITCH

This control proves operation of draft inducer. Check switch operation as follows:

1. Turn off 115-v power to furnace.

2. Remove main furnace door and disconnect inducer motor lead wires from wire harness.

3. Turn on 115-v power to furnace.

4. Set thermostat to call for heat and wait 1 minute. When pressure switch is functioning properly, hot surface igniter should NOT glow, and control status code LED flashes a Status Code 31. If hot surface igniter glows when inducer

340AAV

-- 5 7 --

Page 58

motor is disconnected, shut furnace down immediately. Determine reason pressure switch did not function properly and correct condition.

5. Turn off 115-v power to furnace.

6. Reconnect inducer motor leads, reinstall main furnace door, and turn on 115-v power supply.

CHECKLIST

1. Put away tools and instruments. Clean up debris.

2. Verify flame rollout manual reset switch has continuity.

3. Verify that blower and main access doors are properly installed.

4. Cycle test furnace with room thermostat.

5. Check operation of accessories per manufacturer’s instructions.

6. Review User’s Guide with owner.

7. Leave literature packet near furnace

340AAV

-- 5 8 --

Page 59

CHECKLIST -- DIRECT VENT (2-PIPE) INSTALLATION

LOAD CALCULATION

________________ Heating Load (Btuh) ________________ Cooling Load (Btuh) ________________ Furnace Model Selection

COMBUSTION AIR AND VENT PIPING

Termination Location

________________ Roof or Sidewall ________________ Termination Kit -- 2 Pipe or Concentric ________________ Combustion-Air Pipe Length ________________ Combustion-Air Pipe Elbow Quantity ________________ Vent Pipe Length ________________ Vent Pipe Elbow Quantity ________________ Pipe Diameter Determined from

Sizing Table

________________ Pipe Sloped To Furnace

Pipe Insulation

________________ Over Ceilings ________________ Low-Ambient Exposed Pipes

Condensate Drain

________________ Unit Level or Pitched Forward ________________ Internal Tubing Connections Free of

Kinks and traps

________________ External Drain Connection Leak Tight

and sloped ________________ Condensate Trap Primed before Start--Up ________________ Heat Tape Installed if Required

CHECKLIST -- START--UP

________________ Gas Input Rate (Set Within 2 percent of

Rating Plate) ________________ Temperature Rise Adjusted

Thermostat Anticipator

________________ Anticipator Setting Adjusted or ________________ Cycle Rate (3 Cycles per Hr) Selected

Safety Controls Check Operation

________________ Primary Limit ________________ Pressure Switch

340AAV

CHECKLIST -- NON DIRECT VENT (1--PIPE) INSTALLATION

LOAD CALCULATION

________________ Heating Load (Btuh) ________________ Cooling Load (Btuh) ________________ Furnace Model Selection

VENT PIPING

Termination Location

________________ Roof or Sidewall ________________ Vent Pipe Length ________________ Vent Pipe Elbow Quantity ________________ Pipe Diameter Determined from Sizing

Tab le

________________ Pipe Sloped To Furnace

Pipe Insulation

________________ Over Ceilings ________________ Low--Ambient Exposed Pipes

Condensate Drain

________________ Unit Level or Pitched Forward ________________ Internal Tubing Connections Free of

Kinks and Traps ________________ External Drain Connection Leak Tight

and Sloped ________________ Condensate Trap Primed before Start-Up ________________ Heat Tape Installed if Required

CHECKLIST -- START--UP

________________ Gas Input Rate (Set Within 2 percent of

Rating Plate) ________________ Temperature Rise Adjusted

Thermostat Anticipator

________________ Anticipator Setting Adjusted or

Cycle Rate (3 Cycles per Hr) Selected

Safety Controls Check Operation

________________ Primary Limit ________________ Pressure Switch

-- 5 9 --

Page 60

340AAV

E2010 Bryant Heating & Cooling Systems D 7310 W. Morris St. D Indianapolis, IN 46231 Printed i n U.S.A. Edition Date: 11/10

Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.

-- 6 0 --

Catalog No. II340A--- 4 0 --- 4

Replaces: II340A---40---3
