Bryant 313AAV Plus 80x, 313JAV Plus 80x Product Data

Page 1

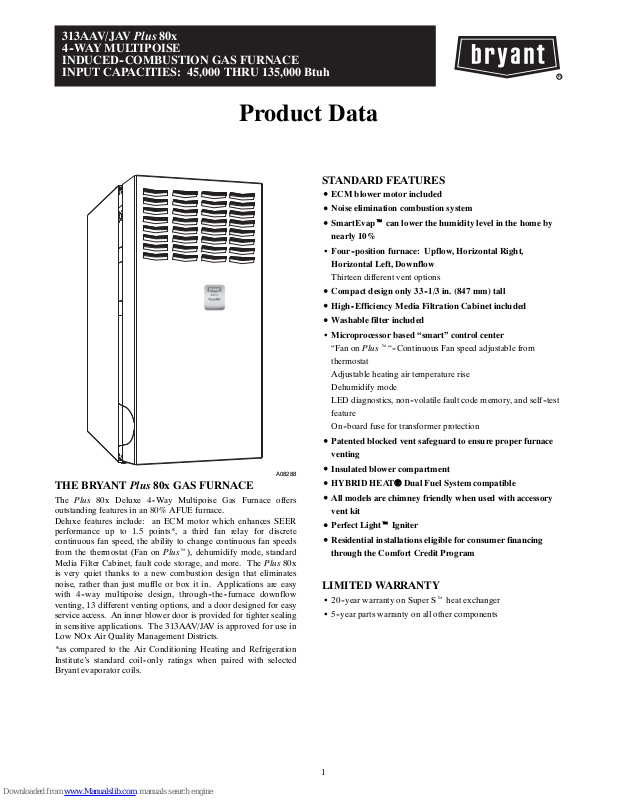

313AAV/JAV Plus 80x 4--WAY MULTIPOISE INDUCED--COMBUSTION GAS FURNACE INPUT CAPACITIES: 45,000 THRU 135,000 Btuh

Product Data

A08288

THE BRYANT Plus 80x GAS FURNACE

The Plus 80x Deluxe 4--Way Multipoise Gas Furnace offers outstanding features in an 80% AFUE furnace. Deluxe features include: an ECM motor which enhances SEER performance up to 1.5 points*, a third fan relay for discrete continuous fan speed, the ability to change continuous fan speeds from the thermostat (Fan on Plust), dehumidify mode, standard Media Filter Cabinet, fault code storage, and more. The Plus 80x is very quiet thanks to a new combustion design that eliminates noise, rather than just muffle or box it in. Applications are easy with 4--way multipoise design, through--the--furnace downflow venting, 13 different venting options, and a door designed for easy service access. An inner blower door is provided for tighter sealing in sensitive applications. The 313AAV/JAV is approved for use in Low NOx Air Quality Management Districts.

*as compared to the Air Conditioning Heating and Refrigeration Institute’s standard coil-- only ratings when paired with selected Bryant evaporator coils.

STANDARD FEATURES

S ECM blower motor included

S Noise elimination combustion system

S SmartEvapt can lower the humidity level in the home by

nearly 10%

S Four--position furnace: Upflow, Horizontal Right,

Horizontal Left, Downflow

Thirteen different vent options

S Compact design only 33--1/3 in. (847 mm) tall

S High--Efficiency Media Filtration Cabinet included

S Washable filter included

S Microprocessor based “smart” control center

“Fan on Plus

thermostat

Adjustable heating air temperature rise

Dehumidify mode

LED diagnostics, non-- volatile fault code memory, and self--test

feature

On--board fuse for transformer protection

S Patented blocked vent safeguard to ensure proper furnace

venting

S Insulated blower compartment

S HYBRID HEAT® Dual Fuel System compatible

S All models are chimney friendly when used with accessory

vent kit

S Perfect Lightt Igniter

S Residential installations eligible for consumer financing

through the Comfort Credit Program

“--Continuous Fan speed adjustable from

LIMITED W ARRANTY

S 20 --year warranty on Super St heat exchanger

S 5 --year parts warranty on all other components

Page 2

FURNACE COMPONENTS

INDUCER MOTOR

ASSEMBLY

PRESSURE

SWITCH

COLLECTOR

GAS VALVE

MANUAL RESET

LIMIT SWITCHES

FLUE

BOX

VENT ELBOW

MAIN LIMIT SWITCH (BEHIND GAS VALVE)

DRAFT SAFEGUARD SWITCH

FLAME SENSOR

GAS MANIFOLD

GAS BURNER

HOT SURFACE

IGNITER

CONTROL

RATING PLATE

313AAV/JAV

NOT SHOWN

(LOCATED ON

BLOWER DOOR)

BLOWER DOOR SAFETY SWITCH

BLOWER AND MOTOR

CAPACITOR/POWER CHOKE (WHERE USED)

NOTE: The 313AAV/JAV Furnaces are factory shipped for use with natural gas. These furnaces can be field-- converted for propane gas with a factory--authorized and listed accessory conversion kit.

A02259

58DLA/DLX

A02169

A08063

A02170

REWOLB RECUDNIDRAOB LORTNOCREGNAHCXE TAEH

Page 3

BRYANT ACCESSORIES

A97432

CONTROLS:

THERMOSTATS

AND ZONING

Available in programmable and non-programmable models, Bryant thermostats maintain a constant, comfortable temperature level in the home.

For the ultimate in home comfort, Bryant’s 2, 4, and 8-zone systems allow temperature control of individual “zones” of the home. This is accomplished through a series of electronic dampers and

remote room sensors.

4-zone system is shown.

The

C04009

MECHANICAL

OR ELECTRONIC

AIR CLEANER

Cleans the air of smoke, dirt, and many pollens commonly found. Saves decorating and cleaning expenses by keeping carpets, furniture, and drapes cleaner.

Electronic air cleaner is shown.

MODEL HUMCCLFP

A01484

HUMIDIFIER

By adding moisture to winter-dry air, a Bryant humidifier can often improve comfort and keep furniture, rugs, and draperies in better condition. Moisturizing household air also helps to retain normal body heat and provides comfort at lower temperatures.

313AAV/JAV

A08153

ACCESSORIES

ELECTRONIC AIR CLEANER (EAC)

Model EACB

AIR PURIFIER Models GAPAAXBB1625, GAPAAXBB2025 MECHANICAL AIR CLEANER Models EZXCAB, FILCAB HUMIDIFIER Model HUM HEAT RECOVERY

VENTILATOR ENERGY RECOVERY

VENTILATOR

Model HRV

Model ERV

UV LIGHTS Model UVL

F o r u s e w i t h 1 --- s p e e d A i r C o n d i t i o n e r --- d e g . F / C , A u t o C h a n g e o v e r --- T 6 --- N A C , T 2 --- N A C

T H E R M O S T A T --N O N --- P R O G R A M M A B L E

F o r u s e w i t h 1 --- s p e e d A i r C o n d i t i o n e r --- d e g . F / C , A u t o C h a n g e o v e r --- T 6 --- N H P --- T 2 --- N H P * F o r u s e w i t h 2 --- s p e e d A i r C o n d i t i o n e r --- d e g . F / C , A u t o C h a n g e o v e r --- T 6 --- N R H * For use with multi--- use / stage configurations --- deg. F/C, Auto Changeover/Temperature and

H u m i d i t y C o n t r o l --- T 6 --- P R H

{

F o r u s e w i t h 1 --- s p e e d A i r C o n d i t i o n e r --- d e g . F / C , A u t o C h a n g e o v e r, 7 --- D a y P r o g r a m m a b l e --T 6 --- P A C

F o r u s e w i t h 1 --- s p e e d A i r C o n d i t i o n e r --- d e g . F / C , A u t o C h a n g e o v e r, 7 --- D a y P r o g r a m m a b l e --T6--- PHP*

T H E R M O S T A T --PROGRAMMABLE

F o r u s e w i t h 2 --- s p e e d A i r C o n d i t i o n e r --- d e g . F / C , A u t o C h a n g e o v e r, 7 --- D a y P r o g r a m m a b l e --T 6 --- P R H *

F o r u s e w i t h 1 --- s p e e d A i r C o n d i t i o n e r --- d e g . F / C , 5 --- 2 D a y P r o g r a m m a b l e --- T 6 --- P A C F o r u s e w i t h m u l t i --- s t a g e a p p l i c a t i o n s --- d e g . F / C , A u t o C h a n g e o v e r , 7 --- D a y P r o g r a m m a b l e ---

T 2 --- P H P

}

F o r m u l t i --- u s e / s t a g e c o n f i g u r a t i o n s --- d e g . F / C , A u t o C h a n g e o v e r , 7 --- D a y P r o g r a m m a b l e / T e m p e r a t u r e a n d H u m i d i t y C o n t r o l --- T 6 --- P R H

{

Zone Perfect 3---Zone kit --- ZONEBB32AC01, ZONEBB32HP01

ZONING CONTROL

2 --- Z o n e P e r f e c t P l u s k i t / Te m p e r a t u r e a n d H u m i d i t y C o n t r o l --- Z O N E B B 2 K I T 0 1 --- B 4 --- Z o n e P e r f e c t P l u s k i t / Te m p e r a t u r e a n d H u m i d i t y C o n t r o l --- Z O N E B B 4 K I T 0 1 --- B 8 --- Z o n e P e r f e c t P l u s k i t / Te m p e r a t u r e a n d H u m i d i t y C o n t r o l --- Z O N E B B 8 K I T 0 1 --- B

*Model HP and 2S thermostat must be field converted to air conditioner operation.

{Thermidistatt Control can be configured for multiple use and staging. It must be configured for each specific application. }Dual Fuel thermostat is used with furnace and heat pump application.

Page 4

BRYANT ACCESSORIES

DESCRIPTION 313AAV/JAV PAR T NO. 024045 048070 048090 060110 060135

Cartridge Media Filter

EZ Flex Media Filter with End Caps

Replacement EZ Flex Filter Media

External Bottom Return

Filter Rack

External Side Return Filter Rack KGAFR0801SRE X X X X X

Unframed Filter 1 in. (25mm)

Flue Extension KGAFE0112UPH X X X X X Combustible Floor Base KGASB0201ALL X X X X X Downflow Vent Guard KGAVG0101DFG X X X X X Vent Extension Kit KGAVE0101DNH X X X X X Chimney Adapter Kit KGACA02014FC X X X X

313AAV/JAV

Chimney Adapter Kit KGACA02015FC X N a t u r a l --- t o --- P r o p a n e C o n v e r s i o n K i t * KGANP4601ALL X X X X X P r o p a n e --- t o --- N a t u r a l C o n v e r s i o n K i t * KGAPN3901ALL X X X X X Label Kit KGALB0101KIT X X X X X Air Leakage Kit (Qty 10) KGBAC0110DG K X X X X X

Gas Orifice Kit (Qty 50)

*Factory ---authorized and field --- installed. Gas conversion kits are CS A (AGA/CGA) recognized. {Suitable for side return. X Available accessory

FILBBCAR0016 X X FILBBCAR0020 X X FILBBCAR0024 X EXPXXUNV0016 X X EXPXXUNV0020 X X EXPXXUNV0024 X EXPXXFIL0016 X X EXPXXFIL0020 X X EXPXXFIL0024 X KGAFR0401B14 X KGAFR0501B17 X KGAFR0601B21 X X KGAFR0701B24 X

KGAWF1306UFR X X S{ S { S { KGAWF1406UFR X X KGAWF1506UFR X

KGAHA0150N42 KGAHA0250N43

(factory supplied) KGAHA0350N44 KGAHA0450N45 KGAHA0550N46 KGAHA1550N47 KGAHA1650N48 KGAHA0650P54 KGAHA0750P55

See Installation Instructions for model, altitude, and heat value usages.

Page 5

PHYSICAL DATA

UNIT SIZE 024045 048070 048090 060110 060135 OUTPUT CAPACITY

BTUH (Nonweatherized ICS)

INPUT BTUH

AFUE% Nonweatherized ICS 80.0 80.0 80.0 80.0 80.0 SHIPPING WEIGHT LB. (KG) 104 (47) 126 (57) 140 (64) 152 (69) 163 (74)

CERTIFIED TEMP RISE RANGE ˚F(C)

CERTIFIED EXT STATIC PRESSURE

AIRFLOW CFM

LIMIT CONTROL SPST HEATING BLOWER CONTROL Solid--- State Time Operation BURNERS (Monoport) 2 3 4 5 6 GAS CONNECTION SIZE 1 / 2 --- i n . N P T GAS VALVE(Redundant) Manufacturer W h i t e --- R o d g e r s

Minimum Inlet Pressure (in. wc) 4.5 (Natural Gas) Maximum Inlet Pressure (in. wc) 13.6 (Natural Gas)

IGNITION DEVICE Hot Surface

*Gas input ratings are certified for elevations to 2000 ft. (610 M)*. For elevations above 2000 f t. (610 M), reduce ratings 4 percent for each 1000 ft. (305 M) above sea level. Refer to National Fuel Gas code Table F4 or furnace Installation Instructions. In Canada, derate the unit 10 percent for elevations 2000 to 4500 ft. (610 --- 1372 M) above sea l e vel.

{Capacity in accordance with U.S. Government DOE test procedures. }Airflow shown is f o r bottom only return ---air supply. For air delivery above 1800 CFM, see Air Delivery Table for other options. A filter is required foreach

return---air supply. An airflow reduction of up to 7 percent may occur when using a Bryant 4 ---5/15 in. (110 mm) high efficiency media filter.

ICS - -- Isolated Combustion System

313JAV Upflow; all 313AAV 36,000 53,000 72,000 90,000 107,000

313JAV Downflow/Horizontal 34,000 51,000 69,000 86,000 102,000

313JAV Upflow; all 313AAV 44,000 66,000 88,000 110,000 132,000 313JAV Downflow/Horizontal 42,000 63,000 84,000 105,000 126,000

30--- 60

( 1 7 --- 3 3 ) Heating 0.10 0.12 0.15 0.20 0.20 Cooling 0.50 0.50 0.50 0.80 0.50 Heating 735 1230 1345 1890 1865 Cooling 1035 1460 1665 2040 2070

25--- 55

( 1 4 --- 3 1 )

35--- 65

( 1 9 --- 3 6 )

30--- 60

( 1 7 --- 3 3 )

40--- 70

( 2 2 --- 3 9 )

313AAV/JAV

BLOWER PERFORMANCE DATA

UNIT SIZE 024045 048070 048090 060110 060135 DIRECT---DRIVE MOTOR Hp (ECM --- 5 Speed) 1/2 3/4 3/4 1 1 MOTOR FULL LOAD AMPS 6.8 8.4 8.4 10.9 10.9 R P M ( N o m i n a l ) --- S P E E D S 1050--- 5 1050 --- 5 1050 --- 5 1050 -- -5 1050 --- 5

BLOWER WHEEL DIAMETER x WIDTHS --- IN (MM)

10 x 6

(254 x 152)

11 x 8

(279 x 203)

10X10

(254 x 254)

11 x 11

(279 x 279)

11 x 11

(279 x 279)

Page 6

SEE NOTES: 1,2,4,7,8,9

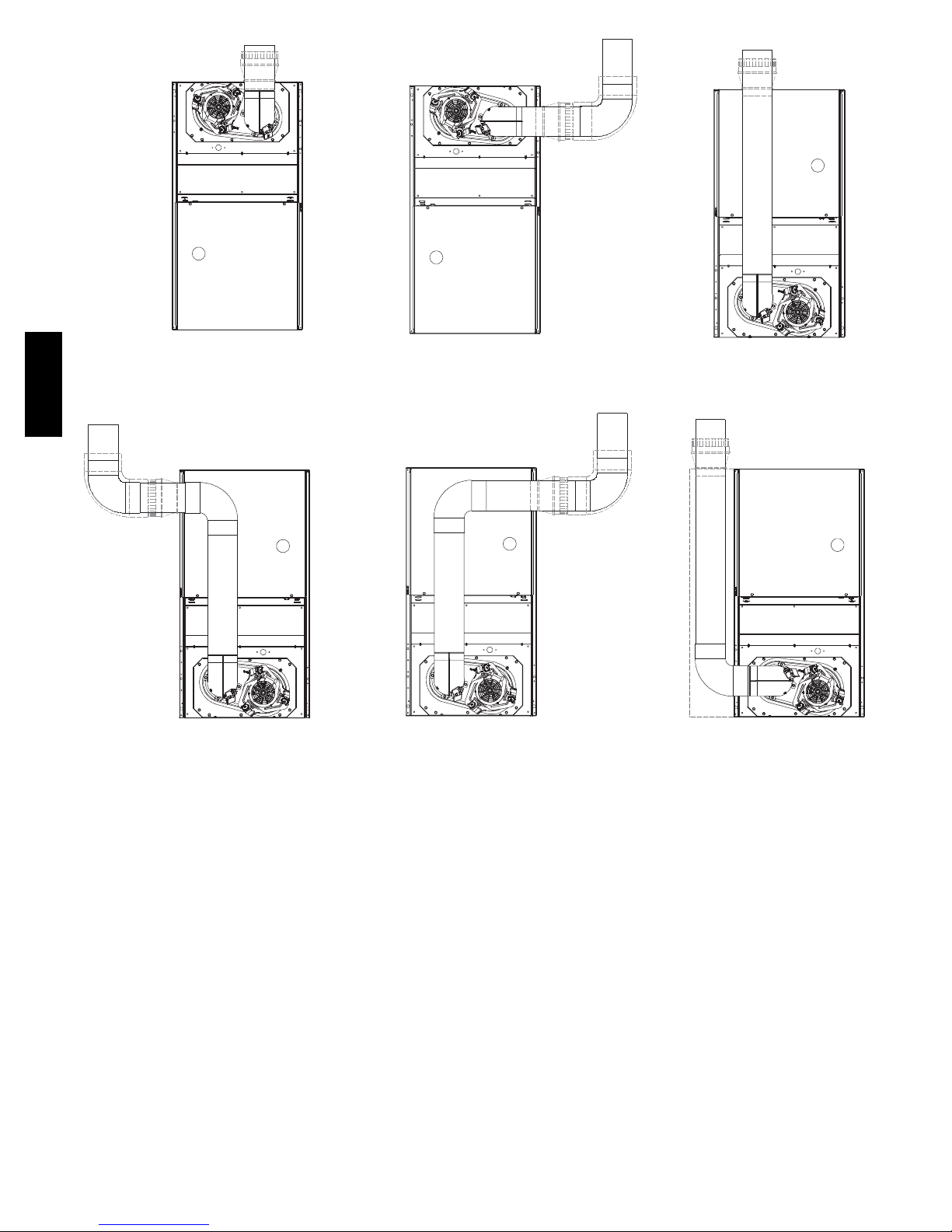

UPFLOW

A02058

SEE NOTES: 1,2,3,4,7,8,9

UPFLOW DOWNFLOW

A02059

SEE NOTES: 1,2,4,5,7,8,9

A02061

313AAV/JAV

SEE NOTES:1,2,3,4,5,7,8,9

DOWNFLOW

SEE NOTES: 1,2,3,4,7,8,9

DOWNFLOW

A02063A02060

SEE NOTES: 1,2,4,5,6,7,8,9

DOWNFLOW

Ven t i n g N ot e s

1. For common vent, vent connector sizing and vent material: United States, latest edition of the National Fuel Gas Code (NFGC), NFPA54/ANSI Z223.1. In Canada, latest edition of the National Standards of Canada, Natural Gas and Propane Installation Code (NSCNGPIC), CSA B149.1--00.

2. Immediately increase to 5--in. vent connector outside furnace casing when 5-- in. vent connector required, refer to Note 1.

3. Side outlet vent for upflow and downflow installations must use Type B vent immediately after exiting the furnace, except when KGAVG0101DFG is used in downflow position.

4. Type B vent where required, refer to Note 1.

5. 4 in. single wall vent must be used inside furnace casing and the KGAVG0101DFG Downflow Vent Guard Kit.

6. Accessory Downflow Vent Guard Kit, KGAVG0101DFG required in downflow installations with bottom vent configuration.

7. Chimney Adapter Kit required for exterior masonry chimney applications. Refer to Chimney Adapter Kit, KGACA02014FC and KGACA02015FC for sizing and complete application details.

8. Secure vent connector to furnace elbow with (2) corrosion-- resistant sheet metal screws, space approximately 180_ apart.

9. Secure all other single wall vent connector joints with (3) corrosion--resistant screws spaced approximately 120_ apart. Secure Type B vent connectors per vent connector manufacturer’s recommendations.

A02062

Page 7

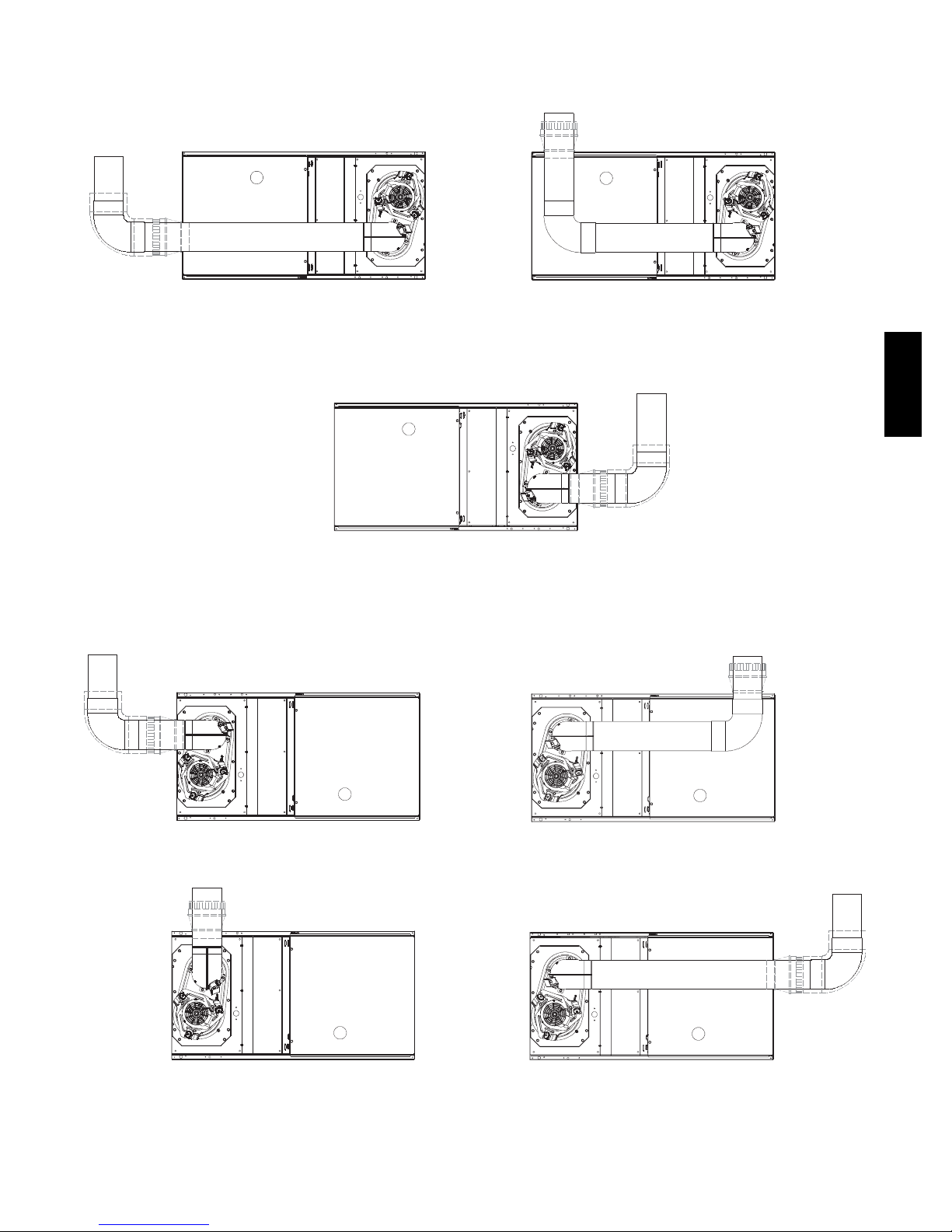

SEE NOTES: 1,2,4,5,7,8,9

HORIZONTAL RIGHT

SEE NOTES: 1,2,4,5,7,8,9

A02068 A02070

HORIZONTAL RIGHT

SEE NOTES: 1,2,4,7,8,9

HORIZONTAL RIGHT

A02069

313AAV/JAV

SEE NOTES: 1,2,4,7,8,9

HORIZONTAL LEFT

SEE NOTES: 1,2,4,5,7,8,9

HORIZONTAL LEFT HORIZONTAL LEFT

A02064

A02066

SEE NOTES: 1,2,4,5,7,8,9

HORIZONTAL LEFT

A02065

SEE NOTES: 1,2,4,5,7,8,9

A02067

Page 8

Air Delivery --- CFM (With Filter)*

UNIT SIZE

RETURN--- AIR

SUPPLY

SPEED

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1

EXTERNAL STATIC PRESSURE (in. wc)

5 1185 1145 1115 1075 1035 980 905 820 720 580 4 920 880 835 800 755 720 680 645 605 540 3 735 685 625 585 530 490 435 395 345 295 2 820 765 725 670 630 580 545 490 455 405

024045

Bottom or

Side(s)

1 650 595 535 490 430 390 330 280 235 --- --5 1625 1585 1535 1495 1460 1415 1365 1295 1220 1125 4 1405 1360 1320 1280 1240 1195 1155 1115 1070 1030 3 1240 1200 1155 1110 1065 1020 975 935 895 850 2 1190 1140 1095 1050 1000 955 915 870 830 790

048070

Bottom or

Side(s)

1 1035 985 930 885 835 785 745 695 650 600 5 1845 1800 1755 1710 1665 1595 1500 1400 1275 1105 4 1590 1545 1500 1455 1410 1365 1315 1270 1180 1000 3 1365 1320 1270 1215 1170 1125 1070 1025 955 900 2 1225 1160 1110 1060 1010 950 895 830 770 710

048090

Bottom or

Side(s)

1 1100 1030 960 875 805 730 645 570 505 425 5 2255 2205 2150 2100 2040 1985 1920 1835 1735 1615

060110

Bottom or

Side(s)

313AAV/JAV

4 1600 1525 1465 1400 1335 1275 1210 1150 1080 1015 3 1945 1890 1830 1770 1715 1655 1600 1545 1480 1430 2 1420 1340 1280 1200 1140 1065 1005 925 865 790 1 1280 1205 1140 1055 990 910 840 760 695 630 5 2295 2240 2185 2125 2070 2005 1925 1805 1670 1545 4 1725 1660 1605 1545 1460 1395 1340 1285 1230 1170 3 1910 1865 1800 1745 1685 1610 1545 1485 1435 1380 2 1630 1575 1510 1435 1365 1300 1245 1185 1130 1065

060135

Bottom or

Side(s)

1 1430 1355 1285 1200 1125 1075 1015 945 855 800

*A filter is requ ired for each return ---air inlet. Airflow perfor mance included 1 ---in. (25 mm) washabl e filter media such as contained in factory ---authorized accessory filter rack. To determine airflow performance without this filter, assume an additional 0.1 in. wc available external static pressure.

--- --- Indicates unstable operating conditions.

ELECTRICAL DATA

313AAV/

JAV UNIT

SIZE

V O L T S ---

H E R T Z ---

PHASE

024045 1 1 5 --- 60 --- 1 127 104 8.1 34 (10) 15 14 048070 1 1 5 --- 60 --- 1 127 104 9.5 29 (9) 15 14 048090 1 1 5 --- 60 --- 1 127 104 10.3 27 (8) 15 14 060110 1 1 5 --- 60 --- 1 127 104 13.1 34 (10) 20 12 060135 1 1 5 --- 60 --- 1 127 104 13.1 34 (10) 20 12

* Permissible limits of the voltage range at which the u nit operates satisfactorily.

{ T ime ---delay type is recommended. }Length shown is as measured 1 way along wire path between unit and service panel for maximum 2 percent voltage drop.

OPERATING VOLTAGE

RANGE

Maximum Minimum

MAXIMUM

UNIT AMPS

MAXIMUM WIRE

LENGTH FT (M)

MAXIMUM FUSE

OR CKT BKR

}

AMPS

{

MINIMUM

WIRE GAGE

Page 9

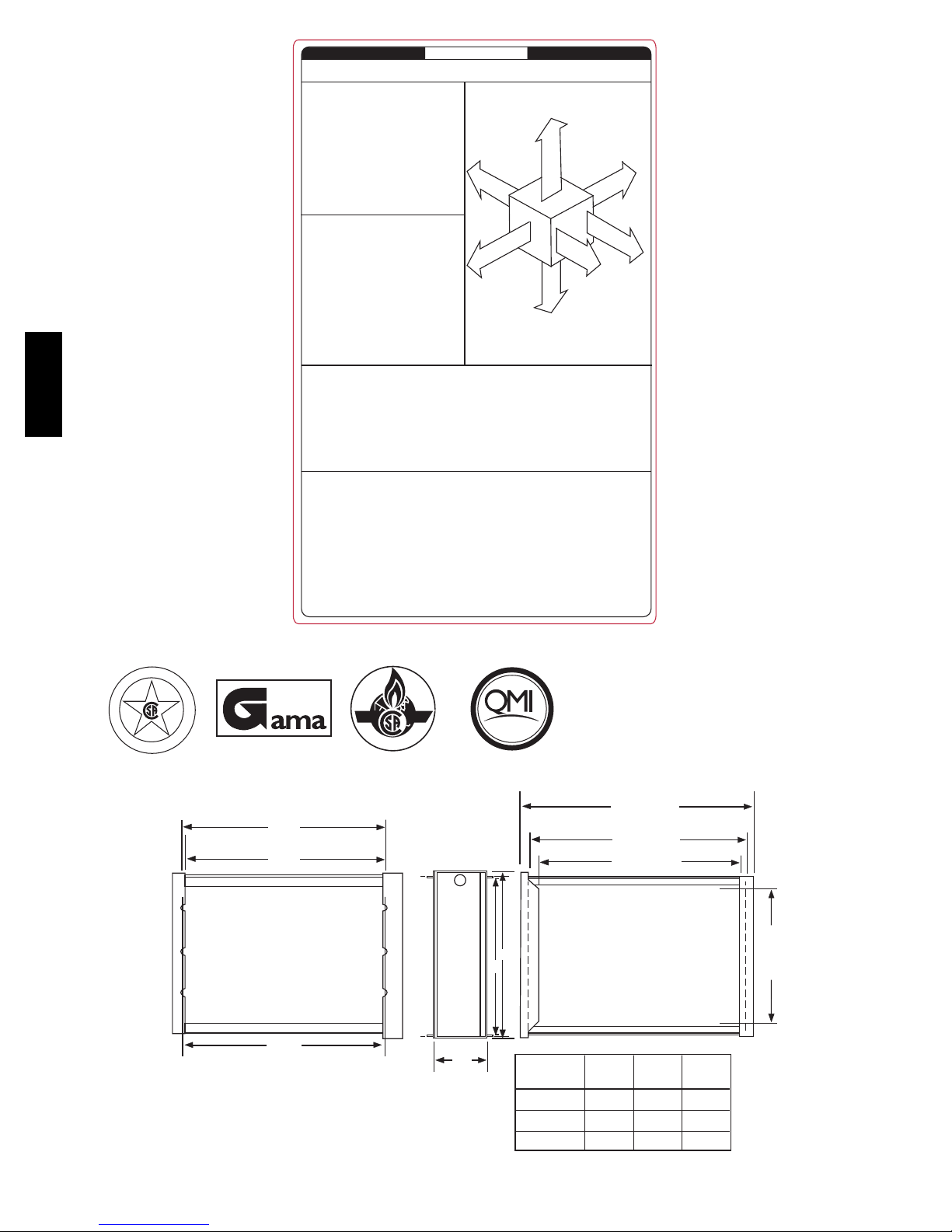

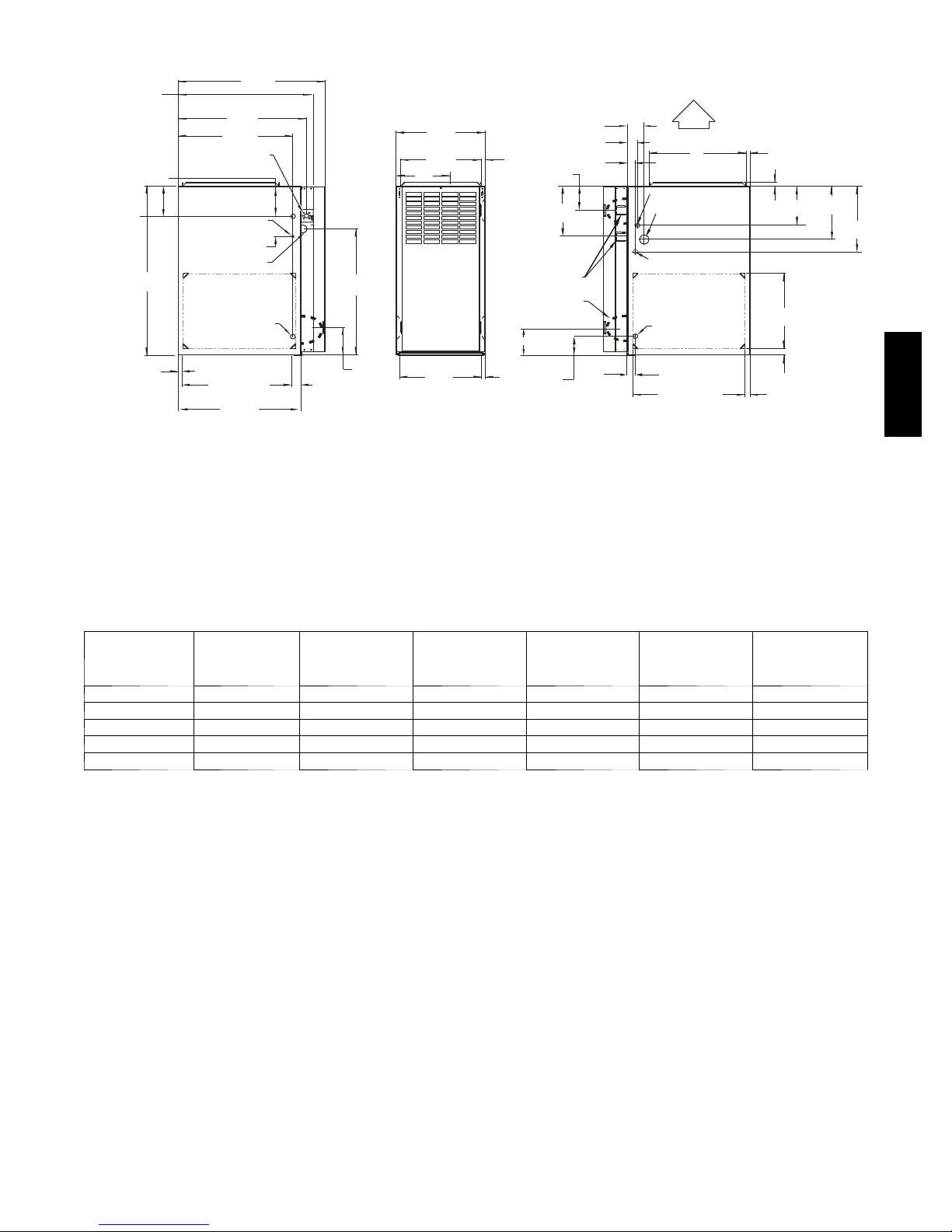

DIMENSIONS

(

(664mm)

26-1/8"

(FLUE COLLAR)

(22mm)

7/8" DI A

5-15/16"

33-5/16"

(846mm)

ACCESSORY

(733mm)

28-7/8"

(641mm)

25-1/4"

22-9/16"

(573mm)

JUNCTION BOX LOCATION

1/2" DIA THERMOSTAT

WIRE ENTRY

3-15/16"

LEFT HAND GAS

ENTRY

7/8" DIA. ACCESSORY

24-7/8"

(632mm)

13/16"

(21mm)

4-13/16" (122mm)

8-9/16"

(217mm)

ALTERNA T E

JUNCTION BOX

LOCATIONS (TYP)

VENT OUTLE T

5 PLACES (TYP)

(140mm)

5-1/2"

2-7/16" (62mm) 1-5/16" (33mm)

1-1/8"

(29mm)

AIRFLOW

19"

(483mm)

OUTLE T

1/2" DIA. K.O.THERMOSTAT WIRE ENTRY

7/8" DIA. K.O. WIRE ENTRY

(22mm)

7/8" DIA. ACCESSORY

(22mm)

(13mm)

1-3/4" DIA.RIGHT HAND GAS ENTRY

(44mm)

13/16"

(21mm)

11/16"

(17mm)

14-7/8"

(378mm)

7-3/4"

(197mm)

9-5/8"

(244mm)

11-1/2"

(292mm)

11/16"

(17mm)

(549mm) 21-5/8"

BOTTOM INLE T

24"

CASING

610mm)

1-11/16" (43mm)

5-1/2"

(140mm)

11/16"

(17mm)

3-3/4"

(95mm)

1-1/2"

(560mm) 22-1/16"

SIDE INLE T

(38mm)

1. Two additional 7/8--in. (22 mm) dia. knockouts are located in the top plate.

2. Minimu m retur n --air openings at furnace, based on metal duct. If flex duct is used, see flex duct manufacturer’s recommendations for equivalent diameters.

3. Minimum retur n --air opening at furnace.

a. For 800 CFM--16--in. (406 mm) round or 14--1/2 x 12 --in. (368 x 305 mm) rectangle.

b. For 1200 CFM--20--in. (508 mm) round or 14--1/2 x 19 --1/3 in. (368 x 491 mm)rectangle.

c. For 1600 CFM--22--in. (559 mm) round or 14--1/2 x 22 --1/16--in. (368 x 560 mm) rectangle.

d. For airflow requirements above 1800 CFM, see Air Delivery table in Product Data literature for specific use of single side inlets. The use of both side inlets, a

combination of 1 side and the bottom, or the bottom of single side inlets. The use of both side inlets, a combination of one side and the bottom, or the bottom only will ensure adequate return air openings for airflow requirements above 1800 CFM.

313AAV/JAV

UNIT SIZE

CABINET

WIDTH

IN (MM)

SUPPLY WIDTH

IN (MM)

BOTTOM

RETURN WIDTH

IN (MM)

TOP VENT

OUTLET IN (MM)

VENT

CONNECTION

SIZE

(see Notes 1 & 2)

024045 14--- 3/16 (360) 12--- 9/16 (319) 12 --- 11/16 (322) 9--- 5/16 (237) 4 16 (406) 048070 17--- 1/2 (445) 15--- 7/8 (403) 16--- 1/8 (410) 11 --- 9/16 (294) 4 16 (406) 048090 21 (533) 19--- 3/8 (492) 19--- 1/2 (495) 13 --- 5/16 (338) 4 20 (508) 060110 21 (533) 19--- 3/8 (492) 19--- 1/2 (495) 13 --- 5/16 (338) 4 20 (508) 060135 24--- 1/2 (622) 22--- 7/8 (581) 23 (584) 15--- 1/16 (383) 4(Note1) 24 (610)

1. 135 size furnaces require 5 ---in. (127 mm) vents. Use a 4---5 in. (102 --- 127 mm) vent adaptor between furnace and vent stack.

2. See installation instructions for complete installation requirements.

1-1/4"

(32mm)

(25mm)

MEDIA CABINET

SIZE

IN (MM)

313AAV/JAV

A04037

Page 10

MINIMUM INCHES CLEARANCE TO COMBUSTIBLE CONSTRUCTION

INSTALLATION

DISTANCE MINIMALE EN POUCES AUX CONSTRUCTIONS COMBUSTIBLES

This forced air furnace is equipped for use with

natural gas at altitudes 0-10,000 ft (0-3,050m).

An accessory kit, supplied by the manufacturer, shall be used to convert to propane gas use or may be required for some natural gas applications.

This furnace is for indoor installation in a building constructed on site.

This furnace may be installed on combustible flooring in alcove or closet at minimum clearance as indicated by the diagram from combusitble material.

This furnace may be used with a Type B-1 Vent and may be vented in common with other gas fired appliances.

Cette fournaise à air pulsé est équipée pour utilisation avec gaz naturel et altitudes comprises entre 0-3,050m (0-10,000 pi).

Utiliser une trousse de conversion, fournie par le fabricant, pour passer au gaz propane ou pour certaines installations au gaz naturel.

Cette fournaise est prévue pour être installée dans un bâtiment construit sur place.

Cette fournaise peut être installée sur un plancher combustible dans une alcôve ou dans un garde-robe en respectant le minimum d'espace libre des matériaux combustibles, tel

indiqué sur le diagramme.

Cette fournaise peut être utilisée avec un

évacuation de Type B-1 ou connectée

conduit d au conduit ommun d 'autres appareils à gaz.

MINIMUM INCHES CLEARANCE TO COMBUSTIBLE CONSTRUCTION

DOWNFLOW POSITIONS:

Installation on non-combusibible floors only.

†

For Installation on combustible flooring only when installed on special base, Part No. KGASB0201ALL,

313AAV/JAV

Coil Assembly, Part No. CD5 or CK5, or Coil Casing, Part No. KCAKC.

18 inches front clearance required for alcove.

Indicates supply or return sides when furnace is in the horizontal position. Line contact only permissible

between lines formed by intersections of the Top and two Sides of the furnace jacket, and building joists, studs or framing.

DÉGAGEMENT MINIMUM EN POUCES AVEC ÉLÉMENTS

POUR LA POSITION COURANT DESCENDANT:

Pour l´installation sur plancher non combustible seulement.

†

installation sur un plancher combustible seulement quand on utilise la base spéciale, pièce

Pour l

nº KGASB0201ALL, l nº KCAKC.

Dans une alcôve, on doit maintenir un dégagement à l

La poistion indiquée concerne le côté d

position horizontale.

Le contact n

deux côtés de la cherrise de la fournaise et les solives, montant sous cadre de charpente.

DE CONSTRUCTION COMBUSTIBLES

ensemble serpentin, pièce nº CD5 ou CK5, ou le carter de serpentin, pièce

est permis qu´entre les lignes formées par les intersections du dessus et des

This furnace is approved for UPFLOW, DOWNFLOW, and HORIZONTAL installations.

Cette fournaise est approuvée pour l 'installation HORIZONTALE et la circulation d 'air VERS LE HAUT et VERS LE BAS.

Clearance arrows do not change with furnace orientation.

S C

Vent Clearance to combustibles:

For Single Wall vents 6 inches (6 po). For Type B-1 vent type 1 inch (1 po).

Dégagement de l´évent avec combustibles:

Pour conduit d´évacuation à paroi simple 6 po (6 inches). Pour conduit d

avant de 18 po (450mm).

entrée ou de retour quand la fournaise est dans la

Les fléches de dégagement

l 'orientation de la fournaise.

I Ô

TOP / PLENUM

DESSUS / CHAMBRED' AIR

BOTTOM

DESSOUS

†

évacuation de Type B-1 1 po (1 inch).

327590-101 REV. C

ne change pas avec

24"

MIN

Clearance in inches Dégagement (po).

A04123

ISO 9001:2000

REGISTERED

MEETS DOE RESIDENTIAL CONSERVATION SERVICES PROGRAM STANDARDS.

Before purchasing this appliance, read important energy cost and efficiency information available from your retailer.

EFFICIENCY RATING CERTIFIED

CERTIFIED

REGISTERED QUALITY SYSTEM

(651mm)

(600mm)

(651mm)

With Flanges Bent Out

(587mm)

Opening

with Flanges Bent In

C Opening

Furnace Side

Centerline Screw Slots

(603mm)

(146mm)

Media/ Filter Cabinet

(406mm)

16"/

(508mm)

20"/

(610mm)

24"/

Duct Side

ABC

17"/ 16

(432mm)

21"/ 20

(533mm)

25"/ 24

(635mm)

(413mm)

(514mm)

(616mm)

15"/

4"/

(381mm)

19"/

4"/

(483mm)

23"/

4"/

(584mm)

A00444

Page 11

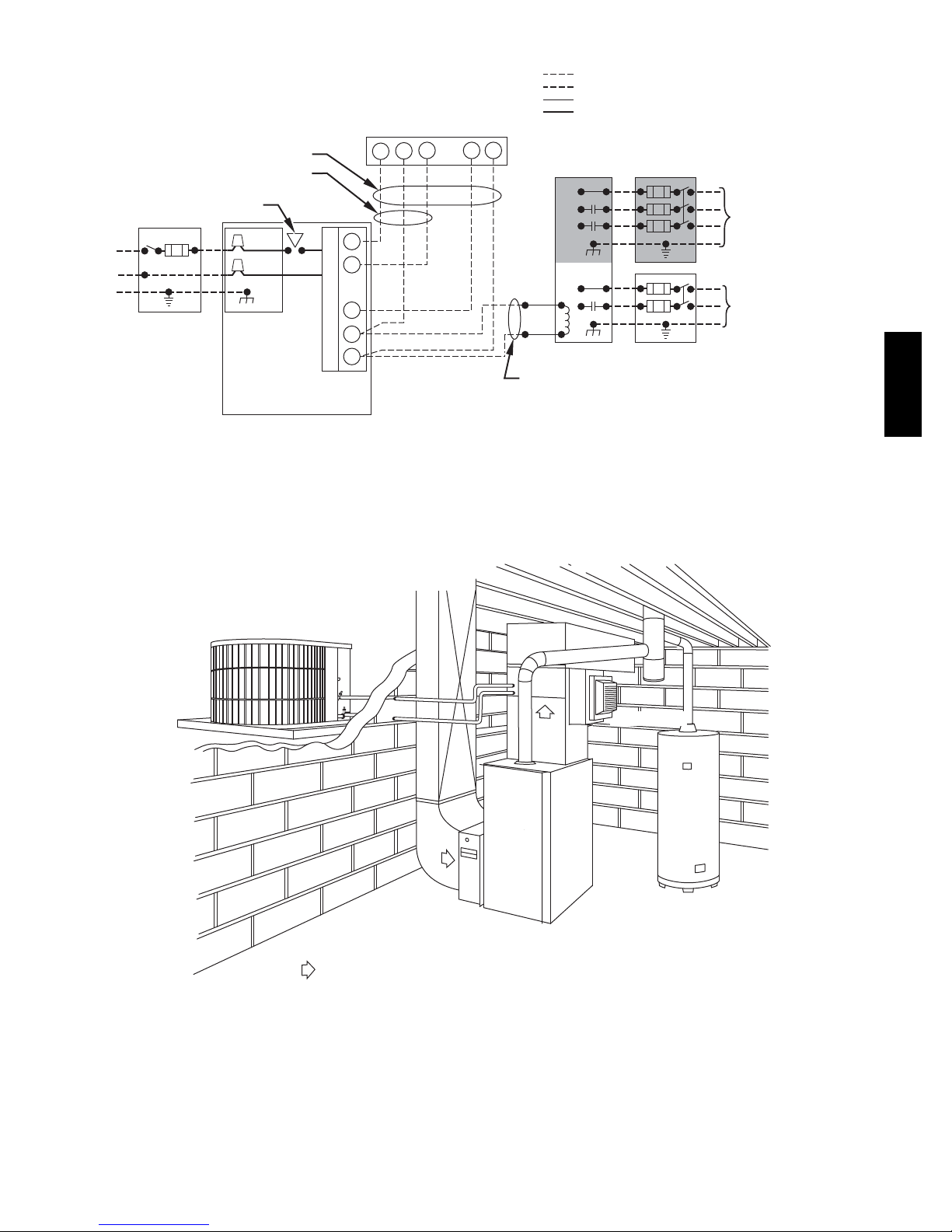

TYPICAL WIRING SCHEMATIC

NOTE 2

FIVE WIRE

THREE-WIRE

HEATING-ONLY

BLOWER DOOR SWITCH

BLK

WHT

GND

115-V FIELD-

SUPPLIED

DISCONNECT

BLK

WHT

GND

AUXILIARY J-BOX

FURNACE

O N

R O

COM

Y/Y2

24-V

TERMINAL

BLOCK

FIELD 24-V WIRING FIELD 115-, 208/230-, 460-V WIRING FACTORY 24-V WIRING FACTORY 115-V WIRING

WCR GY

THERMOSTAT TERMINALS

FIELD-SUPPLIED DISCONNECT

208/230- OR 460-V THREE PHASE

208/230-V SINGLE PHASE

NOTE 1

CONDENSING

GND

UNIT

TWO WIRE

NOTES: Connect Y-terminal in furnace as shown for proper blower operation.

Some thermostats require a "C" terminal connection as shown.

If any of the original wire, as supplied, must be replaced, use same type or equivalent wire.

313AAV/JAV

A99440

TYPICAL INSTALLATION

CONDENSING UNIT

AIRFLOW

ELECTRONIC AIR CLEANER

HUMIDIFIER

GAS-FIRED WATER HEATER

A08177

Page 12

GUIDE SPECIFICATIONS

Gas Furnace 313AAV/JAV

GENERAL

System Description

Furnish a _________________ fixed capacity gas-- fired furnace for use with natural gas or propane (factory authorized conversion kit required for propane); furnish cold air return plenum; furnish external medial cabinet for use with accessory media filter or standard filter.

Quality Assurance

Unit will be designed, tested and constructed to the current ANSI Z

21.47/CSA 2.3 design standard for gas-- fired central furnaces.

Unit will be 3rd party certified by CSA to the current ANSI Z

21.47/CSA 2.3 design standard for gas-- fired central furnaces. Unit will carry the CSA Blue Star® and Blue Flame® labels.

Unit efficiency testing will be performed per the current DOE test procedure as listed in the Federal Register.

Unit will be certified for capacity and efficiency and listed in the latest GAMA Consumer’s Directory of Certified Efficiency

313AAV/JAV

Ratings. Unit will carry the current Federal Trade Commission Energy

Guide efficiency label.

Delivery, Storage and Handling

Unit shall be shipped as single package only and is stored and handled per unit manufacturer’s recommendations.

Warranty (for inclusion by specifying engineer)

U.S. and Canada only. Warranty certificate available upon request.

PRODUCTS

Equipment

Components shall include: slow--opening gas valve to reduce ignition noise, regulate gas flow, with electric switch gas shut--off; flame proving sensor, hot surface igniter, pressure switch assembly; flame rollout switch, blower and inducer assembly, 40va transformer; low--voltage (heating) (heating/ cooling) thermostat.

Blower Wheel and Blower Motor

Galvanized blower wheel shall be centrifugal type, statically and dynamically balanced. Blower motor of ECM type shall be permanently lubricated with sealed bearings, of _______hp, and shall be multiple--speed direct drive. Blower motor shall be soft mounted to the blower scroll to reduce vibration transmission.

Filters

Furnace shall have reusable--type filters. Filter shall be _______ in (x) _______in. An accessory high efficiency Media Filter is available as an option. _______________ Media Filter.

Casing

Casing shall be of .030 in. thickness minimum, pre--painted galvanized steel.

Inducer Motor

Inducer motor shall be soft mounted to reduce vibration transmission.

Draft Safeguard Switch

Draft Safeguard Switch (blocked vent safeguard) shall be factory installed to reduce the possibility of vent gas infiltration due to a blocked or restricted vent pipe.

Heat Exchangers

Heat exchangers shall be a 4--Pass 20 gage aluminized steel of fold--and--crimp sectional design when applied operating under negative pressure.

Controls

Control shall include a micro--processor based integrated electronic control board with at least 11 service troubleshooting codes displayed via diagnostic flashing LED light on the control, a self--test feature that checks all major functions of the furnace within one minute, and a replaceable automotive--type circuit protection fuse. Multiple operational settings available including, separate blower speeds for heating, cooling and continuous fan. Continuous fan speed may be adjusted from the thermostat. Features will also include temporary reduced airflow in the cooling mode for improved dehumidification when a Thermidistatt Control is selected as the thermostat.

Operating Characteristics

Heating Capacity shall be ________ Btuh input; ________ Btuh output capacity.

Fuel Gas Efficiency shall be 80% AFUE. Air delivery shall be ___________ CFM minimum at 0.50 in. wg

external static pressure.

Dimensions shall be: depth __________ in.; width _________ in; height_________in. (casing only). Height shall be_________in. with A/C coil and _____________in. overall with plenum.

Electrical Requirements

Electrical supply shall be 115 volts, 60 Hz, single--phase (nominal). Minimum wire size shall be_________AWG; maximum fuse size or HACR--type designated circuit breaker shall be __________Amps.

Special Features

Refer to section of the product data sheet identifying accessories and descriptions for specific features and available enhancements.

E2008 Bryant Heating & Coo ling Systems D 7310 W. Morris St. D Indianapolis, IN 46231 Printed in U.S.A. Edition Date: 10/08

Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.

Catalog No. PDS313AAV--- 0 3

Replaces: PDS313AAV---02
