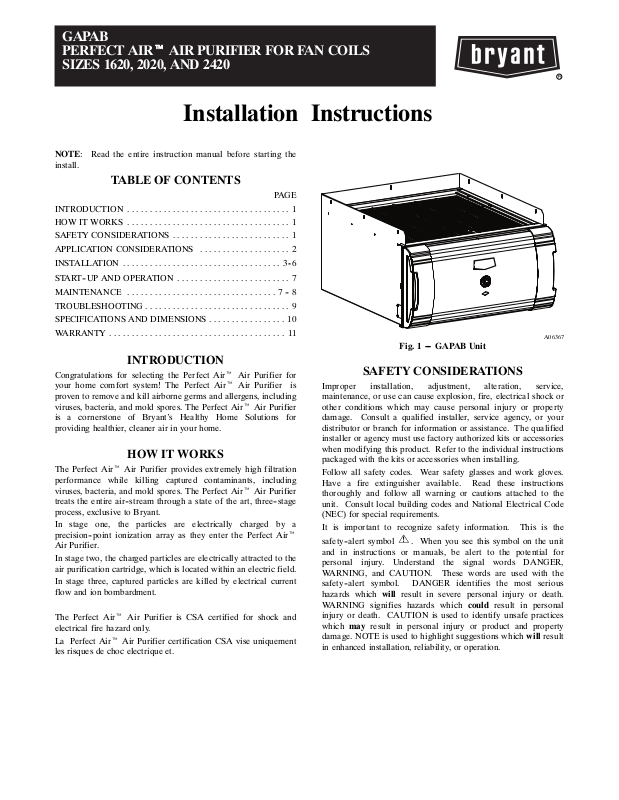

Bryant 2020, 2420 User Manual
GAP AB
PERFECT AIRt AIR PURIFIER FOR F AN COILS
SIZES 1620, 2020, AND 2420
Installation Instructions
NOTE: Read the entire instruction manual before starting the
install.
TABLE OF CONTENTS
PAGE
INTRODUCTION 1....................................
HOW IT WORKS 1....................................
SAFETY CONSIDERATIONS 1..........................
APPLICATION CONSIDERATIONS 2....................
INSTALLATION 3--6...................................
START--UP AND OPERATION 7.........................

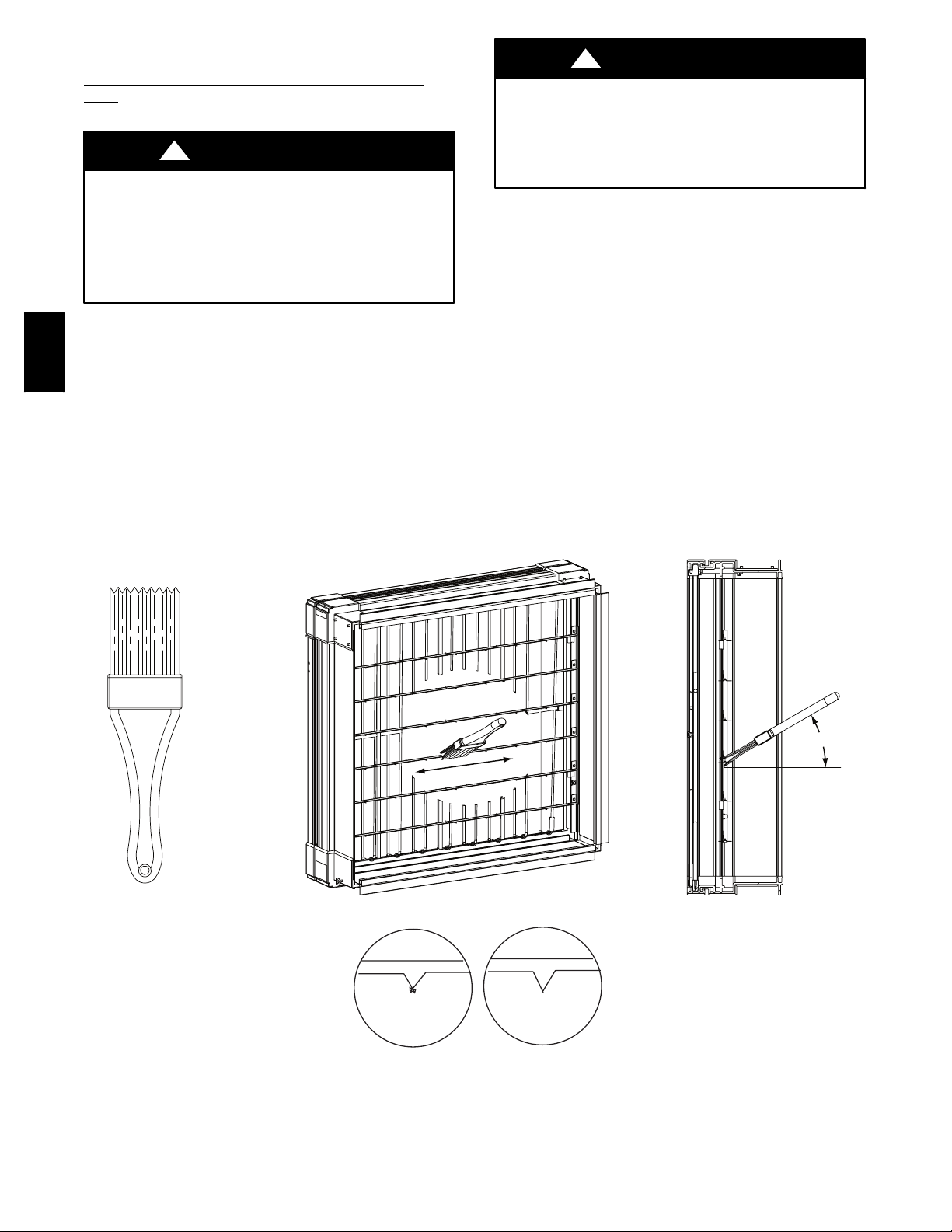

MAINTENANCE 7 -- 8.................................
TROUBLESHOOTING 9................................

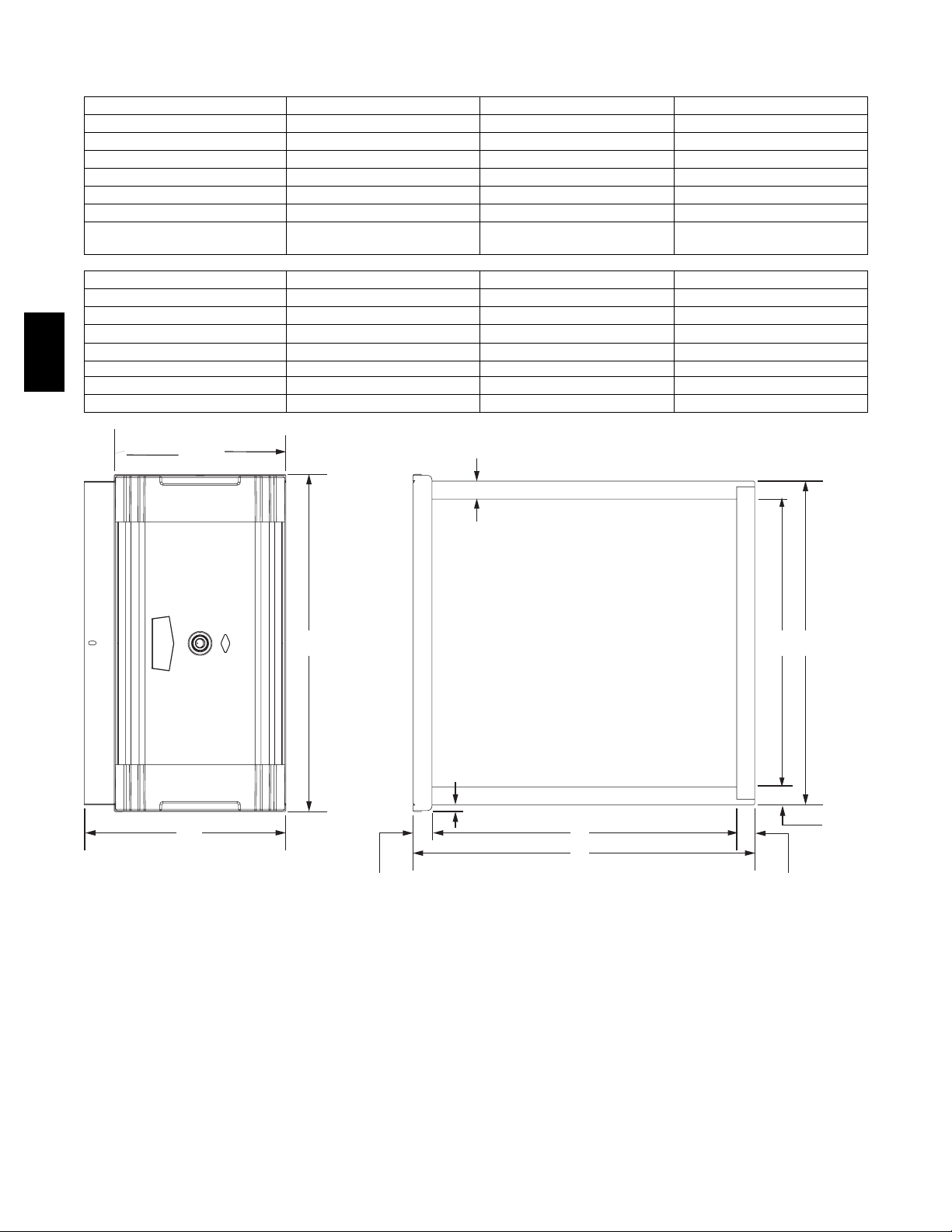

SPECIFICATIONS AND DIMENSIONS 10.................
WARRANTY 11.......................................
INTRODUCTION
Congratulations for selecting the Perfect Airt Air Purifier for
your home comfort system! The Perfect Airt Air Purifier is
proven to remove and kill airborne germs and allergens, including
viruses, bacteria, and mold spores. The Perfect Airt Air Purifier
is a cornerstone of Bryant’s Healthy Home Solutions for
providing healthier, cleaner air in your home.
HOW IT WORKS
The Perfect Airt Air Purifier provides extremely high filtration
performance while killing captured contaminants, including
viruses, bacteria, and mold spores. The Perfect Airt Air Purifier
treats the entire air--stream through a state of the art, three--stage
process, exclusive to Bryant.
In stage one, the particles are electrically charged by a
precision--point ionization array as they enter the Perfect Airt
Air Purifier.
In stage two, the charged particles are electrically attracted to the
air purification cartridge, which is located within an electric field.
In stage three, captured particles are killed by electrical current
flow and ion bombardment.
The Perfect Airt Air Purifier is CSA certified for shock and
electrical fire hazard only.
La Perfect Airt Air Purifier certification CSA vise uniquement
les risques de choc electrique et.
Improper installation, adjustment, alteration, service,
maintenance, or use can cause explosion, fire, electrical shock or
other conditions which may cause personal injury or property
damage. Consult a qualified installer, service agency, or your
distributor or branch for information or assistance. The qualified
installer or agency must use factory authorized kits or accessories
when modifying this product. Refer to the individual i nstructions
packaged with the kits or accessories when installing.
Follow all safety codes. Wear safety glasses and work gloves.
Have a fire extinguisher available. Read these instructions
thoroughly and follow all warning or cautions attached to the
unit. Consult local building codes and National Electrical Code
(NEC) for special requirements.
It is important to recognize safety information. This is the
safety--alert symbol
and in instructions or manuals, be alert to the potential for
personal injury. Understand the signal words DANGER,
WARNING, and CAUTION. These words are used with the
safety--alert symbol. DANGER identifies the most serious
hazards which will result in severe personal injury or death.
WARNING signifies hazards which could result in personal
injury or death. CAUTION is used to identify unsafe practices
which may result in personal injury or product and property
damage. NOTE is used to highlight suggestions which will result
in enhanced installation, reliability, or operation.
A06367
Fig. 1 --- GAPAB Unit
SAFETY CONSIDERATIONS
. When you see this symbol on the unit
!
CAUTION
PERSONAL INJURY HAZARD
Failure to follow this caution may result in personal injury.
Ozone in concentrations above 0.05 PPM may be
hazardous to health.
Des concentrations d’ozone superieures a 0.05 PPM
peuvent etre nocives pour la sante.
APPLICATION CONSIDERATIONS
The Perfect Airt Air Purifier is designed for use in the return air
duct of a forced air heating, cooling, and ventilation system.
Models GAPABXBB1620, GAPABXBB2020 and
GAPABXBB2420 are specifically designed for use in systems
with a fan coil.
Air Conditioning
The Perfect Airt Air Purifier should be installed in a system so
that all the return air is circulated through the air purifier. It
GAPAB
should be located upstream of the fan coil This will help keep the
fan coil clean and prevent condensation from forming within the
Perfect Airt Air Purifier.
Humidifiers
An evaporative humidifier can be mounted upstream of the
Perfect Airt Air Purifier. It is best to install atomizing
humidifiers downstream of the air purifier because hard water salt
deposits and water droplets may damage the air purifier. If an
atomizing humidifier must be mounted upstream of the Perfect
Airt Air Purifier, it should be mounted as far upstream as
possible (at least 6 ft. recommended), and a standard disposable
furnace filter should be mounted between the humidifier and the
air purifier to trap hard water salt deposits and water droplets.
Transitions
If the return air duct or fan coil openings do not fit the Perfect
Airt Air Purifier cabinet openings, gradual transitions are
recommended to reduce air turbulence and maximize efficiency.
No more than 20 degrees (about 4 in. per running ft.) of
expansion should be used on each side of the transition fitting.
Turning Vanes
If the Perfect Airt Air Purifier is installed adjacent to a 90
degree duct elbow, turning vanes should be added inside duct t o
improve air distribution across the face of the air purifier.

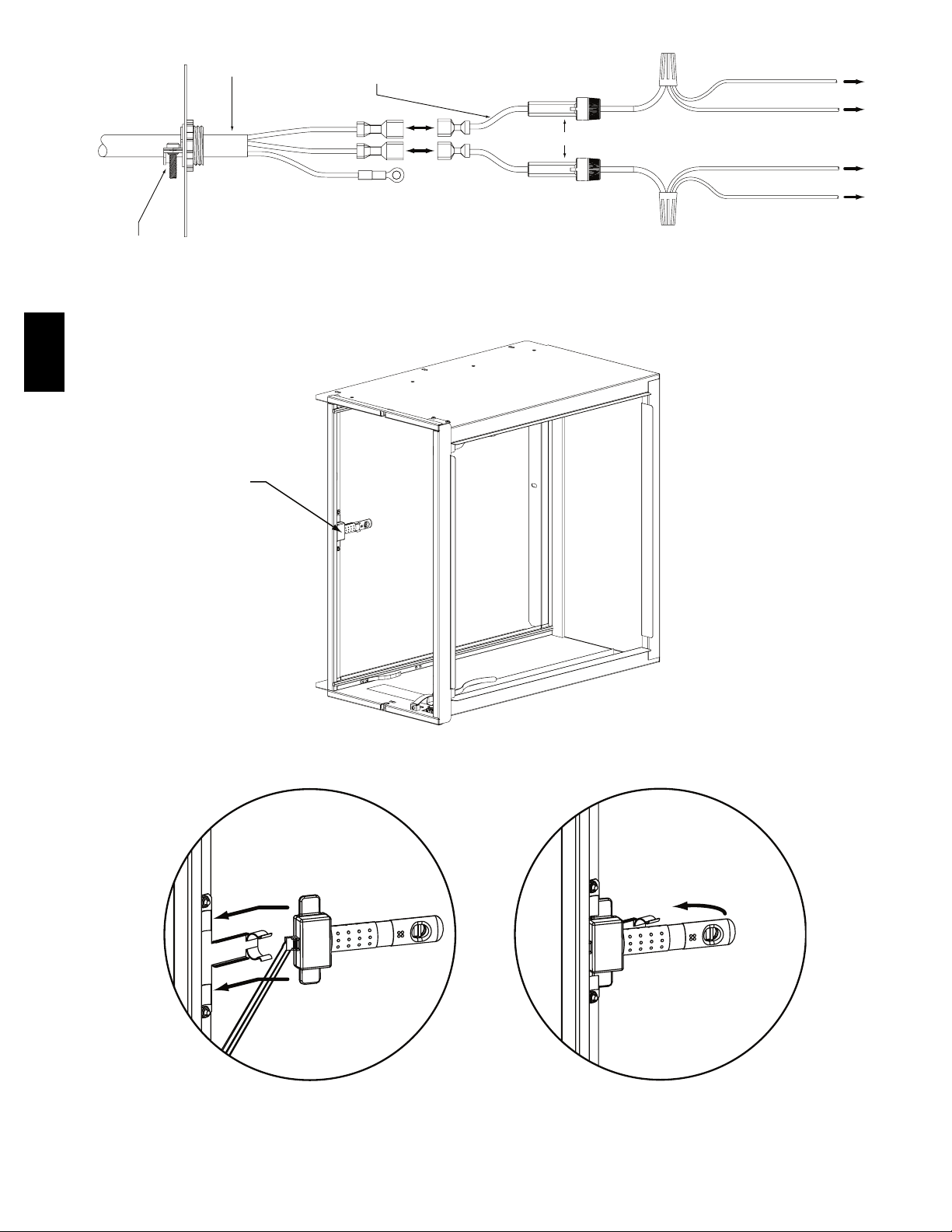

Electrical Power / Air Flow Sensor
The Perfect Airt Air Purifier should only be powered when
airflow is present. This model is designed for use with a fan coil
and is equipped with an air flow sensor which provides power
only when the fan coil blower is operating (See Fig. 2). Perfect
Airt Air Purifier models GAPABXBB1620, GAPABXBB2020,
and GAPABXBB2420 are designed to be powered from a
208/230 VAC power source.
A06387
Fig. 2 --- Air Flow Sensor
Door (x1) Cabinet (x1) Enhancement Module (x1) Safety Screen (x1)
Installation Manual Return Duct Adapters:
Long (x2) / Short (x2)
Air Purification Cartridge (x1)
Air Flow Sensor (x1)
(x2)
(x1)
Installation Components
(in bag attached to power cord)
(x3)
(x2)
(x2)
Fig. 3 --- Perfect Airt Air Purifier Components
2
(x1)
A07112
INSTALLATION
Step 1 —Check Perfect Airt Air Purifier Components
!
WARNING
!
CAUTION
CUT HAZARD
Failure to follow this caution may result in personal injury.
Sheet metal parts may have sharp edges or burrs. Use care
and wear appropriate protective clothing and gloves when
handling parts.
a. Carefully remove all items from the box.
Step 2 —Identify Mounting Location
a. Identify a mounting orientation for the Perfect Airt Air
Purifier in the return air duct (see Fig. 4).
b. Ensure airflow direction through the Perfect Airt Air Pu-
rifier matchesthe arrows on the face of the air purifier cartridge. The Perfect Air Air Purifier or door can be rotated
180_ to accommodate the cabinet orientation.
c. The location of the Perfect Airt Air Purifier should be
readily accessible. Enough room should be provided for
periodic replacement of the air purifier cartridges.
ELECTRICAL SHOCK AND UNIT DAMAGE
HAZARD
Failure to follow this warning could result in personal
injury or death.
Only a trained, experienced service person should install
the Perfect Airt Air Purifier. A thorough check of the
unit installation should be completed before unit
operation. Before performing installation, service or
maintenance operations on unit, turn off all power to
unit. Tag disconnect switch with lockout tag.
GAPAB
Upflow
Airflow
Airflow
Horizontal
Fig. 4 --- Perfect Airt Air Purifier Cabinet Orientation
A06371
Airflow
DownflowA06374
A06517
3
Step 3 —Mount Cabinet
a. Turn off power to the heating and cooling system.
b. Remove the existing fan coil filter and discard. Excessive
system static pre ssure may result if the Perfect Airt Air
Purifier is used with other filtration devices.
c. Remove the air purifier cartridge and enhancement mod-
ule from t he Perfect Airt Air Purifier cabinet.
d. Position the cabinet between the fan coil and return air
duct (see Fig. 4 and 5). A transition duct may be required.
NOTE: The fan coil cabinet screws holding the filter rack should
be used to attach the air purifier cabinet.
e. Gasket tape between the fan coil and the air purifier cabi-
net is already factory installed.
f. Mounting holes are provided for fan coil attachment.
g. Use return duct adapters provided to attach return duct-
work (See Fig. 6).
h. Seal seams with tape or caulking after the Perfect Airt
Air Purifier cabinet has been secured.
GAPAB
!
ELECTRICAL SHOCK AND HIGH VOL TAGE
HAZARD
Failure to follow this warning could result in personal
injury or death.
Before installing or servicing system, always turn off main
power to system. There may be more than 1 disconnect
switch.
!
UNIT DAMAGE HAZARD
Failure to follow this caution may result in equipment
damage.
Cabinets will support a maximum weight of 400 lbs when
installed beneath a vertical fan coil or air--handling unit.
When setting fan coil on cabinet, do not drop it into place.
Position the fan coil correctly on the cabinet to prevent a
corner from slipping down and damaging the cabinet or its
components.
WARNING
CAUTION

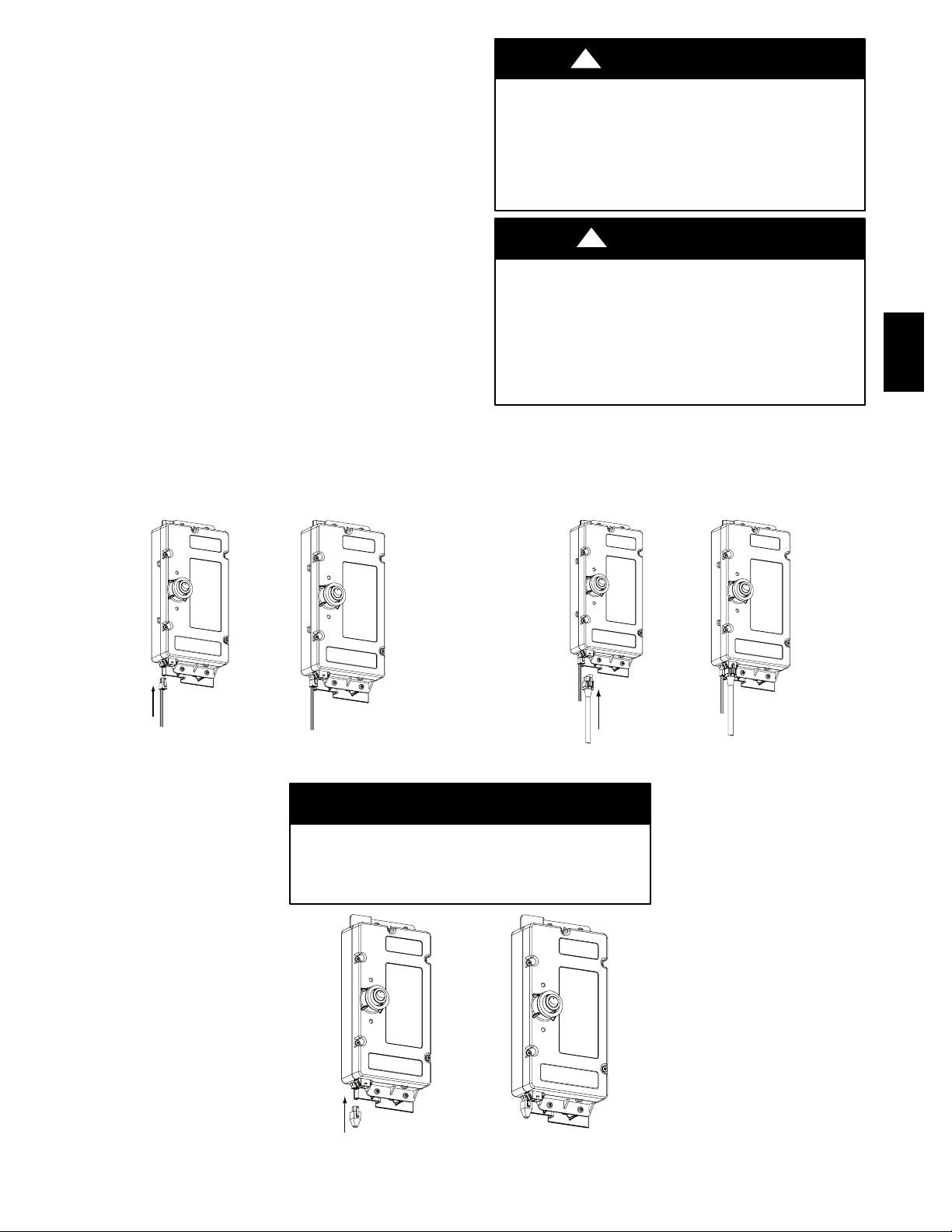

Mounting Cabinet Vertical
Fig. 5 --- Mounting Perfect Airt Air Purifier Cabinet for Fan Coils
Return Duct
Adapters (x4)
A06389
Mounting Cabinet Horizontal
A06392
Fig. 6 --- Use of Return Duct Adapters
4
Return Duct
Adapters (x4)
A06388
