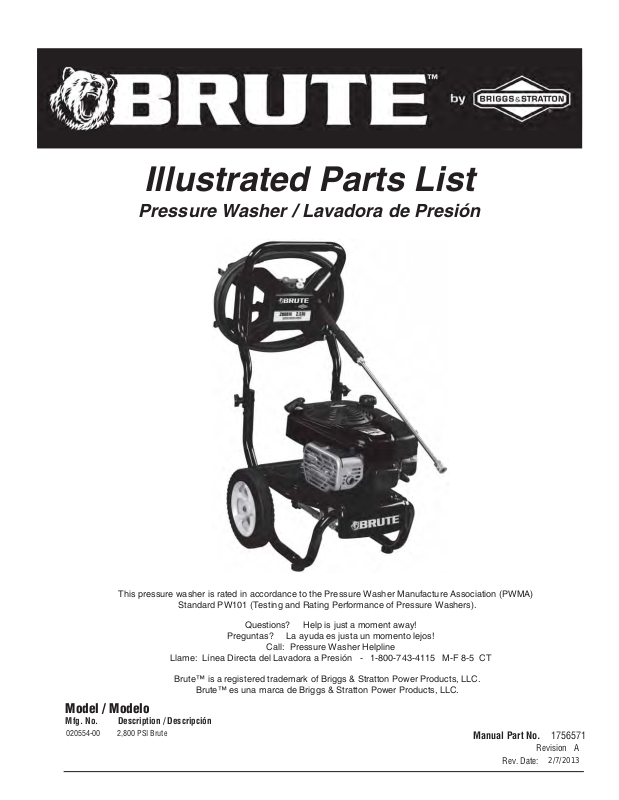

Illustrated Parts List
Pressure Washer / Lavadora de Presión
This pressure washer is rated in accordance to the Pressure Washer Manufacture Association (PWMA)
Standard PW101 (Testing and Rating Performance of Pressure Washers).
Llame: Línea Directa del Lavadora a Presión - 1-800-743-4115 M-F 8-5 CT
Brute™ is a registered trademark of Briggs & Stratton Power Products, LLC.
Brute™ es una marca de Briggs & Stratton Power Products, LLC.
Model / Modelo
Mfg. No. Description / Descripción
020554-00 2,800 PSI Brute
Questions? Help is just a moment away!
Preguntas? La ayuda es justa un momento lejos!
Call: Pressure Washer Helpline
Manual Part No. 1756571
Revision
Rev. Date:
A
2/7/2013
Page 2
Not for
Reproduction
Page 3
Not for
Reproduction
Table Of Content
s
PRODUCT COMPONENTS PAGES
Main Unit ..............................................................................................................................................................
Torque Specification Chart ..................................................................... Inside Back Cover
4
Page 4
Not for
Reproduction
Main Unit
4
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
319522
PART NO. DESCRIPTIONREF.
BASE 1 703860
HANDLE 2 204257AGS
BILLBOARD 3 703859
CLIP -- 195964GS
KIT, QC Nozzles 4 319831GS
NOZZLE, QC Yellow -- 195983ZGS
NOZZLE, QC White -- 195983XGS
NOZZLE, QC Red -- 195983WGS
NOZZLE, QC Black -- 198841GS
PUMP 5 316064GS
VALVE, Thermal Relief 6 208673GS
FILTER, Garden Hose 7 B2384GS
NUT 8 703347
GUN 9 204627GS
EXTENSION, QC 10 207784GS
HOSE 11 196006GS
MOUNT, Vibration 12 192310GS
Footnotes
** To verify your specific engine model, please reference the ID Tag located on your engine. See your local Briggs &
Stratton distributor for parts and service.
The above parts group applies to the following Mfg. Nos.:
020554-00 - 2,800 PSI Brute
PART NO. DESCRIPTIONREF.
KIT, Hardware, Pump Mounting 13 315139GS
KIT, Hardware, Handle 14 311896GS
KIT, O-Rings 15 196002GS
AXLE 16 315134GS
WHEEL 17 315997GS
E-RING 18 192050GS
** ENGINE 900 -----
MANUAL, Operator's (Not Illustrated) -- 319514GS
KEY (Not Illustrated) -- 23139GS
E-RING (Not Illustrated) -- 192050GS
OIL (Not Illustrated) -- 199272GS
PLUG, Hole (Not Illustrated) -- 189332GS
HOSE, Chemical (Not Illustrated) -- A1040DGS
DECAL, Spark (Not Illustrated) -- 208538GS
TAG, Warning (Not Illustrated) -- 194256GS
PUMP SAVER (Optional Accessory) -- 6039
Briggs & Stratton Power Products Group, LLC
Copyright © by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2013
1756571
Page 5
Not for
Reproduction
Page 6
Not for
Reproduction
Page 7
Not for
Reproduction

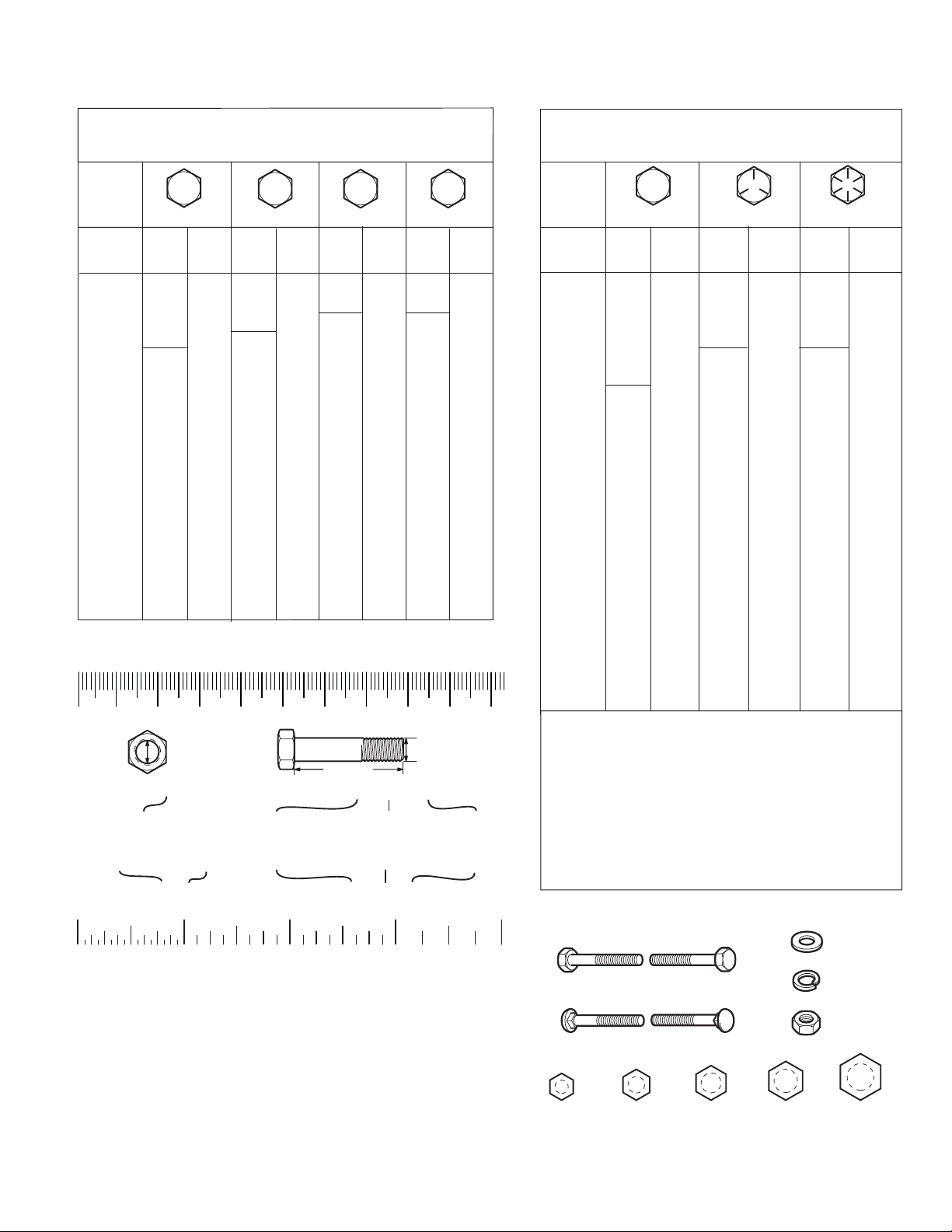

Hardware Identification & Torque Specifications
No
Marks
0
1/4 3/4
1/2
21
1/4 3/4
1/2
1/4 3/4
1/2
1/4 3/4
1/2
4
Torque Specification Chart
FOR STANDARD METRIC MACHINE HARDWARE (Tolerance ± 20%)
Property
Class
Size Of
Hardware
M3
M4
M5
M6 7.3 10.3 12.1
M7 12.1 16.9 19.9
M8 17.7
M10 35 50
M12 61 86.2 103 140
M14
M16 147 210 250 340
M18 202 287 346 470
M20 290 405 486 660
M22 390 559 656 890
M24 497
M27 733 1032 1239 1680
M30 995 1401 1681 2280
M33
M36 1740 2441
M39 2249 3163
The guides and ruler furnished below are designed to
help you select the appropriate hardware.
010
Nut, M8
Thread
Diameter (mm)
Inside
Diameter (in)
Nut, 1/2-16
Class 5.6
in/lbs
ft/lbs
5.88
13.44
26.4
44.64
5.2
7.7
15
26
42
64
89
126
169
217
320
435
590
759
988
20
5.6
Nm. Nm. Nm.
.56
1.28
2.50
4.3
7.1
10.5
21
36
58
88
121
171
230
295
435
590
800
1030
1340
30
8.8
Class 8.8
in/lbs
ft/lbs
13.44 1.80
30.72 43.44 52.56
60.96
Class 10.9
in/lbs
ft/lbs
19.2 22.92
1.28
2.90
5.97 7.15
5.75
9.9
16.5
24
48
83
101
136 162 220
132
200
275
390
530
708
375
995
1350
1349
1902 2278 3090
1830
2360
3050
50
60
Body Length
40
Screw, M8- 1.25 x 25
Thread
Diameter (mm)
Threads
per inch
Body
Diameter
Screw, 1/2- 16 x 2
10.9
4.10
8.10
14
23
25
34
67
117
185
285
390
550
745
960
1400
1900
2580
3310
4290
80
Diameter
Distance between
threads (mm)
Threads
per inch
3
12.9
Class 12.9
in/lbs
ft/lbs
29
59
840 1140
2935 3980
3798
Body
Nm.
2.15
4.95
9.7
16.5
27
40
81
5150
90 10070
Body
Length (mm)
Body
Length (in)
Torque Specification Chart
FOR STANDARD MACHINE HARDWARE (Tolerance ± 20%)
Hardware
Grade
Size Of
Hardware ft/lbs Nm. ft/lbs Nm. ft/lbs Nm.
8-32
8-36
10-24
10-32
1/4-20
1/4-28
5/16-18 11 15.0 17 23.1 25 34.0
5/16-24 12 16.3 19 25.8 29 34.0
3/8-16 20 27.2 30 40.8 45 61.2
3/8-24 23 31.3 35 47.6 50 68.0
7/16-14 30 40.8 50 68.0 70 95.2
7/16-20 35 47.6 55 74.8 80 108.8
1/2-13 50 68.0 75 102.0 110 149.6
1/2-20 55 74.8 90 122.4 120 163.2
9/16-12 65 88.4 110 149.6 150 204.0
9/16-18 75 102.0 120 163.2 170 231.2
5/8-11 90 122.4 150 204.0 220 299.2
5/8-18 100 136 180 244.8 240 326.4
3/4-10 160 217.6 260 353.6 386 525.0
3/4-16 180 244.8 300 408.0 420 571.2
7/8-9 140 190.4 400 544.0 600 816.0
7/8-14 155 210.8 440 598.4 660 897.6
1-8 220 299.2 580 788.8 900 1,244.0
1-12 240 326.4 640 870.4 1,000 1,360.0
1. These torque values are to be used for all hardware
excluding: locknuts, self-tapping screws, thread forming
screws, sheet metal screws and socket head setscrews.
2. Recommended seating torque values for locknuts:
a. for prevailing torque locknuts - use 65% of grade 5
b. for flange whizlock nuts and screws - use 135% of
3. Unless otherwise noted on assembly drawings, all torque
values must meet this specification.
Common Hardware Types
Hex Head Capscrew
SAE Grade 2 SAE Grade 5 SAE Grade 8
in/lbs in/lbs
19
2.1
20
2.3
27
3.1
31
3.5
66
7.6 8 10.9 12 16.3
76
8.6 10 13.6 14 19.0
30
31
43
49
in/lbs
3.4
3.5
4.9
5.5
NOTES
torques.
grade 5 torques.
41
43
60
68
Washer
4.6
4.9
6.8
7.7
Standard Hardware Sizing
When a washer or nut is identified as 1/2” (M8), this is
Nominal size
the
(8mm metric thread diameter); if a second number is present
it represents the
When bolt or capscrew is identified as 1/2 - 16 x 2” (M8 - 1.25 x 50 ),
this means the
metric thread diameter), the second number,16, represents the
threads per inch, (1.25 thread diameter).
body length of the bolt or screw, 2 inches (50mm).
, meaning the
threads per inch
Nominal size
inside diameter
is 1/2 inch
(distance between threads).
, or body diameter is 1/2 inch (8mm
The final number is the
Carriage Bolt
Wrench & Fastener Size Guide
1/4” Bolt or Nut
Wrench—7/16”
M6 Bolt or Nut
Wrench—10mm
5/16” Bolt or Nut
Wrench—1/2”
M8 Bolt or Nut
Wrench—13mm
3/8” Bolt or Nut
Wrench—9/16”
M10 Bolt or Nut
Wrench—17mm
7/16” Bolt or Nut
Wrench (Bolt)—5/8”
Wrench (Nut)—11/16”
M12 Bolt or Nut
Wrench—19mm
Lockwasher
Hex Nut
1/2” Bolt or Nut
Wrench—3/4”
M14 Bolt or Nut
Wrench—22 mm
Page 8
Not for
Reproduction
