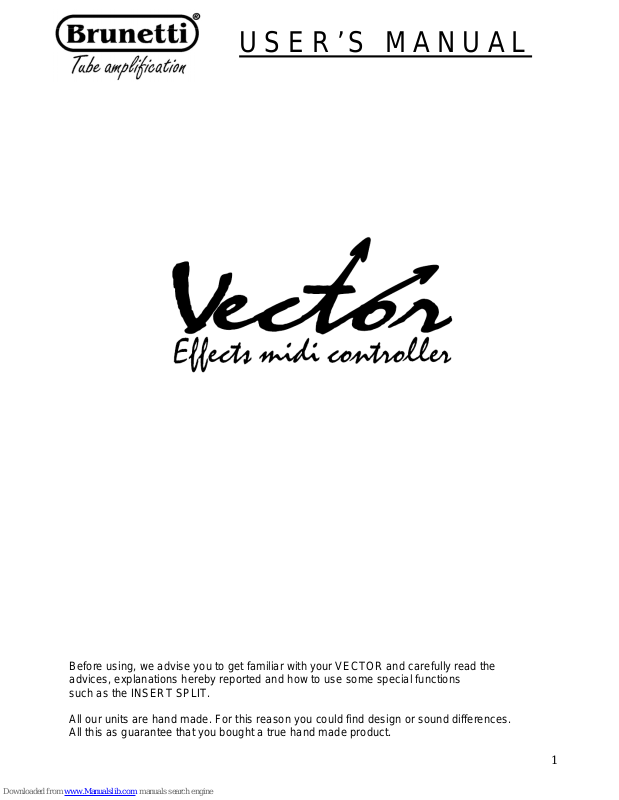

USER’S MANUAL
Before using, we advise you to get familiar with your VECTOR and carefully read the
advices, explanations hereby reported and how to use some special functions
such as the INSERT SPLIT.
All our units are hand made. For this reason you could find design or sound differences.
All this as guarantee that you bought a true hand made product.
1
2
Congratulations for your choice !
Vector is a professional system able to switch and patch stomp boxes.
It has been designed without compromises in the choice of components and circuit solutions.
Vector circuit uses hi-dynamic power buffer, built around class “A” mosfets.
This design delivers sonic hi performances, especially with vintage equipments
Vector’s buffers are supplied by hi voltage. This solution gives very high dynamic,
ten times more than the normal dynamic requests from your equipments.
The result is a sonically transparent signal path, with very low noise distortion and wide
frequency response.
All the critical switchings are made by opto-coupled switches, to avoid any type of “click”
and “pop”.
All the outputs to external systems are buffered and floating by a transformer. This is to
eliminate any type of “ground loop” and noise.
Vector has a small power amp (1W) useful to play with a headphone or a monitor.
This “monitor” section can be used when there isn’t the possibility to connect the
system to external amps.
Vector has the Emulated line out that allows to play directly into the mixer or for
recording session.
Vector logic is built around a microprocessor, that stores up to 28 presets and related
midi program change, and drives the display and the hardware.
There are 6 loops + 1 fix loop. Into the fix loop you can connect the Vectorexp
that adds 6 loops more to the system. Totally you’ll have 12 loops. This extension
is driven via midi.
Another exclusive feature of Vector is the “Insert Split” that physically splits
the effects in two groups. The first is for synthesis effects like distortions, compressors, eq,
etc; while the second is for the modulation effects like delays, chorus, etc.
Vector puts the first group before the input of the amp, while the second group is in the loop
of the amp. In this way you can use the preamp and the loop of the amp together with
pedals. Absolutely unbelievable!!
Vector has three type of power supply for pedal effects, and it is supplied
with set of cable for this purpose.
9VdC (max 500mA),12VdC (max 500mA) power supply for pedals,9VaC (max 1A) for POD, and
other special effects.
Attention: You may supply only a single appliance.
3
TECHNICAL SPECIFICATIONS
- 5 transparent clickless loop.
- 1 transparent clickless loop serial/parallel with MIX control.
- 1 fix loop for VECTOREXP connection.
- Input transparent buffer ( “A” class mosfet hi-dynamic supply ).
- Buffered tuner out.
- Insert Split loop.
- 4 remote switches.
- A, B out buffered, balanced and floating ( Split transformer ).
- Total true Bypass function.
- System Mute function.
- Absolutely very low noise circuitry.
- On board 1W power amplifier for low level speaker.
- Headphone output jack.
- Emulated, balanced and floating XLR out for direct to mixer or recording.
- Midi out ( 28 program change ).
- 4 banks (0 to 3) and 7 presets (0 to 7).
- “Built in” power supply.
- 9VdC (max 500mA),12VdC (max 500mA) power supply for pedals.
- 9VaC (max 1A) for POD, and other special effects.
Attention: You may supply only a single appliance.
- Dimensions : 625 x 175 x 85 mm
- Weight : 4 kg.
VECTOR’S EQUIPMENT
- Supply cable
- Multiple supply cable for foot pedal
- Instruction manual
- Warranty Card
- Three foam stripes useful on a slippery surface
ELECTRIC CONNECTION
-The electric safety and the correct work is guarantee when the
unit is correctly earthed.
-Ensure that the electric voltage supply is the same as indicated on the back label
4
WHAT HAPPEN WHEN YOU TURN ON THE VECTOR
When you turn on the Vector, using the power switch on the rear panel,
the Vector executes a control procedure as follow :
count down on the display : 39 38 27 26 25 14 13 12 01
lighted sequence of the red lights from right to left.
At the end of this procedure you’ll be in “loop mode” and you’ll see
on the display just two red points.
THREE OPERATION MODES
The “STATUS SW” switch, let you move between three
difference operation modes :
LOOP Select in real time one of the six loops.
PRESET Recall one of the preset stored.
STORE Store the selected loops in a preset .

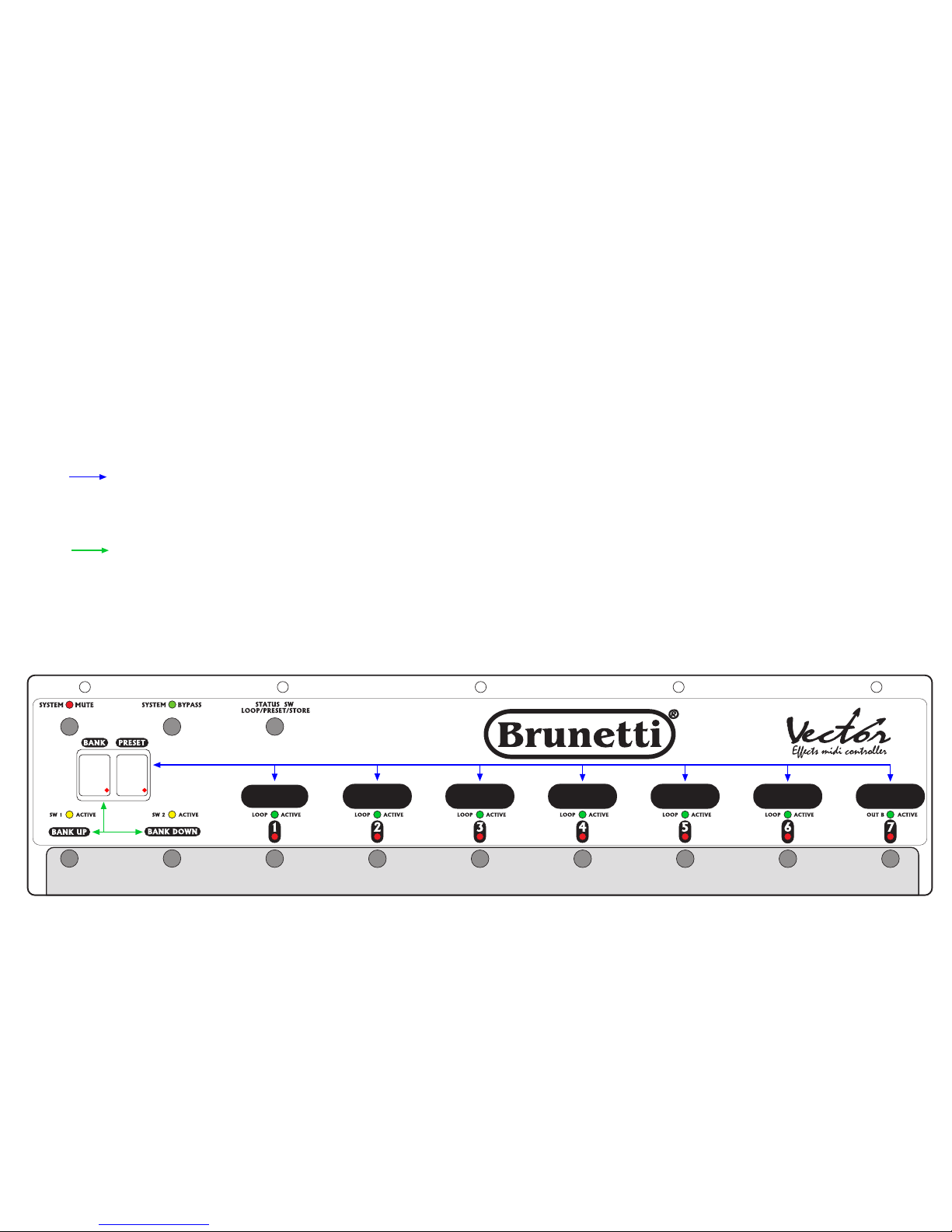

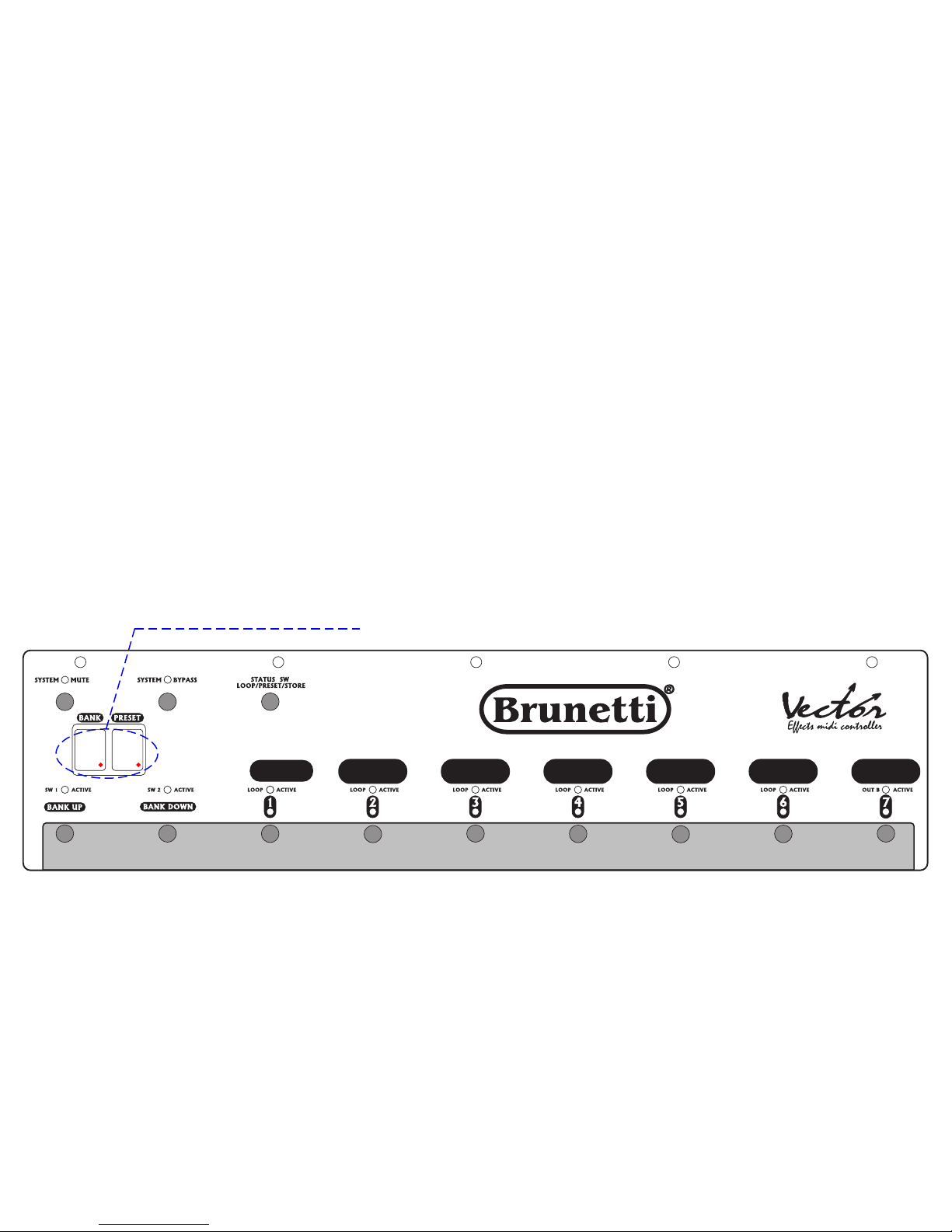

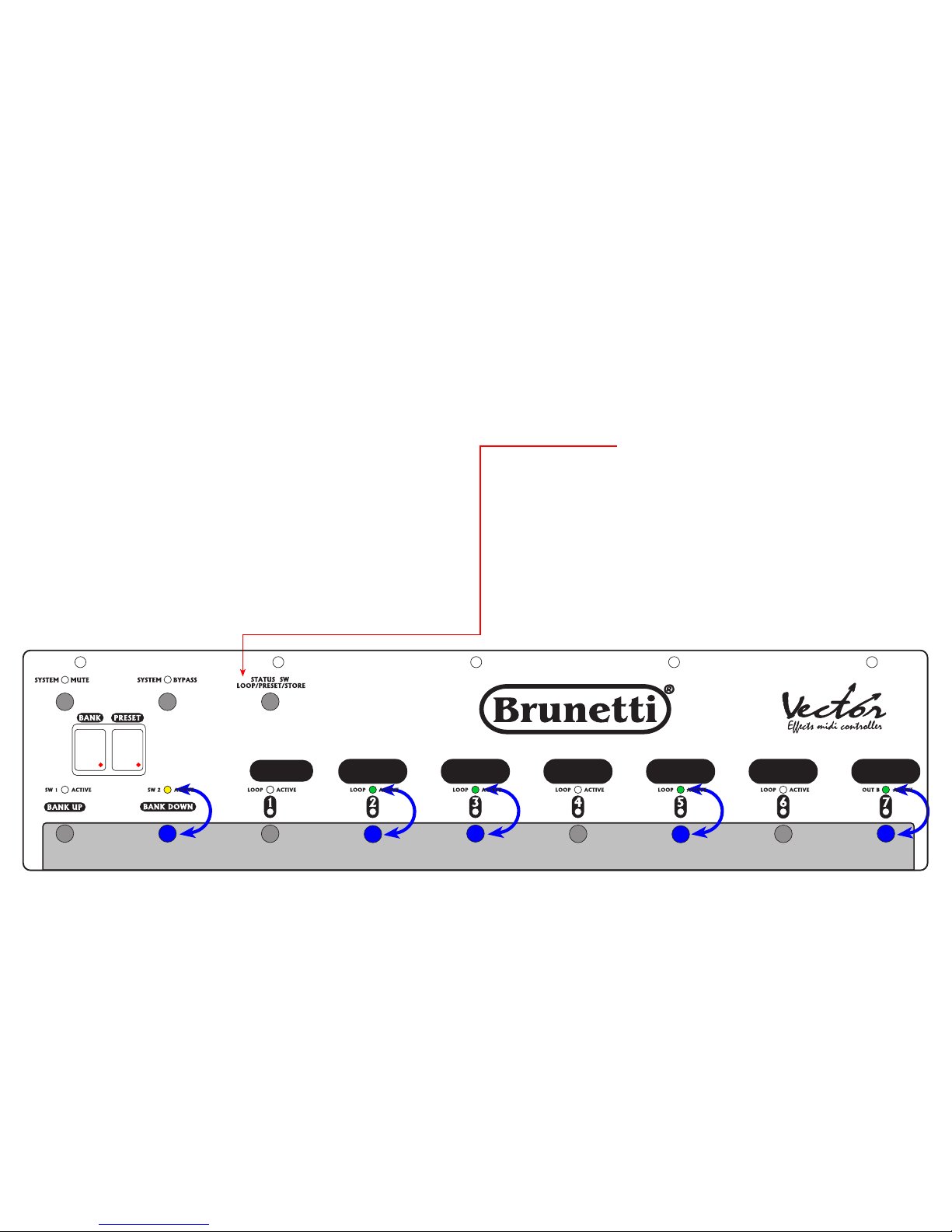

CONTROLS ON THE FRONT PANEL
MUTE Mute all the system,(tuner out always active).
SYSTEM BYPASS Take the guitar signal directly from the input to the A or B main out.
STATUS SW Change mode.
You may select the above three switches anytime.
SWITCHES ON THE “LOOP” MODE
SW1 Remote switch 1 (yellow light)
SW2 Remote switch 2 (yellow light)
LOOP 1 Select loop 1
LOOP 2 Select loop 2
LOOP 3 Select loop 3
LOOP 4 Select loop 4
LOOP 5 Select loop 5
LOOP 6 Select loop 6
OUT B Select the “A” main out, when the green light is off.
Select the “B” main out, when the green light is on.
5
SWITCHES ON THE “PRESET” MODE
BANK UP switch
Let you move up on the four banks ( from 0 to 3).
BANK DOWN switch
Let you move down on the four banks ( from 3 to 0).
Switch 1 Recall preset 01 ; 11 ; 21 ; 31
Switch 2 Recall preset 02 ; 12 ; 22 ; 32
Switch 3 Recall preset 03 ; 13 ; 23 ; 33
Switch 4 Recall preset 04 ; 14 ; 24 ; 34
Switch 5 Recall preset 05 ; 15 ; 25 ; 35
Switch 6 Recall preset 06 ; 16 ; 26 ; 36
Switch 7 Recall preset 07 ; 17 ; 27 ; 37
Each switch may recall 4 presets.
CONTROLS ON THE REAR PANEL
INPUT Guitar jack input
TUNER Tuner out, (always active).

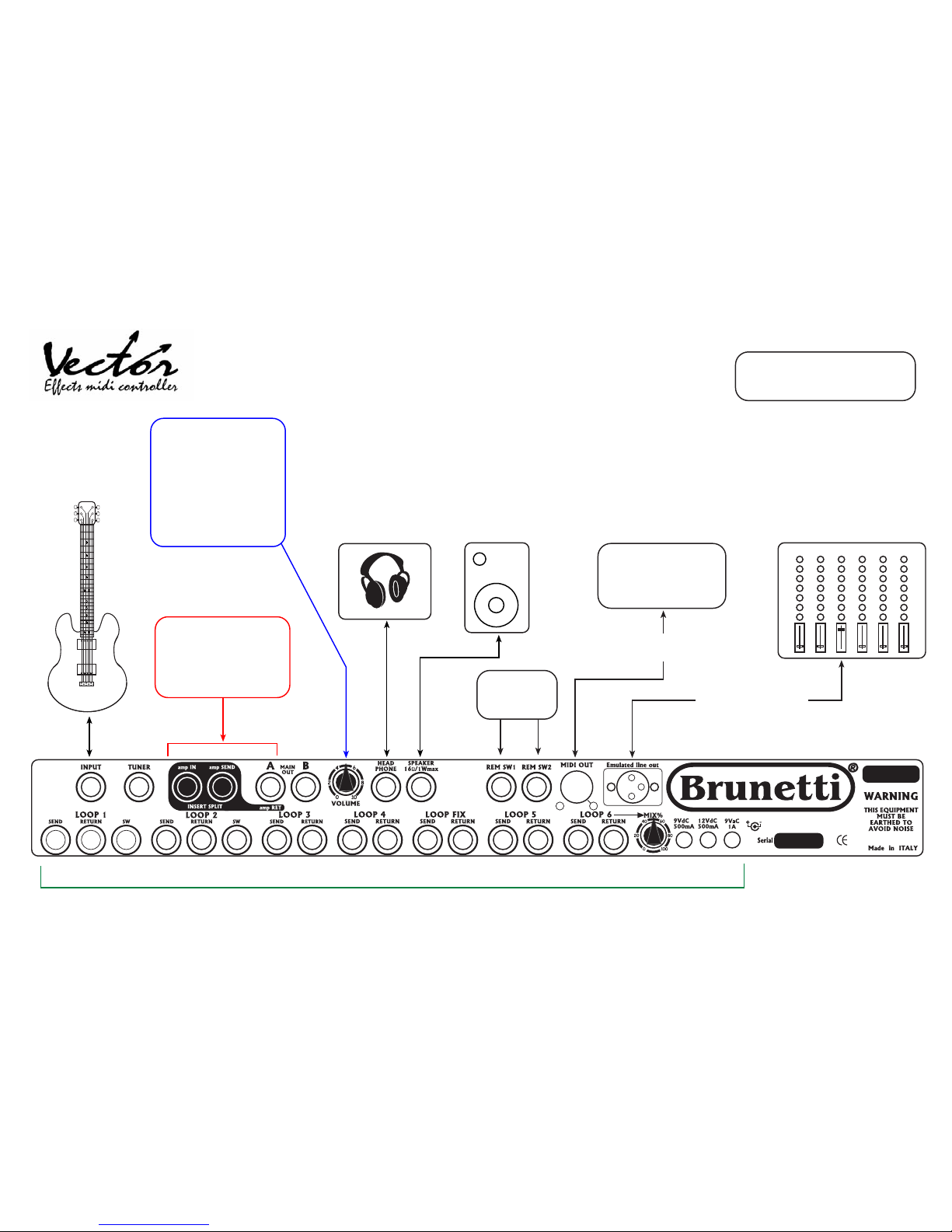

INSERT SPLIT Using an amplifier in to the Insert Split (see example)
amp IN you may split synthesis effects before the input amplifier
amp SEND and modulation effects in the amplifier’s loop.
amp RET The Vector automatically adjusts levels and impedances.
MAIN OUT A A System output
MAIN OUT B B System output
VOLUME Adjusts the volume on outs :
HEAD PHONE, SPEAKER and Emulated line out
HEAD PHONE Head phone output
SPEAKER Output for a monitor ( 16 Ω / 1 W).
REM SW1 Remote switch 1
to control the channel switching of a head.
REM SW2 Remote switch 2
to control the channel switching of a head.
MIDI OUT Send a program change corresponding to the recalled preset,
on the midi channel 1.
6
EMULATED Emulated output (balanced and floating )You can go directly into a
LINE OUT recording system or into a mixer.
LOOP 1 SEND Send loop 1
RETURN Return loop 1
SW Remote switch (active when you select the loop1).
LOOP 2 SEND Send loop 2
RETURN Return loop 2
SW Remote switch (active when you select the loop2).
LOOP 3 SEND Send loop 3
RETURN Return loop 3
LOOP 4 SEND Send loop 4
RETURN Return loop 4
We suggest that you use these four loops for synthesis effects only.
(i.e. compressor, booster, wha etc. ).
LOOP FIX SEND Send loop FIX
RETURN Return loop FIX
The LOOP FIX is an Insert point that can be used in some different ways :
- connect the optional unit VectorExp to have other 6 loops controlled by the Vector (Midi).
- a loop effect always active.
- a volume pedal that sets to zero “0” the volume without cut delay and/or reverb.
LOOP 5 SEND Send loop 5
RETURN Return loop 5
LOOP 6 SEND Send loop 6
RETURN Send loop 6
MIX % Effect mix control, between the effect and the original sound.
We suggest that you use these two loops for modulation effects only.
(i.e. chorus, flanger and delay ).
9VdC Supply for 9VdC units ( max current 0,5 A).
12VdC Supply for 12VdC units ( max current 0,5 A).
9VaC Supply for 9VaC unit ( max current 1 A).
INSERT SPLIT FUNCTION
The INSERT SPLIT is a function of the Vector, unique in its kind,
that lets you manage your foot pedals set-up, in a correct and efficient way.

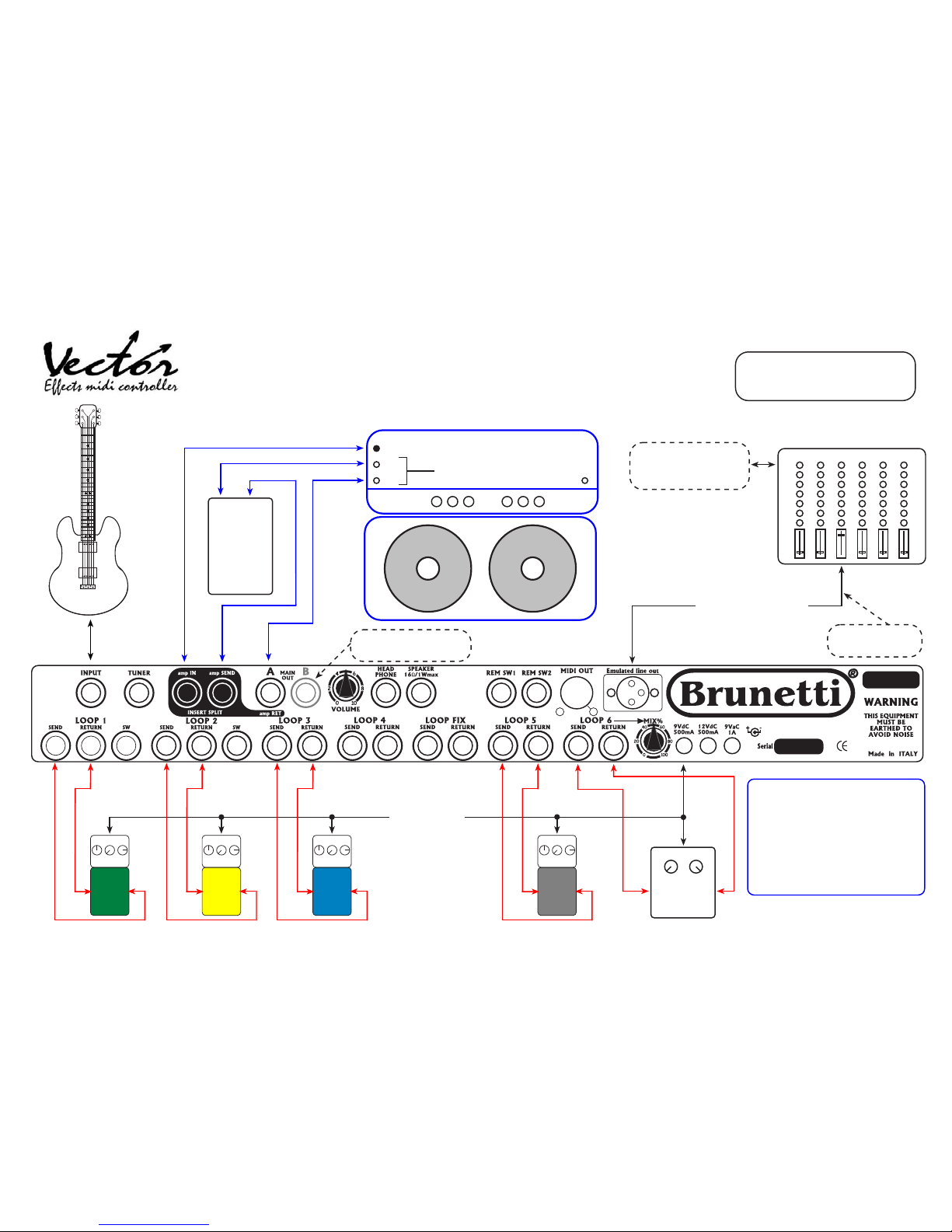

Connecting an amplifier to the INSERT SPLIT ( see example 2 in the following pages)
the Vector puts:
- Loop 1-2-3-4 before the input amplifier
- Loop 5 - 6 in the amplifier’s loop,
with the automatic adjust of levels and impedances.
We suggest that you use loops 1-2-3-4 for synthesis foot pedal effects as :
compressor, wha, distortion and booster,
while Loops 5-6 for modulation foot pedal effects as : chorus, flanger and delay.
On the Vector the INSERT SPLIT area is indicated as follow:
amp IN to the input of the amplifier
amp SEND to the Send of the amplifier
amp RET to the Return of the amplifier

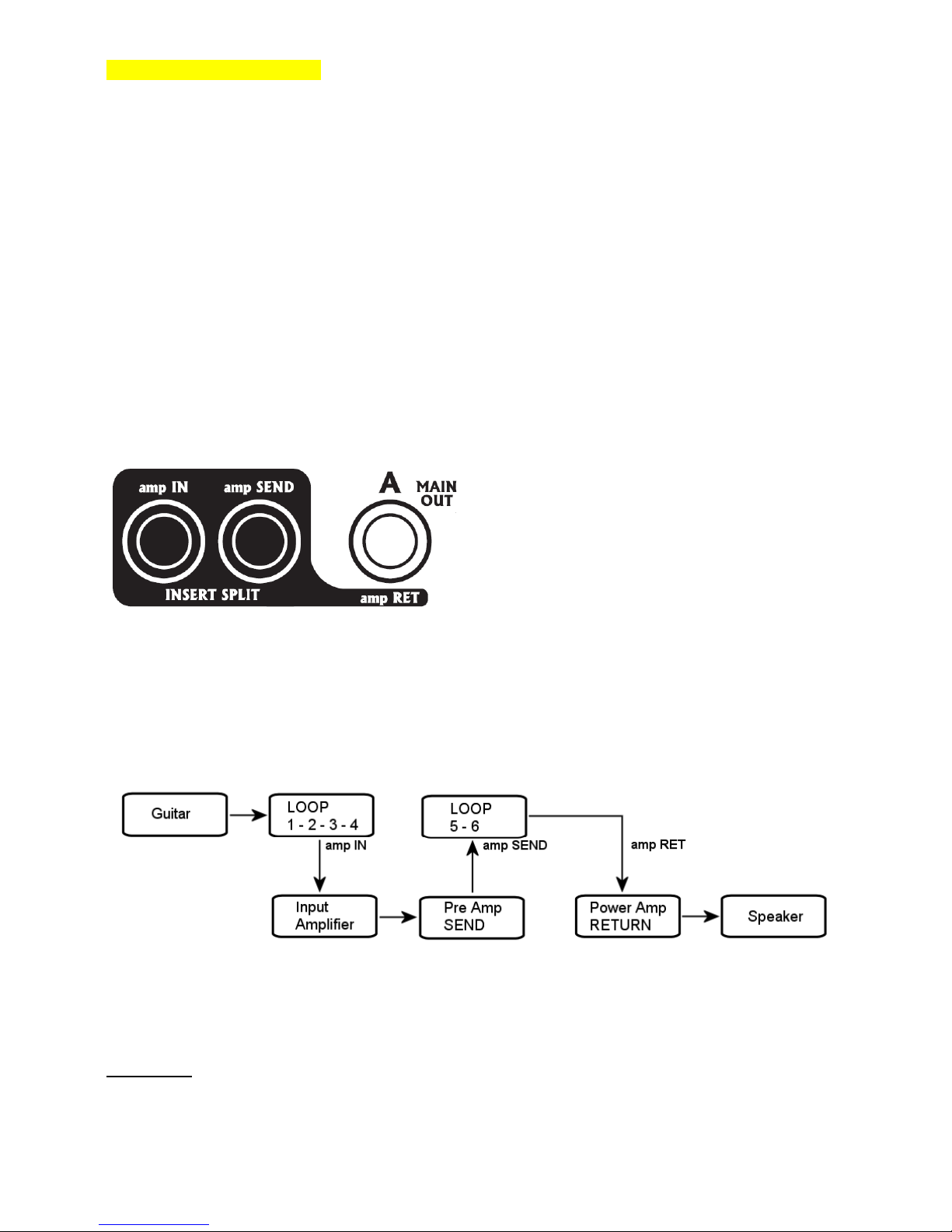

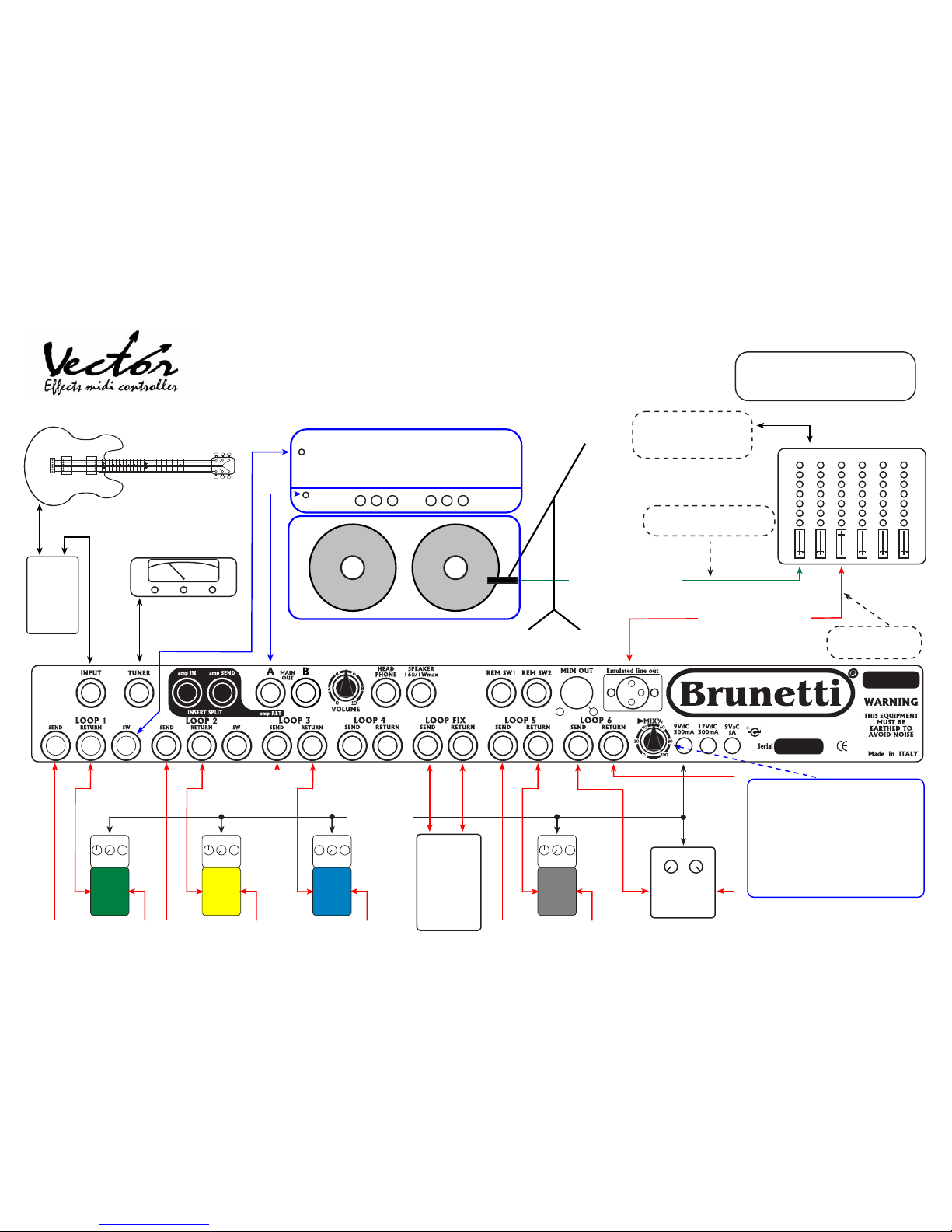

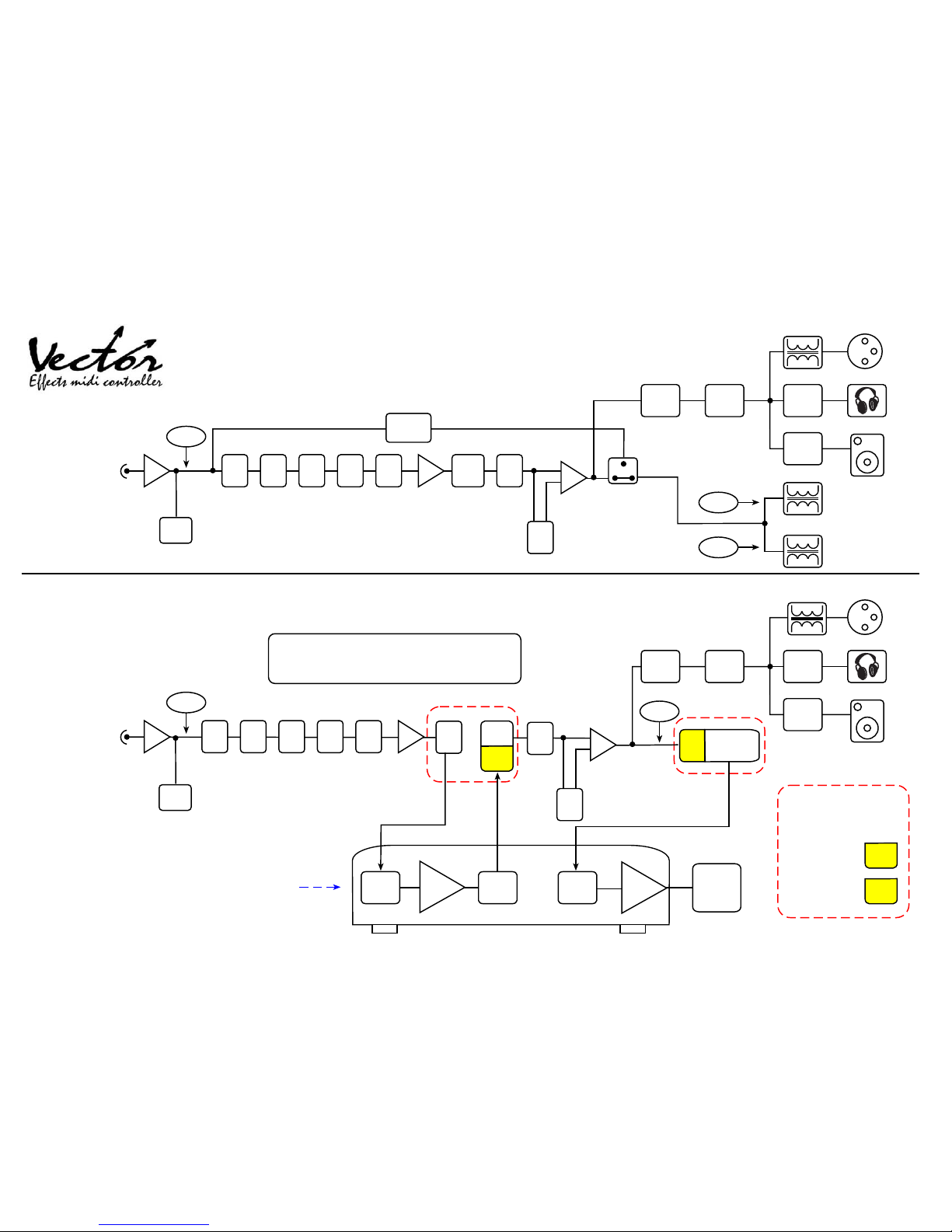

The connection chain will be as shown in the following diagram.
WARNING
Using an amplifier with the Insert Split connection the B system output doesn’t work.
7
8
HOW TO RECALL A LOOP IN REAL TIME ( LOOP MODE)
When you are in Loop Mode,
you can select in real time the following functions :
- remote switch SW1 and SW2
- one or more loops of the six available
- A or B output system
- MUTE function
- SYSTEM BYPASS function

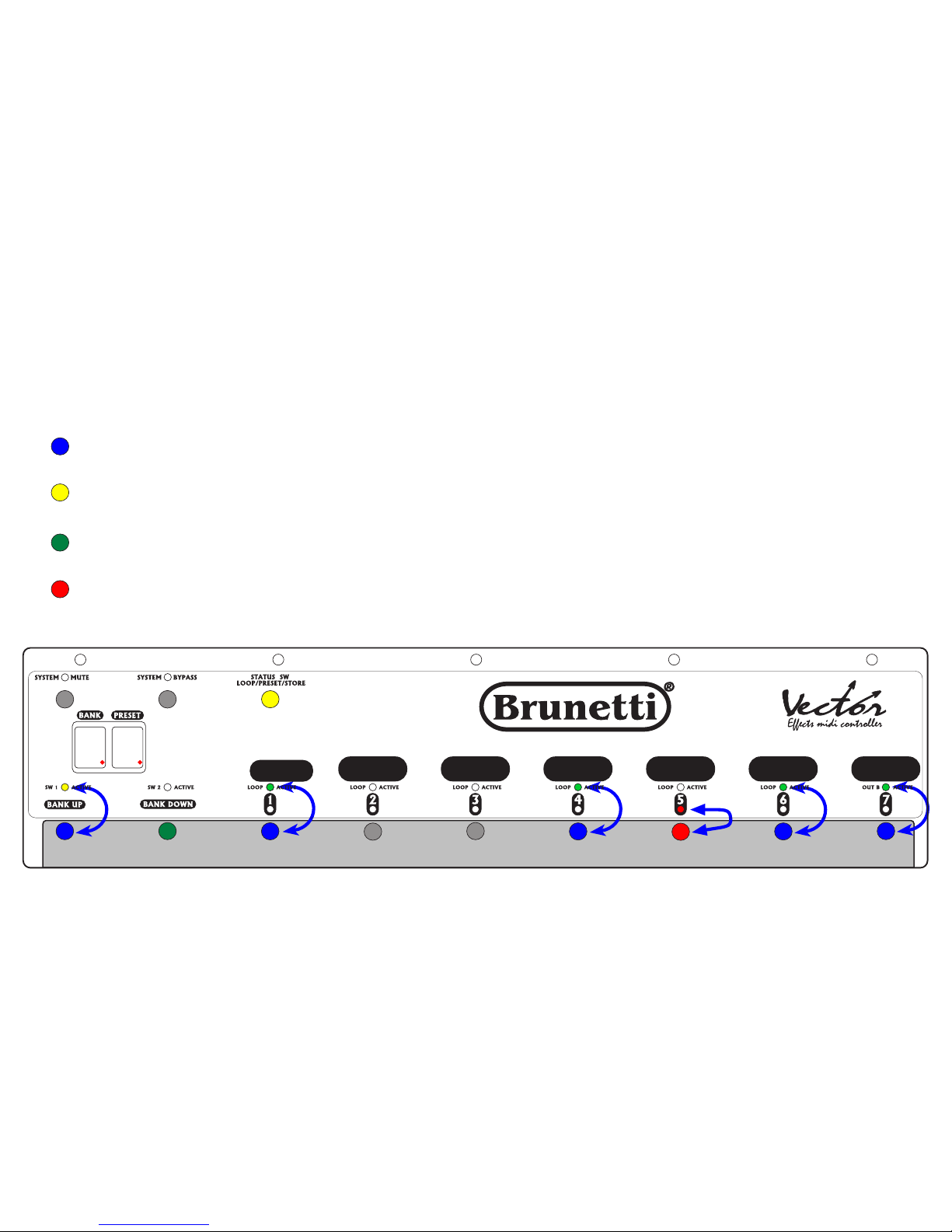

HOW TO STORE A PRESET
You can decide which loops or controls select in a preset.
To store a preset follow the below instructions:
- Turn on the Vector ( Loop Mode).
- Select loops from 1 to 6 ( indicated by green lights on the panel).
- Select SW1 and/or SW2 (indicated by yellow lights on the panel),
i.e. to control the channel switching of a head.
- Select the A or B system by switch no. 7.
When the green light is turned off it means that you selected the A system,
when it is turned on, you selected the B system.
- Push and hold the “STATUS SW” switch for few seconds, the display will blink.
- Use BANK UP and BANK DOWN to select one of the four banks (from 0 to 3).
- Push and hold the preset number switch (from 1 to 7) to assign the preset number into the
selected bank. The display will stop blinking. This operation confirm you the good result
of the store.

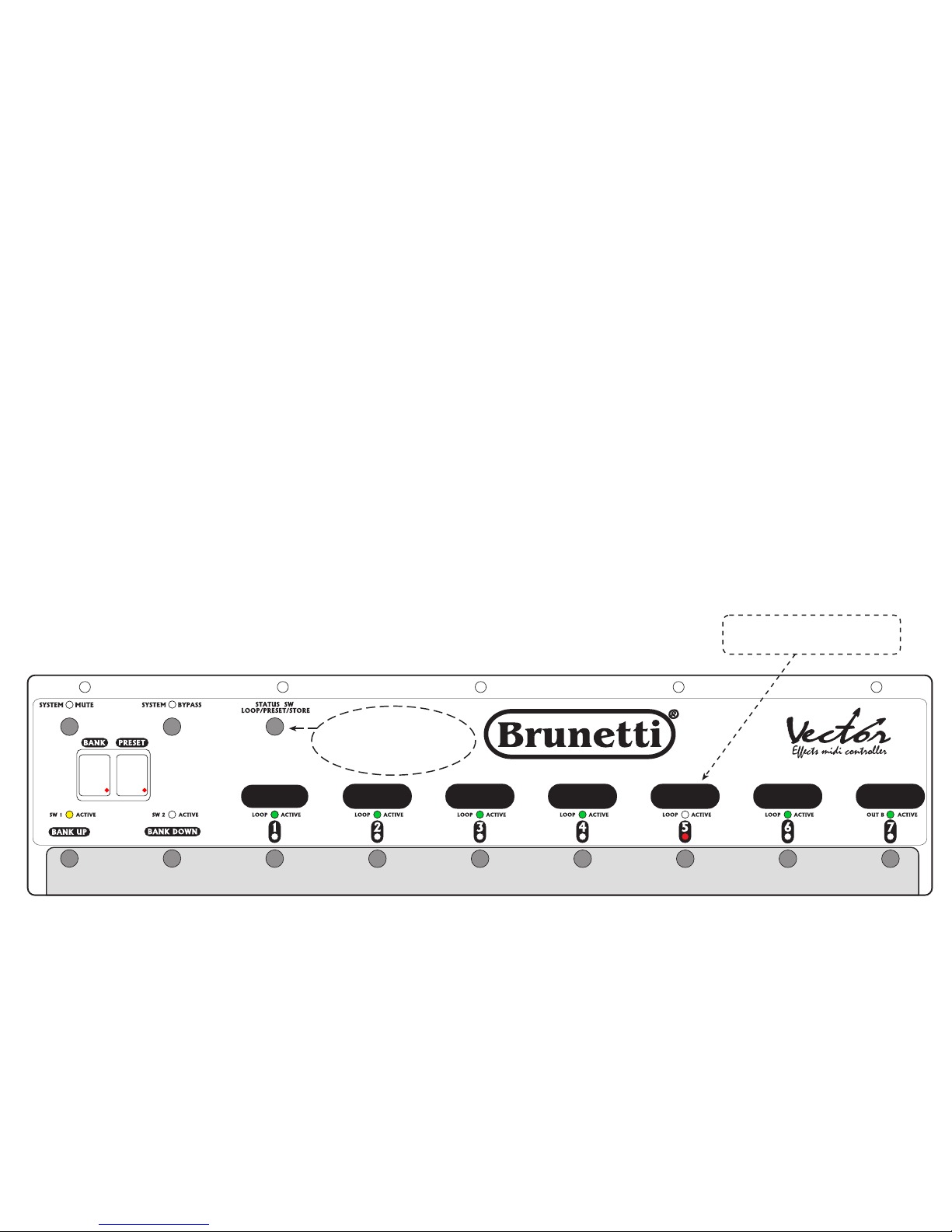

N.B. Every time that you recall a stored preset the Vector shows you which loop
has been selected. ( green and yellow lights).
9
HOW TO RECALL A PRESET
When you have stored a preset (see paragraph before) the Vector passes automatically to the
PRESET mode. Use BANK UP and BANK DOWN to recall the bank number.
Use switches from 1 to 7 to recall the stored preset number.
Note 1
In our electric test, during the production cycle, on the preset 01 we stored
the function : SW1, SW2, Loop 1, 2, 3, 4, 5, 6 and B system output.
Anyway you can change settings on the preset 01.
All the other presets are empty.
Note 2
When you are in LOOP mode you can pass in PRESET mode pressing STATUS SW one time.
Note 3
When you are in PRESET mode if you need to go back in STORE mode, before you have to
pass through the LOOP mode, pressing STATUS SW switch once , after pressing and holding
for the second time this switch for few seconds the display blinks (STORE mode).
HOW TO SET AN EFFECT IN SEND / RETURN MODE ON LOOP 6
Connecting an effect into the LOOP 6, using the control knob ”MIX%”, you can obtain a wide mix
level between the original sound and the effect.
Setting on 0% you have only the original sound while on 100% the sound will be completely
processed by the effect( Serial Mode).
Setting from 0 to 100% you will have a progressive mix between the original sound and
the effect (Parallel Mode).
When you select the Parallel Mode you have to set on zero “0” the Direct ( or Dry) level
on your effect to obtain o good sound.
10
CLEANING
Before any kind of cleaning operation, disconnect the appliance from the electric supply.
- Do not throw water jets directly on the appliance.
- Do not use water steams to clean the appliance.
- Do not use solvents to clean the appliance.
Surface Cleaning system suggested
Satin Aluminium Soft cloth + product for metal parts
Stainless steel Paper + product for chrome parts
Warning
• The manufacturer declines all responsibility for any kind of damage to persons, things
and/or animals resulting from a wrong use of the appliance.
• The appliance ‘s conformity is proved by CE symbol on the rear side.
• The manufacturer reserves the right to make any useful and essential changes to its
products without compromise the main safety and working features.
• Do not use the appliance barefoot.
• Do not touch the appliance with wet or moist hands or feet.
• Do not allow children or incompetents to use the appliance.
• Do not leave inflammable materials near to the appliance.
• Do not pull up the appliance by control knobs.
• Read carefully, compile and deliver the warranty attached to the appliance.
• The appliance’ s repair may be done during the warranty period only by us, in our laboratory,
or by authorized staff, in conformity to the national previsions in force.
• Control periodically all cables supplied with the appliance, if they result damaged, you have to
replace them immediately with another one with the same characteristics.
• In case of damage contact the shop where you bought the appliance.
• The appliance must be earthed in conformity to the national previsions in force.
For any further information and/or support contact us.
Brunetti Marco & C. S.a.s
Via De’ Bonomini, 25/27
I – 41100 MODENA –ITALIA
Phone number : +39 059 / 243404
Fax number : +39 059 / 216464
http://www.brunetti.it
e-mail :
info@brunetti.it commercial info
e-mail :
support@brunetti.it technical info
VECTOR FLOW DIAGRAM
INPUT
VECTOR
x1
Loop
1
Loop
2
Loop
3
Loop
4
Loop
Fix
x1
Insert
Split
Loop
5
Loop
6
Tuner
Send
Return
Cuffia
Monitor
Mute
Mute
Mix
EMU
Volume
Control
System
Bypass
Amp.
1W
Mute
INSERT SPLIT FLOW DIAGRAM
INPUT
VECTOR
x1
Loop
5
Loop
6
Mute
Send
Return
Cuffia
Monitor
Mix
EMU
Volume
control
Amp.
1W
Loop
1
Loop
2
Loop
3
Loop
4
Loop
Fix
x1
amp
In
amp
Send
-20dB
Out A
amp RET
+20dB
Mute
Return
Amp.
Send
Amp.
Pre
Amp.
Input
Amp.
Power
Amp.
X
Speaker
Out A
Out B
INSERT SPLIT
AREA
amp SEND
Attenuation
-20dB
amp RET
Gain
+20dB
Amplifier
(Head or Combo)
Buffer
Buffer
Tuner
Buffer
Buffer
With the INSERT SPLIT connection
the BYPASS function doesn't work
Balanced Out
Balanced Out
2
BANK and PRESET
BANK UP and BANK DOWN switches let you move up and down in the four banks
(from 0 to 3) when you are in PRESET mode.
The bank number appears on the display (left side).
The switches from 1 to 7 let you recall one of the seven presets on each bank.
The preset number appears on the display (right side).
5
EXAMPLE A
REAL TIME FUNCTIONS SELECTION IN LOOP MODE
Press the "a" switch to active the remote switch SW2
Press the "b" switch to select the loop 2
Press the "c" switch to select the loop 3
Press the "d" switch to select the loop 5
Press the "e" switch to active B outlet (green led lighted)
a
b
c
d
e
In LOOP mode select the functions you want to store in the preset.
(i.e. remote switch 1, loop 1-4-6 and B output).
Press and hold the switch STATUS SW for about 3 seconds (the display will blink)
in this way you are in store mode.
Use BANK UP and BANK DOWN to select the bank number from 0 to 3 (i.e. bank 2).
Select the preset number from 1 to 7 (i.e. preset 5). Press and hold the switch 5 for about 3 seconds,
the display will stop blinking as a confirm that the preset has been stored.
EXAMPLE B
STORE A PRESET
a
a
a
a
a
c
a
b
b
c
d
d
2 5
EXAMPLE C HOW TO RECALL A PRESET
After the store operation the Vector passes directly in PRESET mode.
If the Vector is in LOOP mode you have to press STATUS SW switch once to pass in PRESET mode.
Before recalling a preset you have to select the bank number using the BANK UP and BANK DOWN.
Each time you recall a preset, the lighted leds show you the loops and the functions stored.
If we consider the example B the functions lighted will be the following:
2 5
Press the STATUS SW switch
if you desire to go back
in loop mode.
In these areas you can
write your presets.
EXAMPLE D
USING VECTOR AS MIDI FOOT CONTROLLER
Recalling a preset in PRESET mode, Vector generates thru the MIDI OUT, on the midi channel 1,
the Program Change with the same number shown by the display.
All the 28 Program Change can be used to control other midi units.
2
5
Program change number generated
Where not specified
all the jack cables are mono
FUNCTIONS DESCRIPTIONS
-
+
12v/0,3A
Balanced cable
Cannon-Cannon
Cannon-Jack
Program change for :
- Midi channel switching
- Midi effects
Monitor
(16ohm minimum)
Headphone
INSERT SPILT
connection area
Outputs controlled
by this volume :
- HEAD PHONE
- SPEAKER
- Emulated line out
Footpedals control area
Remote
switches
Midi cable
(to Midi In)
Mixer
Guitar
-
+
12v/0,3A
Where not specified
all the jack cables are mono
EXAMPLE 1
Power cable
9V dC
PEDAL 2
OUT
IN
PEDAL 3
OUT
IN
PEDAL 6
Direct Effect
IN
OUT
0%
100%
PEDAL 5
OUT
IN
PEDAL 1
OUT
IN
HEAD
IN
CHANNEL
SWITCH
COMBO
IN
CHANNEL
SWITCH
IN OUT
VOLUME
PEDAL
PEDAL 4
CABINET
Guitar
-
+
12v/0,3A
Where not specified
all the jack cables are mono

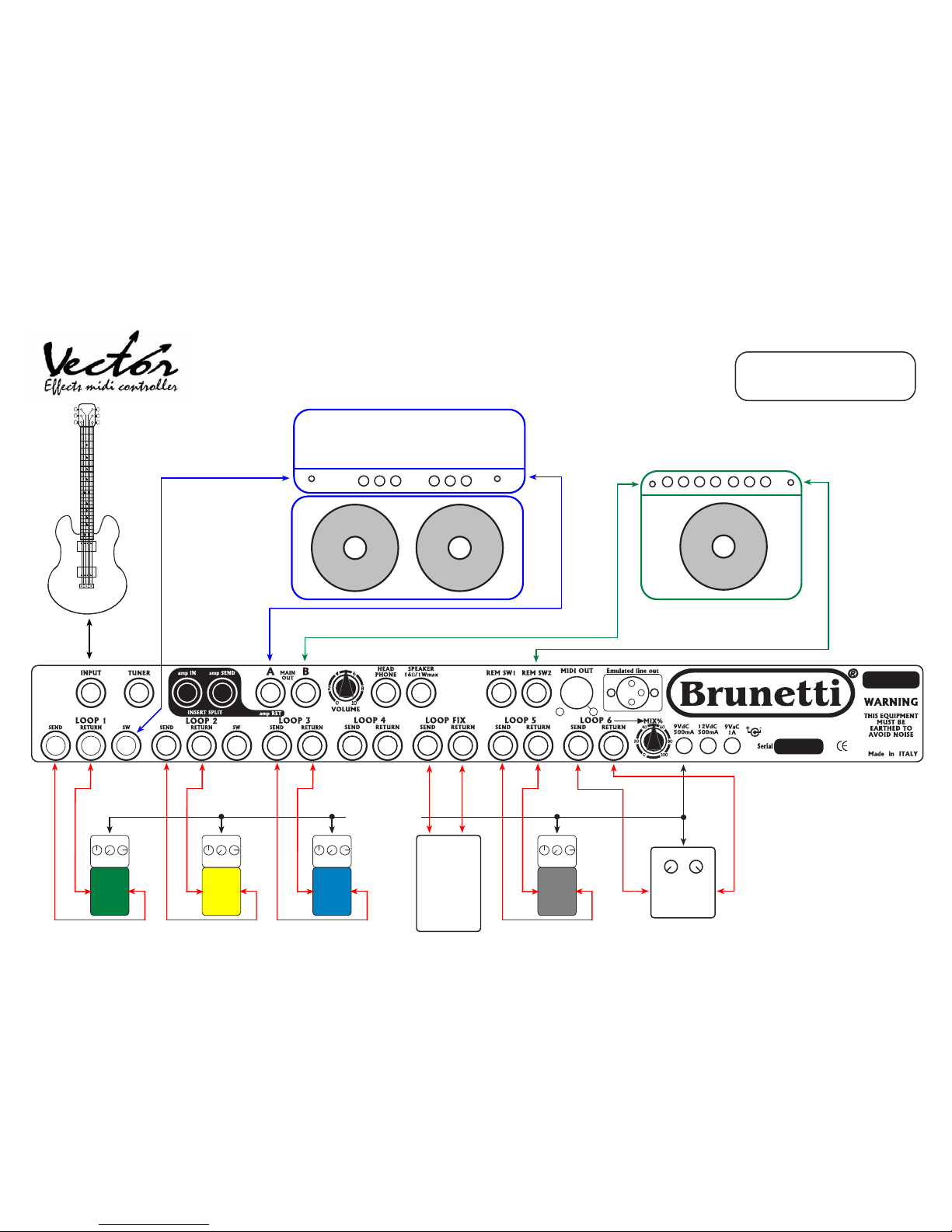

EXAMPLE 2
The B Main Out
doesn't working
Balanced cable
Cannon-Cannon
Cannon-Jack
Suono Diretto
Emulato
INSERT SPLIT CONNECTION
Power cable
9V dC
To theP.A. or
RECORDING
SYSTEM
Using the INSERT SPLIT
function you'll have:
Loop 1-2-3-4 after the guitar
Loop 5-6 in the amp's loop
(send/return).
Loop
PEDAL 2
OUT
IN
PEDAL 3
OUT
IN
PEDAL 6
Direct Effect
IN
OUT
0%
100%
PEDAL 5
OUT
IN
PEDAL 1
OUT
IN
HEAD
IN
CHANNEL
SWITCH
Send
Return
Mixer
CABINET
IN OUT
VOLUME
PEDAL
PEDAL 4
Guitar
-
+
12v/0,3A
Where not specified
all the jack cables are mono
EXAMPLE 3
Midi cable
The preset number on the EFX's display
is the same generated by the Vector on
its MIDI OUT outlet.
This number appears on the Vector's display too.
Power cable
9V dC
Tuner
Headphone
PEDAL 2
OUT
IN
PEDAL 3
OUT
IN
PEDAL 6
Direct Effect
IN
OUT
0%
100%
PEDAL 5
OUT
IN
EFX
IN OUT
THRU
IN
MIDI
SND RET MIDI IN
COMBO
IN
IN
OUT
WHA WHA
PEDAL
PEDAL 1
Guitar
-
+
12v/0,3A
Where not specified
all the jack cables are mono

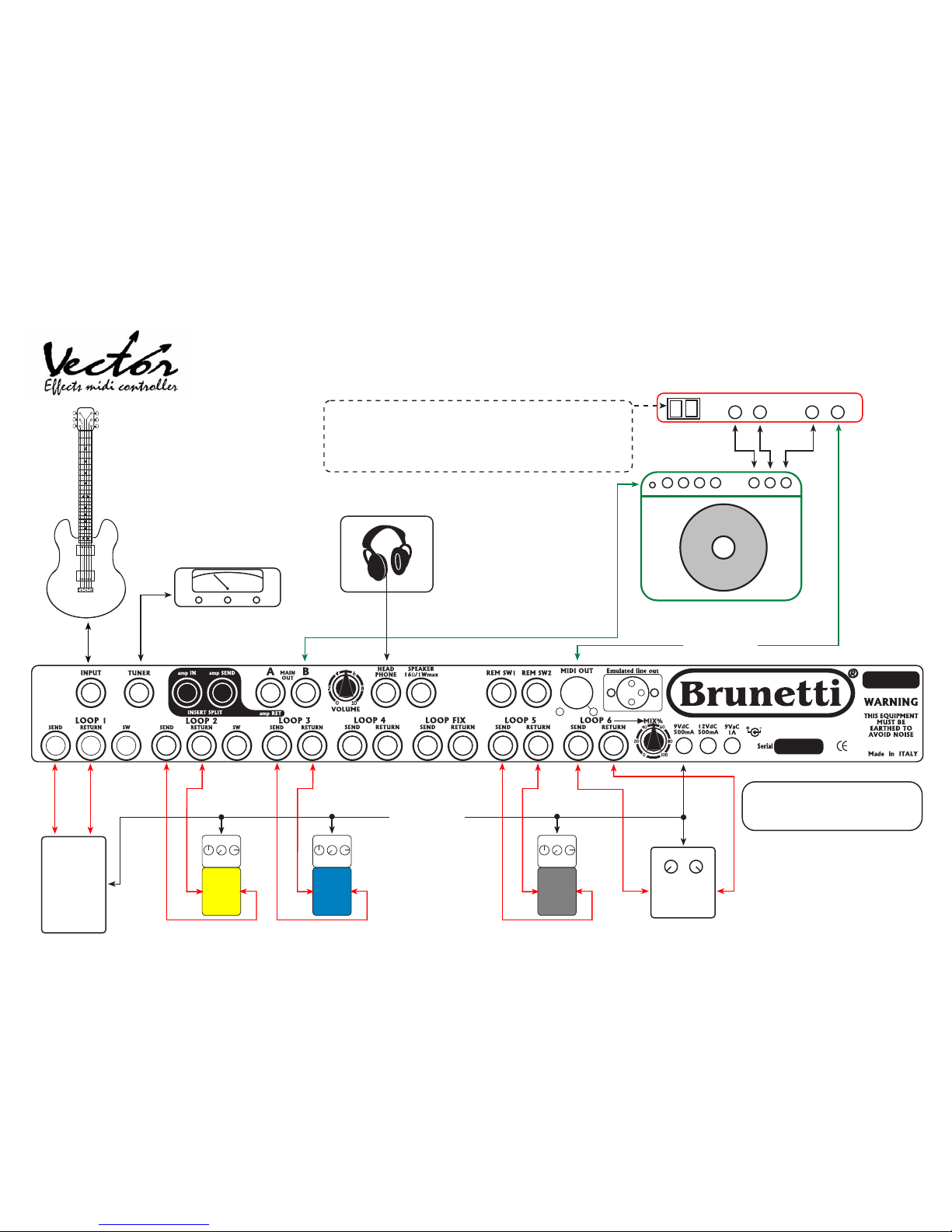

EXAMPLE 4
Emulated
direct sound
SETUP LIVE
To the P.A. or
RECORDING
SYSTEM
Tuner
Cavo alim.
9V dC
Il mix% regola la
miscelazione tra il suono
originale e il suono effettato.
In questo caso se Ë
possibile eliminare la diretta
dall'effetto a pedale.
Balanced cable
Cannon-Cannon
Cannon-Jack
Balanced cable
Cannon-Cannon
Cannon-Jack
Microphoned sound
IN OUT
VOLUME
PEDAL
PEDALE 4
PEDALE 2
OUT
IN
PEDALE 3
OUT
IN
PEDALE 6
Direct Effect
IN
OUT
0%
100%
PEDALE 5
OUT
IN
PEDALE 1
OUT
IN
Mixer
IN
OUT
WHA WHA
PEDAL
Guitar
HEAD
IN
CHANNEL
SWITCH
CABINET
-
+
12v/0,3A
Where not specified
all the jack cables are mono

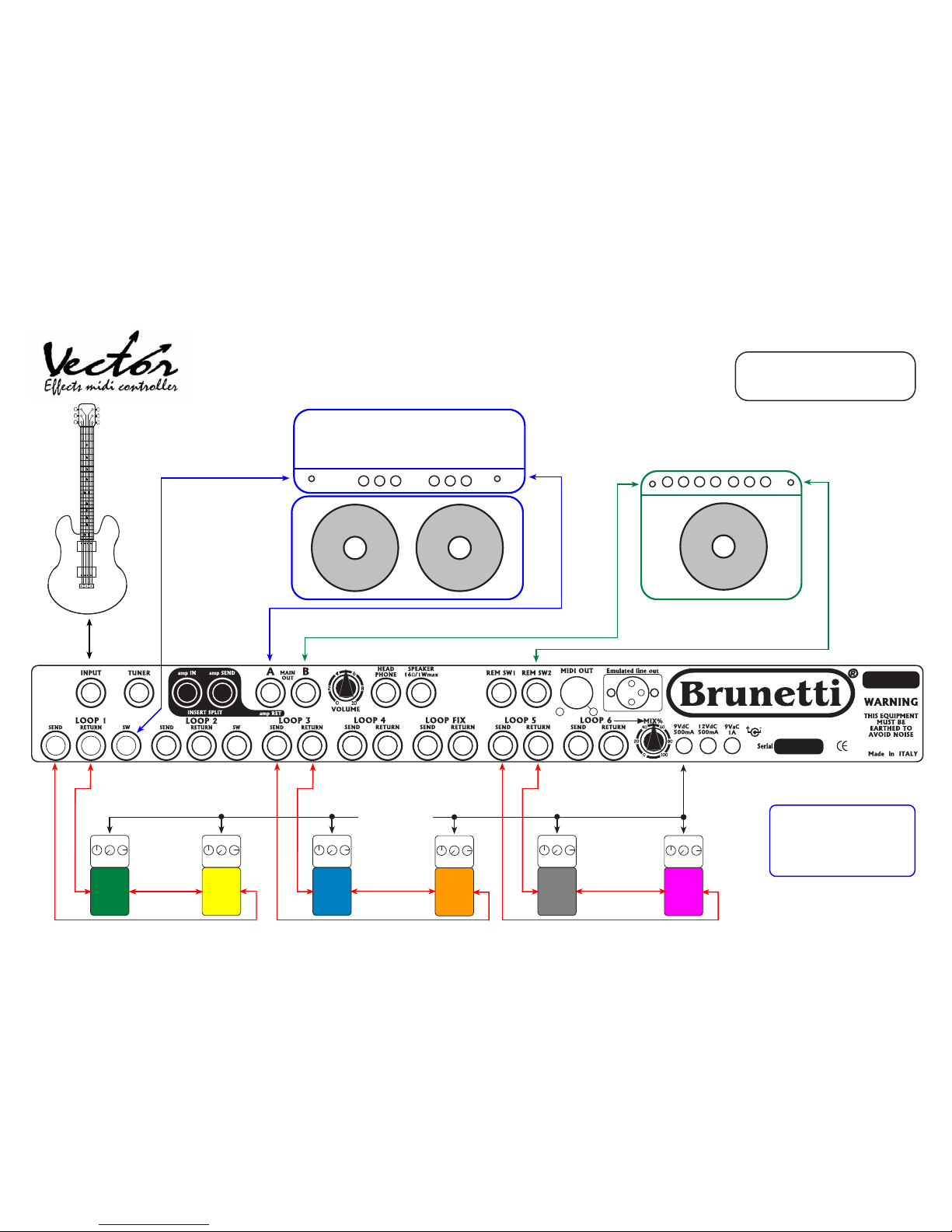

EXAMPLE 5
Power cable
9V dC
You can connect two or
more footpedals effect
into the same loop.
PEDAL 2
OUT
IN
OUT
PEDAL 1
OUT
IN
HEAD
IN
CHANNEL
SWITCH
COMBO
IN
CHANNEL
SWITCH
CABINET
Guitar
PEDAL 3
IN
PEDAL 4
OUT
IN
PEDAL 5
OUT
IN
PEDAL 6
IN
Loading...
