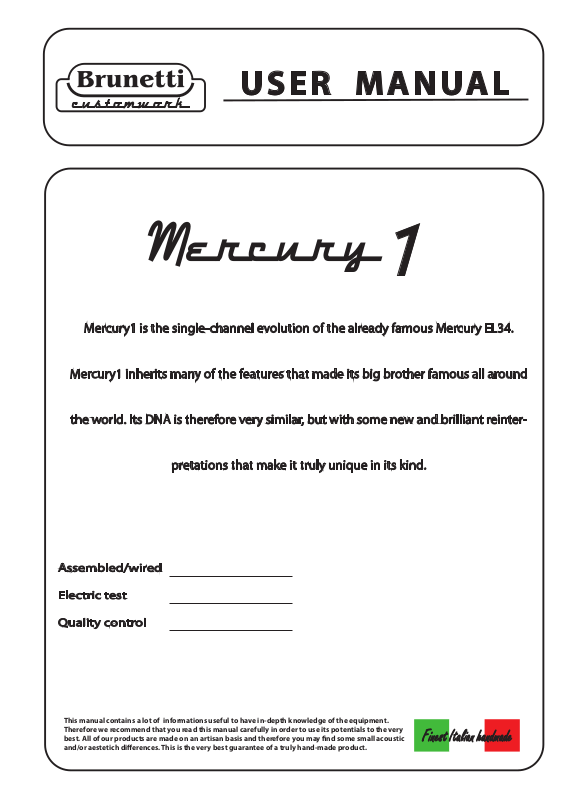

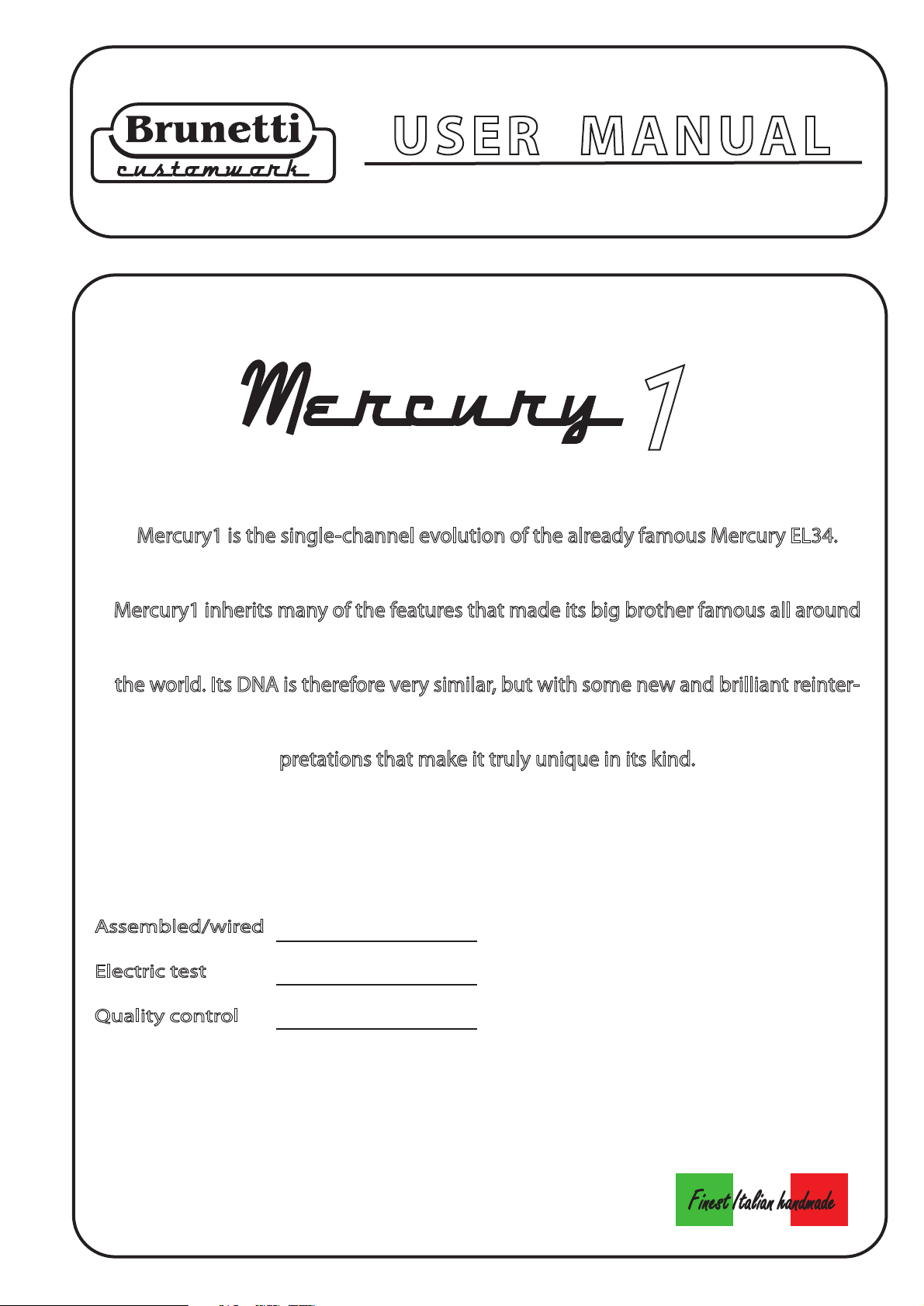

Page 1

USER MANUAL

Mercury1 is the single-channel evolution of the already famous Mercury EL34.

Mercury1 inherits many of the features that made its big brother famous all around

the world. Its DNA is therefore very similar, but with some new and brilliant reinter-

pretations that make it truly unique in its kind.

Assembled/wired

Electric test

Quality control

This manual contains a lot of informations useful to have in-depth knowledge of the equipment. Therefore we recommend that you read this manual carefully in order to use its potentials to the very best. All of our products are made on an artisan basis and therefore you may nd some small acoustic and/or aestetich dierences. This is the very best guarantee of a truly hand-made product.

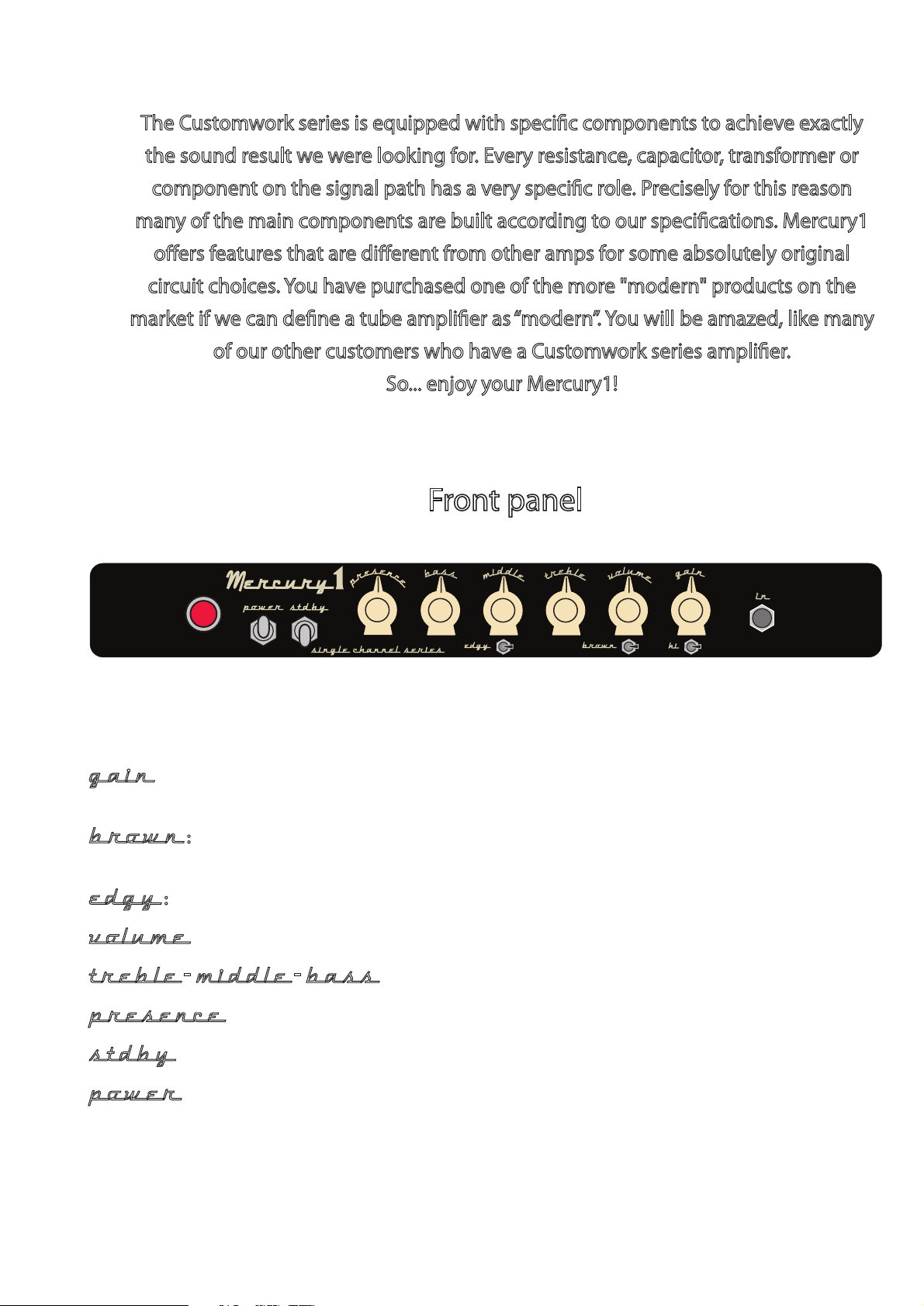

Page 2

The Customwork series is equipped with specic components to achieve exactly

the sound result we were looking for. Every resistance, capacitor, transformer or

component on the signal path has a very specic role. Precisely for this reason

many of the main components are built according to our specications. Mercury1

oers features that are dierent from other amps for some absolutely original

circuit choices. You have purchased one of the more "modern" products on the

market if we can dene a tube amplier as “modern”. You will be amazed, like many

of our other customers who have a Customwork series amplier.

So... enjoy your Mercury1!

Front panel

single channel series

edgy brown

gain : Controls the amount of gain of the pre-amp stages. You can obtain sounds ranging from

clean to crunch even pushed, up to the extreme super-lead Plexi style with the hi switch inserted

brown : Changes the distortion structure. With the switch to OFF, the sound is more balanced

and dened; with the switch to ON, harmonics and sound are richer at the ends of the spectrum

edgy : Increases high frequencies denition volume : Power amp volume control. It works after the eects loop treble - middle - bass : Equalization controls. They act softly and eectively presence : Increases the medium to high frequencies. Useful to emphasize the solo parts stdby : ON / OFF switch to play power : Main ON/OFF switch

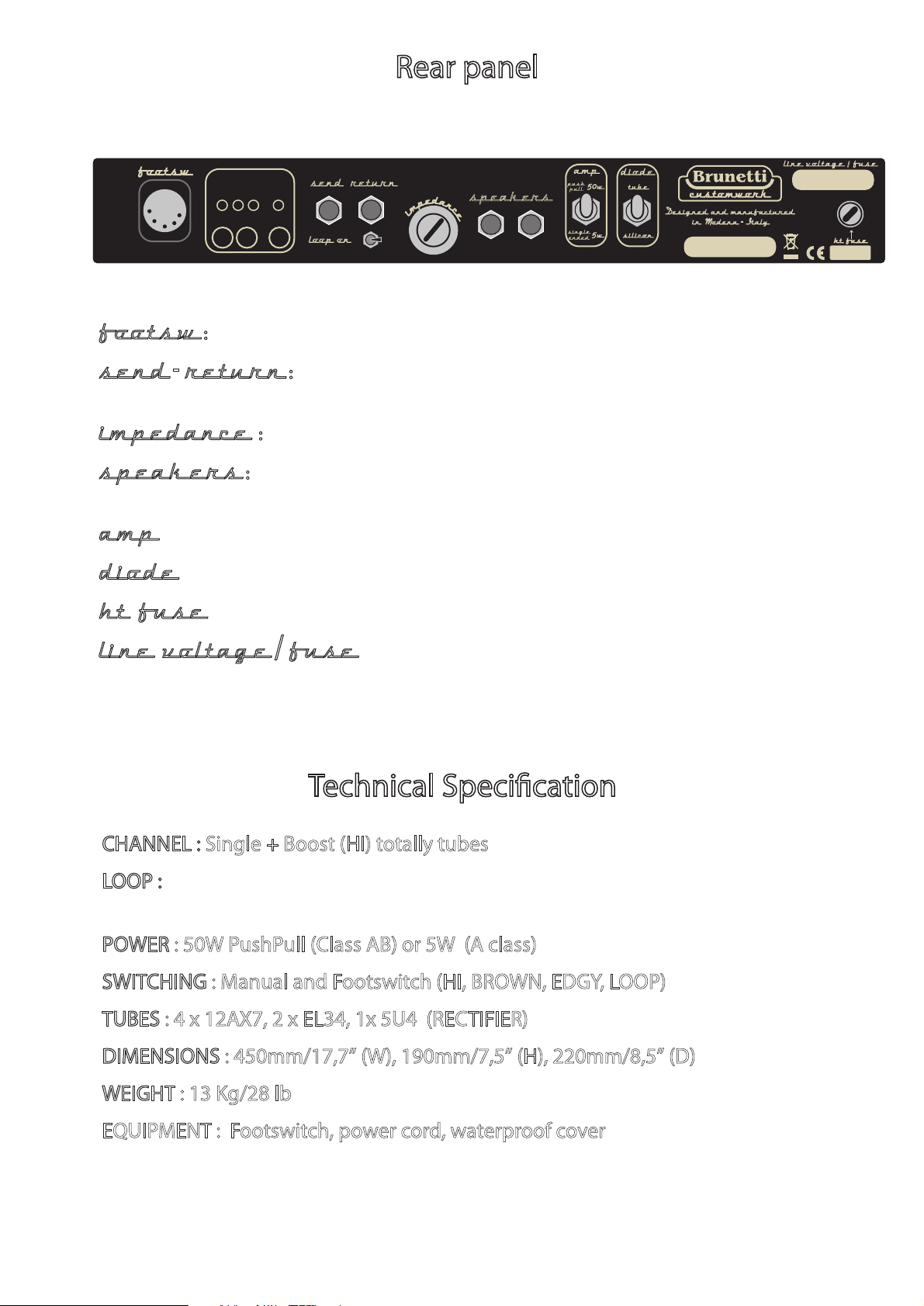

Page 3

Rear panel

line voltage / fuse

footsw

TUBES CHART

4 x 12AX7

PRE PRE LOOP PI

2 x EL34 5U4

send return

loop on

4816

speakers

amp

push

pull

single

ended

50w

diode

tube

Designed and manufactured

in Modena - Italy

silicon

in Modena - Italy

line voltage / fuse

ht fuse

footsw : L Connection to the footswitch send - return : Serial buered tube loop. Spill over function implemented, you’ll avoid to

have the eects cue killed. True bypass

impedance : Output impedance selector speakers : Paralleled outputs to speakers systems. The total impedance is the parallel result

of the value of each speakers system.

amp : Selects the working power amp work class and output power. diode : Selects the power supply rectication mode: Tube or silicon diodes. ht fuse : High voltage fuse protection. line voltage / fuse : Indicates the value of the main voltage and the related fuse of

protection suitable for the operation of the amplier. The fuse is in the housing right under the main power outlet.

Technical Specication

CHANNEL : Single + Boost (HI) totally tubes

LOOP : Serial buered tube loop. Spill over function implemented, you’ll avoid

to have the eects cue killed when bypass

POWER

SWITCHING : Manual and Footswitch (HI, BROWN, EDGY, LOOP)

: 50W PushPull (Class AB) or 5W (A class)

TUBES : 4 x 12AX7, 2 x EL34, 1x 5U4 (RECTIFIER)

DIMENSIONS : 450mm/17,7” (W), 190mm/7,5” (H), 220mm/8,5” (D)

WEIGHT : 13 Kg/28 lb

EQUIPMENT : Footswitch, power cord, waterproof cover

Page 4

IMPORTANT INFO

WARNING!!

Before any kind of cleaning/manteinance operation, disconnect the appliance from the electric supply.

IMPORTANT INFO

- Check that power supply electricity in use is the one indicated on the sticker on the rear panel of the

appliance;

- The appliance must be earthed in conformity to the national previsions in force;

- Do not throw water jets directly on the appliance;

- Do not use water steams to clean the appliance;

- Do not use solvents to clean the appliance, especially on serigraphy;

- The manufacturer declines all responsibility for any kind of damage to persons, things and/or animals

resulting from a wrong use of the appliance;

- The appliance conformity is proved by CE symbol on the rear side;

- The manufacturer reserves the right to make any useful and essential change to the products without

compromise the main safety and working features;

- Do not use the appliance barefoot;

- Do not touch the appliance with wet or moist hands or feet;

- Do not leave the appliance exposed to sun, rain, humidity ecc..

- Do not allow children or incompetents to use the appliance;

- The appliance repair may be done during the warranty period only by the manufacturer in our

- Control periodically all cables supplied with the appliance, if they result damaged, you have to replace

them immediately with another one with the same characteristics;

- In case of damage contact the shop where you bought the appliance.

w w w .brunetti.i t

WARNING!!

Please refer to the manufacturer for all repairs and replacement to insure the working of the product. It does not exist service centres licensed by Brunetti Marco & C. The manufacturer declines all responsibility for malfunctioning due to assistance not provided or authorized by Brunetti & C.

Brunetti Marco & C. S.a.s

Via De’ Bonomini, 25/27

41100 MODENA ITALIA

Telefono: +39 059 243404

Fax: +39 059 216464

e-mail: [email protected] (commercial)

e-mail: [email protected] (technical)

www.brunetti.it

www.brunetti.it/forum
