READ AND SAVE THESE INSTRUCTIONS!
Brune Luftbefeuchtung Proklima GmbH
Schwarzacher Strasse 13
74858 Aglasterhausen, Germany
Telephone: +49 6262 54 54
Fax: +49 6262 32 55
E-mail: mail@brune.info
Internet: www.brune.info
Translation of the original operating manual
Prok-22117-DE, 4, en_US
This manual was created by:
Kothes!
Technische Kommunikation GmbH & Co. KG
Internet: www.kothes.de
© Brune Luftbefeuchtung Proklima GmbH 2015
Evaporation Humidifier B500 Professional2
Information about this manual
This manual facilitates safe and efficient use of the Evaporation
Humidifier B500 Professional. This manual is an integral part of the
humidifier and must be stored, readily accessible for the personnel,
in close proximity to the device.
This manual must be carefully read by the user prior to starting any
work. The prerequisite for safe working is to comply with all safety
and procedural instructions specified in this manual. The local accident prevention regulations and the general safety regulations for
the application area of the humidifier also apply.
The illustrations in this manual are intended for basic understanding and may deviate from the actual design.
Copyright
Customer service
The content of this manual is copyrighted. It may be used for purposes of operating the device. Any further use is not permitted
without written permission of Brune Luftbefeuchtung Proklima
GmbH.
Address Brune
Brune Luftbefeuchtung Proklima GmbH
Schwarzacher Strasse 13
74858 Aglasterhausen, Germany
Phone +49 6262 54 54
E-mail mail@brune.info
Evaporation Humidifier B500 Professional 3
Table of contents
Table of contents
1 The Evaporation Humidifier B500 Professional............... 6
1.1 Complete overview....................................................... 6
1.2 Remote control............................................................. 8
1.3 Wireless sensor system................................................ 8
1.4 Control panel................................................................ 9
1.5 Functional description................................................. 10
2 Safety................................................................................. 11
2.1 Symbols in this manual............................................... 11
2.2 Intended use............................................................... 12
2.3 Symbols on the device................................................ 13
2.4 Safety and dangers..................................................... 14
2.5 Responsibilities of the operator.................................. 18
2.6 Personnel requirements.............................................. 19
2.7 Environmental protection............................................ 20
3 Transport and storage...................................................... 21
3.1 Safety instructions for transport and storage.............. 21
3.2 Symbols on the packaging.......................................... 21
3.3 Storage of packages................................................... 21
3.4 Inspection of delivery.................................................. 22
3.5 Storage when not in use............................................. 22
3.6 Transporting the humidifier......................................... 23
4 Start-up.............................................................................. 24
4.1 Safety instructions for the initial commissioning......... 24
4.2 Requirements at the installation location.................... 24
4.3 Commissioning the humidifier for the first time........... 24
4.4 Coding the wireless sensor system............................ 27
5 Operating the humidifier.................................................. 31
5.1 Indicators on the device.............................................. 31
5.2 Switching on and off................................................... 32
5.3 Filling the water tank................................................... 32
5.4 Setting the desired air humidity.................................. 34
5.5 Regulating the fan....................................................... 34
5.6 Changing the menu settings....................................... 35
6 Cleaning and servicing the humidifier............................ 38
6.1 Safety instructions for cleaning and servicing............. 38
6.2 Cleaning schedule...................................................... 39
6.3 Cleaning tasks............................................................ 40
6.3.1 Monthly cleaning...................................................... 40
6.3.2 Replacing the evaporation filter............................... 41
6.3.3 Cleaning the water tank........................................... 44
6.3.4 Decalcifying the device............................................ 45
7 Detecting and remedying malfunctions.......................... 49
7.1 Safety instructions for troubleshooting........................ 49
Evaporation Humidifier B500 Professional4
Table of contents
7.2 Malfunction indication................................................. 49
7.3 Error table................................................................... 51
7.4 Remedying errors....................................................... 53
7.4.1 Replacing the pump................................................. 53
7.4.2 Replacing the fan..................................................... 56
8 Accessories....................................................................... 59
8.1 Waterfresh.................................................................. 59
8.2 Automatic water supply............................................... 60
8.3 Automatic flushing device........................................... 61
8.4 Activated charcoal cleaning filter................................ 63
8.4.1 Overview.................................................................. 63
8.4.2 Replacing the activated charcoal cleaning filter....... 64
8.5 Air hood with flexible air hose..................................... 65
8.6 UV degermination system and lime transforming car-
tridge........................................................................... 65
8.6.1 Cleaning the UV degermination system and lime
transforming cartridge.............................................. 67
8.6.2 Replacing the UV lamp............................................ 70
8.7 Safety collecting basin................................................ 72
8.8 Safety water sensor.................................................... 73
8.9 External water sensor................................................. 73
8.10 Safety pressure hose................................................ 74
8.10.1 Overview................................................................ 74
8.10.2 Replacing the safety pressure hose...................... 74

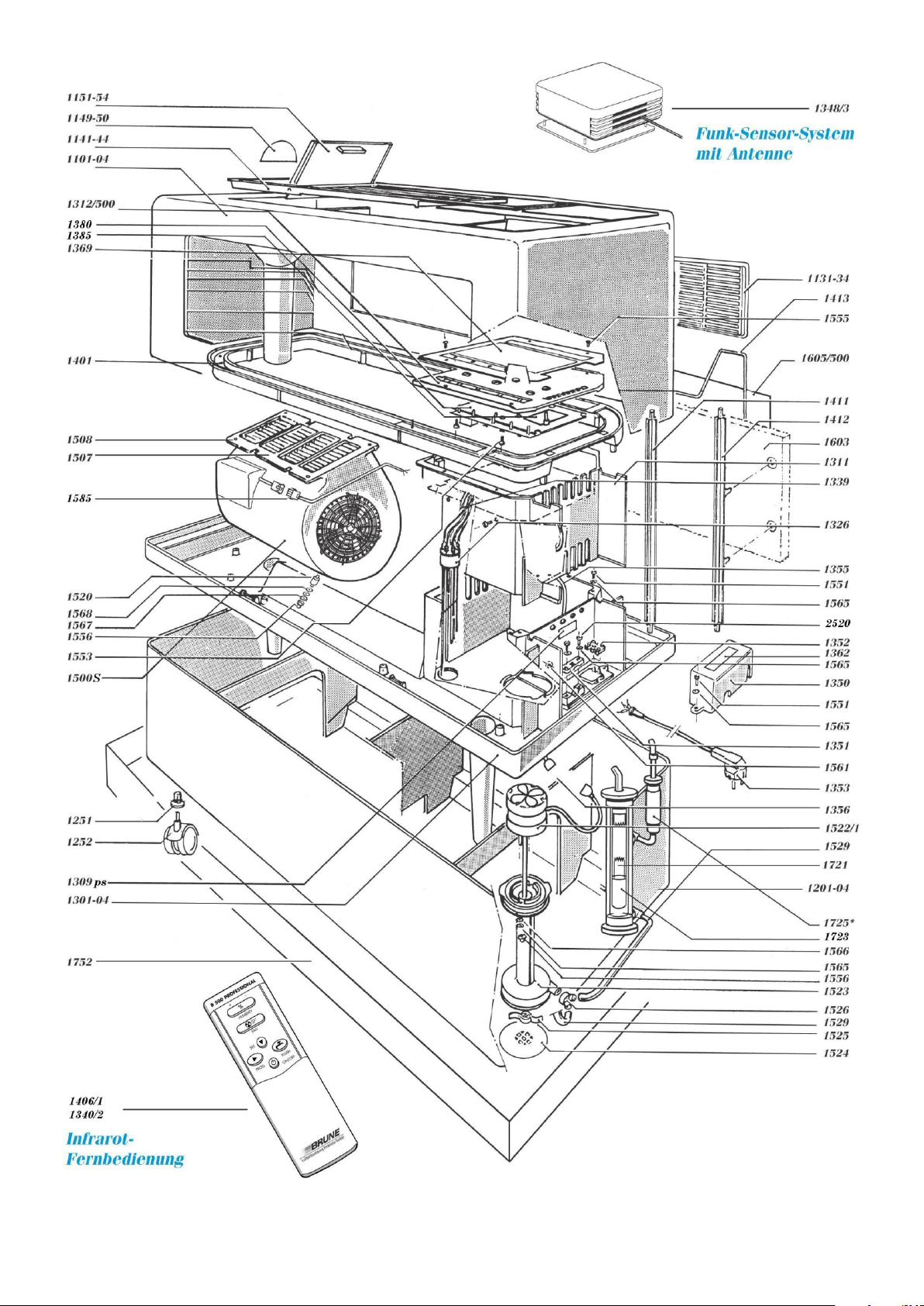

9 Spare parts........................................................................ 76
10 Disposing of the humidifier............................................. 77
11 Technical data................................................................... 78
11.1 Dimensions and weight............................................. 78
11.2 Connection values.................................................... 78
11.3 Performance data..................................................... 78
11.4 Operating conditions................................................. 78
11.5 Emissions................................................................. 79
11.6 Type plate................................................................. 79
12 Index................................................................................... 80
Appendix............................................................................ 82
Evaporation Humidifier B500 Professional 5
The Evaporation Humidifier B500 Professional
1 The Evaporation Humidifier B500 Professional
1.1 Complete overview

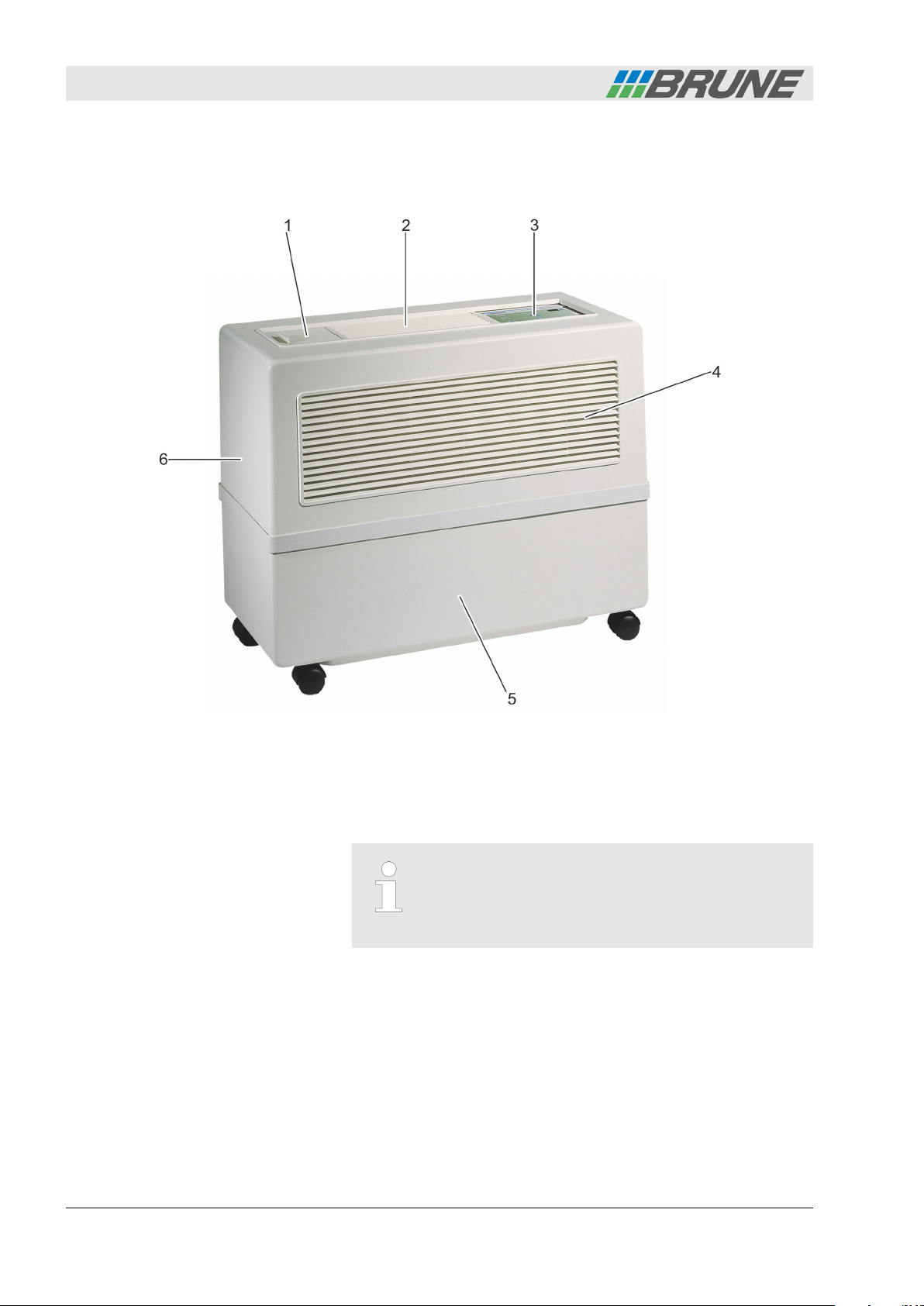

Fig. 1: Evaporation Humidifier B500
1 Filling opening
2 Air outlet opening
3 Control panel
Accessories
4 Air inlet opening
5 Water tank
6 Cover
The following chapters provide only the description of
the humidifier standard version. For the operation and
cleaning of the accessories, see Ä Chapter 8 “Accessories” on page 59.
Evaporation Humidifier B500 Professional6

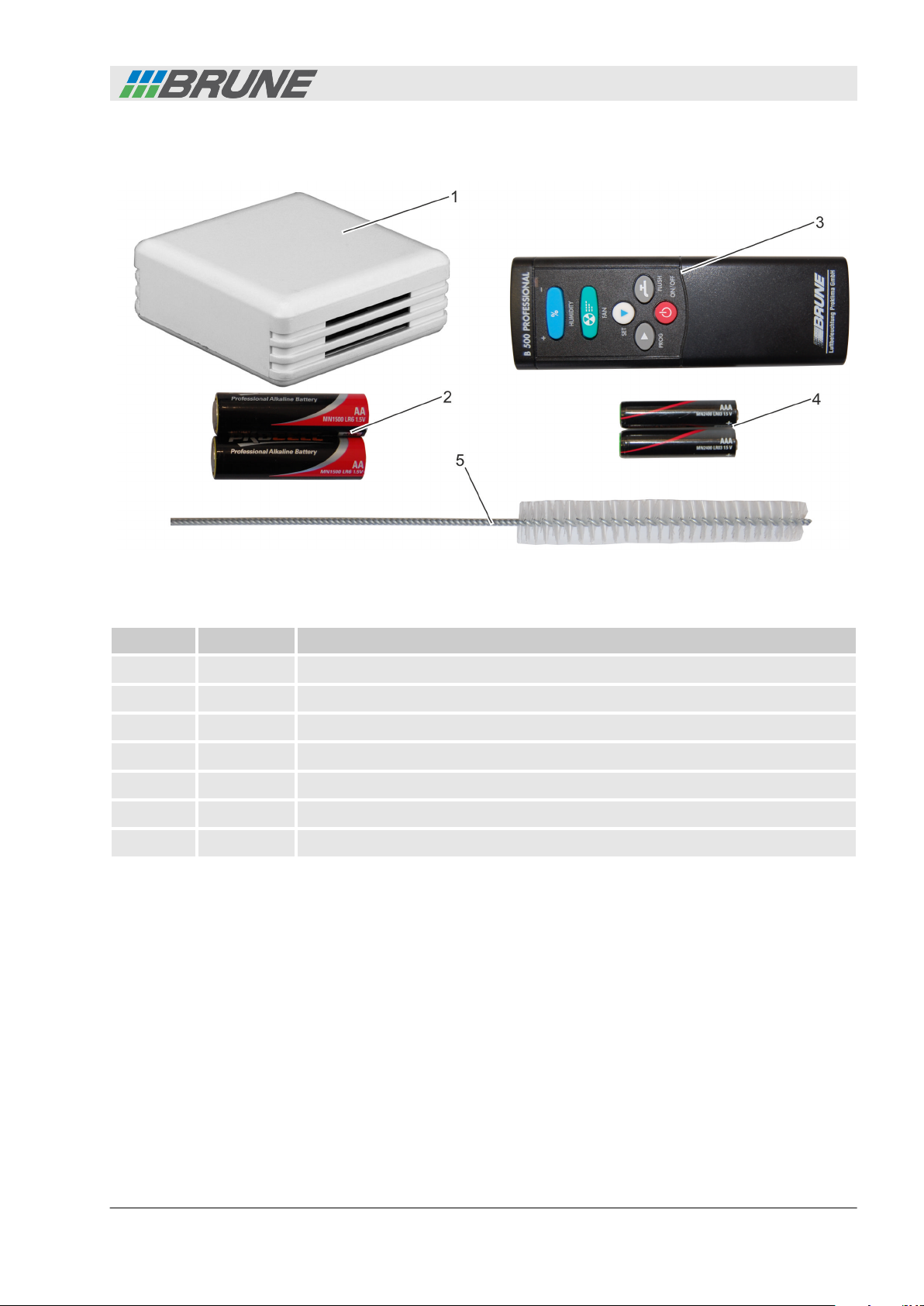

Scope of delivery
The Evaporation Humidifier B500 Professional
Fig. 2: Scope of delivery
Item Quantity Name
Fig. 1 1 Evaporation Humidifier B500 Professional, incl. power plug
1 1 Wireless sensor system
2 2 AA batteries for wireless sensor system
3 1 Remote control
4 2 AAA batteries for remote control
5 1 Cleaning brush
1 Operation manual
Evaporation Humidifier B500 Professional 7
The Evaporation Humidifier B500 Professional

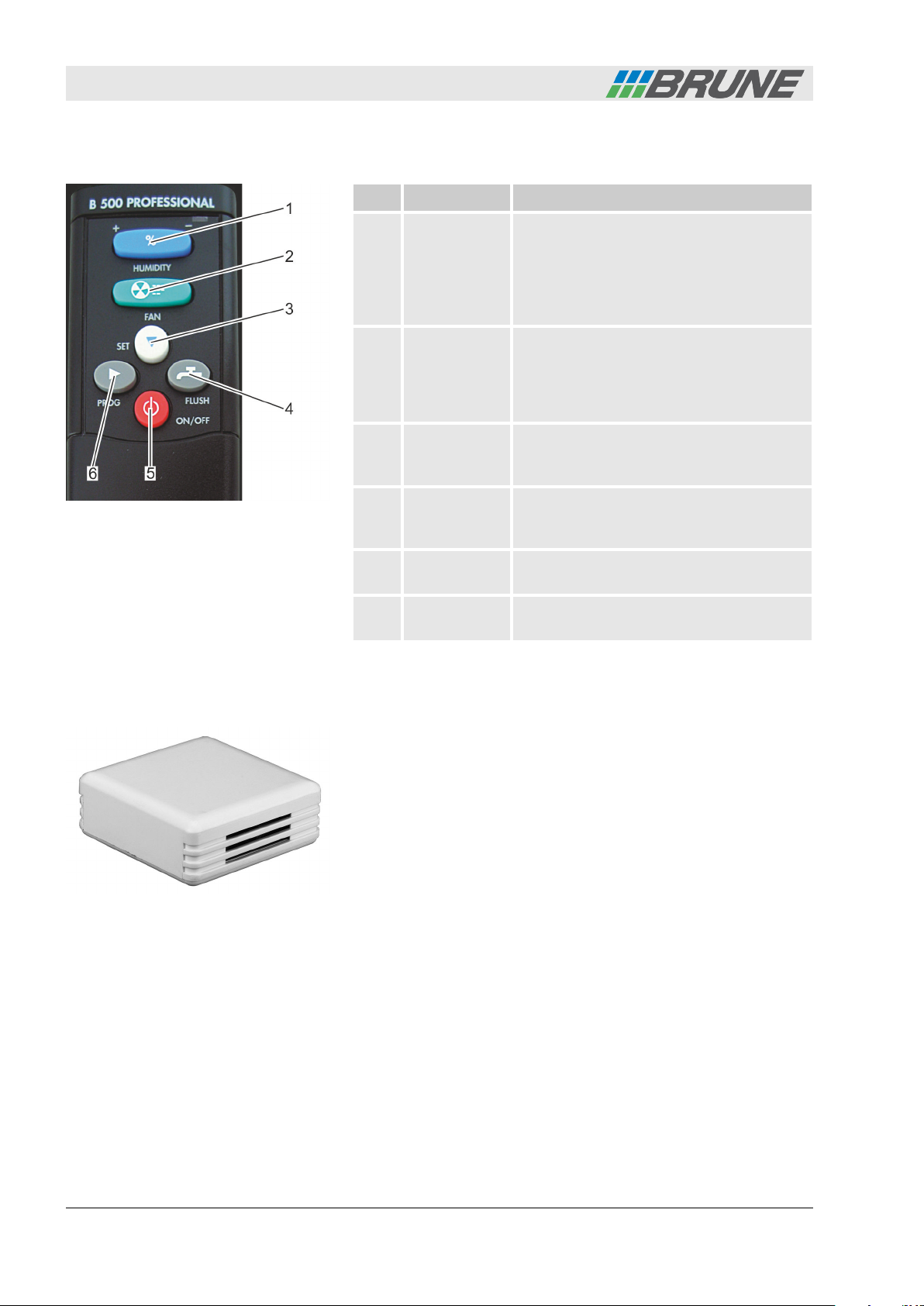

1.2 Remote control
Item Name Function
Fig. 3: Remote control
1 [Humidity]
rocker switch
2 [Fan] rocker
switch
3 [Set] button Using the [Set] button, individual sub-
4 [Flush] button By pressing the [Flush] button, the
5 [ON/OFF]
button
6 [Prog] button By pressing the [Prog] button, the pro-
The target value for the air humidity can
be set using the [Humidity] rocker switch.
By pressing the "+" or "-" area several
times or continuously, the desired
humidity value can be increased or
decreased.
By pressing the "+" or "-" area of the [Fan]
rocker switch, the fan speed can be
increased or decreased. In addition to the
automatic level, four other fan speed
levels are available.
menus can be selected in programming
mode.
flushing device is started (optional accessory).
By pressing the [ON/OFF] button, the
humidifier is switched on or off.
gramming mode of the humidifier opens.

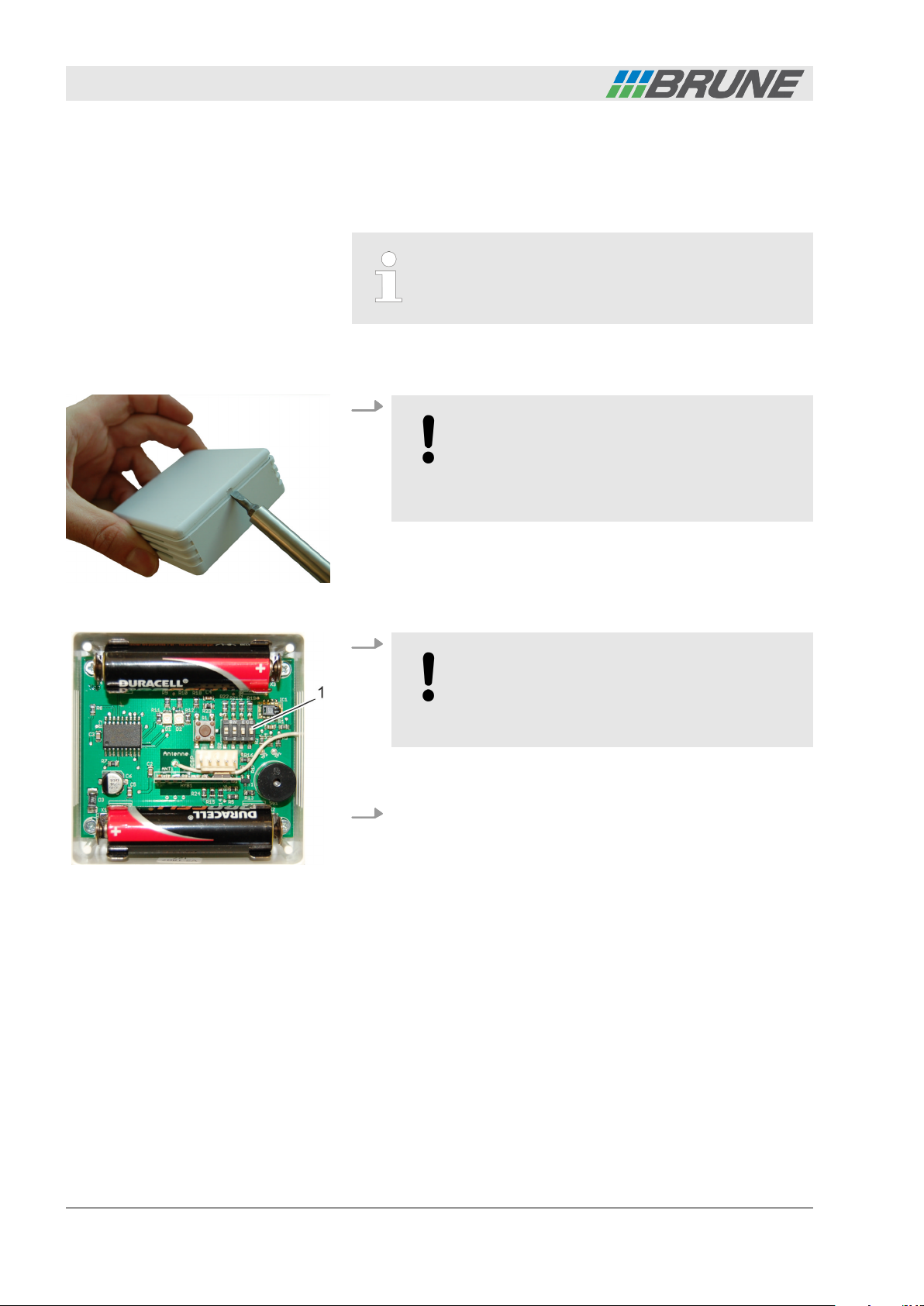

1.3 Wireless sensor system
Fig. 4: Wireless sensor system
The wireless sensor system controls the humidifier automatically. It
measures the current air humidity and, in intervals of three minutes
or in the event of a humidity change of more than 3%, sends the
value to the humidifier. The speed of the fan is then automatically
adjusted according to the set humidity target value.
Evaporation Humidifier B500 Professional8
1.4 Control panel
The Evaporation Humidifier B500 Professional
The control panel provides information about the state of the
device. It provides information about the current water level, the
current air humidity value and any possible device malfunctions.

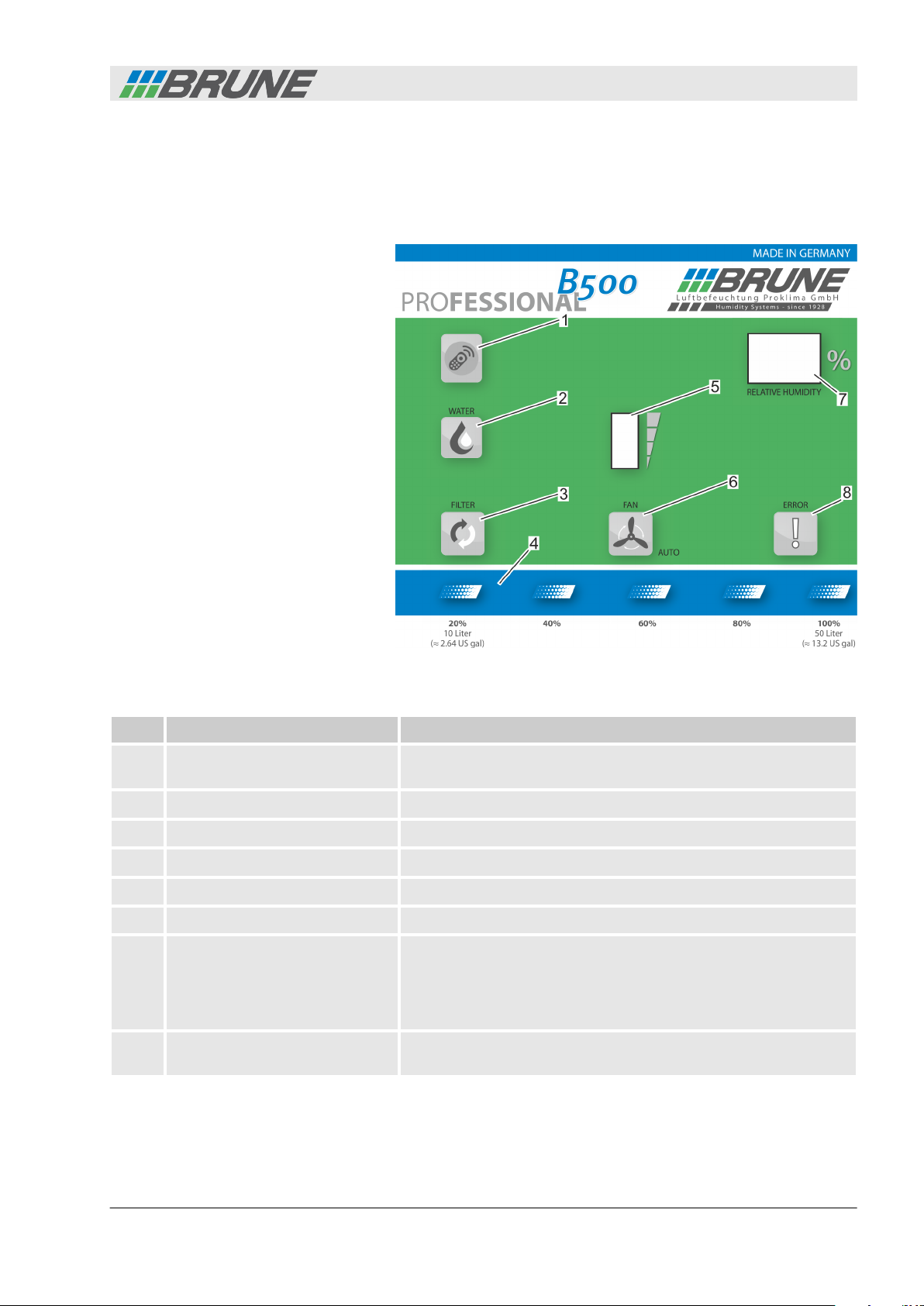

Fig. 5: Control panel
Item Name Function
1 [Remote control receiver
sensor]
2 [Water level indicator] Lights up when the humidifier water tank is empty.
3 [Filter replacement display] Lights up when the humidifier filter needs to be replaced
4 [Water level indicator] Shows the level of the water tank in liters/gallons
5 [Fan speed level indicator] Shows the speed level when the fan is in manual mode
6 [Automatic fan indicator] Lights up when the fan is in automatic mode
7 Display The following information is shown on the display:
8 [Malfunction indicator] Lights up when a malfunction of the humidifier is present. Here,
The receiver sensor receives and processes the radio signal of
the remote control.
n Actual/target value of air humidity
n Menu codes in programming mode
n Error codes during malfunctions
observe the error code on the display.
Evaporation Humidifier B500 Professional 9
The Evaporation Humidifier B500 Professional

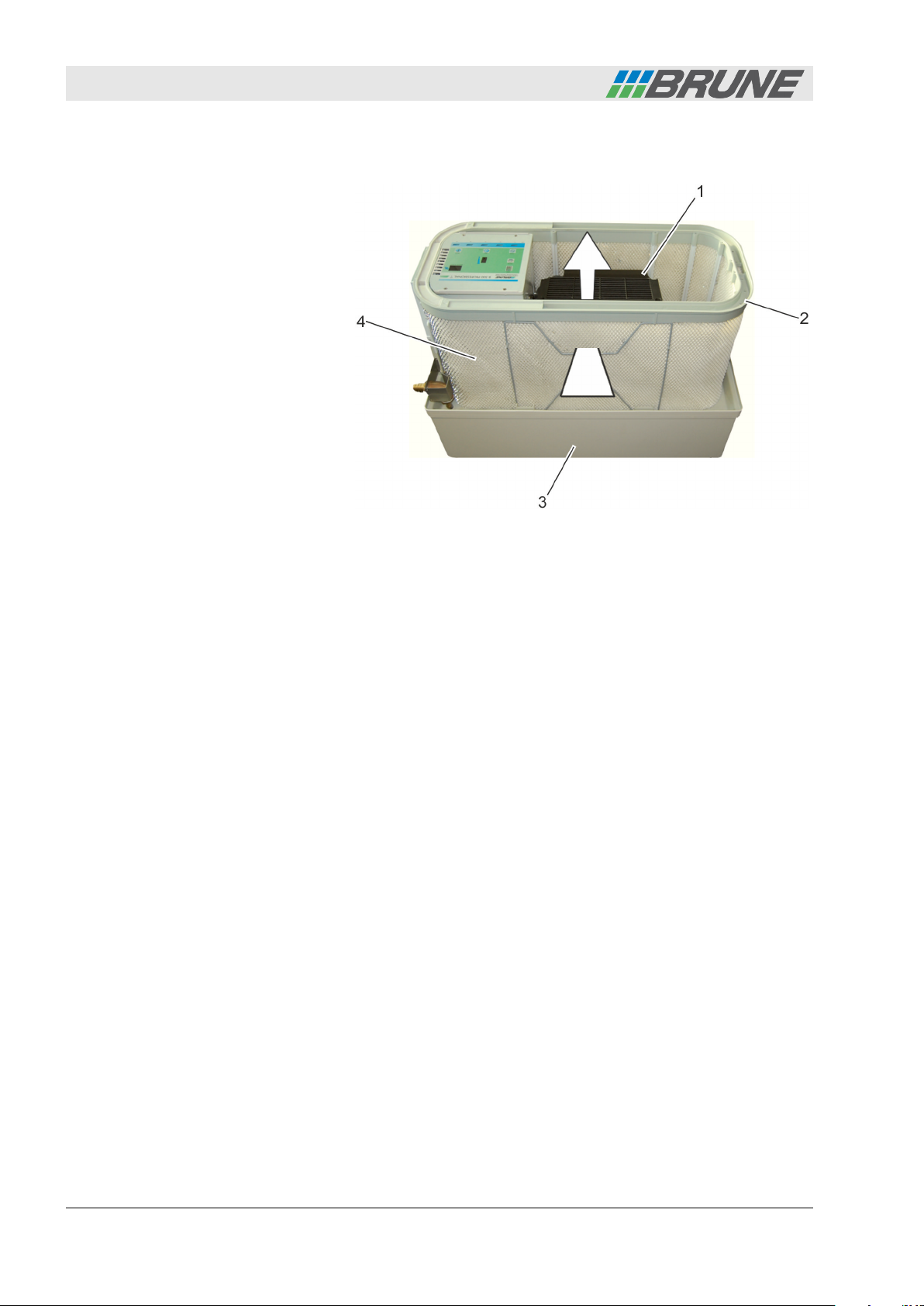

1.5 Functional description
Fig. 6: Functional principle
The humidifier B500 operates based on the natural principle of
evaporation. A water pump continuously delivers water from the
water tank (Fig. 6/3) to the oval water channel (Fig. 6/2). The water
seeps through the drainage holes inside the channel and moistens
the evaporation filter (Fig. 6/4).
A fan (Fig. 6/1) inside the humidifier suctions the air in. The air
flows through the evaporator filter and is cleaned and humidified at
the same time. Then the humidified air is supplied through the air
outlet opening on the top and back into the room (Fig. 6/arrow).
The humidifier is filled manually via the filling opening at the top
face. The device can also be optionally connected to the local
water supply. In this case, the humidifier is automatically filled; no
manual filling is required (
on page 59).
Ä
Chapter 8 “Accessories”
Evaporation Humidifier B500 Professional10
2 Safety
2.1 Symbols in this manual
Safety
This section provides an overview of all important safety aspects to
protect persons and to ensure safe and trouble-free operation.
There are further task-related safety instructions in the sections
about the individual life phases.
Safety instructions
In this manual the safety instructions are identified by symbols. The
safety instructions are introduced by signal words that express the
extent of the hazard.
DANGER!
This combination of symbol and signal word indicates
a situation of immediate danger which, if not avoided,
will result in death or serious injury.
WARNING!
This combination of symbol and signal word indicates
a situation of possible danger which, if not avoided,
could result in death or serious injury.
CAUTION!
This combination of symbol and signal word indicates
a situation of possible danger which, if not avoided,
could result in minor or moderate injury.
NOTICE!
This combination of symbol and signal word indicates
a situation of possible danger which, if not avoided,
could result in damage to property and the environment.
Safety instructions in procedural
instructions
Safety instructions may refer to specific, individual procedural
instructions. Such safety instructions are embedded in the procedural instructions, so that they do not interrupt the flow of reading
when performing the action. The signal words described above are
used.
Evaporation Humidifier B500 Professional 11
Safety
Tips and recommendations
Example:
1. Loosen the screw.
2.
CAUTION!
Risk of entrapment at cover plate!
Carefully close the cover plate.
3. Tighten the screw.
This symbol emphasizes useful tips and recommendations as well as information for efficient and troublefree operation.
Further labels
2.2 Intended use
The following labels emphasize procedural instructions, results,
lists, references and other elements used in this manual:
Label Explanation
Step-by-step procedural instructions
ð
[Button] Operating controls (e.g. buttons, switches),
The Evaporation Humidifier B500 Professional is used exclusively to humidify the room air in residential and professional
environments.
The observation of all the information in this manual is also part of
the intended use.
Any use other than intended use and any use going beyond this
use is considered improper use.
Results of the procedural steps
Reference to sections in this manual and to
applicable documentation
List without set sequence
display elements (e.g. indicator lamps)
Evaporation Humidifier B500 Professional12
Safety
WARNING!
Danger from improper use!
Improper use of the Evaporation Humidifier B500 Professional can lead to dangerous situations.
– Only fill the humidifier with normal tap water (max.
30 °C, 86 °F) or with treated water with at least 300
microsiemens. Never fill with distilled water.
– Do not use scented or flavoring substances.
– Never operate the humidifier with an empty water
tank.
– Never operate the device near open water
sources.
– Only operate the device on a stable and level sur-
face.
– Never expose the device to a source of excessive
heat.
– Never cover the device.
– Never put anything on the humidifier. This applies
in particular to electrical devices or containers that
are filled with liquid.
– Never place the device near furnishings that
absorb water (for example, curtains, wallpaper, or
carpets).
– Never operate the device in a potentially explosive
environment.
2.3 Symbols on the device
The following symbols and information signs are attached to the
device. They relate to the immediate surroundings in which they
are attached.
WARNING!
Danger when signage is not legible!
Over time, labels and signs can become dirty or otherwise illegible, which means that risks cannot be
detected and the necessary operating instructions
cannot be followed. This may cause injury.
– Keep all safety signs, warning signs and operating
instructions in a legible condition.
– Replace damaged signs or labels immediately.
Evaporation Humidifier B500 Professional 13
Safety

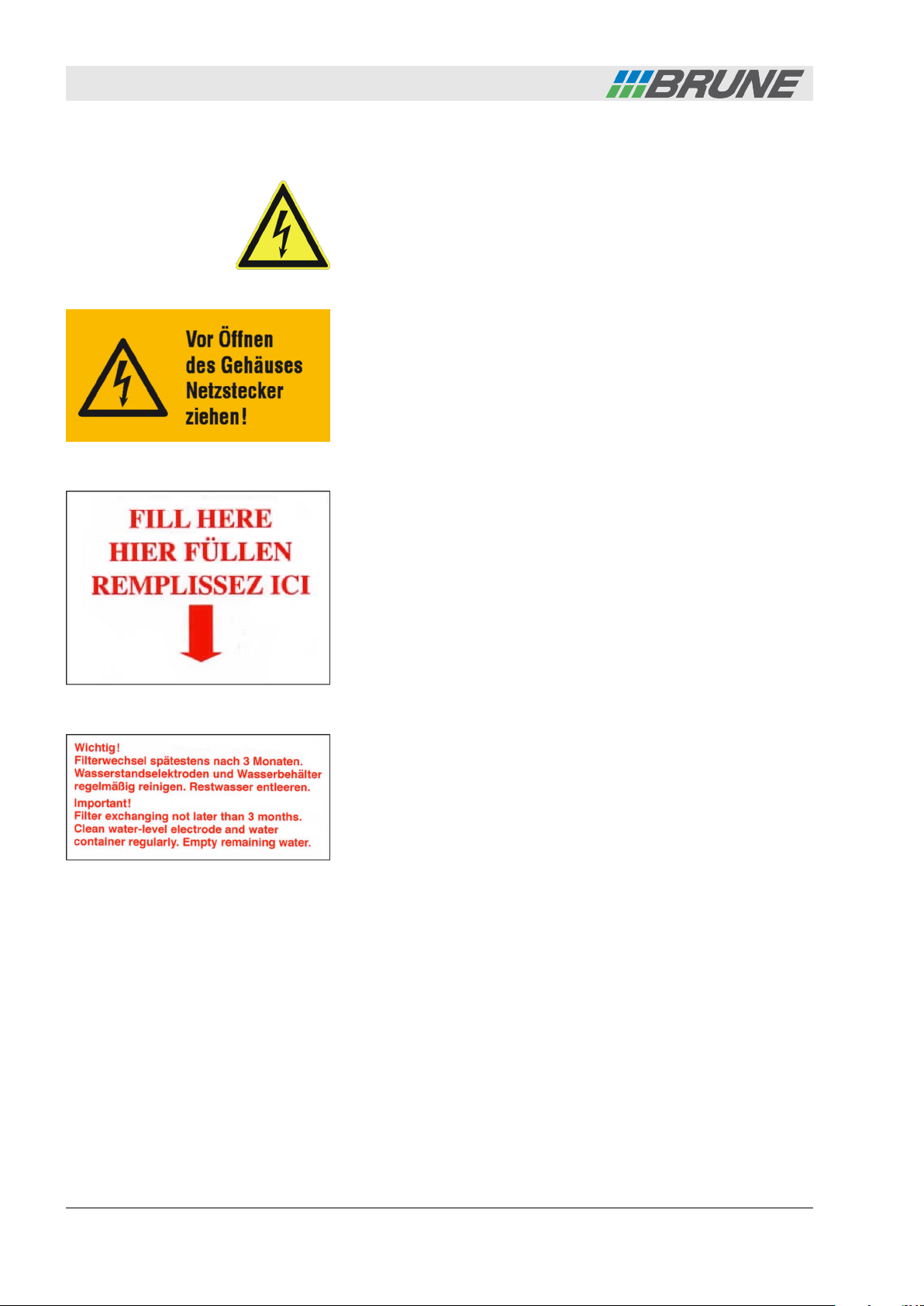

“Electrical voltage” sign
“Pull power plug” sign
“Fill here” sign
Warning: Dangerous electrical voltage.
Always disconnect the power plug before beginning cleaning tasks
and troubleshooting.
This sign indicates the filling opening of the water tank. Only use
this opening to fill the water tank.
“Cleaning instructions” sign
2.4 Safety and dangers
The sign at the filling opening provides important instructions for
cleaning and care of the humidifier. For detailed instructions on
cleaning and care of the humidifier, observe Ä Chapter
6 “Cleaning and servicing the humidifier” on page 38.
The humidifier has been designed according to the state of the art
and according to current safety requirements. However, residual
risks that require careful handling still exist. The residual risks and
the resulting conduct and measures are listed below.
Evaporation Humidifier B500 Professional14
Electrical current
Safety
DANGER!
Danger to life from electrical current!
Risk of imminent fatal injury from electric shock due to
contact with live parts. Damaged insulation or damaged individual components can be dangerous to life.
– Only have qualified electricians perform work on
the electronic system.
– Switch off the humidifier immediately and initiate
repair, if the power cable is damaged.
– Damaged power cables may only be replaced by
the manufacturer or his customer service or a simi-
larly qualified person.
– Keep moisture away from energized parts. This
can lead to a short circuit.
– Never submerge the device in water.
– Never direct the outlet openings towards electrical
appliances or sockets.
– Always lay the power cable without coming in con-
tact with sources of heat, moisture, oil, sharp
objects, sharp edges etc.
– Always first disconnect the power plug prior to
cleaning or troubleshooting.
– Never touch the power plug with wet hands.
– When pulling the power plug never pull on the
cable but always the plug.
– Never pull the device using the cable.
Evaporation Humidifier B500 Professional 15
Safety
Batteries
WARNING!
Risk of injury from improper handling of batteries!
Improper handling of batteries creates a risk that the
batteries may burst or that noxious liquid may leak
from the batteries. The liquid may cause burns in contact with the skin or severe poisoning if swallowed, and
can cause blindness in contact with the eyes.
– Never try to charge the batteries.
– Never short-circuit the contacts (plus and minus
pole) of the battery.
– Never expose batteries to wetness or moisture
(rain, salt water, liquids). A moist or wet battery
may not be used under any circumstances.
– Never use or store batteries at locations with
potentially explosive atmosphere or where high
temperatures can occur.
– Never try to solder, to repair, to change shape, to
modify or to dismantle batteries.
– Always protect batteries from unauthorized access.
– To prevent fire, overheating, explosion or leakage
of fluid never expose the batteries to severe vibra-
tion, high weight loading or other harmful effects.
Leaking and spilled liquid can ignite.
– Do not swallow batteries. If swallowed accidentally,
get medical attention immediately.
– After eye contact with spilled liquid immediately
rinse the eye and also under the eyelid with clear
water for at least 15 minutes. For this, point the
mild water jet directly into the eye and do not rub.
Get immediate medical help.
– Avoid skin contact with spilled liquid. In case of
accidental skin contact wash affected area with
plenty of soap and water.
Children
WARNING!
Risk of injury for children!
Children are unaware of the dangers related to using
the humidifier. This could lead to severe injuries.
– Batteries and other small items could be swal-
lowed. Insert the batteries immediately after
receiving the humidifier or store them out of the
reach of children.
– Packaging material may not be used for playing.
There is an acute danger of suffocation. Packaging
materials must be immediately disposed of or
stored out of the reach of children.
– Always supervise children to ensure that they do
not play with the device, or use the device as a
climbing aid.
Evaporation Humidifier B500 Professional16
Inadequate cleaning
Air humidity that is too high
Safety
WARNING!
Health hazard due to inadequate cleaning!
Bacteria and germs can be released when cleaning is
not carried out adequately.
– Replace the evaporator filter at the latest after four
months. Reduce the time interval accordingly in
case of severe contamination of the ambient air.
– Always comply with the intervals for cleaning
described in Ä Chapter 6.2 “Cleaning schedule”
on page 39.
– Every 3-4 weeks, completely drain the water tank
and refill the water tank again.
WARNING!
Health hazard due to air humidity that is too high
Overly humidified air favors the formation of mildew
and harmful germs.
– Do not exceed the recommended value of 50 ‒
60% air humidity in living quarters.
– To prevent damage to health, persons with
asthma, respiratory diseases or lung problems
should consult a physician before using the
humidifier.
– In the event of breathing difficulties that may be
related to the use of the humidifier, stop using the
humidifier immediately and consult a doctor.
Water puddles
CAUTION!
Risk of injury from slipping in water puddles!
Slipping in water puddles on the floor can cause falls.
This could lead to injuries.
– Place the humidifier on a horizontal surface.
– Immediately mop up water puddles using a cloth.
– Regularly check the safety collecting basin
(optional accessory) and empty it if required.
Evaporation Humidifier B500 Professional 17
Safety
Tripping
Incorrect choice of location
CAUTION!
Risk of injury by tripping over the power cable!
Risk of tripping exists if the power cable is not laid
properly. This can lead to falls and injuries.
– Lay the power cable in a manner that there is no
risk of tripping.
NOTICE!
Risk of property damage due to incorrect place-
ment of the humidifier!
If the humidifier is operated on floors that are not moisture-resistant, the floor may be damaged.
– Only set up the humidifier on moisture-resistant
flooring.
– Use a safety collecting basin (Ä Chapter
8.7 “Safety collecting basin” on page 72) to pro-
tect from leaking water.
– Never place the device near furnishings that
absorb water (for example, curtains, wallpaper, or
carpets).
2.5 Responsibilities of the operator
Operator
Obligations of the operator
The operator is the person who operates the humidifier for industrial or commercial purposes, or provides a third party with the use/
application and bears the legal product responsibility during operation for the protection of the user, personnel, or third parties. If the
humidifier is used for commercial or industrial purposes, the following operator obligations must be observed.
If the device is used for commercial purposes, the operator is subject to work safety regulations.
In addition to the safety instructions in this manual, the valid safety,
accident prevention and environmental protection regulations must
be adhered to for the application area of the humidifier.
In particular, the following applies:
n The operator must clearly define and regulate responsibilities
for installation, operation, troubleshooting, and cleaning.
n The operator must ensure that all persons who handle the
device have read and understood this manual.
n The operator must provide the personnel with the necessary
protective gear and instruct that wearing the required protective
gear is mandatory.
n The operator must ensure that the cleaning intervals described
in this manual are observed.
Evaporation Humidifier B500 Professional18
2.6 Personnel requirements
Safety
WARNING!
Risk of injury due to insufficient qualifications of
the staff!
Work on the humidifier carried out by unqualified persons may result in hazards that could cause serious
injuries and significant property damage.
– Have all tasks and work performed by qualified
personnel.
– Always keep unauthorized persons, especially chil-
dren, away from the device.
In this manual, the qualifications listed below for the personnel for
the various areas of activity are used:
Licensed electrician
The licensed electrician is, due to his/her many years of knowledge
and experience and knowledge of the relevant standards and regulations, able to work on electrical equipment and to independently
recognize and avoid possible hazards.
He/she must furthermore provide proof of his/her professional qualification, attesting to the ability to carry out work on electrical equipment.
The licensed electrician must comply with the applicable legal regulations on accident prevention.
Licensed plumber
The licensed plumber is trained and certified and knows the standards and regulations for the specific task area in which he/she
operates.
The licensed plumber can, due to sufficient technical training and
experience, perform work on all sanitary equipment, and identify
and avoid potential hazards.
He/she must furthermore provide proof of his/her professional qualifications that certify his/her capacity to carry out work on sanitary
equipment.
Manufacturer
Certain work may only be performed by specialized staff of the
manufacturer. Other personnel are not authorized to perform such
work. To perform the required work, please contact our customer
service.
Operator
The operator uses and operates the device within the limits of
intended use.
Evaporation Humidifier B500 Professional 19
Safety
2.7 Environmental protection
If the humidifier is used in a commercial or industrial environment,
the operator has to be briefed and trained by the owner about his
tasks and potential hazards in case of improper conduct. Tasks
that go beyond the handling during normal operation may only be
executed by the operator if they are listed in this operating manual
and when explicitly entrusted by the owner.
This device may be operated by children aged 8 and up, as well as
by persons with reduced physical, sensory or mental capabilities,
or by persons lacking knowledge or experience, provided that they
are supervised or informed about safe use of the device and the
dangers that could arise from use of the device. Children may not
play with the device. Children may not carry out cleaning procedures and user maintenance without supervision.
NOTICE!
Danger to the environment due to improper han-
dling of environmentally hazardous substances!
Incorrect handling of environmentally hazardous substances, in particular incorrect disposal, can cause
considerable damage to the environment.
– Always observe the information listed below for
handling and disposing of environmentally haz-
ardous substances.
– If environmentally hazardous substances enter the
environment by accident, immediately take appro-
priate measures. When in doubt, inform the com-
petent local authority about the damage and ask
about the appropriate measures to take.
Batteries
The following environmentally hazardous substances are
used:
Batteries contain toxic heavy metals. They are subject to special
refuse treatment and must be deposited at municipal collection
points or be disposed of by a specialist company.
Evaporation Humidifier B500 Professional20
3 Transport and storage
3.1 Safety instructions for transport and storage
Improper transport
NOTICE!
Property damage from improper transport!
If not transported correctly, the transport pieces could
fall off or fall over. This could cause significant property
damage.
– Proceed carefully when unloading the transport
pieces upon delivery. Observe all the symbols and
instructions on the packaging.
– Always transport packages upright and never
throw them.
– Remove the packaging just before start-up.
– Never transport the humidifier while it is full. This
could cause water to emerge and cause damage
to the device or the furnishings.
Transport and storage
3.2 Symbols on the packaging
The following symbols are affixed to the transport packaging:
Fragile
Marking on packages that have a fragile or sensitive content.
Handle the package with care, do not drop it and do not expose it
to impacts.
Keep dry
Protect packages from wet conditions and keep them dry.
Top
The arrow tips of the symbol indicate the upper part of the
package. They should always point upwards to prevent damage to
the contents.
3.3 Storage of packages
Store packages under the following conditions:
n Do not store outdoors.
n Store dry and free of dust.
Evaporation Humidifier B500 Professional 21
Transport and storage
3.4 Inspection of delivery
n Do not expose to aggressive substances.
n Protect from direct sunlight.
n Avoid mechanical vibrations.
n Storage temperature: 5 to 40 °C (41 to 104 °F).
n Relative humidity: max. 55%.
n When storing for longer than 3 months, regularly check the
general condition of all parts and the packaging.
Under certain circumstances, instructions for storage
that go beyond the requirements listed here can be
found on the packages. Comply with them accordingly.
Check the delivery immediately upon receipt for completeness and
transportation damage.
Upon detecting clearly visible transportation damage, proceed as
follows:
3.5 Storage when not in use
n Do not accept the delivery, or accept it with reservations.
n Record the extent of damage on the transport documents or on
the delivery note of the transporter.
n Begin a claim.
Make a claim about every defect as soon as it is
detected. Damage claims can only be filed within the
applicable period for complaints.
When the humidifier is not in operation for a longer period of time,
proceed as follows:
Personnel:
1.
Drain and clean the water tank (
the water tank” on page 44).
2.
Remove the evaporation filter (Ä Chapter 6.3.2 “Replacing
the evaporation filter” on page 41).
3.
Clean the humidifier (
device” on page 45).
n
Operator
Ä
Chapter 6.3.3 “Cleaning
Ä
Chapter 6.3.4 “Decalcifying the
4. Store the humidifier according to the information provided
under Ä Chapter 3.3 “Storage of packages” on page 21.
Evaporation Humidifier B500 Professional22
3.6 Transporting the humidifier
The humidifier has 4 rollers on the bottom. This allows repositioning of the device by pulling or pushing. Observe the following
when the humidifier's installation location is changed:
n Whenever possible, move the humidifier along its longitudinal
Transport and storage
NOTICE!
Risk of property damage from the humidifier tip-
ping over!
When moving the humidifier back and forth, there is a
risk of the device tipping over. This can lead to
damage to the device or subsurface.
– Whenever possible, move the humidifier along its
longitudinal axis.
– Before changing the installation location, always
empty the water tank.
axis (Fig. 7/arrow). To do so, grasp the humidifier at the green
marked area (Fig. 7).
Fig. 7: Moving the humidifier
Fig. 8: Moving the humidifier back
and forth
n If the humidifier is moved back and forth, grasp it underneath
as well (Fig. 8).
Evaporation Humidifier B500 Professional 23
Start-up
4 Start-up
4.1 Safety instructions for the initial commissioning
DANGER!
Danger to life from start-up of a defective device!
Starting up a defective device can lead to life-threatening situations and cause significant property
damage.
– Never commission a defective device.
– Always check the power cable for damage.
4.2 Requirements at the installation location
For the humidifier to operate properly, the following must be
observed when deciding the installation location:
n Place the humidifier on a level, horizontal surface.
n Ensure air circulation. The air inlet opening and air outlet
opening must not be covered.
n Do not place the humidifier in circulation routes or in the piv-
oting range of doors.
n The clearance to other objects in the vicinity must be at least
10 cm (4 inches) at the side and at least 10 cm (4 inches) on
top.
n For optimum functionality, the device can be set up in the
vicinity of a heat source. However, the direct temperature influence should not exceed 70 °C (158 °F).
On water-sensitive flooring, additional safety measures must be
provided.
4.3 Commissioning the humidifier for the first time
Proceed as follows to commission the humidifier:
Evaporation Humidifier B500 Professional24
Start-up
Preparation

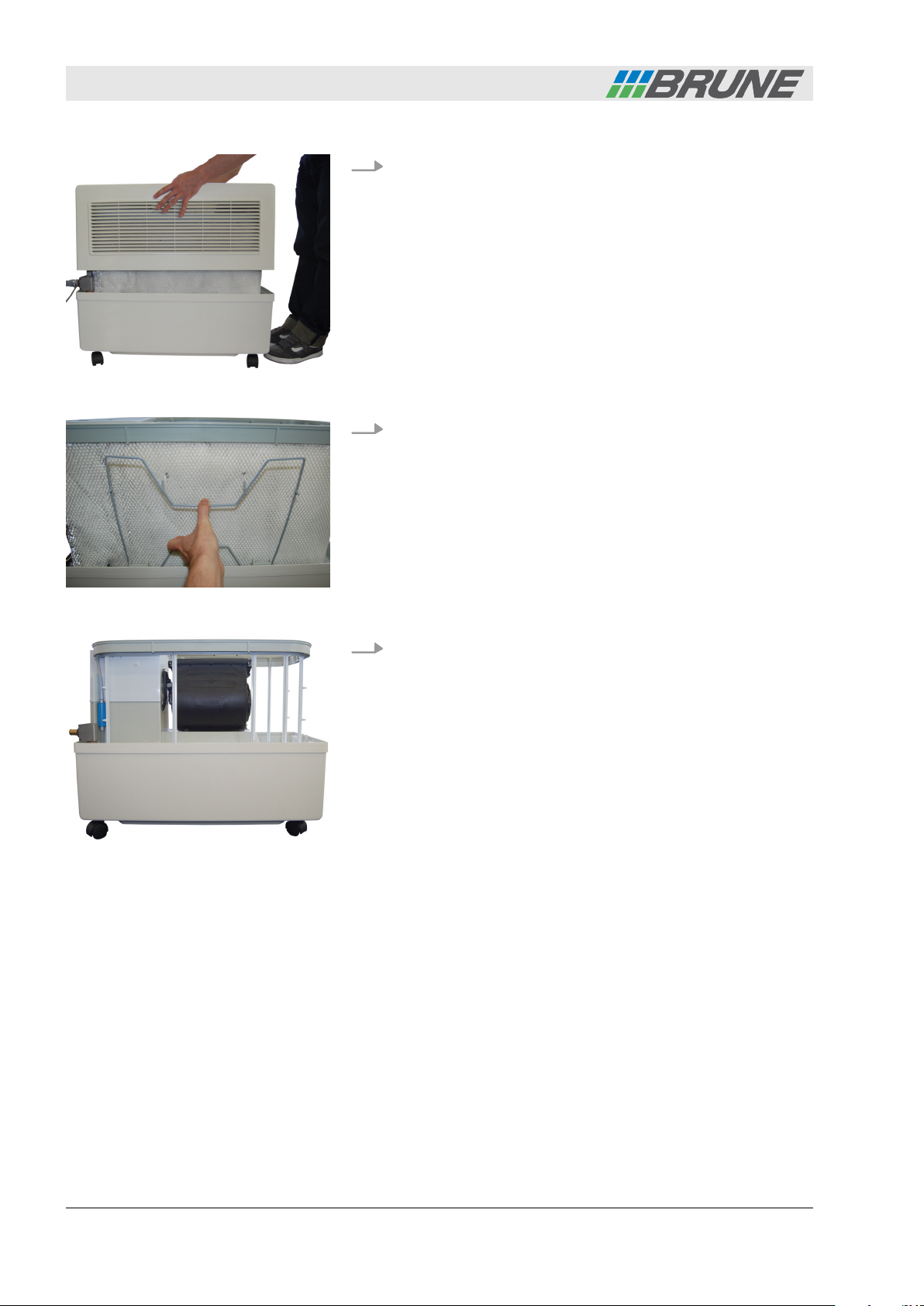

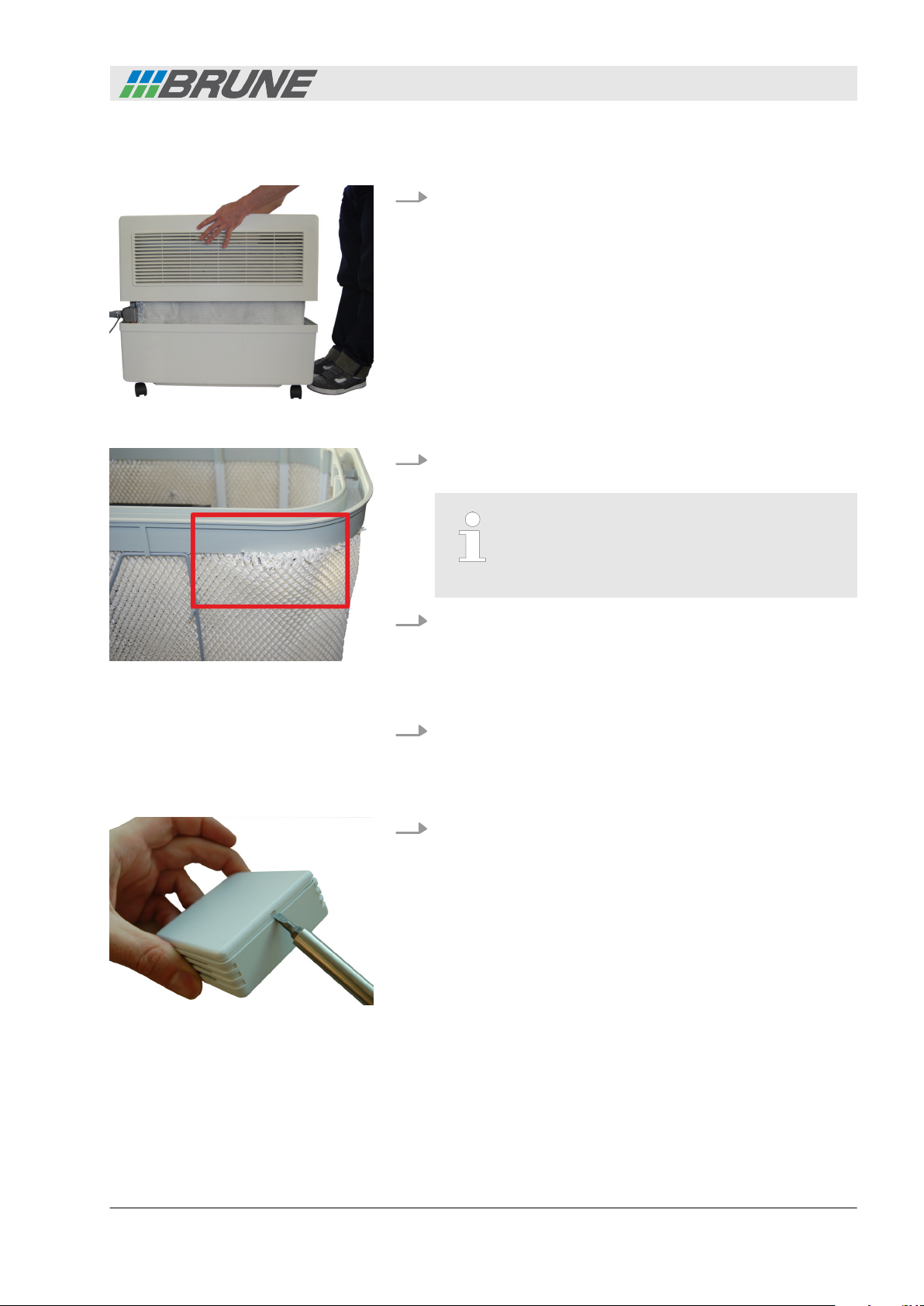

Fig. 9: Removing the cover
Personnel:
1. Lift the cover of the humidifier upwards and place to the side
(Fig. 9).
2. Check the device visually for defects and correct filter placement.
Ensure that the filter fits against the entire length
of the water distribution within the U-shaped rail
(Fig. 10). If individual fibers of the filter protrude,
water may leak from the device.
n
Operator
Fig. 10: Incorrect filter placement
Commissioning the wireless
sensor system
Fig. 11: Opening the cover
3. Remove the following items from the compartment at the
side:
n Power plug
n Wireless sensor system
n Remote control
4. Replace the device cover.
Personnel:
1. Carefully lift and remove the cover of the wireless sensor
system using a small screwdriver.
n
Operator
Evaporation Humidifier B500 Professional 25
Start-up
Fig. 12: Inserting batteries
2. Insert the enclosed AA batteries according to the illustration
(Fig. 12/1). The plus and minus poles are marked on the
board as well as on the battery. The batteries are correctly
inserted if the markings match.
3. Check the wireless sensor system for functionality. To do so,
press the black button (Fig. 13/1).
The diode (Fig. 13/2) briefly lights up; the wireless sensor
ð
system is operational. The sound of an alarm indicates
that the batteries must be replaced.
Fig. 13: Checking functionality
Commissioning the humidifier
Fig. 14: Inserting batteries
Personnel:
1. Insert the enclosed AAA batteries in the compartment of the
remote control (Fig. 14/1). The plus and minus poles are
marked in the compartment of the remote control as well as
on the battery. The batteries are correctly inserted if the
markings match.
2. Connect the humidifier power plug to the power supply.
3. Fill up the water tank of the humidifier using tap water. To do
so, proceed as indicated under Ä Chapter 5.3 “Filling the
water tank” on page 32.
4. Switch on the humidifier using the [ON/OFF] button on the
remote control.
5. Enter the desired value for the air humidity using the
[Humidity] rocker switch (Ä Chapter 5.4 “Setting the desired
air humidity” on page 34) on the remote control.
n
Operator
Evaporation Humidifier B500 Professional26
6. Then, use the [Fan] rocker switch to regulate the strength of
the fan (Ä Chapter 5.5 “Regulating the fan” on page 34).
7. Wait for 10 seconds until the saving process is completed.
The display read-out jumps back to the actual air
ð
humidity value. The humidifier is now operational.
The fan of the humidifier starts if the set target value is
above the actual value.
4.4 Coding the wireless sensor system
DANGER!
Danger to life from electrical current!
Risk of immediate fatal injury from electric shock following contact with live parts.
– Disconnect the power plug before opening the
Start-up
device.
The humidifier and the wireless sensor system are dedicated to
each other via coding. The devices are shipped from the factory
already encoded. When two or more devices that are in close proximity to one another (0-30 meters, 0-98 feet), a different coding
may be necessary.
When several devices are operated in one room, the following
options are available:
n Several devices are operated via one sensor. For this, all
devices should have the same coding.
n Each device is controlled via a separate sensor. For this, all
devices have to be coded differently.

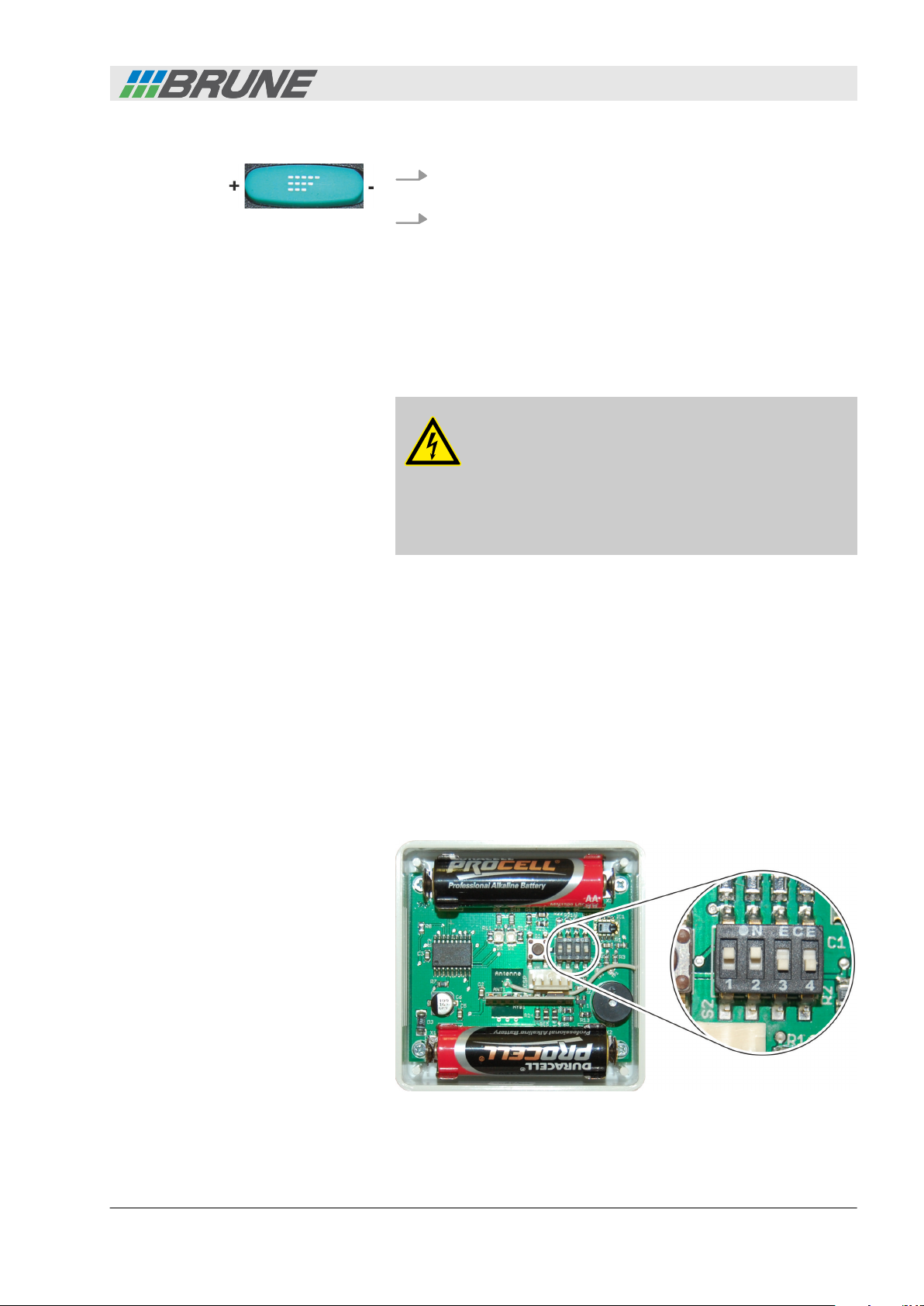

Fig. 15: Slide controls for coding
Evaporation Humidifier B500 Professional 27
Start-up
The slide controls for coding are located on the respective boards
of the devices. Each slider has only the following positions: ‘ON =
top’ and ‘OFF = bottom.’ Accordingly, there are 16 different coding
versions.
The coding of the humidifier and the associated wireless sensor system must match exactly. Otherwise
functionality is not ensured.
Coding the wireless sensor system
Fig. 16: Opening the cover
Personnel:
1.
NOTICE!
The electronics of the wireless sensor system
are very sensitive. Ensure that you do not touch
the electronics and do not damage any components.
Carefully lift and remove the cover plate of the wireless
sensor system using a small screwdriver (Fig. 16).
2.
NOTICE!
Property damage due to short circuit!
– Code the wireless sensor system only with a
Code the wireless sensor system by setting the slide controls
(Fig. 17/1) using a suitable non-metallic object.
3. Close the cover plate of the wireless sensor system again.
Operator
n
non-metallic object.
Fig. 17: Coding the wireless sensor
system
Evaporation Humidifier B500 Professional28
Start-up
Coding the humidifier

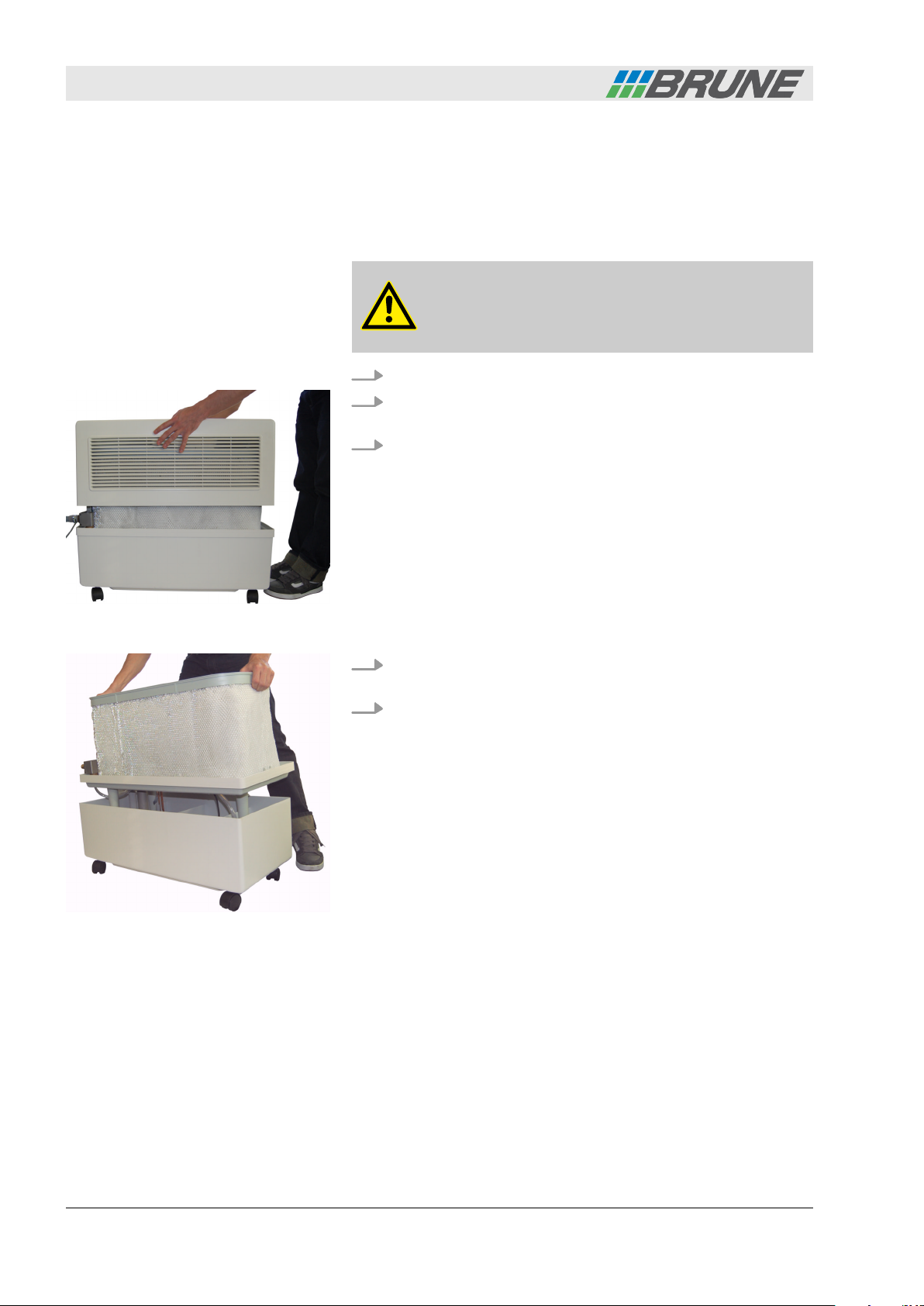

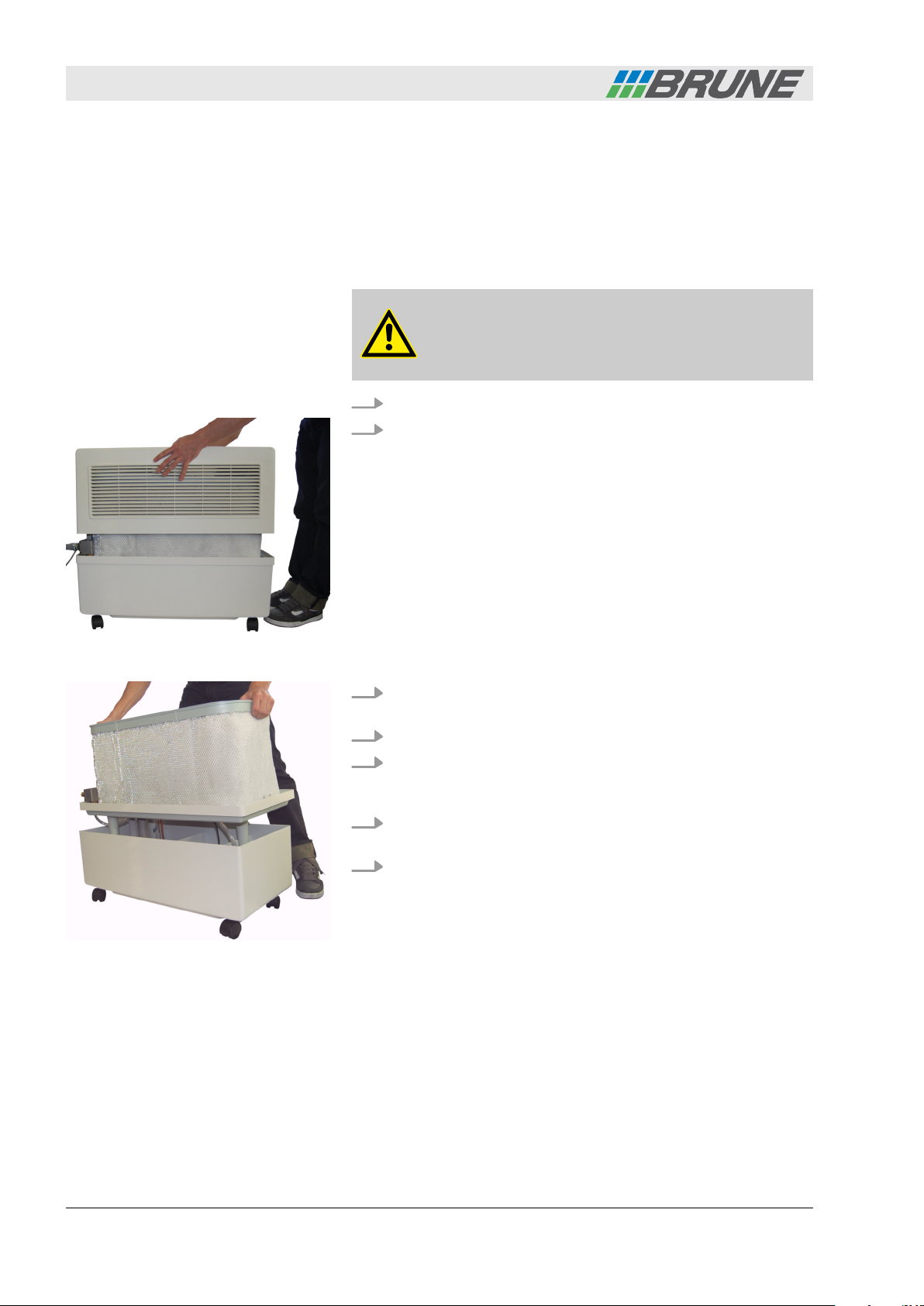

Fig. 18: Removing the cover
Personnel:
1. Switch off the device and disconnect the power plug.
2. Lift the cover of the humidifier upwards and place it to the
side (Fig. 18).
3. Use a screwdriver to loosen and completely unscrew the four
screws at the top of the control panel (Fig. 19/1) by turning
counterclockwise.
n
Operator
Fig. 19: Releasing the control panel
Fig. 20: Removing the control panel
4.
NOTICE!
The electronics of the control panel are very sensitive. Ensure that you do not touch the electronics and do not damage any components.
Remove the control panel and place on the operating side
(Fig. 20).
Evaporation Humidifier B500 Professional 29
Start-up

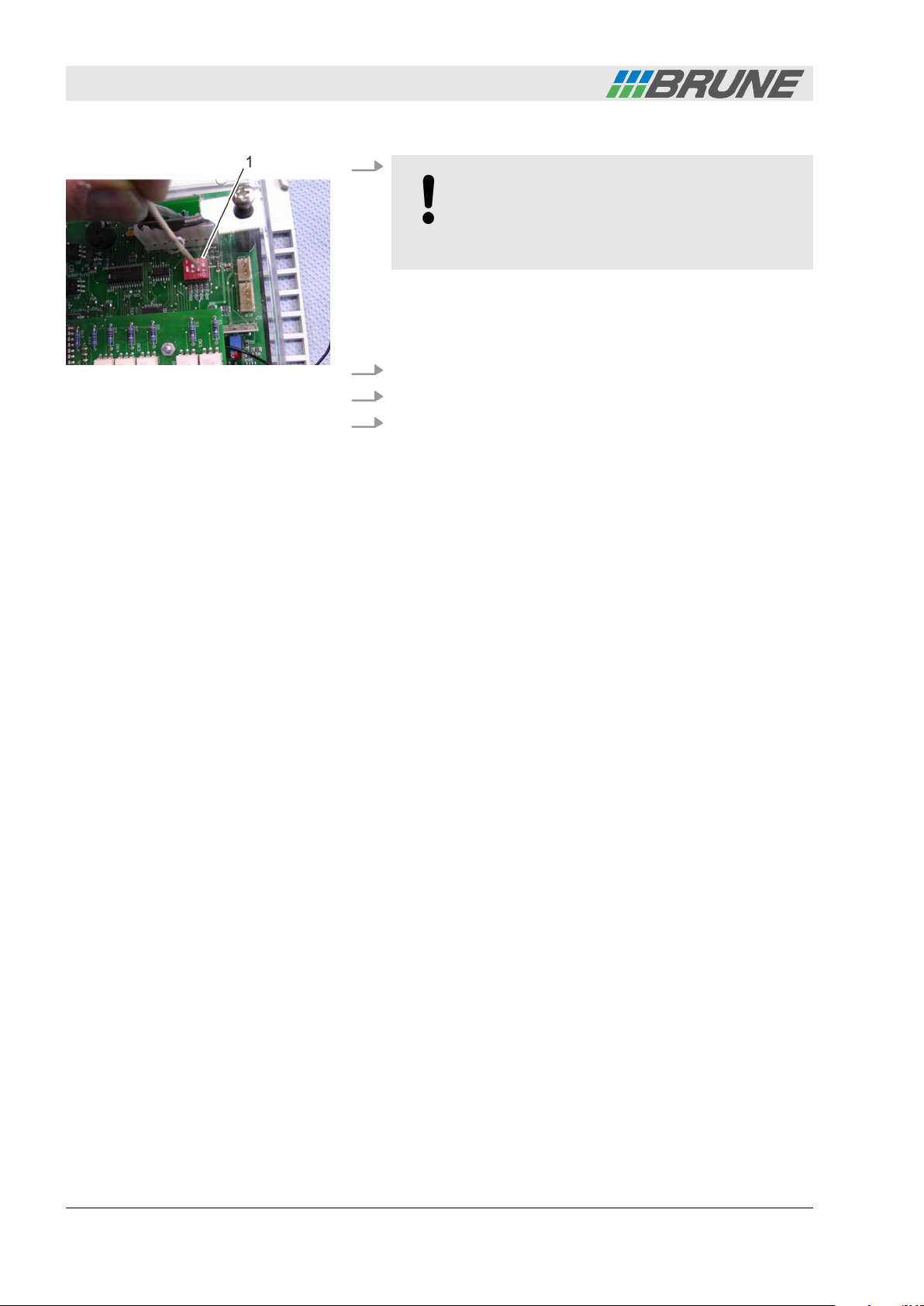

Fig. 21: Coding the humidifier
5.
NOTICE!
Property damage due to short circuit!
– Code the humidifier only with a non-metallic
object.
Code the humidifier. To do so, use a suitable non-metallic
object to carefully position the slide controls located on the
rear side of the board (Fig. 21/1) in the same position as
those of the wireless sensor system.
6. Replace the control panel and affix it using the four screws.
7. Close the cover of the device again.
8. Check that the system functions. To do so, carefully breathe
into the housing of the wireless sensor system.
The actual value indicated on the control panel changes.
ð
The wireless sensor system is operational.
Evaporation Humidifier B500 Professional30
5 Operating the humidifier

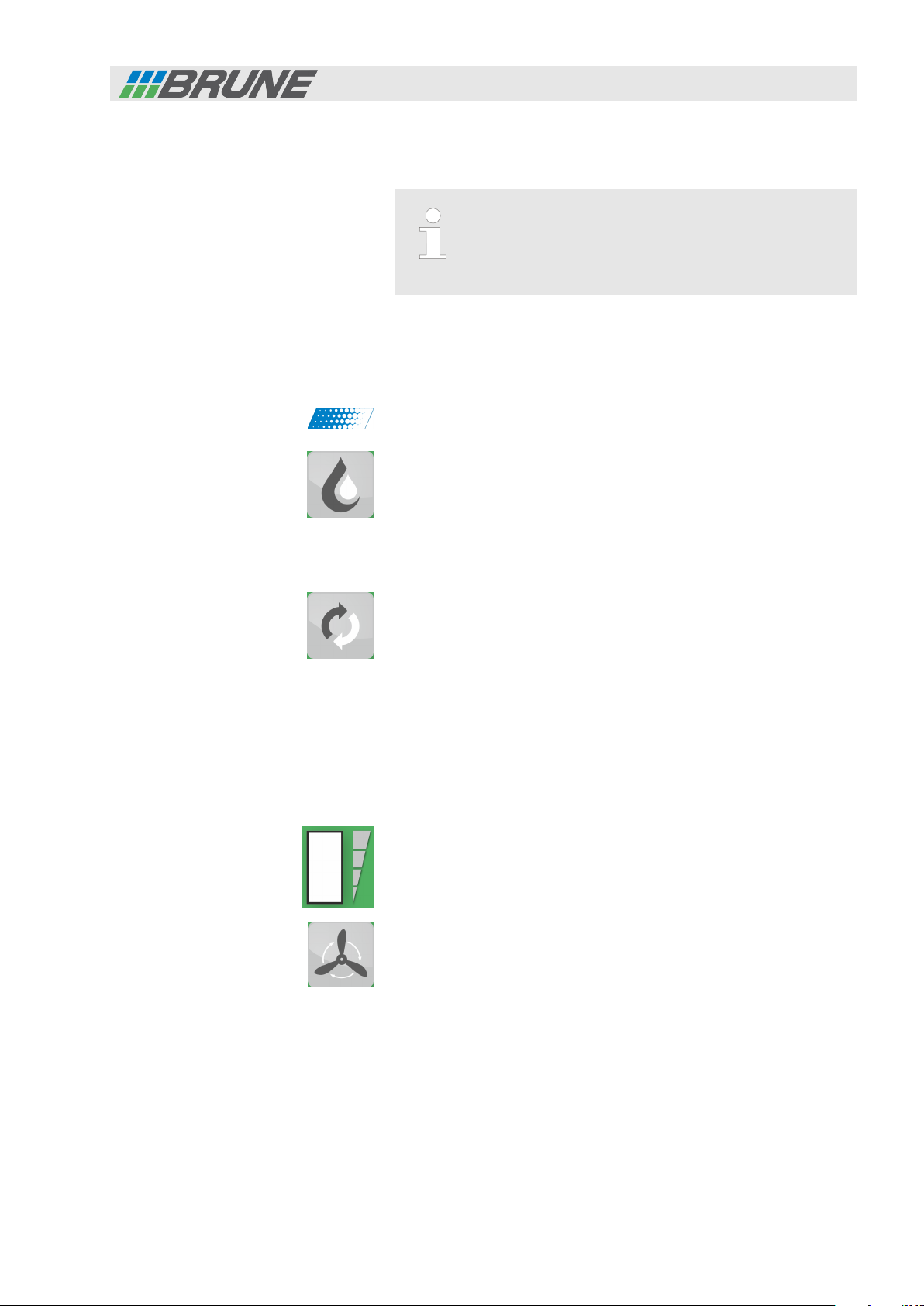

5.1 Indicators on the device
Water level indicator
The water level is detected by copper electrodes and displayed by
LEDs on the control panel.
If the water supply has been depleted, and the lower level display
is reached, the device switches off automatically. About 10 liters
(2.5 gallons) of remaining water remain in the device.
[Water level indicator] on the display lights up.
Operating the humidifier
This chapter only describes the operation of the
standard version of the humidifier. For the operation of
accessory parts, observe Ä Chapter 8 “Accessories”
on page 59.
Filter replacement display
Fan speed level indicator
The device has a filter replacement indicator indicating the need of
a filter replacement depending on the run-time of the pump, the
water hardness and the fan. In the best-case scenario, the filter
requires replacement after 98 days; in the worst case a replacement is required after 56 days. This is only a recommendation:
external influences (air pollution) can affect the recommendation
positively or negatively. Despite this indication, regular visual
inspections for signs of wear of the evaporation filter should be car-
Ä
ried out. For the filter replacement, see
the evaporation filter” on page 41.
The speed of the fan is controllable in four levels. In addition, the
device has an automatic function. The speed level of the fan is
indicated by the [Fan speed level indicator] on the control panel.
When in automatic function, the device controls the fan speed
independently, depending on the required output. This means that
any change of air humidity is measured via the wireless sensor
system, and the fan speed is increased or decreased accordingly.
Chapter 6.3.2 “Replacing
Evaporation Humidifier B500 Professional 31
Operating the humidifier
5.2 Switching on and off
Switching on
Switching off
Personnel:
Press the [ON/OFF] button on the remote control.
The humidifier is switched on.
ð
Personnel:
Press the [ON/OFF] button on the remote control.
The humidifier is switched off.
ð
DANGER!
Danger to life from electrical current!
The humidifier is not disconnected from the power
supply, but is in stand-by mode. The device is still supplied with electricity.
– Always disconnect the power plug before per-
forming cleaning tasks or during troubleshooting.
Operator
n
The wireless sensor system sends a signal
only every three minutes. Therefore error
code 05 always appears during switch-on.
However, it disappears automatically after
three minutes at the latest. The process can
be accelerated by breathing on the ventilation slots of the wireless sensor system.
Operator
n
5.3 Filling the water tank
Improper filling
Evaporation Humidifier B500 Professional32
DANGER!
Risk of electric shock from improper filling!
Improper filling can lead to death or serious injury from
electrical shock.
– Carefully pour in water.
– Always use a funnel for filling.
Operating the humidifier
NOTICE!
Risk of property damage from improper filling!
Incorrect filling of the water tank can cause malfunctions of the water level indicator or defects to the
device. In addition, water may leak from the device
and result in property damage.
– Only fill the water tank with normal tap water or
treated water with at least 300 µS (max. 30 °C, 86
°F). Never fill with distilled water.
– Fill the water tank on a fluid-resistant surface.
– Do not use aromatic substances.
– Ensure that the water does not spill and does not
enter the device.
– Every 3–4 weeks, completely drain the water tank
and refill it again.

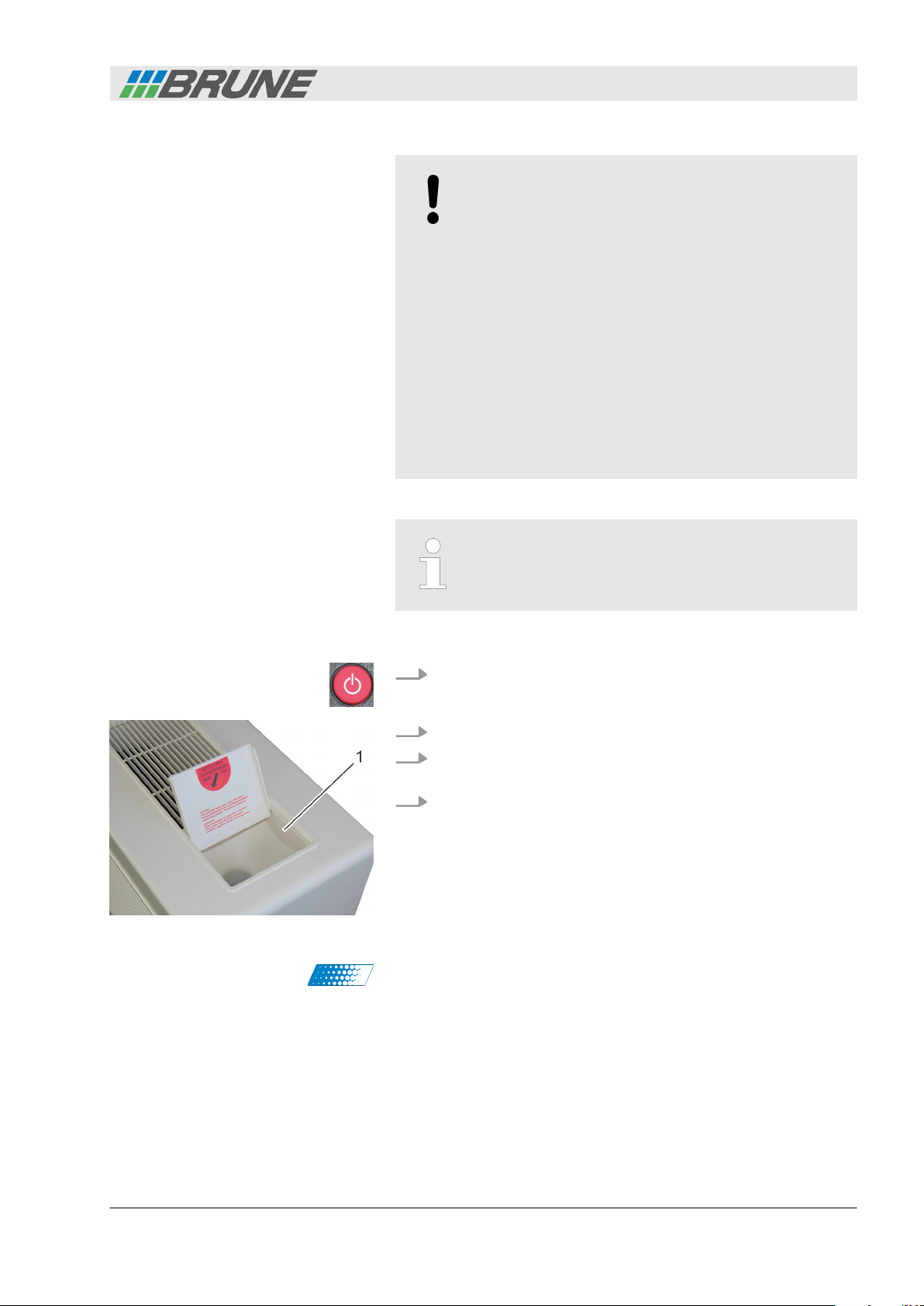

Fig. 22: Opening the fill flap
It is not necessary to fill devices with an automatic
water supply Ä Chapter 8.2 “Automatic water supply”
on page 60.
Personnel:
1. Connect the power plug of the humidifier to the power supply
and switch on the humidifier.
2. Open the fill flap (Fig. 22/1).
3. Using a watering can, carefully fill the water tank (up to 50
liters / 13.2 gallons).
4. Close the fill flap again.
The [Water level indicator] shows the current fill level
ð
(max. 5 bars).
n
Operator
Evaporation Humidifier B500 Professional 33
Operating the humidifier

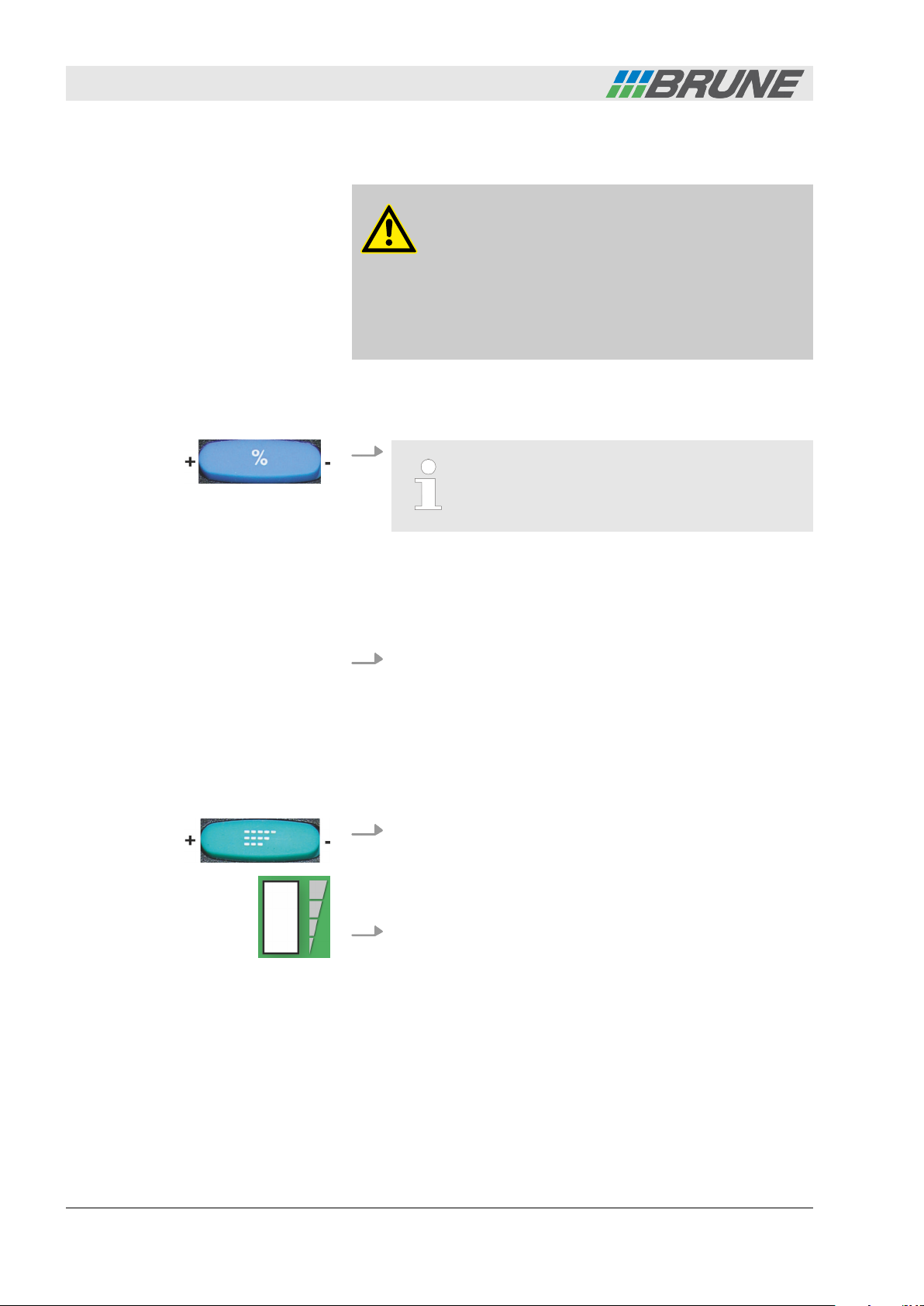

5.4 Setting the desired air humidity
Over-humidifying the air
WARNING!
Health risks are present in the event of over-
humidified air!
Over-humidified air facilitates the formation of germs
and mildew.
– It is recommended to not exceed a value of 50 ‒
60% air humidity in living quarters.
5.5 Regulating the fan
Personnel:
1.
The maximum settable humidity value is 90%.
Press the "+" or "-" area of the [Humidity] rocker switch several times or continuously until the desired humidity value is
reached on the display of the control panel.
The entered target value is shown in the control panel
ð
display.
2. Wait for 10 seconds until the saving process is completed.
The actual humidity value reappears on the display.
ð
Personnel:
1. Press the [Fan] rocker switch.
n
n
Operator
Operator
The [Fan speed level indicator] on the control panel starts
ð
flashing.
2. Now increase or decrease the fan speed using the "+" and "-"
area of the [Fan] rocker switch.
The current fan speed level is shown in the
ð
[Fan speed level indicator].
Proceed as follows to activate the fan automatic:
Evaporation Humidifier B500 Professional34
5.6 Changing the menu settings
The device offers the possibility to deviate from the factory settings
and to make various settings as desired. The menu is visually represented using numbers in the control panel display. The meaning
of each number is shown in the table Ä on page 36.
Proceed as follows to change the menu settings:
Personnel:
1. On the remote control, press the [Prog] button.
2. Press the [Prog] button until you reach the desired main
Operating the humidifier
Press the "-" area of the [Fan] rocker switch until the last bar
on the [Fan speed level indicator] is no longer lit.
The [Automatic fan indicator] lights up and the fan is now
ð
in automatic mode.
Operator
n
The number 10 appears on the control panel display
ð
(substituting the "Set signal tone" menu).
menu.
3. Once the desired main menu lights up on the display, use the
[Set] button to select the desired sub-menu.
After a few seconds, the value (e.g. 00 or 01) of the set-
ð
ting appears on the display.
4. Using the [Humidity] rocker switch, increase ("+" area) or
decrease ("-" area) the value.
5. Once the change has been carried out, wait 10 seconds.
The display read-out jumps back to the default state (dis-
ð
play of the actual humidity value). The changes have
been saved.
If no further settings are carried out within 10 seconds,
the read-out on the display automatically returns to the
default display mode (display of the actual humidity
value). The programming process can be cancelled at
any time by pressing the [ON/OFF] button. In this
case, the performed changes are lost.
Evaporation Humidifier B500 Professional 35
Operating the humidifier
Menu overview
The following table provides an overview of the menu structure.
Main
menu
10 Signal tone setting
11 Signal tone active if water
12 Signal tone active if UV lamp
13 Signal tone active on external
14 Signal tone active if fill amount
15 Signal tone active during
20 Relay setting The relay settings are only
Submenu
Description Setting Comment Fac-
tank empty.
defective.
water sensor alarm.
of water tank ≥ 50 liters (13.2
gallons).
missing radio signal.
00 = OFF
01 = ON
00 = OFF
01 = ON
00 = OFF
01 = ON
00 = OFF
01 = ON
00 = OFF
01 = ON
01
Only on models with UV technology.
Only on models with external
water sensor.
Only on models with automatic
water supply.
01
required when connected to a
central air-conditioning monitoring system.
tory
settings
01
01
01
00
21 Relay active if water tank
empty.
22 Relay active if UV lamp defec-
tive.
23 Relay active on external water
sensor alarm.
24 Relay active if fill amount of
water tank ≥ 50 liters (13.2
gallons).
25 Relay active during missing
radio signal.
00 = OFF
01 = ON
00 = OFF
01 = ON
00 = OFF
01 = ON
00 = OFF
01 = ON
00 = OFF
01 = ON
00
00
00
00
00
Evaporation Humidifier B500 Professional36
Operating the humidifier
Main
menu
30 General settings
31 Flush cycle in days. 00 = OFF
32 Setting the water hardness. 01 = soft
33 Number of days until the filter
34 Operation via external timer or
Submenu
Description Setting Comment Fac-
Only on models with flushing
needs to be replaced.
other 230 V switch-on mechanism.
(manual)
01 ... 07
days
02 = medium
03 = hard
0 - 98 =
Number of
days
00 = OFF
01 = ON
unit.
The water hardness affects the
interval of the filter replacement
indication.
The filter replacement indicator
shows in how many days the
filter will need to be replaced
(0-98 days). After replacing the
filter, the value must be set
manually back to 98.
Humidity target value is set to
90%. The actual value constantly shows 00%. The fan
setting is freely selectable.
tory
settings
07
02
98
00
35 Adjustment/control interval of
fan during automatic operation.
01 ... 10 min. Depending on room size. 05
Evaporation Humidifier B500 Professional 37
Cleaning and servicing the humidifier
6 Cleaning and servicing the humidifier
6.1 Safety instructions for cleaning and servicing
Improper cleaning
DANGER!
Danger to life from improper cleaning!
Improper cleaning of the humidifier can cause serious
or fatal injuries.
– Always disconnect the power plug before cleaning.
– Always wear protective clothing and goggles when
working with lime remover.
Inadequate cleaning
WARNING!
Health hazard due to inadequate cleaning!
Bacteria and germs can be released when cleaning is
not carried out adequately.
– Replace the evaporator filter at the latest after four
months. Reduce the time interval accordingly in
case of severe contamination of the ambient air.
– Always comply with the intervals for cleaning
described in Ä Chapter 6.2 “Cleaning schedule”
on page 39.
– Every 3–4 weeks, completely drain the water tank
and refill it again.
Improper cleaning
NOTICE!
Risk of property damage due to improper cleaning!
Improper cleaning of the humidifier can lead to
damage to the device as well as the flooring and furnishings.
– Do not use aggressive cleaning agents such as
benzene, abrasive agents or chlorine-containing
agents that could damage the plastic.
– Always clean on a water-resistant surface.
– Ensure that electronic components do not come
into contact with water.
– Ensure that the device is dry before recommis-
sioning.
Evaporation Humidifier B500 Professional38
Cleaning and servicing the humidifier
Protective gear
6.2 Cleaning schedule
When using lime remover during cleaning, protective gloves and
goggles must be worn.
Chemical-resistant protective gloves
Chemical-resistant protective gloves are used to protect hands
from skin-irritating substances.
Protective goggles
Protective goggles are used to protect the eyes from splashes.
The indicated time intervals apply for normal water
quality and normal dust occurrence in the air and
therefore may be longer or shorter.
Interval Maintenance work Personnel
Daily Check the water level. The device automatically switches off at a
residual water level of about 15 liters (4 gallons) (not applicable in
case of automatic water supply).
Check the humidity value using the control panel display. Operator
Monthly
Every 3 to 4 months
Annually Perform thorough cleaning of the device using lime remover
Thoroughly clean the humidifier (Ä Chapter 6.3.1 “Monthly cleaning”
on page 40).
Replace the evaporation filter (Ä Chapter 6.3.2 “Replacing the evaporation filter” on page 41).
Replace the activated charcoal cleaning filter (optional accessory)
(Ä Chapter 8.4.2 “Replacing the activated charcoal cleaning filter”
on page 64).
Clean the water tank (Ä Chapter 6.3.3 “Cleaning the water tank”
on page 44).
(Ä Chapter 6.3.4 “Decalcifying the device” on page 45).
Clean the UV degermination system and lime transforming cartridge
(optional accessory) (Ä Chapter 8.6.1 “Cleaning the UV degermination system and lime transforming cartridge” on page 67).
Operator
Operator
Operator
Operator
Operator
Operator
Operator
Evaporation Humidifier B500 Professional 39
Cleaning and servicing the humidifier
6.3 Cleaning tasks
6.3.1 Monthly cleaning
Personnel:
1. Switch off the humidifier and disconnect the power plug.
2. Lift the cover of the humidifier upwards and place it to the
side (Fig. 23).
3. Check the evaporation filter for contamination. In case of
severe contamination, replace the evaporation filter
Ä
(
on page 41).
Operator
n
WARNING!
Risk of electrical shock if the power plug is not
disconnected!
Chapter 6.3.2 “Replacing the evaporation filter”

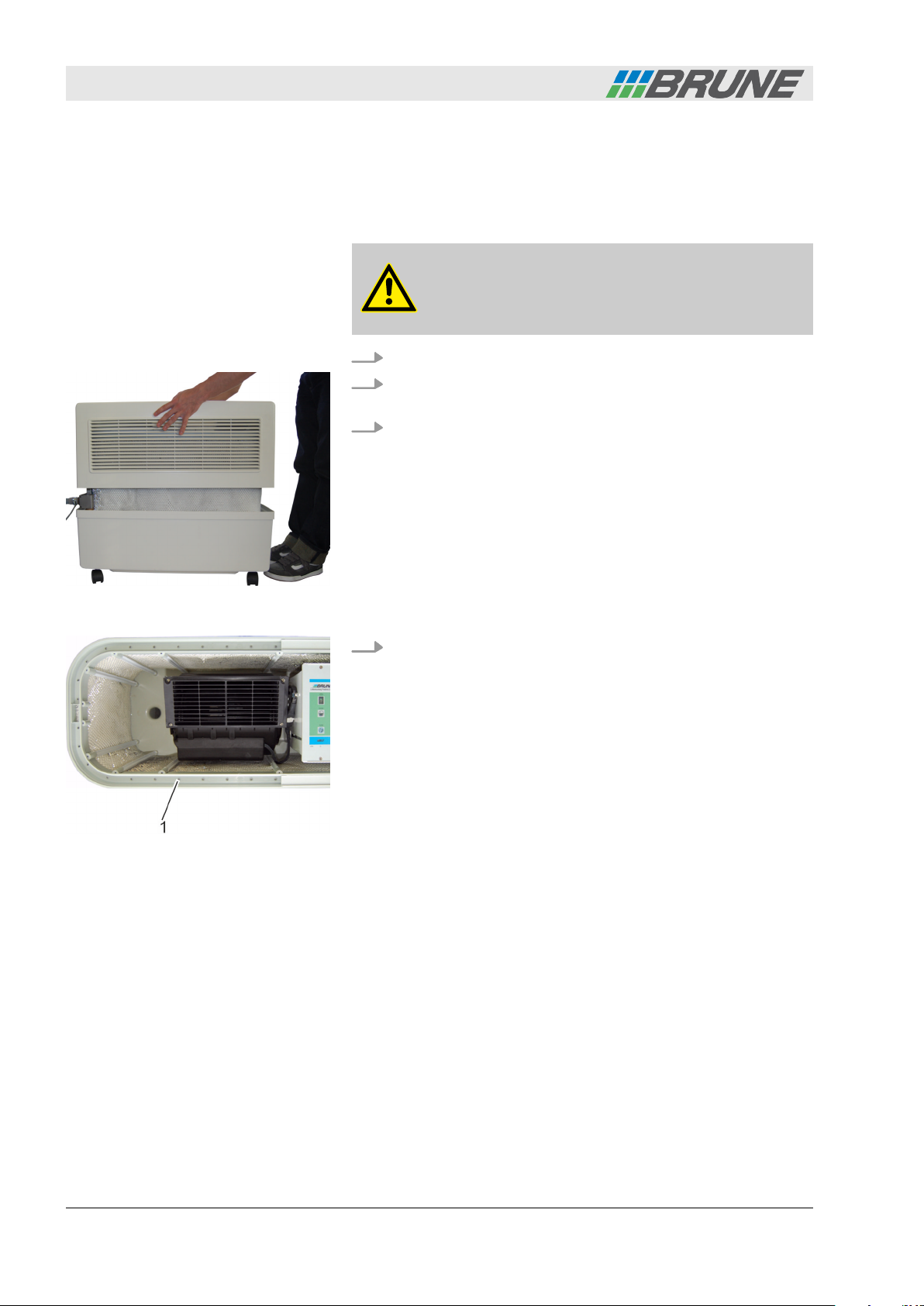

Fig. 23: Removing the cover
Fig. 24: Cleaning the drainage holes
4. Check the drainage holes of the water distribution (Fig. 24/1)
for blockages. Remove residues such as lime or dust using a
needle, a screwdriver or wet vacuum cleaner.
Evaporation Humidifier B500 Professional40

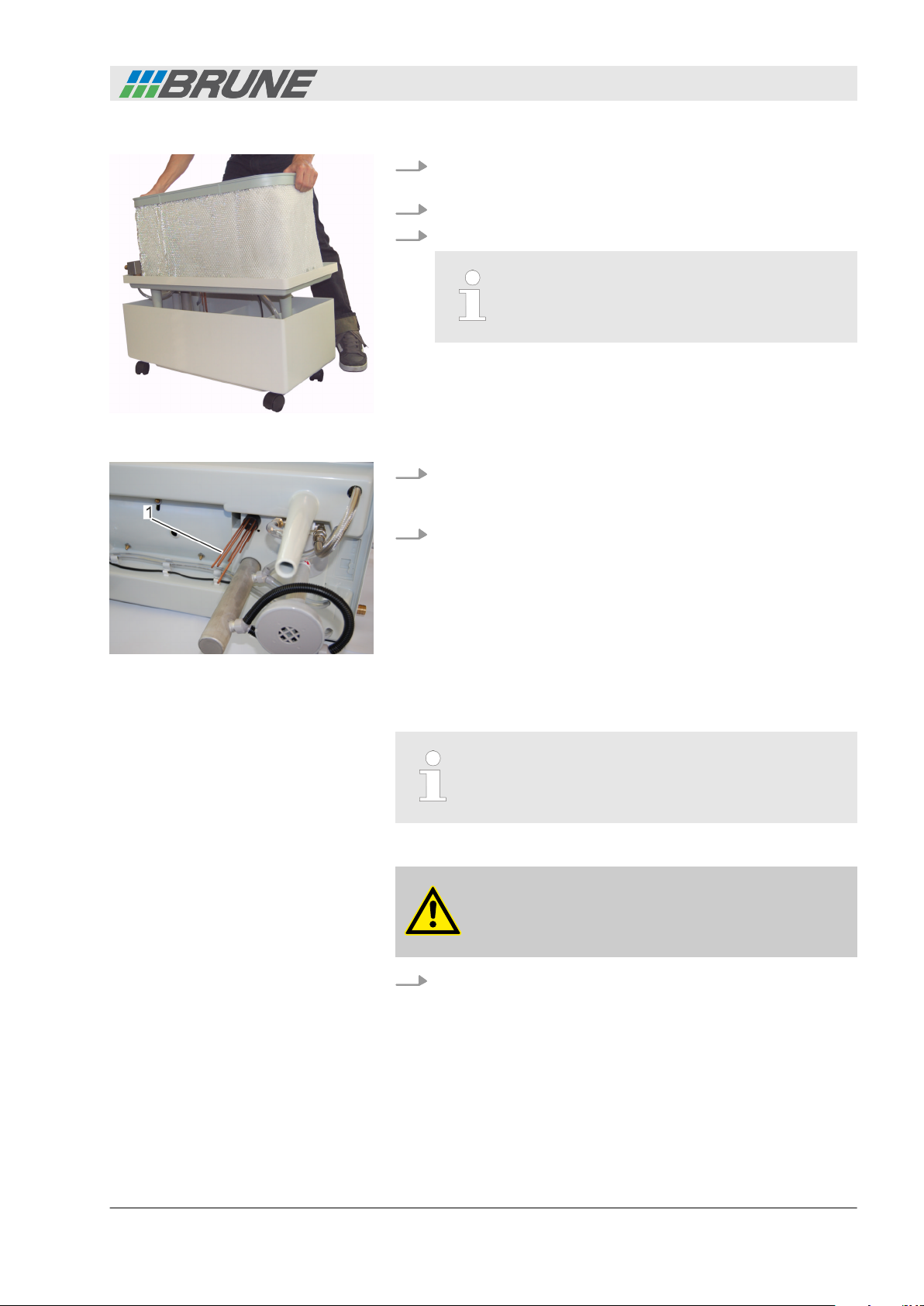

Fig. 25: Removing the center piece
Cleaning and servicing the humidifier
5. Lift the center piece from the water tank and place on the
side surface (Fig. 25).
6. Empty the water tank.
7. Clean the water tank with a sponge.
This is especially required when using Waterfresh to avoid over-concentration of biocide.
8. Check the electrode rods for water level measurement
(Fig. 26/1) for contamination. If required, use a cloth or
sponge to remove lime or other residues.
9. Place the center piece back into the water tank and replace
the cover.
The monthly cleaning is completed.
ð
Fig. 26: Cleaning the electrode rods
6.3.2 Replacing the evaporation filter
Removing the old filter
Personnel:
1. Switch off the humidifier and disconnect the power plug.
Spare evaporation filters can be ordered from your
local specialized retailer (order number: 1603).
Operator
n
WARNING!
Risk of electrical shock if the power plug is not
disconnected!
Evaporation Humidifier B500 Professional 41
Cleaning and servicing the humidifier
2. Lift the cover of the humidifier upwards and place it to the
side (Fig. 27).
Fig. 27: Removing the cover
3. Press the filter bracket together and unhinge it (Fig. 28).
Fig. 28: Removing the filter bracket
Fig. 29: Filter removed
4. Unlatch the attachment hooks from the filter. Then loosen the
filter along the water distribution and remove.
Evaporation Humidifier B500 Professional42
Inserting the new filter

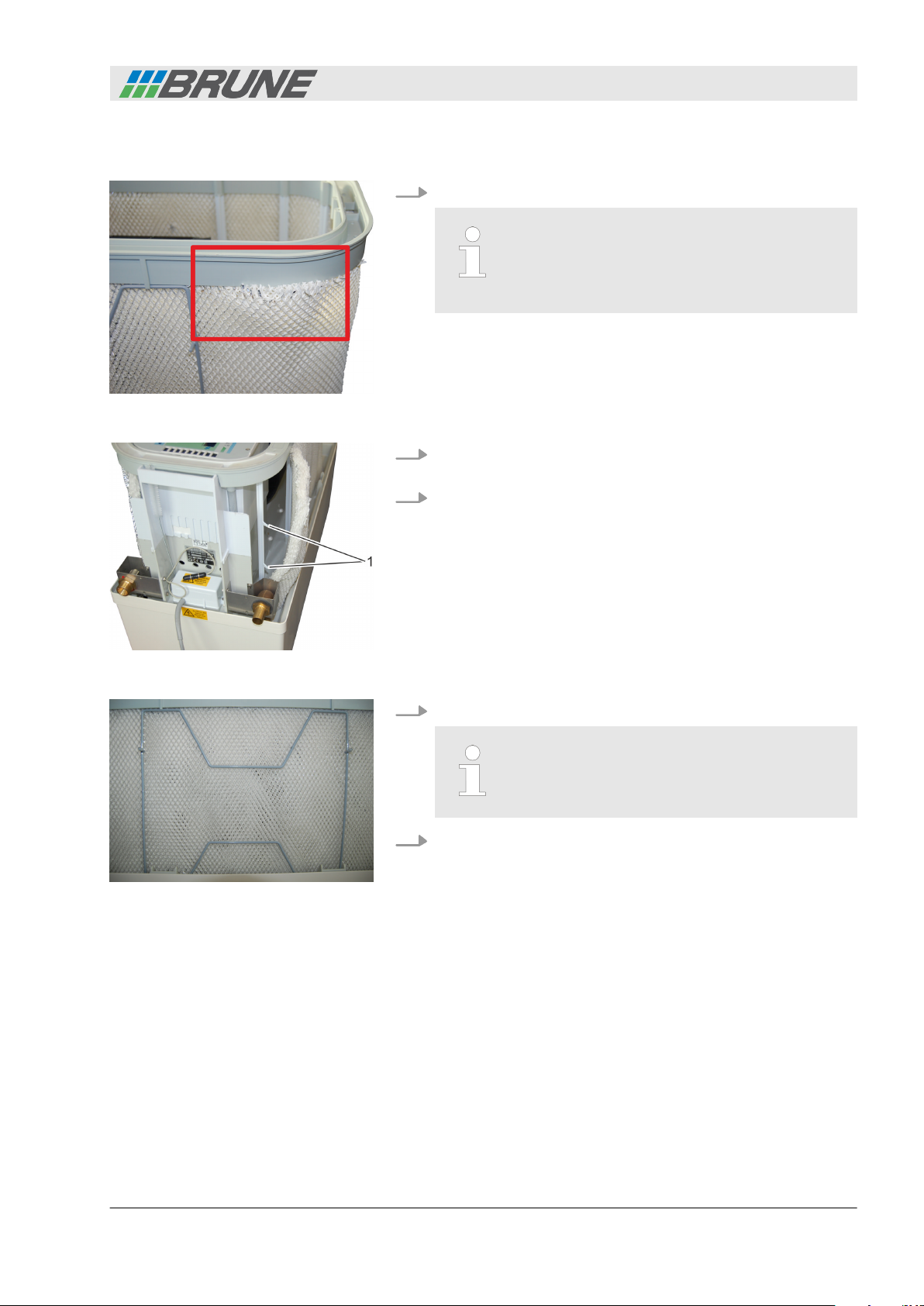

Fig. 30: Incorrect filter placement
Cleaning and servicing the humidifier
5. Insert the new filter and fasten along the water distribution.
Ensure that the filter fits against the entire length
of the water distribution within the U-shaped rail.
If this is not the case, water could leak from the
device (Fig. 30).
6. Fasten the filter to the attachment hooks (Fig. 31/1) on both
sides.
7. Check that the filter sits securely in the rail of the water distribution and that no fibers protrude.
Fig. 31: Fastening the filter
Fig. 32: Inserting the clamping
brackets
8. Insert the clamping brackets again.
Ensure correct fit of the clamping brackets. The
filter should not touch the housing, as this could
cause water leakage.
9. Replace the cover of the humidifier.
Evaporation Humidifier B500 Professional 43
Cleaning and servicing the humidifier
6.3.3 Cleaning the water tank
Personnel:
Protective equipment:
Materials:
1. Switch off the humidifier and disconnect the power plug.
2. Lift the cover of the humidifier upwards and place it to the
side (Fig. 33).
Operator
n
Chemical-resistant protective gloves
n
Protective goggles
n
Lime remover
n
WARNING!
Risk of electrical shock if the power plug is not
disconnected!
Fig. 33: Removing the cover
Fig. 34: Removing the center piece
3. Lift the center piece from the water tank and place it on the
side surface (Fig. 34).
4. Empty the water tank.
5. Clean the water tank using lime remover. Let the lime
remover act for a bit. When doing so, observe the instructions on the packaging of lime remover.
6. To avoid lime remover residues, flush the water tank thoroughly with tap water.
7. Place the center piece back into the water tank and replace
the cover.
Evaporation Humidifier B500 Professional44
6.3.4 Decalcifying the device
Aggressive lime removers
Cleaning and servicing the humidifier
NOTICE!
Risk of property damage due to the use of aggres-
sive lime removers!
Aggressive lime removers can cause damage to the
device and to its surroundings, e.g. flooring.
– Use only suitable lime removers.
– Before decalcifying, observe the instructions on the
packaging of the lime remover.
– To achieve the best results, we recommend
Optima lime remover (order no. 9016) from Brune.
– For decalcifying, place the device on a suitable,
nonsensitive surface.
Preparation

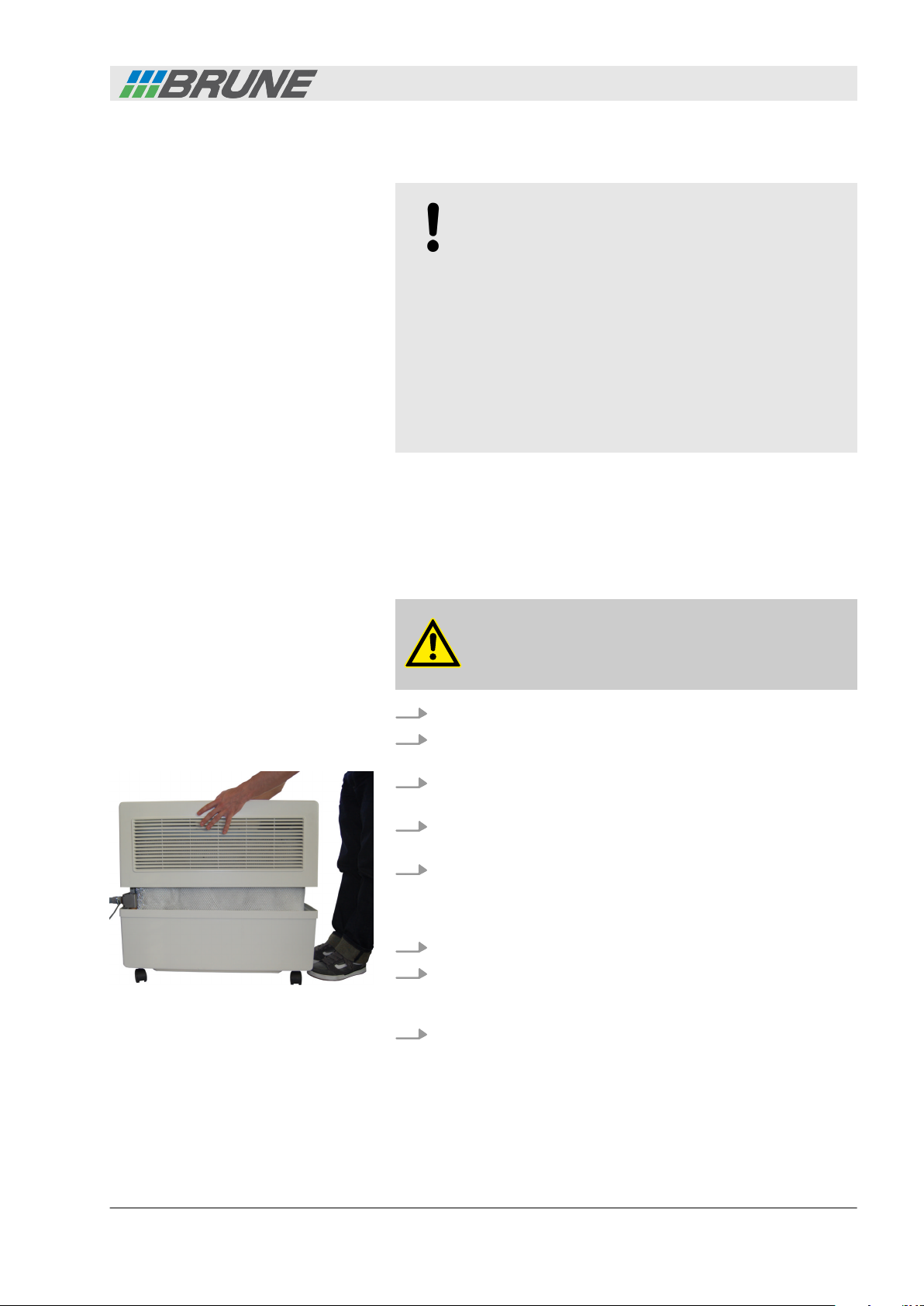

Fig. 35: Removing the cover
Personnel:
Protective equipment:
Materials:
WARNING!
Risk of electrical shock if the power plug is not
disconnected!
1. Switch off the humidifier and disconnect the power plug.
2. To prevent damage to the surface, place the humidifier on
moisture-resistant flooring.
3. Lift the cover of the humidifier upwards and place it to the
side (Fig. 35).
4.
Remove the evaporation filter (Ä Chapter 6.3.2 “Replacing
the evaporation filter” on page 41).
5. To avoid damage to the fan, loosen and pull out the fan plug
by pressing the plug clamps. Cover the fan with foil or
remove the fan (
on page 56).
6. Replace the cover.
7. Dilute the lime remover with about 10 liters (4 gallons) of
water, according to the packaging information, and put into
the water tank.
8. Put the humidifier back in operation and let it operate for 12
hours in this state.
Operator
n
Chemical-resistant protective gloves
n
Protective goggles
n
Lime remover
n
Ä
Chapter 7.4.2 “Replacing the fan”
Evaporation Humidifier B500 Professional 45
Cleaning and servicing the humidifier
Cleaning
Personnel:
Protective equipment:
Materials:
WARNING!
Risk of electrical shock if the power plug is not
disconnected!
1. Switch off the humidifier and disconnect the power plug.
2. Lift the cover of the humidifier upwards and place it to the
side (Fig. 36).
3. Remove the cleaning brush from the side compartment.
Operator
n
Chemical-resistant protective gloves
n
Protective goggles
n
Lime remover
n
Fig. 36: Removing the cover
Fig. 37: Removing the center piece
4. Lift the center piece from the water tank and place it on the
side surface (Fig. 37).
5. Place a suitable container under the pump hoses to collect
any possible residual water.
Evaporation Humidifier B500 Professional46
Fig. 38: Removing the pump hoses
Cleaning and servicing the humidifier
6. Remove the pump hoses (Fig. 38/1).
7. Clean the pump hoses using the cleaning brush. In case of
severe contamination or wear, replace the pump hoses
(order no. 1529).
8. Reattach the pump hoses.
Ensure that the pump hoses fit securely. Otherwise water could leak out.
Fig. 39: Cleaning the pump hoses
Fig. 40: Cleaning the pump body
9. Clean the pump body (Fig. 40/1) using a cloth.
10. Clean the electrode rods for measuring the water level
(Fig. 41/1). Depending on the level of contamination, use a
sponge or fine-grit sand paper.
11. To avoid lime remover residues in the device, flush the water
tank thoroughly with tap water.
12. Place the center piece back into the water tank and replace
the cover.
Fig. 41: Cleaning the copper electrodes
Evaporation Humidifier B500 Professional 47
Cleaning and servicing the humidifier
13. Vacuum the surface of the fan (Fig. 42/1) using a vacuum
nozzle.

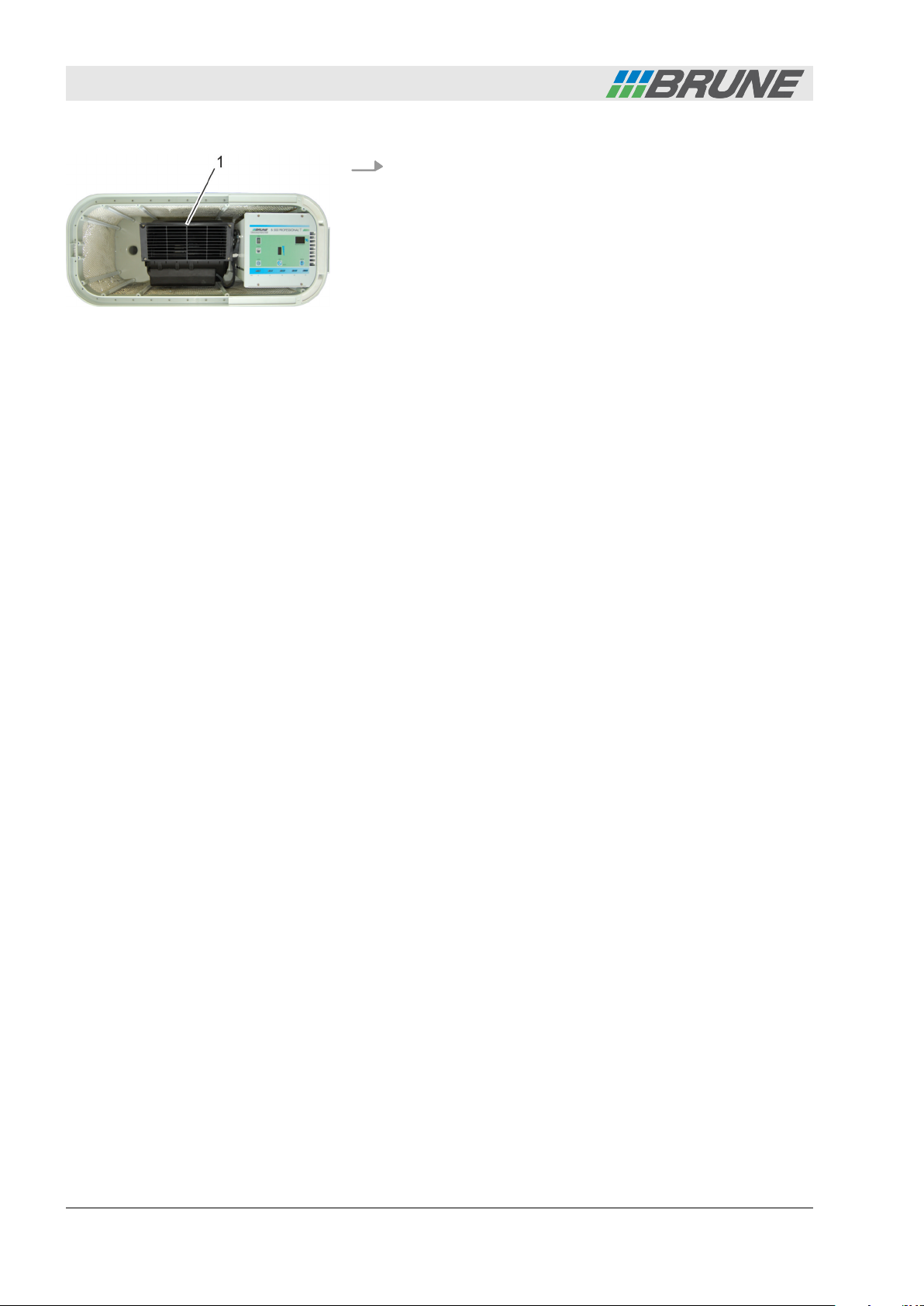

Fig. 42: Vacuuming the fan
Evaporation Humidifier B500 Professional48
Detecting and remedying malfunctions
7 Detecting and remedying malfunctions
7.1 Safety instructions for troubleshooting
DANGER!
Danger to life from improper troubleshooting!
Improper troubleshooting can cause serious or fatal
injuries.
– Always disconnect the power plug before begin-
ning troubleshooting.
– Only attempt to resolve the malfunctions that are
described below. For all other problems, contact
the manufacturer.
7.2 Malfunction indication
The Evaporation Humidifier B500 Professional has an independent
monitoring system that can quickly and reliably detect errors and
respond accordingly.
If a malfunction is present, it is displayed on the malfunction indication on the control panel. The malfunction indication can be combined with an acoustic signal. A beep therefore also sounds in
addition to the indication. The user can select this setting himself or
herself. To do so, see Ä Chapter 5.6 “Changing the menu settings”
on page 35.
In addition to the malfunction indication, an error code appears on
the display. The meaning of the error codes can be identified using
the following list.
If an error code is displayed, only the [ON/OFF] button
as well as the [Prog] and [Set] buttons on the remote
control can be used.
Evaporation Humidifier B500 Professional 49
Detecting and remedying malfunctions
Error code display
Error
code
01 The water tank is empty.
02 The UV lamp (optional
03 There is water leakage (only
Cause Remedy Personnel
accessory) is defective.
possible with external water
sensors (optional accessory)).
The following table shows the error codes and the corresponding
solution for the problem.
n Check the water level. Top off the water tank, if
Ä
required (
on page 32).
n Check the water level electrodes for contamina-
tion and clean them if required (
6.3.1 “Monthly cleaning” on page 40).
n Was distilled water used? If yes, top off with tap
water.
n Check the connection of the water level elec-
trodes.
n If an automatic water supply is used, check it for
functionality.
n Replace the UV lamp (Ä Chapter
8.6.2 “Replacing the UV lamp” on page 70).
n Check that the filter fits correctly.
n Check that the device is placed on a level sur-
face.
n If an automatic water supply is used, check it for
functionality and leak tightness.
n Check the water tank for leaks.
Chapter 5.3 “Filling the water tank”
Ä
Chapter
User
User
User
04 The water tank is over-full
(only possible with an automatic water supply (optional
accessory)).
05 Missing radio signal from the
wireless sensor system. The
receiver on the control panel
has not received a signal for
a long period of time.
09 Several errors occurred at
the same time.
n Check the functionality of the solenoid valve.
n Check the water level electrodes for contamina-
Ä
tion and clean them if required (
6.3.1 “Monthly cleaning” on page 40).
n Since the wireless sensor system sends a signal
only every three minutes, this error always
appears when switching the humidifier on. The
malfunction indication disappears automatically
after three minutes at the latest.
n Decrease the distance between the wireless
sensor system and the humidifier to max. 30
meters (98 feet). Concrete and steel walls can
impair reception.
n Check the functionality of the wireless sensor
system. If necessary, replace the batteries
Ä
“Commissioning the wireless sensor system”
(
on page 25).
n Check the coding of the wireless sensor system
Ä
Chapter 4.4 “Coding the wireless sensor
(
system” on page 27).
n Check the device as described in errors 01 - 05.
Chapter
User
User
User
Evaporation Humidifier B500 Professional50
Detecting and remedying malfunctions
7.3 Error table
Check the following if the device is still not functioning correctly but
no malfunction is present:
Fault description Cause Remedy Personnel
No function; the humidifier
does not start up.
The [Water level indicator]
illuminates red.
The humidifier is switched
on but the fan is not running.
The device runs, but there
is no water in the water distribution.
The device is not
switched on.
The device is not connected, or is not connected correctly.
The water level is too
low.
The copper electrodes
of the water level indicator are dirty.
The air humidity is
higher than the set
target value for
humidity.
The fan is defective.
The fan plug is defective.
The pump hoses are
dirty or are not properly connected.
Switch on the device (Ä on page 32).
Ensure that the power plug of the
humidifier is connected to the power
supply.
Top off the water (Ä Chapter
5.3 “Filling the water tank”
on page 32).
Clean the copper electrodes
(Ä Chapter 6.3.4 “Decalcifying the
device” on page 45).
If required, change the target value
(Ä Chapter 5.4 “Setting the desired air
humidity” on page 34).
Replace the fan (Ä Chapter
7.4.2 “Replacing the fan”
on page 56).
Check the cable connection and cable.
Replace them if necessary.
Clean the pump hoses and connect
them properly (Ä Chapter
6.3.4 “Decalcifying the device”
on page 45).
Operator
Operator
Operator
Operator
Operator
Operator
Licensed
electrician
Operator
The water channel is overflowing.
Water is leaking from the
device.
The lime transforming
cartridge (optional
accessory) is blocked.
The pump is defective.
The drainage holes
are blocked.
The water tank is
leaking.
Clean the lime transforming cartridge
(Ä Chapter 8.6.1 “Cleaning the UV
degermination system and lime transforming cartridge” on page 67).
Replace the pump (Ä Chapter
7.4.1 “Replacing the pump”
on page 53).
Clean the water distribution and the
drainage holes (Ä Chapter
6.3.1 “Monthly cleaning” on page 40).
Check the water tank for damage. Operator
Operator
Operator
Operator
Evaporation Humidifier B500 Professional 51
Detecting and remedying malfunctions
Fault description Cause Remedy Personnel
The device does not react
to the remote control.
The automatic water supply
(optional accessory) no
longer tops off the water.
The device is standing
at a slant.
The filter is exhausted.
The filter is not properly inserted.
The pump hoses are
dirty or are not properly connected.
The battery is empty or
incorrectly inserted.
The distance between
the remote control and
the device is too great.
The safety pressure
hose (optional accessory) is defective –
water supply is automatically stopped.
Check the installation location and
adjust it if necessary (Ä Chapter
4.2 “Requirements at the installation
location” on page 24).
Replace the filter (Ä Chapter
6.3.2 “Replacing the evaporation filter”
on page 41).
Check that the filter is positioned correctly. Ensure that the filter is not
placed too close to the housing and
that no fibers protrude.
Connect the pump hoses correctly and
clean them, if necessary (Ä Chapter
6.3.4 “Decalcifying the device”
on page 45).
Check the battery and replace it, if
necessary. When doing so, ensure
correct polarity (Ä “Commissioning the
humidifier” on page 26).
Decrease the distance to a maximum
of 1 meter (3 feet).
Check the water supply. If necessary,
replace the safety pressure hose
(Ä Chapter 8.10.2 “Replacing the
safety pressure hose” on page 74).
Operator
Operator
Operator
Operator
Operator
Operator
Operator
The automatic water supply
(optional accessory) is continuously running.
The water monitor (optional
accessory) gives an
acoustic signal.
The wireless sensor
system gives an acoustic
signal.
Newly inserted batteries do
not work.
The automatic water
supply (optional accessory) is defective.
The solenoid valve
does not close.
The solenoid valve is
defective.
Water has leaked. Find and remedy the cause, clean the
The batteries in the
wireless sensor
system are empty.
The batteries have
been incorrectly
inserted – polarity not
observed.
Have the automatic water supply
repaired by a licensed plumber or by
authorized personnel of the manufacturer.
Check the water level electrodes for
contamination and clean them if
necessary (Ä Chapter 6.3.1 “Monthly
cleaning” on page 40).
Have the solenoid valve replaced. To
do so, contact your local retailer.
basin. Then disconnect the power connection of the water monitor for a few
seconds.
Replace the batteries. Operator
Insert the batteries correctly
(Ä Chapter 4.3 “Commissioning the
humidifier for the first time”
on page 24).
Licensed
plumber
Manufacturer
Operator
Licensed
electrician
Operator
Operator
Evaporation Humidifier B500 Professional52
Detecting and remedying malfunctions
Fault description Cause Remedy Personnel
00% appears on the display. If the target value is to
be adjusted, then 90%
appears.
A number between 01 and
09 appears on the control
panel display. In addition,
an alarm sounds. Except
for the [ON/OFF] button
and the [Prog] and [Set]
buttons, all buttons on the
remote control are blocked.
Operation via an
external timer is active
(menu number 34).
The monitoring system
of the humidifier has
detected a problem.

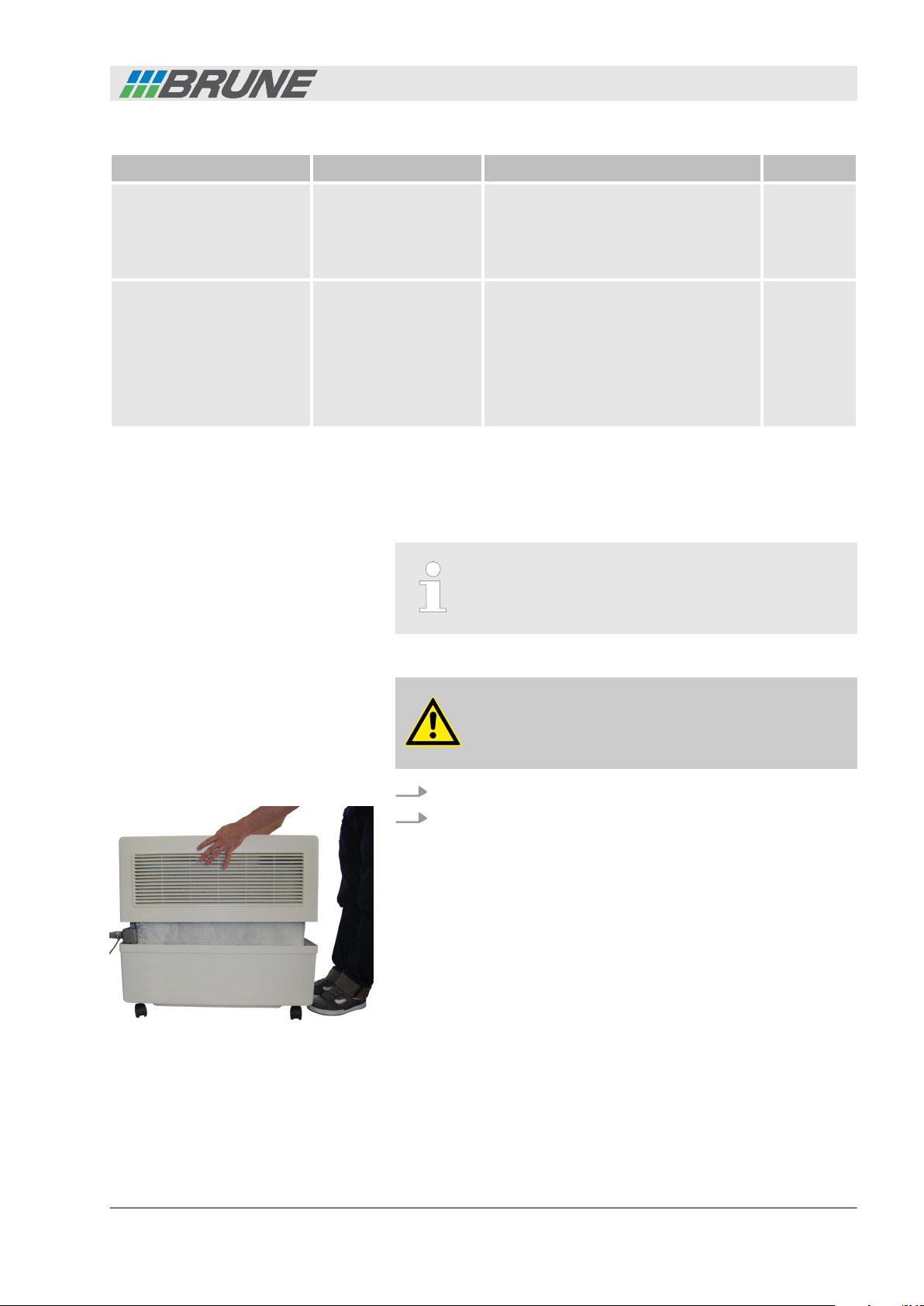

7.4 Remedying errors

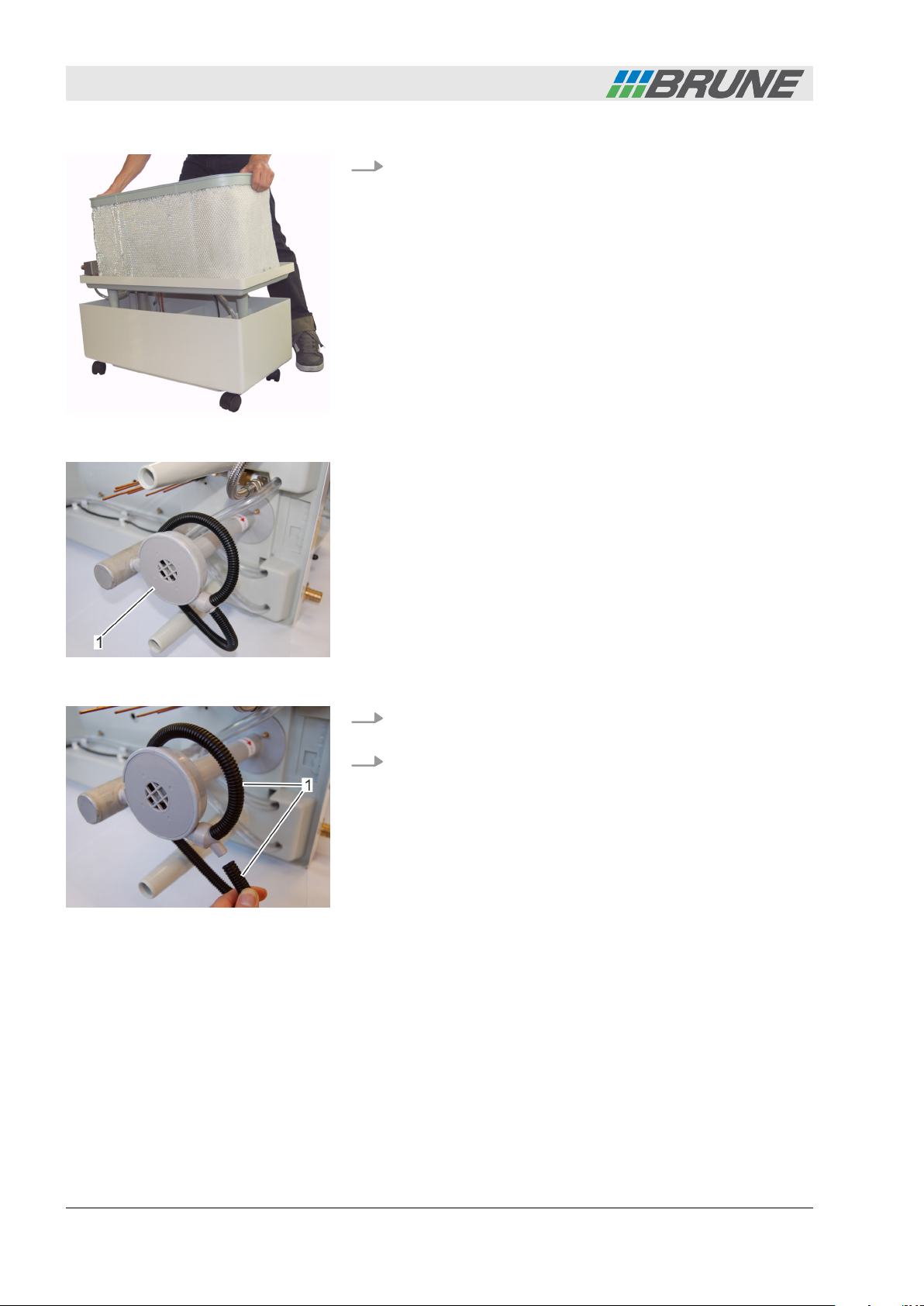

7.4.1 Replacing the pump
Deactivate operation using an external
timer by changing the value of menu
number 34 to 00 (Ä Chapter
5.6 “Changing the menu settings”
on page 35).
The meaning of the error and the corresponding remedy is described under
Ä
“Error code display” on page 50.
A new pump can be ordered from your local specialized retailer (order number: 1521).
Operator
Operator
Removing the old pump
Fig. 43: Removing the cover
Personnel:
WARNING!
Risk of electrical shock if the power plug is not
disconnected!
1. Switch off the humidifier and disconnect the power plug.
2. Lift the cover of the humidifier upwards and place it to the
side (Fig. 43).
n
Operator
Evaporation Humidifier B500 Professional 53
Detecting and remedying malfunctions
3. Lift the center piece from the water tank and place it to the
side (Fig. 44).
Fig. 44: Removing the center piece
ð
The water pump is located at the bottom on the righthand side (Fig. 45/1).
Fig. 45: Water pump
Fig. 46: Removing the pump hoses
4. To collect any possible residual water, place a suitable container under the pump hoses (Fig. 46/1).
5. Remove the pump hoses.
Evaporation Humidifier B500 Professional54

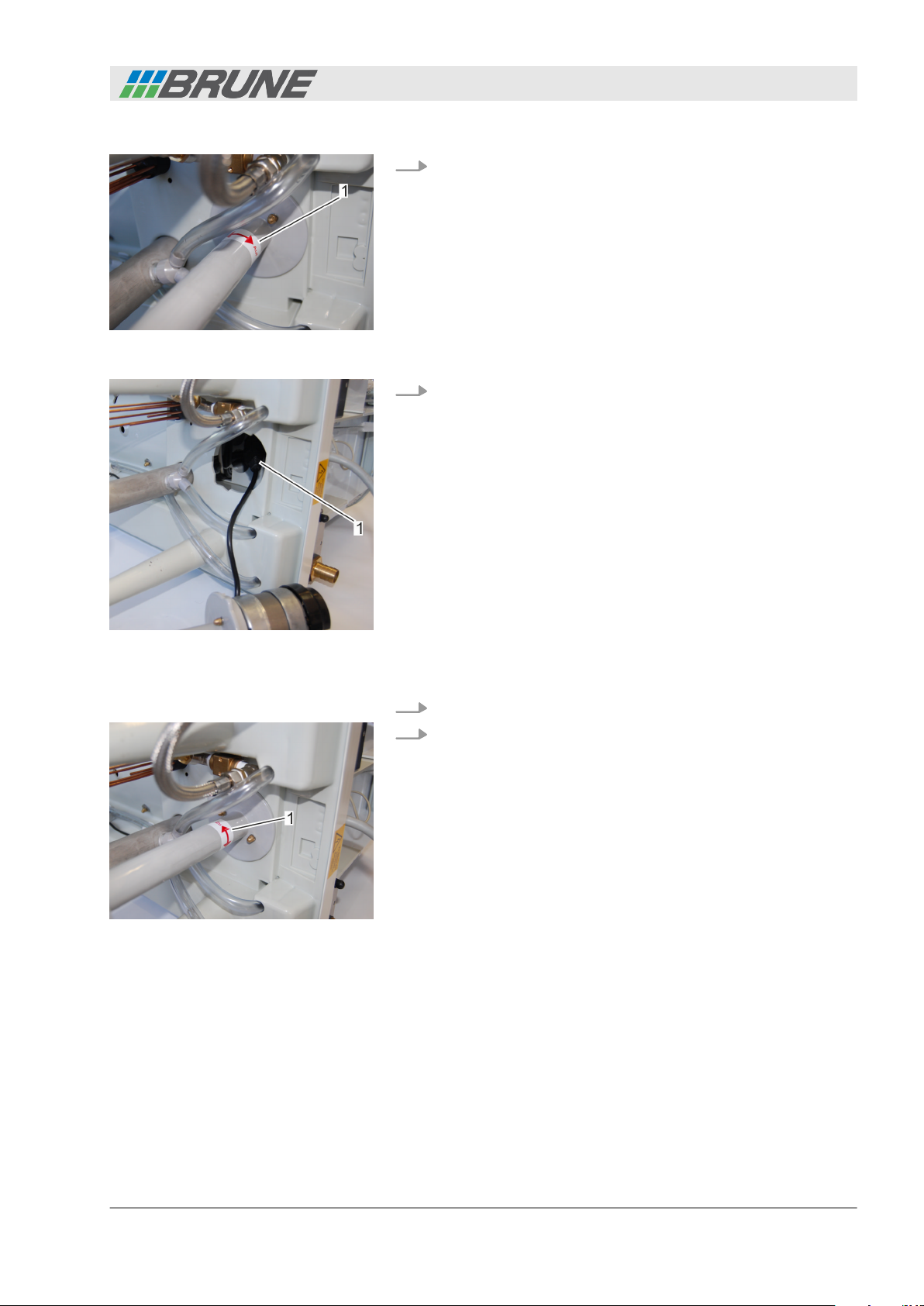

Fig. 47: Releasing the water pump
Detecting and remedying malfunctions
6. Release the water pump to the right and pull out it carefully
(Fig. 47/1).
7. Disconnect the plug connection (Fig. 48/1).
Fig. 48: Disconnecting the plug connection
Installing a new pump
Fig. 49: Attaching the pump
8. Connect the plug connection of the new pump.
9. Insert the water pump into the opening and turn in the direc-
tion of the arrow until it latches in and sits securely
(Fig. 49/1).
Ensure that the pump cable is not crushed when inserting the
pump.
Evaporation Humidifier B500 Professional 55
Detecting and remedying malfunctions
10. Reattach the pump hoses.
11. Place the center piece back into the water tank and replace
the cover.

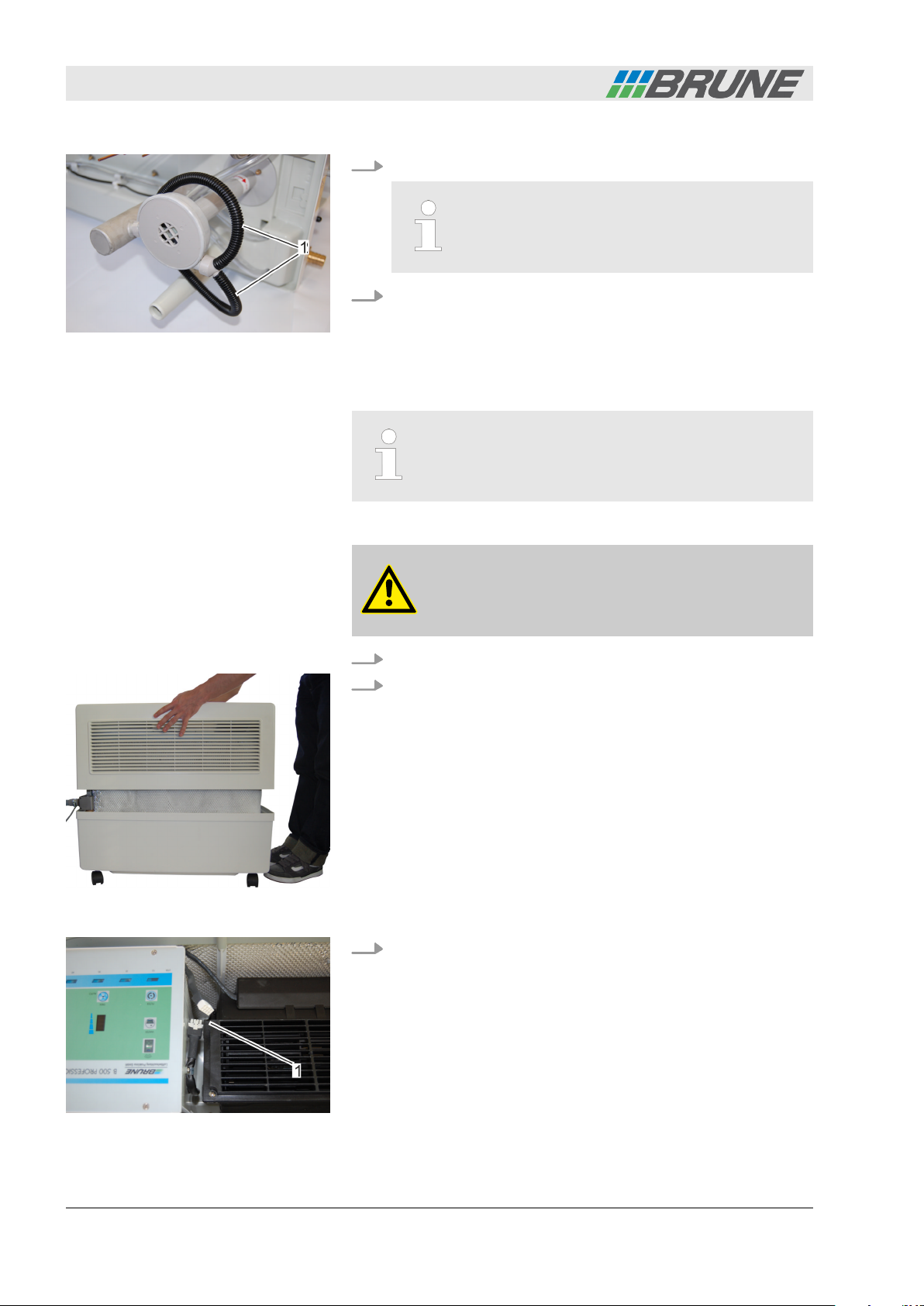

Fig. 50: Attaching the pump hoses
7.4.2 Replacing the fan
Ensure that the pump hoses fit securely. Otherwise water could leak out.
A new fan can be ordered from your local specialized
retailer (Item no.: 1500S).
Removing the old fan
Fig. 51: Removing the cover
Personnel:
WARNING!
Risk of electrical shock if the power plug is not
disconnected!
1. Switch off the humidifier and disconnect the power plug.
2. Lift the cover of the humidifier upwards and place it to the
side (Fig. 51).
The fan is located in the center piece next to the control
ð
panel.
3. Loosen and pull out the fan plug by pressing the plug clamps
(Fig. 52/1).
n
Operator
Fig. 52: Removing the fan plug
Evaporation Humidifier B500 Professional56

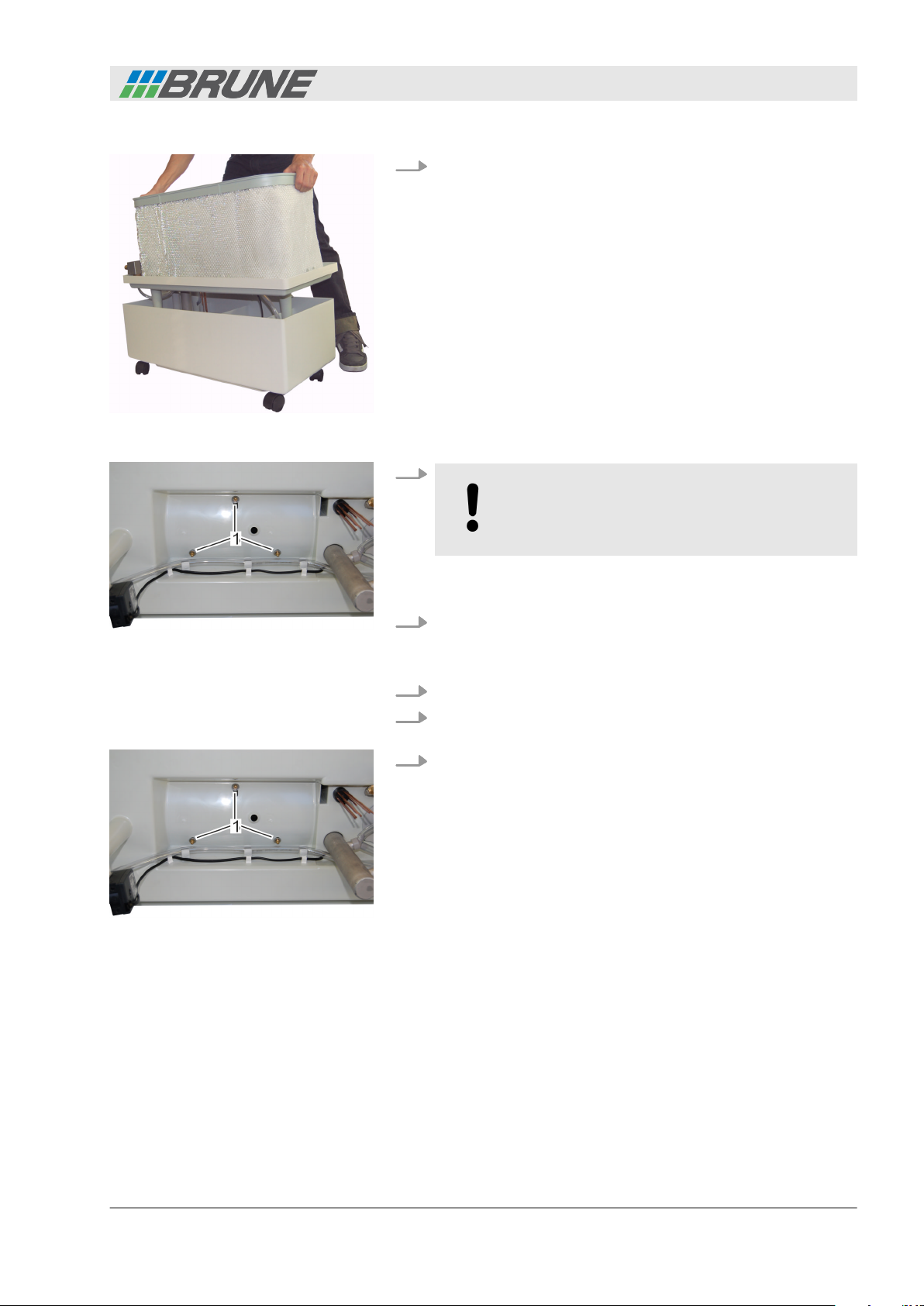

Fig. 53: Removing the center piece
Detecting and remedying malfunctions
4. Lift the center piece from the water tank and place it to the
side (Fig. 53).
5.
NOTICE!
Ensure that the fan does not fall out after the
bolts have been removed.
Fig. 54: Removing bolts
Inserting a new fan
Fig. 55: Tightening the fan
Unscrew the three bolts on the bottom counterclockwise and
remove them completely (Fig. 54/1).
6. Remove the fan.
7. Insert a new fan.
8. Run the screw threads on the vibration dampers through the
holes in the center plate.
9. Tighten the fan at the bottom of the center piece again
(Fig. 55/1).
Evaporation Humidifier B500 Professional 57
Detecting and remedying malfunctions
10. Connect the fan plug again (Fig. 56/1).
11. Place the center piece back into the water tank and replace
the cover.

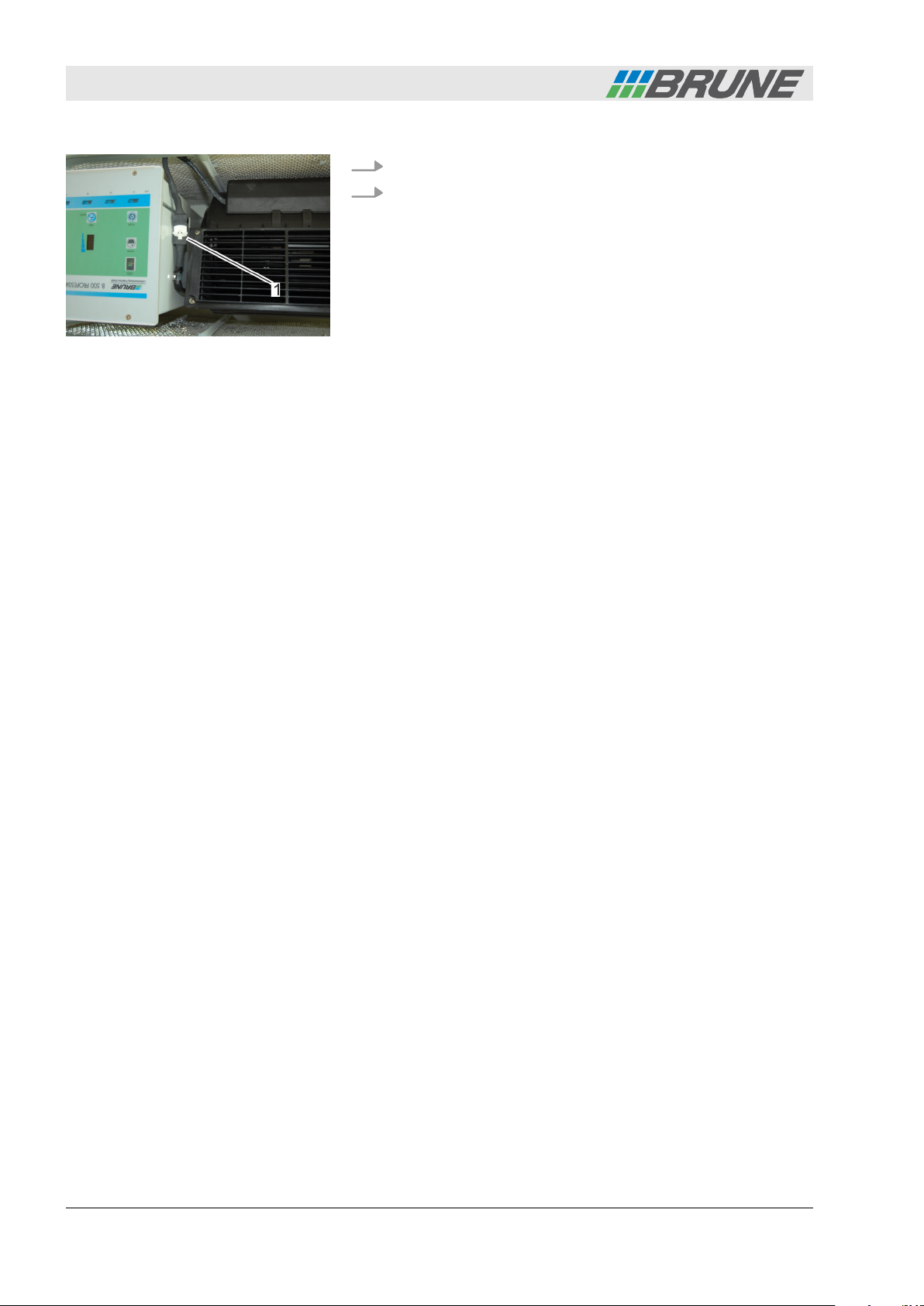

Fig. 56: Connecting the fan
Evaporation Humidifier B500 Professional58
8 Accessories
Accessories
WARNING!
Risk of injury due to using the incorrect accesso-
ries!
The use of incorrect or defective accessories may
cause harm to the user, damage, malfunctions or total
failure.
– Only use original accessories from Brune Luftbe-
feuchtung Proklima GmbH or accessories authorized by Brune Luftbefeuchtung Proklima GmbH.
– Always contact our customer service if anything is
not clear.
The accessories described below can be ordered in addition to the
humidifier standard version. Some accessories may only be
installed by the manufacturer. In this case, contact the manufacturer.
8.1 Waterfresh
Biocide
Fig. 57: Waterfresh
NOTICE!
Environmental damage due to biocides!
The biocides contained in Waterfresh are harmful to
the environment in large amounts.
– Information about correct disposal can be obtained
from the local authorities or from specialist waste
management companies.
– Always use biocides safely. Read the label and
product information before use.
Order numbers:
– 1 l bottle 9020
– 5 l can: 9022
Waterfresh can also be added to the water tank to reduce algae
growth, germ formation and limescale. It does not enter the room
air and does not present any health risks if used properly.
Read the dosing instructions on the bottle when using Waterfresh.
To prevent over-concentration, the water tank should be drained
regularly and cleaned thoroughly at least every 3–4 months
Ä
Chapter 6.3.3 “Cleaning the water tank” on page 44.
Always use biocides safely. Always observe the safety instructions
on the bottle.
Evaporation Humidifier B500 Professional 59
Accessories
8.2 Automatic water supply
Order number: 1799
Requirement
– Installation of the automatic water supply is per-
formed exclusively by the manufacturer. A connection to a local water supply system may only be
carried out by an authorized plumber.
When connecting the humidifier to the local water supply system,
manual filling is not required. Refilling is performed by an electronically controlled solenoid valve. It automatically opens the water
supply when reaching the minimum water level and stops the water
supply as soon as the water tank is full. The device is set to a maximum fill level of 30 liters (7.9 gallons). This means that if the fill
level of 30 liters (7.9 gallons) is reached, the water supply stops.
For safety reasons, we recommend the following accessories:
Operation
n Safety collecting basin (Ä Chapter 8.7 “Safety collecting basin”
on page 72)
Ä
n Safety water sensor (
on page 73)
n External water sensor (Ä Chapter 8.9 “External water sensor”
on page 73)
WARNING!
Risk of injury due to unauthorized connection of
the humidifier to the local water supply system.
Connecting the humidifier to the local water supply
system creates risks that can not be assessed by laypersons.
– Connection of the humidifier to the local water
supply system may only be carried out by an
authorized plumber.
– To ensure a stable function of the water supply, do
not connect to a supply with distilled or treated
water.
If the water supply is active, this is indicated by a diode running
light on the [Water level indicator].
The water supply is controlled via the electrode rods of the water
level indicator. For the water supply to function properly, it is
necessary to clean the electrode rods monthly and to remove limescale (Ä Chapter 6.3.1 “Monthly cleaning” on page 40).
Chapter 8.8 “Safety water sensor”
Evaporation Humidifier B500 Professional60
Accessories
Safety devices
Information for licensed plumbers
To prevent overfilling, the device switches off automatically upon
reaching a fill level of 50 liters (13.2 gallons). Here, an acoustic
warning signal sounds and error code 04 appears on the display. If
there is a defect in the water supply and the water level does not
change after 10 minutes despite the solenoid valve being open, the
operation is cancelled and error code 01 appears on the display.
The following information is directed exclusively to
licensed plumbers who connect the humidifier to the
local water supply system.
NOTICE!
Risk of property damage due to excessive water
pressure!
The humidifier could be damaged if the water pressure
of the local water supply system is too high.
– The maximum water pressure may not exceed 1
MPa (145 psi).
Personnel:
Licensed plumber
n
8.3 Automatic flushing device
1. To prevent contamination of the solenoid valve, thoroughly
flush the line prior to connecting.
2. Connect the humidifier to the local water supply system as
per the regulations of the local water supply authority. When
doing so, observe the following points:
n The material used and the connection must meet the IEC
61770 standard.
n Only use new hoses. Used hoses may not be used
again.
n Always observe the regulations of the local water sup-
plier. A backflow preventer may be required.
n For a diagram with the dimensions of the connection, see
Fig. 58.
Order number: 1740
Evaporation Humidifier B500 Professional 61
Accessories
Requirement
– Automatic water supply
– Installation of the automatic flushing device is car-
ried out exclusively by the manufacturer. A connection to a local water supply system may only be
carried out by an authorized plumber.
The automatic flushing device is used to exchange, in regular intervals, the residual water in the water tank and to top it off with fresh
water. This unit is only used in combination with the automatic
water supply; no manual water exchange is required.
Operation
The water exchange can be started manually. To do so, proceed
as follows:
Personnel:
To start the flushing device manually via the remote control,
press the [Flush] button.
In addition to the manual start, the flushing device can be programmed so that the water is automatically exchanged in intervals
of 1–7 days. To do so, proceed as follows:
Personnel:
1. To program the flushing device, open the menu by pressing
the [Prog] button.
2.
Open menu item 31 (Ä Chapter 5.6 “Changing the menu settings” on page 35).
3. Change the value according to the desired interval (1–7
days).
4. Once the change has been carried out, wait 10 seconds.
The display read-out jumps back to the default state (dis-
ð
play of the actual humidity value). The changes have
been saved.
n
n
Operator
Operator
Information for licensed plumbers
Evaporation Humidifier B500 Professional62
The following information is directed exclusively to
licensed plumbers who connect the humidifier to the
local water supply system.
Accessories
Personnel:
Connect the automatic flushing device to the waste water
system as per the regulations of the local water supply
authority. When doing so, observe the following points:
n The material used and the connection must meet the IEC
61770 standard.
n The waste water hose may not be longer than 1.5 meters
(5 feet), since the pump only has a certain output and
otherwise no pressure is built up.
n Ensure that the waste water hose is not routed up an
incline.
n To fill the water column, if necessary, fill the hose with
water prior to connection.
n To prevent the formation of a vacuum, equip the line with
a bleeder if required.
n For dimensions and connection sizes, see drawing
Fig. 58.
Licensed plumber
n

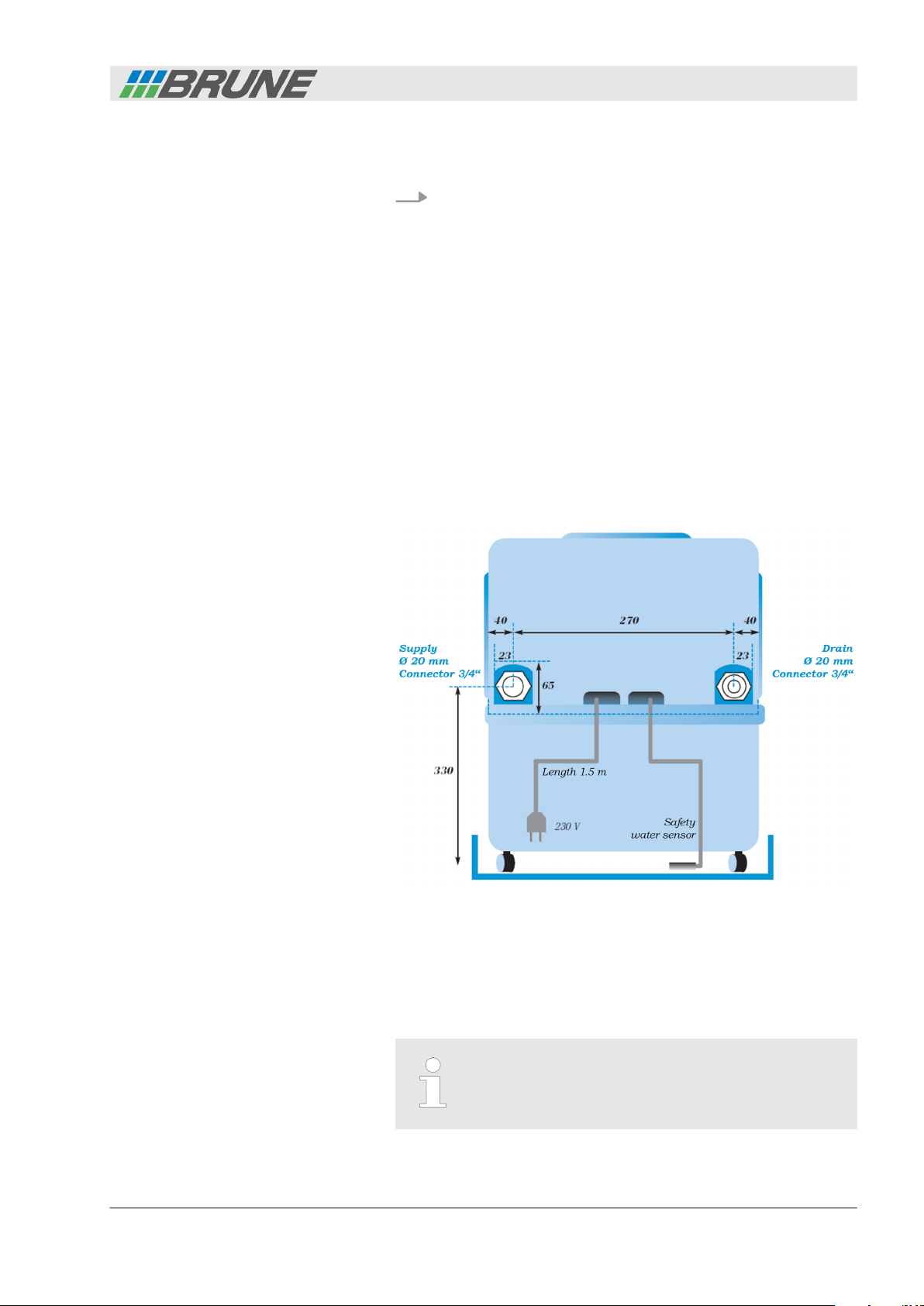

Fig. 58: Automatic flushing device
8.4 Activated charcoal cleaning filter
8.4.1 Overview
Evaporation Humidifier B500 Professional 63
Order number: 1605/500
Accessories

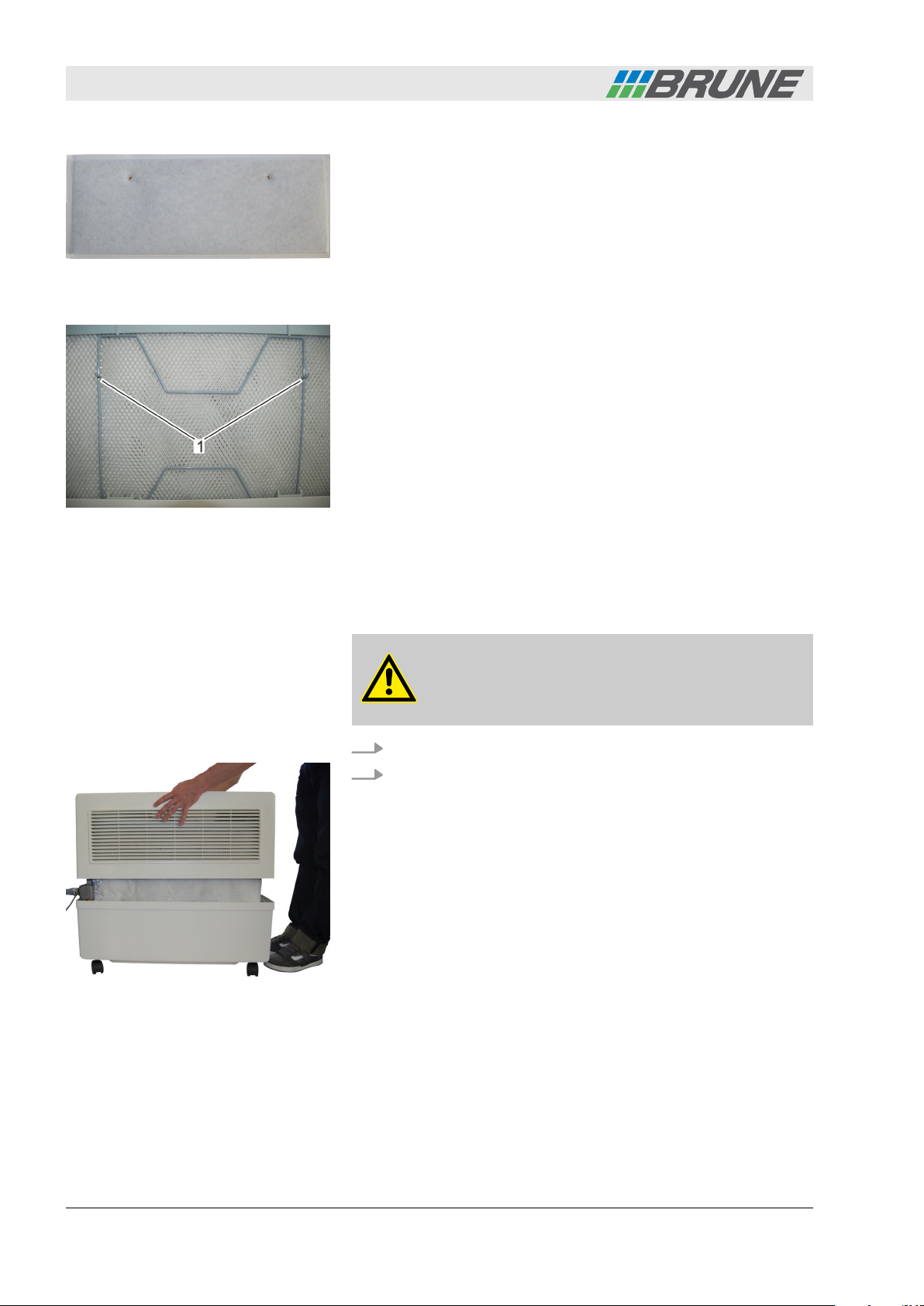

Fig. 59: Activated charcoal cleaning
filter
Fig. 60: Clamping bracket for activated charcoal cleaning filter
In addition to the bio-filter used as standard, an additional activated
charcoal cleaning filter can be used for air filtration. This binds
organic pollutants and unwanted odors. The lifetime of the activated carbon cleaning filter is approximately 6 months, but this
depends largely on the room air pollution.
The activated charcoal cleaning filter is mounted directly above the
evaporation filter. For this, the clamping bracket of the evaporation
filter must be removed and replaced by the bracket to be ordered
(article number 1413/500). It differs from the standard bracket in
that it has two additional retaining lugs for the activated charcoal
Ä
cleaning filter (Fig. 60/1). Proceed as described in
8.4.2 “Replacing the activated charcoal cleaning filter”
on page 64 to replace the activated charcoal cleaning filter.
Chapter
8.4.2 Replacing the activated charcoal cleaning filter
Personnel:
WARNING!
Risk of electrical shock if the power plug is not
disconnected!
1. Switch off the humidifier and disconnect the power plug.
2. Lift the cover of the humidifier upwards and place it to the
side (Fig. 61).

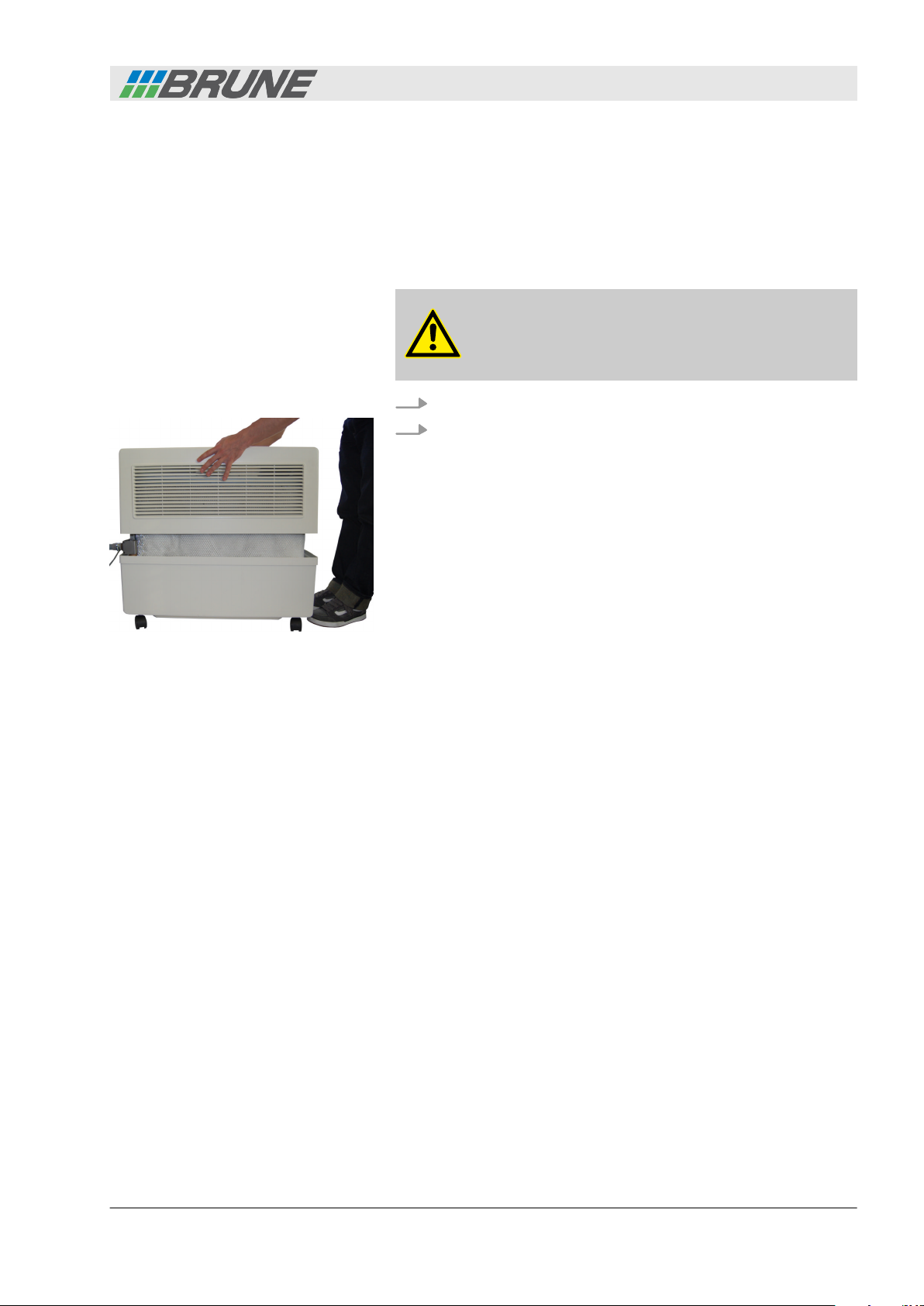

Fig. 61: Removing the cover
n
Operator
Evaporation Humidifier B500 Professional64
3. Remove the plastic sleeves over the retaining lugs of the
4. Remove the old activated charcoal cleaning filter (Fig. 62/2).
5. Hook the new activated charcoal cleaning filter on the

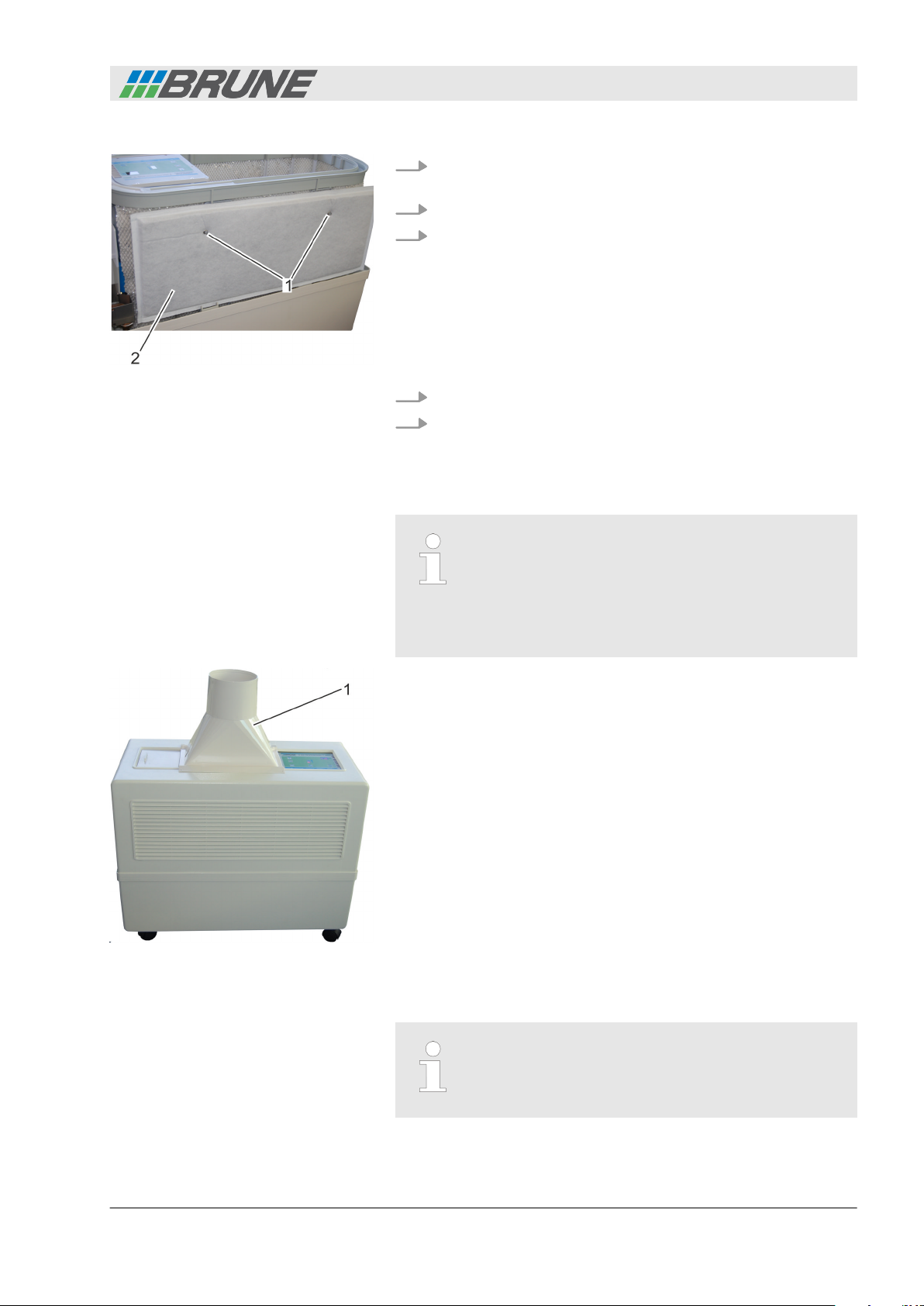

Fig. 62: Removing the plastic sleeves
6. Reattach the plastic sleeves.
7. Replace the cover of the humidifier.
8.5 Air hood with flexible air hose
Accessories
clamping bracket (Fig. 62/1).
retaining lugs. When doing so, observe the following:
n The filter must not be kinked or bent sharply.
n The flat side of the filter is pointing towards the device.
n Ensure that the retaining lugs of the filter are at the same
distance from each other as the holes of the filter. If
required, adjust the width of the filter bracket by carefully
bending.
Fig. 63: Air hood
Order numbers:
– Hood B 500, white: 1755.1
– Hood B 500, gray: 1755.2
– Hood B 500, anthracite: 1755.4
The air hose is not within the scope of delivery.
The air hood (Fig. 63/1) is used to direct the humidified air to a
specific point. The air hood is placed on the air outlet opening.
Then, an aluminum air hose is pushed over the hood and turned in
the direction of the desired airflow. This accessory can be used
anywhere the humidified air is to be directed into critical areas.
n Height of hood: 270 mm (10.6 inches)
n Diameter: 150 mm (5.9 inches)
n Total height with air hose: 570 mm (22.4 inches)
8.6 UV degermination system and lime transforming cartridge
Mercury vapor
Order numbers:
– UV lamp: 1721
– Lime transforming cartridge: 1725
Evaporation Humidifier B500 Professional 65
Accessories
Description
WARNING!
Health risk from toxic mercury vapor!
The tube of the UV lamp contains toxic mercury.
Inhaling mercury vapors causes a high risk of acute
poisoning.
– When changing the UV lamp, always handle it
carefully to avoid damage to the UV lamp.
– Never dispose of the UV lamp in common house-
hold trash. Information about correct disposal can
be obtained from the local authorities or from specialist waste management companies.
Requirement
– Installation of the UV degermination system and
the lime transforming cartridge is carried out exclusively by the manufacturer.
Germs and microorganisms in the water are killed off by radiating
the water with ultraviolet light. The humidifier water is disinfected
and returns into the water cycle of the device with a reduction in
the number of germs.
In addition, the device can be equipped with a lime transforming
cartridge, which changes the molecular structure of lime so that it
can no longer accumulate on surfaces in the device.
NOTICE!
Risk of damage from using softened water!
The use of softened water can cause damage to the
lime transforming cartridge.
– Never use softened water when using a lime trans-
forming cartridge.
Evaporation Humidifier B500 Professional66
Accessories
8.6.1 Cleaning the UV degermination system and lime transforming cartridge
Cleaning the UV degermination
system
Personnel:
Protective equipment:
Materials:
WARNING!
Risk of electrical shock if the power plug is not
disconnected!
1. Switch off the humidifier and disconnect the power plug.
2. Lift the cover of the humidifier upwards and place it to the
side (Fig. 64).
Operator
n
Chemical-resistant protective gloves
n
Protective goggles
n
Lime remover
n
Fig. 64: Removing the cover
Evaporation Humidifier B500 Professional 67
Accessories

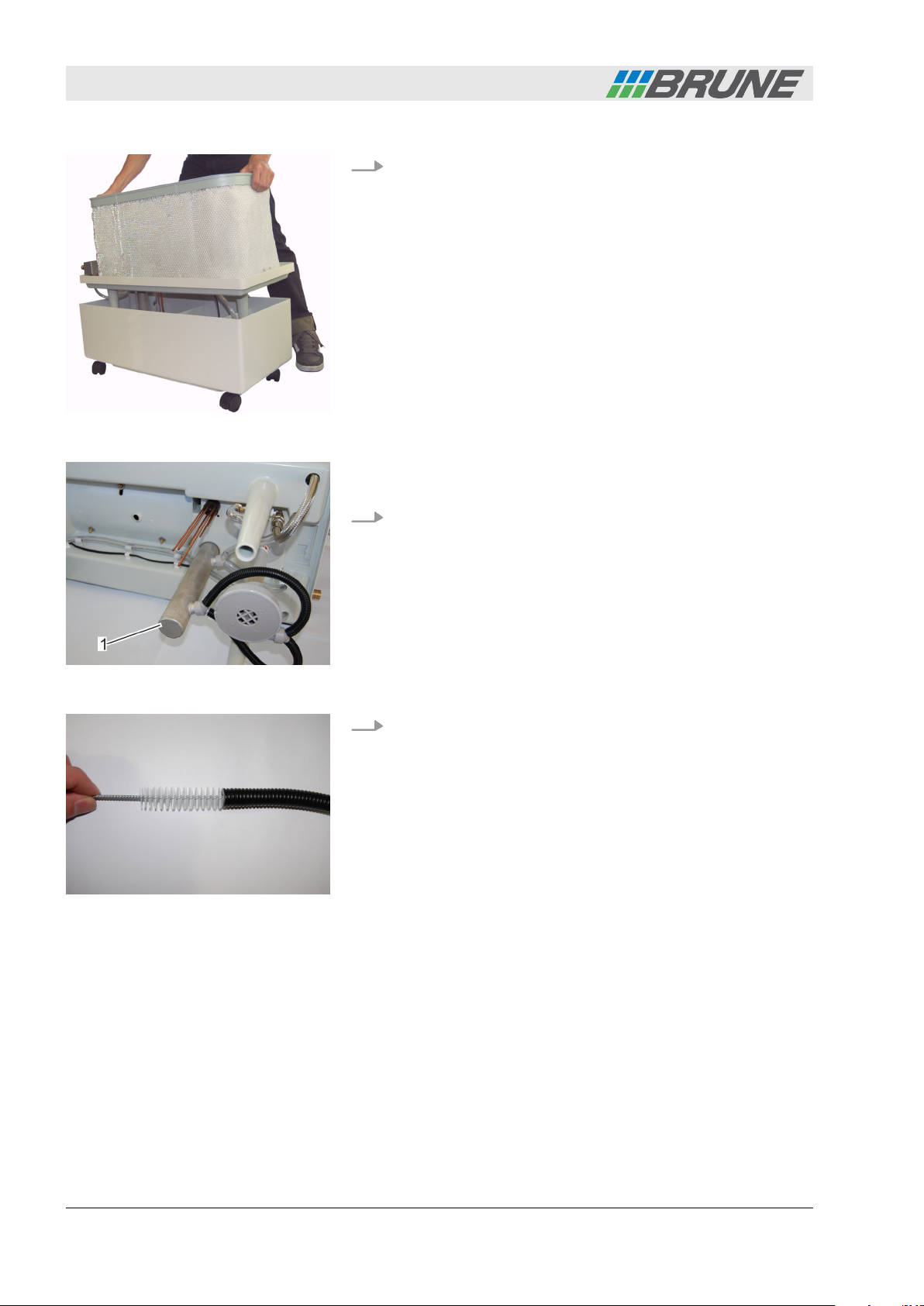

Fig. 65: Removing the center piece
3. Lift the center piece from the water tank and place it on the
side surface (Fig. 65).
The UV degermination system is located below the
ð
center plate next to the pump (Fig. 66/1).
4. Check the stainless steel pipe for damage and contamination. If necessary, remove contamination using a cloth and
lime remover.
Fig. 66: UV degermination system
Fig. 67: Cleaning the pump hoses
5. Take the pump hoses off the stainless steel pipe and clean
them using the cleaning brush. In the event of severe contamination or wear, replace the pump hoses.
Evaporation Humidifier B500 Professional68
Fig. 68: Cleaning the stainless steel
pipe
Cleaning the lime transforming cartridge
Accessories
6.
WARNING!
Toxic mercury vapors could escape if the UV
lamp inside the stainless steel pipe is damaged!
Remove the plastic Y piece (Fig. 68/1) from the stainless
steel pipe and carefully clean it with the cleaning brush.
7. Reattach the pump hoses to the stainless steel pipe.
Ensure that the pump hoses fit securely. Otherwise water could leak out.
1. The lime transforming cartridge (Fig. 69/1) is located on the
right-hand side between the water supply and the center
plate. To remove the cartridge, first remove the evaporation
filter from the retaining lugs (Fig. 69/3) and tilt to the side.
2. Remove the pump hoses (Fig. 69/ 2) and remove the lime
transforming cartridge.
Fig. 69: Lime transforming cartridge
Evaporation Humidifier B500 Professional 69
Accessories

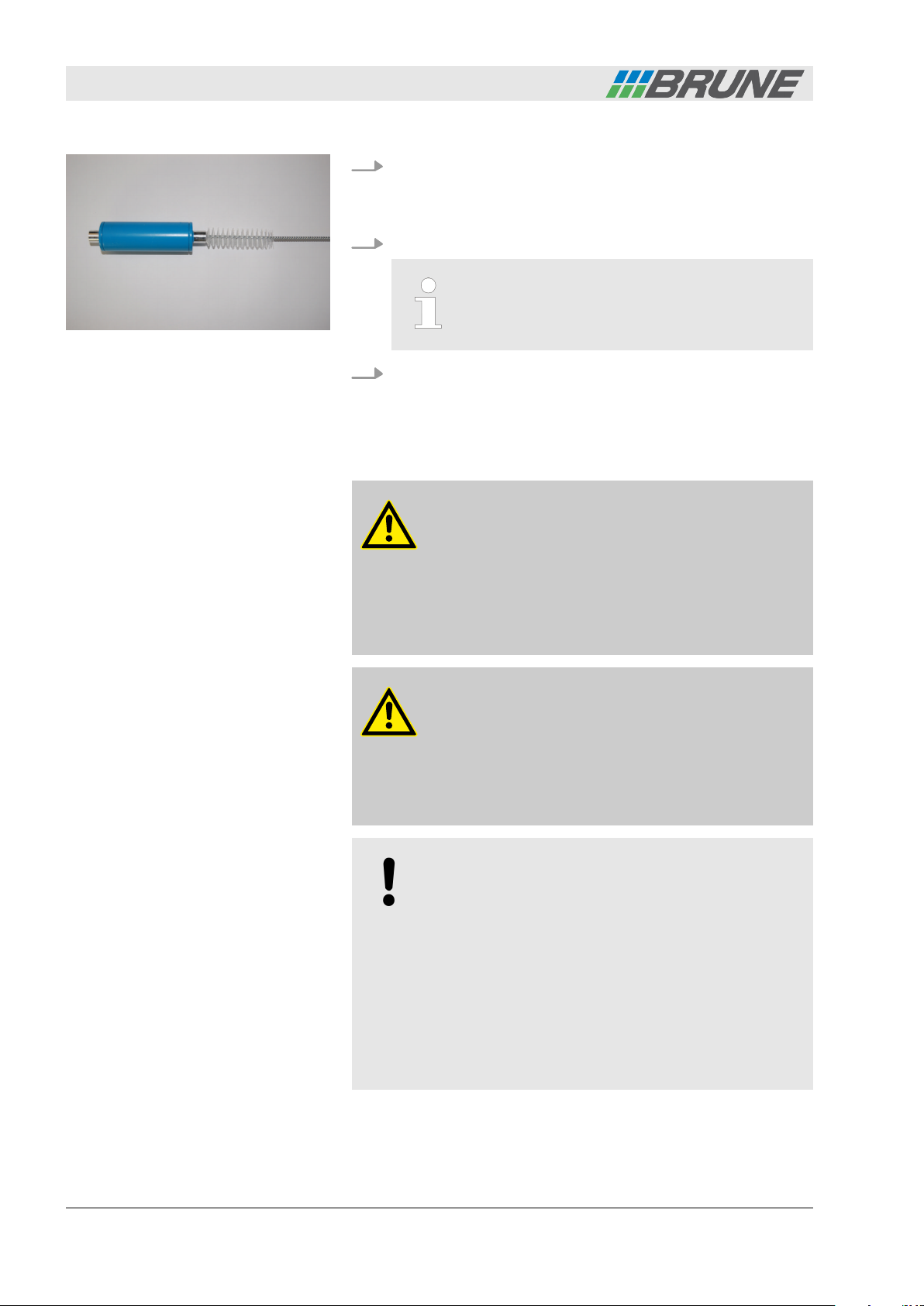

Fig. 70: Cleaning the lime transforming cartridge
8.6.2 Replacing the UV lamp
3. Check the passage of the cartridge for contamination.
Remove any contamination with the cleaning brush. Heavy
contamination can be removed using a screwdriver or drill
(diameter max. 7 mm).
4. Reattach the lime transforming cartridge to the pump hoses.
Ensure that the pump hoses fit securely. Otherwise water could leak out.
5. Place the center piece back into the water tank and replace
the cover.
WARNING!
Health risk from toxic mercury vapor!
The tube of the UV lamp contains toxic mercury.
Inhaling mercury vapors causes a high risk of acute
poisoning.
– When changing the UV lamp, always handle it
carefully to avoid damage to the UV lamp.
CAUTION!
Injury to the eyes from ultraviolet radiation!
Unfiltered, direct and indirect UV radiation could
damage the skin and eyes.
– Never look into the light of the lamp when switched
on.
NOTICE!
Property damage due to incorrect handling of the
UV lamp!
The UV lamp is very sensitive. Touching the glass
body can greatly reduce the service life. Stains burn
into the quartz glass and lead to early failure.
– Only touch the UV lamp at its blue end pieces.
– Do not touch quartz glass with bare hands.
– Gently remove stains with a clean cloth soaked in
alcohol.
– Always remove the UV lamp slowly and carefully.
The UV lamp is located under the control panel on the center plate
adjacent to the pump motor. Proceed as follows to replace it:
Evaporation Humidifier B500 Professional70
Accessories
Fig. 71: Removing the cover
Personnel:
WARNING!
Risk of electrical shock if the power plug is not
disconnected!
1. Switch off the humidifier and disconnect the power plug.
2. Lift the cover of the humidifier upwards and place it to the
side (Fig. 71).
3. Use a screwdriver to loosen and unscrew the four screws at
the surface of the control panel by turning counterclockwise
(Fig. 72/1).
n
Operator
Fig. 72: Releasing the control panel
Fig. 73: Removing the control panel
Evaporation Humidifier B500 Professional 71
4.
NOTICE!
The electronics of the control panel are very sensitive. Ensure that you do not touch the electronics and do not damage any components.
Remove the control panel and place it on the operating side
(Fig. 73).
The UV lamp is located in metal housing below the con-
ð
trol panel (Fig. 74/1).
Accessories

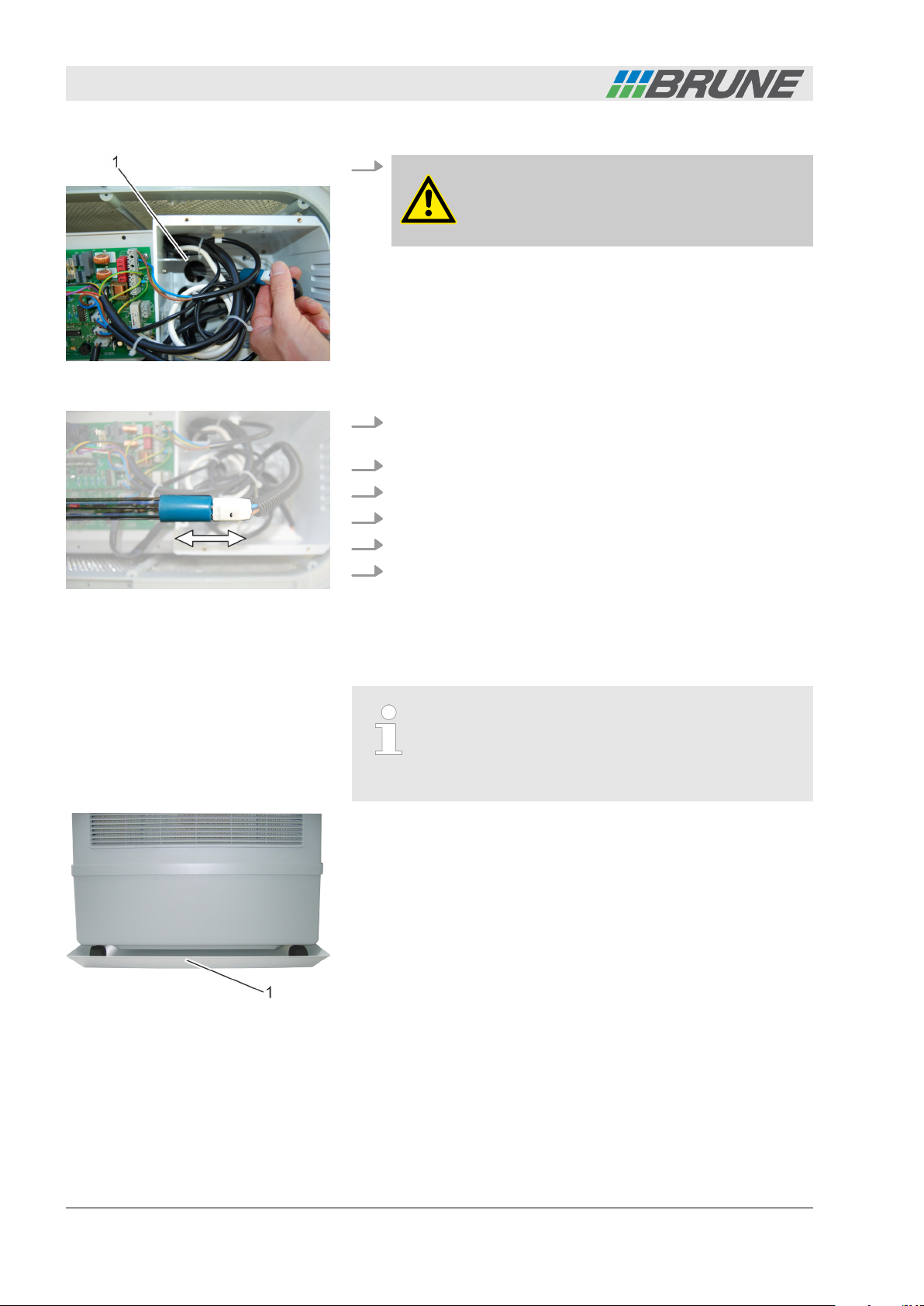

Fig. 74: Pulling out the UV lamp
5.
WARNING!
Danger of poisoning and damage to property
from careless removal of the UV lamp!
Carefully pull out the UV lamp at the connection cable
(Fig. 74).
6. Only touch the UV lamp at its blue end pieces. Remove the
UV lamp connection cable (Fig. 75).
7. Grasp the new UV lamp on the end caps and unpack it.
8. Attach the connection cable to the new UV lamp.
9. Carefully insert the UV lamp into the quartz glass body.
10. Replace the control panel and affix it using the four screws.
11. Replace the device cover.
Fig. 75: Releasing the connection
cable
8.7 Safety collecting basin
Fig. 76: Safety collecting basin
Order numbers:
– Safety collecting basin, white: 1752.1
– Safety collecting basin, gray: 1752.2
– Safety collecting basin, anthracite: 1752.4
The safety collecting basin (Fig. 76/1) is placed below the Evaporation Humidifier B500. It collects any excess water during water
leakage.
Evaporation Humidifier B500 Professional72
8.8 Safety water sensor
Accessories
Order number: 1757
Requirement
– Installation of the safety water sensors is carried
out exclusively by the manufacturer.
– Safety collecting basin
The safety water sensor is placed below the device in the safety
collecting basin and reacts in the event of water leakage from the
device. The humidifier immediately stops working and the user is
alerted of the water leakage by a signal tone and an error display
(03). As soon as the leaked water is removed, the humidifier starts
again automatically.
Fig. 77: Safety water sensor
8.9 External water sensor
Order number: 1753
Requirement
– Automatic water supply
– Safety collecting basin
Evaporation Humidifier B500 Professional 73
Accessories
Fig. 78: External water sensor
8.10 Safety pressure hose
8.10.1 Overview
The external water monitor can be used as an additional safety
device on humidifiers with an automatic water supply. Unlike the
water safety sensor, the water monitor is equipped with an independent solenoid valve, which is connected between the safety
pressure hose and water tap.
The sensor of the water monitor is located in the safety collecting
basin and shuts off the water supply to the humidifier when it
comes into contact with water. In addition, a signal tone sounds
that can only be deactivated by disconnecting the power supply.
Order number: 1754
Requirement
– Automatic water supply
The safety pressure hose secures the connection between the
humidifier and water tap. If leakage occurs on the hose, this is
detected by a safety fabric within the hose and the water supply is
automatically stopped.
Fig. 79: Safety pressure hose
8.10.2 Replacing the safety pressure hose
Proceed as follows to replace the safety pressure hose:
Evaporation Humidifier B500 Professional74
Accessories

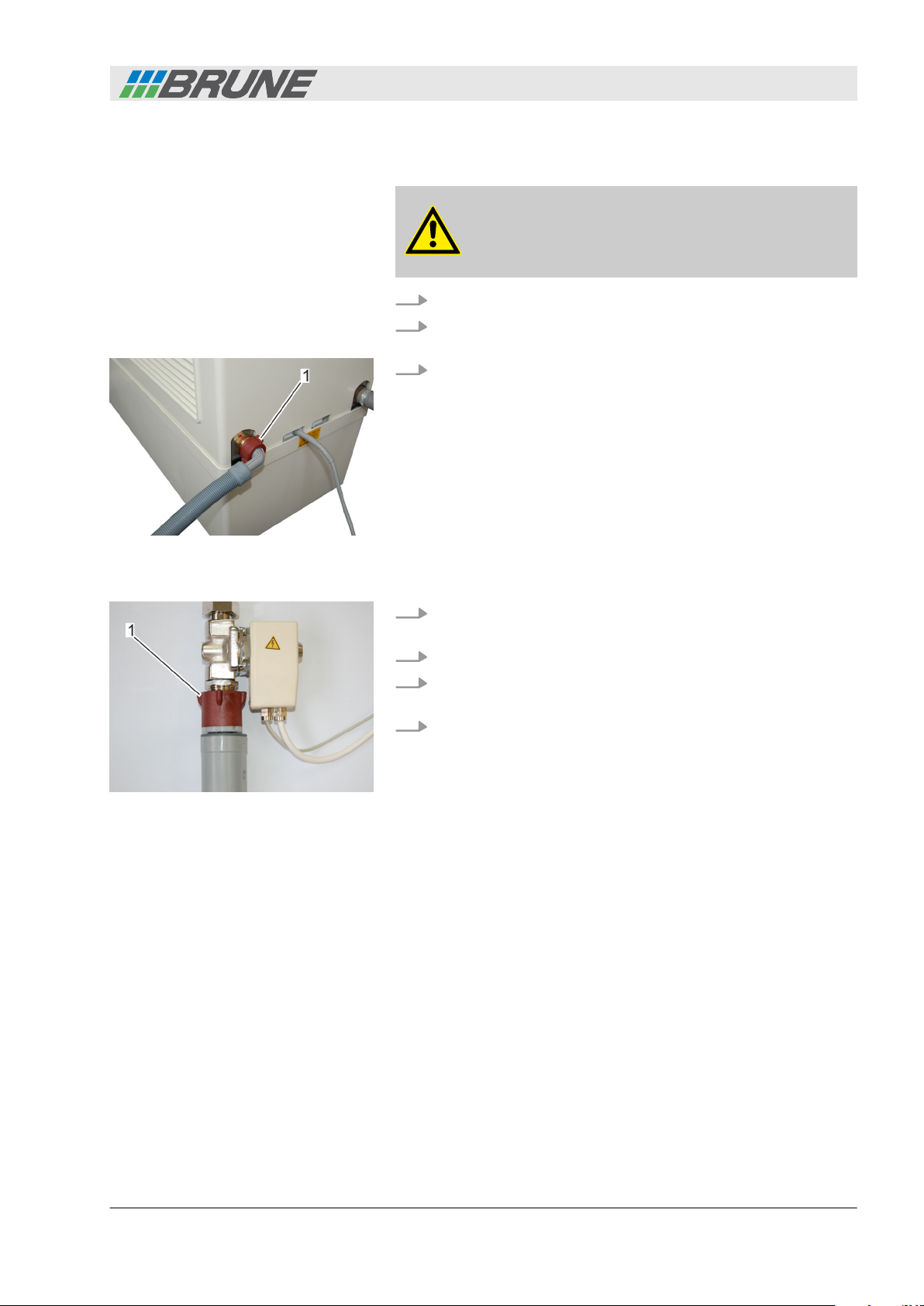

Fig. 80: Removing the safety pressure
hose from the humidifier
Personnel:
WARNING!
Risk of electrical shock if the power plug is not
disconnected!
1. Switch off the humidifier and disconnect the power plug.
2. To collect any possible residual water, place a suitable con-
tainer under the connection of the water supply.
3. Rotate the safety pressure hose twist-lock located at the
water supply connection (Fig. 80/1) counterclockwise and
remove.
4. Rotate the twist-lock located at the water monitor connection
(Fig. 81/1) counterclockwise and remove.
5. Remove the safety pressure hose.
6. Attach the new safety pressure hose at the water monitor
connection and tighten the twist-lock.
7. Attach the safety pressure hose at the water supply connection and tighten the twist-lock.
n
Operator
Fig. 81: Removing the safety pressure
hose from the water monitor
Evaporation Humidifier B500 Professional 75
Spare parts
9 Spare parts
WARNING!
Risk of injury due to using wrong spare parts!
Using incorrect or faulty spare parts endangers the
user and can cause damage, malfunctions or complete
failure.
– Only use original spare parts from Brune Luftbe-
feuchtung Proklima GmbH or spare parts authorized by Brune Luftbefeuchtung Proklima GmbH.
– Always contact our customer service for any ques-
tions.
Ordering spare parts
Spare parts can be ordered at your local specialized retailer or
directly from the manufacturer. For the order numbers see
Ä
Appendix “Parts list” on page 86.
Evaporation Humidifier B500 Professional76
10 Disposing of the humidifier
If no return or disposal agreement was made, have disassembled
components recycled:
n Have metals scrapped.
n Send elements made of plastic for recycling.
n Dispose batteries and UV tube as hazardous waste.
n Sort other components acc. to material properties and dispose.
NOTICE!
Danger to the environment due to wrong disposal!
Wrong disposal can pose risks to the environment.
– Electronic waste and electronic components must
be disposed of by authorized certified companies.
– In case of doubt, information about correct dis-
posal can be obtained from the local authorities or
from special waste management companies.
Disposing of the humidifier
Evaporation Humidifier B500 Professional 77
Technical data
11 Technical data
11.1 Dimensions and weight
Data Value Unit
Weight (empty) approx. 24 /53kg / lbs
Width 755 / 29.7 mm / in
Height 620 / 24.4 mm / in
Depth 365 / 14.4 mm / in
11.2 Connection values
Electrical
11.3 Performance data
Water tank volume approx. 50 /
Data Value Unit
Voltage 230 V
Frequency 50 Hz
Power consumption, maximum 130 W
Fuse, at least 10 A
Maximum water pressure when connecting to the public water supply
Minimum water pressure when connecting to the public water supply
l / US gal
13.2
1 MPa
0 MPa
11.4 Operating conditions
Environment
Evaporation Humidifier B500 Professional78
Data Value Unit
Air output 900 / 3962 m³/h /
gal/min
Evaporation performance 2.6 / 16.5 l/h / US
gpd
Evaporation filter surface 3.5 / 37.7 m² / sq ft
Data Value Unit
Temperature range 10 – 40 / 50
– 104
°C / °F
11.5 Emissions
11.6 Type plate
Technical data
Data Value Unit
Relative humidity 15 – 80 %
Data Value Unit
Noise emission 32 – 44 dB(A)
The type plate is located under the cover above the power connection and contains the following information:
n Manufacturer
n Type
n Series
n Serial number
n Electrical power and connection values

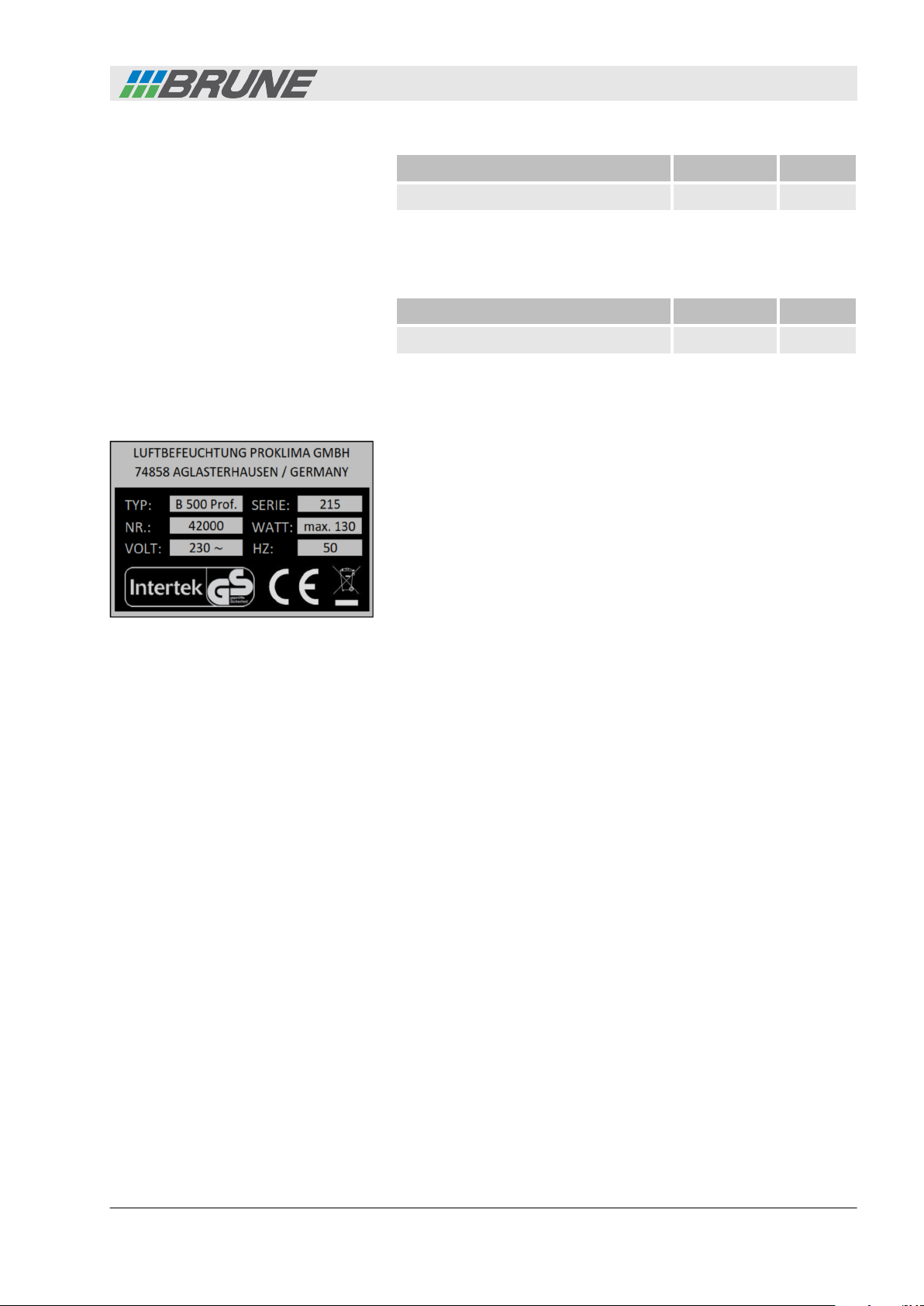

Fig. 82: Type plate
Evaporation Humidifier B500 Professional 79
Index
12 Index
A
Accessories .............................59
Activated charcoal cleaning filter ..........63
Air hood .............................65
Automatic flushing device ................61
Automatic water supply .................60
External water sensor ..................73
Lime transforming cartridge ..............65
Safety collecting basin ..................72
Safety pressure hose ...................74
Safety water sensor ....................73
UV degermination system ...............65
Activated charcoal cleaning filter .............63
Replacing ............................64
Air hood ...............................65
Automatic flushing device ..................61
Automatic water supply ....................60
C
Changing the menu settings ................35
Cleaning ...............................38
Cleaning schedule ........................39
Connection
Automatic flushing device ................61
Automatic water supply .................60
Connection values ........................78
Control panel .............................9
Symbols .............................31
Copyright ...............................3
Customer service .........................3
D
Dangers ...............................14
Decalcifying .............................45
Defects ................................49
Dimensions .............................78
Disposal ...............................77
E
Electrical current .........................15
Emissions ..............................79
Environment ............................78
Environmental protection ...................20
Error code display ........................50
External water sensor .....................73
F
Fan
Regulating ...........................34
Replacing ............................56
Filling .................................32
H
Humidifier
Cleaning .............................38
Commissioning .......................24
Decalcifying ..........................45
Disposing ............................77
Operating ............................31
Storing ..............................21
Switching off ..........................32
Switching on ..........................32
Transporting ..........................21
I
Improper use ............................12
Inspection of delivery .....................22
Installation location .......................24
Intended use ............................12
L
Lime transforming cartridge .................65
Cleaning .............................67
M
Malfunction indications ....................49
Malfunctions ............................49
Detecting ............................49
Overview ............................51
Remedying ...........................53
Menu overview ..........................36
N
Noise emission ..........................79
O
Operating conditions ......................78
Operation ..............................31
Operator ...............................18
Order numbers ..........................86
Overview
Control panel ..........................9
Humidifier .............................6
Menu ...............................36
Remote control .........................8
Wireless sensor system ..................8
P
Parts list ...............................86
Performance data ........................78
Personnel ..............................19
Problems ...............................49
Protective gear ..........................39
R
Remote control ...........................8
Replacement
Activated charcoal cleaning filter ..........64
Evaporation filter ......................41
Fan .................................56
Evaporation Humidifier B500 Professional80
Index
Pump ...............................53
Safety pressure hose ...................74
UV lamp .............................70
Replacing the evaporation filter ..............41
Replacing the pump ......................53
Replacing the safety pressure hose ..........74
Replacing the UV lamp ....................70
Residual risks ...........................14
S
Safety collecting basin ....................72
Safety pressure hose .....................74
Safety signs ............................13
Safety water sensor ......................73
Scope of delivery .........................7
Setting
Air humidity ..........................34
Fan .................................34
Menu ...............................35
Setting the air humidity ....................34
Signs ..................................13
Spare parts .............................76
Spare parts list ..........................86
Start-up ................................24
Storage ................................21
Switching off ............................32
Switching on ............................32
Symbols
in this manual .........................11
on the control panel ....................31
on the device .........................13
on the packaging ......................21
T
Table of malfunctions .....................51
Technical data ...........................78
Transport ..............................21
Type plate ..............................79
U
Use ...................................12
User ..................................19
UV degermination system ..................65
Cleaning .............................67
W
Warning message ........................50
Water tank
Cleaning .............................44
Filling ...............................32
Weight .................................78
Wireless sensor system ....................8
Coding ..............................27
Evaporation Humidifier B500 Professional 81
Appendix
Appendix
Evaporation Humidifier B500 Professional82
Table of contents for the appendix
A Exploded view .................................................................. 84
B
Parts list ...........................................................................
Appendix
Evaporation Humidifier B500 Professional 83
Exploded view
A Exploded view
WARNING!
Risk of injury from disassembling the humidifier!
The illustrations and parts list below are only intended
for specialized retailers. Unauthorized disassembling
of the humidifier may cause serious injury.
– Never disassemble the device on your own.
– Only perform the repairs described in this manual.
– For problems where the solution is not described in
this manual, contact the local specialized retailer.
Evaporation Humidifier B500 Professional84
Parts list
B Parts list
WARNING!
Risk of injury from disassembling the humidifier!
The illustrations and parts list below are only intended
for specialized retailers. Unauthorized disassembling
of the humidifier may cause serious injury.
– Never disassemble the device on your own.
– Only perform the repairs described in this manual.
– For problems where the solution is not described in
this manual, contact the local specialized retailer.
Standard version
No. Name No. Name
1101 Housing, upper part, white us1377 Board cover
1102 Housing, upper part, light gray 1380 Motherboard 115
1104/500 Housing, upper part anthracite 1385 Additional board for multi-speed fan
1149 “Filter replacement” sign 1401 Water distribution
1150 “Fill here” sign 1406/1 Remote control without batteries
1151 Fill flap, white 1411 Filler rods without rib (6)
1152 Fill flap, light gray 1412 Filler rods without rib (4)
1154 Fill flap, anthracite 1413 Clamping bracket with 2 lugs
1201 Housing, lower part, white 1500S Fan, complete with motor, safety guard
and fastening material
1202 Housing, lower part, light gray 1507 Safety guard for fan
1204/500 Housing, lower part, anthracite 1508 Sheet metal screw M 4.2 x 19 A2 (4)
1251 Impact sleeve (4) 1520 Rubber metal buffer M 4, stainless steel
(3)
1252 Castors (4) 1521 Pump, complete
1301 Center plate, white 1522/1 Pump motor incl. cable 0.3 m and
pump ventilator
1302 Center plate, light gray 1523 Pump body
1304/500 Center plate, anthracite 1524 Pump cover plate
1311 Shaft 1525 Pump impeller blade
1312/500 Shaft cover 1526 Y piece
1326 Electrode rods (set = 7) with head 1529 Pump hose, crystal clear (2)
1339 Cable harness 1551 Cylinder head screw M 4 x 10
Evaporation Humidifier B500 Professional86
No. Name No. Name
1340/2 Battery for remote control 1553 Cylinder head screw M 4 x 6
Parts list
1348/3 Measuring and transmitter module in
housing without battery
1348/4 Battery 1.5 V AA (2 pcs.) 1561 Brass nut M 4
1350 Cover box 1565 Tooth lock washer M 4
1351 Strain relief 1566 U washer M 4
1352 Terminal strip 1567 U washer V2 M 5 x 15
1353 Power cable with plug 1568 Poly U washer M 5 x 15
1355 Cable 0.8 m 1585 Cable 0.8 m for fan
1356 Cable 0.8 m with socket 1603 Bio-filter B 500
1362 “Pull power plug” sign 2520 Screw/bolt M4x12 strain relief
1369 Keyboard foil
Special equipment and accessories
No. Name No. Name
1413/500 Clamping bracket with 4 lugs for acti-
vated carbon filter
1556 Cap nut M 4
1752.2 Safety collecting basin, light gray
1601 Foam filter B 500 1752.4 Safety collecting basin, anthracite
1605/500 Activated charcoal filter set 1753 Water monitor with sensor
1720 UV technology 1754 Safety pressure hose
1721 6-watt emitter (UV degermination
system)
1723 Quartz dip tube B500 1755.2 Hood, gray
1725 Lime transforming cartridge 1755.4 Hood, anthracite
1740 Flushing device, complete 1757 Safety water sensor
1741 Pump for flushing device 1799 Automatic water supply, complete
1747 Drain hose for flushing device 1799.1 Solenoid valve, complete
1752.1 Safety collecting basin, white 1799.2 Coil for automatic water supply
1755.1 Hood, white
Evaporation Humidifier B500 Professional 87
Luftbefeuchtung Proklima GmbH - Schwarzacher Str. 13 - 74858 Aglasterhausen - Germany
Tel.: 06262-5454 - Fax: 06262-3255 - Mail: mail@brune.info - Web: www.brune.info
Loading...
