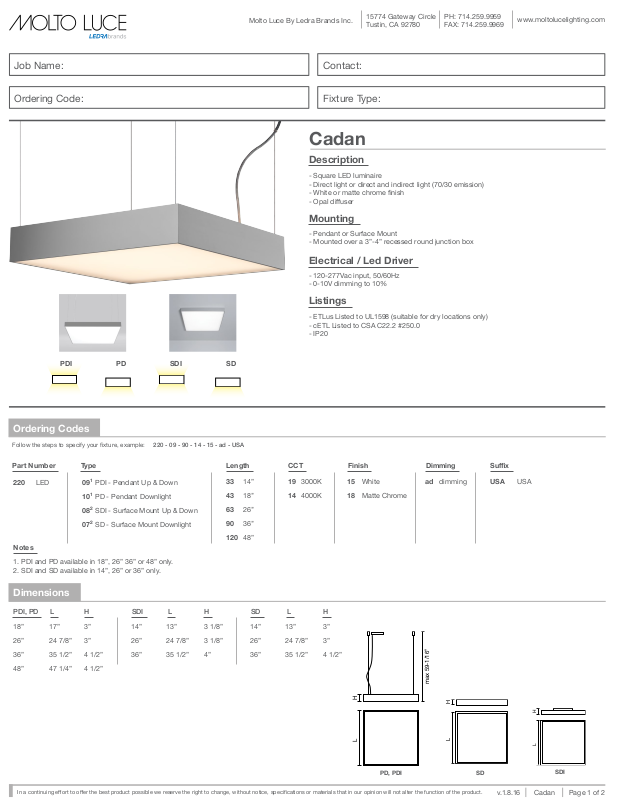

Page 1
HL
max 59-1/16"
HL
Molto Luce By Ledra Brands Inc.
Job Name: Contact:
Fixture Type:Ordering Code:
Cadan
Description
- Square LED luminaire
- Direct light or direct and indirect light (70/30 emission)
- White or matte chrome nish
- Opal diuser
Mounting
- Pendant or Surface Mount
- Mounted over a 3”-4” recessed round junction box
Electrical / Led Driver
- 120-277Vac input, 50/60Hz
- 0-10V dimming to 10%
Listings
- ETLus Listed to UL1598 (suitable for dry locations only)
- cETL Listed to CSA C22.2 #250.0
- IP20
15774 Gateway Circle
Tustin, CA 92780
PH: 714.259.9959
FAX: 714.259.9969
www.moltolucelighting.com
PDI PD SDI SD
Ordering Codes
Follow the steps to specify your xture, example: 220 - 09 - 90 - 14 - 15 - ad - USA
Part Number Type Length CCT Finish Dimming
1
PDI - Pendant Up & Down
220 LED
Notes
1. PDI and PD available in 18”, 26” 36” or 48” only.
2. SDI and SD available in 14”, 26” or 36” only.
09
101 PD - Pendant Downlight
082 SDI - Surface Mount Up & Down
072 SD - Surface Mount Downlight
33 14”
43 18’’
63 26’’
90 36’’
120 48”
19 3000K
14 4000K
15 White
18 Matte Chrome
ad dimming
Dimensions
PDI, PD SDI SD L L L H H H
18”
26”
36”
48”
17”
24 7/8”
35 1/2”
47 1/4”
3”
3”
4 1/2”
4 1/2”
14”
26”
36”
13”
24 7/8”
35 1/2”
3 1/8”
3 1/8”
4”
14”
26”
36”
13”
24 7/8”
35 1/2”
3”
3”
4 1/2”
Sux
USA USA
In a continuing eort to oer the best product possible we reserve the right to change, without notice, specications or materials that in our opinion will not alter the function of the product.
PD, PDI
SD
v.1. 8.1 6 Page 1 of 2Cadan
HL
SDI
Page 2
H
DIA
Molto Luce By Ledra Brands Inc.
Job Name: Contact:
Fixture Type:Ordering Code:
LED Performance
LED
DUV
CCT
CRI Ra
Life
Warranty
Samsung SPMWH 541M
.001
3000K or 4000K
>80, ±3.0
L93 60,000 hrs.
5 year limited warranty
Diameter / Lumens Chart
15774 Gateway Circle
Tustin, CA 92780
PH: 714.259.9959
FAX: 714.259.9969
www.moltolucelighting.com
Type
PDI
PD
SDI
SD
Diameter 3000K
18”
26”
36”
48”
18”
26”
36”
48”
14”
26”
36”
14”
26”
36”
Watts 4000K
35w
73w
138w
225w
21w
45w
97w
170w
73w
138w
13w
45w
97w
3650 lm
7720 lm
14990 lm
24540 lm
2040 lm
4520 lm
10180 lm
18100 lm
1130 lm
4440 lm
10060 lm
3740 lm
7940 lm
15400 lm
25180 lm
2090 lm
4640 lm
10440 lm
18560 lm
1160 lm
4640 lm
10440 lm
In a continuing eort to oer the best product possible we reserve the right to change, without notice, specications or materials that in our opinion will not alter the function of the product.
v.1. 8.1 6 Page 2 of 2Cadan
