Molto Luce By Ledra Brands Inc.
Job Name: Contact:
Fixture Type:Ordering Code:

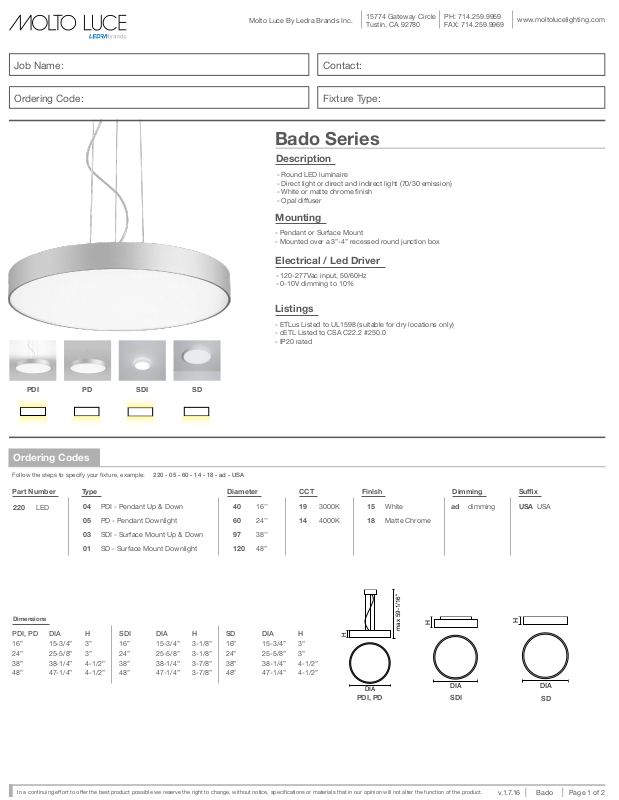

Bado Series
Description
- Round LED luminaire
- Direct light or direct and indirect light (70/30 emission)
- White or matte chrome nish
- Opal diuser
Mounting
- Pendant or Surface Mount
- Mounted over a 3”-4” recessed round junction box
Electrical / Led Driver
- 120-277Vac input, 50/60Hz
- 0-10V dimming to 10%
15774 Gateway Circle
Tustin, CA 92780
PH: 714.259.9959
FAX: 714.259.9969
www.moltolucelighting.com
Listings
- ETLus Listed to UL1598 (suitable for dry locations only)
- cETL Listed to CSA C22.2 #250.0
- IP20 rated
PDI PD SDI SD
Ordering Codes
Follow the steps to specify your xture, example: 220 - 05 - 60 - 14 - 18 - ad - USA
Part Number Type Diameter CCT Finish Dimming
220 LED
04 PDI - Pendant Up & Down
05 PD - Pendant Downlight
03 SDI - Surface Mount Up & Down
01 SD - Surface Mount Downlight
40 16’’
60 24’’
97 38’’
120 48”
19 3000K
14 4000K
15 White
18 Matte Chrome
ad dimming
Sux
USA USA
Dimensions
PDI, PD DIA H SDI DIA H SD DIA H
16” 15-3/4” 3” 16” 15-3/4” 3-1/8” 16” 15-3/4” 3”
24” 25-5/8” 3” 24” 25-5/8” 3-1/8” 24” 25-5/8” 3”
38” 38-1/4” 4-1/2” 38” 38-1/4” 3-7/8” 38” 38-1/4” 4-1/2”
48” 47-1/4” 4-1/2”
In a continuing eort to oer the best product possible we reserve the right to change, without notice, specications or materials that in our opinion will not alter the function of the product.
48” 47-1/4” 3-7/8” 48” 47-1/4” 4-1/2”
H
PDI, PD
max 59-1/16"
H
SDI
H
SD
v.1. 7.16 Page 1 of 2Bado
Page 2
Molto Luce By Ledra Brands Inc.
Job Name: Contact:
Fixture Type:Ordering Code:
Technical Specications
LED
DUV
CCT
CRI Ra:
Life
Warranty
Samsung SPMWH 51M
.001
3000K, 4000K
>80 ±3.0
L93 60,000 hrs.
5 year limited warranty
Diameter / Lumens Chart
Type
SD, PD
Diameter 3000K
16”
24”
38”
48”
Watts 4000K
29w
54w
110w
165w
2920 lm
5875 lm
11560 lm
17330 lm
3000 lm
6015 lm
11840 lm
17700 lm
15774 Gateway Circle
Tustin, CA 92780
PH: 714.259.9959
FAX: 714.259.9969
www.moltolucelighting.com
SDI, PDI
16”
24”
38”
48”
42w
93w
188w
278w
4520 lm
10040 lm
19830 lm
29930 lm
4630 lm
10300 lm
20310 lm
30580 lm
In a continuing eort to oer the best product possible we reserve the right to change, without notice, specications or materials that in our opinion will not alter the function of the product.
v.1. 7.16 Page 2 of 2Bado
