Bruck By Ledra Brands Inc.
Job Name: Contact:
Fixture Type:Ordering Code:

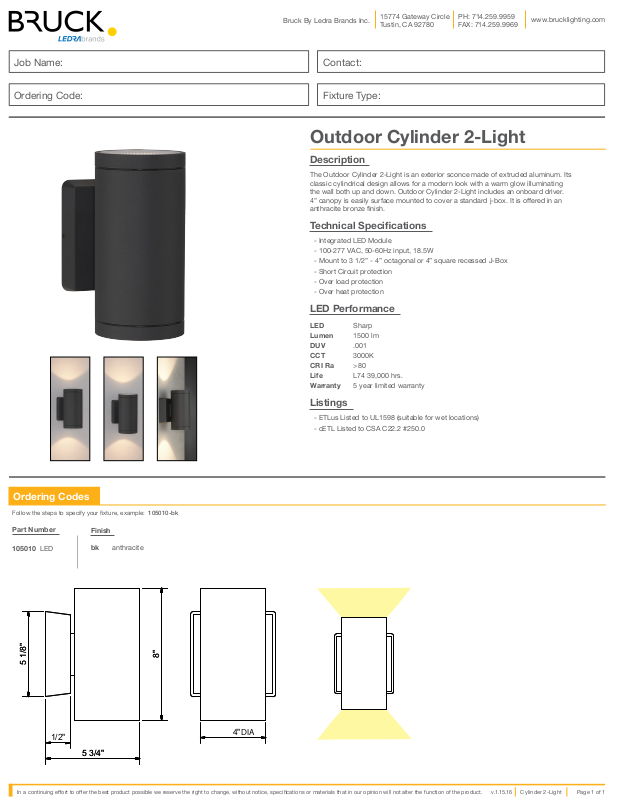

Outdoor Cylinder 2-Light
Description
The Outdoor Cylinder 2-Light is an exterior sconce made of extruded aluminum. Its
classic cylindrical design allows for a modern look with a warm glow illuminating
the wall both up and down. Outdoor Cylinder 2-Light includes an onboard driver.
4” canopy is easily surface mounted to cover a standard j-box. It is oered in an
anthracite bronze nish.
Technical Specications
- Integrated LED Module
- 100-277 VAC, 50-60Hz input, 18.5W
- Mount to 3 1/2” - 4” octagonal or 4” square recessed J-Box
- Short Circuit protection
- Over load protection
- Over heat protection
15774 Gateway Circle
Tustin, CA 92780
PH: 714.259.9959
FAX: 714.259.9969
www.brucklighting.com
Ordering Codes
Follow the steps to specify your xture, example: 105010-bk
Part Number
105010 LED
Finish
bk anthracite
LED Performance
LED
Lumen
DUV
CCT
CRI Ra
Life
Warranty
Sharp
1500 lm
.001
3000K
>80
L74 39,000 hrs.
5 year limited warranty
Listings
- ETLus Listed to UL1598 (suitable for wet locations)
- cETL Listed to CSA C22.2 #250.0
8"
5 1/8"
5 1/8"
1/2"
5 3/4"
5 3/4"
In a continuing eort to oer the best product possible we reserve the right to change, without notice, specications or materials that in our opinion will not alter the function of the product. v.1.15 .16 Page 1 of 1Cylinder 2-Light
8"
4"
DIA
