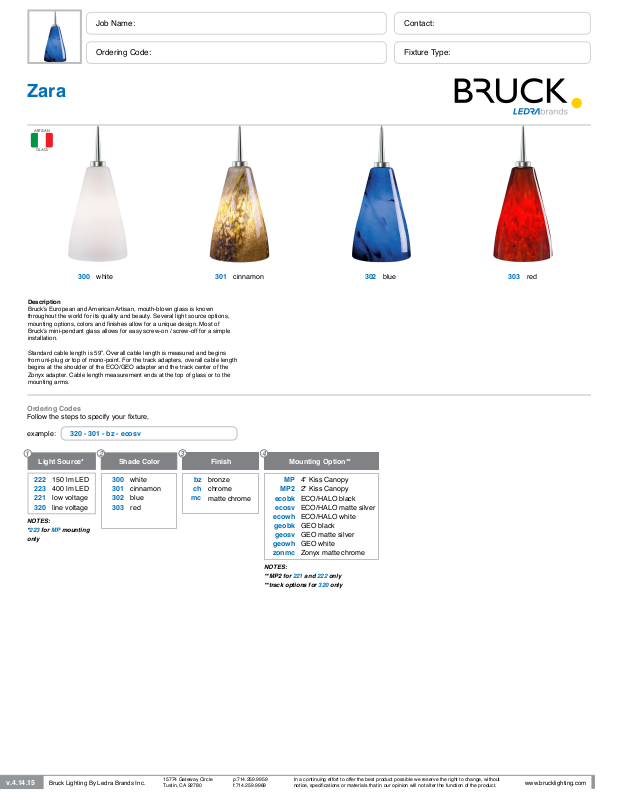

Page 1
Job Name: Contact:
ARTISAN
Zara
GLASS
300 white 301 cinnamon 302 blue 303 red
Description
Bruck’s European and American Artisan, mouth-blown glass is known
throughout the world for its quality and beauty. Several light source options,
mounting options, colors and nishes allow for a unique design. Most of
Bruck’s mini-pendant glass allows for easy screw-on / screw-off for a simple
installation.
Standard cable length is 59”. Overall cable length is measured and begins
from uni-plug or top of mono-point. For the track adapters, overall cable length
begins at the shoulder of the ECO/GEO adapter and the track center of the
Zonyx adapter. Cable length measurement ends at the top of glass or to the
mounting arms.
Fixture Type:Ordering Code:
Ordering Codes
Follow the steps to specify your xture,
example:
Light Source*
222
223
221
320
NOTES:
*223 for MP mounting
only
320 - 301 - bz - ecosv
150 lm LED
400 lm LED
low voltage
line voltage
2 3 41
300
301
302
303
Shade Color
white
cinnamon
blue
red
bz
bronze
ch
chrome
mc
matte chrome
Finish
Mounting Option**
MP
4” Kiss Canopy
MP2
2” Kiss Canopy
ecobk
ECO/HALO black
ecosv
ECO/HALO matte silver
ecowh
ECO/HALO white
geobk
GEO black
geosv
GEO matte silver
geowh
GEO white
zonmc
Zonyx matte chrome
NOTES:
**MP2 for 221 and 222 only
**track options for 320 only
v.4 .14.15
Bruck Lighting By Ledra Brands Inc.
15774 Gateway Circle
Tustin, CA 92780
p:714.259.9959
f:714.259.9969
In a continuing effort to offer the best product possible we reserve the right to change, without
notice, specications or materials that in our opinion will not alter the function of the product.
www.brucklighting.com
Page 2
Job Name: Contact:
ARTISAN
223 - MP
1 3/4"
Fixture Type:Ordering Code:
3 7/8"
1 1/8"
1 3/4"
320 - geo320 - eco
320 - zonmc
4 3/8"
6 1/2"
221
222
320
223
1/2"
4 1/2"
4 1/2"
1 1/4"
2 1/8"
222221
221 - MP
222 - MP
320 - MP
1 3/4"
1 1/2"
221 - MP2
222 - MP2
Light Source 221 - low voltage222 - 150 lm LED 223 - 400 lm LED 320 - line voltage G9
Performance
Technical Specs
Socket
Listing
Mounting
Uni-Plug
LED
DUV
• +/- .002
CCT
• 3000k
CRI
• 83 typ
LIFE
• based on IESNA-LM80-2008: 70% of
initial lumens after 60,300 hrs
• integrated LED module
• ETLus Listed to UL1598, UL1574 and
UL2108 (Suitable for dry locations only)
• cETL Listed to CSA C22.2 #250.0 and
#9.0
• 12V AC/DC input
• 3.7W, 5.4VA
• Compatible with dimmable power supply
• Compatible with selected Bruck electronic
transformers and must meet the minimum
VA (load)
• Connects to Uni-Light system with
appropriate low voltage adapter (V/A,
Enzis, High-Line) or line voltage adapter
(ECO, GEO, Zonyx)
• Cree XTE
• 2800k
• SDCM: 3 MacAdam Elipse, +/-75 Kelvin
• 90 min.
• based on IESNA-LM80-2008: 90% of
initial lumens after 60,500 hrs
• integrated LED module
• ETLus Listed to UL1598, UL1574 and
UL2108 (Suitable for dry locations only)
• cETL Listed to CSA C22.2 #250.0 and
#9.0
• lamp dependent• Nichia 219B
• GY6.35 socket
• ETLus Listed to UL1598, UL1574 and
UL2108 (Suitable for dry locations only)
• cETL Listed to CSA C22.2 #250.0 and
#9.0
• 12V AC/DC input
• 50W, 50VA (max 50 Watt lamp)
• Dimmable
• Connects to Uni-Light system with
appropriate low voltage adapter (V/A,
Enzis, High-Line) or line voltage adapter
(ECO, GEO, Zonyx)
• lamp dependent
• G9 socket
• ETLus Listed to UL1598, UL1574 and
UL2108 (Suitable for dry locations only)
• cETL Listed to CSA C22.2 #250.0 and
#9.0
1 1/2"
4” Kiss Canopy
2” Kiss Canopy
Line Voltage Track
Warranty
• 100-277VAC, 50/60Hz input
• 4W, 7.5VA
• Mount to 3 1/2” - 4” round J-Box
• Short circuit protection
• Thermal protection
• 100-277VAC, 50/60Hz input
• 4W, 7.5VA
• 2 1/4” hole cutout
• Required material thickness 3/16” - 1
1/16””
• Not thru-wire rated
• Short circuit protection
• Overload protection
• Thermal protection
GLASS
• 120VAC 50/60Hz input
• 8W, 8VA
• Dimmable:
• Triac-INCAN (Forward Phase)
• ELV (Reverse Phase)
• Mount to 3 1/2” - 4” round J-Box
• Short circuit protection
• Thermal protection
Made in the USA - meets the requirements of the
Buy American provision within the ARRA
• 120VAC 50/60Hz input
• 11.7V AC output 49W, 50VA (max 50W
lamp)
• Dimmable (Trailing Edge ELV)
• Mount to 3 1/2” - 4” round J-Box
• Short circuit protection
• Overload protection
• Thermal protection
• 120VAC 50/60Hz input
• 11.7V AC output 49W, 50VA (max 50W
lamp)
• Dimmable (Trailing Edge ELV)
• 2 1/4” hole cutout
• Required material thickness 3/16” - 1
1/16””
• Not thru-wire rated
• Short circuit protection
• Overload protection
• Thermal protection
• 1 year limited xture warranty• 3 year limited xture warranty • 5 year limited xture warranty • 1 year limited xture warranty
• 120VAC 50/60 Hz input
• 40W, 40VA (max 40 Watt lamp)
• Dimmable (Incandescent)
• Mount to 3” - 4” round J-Box
• 120VAC 50/60 Hz input
• 40W, 40VA (max 40 Watt lamp)
• Dimmable (Incandescent)
• Connects to ECO, GEO, or Zonyx system
v.4 .14.15
Bruck Lighting By Ledra Brands Inc.
15774 Gateway Circle
Tustin, CA 92780
p:714.259.9959
f:714.259.9969
In a continuing effort to offer the best product possible we reserve the right to change, without
notice, specications or materials that in our opinion will not alter the function of the product.
www.brucklighting.com
