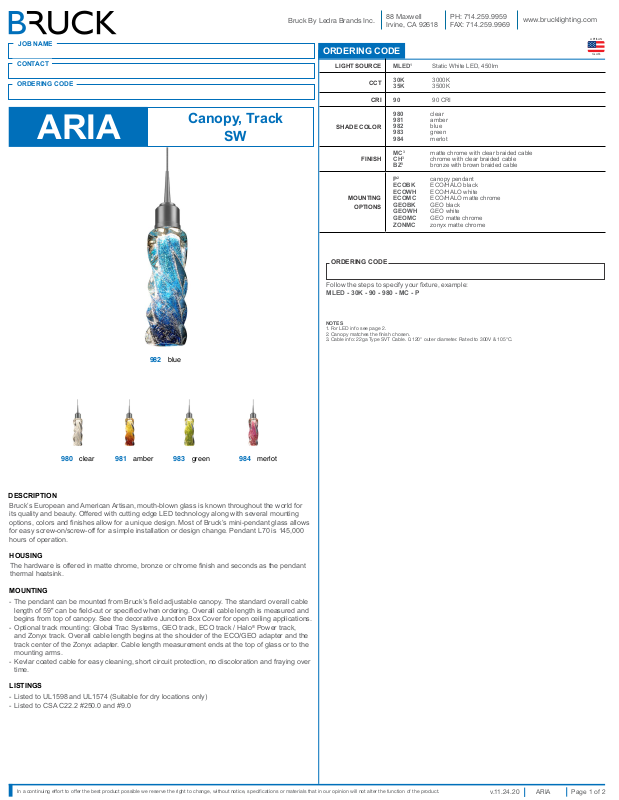

Page 1
JOB NAME
GLASS
CONTACT
ORDERING CODE
ARIA
Canopy, Track
SW
Bruck By Ledra Brands Inc.
ORDERING CODE
LIGHT SOURCE
SHADE COLOR
FINISH
MOUNTING
OPTIONS
ORDERING CODE
Follow the steps to specify your xture, example:
MLED - 30K - 90 - 980 - MC - P
88 Maxwell
Irvine, CA 92618
1
MLED
30K 3000K
CCT
35K 3500K
CRI 90 90 CRI
980 clear
981 amber
982 blue
983 green
984 merlot
MC
CH
3
BZ
2
P
ECOBK ECO/HALO black
ECOWH ECO/HALO white
ECOMC ECO/HALO matte chrome
GEOBK GEO black
GEOWH GEO white
GEOMC GEO matte chrome
ZONMC zonyx matte chrome
Static White LED, 450lm
3
matte chrome with clear braided cable
3
chrome with clear braided cable
bronze with brown braided cable
canopy pendant
PH: 714.259.9959
FAX: 714.259.9969
www.brucklighting.com
ARTISAN
982
blue
980
clear
983 green981 amber 984 merlot
DESCRIPTION
Bruck’s European and American Artisan, mouth-blown glass is known throughout the world for
its quality and beauty. Offered with cutting edge LED technology along with several mounting
options, colors and nishes allow for a unique design. Most of Bruck’s mini-pendant glass allows
for easy screw-on/screw-off for a simple installation or design change. Pendant L70 is 145,000
hours of operation.
HOUSING
The hardware is offered in matte chrome, bronze or chrome nish and seconds as the pendant
thermal heatsink.
MOUNTING
- The pendant can be mounted from Bruck’s eld adjustable canopy. The standard overall cable
length of 59" can be eld-cut or specied when ordering. Overall cable length is measured and
begins from top of canopy. See the decorative Junction Box Cover for open ceiling applications.
- Optional track mounting: Global Trac Systems, GEO track, ECO track / Halo
®
Power track,
and Zonyx track. Overall cable length begins at the shoulder of the ECO/GEO adapter and the
track center of the Zonyx adapter. Cable length measurement ends at the top of glass or to the
mounting arms.
- Kevlar coated cable for easy cleaning, short circuit protection, no discoloration and fraying over
time.
LISTINGS
- Listed to UL1598 and UL1574 (Suitable for dry locations only)
- Listed to CSA C22.2 #250.0 and #9.0
NOTES
1. For LED info see page 2.
2. Canopy matches the nish chosen.
3. Cable info: 22ga Type SVT Cable. 0.120" outer diameter. Rated to 300V & 105°C.
In a continuing eort to oer the best product possible we reserve the right to change, without notice, specications or materials that in our opinion will not alter the function of the product.
v.11.24.20 Page 1 of 2
ARIA
Page 2
MOUNTING OPTIONS
Bruck By Ledra Brands Inc.
88 Maxwell
Irvine, CA 92618
PH: 714.259.9959
FAX: 714.259.9969
www.brucklighting.com
1-3/8"
8-1/4"
Dimensions may vary slightly.
LIGHT SOURCE
Light Source MLED - Static White LED
Performance
Lumen Maintenance L
Technical Specs
Socket Listing
1-1/4"
1/2"
MLED
2"
Cree XHP50
LED
Lumens 450lm
CCT 3000K or 3500K
SDCM 2-Step MacAdam Ellipse
CRI >90
> 145,000 hours
70
• Integrated LED module
• ETLus Listed to UL1598, and UL1574 (Suitable for dry locations only)
• cETL Listed to CSA C22.2 #250.0 and #9.0
4-1/2"
P
2-1/8"
1-3/4"
ECO
2-5/8"
GEO
3-1/4"
ZONMC
Mounting
Canopy
• 120-277Vac, 50/60Hz input
• 7.0W, 7.5VA
• Tri-mode dimming (Triac, ELV and 0-10V)
• Mount to 3-1/2" to 4" round J-Box
• Short circuit protection
• Thermal protection
Line Voltage Track • 120Vac, 50/60Hz input
Warranty
In a continuing eort to oer the best product possible we reserve the right to change, without notice, specications or materials that in our opinion will not alter the function of the product.
• 7.0W, 7.5VA
• Triac and ELV phase dimming
• Connects to line voltage adapter (ECO, GEO, Zonyx)
• 5 year limited xture warranty
v.11.24.20 Page 2 of 2
