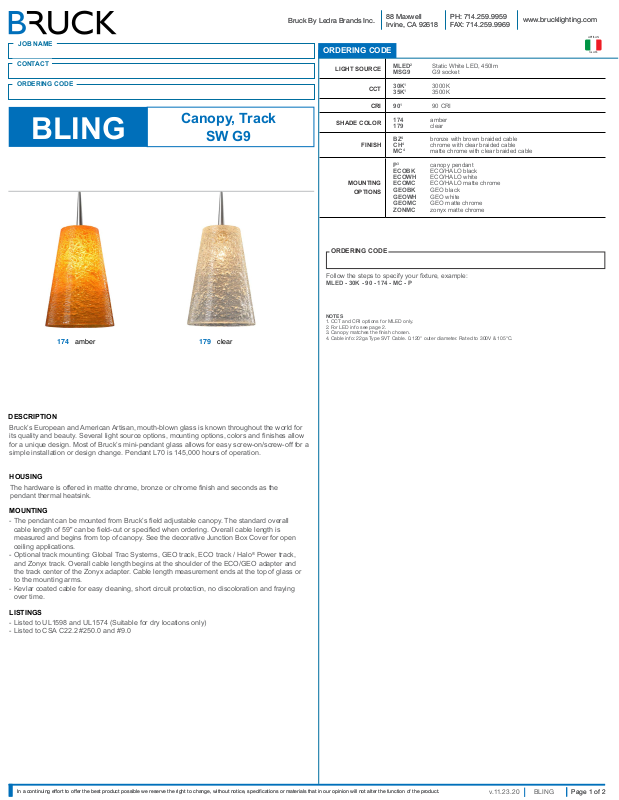

Page 1

Bruck By Ledra Brands Inc.

ARTISAN

GLASS

Bruck By Ledra Brands Inc.

88 Maxwell

Irvine, CA 92618

PH: 714.259.9959

FAX: 714.259.9969

www.brucklighting.com

JOB NAME

CONTACT

ORDERING CODE

BLING

174 amber 179 clear

Canopy, Track

SW G9

ORDERING CODE

LIGHT SOURCE

SHADE COLOR

FINISH

MOUNTING

OPTIONS

MLED MSG9 G9 socket

30K

CCT

35K

CRI 90

174 amber 179 clear

BZ CH MC

P ECOBK ECO/HALO black ECOWH ECO/HALO white ECOMC ECO/HALO matte chrome GEOBK GEO black GEOWH GEO white GEOMC GEO matte chrome ZONMC zonyx matte chrome

ORDERING CODE

Follow the steps to specify your xture, example:

MLED - 30K - 90 - 174 - MC - P

NOTES

1. CCT and CRI options for MLED only.

2. For LED info see page 2.

3. Canopy matches the nish chosen.

4. Cable info: 22ga Type SVT Cable. 0.120" outer diameter. Rated to 300V & 105°C.

Static White LED, 450lm

3000K

3500K

90 CRI

bronze with brown braided cable

chrome with clear braided cable

matte chrome with clear braided cable

canopy pendant

DESCRIPTION

Bruck’s European and American Artisan, mouth-blown glass is known throughout the world for

its quality and beauty. Several light source options, mounting options, colors and nishes allow

for a unique design. Most of Bruck’s mini-pendant glass allows for easy screw-on/screw-off for a simple installation or design change. Pendant L70 is 145,000 hours of operation.

HOUSING

The hardware is offered in matte chrome, bronze or chrome nish and seconds as the

pendant thermal heatsink.

MOUNTING

- The pendant can be mounted from Bruck’s eld adjustable canopy. The standard overall cable length of 59" can be eld-cut or specied when ordering. Overall cable length is

measured and begins from top of canopy. See the decorative Junction Box Cover for open ceiling applications.

- Optional track mounting: Global Trac Systems, GEO track, ECO track / Halo

Power track, and Zonyx track. Overall cable length begins at the shoulder of the ECO/GEO adapter and the track center of the Zonyx adapter. Cable length measurement ends at the top of glass or to the mounting arms.

- Kevlar coated cable for easy cleaning, short circuit protection, no discoloration and fraying over time.

LISTINGS

- Listed to UL1598 and UL1574 (Suitable for dry locations only)

- Listed to CSA C22.2 #250.0 and #9.0

In a continuing eort to oer the best product possible we reserve the right to change, without notice, specications or materials that in our opinion will not alter the function of the product.

v.11.23.20 Page 1 of 2

BLING

Page 1 of 2

Page 2

MOUNTING OPTIONS

Bruck By Ledra Brands Inc.

4-1/2"

88 Maxwell Irvine, CA 92618

PH: 714.259.9959 FAX: 714.259.9969

www.brucklighting.com

4-3/4"

Dimensions may vary slightly.

LIGHT SOURCE

Light Source MLED - Static White LED MSG9 - G9 SOCKET

Performance

Lumen Maintenance L

Technical Specs

Socket Listing

MSG9

6-3/4"

MSG9 - P

4-1/2"

1-1/4"

1/2"

MLED

Cree XHP50 lamp dependent

LED

Lumens 450lm

CCT 3000K or 3500K

SDCM 2-Step MacAdam Ellipse

CRI >90

> 145,000 hours

• Integrated LED module

• ETLus Listed to UL1598, and UL1574 (Suitable for dry locations only)

• cETL Listed to CSA C22.2 #250.0 and #9.0

MLED - P

1-3/4"

2-1/8"

• G9 socket

• ETLus Listed to UL1598, and UL1574 (Suitable for dry locations only)

• cETL Listed to CSA C22.2 #250.0 and #9.0

1-1/8"

MSG9 - ECO

1-3/4"

MLED - ECO

1-3/4"

MSG9 - GEO

2-5/8"

MLED - GEO

1-1/2"

MSG9 - ZONMC

3-1/4"

MLED - ZONMC

Mounting

Canopy

• 120-277Vac, 50/60Hz input

• 7.0W, 7.5VA

• Tri-mode dimming (Triac, ELV and 0-10V)

• Mount to 3-1/2" to 4" round J-Box

• Short circuit protection

• Thermal protection

Line Voltage Track • 120Vac, 50/60Hz input

Warranty

• 7.0W, 7.5VA

• Triac and ELV phase dimming

• Connects to line voltage adapter (ECO, GEO, Zonyx)

• 5 year limited xture warranty • 1 year limited xture warranty

• 120-277Vac, 50/60Hz input

• 40W, 40VA (max 40W lamp)

• Dimmable (Incandescent)

• Mount to 3-1/2" to 4" round J-Box

• 120Vac, 50/60Hz input

• 40W, 40VA (max 40W lamp)

• Dimmable (Incandescent)

• Connects to line voltage adapter (ECO, GEO, Zonyx)

v.11.23.20 Page 2 of 2
