Page 1
Bruck By Ledra Brands Inc.
88 Maxwell
Irvine, CA 92618
PH: 714.259.9959
FAX: 714.259.9969
www.brucklighting.com
JOB NAME
CONTACT
ORDERING CODE

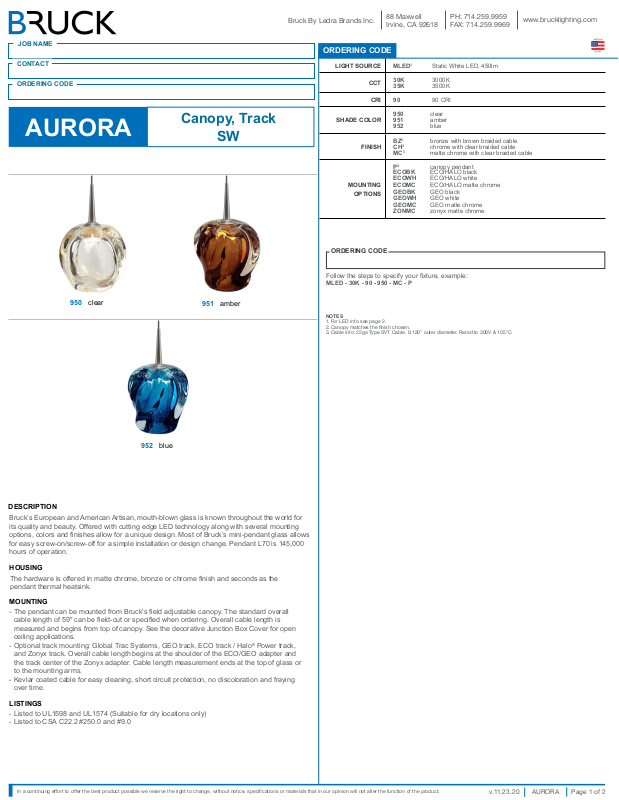

AURORA
950 clear
Canopy, Track
SW
951 amber
ORDERING CODE
LIGHT SOURCE MLED
CCT
CRI 90 90 CRI
SHADE COLOR
FINISH
MOUNTING
OPTIONS
ORDERING CODE
Follow the steps to specify your xture, example:
MLED - 30K - 90 - 950 - MC - P
NOTES
1. For LED info see page 2.
2. Canopy matches the nish chosen.
3. Cable info: 22ga Type SVT Cable. 0.120" outer diameter. Rated to 300V & 105°C.
1
Static White LED, 450lm
30K 3000K
35K 3500K
950 clear
951 amber
952 blue
3
BZ
CH
MC
2
P
ECOBK ECO/HALO black
ECOWH ECO/HALO white
ECOMC ECO/HALO matte chrome
GEOBK GEO black
GEOWH GEO white
GEOMC GEO matte chrome
ZONMC zonyx matte chrome
bronze with brown braided cable
3
chrome with clear braided cable
3
matte chrome with clear braided cable
canopy pendant
952 blue
DESCRIPTION
Bruck’s European and American Artisan, mouth-blown glass is known throughout the world for
its quality and beauty. Offered with cutting edge LED technology along with several mounting
options, colors and nishes allow for a unique design. Most of Bruck’s mini-pendant glass allows
for easy screw-on/screw-off for a simple installation or design change. Pendant L70 is 145,000
hours of operation.
HOUSING
The hardware is offered in matte chrome, bronze or chrome nish and seconds as the
pendant thermal heatsink.
MOUNTING
- The pendant can be mounted from Bruck’s eld adjustable canopy. The standard overall
cable length of 59" can be eld-cut or specied when ordering. Overall cable length is
measured and begins from top of canopy. See the decorative Junction Box Cover for open
ceiling applications.
- Optional track mounting: Global Trac Systems, GEO track, ECO track / Halo® Power track,
and Zonyx track. Overall cable length begins at the shoulder of the ECO/GEO adapter and
the track center of the Zonyx adapter. Cable length measurement ends at the top of glass or
to the mounting arms.
- Kevlar coated cable for easy cleaning, short circuit protection, no discoloration and fraying
over time.
LISTINGS
- Listed to UL1598 and UL1574 (Suitable for dry locations only)
- Listed to CSA C22.2 #250.0 and #9.0
In a continuing eort to oer the best product possible we reserve the right to change, without notice, specications or materials that in our opinion will not alter the function of the product.
v.11.23.20 Page 1 of 2
AURORA
Page 2
MOUNTING OPTIONS
4-1/2"
Dimensions may vary slightly
4-1/2"
1-3/4"
MLED
1/2"
1-1/4"
2-5/8"
Bruck By Ledra Brands Inc.
4-1/2"
2-1/8"
P
3-1/4"
88 Maxwell
Irvine, CA 92618
PH: 714.259.9959
FAX: 714.259.9969
www.brucklighting.com
LIGHT SOURCE
Light Source MLED - Static White LED
Performance
Lumen Maintenance L
Technical Specs
Socket Listing
LED Cree XHP50
Lumens 450lm
CCT 3000K or 3500K
SDCM 2-Step MacAdam Ellipse
CRI >90
> 145,000 hours
70
• Integrated LED module
• ETLus Listed to UL1598, and UL1574 (Suitable for dry locations only)
• cETL Listed to CSA C22.2 #250.0 and #9.0
Mounting
Canopy
• 120-277Vac, 50/60Hz input
• 7.0W, 7.5VA
• Tri-mode dimming (Triac, ELV and 0-10V)
• Mount to 3-1/2" to 4" round J-Box
• Short circuit protection
• Thermal protection
ECO
GEO
ZONMC
Line Voltage Track
Warranty
In a continuing eort to oer the best product possible we reserve the right to change, without notice, specications or materials that in our opinion will not alter the function of the product.
• 120Vac, 50/60Hz input
• 7.0W, 7.5VA
• Triac and ELV phase dimming
• Connects to line voltage adapter (ECO, GEO, Zonyx)
• 5 year limited xture warranty
v.11.23.20 Page 2 of 2
