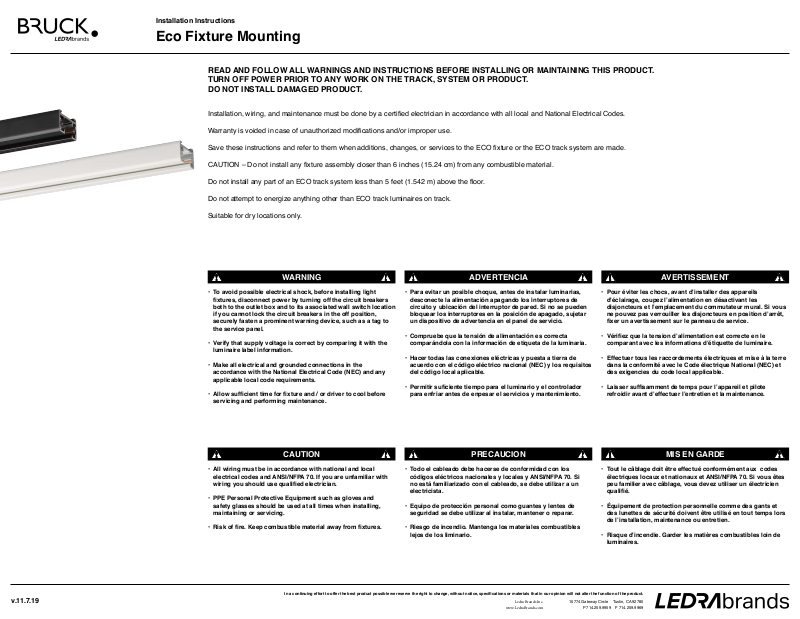

Installation Instructions
Eco Fixture Mounting
READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS BEFORE INSTALLING OR MAINTAINING THIS PRODUCT.
TURN OFF POWER PRIOR TO ANY WORK ON THE TRACK, SYSTEM OR PRODUCT.
DO NOT INSTALL DAMAGED PRODUCT.
Installation, wiring, and maintenance must be done by a certied electrician in accordance with all local and National Electrical Codes.
Warranty is voided in case of unauthorized modications and/or improper use.
Save these instructions and refer to them when additions, changes, or services to the ECO xture or the ECO track system are made.
CAUTION – Do not install any xture assembly closer than 6 inches (15.24 cm) from any combustible material.
Do not install any part of an ECO track system less than 5 feet (1.542 m) above the oor.
Do not attempt to energize anything other than ECO track luminaires on track.
Suitable for dry locations only.
WARNING
To avoid possible electrical shock, before installing light
•
xtures, disconnect power by turning off the circuit breakers
both to the outlet box and to its associated wall switch location
if you cannot lock the circuit breakers in the off position,
securely fasten a prominent warning device, such as a tag to
the service panel.
Verify that supply voltage is correct by comparing it with the
•
luminaire label information.
Make all electrical and grounded connections in the
•
accordance with the National Electrical Code (NEC) and any
applicable local code requirements.
Allow sufcient time for xture and / or driver to cool before
•
servicing and performing maintenance.
CAUTION
All wiring must be in accordance with national and local
•
electrical codes and ANSI/NFPA 70. If you are unfamiliar with
wiring you should use qualied electrician.
PPE Personal Protective Equipment such as gloves and
•
safety glasses should be used at all times when installing,
maintaining or servicing.
Risk of re. Keep combustible material away from xtures.
•
ADVERTENCIA
Para evitar un posible choque, antes de instalar luminarias,
•
desconecte la alimentación apagando los interruptores de
circuito y ubicación del interruptor de pared. Si no se pueden
bloquear los interruptores en la posición de apagado, sujetar
un dispositivo de advertencia en el panel de servicio.
Compruebe que la tensión de alimentación es correcta
•
comparándola con la información de etiqueta de la luminaria.
Hacer todas las conexiones eléctricas y puesta a tierra de
•
acuerdo con el código eléctrico nacional (NEC) y los requisitos
del código local aplicable.
Permitir suciente tiempo para el luminario y el controlador
•
para enfriar antes de enpesar el servicios y mantenimiento.
PRECAUCION
Todo el cableado debe hacerse de conformidad con los
•
códigos eléctricos nacionales y locales y ANSI/NFPA 70. Si
no está familiarizado con el cableado, se debe utilizar a un
electricista.
Equipo de protección personal como guantes y lentes de
•
seguridad se debe utilizar al instalar, mantener o reparar.
Riesgo de incendio. Mantenga los materiales combustibles
•
lejos de los liminario.
AVERTISSEMENT
Pour éviter les chocs, avant d’installer des appareils
•
d’éclairage, coupez l’alimentation en désactivant les
disjoncteurs et l’emplacement du commutateur mural. Si vous
ne pouvez pas verrouiller les disjoncteurs en position d’arrêt,
xer un avertissement sur le panneau de service.
Vériez que la tension d’alimentation est correcte en le
•
comparant avec les informations d’étiquette de luminaire.
Effectuer tous les raccordements électriques et mise à la terre
•
dans la conformité avec le Code électrique National (NEC) et
des exigencies du code local applicable.
Laisser sufsamment de temps pour l’appareil et pilote
•
refroidir avant d’effectuer l’entretien et la maintenance.
MIS EN GARDE
Tout le câblage doit être effectué conformément aux codes
•
électriques locaux et nationaux et ANSI/NFPA 70. Si vous êtes
peu familier avec câblage, vous devez utiliser un électricien
qualié.
Équipement de protection personnelle comme des gants et
•
des lunettes de sécurité doivent être utilisé en tout temps lors
de l’installation, maintenance ou entretien.
Risque d’incendie. Garder les matières combustibles loin de
•
luminaires.
v.11.7.19
In a continuing effort to offer the best product possible we reserve the right to change, without notice, specications or materials that in our opinion will not alter the function of the product.
Ledra Brands Inc.
www.LedraBrands.com
15774 Gateway Circle Tustin, CA 92780
P 714.259.9959 F 714.259.9969
Page 2
INSTRUCTIONS FOR USE
De-energize circuit before installation.

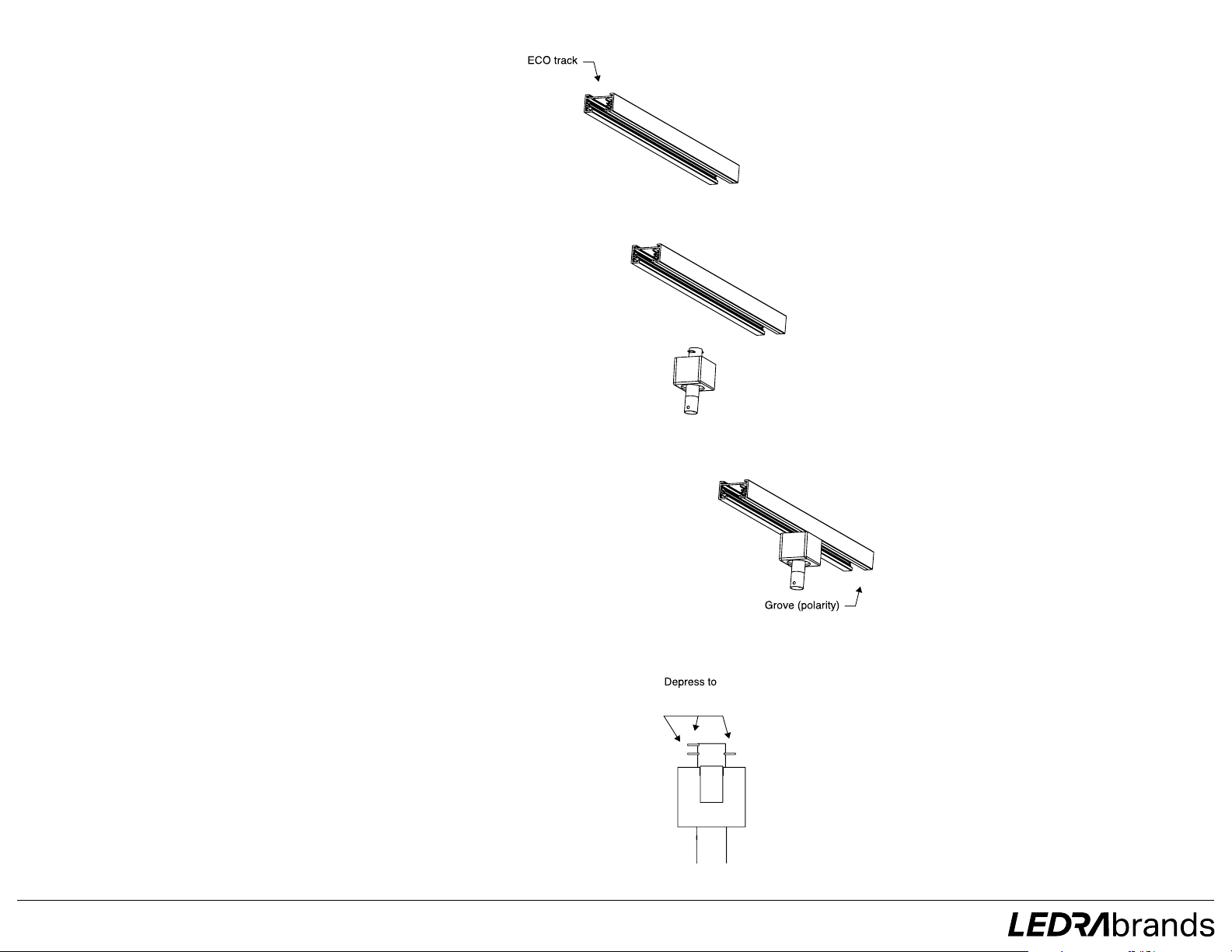

1
Depress Eco track adapter contact tabs to ensure electrical contact
2
tabs are fully seated on the ECO track adapter before inserting into
ECO track.
Align release tab to the groove (polarity) side of the ECO track.
3
While inserting the ECO adapter into the ECO track, twist the ECO
4
adapter counterclockwise 90 degrees. ECO adapter will snap into
the ECO track.
Polarity line on ECO adapter must align with polarity line on ECO track.
5
Energize circuit and test for proper operation.
6
REMOVAL
Hold xture body.
1
Depress the release tab on the ECO adapter.
2
Rotate the ECO adapter clockwise 90 degrees, releasing it from the
3
ECO track.
Reposition or replace as required.
4
