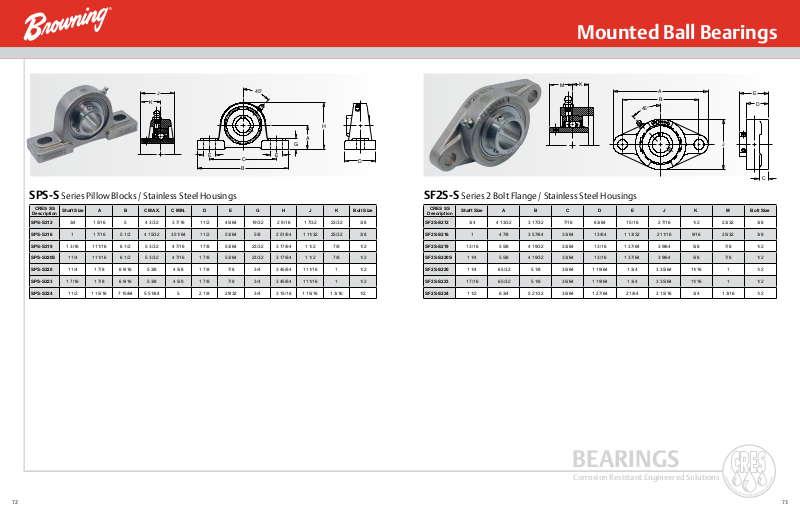

Browning SPS-S Series Catalog Page
®
B
K
C
J
45°
K
H
A
G
E
C
E
SPS-S Series Pillow Blocks / Stainless Steel Housings
CRES SS
Description
SPS-S212 3/4 1 5/16 5 4 3/32 3 7/16 1 1/2 45/64 19/32 2 9/16 1 7/32 23/32 3/8
SPS-S216 1 1 7/16 5 1/2 4 15/32 3 51/64 1 1/2 53/64 5/8 2 51/64 1 11/32 25/32 3/8
SPS-S219 1 3/16 1 11/16 6 1/2 5 3/32 4 7/16 1 7/8 53/64 23/32 3 17/64 1 1/2 7/8 1/2
SPS-S220S 1 1/4 1 11/16 6 1/2 5 3/32 4 7/16 1 7/8 53/64 23/32 3 17/64 1 1/2 7/8 1/2
SPS-S220 1 1/4 1 7/8 6 9/16 5 3/8 4 5/8 1 7/8 7/8 3/4 3 45/64 1 11/16 1 1/2
Shaft Size A B C MAX. C MIN. D E G H J K Bolt Size
D
SPS-S223 1 7/16 1 7/8 6 9/16 5 3/8 4 5/8 1 7/8 7/8 3/4 3 45/64 1 11/16 1 1/2
SPS-S224 1 1/2 1 15/16 7 15/64 5 51/64 5 2 1/8 29/32 3/4 3 15/16 1 15/16 1 3/16 1/2
72 73
