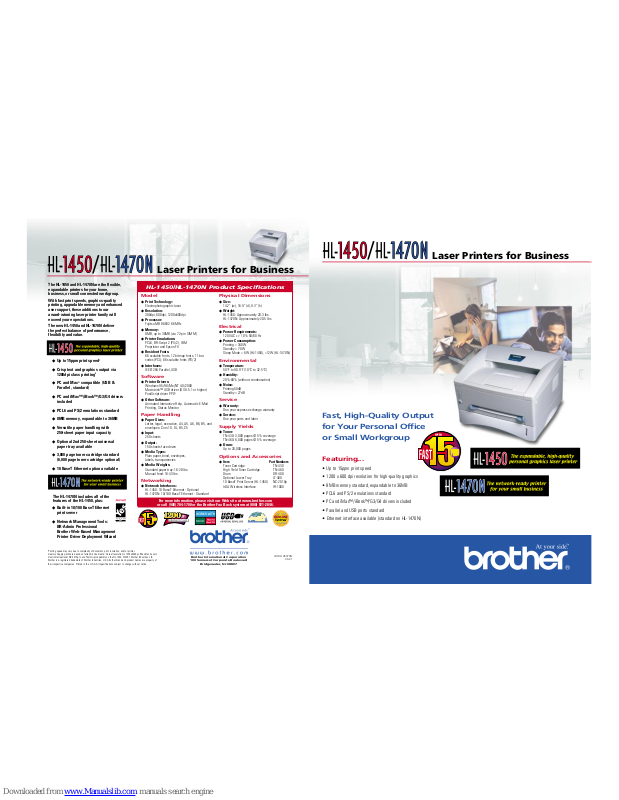

Page 1
Laser Printers for Business
Featuring...
• Up to 15ppm print speed
• 1200 x 600 dpi resolution for high-quality graphics
• 8MB memory standard, expandable to 36MB
• PCL6 and PS/2 emulations standard
• PC and iMac™/iBook™/G3/G4 drivers included
• Parallel and USB ports standard
• Ethernet interface available (standard on HL-1470N)
Fast, High-Quality Output
for Your Personal Office
or Small Workgroup
The HL-1470N includes all of the
features of the HL-1450, plus:
Laser Printers for Business
The HL-1450 and HL-1470N are the flexible,
expandable printers for your home,
business, or small connected workgroup.
With fast print speeds, graphics-quality
printing, upgradable memory and enhanced
user support, these additions to our
award-winning laser printer family will
exceed your expectations.
The new HL-1450 and HL-1470N deliver
the perfect balance of performance,
flexibility and value.
HL-1450/HL-1470N Product Specifications
1
Printing speed may vary due to complexity of document, print resolution, and/or printer
memory. Supply yields are based on letter/A4 size media. 2Actual resolution is 1200x600dpi. 3Macintosh users
must install optional NC-2010p to use Postscript capability on the HL-1450. ©2001 Brother Industries, Ltd.
Brother is a registered trademark of Brother Industries, Ltd. All other brand and product names are property of
their respective companies. Printed in the U.S.A. All specifications subject to change without notice.
Model
◆ Print Technology:
Electrophotographic laser
◆ Resolution:
300dpi, 600dpi, 1200x600dpi
◆ Processor:
Fujitsu MB 86832 66 MHz
◆ Memory:
8MB, up to 36MB (via 72-pin SIMM)
◆ Printer Emulations:
PCL6, BR-Script 2 (PS/2), IBM
Proprinter and Epson FX
◆ Resident Fonts:
66 scalable fonts, 12 bitmap fonts, 11 bar
codes (PCL); 66 scalable fonts (PS/2)
◆ Interfaces:
IEEE1284 Parallel, USB
Software
◆ Printer Drivers:
Windows 95/98/Me/NT4.0/2000
Macintosh™ USB driver (OS 8.5.1 or higher)
PostScript driver PPD
3
◆ Other Software:
Animated Interactive Help, Automatic E-Mail
Printing, Status Monitor
Paper Handling
◆ Paper Sizes:
Letter, legal, executive, A4, A5, A6, B6, B5, and
envelopes: Com 10, DL, B5, C5
◆ Input:
250 sheets
◆ Output:
150 sheets face down
◆ Media Types:
Plain paper, bond, envelopes,
labels, transparencies
◆ Media Weights:
Standard paper tray: 16-28 lbs.
Manual feed: 16-43 lbs.
Networking
◆ Network Interfaces:
HL-1450: 10 BaseT Ethernet - Optional
HL-1470N: 10/100 BaseT Ethernet - Standard
Physical Dimensions
◆ Size:
14.2” (w), 16.9” (d), 9.3” (h)
◆ Weight:
HL-1450: Approximately 20.3 lbs
HL-1470N: Approximately 20.5 lbs
Electrical
◆ Power Requirements:
120 VAC +/- 10% 50/60 Hz
◆ Power Consumption:
Printing < 340W
Standby < 70W
Sleep Mode < 6W (HL-1450), <12W (HL-1470N)
Environmental
◆ Temperature:
50°F to 90.5°F (10°C to 32.5°C)
◆ Humidity:
20%-80% (without condensation)
◆ Noise:
Printing 50dB
Standby < 27dB
Service
◆ Warranty:
One year express exchange warranty
◆ Service:
One year parts and labor
Supply Yields
◆ Toner:
TN-430: 3,000 pages @ 5% coverage
TN-460: 6,000 pages @ 5% coverage
◆ Drum:
Up to 20,000 pages
Options and Accessories
◆
Item Part Numbers
Toner Cartridge TN-430
High Yield Toner Cartridge TN-460
Drum DR-400
Optional Lower Tray LT-400
10 BaseT Print Server (HL-1450) NC-2010p
IrDA Wireless Interface IR-1000
CATHL145070N
06-01
◆ Up to 15ppm print speed
1
◆ Crisp text and graphics output via
1200dpi class printing
2
◆ PC and Mac®compatible (USB &
Parallel, standard)
◆ PC and iMac™/iBook™/G3/G4 drivers
included
◆ PCL6 and PS/2 emulations standard
◆ 8MB memory, expandable to 36MB
◆ Versatile paper handling with
250-sheet paper input capacity
◆ Optional 2nd 250-sheet universal
paper tray available
◆ 3,000 page toner cartridge standard
(6,000 page toner cartridge optional)
◆ 10 BaseT Ethernet option available
Brother International Corporation
100 Somerset Corporate Boulevard
Bridgewater, NJ 08807
◆ Built-in 10/100 BaseT Ethernet
print server
◆ Network Management Tools:
BR-Admin Professional
Brother Web-Based Management
Printer Driver Deployment Wizard
For more information, please visit our Web site at www.brother.com
or call (908) 704-1700 or the Brother Fax Back system at (800) 521-2846.
Page 2
It’s hard to improve upon our award-winning family of
Brother laser printers.
But we think we’ve done it – again – with our new
HL-1450 and HL-1470N monochrome laser printers.
With their comprehensive features, expansion choices, and
network options, the HL-1450 and HL-1470N achieve a new level
of performance for today's generation of personal laser printers.
Either printer is an excellent choice for fast, reliable desktop
graphics or small workgroup monochrome printing.
HL-1450 – The Expandable, High-Quality
Personal Graphics Laser Printer
HL-1470N – The Network-Ready Printer
For Your Small Business
The new HL-1450 is a compact, expandable, no-compromise
monochrome laser printer.
With its fast 15ppm print speed, PCL6 and PostScript Level 2
support (BR-Script 2), PC and Mac compatibility, and optional
external Ethernet connectivity, the HL-1450 offers
performance with room for future expansion.
The HL-1450 achieves output flexibility via its single sheet
manual bypass slot for jam-free printing of thick media or
envelopes. Additionally, the HL-1450 supports manual
duplex, watermark, poster, and N-up printing modes.
The new HL-1450 and HL-1470N printers come with excellent
service and support.
With-toll free technical support, interactive Shockwave-based help
files, the Brother Solutions Center (http://solutions.brother.com), a
one-year warranty, and the complete backing of Brother's nationwide
customer care centers, you can rest easy knowing that Brother and our
full customer support is at your side.
The HL-1450 and HL-1470N feature a variety of
innovative user-support tools.
A user-friendly driver installation routine
auto-detects your operating system as
well as any installed printer options.
A desktop-resident interactive help system
uses animated tutorials to answer
common maintenance and support issues.
This system goes beyond traditional textbased help and provides an instant visual
answer to many common questions.
Internet access allows you to take advantage of the Brother Solutions Center, an
in-depth repository of information, driver downloads, and FAQ’s that help you get
the most out of your Brother printer.
Exceptional User Support
The HL-1450 and HL-1470N include comprehensive
Windows®and Macintosh®drivers for dual platform use.
Built-in automatic emulation and interface switching
provides trouble-free PC and Mac compatibility.
Wide Compatibility
The HL-1450 and HL-1470N offer outstanding print
quality - FAST.
Each delivers up to 15ppm print speed, plus crisp
text and graphics at up to 1200dpi class resolution.
Letters, memos, spreadsheets and presentations
always look their best.
The Perfect Balance of
Performance and Quality
Paper is handled via the 250-sheet universal
input tray. For labels, transparencies or envelopes, you
can use the front-loading single-sheet manual bypass
slot. An optional 2nd 250-sheet tray can be installed,
increasing total input capacity to 500 sheets.
Paper Handling Flexibility and
Expanded Input Capacity
These printers deliver 15 pages
per minute, quickly producing
the memos, spreadsheets and
reports that make up the output
of today's busy office.
Produce business-class output using the front-loading
manual bypass slot.
Print on envelopes, transparencies, labels and
card stock, for a professional appearance to
virtually anything you need to output.
Easily expand your printer memory up to 36MB.
A Quick Start Guide, accessible Parallel and
USB interfaces, internal Ethernet (HL-1470N) or
quick-connecting optional Ethernet (HL-1450),
assure easy setup and operation for anyone.
Service and Support Are
Part of the Package
Flexible Paper Handling
Flexible Paper Handling
Easy To Set Up and Use...
Easy Connectivity
Easy To Set Up and Use...
Easy Connectivity
Easy ExpandabilityEasy Expandability
Fast High-Quality Output
Fast High-Quality Output
The HL-1470N offers all the features and performance of the
HL-1450. Ideal for small businesses with connected
workgroups, the HL-1470N includes an internal 10/100
Ethernet network card as standard.
The HL-1470N comes ready with a comprehensive set of
network management utilities, including BR-Admin
Professional and our Web-based set-up, configuration and
management tools.
And if printing over the Internet fits your plans,
the HL-1470N's IPP (Internet Printing Protocol) or
Brother Internet Print can further expand your
output options.
Installation via a simple, network printer wizard
makes your system setup quick and easy.
HL-1470N shown with
optional 2nd lower paper tray.
