v1.0
ASSEMBLY GUIDE
Ostro Round Table
Components

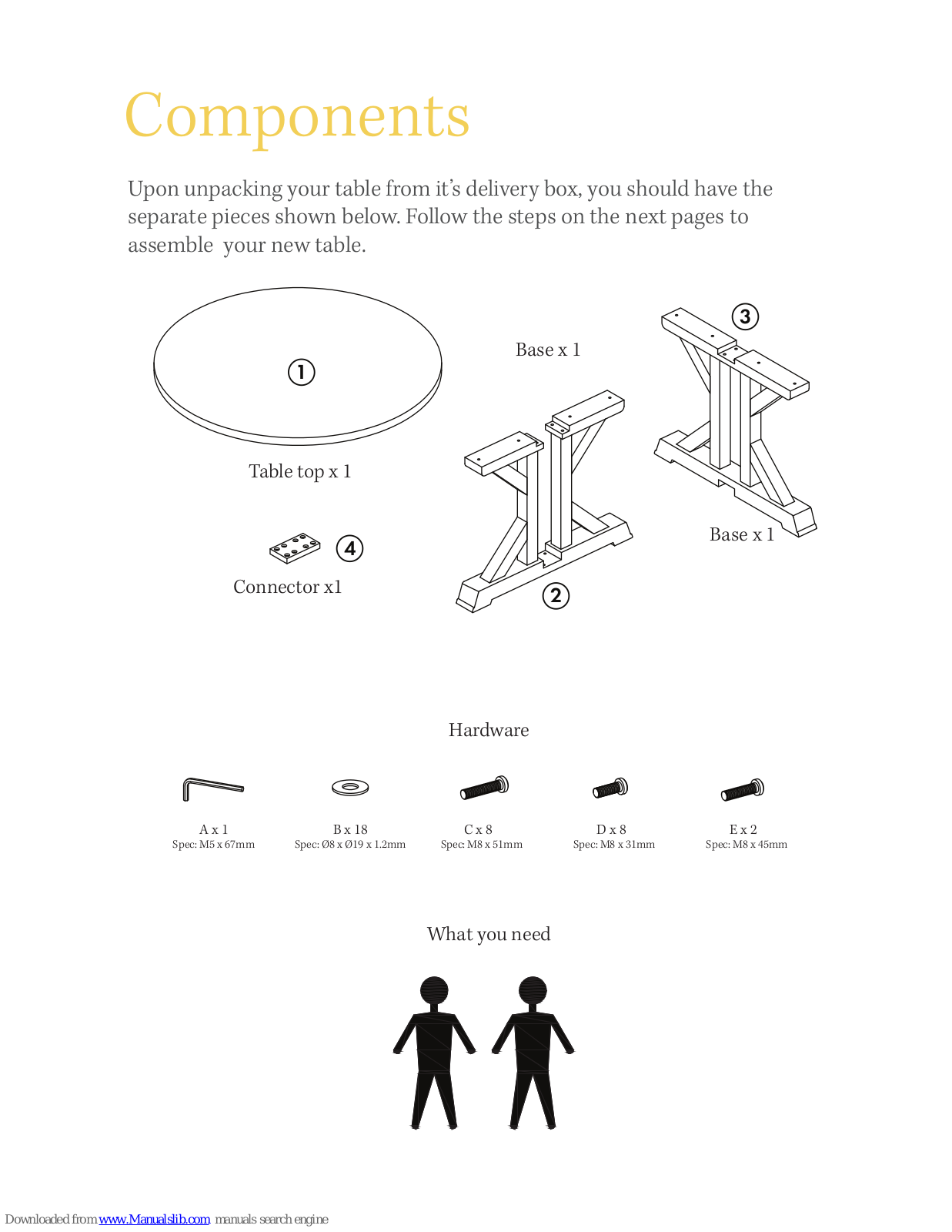

Upon unpacking your table from it’s delivery box, you should have the
separate pieces shown below. Follow the steps on the next pages to
assemble your new table.
Hardware
C x 8
Spec: M8 x 51mm
A x 1
Spec: M5 x 67mm
B x 18
Spec: Ø8 x Ø19 x 1.2mm
What you need
Base x 1
Base x 1
Table top x 1
Connector x1
D x 8
Spec: M8 x 31mm
E x 2
Spec: M8 x 45mm
1
2
3
4

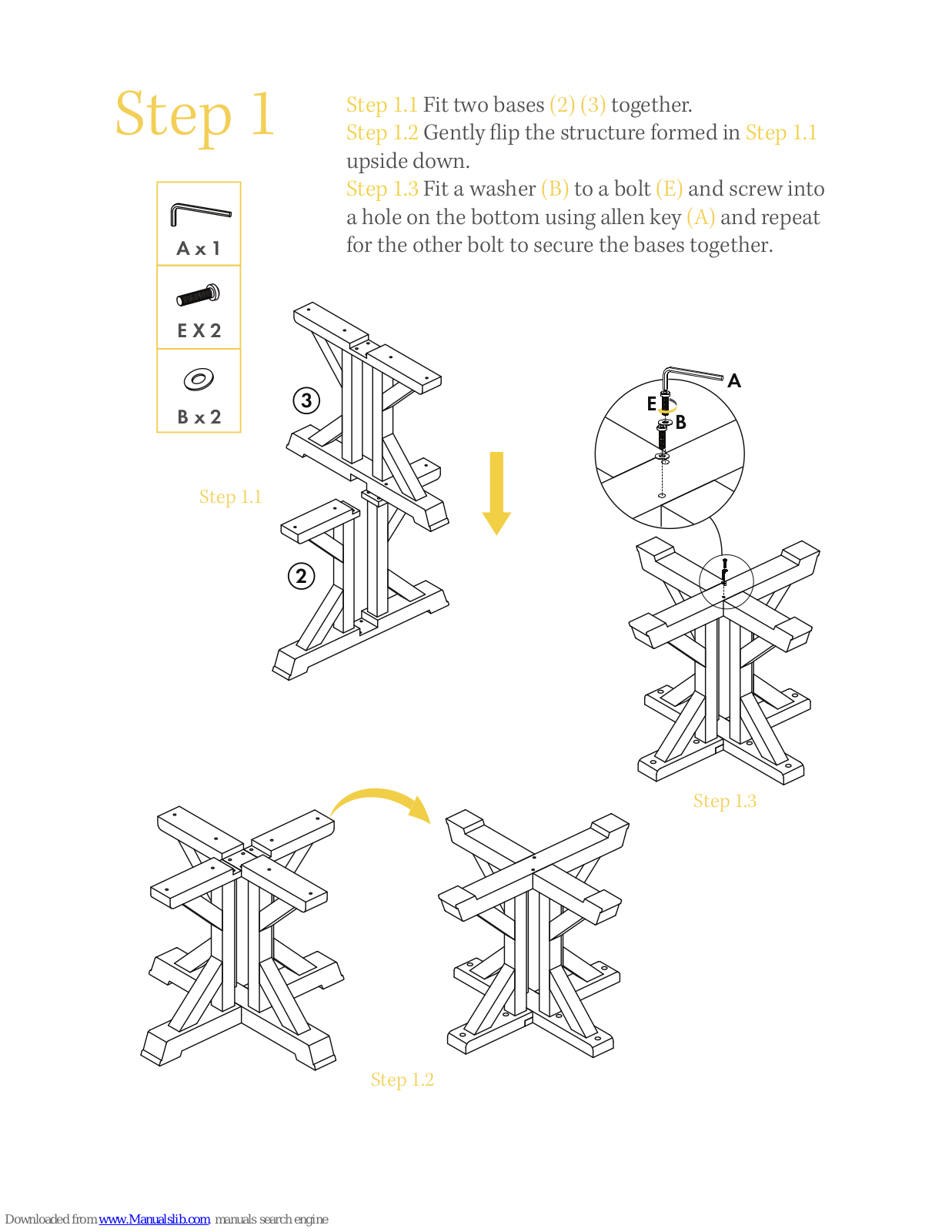

Step 1
Step 1.1
Step 1.2
Step 1.3
Step 1.1 Fit two bases (2) (3) together.
Step 1.2 Gently ip the structure formed in Step 1.1
upside down.
Step 1.3 Fit a washer (B) to a bolt (E) and screw into
a hole on the bottom using allen key (A) and repeat
for the other bolt to secure the bases together.
E X 2
A x 1
B x 2
2
A
E
B
3

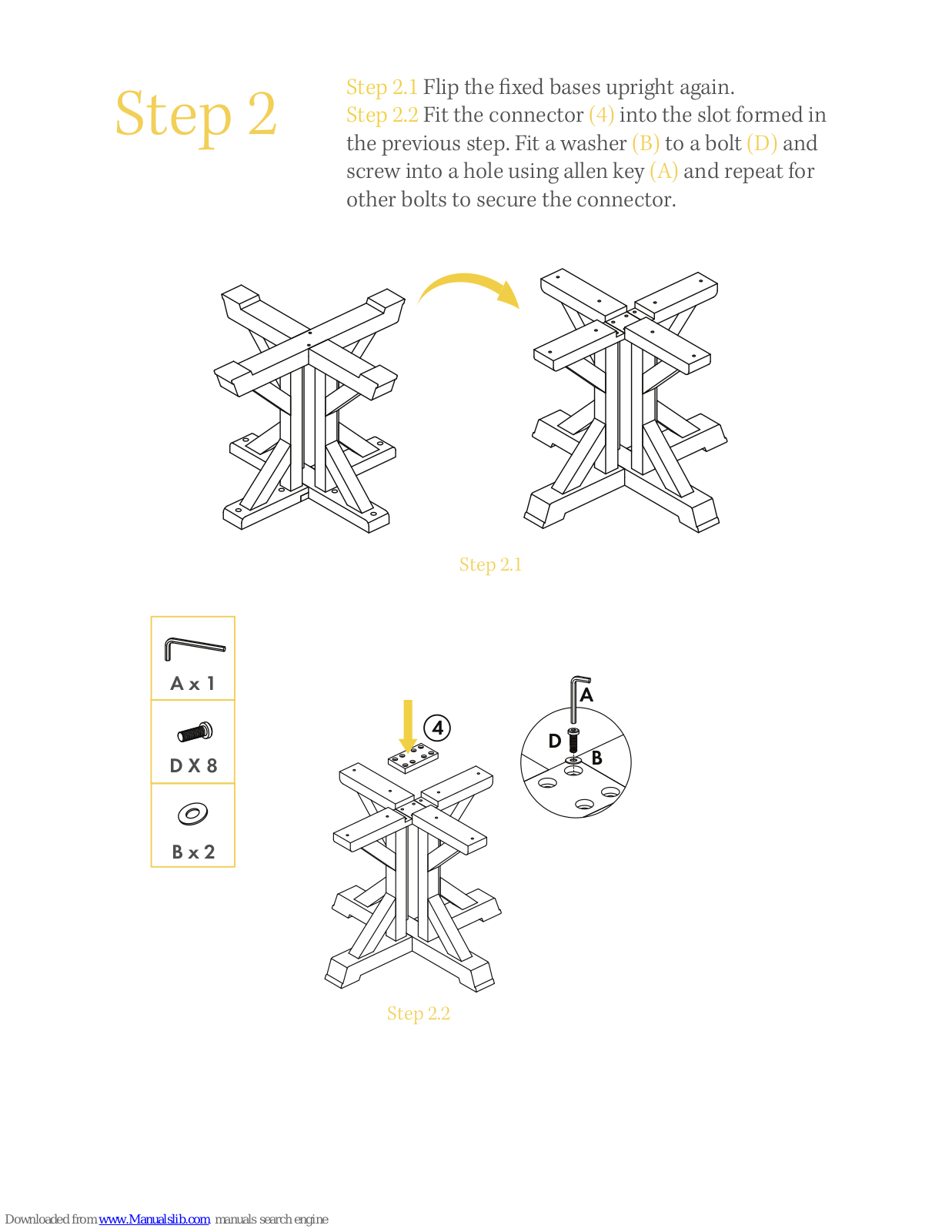

Step 2
Step 2.1 Flip the xed bases upright again.
Step 2.2 Fit the connector (4) into the slot formed in
the previous step. Fit a washer (B) to a bolt (D) and
screw into a hole using allen key (A) and repeat for
other bolts to secure the connector.
A
D
B
D X 8
A x 1
B x 2
4
Step 2.1
Step 2.2

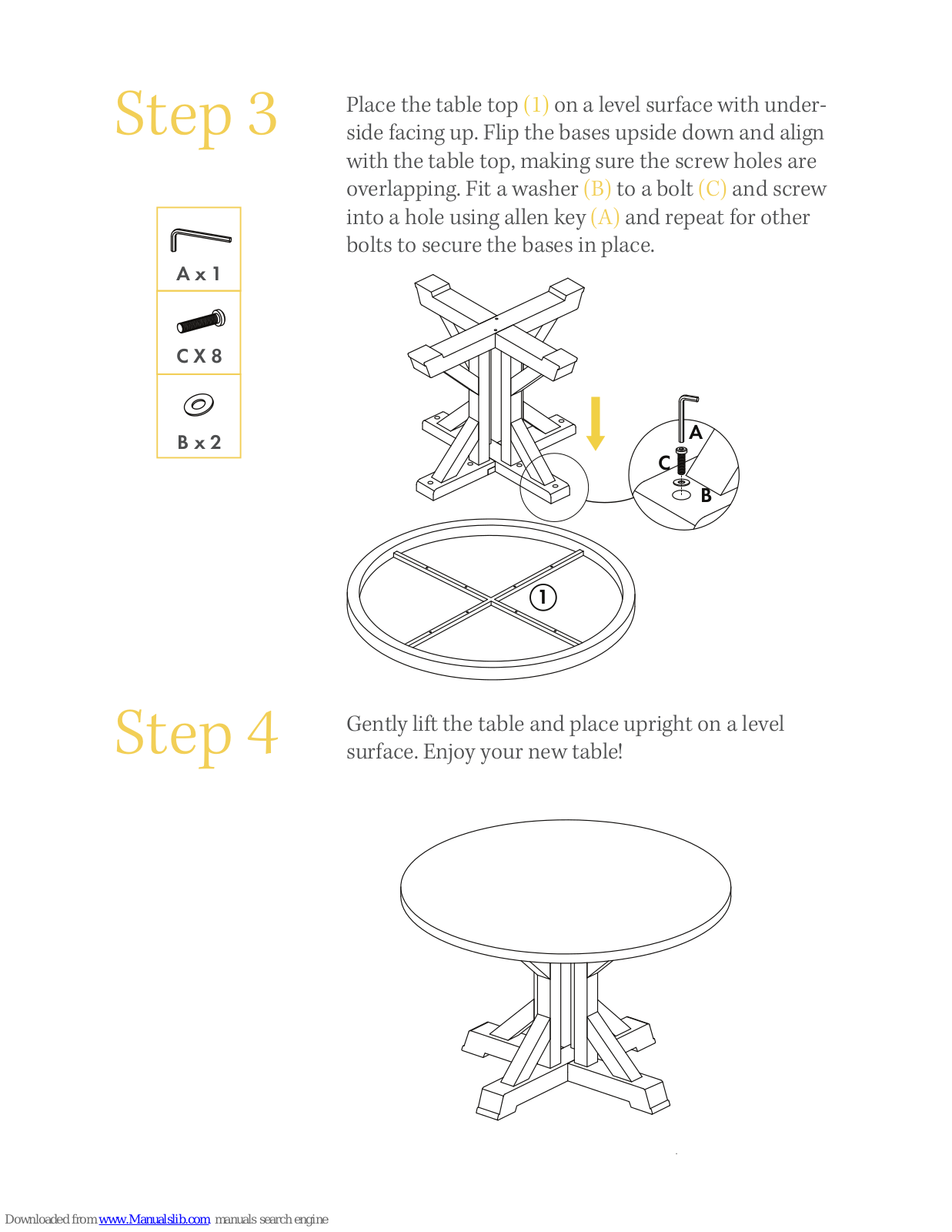

Step 3
Place the table top (1) on a level surface with underside facing up. Flip the bases upside down and align
with the table top, making sure the screw holes are
overlapping. Fit a washer (B) to a bolt (C) and screw
into a hole using allen key (A) and repeat for other
bolts to secure the bases in place.
Step 4
Gently lift the table and place upright on a level
surface. Enjoy your new table!
C X 8
A x 1
B x 2
A
C
B
