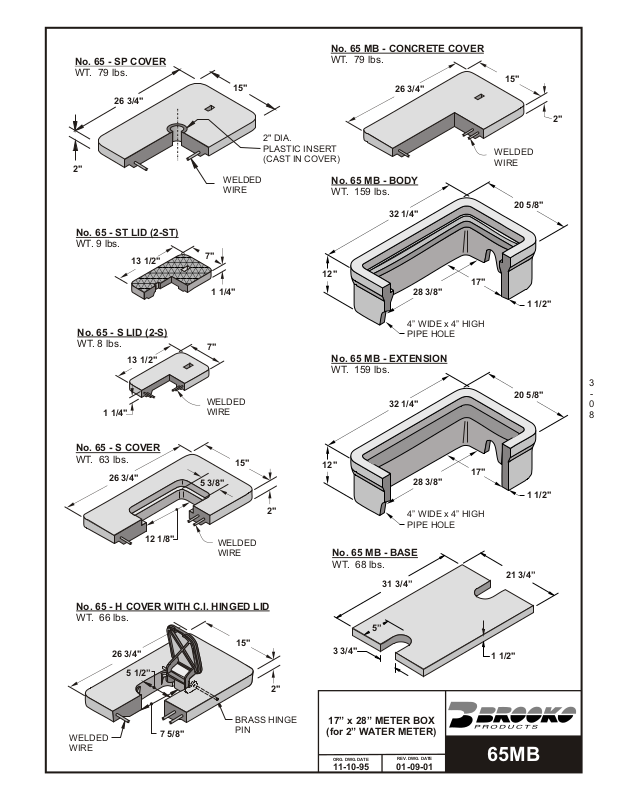

Page 1

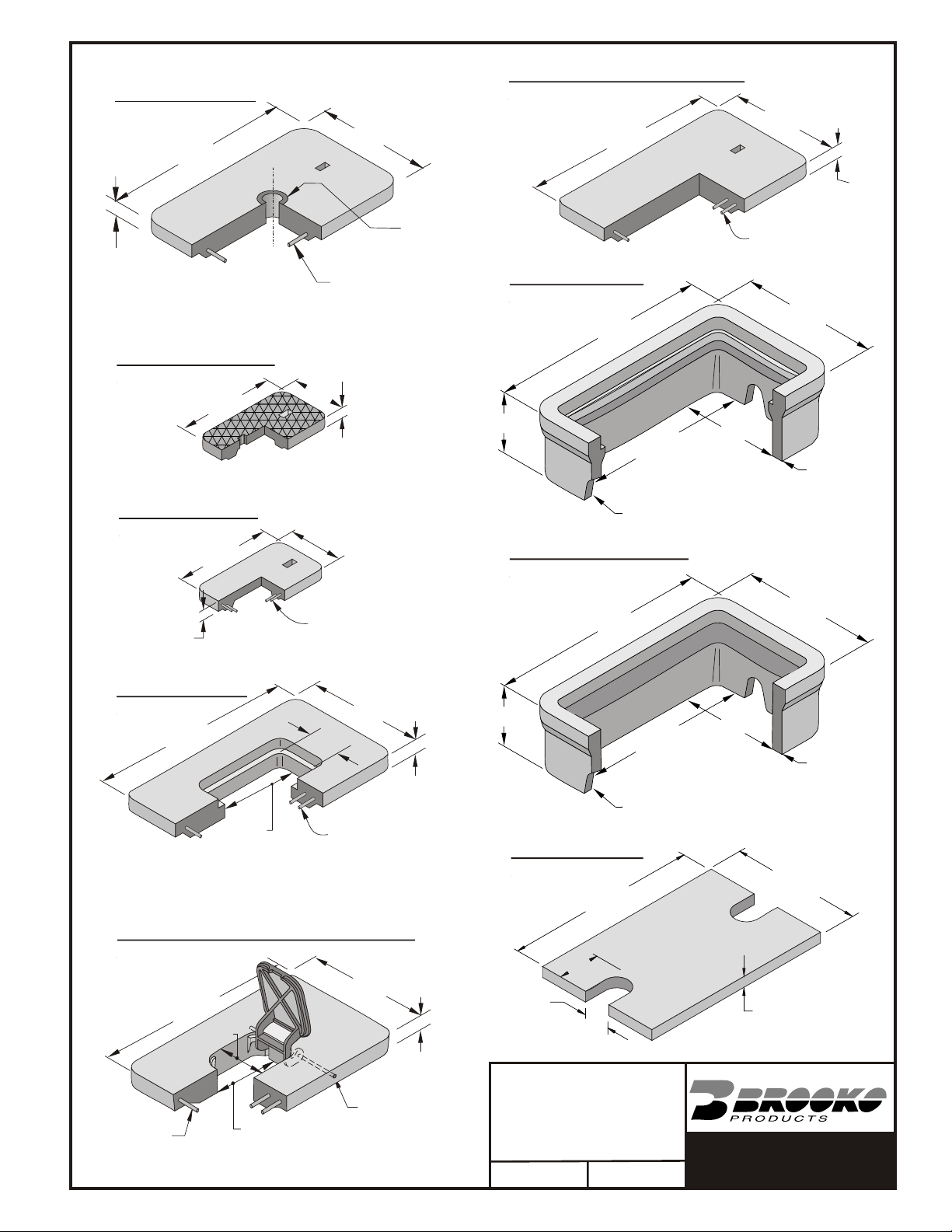

No. 65 - SP COVER
WT. 79 lbs.
26 3/4"
2"
No. 65 - ST LID (2-ST)
WT. 9 lbs.
13 1/2"
7"
11/4"
15"
WELDED
WIRE
No. 65 MB - CONCRETE COVER
WT. 79 lbs.
2" DIA.
PLASTIC INSERT
(CAST IN COVER)
No. 65 MB - BODY
WT. 159 lbs.
12"
15"
26 3/4"
2"
WELDED
WIRE
20 5/8"
32 1/4"
17"
28 3/8"
1 1/2"
No. 65 - S LID (2-S)
WT. 8 lbs.
13 1/2"
1 1/4"
7"
WELDED
WIRE
No. 65 - S COVER
WT. 63 lbs.
26 3/4"
5 3/8"
12 1/8"
15"
WELDED
WIRE
No. 65 - H COVER WITH C.I. HINGED LID
WT. 66 lbs.
15"
26 3/4"
51/2”
2"
2"
4” WIDE x 4” HIGH
PIPE HOLE
No. 65 MB - EXTENSION
WT. 159 lbs.
32 1/4"
12"
28 3/8"
4” WIDE x 4” HIGH
PIPE HOLE
No. 65 MB - BASE
WT. 68 lbs.
31 3/4”
5”
3 3/4"
17"
21 3/4”
1 1/2"
20 5/8"
1 1/2"
3
0
8
WELDED
WIRE
75/8"
BRASS HINGE
PIN
17” x 28” METER BOX
(for 2” WATER METER)
OR G. DW G. DAT E
11-10-95 01-09-01
REV. DWG. DATE
65MB
Page 2

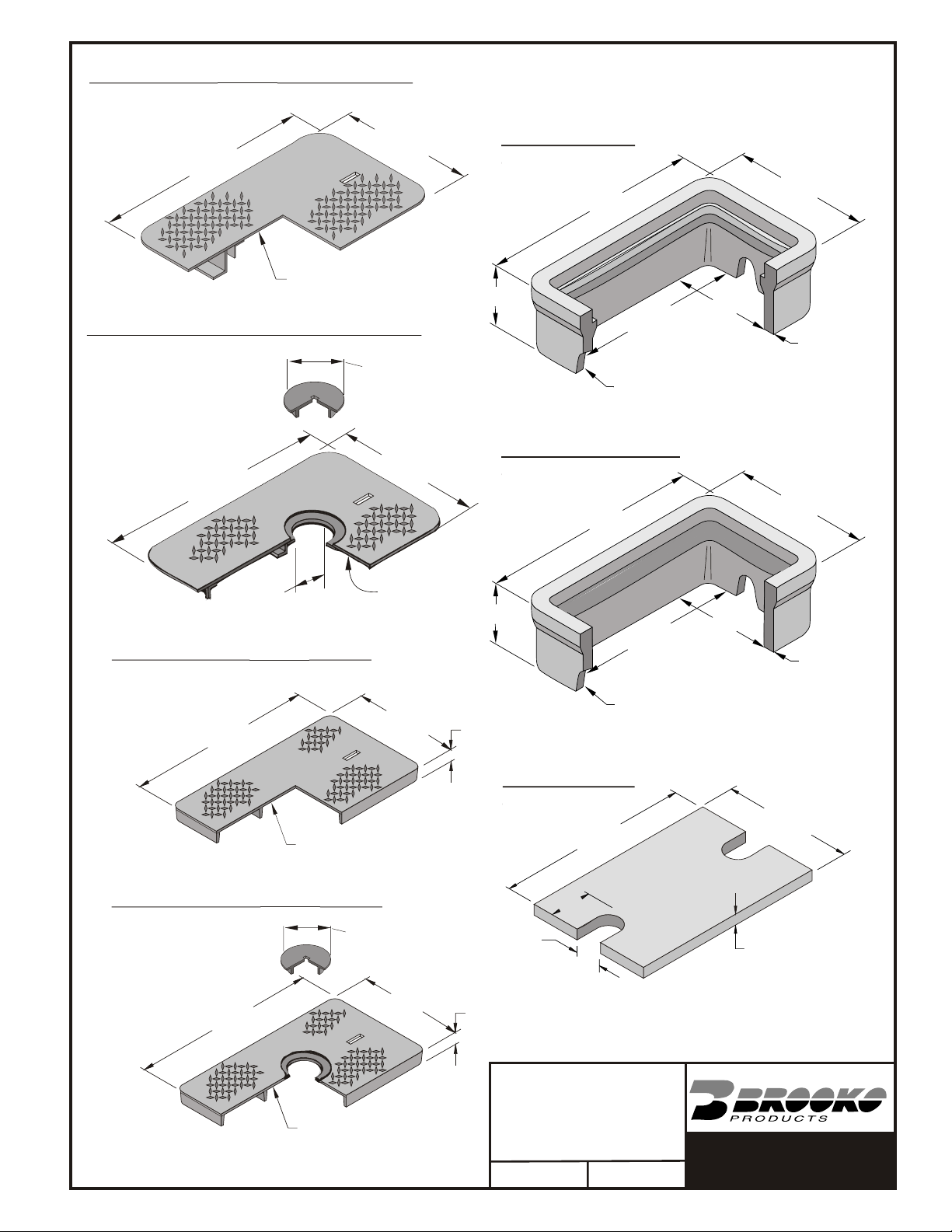

No. 65 - T STEEL COVER (SUPERIMPOSED)
WT. 71 lbs.
20 1/2"
32 1/4"
3/8" DIAMOND PLATE
No. 65 - TR STEEL COVER (SUPERIMPOSED)
WT. 73 lbs.
7 3/4” DIA.
20 1/2"
32 1/4"
No. 65 MB - BODY
WT. 159 lbs.
32 1/4"
12"
28 3/8"
4” WIDE x 4” HIGH
PIPE HOLE
No. 65 MB - EXTENSION
WT. 159 lbs.
32 1/4"
20 5/8"
17"
1 1/2"
20 5/8"
6 7/8"
No. 65 - TF STEEL COVER (FLUSH)
WT. 68 lbs.
26 3/4"
3/8" DIAMOND PLATE
No. 65 - TFR STEEL COVER (FLUSH)
WT. 70 lbs.
7 3/4” DIA.
26 3/4"
3/8"
DIAMOND
PLATE
15"
15"
12"
2"
No. 65 MB - BASE
WT. 68 lbs.
3 3/4"
2"
31 3/4”
5”
17"
28 3/8"
4” WIDE x 4” HIGH
PIPE HOLE
21 3/4”
1 1/2"
1 1/2"
3
0
8
B
3/8" DIAMOND PLATE
17” x 28” METER BOX
(for 2” WATER METER)
OR G. DW G. DAT E
11-10-95 01-09-01
REV. DWG. DATE
65MB
