Vis-i-Rack VRW46/VRW85
High Capacity Roll Storage Rack
Installation Instructions

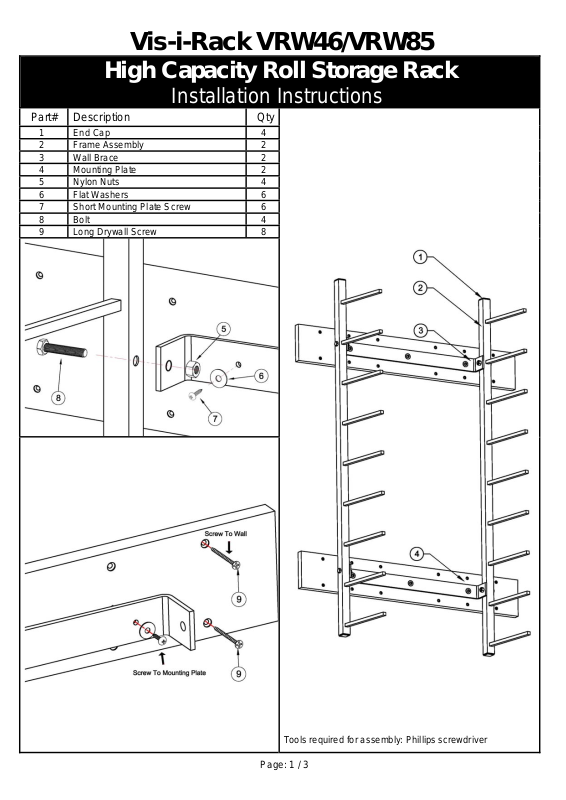

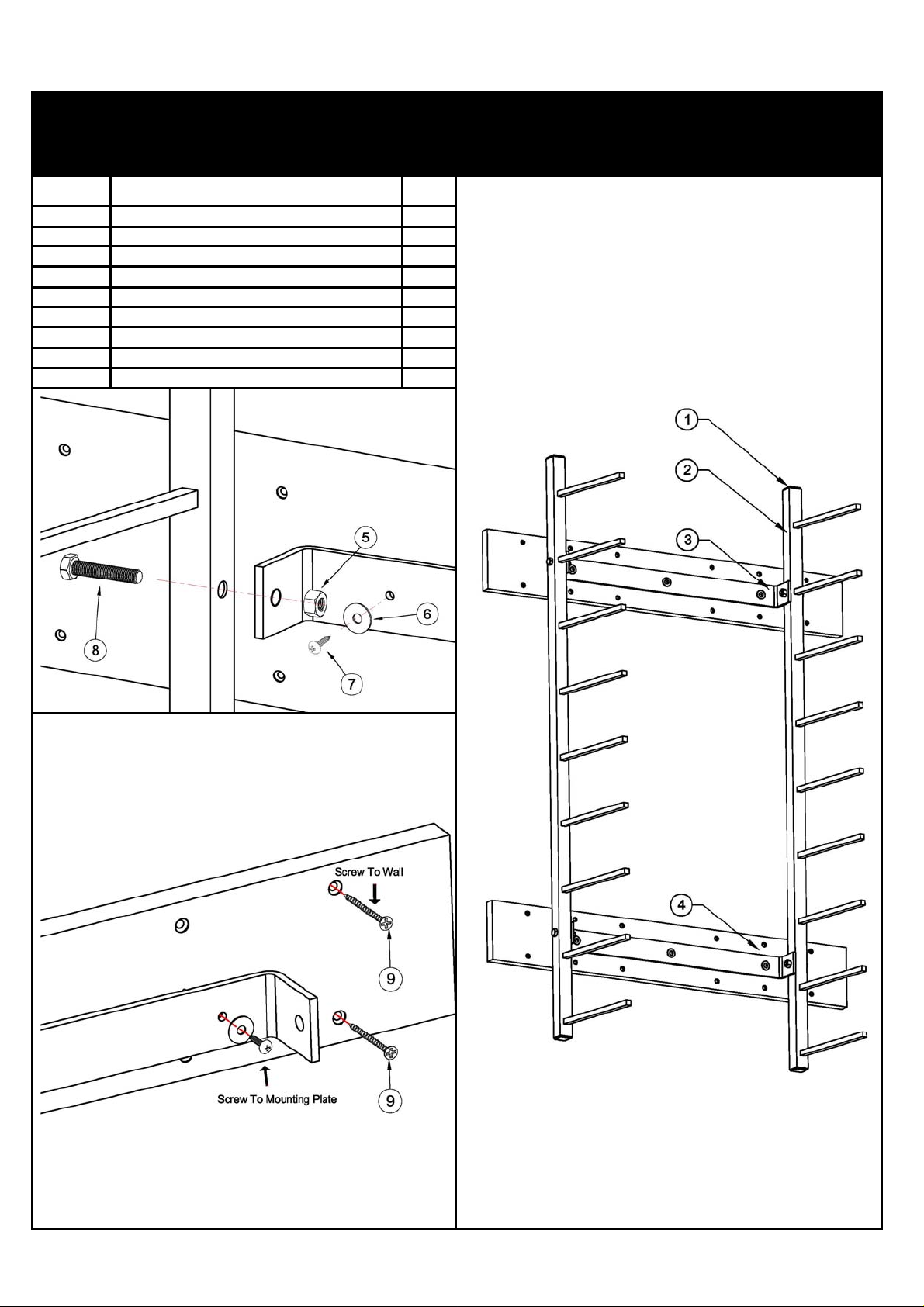

Part# Description Qty
1 End Cap 4
2 Frame Assembly 2
3 Wall Brace 2
4 Mounting Plate 2
5 Nylon Nuts 4
6 Flat Washers 6
7 Short Mounting Plate Screw 6
8 Bolt 4
9 Long Drywall Screw 8
Tools required for assembly: Phillips screwdriver
Page: 1 / 3
Page 2
Vis-i-Rack VRW46/VRW85
High Capacity Roll Storage Rack
Installation Instructions

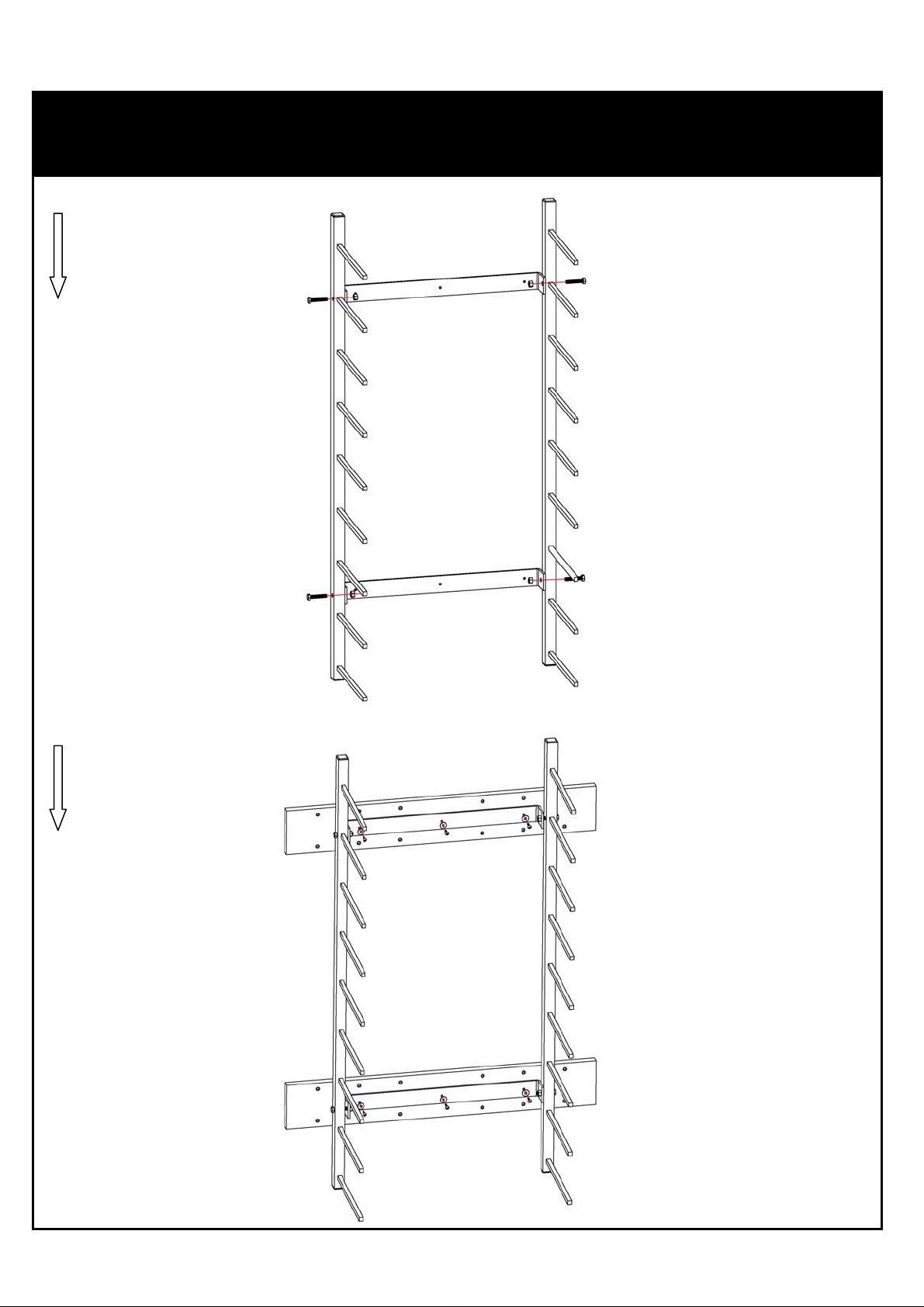

1) Attach wall braces to frame assembly using hardware provided.
2) Mount wall braces to wood mounting plates using hardware as provided.
Page: 2 / 3
Page 3
Vis-i-Rack VRW46/VRW85
High Capacity Roll Storage Rack
Installation Instructions

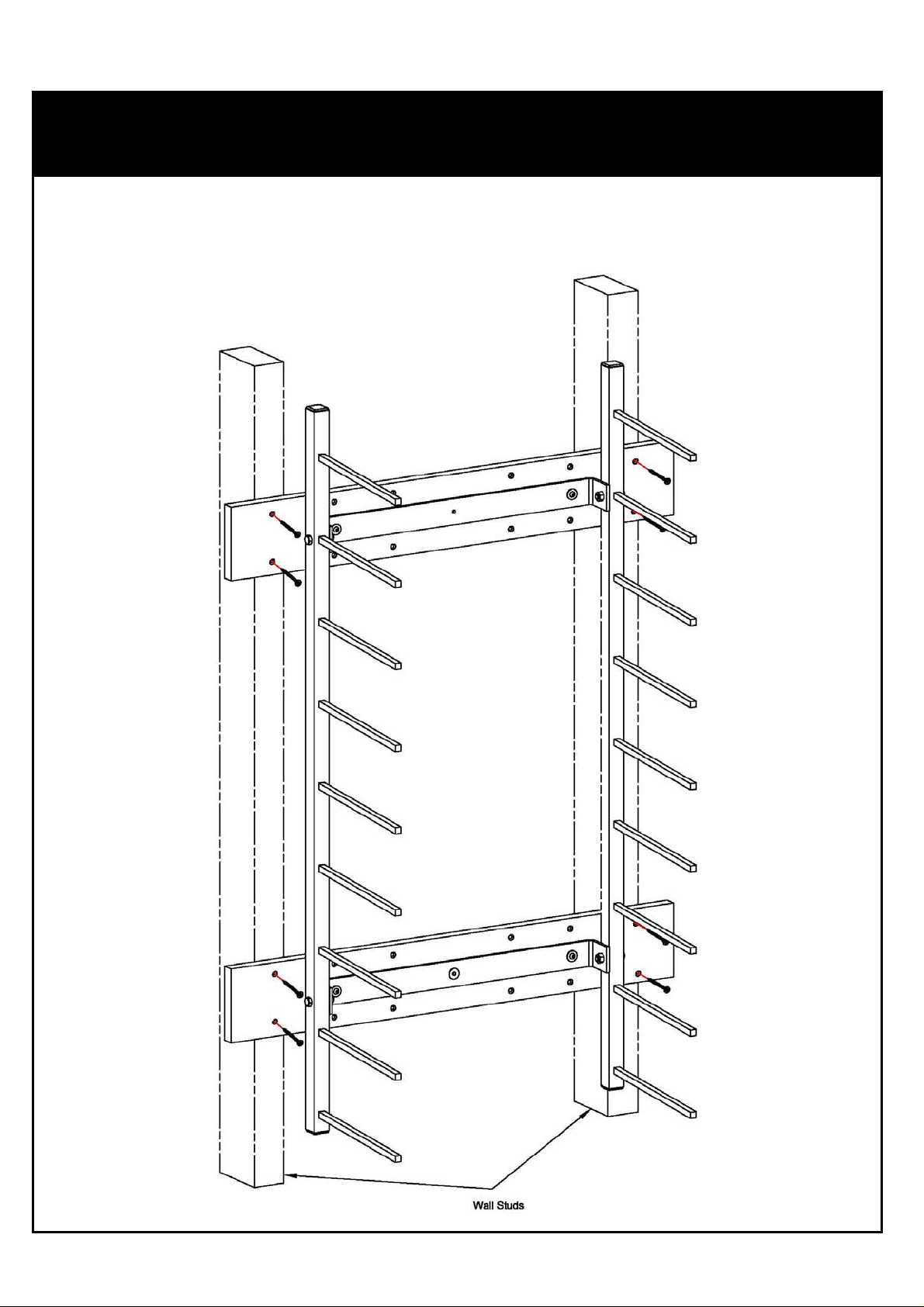

3) Locate wall studs if possible and attach mounting plates using the hardware provided. The mounting plate has been
pre-drilled to accommodate studs that are 8”,16”or 24” apa rt. If you cannot locate wall studs we suggest you attach
the rack to a solid wall surface. If you cannot locate the studs or are unable to attach to a solid wall surface, we
suggest that you have the rack installed by a professional using hollow wall anchors.
