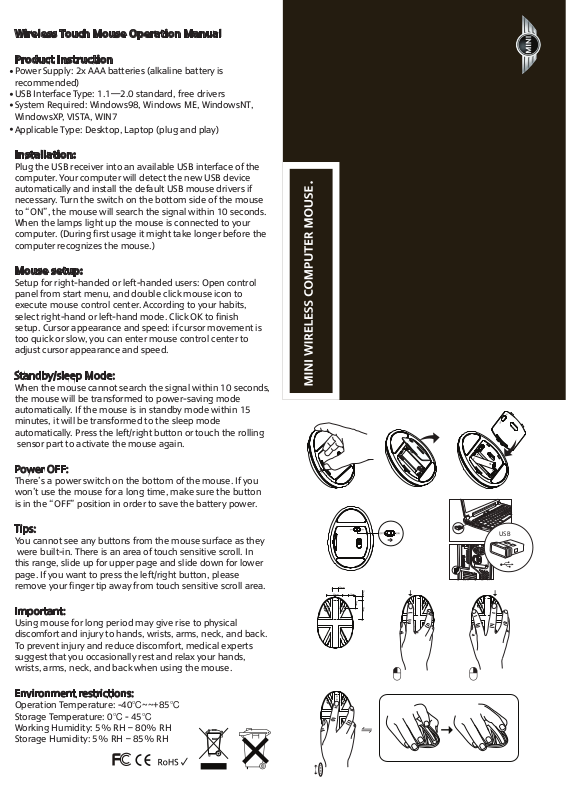

Wireless Touch Mouse Operation Manual
Product Instruction
Power Supply: 2x AAA batteries (alkaline battery is
recommended)
USB Interface Type: 1.1—2.0 standard, free drivers
System Required: Windows98, Windows ME, WindowsNT,
WindowsXP, VISTA, WIN7
Applicable Type: Desktop, Laptop (plug and play)
Installation:
Plug the USB receiver into an available USB interface of the
computer. Your computer will detect the new USB device
automatically and install the default USB mouse drivers if
necessary. Turn the switch on the bottom side of the mouse
to “ON”, the mouse will search the signal within 10 seconds.
When the lamps light up the mouse is connected to your
computer. (During first usage it might take longer before the
computer recognizes the mouse.)
Mouse setup:
Setup for right-handed or left-handed users: Open control
panel from start menu, and double click mouse icon to
execute mouse control center. According to your habits,
select right-hand or left-hand mode. Click OK to finish
setup. Cursor appearance and speed: if cursor movement is
too quick or slow, you can enter mouse control center to
adjust cursor appearance and speed.
Standby/sleep Mode:
When the mouse cannot search the signal within 10 seconds,
the mouse will be transformed to power-saving mode
automatically. If the mouse is in standby mode within 15
minutes, it will be transformed to the sleep mode
automatically. Press the left/right button or touch the rolling
sensor part to activate the mouse again.
Power OFF:
There’s a power switch on the bottom of the mouse. If you
won’t use the mouse for a long time, make sure the button
is in the “OFF” position in order to save the battery power.
Tips:
You cannot see any buttons from the mouse surface as they
were built-in. There is an area of touch sensitive scroll. In
this range, slide up for upper page and slide down for lower
page. If you want to press the left/right button, please
remove your finger tip away from touch sensitive scroll area.
Important:
Using mouse for long period may give rise to physical
discomfort and injury to hands, wrists, arms, neck, and back.
To prevent injury and reduce discomfort, medical experts
suggest that you occasionally rest and relax your hands,
wrists, arms, neck, and back when using the mouse.
Environment restrictions:
Operation Temperature: -40℃~~+85℃
Storage Temperature: 0℃ - 45℃
Working Humidity: 5% RH – 80% RH
Storage Humidity: 5% RH – 85% RH
USB
12mm
13mm
12mm32mm
24mm
38mm
FCC STATEMENT
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause
undesired operation.
2. Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interfe rence will no t occ ur in a particular installa t ion . If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
