Page 1
Power
240V
30A
^Wireless
Remote
Heater Heater
Dimmer
Control
Power
240V
30A
Wireless
On/O Remote
Heater Heater
On/O
Control

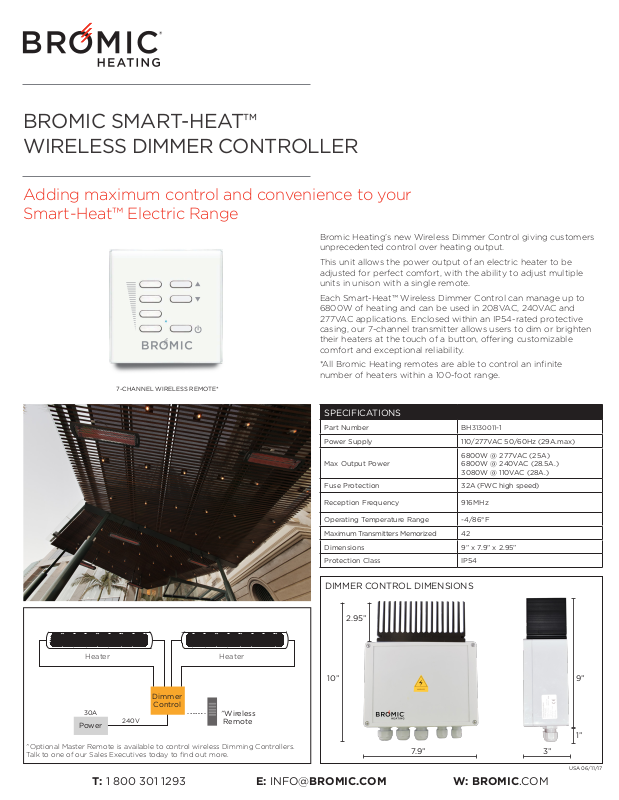

BROMIC SMART-HEAT™
WIRELESS DIMMER CONTROLLER
Adding maximum control and convenience to your
Smart-Heat™ Electric Range
Bromic Heating’s new Wireless Dimmer Control giving customers
unprecedented control over heating output.
This unit allows the power output of an electric heater to be
adjusted for perfect comfort, with the ability to adjust multiple
units in unison with a single remote.
Each Smart-Heat™ Wireless Dimmer Control can manage up to
6800W of heating and can be used in 208VAC, 240VAC and
277VAC applications. Enclosed within an IP54-rated protective
casing, our 7-channel transmitter allows users to dim or brighten
their heaters at the touch of a button, oering customizable
comfort and exceptional reliability.
*All Bromic Heating remotes are able to control an infinite
number of heaters within a 100-foot range.
7-CHANNEL WIRELESS REMOTE*
SPECIFICATIONS
Part Number BH3130011-1
Power Supply 110/277VAC 50/60Hz (29A.max)
Max Output Power
Fuse Protection 32A (FWC high speed)
Reception Frequency 916MHz
Operating Temperature Range -4/86°F
Maximum Transmitters Memorized 42
Dimensions 9” x 7.9” x 2.95”
Protection Class IP54
6800W @ 277VAC (25A)
6800W @ 240VAC (28.5A.)
3080W @ 110VAC (28A.)
^Optional Master Remote is available to control wireless Dimming Controllers.
Talk to one of our Sales Executives today to find out more.
T: 1 800 301 1293 E: INFO@BROMIC.COM W: BROMIC.COM
DIMMER CONTROL DIMENSIONS
2.95”
10”
7.9”
3”
9”
1”
USA 06/11/17
