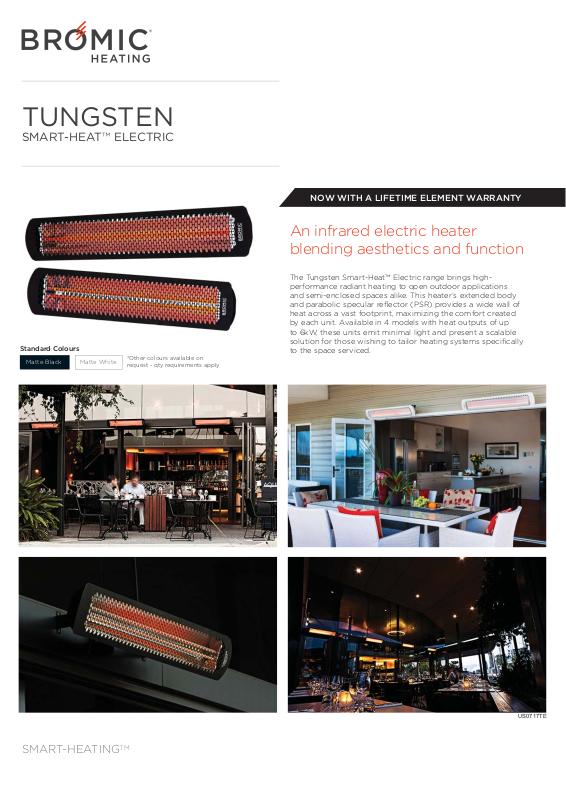

Page 1
TUNGSTEN
SMART-HEAT™ ELECTRIC
Standard Colours
Matte Black
Matte White
*Other colours available on
request - qty requirements apply
NOW WITH A LIFETIME ELEMENT WARRANTY
An infrared electric heater
blending aesthetics and function
The Tungsten Smart-Heat™ Electric range brings highperformance radiant heating to open outdoor applications
and semi-enclosed spaces alike. This heater’s extended body
and parabolic specular refl ector (PSR) provides a wide wall of
heat across a vast footprint, maximizing the comfort created
by each unit. Available in 4 models with heat outputs of up
to 6kW, these units emit minimal light and present a scalable
solution for those wishing to tailor heating systems specifi cally
to the space serviced.
SMART-HEATING
US0717TE
TM
Page 2
TUNGSTEN
SMART-HEAT™ ELECTRIC
FEATURES
High-Performance Mesh Screen
The Tungsten’s unique front cover
manipulates infrared energy to
maximize performance while
achieving a superior spread of
heat
Ultra-Durable Quartz Element
Translucent fused quartz houses a
thick steel coil to create a highoutput, durable element that emits
a soft red glow
Parabolic Specular Refl ector
(PSR)
A mirror-fi nish anodized rear
refl ector directs lost infrared
energy back towards the target,
maximizing performance and
effi ciency
High-Temperature Coating
Attractive, corrosion-resistant
black or white fi nish to suit any
surrounding
Easy Installation
Mount the included bracket and
connect power to create comfort
in no time
Scalable Solution
Available in 2000W (2kW),
3000W (3kW), 4000W (4kW)
and 6000W (6kW) models with
the ability to adjust the output of
individual elements
Ultra-Durable Design
Stainless steel construction
ensures reliable heating for years
to come
Precise Directional Heating
Accurately alter coverage through
simple bracket adjustment
Wireless Control Capabilities
Genuine wireless control
accessories allow seamless
integration of remote heating
output adjustment
HEAT AREA
2000W
10’
Heats approx. 65ft²
2kW heating power
4000W
11.4’
Heats approx. 130ft²
4kW heating power
6.5’
11.4’
10’
Heats approx. 100ft²
3kW heating power
12.7’
Heats approx. 160ft²
6kW heating power
3000W
10’
6000W
12.7’
*Heat area dependent on ambient temperature and wind. Optimum
conditions experienced at approx 60°F & in a low wind covered
environment . Table layout indicative only.
DIMENSIONS
8.5”
44”
2000W & 4000W 3000W & 6000W
SPECIFICATIONS
Model 2000W 3000W 4000W 6000W
Part no. Black BH0420030 BH0420031 BH0420032 BH0420033
White -- -- BH0420012 BH0420013
No. of Elements Single element Single element Double element Double element
Bracket Length 6.5” 6.5” 9.5” 9.5”
Power (Watts) 2000W 3000W 4000W 6000W
Heating Area* up to 65ft
Power connection required (Volts/Amps)
Dimension (W”xD”xH”) 44” x 8.5” x 3.5” 56” x 8.5” x 3.5” 44” x 8.5” x 3.5” 56” x 8.5” x 3.5”
Minimum Mounting height requirement to ground
Weight (lb) 19.8lb 22lb 19.8lb 22lb
Finish Black High Temperature Coating
Product must only be installed and serviced by a licensed and authorised technician.
Product manual must be read before installing or servicing this product.
*Heating areas are based on protected environment with mounting height of 96” (8’). For unprotected and extremely cold and
windy environments heating areas can be less. Please contact Bromic Heating for further advice.
220-240V - A.C.
- 50/60Hz - 8.3A
Ceiling Mounting (USA & Canada)- 96” (8’) / Wall Mounting (USA) - 71” (6’)/ Wall Mounting (Canada) - 96” (8’)
2
56”
up to 100ft
220-240V - A.C.
- 50/60Hz - 12.5A
2
up to 130ft
220-240V - A.C.
- 50/60Hz - 16.6A
2
CONFORMS TO UL STD. NO. 2021
CERTIFIED TO CSA STD. C22.2 NO.46
3.5”
4005951
up to 160ft
220-240V - A.C.
- 50/60Hz - 25A
2
