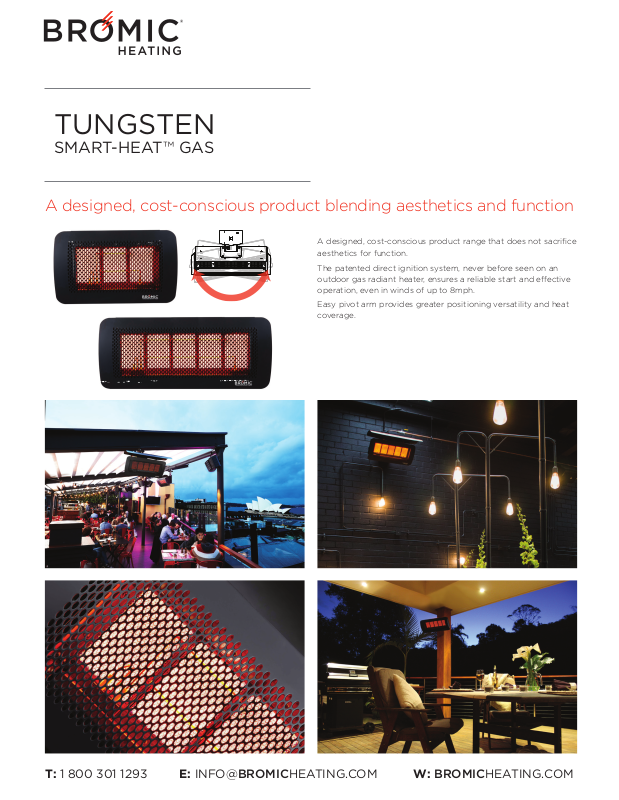

TUNGSTEN
SMART-HEAT™ GAS
A designed, cost-conscious product blending aesthetics and function
A designed, cost-conscious product range that does not sacrifice
aesthetics for function.
The patented direct ignition system, never before seen on an
outdoor gas radiant heater, ensures a reliable start and eective
operation, even in winds of up to 8mph.
Easy pivot arm provides greater positioning versatility and heat
coverage.
T: 1 800 301 1293 E: INFO@BROMICHEATING.COM W: BROMICHEATING.COM
Page 2
TUNGSTEN
500 Series300 Series
Heats approx. 20m /200ft
42Mj /39,800 BTU heating power
Heats approx. 15m /160ft
25Mj /23,600 BTU heating power
500 Series300 Series
14”2m /
3m / 8’
Heats approx. 6m / 64.4ft
1500W heating power
2000W
4000W
Heats approx. 6m/65ft
2kW heating power
Heats approx. 12m /130ft
4kW heating power
3.5m/
11’5”
2m/
6’6”
8’10”2.7m /
Heats approx. 20m
42Mj heating power
4m / 13’
3.75m / 12’3”
4m / 13’
3.75m / 12’3”
4m
5m/16’5”
5m/16’5”
Heats approx. 20m /200ft
45Mj /43,000 BTU heating power
Heats approx. 15m /160ft
27Mj /26,000 BTU heating power
SMART-HEAT™ GAS
FEATURES:
▪ Attractive black finish
▪ Universal bracket — easy upgrade from 300 to 500 model. No additional plumbing or wiring required.
▪ Bi-directional easy-pivot arm — 25° rotation each side.
▪ Electronic ignition — one or multiple units can be switched on and o simultaneously from a single remote-located switch.
▪ Automatic re-ignition — should the heater not re-ignite for any reason, the integrated “Flame Failure Safety Shut-o Control”
turns the heater o immediately.
▪ Stainless steel casing — components are protected from tampering. Assists in preventing dirt and dust from accumulating on
the wiring and components.
HEATING AREAS:
*Heat area dependent on
ambient temperature and
wind.
Optimum conditions
experienced at approx
15.5°C/ 60°F & low wind
14.25”
19.29”
300 500
SPECIFICATIONS
Model
Part no.
Heat Deflector part no.
Ceiling Pole
Heat Output (on LPG and NG) 26,000BTU 43,000BTU
Approximate area heated (feet2) up to 160ft
Gas connection 1/2” NPT Female 1/2” NPT Female
Electrical connection 110 Volt, 3-pin insulated plug
Dimension (WxDxH) 19.29” x 14.09” x 14.25” 25.43” x 14.09”x 14.25”
Min. distance to combustible materials
(without heat deflector)
(with heat deflector)
Mounting height requirement to ground
Weight (lb) 33lbs 40lbs
1
Must only be installed by a licensed technician. Must complete “Pre-Installation Checklist” before installing. 2 The temperature will not
exceed 65°C/149°F above the ambient temperature. Please consult material manufacturer for temperature ratings 3 8’ / 2438mm or
maybe lower depending on local regulations
Last reviewed: February 5th 2015 (US)
2
T: 1 800 301 1293 (within America) F: (858) 346-1388 E: info@bromicheating.com W: www.bromicheating.com
14.25”
25.43”
11.7”
300 500
1
LPG
Natural Gas
1
5 pole lengths to suit ceiling heights of 10.5’, 11.2’, 11.8’, 12.5’ and 13’
3
HEAD OFFICE: 100 SPECTRUM CENTER DR STE 900 IRVINE, CA 92618
BH0210002 BH0210004
BH0210001 BH0210003
BH3030001 BH3030002
(contact Bromic Heating for more information)
2
up to 200ft
Sides: 3’6” / 1100mm
Above (to ceiling): 3’6” / 1100mm
Above (to ceiling): 14” / 350mm
8’ / 2438mm
15”
10.5”
2
ANS Z83.26a-2008 . CSA 2.37a - 2008
Gas- Fired O utdoor Infrared Patio
Heater
ACCESSORIES*
▪ Ceiling poles (black electro plated): *The dual-
directional ceiling mount pole oers greater positioning
versatility in larger open areas.
› Dual or single heater mounting
› 5 lengths to suit ceiling heights of
10.5’, 11.2’, 11.8’, 12.5’ and 13’
› Adjustable mounting bracket to suit most
installations
90˚ ceiling mounting
bracket with 5˚
increments for varied
ceiling angles
Dual or
single heater
mounting
*all accessories sold separately
Dual-layer heat deflector:
Heat deflector allows for
low-clearance installations
MINIMUM INSTALLATION CLEARANCES
WITHOUT HEAT
DEFLECTOR
CEILING
3’6”
12”
12’6”
8’
FLOOR
5 pole lengths to suit
ceiling heights of
10.5’, 11.2’, 11.8’,
12.5’ and 13’
WITH HEAT
DEFLECTOR
(heat deflector
required for low-
clearance installations)
CEILING
10’2”
8’
14”
12”
FLOOR
