PLATINUM
SMART-HEAT™ GAS
Top quality performance and the looks to match
Brushed stainless steel and a ceramic medium makes Platinum SmartHeat™ Gas suitable for the most exclusive outdoor environments.
Tinted ceramic transforms an otherwise obtrusive red glare emitted by
traditional tiles into a soft glow, enhancing the overall experience and
ensuring even heat distribution.
The patented direct ignition system, never before seen on an outdoor
gas radiant heater, ensures a reliable start and eective operation, even
in winds of up to 11mph.
Directional ceiling or wall mounts provides greater positioning
versatility and heat coverage.
T: 1 800 301 1293 E: INFO@BROMICHEATING.COM W: BROMICHEATING.COM
Page 2
Heats approx. 20m /200ft
42Mj /39,800 BTU heating power
Heats approx. 15m /160ft
25Mj /23,600 BTU heating power
500 Series300 Series
2000W
3000W
4000W
6000W
Heats approx. 6m/65ft
2kW heating power
Heats approx. 9m /100ft
3kW heating power
Heats approx. 12m /130ft
4kW heating power
Heats approx. 15m /160ft
6kW heating power
3.5m/
11’5”
4m/
13’
3m/
9’10”
2m/
6’6”
8’10”2.7m /
9’10”
3m /
4m / 13’
3.75m / 12’3”
5m/16’5”
13.5”
11.2”
15.59”
PLATINUM
5 pole lengths to
suit ceiling heights
of 10.5’, 11.2’,
11.8’, 12.5’ and 13’
Dual or
single heater
mounting
90˚ ceiling mounting
bracket with 5˚
increments for
varied ceiling angles
SMART-HEAT™ GAS
FEATURES:
HEATING AREAS:
*Heat area
dependent
on ambient
temperature and
wind. Optimum
conditions
experienced at
approx 15.5°C/
60°F & in a low
wind covered
environment . Table
layout indicative
only.
Universal Bracket
for easy upgrading
Electronic Ignition
from remote-located swich
Brushed Stainless Steel Finish
Components Protected
in stainless steel housing
Easy-Pivot Arm
ACCESSORIES*
▪ Ceiling poles (black electro plated):
*The dual-directional ceiling mount
pole oers greater positioning
versatility in larger open areas.
› Dual or single heater mounting
› 5 lengths to suit ceiling heights
of 10.5’, 11.2’, 11.8’, 12.5’ and 13’
› Adjustable mounting bracket to
suit most installations
15.59”
14.85”
11.57”
14.85”
11.57”
13.5”
300 500

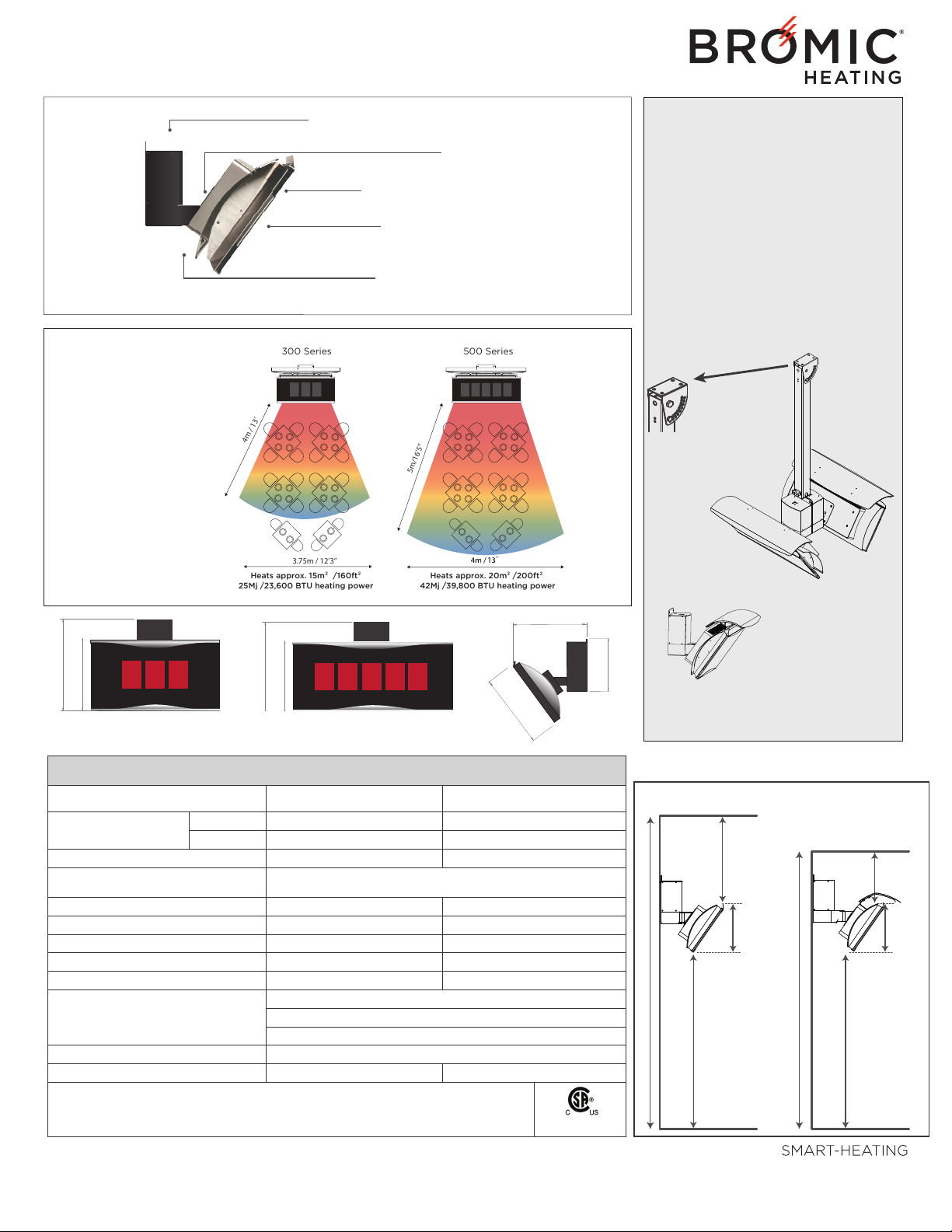

SPECIFICATIONS
Model
1
Part no.
LPG
Natural Gas
1
Heat Deflector part no. BH3030001 BH3030002
Ceiling Poles
5 pole lengths to suit ceiling heights of 10.5’, 11.2’, 11.8’, 12.5’ and 13’
Heat Output (on LPG and NG) 23,600BTU 39,800BTU
Approximate area heated (feet2) 160ft
Gas connection 1/2” NPT Female 1/2” NPT Female
Electrical connection 110 Volt, 3-pin insulated plug 110 Volt, 3-pin insulated plug
Dimension (WxDxH) 22.05” x 15.59” x 14.85” 29.76” x 15.59” x 14.85”
Min. distance to combustible materials
(without heat deflector)
(with heat deflector)
Mounting height requirement to ground
Weight (lb) 33lbs 40lbs
1
Must only be installed by a licensed technician. Must complete “Pre-Installation Checklist” before installing
2
The temperature will not exceed 65°C/149°F above the ambient temperature at specified distance. Please consult material manufacturer
for temperature ratings and suitability. Bromic Heating takes no responsibility for material compliance. 3 8’ / 2438mm or maybe lower
depending on local regulations
2
2
3
BROMICHEATING.COM
HEAD OFFICE: 100 SPECTRUM CENTER DR STE 900 IRVINE, CA 92618
Last reviewed: February 5th 2015 (US)
T: 1 800 301 1293 (within America) F: (858) 346-1388 E: info@bromicheating.com W: www.bromicheating.com
300 500
BH0110002 BH0110004
BH0110001 BH0110003
(contact Bromic Heating for more information)
2
Sides: 3’6” / 1100mm
Above (to ceiling): 3’6” / 1100mm
Above (to ceiling): 14” / 350mm
8’ / 2438mm
2
200ft
ANS Z83.26a-2008 . CSA 2.37a - 2008
Gas- Fired O utdoor Infrared Patio
Heater
*Heat area dependent on ambient temperature and
wind.
Optimum conditions experienced at approx 15.5°C/
60°F & low wind
11.2”
deflector:
Heat deflector allows
for low-clearance
installations
*All accessories sold separately
MINIMUM INSTALLATION CLEARANCES
WITHOUT HEAT
Dual-layer heat
DEFLECTOR
CEILING
12’6”
8’
3’6”
12”
FLOOR
DEFLECTOR
(heat deflector
required for low-
clearance installations)
CEILING
10’2”
WITH HEAT
14”
12”
8’
FLOOR
