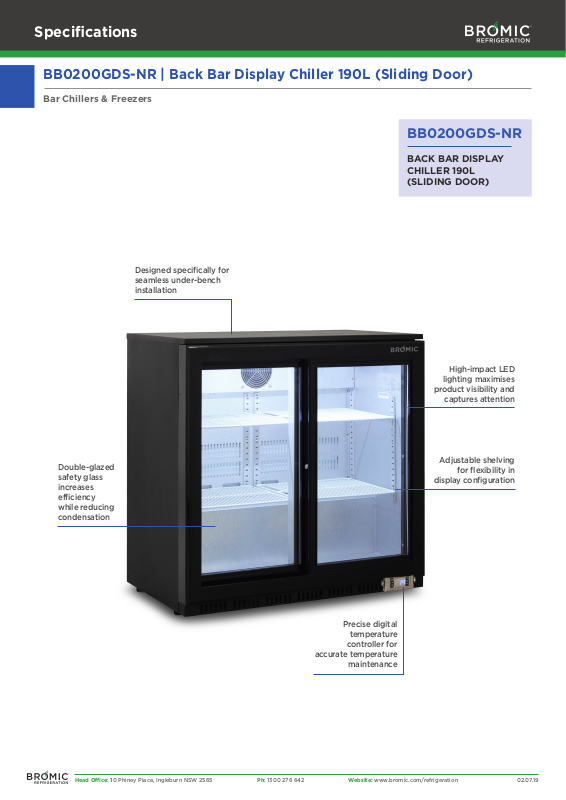

Page 1
Specifications
BB0200GDS-NR | Back Bar Display Chiller 190L (Sliding Door)
Bar Chillers & Freezers
BB0200GDS-NR
BACK BAR DISPLAY
CHILLER 190L
(SLIDING DOOR)
Designed specifically for
seamless under-bench
installation
Double-glazed
safety glass
increases
efficiency
while reducing
condensation
High-impact LED
lighting maximises
product visibility and
captures attention
Adjustable shelving
for flexibility in
display configuration
Precise digital
temperature
controller for
accurate temperature
maintenance
Head Office: 10 Phiney Place, Ingleburn NSW 2565 Ph: 1300 276 642
Website: www.bromic.com/refrigeration
02.07.19
Page 2
2130mm
900mm520mm
Front View
2130mm
900mm520mm
Front View
Front View
2130mm
900mm520mm
Front View
Front View
Specifications
SPECIFICATIONS
DIMENSIONS
BB0200GDS-NR | Back Bar Display Chiller 190L (Sliding Door)
Bar Chillers & Freezers
520mm
Side View
870mm
865mm
870mm
Front View
Part Number 3736072
Capacity 190L
Temperature Range +1 to +10°C
Max Ambient Temp. 38°C
Refrigeration Capacity 213W
Energy Consumption 3.9kWh/24h
Current 1.2A
Gross Weight 72kg
Packaged Dimensions 915 x 564 x 895 mm
Refrigerant R600
Plug Supplied Yes, 1 x 10A
Plug Location Rear, bottom
Main Light LED
Door Type
Double glazed safety glass
door
Top View
520mm
Door Swing Dimension N/A
Total Depth of Door Open N/A
Door Shape Sliding
Self-Closing Door Yes
Door Lock Ye s
No. of Doors 2
Temp. Controller Digital
Castors No
No. of Shelves inc. Base 3
Shelves Dimensions 370(w) x 326(d) mm
Narrow-Gauge Shelving Yes
Colour Black
Warranty 1 Year, Parts & Labour
Warranty Service Bromic Extra Care
Width
Depth
Height
Width
Depth
Height
External (mm)
865
520
870
Internal (mm)
820
385
820
Head Office: 10 Phiney Place, Ingleburn NSW 2565 Ph: 1300 276 642
All information is correct at the time of
publication. BROMIC PTY Ltd reserve the
right to alter specifications without notice.
Website: www.bromic.com/refrigeration
02.07.19
