Premium "T" Gas Grill

Owner’s Manual

T3-1, T3N-1 Models

T3C-1, T3CN-1 Models

T3CF-1, T3CFN-1 Models

B101051-1-0307

Page 1

IMPORTANT

This manual should be read thoroughly by the person installing the grill and all persons who will use and maintain the grill. The installer should be sure the manual is left in the possession of the user. The user should retain this manual for future reference when using or cleaning the grill and to properly identify any repair parts that may be required.

WARNING

Reference this manual for proper installation and maintenance instructions. Improper installation, adjustment, alteration, service or maintenance can cause personal injury or property damage. For assistance or additional information consult a qualified installer, service agency or the gas supplier.

! DANGER

IFYOU SMELL GAS:

1.Shut off gas to the appliance.

2.Extinguish any open flame.

3.Open the grill lid.

4.If odor continues, keep away from the appliance and immediately call your gas supplier or fire department.

! WARNING

1.Do not store or use gasoline or other flammable liquids or vapors in the vicinity of this or any other appliance.

2.An LP cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.

CAUTION:

Parts may have sharp edges. Wear leather work gloves and handle parts carefully during the unpacking, assembly and installation.

WARNING

Broilmaster® Gas Grills must ONLY use propane cylinders equipped with an Overfill Protection Device (OPD). Use only a reputable propane dealer when exchanging or filling cylinders. An overfilled or improperly filled propane cylinder can be dangerous.

Page 2

B101051-1-0307

Congratulations!

Welcome to the beauty, durability, and prestige of a Premium Gas Grill by Broilmaster®. With award-winning excellence built into every feature and durability that surpasses other Premium gas grills, Broilmaster has manufactured the ultimate gas grill for discriminating outdoor chefs for over 30 years.

At Broilmaster, we continually strive to enhance the performance and quality of our products for your grilling enjoyment. Every effort will be made to ensure that Broilmaster continues to be your choice as the Premium grill of the future.

Whether you are at the lake or in the privacy of your own backyard, the Broilmaster Premium Gas Grill performs far beyond the ordinary and is designed to provide your family with years of outdoor cooking pleasure.

Thank You!

B101051-1-0307

Page 3

TABLE OF CONTENTS

Congratulations!

You have chosen the finest grill for your outdoor cooking pleasure. Please take time to read this entire manual before assembling your Premium Broilmaster gas grill.

Hardware Package ...............................................................................................................................................

5

Parts Diagram.......................................................................................................................................................

6

Parts List .................................................................................................................................................................

7

Grill Assembly ...............................................................................................................................................

8-12

Propane Gas Grills........................................................................................................................................

13-15

Gas Conversion..................................................................................................................................................

16

Natural Gas Grills..............................................................................................................................................

17

OperationPropane & Natural Grills............................................................................................................

18-19

Maintenance...........................................................................................................................................................

20

Troubleshooting ....................................................................................................................................................

21

Warranty ................................................................................................................................................................

22

Notes......................................................................................................................................................................

23

Your Broilmaster Premium Gas Grill is identified by model number, serial number, and gas type. This information is provided on a product identification label located on the grill’s control panel. For your convenience, complete this section for future reference when contacting your dealer.

Model No.









Dealer







Serial No.









Dealer Phone No.











Gas Type: Propane



Natural



Date of Purchase



Page 4

B101051-1-0307

HARDWARE PACKAGE

B101051-1-0307

Page 5

PARTS DIAGRAM

All repair part orders should be placed through your local Broilmaster dealer. To locate a dealer in your area, contact Broilmaster Customer Service at 800-851-3153 • www.broilmaster.com. To ensure prompt and accurate service, please provide the following information when placing a repair part order: Model Number, Serial Number, Part Name, Part Number, and Quantity of parts needed.

2

5

3



4

7

9

11



10

15 12

16

1

5

6

8

13

14

19 17

20

21

18

22

23

24

Page 6

B101051-1-0307

PARTS LIST

Index

Description

T3

T3C

T3CF

T3N

T3CN

T3CFN

Number



Part

Part

Part

Part

Part

Part





Number

Number

Number

Number

Number

Number

1

GRILL BODY TOP - BLACK

B101039

B101039

B101039

B101039

B101039

B101039

2

HEAT INDICATOR (STAINLESS)

B101118

B101118

B101118

B101118

B101118

B101118

3

LID HANDLE (STAINLESS)

B070486

B070486

B070486

B070486

B070486

B070486

4

FOAM GRIP

B073097

B073097

B073097

B073097

B073097

B073097

5

RETRACT-A-RACK

B100594

B072695

B072695

B100594

B072695

B072695

6

COOKING GRID (SET OF 2)

DPP103

DPP103

DPP103

DPP103

DPP103

DPP103

6

COOKING GRID (SINGLE)

B101053

B101053

B101053

B101053

B101053

B101053

7

BRIQUET RACK

B101061

B101061

N/A

B101061

B101061

N/A

8

BURNER

DPP104

DPP104

DPP104

DPP104

DPP104

DPP104

9

FLAVOR SCREEN

N/A

N/A

DPA103

N/A

N/A

DPA103

10

COLLECTOR BOX ASSEMBLY

B101031

B101031

B101031

B101031

B101031

B101031

11

IGNITOR SPACER

B101082

B101082

B101082

B101082

B101082

B101082

12

GROUND LUG

B069747

B069747

B069747

B069747

B069747

B069747

13

RADIATION SHIELD

DPP106

DPP106

DPP106

DPP106

DPP106

DPP106

14

GRILL BODY BOTTOM - BLACK

B101044

B101044

B101044

B101044

B101044

B101044

15

LID STOP KIT

N/A

DPA106

DPA106

N/A

DPA106

DPA106

16

VALVE SHIELD

B101046

B101046

B101046

B101046

B101046

B101046

17

VALVE ASSEMBLY (NO ORIFICE)

B101042

B101042

B101042

B101042

B101042

B101042

18

MANIFOLD AND VALVE ASSEMBLY

B101040

B101040

B101040

B101112

B101112

B101112

19

ELECTRONIC IGNITOR

B072218

B072218

B072218

B072218

B072218

B072218

20

CONTROL PANELASSEMBLY

B101033

B101066

B101066

B101033

B101066

B101066

21

CONTROL PANEL LABEL

B101028

B101028

B101028

B101028

B101028

B101028

22

VALVE KNOB

R3918

R3918

R3918

R3918

R3918

R3918

23

HOSE AND LP REGULATOR

B069756

B069756

B069756

N/A

N/A

N/A

24

PIN, SHELF

B073963

B073963

B073963

B073963

B073963

B073963

N/S

CHAR-MASTER BRIQUETS

B058122

B058122

N/A

B058122

B058122

N/A

N/S

HARDWARE PACK

B101081

B101081

B101081

B101047

B101047

B101047

N/S

IGNITOR GROUND WIRE

B101048

B101048

B101048

B101048

B101048

B101048

N/S

BRIDGE PIN

B057805

B057805

B057805

B057805

B057805

B057805

N/S

HINGE PIN

B057804

B057804

B057804

B057804

B057804

B057804

N/S

NATURAL GAS CONVERSION KIT

B101062

B101062

B101062

N/A

N/A

N/A

N/S

ORIFICE, LP 1.25mm

B101111

B101111

B101111

N/A

N/A

N/A

N/S

ORIFICE, NAT #49

N/A

N/A

N/A

B101063

B101063

B101063

B101051-1-0307

Page 7

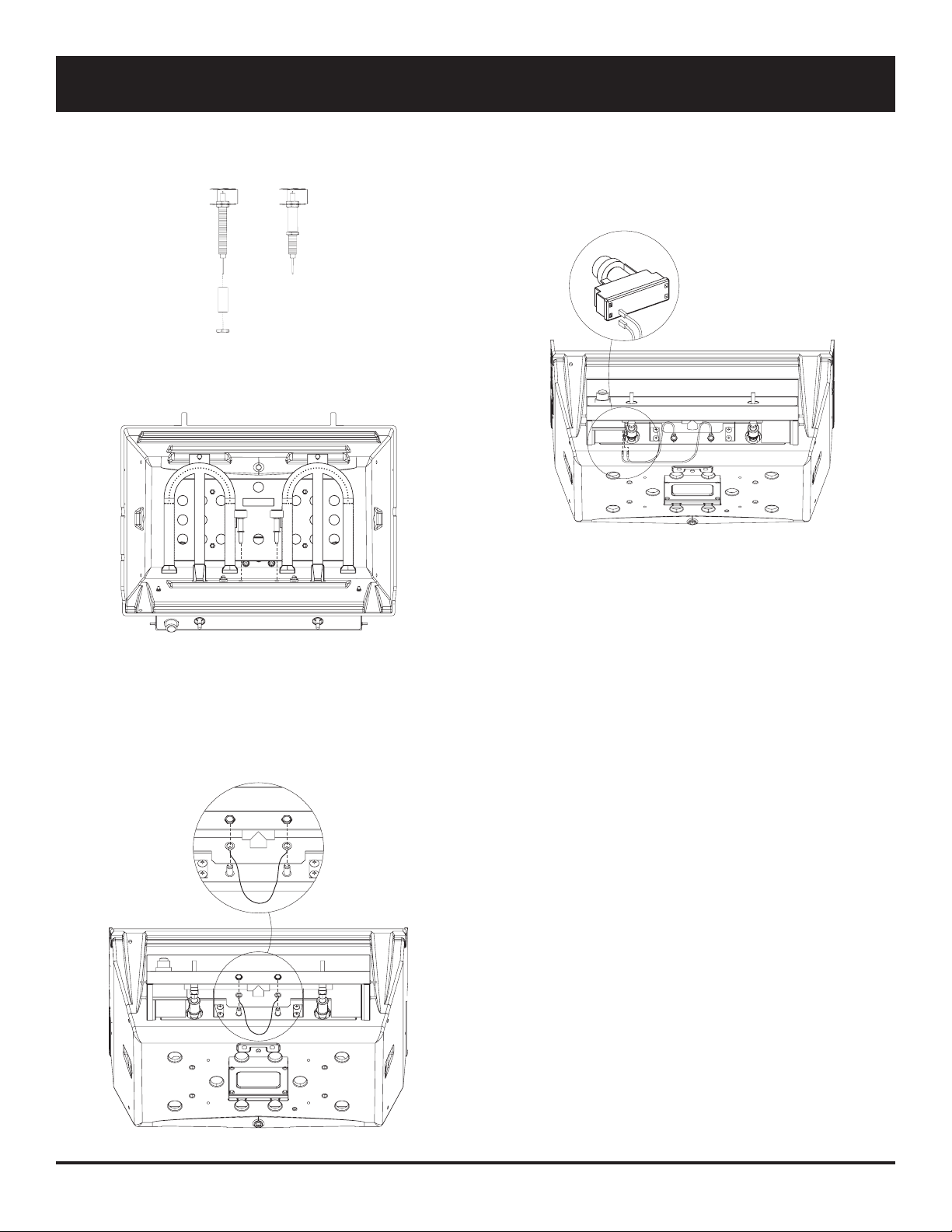

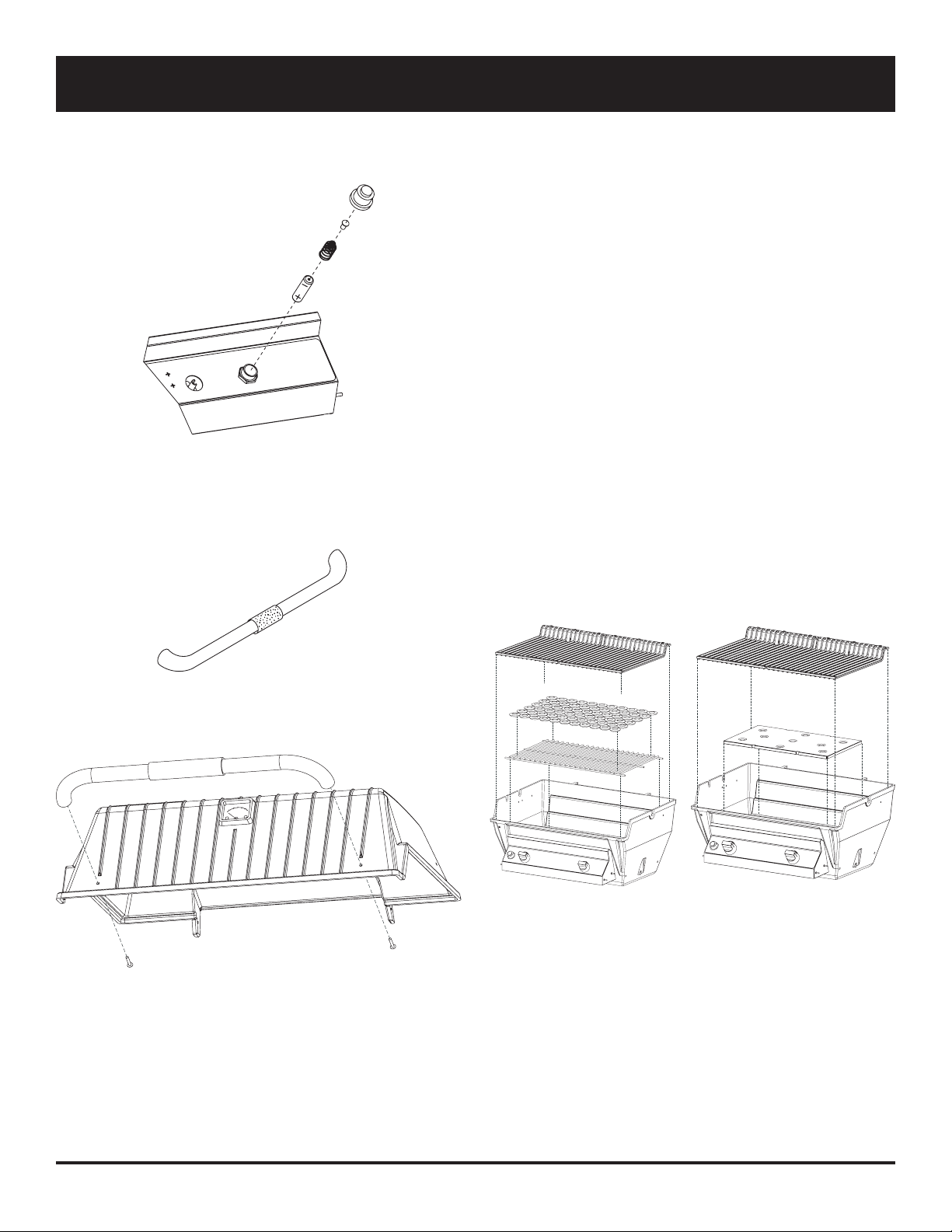

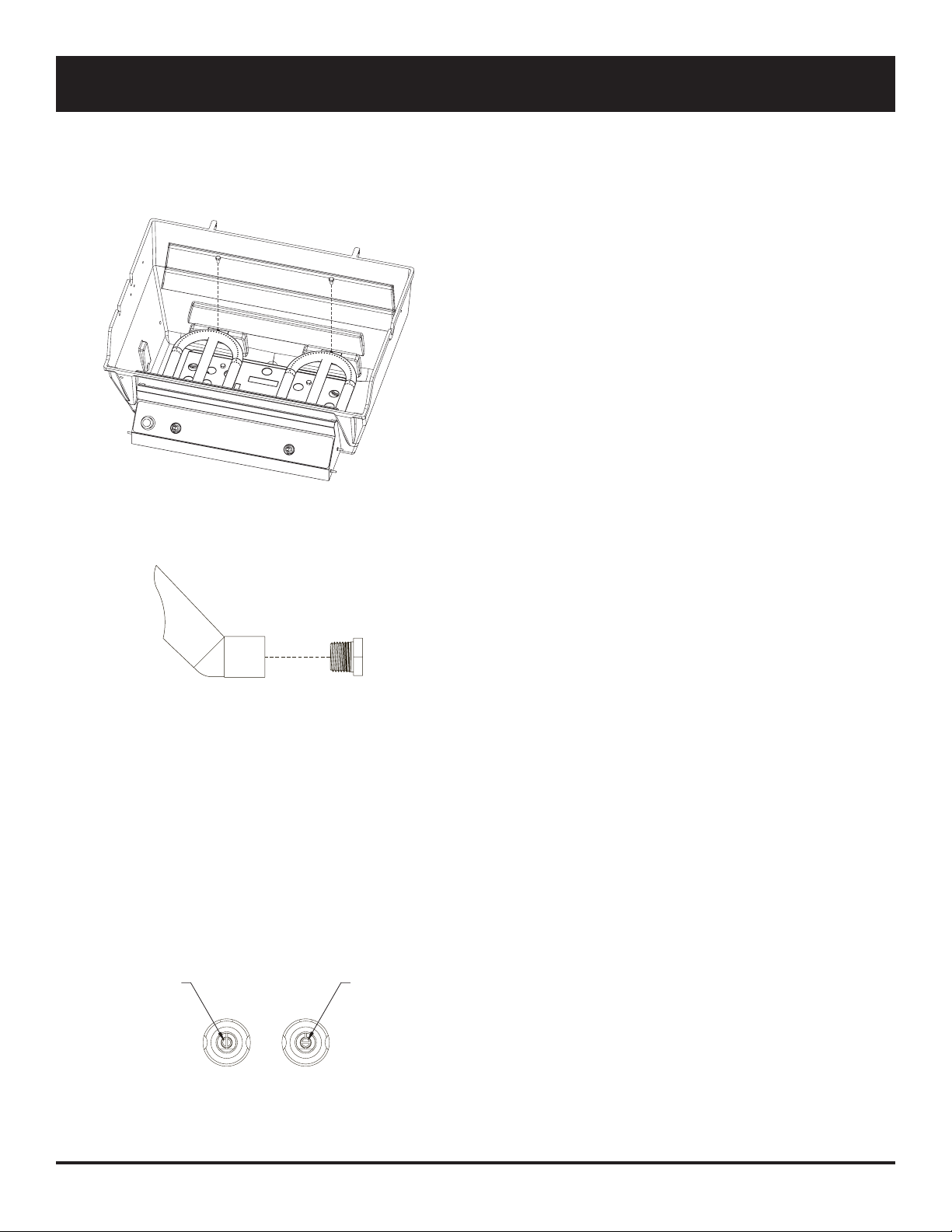

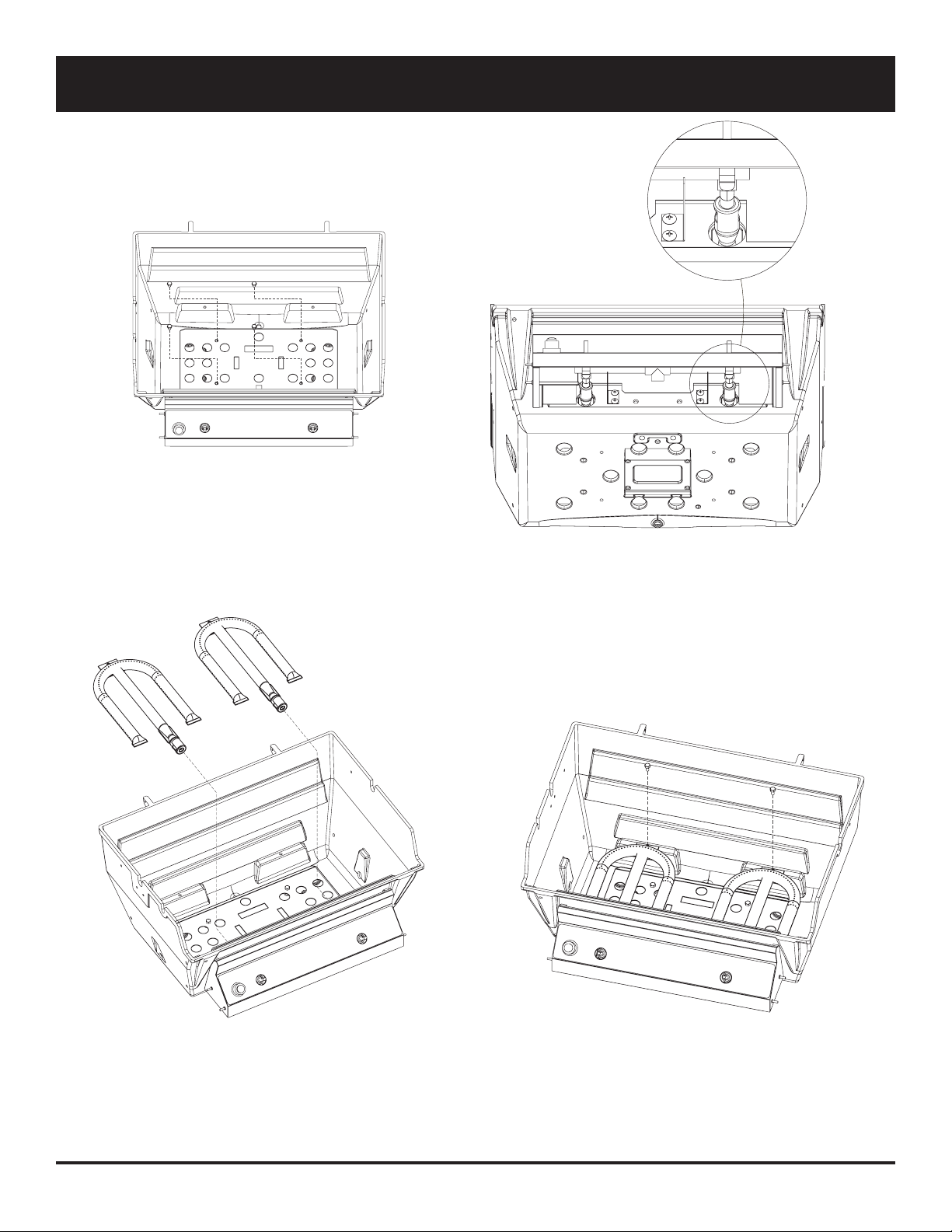

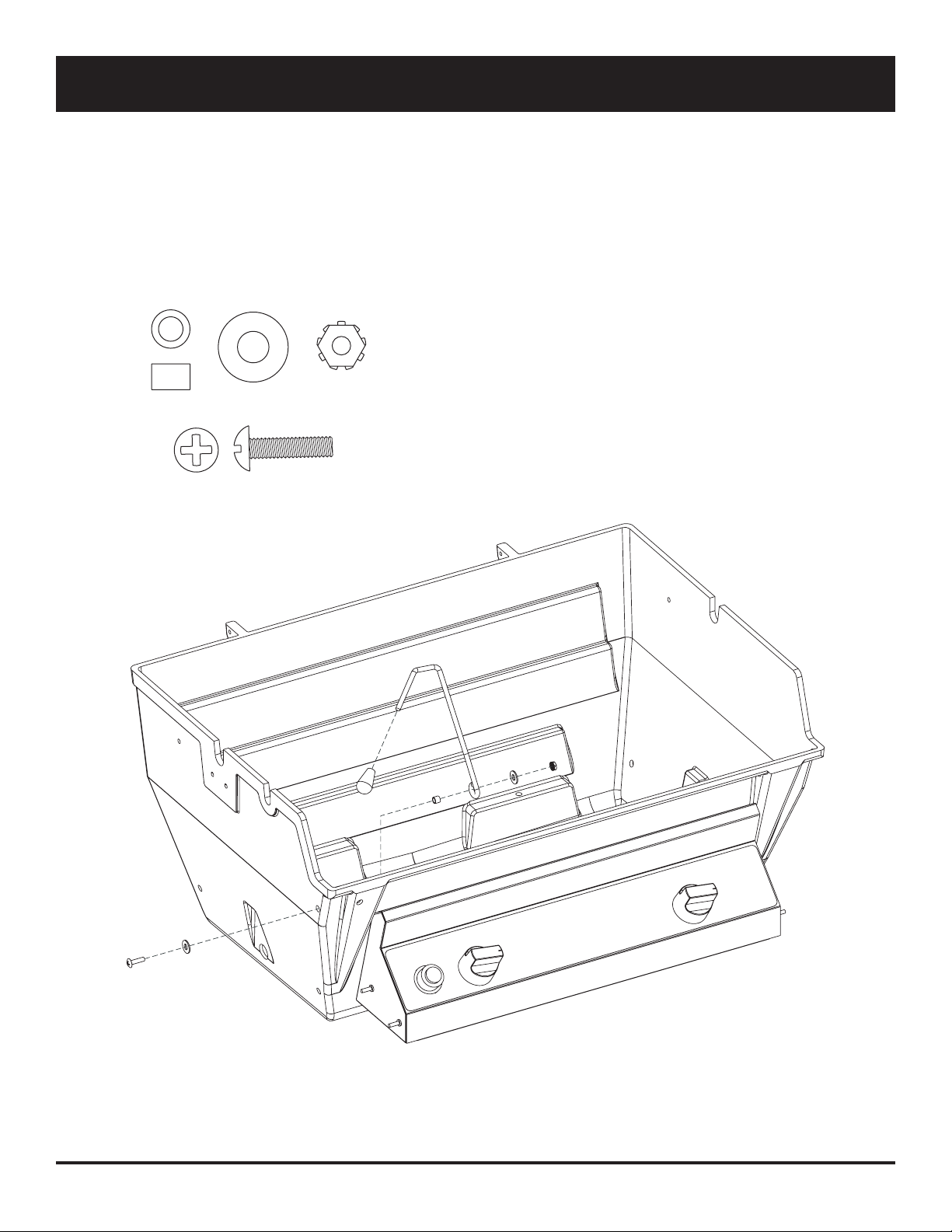

GRILL ASSEMBLY

Before You Begin

AllBroilmastergrillsrequiresomeassemblyandinstallation. Follow all instructions unless noted to apply only to other specific models.

If you purchased an accessory with your Broilmaster, follow the instructions provided with the accessory for assembly and installation. If an instruction refers to a step that is not required for your grill model, please continue to the next step.

In each step, parts are identified with “Key” numbers. Key numbers appear in parenthesis after a part name is mentioned for the first time in the instructions. You can reference each part by its key number on the Parts List if you need help in identifying a part.

Compare the parts found in the shipping container to the parts list provided. If any parts are missing contact your Broilmaster dealer before beginning assembly.

CAUTION: FOR YOUR SAFETY

Parts may have sharp edges. Wear leather work glovesandhandlepartscarefullyduringtheunpacking, assembly and installation.

Recommended Tools

These items are recommended for the assembly of your grill:

Phillips screwdriver

Adjustable wrench set

Socket set

Soapy water solution (to test for leaks)

Liquid soap (for foam grip)

Grill Mountings

Assemble your base option before assembling your Broilmaster grill head.

Refer to the Broilmaster Cart, Base, and Post instructions provided with each accessory for assembly, installation, and mounting procedures.

Page 8

B101051-1-0307
