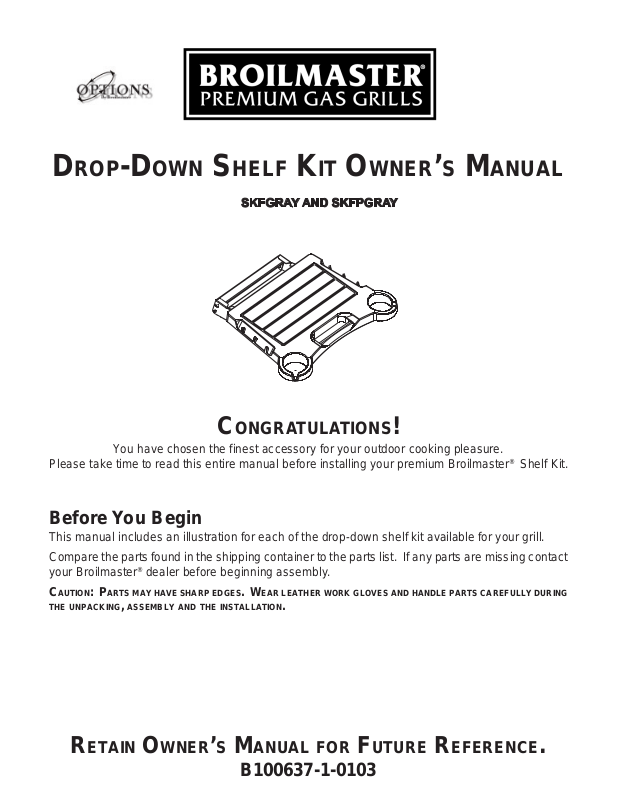

Page 1
DROP-DOWN SHELF KIT OWNER’S MANUAL
CONGRATULATIONS!
You have chosen the finest accessory for your outdoor cooking pleasure.
Please take time to read this entire manual before installing your premium Broilmaster® Shelf Kit.
Before You Begin
This manual includes an illustration for each of the drop-down shelf kit available for your grill.
Compare the parts found in the shipping container to the parts list. If any parts are missing contact
your Broilmaster® dealer before beginning assembly.
CAUTION: PARTS MAY HAVE SHARP EDGES. WEAR LEATHER WORK GLOVES AND HANDLE PARTS CAREFULLY DURING
UNPACKING, ASSEMBLY AND THE INSTALLATION.
THE
RETAIN OWNER’S MANUAL FOR FUTURE REFERENCE.
B100637-1-0103 Page 1
B100637-1-0103
Page 2
IMPORTANT INFORMATION
IMPORTANT: THIS MANUAL SHOULD BE READ THOROUGHLY BY THE PERSON INSTALLING THE SHELF KIT AND
PERSONS WHO WILL USE AND MAINTAIN THE SHELF KIT. THE INSTALLER SHOULD BE SURE THE MANUAL
ALL
LEFT IN THE POSSESSION OF THE USER. THE USER SHOULD RETAIN THIS MANUAL FOR FUTURE REFERENCE
IS
USING OR CLEANING THE SHELF KIT AND TO PROPERLY IDENTIFY ANY REPAIR PARTS THAT MAY BE
WHEN
REQUIRED
.
SIDE SHELF INSTALLATION - SKFPGRAY, SKFGRAY
Tools Required
These tools are required for the assembly of your shelf kit:
• Phillips screwdriver
• Socket set or nut drivers
Solid Surface Drop-Down Side Shelf
If installed remove cooking grids, briquet and briquet rack.
Secure bracket attach to grill head with (2) 1/4 - 20 x 3/4" bolts, lock washer, flat washer and 1/4 -20 hex nut. FIGURE 1.
Flex support brackets and align bottom slot with bottom pin on bracket attach. FIGURE 2.
Install cooking grids, briquet and briquet rack.
FIGURE 1
IGURE 2
F
Page 2 B100637-1-0103
Page 3

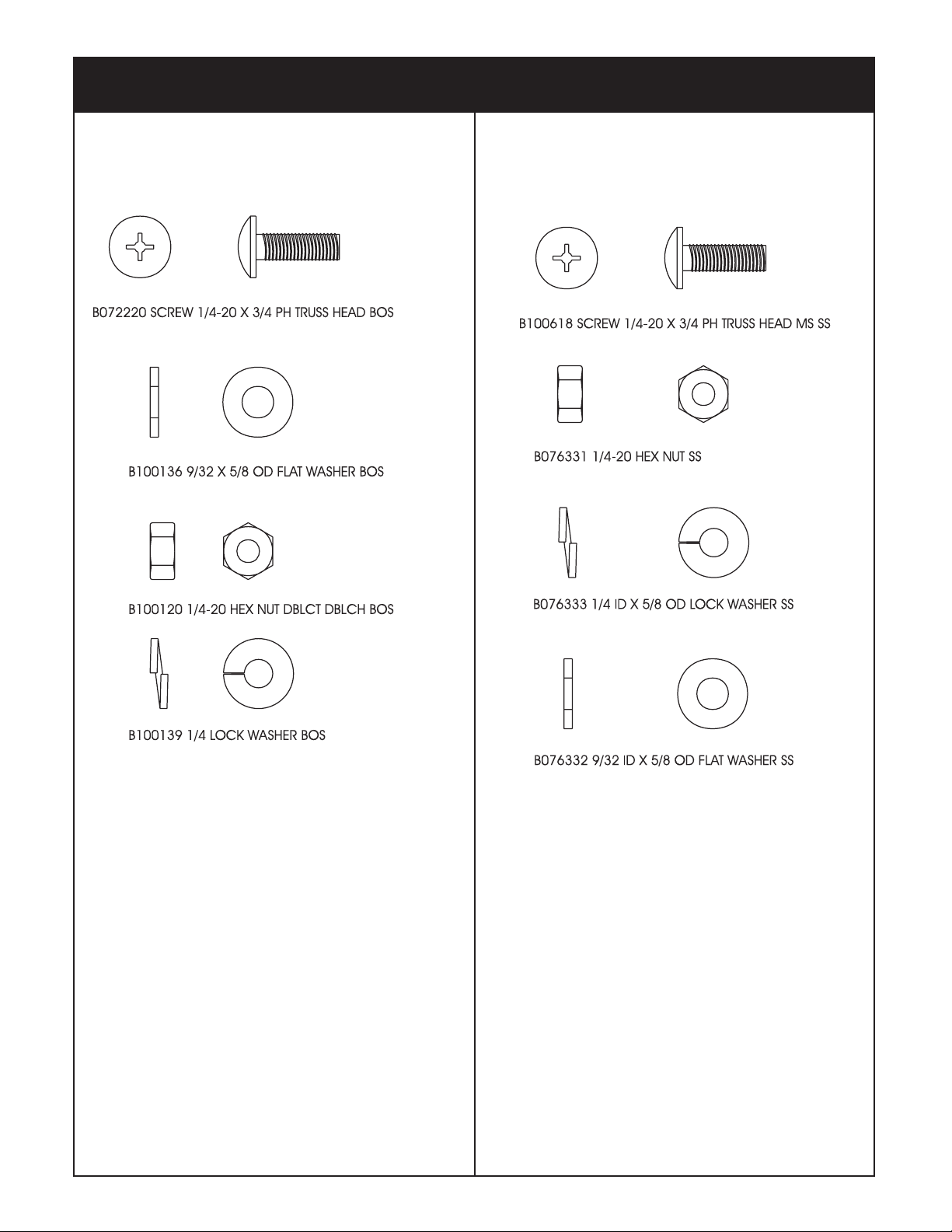

SIDE SHELF INSTALLATION - SKFPGRAY, SKFGRAY
SKFPGRAY
FIGURE 11
SKFGRAY
FIGURE 12
B100637-1-0103 Page 3
Page 4

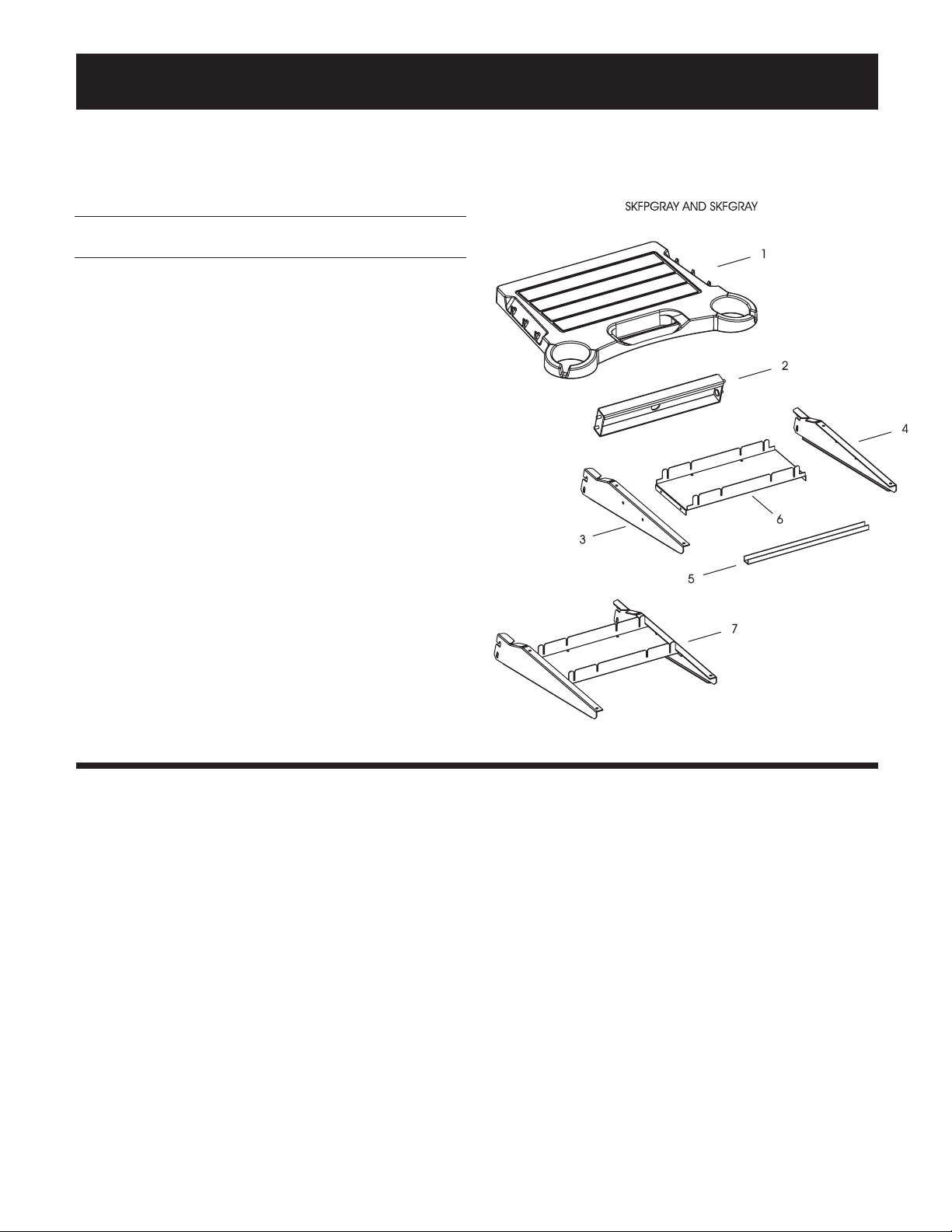

PARTS DIAGRAM & PARTS LIST — DROP-DOWN SIDE SHELF
All repair part orders should be placed through your local Broilmaster® dealer. To locate a dealer in your area, contact
Broilmaster Customer Service at 800-851-3153 • WWW.broilmaster.com. T o ensure prompt and accurate service, please
provide the following information when placing a repair part order: Model Number of your grill, Part Name, Part Number,
and Quantity of parts needed.
Index Part
No. No. Description
SKFPGRAY
1 B100561 SIDE SHELF
2 B100556 BRACKET ATTACH (PAINTED)
3 B100559 SUPPORT BRACKET
(PAINTED)
4 B100560 SUPPORT BRACKET
(PAINTED)
5 B100562 SHELF STIFFENER
6 B100758 SUPPORT STIFFENER
(PAINTED)
B100554 HARDWARE PACKAGE
SKFGRAY
1 B100561 SIDE SHELF
2 B100565 BRACKET ATTACH (STAINLESS)
5 B100562 SHELF STIFFENER
7 B100567 SUPPORT BRACKET
ASSEMBLY (STAINLESS)
B100552 HARDWARE PACKAGE
BROILMASTER
®
A Division of Empire Comfort Systems, Inc.
918 Freeburg Ave.
Belleville, Illinois 62220
Phone: 1-800-851-3153
FAX: 1-800-443-8648
VISIT OUR WEB SITE AT WWW.broilmaster.com
RETAIN OWNER’S MANUAL FOR FUTURE REFERENCE.
Page 4 B100637-1-0103
