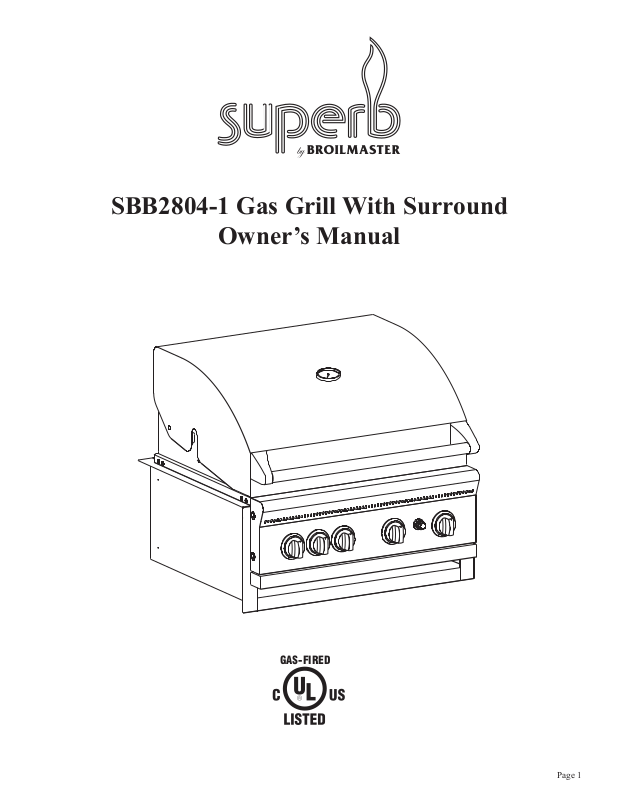

Broilmaster SBB2804-1 User Manual
GAS-FIRED
SBB2804-1 Gas Grill With Surround
Owner’s Manual
Page 1
IMPORTANT
This manual should be read thoroughly by the person installing the grill and all persons who will use and
maintain the grill. The installer should be sure the manual is left in the possession of the user. The user
should retain this manual for future reference when using or cleaning the grill and to properly identify
any repair parts that may be required.
WARNING
Reference this manual for proper installation and maintenance instructions. Improper installation, adjustment, alteration, service or maintenance can cause personal injury or property damage. For assis-
tance or additional information consult a qualied installer, service agency or the gas supplier.
CAUTION: FOR YOUR SAFETY
IF YOU SMELL GAS:
1. Shut off gas to the appliance.
2. Extinguish any open ame.
3. Open the grill lid.
4. If odor continues, immediately call your gas supplier
or re department.
5. Do not touch electrical switches.
CAUTION: FOR YOUR SAFETY
1. Do not store or use gasoline or other ammable vapors and liquids in the vicinity of this or any other
appliance.
2. An LP cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.
CAUTION:
Parts may have sharp edges. Wear leather work gloves and handle parts carefully during the unpacking,
assembly and installation.
WARNING
®
Superb by Broilmaster
Gas Grills must ONLY use propane cylinders equipped with an Overll Protection Device (OPD). Use only a reputable propane dealer when exchanging or lling cylinders. An overlled or improperly lled propane cylinder can be dangerous.
SBB00104-3-0309Page 2
Congratulations!
Welcome to the beauty and durability of a Superb by Broilmaster®
Gas Grill.
At Broilmaster, we continually strive to enhance the performance
and quality of our products for your grilling enjoyment. Every ef-
fort will be made to ensure that Broilmaster continues to be your
choice as the grill of the future.
Whether you are at the lake or in the privacy of your own back-
yard, the Superb by Broilmaster® Gas Grill performs far beyond
the ordinary and is designed to provide your family with years of
outdoor cooking pleasure.
Thank You!
Broilmaster® is a registered trademark of
Empire Comfort Systems, Inc.
918 Freeburg Ave.
Belleville, Illinois 62220
Telephone 800-851-3153
SBB00104-3-0309 Page 3
TABLE OF CONTENTS
Congratulations!
You have chosen the nest grill for your outdoor cooking pleasure. Please take time to read this entire manual before assembling your
Superb by Broilmaster® Gas Grill.
SECTION PAGE
Hardware Package ........................................................................................................................................ 5
Parts View ..................................................................................................................................................... 6
Parts List ....................................................................................................................................................... 7
Grill Assembly .............................................................................................................................................. 8
Surround Location, Connections, and Safety ............................................................................................... 9
Enclosure Construction Guidelines ..............................................................................................................10
Surround Assembly ......................................................................................................................................11
Surround and Grill Assembly .......................................................................................................................12

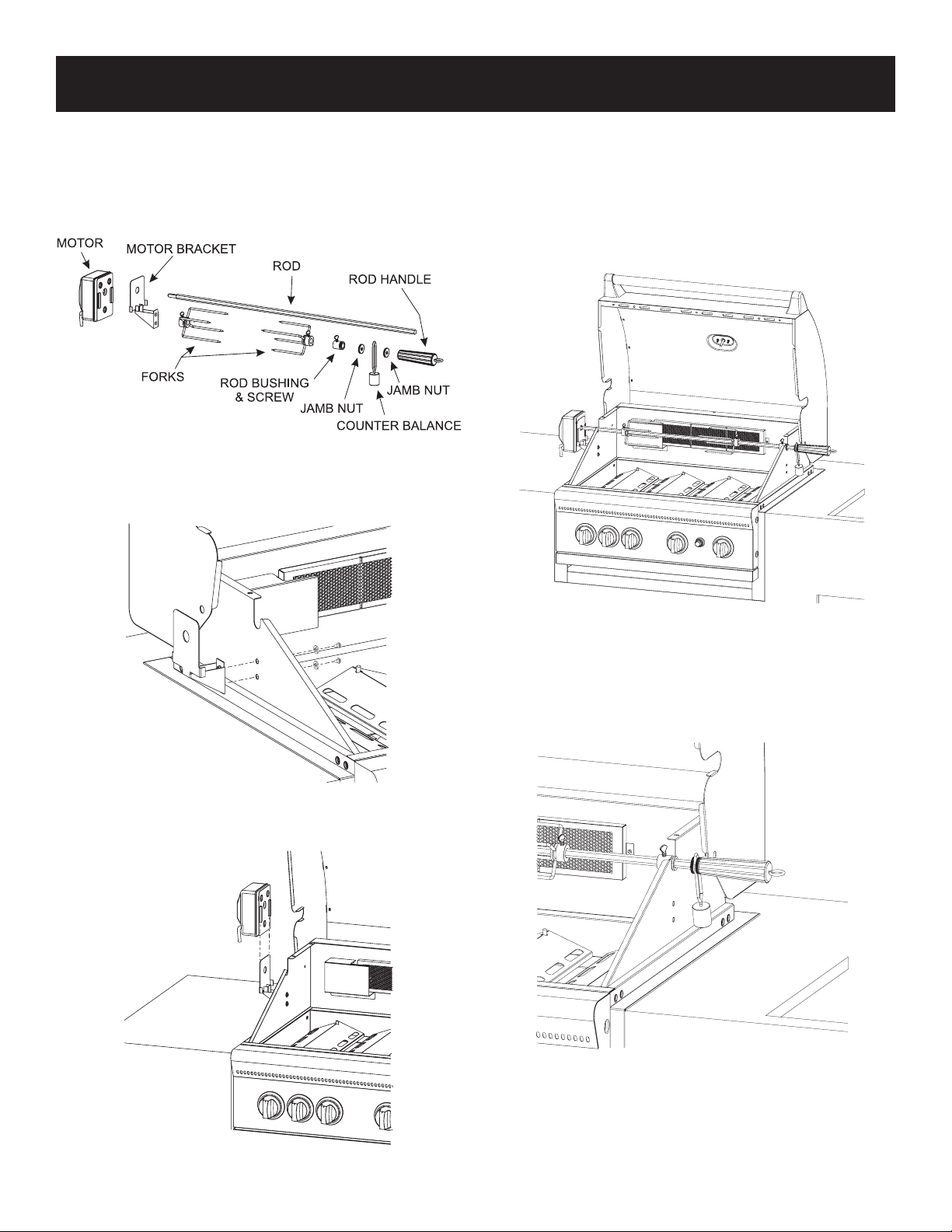

Rotisserie Installation .................................................................................................................................. 13

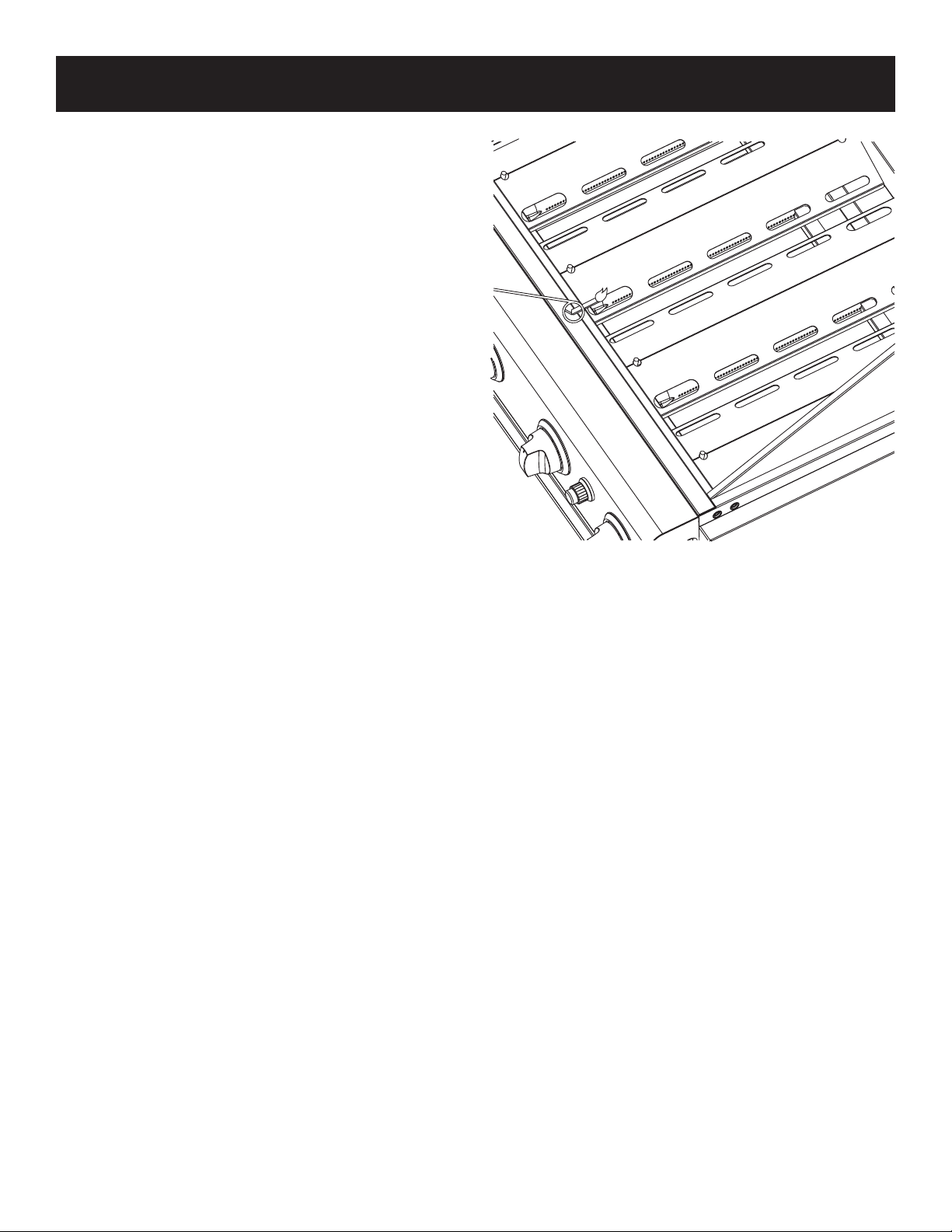

Alternate Match Lighting ............................................................................................................................ 14

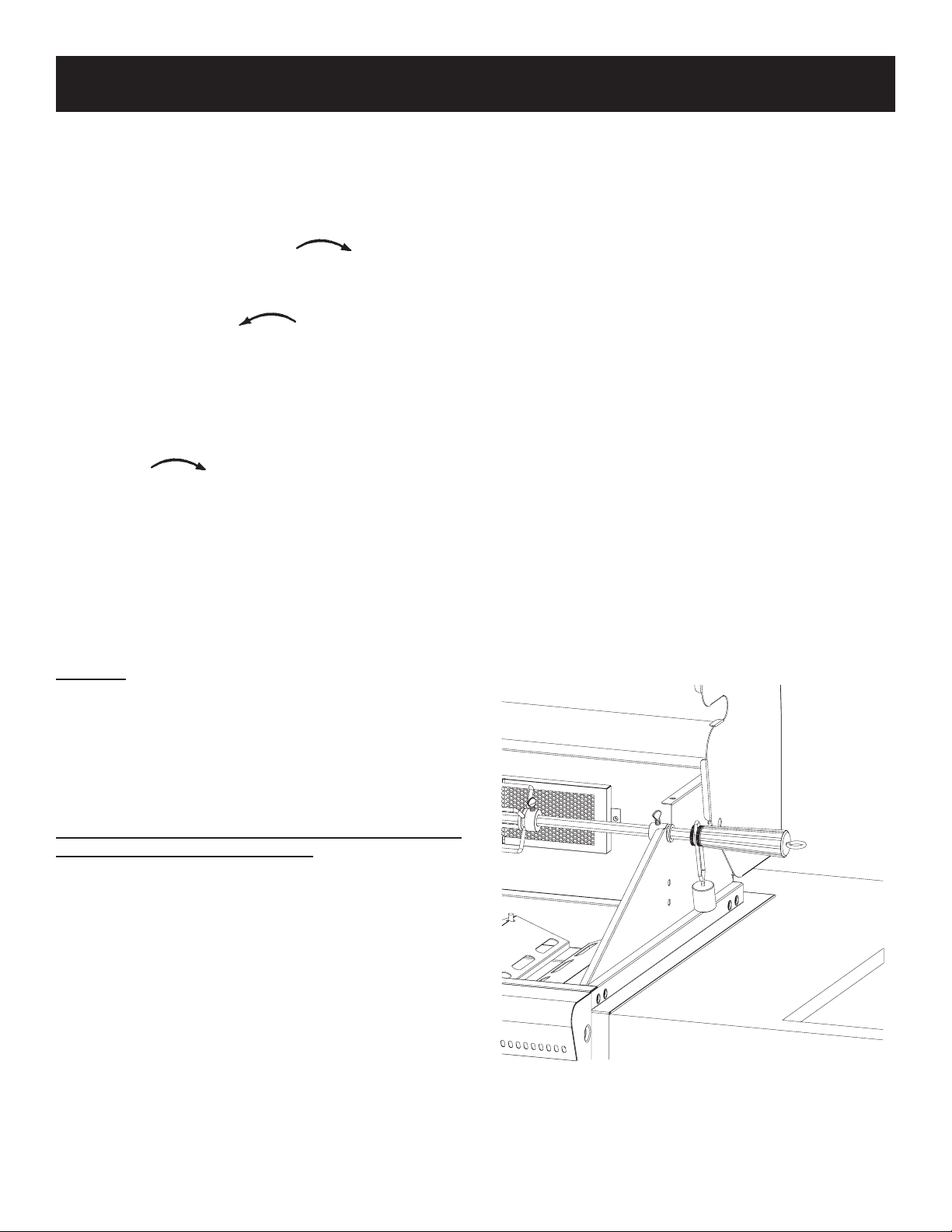

Rotisserie Operation .................................................................................................................................... 15

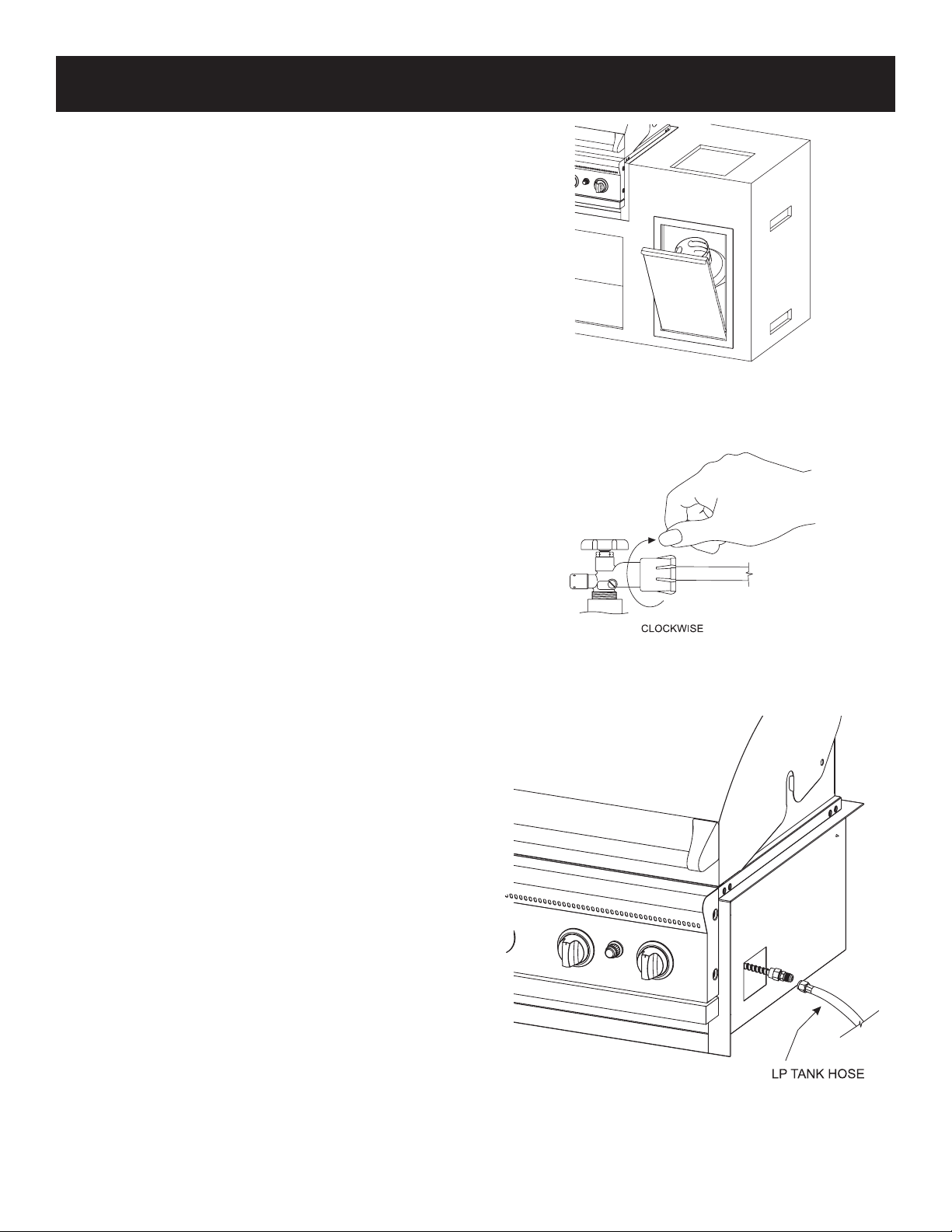

Propane Gas Grills .............................................................................................................................. 16 - 17

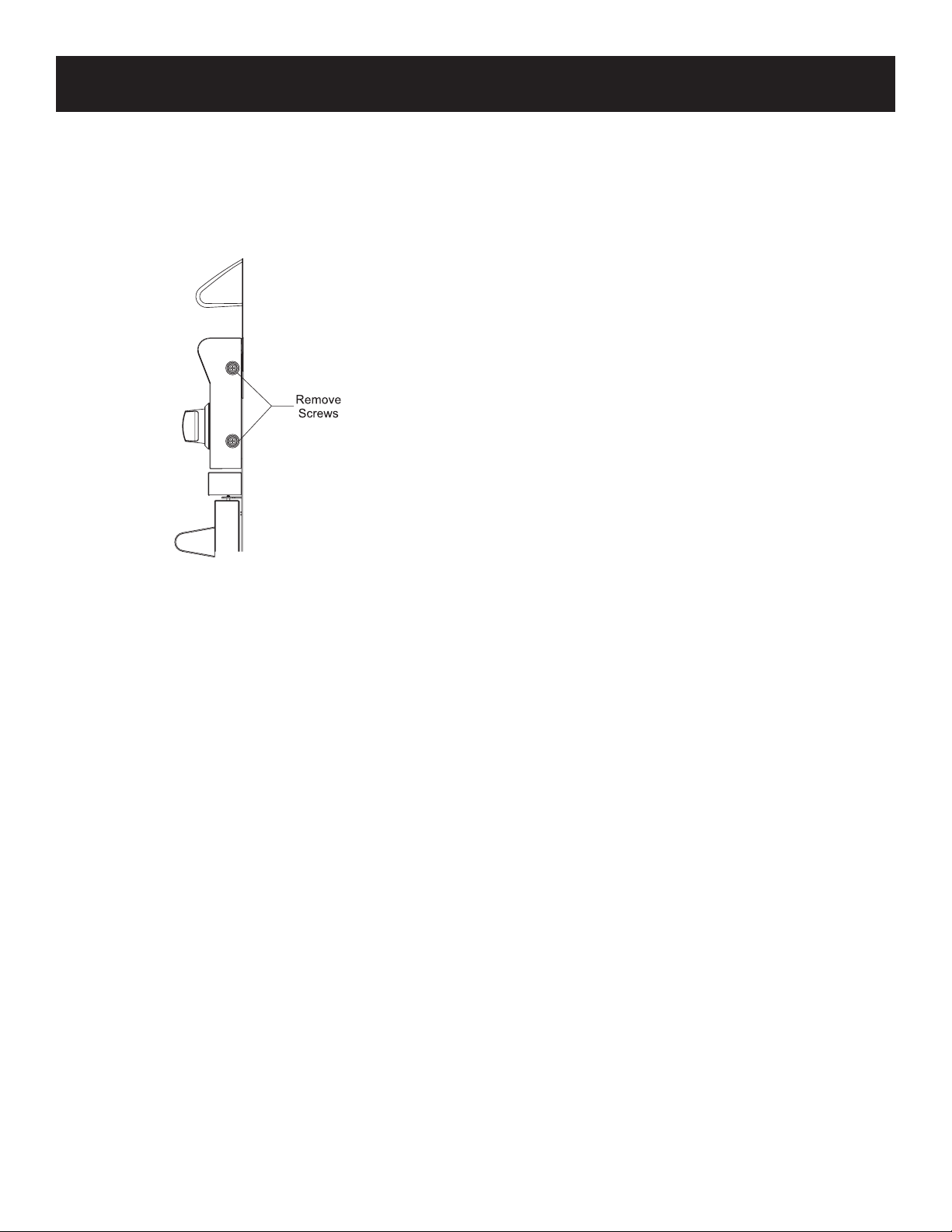

Gas Conversion to Natural Gas ................................................................................................................... 18

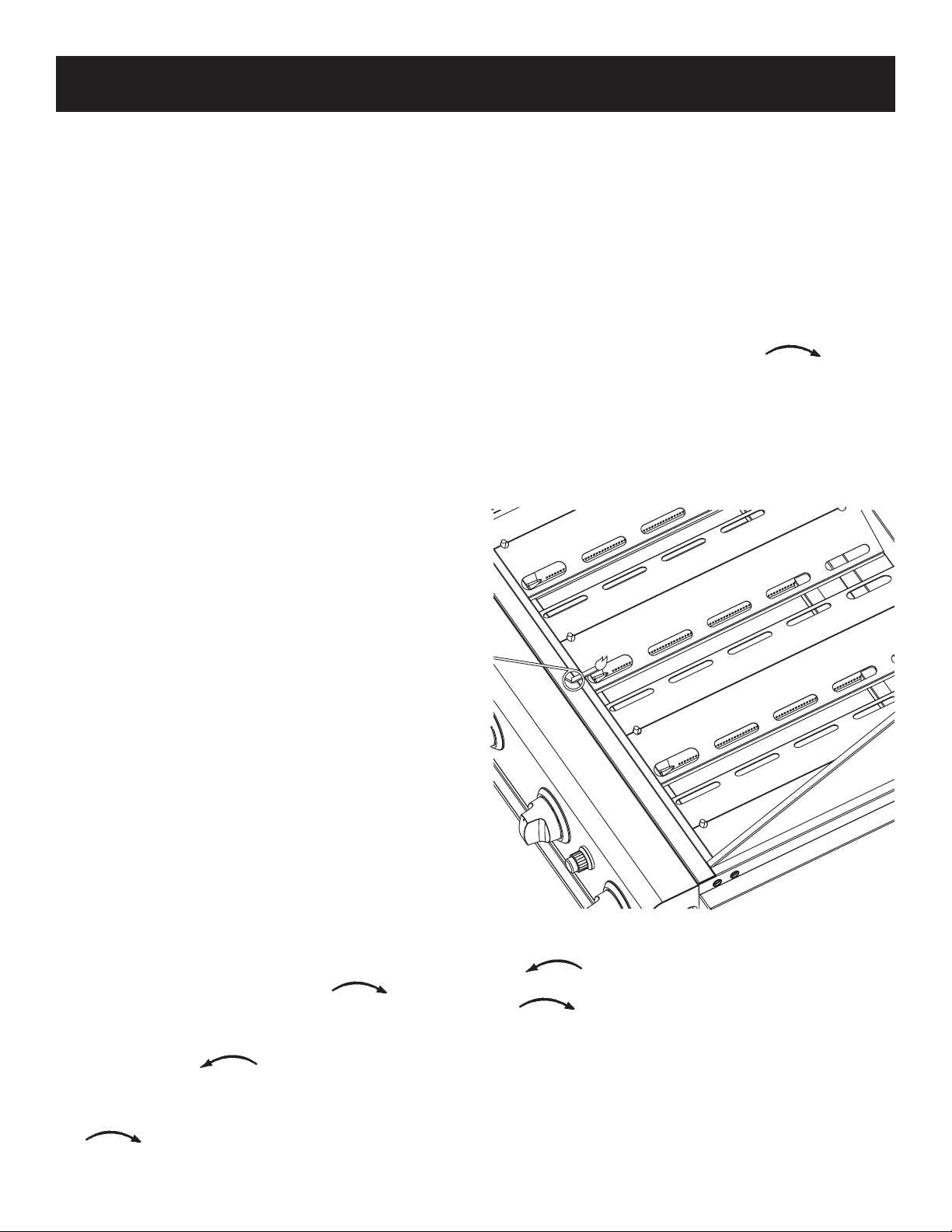

Operation ............................................................................................................................................. 19 - 20
Maintenance ................................................................................................................................................ 21
Troubleshooting .......................................................................................................................................... 22
Warranty Terms ........................................................................................................................................... 23
Your Superb by Broilmaster® Gas Grill is identied by model number, serial number, and gas
type. This information is provided on a product identication label located on the rear panel of
grill. For your convenience, complete this section for future reference when contacting your
dealer.
Model No. Dealer
Serial No. Dealer Phone No.
Gas Type: Propane Natural Date of Purchase
SBB00104-3-0309Page 4
HARDWARE PACKAGE
SBB00104-3-0309 Page 5
PARTS VIEW
1
2
4
12
11
9
7
5
19
6
17
18
14
23
23
28
26
27
27
26
10
8
25
30
31
32
32
33
33
34
29
3
3
13
16
35
24
22
21
20
15
All repair part orders should be placed through your local Broilmaster® dealer. To locate a dealer in your area, contact Broilmaster Customer Service at 800-851-3153 or www.broilmaster.com. To ensure prompt and accurate service, please provide the following information when placing a repair part order: Model Number, Serial Number, Part Name, Part Number, and Quantity of parts needed.
SBB00104-3-0309Page 6
PARTS LIST
INDEX NO. PART NUMBER DESCRIPTION
1 SBB00014 THERMOMETER
2 SBB00108 LID
3 SBB00013 NUT AND LID BOLT
4 SBB00078 WARMING RACK
5 SBB00064 ROTISSERIE MOTOR
6 SBB00065 ROTISSERIE MOTOR BRACKET
7 SBB00067 ROTISSERIE ROD
8 SBB00068 ROTISSERIE FORKS
9 SBB00069 ROTISSERIE ROD BUSHING & SCREW
10 SBB00092 JAMB NUT
11 SBB00071 ROTISSERIE COUNTERBALANCE
12 SBB00070 ROTISSERIE ROD HANDLE
13 SBB00109 COOKING GRATE
14 SBB00102 FLAME TAMER
15 SBB00106 FLAME CARRYOVER
16 SBB00051 MAIN BURNER
17 SBB00110 ROTISSERIE BURNER BACK COVER
18 SBB00073 ROTISSERIE ORIFICE LP
18 SBB00075 ROTISSERIE ORIFICE NAT
19 SBB00062 ROTISSERIE BURNER
20 SBB00060 ROTISSERIE ELECTRODE
21 SBB00059 ROTISSERIE THERMOCOUPLE
22 SBB00111 ROTISSERIE THERMOCOUPLE SHIELD
23 SBB00050 MAIN BURNER ELECTRODE
24 SBB00091 RADIATION SHIELD
25 SBB00038 ROTISSERIE VALVE
26 SBB00037 MAIN BURNER VALVE
27 SBB00030 MAIN BURNER ORIFICE LP
27 SBB00031 MAIN BURNER ORIFICE NAT
28 SBB00041 MANIFOLD
29 B101205 FLEX LINE
30 SBB00049 IGNITOR
31 SBB00112 CONTROL PANEL
32 SBB00033 BEZELS
33 SBB00032 KNOBS
34 SBB00103 GREASE TRAY
35 SBB00107 SURROUND
SBB00104-3-0309 Page 7
GRILL ASSEMBLY
Before You Begin
This grill requires some assembly and installation. Follow all
instructions.
If you purchased an accessory with your Superb by Broilmaster®
Gas Grill, follow the instructions provided with the accessory for
assembly and installation. If an instruction refers to a step that is not
required for your grill model, please continue to the next step.
CAUTION: FOR YOUR SAFETY
Parts may have sharp edges. Wear leather work gloves and
handle parts carefully during the unpacking, assembly and
installation.
Recommended Tools
These items are recommended for the assembly of your grill:
• Phillips screwdriver
• Soapy water solution (to test for leaks)
Grill Mountings
Refer to the instructions provided with each accessory for assembly, installation, and mounting procedures.
Gas Consumption on Grill Burners
Each Main Burner HI 12,000 BTU/Hr
LO 6,500 BTU/Hr
Rotisserie Burner 12,000 BTU/Hr
Optional Side Burner HI 13,000 BTU/Hr
LO 5,750 BTU/Hr
SBB00104-3-0309Page 8
