Owner’s Manual For Models:
Q3X-1
Q3XN-1
GAS-FIRED
Page 1
IMPORTANT
This manual should be read thoroughly by the person installing the grill and all persons
who will use and maintain the grill. The installer should be sure the manual is left in the
possession of the user. The user should retain this manual for future reference when using or cleaning the grill and to properly identify any repair parts that may be required.
WARNING
Reference this manual for proper installation and maintenance instructions. Improper
installation, adjustment, alteration, service or maintenance can cause personal injury or
property damage. For assistance or additional information consult a qualied installer,
service agency or the gas supplier.
DANGER: FOR YOUR SAFETY
IF YOU SMELL GAS:
1. Shut off gas to the grill.
2. Extinguish any open ame.
3. Open the grill lid.
4. If odor continues, keep away from the appliance and imme-
diately call your gas supplier or your re department.
WARNING: FOR YOUR SAFETY
1. Do not store or use gasoline or other ammable vapors or liquids in the vicinity of
this or any other appliance.
2. An LP cylinder not connected for use shall not be stored in the vicinity of this or any
other appliance.
CAUTION:
Parts may have sharp edges. Wear leather work gloves and handle parts carefully during the unpacking, assembly and installation.
WARNING
Broilmaster Gas Grills must ONLY use propane cylinders equipped with an Overll Protection Device (OPD). Use only a reputable propane dealer when exchanging or lling
cylinders. An overlled or improperly lled propane cylinder can be dangerous.
B101748-1-0512Page 2
Congratulations!
Welcome to the beauty, durability, and prestige of a Premium Gas Grill
by Broilmaster. With award-winning excellence built into every feature
and durability that surpasses other Premium gas grills, Broilmaster has
manufactured the ultimate gas grill for discriminating outdoor chefs for
over 30 years.
At Broilmaster, we continually strive to enhance the performance and
quality of our products for your grilling enjoyment. Every effort will be
made to ensure that Broilmaster continues to be your choice as the
Premium grill of the future.
Whether you are at the lake or in the privacy of your own backyard, the
Broilmaster Premium Gas Grill performs far beyond the ordinary and is
designed to provide your family with years of outdoor cooking pleasure.
Thank You!
Broilmaster is a registered trademark of
Empire Comfort Systems, Inc.
918 Freeburg Ave.
Belleville, Illinois 62220
Telephone 800-851-3153
B101748-1-0512 Page 3
PARTS DIAGRAM
Order repair parts through your local Broilmaster dealer. To locate a dealer in your area visit www.broilmaster.com. Please provide the following information when placing a repair part order: Model Number,
Purchase Date, Serial Number, Part Name, Part Number, and Quantity of parts needed. See Page 7
for parts ordering information.
1
2
3
4
16
17
35
6
7
8
12
9
15
32
33
28
16
17
10
11
18
5
29
13 or 14
30
16
20 or 21
22
23
19
31
24
25
36
26
34
27
B101748-1-0512Page 4
PARTS LIST
INDEX
NUMBER
1 B100456 B100456 GRILL BODY TOP
2 B101782 B101782 MOUNTING PLATE, HEAT INDICATOR
3 B101736 B101736 HEAT INDICATOR
4 B070486 B070486 LID HANDLE
5 B073097 B073097 FOAM GRIP
6 B101732 B101732 COOKING SCREEN (2 PIECES, STAINLESS STEEL)
7 B101718 B101718 DRIP PAN (STAINLESS)
8 B101747 B101747 5.5” NIPPLE (DRIP TRAY DRAIN PIPE)
9 B101769 B101769 45* STREET EL (2 PCS., DRIP TRAY DRAIN)
10 B101780 B101780 BUCKET HOOK
11 B101778 B101778 DRAIN PIPE SHUT OFF VALVE
12 B101733 B101733 BURNER ASSEMBLY
13 P315 - ORIFICE, #60
14 - P208 ORIFICE, 1.45mm
15 B101742 B101742 CONTROL PANEL SHIELD
16 B057805 B057805 BRIDGE PIN
17 B057804 B057804 HINGE PIN
18 B101739 B101739 GRILL BODY BOTTOM
19 B101779 B101779 BUCKET
20 B101420 - VALVE - LP
21 - B101421 VALVE - NAT
22 B101622 B101622 SHIELD, CONTROL PANEL
23 B070084 B070084 VALVE KNOB
24 B072218 B072218 ELECTRIC IGNITOR
25 B100743 B100743 CONTROL PANEL ASSEMBLY
26 B101724 B101724 SMOKER BOX
27 B101781 B101781 DRAWER SUPPORT
28 B101648 B101648 BURNER BRACKET
29 B076331 B076331 NUT, BURNER BRACKET
30 B101649 B101649 MACHINE SCREW, BURNER BRACKET
31 B069756 - HOSE AND REGULATOR
32 B072684 B072684 IGNITOR GROUND WIRE
33 B101805 B101805 COLLECTOR BOX ASSEMBLY
34 B062998 B062998 SMOKER KNOB
35 B101665 B101665 PUSH NUT, 5/32”
36 B101517 B101517 CONTROL PANEL LABEL
PART NUMBER
Q3X Q3XN
DESCRIPTION
B101748-1-0512 Page 5
WIRE, IGNITOR GROUND
(QTY. 1)
HARDWARE PACKAGE
KNOB, VALVE
(QTY. 2)
HEAT INDICATOR
(QTY. 1)
1/4-20 NUT, SS
(QTY. 1)
5/32” PUSH NUT
(QTY. 1)
FOAM GRIP
(QTY. 1)
10-24 SCREW, SS
(QTY. 3)
1/4-20 SCREW W/ HOLE
(QTY. 1)
AA BATTERY
(QTY. 1)
10-24 SS KEPS NUT
(QTY. 3)
1:1 SCALE
BRIDGE PIN
(QTY. 1)
B101748-1-0512Page 6
MASTER PARTS DISTRIBUTOR LIST
To Order Parts Under Warranty, please contact your local Empire dealer. See the dealer locator at www.empirecomfort.com.
To provide warranty service, your dealer will need your name and address, model number, purchase date and serial number,
and the nature of the problem with the unit.
To Order Parts After the Warranty Period, please contact your dealer or one of the Master Parts Distributors listed below.
This list changes from time to time. For the current list, please click on the Master Parts button at www.empirecomfort.com.
Please note: Master Parts Distributors are independent businesses that stock the most commonly ordered Original Equipment repair parts for Heaters, Grills, and Fireplaces manufactured by Empire Comfort Systems Inc.
Dey Distributing
1401 Willow Lake Boulevard
Vadnais Heights, MN 55101
Phone: 651-490-9191
Toll Free: 800-397-1339
Website: www.deydistributing.com
Parts: Heater, Hearth and Grills
East Coast Energy Products
10 East Route 36
West Long Branch, NJ 07764
Phone: 732-870-8809
Toll Free: 800-755-8809
Fax: 732-870-8811
Website: www.eastcoastenergy.com
Parts: Heater, Hearth and Grills
Victor Division of F. W. Webb Company
200 Locust Street
Hartford, CT 06114
Phone: 860-722-2433
Toll Free: 800-243-9360
Fax: 860-293-0479
Toll Free Fax: 800-274-2004
Websites: www.fwwebb.com & www.victormfg.com
Parts: Heater, Hearth and Grills
HOW TO ORDER REPAIR PARTS
Parts Not Under Warranty
Parts can be ordered through your Service Person, Dealer, or a Master Parts Distributor. See this page for the Master Parts Distributors list. For best results, the service person or dealer should order parts through the distributor. Parts can be shipped directly to the
service person/dealer.
Warranty Parts
Warranty parts will need a proof of purchase and can be ordered by your Service Person or Dealer. Proof of purchase is required for
warranty parts.
All parts listed in the Parts List have a Part Number. When ordering parts, rst obtain the Model Number and Serial Number from the
name plate on your equipment. Then determine the Part Number (not the Index Number) and the Description of each part from the following illustration and part list. Be sure to give all this information . . .
Appliance Model Number Part Description
Appliance Serial Number Part Number
Type of Gas (Propane or Natural)
Do not order bolts, screws, washers or nuts. They are standard hardware items and can be purchased at any local hardware store.
Shipments contingent upon strikes, res and all causes beyond our control.
B101748-1-0512 Page 7
WARRANTY TERMS
Empire Comfort Systems Inc. warranties this Broilmaster premium gas grill to be free from defects at the time of purchase and for the
periods specied below. Broilmaster Premium Gas Grills must be installed by a qualied technician and must be maintained and operated safely, in accordance with the instructions in the owner’s manual. This warranty applies to the original purchaser only and is not
transferable. All warranty repairs must be accomplished by a qualied gas appliance technician.
Limited Lifetime Parts Warranty – Against Rust-Through
If the items listed below fail because of defective workmanship or material, Empire will repair or replace at Empire’s option. The
limited lifetime warranty provides one-time replacement of a covered component.
• Aluminum Grill Housing (except paint)
• Stainless Steel Cooking Grids and Stainless Steel Griddles
• Select Stainless Steel Components – Cart, Mounting, Bowtie Burner, Side Burner (DPSBSS), Side Burner Housing, and
Warming Rack
• Stainless Steel Built-In Components – Built-In Kits for 3-Series Grill Heads, Door Kit, Tilt-Out LP Tank Door, and Vent Register
Kit
Limited Ten-Year Parts Warranty – Against Rust-Through
If the items listed below fail because of defective workmanship or material, Empire will repair or replace at Empire’s option.
• Stainless Steel Burners for H-Series, Q-Series, and R3B
• Drip Pan for Q-Series
• Side Burner (DPASBC), Side Burner Housing (BSA)
Limited Five-Year Parts Warranty – Against Rust-Through
If the items listed below fail because of defective workmanship or material, Empire will repair or replace at Empire’s option.
• Infrared Burners on R3 or R3B
• Flare Buster™ Ceramic Flavor Enhancers
• Painted Electro-Galvanized Steel Components
• Stainless Steel Smoker Shutter
Limited Two-Year Parts Warranty – Against Rust-Through
If the items listed below fail because of defective workmanship or material, Empire will repair or replace at Empire’s option.
• Porcelain Coated Steel Briquette Racks
• Chrome-Plated Warming Rack
• Stainless Steel Flavor Screen
• Stainless Steel Heat Shield
Limited One-Year Parts Warranty
If the items listed below fail because of defective workmanship or material, Empire will repair or replace at Empire’s option.
• Valves, knobs, ignitors, labels, hoses, ttings, grease cups, drip buckets, and all other parts and accessories – including those
made from stainless steel – unless specied above
• Paint on Aluminum Grill Head
Duties Of The Owner
The appliance must be installed by a qualied installer and operated in accordance with the instructions furnished with the appli-
ance.
A bill of sale, cancelled check, or payment record should be kept to verify purchase date and establish warranty period.
Ready access to the appliance for service.
What Is Not Covered
Damages that might result from the use, misuse, or improper installation or storage of this appliance.
Travel, diagnostic costs and freight charges on warranted parts to and from the factory.
Claims that do not involve defective workmanship or materials.
Unauthorized service or parts replacements.
Removal and reinstallation cost.
Inoperable due to improper or lack of maintenance.
The costs of a service call to diagnose a problem and labor for replacement or repairs.
How To Get Service
To make a claim under this warranty, please have your receipt available and contact your installing dealer. Provide the dealer
with the model number, serial number, type of gas, and purchase verication. The installing dealer is responsible for providing service
and will contact the factory to initiate any warranted parts replacements. Empire will make replacement parts available at the factory.
Shipping expenses are not covered.
If, after contacting your Empire dealer, service received has not been satisfactory, contact: Consumer Relations Department,
Empire Comfort Systems Inc., PO Box 529, Belleville, Illinois 62222, or send an e-mail to info@empirecomfort.com with “Consumer
Relations” in the subject line.
Your Rights Under State Law
This warranty gives your specic legal rights, and you may also have other rights, which vary from state to state.
Broilmaster is a Division of Empire Comfort Systems, Inc.
B101748-1-0512Page 8
GRILL ASSEMBLY
Before You Begin
All Broilmaster grills require some assembly and installation.
Follow all instructions unless noted to apply only to other
specic models.
If you purchased an accessory with your Broilmaster, follow
the instructions provided with the accessory for assembly
and installation. If an instruction refers to a step that is not
required for your grill model, please continue to the next
step.
Compare the parts found in the shipping container to the
parts list provided. If any parts are missing contact your
Broilmaster dealer before beginning assembly.
CAUTION: Parts may have sharp edges. Wear leather
work gloves and handle parts carefully during the unpacking, assembly and installation.
Recommended Tools
These items are recommended for the assembly of your
grill:
Do NOT use power tools.
• Channel locks or pipe wrench
• Phillips screwdriver
• Adjustable wrench set
• Socket set
• Soapy water solution (to test for leaks)
• Liquid soap (for foam grip)
• Pipe sealant or Teon tape (for sealing pipe ttings)
Grill Mountings
Assemble your base option before assembling your
Broilmaster grill head.
Refer to the Broilmaster Cart, Base, and Post instructions
provided with each accessory for assembly, installation, and
mounting procedures.
Note: Built-in Kit can not be used with Qrave Grills.
B101748-1-0512 Page 9
PROPANE GAS GRILLS
Grill Location
When choosing the ideal location for your Broilmaster Premium Gas Grill, remember this grill is designed for outdoor
use ONLY.
Never install or operate your grill in any building, garage, or
other enclosed area.
For your safety, this grill should not be installed or operated
under any combustible materials, such as carports, covered
porches, awnings, or overhangs.
Never install or operate your grill in or on any recreational
vehicle or boat.
CAUTION: The installation and operation of this grill at
clearances less than specied below may lead to the
possibility of re, property damage, or personal injury.
A minimum clearance of sixteen inches (16") is required from
the sides of the grill to any combustible material.
A minimum clearance of eighteen inches (18") is required
from the back of the grill to any combustible material.
Cylinder Requirements
Your Broilmaster Premium Gas Grill requires a standard
twenty (20) pound propane gas cylinder.
The maximum height allowable for a replacement cylinder is
approximately twelve (12") inches (30.5 centimeters).
The propane gas cylinder used must be:
1. Constructed and marked in accordance with the specications for LP gas cylinder of the U.S. Department of Transportation (D.O.T.) or the National Standard of Canada,
CAN/CSA-B339, Cylinders, Spheres, and Tubes for
Transportation of Dangerous Goods; and Commission
as applicable.
2. Provided with a listed overfilling protection device
(OPD).
3. Provided with a listed safety device having direct access
with the vapor space of the cylinder and the cylinder
supply system must be arranged for vapor removal.
Some examples of combustible materials are a wall, a fence,
patio furniture, or the wall of your home.
The area surrounding the grill should be clear to ensure
proper ventilation. Do not obstruct the ow of combustion
and ventilation air in any way. The ventilation openings on
the propane cylinder enclosure must also remain free and
clear of debris.
Portable grills should be level and positioned away from direct
wind prior to each use.
WARNING: Do not install or operate this grill where
gasoline or other ammable materials are used or stored.
Failure to comply with this warning could result in explosion or re causing property damage or personal injury.
4. Provided with a shutoff valve terminating in a valve outlet
as specied in the Standard for Compressed Gas Cylinder Outlet and Inlet Connections, ANSICGA-V-1.
5. Provided with a plug to effectively seal off the cylinder
outlet when the cylinder is being stored or transported.
6. Provided with a collar to protect the cylinder valve.
Caution: Do not use a propane gas cylinder which has
a capacity greater than twenty (20) pounds with this grill
and side burner.
B101748-1-0512Page 10
PROPANE GAS GRILLS
Propane Cylinder Safety
Liquid Propane (LP) gas has a long history of safe use
when the safety precautions provided in this manual are
followed.
Failure to follow these safety precautions could result
in a re or explosion causing property damage or personal injury.
Propane gas cylinders should always be handled, stored,
and transported with extreme caution in a secured upright
position.
Never attempt to use or repair a propane gas cylinder that
has been damaged. Never attempt to use or repair a cylinder with a faulty or damaged valve outlet. A cylinder that
has been dropped, dented, or otherwise damaged must be
replaced.
A propane gas cylinder should never be transported in the
passenger area of a vehicle.
Keep cylinders out of direct sunlight and never apply any
other source of direct heat to them.
When relling your cylinder, always insist on a reputable,
qualied gas dealer. Your propane gas cylinder is lled by
weight, and should never exceed eighty percent (80%) of its
weight limit. If the cylinder is not completely empty, the gas
dealer must make necessary adjustments to ensure it is not
overlled. Never use an overlled Propane gas cylinder.
Connection Requirements
Caution: Never use Liquid Propane (LP) gas in a grill
designed for Natural gas, or Natural gas in a grill designed for Liquid Propane gas. Questions regarding
different types of gases should be directed to your local
gas supplier.
Installation must conform to local codes or, in the absence of
local codes, with the National Fuel Gas Code, ANSI Z223.1.
In Canada, installation shall be in accordance with CAN/
CGA-B149.2 Propane Installation Code, or CAN/CGA-B149.1
Natural Gas Installation Code, and local codes where applicable. Consult your local gas supplier or propane gas dealer
for code regulations and recommended procedures.
Warning: Broilmaster Premium Gas Grills require
Liquid Propane (LP) cylinders equipped with an Overll
Protection Device (OPD). An overlled or improperly
lled Propane cylinder can be dangerous.
Always use the pressure regulator and hose assembly supplied with your Propane gas grill.
Note: Not all valve and cylinder combinations are compatible. Check warning tag on valve and cylinder as well as
external tting threads.
All Broilmaster pressure regulators and hose assemblies
require Propane cylinders with a Type 1 connection device
as illustrated. See Figure 1.
Cylinder Storage
Your grill must be stored outdoors in a well ventilated area if
the cylinder is attached to it.
Disconnected cylinders must have a threaded valve plug
tightly installed and must not be stored in any building, garage, or other enclosed area.
Flammable materials (gasoline, grill covers, etc.) must not
be stored in the cylinder enclosure.
Always store Propane cylinders in a secured upright position,
out of the reach of children.
B101748-1-0512 Page 11

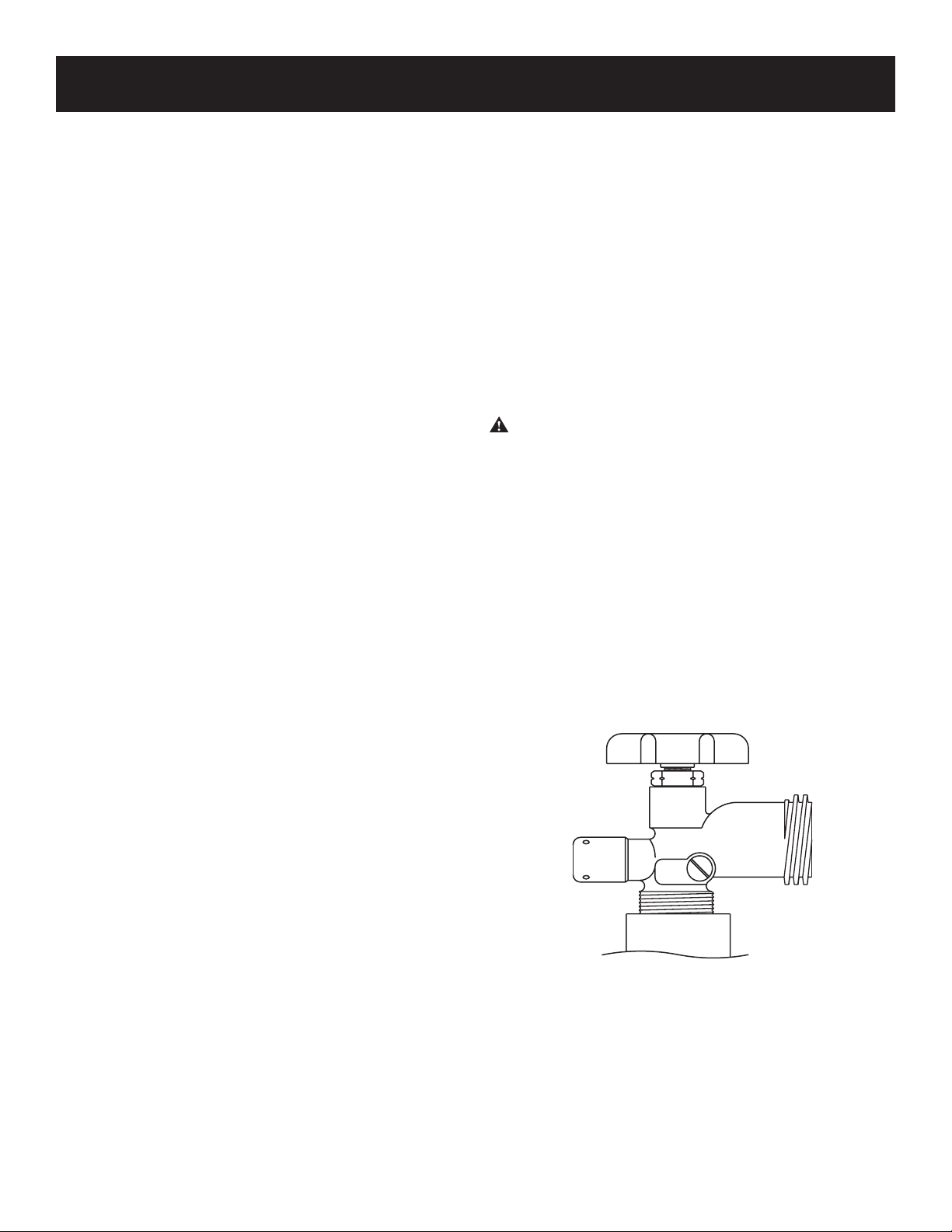

Figure 1
CLOCKWISE
PROPANE GAS GRILLS
Pressure Regulator and Hose Assembly
The pressure regulator has an outlet pressure of not more than eleven (11") inches water column. It must be connected to
the Propane gas cylinder’s valve outlet before the grill can be operated.
Caution: Operation of a Propane gas grill without the pressure regulator and hose assembly will cause gas leaks
which could lead to re or explosion, resulting in property damage or personal injury.
The pressure regulator’s tting must remain clean and free of nicks and scratches. A dirty, nicked or scratched tting can
cause a gas leak, resulting in an explosion or re. Use only genuine Broilmaster replacement parts unless otherwise specied by the manufacturer.
Connecting to Propane Gas / Cylinder Retention Means
ATTENTION: Propane gas cylinders that are acceptable for use with this grill must comply with Cylinder Requirements,
Page 10, and Connection Requirements, Page 11.
Position the cylinder in the opening in the bottom of the cart and secure with the cylinder retaining bracket. See Figure 2.
Figure 2
Attach the pressure regulator to the Propane gas cylinder’s
valve using the plastic handwheel. Tighten in a clockwise
motion to achieve a gas tight seal. See Figure 3.
Caution: Do not use a wrench or any other tool to
tighten. Use of a wrench or other tool will damage the
plastic handwheel.
To disconnect the Propane gas cylinder, turn OFF the cylinder’s valve and the grill’s control valve. Remove the regulator
by turning the plastic handwheel counterclockwise.
Caution: Assure hose does not touch the casting
or mounting components.
Figure 3
B101748-1-0512Page 12
NATURAL GAS GRILLS
Grill Location
When choosing the ideal location for your Broilmaster Premium Gas Grill, remember this grill is designed for outdoor
use ONLY.
You should never install or operate your grill in any building,
garage, or other enclosed area.
For your safety, this grill should not be installed or operated
under any combustible materials, such as carports, covered
porches, awnings, or overhangs.
Never install or operate your grill in or on any recreational
vehicle or boat.
CAUTION: The installation and operation of this grill at
clearances less than specied below may lead to the
possibility of re, property damage, or personal injury.
A minimum clearance of sixteen (16") inches is required from
the sides of the grill to any combustible material.
A minimum clearance of eighteen (18") inches is required
from the back of the grill to any combustible material.
Some examples of combustible materials are a wall, a fence,
patio furniture, or the wall of your home.
The area surrounding the grill should be clear to ensure
proper ventilation. Do not obstruct the ow of combustion
and ventilation air in any way. The ventilation openings on
the propane cylinder enclosure must also remain free and
clear of debris.
Portable grills should be level and positioned away from direct
wind prior to each use.
WARNING: Do not install or operate this grill where
gasoline or other ammable materials are used or stored.
Failure to comply with this warning could result in explosion or re causing property damage or personal injury.
Gas Type
The type gas required for your grill can be determined from
the product identication label located on the grill’s control
panel. Questions regarding different types of gases should
be directed to your local gas supplier.
Connection Requirements
Broilmaster grills are not equipped with pressure regulators.
Your gas grill operates at a manifold pressure of seven (7")
inches water column.
Connect cart mounted Natural gas grills to a pre-installed
gas supply line using the twelve (12’) foot exible hose and
quick disconnect kit which can be purchased from your local dealer.
Hazardous Locations and Conditions
• The LP gas cylinder must be arranged upright for vapor
withdrawal.
• Do not obstruct the ow of combustion and ventilation
air.
• This grill should only be used outdoors in a well-ventilated
space must not be used in a building, garage, or any
other enclosed area.
• Keep all ammable substances away from the grill. These
include most aerosols and aerosol containers, gasoline
and similar liquids, paper and paper products, containers
of grease, paint, etc.
• Never store ammable materials or objects such as those
described above in the pedestal base.
• Never leave grill unattended while in operation.
• Never use any liquid in an attempt to control are-up.
• It may be necessary to adjust your grill away from the
direction of prevailing wind.
• Avoid wearing ammable and/or loose clothing such as
long-sleeves, neckties, scarves, aprons, etc., while the
grill is in operation.
• Avoid contact of hair to heat and ames.
Caution: The grill and its individual shutoff valve must
be disconnected from the gas supply piping system
during any system pressure testing at test pressures in
excess of 1/2 PSIG.
Caution: The grill must be isolated from the gas supply
piping system by closing its individual manual shutoff
valve during any pressure testing of the gas supply
piping system at test pressures equal to or less than
1/2 PSIG.
Caution: Never use Liquid Propane (LP) gas in a grill
designed for Natural gas, or Natural gas in a grill designed for Liquid Propane gas. Questions regarding
different types of gases should be directed to your local
gas company.
B101748-1-0512 Page 13
GRILL ASSEMBLY
To ease installation remove grill body top from grill body bottom by removing the two hinge pins and clips.
Figure 4
Install Heat Shield
Attach shield by inserting the shield over the studs. See
Figure 7.
Figure 7
Install Control Panel
Attach control panel assembly to grill bottom with two (2)
10-24 keps nuts. See Figure 8.
Figure 5
Install Hose and Regulator (For
LP Models)
Attach the hose and regulator supplied with the unit as shown
in Figure 6.
Figure 6
Figure 8
B101748-1-0512Page 14
GRILL ASSEMBLY
Heat Shield / Wind Shield
Place the heat and wind shield in the grill bottom.
See Figure 9.
Figure 9
Burner Bracket Securing Bolt
1. Insert the 1/4-20 x 1 1/2 Phillips Truss Head Screw from
the underside of the grill and secure with the 1/4-20 Hex
Nut. See Figure 10.
Ignitor Wire
Note: Install the Ignitor Ground Wire before installing the burner.
1. Connect the ground wire to the ground lug on the collector box
before installing the burner into the grill. See Figure 11.
Figure 11
Figure 10
Note: If the Grill Head is installed on a PCB1, PSCB or
DCB1, make sure the cart shield is not installed until
the burner bracket securing bolt is installed.
2. Install Grill Head on a Cart or Post Mounting (see Cart or Post
Installation Instructions that come with the mounting option).
B101748-1-0512 Page 15
GRILL ASSEMBLY
Install the Burner
1. Insert the burner assembly into the grill bottom with the
venturi tubes facing the front of the grill. See Figure 12.
2. Carefully slide the wires through the same hole in the
bottom of the grill.
5. Slide the bridge pin through the hole in the 1/4-20 x 1
1/2 Phillips Truss Head Screw as shown in Figure 14.
Figure 12
3. Slide the venturi on to the valve assembly.
4. Raise the unsecured end of the burner bracket and slip
it over the 1/4-20 x 1 1/2 Phillips Truss Head Screw as
shown in Figure 13. The screw will t into the hole on
the burner bracket.
Figure 13
Figure 14
Connect Igniter Wires and
Install Battery
1. Attach ground and igniter wires to the igniter as shown
in Figure 15.
2. Remove push button cap and insert AA battery, positive
side down, as shown in Figure 15.
Figure 15
B101748-1-0512Page 16
GRILL ASSEMBLY
Smoker Drawer
1. Attach drawer support bracket to inside front of grill body
with (1) 10-24 x 3/4” machine screw and 10-24 nut. See
Figure 16.
2. Slide the smoker box through the opening in the grill
body. See Figure 17.
Reinstall Grill Body Top to Grill
Body Bottom
1. Secure grill body top to grill body bottom by replacing
the two hinge pins and clips. See Figures 18 and 19.
Figure 18
Lip resting on
Figure 16
casting ledge
Figure 17
B101748-1-0512 Page 17
Figure 19
GRILL ASSEMBLY
Handle
For your added comfort a foam grip has been provided. See
Figure 20.
Tip: For ease of installation, slightly lubricate the front handle
with liquid soap before pushing the foam grip into place.
Figure 20
Fasten the front handle to the grill lid with two #10-24 x 1"
screws. See Figure 21.
Install Heat Indicator
1. Insert heat indictor probe through the hole in the grill body
lid and slide on push nut to secure. See Figure 22.
Figure 22
Figure 21
Note: Install side shelves or side burner to side of grill
at this time. See installation instructions that came with the
side shelves or side burner for more information.
B101748-1-0512Page 18
GRILL ASSEMBLY
Assemble Drain Pan
Note: Drain pipe and valve coponents are packed inside
the smoker box.
1. Lightly spread pipe sealant on all threads before assembling to the drain pan.
2. Thread the 3/4” pipe into the bottom of the drain pan and
tighten.
3. Assemble the two 45° elbows as shown in Figure 23.
Note: Make sure of the mountings (posts, carts, etc.)
being used before tightening to ensure that the ttings
are set to the proper position.
FOR USE ON ALL POSTS
AND DCB AND PCB CARTS
DRAIN PAN
3/4” PIPE
PIPE SEALANT OR
TEFLONTAPE
45° ELBOWS
Install the Drain Pan Assembly
1. Lower the drain pan into the lower casting with the drain
pipe on the right side. Pass the pipe through the oval
hole in the bottom of the casting, making sure the pipe
extends out through the bottom of the casting and the
pan is sitting level on the holding tabs. See Figure 24.
2. Slide the drain bucket hanger into place over the pipe
and screw on the drain shut off valve and tighten.
Note: Position Drain Shut Off Valve so it does not interfere
with the wall of the grill head.
FOR USE ON PSCB CART
PIPE SEALANT OR
TEFLONTAPE
Figure 23
DRAIN PAN
3/4” PIPE
45° ELBOWS
DRAIN BUCKET HANGER
DRAIN SHUT OFF VALV E
Figure 24
3. Set cooking grids in place.
Note: The grids are designed for two levels of cooking.
4. Hang the drip bucket on the drain bucket hanger.
NOTE: If the grill was installed on a cart, make sure to install
the cart’s heat shield before use.
B101748-1-0512 Page 19
OPERATION - PROPANE & NATURAL GAS GRILLS
Checking for Gas Leaks
Check for gas leaks every time you connect your Broilmaster
propane gas grill to a Propane gas cylinder, when a connected cylinder has not been used recently, or when either
a natural or propane grill is being used for the rst time.
Caution: Do not use an open ame when checking for
leaks. Checking for leaks with an open ame may lead
to a re or explosion, resulting in property damage or
personal injury.
To check for gas leaks:
1. Use dish washing liquid and a little water to make a soapy
solution.
2. Turn OFF the knob on the control panel.
3. Turn ON the gas at the supply or cylinder. A hissing
sound indicates a leak. Turn OFF the gas and repair
the leak.
4. Apply the soapy water solution to all gas connections.
5. Look for bubbles. Bubbles indicate a leak.
6. If there are bubbles turn OFF the gas and repair the
leak.
7. Turn the gas back ON and repeat the above procedures
until all leaks are repaired.
Air Shutter Adjustment
The venturi air shutter(s) are preset at the factory so that
after ve minutes the burner ames are blue with well dened
cones. If, after ve minutes the ame is yellow, or there is
a gap between the burner and the ame, adjust the venturi
air shutter as follows:
Lighting Instructions
Using the Ignitor
Caution: If a burner fails to light after 5 seconds, turn
the burner OFF for 5 minutes and open grill lid, to allow
the gas to clear, then try again.
1. Turn knob on the grill CLOCKWISE to the OFF position.
2. Turn ON gas at the source.
3. With the grill lid open, push and turn the burner valve
knob COUNTERCLOCKWISE to Hi.
4. Push and hold the ignitor button until the burner lights
(approximately 5 seconds).
5. If a burner does not light, turn OFF all gas and refer to
the Troubleshooting section of this manual.
Using Matches
Caution: If a burner fails to light after 5 seconds, turn
the burner OFF for 5 minutes and open grill lid, to allow
the gas to clear, then try again.
1. Turn knob on the grill CLOCKWISE to the OFF position.
2. Turn ON gas at the source.
3. Open the grill lid.
4. Insert a burning long wooden match through the lighter
hole on either side of the grill. See Figure 25.
5. Turn the burner valve knob COUNTERCLOCKWISE to
HI.
6. If a burner does not light, turn OFF all gas and refer to
the Troubleshooting section of this manual.
1. Turn gas OFF and let the burner cool.
2. Loosen shutter set screw
3. Close the air shutter to the minimum opening.
4. Light the burner, wait ve minutes and then carefully open
the air shutter until the ame is blue and well dened.
5. Retighten the set screw.
Heat Indicator Recalibration
The heat indicator can be recalibrated if needed. Remove the
heat indicator from the grill and place the probe end in a pot
of boiling water. Set the heat indicator by turning the nut on
the back until it reads 212 degrees. The indicator is now set.
Figure 25
B101748-1-0512Page 20
OPERATION
Before Cooking
Before cooking on a grill for the rst time, burn off any
manufacturing process oil residue.
1. Raise the grill lid.
2. Light grill burner.
3. Burn on HI for ten minutes.
4. Close the lid and burn on HI for an additional ten
minutes.
5. The grill is now ready for use.
Preheating
Before cooking on a gas grill, allow the grill to preheat on HI
for 15 minutes with the lid closed.
This uses very little fuel and provides better avor.
Electrical Accessories
If an electrical accessory is used on your grill, the accessory
must be electrically grounded in accordance with local codes
or, in the absence of local codes, with the National Electric
Code, ANSI/NFPA 70. In Canada, the electrical accessory
must be electrically grounded in accordance with the applicable section of the current Canadian Electrical Code,
CSA C22.1.
Any electrical accessory should be equipped with a threeprong (grounding) plug, and plugged into a properly grounded
three-prong receptacle or wall outlet. Do not cut or remove
the grounding prong from the plug.
If an extension cord is required, use only a three-prong cord
and plug into a properly grounded receptacle as described
above.
Do not expose an electrical accessory to water. Avoid using
any electrical accessory in wet weather as it may present a
shock hazard.
Keep any electrical cord and fuel supply hose away from all
heated surfaces.
B101748-1-0512 Page 21
MAINTENANCE
Cleaning the Grill
Caution: To prevent injury, use care when cleaning a
hot grill.
Note: Do not use a commercial cleaner on the cooking
grid. Do not brush grids while they are hot. Do not
scrape grids.
Grids and Drip Pan
The grids are made of high quality stainless steel and should
be brushed with a brass brush while the grill is still warm.
The drip pan is made of high quality stainless steel as well
and can be cleaned with a scraping tool. The pan must be
kept clean of heavy build-up for the grill to perform properly
and to reduce are-ups. Clean as needed or approximately
every 10 uses.
Burn Off
This process is much like that used in self-cleaning ovens
and is most efcient when completed after each use of the
grill.
Caution: Do not open the grill during the burn off
process. Opening the grill during the burn off process
may cause a sudden grease re are up that could burn
your face and arms. Wait until the grill has cooled before
opening.
Bucket
The bucket can be stored under the grill lid when the grill is
not in use.
Venturi Tubes
The venturi tubes allow air and gas to mix prior to burning, thus
ensuring an efcient ame. Spiders or other small insects
may build webs or nests inside the tubes obstructing air ow.
Fire, or ashback, can occur, in and/or around obstructed
venturi tubes and can cause damage to components beneath
the grill or an unsafe condition. To reduce risk, inspect and
clean the Venturi Tubes at least twice monthly when spiders
are active. If the grill has been unused for an extended period
of time inspect the tubes before using the grill.
Clean venturi tubes as follows:
1. Remove the cooking grids and drip pan.
2. Remove the burner from the grill.
3. Lay the burner face down and remove the four retaining
screws from the venturi tube plate and the burner. See
Figure 26.
4. Use a small exible brush to remove any debris for the
tube(s).
5. Flush with water.
6. Allow the tube(s) to dry before reinstalling.
7. Reinstall the venturi tubes, igniter and burner bracket to
burner.
1. Turn gas knob to HI. Close lid and allow the grill to burn
for ten minutes, or until no smoke is present. Do not
allow the grill to burn for more than 30 minutes.
2. Turn gas knob and supply to OFF and allow the grill to
cool.
Grill Bottom
Once or twice a year remove cooking grids and drip pan to
clean the interior of the grill. Scrape off baked on residue
with a putty knife or brass brush and rinse with water.
Burner Maintenance
Stainless steel burners often turn reddish brown after use.
This does not effect the performance of the grill. When
cleaning the interior of the grill, remove the burners and clean
with a brass brush. Wash with water and a mild detergent.
Drip Pipe and Valve
Drain pipe and valve must be kept clear of grease and food
particles to allow the grease to drain properly. To clear the
drain pipe and valve, run a exible drain brush through both
and remove.
Figure 26
Exterior
Clean regularly with a solution of mild detergent and hot
water. Touch-up paint is available from your dealer. Broilmaster protective covers are recommended. Stainless steel
components can be easily cleaned with a spray-on stainless
steel cleaner found in most hardware stores.
B101748-1-0512Page 22
TROUBLESHOOTING
Although the manufacturer has attempted to ensure that your grill will operate properly and satisfactorily,
sometimes problems do arise. The following troubleshooting guide lists several possible problems and
their probable cause and solution.
Problem Cause Solution
Burner will not light. Out of gas Rell LP gas cylinder. If natural model, turn
on gas at source.
Gas injector not inserted in venturi tube. Realign/engage gas injector with the ven-
turi tube.
Clogged gas injector. Remove gas injector from gas control as-
sembly and clean.
Obstruction in gas line. For propane models, ensure gas valve on
cylinder is OFF. Remove exible hose and
blow out any debris.
Spider webs in venturi tubes. Clean venturi tubes. See Maintenance
Section.
Misalignment of collector box and burner. Position electrode properly. Clean collector
box.
Dead battery. Replace with AA battery.
Inadequate grill temperature. Poor combustion. Adjust air shutter.
Misalignment of venturi tube and gas injector.
Inadequate gas pressure. Contact gas supplier for assistance.
Incorrect orice/valve setting. Refer to gas conversion instructions in this
Flames blow out. Cold grill. Preheat grill at least 15 minutes on HI with
Misalignment of burner tube and gas injector.
Realign/engage gas injector with the venturi tube.
manual.
the grill lid closed.
Realign/engage gas injector with the
burner tube.
Poor combustion. Adjust air shutter.
Extreme wind. Turn or shield grill.
Yellow ames. Air shutter improperly set. Open air shutter.
Spider webs in venturi tubes. Clean venturi tubes. See Maintenance
Section.
Seasoning salts on burner. Clean by washing burner with mild deter-
gent.
Oil lm on burner. Allow burner to operate on HI for 10-15
minutes.
B101748-1-0512 Page 23
COOKING TIPS
Cook Food To Proper Temperatures
Cooking food safely requires that you raise the internal temperature of the meat high enough and for a long enough period
of time to kill any food-borne bacteria that may cause illnesses.
Color is not the best indicator that food is safe to eat. Use a high-quality probe thermometer to be sure your food is properly cooked. Place the tip of an instant-read thermometer into the center of the thickest part of the food but at least 1/2
inch deep. Read the temperature after about 10 seconds. Follow the temperature guidelines for the type of food you’re
cooking.
The following guidelines are from the U.S. Food and Drug Administration Center for Food Safety and Applied Nutrition.
Cook to Internal Temp
Meat & Poultry Medium Rare Medium Well Done
Fresh Beef - Medium Rare 145°F 160°F 170°F
Ground turkey, chicken 165°F
Ground veal, beef, lamb, pork 145°F with 3 minutes of rest and then turn
Fresh Pork - Medium 160°F 170°F
Chicken - whole 165°F
Turkey - whole 165°F
Poultry breasts, roast 165°F
Poultry thighs, wings 165°F
Stufng (cooked alone or in bird) 165°F
Duck and goose 180°F
Fresh Veal - Medium Rare 160°F
Fresh Lamb - Medium Rare 145°F 160°F 170°F
Ham - fresh (raw) 145°F 160°F 170°F
Ham - pre-cooked (reheat) 140°F
Seafood
Fish Cook until esh turns opaque and akes easily with a fork.
Shrimp, lobster, crab Cook until shells turn red and esh becomes pearly opaque.
Scallops Should turn milky white or opaque and rm.
Clams, mussels, oysters Cook until shells open.
The Qrave Grill is an indirect gas grill. This means that the ame never comes in contact with the food and does not are
up. The drip pan vaporizes all the drippings into smoke and moisture. This produces tastier and juicier foods. You will be
amazed at how easy it is to cook all your favorites and more; perfect every time.
The following instructions are to be used as a guideline. You may need to adjust the cooking times and temperatures to
suite your own taste.
When cooking on the Qrave Grill, it is essential that the lid remain closed. This not only keeps the temperature constant,
but holds in the moisture as well.
The drip pan drain valve should be open when grilling. This allows the excess grease to continuously drain into the catch
bucket. The only time the drain valve should be closed is when cooking with a liquid in the pan.
Quick Temperature Reference
Valve Knob Setting Approximate Temperatures Types of Cooking
One Valve Knob Low 220°F to 250°F Slow Cooking & Smoking
Both Valve Knob Low 320°F to 350°F Roasting & Baking
Both Valve Knob Medium 375°F to 425°F Roasting & Baking
Both Valve Knob High 450°F to 550°F Grilling & Steaming
*The above temperature settings are a guide, the temperatures may vary due to wind and outside ambient temperatures.
B101748-1-0512Page 24
COOKING TIPS
Grilling
1. Place the cooking grids in the low position.
2. Preheat your grill with both valve knobs set to High for
15 minutes.
We recommend that when grilling, the valve knobs should
remain on high. This cooking method is great for hamburgers, steaks, chops, etc.
Roasting
When roasting it is important to remember that it is just like
cooking in your oven. Hint: You may want to ll the drip pan
with water or a marinade to create more avor and mois-
ture.
1. Close the drip pan drain valve and ll the pan about half
full with water or marinade.
2. Set the cooking grids at the low position.
3. Preheat the grill with both controls on High for 15 minutes.
4. Set the valve knobs to the desired temperature using
the Quick Temperature Reference Chart.
While cooking, monitor the heat indicator on the grill and
adjust temperature as necessary.
More water or marinade may need to be added to the pan
as it evaporates during cooking.
Roasted chicken, turkey or pork roasts will never taste better.
Baking
Before starting, make sure the drip tray is clean.
1. Place the cooking grids at the high position to remove
the food away from the direct heat.
2. Preheat your grill with both valve knobs set to High for
15 minutes.
3. Set the valve knobs to the desired temperature using
the Quick Temperature Reference Chart.
Use the heat indicator on the grill to more accurately adjust
the temperature.
Even cookies, pizza and desserts can be made on the
Qrave Grill.
Steaming
Before starting, make sure the drip tray is clean.
1. Set the cooking grids at the low position.
2. Close the drip pan drain valve and ll pan with water. Be
careful not to over-ll the pan.
3. Preheat your grill with both valve knobs set to High for
15 minutes.
4. The valve knobs will remain on high for steaming. Cook
until desired taste. More liquid may need to be added to
the pan as it evaporates during cooking.
Vegetables and seafood taste great when steamed in the
Qrave Grill.
Smoking
The Qrave Grill is equipped with a front load smoker box.
1. Soak your avor smoking chips in water for about 15
minutes. This will make the chips burn slower and cre-
ate more avor.
2. Remove the smoker box and ll with the soaked chips
and then replace.
3. Set the cooking grids at the low position.
4. Preheat your grill with both valve knobs set to High for
15 minutes or until you detect smoke.
5. Place the food on the grill and adjust the temperature as
desired.
Note: The left knob controls the amount of heat under the
drip tray.
This works great for adding smoke avor when grilling and
roasting.
Slow Cooking with Smoking
The Qrave Grill has dual controls for more control for those
low temperatures needed for slow cooking.
1. Adjust the cooking grids to the high position.
2. Close the drain valve and add water or marinade to the
drip pan. It is recommended to slow cook with a liquid
in the pan to keep the food from drying out. More liquid
may need to be added to the pan as it evaporates during cooking.
3. Preheat your grill with both valve knobs set to High for
15 minutes.
4. Turn off the right valve knob and turn the left valve knob
to low. Hint: The left valve knob controls the heat on
the smoker box. Add water-soaked avor chips to the
smoker tray as needed. Most chips will last about an
hour before needing to be replaced.
Turn the food once an hour when slow cooking.
Slow cooking with a Qrave Grill could mean the best ribs or
brisket your family has ever tasted.
CAUTION: Always use an oven mitt when removing
smoker box while grill is hot. Make sure chips are
cooled before emptying smoker box.
B101748-1-0512 Page 25
GRILL MAINTENANCE HISTORY
Date Maintenance Performed
B101748-1-0512Page 26
GRILL MAINTENANCE HISTORY
Date Maintenance Performed
B101748-1-0512 Page 27
COOKING TIPS
Your Broilmaster Premium Gas Grill is identied by model number, serial number, and
gas type. This information is provided on a product identication label located on the
grill’s control panel. For your convenience, complete this section for future reference
when contacting your dealer.
Model No. Dealer
Serial No. Dealer Phone No.
Gas Type: Propane Natural Date of Purchase
BROILMASTER
A Division of Empire Comfort Systems, Inc.
918 Freeburg Ave.
Belleville, Illinois 62220
Visit our web site at www.broilmaster.com
If you have a general question about our products, please e-mail us at info@empirecomfort.com.
If you have a service or repair question, please contact your dealer.
B101748-1-0512Page 28
Loading...
