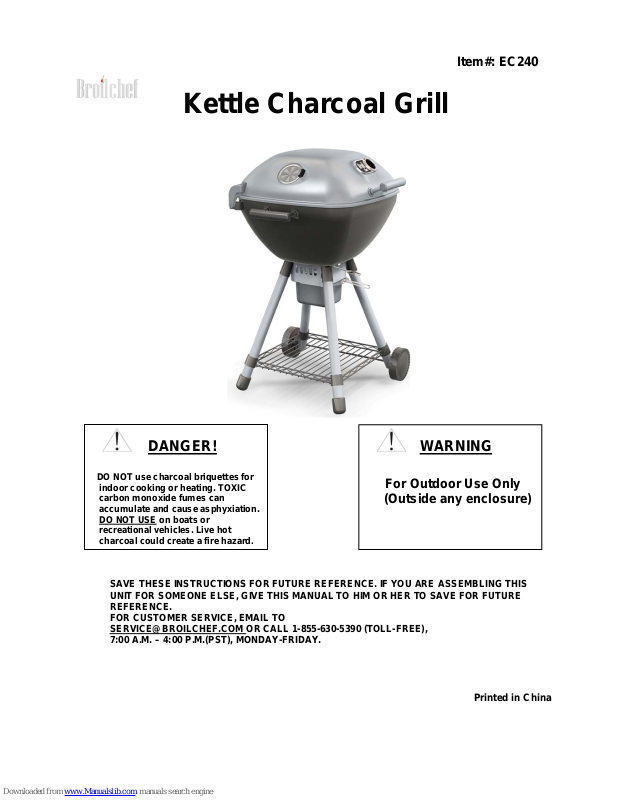

Broil King EC240 User Manual

Page 1

DANGER!

DO NOT use charcoal briquettes for indoor cooking or heating. TOXIC carbon monoxide fumes can accumulate and cause asphyxiation. DO NOT USE

on boats or recreational vehicles. Live hot charcoal could create a fire hazard

WARNING

For Outdoor Use Only

(Outside any enclosure)

Kettle Charcoal Grill

Printed in China

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. IF YOU ARE ASSEMBLING THIS UNIT FOR SOMEONE ELSE, GIVE THIS MANUAL TO HIM OR HER TO SAVE FOR FUTURE REFERENCE. FOR CUSTOMER SERVICE, EMAIL TO [email protected]

OR CALL 1-855-630-5390 (TOLL-FREE),

7:00 A.M. – 4:00 P.M.(PST), MONDAY-FRIDAY.

Item#: EC240

Page 2

EC240 Owner’s Manual

Table of Contents

For Your Safety........................................................................................................................1

Illustrated Parts List ...............................................................................................................2

Assembly Instructions............................................................................................................4-6

Lighting Your Grill……………………………………………………………………………………7

Cooking Styles.........................................................................................................................7

Helpful Hints.............................................................................................................................7

Warranty Program....................................................................................................................7

Dear Valued Customer, Congratulations on your new barbecue grill purchase! You’ve made the right choice. In this manual,

you

will find assembly instructions, suggestions for grilling and helpful hints, as well as guidelines

for

the safe operation, proper care and use of your grill. Our expert staff strives to provide you with

an easy-to-assemble product. Should

you have any questions or problems with this product, please

call

our customer service department at 1-855-630-5390, 7:00 am – 4:00 pm (PST), Monday through

Friday.

For Your Safety

Safety First! Read and understand all warnings and cautions prior to operating your grill.

WARNING

1. This grill is for outside use only, and should not be used in a building, garage or any other enclosed area.

2. This grill is for use with charcoal only.

3. The use of alcohol, prescription or non-prescription drugs may impair the user's ability to properly assemble or safely operate the appliance.

4. Do not use gasoline, kerosene or alcohol for lighting. This grill is not intended to be installed in or on recreation vehicles and/or boats.

5. Always open grill lid carefully and slowly as heat and steam trapped within the grill could cause severe burns.

6. Always place your grill on a stable and level surface far away from combustible materials. An asphalt or blacktop surface may not be acceptable for this purpose.

7. Do not attempt to move the grill while it is lit.

8. Do not leave a lit grill unattended. Keep

children and pets away from the grill at all times.

9. Do not use the grill in high winds.

10. Do not use the grill until it is COMPLETELY assembled and all parts are securely fastened and tightened.

11. Keep all combustible items and surfaces at least 12 in. (30 cm) away from the grill at all times. DO NOT use this grill or any charcoal product under any enclosure near any unprotected combustible constructions.

CAUTION

1. Do not touch metal parts of grill until it has completely cooled (at least 30 minutes) to avoid burns, unless you are wearing protective gear (pot holders, gloves, BBQ mittens, etc.).

2. Do not use in an explosive atmosphere. Keep grill area clear and free from combustible materials, gasoline and other flammable vapors and liquids.

3. Do not alter grill in any manner.

4. Do not repair or replace any part of the grill unless specifically recommended in this manual. All other service should be referred to a qualified technician.

IMPORTANT NOTICE: READ ALL INSTRUCTIONS PRIOR TO ASSEMBLY AND USE

WARNING

FOR YOUR SAFETY

DO NOT store or use gasoline or other flammable vapors and liquids within 25 ft. (8m) of this or any other appliance.

Page 3

EC240 Owner’s Manual

Illustrated Parts List

A.Top lid……………..............1pc B. Upper left hinge............…1pc C. Handle seat.....................4pcs

D. Handle..........……….…...2pcs E. Charcoal grid...........….....1pc F. Left leg........................….2pcs

G. Ash catcher......................1pc H. Bottom rack ..... ...............1pc I. Wheel cover..............……2pcs

J. Wheel..............................2pcs K. Axle..................................1pc L. Collar..................... .........2pcs

M. Right leg.........................2pcs N. Firebox.............................1pc O. Cooking grate...................1pc

P. Upper right hinge.............1pc

Page 4

EC240 Owner’s Manual

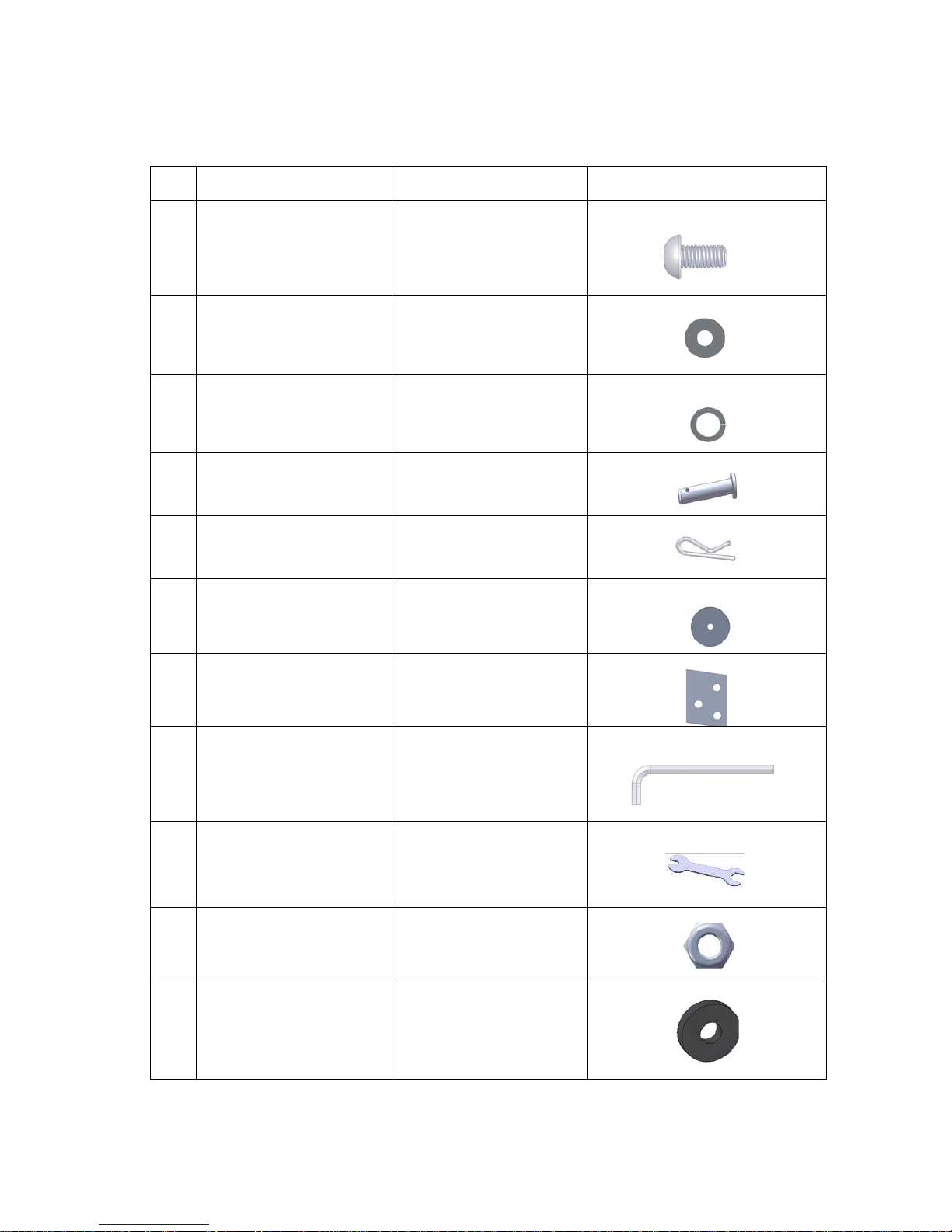

Part Description Quantity Picture

M6 x 12 Bolt 10 PCS

M6 Flat Washer 10 PCS

M6 Spring Washer 10 PCS

Lid pin 2 PCS

Hair pin 2 PCS

Handle washer 4 PCS

Hinge washer 2 PCS

Hexagon wrench 1 PC

Wrench 2 PCS

Wheel nut 2 PCS

Collar 2 PCS

Hardware pack list

Page 5

EC240 Owner’s Manual

Assembly Instructions

For Best Results

● Remove all contents from packaging, and make sure all parts are present before attempting to assemble.

● Tighten all bolt connections by hand first. Once the grill is fully assembled, go back and tighten all

connections.

● Estimated Assembly Time: 10 to 15 minutes.

● Required tools : Wrench and hexagon wrench.

Ix2 Jx2

JJ x 2

KK x 2

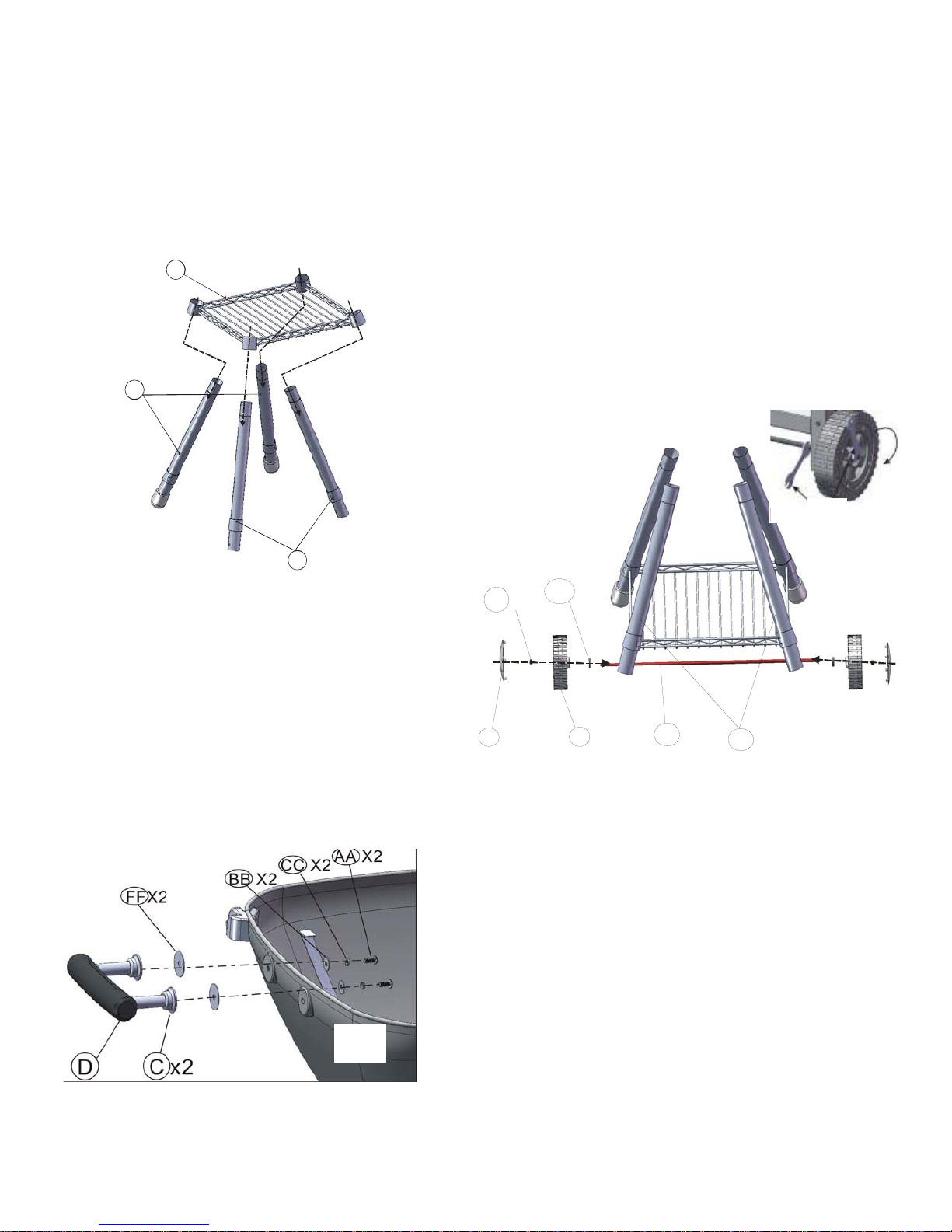

Step 1 (4 leg installation)

1): Insert two left legs (F) and two right legs (M) through the 4 rings on bottom rack (H).

Step 3 (Firebox handle & Legs assembly)

1): Align the hole on one side of firebox handle (D), on handle seat (C) and on handle washer (FF) with the hole on front side of firebox (N).

2): Insert one M6 x 12 bolt (AA), one M6 flat washer (BB) and one M6 spring washer (CC) into pre-drilled hole and tighten by hand.

3): Insert the four legs into the leg four connectors underneath firebox.

4): Go back and tighten all bolts using hexagon provided.

Note: Make certain the firebox handle is on opposite side of

the wheels.

Step 2 (Wheels installation)

1): Insert the axle (K) into the holes on the bottom of two r ight legs (M).

2): Insert one collar (KK), one wheel (J) and one wheel nut (JJ) by sequence. Secure the nut using the two wrenches (II) provided.

3): Repeat the same procedure with the other wheel on other side of the axle.

4): Cover each wheel with a wheel cap (I).

Page 6

EC240 Owner’s Manual

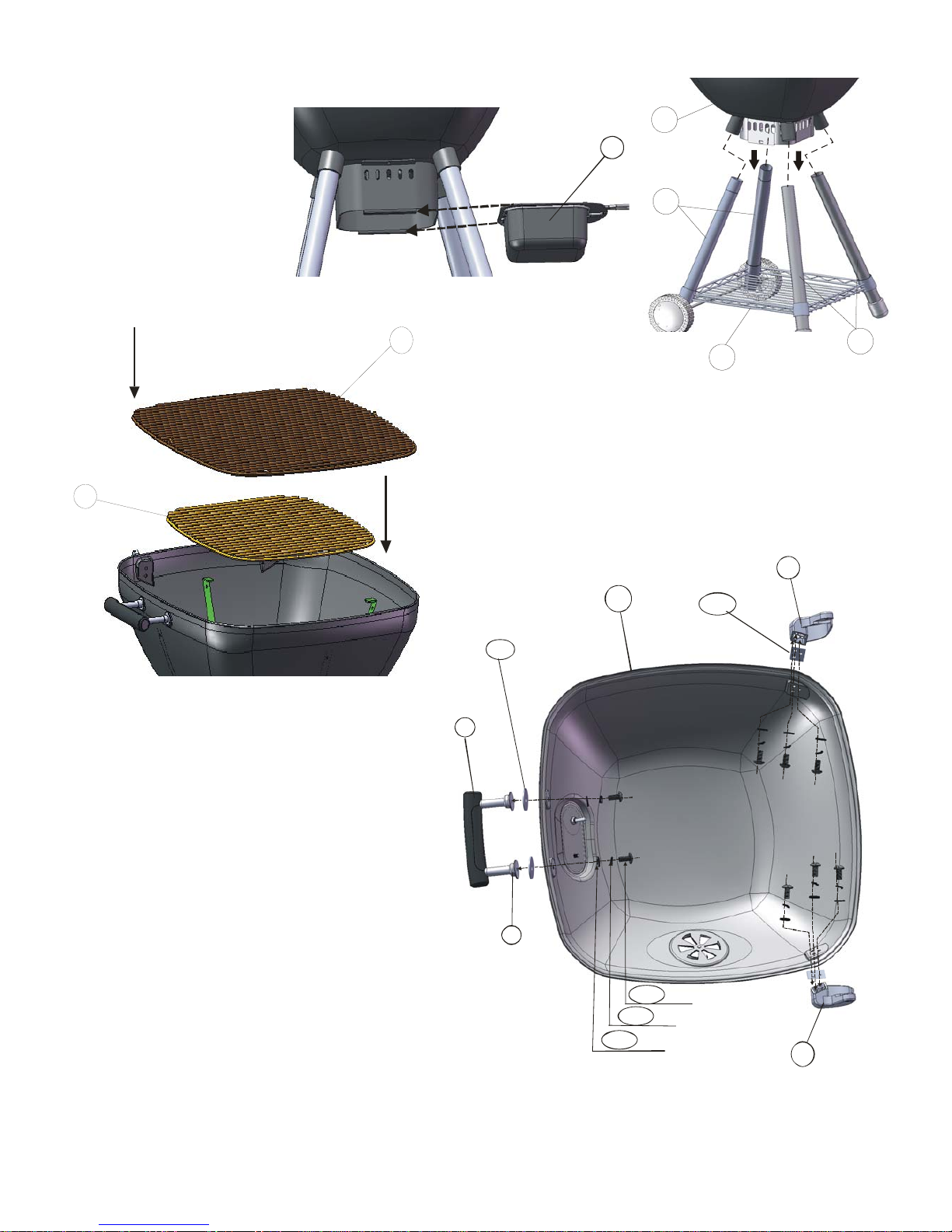

Step 4 (Legs & Ash catcher installation)

1): Insert the two right leg (M) and two left leg (F) into the seat underneath the firebox (N). Make certain the legs are inserted in place.

2): Slide the ash catcher (G) into the guide on ash catcher support undern eath firebox.

Step 6 (Lid handle & hinges installation)

1): Align the hole on one side of lid handle (D), on handle seat (C) and on handle washer (FF) with the hole on front side of lid (A).

2): Insert one M6 x 12 bolt (AA), one M6 flat washer (BB) and one M6 spring washer (CC) into predrilled hole and tighten by hand.

3): Repeat the procedure on another side of the lid handle with the lid.

4): Align the hole on upper left hinge (B) and on hinge washer (G) with the holes on back left side of the lid.

5): Insert one M6 x 12 bolt (AA), one M6 flat washer (BB) and one M6 spring washer (CC) into each pre-drilled hole and tighten by hand.

6): Repeat the procedure with the upper right hinge (P) on back right side of the lid.

7): Go back and tighten all bolts using hexagonr provided.

Step 5 (Charcoal grid & cooking grate installation)

1): Place the charcoal grid (E) into the bottom bowl.

2): Place the cooking grate (O) upon the charcoal grid.

Page 7

EC240 Owner’s Manual

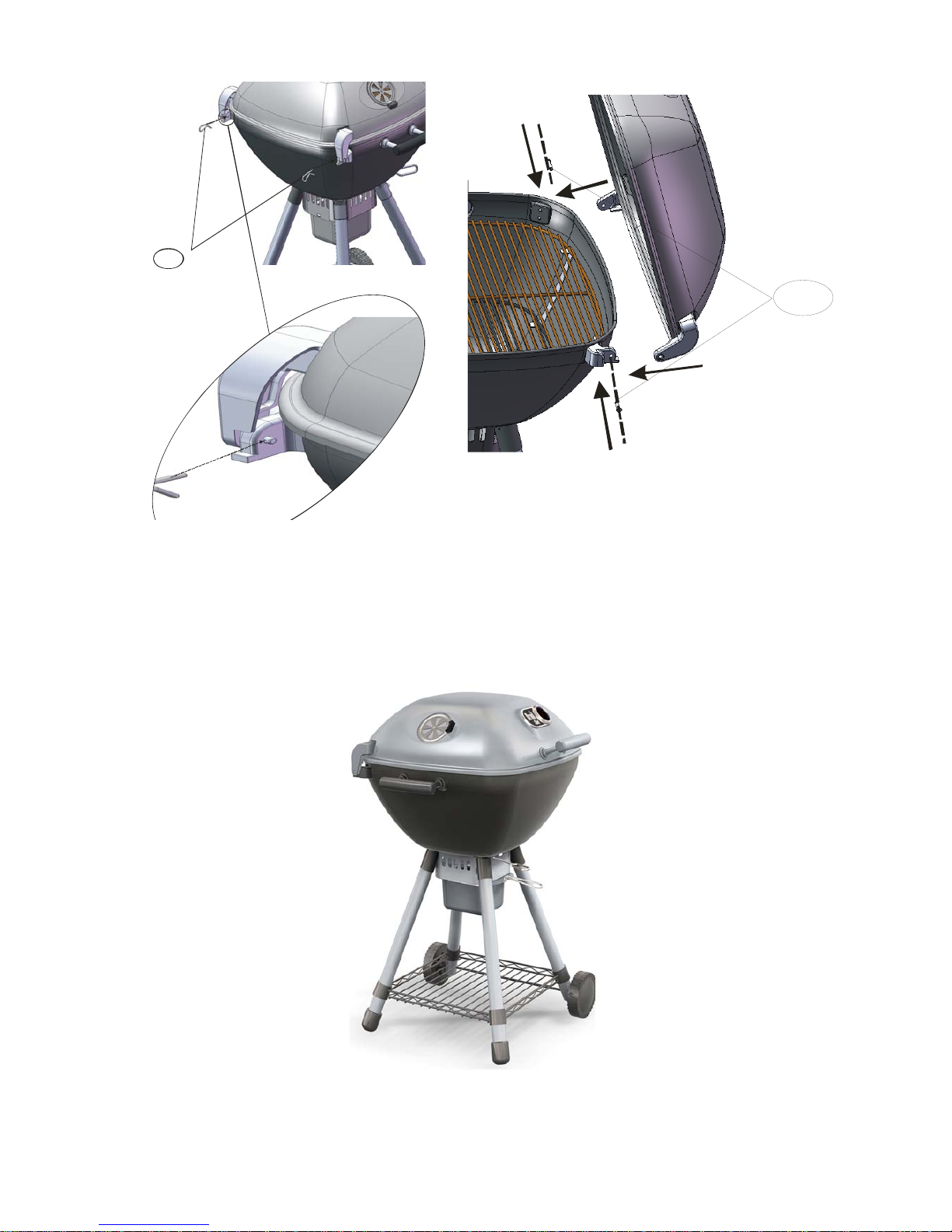

Step 7 (Lid installation)

1): Align the holes on lid hinges with the holes on firebox hinges.

2): Insert one lid pin (DD) into each hole.

3): Insert one hair pin (EE) into the hole on end of each lid pin. 4

)

: Close the lid.

EE x2

Fully Assembled

DD x2

Page 8

EC240 Owner’s Manual

Lighting Your Grill

1. Make sure the lid and vents are open.

2. Remove the cooking grid. Pile adequate amounts of charcoal in the center of the charcoal grid and shape into a pyramid.

3. If you are using regular charcoal and intend to use lighter fluid, apply fluid according to the instruction on the container. Allow lighter fluid to soak into the charcoal for approximately 1 minute before lighting.

4. If you are using an electric fire starter, do not add lighter fluid or lighter charcoal in accordance with the manufacturer’s fire starter instructions.

5. If you are using instant-light charcoal, do not use alternate lighting methods.

6. Allow the charcoal to burn approximately 15-20 minutes or until all the charcoal is lightly coated with gray ash.

Cooking Styles

1. Direct Grilling: When the coals are covered with ash, use a long-handled cooking utensil and protective cooking mitts to spread the charcoal evenly over the charcoal grid. Place the cooking grid back onto the grill and arrange the food onto the cooking grid. Food can be cooked with the lid open or closed.

2. Indirect Grilling: When the charcoal is covered with ash, use a long-handled cooking utens il and protective cooking mitts to arrange the charcoal in a donut shape. Leave an open space in the center. Place a small drip pan (not included) in the center of the charcoal to catch the drippings.

3. Smoking: Soak any fragrant wood chips in water overnight so they will not burn when placed on the charcoal. After spreading the charcoal, according to direct grilling method above, place wood chips on top of the charcoal. Cook with lid closed and the cooking grid, if adjustable, set to its highest setting.

Helpful Hints

1. Store charcoal in a dry place. If storing outside, seal the charcoal in a waterproof container.

2. During cooking, if the lid is not hinged, lift it to one side instead of staright up. Lifting the lid straight up could create a vacuum within the grill that could suck ash into the food.

3. When cleaning the grill, DO NOT

use abrasive cleaners. It could damage parts of the grill. Clean the grids and

pans with mild detergent. Rinse thoroughly with water. Remove and dispose of ash properly.

One-Year Limited Warranty

Top lid, chrome-plated wire cooking grid, zinc-plated charcoal grid, bottom bowl, handle and all other parts are warranted against defects in material and workmanship for one year.

The warranty is nontransferable

● It does not cover damage due to misuse or improper installation or maintenance.

● The warranty is for replacement or repair of defective parts only. Manufacturer will not be responsible for incidental

or consequential damages or any labor costs.

● This limited warranty does not cover damage due to chipping and scratching of porcelain or painted surfaces nor

does it cover corrosion or discoloration due to misuse, lack of maintenance,

harsh environment, accidents,

alterations, abuse or neglect.

● This limited warranty does not cover scratches, dents, corrosion or discoloration caused by heat, abrasive or

chemical cleaners nor chipping on porcelain enamel parts.

Customers will be subject to parts, shipping and handling fees if uable to provide proof of purchase or if the warranty has expired. Some states do not allow the limitation or exclusion of incidenta l or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state. For warranty claims or questions related to the product, please email us at [email protected]

or call

our service center at 1-855-630-5390, Monday through Friday.

Manufactured by:

Lucas BBQ Co., Ltd. Room 508, Eking Building, Shida Rd., Liaobu Town, Dong

Guan City, Guang Dong, China.

Printed in China
