Broil King BR-7W, BR-5W, BR-5B, BR-7B User Manual

CLEANING & MAINTENANCE INSTRUCTIONS (contd.)

4) Clean the element and drip area.

5) To replace the element, reverse the above directions.

6) Use damp sudsy cloth to clean baked enamel and or chrome finished
surtaces - NEVER USE ABRASIVES OR STEEL WOOL ON FINISHED
SURFACES.

7) Thoroughly wipe soap and water from surface or range and heafing element
DO NOT IMMERSE IN LIQUID.

Caution: Heating element may be hot without glowing red. Be sure elenment
is cool before touching.

Unplug unit when not in use.

LIMITED ONE-YEAR WARRANTY

This product is warranted to be free from defects in material and workmanship
under normal use and service for a period of one (1) year from the date of
purchase by the user thereof,or for a maximum period of eighteen (18) months
from the date of manufacture if unit was a gift (refer to ink stamp or black dated
sticker on appliance; removing sticker voids the warranty.
To obtain service during warranty period, call BroilKing* at 860-738-2200 for
a Return Authorization Number to write on the carton. Then return the
appliance, insured and freight prepaid, to the BroilKing factory: BroilKing Corp.,
143 Colebrook River Road, Winsted, CT 06098, Phone: [phone], Fax:
860-738-9404). Proof of purchase is required when requesting warranty service

- SAVE YOUR SALES RECEIPT. Send a copy of your receipt along with a note
stating your name, address, phone number, and the nature of the problem, and
requesting warranty service. Be sure to package the unit carefully; we are not
responsible for damage occurring during shipment to the repair facility.
This warranty is extended only to the original purchaser and does not apply
to shipping damage, accidental breakage, alteration, tampering, misuse or
abuse, commercial use, unreasonable use, or to damage to the product (not
resulting from defect or malfunction) while in the possession of the consumer.
Lost or broken cordsets, breakage of glass, nonstick or other coatings are not
covered by this warranty.
BroilKing Corp. disclaims all responsibility for consequential, incidental, or
commercial losses caused by the use of this product. Some states do not allow
this exclusion or limitation of incidental or consequential losses, so the
foregoing disclaimer may not apply to you. This warranty gives you specific
legal rights, and you may also have other legal rights, which vary from state to
state. Warranty is applicable only in USA and Canada*. (*Canadian customers
contact PGS Commercial Equipment in Ontario, Tel. [phone].)

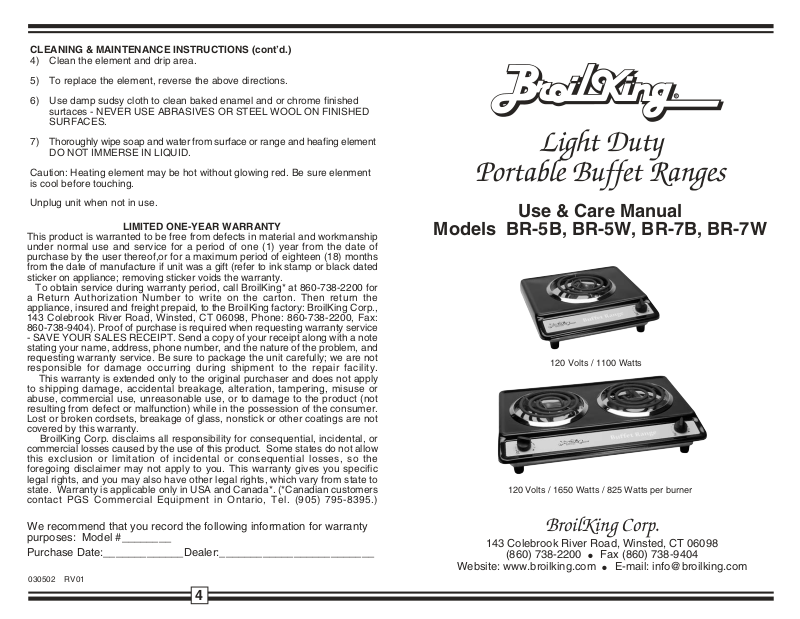

Light Duty

Portable Buffet Ranges

Use & Care Manual

Models BR-5B, BR-5W, BR-7B, BR-7W

120 Volts / 1100 Watts

120 Volts / 1650 Watts / 825 Watts per burner

We recommend that you record the following information for warranty
purposes: Model #________

Purchase Date:_____________Dealer:_________________________

030502 RV01

4

BroilKing Corp.

143 Colebrook River Road, Winsted, CT 06098

[phone] l Fax [phone]

Website: www.broilking.com

l E-mail: [e-mail]

This is a UL Listed appliance. The following important safeguards are

recommended by most portable appliance manuffacturers.

IMPORTANT SAFEGUARDS

To reduce the risk of personal injury or property damage when using electrical
appliances, basic safety precautions should always be followed, including the
following:

1. READ ALL INSTRUCTIONS BEFORE USE.

2. Do not touch hot surfaces! Always use hot pad or pot holder until unit
cools.

3. To protect against electrical shock, do not immerse cord, plug or appliance
in water or other liquid.

4. Close supervision is necessary when any appliance is used by or near
children.

5. Unplug from outlet when not in use and before cleaning. Allow to cool
before putting on or taking off parts, and before cleaning the appliance.

6. Do not operate any appliance with a damaged cord or plug or after the
appliance malfunctions or has been damaged in any manner.
Contact the BroilKing Factory Service Department at [phone]
for examination, repair or adjustment.

7. The use of accessory attachments not recommended by the appliance
manufacturer may cause injuries.

8. Do not use outdoors.

9. Do not use appliance for other than intended use.

10. Do not let cord hang over edge of table or counter or touch hot surfaces.

11. Do not place on or near a hot gas or electric burner or in a heated oven.

12. It is recommended that this appliance not be moved when it contains hot
oil or other hot liquid.

13. Always plug cord into wall outlet before turning unit on with control knob.
To disconnect, turn control to "OFF", then remove plug from wall outlet.

14. Do not clean with metal scouring pads. Pieces can break off the pad and
touch electrical parts, creating a shock hazard.

15. A fire may occur if this appliance is covered or touching flammable

material, including curtains, walls, etc., when in operation. To avoid

excessive heat on wall(s) while cooking, always keep a space of at
least 4 between your BroilKing range and your rear and side walls.

SAVE THESE INSTRUCTIONS

This product is for household use only.

l When performing any cleaning or maintenance to this unit, be sure to

unplug from power outlet first, and allow to cool.

l Call BroilKing Customer Service at 860-738-2200 with any questions or

service needs.

OPERATING INSTRUCTIONS

1. Avoid letting water or food drop or boil over onto heating element.
If liquids or other foreign material are allowed to drip down through
the element pan and into the housing, the warranty is voided.

2. Signal light, on models so equipped, will come on when range is plugged
into electric outlet.

3. This is a light duty range with a 5-1/2 diameter heating element. As with
all countertop ranges as well as stovetops, the most efficient cooking /
heating will be done when using pans that are closest in diameter to the
heating element. The pot or pan used should not exceed the heating
element diameter.

4. Be sure your Portable Buffet Range is resting level on countertop. Avoid
using pans that are unstable and easily tipped.

5. To avoid excessive heat on wall(s) while cooking, always keep a space
of at least 4 between your BroilKing range and your rear and side

walls.

6. To avoid harm to your countertop, place range on a wood cutting board
or hot pad when in use.

CLEANING & MAINTENANCE INSTRUCTIONS

1. Always unplug buffet range from electric outlet and allow to cool before
cleaning.

2. The element hookup configuration has been changed to improve the
longevity of the elements. The new configuration requires a different
procedure to remove the element, if necessary for cleaning. (You may
also clean the elements without removing them by gripping an element
at the point opposite where it goes into the holes in the drip pan and tilting
it up. Do not force it up higher than it will go easily.)

IMPORTANT NOTES

l Electrical connection must be a proper outlet for the 3 pronged cord.

Before connecting power, make sure the voltage and frequency
correspond to the data plate on the unit.

l A short power supply cord (or cord set) has been provided to reduce the

hazards resulting from becoming entangled in or tripping over a longer cord.
Longer cord sets or extension cords may be used if care is properly exercised
in their use. If a long cord set or extension cord is used, the marked electrical
rating of the cord set or extension cord should be at least as great as the electrical
rating of the appliance. The longer cord should be arranged so that it will not
drape over the counter top or table top where it can be pulled on by children or
tripped over accidentally.

2

3) To remove an element (Tools needed: pliers and slotted screwdriver):

l Be sure range is disconnected from electricity and the element is cool.
l Locate the round push nut on the underside of the unit (directly below

the element you want to remove.) You may need to apply pressure to the
underside of the unit next to the push nut in order relieve the pressure that
holds it in place in order to get a grip on it with pliers.

l While the pliers are gripping the push nut, use a screwdriver to loosen

and remove the screw in the center of the drip pan.

l Pull the element up slightly. There are 2 pieces of rubber sleeve on

the wires attached to the element. Gently slide the rubber sleeves back
and remove the element by detaching the "quick-disconnect" terminal.

3
