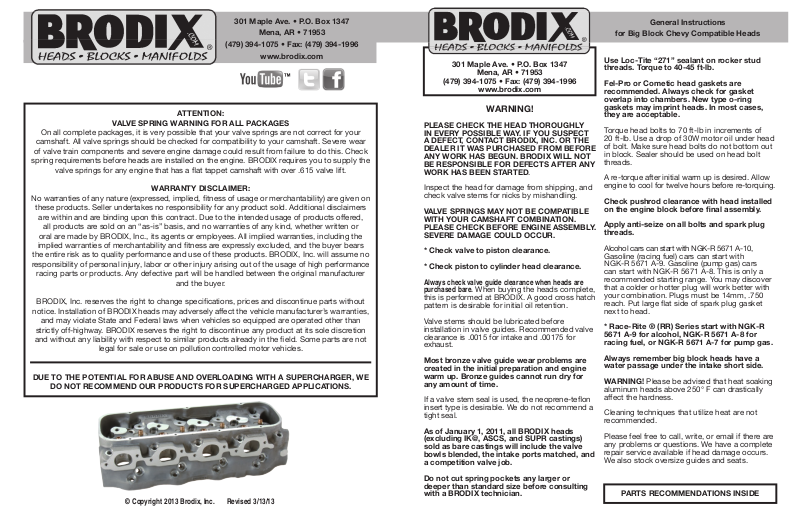

General Instructions
for Big Block Chevy Compatible Heads
www.brodix.com
™
ATTENTION:
VALVE SPRING WARNING FOR ALL PACKAGES
On all complete packages, it is very possible that your valve springs are not correct for your
camshaft. All valve springs should be checked for compatibility to your camshaft. Severe wear
of valve train components and severe engine damage could result from failure to do this. Check
spring requirements before heads are installed on the engine. BRODIX requires you to supply the
valve springs for any engine that has a fl at tappet camshaft with over .615 valve lift.
WARRANTY DISCLAIMER:
No warranties of any nature (expressed, implied, fi tness of usage or merchantability) are given on
these products. Seller undertakes no responsibility for any product sold. Additional disclaimers
are within and are binding upon this contract. Due to the intended usage of products offered,
all products are sold on an “as-is” basis, and no warranties of any kind, whether written or
oral are made by BRODIX, Inc., its agents or employees. All implied warranties, including the
implied warranties of merchantability and fi tness are expressly excluded, and the buyer bears
the entire risk as to quality performance and use of these products. BRODIX, Inc. will assume no
responsibility of personal injury, labor or other injury arising out of the usage of high performance
racing parts or products. Any defective part will be handled between the original manufacturer
and the buyer.
BRODIX, Inc. reserves the right to change specifi cations, prices and discontinue parts without
notice. Installation of BRODIX heads may adversely affect the vehicle manufacturer’s warranties,
and may violate State and Federal laws when vehicles so equipped are operated other than
strictly off-highway. BRODIX reserves the right to discontinue any product at its sole discretion
and without any liability with respect to similar products already in the fi eld. Some parts are not
legal for sale or use on pollution controlled motor vehicles.
DUE TO THE POTENTIAL FOR ABUSE AND OVERLOADING WITH A SUPERCHARGER, WE
DO NOT RECOMMEND OUR PRODUCTS FOR SUPERCHARGED APPLICATIONS.
301 Maple Ave. • P.O. Box 1347
Mena, AR • 71953
(479) 394-1075 • Fax: (479) 394-1996
www.brodix.com
WARNING!
PLEASE CHECK THE HEAD THOROUGHLY
IN EVERY POSSIBLE WAY. IF YOU SUSPECT
A DEFECT, CONTACT BRODIX, INC. OR THE
DEALER IT WAS PURCHASED FROM BEFORE
ANY WORK HAS BEGUN. BRODIX WILL NOT
BE RESPONSIBLE FOR DEFECTS AFTER ANY
WORK HAS BEEN STARTED.
Inspect the head for damage from shipping, and
check valve stems for nicks by mishandling.
VALVE SPRINGS MAY NOT BE COMPATIBLE
WITH YOUR CAMSHAFT COMBINATION.
PLEASE CHECK BEFORE ENGINE ASSEMBLY.
SEVERE DAMAGE COULD OCCUR.
* Check valve to piston clearance.
* Check piston to cylinder head clearance.
Always check valve guide clearance when heads are
purchased bare. When buying the heads complete,
this is performed at BRODIX. A good cross hatch
pattern is desirable for initial oil retention.
Valve stems should be lubricated before
installation in valve guides. Recommended valve
clearance is .0015 for intake and .00175 for
exhaust.
Most bronze valve guide wear problems are
created in the initial preparation and engine
warm up. Bronze guides cannot run dry for
any amount of time.
If a valve stem seal is used, the neoprene-tefl on
insert type is desirable. We do not recommend a
tight seal.
As of January 1, 2011, all BRODIX heads
(excluding IK@, ASCS, and SUPR castings)
sold as bare castings will include the valve
bowls blended, the intake ports matched, and
a competition valve job.
Use Loc-Tite “271” sealant on rocker stud
threads. Torque to 40-45 ft-lb.
Fel-Pro or Cometic head gaskets are
recommended. Always check for gasket
overlap into chambers. New type o-ring
gaskets may imprint heads. In most cases,
they are acceptable.
Torque head bolts to 70 ft-lb in increments of
20 ft-lb. Use a drop of 30W motor oil under head
of bolt. Make sure head bolts do not bottom out
in block. Sealer should be used on head bolt
threads.
A re-torque after initial warm up is desired. Allow
engine to cool for twelve hours before re-torquing.
Check pushrod clearance with head installed
on the engine block before fi nal assembly.
Apply anti-seize on all bolts and spark plug
threads.
Alcohol cars can start with NGK-R 5671 A-10,
Gasoline (racing fuel) cars can start with
NGK-R 5671 A-9. Gasoline (pump gas) cars
can start with NGK-R 5671 A-8. This is only a
recommended starting range. You may discover
that a colder or hotter plug will work better with
your combination. Plugs must be 14mm, .750
reach. Put large fl at side of spark plug gasket
next to head.
* Race-Rite ® (RR) Series start with NGK-R
5671 A-9 for alcohol, NGK-R 5671 A-8 for
racing fuel, or NGK-R 5671 A-7 for pump gas.
Always remember big block heads have a
water passage under the intake short side.
WARNING! Please be advised that heat soaking
aluminum heads above 250° F can drastically
affect the hardness.
Cleaning techniques that utilize heat are not
recommended.
Please feel free to call, write, or email if there are
any problems or questions. We have a complete
repair service available if head damage occurs.
We also stock oversize guides and seats.
© Copyright 2013 Brodix, Inc. Revised 3/13/13
Do not cut spring pockets any larger or
deeper than standard size before consulting
with a BRODIX technician.
PARTS RECOMMENDATIONS INSIDE
BRODIX® Big Block Head Bolts Head Studs Head Gaskets Intake Exhaust Manifolds Rocker
Cylinder Heads Cast Iron Block Cast Iron or Alum. Block Gaskets Gaskets
RR BB-O, JJ 270 AR 135-3601 AR 135-4001 (6 pt) 4.310-FP 1027, CO C5432 FP 1210 FP 1411 HV 2007 (4150 TOP) STD, SP STANDARD WITH
AR 235-4601 (12 pt) 4.500-FP 1047 OR FP 17048* CO C5430 CO C5429 EDELBROCK 7561, DP 7/16 ROCKER STUDS
SK HS BIG BLOCK RR (ALUM BLOCK) 4.540-FP 1017-1, CO C5433 HV 2008 (4500 TOP) STD, SP
4.630-FP 1057, CO C5434
4.630-FP 1067 OR FP 17049*
RR BB-R, JJ 294 AR 135-3601 AR 135-4001 (6 pt) 4.310-FP 1027, CO C5432 FP 1211 (RR BB-R, JJ 294) FP 1411 HV 2000 (4150 TOP) STD, SP STANDARD WITH
RR BB-2 PLUS AR 235-4601 (12 pt) 4.500-FP 1047 OR FP 17048* MG 2001 (RR BB-2 PLUS, STS RR BB-2 PLUS) CO C5429 HV 2016 (4150 TOP) STD, DP 7/16 ROCKER STUDS
STS RR BB-2 PLUS SK HS BIG BLOCK RR (ALUM BLOCK) 4.540-FP 1017-1, CO C5433 FP 1252-3 (RR BB-2 PLUS, STS RR BB-2 PLUS) HV 2001 (4500 TOP) STD, SP
4.630-FP 1057, CO C5434 CO C5428 (RR BB-2 PLUS, STS RR BB-2 PLUS) HV 2005 (4500 TOP) TALL, SP
4.630-FP 1067 OR FP 17049* HV 2006 (4150 TOP) TALL, SP
BB-1 MA 42192 AR 235-4502 (6 pt) 4.310-FP 1027, CO C5432 MG 2001 FP 1411 HV 2016 (4150 TOP) STD, DP STANDARD WITH
STS BB-1 AR 135-3606 AR 235-4702 (12 pt) 4.500-FP 1047 OR FP 17048* CO C5428 CO C5429 HV 2000 (4150 TOP) STD, SP 7/16 ROCKER STUDS
AR 235-4714 (12 pt)* 4.540-FP 1017-1, CO C5433 FP 1252-3 HV 2001 (4500 TOP) STD, SP T & D 3040-WITH DOWEL PIN
SK HS BIG BLOCK (ALUM BLOCK) 4.630-FP 1057, CO C5434 HV 2005 (4500 TOP) TALL, SP T & D 3117, ONE-PIECE INTAKE STAND
4.630-FP 1067 OR FP 17049* HV 2006 (4150 TOP) TALL,SP
BB-2 MA 42192 AR 235-4502 (6 pt) 4.310-FP 1027, CO C5432 MG 2001 FP 1411 HV 2016 (4150 TOP) STD, DP STANDARD WITH
BB-2 PLUS AR 135-3606 AR 235-4702 (12 pt) 4.500-FP 1047 OR FP 17048* CO C5428 CO C5429 HV 2000 (4150 TOP) STD, SP 7/16 ROCKER STUDS
STS BB-2 PLUS AR 235-4714 (12 pt)* 4.540-FP 1017-1, CO C5433 FP 1252-3 HV 2001 (4500 TOP) STD, SP T & D 3040-WITH DOWEL PIN
SK HS BIG BLOCK (ALUM BLOCK) 4.630-FP 1057, CO C5434 HV 2005 (4500 TOP) TALL, SP T & D 3117, ONE-PIECE INTAKE STAND
4.630-FP 1067 OR FP 17049* HV 2006 (4150 TOP) TALL, SP
BB-2X MA 42192 AR 235-4502 (6 pt) 4.310-FP 1027, CO C5432 MG 2001 FP 1411 HV 2000 (4150 TOP) STD, SP STANDARD WITH
BB-2 XTRA AR 135-3606 AR 235-4702 (12 pt) 4.500-FP 1047 OR FP 17048* CO C5428 CO C5429 HV 2001 (4500 TOP) STD, SP 7/16 ROCKER STUDS
BP BB-2 XTRA AR 235-4714 (12 pt)* 4.540-FP 1017-1, CO C5433 FP 1252-3 HV 2005 (4500 TOP) TALL, SP T & D 3041-WITH DOWEL PIN (BB-2X,
BB-3 AR 235-4702 (12 pt) 4.560-FP 1057, CO C5433 HV 2006 (4150 TOP) TALL, SP BB-2 XTRA, BP BB-2 XTRA)
BB-3 XTRA SK HS BIG BLOCK (ALUM BLOCK) 4.630-FP 1057, CO C5434 SA 2013 (4500 TOP) STD, SP T & D 3116 (BB-3 XTRA O)
BP BB-3 XTRA 4.630-FP 1067 OR FP 17049* SA 2022 (4500 TOP) TALL, SP T & D N/A (BB-3)
BP BB-3 XTRA 380 BM 2017** (4500 TOP) STD, SP T & D 3104, ONE-PIECE INTAKE STAND
BM 2027** (4500 TOP) TALL, SP (BB-2X, BB-2 XTRA, BP BB-2 XTRA)
BP BB-3 XTRA O 332 MA 42192 AR 235-4702 (12 pt) 4.310-FP 1027, CO C5432 MG 2050 (332) FP 1411 SA 2017 (4500 TOP) STD, SP STANDARD WITH
BP BB-3 XTRA O 351 AR 135-3606 AR 235-4714 (12 pt)* 4.500-FP 1047 OR FP 17048* MG 2104 (351, 335) CO C5429 SA 2027 (4500 TOP) TALL, SP 7/16 ROCKER STUDS
BP BB-3 XTRA O 365 SK HS BIG BLOCK (ALUM BLOCK) 4.540-FP 1017-1, CO C5433 MG 2150 (365) BM 2017** (4500 TOP) STD, SP T & D 3116 (BB-3 XTRA O)
BB-3 XTRA O 4.630-FP 1057, CO C5434 BM 2027** (4500 TOP) TALL, SP
(OVAL PORT HEADS) 4.630-FP 1067 OR FP 17049* (OVAL PORT GASKETS)
BP HH BB 383 MA 42192 AR 235-4502 (6 pt) 4.500-FP 1047 or FP 17048* MG 2177 FP 1412 SA 2017 (4500 TOP) STD, SP T & D 3124 (STD 383)
BP HH BB 383 MC AR 135-3606 AR 235-4702 (12 pt) 4.540-FP 1017-1, CO C5433 CO C5418 SA 2027 (4500 TOP) TALL, SP T & D 3125 (383 MC, 395 MC)
BP HH BB 395 MC AR 235-4714 (12 pt)* 4.630-FP 1057, CO C5434 BM 2017** (4500 TOP) STD, SP JESEL KCS 284139 (STD 383)
SK HS BIG BLOCK (ALUM BLOCK) 4.630- FP 1067 or FP 17049* BM 2027** (4500 TOP) TALL, SP JESEL KPS 372150 (383, 383 MC, 395 MC)
(OVAL PORT HEADS) (OVAL PORT GASKETS)
STS BB-4 XTRA MA 42192 AR 235-4502 (6 pt) 4.500-FP 1047 OR FP 17048* MG 2001 FP 1411 SA 2012 (4500 TOP) STD, SP STANDARD WITH
BB-5 AR 135-3606 AR 235-4702 (12 pt) 4.540-FP 1017-1, CO C5433 CO C5428 CO C5429 SA 2020 (4500 TOP) TALL, SP 7/16 ROCKER STUDS
AR 235-4714 (12 pt)* 4.630-FP 1057, CO C5434 FP 1252-3 T & D 3042-WITH DOWEL PIN
SK HS BIG BLOCK (ALUM BLOCK) 4.630-FP 1067 OR FP 17049*
BP SR 20 N/A SK HS SR 20 (ALUM BLOCK) 4.600 FP 1057, CO 5434 MG 2021 FP 1412 BM 2020 (4500 TOP) STD, SP T&D 3142
AR 235-4323 (CAST IRON BLOCK) 4.630 FP 1067 OR FP 17049* BM 2021 (4500 TOP) TD, SP JESEL KPS 441184
DO NOT CUT SPRING POCKETS WITHOUT CONTACTING A BRODIX TECHNICIAN.
* GEN V OR GEN VI BLOCKS REQUIRE SPECIAL HEAD STUDS AND HEAD GASKETS ** OVAL PORT MANIFOLD MUST BE PORT MATCHED TO FIT RECTANGULAR PORT HEADS
ABBREVIATIONS: AR - ARP, BR & MG - BRODIX, CO - COMETIC GASKETS, DP - DUAL PLANE, FP - FEL-PRO, MA - MANLEY, SP - SINGLE PLANE, STD - STANDARD DECK HEIGHT, TALL - TALL DECK HEIGHT
