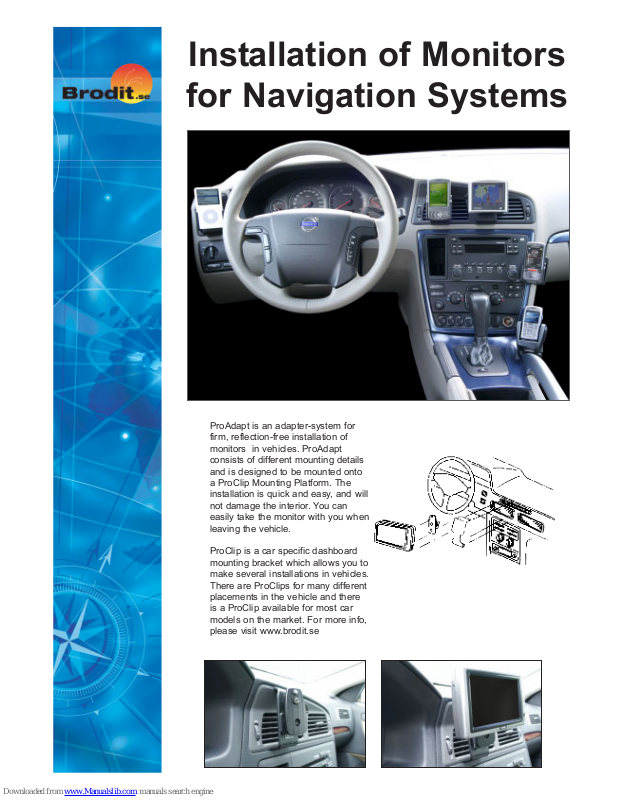

Installation of Monitors
for Navigation Systems
ProAdapt is an adapter-system for
firm, reflection-free installation of
monitors in vehicles. ProAdapt
consists of different mounting details
and is designed to be mounted onto
a ProClip Mounting Platform. The
installation is quick and easy, and will
not damage the interior. You can
easily take the monitor with you when
leaving the vehicle.
ProClip is a car specific dashboard
mounting bracket which allows you to
make several installations in vehicles.
There are ProClips for many different
placements in the vehicle and there
is a ProClip available for most car
models on the market. For more info,
please visit www.brodit.se
Page 2
233112 708
Tel +46 (0)505 109 00
Fax +46 (0)505 445 72
Gesällvägen 8
546 34 Karlsborg, Sweden
[email protected]
www.brodit.se
213035 Tilt Swivel Plate,
angled 90° , centered
Install onto a flat, horizontal
surface. Fits monitors with a
vertical slot in back.
213034 Tilt Swivel Plate,
parallell center point
The choice for an adjustable
screen angle, the screen will be
placed to the left/right of the
center of the ProClip. Fits
monitors with a vertical slot in
back. Install onto ProClip.
213032 Tilt Swivel Plate,
centered
The choice for an adjustabel
screen angle. Fits monitors with
a vertical slot in back. Install
onto ProClip.
213047 Angled face plate
20°, centered
The choice for a fixed, angled
screen position. Fits monitors
with a vertical slot in back.
Install onto ProClip.
213050 Tilt Swivel Plate,
centered Low
Smaller, lower face plate. The
choice for an adjustable monitor
angle. Fits monitors with a
vertical slot in back.Install onto
ProClip.
213261 Tilt Swivel Plate,
centered Low
Smaller, lower face plate. The
choice for an adjustable monitor
angle. Fits VDO Dayton 5000,
MM 5500. Install onto ProClip.
213040 Mounting Plate
for Remote Control
A mounting plate for the remote
control. Is to be placed below
the monitor, onto the same
ProClip as the monitor.
213067 Adapterplate for
Tablet DVD, with tilt
swivel, centered
The choice when you want to
install a monitor without a
vertical slot on the back (with a
hole underneath for thumb
screw attachment, (“-thread)
onto a ProAdapt product.
215021 Monitor mount
with tilt swivel, angled
90°.
Fits a number of monitor models
with a hole underneath for
thumb screw attachment (“thread). Install onto a horizontal
surface.
213069 Mounting plate for
Tablet DVD, with tilt
swivel, centered
The choice for an adjustable
monitor angle. Fits a number of
monitor models with a hole
underneath for thumb screw
attachment (“-thread). Install
onto ProClip.
