Page 1
INTRODUCING THE
FROM
Installation Instructions
Page 2
app Bolster Application
1
2
3
Final
1) Slide the Bolster on to the Wing with the buckles facing the chair
2) Place the buckles through the straps of the chair and around Bolster to buckle
3) Buckle the Bolster in place and adjust buckle/straps as needed to ensure the Bolster in safely secured
Page 3
app Foot Piece Application
1
1) Locate the opening on the bottom portion of the Foot Pad
2) Slide foot pad on to foot rest, then flip footrests up
3) Snap buckles to hold foot pad in place
2
3
Final

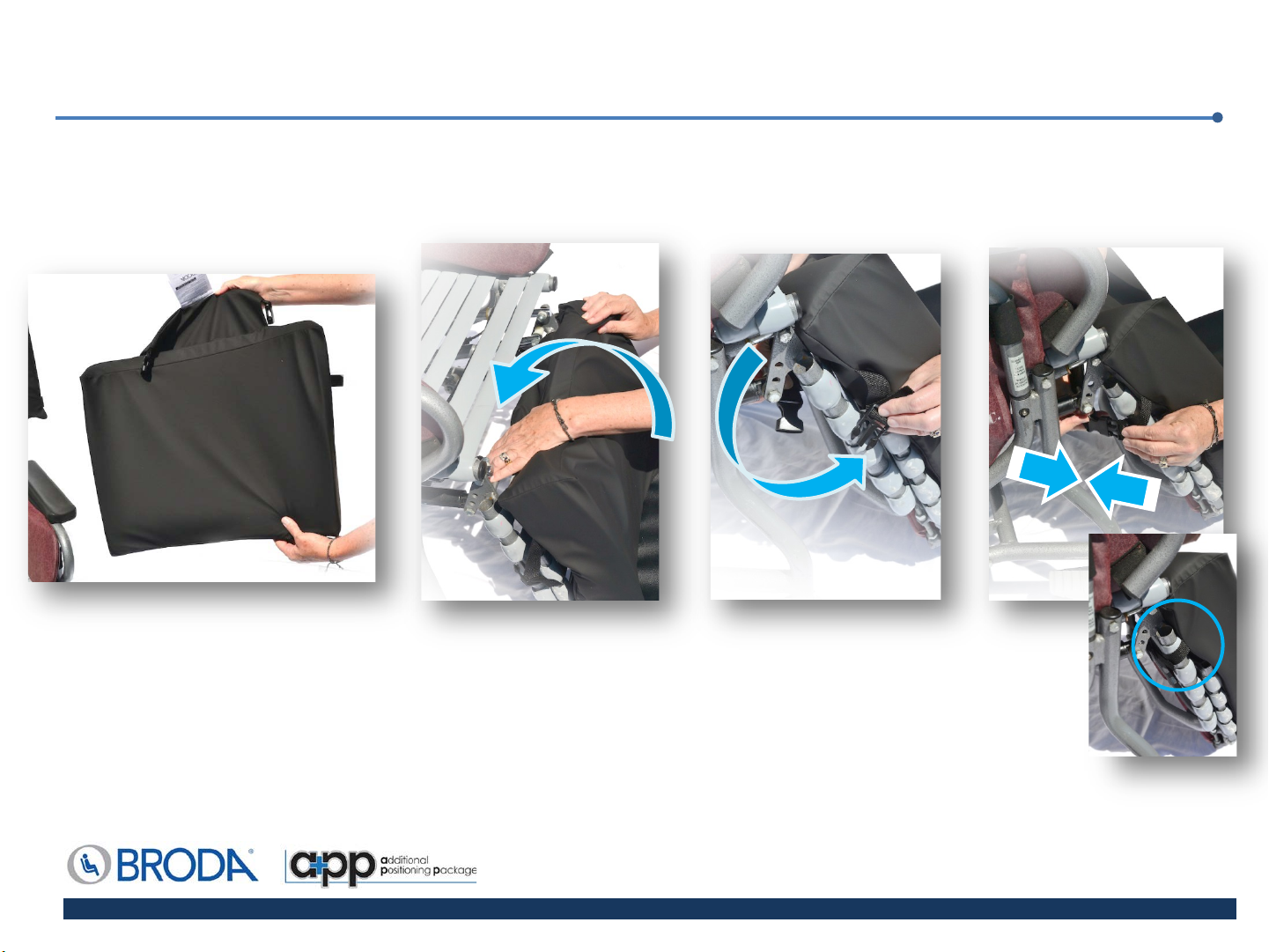

Page 4
app Calf Pad Application
2
1
1) Slightly raise the legrest and fold down the footrest
2) Position the Calf Pad so that it is lying flat against the calf rest and place the attached
3
4
cover over the top strap of the calf rest
3) Wrap the buckles around the side of the calf rest securing the calf pad in place
4) Adjust straps as needed to ensure calf pad stays in place and is secure

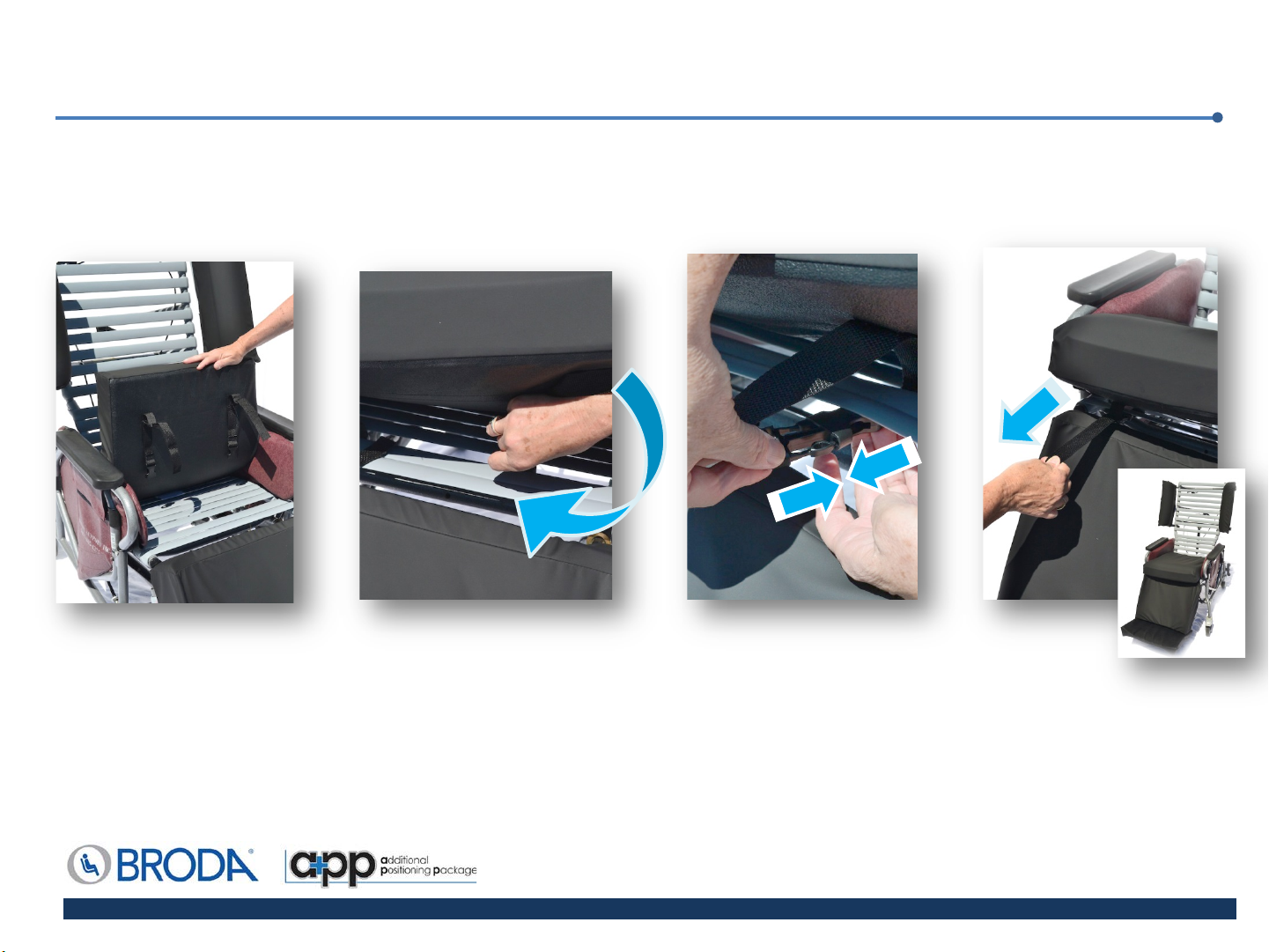

Page 5
app Seat Application
1
1) Remove existing padding on t
2) Place the app Seat Cushion on to the seat with buckles facing the seat
2
he wing, back, seat,leg and foot rest
3
4
3) Connect the buckles by placing them through the straps of the chair
4) Adjust the straps as needed to appropriately secure the seat cushion to the chair
5) Ensure all extra strapping is safely tucked away under the chair

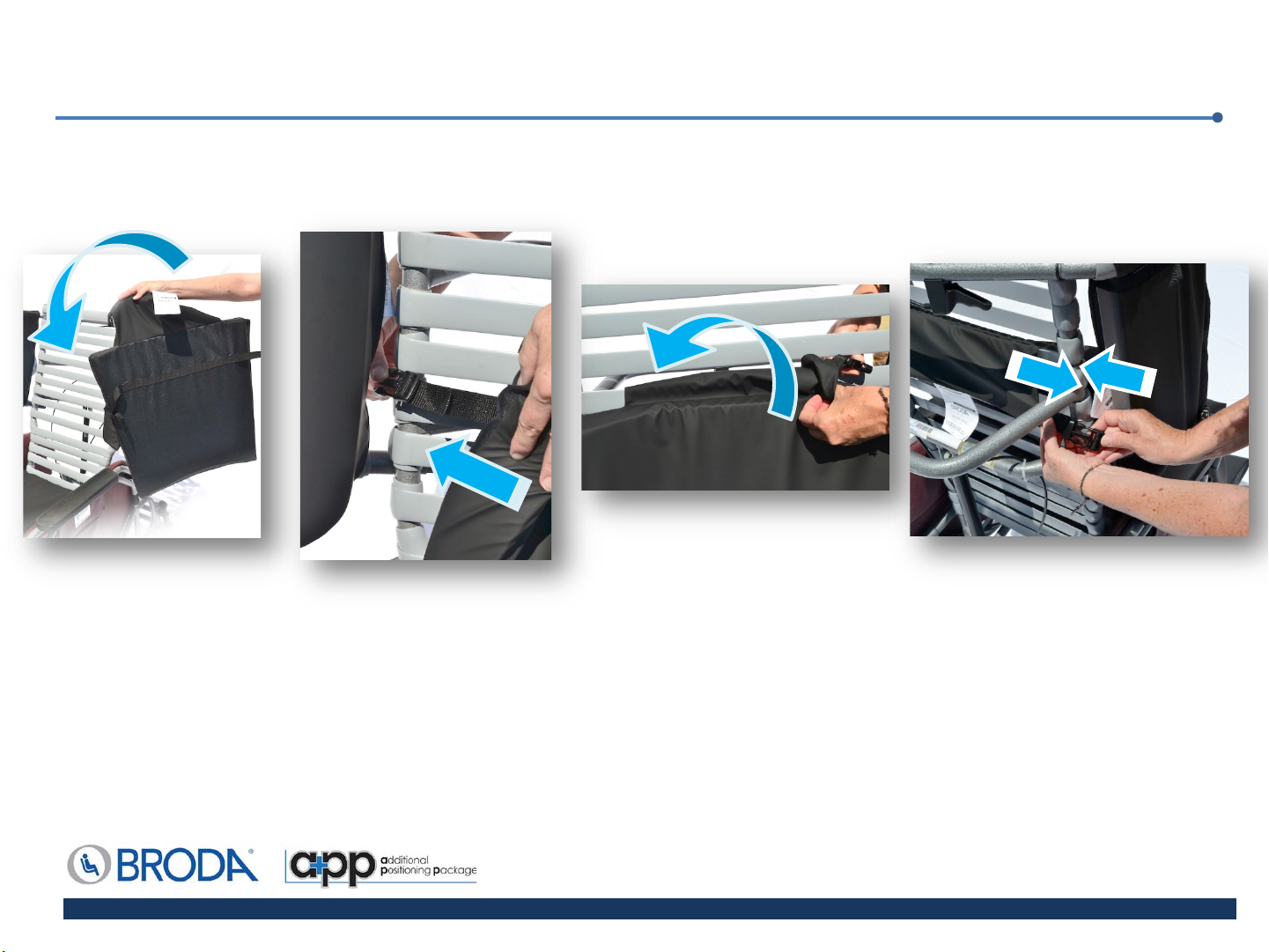

Page 6
app Back Application
2
1
3
1) Remove exist
2) Place the app Back on the back of the chair with the buckles facing the back of the chair and
the bottom of the back cushion resting on the seat cushion of the chair
3) Place the flap and buckles t
ing cushions from the back of the chair
hrough the strap on the back of the chair once the app back
4
cushion is in the desired posit
4) Fasten the buckles by wrapping them through the straps and around the chair, adjust the
straps as needed to ensure safe placement of the app back
ion

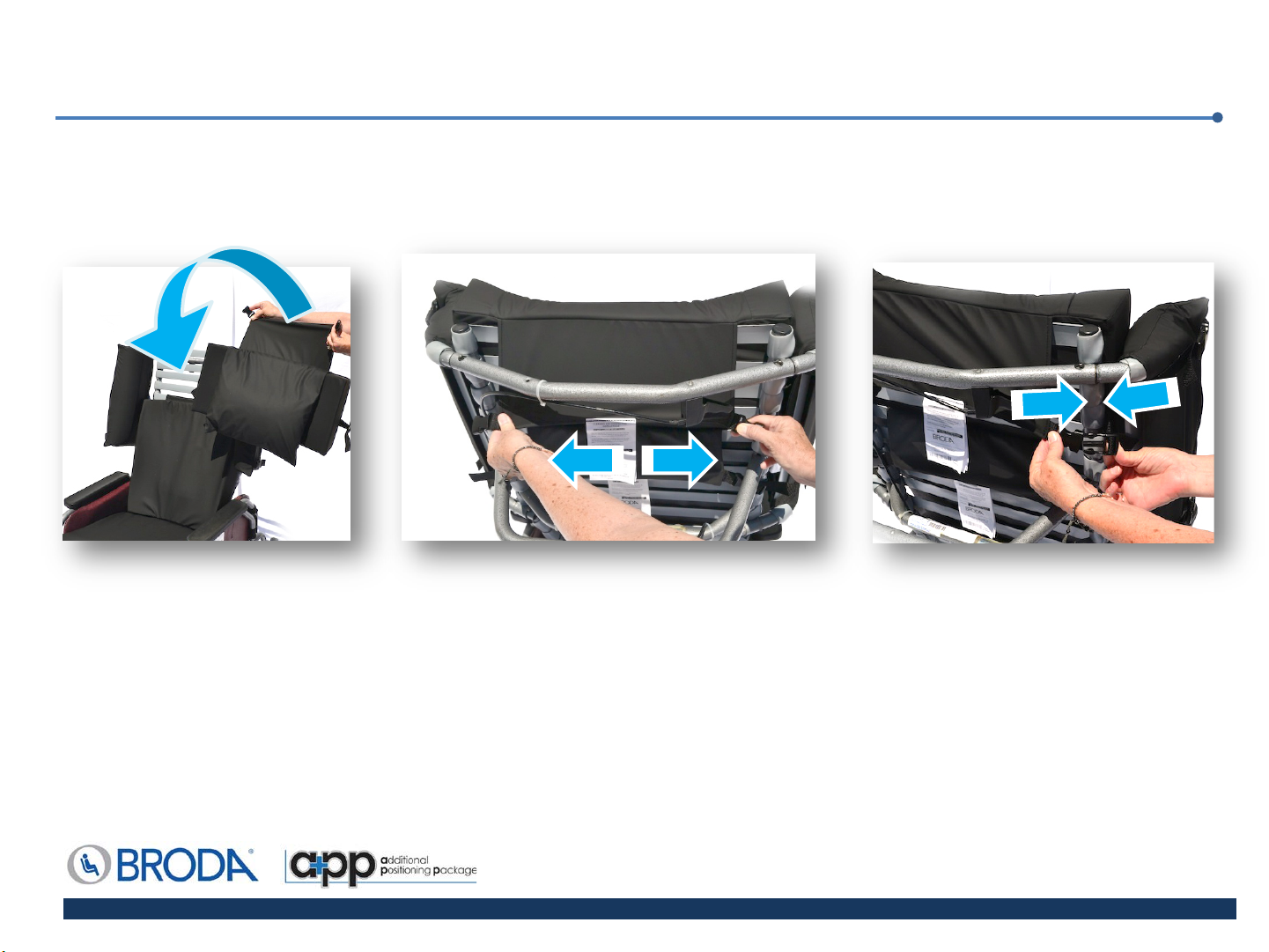

Page 7
app Headpiece Application
1
1) Remove headrest/pillow from chair
2) Place the APP headrest on to the chair with the bottom port
of the back cushion
3) Place flap and buckles over the top strap of the chair (flap and buckles go between the bar and
2
3
ion of the headrest resting on top
strap) and then fasten the buckles securely and adjust them as needed to ensure secure
placement of the headrest (headrest may snap onto head piece if not already attached)
