Brocade Network Advisor

Installation and Migration Guide

Supporting Network Advisor 12.0.0

Copyright © 2006-2012 Brocade Communications Systems, Inc. All Rights Reserved.

Brocade, Brocade Assurance, the B-wing symbol, BigIron, DCX, Fabric OS, FastIron, MLX, NetIron, SAN Health, ServerIron,
TurboIron, VCS, and VDX are registered trademarks, and AnyIO, Brocade One, CloudPlex, Effortless Networking, ICX, NET Health,
OpenScript, and The Effortless Network are trademarks of Brocade Communications Systems, Inc., in the United States and/or in
other countries. Other brands, products, or service names mentioned may be trademarks of their respective owners.

Notice: This document is for informational purposes only and does not set forth any warranty, expressed or implied, concerning
any equipment, equipment feature, or service offered or to be offered by Brocade. Brocade reserves the right to make changes to
this document at any time, without notice, and assumes no responsibility for its use. This informational document describes
features that may not be currently available. Contact a Brocade sales office for information on feature and product availability.
Export of technical data contained in this document may require an export license from the United States government.

The authors and Brocade Communications Systems, Inc. shall have no liability or responsibility to any person or entity with
respect to any loss, cost, liability, or damages arising from the information contained in this book or the computer programs that
accompany it.

The product described by this document may contain “open source” software covered by the GNU General Public License or other
open source license agreements. To find out which open source software is included in Brocade products, view the licensing
terms applicable to the open source software, and obtain a copy of the programming source code, please visit
http://www.brocade.com/support/oscd.

Brocade Communications Systems, Incorporated

Corporate and Latin American Headquarters
Brocade Communications Systems, Inc.
130 Holger Way
San Jose, CA 95134
Tel: [phone]
Fax: [phone]
E-mail: [e-mail]

European Headquarters
Brocade Communications Switzerland Sàrl
Centre Swissair
Tour B - 4ème étage
29, Route de l'Aéroport
Case Postale 105
CH-1215 Genève 15
Switzerland
Tel: [phone]
Fax: [phone]
E-mail: [e-mail]

Asia-Pacific Headquarters
Brocade Communications Systems China HK, Ltd.
No. 1 Guanghua Road
Chao Yang District
Units 2718 and 2818
Beijing 100020, China
Tel: [phone]
Fax: [phone]
E-mail: [e-mail]

Asia-Pacific Headquarters
Brocade Communications Systems Co., Ltd. (Shenzhen WFOE)
Citic Plaza
No. 233 Tian He Road North
Unit 1308 – 13th Floor
Guangzhou, China
Tel: [phone]
Fax: [phone]
E-mail: [e-mail]

Document History

Title Publication number Summary of changes Date

Network Advisor Installation and
Migration Guide

Network Advisor Installation and
Migration Guide

53-1002570-01 New document August 2012

53-1002699-01 Updated for 12.0.0 December 2012

Contents

About This Document

In this chapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii

How this document is organized . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii

Supported hardware and software . . . . . . . . . . . . . . . . . . . . . . . . . . viii

Fabric OS hardware and software support . . . . . . . . . . . . . . . . viii

IronWare OS hardware and software support . . . . . . . . . . . . . . .xi

Network OS hardware and software support. . . . . . . . . . . . . . . xiv

What’s new in this document. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xv

Document conventions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xvi

Text formatting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xvi

Notes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xvi

Key terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xvi

Notice to the reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xvii

Additional information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xvii

Brocade resources. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xvii

Other industry resources. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xvii

Getting technical help. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xviii

Document feedback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xix

Chapter 1 Installation

System requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Server and Client operating system requirements . . . . . . . . . . . 2

Host requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Memory requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Operating system cache requirements . . . . . . . . . . . . . . . . . . . . 6

Disk space requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Browser requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Client and server system requirements . . . . . . . . . . . . . . . . . . . . 9

Downloading the software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Pre-installation requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Additional pre-installation requirements for UNIX systems. . . . 11

Installing the application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Mapping the loopback address to the localhost . . . . . . . . . . . . 13

Network Advisor Installation and Migration Guide iii
53-1002699-01

Headless installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Additional pre-installation requirements for

UNIX systems (headless installation) . . . . . . . . . . . . . . . . . . . . .14

Performing a headless installation on Windows and

UNIX systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Troubleshooting the Linux headless installation . . . . . . . . . . .15

Chapter 2 Network Advisor Configuration

Configuring Network Advisor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Accessing the Network Advisor interfaces . . . . . . . . . . . . . . . . . . . .24

Logging into a server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Launching a remote client. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Launching the SMC on Linux . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Launching the SMIA Configuration Tool . . . . . . . . . . . . . . . . . . . 26

Launching the SMIA Configuration Tool remote client . . . . . . . 26

Syslog troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Finding the process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Stopping the process. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Installing the ODBC driver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Installing the ODBC driver on Windows systems . . . . . . . . . . . .28

Installing the ODBC driver on Linux systems . . . . . . . . . . . . . . .29

Smart Card driver installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Installing the Smart Card driver on the local client . . . . . . . . . .32

Installing the Smart Card driver on the remote client. . . . . . . .34

Detecting and correcting a default Linux Smart Card driver. . . 34

Configuring an explicit server IP address . . . . . . . . . . . . . . . . . . . . .36

Product Improvement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Enabling product improvement data transfer . . . . . . . . . . . . . . 37

Disabling product improvement data transfer . . . . . . . . . . . . . . 38

Data transfer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Chapter 3 Data Migration

iv Network Advisor Installation and Migration Guide

Configuring remote client access to the database . . . . . . . . . . . . . .39

Upgrading the license . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Supported migration paths. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

DCFM migration paths. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

INM migration paths . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

EFCM and Fabric Manager migration paths . . . . . . . . . . . . . . .45

Pre-migration requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Pre-migration requirements when migrating from

one server to another . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Additional pre-migration requirements on UNIX systems . . . . . 47

Additional trial requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Migrating data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

53-1002699-01

Chapter 4 Uninstallation

Uninstalling from Windows systems . . . . . . . . . . . . . . . . . . . . . . . . .55

Uninstalling from Windows systems (headless uninstall) . . . . . . . .56

Uninstalling from UNIX systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56

Uninstalling from UNIX systems (headless uninstall) . . . . . . . . . . . . 57

Appendix A References

Network Advisor packages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

Edition feature support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60

Management server and client ports . . . . . . . . . . . . . . . . . . . . . . . .70

Scalability limits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Network Advisor Installation and Migration Guide v
53-1002699-01

vi Network Advisor Installation and Migration Guide

53-1002699-01

About This Document

In this chapter

•How this document is organized . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii

•Supported hardware and software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . viii

•What’s new in this document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xv

•Document conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xvi

•Notice to the reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xvii

•Additional information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xvii

•Getting technical help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xviii

•Document feedback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xix

How this document is organized

This document is organized to help you find the information that you want as quickly and easily as
possible.

The document contains the following components:

• Chapter 1, “Installation,” provides system and pre-installation requirements as well as

step-by-step installation instructions.

• Chapter 2, “Network Advisor Configuration,” provides step-by-step instructions to configure a

fresh Network Advisor installation.

• Chapter 3, “Data Migration,” provides pre-migration requirements as well as step-by-step

instructions for migrating data from a previous release of Network Advisor.

• Chapter 4, “Uninstallation,” provides step-by-step instructions for performing a partial or full

uninstall of Network Advisor.

• Appendix A, “References,” provides the following information for quick lookup.

- Network Advisor packages

- Edition feature support

- Management server and client ports

- Scalability limits

Network Advisor Installation and Migration Guide vii
53-1002699-01

Supported hardware and software

NOTE

In those instances in which procedures or parts of procedures documented here apply to some
devices but not to others, this guide identifies exactly which devices are supported and which are
not.

Although many different software and hardware configurations are tested and supported by
Brocade Communications Systems, Inc. for Network Advisor 12.0.X, documenting all possible
configurations and scenarios is beyond the scope of this document.

Fabric OS hardware and software support

The following firmware platforms are supported by this release of Network Advisor 12.0.X:

• Fabric OS 5.0 or later in a pure Fabric OS fabric

• Fabric OS 6.0 or later in a mixed fabric

Discovery of a Secure Fabric OS fabric in strict mode is not supported.

The hardware platforms in the following table are supported by this release of Network Advisor

12.0.X.

TABLE 1 Fabric OS-supported hardware

Device name Terminology used in documentation Firmware level required

Brocade 200E switch 16-port, 4 Gbps FC Switch

Brocade 300 switch 24-port, 8 Gbps FC Switch Fabric OS v6.1.0 or later

Brocade 4012 switch Embedded 12-port, 4 Gbps FC Switch

Brocade 4016 switch Embedded 16-port, 4 Gbps FC Switch

Brocade 4018 switch Embedded 18-port, 4 Gbps FC Switch

Brocade 4020 switch Embedded 20-port, 4 Gbps FC Switch

Brocade 4024 switch Embedded 24-port, 4 Gbps FC Switch Fabric OS v5.3.1 or later

Brocade 4100 switch 32-port, 4 Gbps FC Switch

Brocade 4900 switch 64-port, 4 Gbps FC Switch Fabric OS v5.2.0 or later

Brocade 5000 switch 32-port, 4 Gbps FC Interop Switch Fabric OS v5.2.1 or later

Brocade 5100 switch 40-port, 8 Gbps FC Switch Fabric OS v6.1.0 or later

Brocade 5300 switch 80-port, 8 Gbps FC Switch Fabric OS v6.1.0 or later

Brocade 5410 embedded switch Embedded 12-port, 8 Gbps Switch Fabric OS v6.1.0 or later

Brocade M5424 embedded switch Embedded 24-port, 8 Gbps Switch

Brocade 5450 embedded switch Embedded 16-port, 8 Gbps Switch

Brocade 5460 embedded switch Embedded 24-port, 8 Gbps Switch

Brocade 5470 embedded switch Embedded 24-port, 8 Gbps Switch

Brocade 5480 embedded switch Embedded 24-port, 8 Gbps Switch Fabric OS v6.1.0 or later

Brocade 6505 switch 24-port, 16 Gbps Edge switch Fabric OS v7.0.1 or later

viii Network Advisor Installation and Migration Guide

53-1002699-01

TABLE 1 Fabric OS-supported hardware (Continued)

Device name Terminology used in documentation Firmware level required

Brocade 6510 switch 48-port, 16 Gbps switch Fabric OS v7.0.0 or later

Brocade 7500 Extension switch 4 Gbps Router, Extension Switch Fabric OS v5.1.0 or later

Brocade 7500E Extension switch 4 Gbps Extension Switch Fabric OS v5.1.0 or later

FR4-18i Blade 4 Gbps Router, Extension blades

Brocade AP7600 switch 4 Gbps 32-port Switch Fabric OS v6.1.0 or later

Brocade 7800 switch 8 Gbps Extension Switch Fabric OS v6.3.0 or later

Brocade 8000 switch 8 Gbps 8-FC port, 10 GbE 24-DCB port Switch Fabric OS v6.1.2_CEE

Brocade 8470 FCoE embedded switch FCoE Embedded Switch Fabric OS v6.3.1_CEE

Brocade VA-40FC switch 8 Gbps 40-port Switch

Brocade 415 Host Bus Adapter 4 Gbps 1-port HBA

Brocade 425 Host Bus Adapter 4 Gbps 2-port HBA

Brocade 815 Host Bus Adapter 8 Gbps 1-port HBA

Brocade 825 Host Bus Adapter 8 Gbps 2-port HBA

Brocade 1860 Fabric Adapter 16 Gbps FC HBA mode

10 Gbps CNA mode
10 Gbps NIC mode

Brocade 1867 HBA 16 Gbps Mezzanine HBA Adapter Software 3.0.3.0 or later

Brocade 48000 director Director Chassis

Brocade 48000 director with FC4-16, FC4-32,
and FC4-48 Blades

Director Chassis with 4 Gbps 16-FC port, 4 Gbps
32-FC port, and 4 Gbps 48-FC port

Brocade 48000 director with FR4-18i Blades Director Chassis with 4 Gbps router, extension

blades

Adapter Software 3.0.0.0 or later

Fabric OS v5.2.0 or later (FC4-48)

Fabric OS v5.1.0 or later (FR4-18i)

Brocade 48000 director with FC4-16IP Blades Director Chassis with 4 Gbps 8-FC port and 8

Fabric OS v5.2.0 or later (FC4-16IP)

GbE iSCSI blades

Brocade 48000 director with FC10-6 Blades Director Chassis with 10 Gbps 6-port ISL blades Fabric OS v5.3.0 or later (FC10-6)

Brocade DCX

Brocade DCX
FC8-48 Blades

1, 2

1, 2

with FC8-16, FC8-32, and

8-slot Backbone Chassis Fabric OS v6.0.0 or later

8-slot Backbone Chassis with 8 Gbps 16-FC port,

Fabric OS v6.0.0 or later
8 Gbps 32-FC port, and 8 Gbps 48-FC port
blades

Brocade DCX

1, 2

with FC8-64 Blades 8-slot Backbone Chassis with 8 Gbps 64-FC port

Fabric OS v6.4.0
blades

Brocade DCX

1, 2

with FR4-18i Blades 8-slot Backbone Chassis with 4 Gbps Router,

Fabric OS v6.0.0 or later
Extension blade

Brocade DCX

Brocade DCX

Brocade DCX

1, 2

with FC10-6 Blades 8-slot Backbone Chassis with FC 10 - 6 ISL Blade Fabric OS v6.2.0

1, 2

with FS8-18 Blades 8-slot Backbone Chassis with Encryption Blade Fabric OS v6.1.1_enc or later

1, 2

with FX8-24 Blades 8-slot Backbone Chassis with 8 Gbps 12-FC port,

Fabric OS v6.3.1_CEE
10 GbE ports, 2-10 GbE ports blade

Brocade DCX

1, 2

with FCoE10-24 Blades 8-slot Backbone Chassis with 10 Gbps 24-port

Fabric OS v6.3.1_CEE
FCoE blade

Brocade DCX-4S

Network Advisor Installation and Migration Guide ix
53-1002699-01

4-slot Backbone Chassis Fabric OS v6.0.0 or later

TABLE 1 Fabric OS-supported hardware (Continued)

Device name Terminology used in documentation Firmware level required

Brocade DCX-4S with FC8-16, FC8-32, and
FC8-48 Blades

4-slot Backbone Chassis with 8 Gbps 16-FC port,
8 Gbps 32-FC port, and 8 Gbps 48-FC port

Fabric OS v6.2.0

blades

Brocade DCX-4S with FC8-64 Blades 4-slot Backbone Chassis with 8 Gbps 64-FC port

Fabric OS v6.4.0
blades

Brocade DCX-4S with FR4-18i Blades 4-slot Backbone Chassis with 4 Gbps Router,

Fabric OS v6.2.0
Extension blade

Brocade DCX-4S with FC10-6 Blades 4-slot Backbone Chassis with FC 10 - 6 ISL Blade Fabric OS v6.2.0

Brocade DCX-4S with FS8-18 Blades 4-slot Backbone Chassis with Encryption Blade Fabric OS v6.1.1_enc or later

Brocade DCX-4S with FX8-24 Blades 4-slot Backbone Chassis with 8 Gbps 12-FC port,

Fabric OS v6.3.1_CEE
10 GbE ports, 2-10 GbE ports blade

Brocade DCX-4S with FCoE10-24 Blades 4-slot Backbone Chassis with 10 Gbps 24-port

Fabric OS v6.3.0 or later
FCoE blade

Brocade DCX 8510-4 16 Gbps 4-slot Backbone Chassis Fabric OS v7.0.0 or later

Brocade DCX 8510-8

1, 2

16 Gbps 8-slot Backbone Chassis Fabric OS v7.0.0 or later

Brocade Encryption Switch 8 Gbps Encryption Switch Fabric OS v6.1.1_enc or later

FS8-18 Encryption Blade Encryption Blade

FA4-18 Application Platform Blade Application Platform Blade

FC8-16 Blade FC 8 GB 16-port Blade

FC8-32 Blade FC 8 GB 32-port Blade

FC8-48 Blade FC 8 GB 48-port Blade

FC8-64 Blade FC 8 GB 64-port Blade

FC10-6 Blade FC 10 - 6 ISL Blade

FC8-32E blade

FC8-48E blade

3

3

8 Gbps 32-port blade Fabric OS v7.0.1 or later

8 Gbps 48-port blade Fabric OS v7.0.1 or later

FC16-32 Blade 16 Gbps 32-port blade Fabric OS v7.0.0 or later

FC16-48 Blade 16 Gbps 48-port blade Fabric OS v7.0.0 or later

FCoE10-24 Blade 10 Gbps FCoE Port Router Blade

FX8-24 Blade

1, 2

8 Gbps Extension Blade

1. Professional can discover, but not manage this device. Use the device’s Element Manager, which can be launched from the Connectivity
Map, to manage the device. This device cannot be used as a Seed switch.

2. Professional Plus Trial and Licensed version can discover, but not manage, this device. Use the device’s Element Manager, which can be
launched from the Connectivity Map, to manage the device. This device cannot be used as a Seed switch.

3. Only supported on the DCX 8510-4 and DCX 8510-8 chassis.

x Network Advisor Installation and Migration Guide

53-1002699-01

IronWare OS hardware and software support

The following firmware platforms are supported by this release of Network Advisor 12.0.X:

• BigIron 2.7.02e (sustaining mode) or later

• FastIron 7.2.0 or later

• NetIron 5.1.0 or later

• ServerIron (JetCore) 11.0 or later

• ServerIron ADX 12.2.0 or later

• TurboIron 4.2.0 or later

For platform-specific firmware requirements, refer to Tab le 2.

Tab le 2 lists the hardware platforms supported by this release of Network Advisor 12.0.X, the

terminology used in the documentation, as well as any specific firmware requirements.

TABLE 2 IronWare OS-supported hardware

Device name Terminology used in documentation Firmware level required

BigIron family Ethernet Chassis BigIron 2.7.02e or 2.7.01b

BigIron RX-4 (BI-RX-4-AC) Ethernet Chassis, 4 interface slots BigIron 2.7.02e or 2.7.01b

BigIron RX-8 (BI-RX-8-AC) Ethernet Chassis, 8 interface slots BigIron 2.7.02e or 2.7.01b

BigIron RX-16 (BI-RX-16-AC-A) Ethernet Chassis, 16 interface slots BigIron 2.7.02e or 2.7.01b

Brocade 6910 Ethernet Access Switch Ethernet Access Switch release 2.0.2.7, loader version 1.0.1.3

FastIron family Ethernet switch See individual device.

FastIron CX 624S (FCX624S) Ethernet L2/L3 Edge switch, 24 1GbE

RJ45 ports

FastIron CX 648S (FCX648S) Ethernet L2/L3 Edge switch, 48 1GbE

RJ45 ports

FastIron CX 624S-HPOE (FCX624S-HPOE) Ethernet L2/L3 Edge switch, 24 1GbE

RJ45 ports, 24

FastIron CX 648S-HPOE (FCX648S-HPOE) Ethernet L2/L3 Edge switch, 48 1GbE

RJ45 ports, 48

FastIron CX 624S-F (FCX624S-F) Ethernet L2/L3 Edge switch, 20 SFP ports FastIron 06.0.00 and later

FastIron CX 624-E (FCX624-E) Ethernet L2/L3 Edge switch, 24 1GbE

RJ45 ports

FastIron CX 624-I (FCX624-I) Ethernet L2/L3 Edge switch, 24 1GbE

RJ45 ports

FastIron CX 648-E (FCX648-E) Ethernet L2/L3 Edge switch, 48 1GbE

RJ45 ports

FastIron CX 648-I (FCX648-I) Ethernet L2/L3 Edge switch, 48 1GbE

RJ45 ports

ICX 6610 Ethernet L2/L3 Edge switch FastIron 07.0.3 and later

ICX 643024 switch 24-port Campus LAN switch FastIron 07.4.00 and later

ICX 643024-HPOE switch 24-port Campus LAN HPOE switch FastIron 07.4.00 and later

ICX 643048 switch 48-port Campus LAN switch FastIron 07.4.00 and later

POE+ ports

POE+ ports

FastIron 06.0.00 and later

FastIron 06.0.00 and later

FastIron 06.0.00 and later

FastIron 06.0.00 and later

FastIron 06.0.00 and later

FastIron 06.0.00 and later

FastIron 06.0.00 and later

FastIron 06.0.00 and later

Network Advisor Installation and Migration Guide xi
53-1002699-01

TABLE 2 IronWare OS-supported hardware (Continued)

Device name Terminology used in documentation Firmware level required

ICX 643048-HPOE switch 48-port Campus LAN HPOE switch FastIron 07.4.00 and later

ICX 645024 switch 24-port Campus LAN switch FastIron 07.4.00 and later

ICX 645024 Base L3 router 24-port Campus LAN Base L3 router FastIron 07.4.00 and later

ICX 645024 Base router 24-port Campus LAN Base router FastIron 07.4.00 and later

ICX 645024 Premium router 24-port Campus LAN Premium router FastIron 07.4.00 and later

ICX 645024-HPOE switch 24-port Campus LAN HPOE switch FastIron 07.4.00 and later

ICX 645024-HPOE Base L3 router 24-port Campus LAN HPOE Base L3 router FastIron 07.4.00 and later

ICX 645024-HPOE Base router 24-port Campus LAN HPOE Base router FastIron 07.4.00 and later

ICX 645024-HPOE Premium router 24-port Campus LAN HPOE Premium

router

ICX 645048 switch 48-port Campus LAN switch FastIron 07.4.00 and later

ICX 645048 Base L3 router 48-port Campus LAN Base L3 router FastIron 07.4.00 and later

ICX 645048 Base router 48-port Campus LAN Base router FastIron 07.4.00 and later

ICX 645048 Premium router 48-port Campus LAN Premium router FastIron 07.4.00 and later

ICX 645048-HPOE switch 48-port Campus LAN HPOE switch FastIron 07.4.00 and later

ICX 645048-HPOE Base L3 router 48-port Campus LAN HPOE Base L3 router FastIron 07.4.00 and later

ICX 645048-HPOE Base router 48-port Campus LAN HPOE Base router FastIron 07.4.00 and later

ICX 645048-HPOE Premium router 48-port Campus LAN HPOE Premium

router

ICX 6430 IronStack switch 24-port Campus LAN switch FastIron 07.4.00 and later

ICX 6430 IronStack Base L3 router Campus LAN Base L3 router FastIron 07.4.00 and later

ICX 6430 IronStack Base router Campus LAN Base router FastIron 07.4.00 and later

ICX 6430 IronStack Premium router Campus LAN Premium router FastIron 07.4.00 and later

ICX 6450 IronStack switch 48-port Campus LAN switch FastIron 07.4.00 and later

FastIron GS Ethernet L2/L3 Access switch

FastIron GS-STK Ethernet L2/L3 Access switch, stackable

FastIron LS Enterprise LAN switch

FastIron LS-STK Enterprise LAN switch, stackable

FastIron SuperX/SX Enterprise LAN chassis FSX 02.4.00 and later

FastIron 8-port 10 GbE SFP Blade 8-port 10 GbE SFP Blade

FastIron 24-port Fiber SFP GbE Blade 24-port Fiber SFP GbE Blade

FastIron 24-port GbE Cu Blade 24-port GbE Cu Blade

FastIron 2-port 10GbE SFP+ Blade 2-port 10GbE SFP+ Blade

FastIron Edge Switch X-Series Enterprise LAN Edge switch

FastIron Edge X 424 Enterprise LAN Edge switch, 24

10/100/1000 Mbps ports

FastIron 07.4.00 and later

FastIron 07.4.00 and later

xii Network Advisor Installation and Migration Guide

53-1002699-01

TABLE 2 IronWare OS-supported hardware (Continued)

Device name Terminology used in documentation Firmware level required

FastIron Edge X 624 Enterprise LAN Edge switch, 24

10/100/1000 Mbps ports

FastIron Edge X 448 Enterprise LAN Edge switch, 48

10/100/1000 Mbps ports

FastIron Edge X 648 Enterprise LAN Edge switch, 48

10/100/1000 Mbps ports

FastIron Edge X 424HF Enterprise LAN Edge switch, 20 100/1000

Mbps SFP ports

FastIron Edge X 624HF Enterprise LAN Edge switch, 20 100/1000

Mbps SFP ports

FastIron WS devices Enterprise Campus switch

Motorola Controllers RFS4000 series Wireless controller Mobility 5.1

Motorola Controllers RFS6000 series Wireless controller Mobility 5.1

Motorola Controllers RFS7000 series Wireless controller Mobility 5.1

Motorola Access Point 7131 Wireless access point Mobility 4.1.1 (standalone mode)

Mobility 5.1 1 (adaptive mode)

Motorola Access Point 7131N Wireless access point Mobility 4.1.1 (standalone mode)

Mobility 5.1 1 (adaptive mode)

Motorola Access Point 5181 Wireless access point Mobility 2.5.X (standalone mode)

Mobility 5.1 1 (adaptive mode)

Motorola Access Point 6511 Wireless access point Mobility 5.1 1 (adaptive mode)

NetIron family Ethernet routers NetIron 5.0.0 or 5.0.1

NetIron MLX
(Supported regardless of license
configuration)

NetIron MLXe
(Supported regardless of license

configuration)

NetIron XMR
(Supported regardless of license

configuration)

NetIron CES 2048CX (NI-CES-2048CX-AC)
(Supported regardless of license
configuration)

NetIron CER
(Supported regardless of license

configuration)

ServerIron family Application product

ServerIron ADX 1000 Application switch

ServerIron ADX 1000F Application Fiber switch ADX 12.3.03 or later

ServerIron ADX 4000 4U Application Delivery chassis ADX 12.1.00 or later

ServerIron ADX 10000 10U Application Delivery chassis ADX 12.1.00 or later

Ethernet router NetIron 5.0.0 or 5.0.1

Ethernet Core router NetIron 5.0.0 or 5.0.1

Ethernet Backbone router NetIron 5.0.0 or 5.0.1

Ethernet Carrier router NetIron 5.0.0 or 5.0.1

Ethernet Edge router NetIron 5.0.0 or 5.0.1

Network Advisor Installation and Migration Guide xiii
53-1002699-01

TABLE 2 IronWare OS-supported hardware (Continued)

Device name Terminology used in documentation Firmware level required

Tur b o Iro n Fami l y Data Center switch 4.1.00d or 4.2.00 or later

TurboIron 24X (T1-24X- AC) Data Center switch 4.1.00d or 4.2.00 or later

Brocade 6650 Switch Data Center switch FastIron 7.5 and later

Brocade 6650 Base L3 Router Data Center base L3 router FastIron 7.5 and later

Brocade 6650 Router Data Center router FastIron 7.5 and later

1. The Management application cannot discover or manage wireless access points running Mobility 5.1.

Network OS hardware and software support

Network Advisor 12.0.X supports the Network OS 3.0 firmware platform. For platform-specific
firmware requirements, if any, refer to the

Tab le 3 lists the hardware platforms supported by this release of Network Advisor 12.0.X, the

terminology used in the documentation, as well as any specific firmware requirements.

TABLE 3 Network OS-supported hardware

Device name Terminology used in documentation Firmware level required

Brocade VDX 2730 10 Gbps connection blade VDX 2730 10 Gbps connection blade v2.1.1_fuj

Brocade VDX 6710 switch VDX 6710 switch 2.1 or later

Brocade VDX 6720-24 switch VDX 6720-24 switch 2.1 or later

Brocade VDX 6720-60 switch VDX 6720-60 switch 2.1 or later

Brocade VDX 6730-32 switch VDX 6730-32 switch 2.1 or later

Brocade VDX 6730-74 switch VDX 6730-74 switch 2.1 or later

Brocade VDX 8770-4 switch VDX 8770-4 switch v3.0 or later

Brocade VDX 8770-8 switch VDX 8770-8 switch v3.0 or later

Tab le 3.

xiv Network Advisor Installation and Migration Guide

53-1002699-01

What’s new in this document

The following changes have been made since this document was last released:

• Information that was added:

- Documented OS cache requriements (refer to “Operating system cache requirements” on

page 6)

- Documented downloading the software (refer to “Downloading the software” on page 9)

- Documented Linux 64-bit troubleshooting (refer to “Testing the connection on Linux

systems” on page 30)

- Documented unsupported migration work arounds (refer to “Pre-migration requirements”

on page 45).

• Information that was changed:

- Updated server and client operating system details (refer to “Server and Client operating

system requirements” on page 2)

- Updated the Java-Plug-ins (“Browser requirements” on page 9)

- Updated the number of clients allowed (“Client and server system requirements” on

page 9)

- Updated configuration procedure (“Configuring Network Advisor” on page 17)

- Updated accessing the interface procedures (“Accessing the Network Advisor interfaces”

on page 24)

- Updated Linux ODBC driver procedure (“Installing the ODBC driver on Linux systems” on

page 29)

- Updated migration paths (“Supported migration paths” on page 43)

• Information that was deleted:

- None.

For further information about new features and documentation updates for this release, refer to
the release notes.

Network Advisor Installation and Migration Guide xv
53-1002699-01

Document conventions

NOTE

This section describes text formatting conventions and important notice formats used in this
document.

Text formatting

The narrative-text formatting conventions that are used are as follows:

bold text Identifies command names

italic text Provides emphasis

code text Identifies CLI output

For readability, command names in the narrative portions of this guide are presented in mixed
lettercase: for example, switchShow. In actual examples, command lettercase is all lowercase.

Identifies the names of user-manipulated GUI elements
Identifies keywords and operands
Identifies text to enter at the GUI or CLI

Identifies variables
Identifies paths and Internet addresses
Identifies document titles

Identifies command syntax examples

Notes

The following notices and statements are used in this manual. They are listed below in order of
increasing severity of potential hazards.

A note provides a tip, guidance, or advice, emphasizes important information, or provides a
reference to related information.

Key terms

For definitions specific to Brocade and Fibre Channel, see the technical glossaries on MyBrocade.
See

“Brocade resources” on page xvii for instructions on accessing MyBrocade.

For definitions of SAN-specific terms, visit the Storage Networking Industry Association online
dictionary at:

http://www.snia.org/education/dictionary

xvi Network Advisor Installation and Migration Guide

53-1002699-01

Notice to the reader

This document may contain references to the trademarks of the following corporations. These
trademarks are the properties of their respective companies and corporations.

These references are made for informational purposes only.

Corporation Referenced trademarks and products

Linus Torvalds Linux

Microsoft Corporation Windows, Windows NT, Internet Explorer

Netscape Communications Corporation Netscape

Red Hat, Inc. Red Hat, Red Hat Network, Maximum RPM, Linux Undercover

Sun Microsystems, Inc. Sun, Solaris, Sun Fire, Sun Ultra, Java Plug-in

The Open Group UNIX

VMware, Inc. VMware

Additional information

This section lists additional Brocade and industry-specific documentation that you might find
helpful.

Brocade resources

To get up-to-the-minute information, go to http://my.brocade.com to register at no cost for a user ID
and password.

White papers, online demonstrations, and data sheets are available through the Brocade website
at:

http://www.brocade.com/products-solutions/products/index.page

For additional Brocade documentation, visit the Brocade website:

http://www.brocade.com

Release notes are available on the MyBrocade website.

Other industry resources

For additional resource information, visit the Technical Committee T11 website. This website
provides interface standards for high-performance and mass storage applications for Fibre
Channel, storage management, and other applications:

http://www.t11.org

For information about the Fibre Channel industry, visit the Fibre Channel Industry Association
website:

http://www.fibrechannel.org

Network Advisor Installation and Migration Guide xvii
53-1002699-01

Getting technical help

'"!&'

FT00X0054E9

Contact your switch support supplier for hardware, firmware, and software support, including
product repairs and part ordering. To expedite your call, have the following information available:

1. Management Application Serial Number

To obtain the Management application serial number, select Help > License. The License
dialog box displays.

2. General Information

• Switch model

• Switch operating system version

• Software name and software version, if applicable

• Error numbers and messages received

• supportSave command output

• Detailed description of the problem, including the switch or fabric behavior immediately

following the problem, and specific questions

• Description of any troubleshooting steps already performed and the results

• Serial console and Telnet session logs

• syslog message logs

3. Switch Serial Number

The switch serial number and corresponding bar code are provided on the serial number label,
as illustrated below:

The serial number label is located as follows:

• Brocade 300, 4100, 4900, 5100, 5300, 7500, 7800, 8000, VA-40FC, and Brocade

Encryption Switch—On the switch ID pull-out tab located inside the chassis on the port side
on the left

• Brocade 5000—On the switch ID pull-out tab located on the bottom of the port side of the

switch

• Brocade 7600—On the bottom of the chassis

• Brocade 48000—Inside the chassis next to the power supply bays

• Brocade DCX—On the bottom right on the port side of the chassis

• Brocade DCX-4S—On the bottom right on the port side of the chassis, directly above the

cable management comb

xviii Network Advisor Installation and Migration Guide

53-1002699-01

4. World Wide Name (WWN)

Use the licenseIdShow command to display the WWN of the chassis.

If you cannot use the licenseIdShow command because the switch is inoperable, you can get
the WWN from the same place as the serial number, except for the Brocade DCX. For the
Brocade DCX, access the numbers on the WWN cards by removing the Brocade logo plate at
the top of the nonport side of the chassis.

Document feedback

Quality is our first concern at Brocade and we have made every effort to ensure the accuracy and
completeness of this document. However, if you find an error or an omission, or you think that a
topic needs further development, we want to hear from you. Forward your feedback to:

[e-mail]

Provide the title and version number of the document and as much detail as possible about your
comment, including the topic heading and page number and your suggestions for improvement.

Network Advisor Installation and Migration Guide xix
53-1002699-01

xx Network Advisor Installation and Migration Guide

53-1002699-01

Chapter

Installation

In this chapter

•System requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

•Downloading the software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

•Pre-installation requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

•Installing the application. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

•Headless installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

System requirements

Use the following sections to determine if you have met the requirements for this application.

•Server and Client operating system requirements . . . . . . . . . . . . . . . . . . . . . 2

•Host requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

•Memory requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

•Operating system cache requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

•Disk space requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

•Browser requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

•Client and server system requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

1

Network Advisor Installation and Migration Guide 1
53-1002699-01

System requirements

NOTE

NOTE

1

Server and Client operating system requirements

Tab le 4 summarizes the required Operating Systems (OS) for servers and the packages supported

by each OS version.

®

Large installations (SAN with SMI Agent or IP only) are only supported on 64-bit Windows
systems.

SAN with SMI Agent + IP is not supported on 32-bit Windows operating systems.

TABLE 4 Server operating system requirements

Operating
system

Version Guest OS version Supported packages

operating

Windows - 2003 Server SP2 (x86 32-bit)

- 2008 Server (x86 32-bit)

- XP Professional SP3 (x86 32-bit)

SAN with SMI Agent
IP only
SMI Agent only

- 7 Professional (x86 32-bit)

- 2008 R2 Data Center Edition

(x86 64-bit)

- 2008 R2 Standard Edition

(x86 64-bit)

SAN with SMI Agent
IP only
SMI Agent only
SAN with SMI Agent + IP

- 2008 R2 Enterprise Edition

(x86 64-bit)

®

Linux

- RedHat Enterprise 6.1 Advanced

Platform (x86 32-bit)

- SuSE Enterprise Server 11

(x86 32-bit)

SAN with SMI Agent
IP only
SMI Agent only
SAN with SMI Agent + IP

- Oracle Enterprise 6.1 (x86 32-bit)

Guest VMs - VMware® ESX Server i 5.0

- Microsoft Hyper-V (Hyper-V Server

2008 R2 SP1)

1

Supports all server OS ver­sions available for Windows
and Linux.

Supports all packages avail­able for Windows and Linux.

- KVM

1. It is recommended that you run all Network Advisor virtual CPUs on a single physical CPU.

Tab le 5 summarizes the required OS for clients.

TABLE 5 Client operating system requirements

Operating
system

Version Guest OS version

Windows - 2003 Server SP2 (x86 32-bit)

2 Network Advisor Installation and Migration Guide

- 2008 Server (x86 32-bit)

- XP Professional SP3 (x86 32-bit)

- 7 Professional (x86 32-bit)

53-1002699-01

System requirements

1

TABLE 5 Client operating system requirements

Operating
system

Linux - RedHat Enterprise 6.1 Advanced Platform (x86 32-bit/64-bit)

Version Guest OS version

- SuSE Enterprise Server 11 (x86 32-bit)

- Oracle Enterprise 6.1 (x86 32-bit)

Guest VMs - VMware® ESX Server i 5.0

- Microsoft Hyper-V (Hyper-V Server 2008 R2 SP1)

- KVM

Supports all client OS versions
available for Windows and
Linux.

Host requirements

Tab le 6 through Table 8 summarizes the minimum host requirements for running Network Advisor

SAN with SMI Agent + IP on Windows and Linux systems.

TABLE 6 SAN with SMI Agent + IP host requirements

Server/Client Professional Professional Plus

Server plus 1 local client Intel Core2 duo 2 GHz or equivalent Intel Core2 duo 2 GHz or equivalent

Remote client only N/A Intel Core2 duo 2 GHz or equivalent

TABLE 7 SAN with SMI Agent + IP host requirements for server plus 1 local client

Small LAN Medium LAN Large LAN

Small SAN Enterprise

Medium SAN Enterprise

Large SAN Enterprise

Intel Core2 duo 2GHz or
equivalent

Intel Dual CPU Core2 duo

2.4 GHz or equivalent

Intel Dual CPU Core2 duo

2.4 GHz or equivalent

Intel Dual CPU Core2 duo

2.4

GHz or equivalent

Intel Dual CPU Core2 duo

2.4

GHz or equivalent

Intel quad dual core or dual
quad core, 2.4 GHz or
equivalent

TABLE 8 SAN with SMI Agent + IP host requirements for remote client

Small LAN Medium LAN Large LAN

Small SAN Enterprise

Medium SAN Enterprise

Large SAN Enterprise

Intel Core2 duo 2 GHz or
equivalent

Intel Core2 duo 2 GHz or
equivalent

Intel Dual CPU Core2 duo

2.4

GHz or equivalent

Intel Core2 duo 2 GHz or
equivalent

Intel Dual CPU Core2 duo

2.4

GHz or equivalent

Intel Dual CPU Core2 duo

2.4

GHz or equivalent

Intel Dual CPU Core2 duo

2.4

GHz or equivalent

Intel quad dual core or dual
quad core, 2.4 GHz or
equivalent

Intel quad dual core or dual
quad core, 2.4 GHz or
equivalent

Intel Dual CPU Core2 duo

2.4

GHz or equivalent

Intel Dual CPU Core2 duo

2.4

GHz or equivalent

Intel Dual CPU Core2 duo

2.4

GHz or equivalent,

Network Advisor Installation and Migration Guide 3
53-1002699-01

System requirements

1

Tab le 9 summarizes the minimum host requirements for running Network Advisor SAN with SMI

Agent on Windows and Linux systems.

TABLE 9 SAN with SMI Agent host requirements

Professional Professional Plus Enterprise

Small Medium Large LAN

Server plus one local
client

Remote client only

Intel Core2 duo
2

GHz or equivalent

N/A Intel Core2 duo

Intel Core2 duo
2

GHz or equivalent

2

GHz or equivalent

Intel Core2 duo
2

GHz or equivalent

Intel Core2 duo
2

GHz or equivalent

Intel Dual CPU
Core2 duo 2.4
or equivalent

Intel Core2 duo
2

GHz or equivalent

GHz

Intel Dual CPU
Core2 duo 2.4
or equivalent

Intel Core2 duo
2

GHz or equivalent

GHz

Tab le 10 summarizes the minimum host requirements for running Network Advisor IP on Windows

and Linux systems.

TABLE 10 IP only host requirements

Professional Enterprise

Small Medium Large

Server plus one local
client

Remote client only

Intel Core2 duo
2

GHz or equivalent

N/A Intel Core2 duo

Intel Core2 duo
2

GHz or equivalent,

2

GHz or equivalent

Intel Dual CPU
Core2 duo 2.4
or equivalent

Intel Core2 duo
2

GHz or equivalent

GHz

Intel Dual CPU
Core2 duo 2.4
or equivalent

Intel Core2 duo
2

GHz or equivalent

GHz

Tab le 11 summarizes the minimum host requirements for running SMI Agent only on Windows and

Linux systems.

TABLE 11 SMI Agent only host requirements

Enterprise

Small Medium Large

Server plus one local
client

Remote client only

4 Network Advisor Installation and Migration Guide

Intel Core2 duo
2GHz or equivalent

Intel Core2 duo
2GHz or equivalent

Intel Dual CPU
Core2 duo 2.4
or equivalent

Intel Core2 duo
2GHz or equivalent

GHz

Intel Dual CPU
Core2 duo 2.4
or equivalent

Intel Core2 duo
2GHz or equivalent

GHz

53-1002699-01

System requirements

NOTE

NOTE

NOTE

NOTE

1

Memory requirements

Tab le 12 through Table 14 summarizes the minimum system memory requirements for running

Network Advisor SAN with SMI Agent + IP on Windows and Linux systems.

These requirements are only applicable when no other applications are running on Network Advisor.

Paging space should be equal to or exceed the physical memory size.

TABLE 12 SAN with SMI Agent + IP memory requirements

Server/Client Professional Professional Plus

Server plus 1 local client 2 GB (32-bit)

3 GB (64-bit)

Remote client only N/A 1 GB

4 GB (32-bit)
6 GB (64-bit)

The Network Advisor Server for SAN with SMI Agent + IP (Enterprise) with both a large SAN and a
large IP is only supported on 64-bit Windows systems and 32-bit Linux systems.

TABLE 13 SAN with SMI Agent + IP (Enterprise) memory requirements for server plus 1 local client

Small LAN Medium LAN Large LAN

Small SAN

Medium SAN

Large SAN

4 GB 4 GB (32-bit)

6 GB (64-bit)

4 GB (32-bit)
6 GB (64-bit)

8 GB (64-bit) 8 GB (64-bit) 8 GB (64-bit)

4 GB (32-bit)
6 GB (64-bit)

6 GB (64-bit)

6 GB (64-bit)

The Network Advisor Client for SAN with SMI Agent + IP (Enterprise) is also supported on 32-bit
Windows and Linux systems.

TABLE 14 SAN with SMI Agent + IP (Enterprise) memory requirements for remote client

Small SAN Enterprise

Medium SAN Enterprise

Large SAN Enterprise

Network Advisor Installation and Migration Guide 5
53-1002699-01

Small LAN Medium LAN Large LAN

2 GB 3 GB 4 GB

3 GB 4 GB 4 GB

4 GB 4 GB 4 GB

System requirements

1

Tab le 15 summarizes the minimum system memory requirements for running Network Advisor SAN

with SMI Agent on Windows and Linux systems.

TABLE 15 SAN with SMI Agent memory requirements

Server/Client Professional Professional

Plus

Enterprise
Small Medium Large

Server plus 1 local client 2 GB (32-bit)

3 GB (64-bit)

Remote client only N/A 1 GB 1 GB 2 GB 2 GB

3 GB (32-bit)
4 GB (64-bit)

3 GB (32-bit)
4 GB (64-bit)

4 GB (32-bit)
6 GB (64-bit)

4 GB (32-bit)
6 GB (64-bit)

Tab le 16 summarizes the minimum system memory requirements for running Network Advisor IP

on Windows and Linux systems.

TABLE 16 IP only memory requirements

Server/Client Professional Enterprise

Small Medium Large

Server plus 1 local client 2 GB (32-bit)

3 GB (64-bit)

Remote client only N/A 1 GB 2 GB 2 GB

3 GB (32-bit)
4 GB (64-bit)

4 GB (32-bit)
6 GB (64-bit)

4 GB (32-bit)
6 GB (64-bit)

Tab le 17 summarizes the minimum system memory requirements for running SMI Agent only on

Windows and Linux systems.

TABLE 17 SMI Agent only memory requirements

Server/Client Enterprise

Small Medium Large

Server plus 1 local client 3 GB 4 GB 4 GB

Remote client only 1 GB 2 GB 2 GB

Operating system cache requirements

It is recommended that you use the System managed size (the OS allocates the required cache);
however, if you choose to use a custom size, make sure you use the following memory settings for
your operating system.

TABLE 18 Virtual memory requirements for Windows systems

Installed physical memory
(RAM) size

2 GB 2 GB 6 GB 1 GB 4 GB

3 GB 3 GB 9 GB 1 GB 4 GB

4 GB 4 GB 12 GB 1 GB 4 GB

Greater than 4 GB N/A N/A 1 GB 4 GB

6 Network Advisor Installation and Migration Guide

Windows Server 2003 SP2 and Windows XP Pro SP3 Windows Server 2008 and Windows 7 Professional

Minimum paging file size Maximum paging file size Minimum paging file size Maximum paging file size

53-1002699-01

System requirements

NOTE

NOTE

1

TABLE 19 Linux swap space requirements

Installed physical memory (RAM) size Recommended swap size

2 GB 4 GB

3 GB 4 GB

4 GB 4 GB

Greater than 4 GB and less than 8 GB Equal to the amount of RAM

Greater than or equal to 8 GB and less than 64 GB .5 times the amount of RAM

Disk space requirements

Tab le 20 through Table 22 summarizes the minimum disk space requirements for running Network

Advisor SAN with SMI Agent + IP on Windows and Linux systems.

It is recommended that you add an additional 100 GB of disk space if you use sFlow.

It is recommended that you add an additional 40 GB of disk space for the default temporary
directory.

TABLE 20 SAN with SMI Agent + IP disk space requirements

Server/Client Professional Professional Plus

Server plus 1 local client 10 GB 20 GB

Remote client only N/A 1 GB

TABLE 21 SAN with SMI Agent + IP (Enterprise) disk space requirements for server plus 1 local client

Small LAN Medium LAN Large LAN

Small SAN Enterprise

Medium SAN Enterprise

Large SAN Enterprise

20 GB 60 GB 60 GB

60 GB 60 GB 80 GB

60 GB 80 GB 80 GB

TABLE 22 SAN with SMI Agent + IP (Enterprise) disk space requirements for remote client

Small LAN Medium LAN Large LAN

Small SAN Enterprise

Medium SAN Enterprise

Large SAN Enterprise

1 GB 1 GB 1 GB

1 GB 1 GB 1 GB

1 GB 1 GB 1 GB

Network Advisor Installation and Migration Guide 7
53-1002699-01

System requirements

NOTE

NOTE

1

Tab le 23 summarizes the minimum disk space requirements for running Network Advisor SAN with

SMI Agent on Windows and Linux systems.

TABLE 23 SAN with SMI Agent disk space requirements

Server/Client Professional Professional

Plus

Server plus 1 local client 10 GB 10 GB 20 GB 40 GB 60 GB

Remote client only N/A 1 GB 1 GB 1 GB 1 GB

Enterprise
Small Medium Large

Tab le 24 summarizes the minimum required disk space requirements for running Network Advisor

IP on Windows and Linux systems.

It is recommended that you add an additional 100 GB of disk space if you use sFlow.

TABLE 24 IP only disk space requirements

Server/Client Professional Plus Enterprise

Small Medium Large

Server plus 1 local client 10 GB 20 GB 40 GB 60 GB

Remote client only 1 GB 1 GB 1 GB 1 GB

Tab le 25 summarizes the minimum disk space requirements for running SMI Agent only on

Windows and Linux systems.

TABLE 25 SMI Agent only disk space requirements

Server/Client Enterprise

Small Medium Large

Server plus 1 local client 20 GB 40 GB 60 GB

Remote client only 1 GB 1 GB 1 GB

If you enable periodic supportSave or configure the Network Advisor server as the Upload Failure
Data Capture location for monitored switches, then additional disk space will be required. Each
switch supportSave file is approximately 5 MB and each Upload Failure Data Capture file is
approximately 500 KB. To determine the disk space requirements, multiply the frequency of
scheduled supportSave files by 5 MB and the expected Upload Failure Data Capture files by 500 KB
before the planned periodic purge activity.

8 Network Advisor Installation and Migration Guide

53-1002699-01

Downloading the software

NOTE

1

Browser requirements

The launch of Network Advisor and the launch of Element Manager (Web Tools) from the
application are supported from the following browsers with a Java plug-in:

• Browsers

- Windows Internet Explorer under Windows

- Firefox under Windows or Linux

• Java Plug-ins

- Oracle JRE 1.7.0 update 09 for Network Advisor

- Oracle JRE 1.7.0 update 09 for Web Tools

For the website listing patch information, go to
http://www.oracle.com/technetwork/java/javase/downloads/index.html.

Client and server system requirements

Network Advisor is not supported in a Network Address Translation (NAT) environment where the
server and client are on different sides of the NAT Server.

Network Advisor has the following client and server system requirements:

• In the Professional edition, a single server supports a single client, which must be a local client

only.

• In Professional Plus and Enterprise editions, a single server supports a maximum of 25 clients,

which can be local or remote on 32-bit and 64-bit servers.

• In Professional Plus and Enterprise editions, a single server supports a maximum of 25 clients,

which can be local or remote on 64-bit servers. To support more than 8 clients, you must make
the following changes to your configuration:

- Increase the server memory size to 3 GB. You can configure the server memory size from

the Options dialog box, Memory Allocations pane. For instructions, refer to the Network
Advisor User Manual or online help.

- Increase the PostgreSQL database shared buffers memory allocation to 1024 MB by

editing the Install_Home\data\databases\postgresql.conf file.

Downloading the software

You can download the software and documentation from the MyBrocade website.

1. Go to the MyBrocade website.

http://my.brocade.com/

2. Enter your user ID and password.

If you do not already have a MyBrocade account, you can create one.

3. Select MyBrocade from the Take me to list, if necessary.

4. Click LOG IN.

Network Advisor Installation and Migration Guide 9
53-1002699-01

Pre-installation requirements

1

5. Click downloads on the main page.

6. Select Management Software from the Download by list.

7. C l i ck Brocade Network Advisor in the Product Name list.

8. Select the highest version number for the latest GA code.

9. Select one of the following links to download the software:

10. Read the Export Compliance, select the certification check box, and click Submit.

11. Read the Brocade End User License Agreement and click I Accept.

12. Click Save on the File Download dialog box.

For example, click Brocade Network Advisor 12.0.x, then click Brocade Network Advisor 12.0.0
Brocade GA.

To download the documentation, click Brocade Network Advisor 12.0.0 Manuals and then
select the manual you want to download.

• Network Advisor 12.0.0 GA for Windows

• Network Advisor 12.0.0 GA for Linux

You can also access the release notes and md5 Checksum from this location.

13. Browse to the location where you want to save the software and click Save.

Pre-installation requirements

Before you install Network Advisor, make sure you meet the following requirements.

• Make sure all system requirements have been met prior to installation. For specific system

requirements, refer to

On Windows systems, if you are running SAN with SMI Agent + IP on a 32-bit machine, you
must migrate to a 64-bit machine within your current release, then you can migrate to Network
Advisor 12.0.

• To avoid errors, close all instances of the application before beginning the installation or

uninstallation procedures.

For UNIX system, if you still receive error messages after closing the application, enter the
following commands:

#ps -ef | grep -i “” to list the process IDs

#kill -9 “Process_ID” where Process_ID is any Management application process

“System requirements” on page 1.

10 Network Advisor Installation and Migration Guide

53-1002699-01

Pre-installation requirements

1

Additional pre-installation requirements for UNIX systems

• Make sure that an X Server is available for display and is configured to permit X Client

applications to display from the host on which they are installing the Network Advisor server
(typically, this simply requires that the systems console be present and running with a
logged-in user on the X Server-based desktop session, such as KDE, GNOME, and so on).

If this is a headless unit with no console, refer to “Additional pre-installation requirements for

UNIX systems (headless installation)” on page 14.

• Make sure that the DISPLAY environment variable is correctly defined in the shell with a valid

value (for example, to display to the local console, export DISPLAY=:0.0, or to display to a
remote system that has an X Server running, export DISPLAY=Remote_IP_address:0.0).

You may also need to consider a firewall that might block the display to the X Server, which
listens by default on TCP port 6000 on the remote host.

To display to a remote system, you need to permit the remote display of the X Server by running
the xhost +IP command, where IP is the IP address of the Network Advisor server host from the
X-based desktop of the remote system.

• Make sure you test the DISPLAY definition by running the xterm command, from the same shell

from which you run install.bin. A new X terminal window to the destination X Server display
should open.

• For Linux OS with the SELinux security policy enabled, make sure you complete the following

steps.

1. Disable the SELinux security policy using the setenforce 0 command.

2. Install the application (refer to “Installing the application” on page 12).

3. Enable the SELinux security policy using the setenforce 1 command.

Network Advisor Installation and Migration Guide 11
53-1002699-01

Installing the application

NOTE

NOTE

NOTE

NOTE

NOTE

NOTE

1

Installing the application

Before you install the application, make sure your system meets the minimum pre-installation
requirements (refer to
to “Data Migration” on page 41.

SAN with SMI Agent + IP is not supported on 32-bit Windows systems. For more information, refer to

“Pre-migration requirements” on page 45.

SMI Agent is only available with the SAN with SMI Agent or SAN with SMI Agent + IP packages, it is
not available with the IP only package.

On Windows systems, you must be an Administrator with Read and Write privileges to install Network
Advisor.

On UNIX systems, you must be the root user to install Network Advisor.

“Pre-installation requirements” on page 10). If you are migrating data, refer

To install the new application version, complete the following steps.

1. Choose one of the following options:

• For Windows systems, open this file:

Download_Location\Application_Name\windows\install.exe.

• For UNIX systems, complete the following steps.

a. On the Management application server, go to the following directory:

Download_Location/Application_Name/UNIX_Platform/bin

b. Type the following at the command line:

./install.bin

OR

sh install.bin

On Linux systems, if you double-click the install.bin file, select Run. Do not select Run in
Term inal.

2. Click Next on the Introduction screen.

3. Read the agreement on the License Agreement screen, select I accept the terms of the
License Agreement, and click Next.

4. Select the usual location for your system application files (for example, D:\Program
Files\Application_Name or opt/Application_Name) on the Select Install Folder screen and
click Next.

Do not install to the root directory C:\ (Windows) or / (UNIX).

12 Network Advisor Installation and Migration Guide

53-1002699-01

Installing the application

5. Review the displayed installation summary on the Pre-Installation Summary screen and click
Install.

6. Make sure the Launch Configuration check box is selected (default) on the Installation
Complete screen, and click Done.

If the localhost is not mapped to the loopback address, an error message displays. You must
map the loopback address to the localhost (refer to

localhost” on page 13) before you configure the application.

If the localhost is mapped to the loopback address, the configuration wizard displays. To
configure the application, refer to one of the following sections:

“Mapping the loopback address to the

1

• If this is a fresh installation, refer to “Network Advisor Configuration” on page 17.

• If you are upgrading from a previous version and need to migrate data, refer to “Data

Migration” on page 41.

Mapping the loopback address to the localhost

To map the loopback address to the localhost, complete the following steps.

1. Open the hosts file.

For Windows, the hosts file is located in the WINDOWS\system32\drivers\etc directory.

For Linux, the hosts file is located in the /etc directory

2. Add the following entries:

# For IPV4 machine

127.0.0.1 localhost

# For IPV6 enabled machine

127.0.0.1 localhost
::1 localhost

3. Save and close the file.

To configure the application, refer to one of the following sections:

• If this is a fresh installation, refer to “Network Advisor Configuration” on page 17.

• If you are upgrading from a previous version and need to migrate data, refer to “Data

Migration” on page 41.

Network Advisor Installation and Migration Guide 13
53-1002699-01

Headless installation

1

Headless installation

Headless installation, also known as silent mode installation, is fully supported on all platforms.
Once initiated, the headless installation requires minimal user interaction and runs based on the
default values provided. Headless installation performs the actual installation; however, you must
use the Configuration wizard in graphical user interface mode to copy data and settings, configure
the FTP or SCP server, configure IP, and configure server ports.

Before you install Network Advisor, make sure you meet the following requirements.

Make sure all system requirements have been met prior to installation. For specific system
requirements, refer to

Additional pre-installation requirements for UNIX systems (headless
installation)

An X Server display is required, even when performing a headless installation, to run the initial
configuration. Before you install Network Advisor, complete the following:

• Make sure that an X Server is available for display and is configured to permit X Client

applications to display from the host on which they are installing the Network Advisor server
(typically, this simply requires that the system console be present and running with a logged-in
user on the X Server-based desktop session, such as KDE, GNOME, and so on).

The DISPLAY can be any host X Server (for example, DISPLAY can be set to display the
configuration to another UNIX system that has an X-based desktop).

“System requirements” on page 1.

• Make sure that the DISPLAY environment variable is correctly defined in the shell with a valid

value (for example, to display to the local console, export DISPLAY=:0.0, or to display to a
remote system that has an X Server running, export DISPLAY=Remote_IP_Address:0.0).

To display to a remote system, you need to permit the remote display of the X Server by running
the xhost +IP command, where IP is the IP address of the Network Advisor server host, on a
local terminal window of the X-based desktop of the remote system.

You may also need to consider a firewall that might block the display to the X Server, which
listens by default on TCP port 6000 on the remote host.

• Make sure you test the DISPLAY definition by running the xterm command from the same shell

from which you run install.bin. A new X terminal window to the destination X Server display
should open.

14 Network Advisor Installation and Migration Guide

53-1002699-01

Headless installation

1

Performing a headless installation on Windows and UNIX systems

To perform a headless installation through the CLI, download the software (refer to “Downloading

the software” on page 9).

• For Windows systems, open a Command Prompt and execute this command:

install.exe -i silent -DUSER_INSTALL_DIR="C:\Program Files\Network
Advisor11.X.X"

• For UNIX systems, open a UNIX shell and execute this command: install.bin -i silent

-DUSER_INSTALL_DIR="/opt/Network_Advisor11_X_X"

The application installs in silent mode using default settings.

To configure the application, refer to one of the following sections:

• If this is a fresh installation, refer to “Network Advisor Configuration” on page 17.

• If you are upgrading from a previous version and need to migrate data, refer to “Data

Migration” on page 41.

Troubleshooting the Linux headless installation

If you have completed all of the pre-Installation requirements and you are still unable to install the
application, run the following commands on the host.

1. Go to Install_Home/ (the directory containing install.bin).

2. Execute strace -f -F -v -s 1024 -o NetworkAdvisorinstall.txt ./install.bin.

3. Execute rpm -qa >> system.txt.

4. Execute ps -elf >> system.txt.

5. Execute md5sum install.bin >> system.txt.

6. Execute df -k >> system.txt.

7. Execute sh -c "xterm -e echo nothing >> system.txt 2>&1".

8. Execute env >> system.txt.

9. Execute sh -c "DISPLAY=:0.0 xterm -e echo nothing >> system.txt 2>&1".

10. Execute zip support1.zip NetworkAdvisorinstall.txt system.txt.

Send the support1.zip file output from the above (containing install.txt and system.txt) to
Technical Support. This file will help Technical Support isolate the issue.

Network Advisor Installation and Migration Guide 15
53-1002699-01

Headless installation

1

16 Network Advisor Installation and Migration Guide

53-1002699-01

Chapter

NOTE

Network Advisor Configuration

In this chapter

•Configuring Network Advisor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

•Accessing the Network Advisor interfaces. . . . . . . . . . . . . . . . . . . . . . . . . . . 24

•Syslog troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

•Installing the ODBC driver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

•Smart Card driver installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

•Configuring an explicit server IP address. . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

•Product Improvement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

•Configuring remote client access to the database . . . . . . . . . . . . . . . . . . . . 39

Configuring Network Advisor

2

If you have not installed the application, refer to “Installation” on page 1. If you are migrating data,
refer to “Data Migration” on page 41.

To configure Network Advisor, complete the following steps.

1. Click Next on the Welcome screen.

2. Click No, don’t any copy data and settings on the Copy Data and Settings (Migration) screen
and click Next.

You cannot migrate data to Network Advisor 12.0.X after you complete configuration.

To migrate data from a previous management application version, refer to “Data Migration” on
page 41.

Network Advisor Installation and Migration Guide 17
53-1002699-01

Configuring Network Advisor

NOTE

NOTE

NOTE

ATTENTION

NOTE

2

3. Select one of the following options on the Package screen and click Next.

4. Select one of the following options on the Installation Type screen and click Next.

• SAN with SMI Agent

• IP

• SAN with SMI Agent + IP

• SMI Agent Only (Go to step 8.)

SMI Agent is not supported in a Professional edition configuration.

If you choose to install only the SMI Agent, the configuration defaults to the SAN Enterprise
package. When you open the Network Advisor client, a License dialog displays, where you must
enter a SAN Enterprise license key to use the client. If you enter a SAN Professional Plus
license key, you must downgrade your license and restart all services for the changes to take
affect. For instructions, refer to the user manual or online help.

The DCX and DCX 8510-8 Backbone chassis require Enterprise edition.

• Network Advisor - Licensed version

Continue with step 5. Requires you to enter a license key during configuration to enable
features and configuration.

• Network Advisor - 75 days Trial

Go to step 6. Enables you to manage IP, SAN, or SAN and IP networks from a single
interface for 75 days.

If you choose to install Trial, once the trial period ends (75 days), you must upgrade to
Licensed software.

• Network Advisor - Professional

Go to step 6. Bundled with Fabric OS and IronWare OS devices to manage small IP, SAN, or
SAN and IP networks from a single interface.

5. (Licensed software only) If you are installing licensed software, browse to the license file (.xml)
and click Next.

The License Key field is not case-sensitive.

If you use the SAN with SMI Agent +IP Enterprise license key, Event-based collection for IP
discovery will be turned off.

If you use the SAN with SMI Agent +IP Enterprise license key, a message displays. Click No on
the message to remain on the Server License screen and edit the license key. Click Yes to
close the message and continue with

18 Network Advisor Installation and Migration Guide

step 6.

53-1002699-01

Configuring Network Advisor

NOTE

6. Complete the following steps on the FTP/SCP/SFTP Server screen.

a. Choose one of the following options:

• Select Built-in FTP/SCP/SFTP Server to configure an internal FTP/SCP/SFTP server

and select one of the following options:

- Select Built-in FTP Server to configure an internal FTP server

The internal FTP server uses a default account and port 21. You can configure
your own account from the Options dialog box. For instructions, refer to the
Network Advisor User Manual or online help.

- Select Built-in SCP/SFTP Server to configure an internal SCP/SFTP server

The internal SCP/SFTP server uses a default account and port 22. You can
configure your own account from the Options dialog box. For instructions, refer to
the Network Advisor User Manual or online help.

• Select External FTP/SCP/SFTP Server to configure an external FTP server.

You can configure the external FTP server settings from the Options dialog box. For
instructions, refer to the Network Advisor User Manual or online help.

b. Click Next.

If port 21 or 22 is busy, a message displays. Click OK to close the message and continue. Once
the Management application is configured make sure port 21 or 2221 is free and restart the
Server to start the FTP/SCP/SFTP service.

2

If you use an FTP/SCP/SFTP Server which is not configured on the same machine as the
Management application, the Firmware Repository feature will not be available.

7. Configure the database password on the Database Administrator Password (dcadmin) screen
by completing the following steps.

a. Choose one of the following options:

• To use the default password, select Default password.

The default is password.

• To configure a new password, select New password and enter a new password in the

Password and Confirm Password fields.
The password must be between 8 and 15 alphanumeric characters. Special
characters except single quote (‘) are allowed.

b. Click Next.

You can configure the external FTP server settings from the Options dialog box. For
instructions, refer to the Network Advisor User Manual or online help.

Network Advisor Installation and Migration Guide 19
53-1002699-01

Configuring Network Advisor

NOTE

NOTE

NOTE

NOTE

2

8. Complete the following steps on the Server IP Configuration screen.

If the Management server or client has multiple Network Interface Cards and if any of these
interfaces are not plugged in, you must disable them; otherwise, the following features do not
work properly:

Server impact

• Configuration wizard (does not display all IP addresses)

• Trap and Syslog auto registration

• Report content (Ipconfiguration element does not display all server IP addresses)

• Network OS configuration backup through FTP

• Tra c e dump thro u gh FTP

Client impact

• Options dialog box (does not display all IP addresses)

• Firmware import and download dialog box

• Firmware import for Fabric OS and Network OS products

• FTP button in Technical Support Repository dialog box

• Technical supportSave of Fabric OS, Network OS, and Host products through FTP

a. Select an address from the Server IP Configuration list.

For Professional software, the Server IP Configuration address is set to “localhost” by
default. You cannot change this address.

For SMI Agent, if the Server IP Configuration list contains a duplicate IP address or is
empty, an error message displays and the configuration wizard closes.

b. Select an address from the Switch - Server IP Configuration Preferred Address list.

If the “hostname” contains invalid characters, the host name does not display in the list.
Valid characters include alphanumeric and dash (-) characters. The IP address is selected
by default. If the an IPv6 address is selected, server start up will fail.

If Domain Name System (DNS) is not configured for your network, do not select the
“hostname” option from either the Server IP Configuration or Switch - Server IP
Configuration Preferred Address list. Selecting the “hostname” option prevents clients and
devices from communicating with the server.

If you select a specific IP address from the Server IP Configuration screen and the selected
IP address changes, you will not be able to connect to the server. To change the IP address
after configuration, refer to

“Configuring an explicit server IP address” on page 36.

c. Click Next.

20 Network Advisor Installation and Migration Guide

53-1002699-01

Configuring Network Advisor

NOTE

NOTE

NOTE

NOTE

NOTE

9. Complete the following steps on the Server Configuration screen (Figure 1).

Do not use port 1527 for any of these port numbers. Port 1527 is used internally by the server.

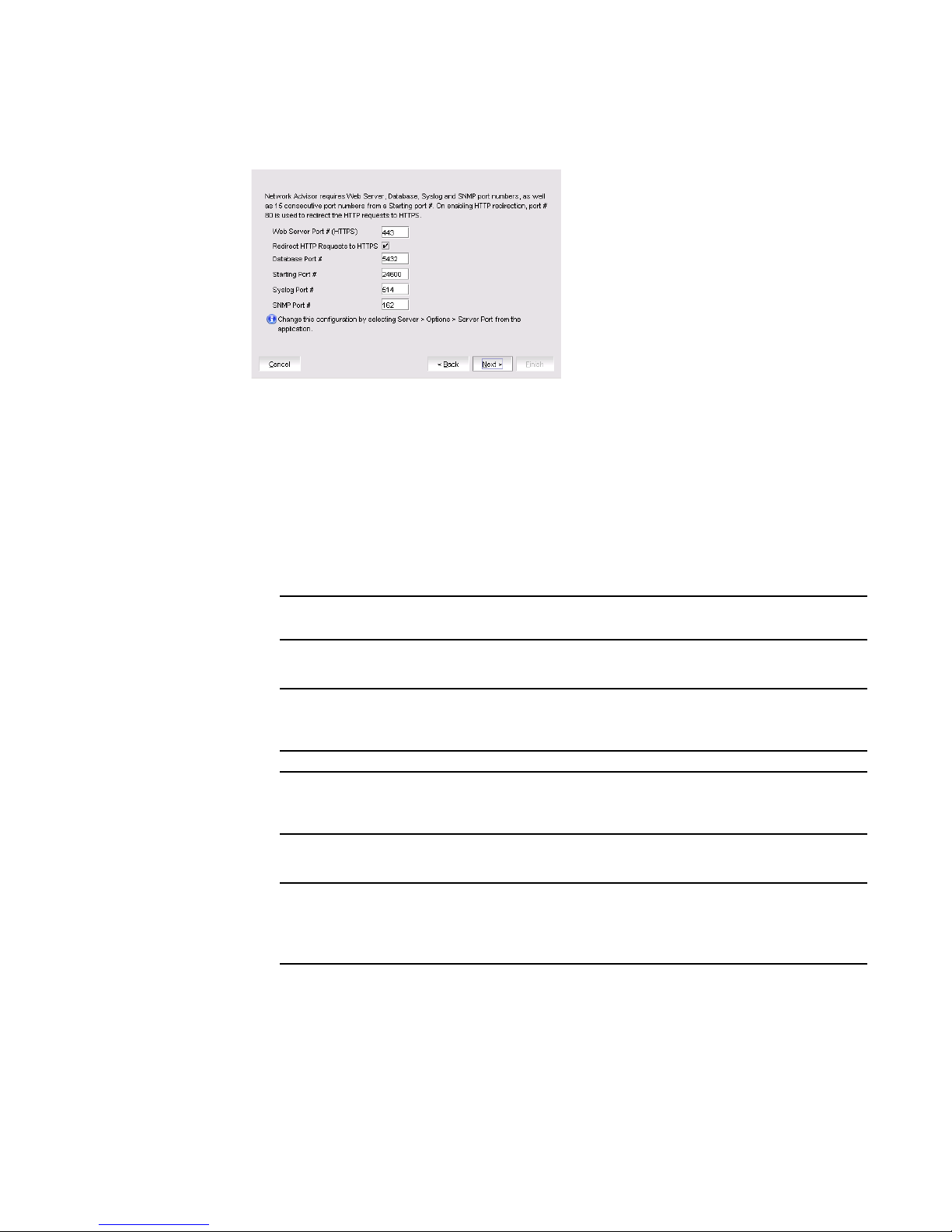

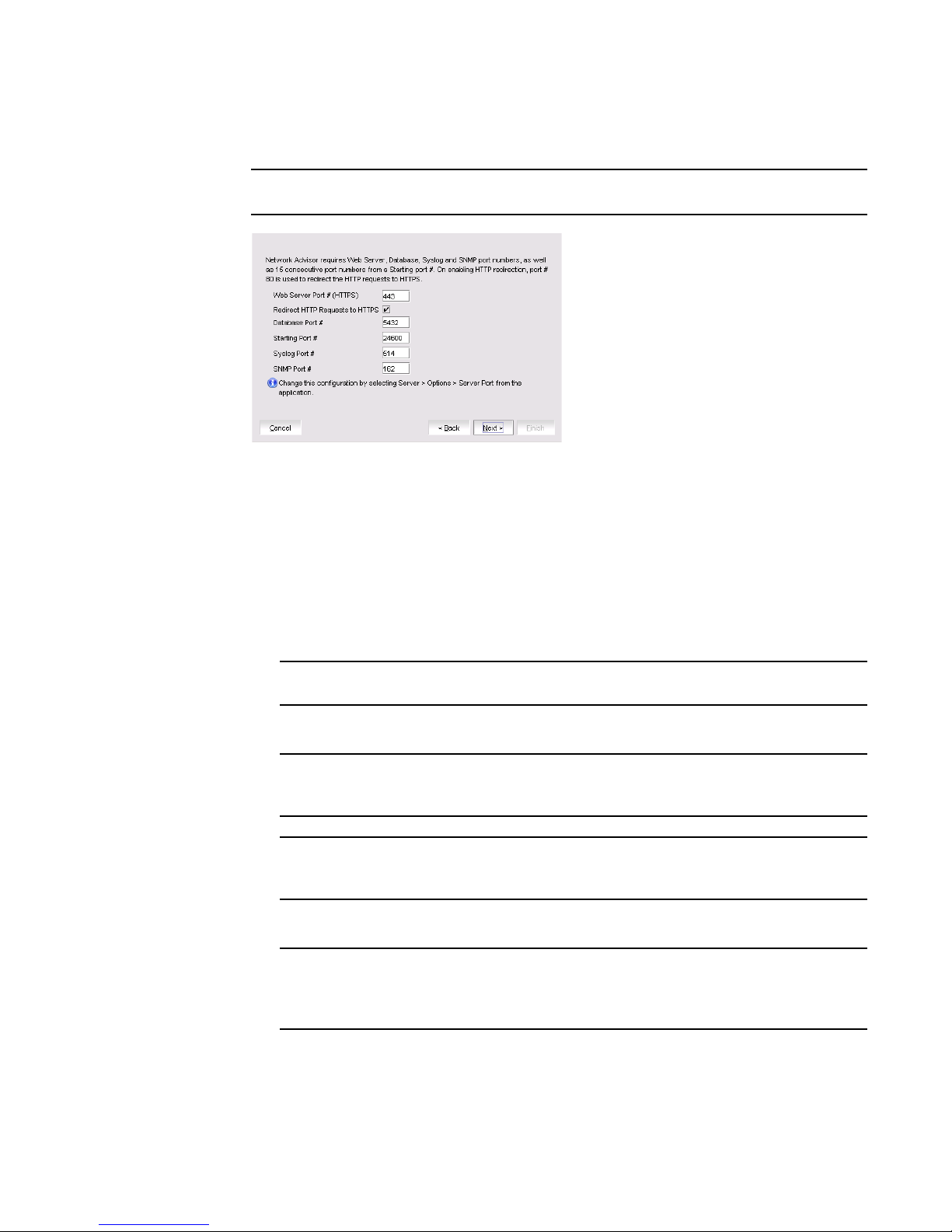

FIGURE 1 Server Configuration screen

a. Enter a port number in the Web Server Port # (HTTPS) field (default is 443).

b. Enable HTTP redirection to HTTPS by selecting the Redirect HTTP Requests to HTTPS

check box.

2

When you enable HTTP redirection, the server uses port 80 to redirect HTTP requests to
HTTPS. You can configure the server port settings from the Options dialog box (Server Port
pane). For instructions, refer to the Network Advisor User Manual or online help.

c. Enter a port number in the Database Port # field (default is 5432).

Do not use a port number below 1024.

d. Enter a port number in the Starting Port Number field (default is 24600).

For Professional software, the server requires 15 consecutive free ports beginning with
the starting port number.

For Trial and Licensed software, the server requires 18 consecutive free ports beginning
with the starting port number.

e. Enter a port number in the Syslog Port Number field (default is 514).

If the default syslog port number is already in use, you will not receive any syslog
messages from the device. To find and stop the process currently running on the default
Syslog port number, refer to “Syslog troubleshooting” on page 27.

Network Advisor Installation and Migration Guide 21
53-1002699-01

Configuring Network Advisor

NOTE

NOTE

2

10. (SAN with SMI Agent + IP or SAN with SMI Agent) Complete the following steps on the SMI

f. Enter a port number in the SNMP Port Number field (default is 162).

g. Click Next.

If you enter a syslog port number already in use, a message displays. Click No on the
message to remain on the Server Configuration screen and edit the syslog port number.
Click Yes to close the message.

If you enter a port number already in use, a Warning displays next to the associated port
number field. Edit that port number and click Next.

If you are configuring Professional software, go to step 13.

If you are configuring IP Enterprise, go to step 12.

Agent Configuration screen.

a. Enable the SMI Agent by selecting the Enable SMI Agent check box.

b. Enable the SLP by selecting the Enable SLP check box, if necessary.

Only enabled after you select the Enable SMI Agent check box.

c. Enable the SSL by selecting the Enable SSL check box, if necessary.

Only enabled after you select the Enable SMI Agent check box.

d. Enter the SMI Agent port number in the SMI Agent Port # field (default is 5989 if SSL

Enabled is selected; otherwise, the default is 5988).

e. Click Next.

11. (SAN Enterprise or SMI Agent) Select one of the following options on the SAN Network Size
screen and click Next:

Port count is equal to the total number of switch ports across all fabrics.

If you installed the SAN with SMI Agent + IP package Enterprise edition on a 32-bit Windows
system, the Large option is disabled for the SAN network size.

• Small (managing up to 2000 switch ports, 1-20 domains)

• Medium (managing up to 5000 switch ports, 21-60 domains)

• Large (managing up to 9000 switch ports, 61-120 domains)

If you are configuring IP Enterprise, continue with step 12; otherwise, go to step 13.

22 Network Advisor Installation and Migration Guide

53-1002699-01

Configuring Network Advisor

NOTE

NOTE

NOTE

12. (IP Enterprise) Select one of the following options on the IP Network Size screen and click Next:

Port count is equal to the total number of all managed product ports.

If you installed the SAN with SMI Agent + IP package on a 32-bit Windows system, the Large
option is disabled for IP network size (Enterprise and Professional Plus).

2

• Small (managing up to 1-20 products)

• Medium (managing up to 21-200 products)

• Large (managing up to 201-5050 products)

13. Enable feature usage data transfer from the application by selecting the Yes, I want to
participate option.

You can stop participating at any time. To view an example of the usage data, click View
Example Data.

To stop participating in feature usage data transfer after configuration, refer to “Product

Improvement” on page 37.

14. Verify your configuration information on the Server Configuration Summary screen and click
Next.

15. Complete the following steps on the Start Server screen.

a. (Trial and Licensed only) Select the Start SMI Agent check box, if necessary.

Only enabled if you enabled SMI Agent on the SMI Agent Configuration screen.

b. (Trial and Licensed only) Select the Start SLP check box, if necessary.

Only enabled if you enabled SLP on the SMI Agent Configuration screen.

c. Select the Start Client check box, if necessary.

Only displays if you selected SAN with SMI Agent + IP or SAN with SMI Agent on the
Package screen.

d. Click Finish.

After all of the services are started, the Log In dialog box displays.

To make changes to the configuration, you can re-launch the configuration wizard (refer to

“Configuring an explicit server IP address” on page 36).

16. Enter your user name and password.

The defaults are Administrator and password, respectively.

Do not enter Domain\User_Name in the User ID field for LDAP server authentication.

17. Click Login.

18. Click OK on the Network Advisor Login Banner.

Network Advisor Installation and Migration Guide 23
53-1002699-01

Accessing the Network Advisor interfaces

NOTE

NOTE

NOTE

2

Accessing the Network Advisor interfaces

Use the following procedures to access Network Advisor from the server and client as well as to
access the Server Management Console and the SMI Agent Configuration Tool.

Logging into a server

You must log into a server to monitor your network.

You must have an established user account on the server to log in.

1. Double-click the desktop icon or open the application from the Start menu.

The Log In dialog box displays.

2. Log into another server by entering the IP address to the other server in the Network Address
field.

The server must be the exact same version, edition, starting port number, and network size as
the client.

3. Remove a server from the Network Address list by selected the IP address and clicking Delete.

4. Enter your user name and password.

The defaults are Administrator and password, respectively.

Do not enter Domain\User_Name in the User ID field for LDAP server authentication.

5. Select or clear the Save password check box to choose whether you want the application to
remember your password the next time you log in.

6. Click Login.

7. C l i ck OK on the Login Banner dialog box.

The Network Advisor application displays.

Launching a remote client

The remote client requires Oracle JRE 1.7.0_09. For the website listing patch information, go to
http://www.oracle.com/technetwork/java/javase/downloads/index.html.

1. Open a web browser and enter the IP address of the Network Advisor server in the Address bar.

If the web server port number does not use the default (443 if is SSL Enabled; otherwise, the
default is 80), you must enter the web server port number in addition to the IP address. For
example, IP_Address:Port_Number.

The Network Advisor web start screen displays.

2. Click the Network Advisor web start link.

The Log In dialog box displays.

24 Network Advisor Installation and Migration Guide

53-1002699-01

Accessing the Network Advisor interfaces

NOTE

NOTE

NOTE

3. Log into another server by entering the IP address to the other server in the Network Address
field.

The server must be the exact same version, edition, starting port number, and network size as
the client.

4. Remove a server from the Network Address list by selected the IP address and clicking Delete.

5. Enter your user name and password.

The defaults are Administrator and password, respectively.

Do not enter Domain\User_Name in the User ID field for LDAP server authentication.

6. Select or clear the Save password check box to choose whether you want the application to
remember your password the next time you log in.

7. C l i ck Login.

8. Click OK on the Login Banner dialog box.

The Network Advisor application displays.

2

Launching the SMC on Windows

Open the Server Management Console from the Start menu on the Network Advisor server.

You can also drag the SMC icon onto your desktop as a short cut.

Launching the SMC on Linux

The Server Management Console is a graphical user interface and should be launched from the
XConsole on Linux systems.

1. On the Network Advisor server, go to the following directory:

Install_Directory/bin

2. Type the following at the command line:

./smc
OR
sh smc

Network Advisor Installation and Migration Guide 25
53-1002699-01

Accessing the Network Advisor interfaces

2

Launching the SMIA Configuration Tool

1. Launch the Server Management Console from the Start menu.

2. Click Configure SMI Agent.

The SMIA Configuration Tool Log In dialog box displays.

3. Enter your user name and password.

The defaults are Administrator and password, respectively.

4. Click Login.

Launching the SMIA Configuration Tool remote client

The remote client requires Oracle JRE 1.7.0_09. For the website listing patch information, go to
http://www.oracle.com/technetwork/java/javase/downloads/index.html.

1. Open a web browser and enter the IP address of the Network Advisor server in the Address bar.

If the web server port number does not use the default (5989 if is SSL Enabled; otherwise, the
default is 5988), you must enter the web server port number in addition to the IP address. For
example, IP_Address:Port_Number.

The Network Advisor web start screen displays.

2. Click the SMIA Configuration Tool web start link.

The SMIA Configuration Tool Log In dialog box displays.

3. Enter your user name and password.

The defaults are Administrator and password, respectively.

4. Select or clear the Save password check box to choose whether you want the application to
remember your password the next time you log in.

5. Click Login.

The SMIA Configuration Tool displays.

26 Network Advisor Installation and Migration Guide

53-1002699-01

Syslog troubleshooting

If the default syslog port number is already in use, you will not receive any syslog messages from
the device. Use one of the following procedures (depending on your operating system), to
determine which process is running on the syslog port and to stop the process.

Finding the process

1. Open a command window.

2. Choose one of the following options:

• On Linux systems, type netstat –nap | grep 514 and press Enter.

The process running on port 514 displays.

Example output: UDP 0 0 ::ffff:127:0:0:1:514 :::* 27397.

• On Windows systems, type netstat –anb | find /i “514” and press Enter.

The process running on port 514 displays.

Example output: UDP 127:0:0:1:514 *:* 3328.

Syslog troubleshooting

2

Stopping the process

Choose one of the following options:

• On Linux systems, type kill -9 “<PID>” and press Enter.

For example, kill -9 “27397”.

• On Windows systems, type taskkill /F /PID “<PID>” and press Enter.

For example, taskkill /F /PID "3328".

OR

1. Select Ctrl + Shift + Esc to open Windows Task Manager.

2. Click the Processes tab.

3. Click the PID column header to sort the processes by PID.

4. Select the process you want to stop and click End Process.

Network Advisor Installation and Migration Guide 27
53-1002699-01

Installing the ODBC driver

NOTE

2

Installing the ODBC driver

You must have the Open Database Connectivity (ODBC) driver to allow remote clients to export data
and generate reports. The ODBC driver enables you to configure the data source name (DSN) for
the Network Advisor database.

Installing the ODBC driver on Windows systems

You must have the Open Database Connectivity (ODBC) driver to allow remote clients to export data
and generate reports. The ODBC driver enables you to configure the data source name (DSN) for
the Network Advisor database.

To install the ODBC driver, complete the following steps.

1. Double-click edb_psqlodbc.exe located on the DVD (DVD_Drive/Network
Advisor/odbc/Windows).

2. Install the file to the usual location for your system’s application files (for example, C:\Program
Files\Network Advisor ODBC Driver) on the Select Install Folder screen and click Next.

If you select an invalid location, the ODBC driver is installed in a different location than where
the ODBC executable drivers are located.

3. On the Ready to Install screen click Next.

4. Click Finish to complete the installation.

5. Choose one of the following opitions:

• (32-bit OS) Select Start > Settings > Control Panel > Administrative Tools > Data Sources

(ODBC).

• (62-bit OS) (Windows only) Select Start > Run, type %windir%\SysWOW64\odbcad32.exe

and press Enter.

The ODBC Data Source Administrator dialog box displays.

6. Click the System DSN tab.

7. C l i ck Add.

The Create a New Data Source dialog box displays.

8. Select PostgreSQL Unicode.

9. Click Finish.

The PostgreSQL Unicode ODBC Driver (psqlODBC) Setup dialog box displays.

10. Enter a name for the data source in the Datasource field.

11. Enter the description of the Network advisor database in the Description field.

12. Enter the name of the Network Advisor database in the Database field.

13. Select enable or disable from the SSL Mode list to specify whether or not to use SSL when
connecting to the database.

14. Enter the IP address or host name of the Network Advisor server in the Server field.

15. Enter the database server port number in the Port Number field.

28 Network Advisor Installation and Migration Guide

53-1002699-01

Installing the ODBC driver

NOTE

NOTE

16. Enter the database user name in the User Name field.

17. Enter the password in the Password field.

18. Click Test to test the connection.

You can also use the Windows ODBC Driver Manager to add the DSN for the LINUX database
server.

19. Click OK on the Connection Test dialog box.

20. Click Save.

21. Click OK on the ODBC Data Source Administrator dialog box.

2

Installing the ODBC driver on Linux systems

You must have the Open Database Connectivity (ODBC) driver to allow remote clients to export data
and generate reports. The ODBC driver enables you to configure the data source name (DSN) for
the Network Advisor database.

To install the ODBC driver, complete the following steps.

1. Execute the following command in the terminal:

> su
>chmod 777 edb_psqlodbc.bin
> ./edb_psqlodbc.bin

For 32-bit Linux systems, the installer file is located in DVD/BROCADE/Network
Advisor/odbc/Linux/ edb_psqlodbc.bin.

For 64-bit Linux systems, the installer file is located in DVD/BROCADE/Network
Advisor/odbc/Linux_64/ edb_psqlodbc.bin.

2. On the Setup psqlODBC screen click Next.

3. Install the file to the usual location for your system’s application files (for example,
/opt/PostgreSQL/psqlODBC) on the Installation Directory screen and click Next.

If you select an invalid location, the ODBC driver is installed in a different location than where
the ODBC executable drivers are located.

4. On the Ready to Install screen click Next.

5. On the Completing the psqlODBC Setup Wizard screen click Finish to complete the installation.

Network Advisor Installation and Migration Guide 29
53-1002699-01

Installing the ODBC driver

NOTE

2

Adding the Datasourse on Linux systems

Before you edit the INI files, install Network Advisor (refer to “Installation” on page 1) and make
sure the PostgreSQL database is up and running.

For RedHat and Oracle Enterprise systems, the odbc.ini and odbcinst.ini files are located in /etc. For
SUSE systems, the odbc.ini and odbcinst.ini files are located in /etc/unixODBC.

1. Open the odbc.ini file in an editor and enter the datasource information as follows:

[TestDB]
Description = PostgreSQL 8.3
Driver = /opt/PostgreSQL/psqlODBC/lib/psqlodbcw.so
Database = dcmdb
Servername = 172.26.1.54
UserName = dcmadmin
Password = passw0rd
Port = 5432

2. Save and close the odbc.ini file.

3. Open the odbcinst.ini file in a text editor and make sure that the driver path information is
correct.

After you install the PostgreSQL ODBC driver, the odbcinst.ini should automatically update the
driver path. If the direver path is not updated, add the following:

[psqlODBC]
Description=PostgreSQL ODBC driver
Driver=/opt/PostgreSQL/psqlODBC/lib/psqlodbcw.so

4. Save and close the odbcinst.ini file.

Testing the connection on Linux systems

To test the connection, complete the following steps.

1. Download and install Open Office.

2. Select File > New > Database.

The Database Wizard displays.

3. On the Select database screen, complete the following steps.

a. Select the Connect to an existing database option.

b. Select ODBC from the list.

c. Click Next.

4. On the Set up ODBC connection screen, complete the following steps.

a. Click Browse.

The datasource saved in the odbc.ini file is populated in the Datasource dialog box.

b. Select the datasource and click OK on the Datasource dialog box.

c. Click Next.

30 Network Advisor Installation and Migration Guide

53-1002699-01

Installing the ODBC driver

5. On the Set up user authentication screen, complete the following steps.

a. Enter the database user name in the User name field.

b. Select the Password required check box.

c. Click Test Connection to test the connection.

The Authentication Password dialog box displays.

d. Enter the database password in the Password field and click OK.

e. Click OK on the Connection Test dialog box.

For 32-bit Linux systems, if an error message (file not found while testing the connection)
displays, copy the lib files from the <postgresSQL path>/lib/* directory to the /usr/lib/
directory.

For 64-bit Linux systems, if an error message (cannot open library) displays, complete the
following steps:

1. Execute the following command:

export
LD_LIBRARY_PATH=/opt/PostgreSQL/8.4/lib/:/usr/lib64/:/opt/PostgreSQL/p
sqlODBC/lib/:$LD_LIBRARY_PATH

2

2. Navigate to the Postgres ODBC library (default location is
opt/PostgreSQL/psqlODBC/lib/).

3. Create a list of missing libraries by executing the following command:

ldd psqlodbcw.so

Missing files display as: libodbc.so.1=> not found

4. Find shared libraries with the same name as the missing library by executing the
following command:

find –name libodbc.so*

5. Create a soft link for libodbc.so.1 pointing to libodbc.so.2.0.0 by executing the
following command:

ln -s libodbc.so.1 libodbc.so.2.0.0

f. Click Next.

6. On the Save and proceed screen, click Finish.

Network Advisor Installation and Migration Guide 31
53-1002699-01

Smart Card driver installation

2

Smart Card driver installation

Windows operating systems do not require smart card drivers to be installed separately; the driver
is bundled with the operating system. However, you must install a smart card driver for the Linux
operating systems. You must install both the special USB Chip/Smart Card Interface Device (USB
CCID) and the PC/SC IFD driver. You can download the source code and compile it from one of the
following websites:

• USB CCID (ccid-1.3.7.tar.bz2)

Open Source URL: http://pcsclite.alioth.debian.org/ccid.html.

• Muscle PC/SC IFD Driver (pcsc-lite-1.4.101.tar.gz)

Open Source URL: https://alioth.debian.org/frs/?group id=30105.

The Encryption Manager Client within Network Advisor provides the binary code on both platforms
for installation. You must uncompress or untar the file depending on the platform. The procedures
for the local client and the remote client configurations follow. The
thirdparty/pscs-lite-1.4.101-linux-x86.tar.gz file can be found on the Network Advisor DVD.

Installing the Smart Card driver on the local client

1. Verify that the /opt directory exists.

If the /opt directory does not exist, create an /opt directory. If you want to install the driver in a
different directory, create that directory. Otherwise, skip this step.

> su
> mkdir /opt

2. Copy the appropriate pscs file for your platform (Linux) from the DVD and rename the file as
pcsc-lite-1.4.101-linux-x86.tar.gz file.

3. Log in as the superuser to untar the pcsc-lite-1.4.101-linux-x86.tar.gz file.

> su
> cd /opt
> gunzip pcsc-lite-1.4.101-linux-x86.tar.gz
> tar -xvf pcsc-lite-1.4.101-linux-x86.tar

After the pcsc_lite_1.4.101.tar file is extracted, the necessary binary, library, and smart card
drivers are stored in the /opt/pcsc directory.

4. If you installed a pcsc directory into a location other than /opt, modify the pcscctl script to
change “/opt” to the directory you specified in

> cd <new_dir>
> vi pcscctl

Search for “/opt” and change it to the name of the new directory.

step 1.

32 Network Advisor Installation and Migration Guide

53-1002699-01

Smart Card driver installation

NOTE

NOTE

2

5. Create a soft link into the system directory. This is to support the automatic restart of the pcscd
daemon upon system restart.

If you installed the pcsc directory into the /opt directory, just create the soft link. Otherwise,
use the name of the new directory in place of /opt.

S.u.s.e> ln –s /opt/pcsc/pcscctl /etc/init.d/pcscd
S.u.s.e> chkconfig --add pcscd

or

redhat> ln –s /opt/pcsc/pcscctl /etc/init.d/pcscd
redhat> chkconfig --add pcscd

Before you enter chkconfig --add pcscd, you can enter chkconfig –list | grep pcscd to verify
that the pcscd file is already on the list. If it already exists, you do not need to enter
chkconfig –add pcscd. After you reboot the system, you should expect the following links
under /etc/rc2.d, /etc/rc3.d, /etc/rc3.d, /etc/rc4.d, and /etc/rc5.d.

lrwxrwxrwx 1 root root 15 Jul 28 01:50 S94pcscd -> ../init.d/pcscd

For some Linux vendors, the Smart Card driver may come with the operating system. In
this case, extra system configuration may be needed. For more information, refer to

“Detecting and correcting a default Linux Smart Card driver” on page 34.

6. Start the pcscd daemon or stop the pcscd daemon.

To start pcscd, type:

> /opt/pcsc/pcscctl start

To stop pcscd, type:

> /opt/pcsc/pcscctl stop

Network Advisor Installation and Migration Guide 33
53-1002699-01

Smart Card driver installation

NOTE

2

Installing the Smart Card driver on the remote client

1. Complete steps 1 through 4 in “Installing the Smart Card driver on the local client” on page 32.

2. Run the following commands to support remote clients (Web Start).

> cd /usr/lib
> ln –s /opt/pcsc/lib/libpcsclite.so .

If a soft link exists on libpcsclite.so, make sure that the final file is linked to
/opt/pcsc/lib/libpcsclite.so.xxx. It is recommended that you back up the original.

Example

> ls –l libpcsc*

lrwxrwxrwx 1 root root 20 Aug 4 16:16 libpcsclite.so ->
libpcsclite.so.1.0.0
lrwxrwxrwx 1 root root 20 Jun 4 12:30 libpcsclite.so.1 ->
libpcsclite.so.1.0.0
lrwxrwxrwx 1 root root 34 Aug 5 14:36 libpcsclite.so.1.0.0

> mv libpcsclite.so.1.0.0 libpcsclite.so.1.0.0.org
> ln -s /opt/pcsc/lib/libpcsclite.so.1.0.0 libpcsclite.so.1.0.0

> ls –l libpcsc*

lrwxrwxrwx 1 root root 20 Aug 4 16:16 libpcsclite.so ->
libpcsclite.so.1.0.0
lrwxrwxrwx 1 root root 20 Jun 4 12:30 libpcsclite.so.1 ->
libpcsclite.so.1.0.0
lrwxrwxrwx 1 root root 34 Aug 5 14:36 libpcsclite.so.1.0.0 ->
/opt/pcsc/lib/libpcsclite.so.1.0.0

-rwxr-xr-x 1 root root 35428 Aug 4 16:17 libpcsclite.so.1.0.0.org

Detecting and correcting a default Linux Smart Card driver

This section applies to the Linux system only. Some Linux systems may provide a default Smart
Card driver and have their own setup to activate it. In this case, you must use the driver provided
with Network Advisor. Otherwise, there could be an incompatibility issue between the driver and the
native library that could cause a driver detection failure. Complete the following steps to discover
whether a default driver already exists and how to reconfigure the driver environment.

1. Detect a different Smart Card driver by running the following commands:

> cd /
> find . –name pcscd –print

If the results contain “pcscd”, and it is not located under /opt/pcsc or /etc/init.d/pcscd, a
different driver exists on the system.

2. Make sure the pcscd file on the /etc/init.d directory is linked to /opt/pcsc/pcscctl by running
the following commands:

> cd /etc/init.d
> ls –l pcscd

lrwxrwxrwx 1 root root 17 Jul 28 01:29 pcscd -> /opt/pcsc/pcscctl

34 Network Advisor Installation and Migration Guide

53-1002699-01

Smart Card driver installation

2

3. If there is an existing pcscd script in this directory, you can move and rename this file before
you overwrite it.

> mv /etc/init.d/pcscd /etc/init.d/pcscd.org

4. Create a soft link using the following command.

> ln –s /opt/pcsc/pcscctl /etc/init.d/pcscd

The existing pcscd.org script in this directory implies that a different driver version exists. You
can compare the existing one with the one under /opt/pcsc/pcscd/sbin. If the size is different
and the existing pcscd script contains the following information, you must clean up the driver
configuration. The example below shows a different pscsd.org script and how to do the
configuration cleanup. The configuration level is 2345, the start priority is 25, and the stop
priority is 88.

> more /etc/init.d/pcscd

#!/bin/sh
#
# pcscd Starts the pcscd Daemon
#
# chkconfig: 2345 25 88

5. Remove the existing pcscd start priority file by deleting the file as SNNpcscd, where NN is the
start priority. For example, from the preceding step, the file name is S25pcscd.

> find /etc/. –name “S25pcscd” –exec rm {} \; -print
> sync;sync;sync
> reboot

After the reboot, the new configuration from the /opt/pcsc/pcscctl file should be under the

/etc/rc2.d, /etc/rc3.d, /etc/rc4.d, and /etc/rc5.d directories.

lrwxrwxrwx 1 root root 15 Jul 28 01:50 S94pcscd -> ../init.d/pcscd

6. For the remote client, ensure that the Smart Card native library is linked to the one under
/opt/pcsc/lib.

> cd /
> find . –name libpcsclite.so* -print

If the library libpcsclite.so* exists in multiple locations, you must ensure that there is only one
library under /lib or /usr/lib, and that it is linked to the library on /opt/pcsc/lib correctly. For
example, to find a copy of the library on /lib, use the following commands.

> cd /lib
> ls –al libpcsclite.so

If a copy of the library exists, either remove it or save it as a backup.

To find a copy of the library on /usr/lib, use the following commands.

> cd /usr/lib
> ls –al libpcsclite.so

Use this copy for the soft link.

> ln –s /opt/pcsc/lib/libpcsclite.so /usr/lib/.

Network Advisor Installation and Migration Guide 35
53-1002699-01

Configuring an explicit server IP address

NOTE

NOTE

2

Configuring an explicit server IP address

If you selected a specific IP address from the Server IP Configuration screen during installation and
the selected IP address changes, you will not be able to connect to the server. To connect to the
new IP address, you must manually update the IP address information.

To change the IP address, complete the following steps.

1. Choose one of the following options:

• On Windows systems, select Start > Programs > Network Advisor 12.0.0 > Network

Advisor Configuration.

• On UNIX systems, execute sh Install_Home/bin/configwizard in terminal.

2. Click Next on the Welcome screen.

3. Click Yes on the confirmation message.

4. Click Next on the FTP Server screen.

5. Complete the following steps on the Server IP Configuration screen.

a. Select an address from the Server IP Configuration list.

b. Select an address from the Switch - Server IP Configuration Preferred Address list.

The host name does not display in the list if it contains invalid characters. Valid characters
include alphanumeric and dash (-) characters. The IP address is selected by default. If the
an IPv6 address is selected, server startup will fail.

If DNS is not configured for your network, do not select the “hostname” option from either
the Server IP Configuration or Switch - Server IP Configuration Preferred Address list.
Selecting the “hostname” option prevents clients and devices from communicating with
the server.

c. Click Next.

6. Click Next on the Server Configuration screen.

7. (SAN with SMI Agent or SAN with SMI Agent + IP packages) Click Next on the SMI Agent
Configuration screen.

8. Verify your Server Name on the Server Configuration Summary screen and click Next.

9. Click Finish on the Start Server screen.

10. Click Ye s on the restart server confirmation message.

11. Enter your user name and password and click Login.

The defaults are Administrator and password, respectively.

Do not enter Domain\User_Name in the User ID field for LDAP server authentication.

12. Click OK on the Login Banner.

36 Network Advisor Installation and Migration Guide

53-1002699-01

Product Improvement

To improve our products we are collecting usage statistics from the field. If you agree to participate
in the program, the Network Advisor server will transmit data back to the secure Brocade web
server (HTTPS). The Brocade web server is hosted in a Brocade network.

Brocade collects the following usage data:

• Installation Details

- The version information (such as, Major, Minor, Revision, and Patch)

- The Edition (such as, Enterprise, Professional Plus, or Professional)

- The Package (such as, SAN, IP, or SAN + IP)

- Whether SSL is enabled or not

- Generates a unique identifier based on the MAC address

- The operating system (such as, Windows or Linux)

• User Actions

- Top l evel menu ac t i o ns

- Tool bar actions

- Right-click menu actions

• Feature Details

- Feature name

- Button identifier (such as, OK, Help, or Cancel and so on)

Product Improvement

2

Enabling product improvement data transfer

You can enable feature usage data transfer during installation or migration. For more information,
refer to the
once your system is up and running.

To enable feature usage data transfer from the application, complete the following steps.

1. Select Server > Options.

The Options dialog box displays.

2. Select Product Improvement in the Category list.

3. Select the Yes, I want to participate option.

To view an example of the usage data, click View Example Data.

4. Click OK to save your selection and close the Options dialog box.

“Installation” on page 1. You can also enable data transfer from the Options dialog box

Network Advisor Installation and Migration Guide 37
53-1002699-01

Product Improvement

NOTE

2

Disabling product improvement data transfer

You can disable feature usage data transfer from the Options dialog box once your system is up
and running.

To disable feature usage data transfer from the application, complete the following steps.

1. Select Server > Options.

The Options dialog box displays.

2. Select Product Improvement in the Category list.

3. Select the No, thank you option.

4. Click OK to save your selection and close the Options dialog box.

Data transfer

If you agree to participate in the program, these are the actions that occur on the client and server.

1. You log into the Network Advisor client.

The main window displays.

2. The application automatically schedules a timer.

The timer is configured with an initial delay of 5 minutes and an interval of 24 hours.

3. Once scheduled, the client triggers the scheduled data transfer.

4. The client checks the reachability of the Brocade web server for the data transfer to make sure
that the client workstation has HTTP connectivity.

If the Brocade web server is reachable, the client schedules the timer.

5. The client triggers the schedule to run in 5 minutes and then every 24 hours thereafter.

6. When the scheduled timer runs, the client requests the server to transfer the usage data.

7. The server determines the availability of the data based on the following details:

• Last transfer timestamp must be greater than 24 hours to avoid frequent data uploads.

• Data must be available for transfer. Data availability is determined by the delta between

the last data transfer and the current data.

8. The client requests a data transfer.

If data is available, the server nominates the client to transfer data. Once nominated, any
further upload requests are denied.

If the nominated client’s session is ended or stuck, the session is invalidated and the state is
cleared.

9. The nominated client requests the server to prepare the data.

10. The server compiles the usage data text file into a zip file using the following naming
convention: UUID_usagedata_file_creataion_timestamp where UUID is the unique
identification of the server based on the MAC address.

38 Network Advisor Installation and Migration Guide

53-1002699-01

Configuring remote client access to the database

11. When the file is successfully created, the client changes the state of the data transfer to
“Uploading” and transmits the data.

The client transmits the data securely to the Brocade web server using the Apache HTTP
Components third-party library. The client communicates with the Brocade web server using an
authorization token.

12. When the transfer is complete, the client updates the Brocade web server database with the
transfer status (success or failure). The client also triggers an application event with the
following details: success or failure, source client IP address, and source user name.

Configuring remote client access to the database

1. Open the pg.hba.conf file (in the Install_Home\data\databases\ directory).

2. To allow all IPv4 remote connections for all users, search for the following text and uncomment
the second line:

# IPv4 remote connections (Uncomment below line to allow all IPv4 remote
users):
#host all all 0.0.0.0/0 md5

2

3. To allow all IPv6 remote connections for all users, search for the following text and uncomment
the second line:

# IPv6 remote connections (Uncomment below line to allow all IPv6 remote
users):
#host all all ::0/0 md5

4. To allow access to a specific IPv4 address, search for the following text and uncomment the
second line:

# Uncomment below line and provide IPV4 address to allow specific IPv4 remote
user
#host all all <IPV4 address>/32 md5

5. To allow access to a specific IPv6 address, search for the following text and uncomment the
second line:

# Uncomment below line and provide IPV6 address to allow specific IPv6 remote
user
#host all all <IPV6 address>/128 md5

6. Save and close the file.

Network Advisor Installation and Migration Guide 39
53-1002699-01

Configuring remote client access to the database

2

40 Network Advisor Installation and Migration Guide

53-1002699-01

Chapter

NOTE

Data Migration

In this chapter

•Upgrading the license . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

•Supported migration paths . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

•Pre-migration requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

•Migrating data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Upgrading the license

You cannot upgrade the license key from Professional edition.

The quickest and simplest method of moving from one package to another is to enter the new
license information on the Network Advisor License dialog box. The following tables list the
available upgrade paths:

3

TABLE 26 SAN upgrade paths

Current software release To software release

SAN Professional SAN Professional Plus Trial or Licensed version

SAN Enterprise Trial or Licensed version

SAN Professional Plus Trial SAN Enterprise Trial or Licensed version

SAN Professional Plus Licensed version SAN Enterprise Licensed version

SAN + IP Enterprise Licensed version

SAN Enterprise Trial SAN Enterprise Licensed version

SAN Enterprise SAN + IP Enterprise Licensed version

TABLE 27 IP upgrade paths

Current software release To software release

IP Professional IP Base Trial or Licensed version

IP Base Trial IP Base Licensed version

SAN + IP Enterprise Licensed version

IP Base Licensed version (lower count) IP Base Licensed version (higher count)

SAN + IP Enterprise Licensed version

Network Advisor Installation and Migration Guide 41
53-1002699-01

Upgrading the license

NOTE

3

TABLE 28 SAN + IP upgrade paths

Current software release To software release

SAN + IP Professional SAN Professional Plus + IP Trial or Enterprise

Licensed version
SAN + IP Enterprise Trial or Licensed version

SAN Professional Plus + IP Enterprise Trial SAN Professional Plus + IP Enterprise Licensed

version
SAN + IP Enterprise Trial or Licensed version

SAN Professional Plus + IP Enterprise Licensed
version

SAN + IP Enterprise Trial
SAN + IP Enterprise Licensed Version

1. Select Help > License.

The Network Advisor License dialog box displays.

2. Browse to the license file (.xml) and click Update.

3. Click OK on the Network Advisor License dialog box.

4. Click OK on the message.

The Client closes after updating the license successfully. Restart the Server, Client and Server
Management Console for the changes to take effect.

5. Open the application (double-click the desktop icon or open from the Start menu).

The Log In dialog box displays.

6. Enter your user name and password.

The defaults are Administrator and password, respectively. If you migrated from a previous
release, your user name and password do not change.

Do not enter Domain\User_Name in the User ID field for LDAP server authentication.

SAN + IP Enterprise Licensed version

IP Enterprise Licensed version

7. Select or clear the Save password check box to choose whether you want the application to
remember your password the next time you log in.

8. Click Login.

9. Click OK on the Network Advisor Login Banner.

42 Network Advisor Installation and Migration Guide

53-1002699-01

Supported migration paths

NOTE

NOTE

NOTE

You cannot migrate directly from Network Advisor 11.0.X to Network Advisor 12.0.0. To migrate
from Network Advisor 11.0.X, you must first migrate to Network Advisor 11.1.X, then migrate to
Network Advisor 12.0.0. To migrate from Network Advisor 11.0.X to Network Advisor 11.1.X, refer to
the Network Advisor Migration Guide for Network

Network Advisor 11.1.X includes 11.1.0, 11.1.1, 11.1.2, 11.1.3, 11.1.4, and 11.1.5.

Network Advisor 11.2.X includes 11.2.0 and 11.2.1.

Tab le 29 shows the migration paths from the DCFM, INM, and Network Advisor releases.

TABLE 29 Release migration path matrix

Network Advisor

11.1.X 11.2.X 11.3.X 12.0.X

Supported migration paths

Advisor 11.1.X.

3

DCFM 10.4.X Direct migration DCFM 10.4.X >

Network Advisor 11.1.X >
Network Advisor 11.2.X

INM 3.3 INM 3.3.X >

Network Advisor 11.0.X >
Network Advisor 11.1.X

Network Advisor 11.0.X, Direct migration Network Advisor 11.0.X >

Network Advisor 11.1.X Direct migration Direct migration Direct migration Direct migration

Network Advisor 11.2.X Not supported Direct migration Direct migration Direct migration

INM 3.3.X >
Network Advisor 11.0.X >
Network Advisor 11.1.X >
Network Advisor 11.2.X

Network Advisor 11.1.X >
Network Advisor 11.2.X

DCFM 10.4.X >
Network Advisor 11.1.X >
Network Advisor 11.3.X >

INM 3.3.X >
Network Advisor 11.0.X >
Network Advisor 11.1.X >
Network Advisor 11.3.X

Network Advisor 11.0.X >
Network Advisor 11.1.X >
Network Advisor 11.3.X

DCFM 10.4.X >
Network Advisor 11.1.X >
Network Advisor 12.0.X

INM 3.3.X >
Network Advisor 11.0.X >
Network Advisor 11.1.X >
Network Advisor 12.0.X

Network Advisor 11.0.X >
Network Advisor 11.1.X >
Network Advisor 12.0.X

Network Advisor cross flavor migration is supported pre-12.0.0 releases.

Tab le 30 shows the migration paths from the Network Advisor 11.1.X, 11.2.X, 11.3.X, and 12.0.0

Professional, Trial, and Licensed versions. For the step-by-step migration procedure, refer to

“Migrating data” on page 48.

TABLE 30 Network Advisor version migration paths

Current version Professional version Trial version Licensed Version

Professional
Plus

Network Advisor 11.1.X,/11.2.X/11.3.X Professional Yes

Network Advisor 11.1.X/11.2.X/11.3.X Professional Plus trial No Yes

Network Advisor 11.1.X/11.2.X/11.3.X Professional Plus Licensed No No No Yes

Network Advisor 11.1.X/11.2.X/11.3.X Enterprise trial No No Yes

Network Advisor 11.1.X/11.2.X/11.3.X Enterprise Licensed No No No No Yes

1

Yes

Enterprise Professional

1

1

Yes

Yes

1

1

1

Plus

1

Yes

1

Yes

1

No Yes

Enterprise

Yes

Yes

Yes

1

1

1

1

1

Network Advisor Installation and Migration Guide 43
53-1002699-01

Supported migration paths

NOTE

3

TABLE 30 Network Advisor version migration paths

Current version Professional version Trial version Licensed Version

Professional
Plus

Network Advisor 12.0.0 Professional Yes

Network Advisor 12.0.0 Professional Plus trial No Yes

Network Advisor 12.0.0 Professional Plus Licensed No No No Yes

Network Advisor 12.0.0 Enterprise trial No No Ye s No Yes

Network Advisor 12.0.0 Enterprise Licensed No No No No Yes

1. Migration from pre-12.0.0 releases does not support partial data migration and network path migration.

2. Local path migration is only supported when you partial ly uninstall the curre nt version . Network p ath migrat ion (whethe r the current
version is fully installed or partially uninstalled) is always supported.

2

Yes

Enterprise Professional

2

2

Yes

Yes

2

2

Plus

Yes

Yes

Enterprise

2

2

2

Yes

Yes

Yes

2

2

2

2

2

Tab le 31 shows the migration paths from SMI Agent only. For the step-by-step migration

procedures, refer to “Migrating data” on page 48.

TABLE 31 SMI Agent only migration paths

Current version Professional version Trial version Licensed Version SMI Agent only

Professional
Plus

Network Advisor 11.1.X/11.2.X SMI Agent
only

Network Advisor 11.X.0 SMI Agent only No No No No No Yes

No No No No No Yes

Enterprise Professional

Plus

Enterprise

DCFM migration paths

Before you migrate from DCFM to Network Advisor 11.0.X, 11.1.0, 11.1.1, or 11.1.2, you must reset
your DCFM password back to the default (password).

You cannot migrate directly from DCFM 10.0.X, DCFM 10.1.X or DCFM 10.3.X to Network Advisor

12.0.0. You must first migrate to DCFM 10.4.X, then migrate to Network Advisor 11.1.X, then

migrate to Network Advisor 12.0.0.

To migrate from DCFM 10.0.X, DCFM 10.1.X or DCFM 10.3.X to DCFM 10.4.X, contact your
customer representative. To migrate from DCFM 10.4.X to Network Advisor 11.1.X, refer to Network
Advisor Migration Guide for Network

Advisor 11.1.X.

INM migration paths

You cannot migrate directly from INM to Network Advisor 12.0.0. You must first migrate to Network
Advisor 11.0.X, then migrate to Network Advisor 11.1.X, then migrate to Network Advisor 12.0.0. To
migrate from INM to Network Advisor 11.1.X, contact your customer representative.

44 Network Advisor Installation and Migration Guide

53-1002699-01

EFCM and Fabric Manager migration paths

NOTE

You cannot migrate directly from EFCM or Fabric Manager to Network Advisor 12.0.0. To migrate
from EFCM or Fabric
Advisor 11.1.X, then migrate to Network Advisor 12.0.0. For more information about migrating from
EFCM or Fabric Manager to DCFM 10.3.X, contact your customer representative.

Manager, you must first migrate to DCFM 10.3.X, then migrate to Network

Pre-migration requirements

Before you install Network Advisor, make sure you meet the following pre-migration requirements.

• Make sure all system requirements have been met prior to installation. For specific system

requirements, refer to

• Check for and install the latest Java patches for your operating system. Network Advisor

requires Oracle JRE
http://www.oracle.com/technetwork/java/javase/downloads/index.html.

• Make sure that you fully back up your current Management application data on your

management server.

• Make sure you close all instances of the application before migrating.

• Make sure to install Network Advisor on the same system as your current Management

application.

• If you are migrating within the same release or you are migrating from Professional to Licensed

software, make sure to partially uninstall (refer to

• Partial data migration is not supported from pre-12.0.0 releases. If you are migrating data from

a partially uninstalled source, complete the following steps:

1.7.0_09. For the website listing patch information, go to

Pre-migration requirements

“System requirements” on page 1.

“Uninstallation” on page 55) the application.

3

1. Re-install your current Network Advisor version on the same machine and migrate the

partially uninstalled data.

2. Install Network Advisor 12.0 (refer to “Installation” on page 1) on the same machine and

migrate your data (refer to “Migrating data” on page 48).

Pre-migration requirements when migrating from one server to another

• If you are migrating from a pre-12.0.0 release on a 32-bit Windows server to Network Advisor

12.0.0 on a 64-bit Windows server, complete the following steps.

If you are migrating from DCFM 10.4.X or Network Advisor 11.0.X on a 32-bit server, first
migrate to Network Advisor 11.1.X on a 32-bit server, then migrate to Network Advisor 12.0 on
a 64-bit server by completing the following steps.

1. Open the Server Management Console from the Start menu on the 32-bit server.

2. Click Stop to stop all services.

3. Using Windows Explorer, browse to the 32-bit Network Advisor directory.

4. Right-click the 32-bit Network Advisor directory and select Sharing and Security.

Network Advisor Installation and Migration Guide 45
53-1002699-01

Pre-migration requirements

NOTE

3

5. Select the Share this Folder option on the Network Advisor Properties dialog box and click

OK.

The folder icon changes to the shared folder icon.

6. From the 64-bit server, verify that the 32-bit server shared drive is accessible.

7. Install your current application (pre-12.0.0 release) on the 64-bit server (refer to “Data

Migration” on page 41) and migrate your data (“Migrating data” on page 48).

During migration you will need to browse to the shared directory of the 32-bit server on the
Copy Data and Settings from previous releases screen.

8. Install Network Advisor 12.0.0 on the 64-bit Windows server (refer to “Data Migration” on

page 41) and migrate your data (“Migrating data” on page 48).

• If you are migrating from a pre-12.0.0 release on a 32-bit Linux server to Network Advisor

12.0.0 on a 64-bit Linux server, complete the following steps.

1. Install Network Advisor 12.0.0 on your current 32-bit machine (refer to “Data Migration”

on page 41) and migrate your data (“Migrating data” on page 48).

2. Back up the server data on your current machine. For instructions, refer to “Configuring

backup” in the Brocade Network Advisor User Manual or online help.

3. Install Network Advisor 12.0.0 on your new 64-bit machine (refer to “Data Migration” on

page 41).

4. Restore the server back up from your original 32-bit machine. For instructions, refer to

“Restoring data” in the Brocade Network Advisor User Manual or online help.

5. Relaunch the Configuration Wizard (refer to “Data Migration” on page 41) . For

instructions, refer to “Launching the Configuration Wizard” in the Brocade Network
Advisor User Manual or online help.

• If you are migrating from a Network Advisor 12.0.0 one server to another server, complete the

following steps.

1. Install Network Advisor 12.0.0 on your current machine (refer to “Data Migration” on

page 41) and migrate your data (“Migrating data” on page 48).

2. Back up the server data on your current machine. For instructions, refer to “Configuring

backup” in the Brocade Network Advisor User Manual or online help.

3. Install Network Advisor 12.0.0 on your new machine (refer to “Data Migration” on

page 41).

4. Restore the server back up from your original 32-bit machine. For instructions, refer to

“Restoring data” in the Brocade Network Advisor User Manual or online help.

5. Relaunch the Configuration Wizard (refer to “Data Migration” on page 41) . For

instructions, refer to “Launching the Configuration Wizard” in the Brocade Network
Advisor User Manual or online help.

46 Network Advisor Installation and Migration Guide

53-1002699-01

Pre-migration requirements

• Cross OS migration is not supported; however, you can restore a Windows OS backup to a

Linux

OS and vice versa. If you are migrating from one OS to another, complete the following

steps:

1. Install Network Advisor 12.0 (refer to “Installation” on page 1) on the current machine and

migrate your data (refer to “Migrating data” on page 48).

2. Back up the server data on your current machine. For instructions, refer to “Configuring

backup” in the Brocade Network Advisor User Manual or online help.

3. Install Network Advisor 12.0 (refer to “Installation” on page 1) on the new machine.

4. Restore the server back up from your original machine. For instructions, refer to “Restoring

data” in the Brocade Network Advisor User Manual or online help.

5. Relaunch the Configuration Wizard. For instructions, refer to “Launching the Configuration

Wizard” in the Brocade Network Advisor User Manual or online help.

Additional pre-migration requirements on UNIX systems

• Make sure that the current application services are running.

1. Go to Install_Home/bin.

3

2. Execute ./smc or sh smc.

3. Click the Services tab.

The tab lists the DCFM services.

4. Click Start, if necessary.

• Make sure that an X Server is available for display and is configured to permit X Client

applications to display from the host on which they are installing the Network Advisor Server
(typically, this simply requires that the systems console be present and running with a logged in
user on the X Server-based desktop session, such as KDE, GNOME, and so on).

• Make sure that the DISPLAY environment variable is correctly defined in the shell with a valid

value (for example, to display to the local console, export DISPLAY=:0.0, or to display to a
remote system that has an X Server running, export DISPLAY=

You may also need to consider a firewall that might block the display to the X Server which
listens by default on TCP port 6000 on the remote host.

To display to a remote system you need to permit the remote display of the X Server by running
command xhost +IP, where IP is the IP address of the Network Advisor server host from the
X-based desktop of the remote system.

Remote_IP_Address:0.0).

• Make sure you test the DISPLAY definition by running the command xterm from the same shell

from which you run
should open.

install.bin. A new X terminal window to the destination X Server display

Additional trial requirements

• Two versions of the Management application (DCFM, Network Advisor, or INM) cannot reside

on the same host unless there are two

• Data collected during the Trial cannot be migrated back to the Professional software.

• Once the Enterprise trial period expires, you must upgrade to Licensed software.

Network Advisor Installation and Migration Guide 47
53-1002699-01

guest operating system’s on the same host.

Migrating data

NOTE

NOTE

NOTE

NOTE

NOTE

NOTE

3

Migrating data

The quickest and simplest method of moving from one package to another is to enter the new
license information on the Network Advisor License dialog box. To upgrade from a previous release,
refer to

“Installation” on page 1.

Trial to Professional software migration is not supported.

Licensed software to Trial software migration is not supported.

Enterprise software to Professional Plus software migration is not supported.

SAN with SMI Agent + IP is not supported on 32-bit Windows systems.

To migrate data from a previous version, complete the following steps.

“Upgrading the license” on page 41 . If you have not installed the application, refer to

1. Click Next on the Welcome screen.

2. Choose one of the following options:

• If data is detected on your system, the Copy Data and Settings from previous releases

screen displays. To migrate data from the previous version installed (automatically
detected), select Yes, from the following location. Continue with

step 3.

• If data is not detected, the Copy Data and Settings from previous releases screen displays.

Complete the following steps:

a. Select Yes, from this machine or on network and click Browse to browse to the

installation directory.

b. Click Next on the Copy Data and Settings from previous releases screen. Continue

with

step 3.

If you are migrating from a 32-bit server, you will need to browse to the shared directory of
the 32-bit server on the Copy Data and Settings from previous releases screen.

If you are migrating to the same install location (as the previous version), you will need to
browse to the renamed directory on the Copy Data and Settings from previous releases
screen.

3. To migrate historical performance data, select the SAN and IP check boxes, if necessary.

4. Click Start on the Data Migration screen.

Data migration may take several minutes. When data migration is complete, the previous
version is partially uninstalled.

48 Network Advisor Installation and Migration Guide

53-1002699-01

Migrating data

NOTE

NOTE

ATTENTION

NOTE

5. Click Next on the Data Migration screen.

If you have products associated with the Brocade North America or Brocade International Call
Home centers, a message displays. To map these Call Home centers to the Brocade E-mail Call
Home center after migration, click Yes. To not map these Call Home centers, click No.

Make sure you configure the Brocade E-mail Call Home center (refer to the Brocade Network
Advisor User Manual or online help.

If you are migrating from Professional or Trial software, continue with step 6.

If you are migrating from Licensed software, go to step 7.

6. Select one of the following options on the Installation Type screen and click Next.

The DCX and DCX 8510-8 Backbone chassis require Enterprise edition.

• Network Advisor - Licensed version

Continue with step 7. Requires you to enter a license key during configuration to enable
features and configuration.

3

• Network Advisor - 75 days Trial

Go to step 8. Enables you to manage IP, SAN, or SAN and IP networks from a single
interface for 75 days.

If you choose to install Trial, once the trial period ends (75 days), you must upgrade to
Licensed software.

• Network Advisor - Professional

Go to step 8. Bundled with Fabric OS and IronWare OS devices to manage small IP, SAN, or
SAN and IP networks from a single interface.

7. Choose one of the following options on the Server License screen:

• If you are migrating from a licensed source, the source license information displays. Click

Next. Continue with

step 8.

• If you are migrating from Professional or Trial software to Licensed software, browse to the

license file (.xml) and click Next. Continue with

The License Key field is not case-sensitive.

Downgrading the license from the current configuration during migration is not supported.

step 8.

Network Advisor Installation and Migration Guide 49
53-1002699-01

3

NOTE

Migrating data

8. Complete the following steps on the FTP/SCP/SFTP Server screen.

The default selection reflects the previous edition configuration.

a. Choose one of the following options:

• Select Built-in FTP/SCP/SFTP Server to configure an internal FTP/SCP/SFTP server

and select one of the following options:

- Select Built-in FTP Server to configure an internal FTP server

The internal FTP server uses a default account and port 21. You can configure
your own account from the Options dialog box. For instructions, refer to the
Network Advisor User Manual or online help.

- Select Built-in SCP/SFTP Server to configure an internal SCP/SFTP server

The internal SCP/SFTP server uses a default account and port 22. You can
configure your own account from the Options dialog box. For instructions, refer to
the Network Advisor User Manual or online help.

• Select External FTP/SCP/SFTP Server to configure an external FTP server.

You can configure the external FTP server settings from the Options dialog box. For
instructions, refer to the Network Advisor User Manual or online help.

b. Click Next.

If port 21 or 22 is busy, a message displays. Click OK to close the message and continue. Once
the Management application is configured make sure port 21 or 2221 is free and restart the
Server to start the FTP/SCP/SFTP service.

If you use an FTP/SCP/SFTP Server which is not configured on the same machine as the
Management application, the Firmware Repository feature will not be available.

You can configure the external FTP server settings from the Options dialog box. For
instructions, refer to the Network Advisor User Manual or online help.

50 Network Advisor Installation and Migration Guide

53-1002699-01

Migrating data

NOTE

NOTE

NOTE

NOTE

9. Complete the following steps on the Server IP Configuration screen.

If the Management server or client has multiple Network Interface Cards and if any of these
interfaces are not plugged in, you must disable them; otherwise, the following features do not
work properly:

Server impact

• Configuration wizard (does not display all IP addresses)

• Trap and Syslog auto registration

• Report content (Ipconfiguration element does not display all server IP addresses)

• Network OS configuration backup through FTP

• Tra c e dump thro u gh FTP

Client impact

• Options dialog box (does not display all IP addresses)

• Firmware import and download dialog box

• Firmware import for Fabric OS and Network OS products

• FTP button in Technical Support Repository dialog box

• Technical supportSave of Fabric OS, Network OS, and Host products through FTP

3

a. Select an address from the Server IP Configuration list.

For Professional software, the Server IP Configuration address is set to “localhost” by
default. You cannot change this address.

For SMI Agent, if the Server IP Configuration list contains a duplicate IP address or is
empty, an error message displays and the configuration wizard closes.

b. Select an address from the Switch - Server IP Configuration Preferred Address list.

If the “hostname” contains invalid characters, the host name does not display in the list.
Valid characters include alphanumeric and dash (-) characters. The IP address is selected
by default. If the an IPv6 address is selected, server start up will fail.

If DNS is not configured for your network, do not select the ‘hostname’ option from either
the Server IP Configuration or Switch - Server IP Configuration Preferred Address list.
Selecting the ‘hostname’ option prevents clients and devices from communicating with
the Server.

If you select a specific IP address from the Server IP Configuration screen and the selected
IP address changes, you will not be able to connect to the server. To change the IP
address, refer to

“Configuring an explicit server IP address” on page 36.

c. Click Next.

Network Advisor Installation and Migration Guide 51
53-1002699-01

3

NOTE

NOTE

NOTE

NOTE

Migrating data

10. Complete the following steps on the Server Configuration screen.

FIGURE 2 Server Configuration screen

a. Enter a port number in the Web Server Port # (HTTPS) field (default is 443).

b. Enable HTTP redirection to HTTPS by selecting the Redirect HTTP Requests to HTTPS

check box.

When you enable HTTP redirection, the server uses port 80 to redirect HTTP requests to
HTTPS. You can configure the server port settings from the Options dialog box (Server Port
pane). For instructions, refer to the Network Advisor User Manual or online help.

c. Enter a port number in the Database Port # field (default is 5432).

Do not use a port number below 1024.

d. Enter a port number in the Starting Port # field (default is 24600).

For Professional software, the server requires 15 consecutive free ports beginning with
the starting port number.

For Trial and Licensed software, the server requires 18 consecutive free ports beginning
with the starting port number.

e. Enter a port number in the Syslog Port # field (default is 514).

If the default syslog port number is already in use, you will not receive any syslog
messages from the device. To find and stop the process currently running on the default
Syslog port number, refer to “Syslog troubleshooting” on page 27.

52 Network Advisor Installation and Migration Guide

53-1002699-01

Migrating data

NOTE

NOTE

f. Enter a port number in the SNMP Port # field (default is 162).

g. Click Next.

If you enter a syslog port number already in use, a message displays. Click No on the
message to remain on the Server Configuration screen and edit the syslog port number.
Click Yes to close the message and continue with

If you enter a port number already in use, a warning displays next to the associated port
number field. Edit that port number and click Next.

If you are configuring Professional software, go to step 14.

If you are configuring IP Enterprise, go to step 13.

11. (SAN with SMI Agent + IP or SAN with SMI Agent) Complete the following steps on the SMI
Agent Configuration screen.

a. Enable the SMI Agent by selecting the Enable SMI Agent check box.

b. Enable the SLP by selecting the Enable SLP check box, if necessary.

Only enabled after you select the Enable SMI Agent check box.

c. Enable the SSL by selecting the Enable SSL check box, if necessary.

step 11.

3

Only enabled after you select the Enable SMI Agent check box.

d. Enter the SMI Agent port number in the SMI Agent Port # field (default is 5989 if SSL

Enabled is selected; otherwise, the default is 5988).

e. Click Next.

12. (SAN Enterprise or SMI Agent) Select one of the following options on the SAN Network Size
screen and click Next:

Port count is equal to the total number of switch ports across all fabrics.

If you installed the SAN with SMI Agent + IP package on a 32-bit Windows system, the Large
option is disabled for SAN Network Size (Enterprise).

• Small (managing up to 2000 switch ports, 1-20 domains)

• Medium (managing up to 5000 switch ports, 21-60 domains)

• Large (managing up to 9000 switch ports, 61-120 domains)

If you are configuring IP Enterprise, continue with step 13; otherwise, go to step 14.

Network Advisor Installation and Migration Guide 53
53-1002699-01

3

NOTE

NOTE

NOTE

Migrating data

13. (IP Enterprise) Select one of the following options on the IP Network Size screen and click Next:

Port count is equal to the total number of all managed product ports.

If you installed the SAN with SMI Agent + IP package on a 32-bit Windows system, the Large
option is disabled for IP Network Size (Enterprise and Professional Plus).

• Small (managing up to 1-20 products)

• Medium (managing up to 21-200 products)

• Large (managing up to 201-5050 products)

14. Enable feature usage data transfer from the application by selecting the Yes, I want to
participate option.

You can stop participating at any time. To view an example of the usage data, click View
Example Data.

To stop participating in feature usage data transfer after configuration, refer to “Product

Improvement” on page 37.

15. Verify your configuration information on the Server Configuration Summary screen and click
Next.

16. Complete the following steps on the Start Server screen.

a. (Trial and Licensed only) Select the Start SMI Agent check box, if necessary.

b. (Trial and Licensed only) Select the Start SLP check box, if necessary.

c. Select the Start Client check box, if necessary.

d. Click Finish.

After all of the services are started, the Log In dialog box displays.

To make changes to the configuration, you can re-launch the configuration wizard (refer to

“Configuring an explicit server IP address” on page 36).

17. Enter your user name and password.

The defaults are Administrator and password, respectively. If you migrated from a previous
release, your user name and password do not change.

Do not enter Domain\User_Name in the User ID field for LDAP server authentication.

18. Click Login.

19. Click OK on the Network Advisor Login Banner.

54 Network Advisor Installation and Migration Guide

53-1002699-01

Chapter

NOTE

Uninstallation

In this chapter

This section provides step-by-step instructions to uninstall Network Advisor and SMI Agent from
both Windows and UNIX systems.

Network Advisor is installed on a separate directory from your previous version; therefore, you do not
need to uninstall the previous version immediately. However, you cannot run both versions
simultaneously.

4

•Uninstalling from Windows systems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

•Uninstalling from Windows systems (headless uninstall). . . . . . . . . . . . . . . 56

•Uninstalling from UNIX systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

•Uninstalling from UNIX systems (headless uninstall) . . . . . . . . . . . . . . . . . . 57

Uninstalling from Windows systems

Follow these instructions to uninstall the Network Advisor and SMI Agent from your Windows
system.

1. Select Start > Programs > Network Advisor 12.0.0 > Uninstall Network Advisor.

2. Select one of the following options on the Uninstall Option screen:

• Partial Uninstall — Configuration and performance data is retained to be re-used by the

new installation.

• Full Uninstall — All data is removed.

3. Click Uninstall.

4. Click Done on the Uninstall Complete screen.

Network Advisor Installation and Migration Guide 55
53-1002699-01

Uninstalling from Windows systems (headless uninstall)

NOTE

4

Uninstalling from Windows systems (headless uninstall)

If the application was installed using the headless installation, complete the following steps to
uninstall Network Advisor and SMI Agent from your Windows server.

1. Open a command prompt.

2. Choose one of the following options:

• To partially uninstall Network Advisor (configuration and performance data is retained to

be re-used by the new installation), execute Install_Home\Uninstall_Network Advisor

12.0.0\Uninstall_Network Advisor 12.0.0.exe –f <absolute path of partial uninstall
property file>.

• To fully uninstall Network Advisor (all data is removed), execute

Install_Home\Uninstall_Network Advisor 12.0.0\Uninstall_Network Advisor 12.0.0.exe –f
<absolute path of full uninstall property file>.

When uninstallation is complete, an “Uninstallation complete” message displays. You must
manually delete the Install_Home/silent folder.

Uninstalling from UNIX systems

Follow these instructions to uninstall the Network Advisor and SMI Agent from your UNIX system.

The Uninstall folder is retained.

1. Go to Install_Home/Uninstall_Network_Advisor12_0_0.

2. Execute ./Uninstall_Network_Advisor12_0_0.

3. Select one of the following options on the Uninstall Option screen:

• Partial Uninstall — Configuration and performance data is retained to be re-used by the

new installation.

• Full Uninstall — All data is removed.

4. Click Uninstall.

5. Click Done on the Uninstall Complete screen.

56 Network Advisor Installation and Migration Guide

53-1002699-01

Uninstalling from UNIX systems (headless uninstall)

Uninstalling from UNIX systems (headless uninstall)

If the application was installed using the headless installation, complete the following steps to
uninstall Network Advisor and SMI Agent from your UNIX server.

1. Go to Install_Home/Uninstall_Network_Advisor12_0_0.

2. Choose one of the following options:

• To partially uninstall Network Advisor (configuration and performance data is retained to

be re-used by the new installation), execute Uninstall_Network_Advisor 12_0_0 –f
<absolute path of partial uninstall property file>.

• To fully uninstall Network Advisor (all data is removed), execute

\Uninstall_Network_Advisor 12_0_0 –f <absolute path of full uninstall property file>.

When uninstallation is complete, an “Uninstallation complete” message displays. You must
manually delete the Install_Home/silent folder.

4

Network Advisor Installation and Migration Guide 57
53-1002699-01

Uninstalling from UNIX systems (headless uninstall)

4

58 Network Advisor Installation and Migration Guide

53-1002699-01

Appendix

References

In this Appendix

•Network Advisor packages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

•Edition feature support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

•Management server and client ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

•Scalability limits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Network Advisor packages

Tab le 32 summarizes the packages and available versions for each package.

TABLE 32 Packages and versions

Package Versions

SAN with SMI Agent +IP Licensed Version — Enterprise

• SAN — Support for 36 fabrics, 10,000 devices, and 9,000 switch ports

• IP — Support for 5,050 products and 100 MPLS products

NOTE: Virtual Fabrics are counted as Fabrics when calculating the managed count limits.

Professional

• SAN — Support for 1 fabric, 1000 devices, and 1,000 switch ports

• IP — Support for 20 products

NOTE: Virtual Fabrics are counted as Fabrics when calculating the managed count limits.

NOTE: SMI Agent is not supported on Professional.

SAN with SMI Agent Licensed Version — Enterprise

• SAN — Support for 36 fabrics, 10,000 devices, and 9,000 switch ports

NOTE: Virtual Fabrics are counted as Fabrics when calculating the managed count limits.

Licensed Version — Professional Plus

• SAN — Support for 36 fabrics, 4,096 devices, and,2560 switch ports

NOTE: Virtual Fabrics are counted as Fabrics when calculating the managed count limits.

Professional

• SAN — Support for 1 fabric, 1,000 devices, and 1,000 ports

NOTE: SMI Agent is not supported on Professional.

IP Licensed Version — Enterprise

• IP — Support for 5,050 products and 100 MPLS products

Professional

• IP — Support for 20 products

A

Network Advisor Installation and Migration Guide 59
53-1002699-01

Edition feature support

A

Edition feature support

Tab le 33 details whether the SAN features are supported in the Professional, Professional Plus, or

Enterprise versions, or only through the Element Manager of the device.

TABLE 33 SAN features supported

Feature Professional Professional Plus Enterprise

AAA (Authentication, Authorization, and Auditing)

Authentication and authorization configuration

Access Gateway (AG) management

AG display

Support for firmware download, supportSave, performance statistics, and
configuration file management

Active sessions Yes Yes Yes

Bottleneck detection

Configuration No Yes Yes

Statistics No Yes Yes

Badge on topology and product tree Yes Yes Yes

Show affected host No Yes Yes

Call Home support

Support for all call home centers No Yes Yes

SupportSave for Fabric OS switches No Yes Yes

Support for appending the last 30 events in a call home event for e-mail-based
call home centers

Configuration management

Configuration repository management No Yes Yes

Firmware download Yes Yes Yes

Manual backup

NOTE: Professional only supports one switch at a time.

Save configuration

NOTE: Professional only supports one switch at a time.

Periodic configuration backup and persistence No Yes Yes

Replicate switch configuration No Yes Yes

Dashboard Yes Yes Yes

DCB configuration management Yes Ye s Yes

DCX backbone chassis discovery and management No No Yes

Deployment Manager

Diagnostic port test No Yes Yes

Digital diagnostic Yes Yes Yes

No Yes Yes

Yes Yes Yes

No Yes Yes

Yes Yes Yes

Yes Yes Yes

60 Network Advisor Installation and Migration Guide

53-1002699-01

Edition feature support

TABLE 33 SAN features supported (Continued)

Feature Professional Professional Plus Enterprise

Encryption

Layer 2 FC support Ye s Yes Yes

Encryption configuration and monitoring Yes Yes Yes

Access Gateway – Cisco interop support Yes Yes Yes

Device decommissioning Yes Yes Yes

End device connectivity

Collection
Views

Fabric binding No Ye s Yes

Fabric Watch

Hardware Element

Ports Element

Admin Element

Router Admin Element

Name Server Element

Fault management Element

Show switch events Yes Yes Yes

Show fabric events Yes Yes Yes

Syslog registration and forwarding Yes Yes Yes

SNMP trap registration and forwarding Yes Yes Yes

Trap configuration, credentials, and customization Yes Yes Yes

Event forwarding No Yes Yes

Event custom report No Yes Yes

Event processing (event policies and pseudo events) No Yes Ye s

Common SNMP/Trap registration Yes Yes Yes

FCIP management

FCIP configuration wizard Yes Yes Yes

Iperf and IP trace route Yes Yes Yes

FCoE management

FCoE configuration Yes Yes Yes

Migration from DCFM Yes Yes Yes

Features that support M-EOS devices and mixed fabrics No Yes Yes

Yes Yes Yes

Element

Manager

Manager

Manager

Manager

Manager

Manager

Manager

Element

Manager

Element

Manager

Element

Manager

Element

Manager

Element

Manager

Element
Manager

Element
Manager

Element
Manager

Element
Manager

Element
Manager

Element
Manager

A

Network Advisor Installation and Migration Guide 61
53-1002699-01

Edition feature support

A

TABLE 33 SAN features supported (Continued)

Feature Professional Professional Plus Enterprise

FICON/CUP

Cascaded FICON configuration wizard No No Yes

Cascaded FICON Fabric merge wizard No No Yes

PDCM Matrix Element

Manager

Firmware management and SupportSave

Firmware download Yes Yes Yes

Capture SupportSave Yes Ye s Yes

Frame monitor No Yes Yes

HBA management

HBA management Yes Yes Yes

VM management Yes Yes Yes

Driver/DIOS management No Yes Yes

Fabric assigned WWN No Yes Yes

HBA Server and Storage port mapping No Yes Yes

High Integrity Fabric No Yes Yes

IPv6 — Server - Switch support Yes Yes Yes

iSCSI discovery Ye s Yes Yes

Layer 2 trace route No Yes Yes

License No Yes Yes

Meta-SAN

Routing configuration
Domain ID configuration

Name Server Yes Yes Yes

Open Trunking Support

Display trunks on the topology Yes Ye s Yes

Display trunks properties Yes Ye s Yes

Display marching ants Yes Yes Yes

Display connections properties Yes Yes Yes

No Yes Yes

Element

Manager

Yes

62 Network Advisor Installation and Migration Guide

53-1002699-01

Edition feature support

TABLE 33 SAN features supported (Continued)

Feature Professional Professional Plus Enterprise

Performance management - SNMP monitoring

Real Time Performance collection, display, and reports Ye s Yes Yes

Historical Performance collection, display, and reports No Yes Yes

Thresholds No Yes Yes

Top talkers - Supported on SAN switches and Access Gateway No Ye s Yes

Marching ants No Yes Yes

Data aging No Yes Yes

End-to-End monitors No Yes Yes

Policy Monitor Yes Ye s Yes

Port Administration Element

Manager

Port Fencing (for M-EOS switches) No Yes Yes

Port group configuration No No Yes

Reports Yes Yes Yes

Generate reports Yes Ye s Yes

View reports Yes Yes Yes

Performance reports Yes Yes Yes

FCR reports Yes Yes Yes

SCOM plug-in support No Ye s Yes

Security management

Replicate switch policy configuration No Yes Yes

SNMP configuration Yes Yes Yes

L2 ACL configuration

NOTE: Only supported on DCB devices.

Yes Yes Yes

Element

Manager

Element
Manager

A

Network Advisor Installation and Migration Guide 63
53-1002699-01

Edition feature support

A

TABLE 33 SAN features supported (Continued)

Feature Professional Professional Plus Enterprise

SMI Agent

Server Profile
Fabric Profile
Indication Sub Profile
Zone Control Sub Profile
Enhanced Zoning and Enhanced Zoning Control Sub Profile
FDMI (Fabric Device Management Interface) Sub Profile
Fabrics Virtual Fabrics Sub Profile
Topology View Sub Profile
FC HBA (Fibre Channel Host Bus Adapter) Profile
Fan, Power Supply, and Sensor Profiles
Inter Fabric Routing (FCR) Profile
Tru nki ng
CP Blade Sub Profile
CEE (Converged Enhanced Ethernet)
Launch In Context Profile
Switch Profile
Role Based Authorization (CEE ACL) Profile
N port Virtualizer (AG NPIV) Profile
Profile Registration Sub Profile
Object Manager Adapter Sub Profile
Fabric Views Sub Profile
Physical Package Sub Profile
Software Sub Profile
Access Points Sub Profile
Location Sub Profile
Fabric Switch Partitioning Sub Profile
FC Initiator Ports Sub Profile
Fabric and Host discovery
SAN Zoning

Switch configuration management

Basic configurations through the Element Manager

Switch port enable/disable through right-click menu Yes Yes Yes

Technical SupportSave Yes Yes Yes

Telnet

NOTE: Telnet through the server is only supported on Windows systems.

Tools launcher (Setup Tools) No Yes Yes

Troubleshooting and Diagnostics

Device connectivity troubleshooting wizard Yes Yes Yes

Trace route and Ping Yes Yes Yes

Fabric device sharing No Yes Yes

User management No Yes Yes

View management No Yes Yes

No Yes Yes

Yes Yes Yes

Yes Yes Yes

64 Network Advisor Installation and Migration Guide

53-1002699-01

Edition feature support

TABLE 33 SAN features supported (Continued)

Feature Professional Professional Plus Enterprise

Virtual fabric support

Discovery Yes Yes Yes

Configuration No Yes Yes

VLAN management Yes Yes Yes

VM Plugin Support No Yes Yes

Web Element Manager Yes Yes Yes

Zoning

Member selection Yes Yes Yes

Zone editing Yes Ye s Yes

Live fabric library scope Yes Yes Yes

QoS support Yes Ye s Yes

Zone alias support Ye s Yes Yes

Delete Zone database No Yes Yes

Impact analysis Yes Yes Yes

Remove offline devices No Ye s Yes

TI Zones Yes Yes Yes

Device to Zone / zoneset participation analysis Yes Ye s Yes

LSAN Zones No Yes Yes

Rolling back to an activated zone database No Yes Yes

Import or export a zone database No Yes Ye s

A

Tab le 34 details whether the IP features are fully or partially supported in the Professional or

Licensed versions.

TABLE 34 IP features supported

Feature Professional Base

Licensed
version

802.1ag support (MPLS and VLAN management) No Yes Yes Ye s

AAA (Authentication, Authorization, and Auditing)

Authentication and authorization configuration

Address Finder No Yes Yes Yes

ADP management No Yes Yes Yes

AMPP (port profile) No Yes Yes No

Call Home support

Support for all call home centers No Ye s Yes Yes

Support for appending the last 30 events in a call home event for
e-mail-based call home centers

Network Advisor Installation and Migration Guide 65
53-1002699-01

No Ye s Yes Yes

No Ye s Yes Yes

Base with
Licensed
Ethernet
Fabrics

Base with
Unlicensed
Ethernet
Fabrics

Edition feature support

A

TABLE 34 IP features supported (Continued)

Feature Professional Base

Licensed
version

Change management Partial support Yes Yes Yes

CLI configuration management No Yes Yes Yes

CLI Element Manager Yes Yes Ye s Yes

Configuration management

Configuration snapshot No Ye s Yes Yes

Configuration repository management Yes Yes Yes Yes

Manual backup

NOTE: Professional only supports one product at a time.

Save configuration

NOTE: Professional only supports one switch at a time.

Save configuration for VCS-enabled switches No Yes Yes Yes

Periodic configuration backup and persistence No Ye s Yes Yes

Replicate switch configuration No Yes Ye s Yes

Product configuration

Yes Ye s Yes Yes

Yes Ye s Yes Yes

No Ye s Yes Yes

Base with
Licensed
Ethernet
Fabrics

Base with
Unlicensed
Ethernet
Fabrics

- Setting baselines

- Search

Change tracking No Yes Yes Yes

Configuration wizard

Product configuration - create, edit, and deploy. Yes Yes Ye s Yes

Interface payload — sFlow configuration

NOTE: Professional only supports one product at a time.

Product Payloads:

Yes Yes Ye s Yes

No Yes Yes Yes

- CLI configuration

- CLI product monitoring

Dashboard Yes Yes Yes Yes

DCB configuration management Yes Yes Ye s Yes

Deployment management Yes Yes Yes Yes

Discovery

IP disovery Yes Yes Yes Ye s

VCS disover y

NOTE: Professional supports one cluster member.

NOTE: Base License without Ethernet Fabrics supports two cluster
members.

Yes Yes Ye s Yes

66 Network Advisor Installation and Migration Guide

53-1002699-01

Edition feature support

TABLE 34 IP features supported (Continued)

Feature Professional Base

Licensed
version

Fabric Watch

NOTE: Only supported on DCB switches.

Hardware Element

Manager

Ports Element

Manager

Admin Element

Manager

Router Admin Element

Manager

Name Server Element

Manager

Fault Management

Show switch events Ye s Ye s Yes Yes

Syslog registration and forwarding Yes Ye s Yes Yes

SNMP trap registration and forwarding Yes Ye s Yes Yes

Trap configuration, credentials, and customization Yes Yes Ye s Yes

Event forwarding No Yes Yes Yes

Event custom report No Yes Yes Yes

Event processing (event policies and pseudo events) No Yes Ye s Yes

Common SNMP/Trap registration Yes Ye s Yes Yes

FCoE configuration management Yes Yes Yes Yes

Firmware Management and SupportSave

Firmware download Yes Ye s Yes Yes

Capture SupportSave Yes Ye s Yes Yes

GSLB management No Yes Yes Yes

HBA management

HBA management Yes Ye s Yes Yes

VM management No Ye s Yes Yes

Driver/DIOS management No No No No

Fabric assigned WWN No No No No

IPv6 Server - Product support

NOTE: Only supported in the application when IPv6 is supported on the

product.

Layer 2 trace route No Ye s Yes No

License No Yes Ye s Yes

Yes Yes Ye s Yes

Element

Manager

Element

Manager

Element

Manager

Element

Manager

Element

Manager

Base with
Licensed
Ethernet
Fabrics

Element

Manager

Element

Manager

Element

Manager

Element

Manager

Element

Manager

Base with
Unlicensed
Ethernet
Fabrics

Element

Manager

Element

Manager

Element

Manager

Element

Manager

Element

Manager

A

Network Advisor Installation and Migration Guide 67
53-1002699-01

Edition feature support

A

TABLE 34 IP features supported (Continued)

Feature Professional Base

Licensed
version

MLX/XMR management No Yes Yes Yes

MPLS management No Yes Yes Yes

LSP No Yes Yes Yes

VCID pool No Yes Yes Yes

VLL manager No Yes Yes Yes

VLL monitor No Yes Yes Yes

VPLS manager No Yes Yes Yes

VPLS monitor No Yes Yes Yes

Performance management - SNMP monitoring

Real Time Performance collection, display, and reports Yes Ye s Yes Yes

Historical Performance collection, display, and reports No Ye s Yes Yes

Thresholds No Ye s Yes Yes

Data aging No Yes Yes Ye s

Performance management - Traffic Analysis (sFlow)

sFlow configuration payload (Configuration Wizard) No Yes Yes Yes

Monitoring reports No Yes Ye s No

Accounting reports No Yes Yes Yes

Custom reports No Ye s Yes Yes

Policy Monitor Yes Yes Ye s Yes

Power Center Ye s Ye s Yes Yes

Reports

IP product inventory report Yes Ye s Yes Yes

SSL Certificate management No Yes Yes Yes

Third Party Device support No Yes Yes Yes

Security management

MAC filter configuration Yes Yes Ye s Yes

L2 ACL configuration Yes Ye s Yes Yes

L3 ACL configuration Yes Ye s Yes Yes

Services Ye s Ye s Yes Yes

Networks Yes Ye s Yes Yes

Switch configuration management

Basic configurations through the Element Manager

Telnet Yes Yes Ye s Yes

Tools launcher (Setup Tools) No Yes Yes Yes

Yes Ye s Yes Yes

Base with
Licensed
Ethernet
Fabrics

Base with
Unlicensed
Ethernet
Fabrics

68 Network Advisor Installation and Migration Guide

53-1002699-01

Edition feature support

TABLE 34 IP features supported (Continued)

Feature Professional Base

Licensed
version

Topology management Yes Yes Yes Yes

User Management No Yes Ye s Yes

VIP Server management No Yes Yes Yes

VLAN management Ye s Ye s Yes Yes

VM Plugin Support No Ye s Yes Ye s

Web Element Manager Yes Yes Ye s Yes

Web Tools/Fabric Watch Yes Yes Ye s Yes

Zoning

Member selection Yes Ye s Yes Yes

Zone editing Yes Yes Ye s Yes

Live fabric library scope Yes Yes Ye s Yes

Zone alias support Yes Ye s Yes Yes

Delete Zone database No Ye s Yes Yes

Impact analysis Ye s Ye s Yes Yes

Remove offline devices No Yes Yes Yes

Device to Zone / zoneset participation analysis Yes Yes Ye s Yes

LSAN Zones No Ye s Yes Yes

Rolling back to an activated zone database No Yes Yes Yes

Import or export a zone database No Yes Ye s Yes

Base with
Licensed
Ethernet
Fabrics

Base with
Unlicensed
Ethernet
Fabrics

A

Network Advisor Installation and Migration Guide 69
53-1002699-01

Management server and client ports

NOTE

A

Management server and client ports

The Management application has two parts: the Server and the Client. The Server is installed on
one machine and stores device-related information; it does not have a user interface. To view
information through a user interface, you must log in to the Server through a Client. The Server and
Clients may reside on the same machine, or on separate machines. If you are running Professional,
the server and the client must be on the same machine.

In some cases, a network may utilize virtual private network (VPN) or firewall technology, which can
prohibit communication between Products and the Servers or Clients. In other words, a Server or
Client can find a Product, appear to log in, but is immediately logged out because the Product
cannot reach the Server or Client. To resolve this issue, check to determine if the ports in the table
below need to be opened up in the firewall.

Professional edition does not support remote clients.

Tab le 35 lists the default port numbers and whether or not it needs to be opened up in the firewall

and includes the following information:

• Port Number — The port at the destination end of the communication path.

• Ports — The name of the port.

• Transport — The transport type (TCP or UDP).

• Description — A brief description of the port.

• Communication Path — The “source” to “destination” values. Client and Server refer to the

Management application client and server unless stated otherwise. Product refers to the
Fabric OS, Network OS, or IronWare OS devices.

• Open in Firewall — Whether the port needs to be open in the firewall.

TABLE 35 Port usage and firewall requirements

Port Number Ports Transport Description Communication Path Open in Firewall

1

20

1

21

2

22

23 Teln et TCP Telnet port from server/client

2

25

2

49

69 TFTP UDP File upload/download to

FTP Port (Control) TCP FTP Control port for internal

FTP

server

FTP Port (Data) TCP FTP Data port for internal

FTP

server

SSH or SCP or SFTP TCP Secure telnet and secure

upload and download to
product

to product

SMTP Server port TCP SMTP Server port for e-mail

communication if you use
e-mail notifications without SSL

TACACS+ Authentication port TCP TACACS+ server port for

authentication if you use
TACACS+ as an external
authentication

product

Client–Server
Product–Server

Client–Server
Product–Server

Server–Product
Client –Product
Product – Server

Server–Product
Client–Product

Server–SMTP
Server

Server–TACACS+
Server

Product-Server Yes

Yes

Yes

Yes

Yes

Yes

Yes

70 Network Advisor Installation and Migration Guide

53-1002699-01

Management server and client ports

TABLE 35 Port usage and firewall requirements (Continued)

Port Number Ports Transport Description Communication Path Open in Firewall

2

80

1

80

2

161

2

162

2

389

1,2

443

2

443

443 HTTPS (HTTP over SSL) server

2

443

2

465

2

514

2

636

Management application HTTP server TCP Non-SSL HTTP/1.1 connector

Client–Server Yes
port if you use secure
client-server communication.
You need this port for HTTP
redirection

Product HTTP server TCP Product non-SSL http port for

Server–Product Yes
http and CAL communication if
you do not use secure
communication to the product

Product non-SSL http port for

Client–Product Yes
http and CAL communication if
you do not use secure
communication to the product
and you do not use the
Management application
server proxy

SNMP port UDP Default SNMP port Server–Product Yes

SNMP Trap port UDP Default SNMP trap port Product-Server Yes

LDAP Authentication Server Port UDP

TCP

LDAP server port for
authentication if you use LDAP

Server–LDAP

Server

Yes

as an external authentication

HTTPS server TCP HTTPS (HTTP over SSL) server

Client-Server Yes
port if you use secure client ­server communication

HTTPS (HTTP over SSL) server

Server–Product Yes
port if you use secure
communication to the product

Client–Product Yes
port if you use secure
communication to the product
and you do not use the
Management application
server proxy

HTTPS (HTTP over SSL) server
port if you use vCenter

Server-vCenter

Server

Yes

discovery

SMTP Server port for SSL TCP SMTP Server port for e-mail

communication if you use

Server-SMTP

Server

Yes

e-mail notifications with SSL

Syslog Port UDP Default Syslog Port Product–Server

Yes

Managed Host -

Server

LDAP Authentication SSL port TCP LDAP server port for

authentication if you use LDAP

Server–LDAP

Server

Yes

as an external authentication
and SSL is enabled

A

Network Advisor Installation and Migration Guide 71
53-1002699-01

Management server and client ports

A

TABLE 35 Port usage and firewall requirements (Continued)

Port Number Ports Transport Description Communication Path Open in Firewall

2

1812

2

1813

5432 Database port TCP Port used by database if you

5988 SMI Server port TCP SMI server port on the

1,2

5989

2

6343

24600

24601

24602

24603

24604

24605

24606

24607

24608

24609

24610

RADIUS Authentication Server Port UDP RADIUS server port for

authentication if you use

Server–RADIUS

Server
RADIUS as an external
authentication

RADIUS Accounting Server Port UDP RADIUS server port for

accounting if you use RADIUS

Server–RADIUS

Server
as an external authentication

Remote ODBC–
access the database remotely

Database
from a third-party application

SMI Client- Server Yes
Management application and
the CIM/SMI port on HBAs if
you use SMI Agent without SSL

Server-Managed

Host

SMI Server port with SSL enabled TCP SMI Agent port on the

Management application and

SMI Agent Server–

Client
the CIM/SMI port on HBAs if
you use SMI Agent with SSL

Server-Managed

Host

sFlow UDP Receives sFlow data from

Product-Server Yes
products if you are monitoring
with sFlow

1,2

JNP (Java Naming Protocol) port TCP Use for service location. Uses

Client–Server Yes
SSL for privacy.

1,2

EJB (Enterprise Java Bean) connection
port

1,2

HornetQ Netty port TCP Use for JMS (Java Message

TCP Client requests to server. Uses

SSL for privacy.

Client–Server Yes

Client–Server Yes
Service), async messages from
server to client.

Uses SSL for privacy.

1,2

JMX RMI port TCP Use for JMS control. Uses SSL

Client–Server Yes
for privacy.

1,2

RMI naming service port TCP Client–Server Yes

1,2

RMI/JRMP invoker port TCP Client–Server Yes

1,2

Event Handling CIM Indication listener
port

1,2

HCM Proxy CIM Indication Listener port TCP Used for HBA management Managed Host -

TCP Used for HBA management Managed Host -

Server

Server

2

Reserved for future use TCP Not used Client - Server No

2

Reserved for future use TCP Not used Client - Server No

2

Reserved for future use TCP Not used Client - Server No

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

72 Network Advisor Installation and Migration Guide

53-1002699-01

Scalability limits

TABLE 35 Port usage and firewall requirements (Continued)

Port Number Ports Transport Description Communication Path Open in Firewall

2

24611

24612

24613

24614

24615

24616

24617

34568 HCM Agent discovery port TCP Used for HBA management via

55556

JBoss Transaction Services Recovery
Manager port

2

JBoss Transaction Status Manager port TCP Not used remotely Server Yes

2

JBoss Pooled invoker port TCP Not used remotely Server Yes

2

JBoss Socket invoker port TCP Not used remotely Server Yes

2

JBoss RMI dynamic class loading port TCP Web service port, not used

2

Apache JServ port TCP Proxys web server requests, not

2

Remote Management application
connector access port

1

Launch in Context (LIC) client hand
shaking port

TCP Not used remotely Server Yes

Server Yes
remotely

Server Yes
used remotely

TCP Not used remotely Server Yes

Server - Managed
JSON

TCP Client port used to check if a

Management application client
opened using LIC is running on
the same host

NOTE: If this port is in use, the

application uses the
next available port.

Host

Client No

Yes

A

1. Port does not need to be open in the firewall for Professional edtion.

2. The default port number. You must use the same port number for all products or hosts managed by the Management server. This port is
configurable in the Management server; however, some products and firmware versions do not allow you to configure a port.

Scalability limits

The following tables summarize the scalability limits for support with Network Advisor.

Tab le 36 summarizes the SAN scalability limits for support with Network Advisor Enterprise edition.

TABLE 36 Enterprise-supported limits by SAN size

Small Medium Large

Number of Fabrics 8 16 36

Number of Switches and Access Gateways 40 90 200

Number of Switch Ports 2000 5000 9000

Number of Device Ports 5000 10000 20000

Performance Monitoring Polling 5 minutes 5 minutes 5 minutes

Network Advisor Installation and Migration Guide 73
53-1002699-01

Scalability limits

A

Tab le 37 summarizes the SAN scalability limits for support with Network Advisor Professional Plus

edition.

TABLE 37 Professional Plus-supported limits by SAN size

Values Limits

Number of Fabrics 36

Number of Domains 20

Number of Switch Ports 2560

Number of Device Ports 4096

Number of Access Gateways 20

Performance Monitoring Polling 5 minutes

Tab le 38 summarizes the SAN scalability limits for support with Network Advisor Professional

edition.

TABLE 38 Professional-supported limits by SAN size

Values Limits

Number of Fabrics 1

Number of Domains 10

Number of Switch Ports 1000

Number of Device Ports 1000

Number of Access Gateways 5

Performance Monitoring Polling N/A

Tab le 39 summarizes the IP scalability limits for support with Network Advisor Enterprise edition.

TABLE 39 Enterprise-supported limits by IP size

Small Medium Large

Number of Products 1 - 20 21 - 200 201 - 5050

Number of MPLS Products 1 1 100

Tab le 40 summarizes the IP scalability limits for support with Network Advisor Professional edition.

TABLE 40 Professional-supported limits by IP size

Values Limits

Number of Products 20

Number of MPLS Products 0

74 Network Advisor Installation and Migration Guide

53-1002699-01

Scalability limits

Tab le 41 summarizes the SAN scalability limits for pure Fabric OS fabrics with Network Advisor

Enterprise edition.

TABLE 41 Enterprise-supported limits by SAN size for SMI Agent only on Fabric OS fabrics

Small Medium Large

Number of Fabrics 8 16 24

Number of Switches and Access Gateways 40 90 200

Number of Switch Ports 2000 5000 9000

Number of Device Ports 5000 10000 20000

A

Network Advisor Installation and Migration Guide 75
