Brocade Communications Systems ICX 7250-24G, ICX 725024-P, ICX 7250-48, ICX 7250-24, ICX 7250-48P Hardware Installation Manual

53-1003622-02 27 April 2015

Brocade ICX 7250 Switch

Hardware Installation Guide

Supporting FastIron Software Release 08.0.30

ADX, Brocade, Brocade Assurance, the B-wing symbol, DCX, Fabric OS, HyperEdge, ICX, MLX, MyBrocade, OpenScript, The Effortless Network, VCS, VDX, Vplane, and Vyatta are registered trademarks, and Fabric Vision and vADX are trademarks of Brocade Communications Systems, Inc., in the United States and/or in other countries. Other brands, products, or service names mentioned may be trademarks of others.

Notice: This document is for informational purposes only and does not set forth any warranty, expressed or implied, concerning any equipment, equipment feature, or service offered or to be offered by Brocade. Brocade reserves the right to make changes to this document at any time, without notice, and assumes no responsibility for its use. This informational document describes features that may not be currently available. Contact a Brocade sales office for information on feature and product availability. Export of technical data contained in this document may require an export license from the United States government.

The authors and Brocade Communications Systems, Inc. assume no liability or responsibility to any person or entity with respect to the accuracy of this document or any loss, cost, liability, or damages arising from the information contained herein or the computer programs that accompany it.

The product described by this document may contain open source software covered by the GNU General Public License or other open source license agreements. To find out which open source software is included in Brocade products, view the licensing terms applicable to the open source software, and obtain a copy of the programming source code, please visit http://www.brocade.com/support/oscd.

Preface.....................................................................................................................................7

Document conventions......................................................................................7

Text formatting conventions.................................................................. 7

Command syntax conventions.............................................................. 7

Notes, cautions, and warnings.............................................................. 8

Brocade resources............................................................................................ 9

Contacting Brocade Technical Support.............................................................9

Document feedback........................................................................................ 10

About This Document.............................................................................................................. 11

What's new in this document...........................................................................11

Supported software......................................................................................... 11

Overview.................................................................................................................................13

Hardware features...........................................................................................13

ICX 7250 models.................................................................................13

Network and management interfaces................................................. 14

Installation............................................................................................................................. 23

Items included with the ICX 7250 device........................................................ 23

Configuration requirements.............................................................................24

Summary of installation tasks......................................................................... 24

Installation precautions................................................................................... 24

General precautions............................................................................24

Lifting precautions............................................................................... 25

Power precautions.............................................................................. 25

Preparing the installation site.......................................................................... 26

Cabling infrastructure.......................................................................... 26

Installation location..............................................................................26

Rack-mount installation considerations...............................................26

Installing the device.........................................................................................26

Desktop installation............................................................................. 27

Rack mount installation (2-post)..........................................................27

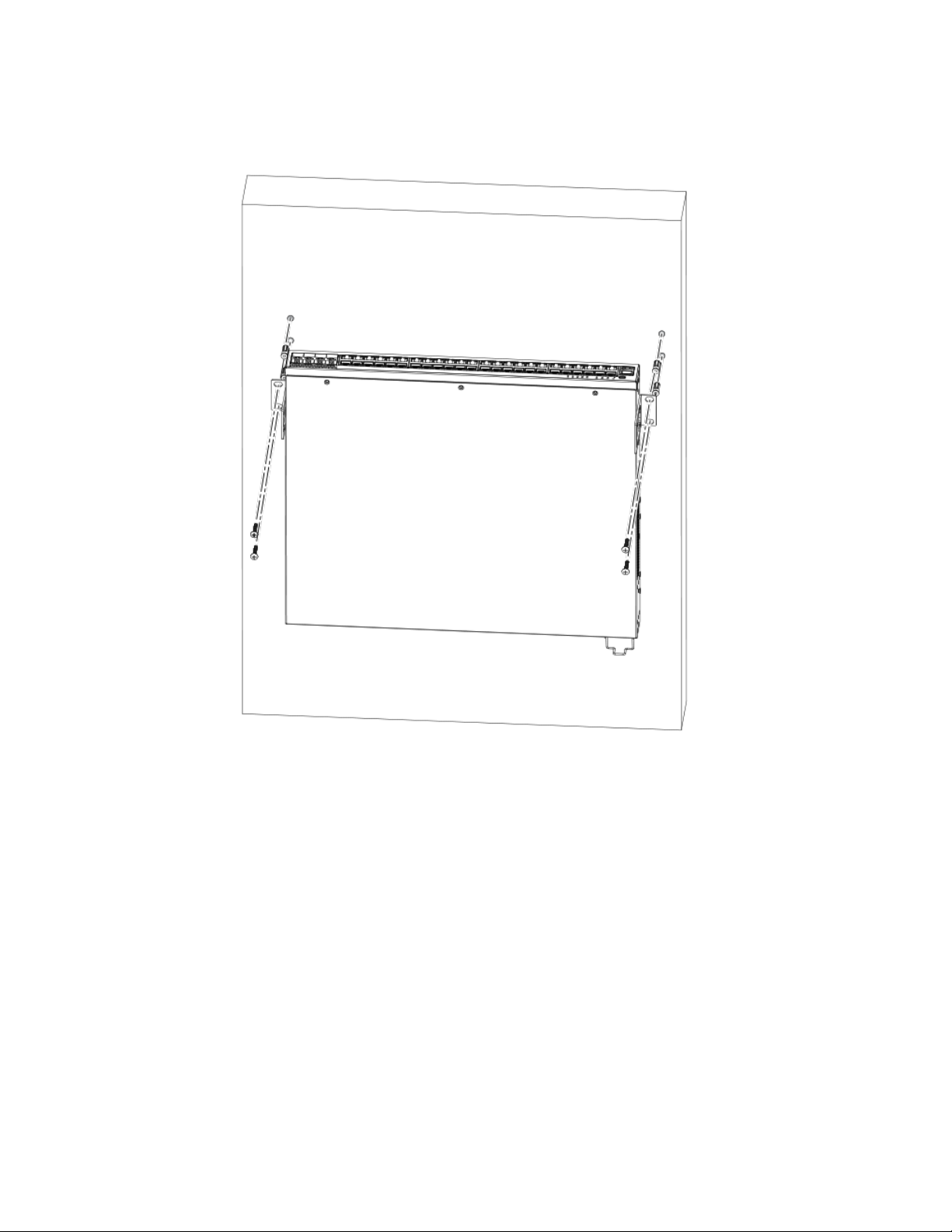

Wall mount installation........................................................................ 29

Connecting devices in a traditional stack........................................................ 31

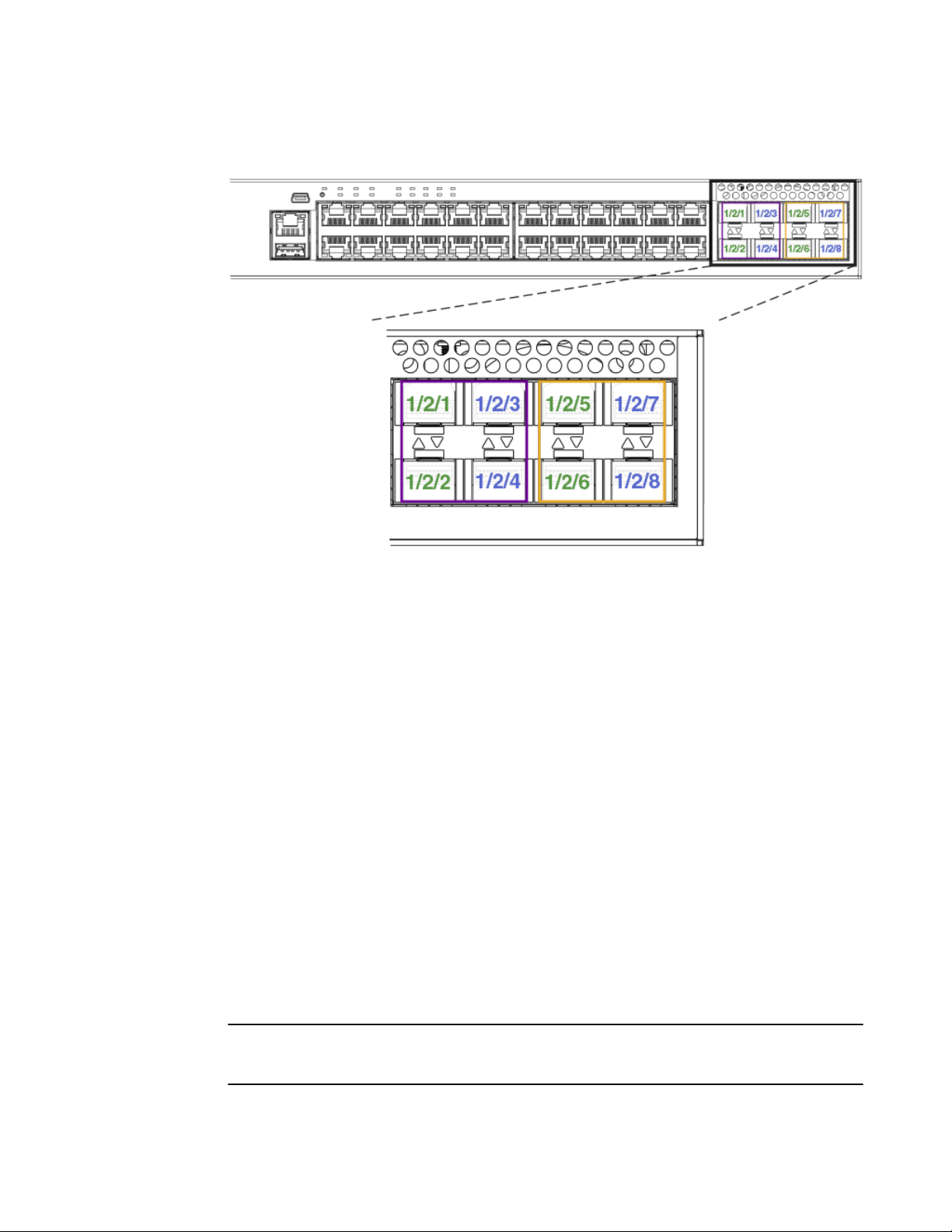

Stacking ports and trunks....................................................................31

Stacking configuration requirements...................................................32

Traditional stack size...........................................................................32

Stacking topologies for traditional stack..............................................32

Powering on the system..................................................................................33

Installing the EPS4000 .......................................................................................................... 35

Brocade ICX 7250 Switch Hardware Installation Guide 53-1003622-02

EPS4000 external power supply..................................................................... 35

Features and benefits......................................................................... 36

Front and rear panels..........................................................................36

LEDs................................................................................................... 37

Items included with the EPS4000................................................................. 39

General requirements................................................................................... 39

Summary of installation tasks....................................................................... 39

Installation precautions................................................................................. 40

General precautions..........................................................................40

Lifting precautions.............................................................................40

Power precautions............................................................................ 41

Preparing the installation site........................................................................41

Rack-mount installation considerations.............................................41

Installing the device.......................................................................................42

Desktop installation...........................................................................42

Mounting an external power supply in a rack (2-post)...................... 43

Installing an RPS17 Power Supply Unit (PSU)............................................. 45

Uninstalling an RPS17 Power Supply Unit (PSU).........................................46

Connecting the EPS4000 cord......................................................................46

Powering on the system................................................................................49

Connecting devices to the external power supply.............................49

Verifying proper operation.............................................................................49

EPS4000 External Power Supply Technical Specifications..........................50

Configuring the Device.......................................................................................................... 53

Configuration tasks....................................................................................... 53

PC or terminal attachment............................................................................ 54

Password assignment...................................................................................54

Assigning passwords........................................................................ 55

Recovering from a lost password......................................................56

IP address configuration............................................................................... 56

Devices running Layer 2 software.....................................................56

Devices running Layer 3 software.....................................................57

Connecting network devices......................................................................... 60

Connectors........................................................................................60

Cable specifications.......................................................................... 60

Connecting to Ethernet or Fast Ethernet hubs..................................60

Connecting to workstations, servers, or routers................................61

Connecting a network device to a fiber port......................................62

Troubleshooting network connections.......................................................... 62

Digital optical monitoring...................................................................62

Testing connectivity.......................................................................................63

Pinging an IP address.......................................................................63

Observing LEDs................................................................................63

Tracing a route..................................................................................64

Managing an ICX 7250 Device.............................................................................................. 65

Managing temperature settings.................................................................... 65

Displaying the temperature............................................................... 65

Displaying syslog messages for temperature................................... 66

Temperature threshold levels............................................................66

Changing the temperature warning level ......................................... 67

Temperature shutdown levels...........................................................67

Changing the temperature poll time..................................................67

Displaying CPU usage.................................................................................. 68

Removing MAC address entries................................................................... 68

Hardware maintenance schedule.......................................................................................... 69

Copper or fiber-optic module replacement....................................................69

Brocade ICX 7250 Switch Hardware Installation Guide

53-1003622-02

Removing a copper or fiber-optic module........................................... 69

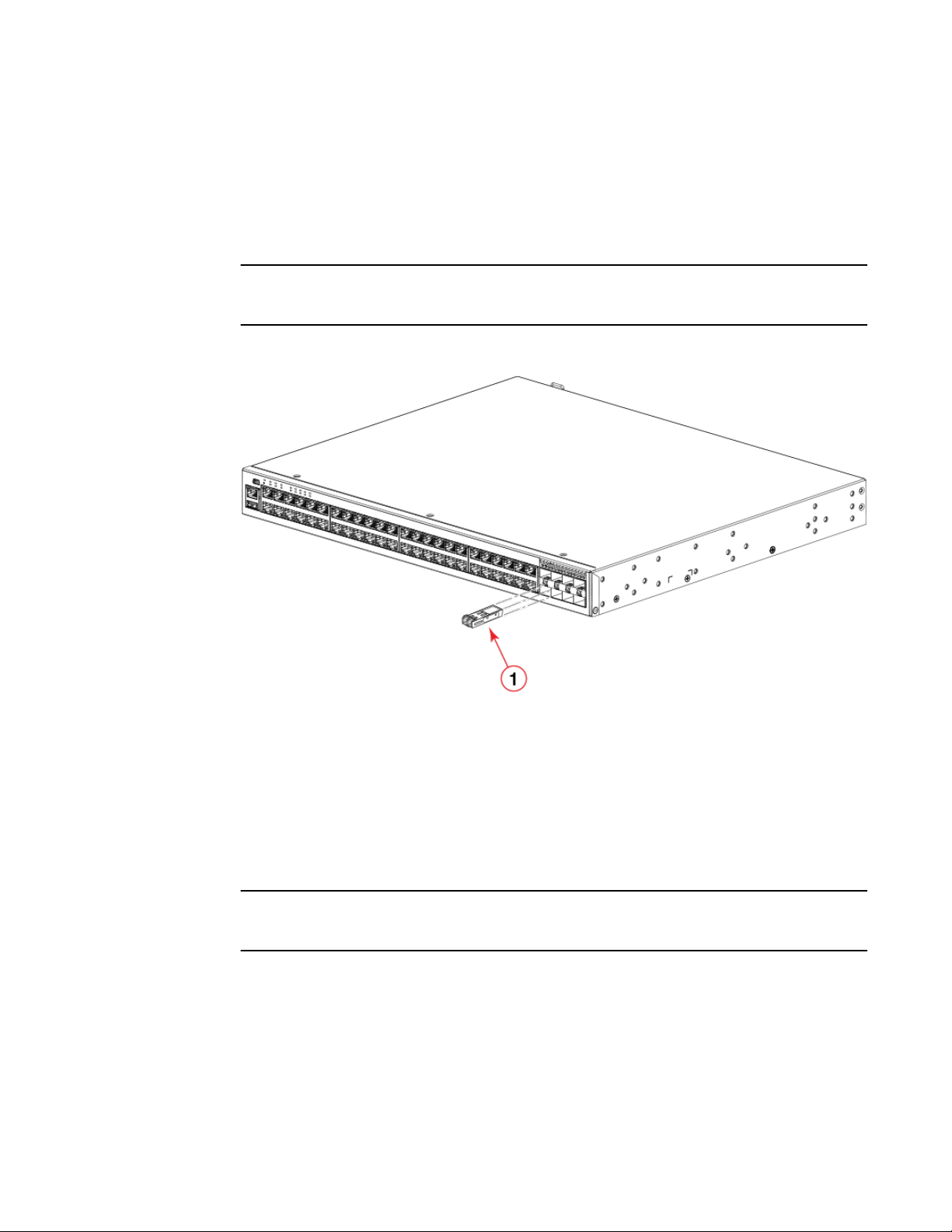

Installing a fiber-optic transceiver........................................................70

Cabling a fiber-optic transceiver..........................................................71

Cleaning the fiber-optic connectors.....................................................72

Brocade ICX 7250 Switch Technical Specifications..................................................................73

Troubleshooting ..................................................................................................................... 85

Diagnosing switch indicators...........................................................................85

Installation........................................................................................... 85

Power and cooling problems...............................................................85

In-band access....................................................................................86

Regulatory Statements............................................................................................................87

CE Statement..................................................................................................87

China ROHS................................................................................................... 87

BSMI statement (Taiwan)................................................................................87

Canadian requirements...................................................................................88

China CC statement........................................................................................89

Europe and Australia (CISPR 22 Class A Warning)....................................... 89

FCC warning (US only)................................................................................... 90

Germany......................................................................................................... 90

KCC statement (Republic of Korea)................................................................90

VCCI statement...............................................................................................90

Cautions and Danger Notices.................................................................................................. 91

Cautions.......................................................................................................... 91

Danger Notices............................................................................................... 94

Brocade ICX 7250 Switch Hardware Installation Guide 53-1003622-02

6 Brocade ICX 7250 Switch Hardware Installation Guide

53-1003622-02

Preface

● Document conventions......................................................................................................7

● Brocade resources............................................................................................................ 9

● Contacting Brocade Technical Support.............................................................................9

● Document feedback........................................................................................................ 10

Document conventions

The document conventions describe text formatting conventions, command syntax conventions, and important notice formats used in Brocade technical documentation.

Text formatting conventions

Text formatting conventions such as boldface, italic, or Courier font may be used in the flow of the text to highlight specific words or phrases.

Format

bold text

italic text

Courier font

Description

Identifies command names

Identifies keywords and operands

Identifies the names of user-manipulated GUI elements

Identifies text to enter at the GUI

Identifies emphasis

Identifies variables

Identifies document titles

Identifies CLI output

Identifies command syntax examples

Command syntax conventions

Bold and italic text identify command syntax components. Delimiters and operators define groupings of parameters and their logical relationships.

Convention

bold text Identifies command names, keywords, and command options.

italic text Identifies a variable.

value In Fibre Channel products, a fixed value provided as input to a command

Description

option is printed in plain text, for example, --show WWN.

Brocade ICX 7250 Switch Hardware Installation Guide 7 53-1003622-02

Notes, cautions, and warnings

Convention Description

[ ] Syntax components displayed within square brackets are optional.

Default responses to system prompts are enclosed in square brackets.

{ x | y | z } A choice of required parameters is enclosed in curly brackets separated by

x | y A vertical bar separates mutually exclusive elements.

< > Nonprinting characters, for example, passwords, are enclosed in angle

...

vertical bars. You must select one of the options.

In Fibre Channel products, square brackets may be used instead for this

purpose.

brackets.

Repeat the previous element, for example, member[member...].

Indicates a “soft” line break in command examples. If a backslash separates

two lines of a command input, enter the entire command at the prompt without

the backslash.

Notes, cautions, and warnings

Notes, cautions, and warning statements may be used in this document. They are listed in the order of increasing severity of potential hazards.

NOTE

A Note provides a tip, guidance, or advice, emphasizes important information, or provides a reference to related information.

ATTENTION

An Attention statement indicates a stronger note, for example, to alert you when traffic might be interrupted or the device might reboot.

CAUTION

A Caution statement alerts you to situations that can be potentially hazardous to you or cause damage to hardware, firmware, software, or data.

DANGER

A Danger statement indicates conditions or situations that can be potentially lethal or extremely hazardous to you. Safety labels are also attached directly to products to warn of these conditions or situations.

8 Brocade ICX 7250 Switch Hardware Installation Guide

53-1003622-02

Brocade resources

Visit the Brocade website to locate related documentation for your product and additional Brocade resources.

You can download additional publications supporting your product at www.brocade.com. Select the Brocade Products tab to locate your product, then click the Brocade product name or image to open the individual product page. The user manuals are available in the resources module at the bottom of the page under the Documentation category.

To get up-to-the-minute information on Brocade products and resources, go to MyBrocade. You can register at no cost to obtain a user ID and password.

Release notes are available on MyBrocade under Product Downloads.

White papers, online demonstrations, and data sheets are available through the Brocade website.

Contacting Brocade Technical Support

Brocade resources

As a Brocade customer, you can contact Brocade Technical Support 24x7 online, by telephone, or by email. Brocade OEM customers contact their OEM/Solutions provider.

Brocade customers

For product support information and the latest information on contacting the Technical Assistance Center, go to http://www.brocade.com/services-support/index.html.

If you have purchased Brocade product support directly from Brocade, use one of the following methods to contact the Brocade Technical Assistance Center 24x7.

Online Telephone E-mail

Preferred method of contact for nonurgent issues:

• My Cases through MyBrocade

• Software downloads and licensing tools

• Knowledge Base

Required for Sev 1-Critical and Sev 2-High issues:

• Continental US: 1-800-752-8061

• Europe, Middle East, Africa, and Asia Pacific: +800-AT FIBREE (+800 28 34 27 33)

• For areas unable to access toll free number: +1-408-333-6061

• Toll-free numbers are available in many countries.

support@brocade.com

Please include:

• Problem summary

• Serial number

• Installation details

• Environment description

Brocade OEM customers

If you have purchased Brocade product support from a Brocade OEM/Solution Provider, contact your OEM/Solution Provider for all of your product support needs.

• OEM/Solution Providers are trained and certified by Brocade to support Brocade® products.

• Brocade provides backline support for issues that cannot be resolved by the OEM/Solution Provider.

Brocade ICX 7250 Switch Hardware Installation Guide 9 53-1003622-02

Document feedback

• Brocade Supplemental Support augments your existing OEM support contract, providing direct access to Brocade expertise. For more information, contact Brocade or your OEM.

• For questions regarding service levels and response times, contact your OEM/Solution Provider.

Document feedback

To send feedback and report errors in the documentation you can use the feedback form posted with the document or you can e-mail the documentation team.

Quality is our first concern at Brocade and we have made every effort to ensure the accuracy and completeness of this document. However, if you find an error or an omission, or you think that a topic needs further development, we want to hear from you. You can provide feedback in two ways:

• Through the online feedback form in the HTML documents posted on www.brocade.com.

• By sending your feedback to documentation@brocade.com.

Provide the publication title, part number, and as much detail as possible, including the topic heading and page number if applicable, as well as your suggestions for improvement.

10 Brocade ICX 7250 Switch Hardware Installation Guide

53-1003622-02

About This Document

● What's new in this document...........................................................................................11

● Supported software......................................................................................................... 11

What's new in this document

The following table lists the new information added to this guide for FastIron release 08.0.30.

Summary of enhancements in FastIron release 08.0.30TABLE 1

Feature Description Location

New Hardware ICX 7250 devices Hardware Installation Guide

Supported software

For information about the features supported on a hardware platform, refer to the appropriate configuration guide.

Brocade ICX 7250 Switch Hardware Installation Guide 53-1003622-02

Supported software

12 Brocade ICX 7250 Switch Hardware Installation Guide

53-1003622-02

Overview

● Hardware features...........................................................................................................13

Hardware features

The following sections describe the physical characteristics of the devices. For more details about physical dimensions and power supply specifications, refer to the Technical Specifications document.

ICX 7250 models

The ICX 7250 Ethernet switch device is available in the following models.

Model Description

ICX 7250 ModelsTABLE 2

ICX 7250-24G 24 fixed 10/100/1000Base-T, non-PoE ports, 4 SFP 1-GbE uplink ports, no stacking, no

ICX 7250-24 24 fixed 10/100/1000Base-T, non-PoE ports, 8 SFP+ 1-GbE or 10-GbE uplink or

ICX 7250-24P 24 fixed 10/100/1000Base-T, PoE/PoE+ ports, 8 SFP+ 1-GbE or 10-GbE uplink or

ICX 7250-48 48 fixed 10/100/1000Base-T, non-PoE ports, 8 SFP+ 1-GbE or 10-GbE uplink or

ICX 7250-48P 48 fixed 10/100/1000Base-T, PoE/PoE+ ports, 8 SFP+ 1-GbE or 10-GbE uplink or

NOTE

A few examples of the front and rear panels are shown. Other models have similar front and rear panels.

FIGURE 1 ICX 7250-48P front panel

EPS4000 connection

stacking ports, EPS4000 connection

Brocade ICX 7250 Switch Hardware Installation Guide 53-1003622-02

Network and management interfaces

FIGURE 2 ICX 7250-24 front panel

FIGURE 3 ICX 7250-24G rear panel

FIGURE 4 ICX 7250-48 rear panel

Network and management interfaces

Each device includes the following management interfaces.

• Console management interface (mini-USB port)

• Out-of-band management interface (RJ-45 port)

• Reset

The ports are located on the front panels of the devices. The following is an example of a 48-port device.

FIGURE 5 Network and management interfaces on a 48-port model

1. Out-of-band management port (RJ-45)

2. Console port (mini-USB)

3. Slot 1 (10/100/1000 Mbps ports - RJ-45)

4. Slot 2 (SFP+ uplink or stacking ports)

5. Reset

6. USB port

NOTE

24-port devices have similar front panels. For the ICX 7250-24G, the Slot 2 ports are SFP ports.

14 Brocade ICX 7250 Switch Hardware Installation Guide

53-1003622-02

Console management interface

The console management interface is a mini-USB port that allows you to configure and manage the device using a third-party terminal emulation application from a directly connected PC or through a terminal server.

Out-of-band management interface

The out-of-band management interface is an RJ-45 port that allows you to access, configure and manage the device from the network.

System reset button

The reset button allows you to restart the system without switching the power supply off and on, using the CLI. When the reset button is pressed, the system resets and the software is reloaded. The button is accessible through a hole labeled RESET in the front panel.

Network interfaces for devices

The devices contain the following network interfaces.

• 10/100/1000 Mbps ports with RJ-45 copper connectors

• SFP or SFP+ ports

SFP ports support 1 Gbps port speed. SFP+ ports support both 1 Gbps and 10 Gbps port speeds.

NOTE

Refer to the Brocade ICX 7250 Switch Technical Specifications on page 73 to see the ports supported by your model.

Slot designations

Refer to Network and management interfaces on page 14 for the location of slot 1 and slot 2 on the front panel of the 24-port models and the 48-port models.

Slot designations for ICX 7250 devices TABLE 3

Device Slot 1 (10/100/1000 BASE-T ports) Slot 2 (SFP and SFP+ ports)

ICX 7250-24G RJ-45 ports 1-24 SFP ports 1-4

ICX 7250-24 RJ-45 ports 1-24 SFP+ ports 1-8

ICX 7250-24P RJ-45, PoE/PoE+ ports 1-24 SFP+ ports 1-8

ICX 7250-48 RJ-45 ports 1-48 SFP+ ports 1-8

ICX 7250-48P RJ-45, PoE/PoE+ ports 1-48 SFP+ ports 1-8

Brocade ICX 7250 Switch Hardware Installation Guide 15 53-1003622-02

10/100/1000 BASE-T ports

All devices provide 24 or 48 RJ-45 ports that operate at 10 Mbps or 100 Mbps half or full duplex, or at 1000 Mbps full duplex. Because all ports support automatic MDI or MDI-X operation, you can use straight-through cables for all network connections to PCs, servers, or other devices or hubs. In addition, it is ideal (and preferred) to use straight-through cables for switch-to-switch connections.

Each port supports auto-negotiation, so the optimum transmission mode (half or full duplex), and the data rate (10, 100, or 1000 Mbps) can be selected automatically. If a device connected to one of these ports does not support auto-negotiation, the communication mode of the port can be configured manually.

SFP or SFP+ fiber ports

The ICX 7250-24G contains four small form factor pluggable (SFP) ports (ports 1 through 4). The top row consists of ports 1 and 3, and the bottom row consists of ports 2 and 4. These ports reside on slot 2 of the switch and can be used as uplink (data) ports. These ports support 1 Gbps but not 10 Gbps port speeds.

All other ICX 7250 devices contain eight SFP+ ports that support 1 Gbps or 10 Gbps port speeds. The top row ports are odd numbered (ports 1, 3, 5 and 7) and the bottom row ports are even numbered (ports 2, 4, 6 and 8). All ports can be used for stacking or up-linking.

NOTE

You may need software licenses to enable some SFP+ ports at the full 10 Gbps. Check the FastIron Ethernet Switch Software Licensing Guidefor more information.

For information about supported SFP and SFP+ transceivers, refer to the Brocade Optics Family datasheet.

Specifying a port address

You can specify a port address for an uplink (data) port, a stacking port, or a management port.

Specifying a data port

The port address format is stack_unit/slot/port, where:

• stack_unit --Specifies the stack unit ID. The range is from 1 through the maximum number of devices supported in a stack. Refer to the technical specifications for your device for the actual value. If the device is not part of a stack, the stack unit ID is 1.

• slot --Specifies the slot number; either 1 or 2.

• port --Specifies the port number in the slot. The range is from 1 through 24 (24-port models) or 1 through 48 (48-port models) for the RJ-45 ports. For the SFP ports, the range is from 1 through 4, and for the SFP+ ports, the range is from 1 through 8.

This example shows how to specify port 2 in slot 1 of a device that is not part of a stack:

Brocade (config) # interface ethernet 1/1/2

Specifying a stacking port

The port address format is stack_unit/slot/port where:

16 Brocade ICX 7250 Switch Hardware Installation Guide

53-1003622-02

Specifying a management port

• stack_unit --Specifies the stack unit ID. For models that support stacking, the range is from 1 through the maximum number of devices (units) that can be supported in the stack.

• slot --Specifies the slot number. Stacking ports are in slot 2.

• port --Specifies the port number in the slot.

This example shows how to specify stacking port 3 in slot 2 of unit 3 in a stack:

Brocade (config) # interface ethernet 3/2/3

Specifying a management port

The management port number is always 1. This example shows how to specify the management port:

Brocade (config) # interface management 1

Port, system, and power status LEDs

The devices include LEDs that indicate the status of device components.

NOTE

Some examples of the port status LEDs are shown below. LEDs for similar ports are present for models with higher number of ports.

FIGURE 6 Port status LEDs on RJ-45 ports

1. RJ-45 ports

2. Status LEDs for corresponding ports

3. PoE/PoE+ LEDs for corresponding ports

NOTE

The PoE/PoE+ LEDs are reserved on models that do not support PoE or PoE+ operation.

Brocade ICX 7250 Switch Hardware Installation Guide 17 53-1003622-02

Overview

FIGURE 7 Port status LEDs for SFP or SFP+ ports

1. SFP or SFP+ ports

2. Bi-color status LED for upper port

3. Bi-color status LED for lower port

Port status LEDsTABLE 4

LED Condition Status

RJ-45 (1-24/48) On/Flashing Green The port has established a valid link

Off A link is not established with a

PoE/PoE+ (1-24/48) On/Green The port is providing PoE or PoE+

Off The port is not providing PoE or PoE

SFP (F1 - F4) for ICX 7250-24G devices

SFP+ (X1 - X8) for all other ICX 7250 devices

On/Flashing Green The SFP port is operating at 1

Off A link is not established with a

On/Flashing Green The SFP+ port is operating at 10

at 10, 100 or 1000 Mbps. Flashing indicates the port is transmitting and receiving user packets.

remote port.

power to a connected device.

+ power.

Gbps. Flashing indicates the port is transmitting and receiving user packets at 1 Gbps.

remote port.

Gbps. Flashing indicates the port is transmitting and receiving user packets at 10 Gbps.

18 Brocade ICX 7250 Switch Hardware Installation Guide

53-1003622-02

Port status LEDs (Continued)TABLE 4

LED Condition Status

Overview

Out-of-band management port (RJ-45)

On/Flashing Yellow The SFP+ port is operating at 1

Off A link is not established with a

On/Flashing Green

Gbps. Flashing indicates the port is transmitting and receiving user packets at 1 Gbps.

remote port.

The following figure shows an example of the system status LEDs.

NOTE

Not all models have all the LEDs and the location of the LEDs on the front panel may also be slightly different.

FIGURE 8 System status LEDs on ICX 7250-48P

1. System status LEDs

The following figure shows the system status LEDs for ICX 7250 models.

FIGURE 9 System status LEDs for ICX 7250 models

Brocade ICX 7250 Switch Hardware Installation Guide 19 53-1003622-02

Overview

1. ICX 7250-24G LEDs

2. ICX 7250-24, ICX 7250-24P, ICX 7250-48 LEDs

3. ICX 7250-48P LEDs

System status LEDsTABLE 5

LED Condition Status

PWR Green Power supply is operating normally.

Yellow Power supply fault.

Off Power supply off.

EPS1 and EPS2 (for supported models)

DIAG Flashing Green System self-diagnostic test in

MS Green The device is the Active controller.

Green EPS1 and EPS2 power supplies are

operating normally.

Yellow EPS1 and EPS2 power supply fault.

Off EPS1 and EPS2 off or not present.

progress. System reloads automatically.

Steady Yellow System self-diagnostic test has

detected a fault. (Fan, thermal, or any interface fault.) The user must reload the system.

Flashing indicates the system is initializing.

Yellow Indicates the device is the Standby

controller. Flashing indicates the system is in Master arbitration or selection state.

Off Device is operating as a stack

member, or is in standalone mode.

UPLINK Green Uplink port is operating normally.

Off Uplink has failed or there is no link.

DOWNLINK Green Downlink port is operating normally.

Off Downlink has failed or there is no

20 Brocade ICX 7250 Switch Hardware Installation Guide

link.

53-1003622-02

System status LEDs (Continued)TABLE 5

LED Condition Status

Power supplies

1-10+ (ID)

(Switch ID in the stack)

Green Indicates the switch ID in the stack.

(Hardware can display 1-19 Stack ID. The 10+ LED is used in conjunction with another, 1-9, to indicate numbers higher than 10. The actual number of devices supported in a stack is 12.)

Power supplies

The devices have one standard, C14, AC power supply receptacle on the rear panel of the device for the AC power cord. In addition, there is an optional connector on some models for the power cord from an external power supply (EPS4000) that can provide DC power to the device in the event the internal power supply fails or for supplemental power for PoE or PoE+ applications.

The following figure shows an example of a typical rear panel for an ICX 7250 device.

FIGURE 10 ICX 7250 power supply connectors

1. External power supply (EPS4000) connector

2. AC power supply socket

NOTE

The power connector for the EPS4000 is typically covered with a lid that is screwed on as shown in the figure below. You should keep the connector covered when not in use.

1. Fan

2. External power supply (EPS4000) connector with cover on

3. AC power supply socket

TABLE 6

Model EPS4000 connectors

ICX 7250-24G 0

EPS4000 connectors on the ICX 7250 models

Brocade ICX 7250 Switch Hardware Installation Guide 21 53-1003622-02

Power supply usage

EPS4000 connectors on the ICX 7250 models (Continued)TABLE 6

Model EPS4000 connectors

ICX 7250-24 1

ICX 7250-24P 1

ICX 7250-48 1

ICX 7250-48P 1

Power supply usage

The device models support specific AC power supply inputs and numbers of PoE and PoE+ ports with an internal power supply.

NOTE

Depending on the configuration, each EPS4000 connection from the device to the EPS4000 can add 23 ports of PoE (Class 3) or 12 ports of PoE+ power (54-volt supply) in addition to the internal power supply by providing system power backup. If the overall PoE requirement is less than the power budget of 360 W (or 720 W), the device can support 24 (or 48) PoE. The system power (12-volt supply) portion of the EPS can be used for internal system power redundancy.

AC power supply and PoE and PoE+ usageTABLE 7

Model Maximum power draw

from AC line input (Watts)

ICX 7250-24G 44.4 0 0

ICX 7250-24 57.6 0 0

ICX 7250-24P 454.0 23 PoE ports (class 3) 12

ICX 7250-48 69.5 0 0

ICX 7250-48P 942.0 46 PoE ports (class 3) 24

Number of PoE ports supported with internal power supply

Number of PoE+ ports supported with internal power supply

22 Brocade ICX 7250 Switch Hardware Installation Guide

53-1003622-02

Installation

● Items included with the ICX 7250 device........................................................................ 23

● Configuration requirements.............................................................................................24

● Summary of installation tasks......................................................................................... 24

● Installation precautions................................................................................................... 24

● Preparing the installation site.......................................................................................... 26

● Installing the device.........................................................................................................26

● Connecting devices in a traditional stack........................................................................ 31

● Powering on the system..................................................................................................33

DANGER

The procedures in this manual are for qualified service personnel.

DANGER

Before beginning the installation, see the precautions in “Power precautions.”

CAUTION

Disassembling any part of the power supply and fan assembly voids the warranty and regulatory certifications. There are no user-serviceable parts inside the power supply and fan assembly.

Items included with the ICX 7250 device

ICX 7250 devices ship with all of the following items included in your shipping container. Verify the contents of your shipping container. If any items are missing, contact the place of purchase.

• ICX 7250 device

• Rack mounting kit containing two L-shaped mounting brackets and two sets of eight sink-head screws

• Wall mounting kit containing two wall-mount screws and two plastic anchors

• Two-post rack kit containing four rack-mounting screws and four cage nuts

• One AC power cord (US only)

• Power cord retainer clip

• Console cable

• DB9 adapter

• Four rubber feet

• China ROHS sheet

• Read Me First document

Brocade ICX 7250 Switch Hardware Installation Guide 53-1003622-02

Configuration requirements

To manage the ICX 7250, you need a management station, such as a PC running a terminal emulation application, for serial connection to the device.

Use the serial connection to perform basic configuration tasks, including assigning an IP address and network mask to the system. This information is required to manage the system using the CLI through Telnet or Brocade Network Advisor.

Summary of installation tasks

Follow the steps in the following table to install your device. Details for each of these steps are provided on the pages indicated.

Installation tasks TABLE 8

Task number Task Where to find more information

1 Ensure that the physical environment that will host the

device has the proper cabling and ventilation.

2 Unpack the device and all included accessories. Items included with the ICX 7250 device

3 Install the device on a desktop, or in an equipment

rack.

4 Once the device is installed, plug the device into a

nearby power source that adheres to the regulatory requirements outlined in this manual.

Installation precautions

Follow all precautions when installing a device.

General precautions

DANGER

All fiber-optic interfaces use Class 1 lasers.

Preparing the installation site on page

on page 23

Installing the device on page 26

Powering on the system on page 33

CAUTION

Do not install the device in an environment where the operating ambient temperature might exceed 50°C (122°F).

24 Brocade ICX 7250 Switch Hardware Installation Guide

53-1003622-02

Lifting precautions

CAUTION

Make sure the airflow around the front, sides, and back of the device is not restricted.

Lifting precautions

DANGER

Make sure the rack housing the device is adequately secured to prevent it from becoming unstable or falling over.

DANGER

Mount the devices you install in a rack as low as possible. Place the heaviest device at the bottom and progressively place lighter devices above.

Power precautions

CAUTION

Use a separate branch circuit for each AC power cord, which provides redundancy in case one of the circuits fails.

CAUTION

Ensure that the device does not overload the power circuits, wiring, and over-current protection. To determine the possibility of overloading the supply circuits, add the ampere (amp) ratings of all devices installed on the same circuit as the device. Compare this total with the rating limit for the circuit. The maximum ampere ratings are usually printed on the devices near the input power connectors.

DANGER

Disconnect the power cord from all power sources to completely remove power from the device.

DANGER

If the installation requires a different power cord than the one supplied with the device, make sure you use a power cord displaying the mark of the safety agency that defines the regulations for power cords in your country. The mark is your assurance that the power cord can be used safely with the device.

Brocade ICX 7250 Switch Hardware Installation Guide 25 53-1003622-02

Preparing the installation site

Before installing the device, plan its location and orientation relative to other devices and equipment.

Cabling infrastructure

Ensure that the proper cabling is installed at the site. For information about supported SFP and SFP+ transceivers and cable lengths and types, refer to the Brocade optics family datasheet.

Installation location

Devices can be mounted in a standard 19-inch equipment rack, on the wall, or on a flat surface.

The site should meet the following requirements:

• Maintain the operating environment as specified in the Technical Specifications.

• Allow a minimum of 7.62 cm (3 in.) of space between the front and the back of the device and walls or other obstructions for proper airflow.

• Allow at least 7.62 cm (3 in.) of space at the front and back of the device for the twisted-pair, fiberoptic, and power cabling.

• The site should be accessible for installing, cabling, and maintaining the devices.

• Allow the status LEDs to be clearly visible.

• Allow for twisted-pair cables to be routed away from power lines, fluorescent lighting fixtures, and other sources of electrical interference, such as radios and transmitters.

• Allow for the unit to be connected to a separate grounded power outlet that provides 100 to 240 VAC, 50 to 60 Hz, is within 2 m (6.6 ft) of each device, and is powered from an independent circuit breaker. As with any equipment, a filter or surge suppressor is recommended.

• Some combinations of intake and exhaust airflows may not be compatible with your environment.

Rack-mount installation considerations

Before mounting the device in a rack, ensure that the following rack-mount installation requirements are met:

• Temperature: Because the temperature within a rack assembly may be higher than the ambient room temperature, check that the rack-environment temperature is within the specified operating temperature range. (Refer to Brocade ICX 7250 Switch Technical Specifications on page 73.)

• Airflow: Be sure that the airflow direction for all equipment in a rack is the same or consistent.

• Mechanical loading: Do not place any equipment on top of a rack-mounted unit.

• Circuit overloading: Be sure that the supply circuit to the rack assembly is not overloaded.

• Grounding: Rack-mounted equipment should be properly grounded.

Installing the device

You can install the device on a desktop, the wall, or in an equipment rack.

26 Brocade ICX 7250 Switch Hardware Installation Guide

53-1003622-02

Desktop installation

DANGER

Mount the devices you install in a rack as low as possible. Place the heaviest device at the bottom and progressively place lighter devices above.

Desktop installation

Complete the following steps to install the ICX 7250 device on a desktop or other flat surface.

NOTE

The device shown in the diagram may be different from the one you have.

FIGURE 11 Attaching the adhesive feet

1. Attach the four adhesive feet to the bottom of the device. If installing multiple devices, attach the adhesive feet to each device.

2. Set the device on a flat desktop, table, or shelf near an AC power source. Make sure that adequate ventilation is provided for the system. A 7.62 cm (3 in) clearance is recommended on each side.

3. If installing a single device only, go to the “Powering on the system” task. If installing multiple devices place each device squarely on top of the one below.

Rack mount installation (2-post)

The devices use stationary mounting when mounted in a rack.

DANGER

Make sure the rack housing the device is adequately secured to prevent it from becoming unstable or falling over.

Brocade ICX 7250 Switch Hardware Installation Guide 27 53-1003622-02

Installation

NOTE

You need a #2 Phillips screwdriver for rack mount installation.

Complete the following steps to mount devices in a rack. The example shows a front-mounting.

1. Remove the rack mounting kit from the shipping carton. The kit contains two L-shaped mounting brackets and two sets of eight sink-head screws.

2. Using a Phillips screwdriver, attach the mounting brackets to the sides of the device using eight #6-32, sink-head screws, four screws on each side.

NOTE

The #6-32, sink-head screws are for front- and mid-mounting. Use the #8-32 screws for rearmounting.

FIGURE 12 Attaching the rack mounting brackets for ICX 7250

3. Remove the two-post rack kit from the shipping carton. The kit contains four rack-mounting screws and four cage nuts.

4. Insert the cage nuts in the two-post rack where you want to mount the device.

5. Using a Phillips screwdriver, mount the device in a two-post rack using four rack-mounting screws.

28 Brocade ICX 7250 Switch Hardware Installation Guide

53-1003622-02

FIGURE 13 Installing the device in a two-post rack

Wall mount installation

1. Rack-mounting screws

2. Cage nuts

6. If installing a single device only, proceed to Powering on the system on page 33. If installing multiple devices, mount them in the rack, one above the other.

Wall mount installation

NOTE

You need a #2 Phillips screwdriver, a hammer, and a drill for wall mount installation.

Brocade recommends that you wall mount the device with the port side down.

Complete the following steps to mount the device to a wall.

DANGER

This equipment is suitable for mounting on concrete or other noncombustible surfaces only.

1. Attach the four adhesive feet to the bottom of the device.

2. Using a Phillips screwdriver, attach the wall mount brackets to the sides of the device using four #6-32, sink-head screws on each side.

Brocade ICX 7250 Switch Hardware Installation Guide 29 53-1003622-02

Installation

FIGURE 14 Attaching the wall mount brackets

3. Drill two holes on the wall where you want to mount the device.

4. Hammer two wall mount anchors into the holes on the wall.

5. Use the two wall mount screws to fasten the device to the wall mount anchors.

30 Brocade ICX 7250 Switch Hardware Installation Guide

53-1003622-02

FIGURE 15 Wall mounting the device

Connecting devices in a traditional stack

1. Drilled holes

2. Wall mount anchors

3. Wall mount screws

Connecting devices in a traditional stack

ICX 7250 devices can operate as standalone devices and also as members of traditional stacks. A stack is a group of devices—Brocade stackable units and their connected stacking links—that are connected so that the stack is managed as a single entity.

A traditional stack contains devices from only one model in a product family.

Stacking ports and trunks

There are eight SFP+ ports on the front panels of the ICX 7250 devices that support stacking, which can be used as uplink (data) ports or as stacking ports. The figure below shows the ports in slot 2; the top row consists of ports 1, 3, 5, and 7, and the bottom row consists of ports 2, 4, 6, and 8.

Brocade ICX 7250 Switch Hardware Installation Guide 31 53-1003622-02

Stacking configuration requirements

FIGURE 16 Stacking ports

1. Slot 2 (SFP+ uplink or stacking ports) - StackID/Slot/Port

Stacking configuration requirements

Before configuring the traditional stack using the CLI, physically connect the devices using stacking cables. For information about configuring a stack, refer to the FastIron Ethernet Switch Stacking Configuration Guide.

Traditional stack size

A traditional stack can contain a maximum of twelve ICX 7250 devices.

Stacking topologies for traditional stack

Both linear and ring topologies are supported in a traditional stack. In a linear stack topology there is a connection between each switch that carries two-way communications across the stack. The physical connection between the devices can use one port (stacked-port) or two ports (stacked-trunk) per trunk. The stack uses a pair of ports (n, n+1, where n is odd and ranges from 1 through 7) even if there is only one physical connection between the devices in a stack. The physical connections must be from an odd-numbered port to an odd-numbered port or an even-numbered port to an even-numbered port.

The following section discusses examples of supported stacking topologies.

NOTE

The figures in the examples show a 24-port device. The 48-port devices show the same behavior for stacking.

The following figure shows a linear stacking topology example.

32 Brocade ICX 7250 Switch Hardware Installation Guide

53-1003622-02

Powering on the system

• For the first device in the stack, ports (1/2/1, 1/2/2) are being used as stacked ports.

• For the second device in the stack, ports (2/2/1, 2/2/2 and 2/2/3, 2/2/4) are being used as stacked ports.

• There is a single physical connection between device 1 and device 2 in the stack, ports 1/2/1 and 2/2/1. This is a stacked-port configuration, odd-numbered port to odd-numbered port.

• There are two physical connections between device 2 and device 3 in the stack. Port 2/2/3 is connected to port 3/2/7 (odd-numbered port to odd-numbered port) and port 2/2/4 is connected to 3/2/8 even-numbered port to even-numbered port. This is a stacked-trunk configuration.

FIGURE 17 Linear stacking topology

1. First device in stack

2. Second device in stack

3. Third device in stack

In ring stack topology, there is an extra connection between the logical first and last devices forming a "ring" or "closed-loop." The closed-loop connection provides a redundant path for the stack link, so if one link fails, stack communications can be maintained.

FIGURE 18 Ring stacking topology

1. First device in stack

2. Second device in stack

3. Third device in stack

Powering on the system

After you complete the physical installation, you can power on the system.

Brocade ICX 7250 Switch Hardware Installation Guide 33 53-1003622-02

Installation

NOTE

The socket should be installed near the equipment and should be easily accessible.

1. Remove the power cord from the shipping container.

2. Install the power cord clip.

3. Attach the AC power cord to the AC connector on the rear panel.

4. Insert the power cord plug into a 100V-240V outlet.

NOTE

To turn the system off, simply unplug the power cord or cords.

34 Brocade ICX 7250 Switch Hardware Installation Guide

53-1003622-02

Installing the EPS4000

● EPS4000 external power supply..................................................................................... 35

● Items included with the EPS4000................................................................................... 39

● General requirements..................................................................................................... 39

● Summary of installation tasks......................................................................................... 39

● Installation precautions................................................................................................... 40

● Preparing the installation site.......................................................................................... 41

● Installing the device.........................................................................................................42

● Installing an RPS17 Power Supply Unit (PSU)............................................................... 45

● Uninstalling an RPS17 Power Supply Unit (PSU)...........................................................46

● Connecting the EPS4000 cord........................................................................................46

● Powering on the system..................................................................................................49

● Verifying proper operation...............................................................................................49

● EPS4000 External Power Supply Technical Specifications............................................ 50

DANGER

The procedures in this manual are for qualified service personnel.

DANGER

Before beginning the installation, see the precautions in “Power precautions.”

DANGER

Be careful not to accidently insert your fingers into the fan tray while removing it from the chassis. The fan may still be spinning at a high speed.

EPS4000 external power supply

In the event of an AC power loss or internal power supply device failure, the Brocade EPS4000 external power supply can be used as a 12-V, backup power source to a device when any of the DC power supply ports are connected to an ICX 7250 device. The EPS4000 requires a minimum of one RPS17 Power Supply Unit (PSU) to be functional. Proprietary DC cables are used to connect any of the EPS DC ports of the EPS4000 to the rear EPS4000 port of an ICX 7250 device that is supported by the EPS4000. Each RPS17 PSU can provide backup power to one ICX 7250 device. Even though a fully populated EPS4000 can monitor up to sixteen connected devices, the EPS4000 can provide backup power without performance degradation to only four ICX 7250 devices.

NOTE

The primary source of 12-V power for an ICX 7250 device is the internal power supply. The EPS4000 is designed to serve primarily as a backup source of 12-V power. You should service a failed ICX 7250 device as soon as possible after a 12-V power failure is detected.

In case of a 54-V supply failure, the EPS4000 can provide power to multiple devices up to its capacity limit. You can set the system priority for the power budget allocation for this scenario. The default is for

Brocade ICX 7250 Switch Hardware Installation Guide 53-1003622-02

Features and benefits

the lower number port to have the higher priority. Should a higher priority device have a 54-V supply failure while a lower priority device is already being serviced by the PSU, the supply will not switch to provide power to the higher priority device to maintain continuity of service. The EPS4000 uses the next PoE-power-budget cycle to reallocate power among the connected ICX 7250 devices.

In the PoE power extension mode the EPS4000 can also provide additional power to support the PoE ports as needed. For more information about connecting an ICX 7250 device to the EPS4000, refer to

Connecting devices to the external power supply on page 49.

Each RPS17 PSU can provide up to 720 W at 54 Volts and 120 W at 12 Volts. The RPS17 draws power from a standard AC source and converts it to DC for use by the switches.

NOTE

The internal power supply of the ICX 7250 devices is not a field-replaceable unit (FRU). The devices must be shut down by administrators for replacement.

Brocade recommends that you pay attention to the PoE or PoE+ port configuration of the device when connecting to an EPS4000. The internal power supply of each PoE or PoE+ device has a maximum number of supported PoE or PoE+ ports. Brocade recommends that when the EPS4000 is used as a redundant power source for the PoE device, that the maximum number of PoE or PoE+ ports of the external power supply must not exceed the maximum number of PoE or PoE+ ports of the internal power supply capability of each device.

The following devices are supported by the Brocade EPS4000:

• ICX 7250-24

• ICX 7250-24P

• ICX 7250-48

• ICX 7250-48P

NOTE

The ICX 7250-24G is not supported by the EPS4000.

Features and benefits

• Hosts up to four hot-swappable RPS17 power supply units (PSUs).

• Provides N:1 power redundancy at 12 V with each PSU.

• Each RPS17 can deliver a maximum of 720 W at 54 Volts and 120 W at 12 Volts.

• A fully populated EPS4000 has 8 DC power ports that can monitor up to 16 switches simultaneously and provide 12-V redundant power to four switches.

• Provides power redundancy at 54 Volts and true extended PoE power support.

• 1:1 and 1:2 cables support 54 V or 12 V distribution up to 1 meter.

• Status LEDs are located on the front panel.

• Universal (100 - 240 V) AC line cord draws power from standard power outlet.

• The EPS4000 firmware is field-upgradeable.

• The power to the switches is maintained while the microcontroller unit (MCU) is being reset.

• The power distribution to the connected switches can be controlled per a priority scheme that you set.

Front and rear panels

There are thirty two LEDs on the front panel of the EPS4000 to indicate the status for the DC power on the 8 ports. Sixteen (Ex.x) are for the 54-V DC and the other sixteen (Rx.x) are for the 12-V DC

36 Brocade ICX 7250 Switch Hardware Installation Guide

53-1003622-02

LEDs

supply. There is a RESET button next to the LEDs. There are port LEDs for each of the management ports. Both the serial port and the out-of-band Ethernet management ports use RJ-45 connectors. The slots for the RPS17 PSUs are covered with panels. These must be removed to install the PSU.

FIGURE 19 EPS4000 front panel

1. Management console serial port (RJ-45)

2. RPS17 PSU slots (three populated, one with cover on)

3. AC power cord input (C14)

4. PSU release Latch

5. Power cord clip

6. Integrated RPS17 PSU fan

7. PSU slot cover screws

8. Reset button - sets EPS4000 configuration to factory default

9. System status indicators

10.Out-of-band, Ethernet management port (RJ-45)

FIGURE 20 EPS4000 rear panel

1. DC power cable connectors 1-8

LEDs

The following figure shows the location of the LEDs on the EPS4000.

Brocade ICX 7250 Switch Hardware Installation Guide 37 53-1003622-02

Installing the EPS4000

FIGURE 21 EPS4000 LEDs

1. Ex.y: Power status indicator (54 V), where x = EPS4000 connector (1-8), y = Channel or port (1-2)

2. CONFIG: EPS configuration mode indicator

3. Rx.y: Power status indicator (12 V), where x = EPS4000 connector (1-8), y = Channel or port (1-2)

The following table describes the functions of the EPS4000 LEDs.

System Status LEDs on the EPS4000TABLE 9

LED State Description

E1.1 ~ E8.1 (54 V1)

E1.2 ~ E8.2 (54 V2)

R1.1 ~ R8.1 (12 V1)

R1.2 ~ R8.2 (12 V2)

Off No connection

Green EPS4000 is delivering up to 375 W PoE power to switch.

Amber Switch is connected to this channel but EPS4000 doesn't have

Blinking amber This channel had a fault (over current, etc.)

Blinking amber and green

Off No connection

Green Switch is connected to this channel and EPS is ready to provide

Blinking green Switch is connected to this channel and EPS is providing 12 V

Amber Switch is connected to this channel but EPS doesn't have

sufficient PoE power for this channel.

This channel has been granted PoE power but there is a fault on the channel (over current, etc.)

12 V backup power for this channel

backup power to this channel

sufficient 12 V backup power for this channel

Blinking amber This channel had a fault (over current, etc.)

CONFIG Green Auto-configuration mode

38 Brocade ICX 7250 Switch Hardware Installation Guide

53-1003622-02

System Status LEDs on the EPS4000 (Continued)TABLE 9

LED State Description

Amber Manual configuration mode

Items included with the EPS4000

Management port LED

(Left down)

Management port LED

(Right down)

Green Management port link up at 100BASE-T mode

Off Management port link up at 10BASE-T mode or link is down

Blinking green Indicates management port receive and transmit activity

Off Indicates no Ethernet traffic on management port

Items included with the EPS4000

The EPS4000 ships with all of the following items included in your shipping container. Verify the contents of your shipping container. If any items are missing, contact the place of purchase.

• EPS4000 external power supply

• Read Me First document

• Rack mounting kit containing two L-shaped mounting brackets and eight sink-head screws

• Two-post rack kit containing four rack-mounting screws and four cage nuts

• Four rubber feet

• Console cable

• RJ-45 to DB9 adaptor

• China ROHS sheet

General requirements

To manage the EPS4000, you will need a management station, such as a PC running a terminal emulation application, for serial connection to the switch. Use the serial connection to perform basic configuration tasks, including assigning an IP address and network mask to the system. This information is required to manage the system using the CLI through Telnet or Brocade Network Advisor.

Summary of installation tasks

Follow the steps in the following table to install your device. Details for each of these steps are provided on the pages indicated.

TABLE 10

Task number Task Where to find more information

1 Ensure that the physical environment that will host the

Brocade ICX 7250 Switch Hardware Installation Guide 39 53-1003622-02

Installation tasks

device has the proper cabling and ventilation.

Preparing the installation site on page

41 section

Installation precautions

Installation tasks (Continued)TABLE 10

Task number Task Where to find more information

2 Unpack the device and all included accessories. Items included with the EPS4000 on

3 Install the device on a desktop, or in an equipment rack. Installing the device on page 42

4 Once the device is installed, plug the device into a nearby

power source that adheres to the regulatory requirements outlined in this manual.

5 Verify that the device is working properly by plugging it

into a power source and verifying that it passes the self test.

Installation precautions

Follow all precautions when installing a device.

General precautions

DANGER

All fiber-optic interfaces use Class 1 lasers.

page 39 section

section

Powering on the system on page 49

section

Verifying proper operation on page

49 section

CAUTION

Do not install the device in an environment where the operating ambient temperature might exceed 50°C (122°F).

CAUTION

Make sure the airflow around the front, sides, and back of the device is not restricted.

Lifting precautions

DANGER

Make sure the rack housing the device is adequately secured to prevent it from becoming unstable or falling over.

DANGER

Mount the devices you install in a rack as low as possible. Place the heaviest device at the bottom and progressively place lighter devices above.

40 Brocade ICX 7250 Switch Hardware Installation Guide

53-1003622-02

Power precautions

CAUTION

Use a separate branch circuit for each power cord, which provides redundancy in case one of the circuits fails.

CAUTION

DANGER

Disconnect the power cord from all power sources to completely remove power from the device.

CAUTION

Before plugging a cable into to any port, be sure to discharge the voltage stored on the cable by touching the electrical contacts to ground surface.

DANGER

Preparing the installation site

EPS4000 external power supplies can be mounted in a standard 19-inch equipment rack or on a flat surface.

The installation site should meet these requirements:

• Be at the center of all the devices you want to link, and near a power outlet.

• Maintain temperatures within 0 to 50°C (32 to 122°F) and humidity levels within 5 to 95%, noncondensing.

• Provide adequate space (approximately 5.08 cm [2 in.]) on all sides for proper airflow.

• Be accessible for installing, cabling, and maintaining the devices.

• Allow the status LEDs to be clearly visible.

• Allow for twisted-pair cables to be routed away from power lines, fluorescent lighting fixtures, and other sources of electrical interference, such as radios and transmitters.

• Provide a separate grounded power outlet that provides 100 to 240 VAC, 50 - 60 Hz, is within 2.44 m (8 ft) of each device, and is powered from an independent circuit breaker.

• As with any electrical equipment, a filter or surge suppressor is recommended.

Rack-mount installation considerations

Before mounting the external power supply in a rack, consider the following factors:

Brocade ICX 7250 Switch Hardware Installation Guide 41 53-1003622-02

Installing the device

• Airflow: Be sure that the airflow direction for all equipment in a rack is the same or consistent.

• Mechanical loading: Do not place any equipment on top of a rack-mounted device.

• Circuit overloading: Be sure that the supply circuit to the rack assembly is not overloaded.

• Grounding: Rack-mounted equipment should be properly grounded.

Installing the device

You can install the device on a desktop or in an equipment rack.

DANGER

Mount the devices you install in a rack as low as possible. Place the heaviest device at the bottom and progressively place lighter devices above.

NOTE

There are no user-serviceable parts inside the device. Do not open the enclosure.

Desktop installation

Complete the following steps to install on a desktop or other flat surface.

1. Attach the four adhesive feet to the bottom of the device.

NOTE

The device shown may not be the exact device you are setting up. The process is the same for multiple devices.

42 Brocade ICX 7250 Switch Hardware Installation Guide

53-1003622-02

Mounting an external power supply in a rack (2-post)

FIGURE 22 Attaching the adhesive feet to the device

2. Set the device on a flat surface near an AC power source, making sure there is the specified amount of space on all sides of the device for proper airflow.

Mounting an external power supply in a rack (2-post)

DANGER

Make sure the rack housing the device is adequately secured to prevent it from becoming unstable or falling over.

Complete the following steps to install an external power supply in a rack.

NOTE

The device shown in the illustration is an example and could be different from the one you are using. The process for installation is the same.

1. Remove the rack mounting kit from the shipping carton. The kit contains two L-shaped mounting brackets, eight sink-head mounting screws, four rack-mounting screws, and four cage nuts.

2. Using a Phillips screwdriver, attach the mounting brackets to the sides of the external power supply using 4 sink-head screws on each side.

Brocade ICX 7250 Switch Hardware Installation Guide 43 53-1003622-02

Installing the EPS4000

FIGURE 23 Attaching the mounting brackets to the device

3. Mount the external power supply in a rack using four rack-mounting screws.

4. Use the four cage nuts to screw the device to the rack mount holes.

FIGURE 24 Installing the external power supply in a rack

44 Brocade ICX 7250 Switch Hardware Installation Guide

53-1003622-02

Installing an RPS17 Power Supply Unit (PSU)

1. Rack-mounting screws

2. Cage nuts

5. If installing multiple external power supplies, mount them in the rack one above the other.

Installing an RPS17 Power Supply Unit (PSU)

You can install a new RPS17 PSU into EPS4000 while the device is powered on and running.

NOTE

While installing a PSU, wear an ESD wrist strap.

DANGER

For safety reasons, the ESD wrist strap should contain a series 1 megaohm resistor.

Perform the following steps to install an RPS17 PSU.

1. Put on the ESD wrist strap and ground yourself by attaching the clip end to a metal surface (such as an equipment rack) to act as ground.

2. Remove the four screws that hold the PSU-slot cover in place. Refer to the following figure.

FIGURE 25 Installing an RPS17 PSU

1. RPS17 PSU slots (3 populated, 1 available)

2. Screws

NOTE

You will have to uninstall an RPS17 PSU, if you are replacing one as part of the installation. Refer to

Uninstalling an RPS17 Power Supply Unit (PSU) on page 46.

3. Remove the new PSU from the protective packaging.

4. Gently insert the PSU into the slot until it clicks into place.

Brocade ICX 7250 Switch Hardware Installation Guide 45 53-1003622-02

Uninstalling an RPS17 Power Supply Unit (PSU)

You can uninstall an RPS17 PSU from EPS4000 while the device is powered on and running.

NOTE

While uninstalling a PSU, wear an ESD wrist strap.

DANGER

For safety reasons, the ESD wrist strap should contain a series 1 megaohm resistor.

Perform the following steps to uninstall an RPS17 PSU.

1. Put on the ESD wrist strap and ground yourself by attaching the clip end to a metal surface (such as an equipment rack) to act as ground.

2. Lift the PSU latch and gently slide the PSU out from the slot.

FIGURE 26 Uninstalling an RPS17 PSU

1. RPS17 PSU slots (3 populated, 1 available)

2. Screws

3. PSU latch

3. Either insert a new PSU into the slot until it clicks into place or close the slot opening with a PSU slot cover.

Connecting the EPS4000 cord

There are two types of EPS4000 cords available, 1:1 and 1:2. The 1:1 cord can deliver 720 Watts at 54 Volts to one switch. The 1:2 cord can deliver 360 Watts at 54 Volts to each of two switches from one port on the EPS4000 power supply. Both cords deliver up to 120 Watts at 12 Volts. You must use a 1:2 cord if you want an ICX 7250-48P device to share 54-V power with another device. Both 1:1 and 1:2 cords will deliver only 360 Watts of 54-V power to an ICX 7250-24P device.

46 Brocade ICX 7250 Switch Hardware Installation Guide

53-1003622-02

Installing the EPS4000

NOTE

The headers on the cords are color coded to help you connect them correctly to the switch and the EPS4000. You must connect the cables tightly using a flat-blade screwdriver for the latching screws. You could see intermittent power supply failures otherwise.

The following figure shows EPS4000 DC power cords

FIGURE 27 DC power cords for the EPS4000

1. Connector headers EPS4000 side (black)

2. Switch side connector housing (1:1 cord)

3. Connector headers switch side (white)

4. Port #2 cord (Blue)

5. Port #1 cord (Black)

6. Switch side connector housing (1:2 cord)

7. Latch screws

Complete the following steps to connect the EPS4000 cord.

CAUTION

Do not use the cable to connect two EPS4000 ports.

Brocade ICX 7250 Switch Hardware Installation Guide 47 53-1003622-02

Installing the EPS4000

NOTE

You can connect either end of the cable first. Hot insertion is supported for cable installation.

NOTE

The device shown in the diagram may be different from the one you are using. The process to remove the EPS4000 faceplate is the same.

FIGURE 28 Removing the EPS4000 faceplate on the ICX 7250 device

1. Screws and faceplate

1. Using a Phillips screwdriver, remove the two screws on the EPS4000 faceplate of the external power receptacle, as illustrated in the figure above.

2. Attach the port side connector of the EPS4000 DC cord to the switch.

3. Attach the EPS4000 side connector of the EPS4000 DC cord to an available DC power port on the back of the EPS4000.

4. Use a flat-blade screwdriver to move the Action screw to the Close position and ensure that the screw is in securely. When the screw is in securely, all power supplies to your device will be active.

48 Brocade ICX 7250 Switch Hardware Installation Guide

53-1003622-02

Powering on the system

After you complete the physical installation, you can power on the system.

NOTE

The socket should be installed near the equipment and should be easily accessible.

1. Remove the power cord from the shipping container.

2. Attach the AC power cord to the AC connector on the rear panel.

3. Insert the power cord plug into a 100V-240V outlet.

NOTE

To turn the system off, simply unplug the power cord or cords.

Connecting devices to the external power supply

Powering on the system

Complete the following steps to connect devices to the external power supply.

1. Connect one end of the AC cord to the AC receptacle on the device, and the other end to a grounded power outlet.

2. Connect one end of an EPS cord to the external power receptacle on the device, and the other end to an available receptacle on the external power supply (1-8).

3. Repeat Step 1 and Step 2 to connect up to the allowable maximum devices to the external power supply. The maximum number will depend on whether you use 1:1 cords or 1:2 cords.

4. Connect one end of the AC cord to the AC receptacle on the external power supply, and the other end to a grounded power outlet.

5. Check the LEDs on the external power supply to ensure proper operation with the devices.

Verifying proper operation

After you have installed an external power supply, verify that the device is working properly by plugging it into a power source and verifying that it passes the self test.

1. Connect the power cord supplied with the device to the power connector on the power supply on the rear of the device.

2. Insert the other end into a properly grounded electrical outlet.

3. Verify that the LED for the power supply is green.

4. Verify proper operation by observing the LEDs.

LEDs for linked ports will come on during the boot process, then all LEDs will go off. Once the boot sequence is complete, LEDs for linked ports will again come on.

Brocade ICX 7250 Switch Hardware Installation Guide 49 53-1003622-02

EPS4000 External Power Supply Technical Specifications

System specifications

System component Description

Enclosure 1U; 19-inch rack-mountable or desktop

Power inlet C14 for AC power

Power outlet Custom connector for DC power to all ICX 7250 devices except ICX 7250-24G.

Power supply units (PSU) Up to four RPS17, field-replaceable units (FRU)

Fans One fan per installed RPS17

Cooling Forced air circulation

Front-to-back airflow

System architecture External power supply (also referred to as external power shelf)

Management

System component Description

Console RJ-45 serial port

Management interface One 10/100 Ethernet, out-of-band management interface (RJ-45 port)

LEDs

System component Description

Power status LEDs Ex_y: 16 bicolor LEDs indicate 54-V power status for the PoE or PoE+ channels.

Rx_y: 16 bicolor LEDs indicate 12-V power status for redundant power.

NOTE

x = 1 through 8 and y = 1 through 2

System status LED CONFIG: Bicolor LED (green/amber) indicates the configuration mode.

Management port status LEDs

50 Brocade ICX 7250 Switch Hardware Installation Guide

2 green LEDs indicate status and activity.

53-1003622-02

Installing the EPS4000

Other

System component Description

RESET Reset button for hardware reset without power cycling. There is a hole in the front

panel to allow access. Sets EPS4000 to factory default settings.

RJ-45 console port Console port for serial access to the device for management

Serial cable RJ-45 console cable

DB9 adaptor Serial cable to DB9 adaptor for serial connection

Weight and physical dimensions

Fully loaded: Populated with 4 RPS17 Power Supply Units (PSUs).

Model Height Width Depth Weight (empty) Weight (fully

loaded)

EPS4000 4.37 cm

1.72 inches

43.7 cm

17.2 inches

40.6 cm

16.0 inches

4.87 kg

10.7 lb

8.35 kg

18.4 lb

Environmental requirements

Condition Operational Non-operational

Ambient temperature -5°C to 50°C (23°F to 122°F) -25°C to 70°C (-13°F to 158°F)

Relative humidity (non-condensing)

Altitude (above sea level)

Shock 20 G, 11 ms, half-sine wave 33 G, 11 ms, half-sine wave

Vibration 1 G sine, 0.4 gms random, 5-500 Hz 2.4 G sine, 1.1 gms random, 5-500 Hz

Heat dissipation Refer to RPS17 specification section in

5% to 95% at 50°C (122°F) 5% to 95% at 70°C (158°F)

0 to 3,000 m (10,000 feet) 0 to 12,000 m (39,000 feet)

N/A

Brocade ICX 7250 Switch Technical Specifications on page 73

Operating noise Single PSU installed: 46.5 to 48.3 dBA

Four PSUs installed : 53.4 dBA

Brocade ICX 7250 Switch Hardware Installation Guide 51 53-1003622-02

N/A

Installing the EPS4000

Regulatory compliance (EMC)

• FCC Part 15, Subpart B (Class A)

• EN 55022 (CE mark) (Class A)

• EN 55024 (CE mark) (Immunity) for Information Technology Equipment

• ICES-003 (Canada) (Class A)

• AS/NZ 55022 (Australia) (Class A)

• VCCI (Japan) (Class A)

• EN 61000-3-2

• EN 61000-3-3

• EN 61000-6-1

Regulatory compliance (safety)

• CAN/CSA-C22.2 No. 60950-1-07/UL60950-1 - Safety of Information Technology Equipment

• EN 60825-1 Safety of Laser Products - Part 1: Equipment Classification, Requirements and User's Guide

• EN 60825-2 Safety of Laser Products - Part 2: Safety of Optical Fibre Communications Systems

• EN 60950-1, IEC 60950-1 Safety of Information Technology Equipment

Regulatory compliance (environmental)

• 2011/65/EU - Restriction of the use of certain hazardous substance in electrical and electronic equipment (EU RoHS)

• 2012/19/EU - Waste electrical and electronic equipment (EU WEEE)

• 94/62/EC - packaging and packaging waste (EU)

• 2006/66/EC - batteries and accumulators and waste batteries and accumulators (EU battery directive)

• 1907/2006 of the European Parliament and of the Council of 18 December 2006 concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (EU REACH)

• Section 1502 of the Dodd-Frank Wall Street Reform and Consumer Protection Act of 2010 - U.S. Conflict Minerals

• 30/2011/TT-BCT - Vietnam circular

• SJ/T 11363-2006 Requirements for Concentration Limits for Certain Hazardous Substances in EIPs (China)

• SJ/T 11364-2006 Marking for the Control of Pollution Caused by EIPs (China)

52 Brocade ICX 7250 Switch Hardware Installation Guide

53-1003622-02

Configuring the Device

● Configuration tasks......................................................................................................... 53

● PC or terminal attachment.............................................................................................. 54

● Password assignment..................................................................................................... 54

● IP address configuration................................................................................................. 56

● Connecting network devices........................................................................................... 60

● Troubleshooting network connections.............................................................................62

● Testing connectivity.........................................................................................................63

DANGER

The procedures in this manual are for qualified service personnel.

Configuration tasks

Follow the steps listed in the following table to configure the device. Details for each of these steps are provided on the pages indicated.

Configuration tasks TABLE 11

Task number Task Where to find more information

1 Attach a terminal or PC to the device. This will enable you to

configure the device through the command line interface (CLI).

2 No default password is assigned to the CLI. For additional

access security, assign a password.

3 Before attaching equipment to the device, you must configure

an interface IP address to the subnet on which the device will be located. Initial IP address configuration is performed using the CLI with a direct serial connection.

4 Once you power on the device and assign IP addresses, the

system is ready to accept network equipment.

5 Test IP connectivity to other devices by pinging them and

tracing routes.

6 Continue configuring the device using the CLI. You can also

use Brocade Network Advisor to manage the device.

7 Secure access to the device. FastIron Ethernet Switch

PC or terminal attachment on page

Password assignment on page 54

IP address configuration on page

Configuring IP parameters for devices running Layer 3 software

on page 58

Testing connectivity on page 63

FastIron Ethernet Switch Administration Guide

Administration Guide

Brocade ICX 7250 Switch Hardware Installation Guide 53 53-1003622-02

PC or terminal attachment

You can access the CLI by attaching a serial cable to the console port. After you assign an IP address, you can access the system through Telnet or Brocade Network Advisor.

Complete the following steps to attach a management station to the console port.

1. Connect a PC or terminal to the console (mini-USB) port of the device.

To connect the console port to a DB-9 port, you need a cable with mini-USB and DB-9 connectors.

For information about locating the serial port, refer to Network and management interfaces on page

14.

The serial port has a mini_USB connector. For port pinout information, refer to Brocade ICX 7250

Switch Technical Specifications on page 73.

NOTE

You must run a terminal emulation program on the PC.

2. Launch the terminal emulation program and set the following session parameters:

• Baud: 9600 bps

• Data bits: 8

• Parity: None

• Stop bits: 1

• Flow control: None

The console serial communication port serves as a connection point for management by a PC or SNMP workstation. When you establish the serial connection to the system, press Enter to display the CLI prompt in the terminal emulation window, as shown in the following example.

device>

If you see this prompt, you are connected to the system and can proceed to the task Password

assignment on page 54.

You can customize the prompt by changing the system name. For more information, refer to the FastIron Ethernet Switch Administration Guide.

If you do not see the prompt, make sure the cable is securely connected to your PC and to the Brocade system.

Check the settings in your terminal emulation program. In addition to the previously configured session settings, make sure the terminal emulation session is running on the same serial port you attached to the Brocade system.

Password assignment

By default, the CLI is not protected by passwords. To secure CLI access, Brocade strongly recommends assigning passwords. Refer to the FastIron Ethernet Switch Administration Guide.

NOTE

You can assign passwords using Brocade Network Advisor if an enable password for a Super User has been configured on the device.

54 Brocade ICX 7250 Switch Hardware Installation Guide

53-1003622-02

Assigning passwords

The CLI contains the following access levels:

• User EXEC - The level you enter when you first start a CLI session. At this level, you can view some system information but you cannot configure system or port parameters.

• Privileged EXEC - This level is also called the Enable level and can be secured by a password. You can perform tasks such as managing files on the flash module, saving the system configuration to flash, and clearing caches at this level.

• CONFIG - The configuration level. This level allows you to configure the system IP address and configure switching and routing features. To access the CONFIG mode, you must already be logged in to the Privileged EXEC level.

You can set the following levels of Enable passwords:

• Super User - Allows complete read-and-write access to the system. This is generally for system administrators and is the only password level that allows you to configure passwords.

NOTE

You must set a Super User password before you can set other types of passwords.

• Port Configuration - Allows read-and-write access for specific ports but not for global (system-wide) parameters.

• Read-Only - Allows access to the Privileged EXEC mode and CONFIG mode but only with read access.

Assigning passwords

Complete the following steps to set passwords.

NOTE

Depending on the device you purchased, and the code (Layer 2 or Layer 3) loaded on your system, the router prompt is displayed accordingly. For example, for an ICX 7250-48P device running Layer 3 code on the device, the router prompt displays ICX 7250-48P Router> at the CLI level.

1. At the opening CLI prompt, enter the following command to change to the Privileged EXEC mode:

device> enable

2. Access the config mode of the CLI by entering the following command:

device# configure terminal

3. Enter the following command to set the Super User password:

device(config)# enable super-user-password joe

NOTE

You must set the Super User password before you can set other types of passwords.

4. Enter the following commands to set the port configuration and read-only passwords:

device(config)# enable port-config-password john device(config)# enable read-only-password sam

NOTE

If you forget your Super User password, refer to the Recovering from a lost password on page 56 task.

Brocade ICX 7250 Switch Hardware Installation Guide 55 53-1003622-02

Recovering from a lost password

Syntax: enable { super-user-password | read-only-password | port-config-password} text

Passwords can be up to 32 characters long.

Recovering from a lost password

By default, the CLI does not require passwords. However, if a password has been configured for the device but the password has been lost, you can regain Super User access to the device using the following procedure.

NOTE

Recovery from a lost password requires direct access to the serial port and a system reset.

1. Start a CLI session over the serial interface to the Brocade device.

2. Reboot the device.

3. While the system is booting, before the initial system prompt appears, enter b to enter the boot monitor mode.

4. Enter no password. (You cannot abbreviate this command.)

5. Enter boot. This command causes the device to bypass the system password check.

After the console prompt reappears, assign a new password.

Syntax: [no] password

Syntax: boot

IP address configuration

You must configure at least one IP address using the serial connection to the CLI before you can manage the system using the other management interfaces.

Brocade devices support both classical IP network masks (Class A, B, and C subnet masks, and so on) and Classless Interdomain Routing (CIDR) network prefix masks.

• To enter a classical IP network mask, enter the mask in IP address format. For example, enter "10.157.22.99 255.255.255.0" for an IP address with a Class C subnet mask.

• To enter a prefix number for a network mask, enter a forward slash (/) and the number of bits in the mask immediately after the IP address. For example, enter "10.157.22.99/24" for an IP address that has a network mask with 24 significant ("mask") bits.

By default, the CLI displays network masks in classical IP address format (for example,

255.255.255.0). You can change the display to the prefix format. Refer to the FastIron Ethernet Switch

Administration Guide.

Devices running Layer 2 software

Use the following procedure to configure an IP address on a device running Layer 2 software.

56 Brocade ICX 7250 Switch Hardware Installation Guide

53-1003622-02

Devices running Layer 3 software

1. At the opening CLI prompt, enter enable.

device> enable

2. Enter the following command at the Privileged EXEC level prompt, and then press Enter . This command erases the factory test configuration if still present.

device# erase startup-config

CAUTION

Use the erase startup-config command only for new systems. If you enter this command on a system you have already configured, the command erases the configuration. If you accidentally do erase the configuration on a configured system, enter the write memory command to save the running configuration to the startup-config file.

3. Access the global configuration level of the CLI by entering the following command:

device# configure terminal device(config)#

4. Configure the IP address and mask for the device.

device(config)# ip address 10.22.3.44 255.255.255.0

5. Set a default gateway address for the device.

device(config)# ip default-gateway 10.22.3.1

NOTE

You do not need to assign a default gateway address for single subnet networks.

Syntax: [no] ip address { ip-addr ip-mask | ip-addr/mask-bits }

Syntax: [no] ip default-gateway ip-addr

Devices running Layer 3 software

Before attaching equipment to a Brocade device running Layer 3 software, you must assign an interface IP address to the subnet on which the device will be located. You must use the serial connection to assign the first IP address. For subsequent addresses, you also can use the CLI through Telnet.

By default, you can configure up to 24 IP interfaces on each port, virtual interface, and loopback interface. You can increase this amount to up to 64 IP subnet addresses per port by increasing the size of the subnet-per-interface table.

The following procedure shows how to add an IP address and mask to a router port.

1. At the opening CLI prompt, enter enable.

device> enable

2. Enter the following command at the CLI Privileged EXEC level prompt, and then press Enter . This command erases the factory test configuration if still present.

device# erase startup-config

CAUTION

Brocade ICX 7250 Switch Hardware Installation Guide 57 53-1003622-02

Configuring IP parameters for devices running Layer 3 software

3. Access the global configuration level of the CLI by entering the following command.

device# configure terminal Brocade(config)#

4. Configure the IP addresses and mask addresses for the interfaces on the router.

device(config)# interface ethernet 2 device(config)# ip address 10.22.3.44 255.255.255.0

NOTE

You can use the ip address ip-addr/mask-bits command if you know the subnet mask length. In the example in step 4, you could enter ip address 10.22.3.44/24.

Syntax: [no] ip address { ip-addr ip-mask [ secondary ] | ip-addr/mask-bits [ secondary ] }

Use the secondary parameter if you have already configured an IP address within the same subnet on the interface.

Configuring IP parameters for devices running Layer 3 software

This section describes how to configure IP parameters for devices running Layer 3 software.

Configuring IP addresses

You can configure an IP address on the following types of Layer 3 interfaces:

• Ethernet port

• Virtual routing interface (also called a Virtual Ethernet or "VE")

• Loopback interface

By default, you can have up to 24 IP addresses on each interface, but you can increase this number to 128 IP addresses.

NOTE

Once you configure a virtual routing interface on a VLAN, you cannot configure Layer 3 interface parameters on individual ports in the VLAN. Instead, you must configure the parameters on the virtual routing interface itself.

Assigning an IP address to an Ethernet port

Enter the following commands to assign an IP address to port 1/1/1.

Brocade(config)# interface ethernet 1/1/1 Brocade(config)# ip address 10.45.6.1 255.255.255.0

You also can enter the IP address and mask in CIDR format, as follows:

Brocade># ip address 10.45.6.1/24

Syntax: [no] ip address { ip-addr ip-mask | ip-addr/mask-bits }

Assigning an IP address to a loopback interface

Loopback interfaces are always up, regardless of the states of physical interfaces. They can add stability to the network because they are not subject to route flap problems that can occur due to

58 Brocade ICX 7250 Switch Hardware Installation Guide

53-1003622-02

Deleting an IP address

unstable links between a Layer 3 device and other devices. You can configure up to four loopback interfaces on a Layer 3 device.

You can add up to 24 IP addresses to each loopback interface.

NOTE

If you configure the device to use a loopback interface to communicate with a BGP4 neighbor, you must also configure a loopback interface on the neighbor and configure the neighbor to use that loopback interface to communicate with the Brocade device.

To add a loopback interface, enter commands such as those shown in the following example:

Brocade(config)# exit Brocade(config)# interface loopback 1 Brocade(config)# ip address

10.0.0.1/24

Syntax: interface loopback num

The num parameter specifies the virtual interface number. You can specify from 1 through the maximum number of virtual interfaces supported on the device. To display the maximum number of virtual interfaces supported on the device, enter the show default values command.

Assigning an IP address to a virtual routing interface

A virtual interface is a logical port associated with a Layer 3 Virtual LAN (VLAN) configured on a Layer 3 device. You can configure routing parameters on the virtual interface to enable the Layer 3 device to route protocol traffic from one Layer 3 VLAN to the other, without using an external router.

NOTE

The device uses the lowest MAC address on the device (the MAC address of port 1 or 1/1/1) as the MAC address for all ports within all virtual interfaces you configure on the device.

Enter commands similar to the following to add a virtual interface to a VLAN and configure an IP address on the interface.

Brocade(config)# vlan 2 name IP-Subnet_10.1.2.1/24 Brocade(config-vlan-2)# untag 1/1/1 to 1/1/4 Brocade(config-vlan-2)# router-interface ve1 Brocade(config-vlan-2)# interface ve1 Brocade(config-vif-1)# ip address 10.1.2.1/24

The first two commands in this example create a Layer 3 protocol-based VLAN named "IPSubnet_10.1.2.1/24" and add a range of untagged ports to the VLAN. The router-interface command creates virtual interface 1 as the routing interface for the VLAN. The last two commands change to the interface configuration level for the virtual interface and assign an IP address to the interface.

Syntax: router-interface ve num

Syntax: interface ve num

Deleting an IP address

Enter a command similar to the following to delete an IP address.

Brocade(config-if-1/1/1)# no ip address 10.1.2.1

This command deletes IP address 10.1.2.1. You do not need to enter the subnet mask.

Brocade ICX 7250 Switch Hardware Installation Guide 59 53-1003622-02

Connecting network devices

To delete all IP addresses from an interface, enter the following command.

Brocade(config-if-1/1/1)# no ip address *

Syntax: [no] ip address { ip-addr | * }

Connecting network devices

Brocade devices support connections to other vendors’ routers, switches, and hubs, as well other Brocade devices.

Connectors

For port pinouts, refer to Brocade ICX 7250 Switch Technical Specifications on page 73.

Cable specifications

For information about supported transceivers and cable lengths and types, refer to the Brocade optics family datasheet.

Connecting to Ethernet or Fast Ethernet hubs

For copper connections to Ethernet hubs, a 10/100Base-TX or 1000Base-T switch, or another Brocade device, a crossover cable is required (see the figures below). If the hub is equipped with an uplink port, it requires a straight-through cable instead of a crossover cable.

NOTE

The 802.3ab standard (automatic MDI or MDIX detection) calls for automatic negotiation of the connection between two 1000Base-T ports. In this case, a straight-through cable may work just as well as a crossover cable. For more information about this feature, refer to the FastIron Ethernet Switch

Security Configuration Guide.

60 Brocade ICX 7250 Switch Hardware Installation Guide

53-1003622-02

FIGURE 29 UTP crossover cable

FIGURE 30 Straight-through cable

Connecting to workstations, servers, or routers

Straight-through UTP cabling is required for direct UTP attachment to workstations, servers, or routers using network interface cards (NICs).

Fiber cabling is required for direct attachment to Gigabit NICs or switches and routers through fiber ports. Refer to Connecting a network device to a fiber port on page 62.

Automatic MDI or MDIX detection

All 10/100 and 1000 Mbps Ethernet copper ports on the devices support automatic Media Dependent Interface (MDI) and Media Dependent Interface Crossover (MDIX) detection. This feature is enabled on all 10/100 and 1000 Mbps copper ports by default. For each port, you can disable auto-MDI or MDIX, designate the port as an MDI port, or designate the port as an MDIX port.

Brocade ICX 7250 Switch Hardware Installation Guide 61 53-1003622-02

Connecting a network device to a fiber port

For more information about this feature and how to configure it, refer to the FastIron Ethernet Switch Security Configuration Guide.

Connecting a network device to a fiber port

For direct attachment from the device to a Gigabit NIC, switch, or router, using a fiber-optic transceiver, you need fiber cabling with an LC connector.

To connect the device to another network device using a fiber port, you must perform the following tasks:

• Install a fiber-optic transceiver (SFP or SFP+).

• Cable the fiber-optic transceiver.

For instructions on installing fiber-optic transceivers, refer to Installing a fiber-optic transceiver on page

70.

For instructions on cabling a fiber-optic transceiver, refer to Cabling a fiber-optic transceiver on page

71.

For instructions on cleaning a fiber-optic module, refer to Cleaning the fiber-optic connectors on page

72.

Troubleshooting network connections

• For the indicated port, verify that both ends of the cabling (at the device and the connected device) are snug.

• Verify that the device and the connected device are both powered on and operating correctly.

• Verify that you have used the correct cable type for the connection:

‐ For twisted-pair connections to an end node, use straight-through cabling. ‐ For fiber-optic connections, verify that the transmit port on the device is connected to the

receive port on the connected device, and that the receive port on the device is connected to the transmit port on the connected device.

• Use the CLI to verify that the port has not been disabled through a configuration change. If you have configured an IP address on the device, you also can use Brocade Network Advisor.

• If the other procedures do not resolve the problem, try using a different port or a different cable.

• If a 1-Gbps optic transceiver is inserted into a ICX 7250 device, you must configure the port using the speed-duplex 1000-full-master command at the interface level.

Digital optical monitoring

NOTE

10 Gbps optical transceivers are not supported on ICX 7250-24G devices.

You can configure your device to monitor optical transceivers in the system, either globally or by specified port. When this feature is enabled, the system monitors the temperature and signal power levels for the optical transceivers in the specified ports. Console messages and syslog messages are sent when optical operating conditions fall below or rise above the SFP and SFP+ manufacturer’s recommended thresholds. For more information about digital optical monitoring, refer to the FastIron

Ethernet Switch Security Configuration Guide.

62 Brocade ICX 7250 Switch Hardware Installation Guide

53-1003622-02

Testing connectivity

Test for connectivity by observing the LEDs related to network connection.

Pinging an IP address

To verify that a device can reach another device through the network, enter a command similar to the following at any level of the CLI.

device> ping 10.33.4.7

Syntax: ping ip-addr [ source ip-addr ] [ count num ] [ timeout msec ] [ ttl num ] [ verify ] [ nofragment ] [ quiet ] [ data 1-to-4 byte hex#, e.g., abcdef00 ] [ numeric ] [ size byte ] [ brief [ max-printper-sec num, 0-2047 ] ]

NOTE

If you address the ping to the IP broadcast address, the device lists the first four responses.

Testing connectivity

Observing LEDs

After you install the network cables, you can observe certain LEDs to determine if the network connections are functioning properly. The following table outlines the LEDs related to the network connections, the desired state of each LED, possible abnormal states of each LED, and what to do if an LED indicates an abnormal state.

Network connection-related LED states TABLE 12

LED Desired

state

Ethernet (1-24/48) On or

flashing (Green)

Meaning Abnormal

The port has established a valid link at 10, 100, or 1000 Mbps. Flashing indicates the port is transmitting and receiving user packets.

state

Off A link is not established with the remote

Meaning or action

port. You can do the following:

• Verify that the connection to the other network device has been properly made. Also, make certain that the other network device is powered on and operating correctly.

• Verify that the port has not been disabled through a configuration change. You can use the CLI. If you have configured an IP address on the device, you also can use the Web management interface or Brocade Network Advisor.

• If the other actions do not resolve the problem, try using a different port or a different cable.

Brocade ICX 7250 Switch Hardware Installation Guide 63 53-1003622-02

Tracing a route

Network connection-related LED states (Continued)TABLE 12

LED Desired

PoE

(1-24/48)

SFP (X1 - X4) for ICX 7250-24Gdevices

SFP+ (X1 - X8) for all other ICX 7250 devices

state

On (Green)

On or flashing (Green or Yellow)

Meaning Abnormal

The port is providing PoE power to a connected device.

Flashing yellow indicates the port is transmitting and receiving user packets at 1 Gbps.

The SFP+ port is operating at 10 Gbps. Flashing green indicates the port is transmitting and receiving user packets at 10 Gbps.

state

Off A link is not established with the PoE

Off A link is not established with the remote

Meaning or action

device. You can do the following:

• Verify that the connection to the other network device has been properly made.

• If the other actions do not resolve the problem, try using a different port or a different cable.

port. You can do the following:

• Verify that the connection to the other network device has been properly made. Also, make certain that the other network device is powered on and operating correctly.

• Verify that the transmit port on the device is connected to the receive port on the other network device, and that the receive port on the device is connected to the transmit port on the other network device. If you are not certain, remove the two cable connectors from the port connector and reinsert them in the port connector, reversing their order.

• Dust may have accumulated in the cable connector or port connector. For information about cleaning the connectors, refer to Cleaning the fiber-

optic connectors on page 72.

• Verify that the port has not been disabled through a configuration change.

• Ensure that the SFP+ in both ends are of the same optic type (for example. SR, LR, LRM).

• If the other actions do not resolve the problem, try using a different port or a different cable.

If a problem persists after taking these actions, contact Brocade Technical Support.

Tracing a route

To determine the path through which a Brocade device can reach another device, enter a command similar to the following at any level of the CLI on the device.

device> traceroute 10.33.4.7

Syntax: traceroute host-ip-addr [ maxttl value ] [ minttl value ] [ numeric ] [ timeout value ] [ source-ip ip-addr ]

The CLI displays trace route information for each hop as soon as the information is received. Traceroute requests display all responses to a given TTL. In addition, if there are multiple equal-cost routes to the destination, the Brocade device displays up to two responses by default.

64 Brocade ICX 7250 Switch Hardware Installation Guide

53-1003622-02

Managing an ICX 7250 Device

● Managing temperature settings.......................................................................................65

● Displaying CPU usage.................................................................................................... 68

● Removing MAC address entries..................................................................................... 68

DANGER

The procedures in this manual are for qualified service personnel.

Managing temperature settings

The device contains temperature sensors that the software reads based on a configurable device poll time. The devices have two automatic speed fan control settings based on the temperature. To protect the device from overheating, the following temperature threshold levels exist:

• The warning level is the temperature at which the device generates a syslog message. It is configurable up to 100°C.

• The shutdown level is the temperature at which the device reboots. It is set by the device and is not configurable. When the device temperature reaches the shutdown level, it generates a warning message that the device’s temperature is over the shutdown level and the device will shut down in five minutes. The system restarts five minutes after the device reaches the temperature shutdown level.

Temperature thresholdsTABLE 13

Model Warning level temperature threshold

(°C)

ICX 7250 Brocade recommends setting the warning level temperature

no higher than 100°C.

Critical (shutdown) temperature threshold

(°C)

105°C

Displaying the temperature

To display the temperature of a device, enter the show chassis command at any level of the CLI. The show chassis command displays the power supply status and temperature threshold levels for fan

speed.

NOTE

The displayed temperature reflects the temperature of the board inside the device.

Brocade# show chassis

The stack unit 1 chassis info: Power supply present, status ok Sensor B Temperature Readings: Current temperature : 55.0 deg-C

Brocade ICX 7250 Switch Hardware Installation Guide 53-1003622-02

Displaying syslog messages for temperature

Sensor A Temperature Readings: Current temperature : 50.0 deg-C

Warning level.......: 76.0 deg-C

Shutdown level......: 83.0 deg-C

Boot Prom MAC : 748e.f8ea.0360 Management MAC: 748e.f8ea.0360 =====

Syntax: show chassis

Displaying syslog messages for temperature

The software sends a syslog message and an SNMP trap if the temperature crosses the warning or shutdown thresholds. The following method describes how to view the system log on the device. If you have configured the device to use a syslog server or SNMP trap receiver, refer to the documentation for the server or receiver.

To display the system log, enter the show log command at any CLI level.

Brocade# show log

Syslog logging: enabled (0 messages dropped, 0 flushes, 0 overruns) Buffer logging: level ACDMEINW, 20 messages logged level code: A=alert C=critical D=debugging M=emergency E=error I=informational N=notification W=warning Static Log Buffer: 1d02h07m29s:A:System: Stack unit 1 Temperature 60.0 C degrees, warning level 55.0 C degrees, shutdown level 65.0 C degrees 1d02h07m29s:W:System: Temperature is over warning level on unit 1 Dec 1 10:16:34:A:System: Stack unit 2 Temperature 46.0 C degrees, warning level

70.0 C degrees, shutdown level 80.0 C degrees Dec 1 10:16:34:A:System: Temperature on Unit 2 is over shutdown level, system is going to be reset in 2 seconds Dynamic Log Buffer (50 lines): 0d00h00m53s:I:STP: VLAN 1 Port 1/2/2 Bridge TC Event (FwdDlyExpiry) 0d00h00m53s:I:STP: VLAN 1 Port 1/2/2 STP State -> FORWARDING (FwdDlyExpiry) 0d00h00m37s:I:STP: VLAN 1 Port 1/2/2 STP State -> LEARNING (FwdDlyExpiry) 0d00h00m26s:I:STP: VLAN 1 Port 1/2/3 STP State -> FORWARDING (FwdDlyExpiry) 0d00h00m26s:I:STP: VLAN 1 Port 1/1/1 STP State -> FORWARDING (FwdDlyExpiry) 0d00h00m24s:I:STP: VLAN 1 Port 1/2/3 STP State -> LEARNING (FwdDlyExpiry) 0d00h00m24s:I:STP: VLAN 1 Port 1/1/1 STP State -> LEARNING (FwdDlyExpiry) 0d00h00m23s:I:STP: VLAN 1 Port 1/2/4 STP State -> BLOCKING (MakeBlking) 0d00h00m22s:I:System: Interface ethernet 1/2/4, state up 0d00h00m22s:I:STP: VLAN 1 Port 1/2/4 STP State -> LISTENING (MakeFwding) 0d00h00m22s:I:System: Interface ethernet 1/2/3, state up

Syntax: show log

Temperature threshold levels

The fan speed settings are set by the device, and are not configurable. The following table describes the temperature thresholds in Celsius of the fan speeds for the Brocade devices.

By default, the warning temperature level is 10 degrees less than the critical temperature level. The fan speed is high when the temperature level for a device reaches a high threshold level. The fan speed is decreased when the temperature reaches a low threshold level.

TABLE 14

Model Low limit temperature

ICX 7250-24G 71 98 105

66 Brocade ICX 7250 Switch Hardware Installation Guide

Temperature thresholds

TA (°C)

High limit temperature

TB (°C)

Critical (shutdown) temperature

TC (°C)

53-1003622-02

Changing the temperature warning level

Temperature thresholds (Continued)TABLE 14

Model Low limit temperature

TA (°C)

ICX 7250-24 67 98 105

ICX 7250-24P 82

49 @ PSU

ICX 7250-48P 67 98 105

ICX 7250-48 85

34 @ PSU

High limit temperature

TB (°C)

58 @ PSU

41 @ PSU

Critical (shutdown) temperature

TC (°C)

105

N/A

105

N/A

Changing the temperature warning level

To change the temperature at which the device sends a syslog message and an SNMP trap, enter a command similar to the following at the Privileged EXEC level of the CLI.

Brocade# temperature warning 1 82

Syntax: temperature warning stack-idvalue

The stack-id can be a value from 1 through 12.

The value variable is the temperature warning level, in Celsius. You cannot set this level higher than the maximum value allowed by your device. The temperature warning level must be at least five Celsius degrees less than the temperature shutdown level, which is automatically set by the device.

The following console and syslog message is displayed when the temperature reaches the warning level:

!!! Temperature is over warning level on stack unit 1!!!

Temperature shutdown levels
