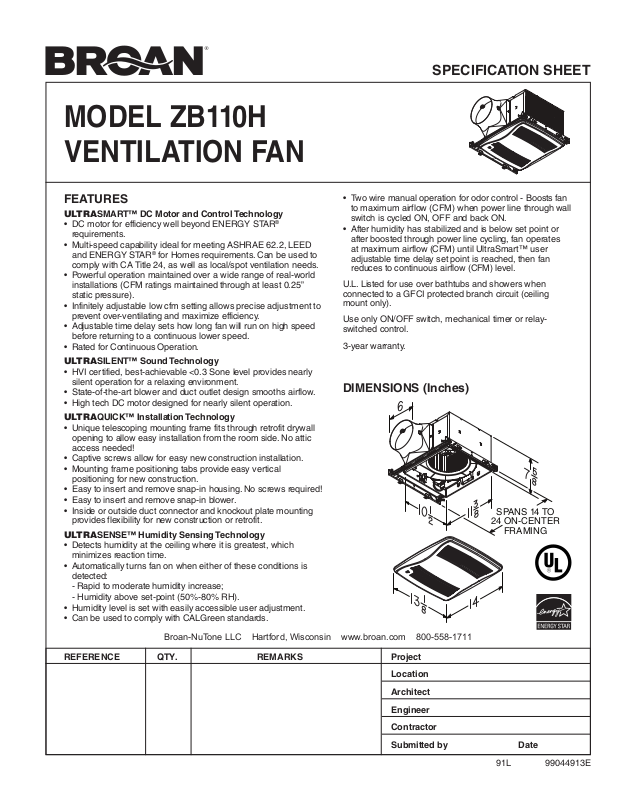

Broan ZB110H Specifications
MODEL ZB110H
24 ON-CENTER
VENTILATION FAN
SPECIFICATION SHEET
FEATURES
ULTRASMART™ DC Motor and Control Technology
• DC motor for efficiency well beyond ENERGY STAR®
requirements.
• Multi-speed capability ideal for meeting ASHRAE 62.2, LEED
and ENERGY STAR® for Homes requirements. Can be used to
comply with CA Title 24, as well as local/spot ventilation needs.
• Powerful operation maintained over a wide range of real-world
installations (CFM ratings maintained through at least 0.25”
static pressure).
• Infinitely adjustable low cfm setting allows precise adjustment to
prevent over-ventilating and maximize efficiency.
• Adjustable time delay sets how long fan will run on high speed
before returning to a continuous lower speed.
• Rated for Continuous Operation.
ULTRASILENT™ Sound Technology
• HVI certified, best-achievable <0.3 Sone level provides nearly
silent operation for a relaxing environment.
• State-of-the-art blower and duct outlet design smooths airflow.
• High tech DC motor designed for nearly silent operation.
ULTRAQUICK™ Installation Technology
• Unique telescoping mounting frame fits through retrofit drywall
opening to allow easy installation from the room side. No attic
access needed!
• Captive screws allow for easy new construction installation.
• Mounting frame positioning tabs provide easy vertical
positioning for new construction.
• Easy to insert and remove snap-in housing. No screws required!
• Easy to insert and remove snap-in blower.
• Inside or outside duct connector and knockout plate mounting
provides flexibility for new construction or retrofit.
ULTRASENSE™ Humidity Sensing Technology
• Detects humidity at the ceiling where it is greatest, which
minimizes reaction time.
• Automatically turns fan on when either of these conditions is
detected:
- Rapid to moderate humidity increase;
- Humidity above set-point (50%-80% RH).
• Humidity level is set with easily accessible user adjustment.
• Can be used to comply with CALGreen standards.
• Two wire manual operation for odor control - Boosts fan
to maximum airflow (CFM) when power line through wall
switch is cycled ON, OFF and back ON.
• After humidity has stabilized and is below set point or
after boosted through power line cycling, fan operates
at maximum airflow (CFM) until UltraSmart™ user
adjustable time delay set point is reached, then fan
reduces to continuous airflow (CFM) level.
U.L. Listed for use over bathtubs and showers when
connected to a GFCI protected branch circuit (ceiling
mount only).
Use only ON/OFF switch, mechanical timer or relayswitched control.
3-year warranty.
DIMENSIONS (Inches)
SPANS 14 TO
FRAMING
Broan-NuTone LLC Hartford, Wisconsin www.broan.com 800-558-1711
REFERENCE QTY. REMARKS Project
Location
Architect
Engineer
Contractor
Submitted by Date
91L 99044913E
HVI PERFORMANCE
PERFORMANCE SPECIFICATIONS
MODEL ZB110H VENTILATION FAN
ELECTRICAL
& WEIGHT
Airflow
Rate
Setting
(CFM)
110 110 < 0.3 8.3 13.3 110
100 100 < 0.3 7. 6 13.2 100
90 90 < 0.3 7. 0 12.9 90
80 80 < 0.3 6.4 12.5 80
70 70 < 0.3 5.7 12.3 70
60 60 < 0.3 5.2 11. 5 60
50 50 < 0.3 4.7 10.6 50
40 40 < 0.3 4.3 9.3 40
30 30 < 0.3 3.9 7. 7 30
0.1 Ps - Static Pressure (inH2O) 0.25 Ps
Airflow
(CFM)
Sound
(Sones)
6" Duct
Power
(Watts)
Efficacy
(CFM/
Watt)
FAN CAPABILITY
©
2012 Broan -NuTone LLC
0.7
0.6
0.5
Airflow
(CFM)
HVI -2100
CERTIFIED
RATI N GS comply
with new testing
procedures prescribed by the
Home Ventilating Institute, for
off-the-shelf products, as they are
available to consumers. Product
performance is rated at 0.1 in.
static pressure, based on tests
conducted in a state-of-the-art
test laboratory. Sones are a
measure of humanly-perceived
loudness, based on laborator y
measurements.
ZB110 - 6” Duct
ZB110H - 6" Duct
technologies and
Shipping
Volts Hz Amps
120 60 0.4 12.2
Weight
(lbs.)
0.4
0.3
Precise airflow rate
Static Pressure
0.2
adjustability allows fan to
produce any CFM shown
2O - Inches of Water Gauge)
0.1
(inH
0.0
within this shaded area.
0 10 20 30 40 50 60 70 80 90 100 110 120
Airflow (CFM - Cubic Feet per Minute)
