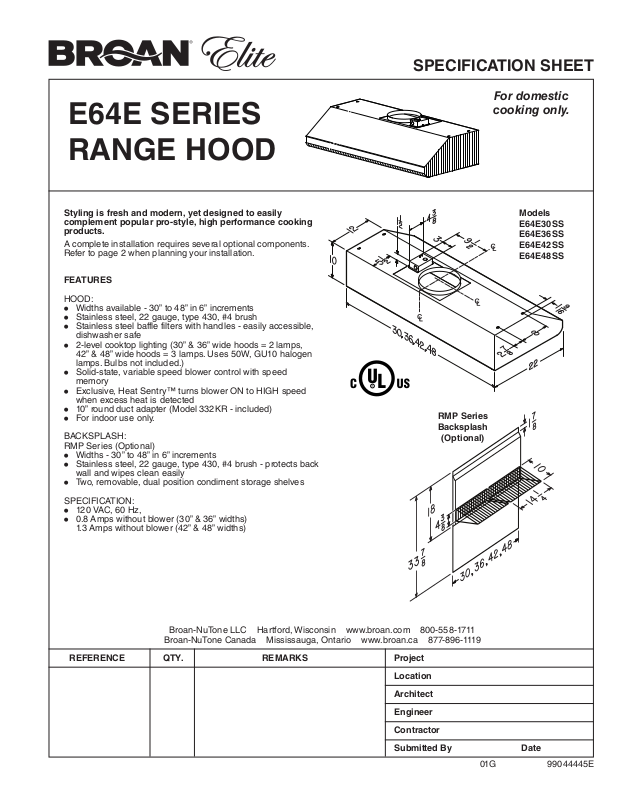

E64E SERIES
RANGE HOOD
SPECIFICATION SHEET
For domestic
cooking only.
Styling is fresh and modern, yet designed to easily
complement popular pro-style, high performance cooking
products.
A complete installation requires several optional components.
Refer to page 2 when planning your installation.
FEATURES
HOOD:
Widths available - 30” to 48” in 6” increments
•
Stainless steel, 22 gauge, type 430, #4 brush
•
Stainless steel baffle filters with handles - easily accessible,
•
dishwasher safe
2-level cooktop lighting (30” & 36” wide hoods = 2 lamps,
•
42” & 48” wide hoods = 3 lamps. Uses 50W, GU10 halogen
lamps. Bulbs not included.)
Solid-state, variable speed blower control with speed
•
memory
Exclusive, Heat Sentry™ turns blower ON to HIGH speed
•
when excess heat is detected
10” round duct adapter (Model 332KR - included)
•
For indoor use only.
•
BACKSPLASH:
RMP Series (Optional)
Widths - 30” to 48” in 6” increments
•
Stainless steel, 22 gauge, type 430, #4 brush - protects back
•
wall and wipes clean easily
Two, removable, dual position condiment storage shelves
•
SPECIFICATION:
120 VAC, 60 Hz,
•
0.8 Amps without blower (30” & 36” widths)
•
1.3 Amps without blower (42” & 48” widths)
Models
E64E30SS
E64E36SS
E64E42SS
E64E48SS
RMP Series
Backsplash
(Optional)
Broan-NuTone LLC Hartford, Wisconsin www.broan.com 800-558-1711
Broan-NuTone Canada Mississauga, Ontario www.broan.ca 877-896-1119
REFERENCE QTY. REMARKS Project
Location
Architect
Engineer
Contractor
Submitted By Date
01G 99044445E
Page 2
E64E SERIES RANGE HOOD SYSTEM
INLINE AND EXTERIOR BLOWERS
MODEL 643
(8” ROUND
WALL CAP)
MODEL HLB3 (280 CFM)
INLINE BLOWER
(INCLUDES ONE 8” X 10”
ROUND TRANSITION)
(HIGH CAPACITY ROOF CAP)
MODEL 437
MODEL HLB6 (600 CFM)
INLINE BLOWER
(INCLUDES TW0 4½” X 18½” TO
10” ROUND TRANSITIONS)
(10” ROUND DUCT - 2 FT. SECTIONS)
MODEL 441
(10” ROUND
WALL CAP)
MODEL 418
(10” ROUND
ADJUSTABLE ELBOW)
MODEL 410
MODEL HLB9 (800 CFM)
OR HLB11 (1100 CFM)
INLINE BLOWER
(INCLUDES TW0 8” X 12”
TO 10” ROUND TRANSITIONS)
MODEL 331H (600 CFM)
OR 332H (900 CFM)
EXTERIOR BLOWER
MODEL 335 (1200 CFM)
OR 336 (1500 CFM)
EXTERIOR BLOWER
MODEL 421
(10” ROUND
VERTICAL
IN-LINE
DAMPER RECOMMENDED
FOR USE WITH
EXTERIOR BLOWERS)
(STAINLESS STEEL WALL COVERING
RMP SERIES BACKSPLASH
WITH WARMING SHELVES -
OPTIONAL)
E64E SERIES HOOD
MODEL 332KR
(IN-LINE AND EXTERIOR
BLOWER ROUGH-IN KIT)
