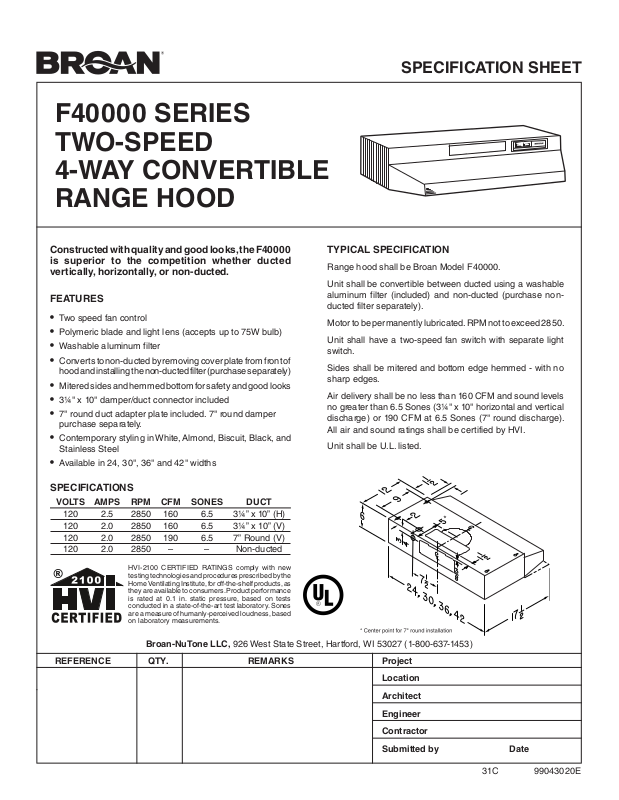

F40000 SERIES
TWO-SPEED
4-WAY CONVERTIBLE
RANGE HOOD
SPECIFICATION SHEET
Constructed with quality and good looks, the F400 00
is superior to the competition whether ducted
vertically, horizontally, or non-ducted.
FEATURES
• Two speed fan control
• Polymeric blade and light lens (accepts up to 75W bulb)
• Washable aluminum filter
• Converts to non-ducted by removing cover plate from front of
hood and installing the non-ducted filter (purchase separately)
• Mitered sides and hemmed bottom for safety and good looks
• 3¼" x 10" damper/duct connector included
• 7" round duct adapter plate included. 7" round damper
purchase separately.
• Contemporary styling in White, Almond, Biscuit, Black, and
Stainless Steel
• Available in 24, 30", 36" and 42" widths
SPECIFICATIONS
VOLTS AMPS RPM CFM SONES DUCT
120 2.5 2850 160 6.5 3¼” x 10” (H)
120 2.0 2850 160 6.5 3¼” x 10” (V)
120 2.0 2850 190 6.5 7” Round (V)
120 2.0 2850 – – Non-ducted
TYPICAL SPECIFICATION
Range hood shall be Broan Model F40000.
Unit shall be convertible between ducted using a washable
aluminum filter (included) and non-ducted (purchase nonducted filter separately).
Motor to be permanently lubricated. RPM not to exceed 2850.
Unit shall have a two-speed fan switch with separate light
switch.
Sides shall be mitered and bottom edge hemmed - with no
sharp edges.
Air delivery shall be no less than 160 CFM and sound levels
no greater than 6.5 Sones (3¼" x 10" horizontal and vertical
discharge) or 190 CFM at 6.5 Sones (7" round discharge).
All air and sound ratings shall be certified by HVI.
Unit shall be U.L. listed.
HVI-2100 CERTIFIED RATINGS comply with new
testing technologies and procedures prescribed by the
Home Ventilating Institute, for off-the-shelf products, as
they are available to consumers. Product performance
is rated at 0.1 in. static pressure, based on tests
conducted in a state-of-the-art test laboratory. Sones
are a measure of humanly-perceived loudness, based
on laboratory measurements.
Broan-NuTone LLC, 926 West State Street, Hartford, WI 53027 (1-800-637-1453)
REFERENCE QTY. REMARKS Project
Location
Architect
Engineer
Contractor
Submitted by Date
31C 99043020E
