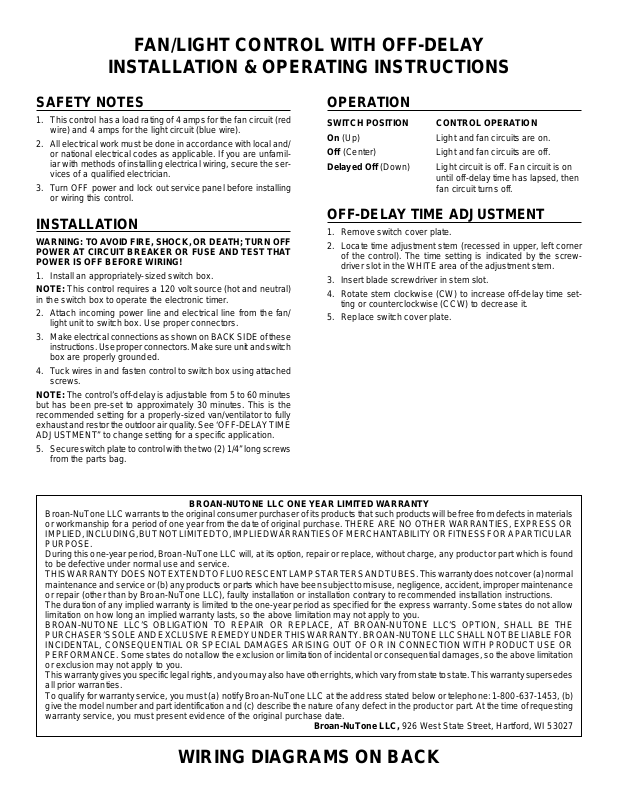

FAN/LIGHT CONTROL WITH OFF-DELAY
INSTALLATION & OPERATING INSTRUCTIONS
SAFETY NOTES
1. This control has a load rating of 4 amps for the fan circuit (red
wire) and 4 amps for the light circuit (blue wire).
2. All electrical work must be done in accordance with local and/
or national electrical codes as applicable. If you are unfamiliar with methods of installing electrical wiring, secure the services of a qualified electrician.
3. Turn OFF power and lock out service panel before installing
or wiring this control.
INSTALLATION
WARNING: T O AVOID FIRE, SHOCK, OR DEATH; TURN OFF
POWER AT CIRCUIT BREAKER OR FUSE AND TEST THAT
POWER IS OFF BEFORE WIRING!
1. Install an appropriately-sized switch box.
NOTE: This control requires a 120 volt source (hot and neutral)
in the switch box to operate the electronic timer.
2. Attach incoming power line and electrical line from the fan/
light unit to switch box. Use proper connectors.
3. Make electrical connections as shown on BACK SIDE of these
instructions. Use proper connectors. Make sure unit and switch
box are properly grounded.
4. Tuck wires in and fasten control to switch box using attached
screws.
NOTE: The control’s off-delay is adjustable from 5 to 60 minutes
but has been pre-set to approximately 30 minutes. This is the
recommended setting for a properly-sized van/ventilator to fully
exhaust and restor the outdoor air quality. See ‘OFF-DELA Y TIME
ADJUSTMENT” to change setting for a specific application.
5. Secure switch plate to control with the two (2) 1/4” long screws
from the parts bag.
OPERATION
SWITCH POSITION CONTROL OPERATION
On (Up) Light and fan circuits are on.
Off (Center) Light and fan circuits are off.
Delayed Off (Down) Light circuit is off. Fan circuit is on
until off-delay time has lapsed, then
fan circuit turns off.
OFF-DELAY TIME ADJUSTMENT
1. Remove switch cover plate.
2. Locate time adjustment stem (recessed in upper, left corner
of the control). The time setting is indicated by the screwdriver slot in the WHITE area of the adjustment stem.
3. Insert blade screwdriver in stem slot.
4. Rotate stem clockwise (CW) to increase off-delay time setting or counterclockwise (CCW) to decrease it.
5. Replace switch cover plate.
BROAN-NUTONE LLC ONE YEAR LIMITED WARRANTY
Broan-NuTone LLC warrants to the original consumer purchaser of its products that such products will be free from defects in materials
or workmanship for a period of one year from the date of original purchase. THERE ARE NO OTHER WARRANTIES, EXPRESS OR
IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE.
During this one-year period, Broan-NuTone LLC will, at its option, repair or replace, without charge, any product or part which is found
to be defective under normal use and service.
THIS WARRANTY DOES NOT EXTEND TO FLUORESCENT LAMP STARTERS AND TUBES. This warranty does not cover (a) normal
maintenance and service or (b) any products or parts which have been subject to misuse, negligence, accident, improper maintenance
or repair (other than by Broan-NuTone LLC), faulty installation or installation contrary to recommended installation instructions.
The duration of any implied warranty is limited to the one-year period as specified for the express warranty. Some states do not allow
limitation on how long an implied warranty lasts, so the above limitation may not apply to you.
BROAN-NUTONE LLC’S OBLIGATION TO REPAIR OR REPLACE, AT BROAN-NUTONE LLC’S OPTION, SHALL BE THE
PURCHASER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. BROAN-NUTONE LLC SHALL NOT BE LIABLE FOR
INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH PRODUCT USE OR
PERFORMANCE. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation
or exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state. This warranty supersedes
all prior warranties.
To qualify for warranty service, you must (a) notify Broan-NuTone LLC at the address stated below or telephone: 1-800-637-1453, (b)
give the model number and part identification and (c) describe the nature of any defect in the product or part. At the time of requesting
warranty service, you must present evidence of the original purchase date.
Broan-NuTone LLC, 926 West State Street, Hartford, WI 53027
WIRING DIAGRAMS ON BACK
Page 2

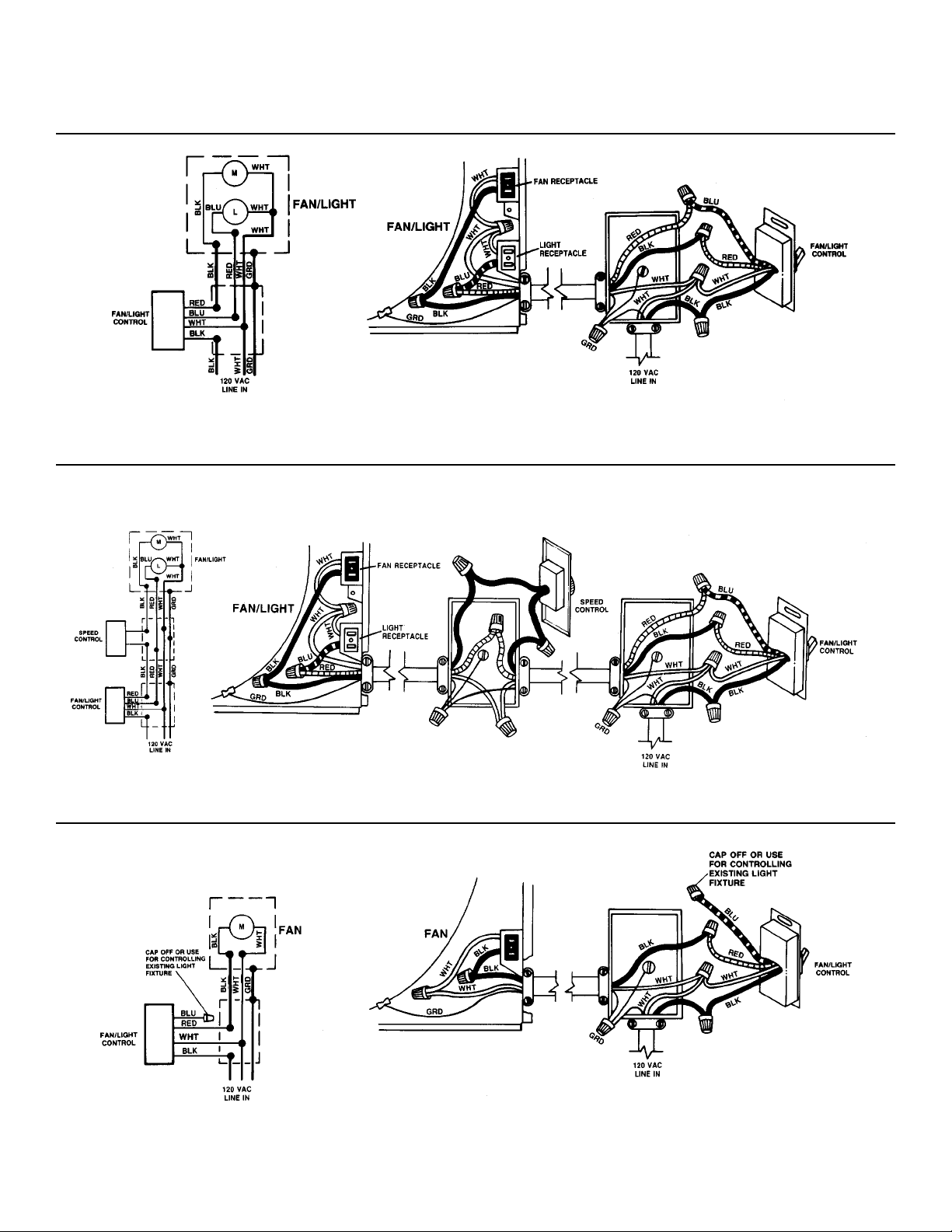

WIRING DIAGRAMS
CONTROLLING A FAN/LIGHT
USED WITH SPEED CONTROL
NOTE: If this Fan/Light Control with Off-Delay is used with a speed control, the speed control must be connected between the Fan/
Light Control and the Fan/Light unit.
CONTROLLING A FAN
Broan-NuTone LLC, A Nortek Company Hartford, Wisconsin 53027
99041878B
