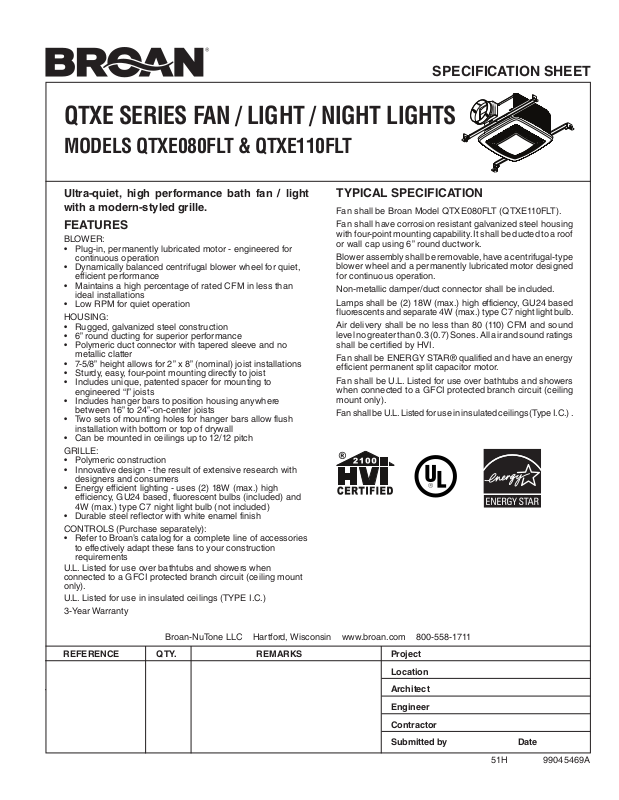

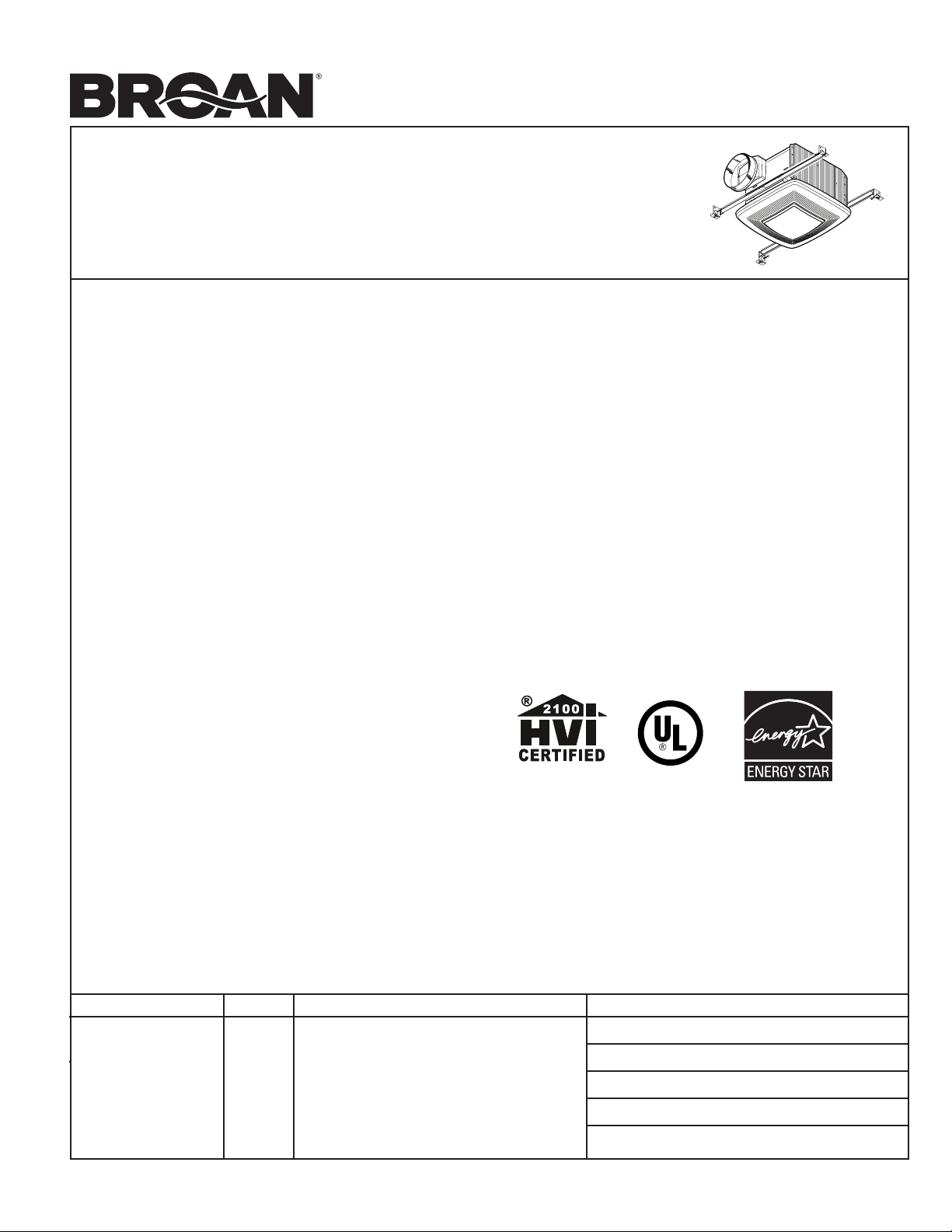

SPECIFICATION SHEET
QTXE SERIES FAN / LIGHT / NIGHT LIGHTS
MODELS QTXE080FLT & QTXE110FLT
Ultra-quiet, high performance bath fan / light
with a modern-styled grille.
FEATURES
BLOWER:
• Plug-in, permanently lubricated motor - engineered for
continuous operation
• Dynamically balanced centrifugal blower wheel for quiet,
efficient performance
• Maintains a high percentage of rated CFM in less than
ideal installations
• Low RPM for quiet operation
HOUSING:
• Rugged, galvanized steel construction
• 6” round ducting for superior performance
• Polymeric duct connector with tapered sleeve and no
metallic clatter
• 7-5/8” height allows for 2” x 8” (nominal) joist installations
• Sturdy, easy, four-point mounting directly to joist
• Includes unique, patented spacer for mounting to
engineered “I” joists
• Includes hanger bars to position housing anywhere
between 16” to 24”-on-center joists
• Two sets of mounting holes for hanger bars allow flush
installation with bottom or top of drywall
• Can be mounted in ceilings up to 12/12 pitch
GRILLE:
• Polymeric construction
• Innovative design - the result of extensive research with
designers and consumers
• Energy efficient lighting - uses (2) 18W (max.) high
efficiency, GU24 based, fluorescent bulbs (included) and
4W (max.) type C7 night light bulb (not included)
• Durable steel reflector with white enamel finish
CONTROLS (Purchase separately):
• Refer to Broan’s catalog for a complete line of accessories
to effectively adapt these fans to your construction
requirements
U.L. Listed for use over bathtubs and showers when
connected to a GFCI protected branch circuit (ceiling mount
only).
U.L. Listed for use in insulated ceilings (TYPE I.C.)
3-Year Warranty
TYPICAL SPECIFICATION
Fan shall be Broan Model QTXE080FLT (QTXE110FLT).
Fan shall have corrosion resistant galvanized steel housing
with four-point mounting capability. It shall be ducted to a roof
or wall cap using 6” round ductwork.
Blower assembly shall be removable, have a centrifugal-type
blower wheel and a permanently lubricated motor designed
for continuous operation.
Non-metallic damper/duct connector shall be included.
Lamps shall be (2) 18W (max.) high efficiency, GU24 based
fluorescents and separate 4W (max.) type C7 night light bulb.
Air delivery shall be no less than 80 (110) CFM and sound
level no greater than 0.3 (0.7) Sones. All air and sound ratings
shall be certified by HVI.
Fan shall be ENERGY STAR® qualified and have an energy
efficient permanent split capacitor motor.
Fan shall be U.L. Listed for use over bathtubs and showers
when connected to a GFCI protected branch circuit (ceiling
mount only).
Fan shall be U.L. Listed for use in insulated ceilings (Type I.C.) .
Broan-NuTone LLC Hartford, Wisconsin www.broan.com 800-558-1711
REFERENCE QTY. REMARKS Project
Location
Architect
Engineer
Contractor
Submitted by Date
51H 99045469A
Page 2

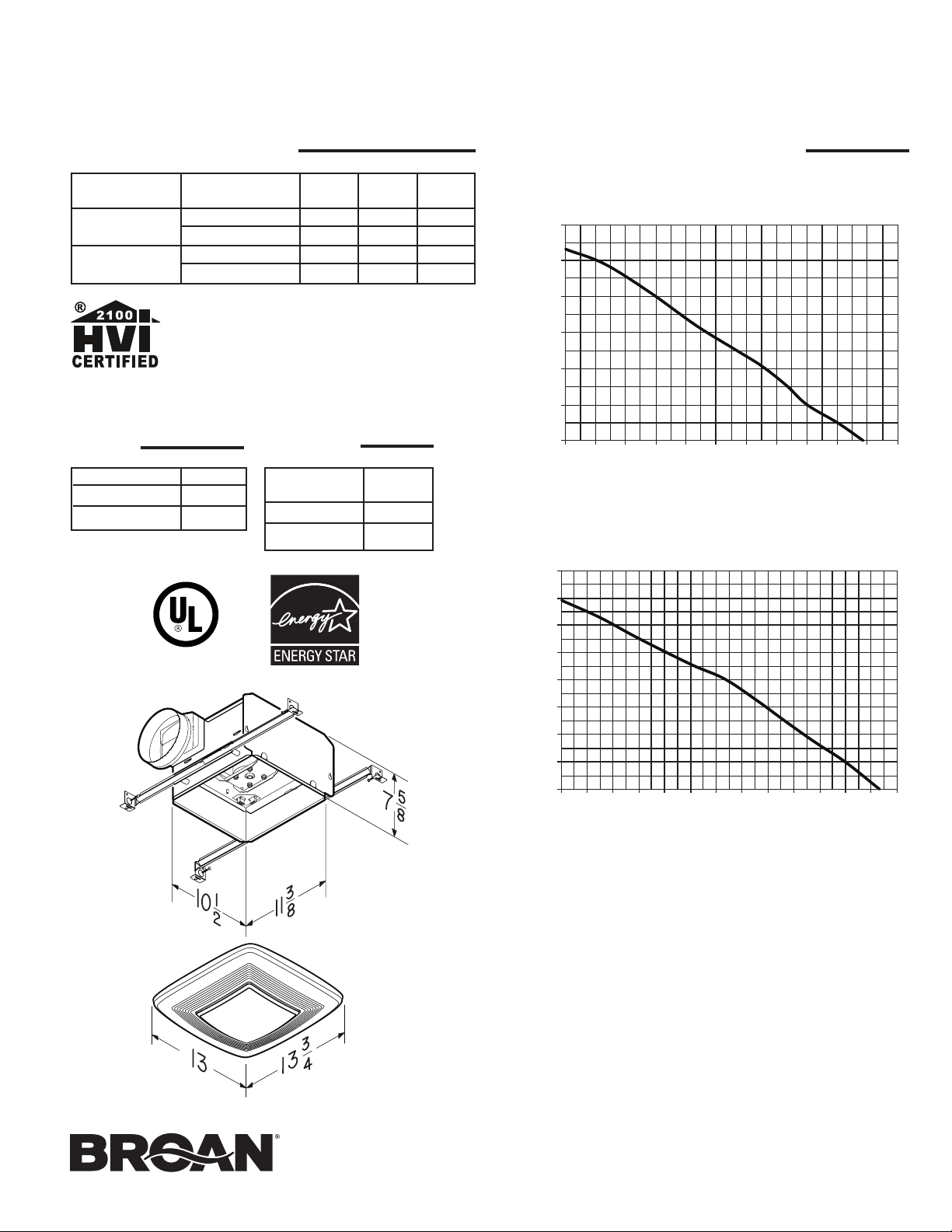

PERFORMANCE RATINGS
Static Pressure (in. w.g.)
QTXE SERIES FAN / LIGHT / NIGHT LIGHTS
HVI PERFORMANCE
Model
QTXE080FLT
0.25 56
QTXE110FLT
0.25 86
Pressure (Ps)
0.10 80 0.3 23.3
0.10 110 0.7 31.4
HVI-2100 CERTIFIED RATINGS comply with new testing
technologies and procedures prescribed by the Home Ventilating
Institute, for off-the-shelf products, as they are available to
consumers. Product performance is rated at 0.1 in. static pressure,
based on tests conducted in a state-of-the-art test laboratory.
Sones are a measure of humanly-perceived loudness, based on
laboratory measurements.
AMPS
Model Amps*
QTXE080FLT 0.8
QTXE110FLT 1. 0
* Total connected load
Static Fan
CFM Sones
WEIGHT
Model
Weight
QTXE080FLT 16.2 lbs.
QTXE110FLT 15.8 lbs.
Watts
Shipping
AIR FLOW PERFORMANCE
MODEL QTXE080FLT
0.6
0.5
0.4
0.3
0.2
0.1
0.0
0 10 20 30 40 50 60 70 80 90 100 110
Airflow (CFM)
MODEL QTXE110FLT
0.8
0.7
0.6
0.5
0.4
0.3
0.2
Static Pressure (in. w.g.)
0.1
0.0
0 10 20 30 40 50 60 70 80 90 100 110 120 130
Airflow (CFM)
